Boost Auto Parts 9906 Wireless charger modules User Manual LePower Limited
Boost Auto Parts LLC Wireless charger modules LePower Limited
User Manual
东莞奇魁电子科技有限公司
QI QUICK TECHNOLOGY CO,LTD
Model No.: 9906 Rev.: 0.1
Car Charger Transmitter Module Specification
Model Name: 3 Coil Module Qi Transmitter
Model No.: 9906
Date of Release: 24 MAR,2018
Version: 0.1
东莞奇魁电子科技有限公司
QI QUICK TECHNOLOGY CO,LTD
Model No.: 9906
Rev.: 0.1
1. Introduction
This product is a fast wireless charger designed for the automotive aftermarket. It can support
Samsung mobile phone 10W and Apple mobile phone 7.5 W wireless charging, can be compatible
and mainstream receivers on the market, and supports WPC Qi 1.2.4 version certification. This
product was launched in the third quarter of 2018.
2. Product Features
·Can realize fast wireless charging
·Expanded free positioning using three coil transmit array
·WPC A28-Type transmitter coil, 70 mm ×25 mm free positioning area
·Designed for 9-Vdc systems
·Optional input power SEPIC converter to produce 9 Vdc from 6 .5V to 30 V
·Conforms to wireless power consortium (WPC)A28 transmitter type specification
·Support FOD function detection and comply with WPC1.2.4 standard
·Digital demodulation reduces components
·Over-current protection
·LED indication of charging state and fault status
3. Applications
·WPC 1.2 Wireless Chargers:
- In Cars and Other Vehicle Accessories
- Qi-Certified Smart Phones and Other Handhelds
- Industrial and Medical Applications
东莞奇魁电子科技有限公司
QI QUICK TECHNOLOGY CO,LTD
Model No.: 9906
Rev.: 0.1
4. Electrical Specification
Parameters
Test Condition
Min
Tpy
Max
Unit
Input Characteristics-Transmitter 9906
V-in
Input Voltage
8
12
30
V
I-in
Input Current
(Max. Load test with 5W/10W
Qi quick Rx)
0.25
0.58
1
A
Input on-Load Current
Vin=12V,Receiver I=0A
20
50
mA
Input stand-by current
Vin=12v
18.75
mA
Output Characteristics –5W Receiver Qi Quick
V-out
Output Load
Vin=Nom, I=Nom
4.75
5
5.25
V
Output ripple
Vin=12V,Receiver I=1A
200
mVPP
I-out
I out=Min to Max
I out=Min to Max
0
1
A
Output over current
I out=Min to Max
1
1.1
A
System Efficiency
V in=12V, P out Rx= 2.5W
70
72
%
System Frequency
110
205
Khz
Output Characteristics –10W Receiver Qi Quick
V-out
Output Load
Vin=Nom, I=Nom
8.55
9
9.45
V
Output ripple
Vin=12V,Receiver I=1.1A
200
mVPP
I-out
I out=Min to Max
I out=Min to Max
0
1.1
A
Output over current
I out=Min to Max
1.3
A
System Efficiency
V in=12V, P out Rx= 10W
78
%
System Frequency
110
205
Khz
Operating Temperature: 0 to +40°C
Storage Temperature: -20 to +70°C
东莞奇魁电子科技有限公司
QI QUICK TECHNOLOGY CO,LTD
Model No.: 9906
Rev.: 0.1

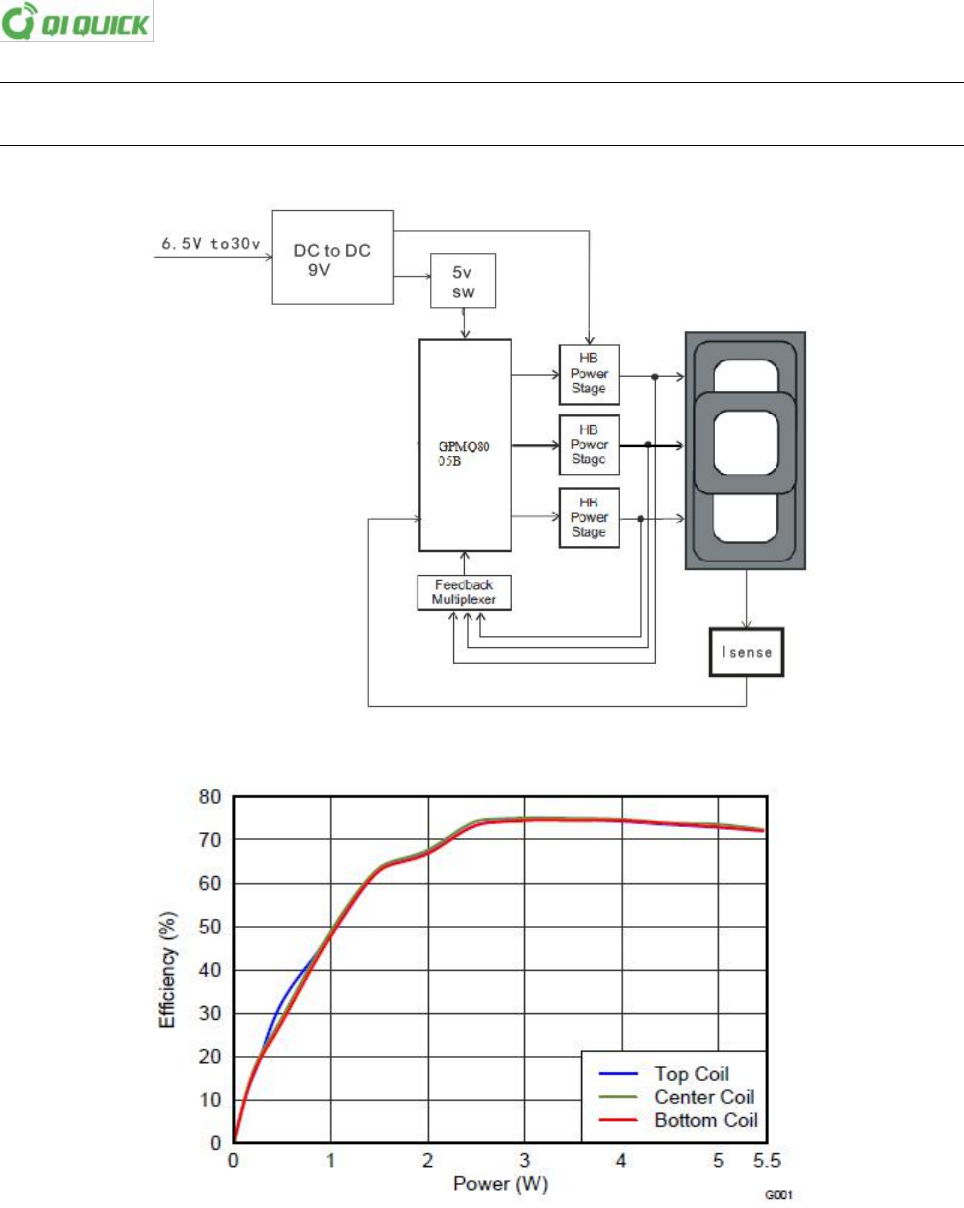

5. Simplified Design Diagram
6. System Efficiency
Fig 1 QT1283 System Efficiency (test with 5W Quick Rx)
东莞奇魁电子科技有限公司
QI QUICK TECHNOLOGY CO,LTD
Model No.: 9906
Rev.: 0.1
7. Functional Operation:
7.1LEDStatus indication: (TBC Updated)
Notes 1:There should only be two modes. The unit should default to mode 1 when powered on. To
switch between mode 1 and 2 the user should press the button. If the user continues pressing the
button it will cycle between mode 1 and mode 2.
模式 / Mode
待机 / Standby
充电 /
Charging
充满 / Charging
Full
错误 / Error
Mode 1.
While the
PCBA is in
standby the
LED light
will be on.
The LED
color and
function will
be according
to this
diagram.
红色 /
Red
On
Off
Off
Blink Slow
绿色 /
Green
Off
Off
On
Off
蓝色 /
Blue
Off
On
Off
Off
Mode 2.
While the
PCBA is in
standby the
LED light
will be off.
The LED
will turn on
when the
phone begins
charging
(color
according to
this diagram)
红色 /
Red
Off
Off
Off
Blink Slow
绿色 /
Green
Off
Off
On
Off
蓝色 /
Blue
Off
On
Off
Off
SW1
MODE1
MODE2
POWER(ON/OFF)
短按 1秒
短按 1秒
长按 2秒
东莞奇魁电子科技有限公司
QI QUICK TECHNOLOGY CO,LTD
Model No.: 9906
Rev.: 0.1

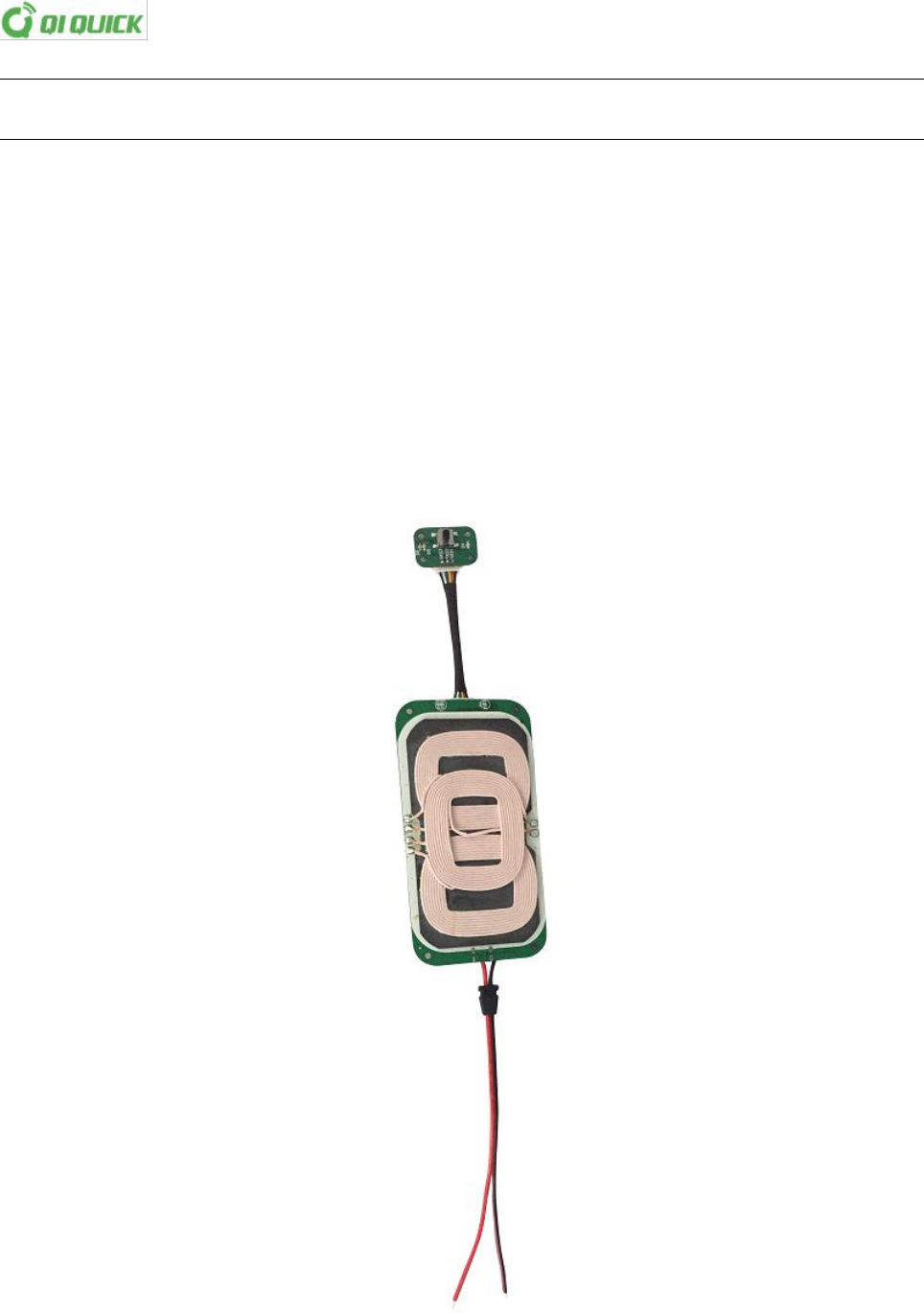

8. Mechanical Drawing
东莞奇魁电子科技有限公司
QI QUICK TECHNOLOGY CO,LTD
Model No.: 9906
Rev.: 0.1
9. Packing Information
Size (L x W x H): 106 x 56 x 8.6mm
Net weight:
Glossy weight:
11. Environmental Specification
RoHS
WEEE
FCC, CE
59mm
If the label of the module is not visible on the final device, the final device should contain the following text: "Contains FCC ID:2AQPB-9906”
车载无线充电模块
9906
1
红色
黑色
红色线连接汽车电源DC12V+，黑色线连接汽车电源
DC12-，蓝色LED点亮，进入待机模式。
2
将具有无线电源接收功能的手机放置产品线圈中间
位置，绿色LED点亮，即可以实现无线充电功能。
绿色LED点亮
3
充电完成，取走手机。绿色LED熄灭。蓝色LED点亮。
绿色LED
蓝色LED
充电使用说明书
Wireless Charging Module
for Vehicle
9906
1
red
black
Connect red line to car power DC12V+, Connect
black line to car power DC12V-. When red light
on the device is in standby mode.
2
Put mobile phone with wireless charging receiver
into the area of 3 coils. The blue light will be on
which means wireless charging is working.
Green LED lights up
3
Green light on means charging full. When take
mobile phone away, the green light will be off
and red light will be on.
Green LED
Blue LED
Take away the phone
Using Guide
注意
当充电器上的接收装置放置的位置不对，或放置非Ql标
准指定发射装置时充电器不进行充电。
当手机放上去的时候出现错误，需拿起来重放，而不是
继续放著左右对位。
相容性
本无线充电产品可以对市场上符合WPC标准的接收器相
容使用。
①
① 开关
②
② 充满电-绿色
③
③ 待机灯-红色
④
④ 充电灯-蓝色
⑤
⑤ 充电线圈1
⑥
⑥ 充电线圈2
⑦
⑦ 充电线圈3
开关功能说明：
A:关机功能：待机红色LED灯状态下长按三秒,红色LED闪烁后关机.
B:开机功能：关机状态下长按三秒红色LED灯闪烁后开机。
C:模式切换：短按一下由模式1与模式2循环切换。
LED模式功能说明
模式1 支持 充电 充满 错误
红色LED 开
开
开关
关
关
关
关
关关
关绿色LED
蓝色LED
闪烁
①
① Power -key
②
② LED_Charging-green
③
③ LED_Standby-red
④
④ LED-Standby-blue
⑤
⑤ COLL1-Charging
⑥
⑥ COLL2-Charging
⑦
⑦ COLL3-Charging
Switch On/ Off：
A: Switch Off：When under standby mode, red light is on, push switch last
for 3 seconds. Red light flashes then power off.
B: Switch on：When under power off, push switch last for 3 seconds.
Red light flashes then power on.
C: Mode Switch：Push switch one time will switch mode1 to mode 2 circularly.
LED Mode Function Guide
Mode1 Standby Charging Charging
Full Error
Red On
On
On
Off
Off
Off
Off
Off
Off Off
Off
Green
Blue
Blink Slow
Notice：
·Please use qualified Qi receiving device for charging. If the
position of receiver is not right, It may show no connection or
cannot charge. Please adjust the position.
Compatibility：
·This production is compatible with all wireless charging
receiver with WPC standard.
当pcba处
于待机状
态时，led
灯将会亮
着。led的
颜色和功
能将根据
右边这个
功能图。
模式2 支持 充电 充满 错误
红色LED
开
开关
关
关
关
关
关
关关
关绿色LED
蓝色LED
闪烁
当pcba处
于待机状
态时，led
灯将会亮
着。led的
颜色和功
能将根据
这个图。
Mode 1.
While the
PCBA is in
standby the
LED light will
be on. The
LED color
and function
will be
according to
this diagram.
Mode2 Standby Charging Charging
Full Error
Red
On
On
Off
Off
Off
Off
Off
Off
Off Off
Off
Green
Blue
Blink Slow
Mode 2.
While the
PCBA is in
standby the
LED light will
be on. The
LED color
and function
will be
according to
this diagram.
FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may
cause undesired operation.
Warning: Changes or modifications not expressly approved by the
party responsible for
compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide
reasonable protection against harmful interference in a residential
installation. This
equipment generates uses and can radiate radio frequency
energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio
communications. However, there is no guarantee that
interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or
television reception, which can be determined by turning the
equipment off and on, the
user is encouraged to try to correct the interference by one or
more of the following
measures:
Reorient or relocate the receiving an tenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set
forth for an
uncontrolled environment. This equipment should be installed and
operated
with minimum distance 20cm between the radiator & your body
Ｐｒｏｄｕｃｔ Ｎａｍｅ： Ｗｉｒｅｌｅｓｓ ｃｈａｒｇｅｒ ｍｏｄｕｌｅｓ Ｍｏｄｅｌ Ｎｏ．： ９９０６ ＦＣＣ ＩＤ： ２ＡＱＰＢ－９９０６
