Budderfly S0811011 Budderfly Multi-Way Switch User Manual QCVS0811011

Budderfly LLC Budderfly Multi-Way Switch QCVS0811011

Users Manual

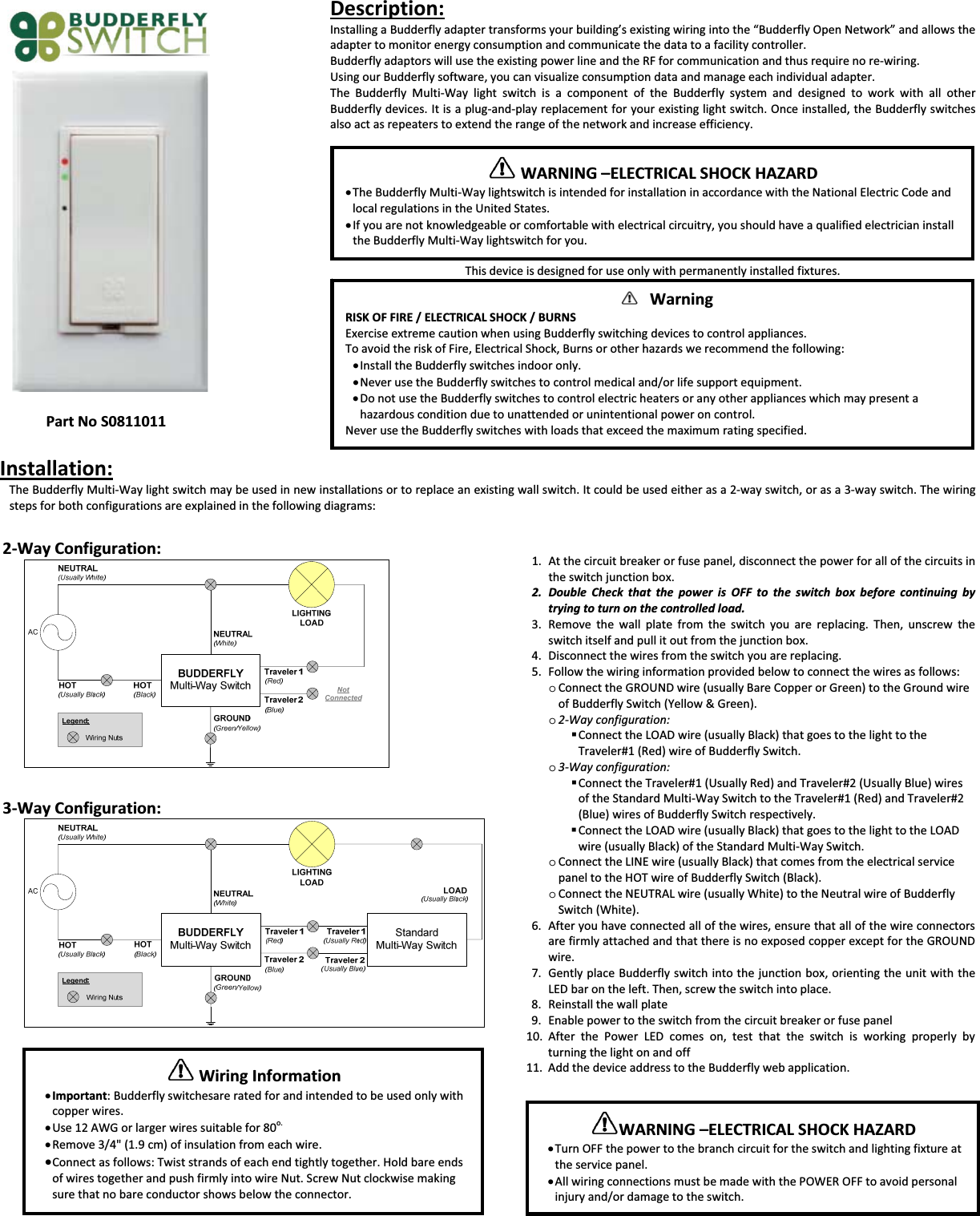

PartNoS0811011Description:InstallingaBudderflyadaptertransformsyourbuilding’sexistingwiringintothe“BudderflyOpenNetwork”andallowstheadaptertomonitorenergyconsumptionandcommunicatethedatatoafacilitycontroller.BudderflyadaptorswillusetheexistingpowerlineandtheRFforcommunicationandthusrequirenoreͲwiring.UsingourBudderflysoftware,youcanvisualizeconsumptiondataandmanageeachindividualadapter.TheBudderflyMultiͲWaylightswitchisacomponentoftheBudderflysystemanddesignedtoworkwithallotherBudderflydevices.ItisaplugͲandͲplayreplacementforyourexistinglightswitch.Onceinstalled,theBudderflyswitchesalsoactasrepeaterstoextendtherangeofthenetworkandincreaseefficiency.Thisdeviceisdesignedforuseonlywithpermanentlyinstalledfixtures.Installation:TheBudderflyMultiͲWaylightswitchmaybeusedinnewinstallationsortoreplaceanexistingwallswitch.Itcouldbeusedeitherasa2Ͳwayswitch,orasa3Ͳwayswitch.Thewiringstepsforbothconfigurationsareexplainedinthefollowingdiagrams:2ͲWayConfiguration:3ͲWayConfiguration:1. Atthecircuitbreakerorfusepanel,disconnectthepowerforallofthecircuitsintheswitchjunctionbox.2. DoubleCheckthatthepowerisOFFtotheswitchboxbeforecontinuingbytryingtoturnonthecontrolledload.3. Removethewallplatefromtheswitchyouarereplacing.Then,unscrewtheswitchitselfandpullitoutfromthejunctionbox.4. Disconnectthewiresfromtheswitchyouarereplacing.5. Followthewiringinformationprovidedbelowtoconnectthewiresasfollows:oConnecttheGROUNDwire(usuallyBareCopperorGreen)totheGroundwireofBudderflySwitch(Yellow&Green).o2ͲWayconfiguration:ConnecttheLOADwire(usuallyBlack)thatgoestothelighttotheTraveler#1(Red)wireofBudderflySwitch.o3ͲWayconfiguration:ConnecttheTraveler#1(UsuallyRed)andTraveler#2(UsuallyBlue)wiresoftheStandardMultiͲWaySwitchtotheTraveler#1(Red)andTraveler#2(Blue)wiresofBudderflySwitchrespectively.ConnecttheLOADwire(usuallyBlack)thatgoestothelighttotheLOADwire(usuallyBlack)oftheStandardMultiͲWaySwitch.oConnecttheLINEwire(usuallyBlack)thatcomesfromtheelectricalservicepaneltotheHOTwireofBudderflySwitch(Black).oConnecttheNEUTRALwire(usuallyWhite)totheNeutralwireofBudderflySwitch(White).6. Afteryouhaveconnectedallofthewires,ensurethatallofthewireconnectorsarefirmlyattachedandthatthereisnoexposedcopperexceptfortheGROUNDwire.7. GentlyplaceBudderflyswitchintothejunctionbox,orientingtheunitwiththeLEDbarontheleft.Then,screwtheswitchintoplace.8. Reinstallthewallplate9. Enablepowertotheswitchfromthecircuitbreakerorfusepanel10. AfterthePowerLEDcomeson,testthattheswitchisworkingproperlybyturningthelightonandoff11. AddthedeviceaddresstotheBudderflywebapplication.WARNING–ELECTRICALSHOCKHAZARDxTheBudderflyMultiͲWaylightswitchisintendedforinstallationinaccordancewiththeNationalElectricCodeandlocalregulationsintheUnitedStates.xIfyouarenotknowledgeableorcomfortablewithelectricalcircuitry,youshouldhaveaqualifiedelectricianinstalltheBudderflyMultiͲWaylightswitchforyou.WarningRISKOFFIRE/ELECTRICALSHOCK/BURNSExerciseextremecautionwhenusingBudderflyswitchingdevicestocontrolappliances.ToavoidtheriskofFire,ElectricalShock,Burnsorotherhazardswerecommendthefollowing:xInstalltheBudderflyswitchesindooronly.xNeverusetheBudderflyswitchestocontrolmedicaland/orlifesupportequipment.xDonotusetheBudderflyswitchestocontrolelectricheatersoranyotherapplianceswhichmaypresentahazardousconditionduetounattendedorunintentionalpoweroncontrol.NeverusetheBudderflyswitcheswithloadsthatexceedthemaximumratingspecified.WiringInformationxImportant:Budderflyswitchesareratedforandintendedtobeusedonlywithcopperwires.xUse12AWGorlargerwiressuitablefor80o.xRemove3/4"(1.9cm)ofinsulationfromeachwire.xConnectasfollows:Twiststrandsofeachendtightlytogether.HoldbareendsofwirestogetherandpushfirmlyintowireNut.ScrewNutclockwisemakingsurethatnobareconductorshowsbelowtheconnector.WARNING–ELECTRICALSHOCKHAZARDxTurnOFFthepowertothebranchcircuitfortheswitchandlightingfixtureattheservicepanel.xAllwiringconnectionsmustbemadewiththePOWEROFFtoavoidpersonalinjuryand/ordamagetotheswitch.

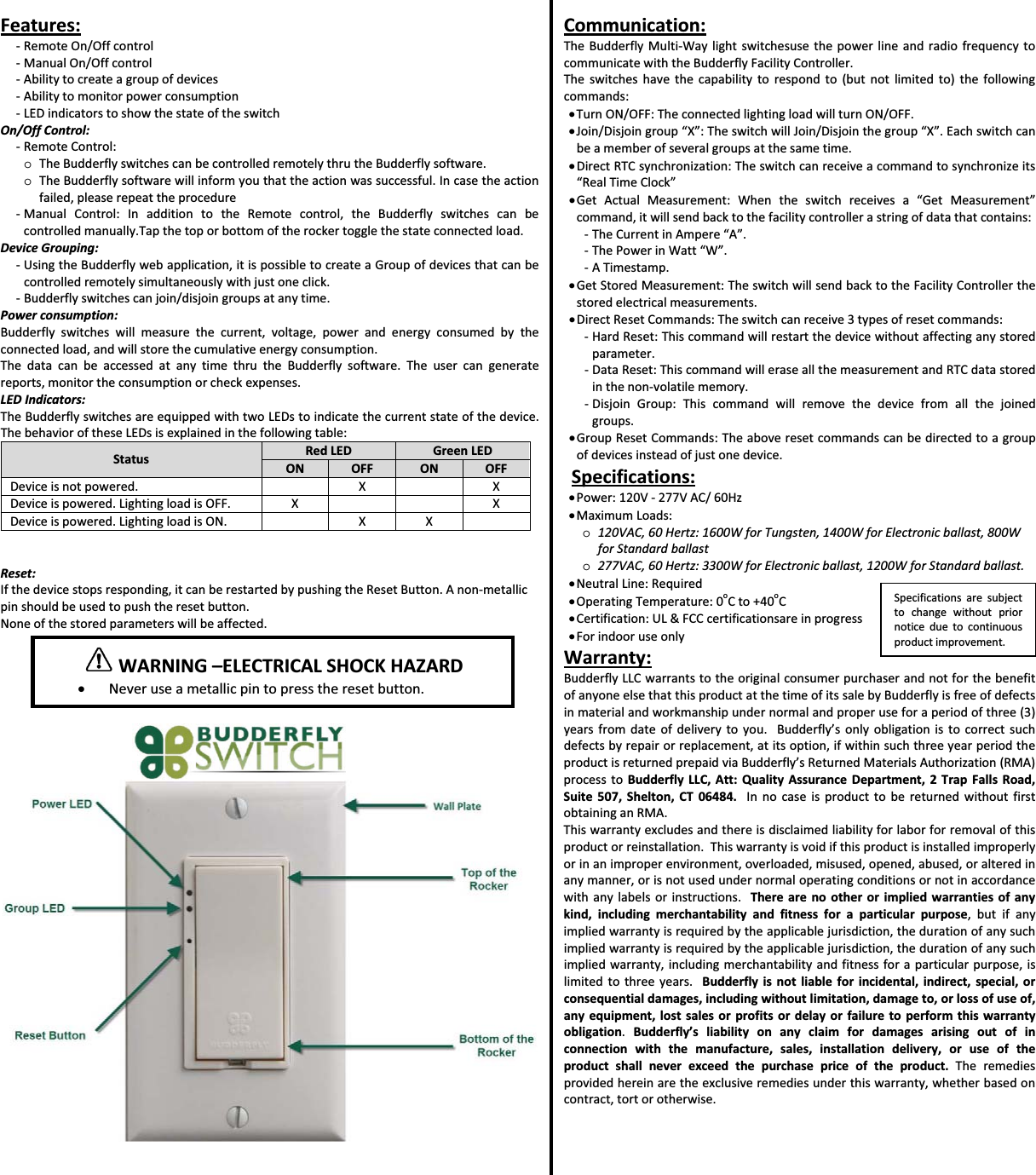

Features:ͲRemoteOn/OffcontrolͲManualOn/OffcontrolͲAbilitytocreateagroupofdevicesͲAbilitytomonitorpowerconsumptionͲLEDindicatorstoshowthestateoftheswitchOn/OffControl:ͲRemoteControl:oTheBudderflyswitchescanbecontrolledremotelythrutheBudderflysoftware.oTheBudderflysoftwarewillinformyouthattheactionwassuccessful.Incasetheactionfailed,pleaserepeattheprocedureͲManualControl:InadditiontotheRemotecontrol,theBudderflyswitchescanbecontrolledmanually.Tapthetoporbottomoftherockertogglethestateconnectedload.DeviceGrouping:ͲUsingtheBudderflywebapplication,itispossibletocreateaGroupofdevicesthatcanbecontrolledremotelysimultaneouslywithjustoneclick.ͲBudderflyswitchescanjoin/disjoingroupsatanytime.Powerconsumption:Budderflyswitcheswillmeasurethecurrent,voltage,powerandenergyconsumedbytheconnectedload,andwillstorethecumulativeenergyconsumption.ThedatacanbeaccessedatanytimethrutheBudderflysoftware.Theusercangeneratereports,monitortheconsumptionorcheckexpenses.LEDIndicators:TheBudderflyswitchesareequippedwithtwoLEDstoindicatethecurrentstateofthedevice.ThebehavioroftheseLEDsisexplainedinthefollowingtable:StatusRedLEDGreenLEDONOFFON OFFDeviceisnotpowered.XXDeviceispowered.LightingloadisOFF.X XDeviceispowered.LightingloadisON.XXReset:Ifthedevicestopsresponding,itcanberestartedbypushingtheResetButton.AnonͲmetallicpinshouldbeusedtopushtheresetbutton.Noneofthestoredparameterswillbeaffected.Communication:TheBudderflyMultiͲWaylightswitchesusethepowerlineandradiofrequencytocommunicatewiththeBudderflyFacilityController.Theswitcheshavethecapabilitytorespondto(butnotlimitedto)thefollowingcommands:xTurnON/OFF:TheconnectedlightingloadwillturnON/OFF.xJoin/Disjoingroup“X”:TheswitchwillJoin/Disjointhegroup“X”.Eachswitchcanbeamemberofseveralgroupsatthesametime.xDirectRTCsynchronization:Theswitchcanreceiveacommandtosynchronizeits“RealTimeClock”xGetActualMeasurement:Whentheswitchreceivesa“GetMeasurement”command,itwillsendbacktothefacilitycontrollerastringofdatathatcontains:ͲTheCurrentinAmpere“A”.ͲThePowerinWatt“W”.ͲATimestamp.xGetStoredMeasurement:TheswitchwillsendbacktotheFacilityControllerthestoredelectricalmeasurements.xDirectResetCommands:Theswitchcanreceive3typesofresetcommands:ͲHardReset:Thiscommandwillrestartthedevicewithoutaffectinganystoredparameter.ͲDataReset:ThiscommandwilleraseallthemeasurementandRTCdatastoredinthenonͲvolatilememory.ͲDisjoinGroup:Thiscommandwillremovethedevicefromallthejoinedgroups.xGroupResetCommands:Theaboveresetcommandscanbedirectedtoagroupofdevicesinsteadofjustonedevice.Specifications:xPower:120VͲ277VAC/60HzxMaximumLoads:o120VAC,60Hertz:1600WforTungsten,1400WforElectronicballast,800WforStandardballasto277VAC,60Hertz:3300WforElectronicballast,1200WforStandardballast.xNeutralLine:RequiredxOperatingTemperature:0oCto+40oCxCertification:UL&FCCcertificationsareinprogressxForindooruseonlyWarranty:BudderflyLLCwarrantstotheoriginalconsumerpurchaserandnotforthebenefitofanyoneelsethatthisproductatthetimeofitssalebyBudderflyisfreeofdefectsinmaterialandworkmanshipundernormalandproperuseforaperiodofthree(3)yearsfromdateofdeliverytoyou.Budderfly’sonlyobligationistocorrectsuchdefectsbyrepairorreplacement,atitsoption,ifwithinsuchthreeyearperiodtheproductisreturnedprepaidviaBudderfly’sReturnedMaterialsAuthorization(RMA)processtoBudderflyLLC,Att:QualityAssuranceDepartment,2TrapFallsRoad,Suite507,Shelton,CT06484.InnocaseisproducttobereturnedwithoutfirstobtaininganRMA.Thiswarrantyexcludesandthereisdisclaimedliabilityforlaborforremovalofthisproductorreinstallation.Thiswarrantyisvoidifthisproductisinstalledimproperlyorinanimproperenvironment,overloaded,misused,opened,abused,oralteredinanymanner,orisnotusedundernormaloperatingconditionsornotinaccordancewithanylabelsorinstructions.Therearenootherorimpliedwarrantiesofanykind,includingmerchantabilityandfitnessforaparticularpurpose,butifanyimpliedwarrantyisrequiredbytheapplicablejurisdiction,thedurationofanysuchimpliedwarrantyisrequiredbytheapplicablejurisdiction,thedurationofanysuchimpliedwarranty,includingmerchantabilityandfitnessforaparticularpurpose,islimitedtothreeyears.Budderflyisnotliableforincidental,indirect,special,orconsequentialdamages,includingwithoutlimitation,damageto,orlossofuseof,anyequipment,lostsalesorprofitsordelayorfailuretoperformthiswarrantyobligation.Budderfly’sliabilityonanyclaimfordamagesarisingoutofinconnectionwiththemanufacture,sales,installationdelivery,oruseoftheproductshallneverexceedthepurchasepriceoftheproduct.Theremediesprovidedhereinaretheexclusiveremediesunderthiswarranty,whetherbasedoncontract,tortorotherwise.Specificationsaresubjecttochangewithoutpriornoticeduetocontinuousproductimprovement.WARNING–ELECTRICALSHOCKHAZARDxNeveruseametallicpintopresstheresetbutton.

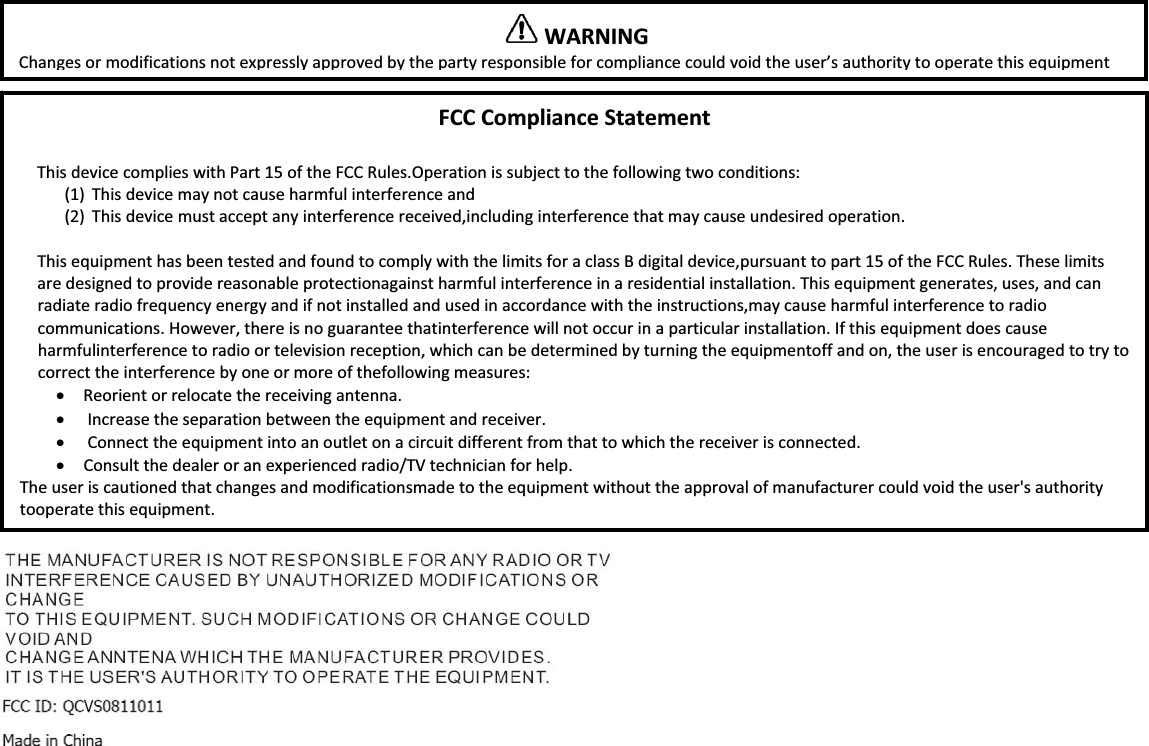

FCCComplianceStatementThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1) Thisdevicemaynotcauseharmfulinterferenceand(2) Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaclassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyandifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:xReorientorrelocatethereceivingantenna.xIncreasetheseparationbetweentheequipmentandreceiver.xConnecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.xConsultthedealeroranexperiencedradio/TVtechnicianforhelp.Theuseriscautionedthatchangesandmodificationsmadetotheequipmentwithouttheapprovalofmanufacturercouldvoidtheuser'sauthoritytooperatethisequipment.WARNINGChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipmentFCCID:(NoFCCIDhasbeenissuedyet;FCCCertificationisinprogress)MadeinChina
