CARMATE MFG CMDC3000 DRIVE ACTION RECORDER User Manual H1 H4
CARMATE MFG.CO.,LTD DRIVE ACTION RECORDER H1 H4
05 User Manual
TEL.
TEL.
No.90-70047C
TOP
K
2017.02月
C
版Mac
Illustrator
CS6
DC3000
H1H4
Warranty Document
d’Action 360 Instruction Manual
This Product has been made available for purchase after having undergone strict quality control and inspection.
In the event of a product failure arising from normal use, please contact the dealer at the point of purchase
(see overleaf), or the Car Mate Service Center for product repair/replacement.
Purchased
Product
Purchase
Date Within one year from
the Purchase Date
Warranty period
for free repairs
Year /Month/Day
*Please retain proof of purchase indicating the Purchase Date
alongside this Warranty Document.
Customer
address
Customer
name
Dealer
name/
address
Vehicle model:
Problem(s):
Car Mate Mfg. Co., Ltd.
Nagasaki 5-33-11, Toshima-ku, Tokyo, Japan 171-0051
http://www.carmate.co.jp/
Using this Product Safely
Preparation
Installation
Capturing Images/Video
Viewing/Deleting Media
Changing Camera Settings
Troubleshooting
Visit our website for more details.
For PC:
http://www.carmate.co.jp/club/
For mobile or smartphone:
http://mobile.carmate.co.jp/
Camera
Product number:
DC3000
Contact Car Mate service center for product information.
TEL: +81-3-5926-1212 FAX: +81-3-5926-1218
Register with us and
answer our questionnaire
to win prizes!
Vehicle grade: Vehicle year:
Product
failure
information
d’Action 360 (DC3000)
21
TOP
KP2P1
2017.01月
初
版Mac
Illustrator
CS6
DC3000

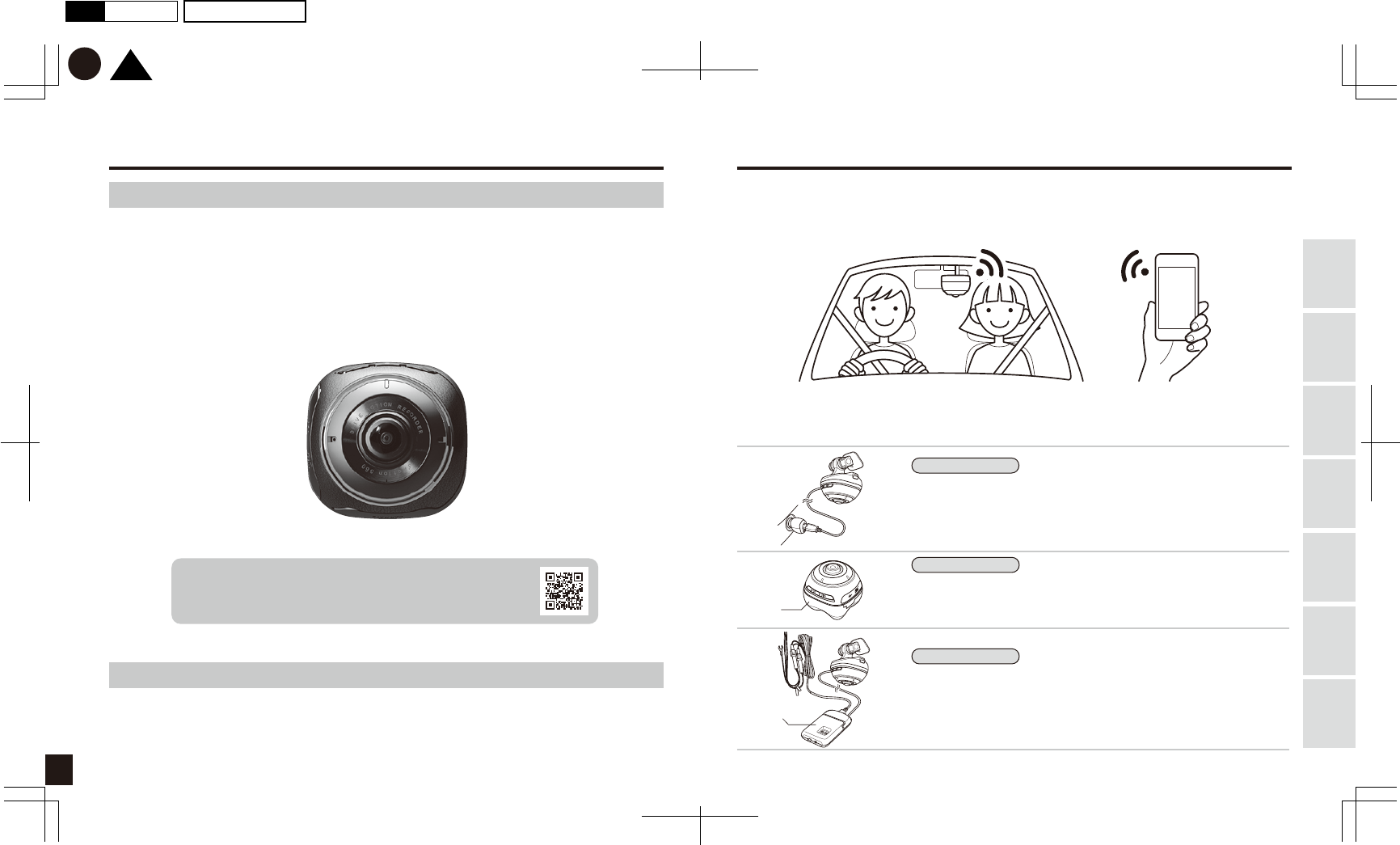

Introduction d’Action 360 features
About this manual
Disclaimer
Please note that Car Mate takes no responsibility for any loss arising from the use or failure of
this Product, or from any damage to any recorded video and/or data.
The latest version of the d’Action 360 Instruction Manual is
available at:
http://daction.carmate.jp/
Thank you for purchasing d’Action 360.
This instruction manual is your guide book to using d'Action 360 (hereinafter “Product”).
To use this Product properly and safely, please read and understand the contents of this manual
prior to use.
After reading, please keep this manual nearby for future reference or troubleshooting.
If you give this Product to somebody else, please include this manual as well.
This Product is a smartphone-linked, car-mounted camera with a 360-degree panoramic view,
allowing you to record any and all of the scenes encountered during your time on the road.
Captured videos and still images can be downloaded straight to your smartphone on the spot,
making playback and sharing possible both anytime, and anywhere.
This Product also features three operational modes. By purchasing add-on products separately,
you can utilize these modes for a wider range of purposes.
In Driving mode, the camera installed in your car captures both the inside of the car
and the outside simultaneously. In addition to acting as a standard dashboard camera,
d’Action 360 is able to simultaneously record both the road around you, and scenes
from inside the vehicle. The camera automatically begins operation in Driving mode
when power is supplied via your car’s cigarette lighter receptacle.
*Security Add-On (DC200) is required. (Sold separately)
Battery Pack (DC1)
(Sold separately)
Security Add-On (DC200)
(Sold separately)
*Battery Kit Add-On (DC100) is required. (Sold separately)
Action mode allows you to record your surroundings by taking the camera outside of
your car. Just as if it were a handheld camcorder, enjoy shooting simple video and
capturing stills using the camera’s recording capabilities. The camera automatically
switches to Action mode upon attachment of the Battery Pack (DC1).
In Security mode, d’Action 360 keeps your parked car under surveillance. From keyings
to hit-and-runs, d’Action 360 can record all the accidental or intentional moments that
take place around your car. When the car engine is turned off with the Security Add-On
(DC200) connected, the camera automatically switches to this mode.
Driving mode
Action mode
Security mode
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
3 4
……………………………… 1
…………… 2
…… 5
………………………… 11
………………………… 13
………………………… 14
………………………… 19
……………………………… 22
…………………… 25
……………………… 28
……… 29
…………………………… 31
……………… 36
……………………………… 38
…………………………… 42
➡p.18
p.29 ⬅
p.31 ⬅
p.14 ⬅
➡p.29
➡p.25
➡p.32
TOP
KP4P3
2017.01月
初
版Mac
Illustrator
CS6
DC3000
Useful features What kind of video can I record?
I want to capture high-quality
images and video.
My camera responds too quickly
to impacts...
How many hours of footage can I record?
I want to check my recordings
on my smartphone!
What type of memory card can I use?
How do I update my d’Action 360 camera?
*Checking the remaining storage space
in the “Manual Recordings” folder
Changing the camera settings
Others
Troubleshooting
Specifications
Warranty
*Changing the recording resolution
*Changing the impact detection sensitivity
*Changing the SSID and password
*Changing other settings
*Approximate recording time and
number of images
*Formatting the memory card
*Upgrading the camera body
*LED indicators
*Resetting the device
*Checking the remaining battery
*Pausing camera operation
Introduction
Features of d’Action 360
Using this Product safely

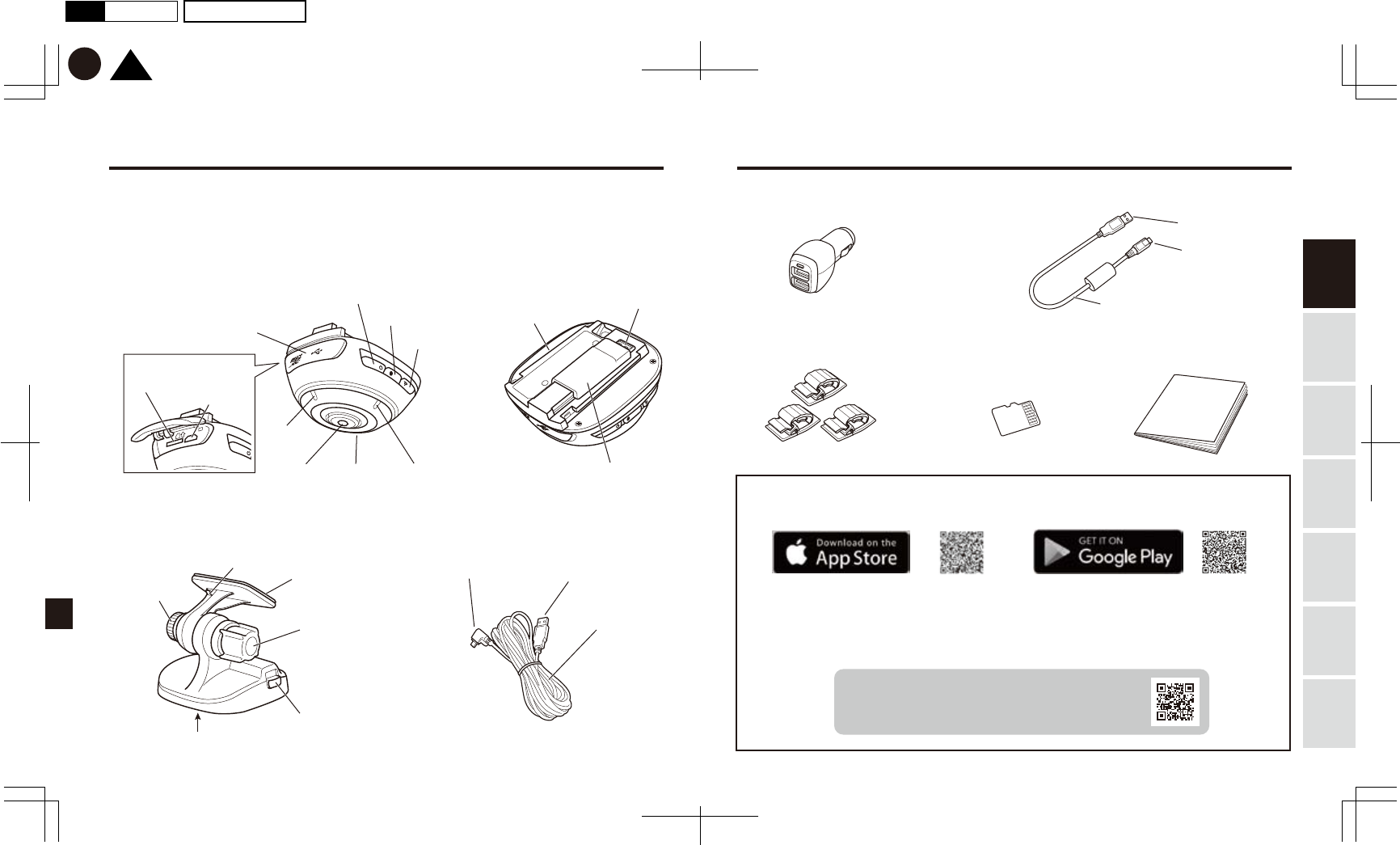

Product contents
Optional add-ons
Preparation
Installation
Capturing images/videos

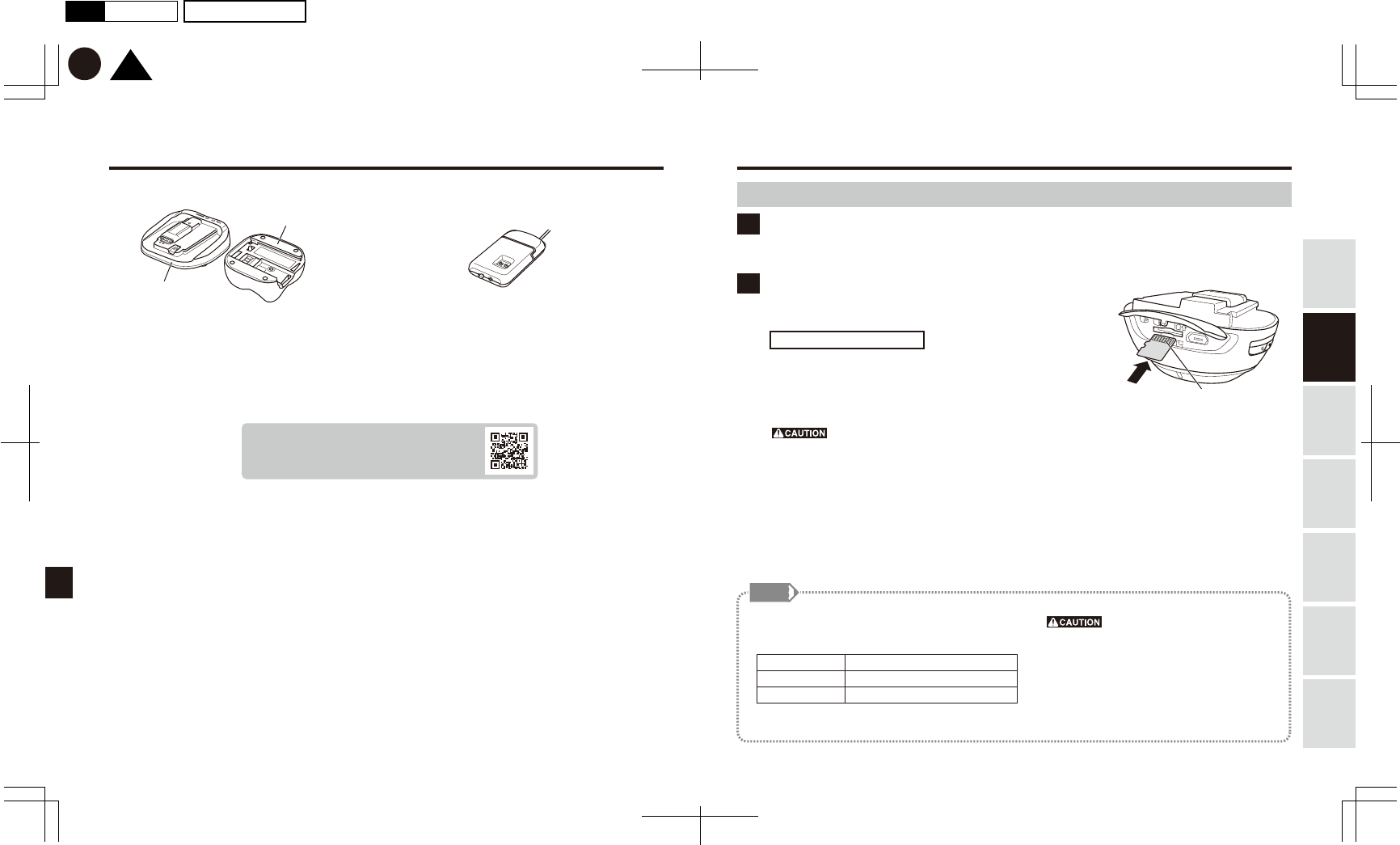

*Inserting the memory card

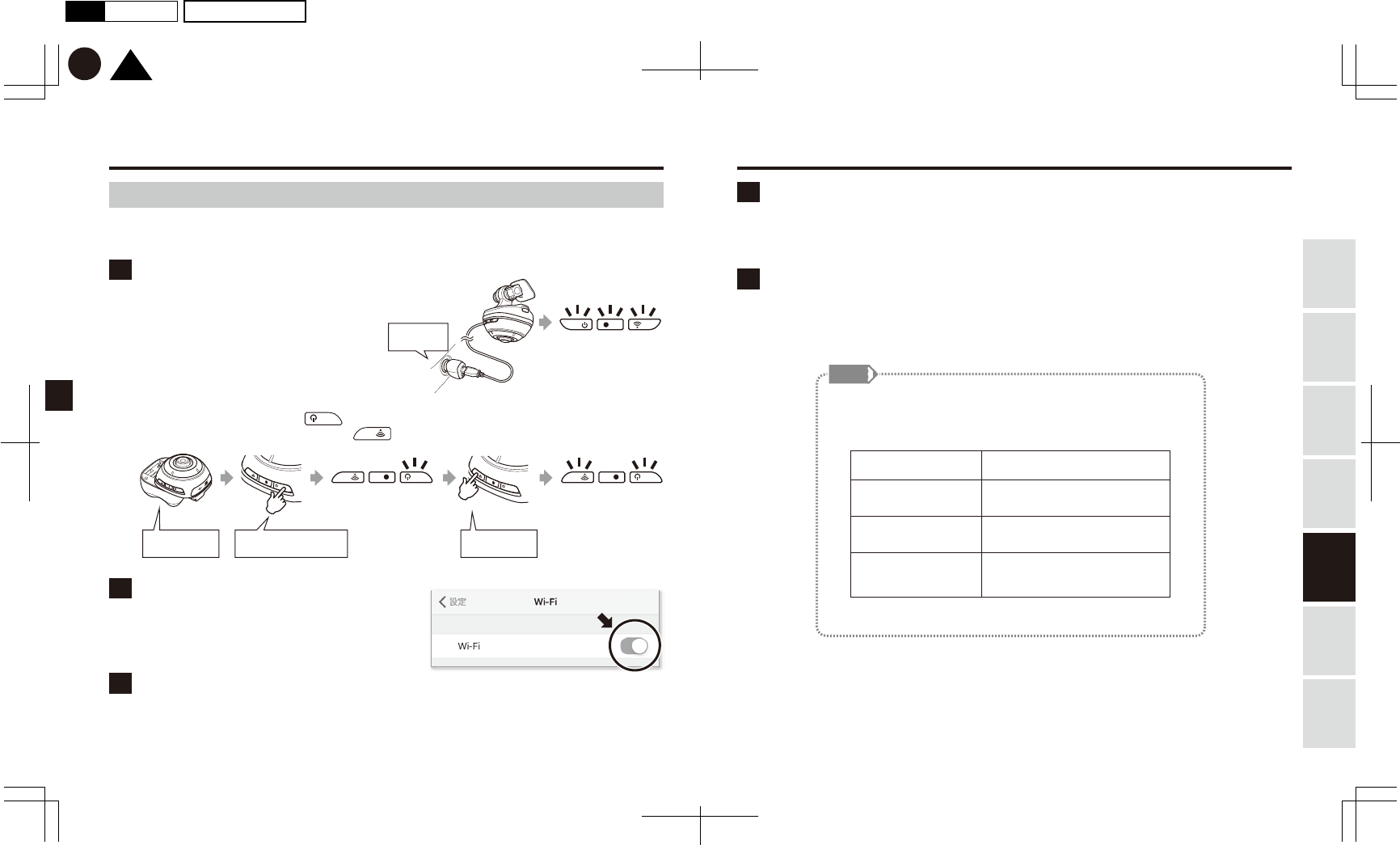

*Connecting to a smartphone
*Checking the mounting position
*Checking the view range
*Capturing images/videos in Driving mode
*Capturing images/videos in Action mode
Viewing/deleting media
*Viewing/deleting media on a smartphone
*Viewing/deleting media on a PC
*Capturing images/videos in Security mode
Table of Contents
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
5 6
TOP
KP6P5
2017.01月
初
版Mac
Illustrator
CS6
DC3000
Cautionary symbols
In order to use this Product safely and prevent any damage caused to you and
surrounding people/property, please ensure to read this manual carefully before use.
Graphic symbols are used in this manual to indicate cautionary matters, based on both
the level of seriousness and the subject matter.
Please ensure a thorough understanding of what each symbol represents before reading.
If the Product is handled improperly, possibility of death or serious injury is anticipated.
If the Product is handled improperly, possibility of injury or property damage is
anticipated.
Improper handling of the Product may be regarded as violation of the law.
Useful tips to know when handling the Product.
For your safety, please follow the below instructions:
Installing the Product
Using this Product safely
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
Do not use this Product if it is broken, not working, or shows
any other signs suggesting an abnormality. To prevent
possible accidents or fire from occurring, stop using the
Product immediately if it you notice any smoke, abnormal
noises, or abnormal smells, etc.
This Product operates using the same frequency band
(2.4GHz band) as the following instruments or radio stations:
(1) Industrial, scientific, or medical devices/appliances such
as microwave ovens.
(2) Private, licensed radio stations to identify and track
electronic tags, used for example, on factory production
lines.
(3) Specific low-power radio stations (stations permitted to
operate without a license)
Using this Product may cause radio-frequency interference
(RFI) with the above-mentioned instruments and/or radio
stations.
1) Before use, ensure there are none of the
above-mentioned instruments or radio stations in operation
around the Product.
2) Stop using the Product immediately if it has ever caused
any radio-frequency interference to any private, licensed
radio station as described above in (2).
Do not use the Product if condensation (water droplets) has
formed on the inside. Condensation is more likely to form
when the Product is moved from a low temperature
environment to a high temperature environment , and may
cause the Product to malfunction or heat up.
Do not drop or apply excessive force to the Product.
To prevent product failure or the loss of data, do not place
the Product near magnetic objects.
To prevent electric shock or product failure, do not insert
metallic objects such as pins or wires into the apertures of
the Product.
Do not operate the Product while you are driving. Doing so
may lead to accidents, and certain laws prohibit the handling
of any such devices while operating a vehicle.
This Product is only for use in Japan. This Product has been
created to comply specifically with Japanese Radio Laws. As
such, the use of this Product may be illegal in some
countries outside of Japan.
To prevent electric shock, fire, or product failure, do not
disassemble, attempt to repair, or alter this Product in any
way.
Do not remove the compliance certificate label pasted on the
Product. Use of an unlabeled Product is prohibited by law.
Do not mount the Product or distribute its cables around
areas where operation of the vehicle’s airbags may be
obstructed. In the event of car crash, the airbag may not
work properly, or lead to an accident/injury upon inflating.
Install the Product properly according to this manual. Keep
the camera body attached to the mount while driving and
during inspection. Car products mounted incorrectly may not
only be regarded as a violation of your local traffic laws, but
may also lead to road accidents.
Radio-frequency interference may occur with other electrical
devices such as the radio or vehicle GPS systems. If such
interference has occurred, change the installation location.
Keep the power cable and terminal portions clean, wiping
away any dust or dirt that may have gathered. Dust and dirt
can prevent secure electrical contact, which may lead to
electric shock or fire.
If you are not planning on using the Product for a long period
of time, unplug the power cable from the camera body.
Electric discharge from the vehicle battery or fire may occur.
Additionally, fire or product failure may occur if the Product
has been left in a closed space, in the hot sun, or in high
temperatures for an extended period of time.
This Product is not dustproof, rainproof, or waterproof. To
prevent electric shock, fire or product failure, keep it away
from water and other foreign matter, and do not handle with
wet hands.
Check the Product is securely installed before driving your
car. A Product that has detached or fallen down may result in
injury or accidents occurring.
Do not suddenly accelerate or make any sharp turns for the
sole purpose of checking the performance of the Product.
Operating your vehicle in such a way may lead to injury or
accidents.
Do not use the Product where it is prohibited, such as in
hospitals or on an aircraft. The Product may cause
pacemakers and other electronic medical devices to
malfunction.
7 8
TOP
KP8P7
2017.01月
初
版Mac
Illustrator
CS6
DC3000
Use the USB power socket alone. Overloading or splitting
the connection may lead to the abnormal generation of heat
or fire.
The total outlet amperage of the attached USB power socket
is a maximum 3.0A (amps). If the USB power socket is used
in combination with other products and the total outlet
amperage exceeds 3.0A, no electric power will be supplied
to the camera body. The maximum electrical power
consumption of this Product is approximately 800mA (at
DC12V).
The actual position of your car is determined by microwave
signals broadcast from GPS satellites. Without receiving
such signals, the precise position of your car cannot be
determined.
Using this Product near a TV antenna may cause a
deterioration in the reception sensitivity, flickering and/or
noise from the TV set.
Do not use the recorded images, videos and/or data for
illegal purposes.
In some cases, your recorded images, video and/or data
may constitute an infringement on the legal rights of a third
party. Car Mate takes no responsibility for any matters with
regard to, and arising from, the content of the images,
videos and/or data recorded on this Product.
This Product is not guaranteed to produce validity as
evidence for any accidents, or to identify the license plate,
model or color of any vehicle.
This Product is not guaranteed to record in any and all
circumstances.
Car Mate takes no responsibility for any loss arising from
the use or failure of this Product, or from any damage to
any recorded video and/or data.
Blinking or discoloration may make it difficult to distinguish
between recorded LED traffic lights.
Recording performance and time may vary depending on
the object being recorded, or on the ambient environment.
Recording quality may deteriorate at night, when backlit, or
when the ambient lighting changes sharply.
Keep the camera lens surface and all car windows clean.
Irregular light reflection and refraction caused by dust and
other foreign matter may affect recording quality.
To record in highest possible quality in darkness, ensure
you turn on the headlights or fog lights of your car.
In order to receive clear GPS signals, do not place
obstructive items around the Product.
When the Product is switched on, it may take time until it
starts receiving GPS signals. Allow between 30 seconds
to a few minutes, depending on the signal reception
environment, weather, vehicle conditions, and position of
the Product.
GPS signal reception may be hindered if the front
windshield of your car has been surface-treated with a
coating, etc.
Depending on the ambient environment or geographical
factors, the Product may not be able to adequately receive
GPS signals or receive GPS signals at all.
GPS satellites are controlled by the U.S. Department of
Defense and their accuracy is subject to change without
prior notice.
Do not use this Product near other GPS products or VICS
receiver units. Doing so may cause such products/units and
this Product to malfunction.
Some cars (such as those imported from overseas) are
designed to keep supplying electrical power to their cigarette
lighter receptacle, even with the engine turned off. If your car
falls into this category, unplug the Product when the engine
is turned off.
After the camera body is switched on, it may take up to
approximately 30 seconds to begin recording.
In some cars with a start-stop system, the supplied voltage
may be reduced in order to restore the electric power for
restarting the engine. Due to this, the power supply to this
Product may be stopped.
To prevent product failure, avoid exposing the camera lens
to direct sunlight for long periods of time.
If the surface of the lens has attracted dirt, sand, fingerprints,
etc., wipe clean using a dry, clean and lint-free cloth.
Due to the characteristics of the electrical components of
this Product, the surface/internal temperatures of the camera
may increase depending on the conditions of use.
When the ambient temperature exceeds the operating
temperature range, Product operation will be stopped for
protection.
If Product operation is stopped, resume operation once the
camera temperature has decreased.
Hold the connector portion of the power cable when
unplugging. A damaged power cable may cause electric
shock or fire.
To prevent possible product failure, use this Product only on
cars built with a DC12V negative earth electrical system.
This Product automatically switches between its three
operational modes by recognizing its electric power supply
source. Ensure you use only the add-on accessory products
included in this Product, or those sold separately. Some
third-party USB cables and USB power sockets may not be
compatible with this Product.
To prevent possible deformation or fire from occurring, do
not leave the camera body in areas where temperatures can
rise quickly, such as on the dashboard.
If the camera body has become hot after using it for long
amount of time, to avoid potential burns, do not allow it to
come into direct contact with your skin.
To prevent product failure, do not touch the terminals on the
camera body.
When cleaning the camera body, do not use solutions
containing abrasive compounds, alcohols, or organic
solvents.
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
Powering the Product The GPS system
The camera body
Recording images, video and data
109
る
す
更
変
TOP
KP10P9
2017.01月
初
版Mac
Illustrator
CS6
DC3000
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
The memory card Copyright
Security mode
If the memory card has become hot after using it for long
amount of time, to avoid potential burns, do not allow it to
come into direct contact with your skin.
Initialize (format) your memory card when:
*Using a brand-new card for the first time.
*Using a memory card that has been formatted on another
camera or computer.
*It appears that reading and writing speeds have slowed
down.
*You wish to delete all the data on the memory card.
According to copyright law, you cannot use recorded images, videos and/or data without permission of their right holder for any
purposes other than your own personal use. If you plan to use this Product at live demonstrations, shows or exhibitions, follow the
rules of the organizers.
Memory cards are expendable supplies. After using it a
certain number of times, normal recording may be
impeded due to breakage in part of its memory sector.
Ensure to back up important data on other devices. Data
stored on a memory card may be overwritten or deleted.
Before purchasing a brand-new memory card for this
Product, check the specifications on page 14.
Using an incompatible memory card may lead to loss of
data or failed recording.
Store your memory cards in a dry, cool place.
To prevent product failure, do not touch the memory card
with oily or wet hands.
To prevent the possible corruption of data or damaging the
memory card, do not remove the memory card during data
backup, formatting, while resetting your PC system or during
operation.
To prevent possible memory card failure and loss of data, do
not drop or apply excessive force to the memory card.
To prevent possible breakage, failure and malfunction of the
memory card, do not insert any foreign objects into the slots,
and do not touch the terminal portion of the Product.
Insert the memory card in the correct orientation until it clicks
in place.
To avoid damaging the memory card, do not insert it forcibly.
To prevent possible product failure, do not switch off the
camera, unplug the power cable nor detach the add-on
battery pack (sold separately) while updating the camera
body.
Car Mate takes no responsibility for any damage or loss
arising from the drainage of your car battery while using
the Product in security mode.
When using this Product in security mode, always use the
Security Add-On (DC200). Never use other third-party
cables to directly connect the Product to the power source,
as doing so may lead to problems such as a flat car battery.
11 12
●
● ●
● ●
●
●
●
●
●
TOP
KP12P11
201702-C
2017.02月
C
版Mac
Illustrator
CS6
DC3000
Product contents
Before use, check the Product for the following contents.
Camera body x 1
USB power socket x 1
Cable clip x 3
d’Action app for smartphone (iOS/Android)
d’Action 360 (iOS) d’Action 360 (Android)
d’Action software for PC (Windows)
Please visit our website below for the most up-to-date list of
supported devices/OS, and downloading procedures.
http://daction.carmate.jp/
Memory card x 1 Instruction manual
(this book)
Communication cable x 1
<Front side>
Record button/LED
Communication
button/LED
Slide rail portion (convex)
microSDHC 16GB
(UHS-I, Speed class 3)
Cable length: approx. 0.3 meter
2 ports, total 3.0A
Built-in
GPS antenna
portion
Terminal
Switch button/LED
Microphone
(left)
Memory card slot
Slide rail portion (concave bottom)
Release lever
microUSB connector
microUSB connector
USB connector
USB connector
Cable length:
approx. 4 meters
Cable hook
Knob I
Knob II
Sticky portion
(adhesive tape attached)
microUSB slot
Microphone
(right) Memory LEDLens
Cover
<Bottom side>
Mount x 1 Power cable x 1
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
1413
● ●
1
2
MEMO
TOP
KP14P13
2017.01月
初
版Mac
Illustrator
CS6
DC3000
Optional add-ons
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
Visit our website below for more details.
http://daction.carmate.jp/
Preparation
Battery Kit Add-On (DC100) Security Add-On (DC200)
Please purchase the following optional add-ons according to your needs.
(Available as of January 2017)
Battery pack
Terminal portion
Battery charger
This is a cable set that allows the camera to receive electric
power from the battery in your car while it is parked, and
keep it under surveillance.
*To prevent possible damage to the memory card, do not remove the memory card during data backup, formatting,
while resetting your PC system or during operation.
*Ensure to back up important data on other devices. Some data on the memory card may be overwritten during use.
*To prevent possible malfunction, do not store data that has been saved on a device other than this Product.
*Always check the orientation of the memory card; inserting it in the wrong orientation may lead to breakage or
malfunction.
*Before removing the memory card, ensure the power is switched off. Removing it while the power is on may cause
breakage of the card and/or corruption of data.
*If the memory card has become hot after using it for long amount of time, to avoid potential burns, do not allow it to
come into direct contact with your skin.
*Using incompatible memory cards may cause loss of
data and/or recording failure.
*Some third-party memory cards may be recognized
more slowly, or be difficult to insert/remove.
*Depending on the memory card capacity, start-up of
the Product may take longer.
This is a portable battery unit with built-in lithium-ion
batteries.
By attaching this unit to the camera body, you can use
the camera outside of your car.
Ensure the power is switched off.
Inserting the memory card
Ensure the power of the camera body is switched off, and that all the LEDs are off.
Open the cover on the camera body. Firmly insert the memory card
in the correct orientation until it clicks into place.
When removing the memory card, push it in until you hear a click,
and release to allow a portion of the memory card to emerge from
the camera body. Slowly pull out the pushed-out portion to remove
the memory card.
Inserting the memory card
Removing the memory card
Before using a third-party memory card,
please check the compatibility below.
Card type
Speed class
Capacity
microSDHC or microSDXC
UHS-I - Speed class 3 or higher
16GB – 128GB
(As of January 2017)
15 16
3
2
4
1
5
6
5
7
d'Action 360 (iOS) d'Action 360 (Android)
201702-C
TOP
KP16P15
2017.02月
C
版Mac
Illustrator
CS6
DC3000
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting

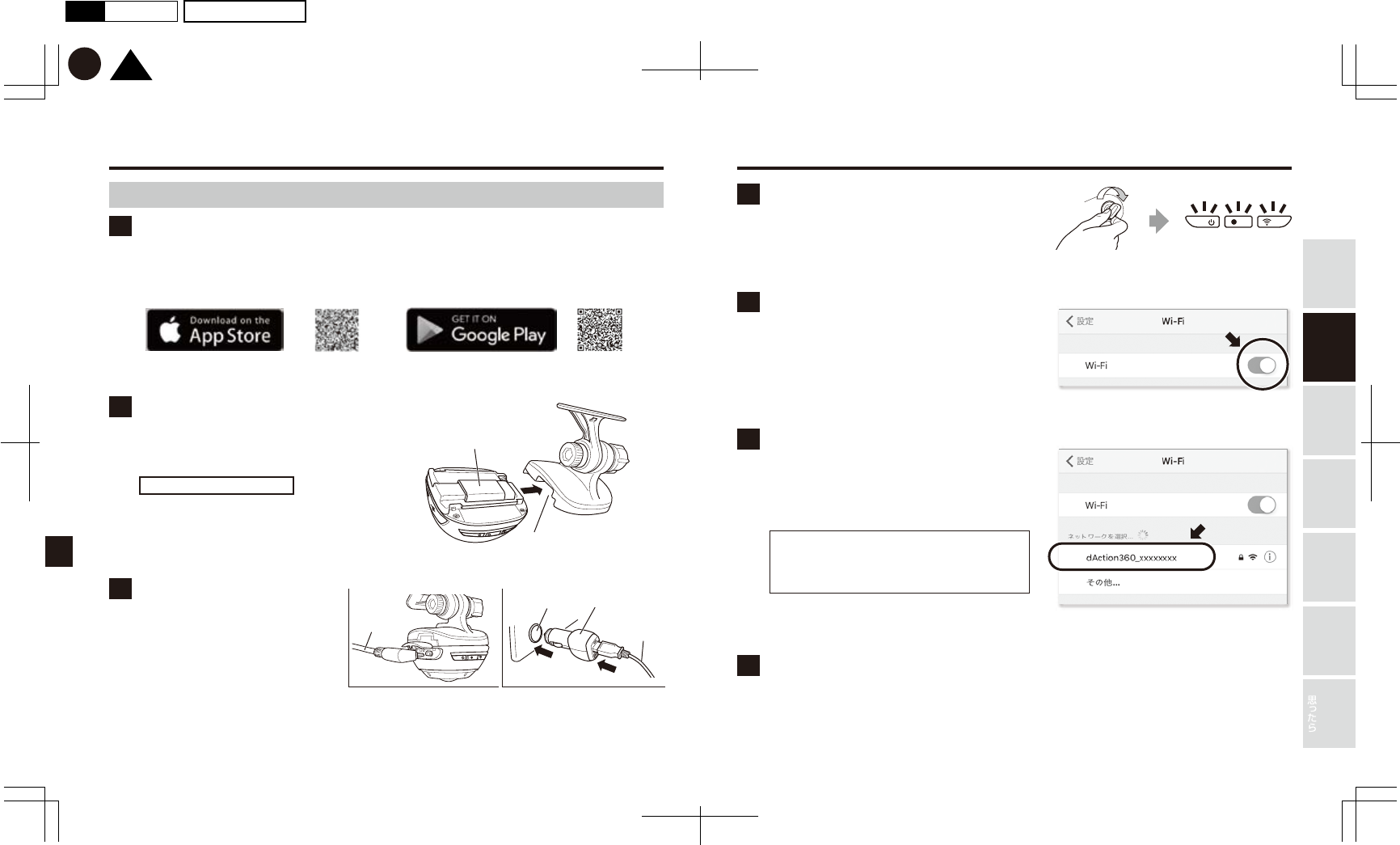

Install the d’Action app on your smartphone
Turning on the engine
Turning on Wireless LAN (Wi-Fi)
on your smartphone
Selecting the SSID and entering the
password
Opening the app/confirming connection
Attaching the camera body to the mount
Connecting the power cable
To play videos recorded by this Product on your smartphone, you must first download the d’Action app.
Download it on App Store or Google Play. *The memory LED will
also light up.
<Display example>
<Display example>
<Initial values>
*Create your own SSID and password later. (See page 29.)
SSID: dAction360_xxxxxxxx
Password: 12345678
Turn on your car engine (turn on the ignition) and
ensure all LEDs light up after a few seconds.
Turn on “Wi-Fi” under settings on your smartphone.
By turning on “Wi-Fi” as in procedure 5, a list of
connectable wireless devices will be displayed.
Select the SSID that starts with “dAction360”,
and enter the password.
Open the d’Action 360 app, and check that a connection has been established.
If you are unable to establish a connection, turn off your car engine (turn off the ignition), and
start again from the procedure 4.
Match the convex portion of the camera body with
the concave portion of the slide rail portion on
the mount. Slide them into each other until they click.
Insert the microUSB connector on
the power cable into the camera body,
and the other USB connector into
the USB power socket. Insert the USB
power socket into your car’s cigarette
lighter receptacle.
*Ensure each connector is correctly
oriented.
While lifting the release lever on the mount,
slide the camera body out.
Connecting to a smartphone
Detaching the camera body
Power cable Power cable
Cigarette lighter
receptacle USB power socket
Slide rail portion (concave)
Slide rail portion (convex)
17 18
194°
360°
MEMO
20%
TOP
KP18P17
2017.01月
初
版Mac
Illustrator
CS6
DC3000

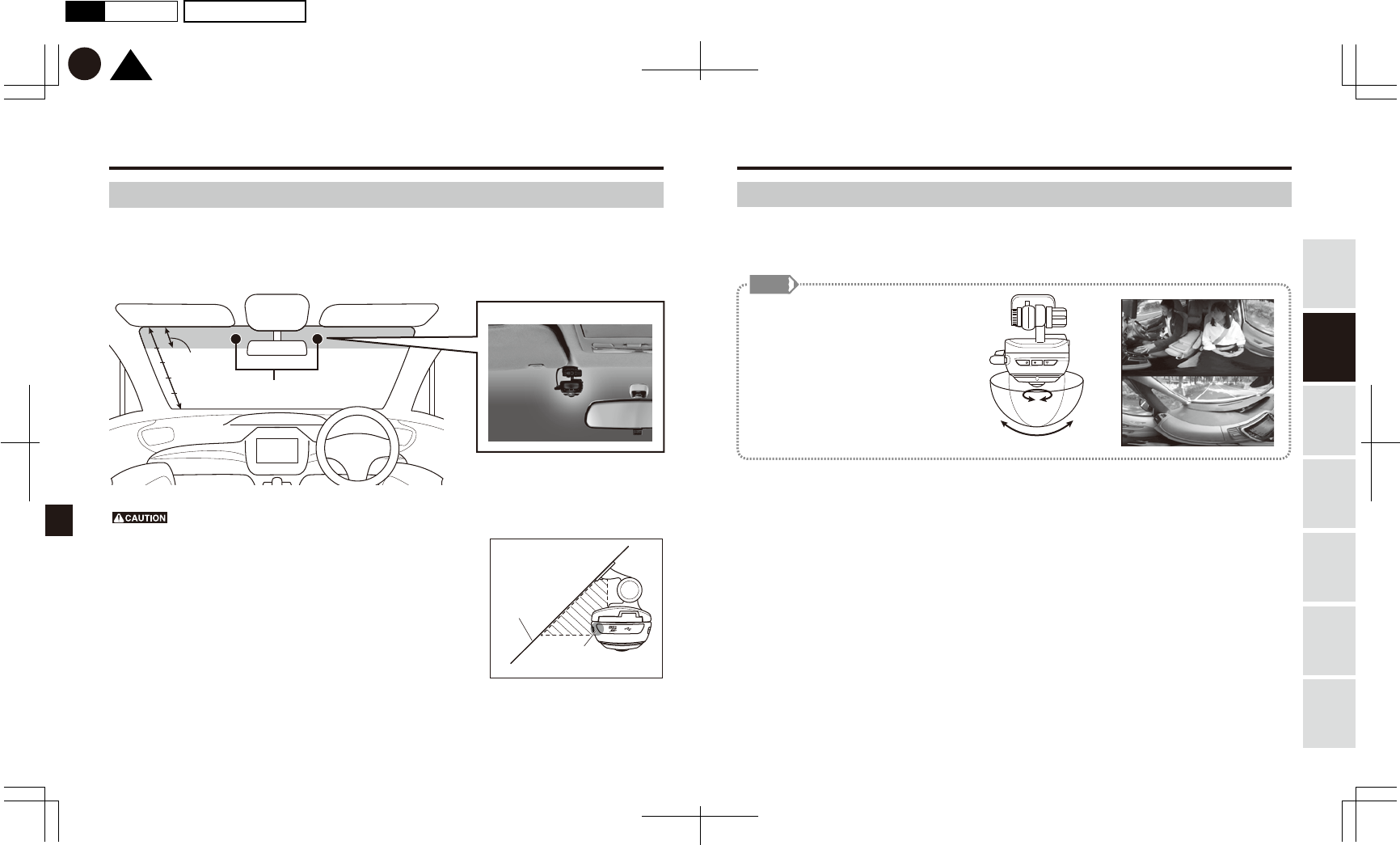

Checking the mounting position Checking the field of vision
When mounting the camera, ensure to meet all the below requirements.
After checking the video using your smartphone, determine where the camera is mounted inside your car and
how the power cable is arranged. In doing this, follow the instructions below.
*Install the Product properly according to this manual. Car products mounted incorrectly may be regarded as
a violation of your local traffic laws. Keep the camera body attached to the mount while driving and during
inspection.
While checking the video on your smartphone app, confirm an approximate position for the camera and
approximate angle of the lens.
*Do not start mounting yet.
After determining an appropriate mounting position, remove the power cable from the camera body and
detach the camera body from the mount.
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
Recommended mounting position
Front
windshield
GPS antenna
<Example of a mounted camera>
*The mounted camera does not interfere with the driver’s vision and operation of
the vehicle.
*The mounted camera does not block the rearview mirror, or obstruct the vehicle’s
airbags.
*The camera is mounted within the upper 20% portion of the windshield. (See
illustration above)
*The camera is mounted so that its lens is within the wiping range of the windshield
wipers.
*The taped part of the camera does not overlap any heated wire printed on the
windshield or antennae.
*If additional security or safety cameras are already in place, the camera to be
mounted should not be within the view of such camera.
*No cable or metallic objects should be between the front windshield and the GPS
antenna. (see illustration on the right)
View angle of recorded video
This Product is a whole-sky, 360-degree
camera. Its recording range is
hemispherical, with viewing angles 360°
horizontally, and 194° vertically. (Figure 1)
If the camera is mounted with the lens
facing directly below, you can simultane-
ously record video of inside and outside of
your car. (Figure 2)
Figure 1 Figure 2
19 20
1
2
3
4
7
5
6
8
TOP
KP20P19
2017.01月
初
版Mac
Illustrator
CS6
DC3000
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
*The memory LED will
also light up.

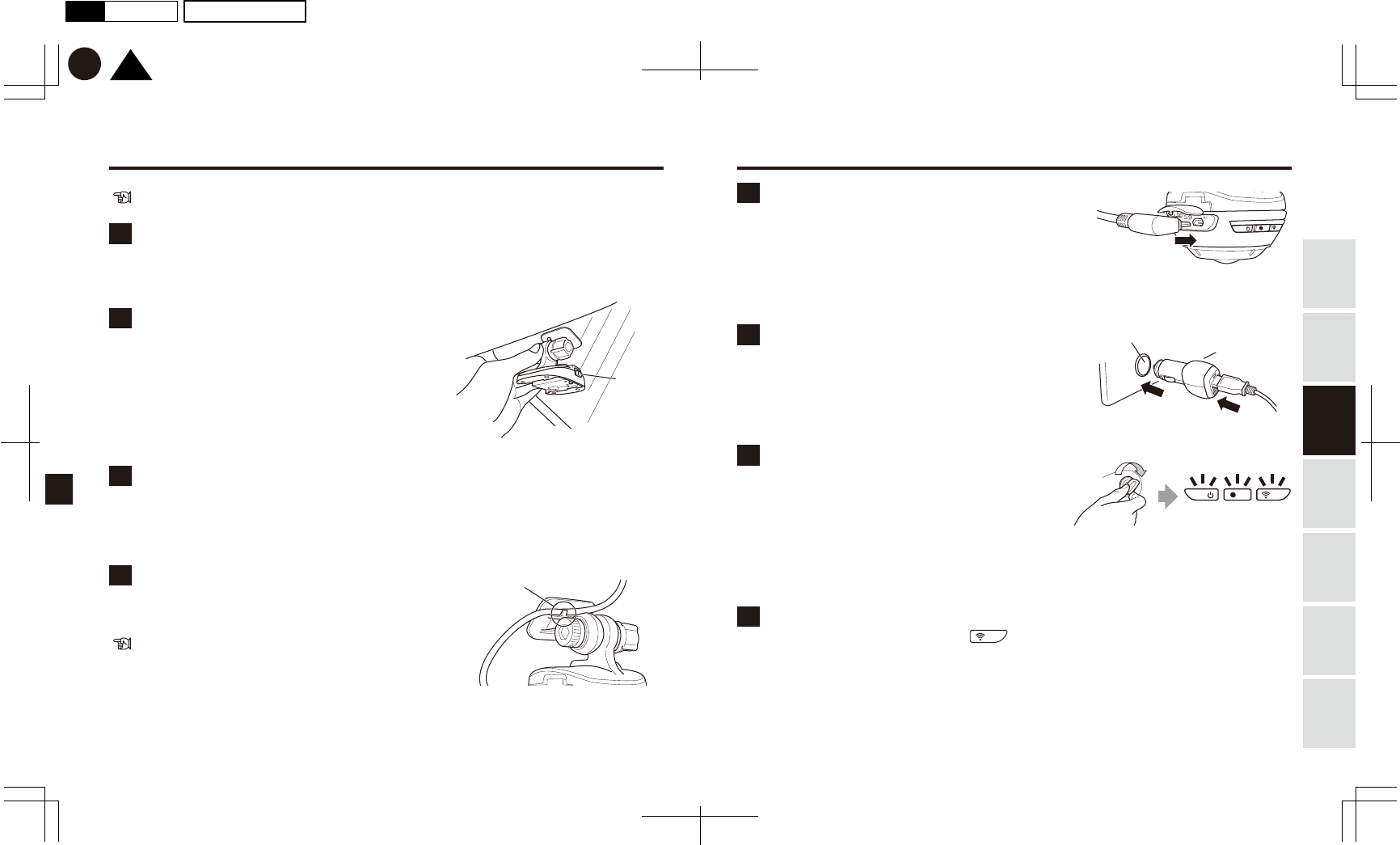

Install the Product outdoors where GPS signals can be easily received.
For a neater arrangement, keep the power cable
running through the cable hook located on the upper
portion of the mount. Ensure to have some extra length
of the power cable available in advance.
Wipe the mounting surface clean with mild detergent. Wipe again with a water-soaked
cloth, and then again using a dry cloth.
Peel the release paper off the mount. Orient the mount
so the release lever faces to the right. Tape the mount
firmly onto the front windshield.
Match the convex portion of the camera body with the concave
portion of the slide rail portion of the mount. Slide them together
until they click.
Arrange the power cable neatly using the cable clips
included in the Product.
*To stabilize the tape adhesion, leave the mount for at least
24 hours without the camera attached. Do not peel off and
re-tape the mount, as doing so will lower the adhesiveness
of the tape.
*Do not drive your car until the camera body is attached to
the mount.
Release lever
Cigarette lighter receptacle
Cable hook
Cleaning the mounting area Open the cover to ensure the memory card is inserted.
Insert the microUSB connector of the power cable into
the USB power socket.
Checking the memory card is inserted and
connecting the power cable
Connecting to a smartphone
Turn on your car engine (turn on the ignition) and
ensure all LEDs light up after a few seconds.
In order to set the date and time, the camera must
receive GPS signals. Keep the engine running for
at least 40 seconds.
Turning on the engine
After inserting the microUSB connector of
the power cable into the USB power socket,
insert the USB power socket into your car’s
cigarette lighter receptacle.
Inserting the power cable into
the cigarette lighter receptacle
Attaching the mount
Attaching the camera body to the mount
Arranging the power cable
Installation
After ensuring the communication LED is on,
connect the camera and your smartphone wirelessly.
Open the d’Action app.
2221
1
3
2
1 minute
10 seconds
1 minute
MEMO
9
10
TOP
KP22P21
2017.01月
初
版Mac
Illustrator
CS6
DC3000
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting

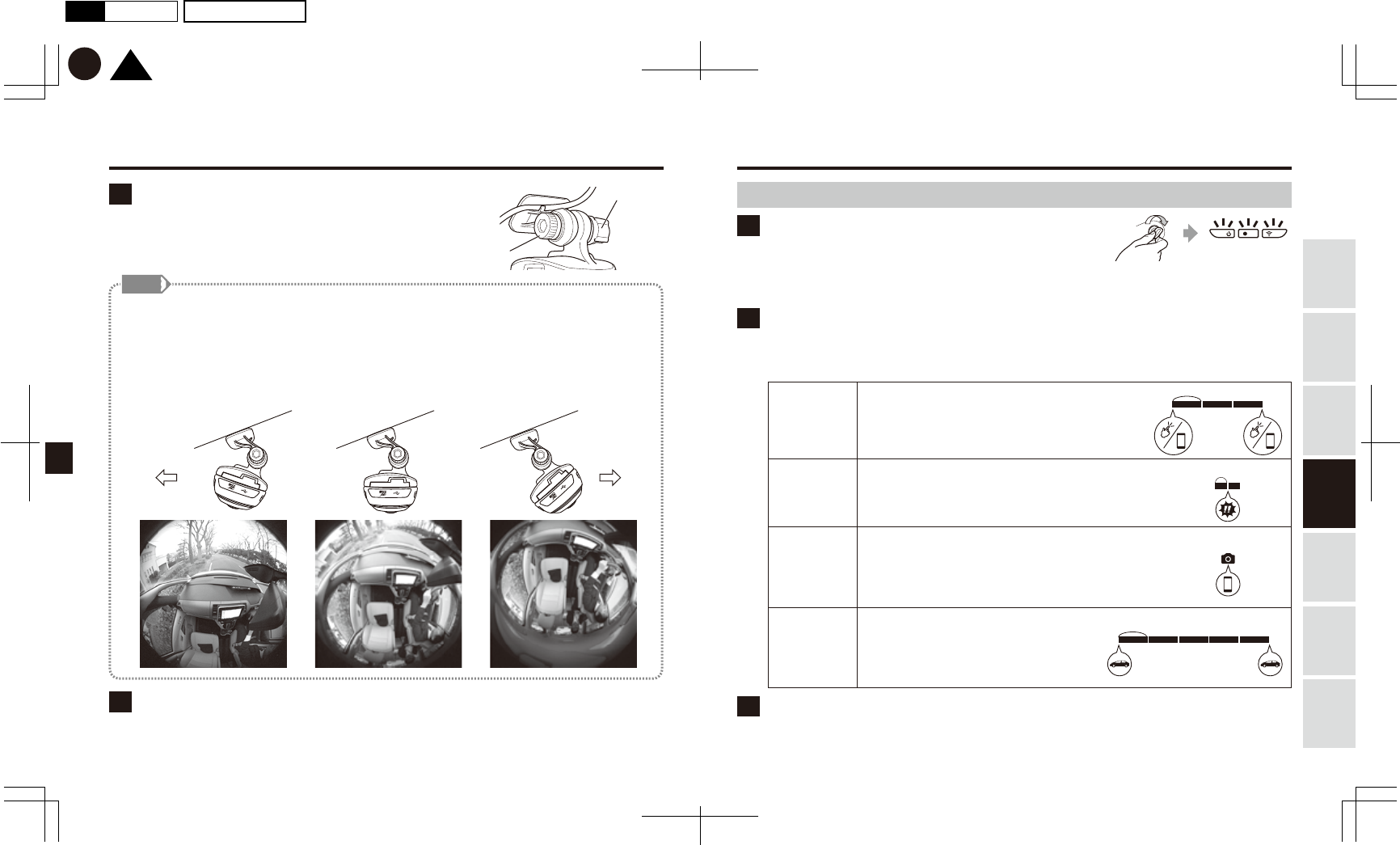

While checking the app display on your connected smartphone,
adjust the lens angle.
Once you have determined your ideal lens angle, hold knob I
firmly by hand so as not to let it turn, and turn knob II to fix
the lens in place.
Adjusting the lens angle
After fixing the lens angle, turn off your car engine (turn off the ignition).
This completes the camera installation.
Turning off the engine
*The memory LED will
also light up.
Knob I
Knob II
Lens angle and recorded footage
Adjust the lens angle depending on your preferred recording field of view. (See images below)
When the lens faces the driving direction, the camera will record most of the road traffic ahead.
Adjusting the lens angle to face inside the car will allow the camera to record the inside of the car,
and the traffic behind it.
Please set according to preference.
<Lens facing the driving direction>
Driving direction Back of
the car interior
<Lens facing directly below> <Lens facing the inside of the car>
Capturing images/videos in Driving mode
Capturing images/videos
By turning on your car engine (turning on the ignition), the camera is
automatically switched on to begin continuous recording.
Ensure all LEDs are on within a few seconds of starting the engine.
*It may take up to 30 seconds for the camera to begin recording after being switched on.
Turning on the engine to switch on the camera
In Driving mode, the four types of recording modes can be used as follows.
On the memory card, one folder will be created for each recording mode. Captured/recorded files are
recorded in their respective folder together with geotagging (geographical identification metadata).
●Capturing scenery
●Capturing the inside
of your car
■Manual Recording
The camera starts and stops recording either by pushing the record
button on the camera body, or by switching it on using
your smartphone. One file is saved every minute. When the folder
becomes full, the camera stops recording automatically.
■Impact Recording
When the camera detects an impact, it stores the footage from 10 seconds
before and 10 seconds after (20 seconds total). When the folder becomes full,
the most recently saved file overwrites the oldest file. *The manual recording mode supersedes
the impact recoding; in the manual mode, the camera will not record any footage even if an impact is detected.
■Still image capture
The camera takes one still image by switching it on using your smartphone.
While the folder is full, you cannot take any more still images.
*You cannot take any still images by pushing the button on the camera body.
*You cannot take any still images while the camera is in manual recording mode.
*You cannot take any 4K equivalent still images while the camera is in driving mode.
■Continuous recording
The camera records video continuously from the moment
the car engine is turned on until it is turned off. One file is
saved every minute. When the folder becomes full, the most
recently saved file overwrites the oldest file.
*The camera will not record continuously in manual recording mode.
●Capturing
any potential
road incidents
●Capturing
still images
●Recording
continuous
footage

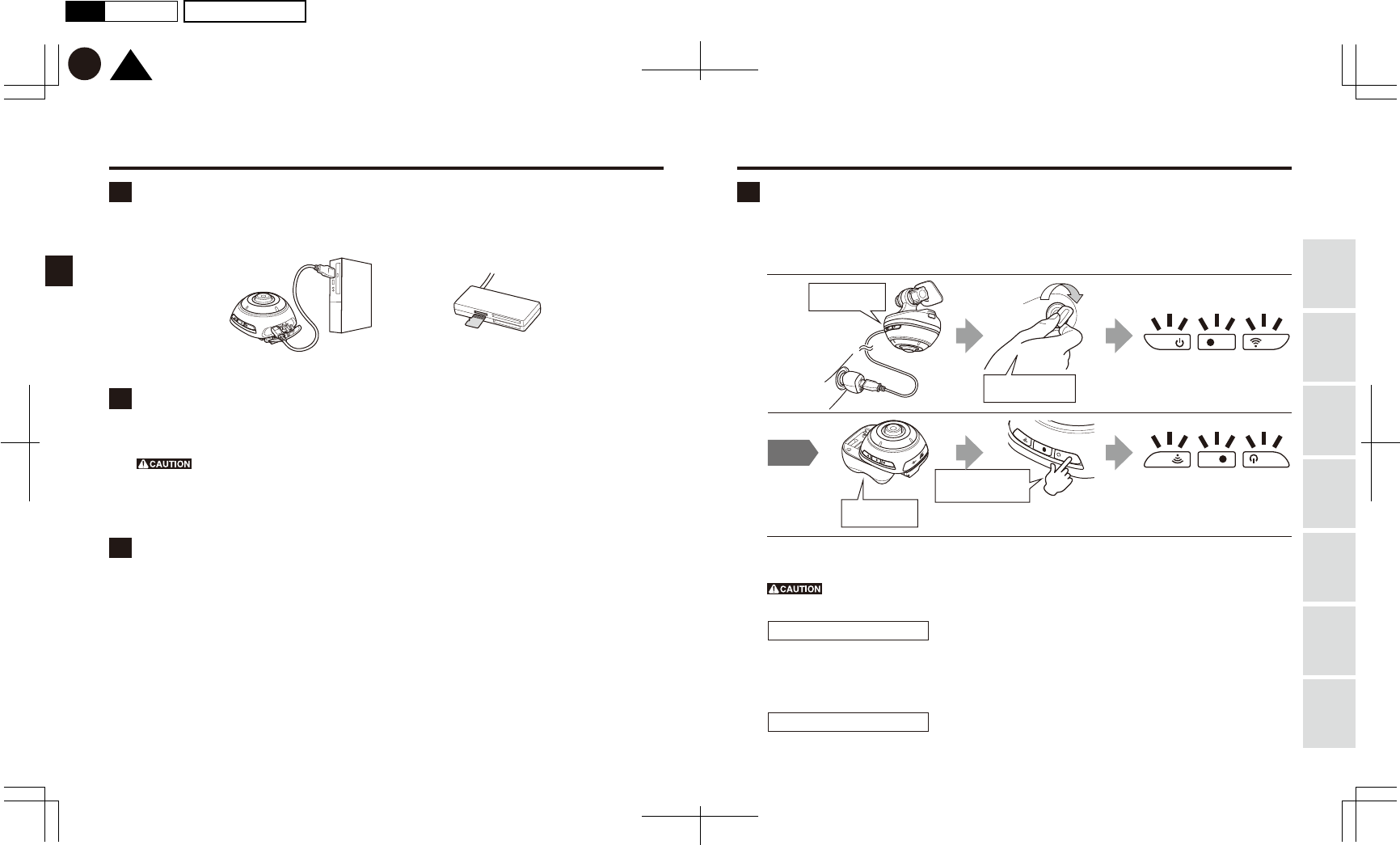

Recording
By turning off your car engine (turning off the ignition), the camera is automatically switched off.
Ensure all LEDs have turned off within a few seconds of stopping the engine.
Turning off the engine to switch off the camera
23 24
1
3
1
3
1 minute
2
Normal mode Energy saving mode
10 seconds
(7 seconds) 30 seconds 30 seconds3 seconds
4
2
TOP
KP24P23
2017.02月
C
版Mac
Illustrator
CS6
DC3000
201702-C
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting

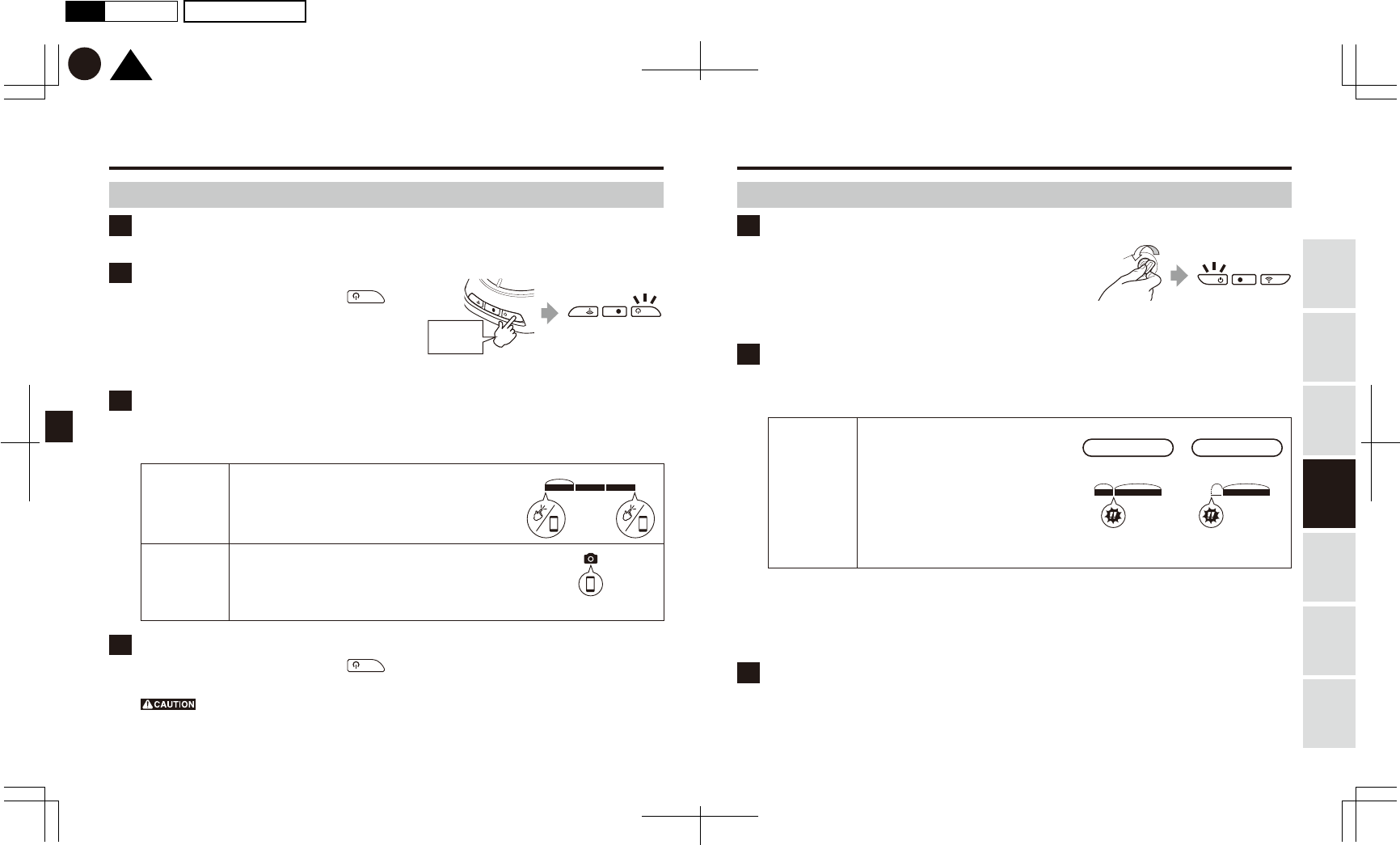

Capturing images/videos in Action mode *Battery Kit Add-On (DC100) is required. (Sold separately)
Press and hold
for more than
two seconds
Do not detach the battery pack during recording.
Before detaching the battery pack, stop recording and switch the power off.
Attach the fully charged battery pack (sold separately) to the camera body.
Attaching the battery pack
Turning off your car engine (turning off the ignition) with
the security add-on (sold separately) connected will automatically
stop Driving mode and momentarily switch off the camera.
From here, the camera will automatically switch on and
change to Security mode.
Ensure the switch button LED is blinking green intermittently.
Turning off the engine
In Security mode, the following security recording modes can be used.
Recorded files are stored in a folder on the memory card.
*GPS geotagging is not recorded.
About energy saving mode
This Product is equipped with an energy saving mode, allowing for longer operation of the Product without putting strain
on your car’s battery. The camera will switch automatically to this energy saving mode when either Security mode has
been running for sixteen hours, or the camera body has reached a high temperature. When the camera switches to
energy saving mode, the switch button LED will turn off. In addition, if the ambient temperature exceeds the operating
temperature range, camera operation will be stopped for protection.
Recording
Turning on your car engine (turning on the ignition) with the security add-on connected will automatically
stop Security mode and momentarily switch off the camera. From here, the camera will automatically
switch on and change to Driving mode.
Ensure all LEDs have turned on within a few seconds of starting the engine.
Turning on the engine
In Action mode, two types of recording modes can be used as follows.
On the memory card, one folder will be created for each recording mode; and captured/recorded files
are recorded in their respective folder together with geotagging (geographical identification metadata).
Press and hold the switch button to switch on
Recording
Press and hold the switch button to switch off
By pressing and holding the switch button for more than two seconds, the camera will switch off.
Ensure the switch button LED on the camera body is off.
By pressing and holding the switch button
for more than two seconds, the camera is switched on.
Ensure the switch button LED on the camera body is on.
*You will be able to power on the camera body
approximately two seconds after attaching the battery
pack. Pressing and holding the switch button before this time has elapsed will have no effect.
■Manual recording
The camera starts and stops recording either by pushing
the record button on the camera body, or by switching it on using
your smartphone. One file is saved every minute. When the folder
becomes full, the camera stops recording automatically.
●Capturing scenery
■Still image capture
The camera takes one still image by switching it on using your smartphone.
While the folder is full, you cannot take any more still images.
*You cannot take any still image while the camera is in manual recording mode.
*You cannot take any still images by pushing the button on the camera body.
●Capturing
still images
Capturing images/videos in Security mode *Security Add-On (DC200) is required. (Sold separately)
■Security recording
*Normal mode:
When the camera detects an impact, it records
10 seconds of footage (Full HD) or 7 seconds (4K)
from before, and 30 seconds from after the impact
(total 40 seconds in Full HD, or 37 seconds in 4K).
*Energy saving mode:
When the camera detects an impact, it records footage
approximately 3 seconds after the impact for 30 seconds.
When the folder becomes full, the most recently saved file overwrites the oldest file.
*If you turn on the car engine while recording in security mode, that portion of data will not be saved.
●Recording
hit-and-runs,
etc.
2625
15
4
1
3
MEMO
2
TOP
KP26P25
2017.01月
初
版Mac
Illustrator
CS6
DC3000
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
Viewing/deleting media on your smartphone
Viewing/deleting media
*If you are connecting to your smartphone for the first time, refer to the procedures on pages 15 and 16.
*You cannot connect to your smartphone in Security mode.
Turning on Wireless LAN on the camera body
When the camera is connected to the car cigarette lighter receptacle
or to the Security Add-On (DC200: sold separately)
Opening the app/confirming connection
Open the d’Action 360 app, and check that a connection has been established.
If no connection has been established, switch off the camera. Repeat the steps from procedure 1
on page 25.
Viewing/deleting media
Open the d’Action 360 app, and check that a connection has been established.
Play and delete your images/videos by following the app display.
Turning on Wireless LAN on
your smartphone
On your smartphone, turn on “Wi-Fi” under “Settings.”
Selecting the SSID
*A password is required only when connecting for the first time. (See page 16)
*A password may be required if you have changed the SSID or password, or when the OS of
your smartphone has been updated.
Turn on your car engine (turn on the ignition) to
automatically turn on Wireless LAN.
When the battery pack is attached to the camera
Press and hold the switch button for more than two seconds with the battery pack attached.
After that, press the communication button .
<Display example>
Press
Car engine
is on
Press and hold for
more than two seconds
Data download time
Approximate times to transfer images and videos to
your smartphone are as follows:
*The above downloading times are provided for guidance only, and may differ
greatly depending on the ambient environment and data content.
One-minute video
(4K equivalent) 640 seconds
180 seconds
2.5 seconds
0.9 seconds
One-minute video
(Full HD equivalent)
One image
(4K equivalent)
One image
(Full HD equivalent)
Battery pack
is attached
27 28
1
2
4
3
http://daction.carmate.jp/
TOP
KP28P27
2017.01月
初
版Mac
Illustrator
CS6
DC3000
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting

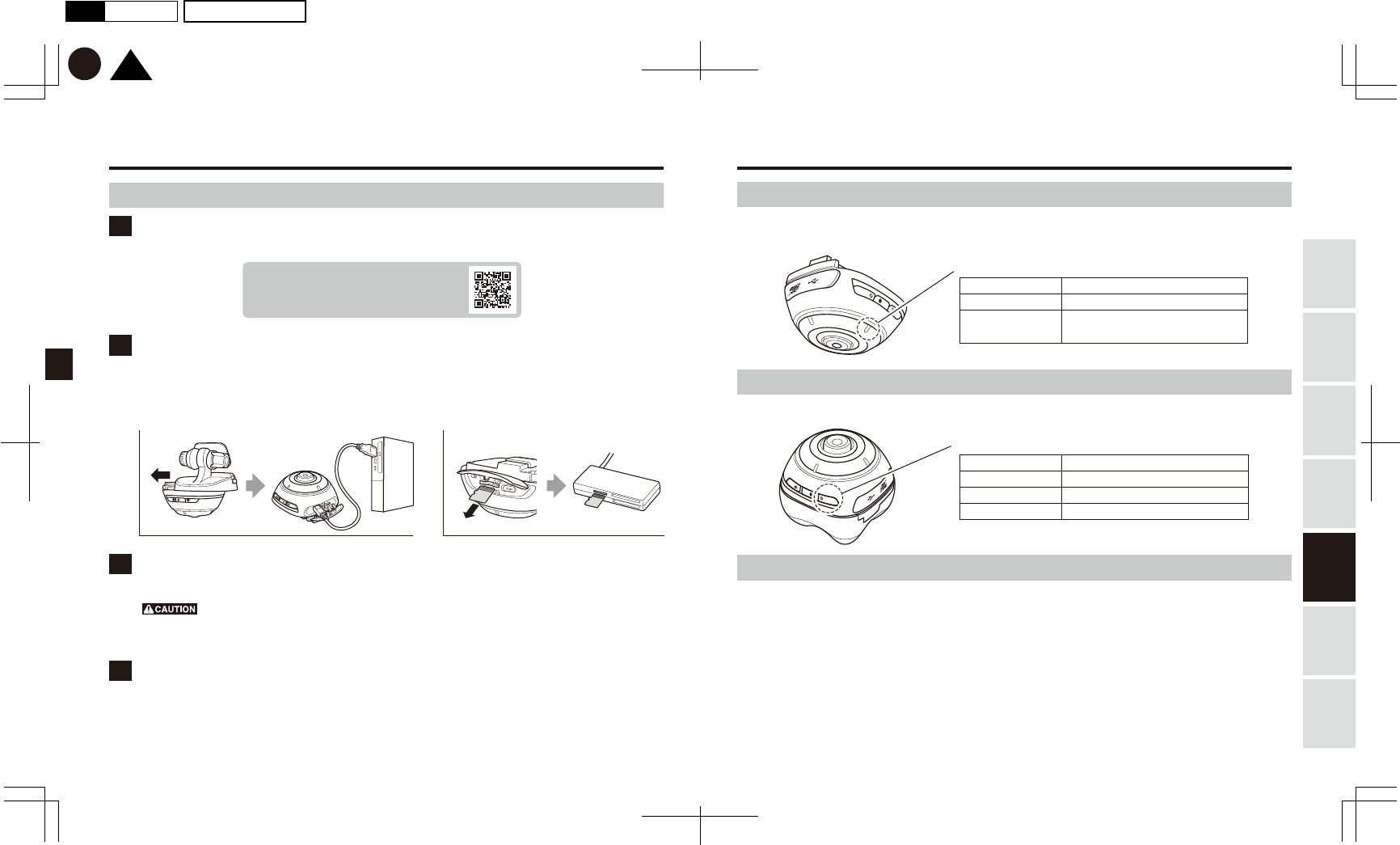

Installing the d’Action software on your computer
Viewing/deleting media on a PC
Visit our website below to download and install the d’Action software onto your computer.
Checking remaining storage space in the “Manual Recordings” folder
The memory LED on the camera body indicates the remaining recordable memory in the “Manual
Recordings” folder.
Connecting the memory card to your computer
Connect the memory card to your computer by following either of the steps below.
*Detach the camera body from the mount. Connect the camera body directly to your computer by using
the communication cable (included in the Product).
*Remove the memory card from the camera body. Connect the memory card to your computer by using
a third-party card reader.
Starting the d’Action software to load the files
Start the d’Action software and load the files from the memory card.
Viewing/deleting media
View your images/videos by following the software display screen.
When deleting files, either delete them directly from the memory card, or format the memory card using
the smartphone app. (See page 31)
*Do not remove the memory card while data is being read.
*Formatting a memory card will delete all of the stored files, and optimize its folder structure.
*The folders “Continuous Recordings”, “Impact Recordings”, and “Security Recordings” can be overwritten. As such,
the remaining memory is not indicated.
Checking the remaining battery
The switch button LED indicates the remaining battery of the attached battery pack.
Pausing camera operation
In order to prevent the security recording from starting to record upon detecting any normal impacts that
occur when the driver or passengers gets out of the car, the camera can be deactivated so as not to detect
any impacts between one minute or ten minutes after the car engine is turned off. Deactivation can be
set up using the smartphone app.
*Only when the Battery Kit Add-On (DC100) is attached
Useful features
Green light is on 50% to 100% storage space remaining
Orange light is on 20% to 49% storage space remaining
Red light is on Below 19% storage space remaining,
or no memory card inserted
Green light is on 50% to 100% battery remaining
Orange light is on 20% to 49% battery remaining
Red light is on 6% to 19% battery remaining
Orange light blinking Below 5% battery remaining
Memory LED
Switch button LED
3029
MEMO
2880
1440
(Unit: Pixels)
4K equivalent
2880
1440
★Medium sensitivity
Highest sensitivity:Impacts are easily detected in Driving mode
High sensitivity:Impacts are easily detected in Security mode
Low sensitivity:Impacts are not easily detected in Security mode
Lowest sensitivity:Impacts are not easily detected in Driving mode
★High sensitivity
Medium sensitivity
Low sensitivity
*Check the detection sensitivity by knocking on the body of the vehicle.
WDR *
Brightness
(exposure)
Audio
recording
Camera
sound volume
Deactivation
time
ON ：Auto-adjust the contrast
★OFF ：Do not auto-adjust the contrast
★ON ：Record sound
OFF ：No sound recording
Loud: Sound volume maximized
★Quiet: Sound volume is normal
Quiet: Sound volume is normal
-2 ：
Brightness (exposure) is adjusted to be darker
-1
★0
+1
+2 ：
Brightness (exposure) is adjusted to be lighter
★One minute: No impacts are detected for
one minute after the car engine is turned off.
Ten minutes: No impacts are detected for ten
minutes after the car engine is turned off.
①
②
Manual recording
Impact recording
Still image capture
Continuous recording
Manual recording
Still image capture
Security recording
Driving mode
Action mode
Detection sensitivity
(Impact recording)
Detection sensitivity
(Security recording)
Security mode
○
（※）
×
×
×
○
○
○
○
○
○
○
○
○
○
★Full HD equivalent
(1440×1440)
4K equivalent
(2880×2880)
TOP
KP3029
2017.01月
初
版Mac
Illustrator
CS6
DC3000
Full HD
equivalent

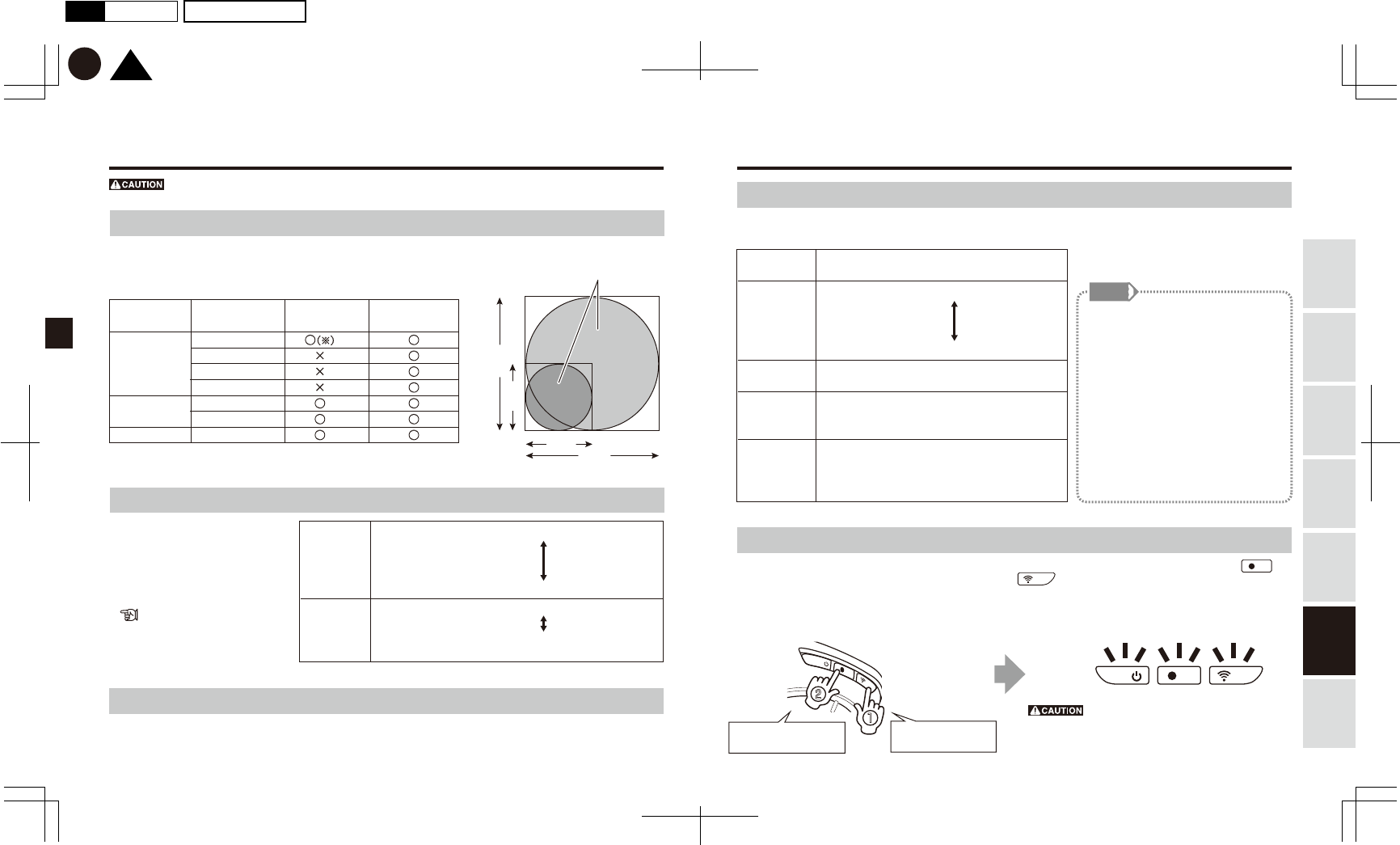

Changing the camera settings
Changing the recording resolution
Changing other settings
In some recording modes, the recording resolution can be changed to 4K equivalent.
Changing settings using the smartphone app.
You can change the recording mode settings as follows:
The detection sensitivity is
maximized when the lens
faces directly below.The detection
sensitivity decreases as the lens
angle gets wider.
★ Default setting
Diagram of
recorded portions
★ Default setting
★ Default setting
*Driving mode/Power is ON (operating only during continuous recording)
*Action mode/Power is ON (not recording)
*During this system reset, all LEDs will blink
orange. Do not turn off the power, push any
buttons, or insert/remove the memory card
until the orange blinking turns off.
(1) While pressing down
the communication button
(2) Push the record button
5 times
Changing the impact detection sensitivity
You can change the impact detection
sensitivity levels for Impact recording
in Driving mode, and for Security
recording in Security mode.
Change settings using
the smartphone app.
Changing the SSID and password
You can change the SSID and password.
Change settings using the smartphone app.
*When manually recording 4K equivalent video in Driving mode, a time lag of
a few seconds occurs between pressing the recording button, and the recording starting.
*All recording modes will be stopped while you are changing the camera settings
on the smartphone app.
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
You can also change the settings below.
Change settings using the smartphone app.
*WDR (Wide Dynamic Range)
WDR (wide dynamic range) technology
adjusts the brightness of video recorded
in light or dark places, reducing
overexposure by headlights, etc.
On this camera, WDR is initially set
at “off”.
Please turn WDR on or change
the brightness to suppress
overexposure.
Resetting the device
All set values are reset.When the Product is in either of the following states, push the record button
5 times while holding down the communication button .
*This resetting process does not format or initialize the data on the memory card or the version of the camera body.
31 32
1
2
MEMO
http://daction.carmate.jp/
Recording modes
Manual
recording
Impact recording
+
Security recording
Continuous
recording
Still image
capture
16GB 32GB 64GB 128GBNumber of recorded pixels
Full HD equivalent
4K equivalent
Full HD equivalent
4K equivalent
Full HD equivalent
Impact/Security recording:
Full HD equivalent
Impact recording: Full HD equivalent
Security recording: 4K equivalent
55 mins
14 mins
264 images
63 images
22 mins
8 mins
2 mins
119 mins
31 mins
569 images
136 images
49 mins
19 mins
5 mins
247 mins
65 mins
1180 images
281 images
102 mins
39 mins
10 mins
504 mins
132 mins
2400 images
572 images
208 mins
80 mins
21 mins
TOP
KP32P31
2017.01月
初
版Mac
Illustrator
CS6
DC3000
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
Continued on the next page
Others
Guides for approximate recording times and number of images
Formatting the memory card
Delete all files on the memory card to optimize its folder structure.
Formatting can be done using the smartphone app.
*Formatting a memory card erases all of the files stored on it.
Back up any important data onto a storage device (such as a PC) prior to formatting.
*Ensure to format your memory card with this Product if; you are using the card for the first time, the card has
been used with other devices, or the card has been formatted on a computer.
*We recommend you format your memory cards every six months.
*The above recording times and number of images are provided for guidance only, and are not absolutely guaranteed values.
These will vary depending on the condition of use, subject, and ambient environment.
Full HD equivalent: 1440×1440/4K equivalent: 2880×2880
Upgrading the camera body
The firmware of the camera body is subject to updates due to specification changes or additional functions
being added. Check the version of your camera. If a newer version has been released, please proceed to
update the firmware.
You can check your camera version using
your smartphone app while it is wirelessly
connected to the camera body.
Check for the latest version on our website
on the right.
Downloading the latest firmware file onto your PC
Visit the above website and download the latest firmware files onto your computer’s desktop.
Extracting files
Extract the zip file you downloaded in procedure 1.
3433
3
5
4
6
OR
If updating has not started
If updating has failed
OR
*Wait for at least three seconds after attaching the battery pack
before pressing and holding the switch button.
Connect
the power cable
Turn on
the car engine
Attach
the battery pack
Press and hold
the switch button for
more than two seconds
TOP
KP34P33
2017.01月
初
版Mac
Illustrator
CS6
DC3000
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
Connecting the memory card to your computer
Connect the memory card to your computer either by directly connecting the communication cable
(included with the Product) to the camera body, or by using a third-party card reader.
Switching on the camera
Switch on the camera by doing either of the following:
*Attach the camera body to the mount. Insert the microUSB connector of the power cable into
the camera body, and turn on your car engine (turn on the ignition).
*Attach the fully charged battery pack to the camera body. Press and hold the switch button
for more than two seconds.
*The camera body will begin updating automatically a few seconds after the camera body is switched on.
During this update, all LEDs except the memory LED will start blinking in red.
*Do not turn off the power, press any buttons, or insert/remove the memory card until the red
blinking turns off.
*The switch button LED is blinking orange (indicating an error)
> Remaining battery level is insufficient for the update to take place. Fully charge the battery and
repeat procedure 6.
*All LEDs are off
> Check the power connection and remaining battery level.
*Repeat all the procedures on page 32.
Copying the extracted firmware file onto the memory card
On your PC, open the “FIRMWARE” folder saved on the memory card.
Copy and paste into this folder the “firmware.bin” file you extracted in procedure 2.
*Do not change the file name “firmware.bin”.
*Do not remove the memory card during data transfer.
Reinserting the memory card into the camera body
When the file has finished copying, remove the communication cable.
If the connection has been made via a card reader, remove the memory card from
the reader and insert it back to the camera body.
35 36
p.28
-
-
-
-
-
-
-
-
-
-
-
-
p.22-24
p.28
p.36
p.22-24
-
-
-
-
-
-
-
-
-
-
p.22-24
p.37
-
-
-
-
-
-
p.25-26
p.30
p.32-34
p.23
p.28
p.28
p.22-24
p.14
p.26
ー
p.28
p.14
ー
p.20
p.7
p.20
p.7
TOP
KP36P35
2017.01月
初
版Mac
Illustrator
CS6
DC3000
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting

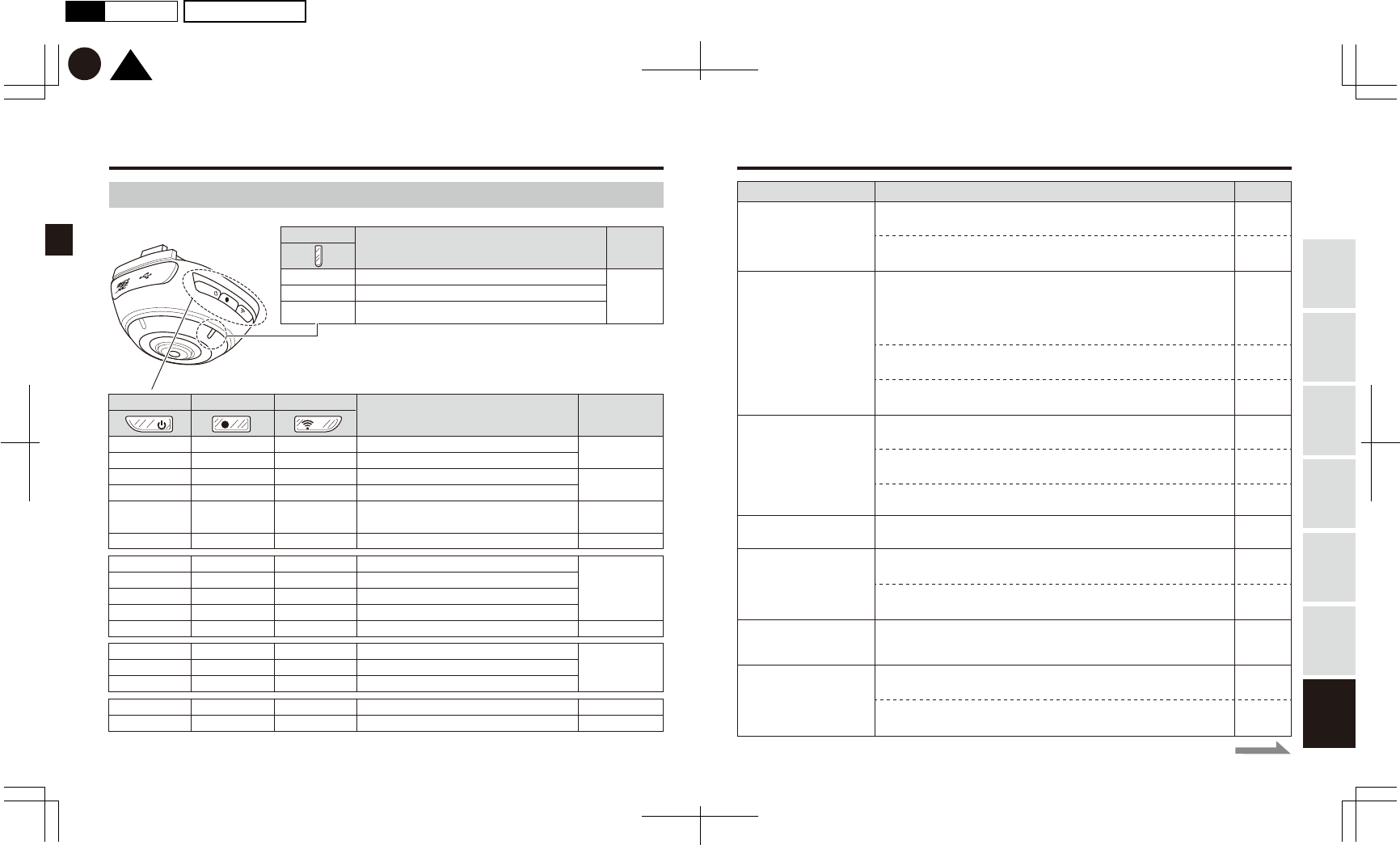

Troubleshooting
Continued on the next page
Problem
I cannot switch on
the camera.
(Driving mode/
Security mode)
*Check the power cable and USB power socket are properly connected.
*Check the camera body is not too hot. If the ambient temperature has exceeded
the operating temperature range, cool it down and try switching it on again.
*Check the battery pack is securely attached to the camera body.
*The switch button will not be active for approximately two seconds after
the battery pack is attached.
*Press and hold the switch button for more than two seconds with
the battery pack attached.
*Check the remaining battery. Charge if insufficient.
*Check the camera body is not too hot. If the ambient temperature has exceeded
the operating temperature range, cool it down and try switching it on again.
*Check the remaining memory on the memory card.
The “Manual Recordings” folder may be almost full.
*For Impact recordings, Security recordings, and Continuous recordings,
the most recently saved file overwrites the oldest file when their respective folder
becomes full. Ensure to back up any data you want to keep to an external storage device.
*Check the memory card for its speed class and capacity.
*Check the memory card for its speed class and capacity.
*This Product records the date and time based on world standard time.
When accessing the memory card with a computer, while the times may differ, this is not
considered product failure.
*The initial setting of the date and time may not have been completed. Keep the camera
switched on for at least 40 seconds outdoors where GPS signals can be easily received.
*As data is transferred wirelessly, transfer times can vary greatly depending on
the environment.
*Large files, especially videos recorded in 4K-equivalent, will take more time to transfer.
*During Driving mode and Security mode, the switch button cannot be operated.
*If this error occurs during action mode, the blinking orange light indicates the battery
is low. Please charge the battery pack.
I cannot switch on
the camera.
(Action mode)
I cannot record
video.
Recorded
data has been deleted.
Data seems incorrect
somehow.
Date/time are set
incorrectly.
Data transfer time to
my smartphone is slow.
An error (orange light is
blinking) occurs when
pressing and holding
the switch button.
Solution Page
Red on Below 19% memory remaining (“Manual Recordings” folder),
or no memory card inserted
Orange on 20% to 49% memory remaining (“Manual Recordings” folder)
Green on 50% to 100% memory remaining (“Manual Recordings” folder)
Indication
Memory LED
Switch button LED Recording button LED Communication
button LED
Page
Indication Page
LED indicators
Green on Continuous recording in progress
Orange blinking Error
Red on Impact/Manual/Security recordings in progress
Red blinks once Still image capture
Orange on Power is ON (20% to 49% battery remaining)*
Red on
*Action mode only
Power is ON (6% to 19% battery remaining)*
No light is on Power is OFF, or
ON (during Security/energy saving mode)
No light is on
Orange blinking
Red blinking
Orange blinking
Red blinking
Orange blinking
Red blinking
Recording has stopped
Camera body is resetting
Camera body is being updated
Green on
Green blinking
Wireless LAN is ON
Communicating with smartphone
No light is on Wireless LAN is OFF
Green blinking Power is ON (Security/normal mode)
Orange blinking Error (below 5% battery remaining)*
Green on Power is ON
37 38
ー
ー
p.7
p.7
ー
ー
ー
p.25-26
p.30
p.28
ー
TOP
K
2017.01月
初
版Mac
Illustrator
CS6
DC3000
P38P37
Using
this Product
Safely Preparation Installation Capturing
Images/Video Viewing/Deleting
Media Changing
Camera Settings Troubleshooting
Product name d’Action 360
Product number DC3000
No. of effective pixels Approximately 1.3 megapixels
CCD Backside illumination CMOS image sensor 1/2.3
Frame rate Maximum 27.5 fps *Automatically adjusted in high temperatures
F-number F2.0
Angle of view
DC12V (Camera body: DC5V)
Horizontal 360°/Vertical 194°
Power supply voltage
GPS, GLONASS, Michibiki Quasi-Zenith Satellite SystemSatellites
Video: MOV (Video: MPEG4-AVC/H.264, Audio: PCM stereo) Still image: JPEGFile formats
One yearProduct warranty
Complies to IEEE802.11 b/g/n (2.4 GHz band)
H42mm×W62mm×D64mm (camera body)
H104mm×W62mm×D64mm (with mount attached)
Camera body: approximately 100 grams/Mount: approximately 47 grams
Wi-Fi
External dimensions
and Weight
Built-in triaxial G sensor
Built-in stereo microphone
WDR function installed
Others
-10 to 60 degrees Celsius (Security mode)
-10 to 40 degrees Celsius (Driving mode/Action mode)
Operating temperature
range
microSDHC／microSDXC
(16GB to 128GB/UHS-I, Speed class 3 or higher)
Recording media
d’Action app for smartphone (iOS/Android)
d’Action software for PC (Windows)
Video playing
Continuous recording, impact recording, manual recording, still image capture
Security recording: Security Add-On (DC200; sold separately) is required.
Recording modes
Electrical power
consumption
Number of
recorded pixels
2880×2880 (4K equivalent/approximately 8 megapixels)
1440×1440 (Full HD equivalent/approximately 2 megapixels)
DC12V : approximately 370mA (4K equivalent)
approximately 240mA (Full HD equivalent)
DC5V : approximately 800mA (4K equivalent)
approximately 500mA (Full HD equivalent)
Specifications
*“Android”, “Google Play”, and the “Google Play Logo” are trademarks or registered trademarks of Google Inc.
*The “iOS” trademark is used under license from Cisco Systems, Inc. in the United States.
*Windows® is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
*microSD, microSDHC, and microSDXC are trademarks or registered trademarks of SDCard Association.
Problem Solution Page
An error (orange light is
blinking) occurs
when pressing
the record button.
An error (orange light is
blinking) occurs when
pressing the communication button.
I cannot connect to
my smartphone.
I cannot view images and
video using
he PC software.
Images and videos are
too light or too dark.
Geotagging cannot
be obtained.
I cannot switch
the camera to
Driving mode.
I cannot switch
the camera to
Security mode.
*The folders for saving Manual recording data and Still image capture data may be
almost full. Check the remaining memory on the memory card using the smartphone app.
*The record button cannot be operated during Security mode or while connected to
your PC.
*The communication button cannot be operated as Wireless LAN cannot be switched on
during Security mode.
*During Security mode, the Product cannot be connected to your smartphone.
*Close the smartphone app, and turn off wireless LAN. Open the app again and restart
wireless LAN to see if a connection has been established. If the problem persists,
turn off the smartphone app, and switch off the camera. Repeat the procedures
on page 25.
*Your computer device may not be supported. Check the most up-to-date list of
supported devices/OS on our website.
*To play video, any files having “.MOV” and “.LOG” extensions must be loaded together.
Check that these two kinds of data are saved in the same folder.
*Adjust WDR or brightness (exposure).
*During Security mode, geotagging cannot be obtained.
*Geotagging is identified based on signals received from GPS satellites. Signal reception
will be difficult in areas such as tunnels and areas shielded by densely-arranged
buildings, or when items that emit radio waves or magnetic forces are placed around
the camera body.
*After the camera is switched on, it takes at least 40 seconds to obtain geotagging.
*Check the camera is connected by the USB power socket and the power cable
(both included in the Product). You cannot use third-party USB power sockets or
microUSB cables. Contact our service center if you need additional sockets/cables.
*Check the camera is connected by the power cable (included in the Product) and
the cord of the Security Add-On (DC200). You cannot use third-party microUSB cables
or similar cords. Contact our service center if you need additional socket/cable.
*If your car power accessory power outlet is designed to not turn off for a while after
the car engine is turned off, the camera will not immediately switch to Security mode.
Security mode is started when the accessory power outlet is completely switched off.
39 40
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
- The provided shielded USB cables must be used for connection to computer or
peripherals in order to meet FCC emission limits and RF interference suppression.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
The available scientific evidence does not show that any health problems are
associated with using low power wireless devices.
There is no proof, however, that these low power wireless devices are absolutely safe.
Low power Wireless devices emit low levels of radio frequency energy (RF) in the
microwave range while being used.
Whereas high levels of RF can produce health effects (by heating tissue), exposure
of low-level RF that does not produce heating effects causes no known adverse
health effects.
Many studies of low-level RF exposures have not found any biological effects.
Some studies have suggested that some biological effects might occur, but such
findings have not been confirmed by additional research.
d’Action 360 (DC3000) has been tested and found to comply with FCC radiation
exposure limits set forth for an uncontrolled environment and meets the FCC radio
frequency (RF) Exposure Guidelines.
Product Name : d'Action360
Model Number : DC3000
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Responsible party : Car Mate USA,Inc
Address : 383 Van Ness Ave Suite 1603, Torrance, CA 90501
Phone : 310-533-1647
Using
this Product
Safely Preparation Installation
Capturing
Images/Video
Viewing/Deleting
Media
Changing
Camera Settings Troubleshooting
FCC STATEMENT
41 42
MEMO Warranty
Warranty terms
1. In the event your Product is damaged under normal use during the warranty period
(one year from purchase date), Car Mate will repair or replace it at no extra charge.
2. Even during the warranty period, the free repair and replacement shall not apply if;
(i) This warranty document is not presented.
(ii) The product failure/damage results from user negligence, or product failure
due to unauthorized product repair and/or alteration.
(iii) The Product has failed or has been damaged after purchase by transporting
it, or dropping it while handling.
(iv) Water or other substances from outside are detected in the Product
(v) The Product failure/damage results from fire, earthquake, flood, abnormal
electric voltage, pollution, use of undesignated electric voltage/radio
frequencies, and/or other natural disasters.
(vi) Any of the required information on this warranty document is unfilled, or
altered. The purchase receipt can be attached for establishing the purchase
date and the dealer.
(vii) Any of the external portions of the Product are damaged.
3. This warranty shall not apply to the Product mounted on illegally altered vehicles.
4. This warranty shall not apply if you have lost the Product, part of the Product, and/or
accessory part(s).
5. This warranty shall not apply if the Product has been pre-owned or re-sold.
6. For product repair/replacement, ensure to contact Car Mate service center or the
dealer at which you purchased the Product, presenting this warranty document.
7. Keep this warranty document in a safe place; this will not be reissued.
8. This warranty is valid only for service in Japan.
Car Mate Mfg. Co., Ltd.
Head Office/Nagasaki 5-33-11, Toshima-ku, Tokyo, Japan 171-0051 TEL: +81-3-5926-1212
WARNING: This product can expose you to chemicals including
[Antimony trioxide,Diisononyl phthalate (DINP)] ,which is known
to the State of California to cause cancer.
For more information, visit www.P65Warnings.ca.gov.
