CC and C Technologies BT0002M1 Bluetooth Module User Manual DataSheet BT 0002M 1
CC&C; Technologies, Inc. Bluetooth Module DataSheet BT 0002M 1
Manual
Bluetooth Module
BT-0002M-1
User’s Guide
Version 1.1
Technologies, Inc. 8F, No. 150, Jian Yi Road, Chung Ho City,
Taipei County, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
http://www.ccandc.com.tw
E-mail: marketing@ccandc.com.tw
Confidential
2
Technologies, Inc.
BT-0002M-1
Bluetooth Module
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Confidential
3
Technologies, Inc.
BT-0002M-1
Bluetooth Module
This device is intended only for OEM integrators under the following conditions:
1) The transmitter module may not be co-located with any other transmitter or antenna.
As long as condition above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed (for example, digital device
emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID can not be used on the final
product. In these circumstances, the OEM integrator will be responsible for re-evaluating
the end product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains TX
FCC ID: PANBT0002M1”.
Manual Information That Must be Included
The users manual for OEM integrators must include the following information in a
prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used not be co-located or operating in conjunction with any other
antenna or transmitter.
Confidential
4
Technologies, Inc.
BT-0002M-1
Bluetooth Module

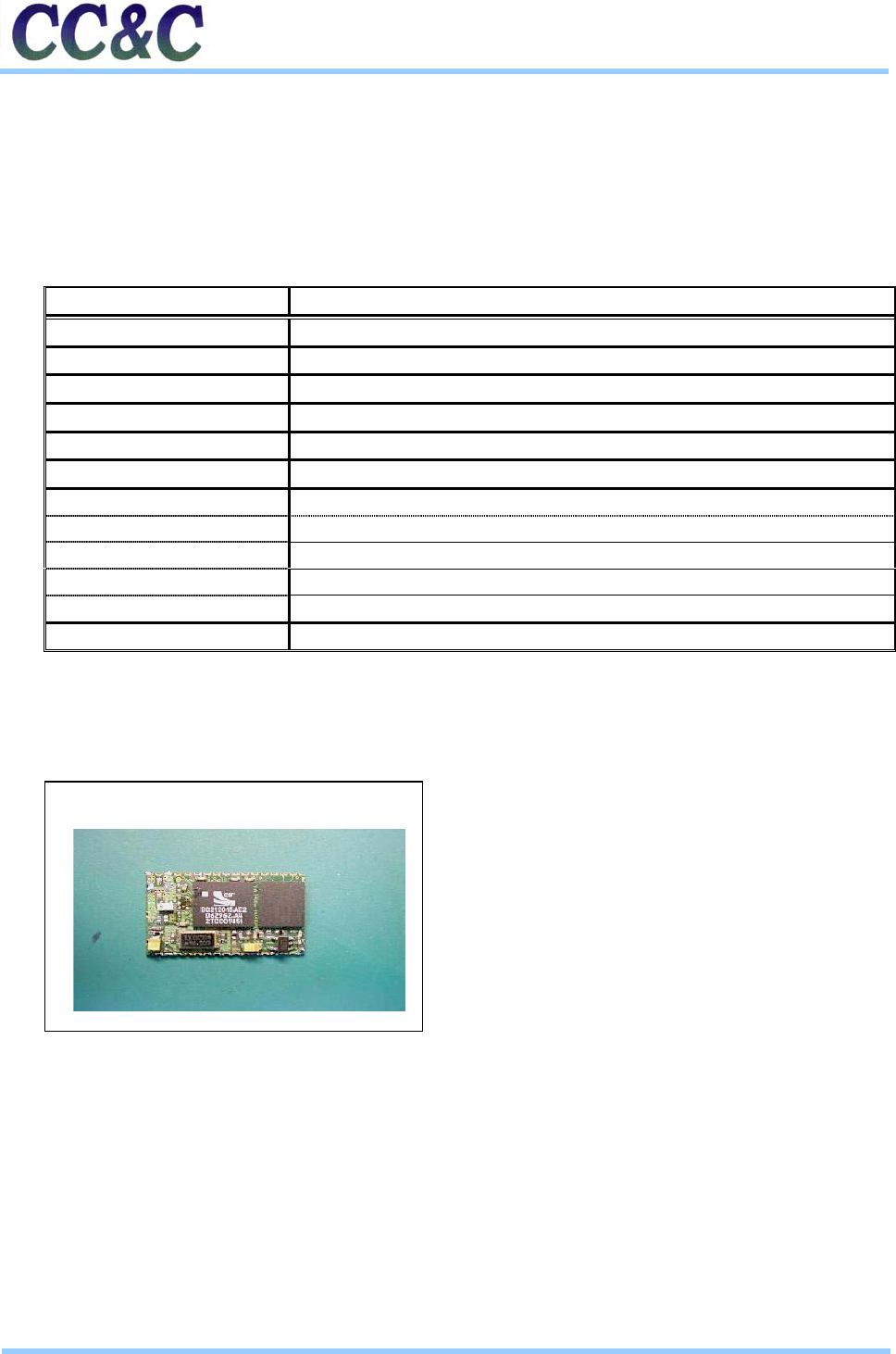

Description
CC&C Technologies, Inc. provides various Bluetooth products. They are suitable for
customers to exploit them to implement Bluetooth functionality into various electronic devices. The
features of Bluetooth module list as below:
Features
Model Name BT-0002M-1
Standard Bluetooth v1.1
Frequency Band 2.4~2.4835GHz unlicensed ISM band
Spread Spectrum FHSS (Frequency Hopping Spread Spectrum)
RF Output Power Class 2 (under 4 dBm)
Antenna terminal 50 Ohm
DC power 3.3V
I/O Interface
USB Compliant USB V1.1
UART Baud rate up to 921K
PCM Yes
PIO 12 PIO
Dimension 15 x 23 mm
Photos
BT-0002M-
1
Confidential
5
Technologies, Inc.
BT-0002M-1
Bluetooth Module
Electrical Characteristics
Absolute Maximum Ratings
Model Name BT-0002M-1 Unit
Supply Voltage Max. 3.5V V
Typ. 3.3V V
Min 2.8V V
Storage Temperature Max. 85 oc
Min. -40 oc
Recommend Operation Conditions
Model Name BT-0002M-1 Unit
Supply Voltage Max. 3.5V V
Typ. 3.3V V
Min 2.8V V
Operation Temperature Max. 70 oc
Min. 0 oc
Input/Output Terminal Characteristics
Model Name BT-0002M-1 Unit
Digital (UART, PIO)
VIL – Max +0.8 V
Min -0.4 V
VIH – Max 3.7 V
Min 2.31 V
USB
VIL – Max 0.99 V
Min - V
VIH – Max - V
Min 2.31 V
VOL – Max 0.2 V
Min 0 V
VOH – Max 3.3 V
Min 2.8 V
Confidential
6
Technologies, Inc.
BT-0002M-1
Bluetooth Module
Electrical Characteristics - Continue
Current Consumption
Model Name BT-0002M-1 Unit
Mode -Active
ACL data transfer 115.2 Kbps UART (Master) 30mA mA
ACL data transfer 720 Kbps USB (Master) 75mA mA
ACL data transfer 720 Kbps USB (Slave) 75mA mA
SCO connection HV3 (Master) TBA mA
SCO connection HV3 (Slave) TBA mA
SCO connection HV1 (Master) TBA mA
SCO connection HV1 (Slave) TBA mA
Mode -Idle
UART interface 2mA mA
USB interface 6mA mA
Confidential
7
Technologies, Inc.
BT-0002M-1
Bluetooth Module
Radio Characteristics -Transmission
Transmission
Item Measure Bluetooth Spec. Note
Output Power 3dBm
2400.94 >2400MHz
Frequency Range
2481.06 <2483.5MHz
Measuring the –30dBm point
when use channel 0 and 79
2402 MHz 800k <1MHz
2441 MHz 800k <1MHz
20 dB Bandwidth
2480 MHz 800k <1MHz
|M-N|=2 -25dBm≤ -20dBm
Transmit Output
Spectrum
Adjacent Channel
Power |M-N|≥3-45dBm ≤ -40dBm .
Modulation Characteristics
∆F1max
00001111 payload
∆F1avg 167k 140 ≤ ∆F1
avg
≤ 175KHz
∆F2max 195k ≥ 115KHz at least 99.9%01010101 payload
∆F2avg
∆F2
avg
/∆F1
avg
1.04 ≥ 0.8
2402 MHz 6.24k ± 75KHz
2441 MHz 6.4k ± 75KHz
Initial Carrier
Frequency
Tolerance 2480 MHz 2.66k ± 75KHz
1 slot -17K ± 25KHz
3 slot -13K ± 40KHz
Carrier Frequency
Drift
5 slot -15K ± 40KHz
1 slot -0.2K KHz /us
3 slot -0.2K KHz /us
Modulation Test
Frequency Drift
Rate
5 slot -0.3K KHz /us
Confidential
8
Technologies, Inc.
BT-0002M-1
Bluetooth Module
Radio Characteristics -Receiver
Receiver
Item Measure Bluetooth Specification Note
Sensitivity - Single slot packets (DH1) -83 dBm ≤ -70dBm
Sensitivity - Multi-slot packets (DH3) -83 dBm ≤ -70dBm
Sensitivity - Multi-slot packets (DH5) -83 dBm ≤ -70dBm
C/I performance
Co channel interference, C/I
co
-
channel
TBA 11dB
Adjacent 1MHz interference, C/I
1MHz
TBA 0dB
Adjacent 2MHz interference, C/I
2MHz
TBA -30dB
Adjacent ≥3MHz interference, C/I≥
3MHz
TBA -40dB
Image frequency Interference, C/I
TBA -9dB
Adjacent 1MHz interference to in-band
mirror frequency, C/IIma
g
e±1MHz
TBA -20dB
Blocking performance TBA
30MHz – 2000MHz TBA -10dBm Interfering signal power level
2000 – 2400MHz TBA -27dBm Interfering signal power level
2500 – 3000MHz TBA -27dBm Interfering signal power level
3000MHz – 12.75GHz TBA -10dBm Interfering signal power level
Intermodulation Performance TBA
Bit Error Rate ≤ 0.1%
Maximum Input Level PASS ≥ -20dBm
Confidential
9
Technologies, Inc.
BT-0002M-1
Bluetooth Module
Pin Assignment and Mechanical Drawing
Confidential
10
Technologies, Inc.
BT-0002M-1
Bluetooth Module
CC&C Technologies, Inc. reserves the right to make technical changes to its product as part of its
development.
While every care has been take to ensure the accuracy of the contents of this document, CC&C can no
accept responsibility for any errors. All data and specifications are subject to change without notice.
All the trademarks of products and companies mentioned in this data sheet belong to their respective.
Life Support Policy and Use in safety-Critical Application.
These products are not designed for use in life support appliances, devices, or systems where malfunction of
these products can reasonably be expected toresult in personal injury.
