User Manual 1 of 2

6881041B65-O User's Guide >
motorola.com
MD450 Series
Digital 2.4GHz
Expandable Cordless Telephone System
031068o
User's Guide >
MD450 Series
Digital 2.4GHz
Expandable Cordless Telephone System
031068o
1
Congratulations on your purchase of a Motorola product!
Product registration is an important step. Registering
helps us facilitate warranty service and permits us to
contact you if your Motorola product requires an
update or other service.
To register your product online, visit:
www.motorola.com/warranty/cordless
Please retain your original dated sales receipt for
your records. For warranty service of your Motorola
product, you will need to provide a copy of your dated
sales receipt to confirm warranty status. Registration
is not required for warranty coverage.
For a large-print version of this guide, or for product-
related questions, please call:
1-800-353-2729 in the USA
1-888-390-6456 TTY (Text Telephone)
On the Web:
www.motorola.com/cordless
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. All other product or service names are the property of
their respective owners.
©
Motorola, Inc. 2003
6881041B65-O
1041b65o.book Page 1 Friday, March 7, 2003 11:36 AM
2

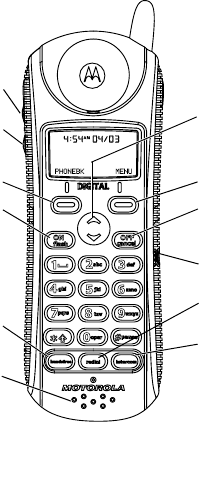

Handset Controls
Handset Controls
Turn handset on
to make a call
Earphone jack
Raise volume
Redial
Scroll up or
down on display
Left soft key Right soft key
Turn handset off
(hang up)
Use handset as
intercom
Talk handsfree
using
speakerphone
Lower volume
Microphone
1041b65o.book Page 2 Friday, March 7, 2003 11:36 AM
3
FCC and Interference Information
This equipment complies with Parts 15 and 68 of the FCC rules and
the requirements adopted by the Administrative Council for Terminal
Attachments (ACTA).
A plug and jack used to connect this equipment to the premises wiring
and telephone network must comply with applicable FCC Part 68 rules
and requirements adopted by the ACTA. A compliant telephone cord
and modular plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also compliant. See
installation instructions for details.
Notification of the Local Telephone Company
On the bottom of this equipment is a label that contains, among other
information, a product identifier in the form US:AAAEQ##TXXXX. You
must, upon request, provide this information to your telephone
company.
The digits represented by ## in the product identifier indicate the
Ringer Equivalency Number (REN) for this equipment. The REN is
useful in determining the number of devices you may connect to your
telephone line and still have all of these devices ring when your
telephone number is called. In most (but not all) areas, the sum of the
RENs of all devices connected to one line should not exceed 5. To be
certain of the number of devices you may connect to your line as
determined by the REN, contact your local telephone company.
Notes
:
•
This equipment may not be used on coin service provided by the
telephone company.
•
Connection to party line service is subject to state tariffs. Contact
the state public utility commission, public service commission or
corporation commission for information.
•
If your home has specially wired alarm equipment connected to
the telephone line, ensure the installation of this cordless phone
does not disable your alarm equipment. If you have questions
1041b65o.book Page 3 Friday, March 7, 2003 11:36 AM
4
about what will disable alarm equipment, consult your telephone
company or a qualified installer.
•
Notice must be given to the telephone company upon permanent
disconnection of your telephone from your line.
•
The FCC requires that you connect your cordless telephone to the
nationwide telephone network through a modular telephone jack
(USOC RJ11C/RJ11W or RJ14C/RJ14W).
Rights of the Telephone Company
Should your equipment cause trouble on your line which may harm the
telephone network, the telephone company shall, where practicable,
notify you that temporary discontinuance of service may be required.
Where prior notice is not practical and the circumstances warrant such
action, the telephone company may temporarily disconnect service
immediately. In case of such temporary discontinuance, the telephone
company must:
1. Promptly notify you of such temporary discontinuance;
2. Afford you the opportunity to correct the situation;
3. Inform you of your right to bring a complaint to the Commission
pursuant to procedures set forth in Subpart E of Part 68, FCC
Rules and Regulations.
The telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect the operation of the
equipment. If this happens, the telephone company will provide
advance notice in order for you to make necessary modifications to
maintain uninterrupted service.
Interference Information
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
1041b65o.book Page 4 Friday, March 7, 2003 11:36 AM
5
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment on and
off, the user is encouraged to try to correct the interference with one or
more of the following measures:
Reorient or relocate the receiving antenna (that is, the antenna for the
radio or television that is “receiving” the interference).
Reorient or relocate and increase the separation between the
telecommunications equipment and the receiving antenna.
Connect the telecommunications equipment into an outlet on a circuit
different from that to which the receiving antenna is connected.
If these measures do not eliminate the interference, please consult
your dealer or an experienced radio/television technician for additional
suggestions. Also, the Federal Communications Commission has
prepared a helpful booklet, “How to Identify and Resolve Radio/TV
Interference Problems.” This booklet is available from the U.S.
Government Printing Office, Washington, D.C. 20402. Please specify
stock number 004-000-00345-4 when ordering copies.
The FCC requires this product to be serviced only by Motorola or its
authorized service agents. Changes or modifications not expressly
approved by Motorola could void not only the user's authority to
operate the equipment, but also the limited warranty.
Hearing Aid Compatibility
This telephone system meets the FCC standards for hearing aid
compatibility.
1041b65o.book Page 5 Friday, March 7, 2003 11:36 AM
6
Important Safety Instructions
Follow these safety precautions when using your cordless phone to
reduce the risk of fire, electric shock, and injury to persons or property:
1. Keep all slits and openings of the phone unblocked. Do not set the
phone on a heating register or over a radiator. Ensure that proper
ventilation is provided at the installation site.
2. Do not use while wet or while standing in water.
3. Do not use this product near water (for example, near a bath tub,
kitchen sink, or swimming pool).
4. Do not allow anything to rest on the power cord. Place the power
cord so that it will not be walked on.
5. Never insert objects of any kind into the product slits as that may
result in fire or shock.
6. Unplug this product from the wall outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
7. Do not disassemble this product. If service or repair work is
required, contact the Motorola address found in the back of this
user’s guide.
8. Do not overload wall outlets and extension cords.
9. Avoid using during an electrical storm. Use a surge protector to
protect the equipment.
10. Do not use this cordless phone to report a gas leak, especially if
you are in the vicinity of the gas line.
Caution:
To reduce the risk of fire, use only No. 26 AWG or larger UL
Listed or CSA Certified Telecommunication Line Cord.
Unplug this cordless phone immediately from an outlet if:
•
The power cord or plug is damaged or frayed.
•
Liquid has been spilled into the product.
MD450_Safety.fm Page 6 Monday, March 10, 2003 10:10 AM
7
•
The product has been exposed to rain or water. Do not retrieve
the handset or base until after you have unplugged the power
and phone from the wall. Then retrieve the unit by the
unplugged cords.
•
The product has been dropped or the cabinet has been
damaged.
•
The product exhibits a distinct change in performance.
Installation Guidelines
1. Read and understand all instructions and save them for future
reference.
2. Follow all warnings and instructions marked on the product.
3. Do not install this product near a bath tub, sink, or shower.
4. Operate this phone using only the power source that is indicated
on the marking label. If you are unsure of the power supply to your
home, consult with your dealer or local power company.
5. Do not place this product on an unstable cart, stand, or table. This
product may fall, causing serious damage to the product.
6. Adjust only those controls that are covered by the operating
instructions. Improper adjustment of other controls may result in
damage and will often require extensive work to restore the
product to normal operation.
7. Clean this product with a soft, damp cloth. Do not use chemicals
or cleaning agents to clean this phone.
8. Use only the power supply that came with this unit. Using other
power supplies may damage the unit.
9. Because cordless phones operate on electricity, you should have
at least one phone in your home that is not cordless in case the
power in your home goes out.
10. To avoid interference to nearby appliances, do not place the base
of the cordless phone on or near a TV, microwave oven, or VCR.
MD450_Safety.fm Page 7 Monday, March 10, 2003 10:10 AM
9
Contents
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

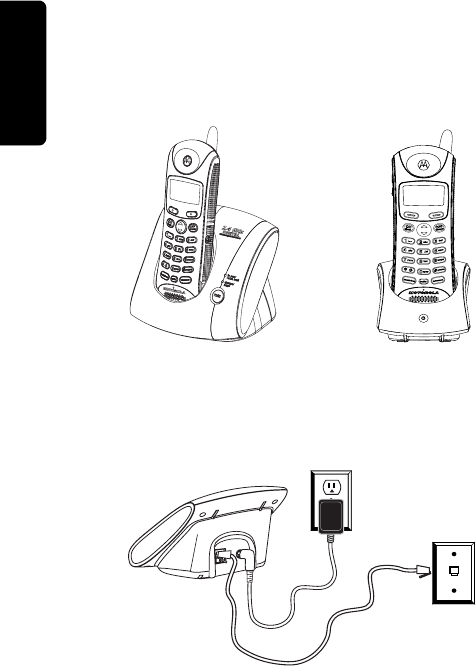

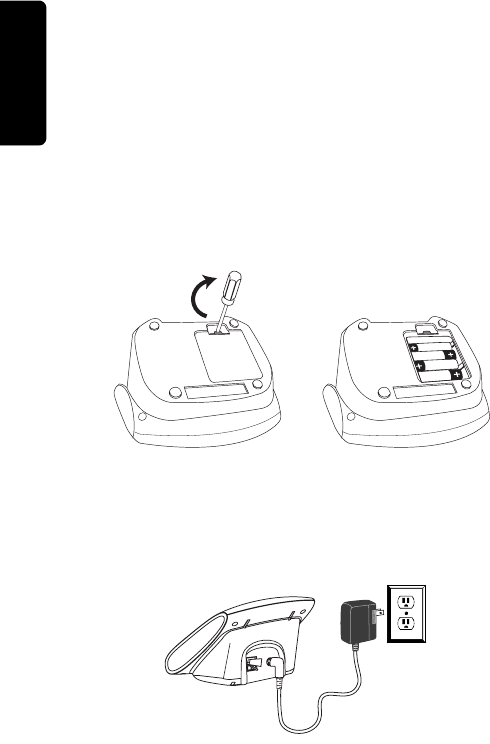

Powering the Base Station . . . . . . . . . . . . . . . . . . . . .12
Setting Up the Charging Bases . . . . . . . . . . . . . . . . .13

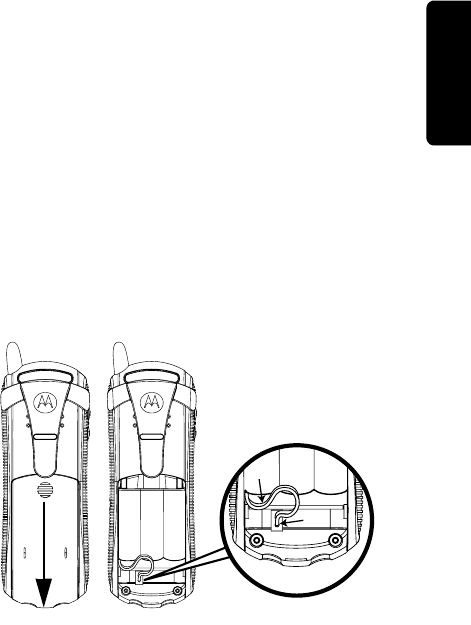

Installing Batteries in the Handsets . . . . . . . . . . . . . .13
Charging the Handsets . . . . . . . . . . . . . . . . . . . . . . . .14

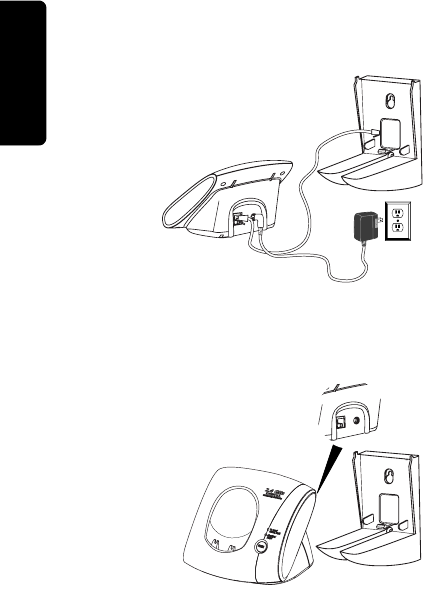

Phone Line Connection . . . . . . . . . . . . . . . . . . . . . . .14

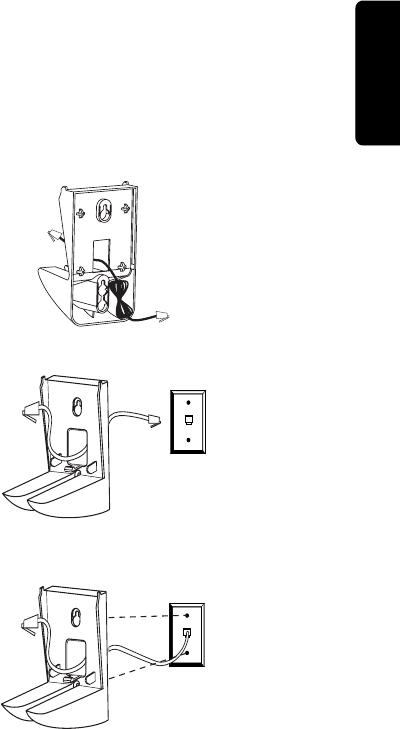

Wall Mounting the Base Station . . . . . . . . . . . . . . . . . 15

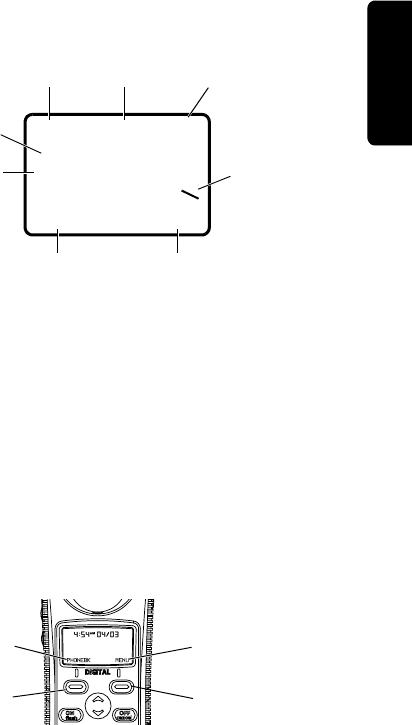

Using the Handset Display . . . . . . . . . . . . . . . . . . . . . 17
Using the Soft Keys . . . . . . . . . . . . . . . . . . . . . . . .17
Using the Navigation Key . . . . . . . . . . . . . . . . . . . . 18
Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . 19
Registering a Handset . . . . . . . . . . . . . . . . . . . . . . . .19
Personalizing Your Handset . . . . . . . . . . . . . . . . . . . . 20
Setting the Ring Tone and Ring Volume . . . . . . . . .20
Naming a Handset . . . . . . . . . . . . . . . . . . . . . . . . .22
Entering Text on the Handset . . . . . . . . . . . . . . . . . 23
Storing Area Codes for Caller ID . . . . . . . . . . . . . . . . 24
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . .26
Setting the Language . . . . . . . . . . . . . . . . . . . . . . . . . 27
Setting Touch Tone or Pulse Dialing . . . . . . . . . . . . . . 27
Using the Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adjusting the Volume During a Call . . . . . . . . . . . . . .28
Making a Call Using the Speakerphone . . . . . . . . . . . 29
Adjusting the Speakerphone Volume . . . . . . . . . . . . .29
Switching Between the Handset and Speakerphone .29
Muting a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Putting a Call on Hold . . . . . . . . . . . . . . . . . . . . . . . . .30
Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . .30
1041b65o.book Page 9 Friday, March 7, 2003 11:36 AM
10
Contents
Finding a Lost or Misplaced Handset . . . . . . . . . . . . 31
Saving a Number in the Phonebook . . . . . . . . . . . . . 31
Calling a Number from the Phonebook . . . . . . . . . . . 33
Editing a Phonebook Entry . . . . . . . . . . . . . . . . . . . . 33
Deleting a Phonebook Entry . . . . . . . . . . . . . . . . . . . 34
Inserting Pauses in a Number . . . . . . . . . . . . . . . . . . 34
Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Reviewing the List of Caller ID Calls . . . . . . . . . . . 35
Store a Caller ID Number in the Phonebook . . . . . 36
Deleting Caller ID Calls . . . . . . . . . . . . . . . . . . . . . 37
Multihandset Functions. . . . . . . . . . . . . . . . . . . . . . . . 38
Conference Calling . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Using the Intercom . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Intercom Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Handset to Handset Intercom . . . . . . . . . . . . . . . . 41
Transferring a Call from One Handset to Another . . . 42
Unannounced Transfer . . . . . . . . . . . . . . . . . . . . . . 42
Announced Transfer . . . . . . . . . . . . . . . . . . . . . . . . 42
Using the Handset as a Walkie Talkie . . . . . . . . . . . . 43
Monitoring a Room . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Deregistering a Handset . . . . . . . . . . . . . . . . . . . . . . 45
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1041b65o.book Page 10 Friday, March 7, 2003 11:36 AM
11
Getting Started
Getting Started
To set up your Motorola digital cordless phone
system:
1. Install optional backup batteries in the base
station and plug into a power outlet (page 12).
2. Plug in charging bases for expansion handsets
(page 13).
3. Install batteries in handsets (page 13).
4. Charge handset batteries (page 14).
A rechargeable NiCd battery powers each
handset. Charge the battery for about 12 hours
before initial use.
5. Connect the base station to the phone line
(page 14).
6. Register expansion handsets to the base station
(page 19).
Handsets that come with your phone system are
already registered to the base.
7. Set the ring tone, date, time, and other features of
your phone (page 20).
Place the Base Station:
•Away from electrical appliances such as a TV,
personal computer, or another cordless phone.
•In a high and central location with no obstructions,
such as walls.
If you hear noise while using the handset near a
microwave or another cordless phone’s base unit,
move away from the microwave or base unit and
closer to your handset’s base station.
1041b65o.book Page 11 Friday, March 7, 2003 11:36 AM
12
Getting Started
Powering the Base Station

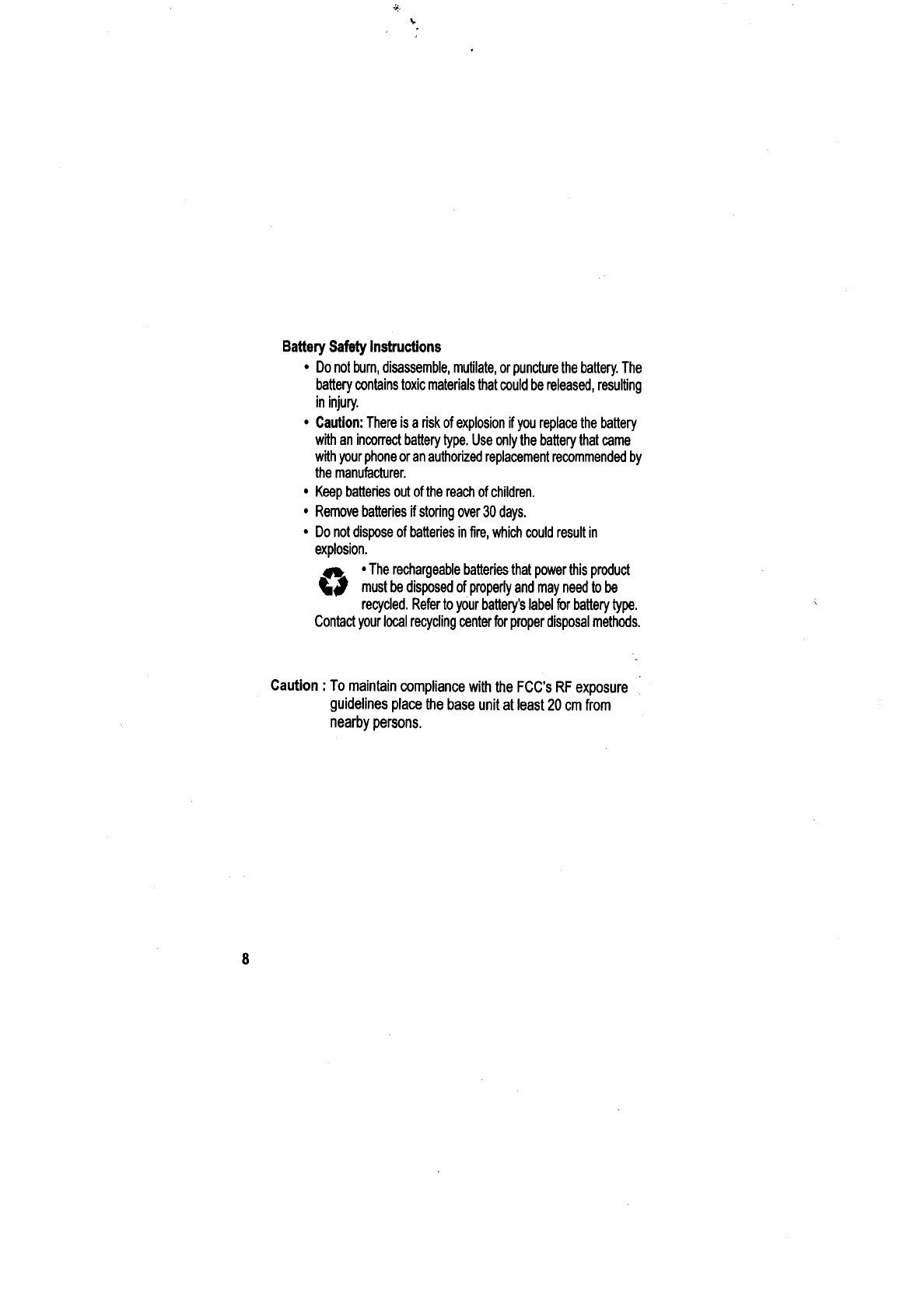

Important: Before installing or handling batteries,
read the Battery Safety Instructions on page 8.
The base station uses 4 AAA alkaline batteries for
optional backup power (batteries are included with
some models). To install the batteries in the base
station:
1. With the bottom of the base facing you, press the
cover latch with a screwdriver to lift and remove
the battery cover.
2. Insert 4 AAA alkaline batteries into the battery
compartment.
3. To replace the cover, insert the tabs of the cover
into the slots on the base station and press down
until the cover clicks into place.
4. Plug the power cord into the back of the base
station and into an outlet.
1041b65o.book Page 12 Friday, March 7, 2003 11:36 AM
13
Getting Started
Setting Up the Charging Bases
If you have expansion handsets, they do not need to
be plugged into a phone line. Simply plug the power
cord into the back of the charging base and into an
outlet wherever you want to place the handset.
Installing Batteries in the Handsets
Important: Before installing or handling batteries,
read the Battery Safety Instructions on page 8.
1. Remove the battery cover by pressing on the
recess and sliding down and off the handset.
2. Plug the connector into the receptacle.
3. Insert the battery into the compartment.
4. Slide and snap the battery cover back into place.
Black
Red
1041b65o.book Page 13 Friday, March 7, 2003 11:36 AM
14
Getting Started
Charging the Handsets
Place the handset in the base station or charging
base. The LED is solid red when the handset is
charging.
For the initial charge, charge the battery for at
least 12 hours.
Phone Line Connection
Do not connect the base station to the phone line
until the handset is fully charged.
charge
1041b65o.book Page 14 Friday, March 7, 2003 11:36 AM
15
Getting Started
Wall Mounting the Base Station
The base station can be mounted on a wall instead of
placed on a flat surface such as a table or desk.
1. Remove the twist-tie from the phone cord. Do
not unfold the cord.
2. Untuck both ends of the cord.
3. Hold the folded cord at the center and insert it into
the back of the wall mount bracket.
4. Plug the phone cord into the phone jack on the wall.
5. Hang the wall mount bracket on the phone wall
plate.
020930o
020929o
1041b65o.book Page 15 Friday, March 7, 2003 11:36 AM
16
Getting Started
6. Plug the other end of the phone cord into the back
of the base station.
7. Plug the power cord into a power outlet if it is not
already plugged in.
8. Insert the four tabs on the wall mount into the four
slots on the back of the base station and push until
it snaps into place.
1041b65o.book Page 16 Friday, March 7, 2003 11:36 AM
17
Getting Started
Using the Handset Display
When the handset is not in use, the display shows the
standby screen.
Note: Caller ID information is supplied only if you
subscribe to caller ID service from your local phone
company.
When the handset speakerphone is on, V appears
on the display.
Using the Soft Keys
The 2 soft keys are used to select the functions listed
above these keys on the display. The functions
change as you move from one screen to the next. In
this guide, soft key functions are shown as the
function name followed by a, for example,
CHANGE (a).
9
04:26 PM 09/26
Handset (1)
PHONEBK MENU
6 Calls
Time
Ringer off
Left soft key function
Battery meterDate
^
Handset
name
Number of
Caller ID
records
Right soft key function
Left soft key Right soft key
Left soft key
function
Right soft key
function
1041b65o.book Page 17 Friday, March 7, 2003 11:36 AM
18
Getting Started
Using the Navigation Key
c is used to scroll up and down through menu items,
a list of settings, caller ID and redial lists, and the
phonebook.
On the handset display,
!points to the currently
selected item, and b
indicates there are more
items above and below the
currently selected item.
Press c to scroll up or down
on the display.
Caller ID Log
Set Ringer
Loc Area Codes
BACK SELECT
"
#
!
1041b65o.book Page 18 Friday, March 7, 2003 11:36 AM
19
Setting Up Your Phone
Setting Up Your Phone
Registering a Handset
You can have up to 4 handsets registered to a base
station.If you try to register a 5th handset, Unable
to Register displays.
Handsets that come with your MD450 Series phone
system are already registered. You only need to
register handsets if you buy expansion handsets to
add to your phone system.
To register a new expansion handset that has never
been registered to a base station before:
Action
1
Press OK (a).
2
Press and hold PAGE on the base station
for at least 6 seconds or until you hear a
long beep and see the handset name, for
example, Handset(2).
3
Press OK (a) to return to the standby
screen.
1041b65o.book Page 19 Friday, March 7, 2003 11:36 AM
20
Setting Up Your Phone
Personalizing Your Handset
You can personalize each handset by setting unique
ring tones, adjusting the ring tone volume for day and
night time, and assigning a name so you can
distinguish one handset from another.
Setting the Ring Tone and Ring Volume
Your can set a ring tone for incoming calls from
numbers that are stored in the phonebook, and a
different ring tone for other incoming calls. The
phonebook ring tone works only if you subscribe to
caller ID service.
Action
1
Press MENU (a).
2
Scroll to Ringer and press SELECT (a).
3
The Day Volume displays. This is the ringer
volume from 6 am to 9 pm. Press CHANGE
(a) to scroll through the settings (off, low,
medium, high). Each volume level plays as
you press CHANGE (a). Stop at the
volume level you want to set.
4
Scroll down (
c
) to advance to the Night
Volume.
This is the ringer volume from 9 pm
to 6 am. Press CHANGE (a) to scroll
through the settings. Each volume level
plays as you press CHANGE (a). Stop at
the volume level you want to set.
5
Scroll down (
c
) to advance to the Ring Tone.
This is the ring sound for incoming calls.
1041b65o.book Page 20 Friday, March 7, 2003 11:36 AM
21
Setting Up Your Phone
6
Press CHANGE (a) to scroll through the
ring tones. Each tone plays as you select
CHANGE (a). Stop at the ring tone you
want to set.
7
Scroll down (
c
) to advance to the
Phonebook Tone.
This is the sound for
incoming calls from numbers stored in your
phonebook. You must subscribe to caller ID
service for this ring tone to work.
8
Press CHANGE (a) to scroll through the
phonebook tones. Each tone plays as you
select CHANGE (a). Stop at the
phonebook tone you want to set.
9
Press DONE (a).
10
Press EXIT (a) to return to the standby
screen, or c to scroll to a different menu
option.
Action
1041b65o.book Page 21 Friday, March 7, 2003 11:36 AM
22
Setting Up Your Phone
Naming a Handset
When you register a handset, it is assigned a default
name of Handset(x), where x can be 1, 2, 3, or 4. You
can change the name to something more useful, for
example a location (Kitchen) or someone’s name
(Susan). Naming a handset makes it easy to select
the handset from a list (for example, to intercom
another handset).
If you name a handset, the handset number remains
part of the name, for example, Kitchen(2).
Action
1
Press MENU (a).
2
Scroll to Name handset and press
SELECT (a).
3
Use the keypad to enter the handset name
(up to12 characters). The flashing underline
shows the input cursor position. Press
DELETE (a) to backspace and erase
characters to the left of the input cursor.
See page 26 for information on how to enter
text.
4
Press DONE (a).
5
Press EXIT (a) to return to the standby
screen, or c to scroll to a different menu
option.
1041b65o.book Page 22 Friday, March 7, 2003 11:36 AM
23
Setting Up Your Phone
Entering Text on the Handset
Press each button on the handset the indicated
number of times to enter text, numbers, and other
characters. For example, to enter R, press the
7 button 3 times.
Button
Number of Presses
12345
1space– * ! 1
2ABC( 2
3DEF ) 3
4GH I #4
5JKL/5
6MNO ‘ 6
7PQRS7
8TUV?8
9WXYZ 9
1041b65o.book Page 23 Friday, March 7, 2003 11:36 AM
24
Setting Up Your Phone
Storing Area Codes for Caller ID
Note: This section applies only if you subscribe to
caller ID service from your local phone company.
You can store up to 5 area codes to make it easy to
dial numbers from your list of caller ID calls. Each
area code can be:
•
7-digit format
You do not have to dial the area code to call numbers
in this area code.
•
10-digit format
You have to dial the 3-digit area code + 7-digit phone
number to call numbers in this area code.
•
11-digit format
You have to dial the 1 + 3-digit area code + 7-digit
phone number to call numbers in this area code.
For example, if you store 954 in 10-digit format, when
you receive a call from that area code, the phone
number is stored in your call list with all 10 digits. The
number will then be in the correct format for you to
dial directly from the call list without any reformatting.
1041b65o.book Page 24 Friday, March 7, 2003 11:36 AM
25
Setting Up Your Phone
Action
1
Press MENU (a).
2
Scroll to Loc area code and press
SELECT (a).
3
Enter the first area code.
4
Press FORMAT (a) to scroll through the
formats. Stop at the format you want to set
for the area code, then scroll down (c) to
move to the next area code.
5
Repeat steps 3 and 4 to store up to 4 more
area codes. When you are finished, press
DONE (a).
6
Press EXIT (a) to return to the standby
screen, or c to scroll to a different menu
option.
1041b65o.book Page 25 Friday, March 7, 2003 11:36 AM
26
Setting Up Your Phone
Setting the Date and Time
Action
1
Press MENU (a).
2
Scroll to Date/Time and press
SELECT (a).
3
Enter the time (2 digits are required for the
hour and 2 digits for the minutes, so use a
leading 0 for 1-digit values).
4
Press AM/PM (a) to switch between am
and pm.
Note: This applies only if using a 12-hour
clock.
5
Scroll down (c) to move the next field.
6
Press CHANGE (a) to change the time
format (12- or 24-hour clock). Scroll down
(c) to move to the next field.
7
Press CHANGE (a) to select date format
(MM/DD or DD/MM).
8
Scroll down (c) to move the next field.
9
Enter the current date.
10
Press DONE (a).
11
Press EXIT (a) to return to the standby
screen, or c to scroll to a different menu
option.
1041b65o.book Page 26 Friday, March 7, 2003 11:36 AM

Navigation menu
