CDVI WIRELESS S P A 024A TRANSMITTER MODEL ERONE 024A User Manual Instructions
CDVI WIRELESS S.P.A. TRANSMITTER MODEL ERONE 024A Instructions
Users Manual

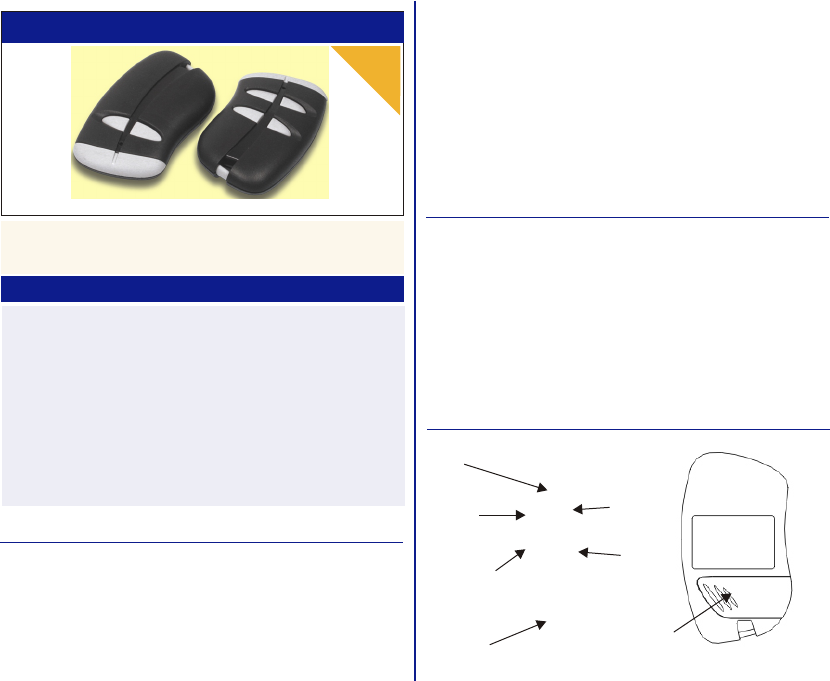

RCS - 433LS
1A - General information
The radiocontrol RCS-433LS has been designed for the control of automatic
closing systems and anti-burglar systems thanks to its very high security
coding system. (KeeLoq ® Hopping code). The code sent by the transmitter
changes at each activation, avoiding any scanning and copying risk.
A special algorithm allows to keep synchronysed transmitter and receiver.
The operating frequency is 433,92 MHz.
The receiver which makes the activation, once received the transmitter
code, has to be connected during the installation to the device to control
CONTENTS
1A - General information
1B - Technical specifications
1C - Main features
1 - TRANSMITTER INTRODUCTION
2 - CODING
3 - MEMORIZATION
4 - BATTERY ACCESS
5 - TROUBLESHOOTING
GETTING
STARTED
1B - Technical specifications
Number of keys: 2 / 4
Supply : 1 Alkaline Battery 12V type 23A
Battery life: 12 - 18 months
Current consumption : 25 mA
Operating frequency : 433.92 MHz
64
Code combinations : 2
Modulation : AM / ASK
Rated e.r.p. : 50 - 100 µW
Range in free space: 60 - 120 yd
Operating temperature: -20 ÷ +55 °C
Overall dimensions: 3.26 x 1.88 x 0.62 in
Weight: 20 gr.
( gate, garage door, rolling shutters, sun-blinds, anti-burglar appliances,
lighting ). All the receivers of the range RCS-433S can store into the
EEPROM a serial number, a manufacturer key and a synchronism algorithm
of more transmitters.
Each transmitter ( or its different keys ) can be stored into different receivers
and hence can do more functions.
In order to use the unused keys of the transmitter it is enough to connect the
dedicated receiver to the mechanism to drive ( i.e. electrolock of a
pedestrian gate, a buzzer, etc. ).
The product fully complies with the European Directives 99/5/CE,
89/336/CEE, 73/23/CEE and with the Part 15 of FCC Regulations.
1C - Main features
Push-button
C
Red
LED
Thank you for choosing a RCS product. You are recommended to
read this manual carefully before installing the product.
RCS
Push-button
A
Push-button
B
Push-button
D
Battery
door
Key holder
ring
Stand alone
RCS-433LS2
RCS-433LS4

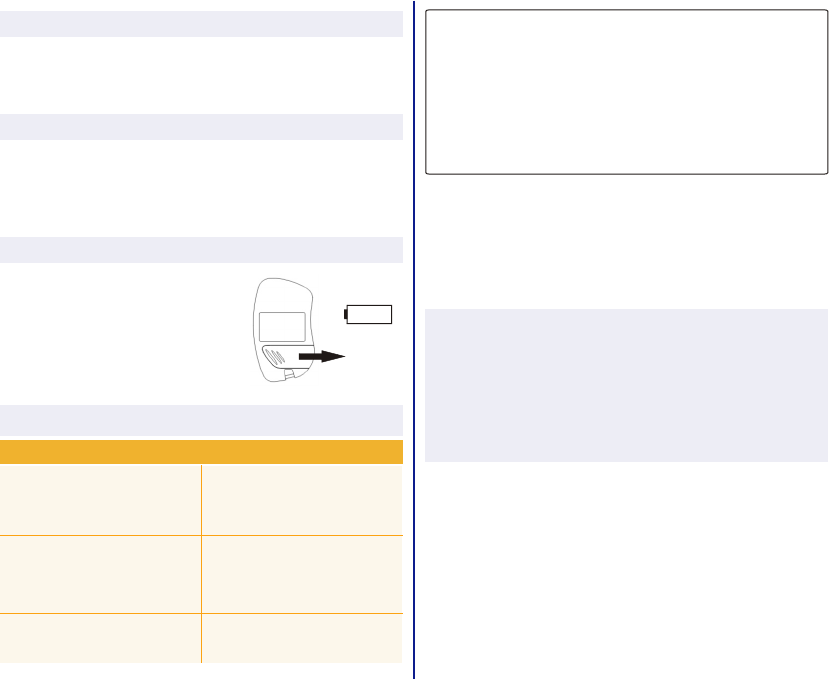

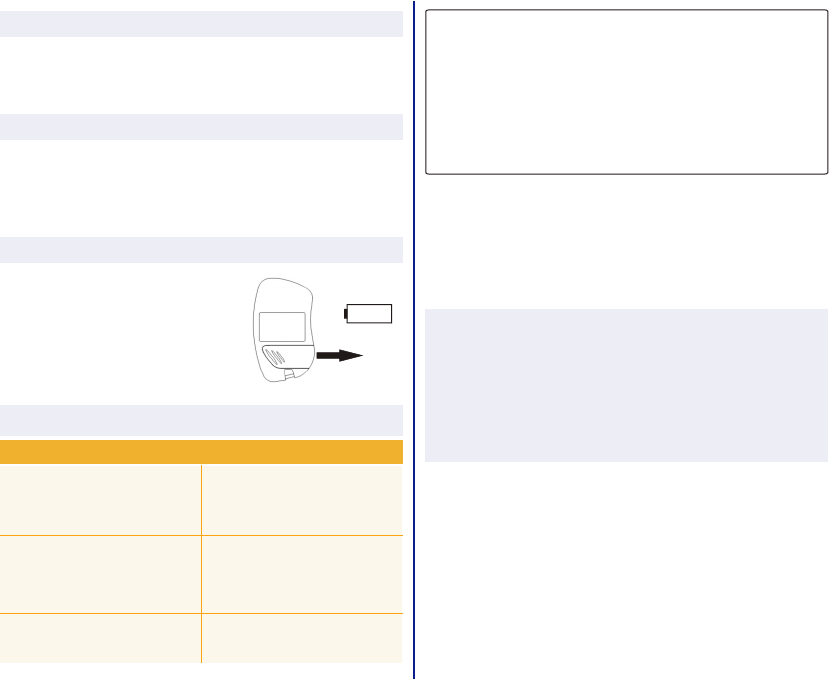

3 - MEMORIZATION
2 - CODING
4 - BATTERY ACCESS
5 - TROUBLESHOOTING
FAULT SOLUTION
The transmitter led
blinks
Check the receiver supply.
Replace the transmitter
battery
IS-TLSGXUK Rev. 1 on 20.12.2002
To access the battery slide out the battery door
Place the 23A alkaline battery between the 2
contacts.
Respect the right polarity as indicated on the
bottom of the box.
NOTE: Please dispose of the batteries correctly,
they are hazardous waste.
Each transmitter is manufactured and sold with a different univocal serial
number set-in-factory. The real transmitted code is the result of a special
algorithm which combines a serial number, a manufacturer key and a
synchronization number.
The transmitter security code has to be stored onto the receiver or the
receivers memory available. Your own installer or reseller will perform this
operation during the installation or will give you the necessaries instructions
during the selling. Don't forget that the still free buttons of your transmitter
can be used for further wireless functions.
Ask your installer the best suitable receiver.
The radio emission isn’t verifiable
The transmitter led is OFF.
The radio emission isn’t verifiable
The transmitter led is ON.
Replace the transmitter
battery
GUARANTEE
RCS-433LS - Type : S2TR2641E2
FCC ID : PWJ024A
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part. 15 of the
Notice
Any changes or modification to RCS equipment not expressly approved
by RCS could void the user's authority to operate the equipment.
REMOTE CONTROL SOLUTIONS
College Park Commerce Center
2042 N. Rio Grande Ave. Suite A
Orlando - FL 32804
U.S.A.
Office: (407)-426-8687
Fax: (407)-428-9309
e-mail: bettertx@msn.com
The guarantee period of all RCS transmitter batteries is 6 months,
beginning from the manufacturer date. During this period, if the product
does not work correctly, due to a defective component, the product will be
repaired or substituted at the discretion of the producer.
The guarantee does not cover the plastic container integrity.
+_
23A
Battery
Polarity

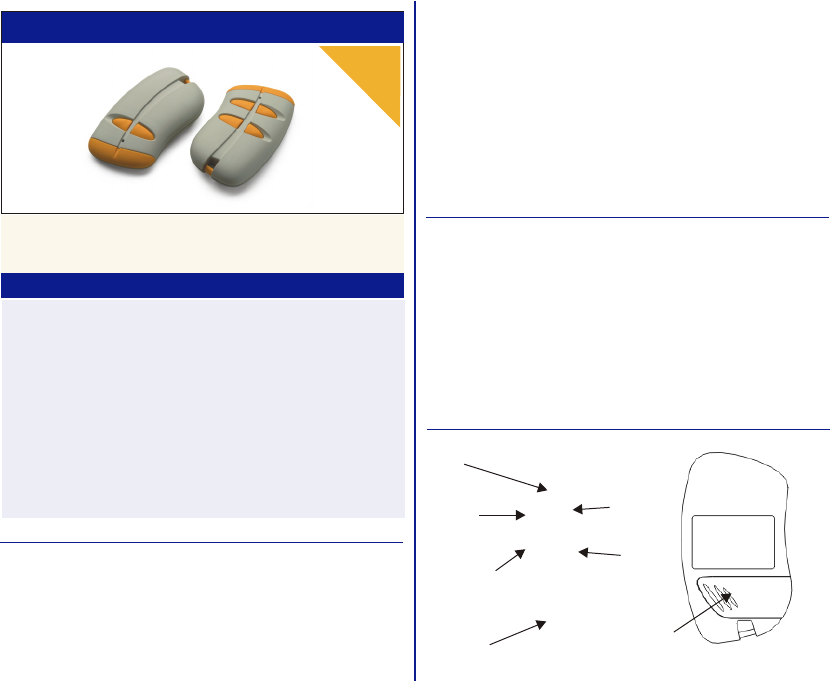

1A - General information
The radiocontrol RCS-433LT has been designed for the
programmable telephone entry systems, anti-burglar systems
and access control systems.
It has a very high security coding system. (KeeLoq ® Hopping
code).
The code sent by the transmitter changes at each activation,
avoiding any scanning and copying risk. A special algorithm
1A - General information
1B - Technical specifications
1C - Main features
1 - TRANSMITTER INTRODUCTION
2 - CODING
3 - MEMORIZATION
4 - BATTERY ACCESS
5 - TROUBLESHOOTING
GETTING
STARTED
1B - Technical specifications
Number of keys: 2 / 4
Supply : 1 Alkaline Battery 12V type 23A
Battery life: 12 - 18 months
Current consumption : 25 mA
Operating frequency : 433.92 MHz
64
Code combinations : 2
Modulation : AM / ASK
Rated e.r.p. : 50 - 100 mW
Range in free space: 60 - 120 yd
Operating temperature: -20 ÷ +55 °C
Overall dimensions: 3.26 x 1.88 x 0.62 in
Weight: 20 gr.
allows to keep synchronyzed transmitter and receiver.
The operating frequency is 433,92 MHz.
The receiver RCS-433R type SELWR433, which operates with this
transmitter, has a Wiegand 26 bit format output, suitable with
any type of access control system, equipped with this type of
protocol.
The 23A Alkaline battery has a life of about 18 months.
The product fully complies with the European Directives
99/5/CE, 89/336/CEE, 73/23/CEE and with the Part 15 of FCC
1C - Main features
Push-button
C
Red
LED
CONTENTS
Thank you for choosing a RCS product. You are recommended to
read this manual carefully before installing the product.
RCS
Push-button
A
Push-button
B
Push-button
D
Battery
door
Key holder
ring
RCS - 433LT
RCS-433LT2
RCS-433LT4
3 - MEMORIZATION
2 - CODING
4 - BATTERY ACCESS
5 - TROUBLESHOOTING
FAULT SOLUTION
The transmitter led
blinks
Check the receiver supply.
Replace the transmitter
battery
IS-TLTGXUK Rev. 0 on 17.07.2002
To access the battery slide out the battery door
Place the 23A alkaline battery between the 2
contacts.
Respect the right polarity as indicated on the
bottom of the box.
NOTE: Please dispose of the batteries correctly,
they are hazardous waste.
Each transmitter is manufactured and sold with a different univocal serial
number set-in-factory. The real transmitted code is the result of a special
algorithm which combines a serial number, a manufacturer key and a
synchronization number.
The transmitter security code has to be stored onto the receiver or the
receivers memory available. Your own installer or reseller will perform this
operation during the installation or will give you the necessaries instructions
during the selling. Don't forget that the still free buttons of your transmitter
can be used for further wireless functions.
Ask your installer the best suitable receiver.
The radio emission isn’t verifiable
The transmitter led is OFF.
The radio emission isn’t verifiable
The transmitter led is ON.
Replace the transmitter
battery
GUARANTEE
RCS-433LT - Type : S2TW2641E2
FCC ID : PWJ024A
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part. 15 of the
Notice
Any changes or modification to RCS equipment not expressly approved
by RCS could void the user's authority to operate the equipment.
REMOTE CONTROL SOLUTIONS
College Park Commerce Center
2042 N. Rio Grande Ave. Suite A
Orlando - FL 32804
U.S.A.
Office: (407)-426-8687
Fax: (407)-428-9309
e-mail: bettertx@msn.com
The guarantee period of all RCS transmitter batteries is 6 months,
beginning from the manufacturer date. During this period, if the product
does not work correctly, due to a defective component, the product will be
repaired or substituted at the discretion of the producer.
The guarantee does not cover the plastic container integrity.
+_
23A
Battery
Polarity
OPEN
