CIDMATE Technology XG21501 2.4 GHz Analog Cordless Phone User Manual XG2150 IB 0225

CIDMATE International Technology Inc. 2.4 GHz Analog Cordless Phone XG2150 IB 0225

Contents

user manual 1

1
Contents
Safety Instructions ------------------------------------------------------------------------------------------ 3
Getting Started -----------------------------------------------------------------------------------------------5

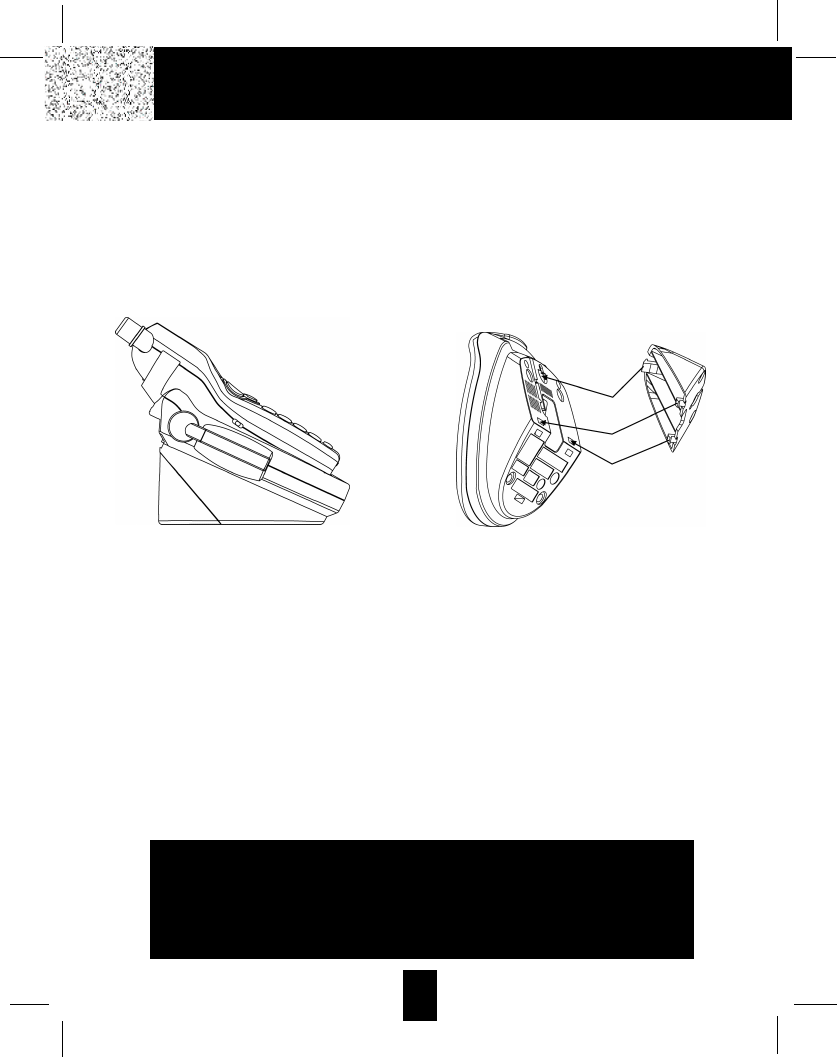

Desk Mounting ----------------------------------------------------------------------------------------------- 8

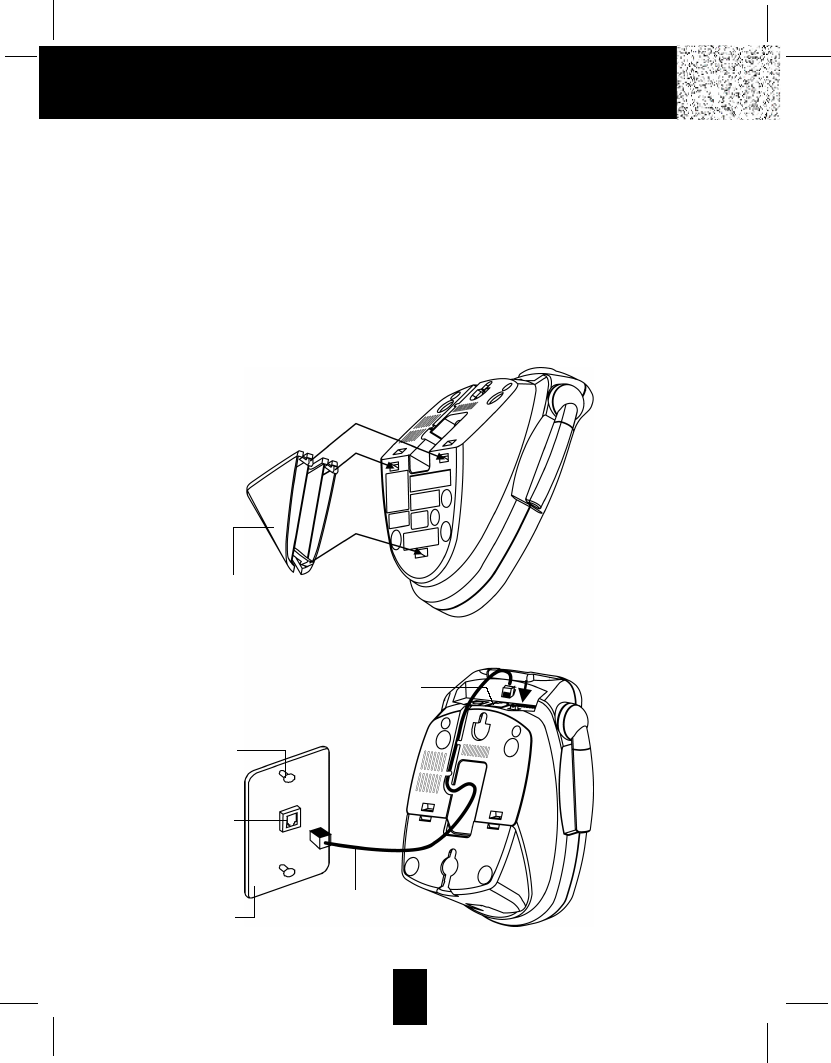

Wall Mounting ------------------------------------------------------------------------------------------------ 9
Cordless Telephone Operation ------------------------------------------------------------------------- 11
Preparing for Use -------------------------------------------------------------------------------------- 11

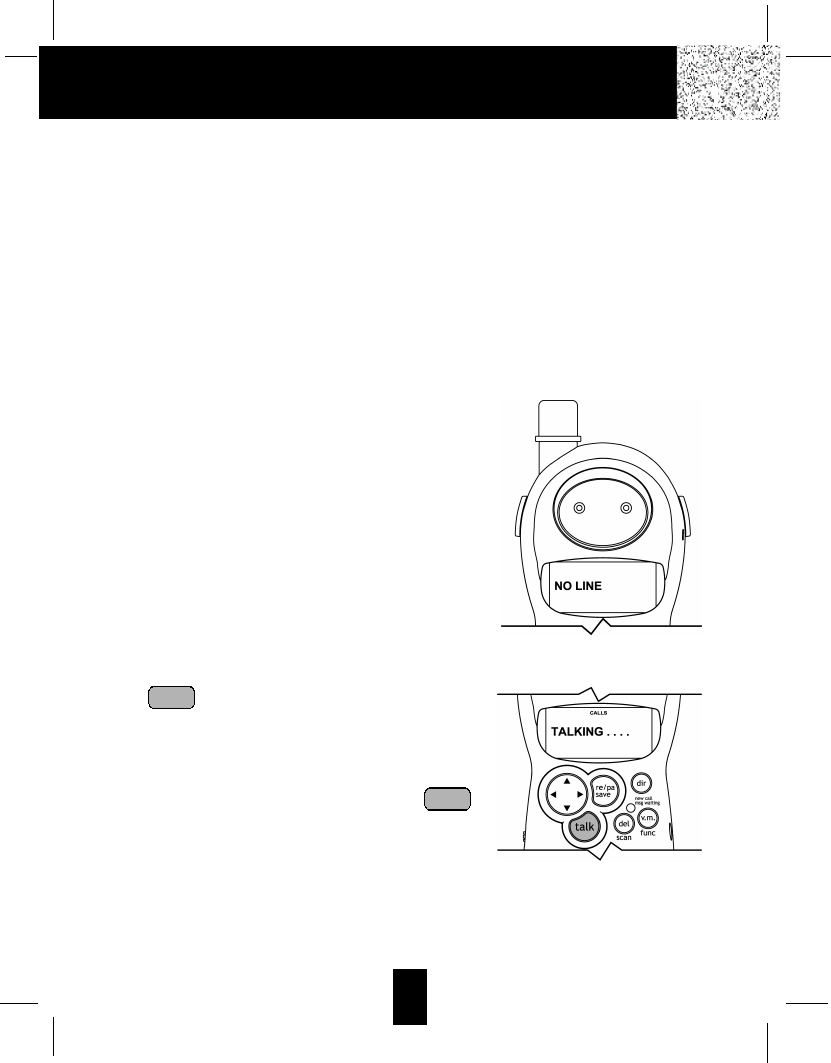

NO LINE Indicator ------------------------------------------------------------------------------------- 11
Receiving Calls ----------------------------------------------------------------------------------------- 11
Placing Calls -------------------------------------------------------------------------------------------- 12

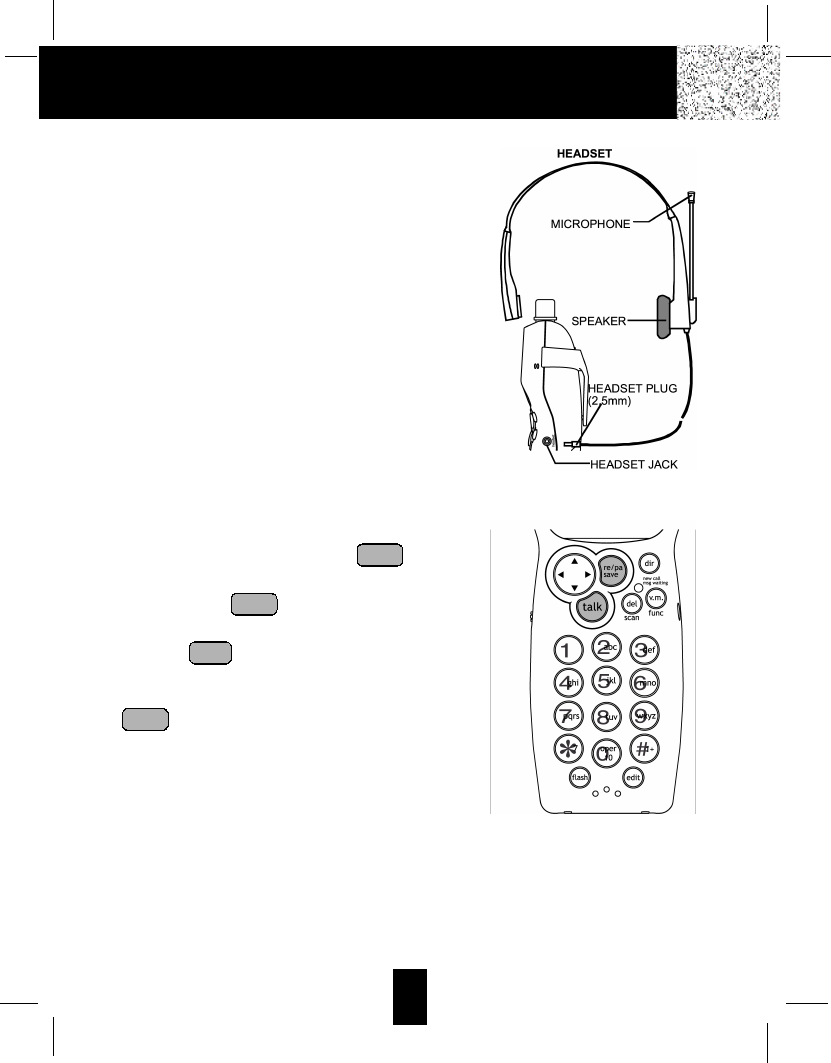

Headset Feature ---------------------------------------------------------------------------------------13
Redial Feature ------------------------------------------------------------------------------------------13
Caller ID System Operation ----------------------------------------------------------------------------14
Caller ID System --------------------------------------------------------------------------------------- 14
Viewing Caller Information During Incoming Calls ---------------------------------------- 14
MSG WAITING (Message Waiting) ----------------------------------------------------------- 14
Call Waiting ------------------------------------------------------------------------------------------ 15
Voice Mail Function ------------------------------------------------------------------------------- 15
C-F (Forwarded Call) ----------------------------------------------------------------------------- 15
L-D-C (Long Distance Call) --------------------------------------------------------------------- 15
Caller List ------------------------------------------------------------------------------------------------15
Viewing the Caller List ---------------------------------------------------------------------------- 16
Placing a Call From the Caller List -----------------------------------------------------------16
Editing the Caller List before Dialing --------------------------------------------------------- 16
Saving the Name and Number in the Caller List into the DIRECTORY ------------- 17
Deleting All Records in the Caller List -------------------------------------------------------- 17
Selective Deleting in the Caller List ----------------------------------------------------------- 17
Name and Telephone Number DIRECTORY --------------------------------------------------- 17
Viewing the DIRECTORY ------------------------------------------------------------------------ 17
Speed Viewing the DIRECTORY -------------------------------------------------------------- 18
Saving in the DIRECTORY ---------------------------------------------------------------------- 18
PREFERRED CALLS ----------------------------------------------------------------------------- 19
BLOCKED CALLS --------------------------------------------------------------------------------- 19
Editing a Name and Number in the DIRECTORY ----------------------------------------- 19
2
Contents
Editing the Number in the DIRECTORY before Dialing --------------------------------- 20
Placing Calls from the DIRECTORY --------------------------------------------------------- 21
Deleting All Records in the DIRECTORY --------------------------------------------------- 21
Selective Deleting in the DIRECTORY ------------------------------------------------------ 21
Function Operation ------------------------------------------------------------------------------------22
A. Language --------------------------------------------------------------------------------------- 23
B. Silent On/Off ----------------------------------------------------------------------------------- 23
C. Time Set ----------------------------------------------------------------------------------------23
D. Ringer Volume -------------------------------------------------------------------------------- 24
E. LCD Contrast ---------------------------------------------------------------------------------- 24
F. PBX Number -----------------------------------------------------------------------------------24
G. Flash Time --------------------------------------------------------------------------------------25
H. Pause Time ------------------------------------------------------------------------------------- 25
I. Voice Mail ---------------------------------------------------------------------------------------26
J. MSG Waiting (Message Waiting) --------------------------------------------------------- 26
Telephone Keypad Characters ---------------------------------------------------------------------27
Security -------------------------------------------------------------------------------------------------------28
Recharging the Battery Pack --------------------------------------------------------------------------- 29
Changing the Battery Pack -----------------------------------------------------------------------------30
Problem Solving -------------------------------------------------------------------------------------------31
Technical Information ------------------------------------------------------------------------------------- 32
FCC Requirements ----------------------------------------------------------------------------------------33
Warranty ----------------------------------------------------------------------------------------------------- 35
Wall Mounting Template---------------------------------------------------------------------------------- 41
3
Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock and/or injury, always follow these
basic safety precautions when using your cordless telephone equipment.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the telephone.
3. Unplug this telephone from the wall outlet before cleaning or replacing the BATTERY
PACK. Do not use liquid cleaners or aerosol cleaners on the telephone. Use a damp cloth
for cleaning.
4. Do not use this telephone near water, for example, near a bath tub, wash bowl, kitchen
sink, or laundry tub, in a wet basement, or near a swimming pool.
5. Place this telephone on a stable surface. Serious damage and/or injury may result if the
telephone falls.
6. Do not cover the slots and openings on this telephone. This telephone should not be
placed near or over a radiator or heat register. This telephone should not be placed in a
built-in installation unless proper ventilation is provided.
7. Operate this telephone using the electrical voltage as stated on the BASE UNIT of the
telephone or in the Owner’s Manual. If you are not sure of the voltage in your home,
consult your dealer or local power company.
8. Do not place anything on the power cord. Install the telephone where no one will step or
trip on the cord.
9. Do not overload wall outlets or extension cords as this can increase the risk of fire or
electric shock.
10. Never push objects of any kind through the slots in the telephone. They could touch
dangerous voltage points or short out parts that could result in a risk of fire or electric
shock. Never spill liquid of any kind on the telephone.
11. To reduce the risk of electric shock, do not disassemble this telephone. Take it to a
qualified serviceman when service or repair work is required. Opening or removing covers
may expose you to dangerous voltages or other risks. Incorrect reassembly can cause
electric shock when the telephone is subsequently used.
12. Unplug this telephone from the wall outlet and consult a qualified service representative
in any of the following situations:
A. When the power supply cord is frayed or damaged.
B. If liquid has been spilled into the telephone.
C. If the telephone has been exposed to rain or water.
D. If the telephone does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions. Improper
adjustment of other controls may result in damage and will often require extensive
work by a qualified technician to restore the telephone to normal operation.
4
Safety Instructions
E. If the telephone has been dropped or the case has been damaged.
F. If the telephone exhibits a distinct change in performance.
13. Do not use the telephone to report a gas leak in the vicinity of the leak.
14. Never install telephone wiring during a lightning storm.
15. Never install telephone jacks in wet locations unless the jack is specifically designed for
wet locations.
16. Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
17. Use caution when installing or modifying telephone lines.
Battery Safety
CAUTION:
Danger of explosion if the BATTERYPACK is replaced with incorrect type. Replace
only with the same or equivalent type. To reduce the risk of fire or personal injury,
read and follow these instructions:
1. Use only the following type and size of BATTERY PACK:
Cordless Telephone BATTERY PACK
3.6V, 600mAh
U.S. Electronics Inc.
Ni-Cd BATTERYPACK: Model B650
(See page 29 for ordering information.)
2. Do not dispose of the BATTERYPACK in a fire. The BATTERYPACK may explode. Check
with local codes for possible special disposal instructions.
3. Do not open or mutilate the BATTERY PACK. Released electrolyte is corrosive and may
cause damage to the eyes or skin. Electrolyte may be toxic if swallowed.
4. Exercise care in handling the BATTERY PACK to prevent shorting the BATTERY PACK
with conductive materials such as rings, bracelets, and keys. The BATTERY PACK or
conductor may overheat and cause burns.
5. Charge the BATTERY PACK provided with (or identified for use with) this telephone only
in accordance with the instructions and limitations specified in this manual.
6. Observe proper polarity orientation between the BAT T E RY PACK and BATTERY
CHARGER.
SAVE THESE INSTRUCTIONS
ATTENTION:
The telephone that you have purchased contains a rechargeable BATTERY PACK. The
BATTERYPACK is recyclable. At the end of its useful life, under various state and local laws,
it may be illegal to dispose of this BATTERY PACK into the municipal waste stream. Check
with your local solid waste officials for details in your area for recycling options or proper
disposal.
5
Getting Started
Connecting Your Phone
This section is a reference guide to the basic functions and operations of your cordless
telephone. For more detailed descriptions of the operations and features of this telephone,
refer to the Contents on page 1.

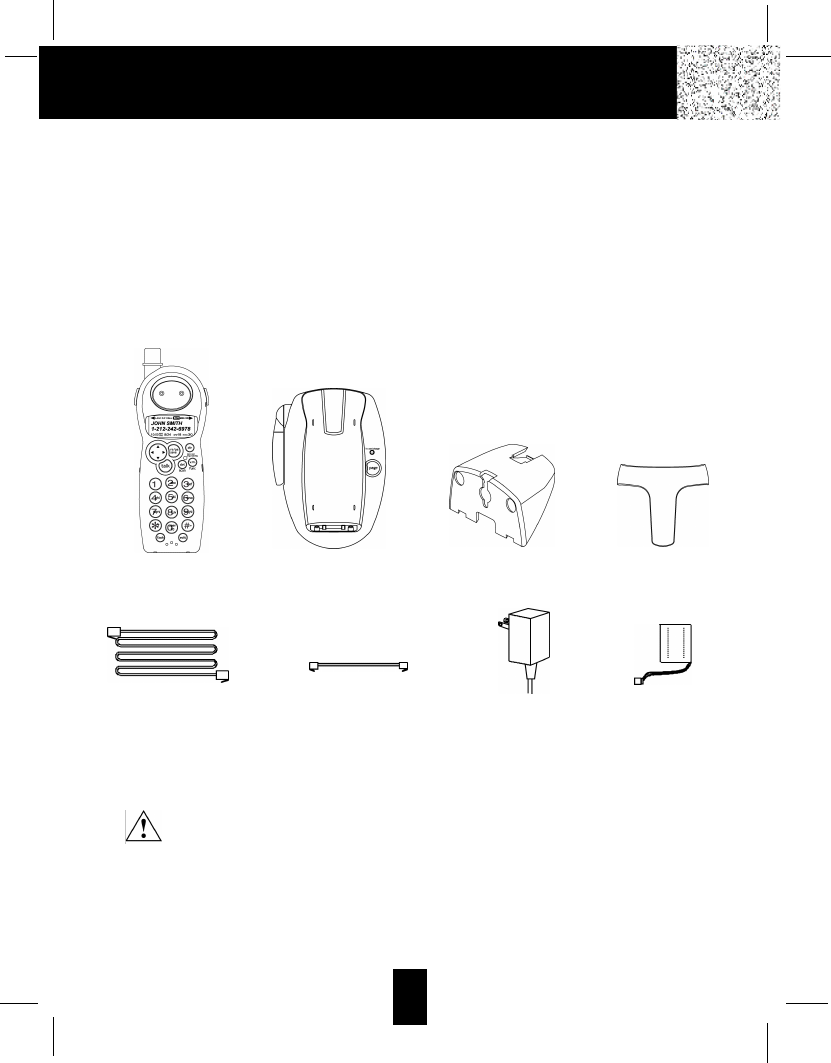

1. Carefully remove your cordless telephone from its shipping carton. If there is any visible
damage, do not attempt to operate this equipment. Return it to the place of purchase.
2. Check to be sure you have all items that come with this cordless telephone system. You
should have a HANDSET, BASE UNIT, AC ADAPTER, MOUNTING BRACKET,
TELEPHONE LINE CORD, SHORT TELEPHONE LINE CORD, BELT CLIP, and an
Owner’s Manual.

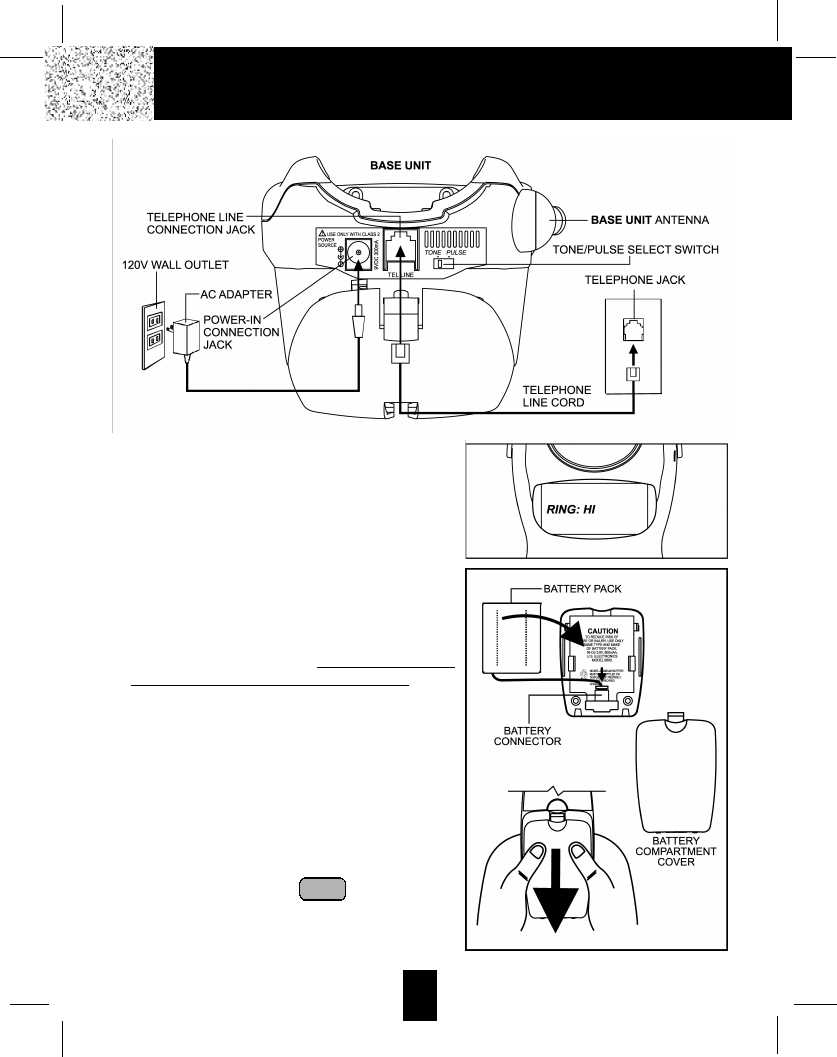

3. Insert the small plug on the end of the AC ADAPTER into the POWER-IN CONNECTION
JACK at the back of the BASE UNIT.
4. Plug the AC ADAPTER into a 120V AC wall outlet.
USE ONLY WITH CLASS 2 POWER SOURCE 9V DC, 300 mA.
5. Insert one plug of the TELEPHONE LINE CORD into the house TELEPHONE JACK and
the other end into the TELEPHONE LINE CONNECTION JACK at the back of the BASE
UNIT. (If you have an older 4-prong TELEPHONE JACK, you will need an RJ-11C
TELEPHONE JACK ADAPTER. This adapter is available at the same place you purchased
your telephone.)
6. We recommend not placing this unit next to appliances. Doing so may cause interference.
HANDSET BASE UNIT MOUNTING
BRACKET BELT CLIP
TELEPHONE
LINE CORD SHORT TELEPHONE
LINE CORD AC ADAPTER BATTERY
PACK
6
Getting Started
7. Install the BATTERYPACK by plugging it into the
BATTERY CONNECTOR inside the BATTERY
COMPARTMENT. The HANDSET LCD Screen
will display “RING: HI”.
8. Place the BATTERY PACK inside the BATTERY
COMPARTMENT.
9. Slide the HANDSET BATTERY
COMPARTMENTCOVER firmly into place in its
closed position.
10.IMPORTANT: Before initial use, charge the
HANDSET for 12 hours. Do not charge the
HANDSET with the KEYPAD face down.
11. TONE/PULSE Select Switch:
A. If your home is equipped with a tone dialing
system, set the TONE/PULSE Select Switch
to the TONE position.
B. If you have a rotary dialing system, set the
TONE/PULSE Select Switch to the PULSE
position.
C. If you are unsure which system you have, set
the TONE/PULSE Select Switch to the TONE
position. Press the button on the
HANDSET and make a call. If the call
connects, leave the switch as is; otherwise
set to the PULSE position.
TALK
7
Getting Started
Press the button to confirm that
you have a dial tone. If you do not get a
dial tone, review steps 3 through 11. If
you still do not have a dial tone, refer to
the Problem Solving section on page 31.

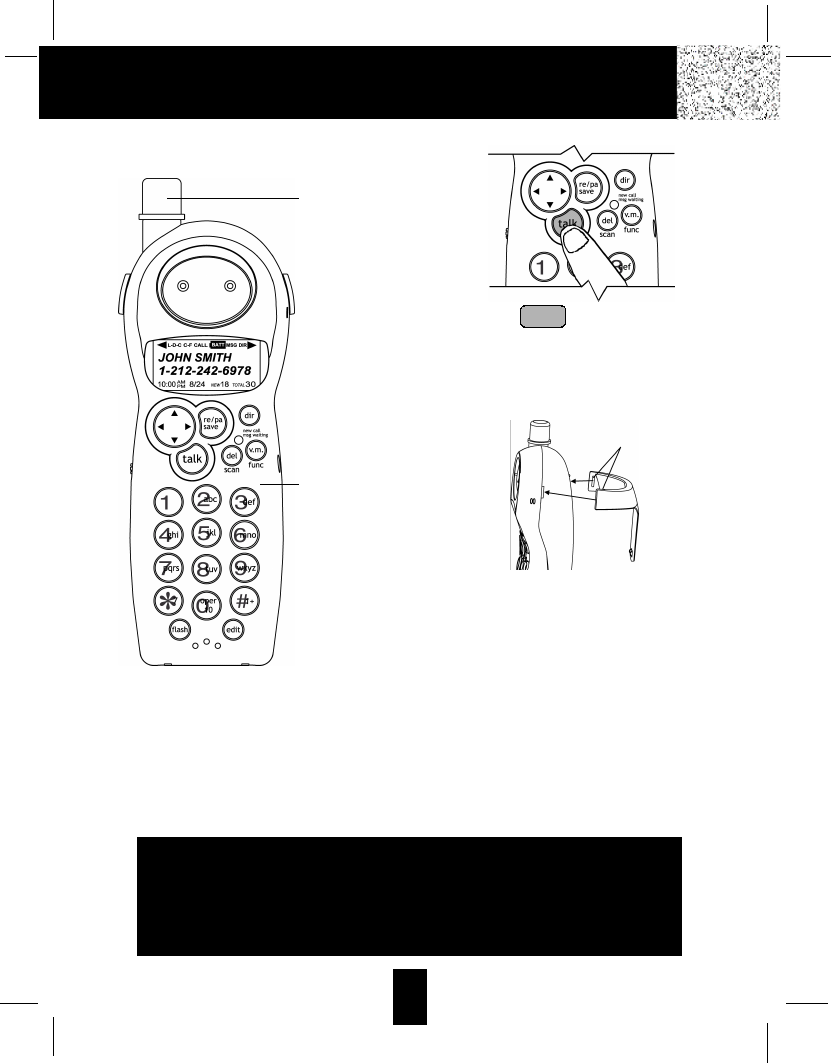

With the back of the HANDSET facing
up, insert one side of the BELT CLIP
HOOK into the matching slot at the top
side of the HANDSET. Press down on
the opposite side of the BELT CLIP until
the other HOOK locks into the slot on the
side of the HANDSET.
12. Set the date and time. (See page 23 for details.)
You are now ready to use your new
XACT Cordless Telephone.
TALK
BELT CLIP HOOK
IMPORTANT
In order to utilize the Caller ID feature, you must
subscribe to Caller ID service from your local
telephone company.
ANTENNA
HANDSET
8
Desk Mounting
Desk Mounting
One of the special features of your telephone is the unique design of the MOUNTING
BRACKET which can hold your phone at an angle when desk mounting or wall mounting.
With the back of the BASE UNIT facing up, insert the hooks of the MOUNTING BRACKET
(following the arrow direction for the DESK MOUNT) into the matching slots of the BASE UNIT
(as shown in Figure 2).
IMPORTANT: Attach the MOUNTING BRACKETwhen using your phone on a desk.
FIGURE 1 FIGURE 2
IMPORTANT
Placing your BASE UNIT near appliances such as
televisions, refrigerators, radios, or microwave ovens
may cause interference.
9
Wall Mounting
Wall Mounting
You may choose to put the BASE UNIT of your cordless telephone on a wall.
1. With the back of the BASE UNIT facing up, insert the hooks of the MOUNTING BRACKET
(following the arrow direction for the WALLMOUNT).
2. Connect the SHORT TELEPHONE LINE CORD to the TELEPHONE LINE CONNECTION
JACK.
3. Insert the free end of the SHORT TELEPHONE LINE CORD through the hole of the
MOUNTING BRACKET.
4. Insert the hooks of the MOUNTING BRACKET into the matching slots of the BASE UNIT
(as shown below). Then slide the MOUNTING BRACKET into place as indicated by the
arrows. Plug the free end of the SHORT TELEPHONE LINE CORD into the MODULAR
WALL JACK.
TELEPHONE LINE
CONNECTION JACK
BASE UNIT
MOUNTING
BRACKET
SHORT TELEPHONE
LINE CORD
WALL PLATE
STUD
MODULAR
WALL JACK
WALL PLATE
BASE UNIT
10
Wall Mounting
5. Align the upper keyhole on the MOUNTING BRACKETwith the upper stud of the wall plate,
so that the opening end of the MOUNTING BRACKETmatches the lower stud, then pull the
BASE UNIT down until it is securely seated.
IMPORTANT:A “beep” will be heard when the HANDSET is properly positioned in the
BASE UNIT CHARGE CRADLE and charging. Securely positioning the
HANDSET in the BASE UNIT will also prevent the HANDSET from falling.
11
Cordless Telephone Operation
Preparing for Use
Before you can use your cordless telephone, you must charge the HANDSET for 12 hours.
Failure to do so will require recharging of the BATTERY PACK more often.
1. Place the HANDSET on the BASE UNIT for 12 hours.
2. After 12 hours, remove the HANDSET from the BASE UNIT.
Before you can use your cordless telephone, you must charge the HANDSET for 12
hours. Failure to do so will require more frequent charging of the BATTERY PACK. See
page 29 for more information on the BATTERY PACK.
NOTE:
Depending on the frequency of use, once the HANDSET is fully charged, it remains functional
for approximately 4 hours of continuous use and approximately 5 days when the HANDSET
is off the BASE UNIT in STANDBY mode.
NO LINE Indicator
This telephone checks for an active TELEPHONE LINE
connection. If “NO LINE”appears on the LCD Screen,
when the HANDSET is in STANDBYmode, no calls can
be made or received from this telephone. Check that the
TELEPHONE LINE CORD plugs are connected to the
wall TELEPHONE JACK and the BASE UNIT
TELEPHONE LINE CONNECTION JACK. If “NO LINE”
continues to be displayed, check that the other phones in
the house are working. If none of the phones work,
contact your local phone company.
Receiving Calls
1. When the phone rings, lift the HANDSET and press
the button. The HANDSET LCD Screen will
display “CALLS”and “TALKING”, and the BASE
UNIT IN USE LED indicator will light up.
2. Start your conversation.
3. To end your conversation, either press the
button or place the HANDSET on the BASE UNIT. If
you place the HANDSET on the BASE UNIT
CHARGE CRADLE, you activate the automatic
STANDBY feature.
TALK
TALK
12
Cordless Telephone Operation
NOTE:
1. The Call Timer will start to count once you press the button.
2. The LCD Screen emits light for 5 seconds every time you press any buttons on the
HANDSET.
3. When “CALLS”appears on the LCD Screen, it means that the HANDSET is OFF-HOOK
(connected to the telephone line).

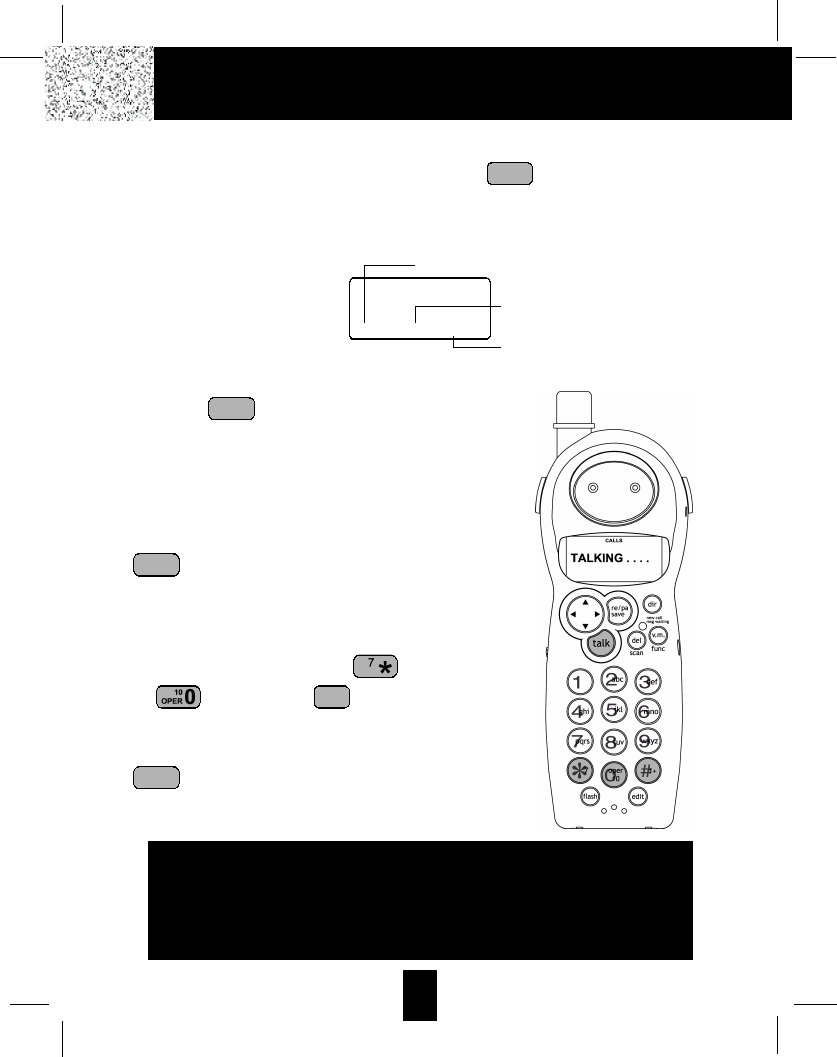

Placing Calls
1. Press the button, the Call Timer starts to
count. The HANDSET LCD Screen will display
“CALLS”, and “TALKING”, and the BASE UNIT IN
USE LED indicator will light up.
2. Listen for a dial tone.
3. Dial the phone number.
4. When you have finished with your call, press the
button again or place the HANDSET on the
BASE UNIT.
OR
1. Dial the phone number.
2. Press and hold down the DIAL 7 or the DIAL
10 or the DIAL1+ button. The BASE
UNIT IN USE LED indicator will light up.
3. When you have finished with your call, press the
button again or place the HANDSET on the
BASE UNIT.
TALK
1+ #
TALK
TALK
TALK
CALLS
00MIN 1SEC 14
Minute
Seconds
Channel
IMPORTANT
In order to utilize the Caller ID feature, you must
subscribe to Caller ID service from your local
telephone company.
13
Cordless Telephone Operation
Headset Feature
Your telephone can utilize a headset (not included) to be
connected to your HANDSET for you to enjoy hands-free
communication. Pull out the HEADSET JACK COVER
then insert the small plug at the end of the headset into
the HEADSETJACK at the right side of the HANDSET.
Follow the procedures discussed in “Receiving Calls”
and “Placing Calls”to receive and place a call.
NOTE:When you plug the headset plug into the
HEADSET JACK it automatically mutes the
MICROPHONE and SPEAKER of the
HANDSET. Unplug the headset to return the
HANDSET to normal use.
Headsets are available at most retail outlets that sell
telephone equipment. The HEADSET JACK is
compatible with 2.5mm headset plugs only.
Redial Feature
1. If you get a busy tone, press the button or
place the HANDSET on the BASE UNIT to hang up.
2. Later, press the button again.
3. Listen for a dial tone.
4. Press the button. This will automatically redial
the last telephone number you called in TALK mode.
5. When you have finished with your call, press the
button again (the BASE UNIT IN USE LED
indicator will turn off) or place the HANDSET on the
BASE UNIT.
NOTE:
If you are too far away from the BASE UNIT, the HANDSET emits “beep”sounds to warn you
that the background noise level is too high for proper communication between the HANDSET
and the BASE UNIT. When you hear this sound, you should move closer to the BASE UNIT
to reduce the noise level. Otherwise, the call will automatically cut off.
TALK
RE/PA
SAVE
TALK
TALK
14

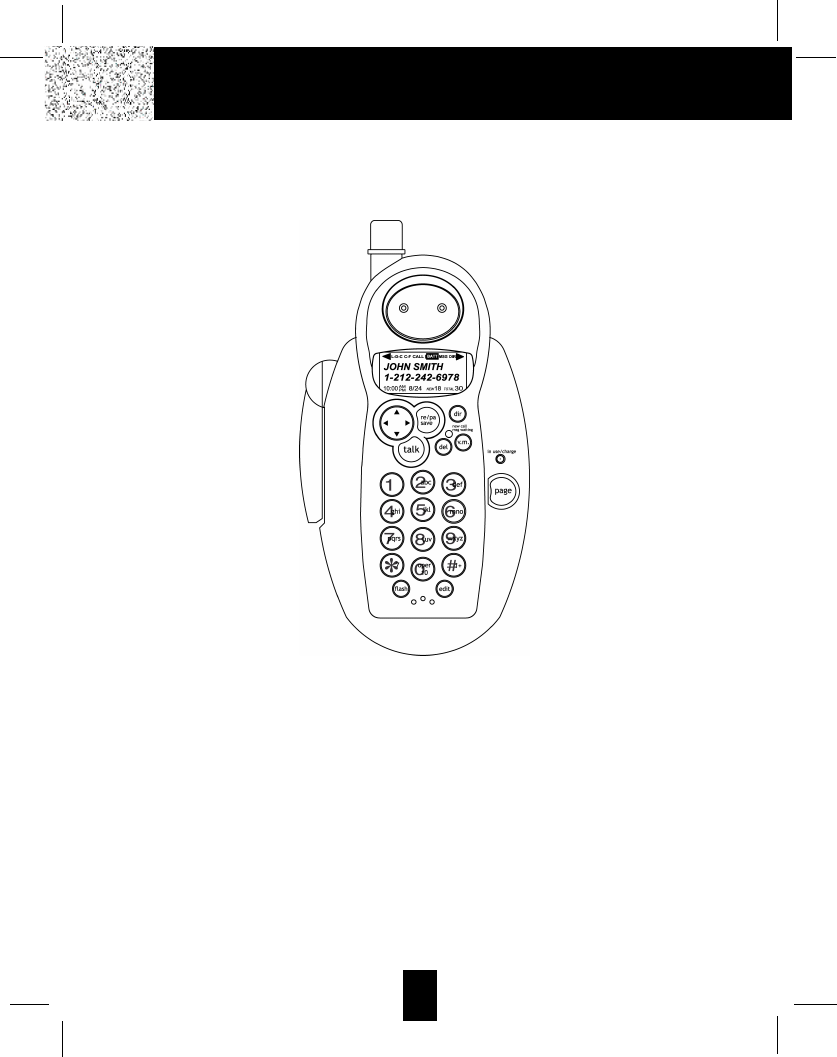

Caller ID System Operation
Caller ID System
This telephone automatically displays an incoming caller’s name and telephone number
together with the date and time of the call. It records up to 80 calls and stores the data in
Memory.
IMPORTANT: You must subscribe to the Caller ID service from your local telephone company
to utilize this feature.
Viewing Caller Information During Incoming Calls
1. When there is an incoming call, the name and the telephone number of the caller will
automatically appear after the second ring. Press the SHIFT RIGHT button to
view a name of more than 11 characters.
OR
Caller’s telephone number will appear if the caller’s name is not available.
OR
“OUT OF AREA”will appear if the origin of the incoming
call does not support the Caller ID system.
OR
“UNKNOWN”will appear if the origin of the incoming
call has no name and does not support the Caller ID
system.
OR
“PRIVATE”and/or “P---------”will appear if the caller’s
name and/or telephone number is blocked.
OR
“DATAERROR”will appear if wrong data was received from the telephone line.
OR
The name stored in the DIRECTORY will appear for an incoming call with matching
telephone numbers.
MSG WAITING (Message Waiting)
The MSG WAITING GREEN LED indicator will blink when there is a message for you from
your telephone company if you have subscribed to Voice Mail message service and if you
have requested Visual Message Indication from your local telephone company. “MSG
WAITING”will appear on the LCD Screen in STANDBYmode. (To remove the MESSAGE
WAITING indicator, see page 26 for detail.)
MICHAEL BROW
604-555-1212
10:00AM 8/24 NEW #1
Time
BROWING
604-555-1212
10:00AM 8/24 NEW #1
Month/Date Number of calls recorded
OUT OF AREA
O-----------
10:00AM 8/24 NEW #13 TOTAL 42
e.g.
UNKNOWN
U-----------
10:00AM 8/24 NEW #13 TOTAL 42
e.g.
15
Caller ID System Operation
Call Waiting
When you subscribe to a Call Waiting service from your local telephone company, this
telephone will display the name and number of the second caller while you are having a
conversation with your first caller.
1. When you are having a conversation, this telephone
will automatically display the name and number of
the second caller. The name will blink.
2. Press the button to answer the second
caller. The first caller’s name and number will be
displayed. The name will blink.
3. When you have finished, press the button
to continue your conversation with the first caller.
If you do not want to interrupt your phone conversation
with the first caller, you can advise the second caller to
leave a Voice Mail message instead.
Voice Mail Function
When there is a Voice Mail message for you, this telephone detects a Stutter Dial Tone (if
applicable) and the “MSG”icon on the LCD Screen and the MESSAGE WAITING LED
indicator will blink.
1. To access your Voice Mail message, press the button.
2. After you hear a dial tone, press the button. This will automatically dial the
Voice Mail Post Code in your area and connect you to the Voice Mail service provider.
NOTE:You must store the Voice Mail Post Code number by using the VOICE MAIL
function on page 26. You can also call your Voice Mail service provider by dialing
the Voice Mail Access Code number after pressing the button.
C-F (Forwarded Call)
ppears on the upper left hand side of the LCD Screen, when the incoming call has been
assigned to your telephone number.
L-D-C (Long Distance Call)
Appears on the upper left hand side of the LCD Screen, when the incoming call is a long
distance call and the service is provided by your local telephone company.
Caller List
Records call information for up to 80 incoming calls such as caller’s name and telephone
number together with the date and time of the call. After recording a new incoming call, the
NEW CALLindicator will blink and the LCD Screen will display:
TALK
FUNC
VOICE MAIL
TALK
FLASH
FLASH
JOHN BROWN
235-607-5512
10:00AM 8/24 NEW 13
e.g.
ALEX BROWTH
504-555-1212
10:00AM 8/24 NEW 14
e.g.
1st Caller
2nd Caller
RING:HI
10:00AM 8/24 NEW 13 TOTAL 42
No. of new calls
Maximum calls= 80

Navigation menu
