MANUAL 1
Please log on to www.xactcommunication.com for accessory & product information.
1
Contents
Safety Instructions ----------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
Getting Started ---------------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 5

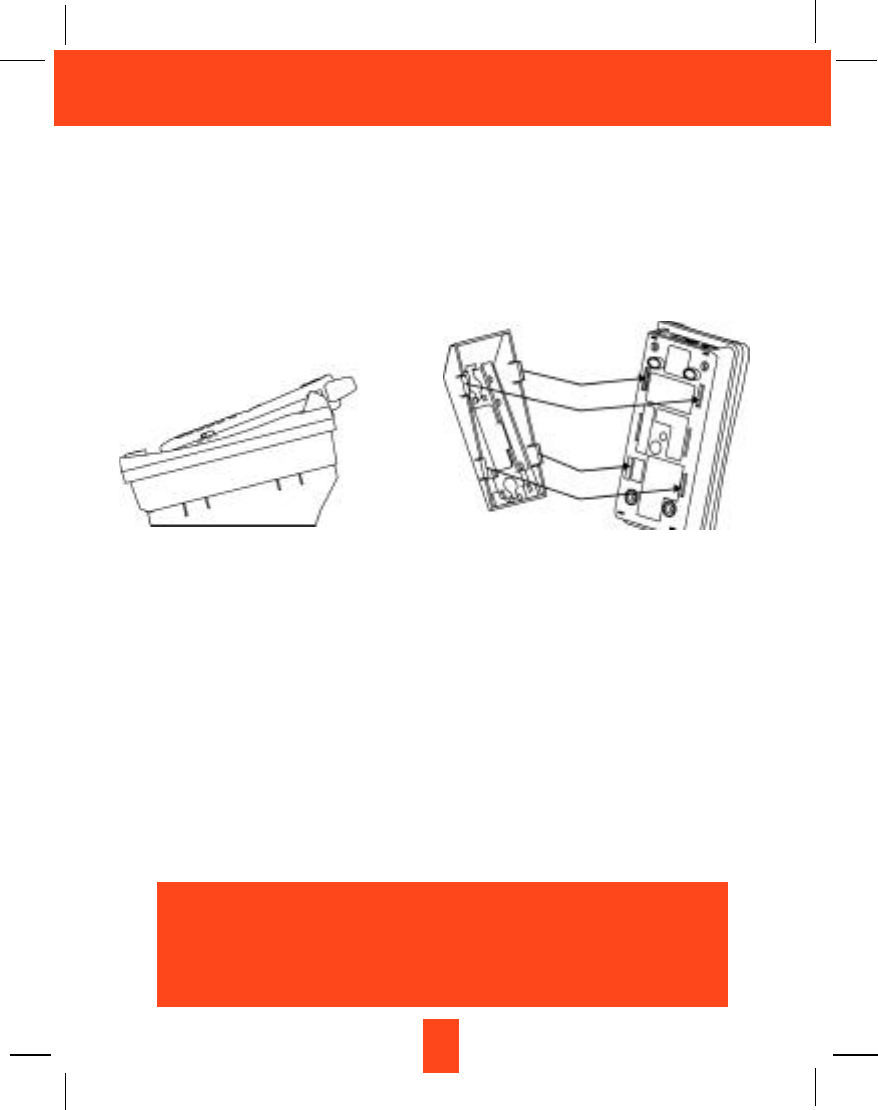

Desk Mounting ------------------------------------------------------------ - - - - - - - - - - - - - - - - - - - - - - - - - - --------- 8

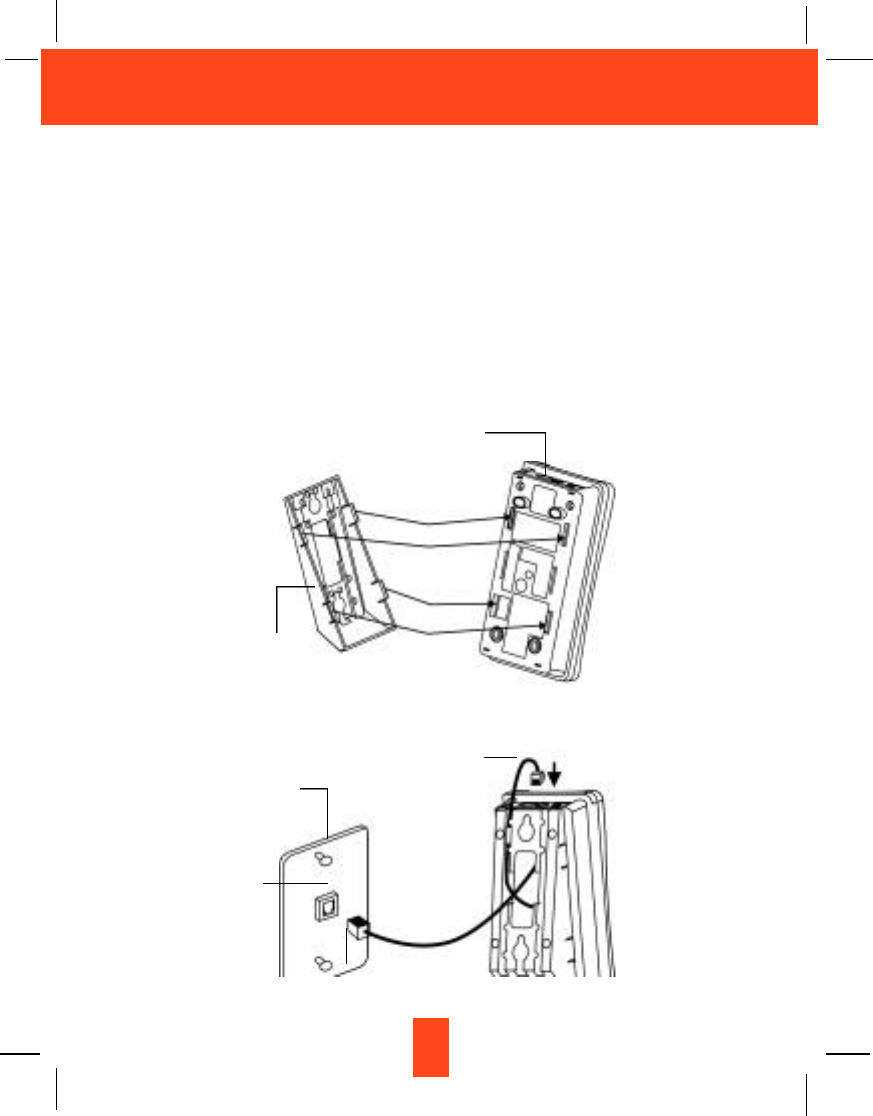

Wall Mounting --------------------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ---- 9
Cordless Telephone Operation -------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ----- 11
Preparing for Use -------------------------------------------------------------------------------------- 11
NO LINE Indicator ----------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ----- 11
Receiving Calls --------------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - ------ 11
Placing Calls --------------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ------ 12
Transferring Calls --------- - - - - - - - - - - - - - - - - - - - - - - ------------------------------------------------------- 13
Headset Feature --------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 13
Redial Feature ----------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 13
Caller ID System Operation --------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 14
Caller ID System --------------------------------------------------------------------------------------- 14
Viewing Caller Information During Incoming Calls ---------------------------------------- 14
MSG WAITING (Message Waiting) -------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -------- 14
Call Waiting --------------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --- 15
Voice Mail Function ---------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15
C-F (Forwarded Call) ----------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 15
L-D-C (Long Distance Call) -------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ---- 15
Caller List ------------------------------------------------------------ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 15
Viewing the Caller List ------------------------------------ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16
Placing a Call From the Caller List ----------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 16
Editing the Caller List before Dialing ------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16
Saving the Name and Number in the Caller List into the DIRECTORY - - - - - - - - - - - - - 17
Deleting All Records in the Caller List --------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
Selective Deleting in the Caller List -------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
Name and Telephone Number DIRECTORY --------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
Viewing the DIRECTORY ------------------------------ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
Speed Viewing the DIRECTORY -------------------------------------------------------------- 18
Saving in the DIRECTORY ----------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
PREFERRED CALLS --------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
BLOCKED CALLS -------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
2
Contents
Editing a Name and Number in the DIRECTORY -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 19
Editing the Number in the DIRECTORY before Dialing ---- - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 20
Placing Calls from the DIRECTORY ----------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --- 21
Deleting All Records in the DIRECTORY ---- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ---- 21
Selective Deleting in the DIRECTORY ------ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 21
Function Operation ------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 22
A. Language --------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --- 23
B. First Ring/Silent On or Off ------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --- 23
C. Time Set ----------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 23
D. Ringer Volume -------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --- 24
E. LCD Contrast ---------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - 24
F. PBX Number ----------------- - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 24
G. Flash Time ---------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - -- 25
H. Pause Time -------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --- 25
I. Voice Mail ----------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 26
J. MSG Waiting (Message Waiting) -- - -- - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --- 26
Telephone Keypad Characters ------------ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 27
Security ----------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 28
Recharging the Battery Pack --------------------------------------------------------------------------- 29
Changing the Battery Pack ------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 30
Dual Handsets Registration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 31
Problem Solving ----------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 32
Technical Information ------------------------------------------------------------------------------------- 33
FCC Requirements -------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 34
Warranty -------------------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 36
Wall Mounting Template----------------------------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 41
3
Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock and/or injury, always follow these
basic safety precautions when using your cordless telephone equipment.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the telephone.
3. Unplug this telephone from the wall outlet before cleaning or replacing the BATTERY
PACK. Do not use liquid cleaners or aerosol cleaners on the telephone. Use a damp cloth
for cleaning.
4. Do not use this telephone near water, for example, near a bath tub, wash bowl, kitchen
sink, or laundry tub, in a wet basement, or near a swimming pool.
5. Place this telephone on a stable surface. Serious damage and/or injury may result if the
telephone falls.
6. Do not cover the slots and openings on this telephone. This telephone should not be
placed near or over a radiator or heat register. This telephone should not be placed in a
built-in installation unless proper ventilation is provided.
7. Operate this telephone using the electrical voltage as stated on the BASE UNIT of the
telephone or in the Owner’s Manual. If you are not sure of the voltage in your home,
consult your dealer or local power company.
8. Do not place anything on the power cord. Install the telephone where no one will step or
trip on the cord.
9. Do not overload wall outlets or extension cords as this can increase the risk of fire or
electric shock.
10. Never push objects of any kind through the slots in the telephone. They could touch
dangerous voltage points or short out parts that could result in a risk of fire or electric
shock. Never spill liquid of any kind on the telephone.
11. To reduce the risk of electric shock, do not disassemble this telephone. Take it to a
qualified service representative when service or repair work is required. Opening or
removing covers may expose you to dangerous voltages or other risks. Incorrect
reassembly can cause electric shock when the telephone is subsequently used.
12. Unplug this telephone from the wall outlet and consult a qualified service representative
in any of the following situations:
A. When the power supply cord is frayed or damaged.
B. If liquid has been spilled into the telephone.
C. If the telephone has been exposed to rain or water.
D. If the telephone does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions. Improper
adjustment of other controls may result in damage and will often require extensive
work by a qualified technician to restore the telephone to normal operation.
4
Safety Instructions
E. If the telephone has been dropped or the case has been damaged.
F. If the telephone exhibits a distinct change in performance.
13. Do not use the telephone to report a gas leak in the vicinity of the leak.
14. Never install telephone wiring during a lightning storm.
15. Never install telephone jacks in wet locations unless the jack is specifically designed for
wet locations.
16. Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
17. Use caution when installing or modifying telephone lines.
Battery Safety
CAUTION:
Danger of explosion if the BATTERY PACK is replaced with incorrect type.
Replace only with the same or equivalent type. To reduce the risk of fire or
personal injury, read and follow these instructions:
1. Use only the following type and size of BATTERY PACK:
Cordless Telephone BATTERY PACK
3.6V, 600mAh
XACT Communication
Ni-MH BATTERY PACK: Model B655
(See page 29 for ordering information.)
2. Do not dispose of the BATTERY PACK in a fire. The BATTERY PACK may explode. Check
with local codes for possible special disposal instructions.
3. Do not open or mutilate the BATTERY PACK. Released electrolyte is corrosive and may
cause damage to the eyes or skin. Electrolyte may be toxic if swallowed.
4. Exercise care in handling the BATTERY PACK to prevent shorting the BATTERY PACK
with conductive materials such as rings, bracelets, and keys. The BATTERY PACK or
conductor may overheat and cause burns.
5. Charge the BATTERY PACK provided with (or identified for use with) this telephone only
in accordance with the instructions and limitations specified in this manual.
6. Observe proper polarity orientation between the BAT T E RY PACK and BAT T E RY
CHARGER.
SAVE THESE INSTRUCTIONS
ATTENTION:
The telephone that you have purchased contains a rechargeable BATTERY PACK. The
BATTERY PACK is recyclable. At the end of its useful life, under various state and local laws,
it may be illegal to dispose of this BATTERY PACK into the municipal waste stream. Check
with your local solid waste officials for details in your area for recycling options or proper
disposal.
5
Getting Started
Connecting Your Phone
This section is a reference guide to the basic functions and operations of your cordless
telephone. For more detailed descriptions of the operations and features of this telephone,
refer to the Contents on page 1.

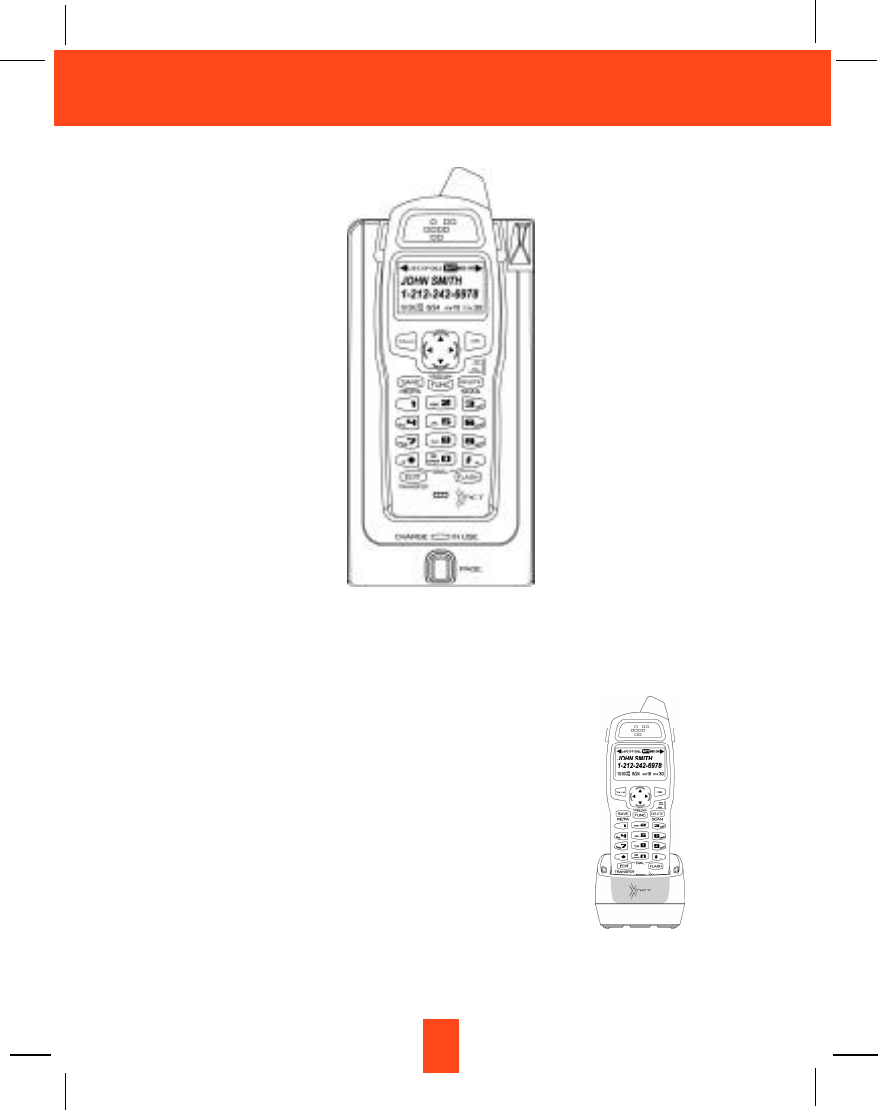

1. Carefully remove your cordless telephone from its shipping carton. If there is any visible
damage, do not attempt to operate this equipment. Return it to the place of purchase.

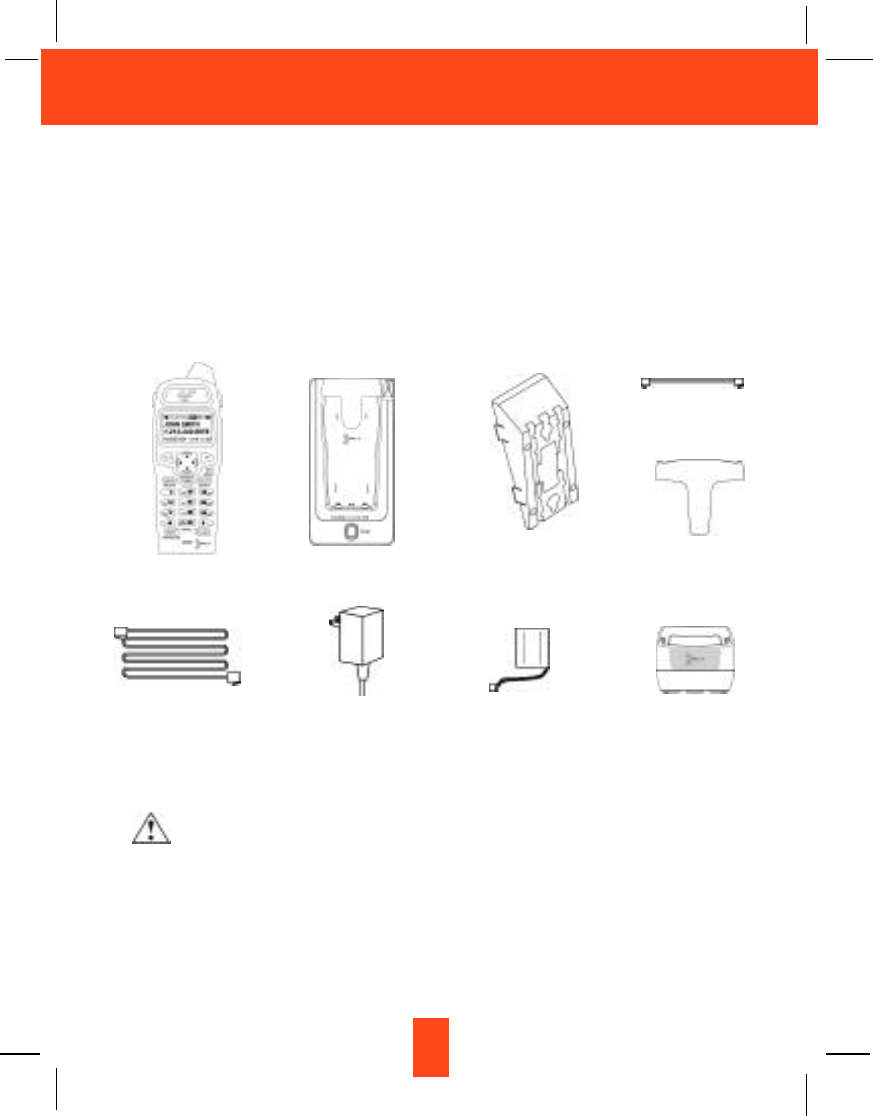

2. Check to be sure you have all items that come with this cordless telephone system. You
should have two HANDSETS,BASE UNIT, two AC ADAPTER, MOUNTING BRACKET,
TELEPHONE LINE CORD, SHORT TELEPHONE LINE CORD, two BELT CLIP, and an
Owner’s Manual.

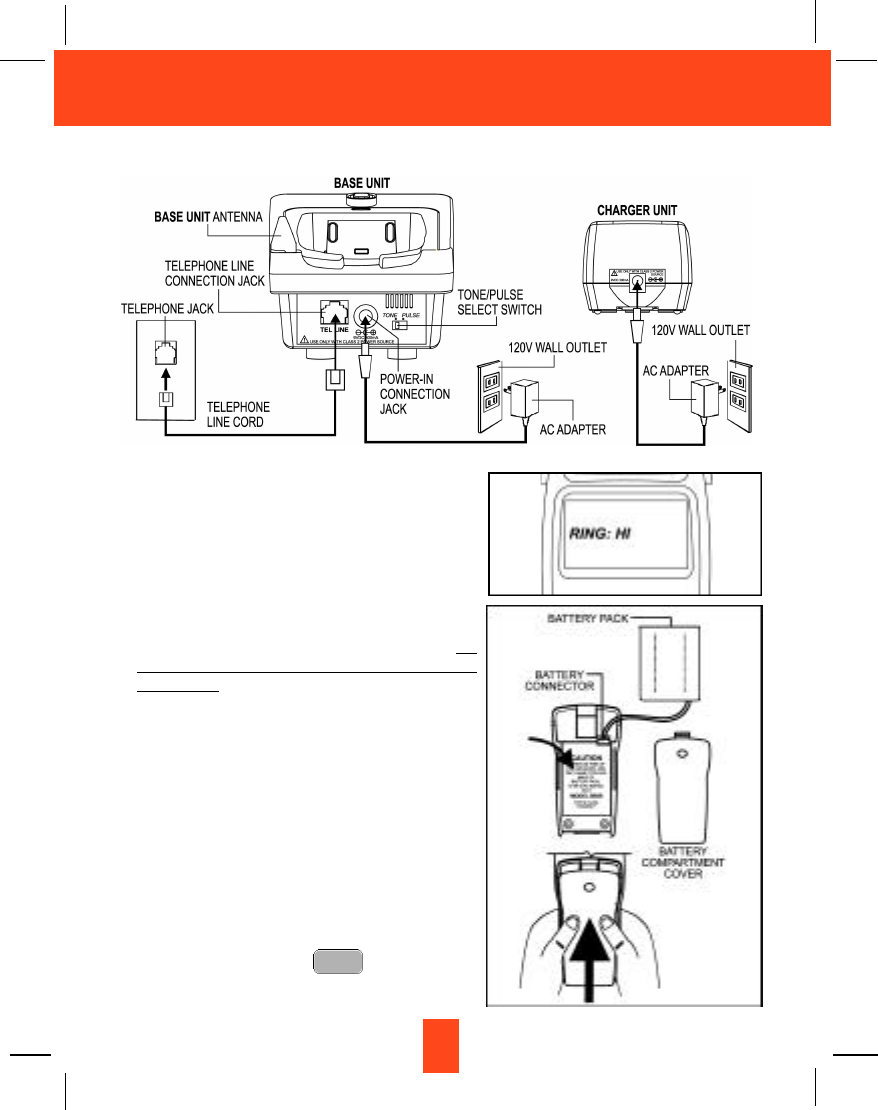

3. Insert the small plug on the end of the AC ADAPTER into the POWER-IN CONNECTION
JACK at the back of the BASE UNIT.
4. Plug the AC ADAPTER into a 120V AC wall outlet.
USE ONLY WITH CLASS 2 POWER SOURCE 9V DC, 300 mA.
5. Insert one plug of the TELEPHONE LINE CORD into the house TELEPHONE JACK and
the other end into the TELEPHONE LINE CONNECTION JACK at the back of the BASE
UNIT. (If you have an older 4-prong TELEPHONE JACK, you will need an RJ-11C
TELEPHONE JACK ADAPTER. This adapter is available at the same place you purchased
your telephone.)
6. Connect the other AC ADAPTER to CHARGER UNIT.
7. We recommend not placing this unit next to appliances. Doing so may cause interference.
BASE UNIT
MOUNTING
BRACKET BELT CLIP X 2
TELEPHONE
LINE CORD
SHORT TELEPHONE
LINE CORD
AC ADAPTER X 2 BATTERYPACK
HANDSET X 2
CHARGER
6
Getting Started

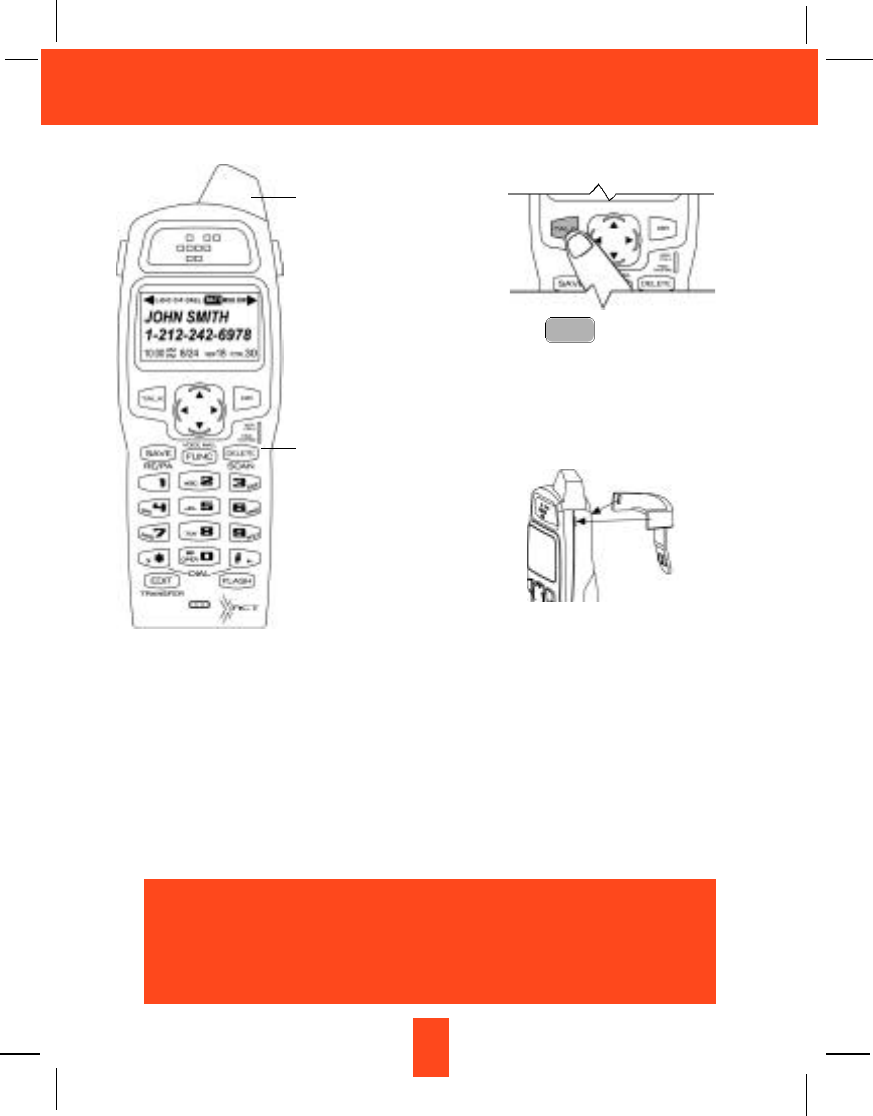

8. Install the BATTERY PACK by plugging it into the
BATTERY CONNECTOR inside the BATTERY
COMPARTMENT. The HANDSET LCD Screen
will display “RING: HI”.
9. Place the BATTERY PACK inside the BATTERY
COMPARTMENT.
10.Slide the H A N D S E T B AT T E RY C O M PA RT M E N T
COVER firmly into place in its closed position.
11. Place one H A N D S E T to cradle of BASE UNIT(Do
not charge the HANDSET with the KEYPAD
face down), and the other one to the CHARGER
UNIT.
12.IMPORTANT: Before initial use, charge the
HANDSET for 12 hours.
13.TONE/PULSE Select Switch:
A. If your home is equipped with a tone dialing
system, set the TONE/PULSE Select Switch
to the TONE position.
B. If you have a rotary dialing system, set the
TONE/PULSE Select Switch to the PULSE
position.
C. If you are unsure which system you have, set
the TONE/PULSE Select Switch to the TONE
position. Press the button on the
H A N D S E T and make a call. If the call
connects, leave the switch as is; otherwise
set to the PULSE position.
TALK
7
Getting Started
Press the button to confirm that
you have a dial tone. If you do not get a
dial tone, review steps 3 through 11. If
you still do not have a dial tone, refer to
the Problem Solving section on page 31.
With the back of the HANDSET facing
up, insert one side of the BELT CLIP
HOOK into the matching slot at the top
side of the HANDSET. Press down on
the opposite side of the BELT CLIP until
the other HOOK locks into the slot on the
side of the HANDSET.
14. Set the date and time. (See page 23 for details.)
You are now ready to use your new
XACT Cordless Telephone.
TALK
IMPORTANT
In order to utilize the Caller ID feature, you must
subscribe to Caller ID service from your local
telephone company.
ANTENNA
HANDSET BELT CLIP HOOK
8
Desk Mounting
Desk Mounting
One of the special features of your telephone is the unique design of the MOUNTING
BRACKET which can hold your phone at an angle when desk mounting or wall mounting.
With the back of the BASE UNIT facing up, insert the hooks of the MOUNTING BRACKET
into the slots of the BASE UNIT (as shown in Figure 2).
IMPORTANT: Attach the MOUNTING BRACKET when using your phone on a desk.
IMPORTANT
Placing your BASE UNIT near appliances such as
televisions, refrigerators, radios, or microwave ovens
may cause interference.
FIGURE 2
FIGURE 1
9
Wall Mounting
Wall Mounting
You may choose to put the BASE UNIT of your cordless telephone on a wall.
1. With the back of the BASE UNIT facing up, insert the hooks of the MOUNTING BRACKET
into the matching slots on the back of the BASE UNIT (positioning the mounting bracket
as shown in Figure 1.)
2. Insert the small plug on the end of the AC ADAPTER into the POWER-IN CONNECTION
JACK at the back of the BASEUNIT and put the AC ADAPTER CORD inside the MOLDED
WIRING CHANNEL as shown in Figure 2.
3. Plug the AC ADAPTER into a 120V wall outlet.
4. Connect the SHORT TELEPHONE LINE CORD to the TELEPHONE LINE CONNECTION
JACK. Put the SHORT TELEPHONE LINE CORD inside the top half of the other MOLDED
WIRING CHANNEL as shown in Figure 2.
5. Plug the free end of the SHORT TELEPHONE LINE CORD into the MODULAR WALL
JACK. TELEPHONE LINE
CONNECTION JACK
MOUNTING
BRACKET
WALLPLATE
STUD
SHORT TELEPHONE
LINE CORD
BASE UNIT
BASE UNIT
WALL PLATE
MODULAR
WALLJACK
FIGURE 1
FIGURE 2
10
Wall Mounting
IMPORTANT: A “beep” will be heard when the HANDSET is properly positioned in the BASE
UNIT CHARGE CRADLE and charging. Securely positioning the HANDSET
in the BASE UNIT will also prevent the HANDSET from falling.
IMPORTANT:The CHARGER UNIT does not have the
WA L L MOUNTING Feature. Place the
CHARGER UNIT on a stable surface and
charge the HANDSET.The POWER LED
indicates the AC ADAPTER installed
properly. The CHARGER LED lights up when
the HANDSET is charged properly.
