5.8GHz WIRELESS A/V/ALARM TRANSMITTER USER MANUAL
MODEL: 15-5800VT/15-5800VH

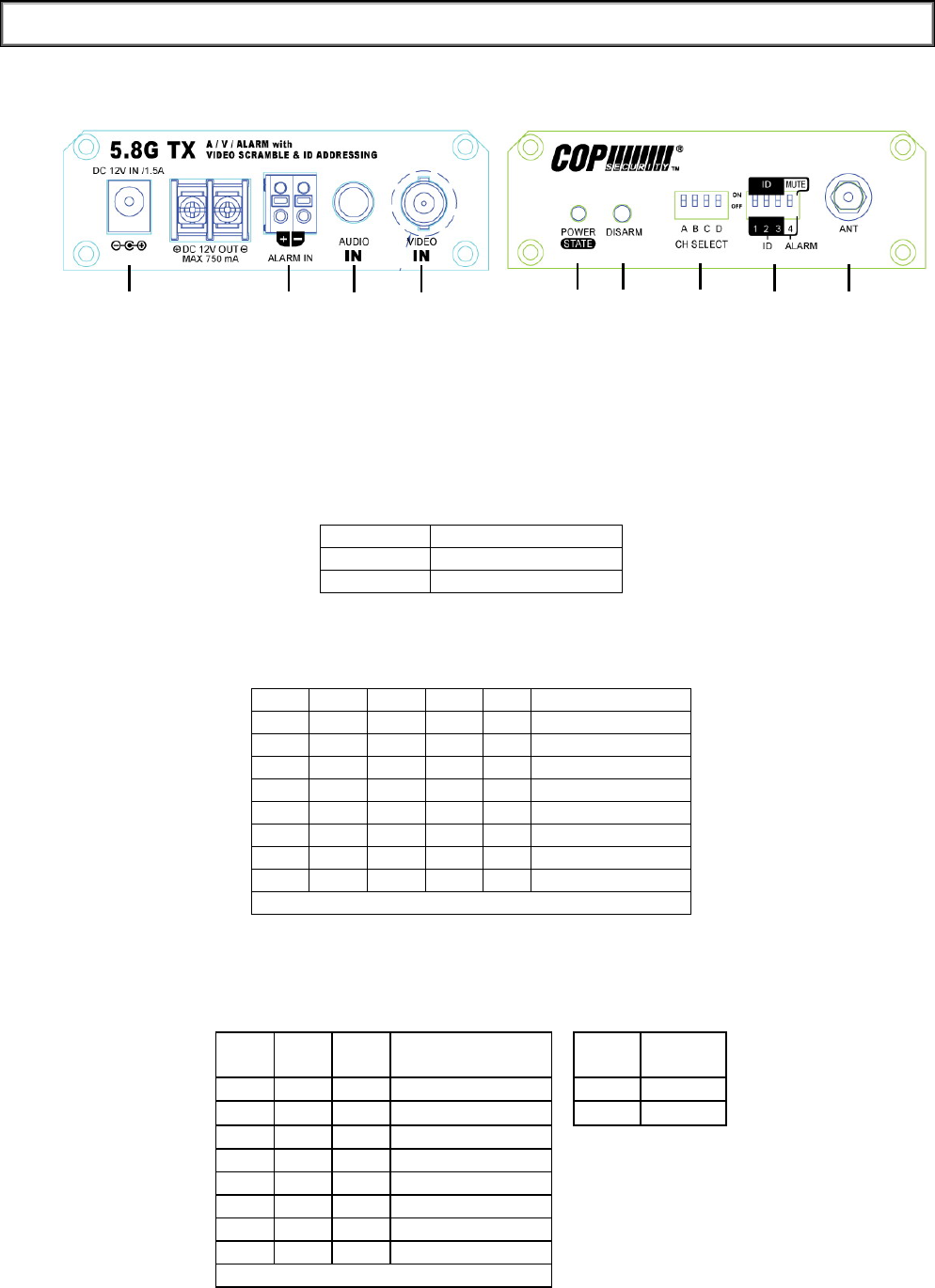

1. Panel View
○
1 ○
2 ○
3 ○
4 ○
5 ○
6 ○
7 ○
8 ○
9
1. DC+12V IN: Power input DC+12V/1.5A.
2. DC+12V OUT: DC+12V/750mA for box camera only, and with a over current protector.
(Note: If you don’t use this port for cameras, you can use the DC+12V/500mA adaptor.)
3. ALARM IN: Connected to alarm sensor, e.g.: PIR Detector, Magnetic Reed Switch Detector.
4. AUDIO IN: RCA female for input video signal.
5. VIDEO IN: BNC female for input audio signal.
6. POWER/State LED: Indicated to power on and ARM status.
Indications Power/State LED
Power On On
ARM High speed Flashing
7. DISARM: DISARM at 15-5800VT/15-5800VH transmitter’s side only.
8. CH SELECT (A B C D): 5.8GHz transmission channel selection.
Bit 1 Bit 2 Bit 3 Bit 4 CH Frequency(MHz)
X 0 0 0 1 5740
X 0 0 1 2 5760
X 0 1 0 3 5780
X 0 1 1 4 5800
X 1 0 0 5 5820
X 1 0 1 6 5840
X 1 1 0 7 5860
X 1 1 1 8 5740
(1 = DIP SW ON, X= don’t care)
9. ID AND ALARM MUTE: ID address setting is use for paring with 15-5800VR receivers. The alarm mute
function is use for muting built-in buzzer at 15-5800VT/15-5800VH side only.
Bit 1 Bit 2 Bit 3 ID Address
(Pairing with RX) Bit 4 Alarm
Mute
0 0 0 0 0 ON
0 0 1 1 1 OFF
0 1 0 2
0 1 1 3
1 0 0 4
1 0 1 5
1 1 0 6
1 1 1 7
(1 = SW ON, 0 = SW OFF)
10. ANT: RP-SMA connector for connected to 5.8 GHz antenna.
REMARK: When the frequency channels have the interference, adjust antenna or change the channel of
transmitter and don’t close to 802.11 a/b/g AP router.
2. Caution for Installation
2.1 Be careful, never let any water in this equipment.
2.2 If necessary, use a soft cloth moistened with alcohol to wipe off the dust.
2.3 Be extra careful not to shake the unit.
2.4 Avoid places where temperatures exceed 50 o C or higher.
2.5 Avoid places where there are frequent vibrations or shocks.
2.6 When any abnormalities occur, make sure to unplug the unit and contact your local dealer.
3. Packing
3.1 Transmitter ×1
3.2 Antenna ×1
3.3 User manual ×1
3.4 Screws ×4
3.5 Plastic-Conical-Anchor ×4
3.6 Power Adaptor ×1 [Option]
4. Specification
CHANNAL CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
FREQUENCY 5740
MHz 5760
MHz 5780
MHz 5800
MHz 5820
MHz 5840
MHz 5860
MHz 5740
MHz
RF ANT. IMPEDANCE 50 Ω Typical
POWER DC12V/1.5A Adaptor
CURRENT 350mA
DC OUTPUT DC12V/750mA
OUTPUT POWER 10mW
VIDEO INPUT 1 Vp-p Composite @ 50Ω
AUDIO INPUT 2 Vp-p @ 600Ω Typical
ALARM INPUT TTL/CMOS (Level Detection)
DIMENSIONS L:85 mm H:30 mm D:16 mm
FCC Part 15 Notice:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
3. Any changes or modifications (including the antennas) made to this device that are not expressly
approved by the manufacturer may void the user’s authority to operate the equipment.
Q2009/06/06
