Product Specication 06MD-0002-1-PS
Fusca 2.4GHz SMD Antenna
Product Specication
Part No. A10192-L
1 Features
Designed for 2.4GHz applications [Bluetooth®, WiFi® (802.11b/g), ZigBee®, etc.]
Intended for SMD mounting
Supplied in tape on reel
2 Description
The Fusca antenna is intended for use with all 2.4GHz applications. The antenna requires a groundplane,
i.e. your device acts as an active part of the antenna and thus demands careful consideration concerning its
placement.
3 Applications
Mobile phones
PDAs
Headsets
PC-Cards
CF-Cards
•
•
•
•
•
•
•
•
Integrated Antenna Solutions 2
Product Specication 06MD-0002-1-PS
Fusca 2.4GHz SMD Antenna
Part No. A10192-L
Contents
1 Features 1
2 Description 1
3 Applications 1
4 Model Name 3
5 General Data 3
6 Electrical Characteristics 3
7 Electrical Performance 4
8 Antenna Dimensions 5
9 Antenna Footprint 5
10 Electrical Interface 6
10-1 Transmission Line and Matching 6
11 Test Board Dimensions 6
12 Soldering 7
13 Reliability 7
13-1 Temperature and Humidity 7
13-2 Mechanical 7
14 Hazardous Material Regulation Conformance 8
15 Packaging 9
15-1 Shelf Storage Recommendations 9
15-2 Tape Characteristics 9
15-3 Reel Dimensions 9
Integrated Antenna Solutions 3
Product Specication 06MD-0002-1-PS
Fusca 2.4GHz SMD Antenna
Part No. A10192-L

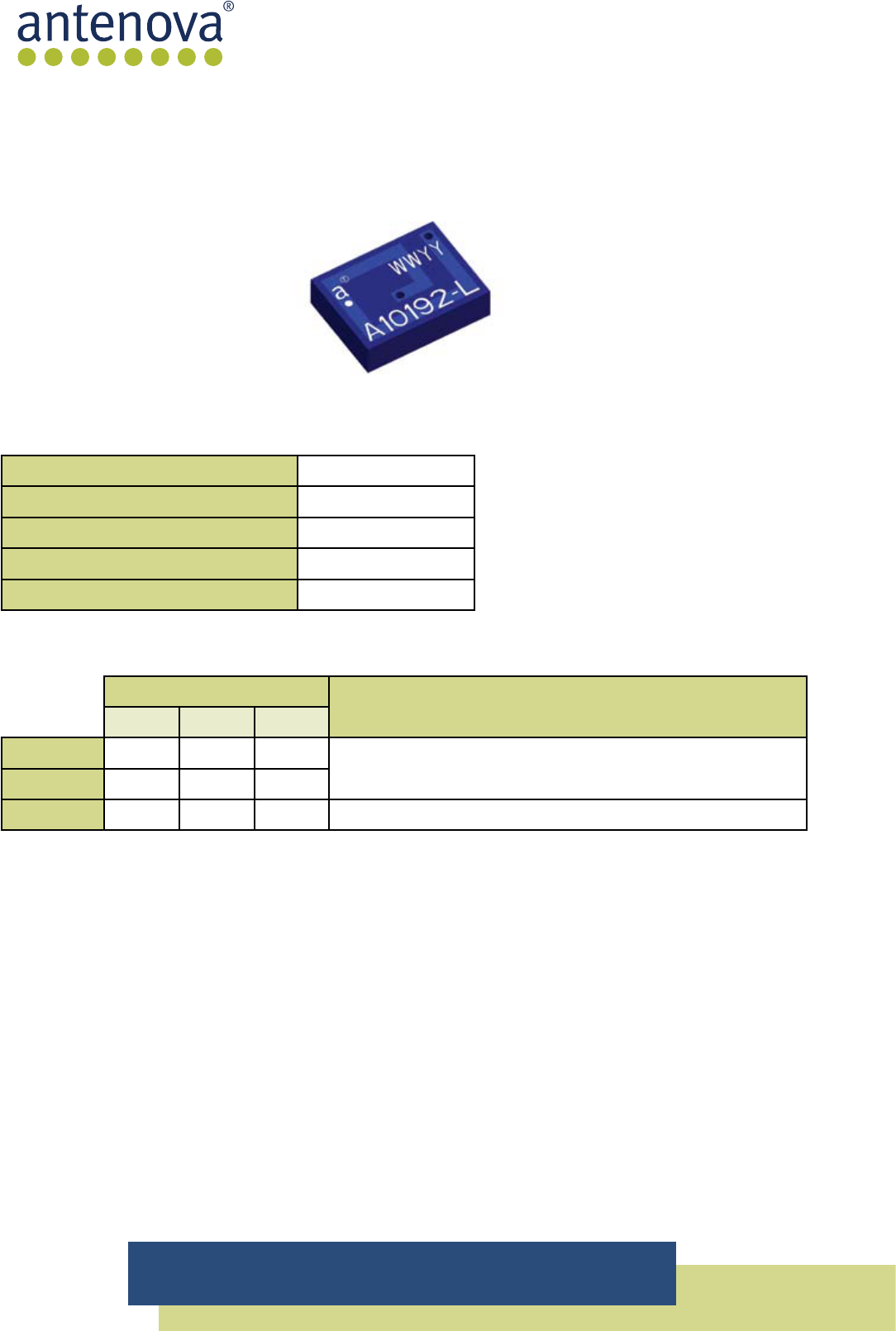

4 Model Name
A10192
5 General Data
Product Name Fusca 2.4GHz
Part No. A10192-L
Frequency 2.4 – 2.5GHz
Polarization Linear
Operating Temperature -40 to +85 °C
6 Electrical Characteristics
Characteristics *Conditions
Min Typ Max
Peak Gain TBD 0.4dBi TBD Frequency 2.4-2.5GHz, Measured in 3D chamber (near eld)
Efciency TBD 50% TBD
VSWR TBD 2:1 TBD Frequency 2.4-2.5GHz, Measured with Network Analyser
* Note all data provided in this table are based on the Antenova reference board.
Integrated Antenna Solutions 4
Product Specication 06MD-0002-1-PS
Fusca 2.4GHz SMD Antenna
Part No. A10192-L

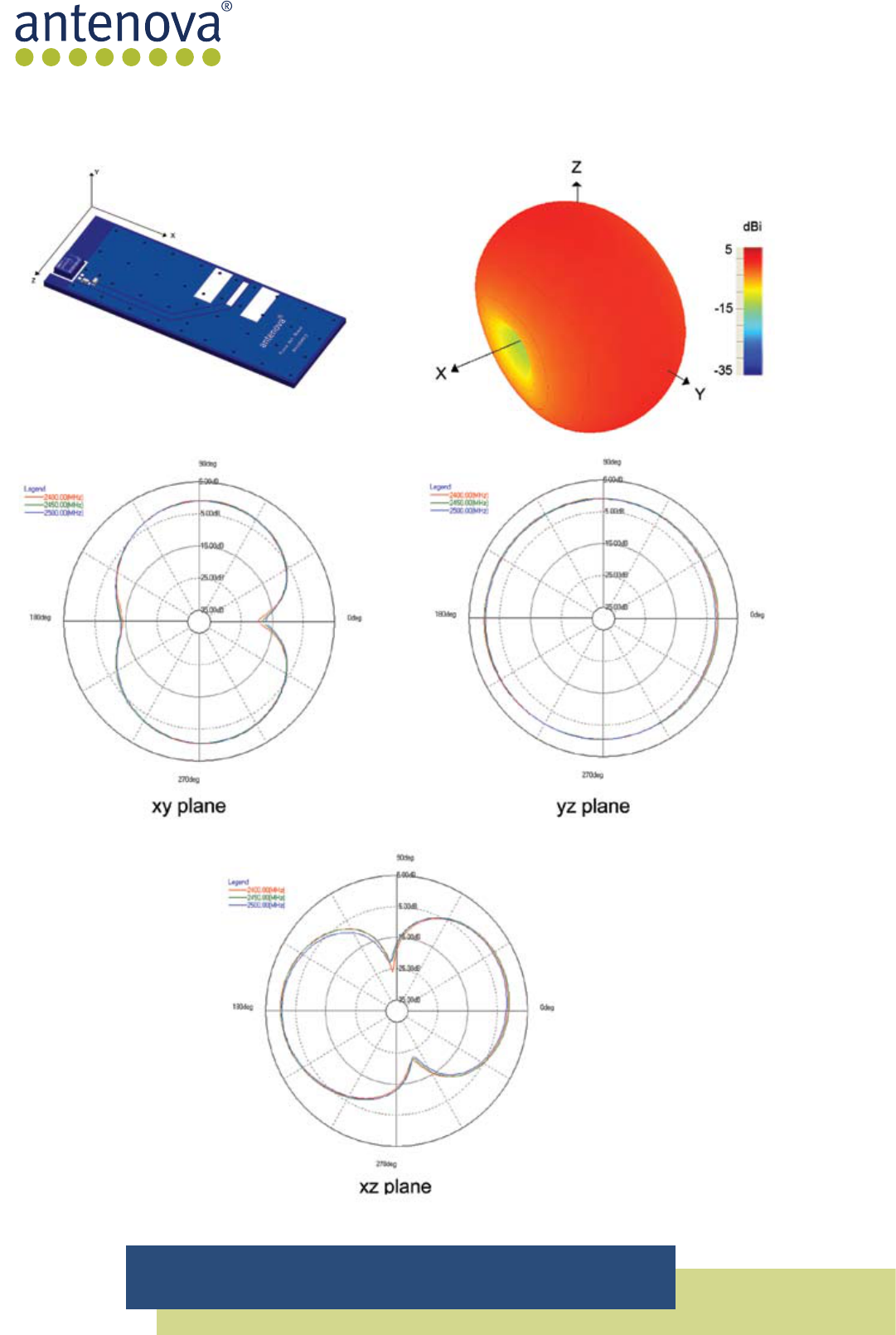

7 Electrical Performance
Integrated Antenna Solutions 5
Product Specication 06MD-0002-1-PS
Fusca 2.4GHz SMD Antenna
Part No. A10192-L

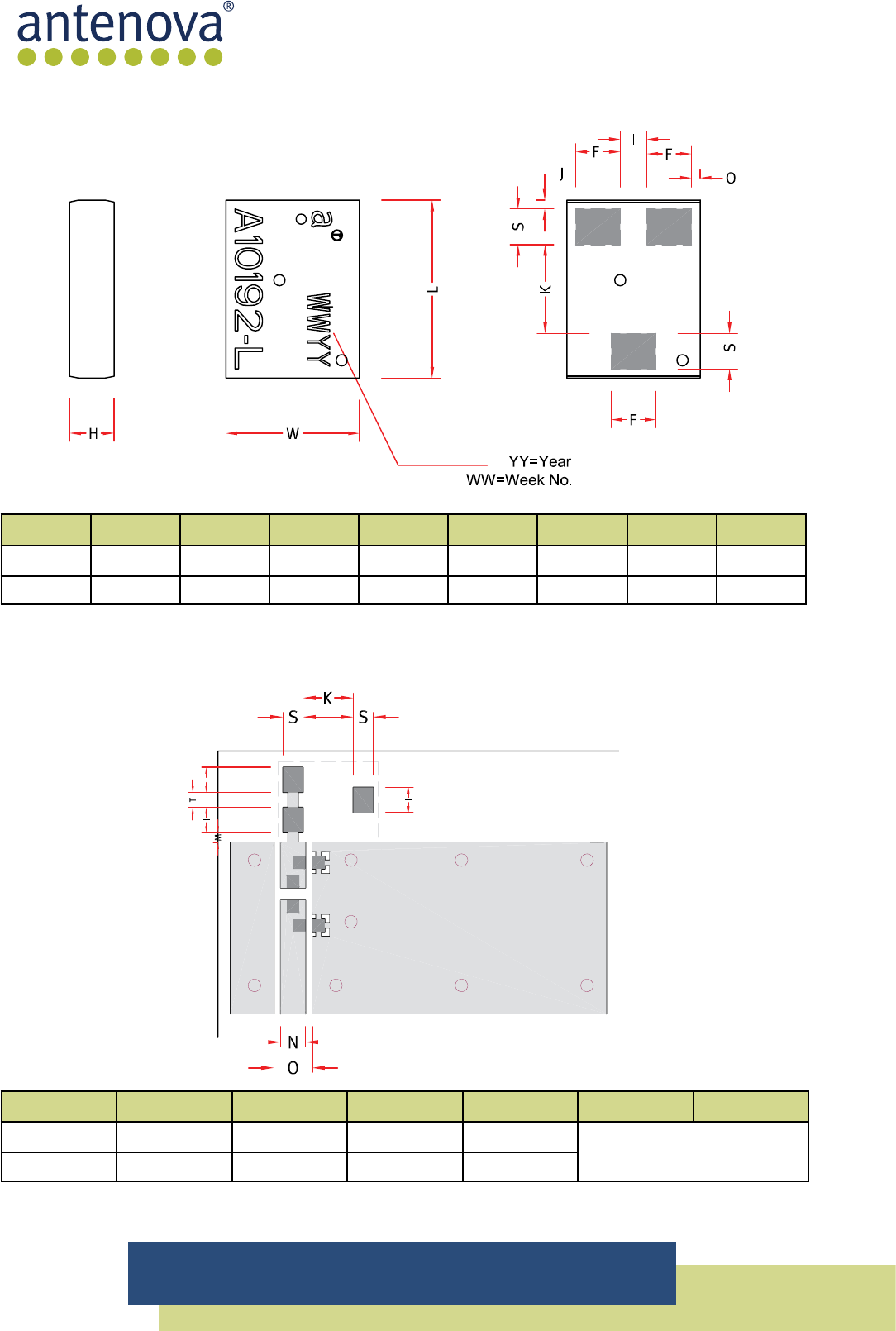

8 Antenna Dimensions
L W H F S K J I O
Length Width Height
4.0 ±0.2 3.0 ±0.2 1.1 ±0.2 1.0 ±0.15 0.8 ±0.15 0.2 ±0.15 0.2 ±0.15 0.6 ±0.15 0.2 ±0.15
All dimensions in mm
9 Antenna Footprint
S I K T M N O
Pad 50Ω transmission line.
Dependent on substrate
0.8 ±0.1 1 ±0.1 2 ±0.1 0.6 ±0.1 0.4 ±0.2
All dimensions in mm
Integrated Antenna Solutions 6
Product Specication 06MD-0002-1-PS
Fusca 2.4GHz SMD Antenna
Part No. A10192-L

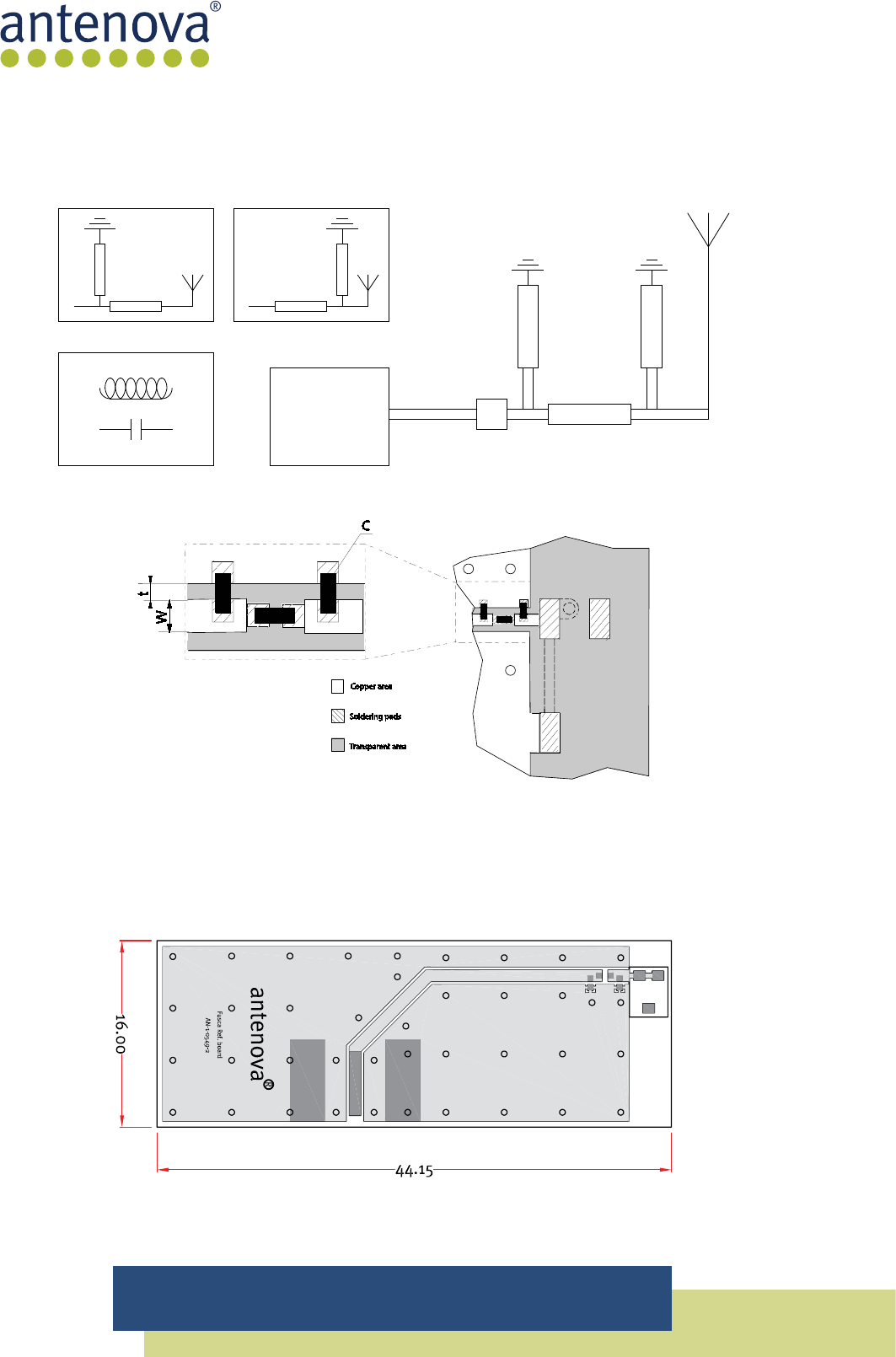

10 Electrical Interface
10-1 Transmission Line and Matching
Typical config. 1Typical config. 2
Inductor
Capacitor
Component types
Module Component
Component
Component
Strip Line
DC Block
The matching network has to be individually designed using one, two or three components.
t, W Unique dimensioning according to your PCB*
C Inductor and capacitor values according to your device*
*Antenova provides a design service to determine these parameters on request.
11 Test Board Dimensions
The test board is designed for evaluation purposes for Fusca 2.4GHz SMD antenna. The card is a similar size
to a typical Bluetooth headset.
Integrated Antenna Solutions 7
Product Specication 06MD-0002-1-PS
Fusca 2.4GHz SMD Antenna
Part No. A10192-L
12 Soldering
The antenna has been designed for lead free soldering. A recommended solder paste and reow prole will be
provided.
13 Reliability
13-1 Temperature and Humidity
The antenna will be tested for conformance to the following standards:
Item Standard Low High Duration
Operating Temperature EN/IEC 60068-2-2,
Test Bd: Dry heat -30 °C +90 °C -
Temperature Cycling EN/IEC 60068-2-14,
Test Na: Change of temperature -40 °C +90 °C 500 cycles / 10 min
Storage Life Humidity EN/IEC 60068-2-1,
Test Ca: Damp heat +60 °C / 90% RH -
Storage Life Low
Temperature
EN/IEC 60068-2-1,
Test Ad: Cold -55 °C - -
Storage Life High
Temperature
EN/IEC 60068-2-2,
Test Bb: Dry heat - +125 °C -
13-2 Mechanical
The antenna will be tested for conformance to the following standards:
Item Standard Low High Duration
Bending IEC 60068-2-21,
Test Ue1: Bending
Bending 1mm at a rate of 1mm/s with
support at end of PCB
1mm depth on reference board
Shear IEC 60068-2-21,
Test Ue3: Shear
Force of 5N applied to the side of the
antenna
Drop Test Dummy weight: 150g
Height: 170cm
One drop at each side,
total drops: 6
Vibration EN/IEC 60068-2-6,
Test Fc (sinusoidal)
Acceleration spectral density: 10-1000Hz
Acceleration:20m/s2
Number of axes: 3 mutually perpendicular
5 cycles per axis
Integrated Antenna Solutions 8
Product Specication 06MD-0002-1-PS
Fusca 2.4GHz SMD Antenna
Part No. A10192-L
14 Hazardous Material Regulation Conformance
Restriction of Hazardous Substances (RoHS)
The Fusca SMD Antenna A10192-L will be certied to be in full compliance with the relevant EU directives with
respect to the content of:
Cadmium and cadmium compounds
Lead and lead compounds
Organic brominated compound (PBB, PBDE)
Mercury and mercury compounds
Polychlorinated biphenyl (PCB)
Hexavalent chromium compounds
Polychlorinated naphthalene (PCN)
Chlorinated parafn (CP)
Organic tin compounds
Mirex
Asbestos
Formaldehyde
Azo compounds
Tetra-bromo-bisphenol-A-bis (TBBP-A-bis)
Antenova’s Declaration of Compliance for the Fusca SMD Antenna A10192-L will be available upon request
from Antenova Technical Support.
Integrated Antenna Solutions 9
Product Specication 06MD-0002-1-PS
Fusca 2.4GHz SMD Antenna
Part No. A10192-L
15 Packaging
15-1 Shelf Storage Recommendations
Temperature -10 to +40 °C
Humidity Less than 75% RH
Shelf Life 18 Months
Storage Place Away from corrosive gas and direct sunlight

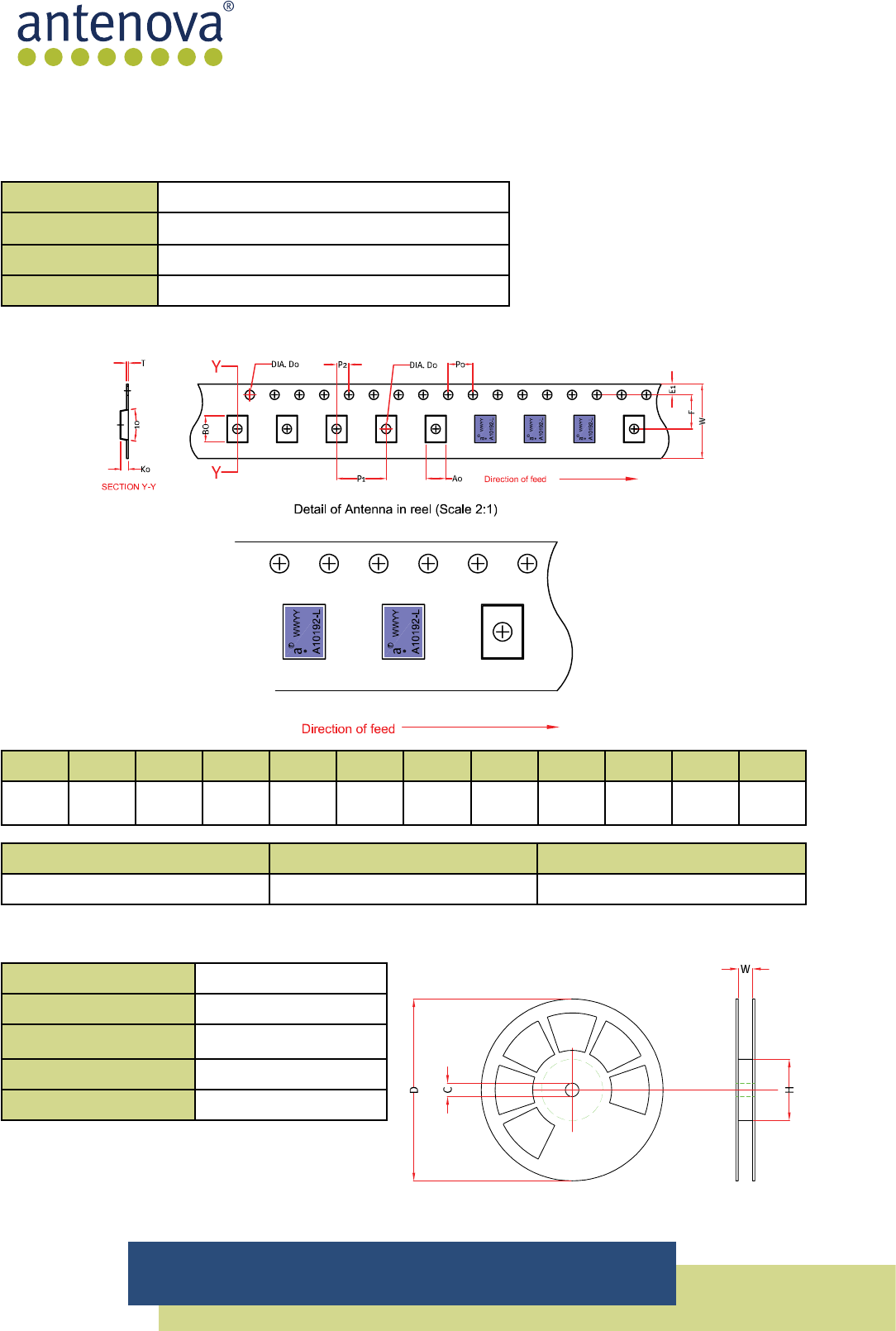

15-2 Tape Characteristics
W F E1 P0 P1 P2 A0 B0 K0 T D0 D1
12.00
±0.2
5.50
±0.1
1.75
±0.1
4.00
±0.1
8.00
±0.1
2.00
±0.1
3.20
±0.1
4.20
±0.1
1.30
±0.1
0.30
±0.1
1.50
±0.1
1.50
±0.1
Quantity Leading Space Trailing Space
TBC 60 blank antenna holders 37 blank antenna holders
15-3 Reel Dimensions
Material Conductive Polystyrene
Width (W) 14mm
Reel Dia (D) 178mm ±2.0mm
Hub Dia (H) 60mm
Shaft Dia (C) 13.2mm ±0.5mm
Integrated Antenna Solutions 10
Product Specication 06MD-0002-1-PS
