User Manual
Retail Tag instructions
Page 1 of 3
© Cambridge Silicon Radio Limited 2013 CS-00000-RPPA
This material is subject to CSR’s non-disclosure agreement www.csr.com
CSR Retail Tag Instructions Manual
Introduction
The CSR Retail tag is a standalone device, designed to be maintenance free, there are no user
serviceable parts in the device. The CSR retail tag uses the ISDN band of 2.4GHz to 2.5HZ to operate,
uses extremely low power , the power output will be no more than 0dBm, which enables the battery
life to be extended. The typical battery life for the device is 2.5 years (this depends on the quality of
the AA batteries used).
The retail tag is design to be positioned on or near to a product on a shelf in a store. The Retail tags
sole function is to transmit a pre-set unique number, which will allow a simple application loaded
onto a smart phone to link to a website which would provide advertising and / or technical details
about the product the retail tag has been positioned close too.
The retails tag can be positioned on the shelf or under it, it can be positioned near to the product or
tied to the product using a simple cable tie.
The Retail tag is shipped with its batteries removed; instructions on how to install the batteries are
given below. Once the batteries are installed the unit is operating there is no further action needed
by the user. The user will now only need to link the unique number used by the application on the
smart phone to the relevant website or webpage which provides the information the user which to
provide.
Instructions for inserting the batteries

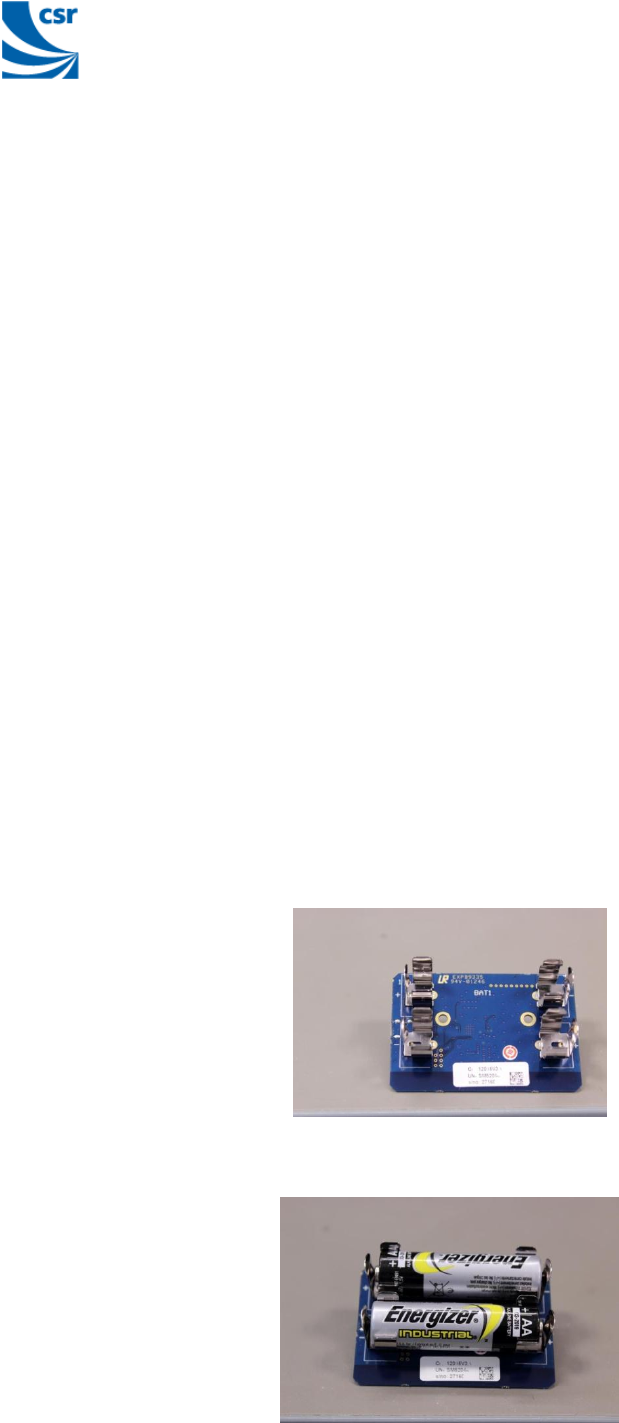

The Device is shipped with the batteries removed for safety as shown in the picture below
Insert two ‘AA’ standard batteries as shown in the picture below
Retail Tag instructions
Page 2 of 3
© Cambridge Silicon Radio Limited 2013 CS-00000-RPPA
This material is subject to CSR’s non-disclosure agreement www.csr.com
CSR Retail Tag Instructions Manual

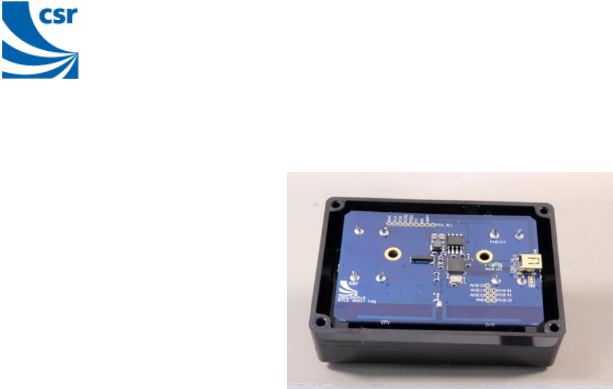

Place the whole unit in the black box provided as shown below
Then secure the lid using the four self tapping screws provided
The final installation phase is the place the unit either on top of the shelf or under the shelf near to
the product you wish to advertises.
Additional information
FCC Rules Part 15
The enclosed hardware device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
FCC Compliance Statement:
This equipment has been tested and found to comply with limits for a Class B digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in residential installations. This equipment generates, uses, and can radiate
radio frequency energy, and if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause interference to radio or television equipment reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help
To assure continued compliance, any changes or responsible for compliance could void the users
authority to operate this equipment. (Example- use only shielded interface cables when connecting
to a computer or peripheral devices).
Retail Tag instructions
Page 3 of 3
© Cambridge Silicon Radio Limited 2013 CS-00000-RPPA
This material is subject to CSR’s non-disclosure agreement www.csr.com
CSR Retail Tag Instructions Manual
Caution! The manufacturer is not responsible for any radio or TV interference caused by
unauthorized could void the users authority to operate the equipment.
Contacts
General information www.csr.com
Information on this product sales@csr.com
Customer support for this product www.csrsupport.com
More detail on compliance and standards product.compliance@csr.com
Help with this document comments@csr.com
Trademarks, Patents and Licences
Unless otherwise stated, words and logos marked with ™ or ® are trademarks registered or owned
by CSR plc and/or its affiliates.
Other products, services and names used in this document may have been trademarked by their
respective owners.
The publication of this information does not imply that any licence is granted under any patent or
other rights owned by CSR plc or its affiliates.
CSR reserves the right to make technical changes to its products as part of its development
programme.
While every care has been taken to ensure the accuracy of the contents of this document, CSR
cannot accept responsibility for any errors.
Life Support Policy and Use in Safety-critical Compliance
CSR’s products are not authorised for use in life-support or safety-critical applications. Use in such
applications is done at the sole discretion of the customer. CSR will not warrant the use of its devices
in such applications.
Performance and Conformance
Refer to www.csrsupport.com for compliance and conformance to standards information.
