Wireless File Transmitter
WFT-E5
E
INSTRUCTION MANUAL
To comply with local radio wave regulations, Canon offers four region-specific versions of the
transmitter (WFT-E5A, E5B, E5C, and E5D) in various areas around the world (p.8). For
convenience, we refer to the product in this manual simply as “the transmitter,” without
reference to versions A, B, C, or D.
2
Thank you for purchasing a Canon product.
The Wireless File Transmitter WFT-E5 is an accessory for EOS 7D camera. It gives the camera
wireless and wired LAN functionality and adds a USB port, enabling the following operations.
It also includes a vertical-grip shutter button for convenience in vertical shooting.

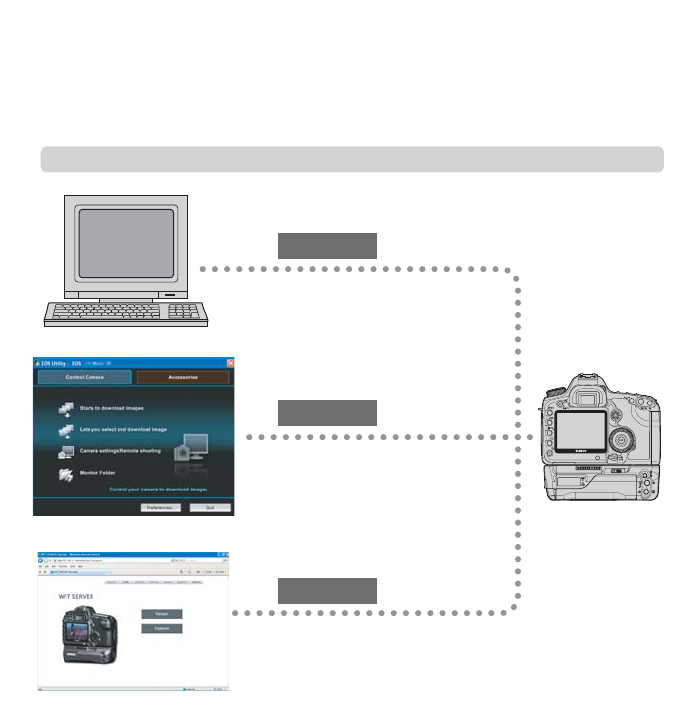

Wireless and Wired LAN Functions
FTP Transfer
EOS Utility
WFT Server
Transfer images to an FTP server
Use a web browser to capture, view,
and download images remotely
Use EOS Utility to capture, view, and
download images remotely
3

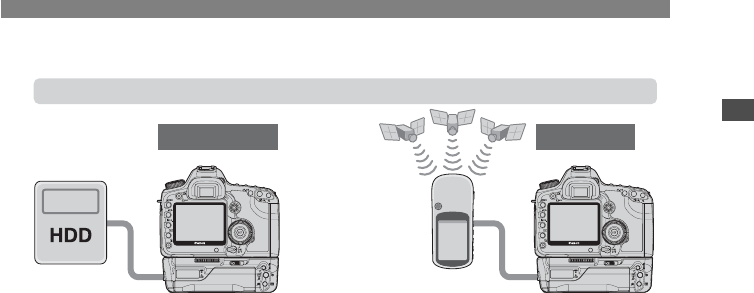

Functions When Connected via USB
External Media GPS
Record or backup images onto external media Add the latitude, longitude, altitude, date and
time, and other shooting information to images
4
These instructions should be followed only after your wireless or wired LAN and FTP server
settings are complete. For details on configuring these settings, refer to the documentation
provided with the respective equipment.
Terms in brackets [ ] indicate button or icon names or other software elements. Brackets
also denote camera menu items.
Page numbers in parentheses indicate where you can find additional information.
Instructions on camera operations should be followed only after you have read the Camera
Instruction Manual and are familiar with operating the camera.
Sections of this manual labeled with the following symbols contain information of the
corresponding nature.
: Warnings to avoid potential problems are labeled with a caution symbol.
: Supplemental information is labeled with a note symbol.
Conventions Used in this Manual
Windows is a trademark or registered trademark of Microsoft Corporation in the United
States and other countries.
Macintosh is a registered trademark of Apple Corporation in the United States and other
countries.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Wi-Fi Certified, WPA, WPA2, and the Wi-Fi Certified logo are trademarks of the Wi-Fi
Alliance.
WPS as used on camera settings screens and in this manual signifies Wi-Fi Protected
Setup.
UPnP is a trademark of the UPnP Implementers Corporation.
All other corporate and brand names in this manual are trademarks or registered
trademarks of their respective owners.
Using the transmitter for remote image transfer, capture, or viewing requires adequate knowledge of
configuring your wireless or wired LAN and FTP server.
Canon cannot provide support for configuring wireless or wired LANs or FTP servers.
Note that Canon cannot be held liable for any loss or damage to the transmitter from erroneous network
or FTP server settings. In addition, Canon cannot be held liable for any other loss or damage caused by
use of the transmitter.
5
Chapter List
Introduction 2
Basic Network Settings 19
Transferring Images to an FTP Server 33
Remote Capture Using EOS Utility 47
Remote Capture Using WFT Server 53
Using the Transmitter as a Media Server 65
Linked Shooting 69
Managing Settings Information 73
Using External Media 79
Using GPS Devices 91
Troubleshooting 99
Reference 117
1
2
3
4
5
6
7
8
9
10
11
6
Introduction
Conventions Used in this Manual ...................................................................................................... 4
Chapter List........................................................................................................................................ 5
Contents............................................................................................................................................. 6
Areas of Use and Restrictions ........................................................................................................... 8
Safety Warnings............................................................................................................................... 10

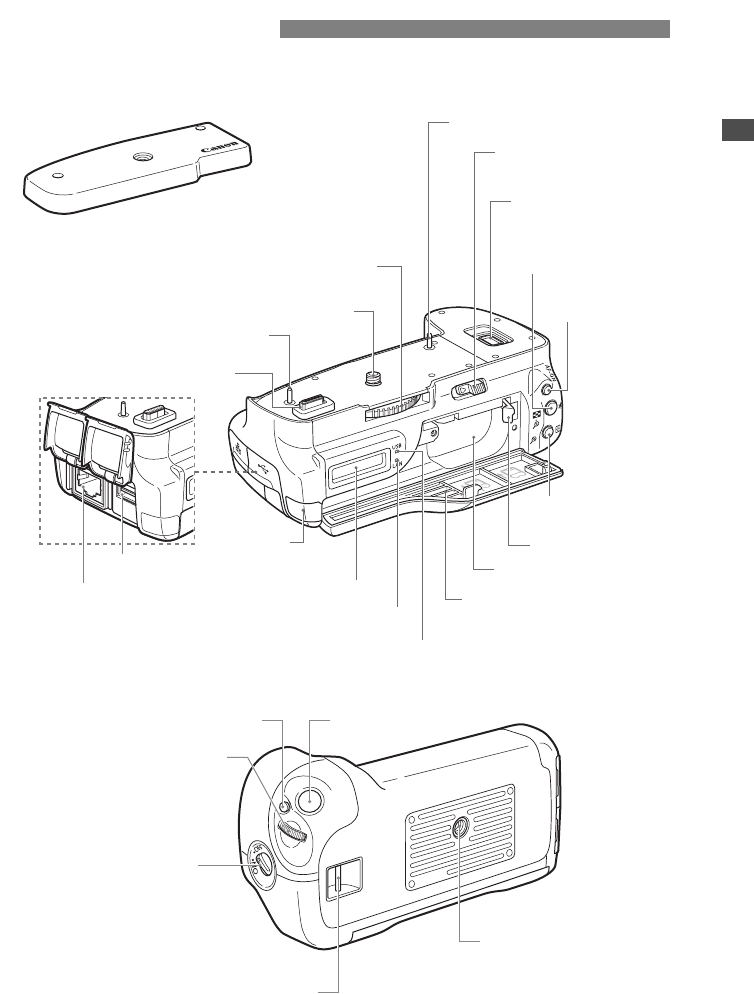

Nomenclature................................................................................................................................... 11
Attaching to the Camera .................................................................................................................. 13
Vertical Shooting Controls ............................................................................................................... 14

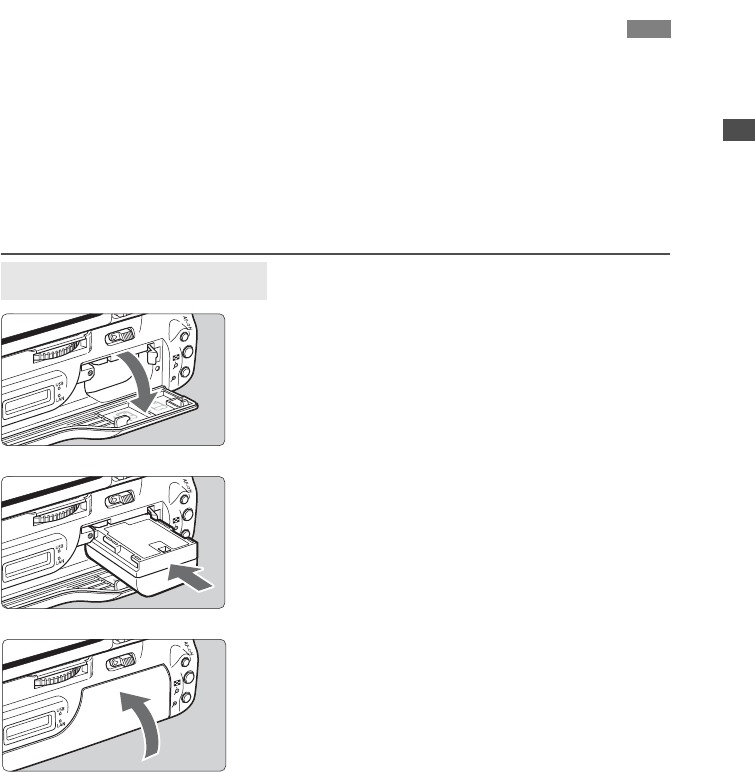

Installing and Removing the Battery ................................................................................................ 15

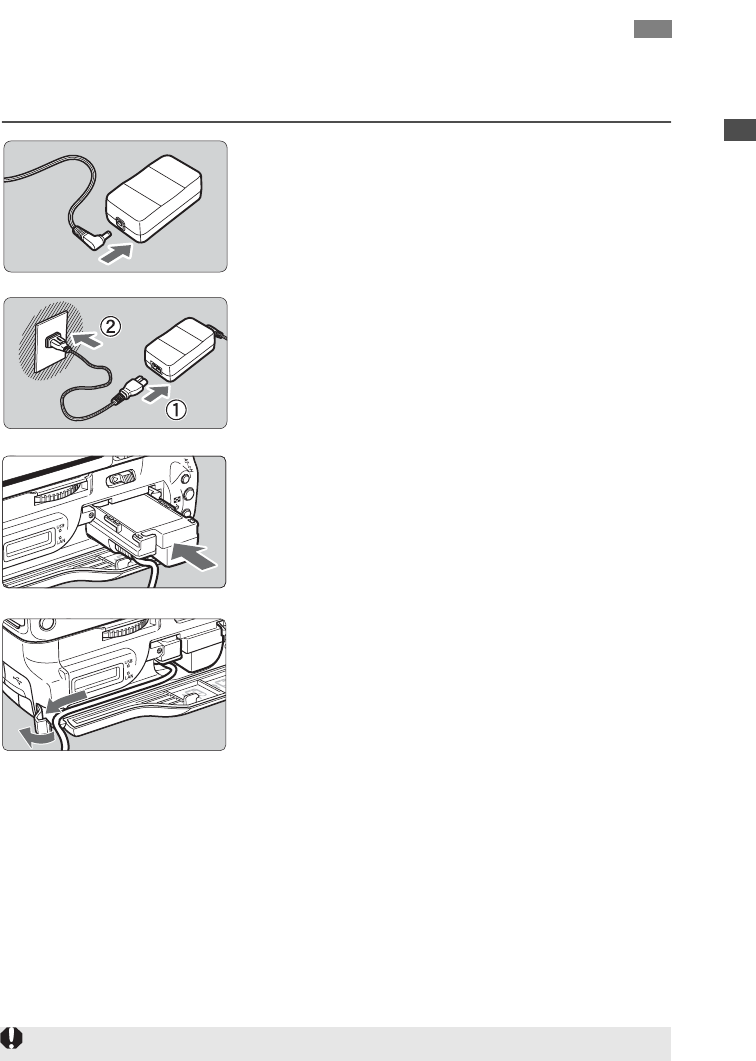

Using a Household Power Outlet..................................................................................................... 17
Subsequent Organization of This Manual........................................................................................ 18
1Basic Network Settings 19
Getting Ready.................................................................................................................................. 20
Displaying the Connection Wizard ................................................................................................... 21
Selecting the Communication Method and LAN Type ..................................................................... 22
Using the Wizard to Establish a Connection.................................................................................... 25
WPS Connections (PBC Mode)....................................................................................................... 27
WPS Connections (PIN Mode) ........................................................................................................ 28
Configuring Network Settings .......................................................................................................... 29
2Transferring Images to an FTP Server 33
Configuring FTP Communication Settings....................................................................................... 34
Automatic Image Transfer After Each Shot ..................................................................................... 36
Transferring Images Individually ...................................................................................................... 38
Batch Transfer ................................................................................................................................. 40
Checking Image Transfer History .................................................................................................... 44
Viewing Transferred Images ............................................................................................................ 45
3Remote Capture Using EOS Utility 47
Configuring EOS Utility Communication Settings ............................................................................ 48
Using EOS Utility ............................................................................................................................. 51
4Remote Capture Using WFT Server 53
Configuring WFT Server Communication Settings .......................................................................... 54
Displaying WFT Server .................................................................................................................... 56
Viewing Images................................................................................................................................ 57
Remote Capture [Capture (Advanced)] ........................................................................................... 59
Remote Capture [Capture (Basic)]................................................................................................... 62
Remote Capture............................................................................................................................... 63
5Using the Transmitter as a Media Server 65
Configuring Media Server Communication Settings ........................................................................ 66
Displaying Captured Images on a Television................................................................................... 67
Contents
7
Contents
6Linked Shooting 69
Setting Up Linked Shooting ............................................................................................................. 70
Arranging the Slave Cameras.......................................................................................................... 72
7Managing Settings Information 73
Checking Settings ............................................................................................................................ 74
Changing Settings............................................................................................................................ 75
Saving and Loading Settings ........................................................................................................... 77
8Using External Media 79
Connecting External Media.............................................................................................................. 80
Choosing Recording Media When Shooting.................................................................................... 83
Using Together With a CF Card....................................................................................................... 85
Backing Up on External Media......................................................................................................... 86
9Using GPS Devices 91
Connecting GPS Devices with a USB Cable ................................................................................... 92
Connecting GPS Devices via Bluetooth........................................................................................... 95
10 Troubleshooting 99
Responding to Error Messages ..................................................................................................... 100
Wireless LAN Notes....................................................................................................................... 114
Checking Network Settings............................................................................................................ 115
11 Reference 117
WFT Utility (Software).................................................................................................................... 118
Creating and Registering Captions ................................................................................................ 120
Specifications................................................................................................................................. 121
Index .............................................................................................................................................. 127
8
To comply with local radio wave regulations in various areas around the world, Canon offers
four region-specific versions of the transmitter (WFT-E5A, E5B, E5C, and E5D) as
described below. Please do not use your model (version) of transmitter in regions it was not
designed for.
For information on other areas where the transmitter can be used, contact Canon’s
Customer Service Center.
In France, outdoor use is prohibited.
In mainland China, outdoor use requires a permit in some areas.
IEEE 802.11a Restrictions
When IEEE 802.11a wireless networking is used, channels in gray in the following table cannot
be used. These restrictions are established by local regulations, which must be upheld.
The transmitter can be used on channels in blue. Regarding channels in yellow, some
restrictions apply. Refer to the footnotes.
Areas of Use and Restrictions
Model
(Version) Area of Use Wireless LAN Specification
and Supported Channels
WFT-E5A United States, Canada, Singapore, and Hong Kong IEEE 802.11a 36 – 64 ch
149 – 165 ch
IEEE 802.11b/g 1 – 11 ch
WFT-E5B
Japan, France, Italy, Germany, United Kingdom, Belgium,
the Netherlands, Luxembourg, Ireland, Denmark, Greece,
Spain, Portugal, Austria, Finland, Sweden, Poland, Hungary,
Romania, Bulgaria, Czech Republic, Slovakia, Slovenia,
Estonia, Latvia, Lithuania, Cyprus, Malta, Iceland, Norway,
Switzerland, Liechtenstein, Australia, New Zealand, Russia,
South Africa, and Hong Kong
IEEE 802.11a 36 – 64 ch
100 – 140 ch
IEEE 802.11b/g 1 – 13 ch
WFT-E5C Mainland China and Hong Kong IEEE 802.11a 149 – 161 ch
IEEE 802.11b/g 1 – 13 ch
WFT-E5D Can be used in all areas noted above IEEE 802.11a Not supported
IEEE 802.11b/g 1 – 11 ch
Wireless LAN
Connection Method Channel
WFT-E5A
Indoors Infrastructure 36 – 48 52 – 64 149 – 165
Ad hoc 36 – 48 52 – 64 149 – 165
Outdoors Infrastructure 36 – 48 52 – 64 149 – 165
Ad hoc 36 – 48 52 – 64 149 – 165
WFT-E5B
Indoors Infrastructure 36 – 48 52 – 64 100 – 140
Ad hoc 36 – 48 52 – 64 100 – 140
Outdoors Infrastructure 36 – 48 52 – 64*J100 – 140
Ad hoc 36 – 48 52 – 64 100 – 140
WFT-E5C 149 – 161*C
*J: In Japan, outdoor use on channels 52 – 64 is prohibited.
*C: In mainland China, outdoor use requires a permit in some areas.
9
Areas of Use and Restrictions
The following actions may be punishable under law. Disassembling or modifying the
transmitter, or removing the certification label on it.
Do not use the transmitter near other devices that emit radio waves, such as medical
equipment or electronic devices. The transmitter may interfere with operation of these
devices.
Use the transmitter only with a compatible EOS DIGITAL camera. Using it with incompatible
cameras may cause malfunction, accidents, and other problems not covered under
warranty.
Use the transmitter as a wireless or wired LAN device as described in this instruction
manual. If you use the transmitter for any other purpose, Canon cannot be held liable for
any loss or damage that may occur.
10
The following precautions are intended to prevent harm to you and others as well as damage to
equipment. Become familiar with the precautions before using the transmitter to ensure correct
and safe operation.
Be sure that you fully understand the safety precautions contained in the instruction manuals
for the battery, charger, and AC Adapter Kit before using them.
To prevent fire, excessive heat, chemical leakage, or explosion, follow these safety guidelines.
• Do not insert metallic objects between electrical contacts of the transmitter, accessories, or connecting cables.
Do not use the transmitter where there is flammable gas. There is a risk of explosion or fire.
If the transmitter is dropped and internal parts are exposed, do not touch the exposed parts. There is a risk of
electrical shock.
Do not disassemble or modify the transmitter. High-voltage internal parts may cause electrical shock.
Do not store the transmitter in dusty or humid places. There is a risk of fire or electrical shock.
Before using the transmitter on board airplanes or in hospitals, make sure use is permitted. Electromagnetic
waves emitted by the transmitter may interfere with instrumentation or medical equipment.
Do not leave the transmitter inside a vehicle in hot weather or near a heat source. The transmitter may become
hot and cause burns if touched.
Do not cover or wrap the transmitter with a cloth. This may trap heat inside, posing a risk of case deformation or
fire.
Do not use paint thinner, benzene, or other organic solvents to clean the transmitter. This poses a risk of fire and
may be hazardous to your health.
If the product malfunctions, becomes damaged, or requires repair, contact your dealer
or the nearest Canon Service Center.
The transmitter is a precision instrument. Do not drop it or subject it to shock.
The transmitter is not waterproof. Do not use it underwater.
Wipe off any moisture with a clean, dry cloth. If the transmitter has been exposed to salty air,
wipe it with a clean damp cloth after wringing it out to remove excess water.
Never leave the transmitter near any equipment that generates a strong magnetic field,
such as magnets or electric motors.
Do not leave the transmitter in excessive heat, such as in a vehicle in direct sunlight. High
temperature may damage the transmitter.
Do not wipe the transmitter using cleaners containing organic solvents. If the transmitter
becomes difficult to clean, take it to the nearest Canon Service Center.
To avoid corrosion, do not store the transmitter where there are strong chemicals, such as in
darkrooms or chemical labs.
Safety Warnings
Warning Preventing Serious Injury or Death
Caution Preventing Injury or Equipment Damage
Handling Precautions
11
Nomenclature
Ethernet RJ-45 port
<
USB
> USB lamp
<
LAN
> Network lamp
LCD panel
USB port
DC coupler
cord notch
Positioning pin
Attachment knob
Terminal cap holder
Positioning pin
Battery compartment
cover release lever
AF point selection/
Magnify button
Battery compartment
Battery lock lever
Tripod socket
Tripod screw AF start button
Battery compartment cover
Vertical-grip
<
ON
/
OFF
> switch
Main dial
* Turn the attachment knob to remove.
Protective cover
AE lock/FE lock/
Index/Reduce button
Terminal
Shutter button
Hand strap mount
Multi-function button
Nomenclature
12

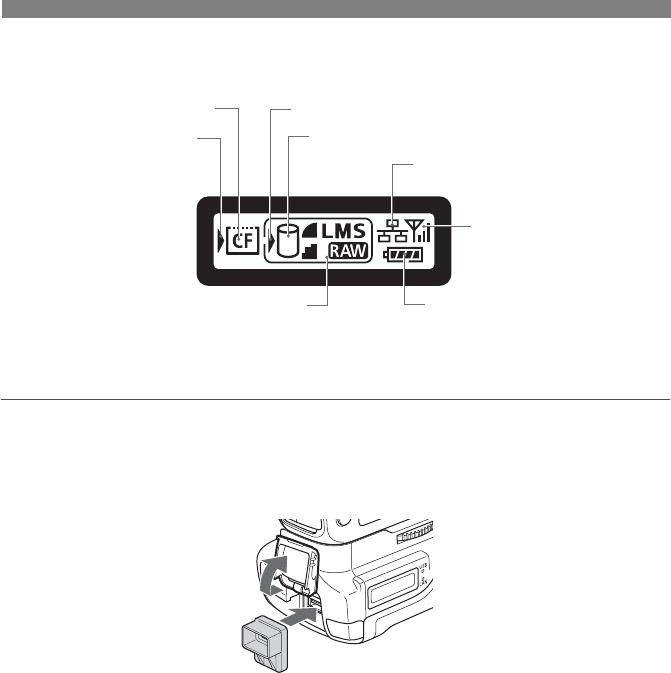

Recording quality at [Rec. separately] setting
External media selection mark
External media connection indicator
Wired LAN connection
Wireless LAN connection
Battery level indicator
CF card loading indicator
CF card selection mark
LCD panel
Waterproof/dustproof USB cap
* Attach this cap before connecting the USB cable in rainy weather or under other adverse conditions.
13
Load a charged battery into the camera. Before attaching the transmitter to the camera, set the
camera’s power switch to <
OFF
>. The transmitter does not have a power switch. It is turned on
and off in conjunction with the camera’s power switch.
Before removing the transmitter, set the camera’s power switch to <
OFF
>.
1Remove the terminal cap from the
camera.
Peel off the terminal cap on the camera bottom to
remove.
Attach the removed terminal cap to the
transmitter’s terminal cap holder.
2Attach the transmitter.
As shown in the figure, align the transmitter and
the camera, and turn the attachment knob to
attach to the camera.
Attaching to the Camera
14
Setting the vertical-grip <
ON
/
OFF
> switch to <
ON
>
enables the vertical-grip shutter button and other
controls. These controls for shooting can still be used
even when batteries are not loaded in the transmitter.

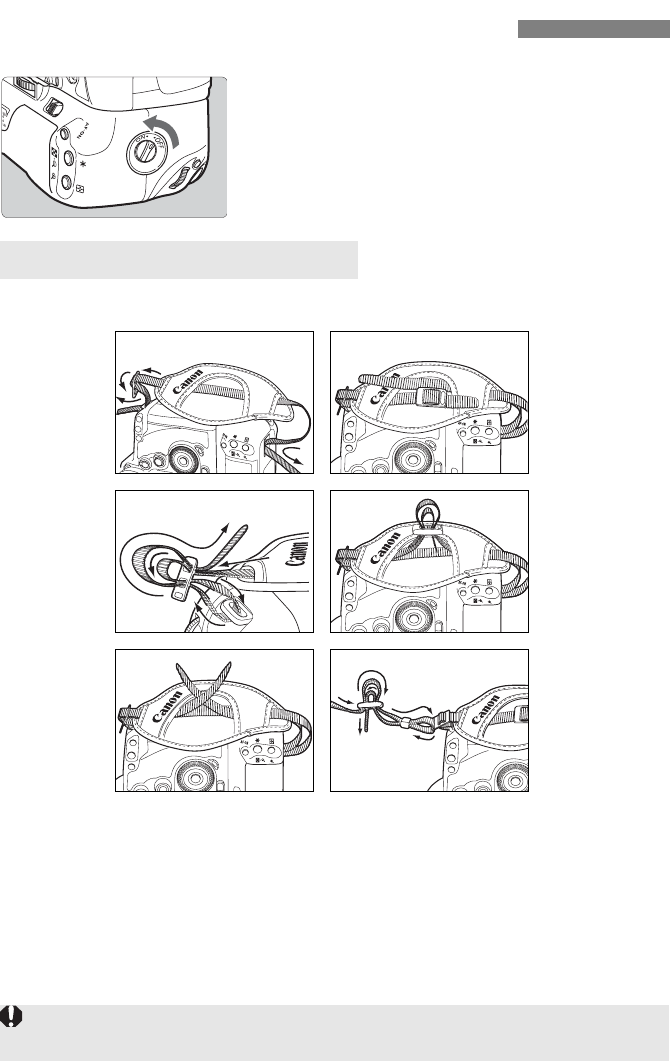

The Hand Strap E1 (sold separately) is attached as shown in the figure.
Vertical Shooting Controls
Attaching the Hand Strap E1
1 4
2 5
3 6
After the hand strap is attached, check that all the slack at the buckle is removed and that there is no
looseness at the buckle even when pulled tight.
15
Use one Battery Pack LP-E6 to power the transmitter. When replacing the transmitter’s battery,
be sure to first set the camera’s power switch to <
OFF
> before opening the transmitter’s battery
compartment cover. In particular, if the battery compartment cover is opened without setting the
camera’s power switch to <
OFF
> while external media, GPS device or Bluetooth unit is still
connected, you will need to reestablish the connection to the external media, GPS device, or
Bluetooth unit.
The
transmitter’s
battery is not included. Customers who do not have one should purchase it
separately.
1 Open the cover.
Slide the lever to open the cover.
2 Insert the battery.
Insert from the side with battery contacts.
Insert the battery all the way until it locks into
place.
3 Close the cover.
Press the cover up until it clicks into place.
Installing and Removing the Battery
Installing the battery
Installing and Removing the Battery
16

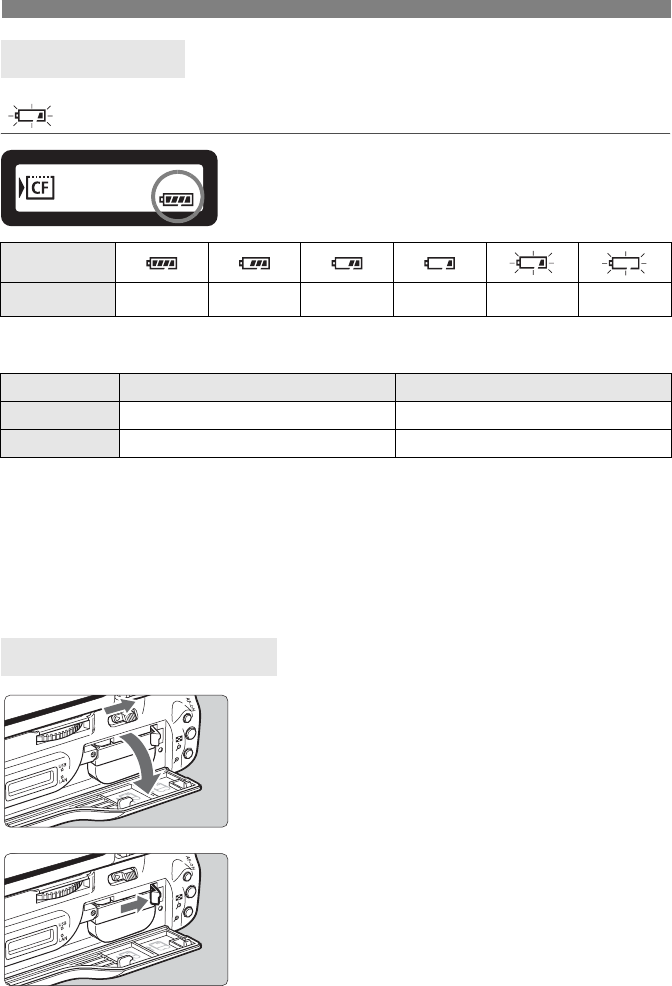

The remaining battery power is displayed when the camera is turned on. A blinking battery icon
( ) indicates that the battery will be depleted soon.
Number of images that can be transferred Approx. number of images
Using a fully charged LP-E6. The number of images that can be transferred is nearly the
same at normal temperature (23°C / 73°F) and low temperature (0°C / 32°F).
When automatic transfer is performed during shooting of an image of approx. *.* MB under
conditions based on the CIPA (Camera & Imaging Products Association) test standards.
Fewer images can be transferred when transferring images over a wireless LAN.
Fewer images can be transferred when using bus-powered external media or GPS devices,
or when using Bluetooth units.
1Open the cover.
Slide the lever to open the cover.
2Remove the battery.
Press the battery lock lever in the direction of the
arrow to unlock, and then unload the battery.
To prevent a short-circuit, be sure to always attach
the protective cover to the battery.
Battery check
Icon
Level (%) 100 – 70 69 – 50 49 – 20 19 – 10 9 – 1 0
LAN At Normal Temperature (23°C / 73°F) At Low Temperature (0°C / 32°F)
Wireless LAN **** ****
Wired LAN **** ****
Removing the battery
17
When the AC Adapter Kit ACK-E6 (sold separately) is used, a household power outlet can be
used to power the camera without worrying about the battery level.
1 Connect the DC coupler plug.
Connect the DC coupler plug to the socket of the
AC adapter.
2 Connect the power cord.
Connect the power cord as shown.
Insert the plug into the outlet.
After usage, unplug from the outlet.
3Insert the DC coupler.
Open the cover, and insert the DC coupler firmly
until the lock position.
4 Close the cover.
Pass the cord through the groove while opening
the cap of the DC coupler cord notch, and then
close the cover.
Using a Household Power Outlet
Do not connect or disconnect the power cord while the camera’s power switch is set to <
ON
>.
18
Click one of the following chapter titles to view the corresponding page.
Subsequent Organization of This Manual
1 Basic Network Settings (p.19)
2 Transferring Images to an FTP Server (p.33)
3 Remote Capture Using EOS Utility (p.47)
4 Remote Capture Using WFT Server (p.53)
5 Using the Transmitter as a Media Server (p.65)
6 Linked Shooting (p.69)
7 Managing Settings Information (p.73)
8 Using External Media (p.79)
9 Using GPS Devices (p.91)
19
Basic Network Settings
Complete the basic network settings by following transmitter connection
instructions on the camera menu screen.
20
The connection instructions help you follow the steps to connect the transmitter to an existing
wireless or wired LAN.
To connect to a wireless LAN, prepare the wireless LAN terminal (wireless LAN access point or
wireless LAN adapter) and computer in advance so that they are ready for you to connect the
transmitter to the wireless network. When configuring the basic network settings, bring the
transmitter within 3 m / 9.8 ft. of the wireless LAN terminal.
To connect to a wired LAN, use a LAN cable to connect the transmitter and computer. Set the
transmitter for connection to the wired network.
Wireless Transmission of Movie
Individual movie files are large, and wireless file transmission takes some time. When setting
up an environment for stable transmission to the wireless LAN terminal, refer to the information
on page 114.
Set up a DLNA*-compatible television, digital photo frame, or similar media player so that it is
ready for use after the transmitter is connected to its network.
* DLNA: Digital Living Network Alliance
Set up two or more EOS 7D cameras with attached transmitters.
Getting Ready
[FTP trans.], [EOSUtility], [WFTserver]
[MediaServ.]
[LinkedShot]
21
This section describes the process of following the connection instructions. If an error is
displayed, refer to “Troubleshooting” in Chapter 10 (p.99) and check the settings.
Pressing the shutter button or other camera controls during configuration by the connection
instructions will close the connection instructions. Do not press the shutter button or other
controls until configuration is finished.
On the [5] tab, set [Auto power off] to [Off]. If auto power off is activated, the connection
instructions will be closed during the configuration process.

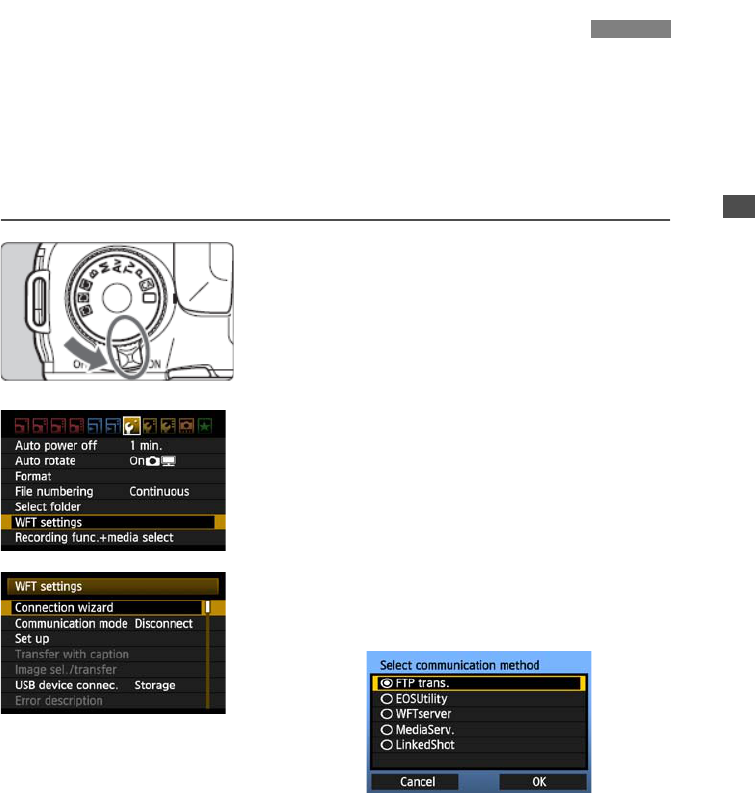

1Turn the camera on.
2Display the transmitter menu.
On the camera, press the <7> button.
On the [5] tab, select [WFT settings] and press
<0>. [WFT settings] is added to the tab after
you attach the transmitter.
3Select [Connection wizard].
XThe [Select communication method] screen is
displayed.
XThe <
LAN
> lamp starts blinking.
Displaying the Connection Wizard
22

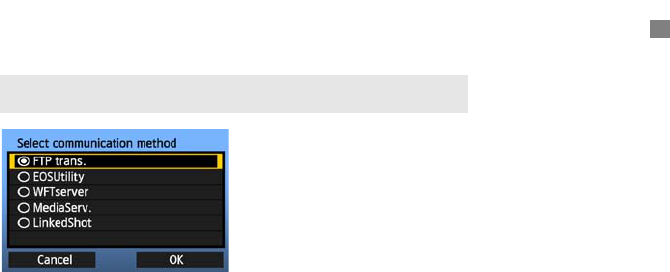

Turn the <5> dial to select the communication
method, and then press <0>.
Select [OK] and press <0> to go to the next
screen.
• FTP trans.
Choose this option to transfer captured images to an FTP server.
Images can be automatically transferred as you shoot them, or you can select images to be
transfered later.
Computer Operating Systems
Operation via [FTP trans.] requires that Windows Vista (Business, Enterprise, or Ultimate
Edition for 32- or 64-bit systems), Windows XP Professional, Windows 2000, or Mac OS X
10.4 or 10.5 be installed on your computer. In addition, the computer must be set up as an
FTP server in advance.
For instructions on setting up your computer as an FTP server, refer to the computer
documentation.
Windows Vista Home Premium and Home Basic Edition as well as Windows XP Home
Edition cannot be used because FTP server functionality is not supported.
• EOSUtility
Choose this option for remote capture over a wireless or wired LAN using the EOS Utility
software included with your camera.
In addition to remote capture, all camera operations in EOS Utility are supported. With this
option, a wireless or wired network is used instead of the USB cable.
Requires a computer with EOS Utility (included with EOS 7D cameras) installed.
Selecting the Communication Method and LAN Type
Selecting the Communication Method
23
Selecting the Communication Method and LAN Type
• WFTserver
Choose this option for remote capture over a wireless or wired LAN with the transmitter acting
as a server.
Additionally, images on a CF card in the camera can be viewed and downloaded to a computer.
The camera can be accessed like browsing a webpage, by users at up to three computers.
Computer Operating Systems
Any computer with a web browser can be used, regardless of the operating system.
Even devices other than computers can be used, if they feature a web browser. However, if
the web browser does not support JavaScript, WFT Server functions will be limited. Also
note that devices with limited performance may display images more slowly, and
downloading images to these devices may not be possible.
• MediaServ.
Choose this option to view images on a CF card in the camera over a wireless or wired LAN on
a television.
This function requires a DLNA-compatible television, digital photo frame, or similar media
player.
• LinkedShot
Choose this option for linked shooting with multiple EOS 7D cameras attached with
transmitters. Up to 10 slave cameras can be linked to the master camera on which you will
release the shutter. Note that there will be a slight delay after you release the master camera
shutter before the slave cameras shoot. Movie shooting is not supported.
For further instructions on [LinkedShot], refer to page 69 of this manual.
24
Selecting the Communication Method and LAN Type
For [LinkedShot] instructions, refer to page 69. Note that no information about
[LinkedShot] is given in this chapter.

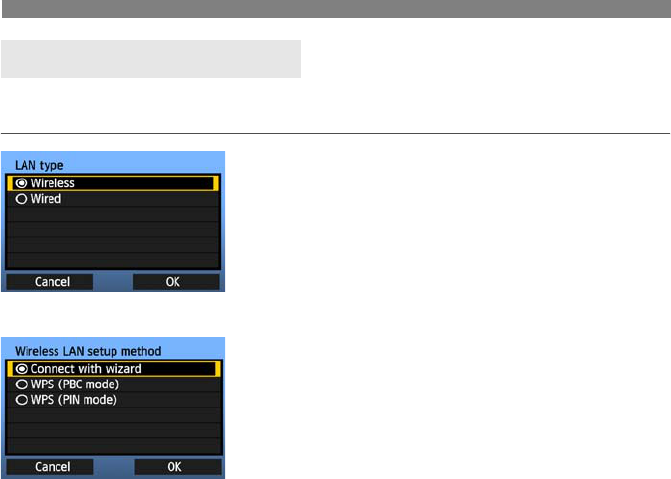

Turn the <5> dial to select the type of LAN, and
then press <0>.
Select [OK] and press <0> to go to the next
screen.
Wireless LAN
The [Wireless LAN setup method] screen is
displayed.

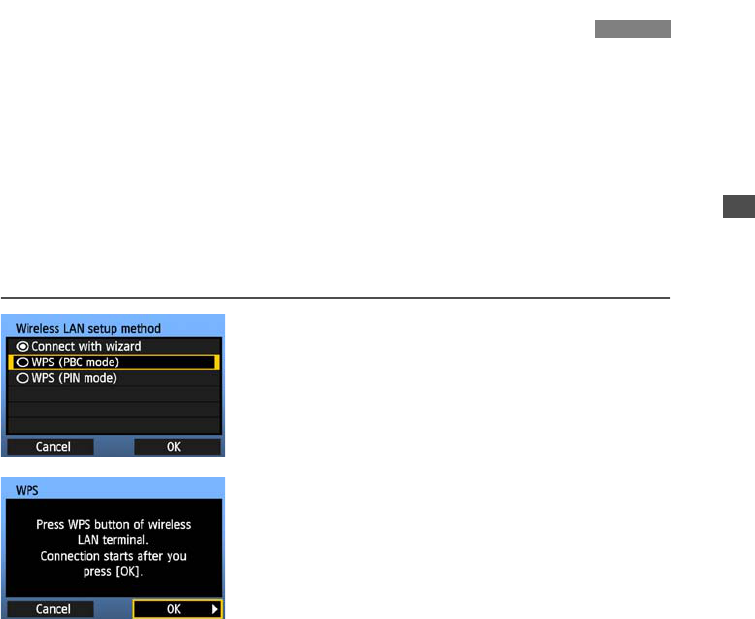

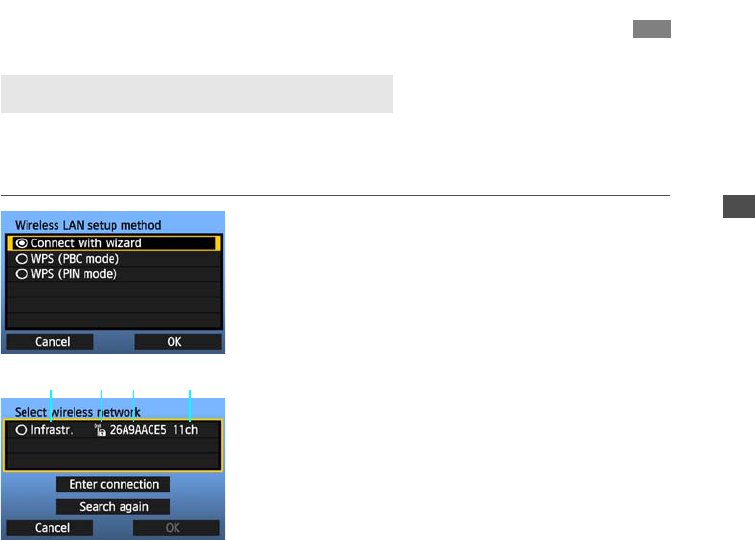

[Connect with wizard]: See p.25
[WPS (PBC mode)]: See p.27

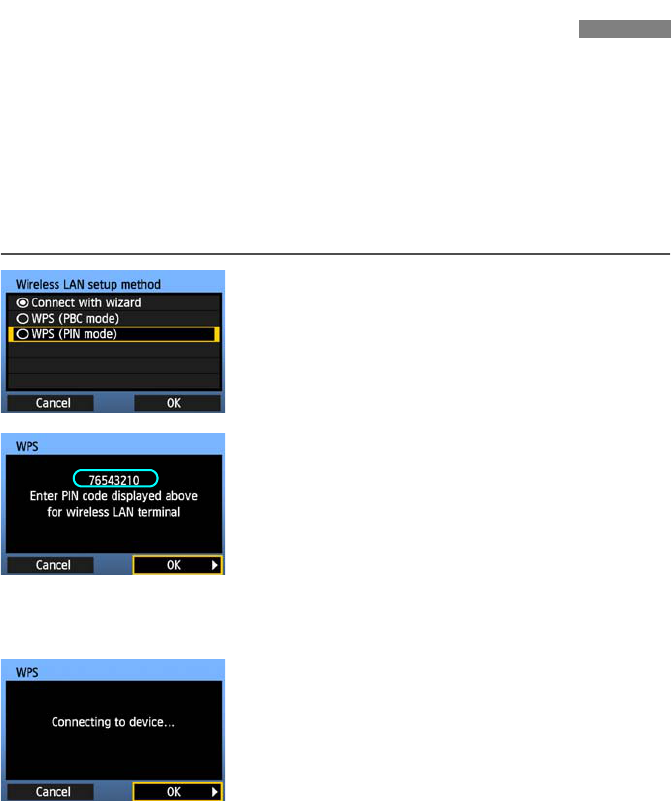

[WPS (PIN mode)]: See p.28
Select [WPS (PBC mode)] or [WPS (PIN mode)]
when using a wireless LAN terminal compatible with
Wi-Fi Protected Setup (WPS).
Wired LAN
The [Network] settings screen is displayed. If you have selected a wired network, refer to page
29, “Configuring Network Settings.”
Use a Category 5 or higher STP LAN cable. (STP: Shielded Twisted Pair)
Selecting the LAN Type
25
When you select [Connect with wizard], active wireless LAN terminals in your area are listed,
accompanied by information about them. Select the SSID (or ESS-ID) of your desired wireless
LAN terminal.
1Select [Connect with wizard].
Turn the <5> dial to select [Connect with
wizard], and then press <0>.
2Select the wireless LAN terminal.
To select the wireless LAN terminal, press <0>.
Turn the <5> dial to select the wireless LAN
terminal, and then press <0>.
Select [OK] and press <0> to go to the next
screen.
1Indicates whether the device is in infrastructure or ad hoc mode
2An icon is displayed if the wireless LAN terminal is encrypting communication
3Indicates the first 9 characters of the SSID
4Indicates the channel used
Encryption by Wireless LAN Terminals
If the wireless LAN terminal is encrypting communication, select the corresponding method in
[Authentication] and [Encryption].
[Authentication]: Open system, Shared key, WPA-PSK, or WPA2-PSK
[Encryption]: WEP, TKIP, or AES
[Enter connection] and [Search again]
To configure settings for the wireless LAN terminal manually, select [Enter connection] and
press <0>. Complete the settings for the items displayed, one after another.
To search for wireless LAN terminals again, select [Search again] and press <0>.
Using the Wizard to Establish a Connection
Selecting the Wireless Network
26
Using the Wizard to Establish a Connection
Next, enter the encryption key of the wireless LAN terminal. For details on the encryption key,
refer to the device’s instruction manual.
Note that the screens displayed in steps 1 to 3 below vary depending on the authentication and
encryption of the wireless LAN terminal.

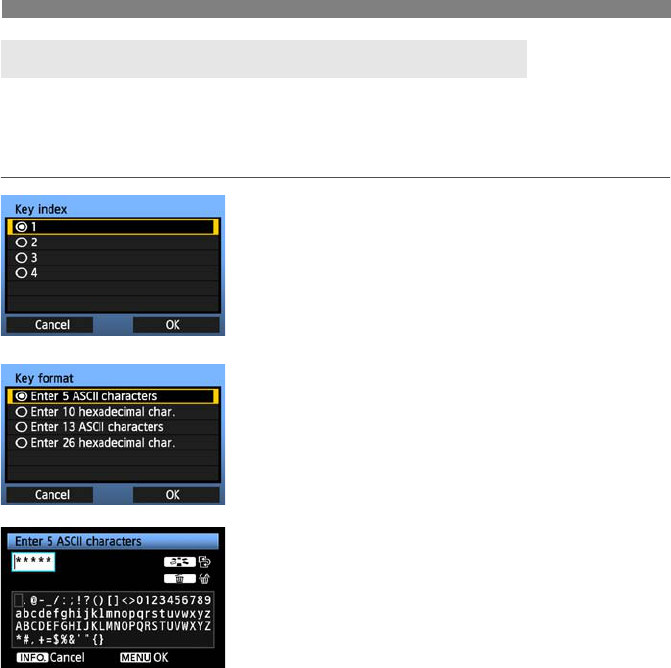

1 The [Key index] screen is displayed only if WEP
encryption is used by the wireless LAN terminal.
Turn the <5> dial to select the key index number
specified as the access point, and then press
<0>.
Select [OK] and press <0> to go to the next
screen.
2 Turn the <5> dial to select the key format, and
then press <0>.
Select [OK] and press <0> to go to the next
screen.
3 Enter the encryption key.
To switch between input areas, press the <A>
button.
To move the cursor, turn the <5> dial.
In the bottom input area, turn the <5> dial and
press <0> to enter the encryption key.
If you make a mistake, press the <L> button to
erase it.
When you press the <7> button to complete
the connection with the wireless LAN terminal, the
[Network] screen (p.29) is displayed.
To return to the previous screen, press the
<6> button. The entry is erased.
Entering the Wireless LAN Encryption Key
27
This is a connection mode when using a wireless LAN terminal compatible with Wi-Fi Protected
Setup (WPS). Pushbutton Connection mode (PBC mode) makes it easy to establish a
connection between the camera and the wireless LAN terminal by pressing the WPS button on
the wireless LAN terminal.
Note that if multiple wireless LAN terminals are active in your area, it may be harder to establish
a connection. In this case, try using [WPS (PIN mode)] to establish a connection.
Confirm the position of the WPS button on the wireless LAN terminal in advance.
It may take about one minute to establish connection.
Connection may not be possible if stealth functions are enabled on the wireless LAN
terminal. Deactivate stealth functions.
1Select [WPS (PBC mode)].
Turn the <5> dial to select [WPS (PBC mode)],
and then press <0>.
Select [OK] and press <0> to go to the next
screen.
2Establish a connection with the
wireless LAN terminal.
Press the WPS button on the wireless LAN
terminal. For details about where the button is
located and how long to press it, refer to the
instruction manual of the wireless LAN terminal.
Select [OK] and press <0> to establish a
connection with the wireless LAN terminal.
When the connection with the wireless LAN
terminal is established, the [Network] screen
(p.29) is displayed.
WPS Connections (PBC Mode)
28
This is a connection mode when using a wireless LAN terminal compatible with Wi-Fi Protected
Setup (WPS). In PIN code connection mode (PIN mode), an 8-digit identification number
specified on the camera is set on the wireless LAN terminal to establish a connection.
Even if there are multiple wireless LAN terminals active in your area, this is a relatively reliable
method of establishing a connection using a shared identification number.
It may take about one minute to establish connection.
Connection may not be possible if stealth functions are enabled on the wireless LAN
terminal. Deactivate stealth functions.
1Select [WPS (PIN mode)].
Turn the <5> dial to select [WPS (PIN mode)],
and then press <0>.
Select [OK] and press <0> to go to the next
screen.
2Specify the PIN code on the wireless
LAN terminal.
On the wireless LAN terminal, specify the 8-digit
PIN code shown on camera LCD monitor.
For instructions on setting PIN codes on the
wireless LAN terminal, refer to the instruction
manual of the wireless LAN terminal.
Select [OK] and press <0> to display the
confirmation screen.
3Establish a connection with the
wireless LAN terminal.
Select [OK] and press <0> to establish a
connection with the wireless LAN terminal.
When the connection with the wireless LAN
terminal is established, the [Network] screen
(p.29) is displayed.
WPS Connections (PIN Mode)
29
Turn the <5> dial to select how to configure the
network settings, and then press <0>.
Select [OK] and press <0> to go to the next
screen.
[Auto setting]
Settings otherwise configured with [Manual setting] can be configured automatically.
However, the IP address and similar settings must be automatically assigned and
configured in environments using DHCP servers or wireless LAN terminals or routers
supporting DHCP server functions.
If an error is displayed, select [Manual setting] regardless of whether the IP address and
similar settings are automatically assigned and configured.
[Manual setting]
The [IP address set.] screen is displayed after you select
[Manual setting]. If [Auto setting] results in an error, enter
the IP address manually. As the IP address, enter the IP
address assigned to the camera.
Enter the [IP address], [Subnet mask], [Gateway], and
[DNS address] on each screen as they are displayed.
If you are not sure what to enter, refer to page 115, “Checking
Network Settings,” or ask the network administrator or
another person knowledgeable about the network.
When entering numbers for the IP address, subnet mask,
and so on, press <0> to move the input position and turn
the <5> dial to enter the number.
Configuring Network Settings
30
Configuring Network Settings
The following instructions are for settings screens that vary depending on the communication
method (FTP Transfer, EOS Utility, WFT Server, or Media Server), as shown below. Read the
page that introduces the selected communication method.
FTP trans.
Chapter 2 (p.33)
EOSUtility
Chapter 3 (p.47)
WFTserver
Chapter 4 (p.53)
MediaServ.
Chapter 5 (p.65)
Completing Settings for the Communication Method
Windows Vista Users
Before performing the operations from page 47, perform the operations below. If these operations are
not performed, the WFT Pairing Software described on page 48 may not start.
Open the [C Drive] [Program Files] [Canon] [EOS Utility] [WFTPairing] folder (in this
order), and then double-click the [WFT FirewallSettings] icon.
After performing this operation, perform the operation on page 47.
31
Configuring Network Settings

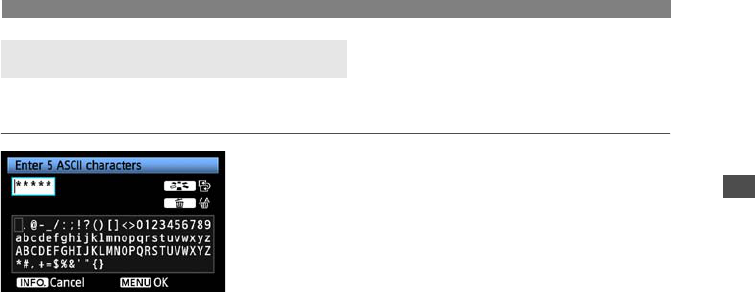

The virtual keyboard is displayed during entry of the encryption key, server name, and other
information.
Switching to other input areas
To switch between input areas, press the <A>
button.
Moving the cursor
To move the cursor, turn the <5> dial.
You can also move the cursor using <9>.
Entering text
In the bottom input area, turn the <5> dial to move
the cursor and press <0> to enter text.
You can also move the cursor using <9>.
Deleting text
If you make a mistake, press the <L> button to erase
it.
Confirming entries
Press the <7> button to confirm what you have
entered and go to the next screen.
Canceling entries
Press the <6> button to erase the entry and
return to the previous screen.
Virtual Keyboard Operation
32
33
Transferring Images
to an FTP Server
With FTP transfer, you can automatically transfer each image to the FTP
server as you shoot or transfer a set of shots together.
34
These instructions are continued from Chapter 1.

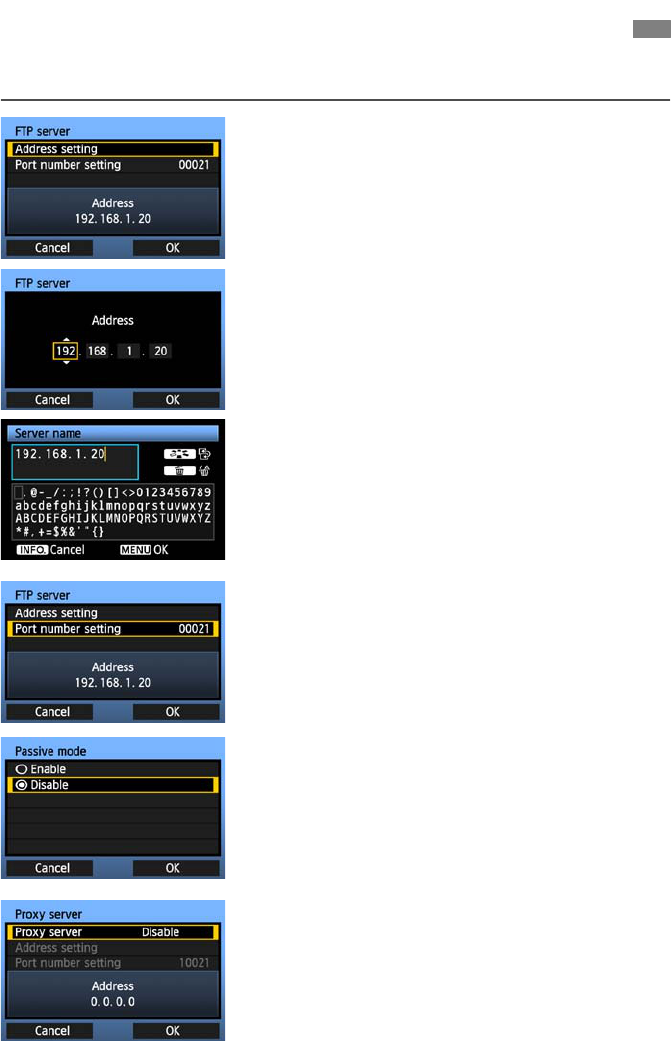

1 Turn the <5> dial to select [Address setting],
and then press <0>.
2 If you have set the DNS server setting to
[Disable], the screen at left is displayed.
Press <0> to select the input position, and then
turn the <5> dial to enter the IP address of the
FTP server.
If you have set the DNS server IP address setting
to [Auto assign] or [Manual setting], the screen
at left is displayed.
For instructions on screen operations, refer to
“Virtual Keyboard Operation” (p.31).
Enter the FTP server’s server name or IP address.
3 In [Port number setting], enter 00021, in most
cases.
Turn the <5> dial to select [OK], and then press
<0> to go to the next screen.
4
Complete the [Passive mode] settings.
If an Error 41 (“Cannot connect to FTP server”) is
displayed in step 8, setting [Passive mode] to
[Enable] may resolve it.
5 Complete the [Proxy server] settings.
Turn the <5> dial to select [OK], and then press
<0> to go to the next screen.
Configuring FTP Communication Settings
35
Configuring FTP Communication Settings

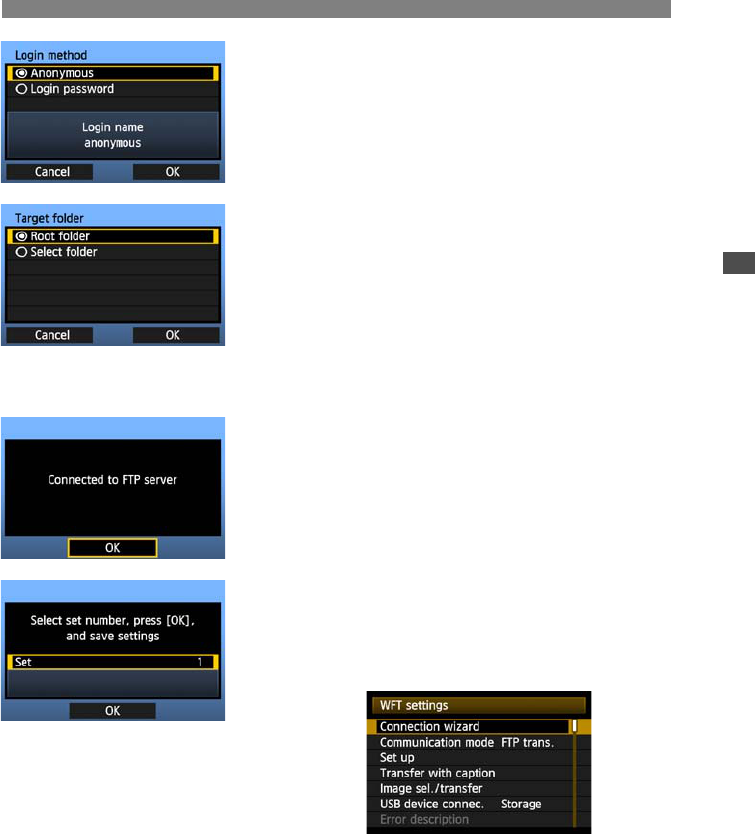

6 Complete the [Login method] settings.
Turn the <5> dial to select [OK], and then press
<0> to go to the next screen.
7 Complete the [Target folder] settings.
Select [Root folder] to have images saved in the
root folder as specified in FTP server settings.
(p.45)
Select [Select folder] to specify a subfolder in the
root folder. If no folder exists, a folder will be
created automatically.
Turn the <5> dial to select [OK], and then press
<0> to connect to the FTP server.
8 On the confirmation screen displayed next, select
[OK] and press <0>.
XThe <
LAN
> lamp is lit in green.
9 Press <0>. Turn the <5> dial to select the set
number, and then press <0>.
Turn the <5> dial to select [OK], and then press
<0>. After the connection wizard is closed, the
display reverts to the menu screen.
Settings information is stored on the camera. It is
not stored on the transmitter.
The network settings for FTP transfer are now complete.
36
An image can be automatically transferred to the FTP server immediately after shooting. You
can also continue shooting even while images are being transferred.
Before shooting, be sure to insert a CF card in the camera or connect external media (p.79). If
you shoot without recording images, they cannot be transferred.
Note that automatic transfer of movie is not supported. Transfer the movie after shooting, as
described on pages 39-43.
1In [WFT settings], select [Set up].
2Select [Automatic transfer].
Select [Enable].
3Take the picture.
XThe captured image is transferred to the FTP
server.
During image transfer, the <
LAN
> lamp blinks.
Automatic Image Transfer After Each Shot
During continuous shooting, images are transferred to the FTP server in the order they are
captured.
The captured images are also stored on the CF card.
Any images for which transfer fails or is interrupted can transferred later together.
37
Automatic Image Transfer After Each Shot
In automatic transfer during shooting, you can choose which images to transfer if different sizes
of images are recorded to the CF card and external media (p.85), or during RAW+JPEG
shooting.

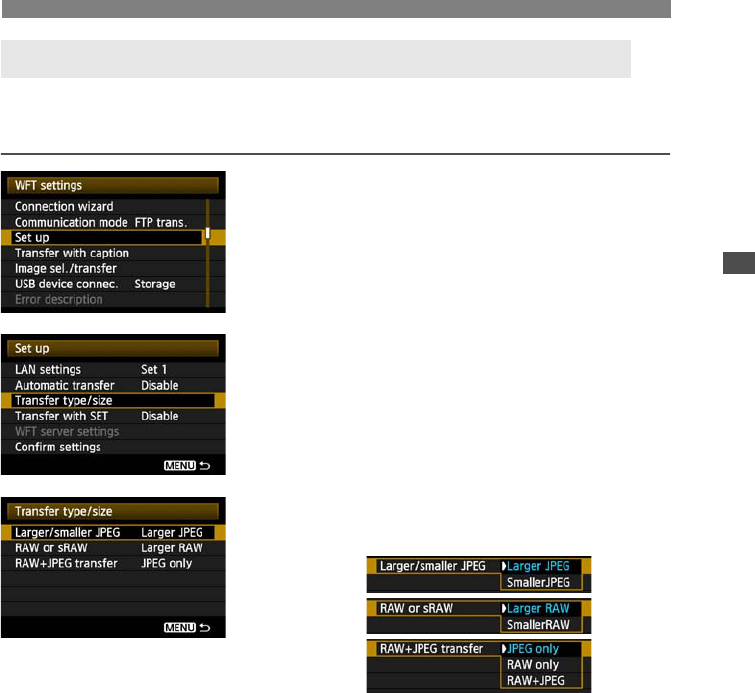

1In [WFT settings], select [Set up].
2Select [Transfer type/size].
3Select the size and type of images to
transfer.
For instance, if the camera is set up to record 73 images on a CF card and 83 images
on external media and you want to transfer 83 images, set [Larger/smaller JPEG] to
[Smaller JPEG].
If the camera is set up to record RAW images on a CF card and JPEGs on external media,
specify which images to transfer in the [RAW+JPEG transfer] setting. Similarly, complete
the same setting if RAW+JPEG images are recorded simultaneously on a single CF card.
Selecting Particular Sizes or Types of Images to Transfer
38
Simply select an image and press <0> to transfer it. You can also add a caption before
transferring images. You can also continue shooting even while images are being transferred.

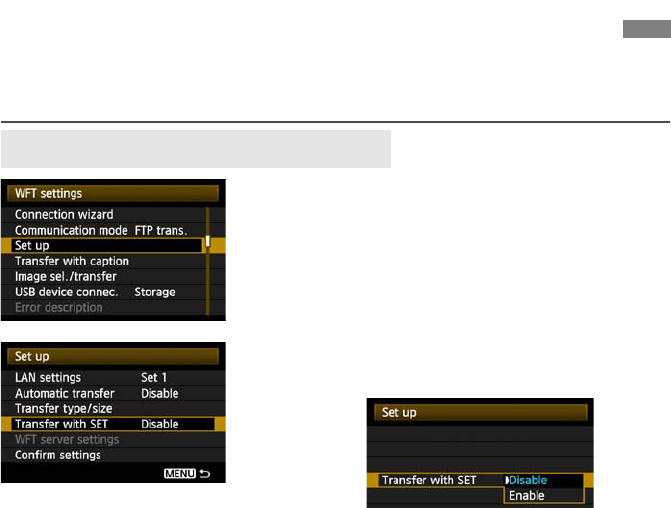

1In [WFT settings], select [Set up].
2Select [Transfer with SET].
Select [Enable].
3Select the image.
On the camera body, press the <x> button.
Select the image to transfer, and then press <0>
to transfer the image.
Movie cannot be transferred this way.
Selecting movie and pressing <0> will
display the movie playback panel.
Transferring Images Individually
Transferring the Current Image
39
Transferring Images Individually
You can add a registered caption to each image before transfer. This is effective if you want to
inform the recipient the printing quantity, for example. The caption is also added to images
stored on the camera.
For instructions on creating and registering captions, refer to page 120.
You can check for captions added to images by examining the Exif information, in the user
comments.
1Take the picture.

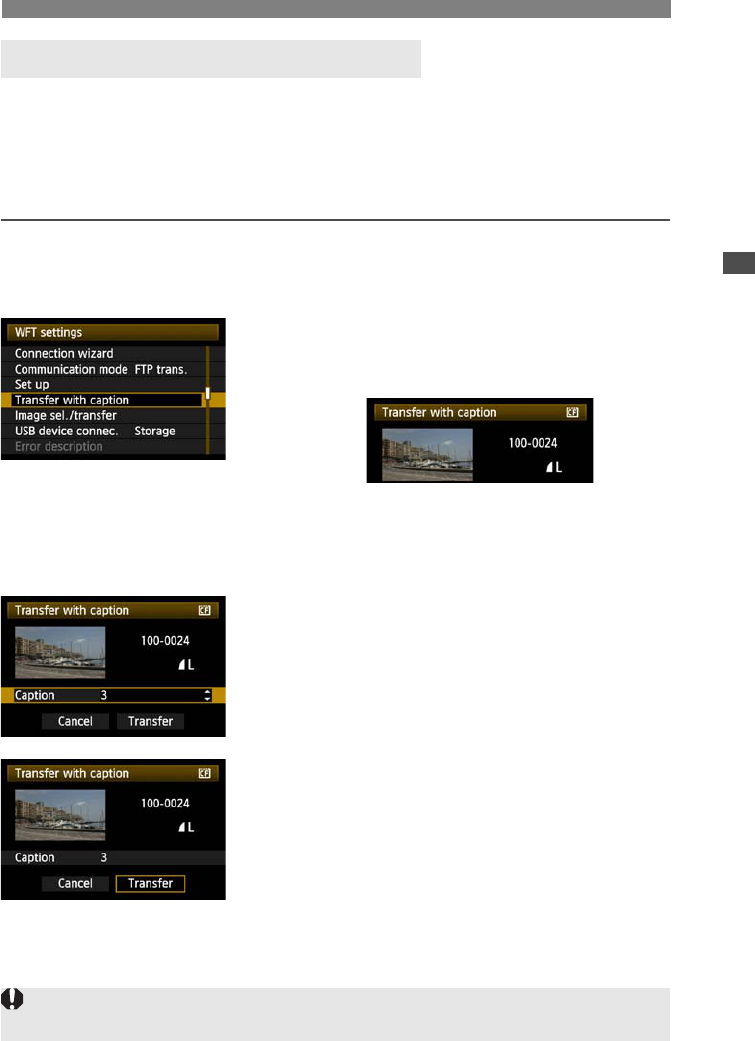

2In [WFT settings], select [Transfer with
caption].
XThe last captured image is displayed.
It is not possible to select other images on the
[Transfer with caption] screen. To select another
image for transfer with a caption, view that image
before following these steps.
3Select a caption.
Turn the <5> dial to select the [Caption] frame,
and then press <0>.
Turn the <5> dial to select the content of the
caption, and then press <0>.
4Transfer the image.
Turn the <5> dial to select [Transfer], and then
press <0>.
Adding a Caption Before Transfer
If you add captions to images that include original decision data, these images are no longer judged to
be original images.
40
After shooting, you can select multiple images as desired and transfer them all at once. You
can also transfer unsent images or images that could not be sent previously.
If both a camera CF card and external media are used at the same time, images are transferred
from the source specified on the menu [5] tab, in [Recording func.+media select]
[Record/play].
You can also continue shooting even while images are being transferred.

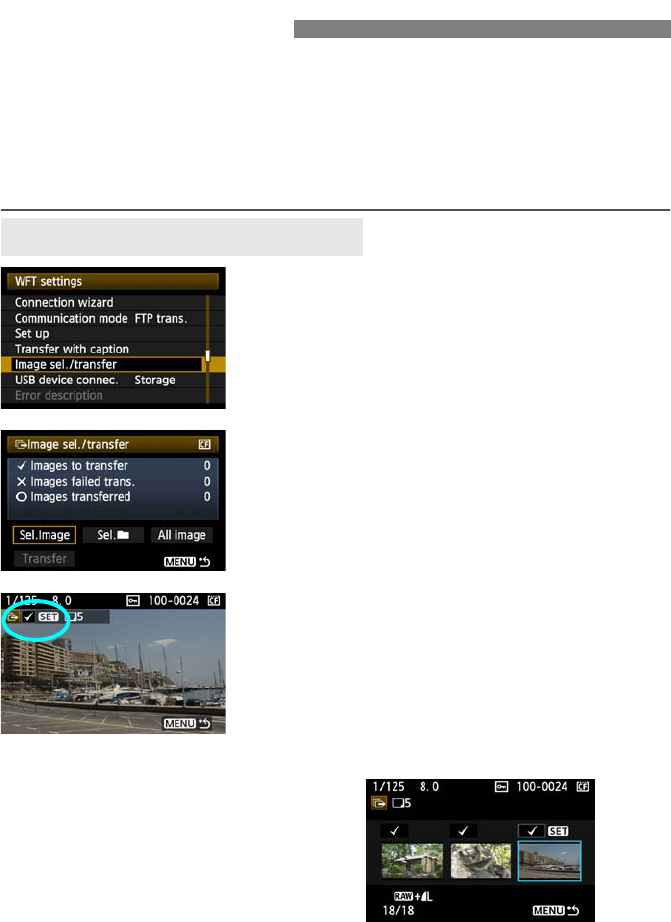

1In [WFT settings], select [Image sel./
transfer].
2Select [Sel.Image].
XAn image is displayed.
3Select images to transfer.
Press <0>. Turn the <5> dial to display <X> in
the upper left corner of the image to transfer.
Press <0> to confirm your selection.
You can select up to 9,999 images.
Press the <y> button to display three images per
screen. Press the <u> button to display one
image per screen again.
After selecting images to transfer, press the
<7> button.
Batch Transfer
Selecting Images to Transfer
41
Batch Transfer

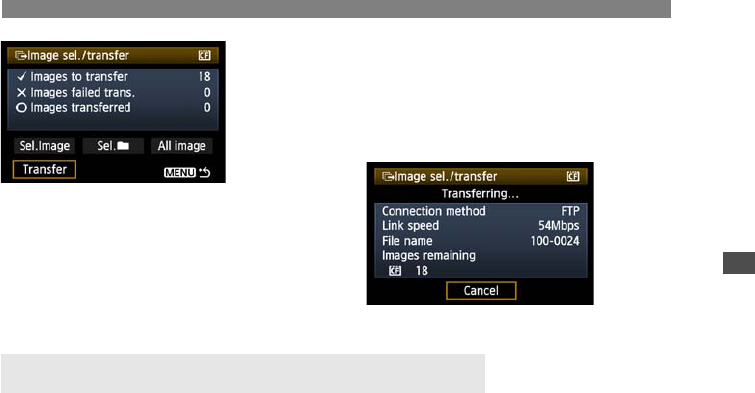

4Transfer the images.
Select [Transfer].
Select [OK] on the confirmation screen displayed
next.
XA transfer progress screen is displayed.
During image transfer, the <
LAN
> lamp blinks.
You can use the menu even during image transfer. However, to prevent transfer problems,
some menu items are unavailable during transfer, including [WFT settings], [Protect images],
[Erase images], [Format], and [Recording func.+media select].
Menu Operation During Image Transfer
42
Batch Transfer

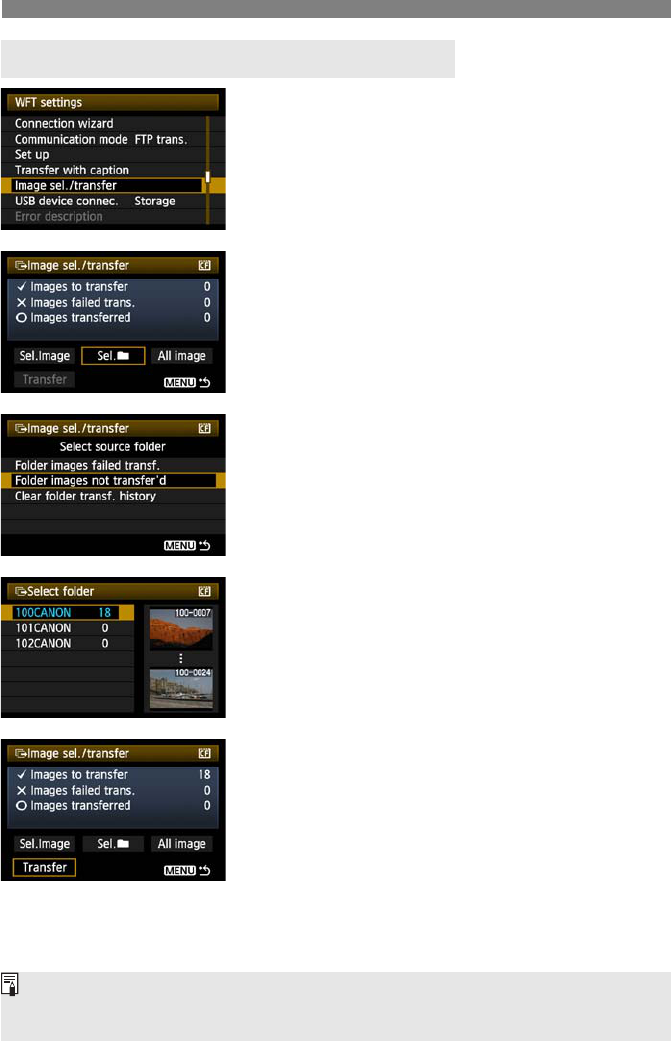

1In [WFT settings], select [Image sel./
transfer].
2Select [Sel.n].
3Select [Folder images not transfer’d].
To transfer images that could not previously be
transferred, select [Folder images failed transf.].
4Select a folder.
5Transfer the images.
Select [Transfer].
Select [OK] on the confirmation screen displayed
next.
XA transfer progress screen is displayed.
During image transfer, the <
LAN
> lamp blinks.
Batch Transfer of Images in a Folder
Selecting [Clear folder transf. history] will set the transfer history of images in the selected folder to
“unsent.” This enables you to resend all the images in the folder later by selecting [Folder images not
transfer’d].
43
Batch Transfer

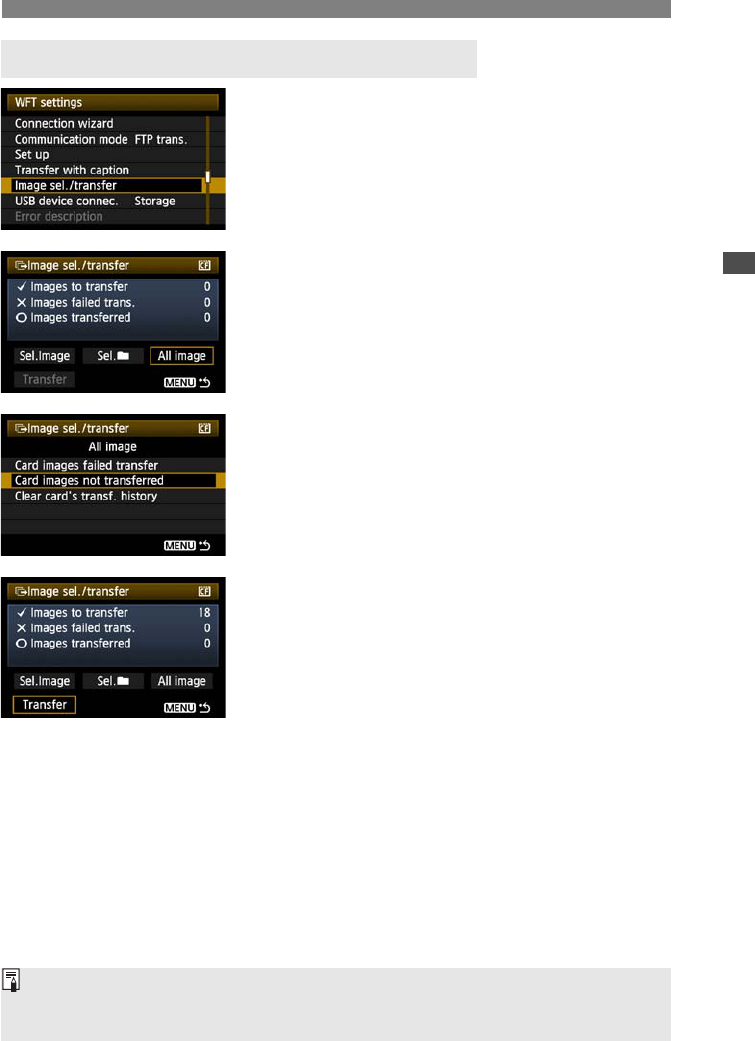

1In [WFT settings], select [Image sel./
transfer].
2Select [All image].
3Select [Card images not transferred].
To transfer images that could not previously be
transferred, select [Card images failed transfer].
4Transfer the images.
Select [Transfer].
Select [OK] on the confirmation screen displayed
next.
XA transfer progress screen is displayed.
During image transfer, the <
LAN
> lamp blinks.
Batch Transfer of Images on CF Cards
Selecting [Clear card’s transf. history] will set the transfer history of images on the CF card to
“unsent.” This enables you to resend all the images on the card later by selecting [Card images not
transferred].
44

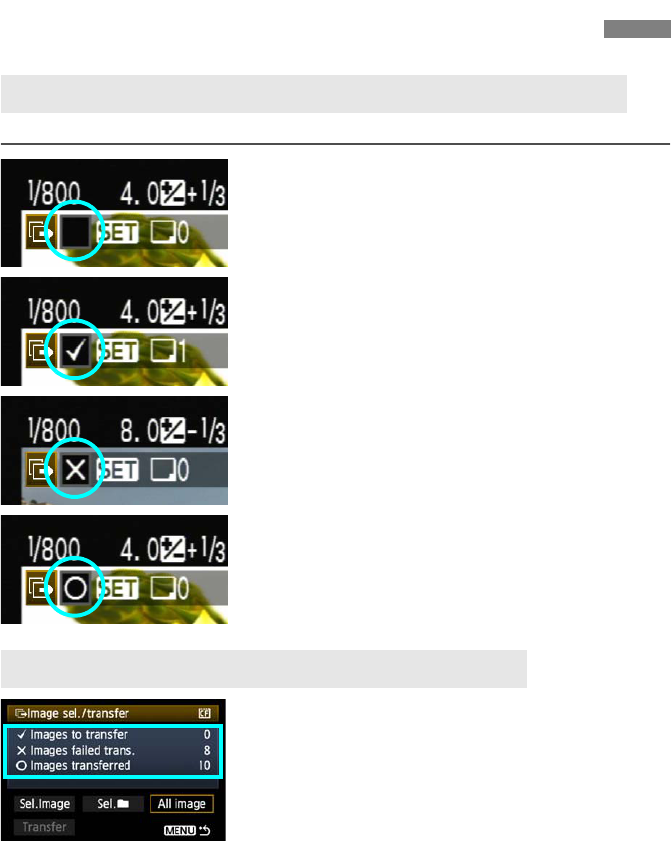

To check the transfer history, in [Image sel./transfer], select [Sel.Image].
Image not selected for transfer (no icon)
Image selected for transfer
Image could not be transferred
Image transferred
On the [Image sel./transfer] screen, you can check
the number of images for transfer as well as the
transfer history of images in the CF card. Specifically,
you can check the number of images classified as
[Images failed trans.] and [Images transferred].
Checking Image Transfer History
Checking the Transfer History of Individual Images
Checking the Transfer History of CF Cards
45
Images transferred to the FTP server are stored in the following folder as specified in the FTP
server settings.
Under the default settings of the FTP server, images are stored in [C drive] [Inetpub]
folder [ftproot] folder, or in a subfolder of this folder.
If the root folder of the transfer destination has been changed in the FTP server settings, ask
the FTP server administrator where images are transferred.
Open the [Macintosh HD] [Users] folder. The folder where images are stored is located
in the folder of the user currently logged on, or in a subfolder there.
Under the default transmitter settings, transferred images will be stored in the root folder
specified in the FTP server settings, in a folder structure such as A/DCIM/100EOS7D which is
automatically created.
Additionally, if you have selected a CF card as the media for recording and playback, a folder
structure such as “A/DCIM/100EOS7D” is automatically created for image storage. For external
media, “C/DCIM/100EOS7D” is created. (CF card images are assigned to the A folder, and
external media images to the C folder.)
Viewing Transferred Images
Windows
Macintosh
Folders for Image Storage
46

Navigation menu
