Contents

Manual 3

47
Remote Capture
Using EOS Utility
You can use EOS Utility to shoot remotely over a wireless or wired LAN.
In addition to remote capture, all camera operations in EOS Utility are
supported because a wireless or wired network is used with this option
instead of the USB cable.
48
These instructions are continued from Chapter 1.
With EOS Utility, you can use the included WFT Pairing Software to establish a connection
between the transmitter and a computer.
WFT Pairing Software is installed automatically during easy installation of the software
provided with the camera. If it is not installed, install it on the computer for communication with
the transmitter before this procedure.
The configuration procedure is as follows, using Windows XP as an example.

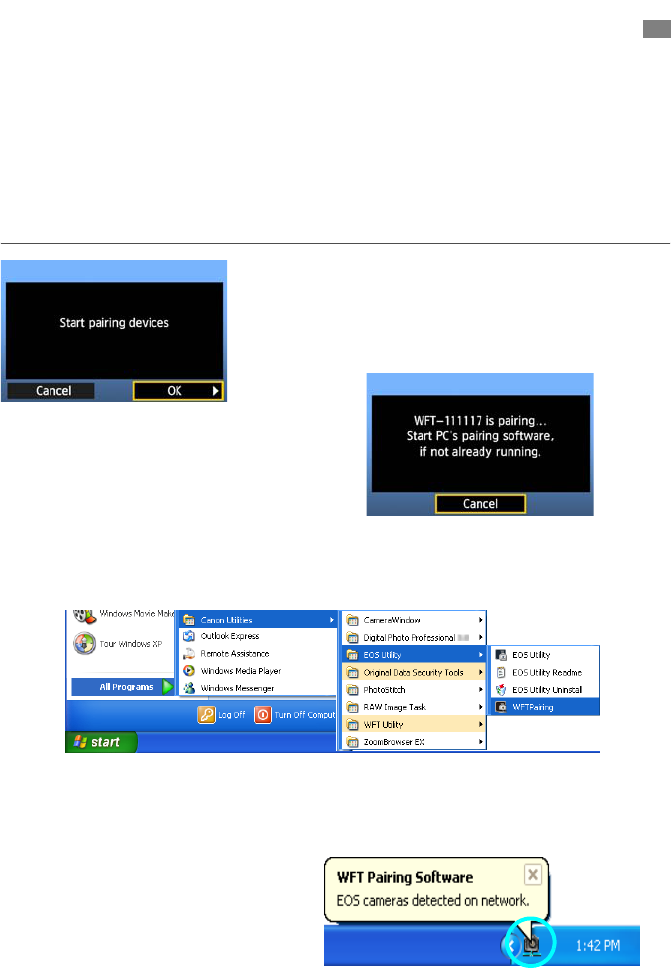

1 First, the pairing screen is displayed.
Turn the <5> dial to select [OK]. When you press
<0>, the following message is displayed. Here,
****** represents the last six digits of the MAC
address of the WFT-E5 for the connection.

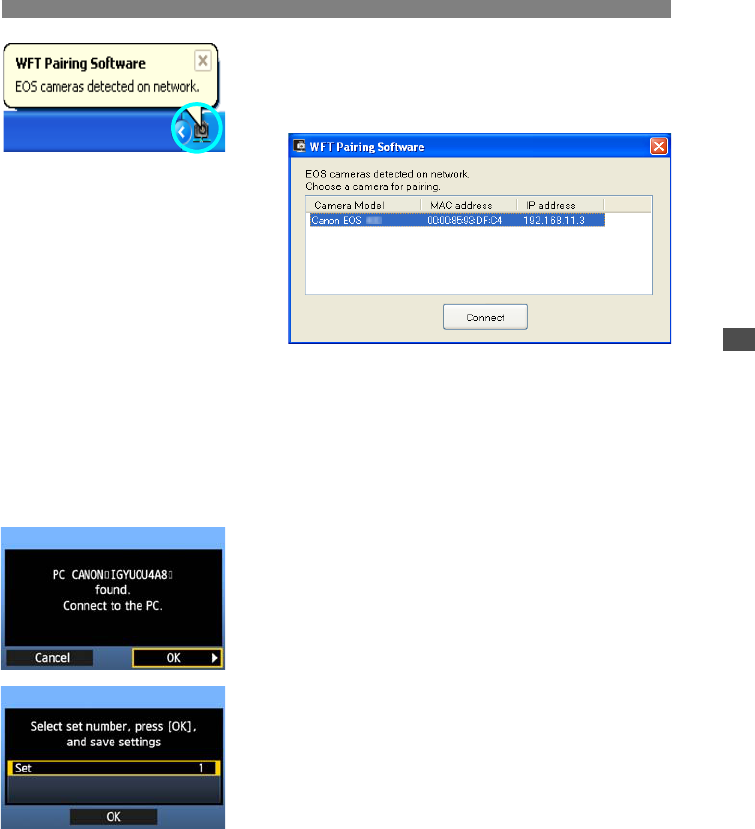

2 Start the pairing software.
Normally, it is installed in the same location as
EOS Utility.
XAfter the pairing software starts up, an icon is
displayed in the task bar.
XWhen the camera is detected, a message is
displayed.
Configuring EOS Utility Communication Settings
49
Configuring EOS Utility Communication Settings
3 Double-click the pairing software icon.
XDetected cameras are listed. Cameras that have
already been connected are not included in the
list.
Click [Connect].
If multiple cameras are displayed, identify the
camera to connect to by its [MAC address] or [IP
address].
You can check the [MAC address] and [IP
address] by accessing [Confirm settings] in the
menu (p.74).
4 When the camera detects the computer on which
you clicked [Connect] in step 3, the message at
left is displayed.
Turn the <5> dial to select [OK], and then press
<0>.
5 Press <0>. Turn the <5> dial to select the set
number, and then press <0>.
After you turn the <5> dial to select [OK] and
press <0>, the connection wizard is closed and
EOS Utility starts up.
XThe <
LAN
> lamp on the transmitter is lit in green.
Settings information is stored on the camera. It is
not stored on the transmitter.
The EOS Utility network settings are now complete.
50
Configuring EOS Utility Communication Settings
There is no need to complete pairing again if you will continue using a particular camera,
transmitter, and computer together after pairing without changing the settings.
Before your next PTP session, simply turn on the camera to which the transmitter is
attached and start the pairing software. The connection between the camera and computer
will be established automatically.
You can add the pairing software to the software launched at startup of your computer. In
EOS Utility on the [Preferences] [Basic Settings] tab, select [ Add WFT Pairing
Software to the Startup folder].
51

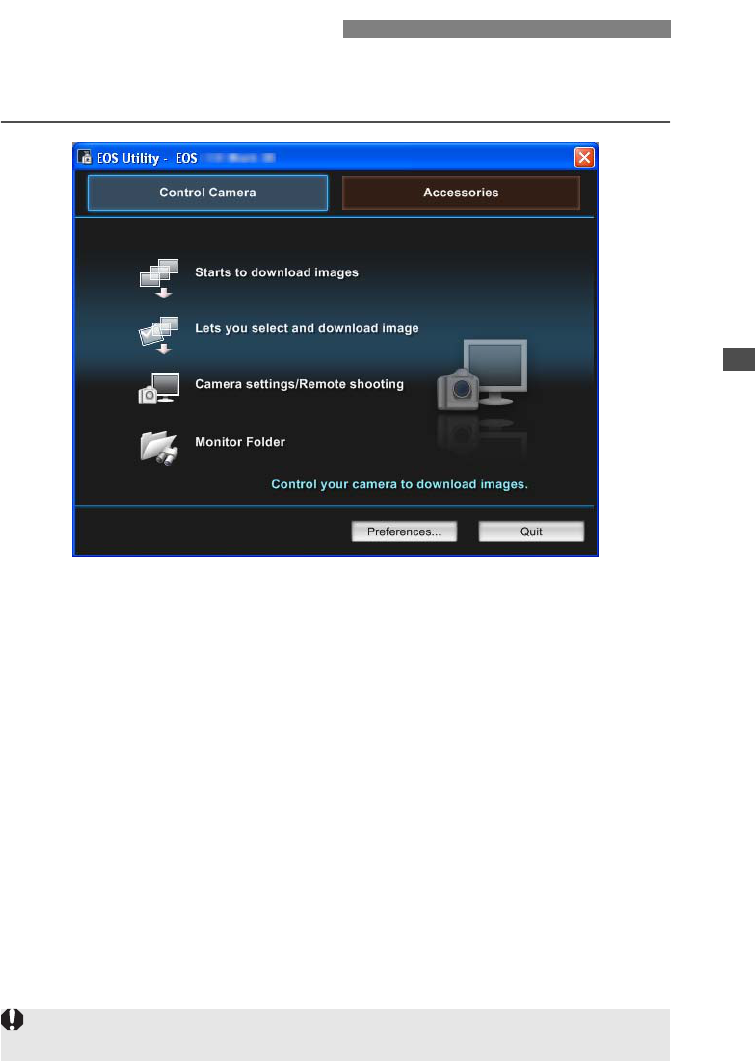

For EOS Utility instructions, refer to the Software Instruction Manual (PDF). You can take full
advantage of EOS Utility via the transmitter just as via a USB connection, without restrictions.
Using EOS Utility
In Remote Live View shooting, the rate of image transmission is slower than via USB. The motion of
moving subjects cannot be displayed smoothly.
52
53
Remote Capture
Using WFT Server
Using a web browser, you can view images on a CF card in the camera and
download them to a computer.
Additionally, you can shoot remotely over a wireless or wired LAN. Note that
bulb and movie shooting are not supported.
54
These instructions are continued from Chapter 1.

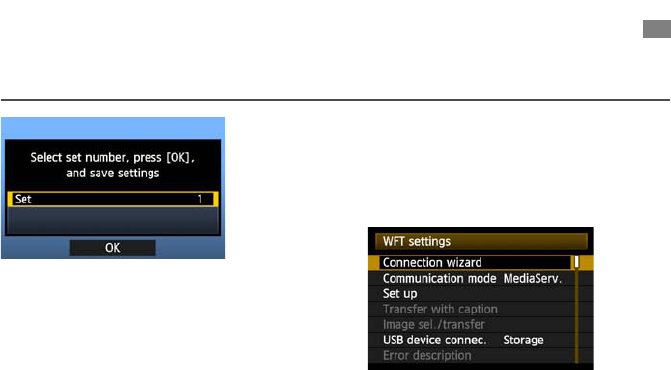

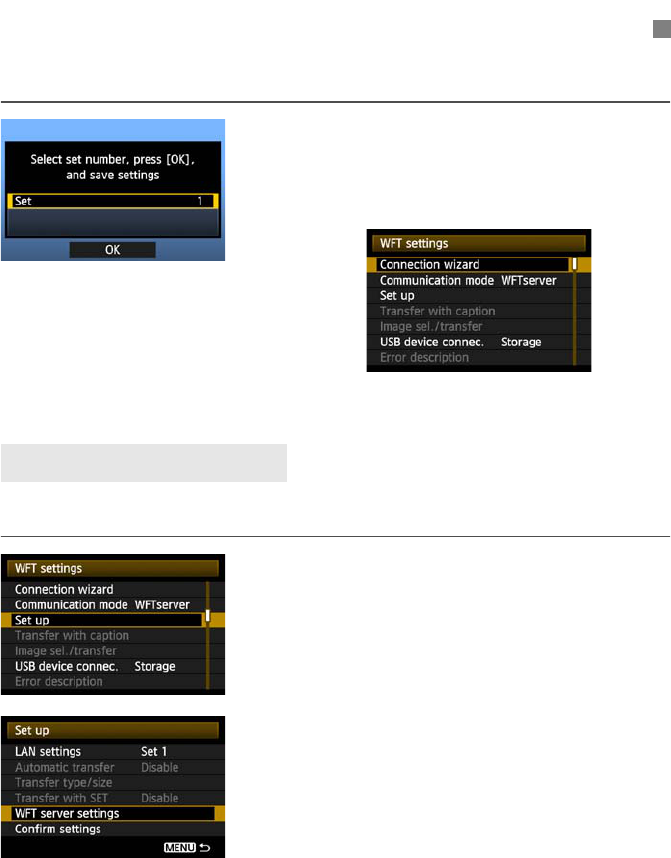

Press <0>. Turn the <5> dial to select the set
number, and then press <0>.
Press <0> again. After the connection wizard is
closed, the display reverts to the menu screen.
XThe <
LAN
> lamp on the transmitter is lit in green.
Settings information is stored on the camera. It is
not stored on the transmitter.
Enter a logon name and password for accessing the camera from a computer. The logon name
and password you specify here are used on the computer when connecting to the camera.

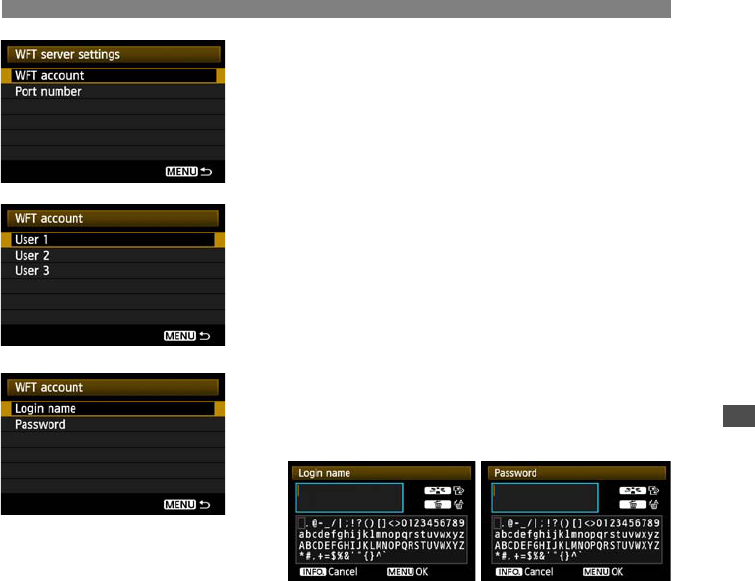

1 Turn the <5> dial to select [Set up], and then
press <0>.
2 Turn the <5> dial to select [WFT server
settings], and then press <0>.
Configuring WFT Server Communication Settings
Setting up an Account
55
Configuring WFT Server Communication Settings
3 Turn the <5> dial to select [WFT account], and
then press <0>.
When changing the port number, turn the <5>
dial to select [Port number] and press <0>. Note
that there is normally no need to change the port
number (80).
4 Select a user number.
With WFT Server, you can connect the camera to
up to three computers. Here, select a user number
to prevent conflicts when users at other computers
are connected to the transmitter simultaneously.
Turn the <5> dial to select [User *], and then
press <0>.
5 After you select [Login name] and [Password],
the following input screen is displayed.
For instructions on input screen operations, refer
to “Virtual Keyboard Operation” (p.31).
The WFT Server network settings are now complete.
56
In the web browser, display WFT Server, a screen for transmitter operations. Make sure you
have already established a connection between the camera and computer.

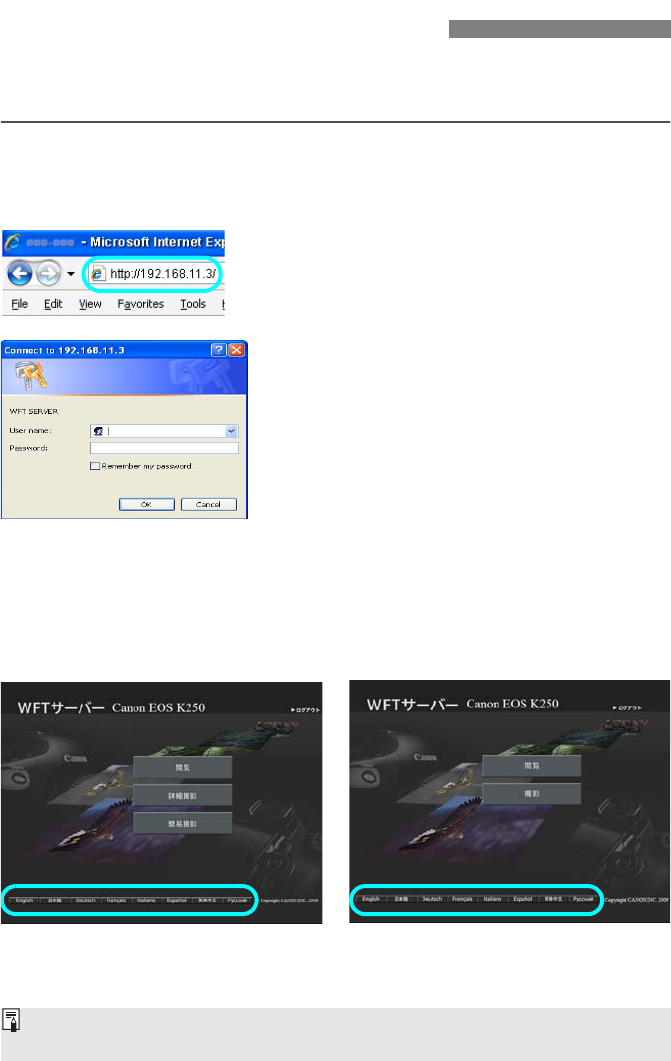

1Start the web browser.
First, start Internet Explorer or another web
browser.
2Enter the URL.
In the address field, enter the IP address assigned
to the camera.
Press the <
Enter
> key.
3Complete the [Login name] and
[Password] settings.
Enter the login name and password as specified in
the procedure on page 55. Click [OK] to display
the WFT Server screen.
Web browsers that support JavaScript now display
the screen on the left below step 4.
Otherwise, a message is displayed if JavaScript is
not supported. Choosing not to use JavaScript will
display the screen on the right below step 4, with
limited functions.
4Select the language.
Select a language at the bottom of the screen.
Displaying WFT Server
JavaScript supported JavaScript not supported
If you don’t know the URL (IP address)

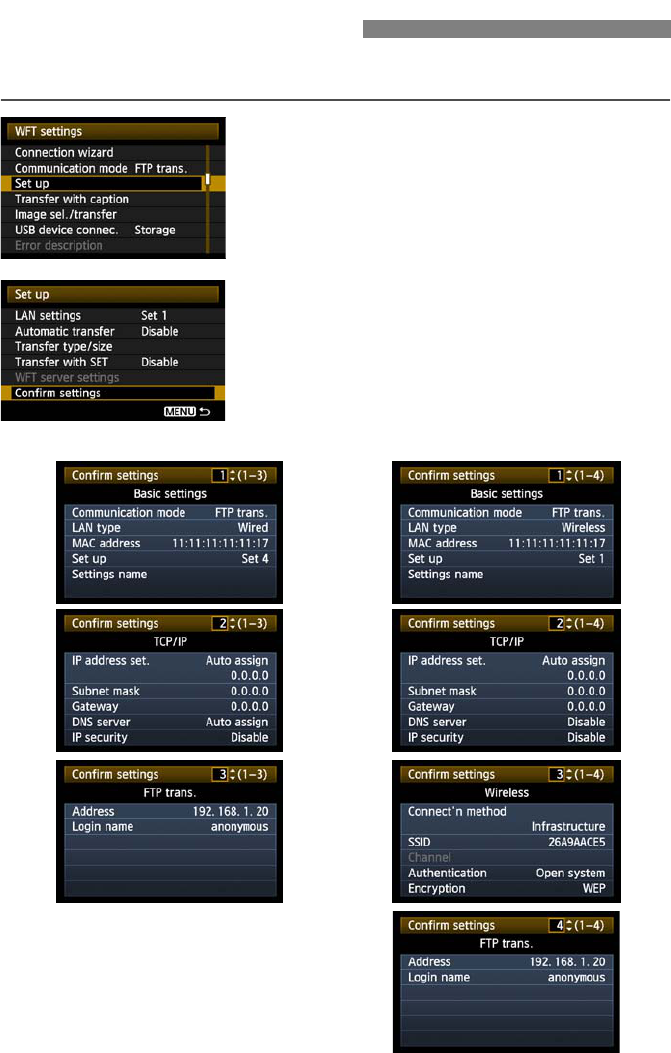

You can check the URL (IP address) by accessing [Confirm settings] in the menu (p.74).
57

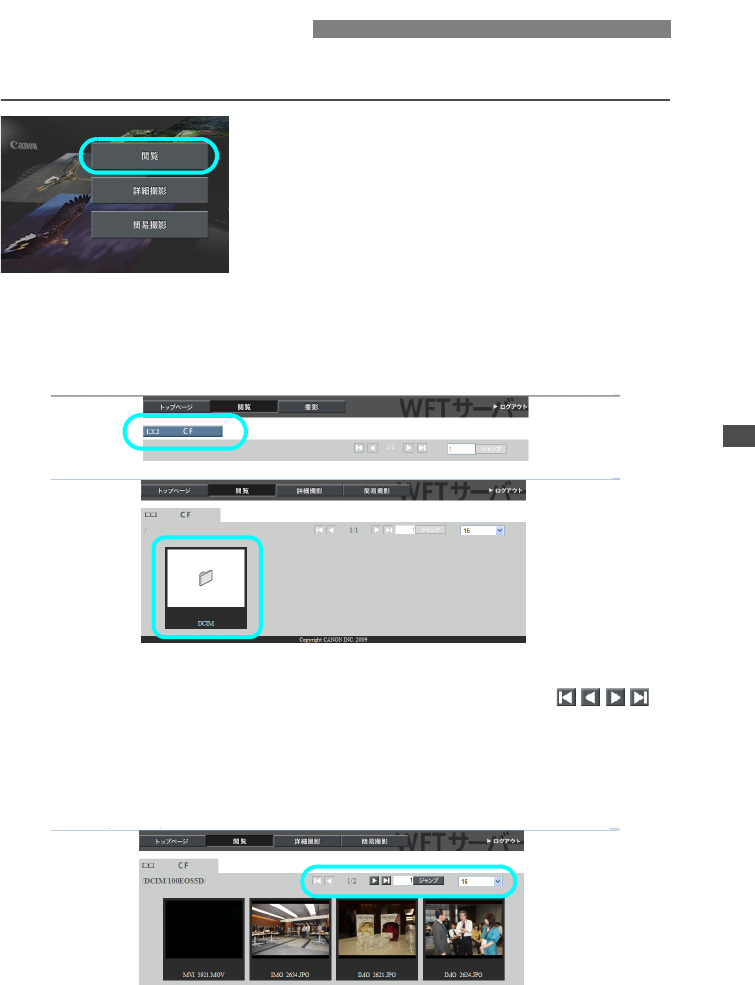

Browse images on the camera’s CF card as follows.
1Click [View].
XThe image viewing screen is displayed.
2Select the memory card.
Click [CF] or the external media.
Click the [DCIM] folder and select the folder
containing the images.
3Select an image.
To view another image, click the < >
buttons or jump to other pages.
In JavaScript-compatible web browsers, you can
specify how many thumbnails are shown per
screen by clicking the pull-down list in the upper-
right corner of the screen.
Viewing Images
58
Viewing Images

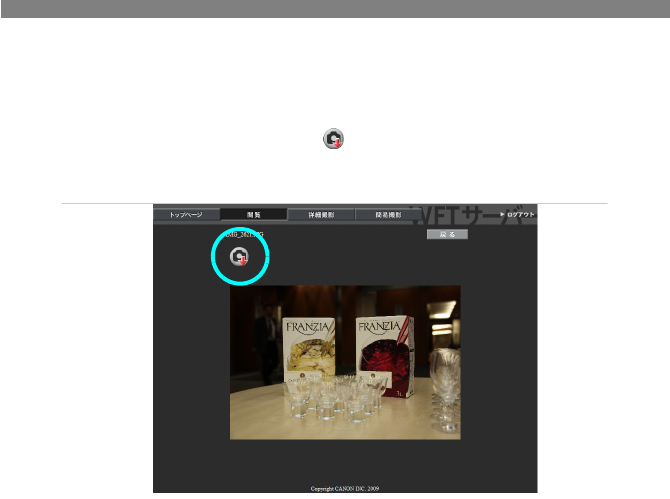

4Download images to the computer.
Click a thumbnail.
XThe image is displayed at a larger size.
To download the image to your computer, click
<>.
Click [Return] to return to the image viewing
screen.
Although actual RAW images and movies are not displayed here, they can be downloaded to
the computer the same way as JPEGs.
59
Remote capture of movies is not supported. Set the camera’s Live View
shooting/Movie shooting switch to Live View shooting before capture.
For web browsers that do not support JavaScript, refer to page 63, “Remote
Capture.”
1Click [Capture (Advanced)].
XThe advanced capture screen is displayed.
* Shaded items cannot be configured via WFT Server. ②, ④, and ⑫ are configured on the camera itself.
Remote Capture [Capture (Advanced)]
①Battery check ⑪Quality
②Drive mode ⑫Shooting mode
③Possible shots ⑬White balance
④AF mode ⑭Metering mode
⑤Release button ⑮Menu
⑥AF/MF switch ⑯Live View shooting button
⑦Shutter speed ⑰Manual focus button
⑧Aperture ⑱Live View image size switching button
⑨ISO speed ⑲Live View image screen
⑩Exposure compensation
①
⑯
②③④ ⑤⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
⑰⑱
⑲
60
Remote Capture [Capture (Advanced)]

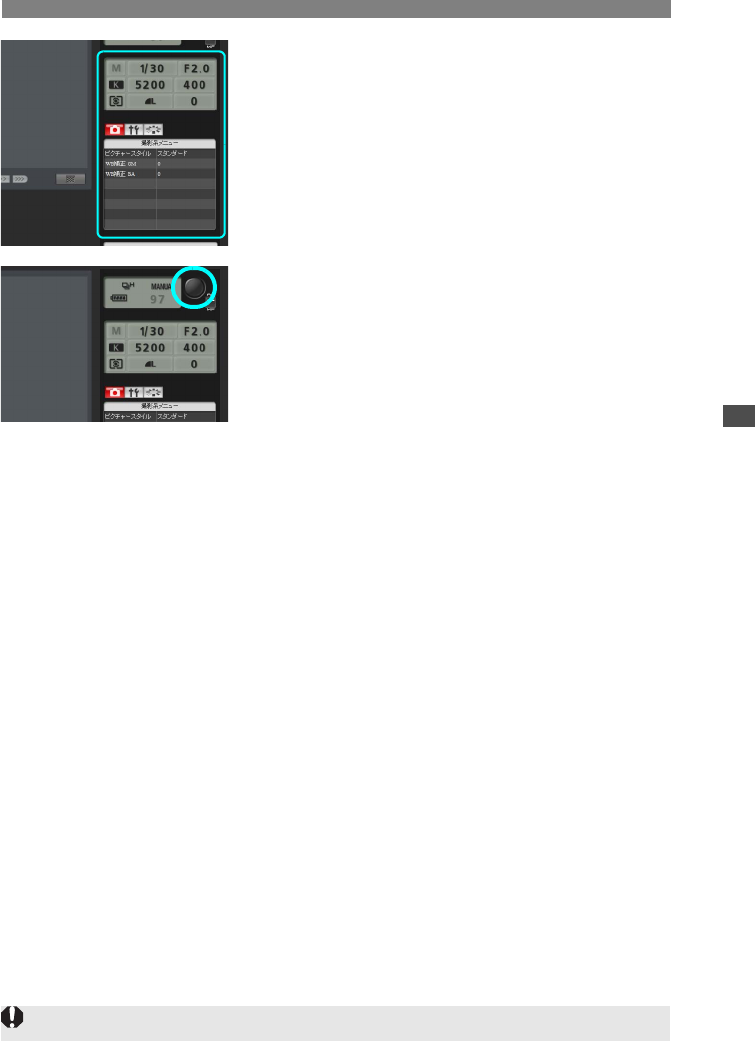

2Set the lens focus mode switch to
<f>.
Under these conditions, click the release button
(⑤). When you let go of the mouse button, the
camera autofocuses and shoots. (See step 5.)
With One-Shot AF, the camera does not shoot
unless focus is achieved. Try following the next
steps to display Live View image and shoot after
manually focusing.
3Display Live View image.
Click the Live View shooting button (⑯).
XThe AF/MF switch (⑥) is set to <g>, and Live
View image is displayed.
If Live View image is not displayed, enable Live
View shooting in the menu (⑮).
To make Live View image display more
responsive, click the Live View image size
switching button (⑱). Live View image is now
displayed at a smaller size, improving
responsiveness. To restore the original size, click
this button again.

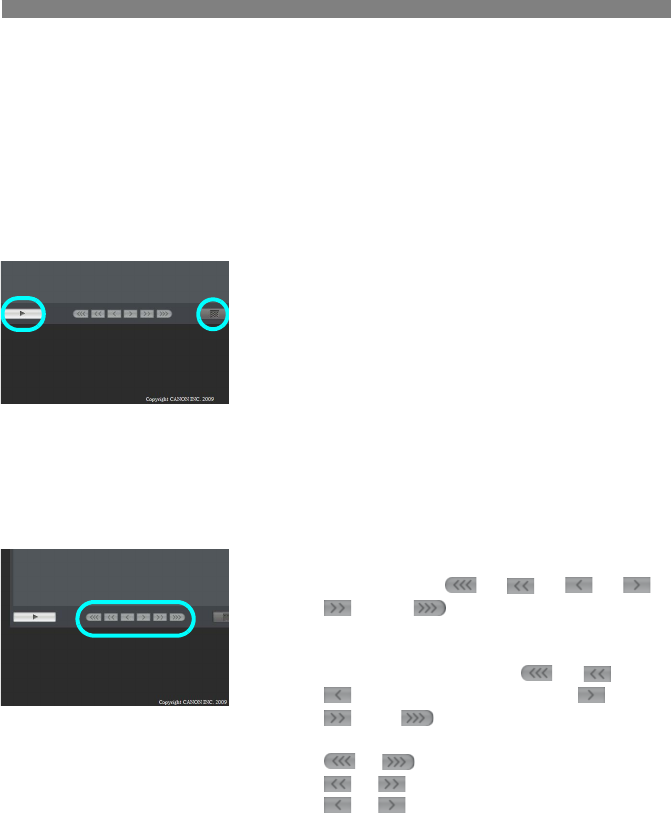

4Manually adjust the focus.
Click the buttons < >, < >, < >, < >,
< >, and < > to adjust the focus. Note that
autofocus is not supported during Live View image
display.
To focus more closely, click < >, < >, or
< >. To focus farther away, click < >,
< >, or < >.
Three levels of focus adjustment are available.
< > < > : Largest increment
< > < > : Intermediate increment
< > < > : Smallest increment
⑯⑱
61
Remote Capture [Capture (Advanced)]
5Configure the shooting settings.
Click setting items (such as quality) to view the
setting details, which you can configure.
Complete the settings as needed.
6Take the picture.
Click the release button (⑤). When you let go of
the mouse button, the camera shoots.
XThe captured image is now displayed.
Captured images are stored on the CF card.
To download images to your computer, refer to
page 57, and use the [View] function.
The Live View image may freeze when shooting if the camera is accessed by multiple computers.
62
Remote capture of movies is not supported. Set the camera’s Live View
shooting/Movie shooting switch to Live View shooting before capture.
For web browsers that do not support JavaScript, refer to page 63, “Remote
Capture.”

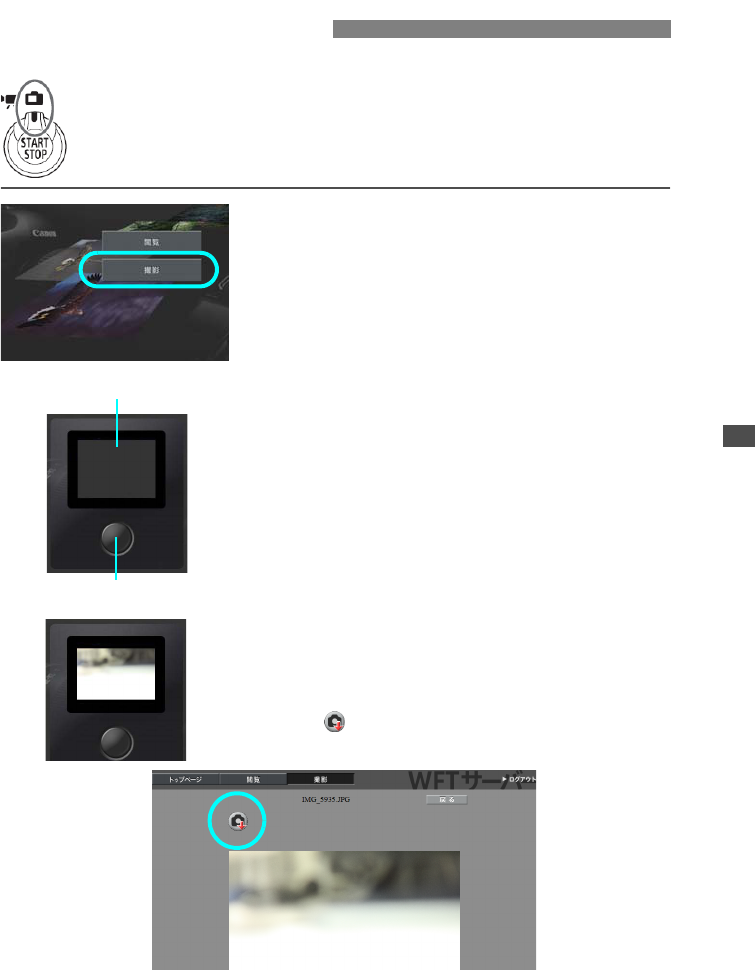

1Click [Capture (Basic)].
XThe basic capture screen is displayed, and Live
View image is displayed.
2Manually adjust the focus.
Set the lens focus mode switch to <f>.
Click the buttons < >, < >, < >, < >,
< >, and < > to adjust the focus.
3Take the picture.
Click the release button. When you let go of the
mouse button, the camera shoots.
XThe captured image is now displayed.
Captured images are stored on the CF card.
To download images to your computer, refer to
page 57, and use the [View] function.
Remote Capture [Capture (Basic)]
Live View image screen
Release button
Manual focus button
< > < > < >: Focuses more closely
< > < > < >: Focuses farther away
Levels of focus adjustment
< > < > : Largest increment
< > < > : Intermediate increment
< > < > : Smallest increment
63
The following instructions are for remote capture with web browsers that do
not support JavaScript.
Remote capture of movies is not supported. Set the camera’s Live View
shooting/Movie shooting switch to Live View shooting before capture.
1Click [Capture].
XThe capture screen is displayed.
Live View image is not displayed.
2Take the picture.
Set the lens focus mode switch to <g>. Adjust
the focus on the camera.
Click the release button. When you let go of the
mouse button, the camera shoots.
XThe captured image is now displayed.
Captured images are stored on the CF card.
3Download images to the computer.
Click the image.
XThe image is displayed at a larger size.
To download the image to your computer, click
<>.
Click [Return] to return to the capture screen.
Although actual RAW images are not displayed here, they can be downloaded to the computer
the same way as JPEGs.
Remote Capture
Screen
Release button
64
65
Using the Transmitter
as a Media Server
Images on a CF card in the camera can be viewed over a wireless or wired
LAN on a television.
This function requires a DLNA*-compatible television, digital photo frame, or
similar media player. (Subsequently, this equipment is collectively referred
to as the media player.)
* DLNA: Digital Living Network Alliance
66
These instructions are continued from Chapter 1.
Press <0>. Turn the <5> dial to select the set
number, and then press <0>.
Press <0> again. After the connection wizard is
closed, the display reverts to the menu screen.
XThe <
LAN
> lamp on the transmitter is lit in green.
The information you specified is stored on the
camera. It is not stored on the transmitter.
The media server network settings are now complete.
Configuring Media Server Communication Settings
67
Operate the media player controls to display images on a CF card in the camera on a
television. Note that RAW images and movies cannot be displayed.
The following operations are done on the media player. For details, refer to the media player
instruction manual.

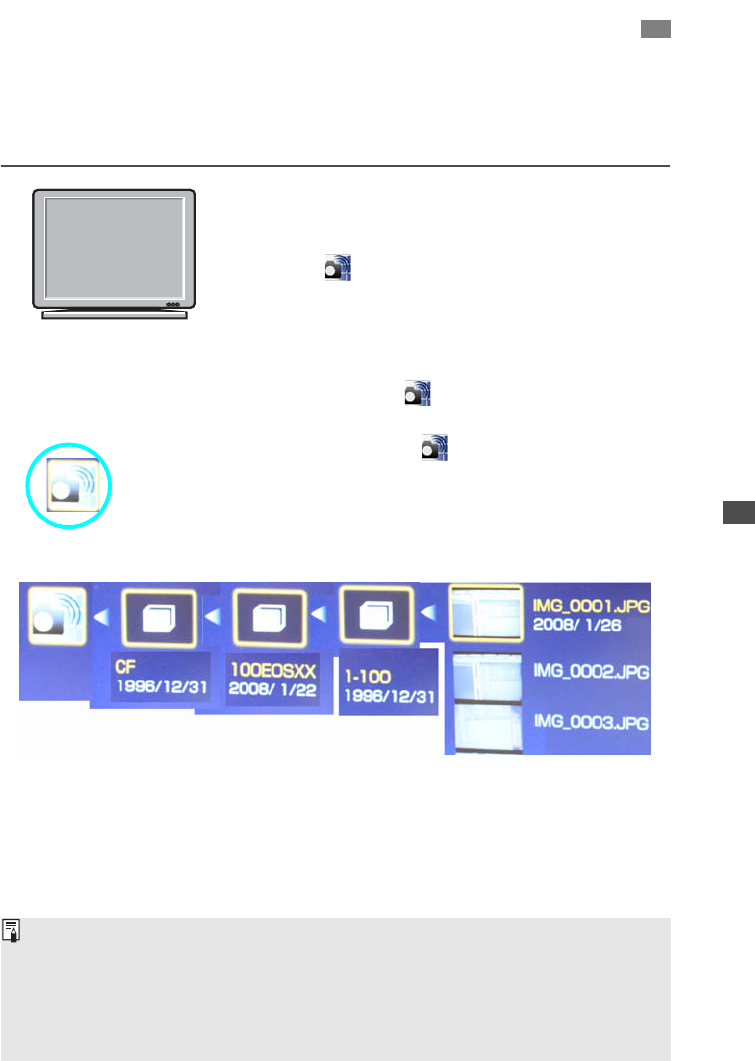

1Display the media player settings
screen on your television.
Using the media player functions, display the
<
EOS7D
> (media server) icon on the
television.
A different icon may be displayed, depending on
the media player. In that case, locate the icon
labeled EOS7D.
2Select the <
EOS7D
> (media server)
icon.
Selecting the <
EOS7D
> icon will display an
icon of the CF card (or external media). After you
select this icon, you can select folders and images.
Select an image to display it at a larger size on the
television. For details, refer to the media player
instruction manual.
Displaying Captured Images on a Television
EOS7D
Information overlay and details displayed on the television vary depending on the media player.
Note that depending on the media player, image information may not be displayed.
Icons labeled 1-100 (for example) contain images grouped by file number in the selected folder
(***EOS7D).
Date information shown for images is based on Exif information added to the images.
Date information shown for CF cards or folders may be the current date set on the camera, in
some cases.
EOS7D
68
69

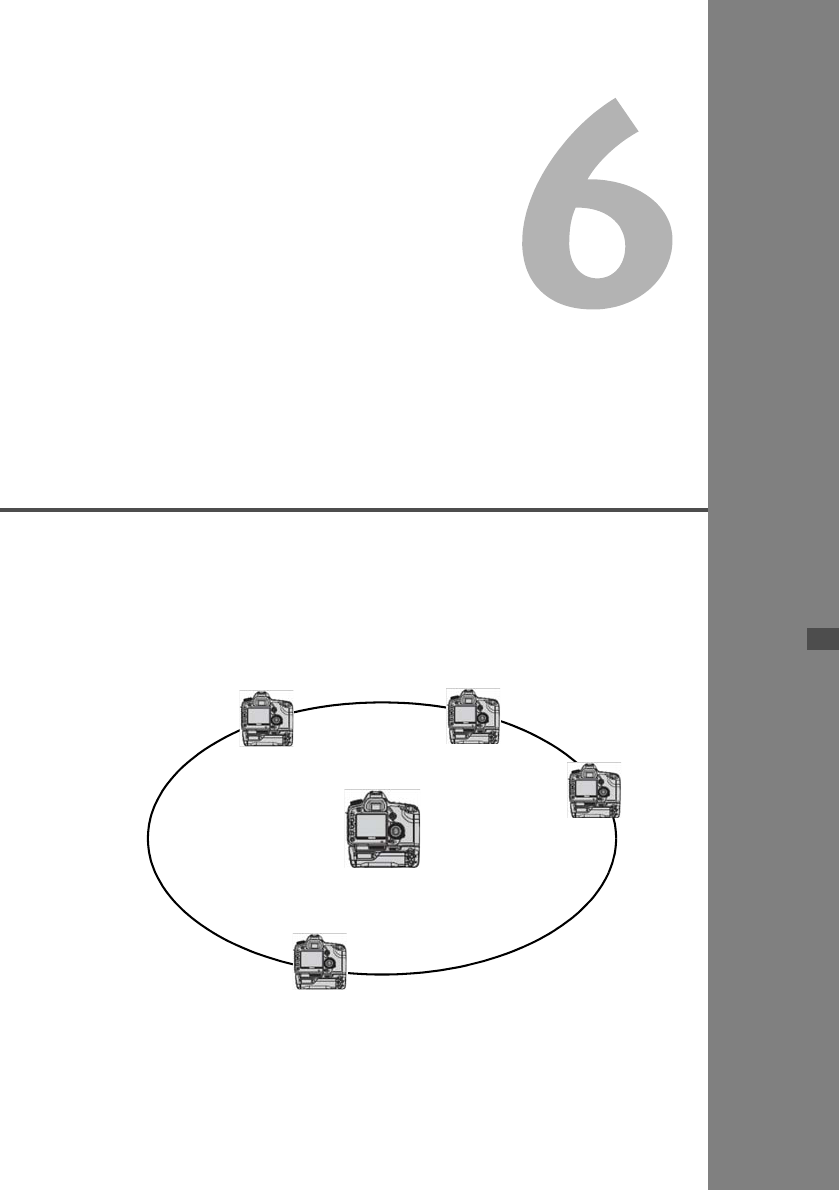

Linked Shooting
With linked shooting, up to 10 slave cameras can be linked in a wireless
network (via IEEE 802.11g in ad hoc mode) to the master camera on which
you will release the shutter.
Note that there will be a slight delay after you release the master camera
shutter before the slave cameras shoot. Movie shooting is not supported.
Master camera
Slave cameras
70
First, establish a connection from the slave cameras to the master camera. Because linked
shooting utilizes a wireless connection via IEEE 802.11g in ad hoc mode, it is not available over
wired LANs.

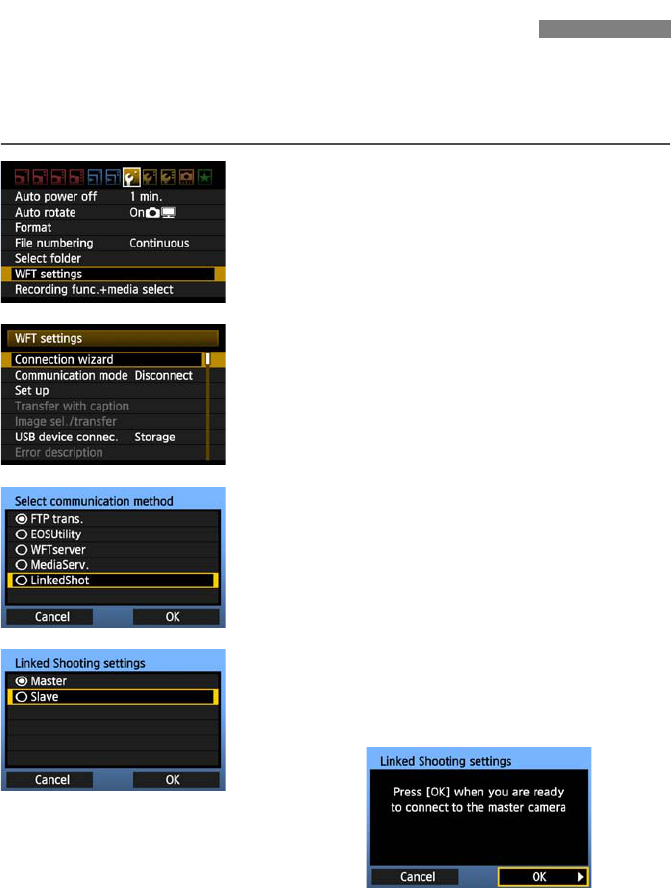

1Display the transmitter menu.
On the camera, press the <7> button.
On the [5] tab, select [WFT settings] and press
<0>. [WFT settings] is added to the tab after
you attach the transmitter.
2Select [Connection wizard].
3Select [LinkedShot].
4Set up the slave cameras.
Select [Slave].
XThe slave cameras are now ready, with the
following screen displayed.
When using multiple slave cameras, set up all
slave cameras to slave state.
Once the settings are complete, slaves cannot be
added or removed. You must repeat the setup
process from step 1.
Setting Up Linked Shooting
71
Setting Up Linked Shooting

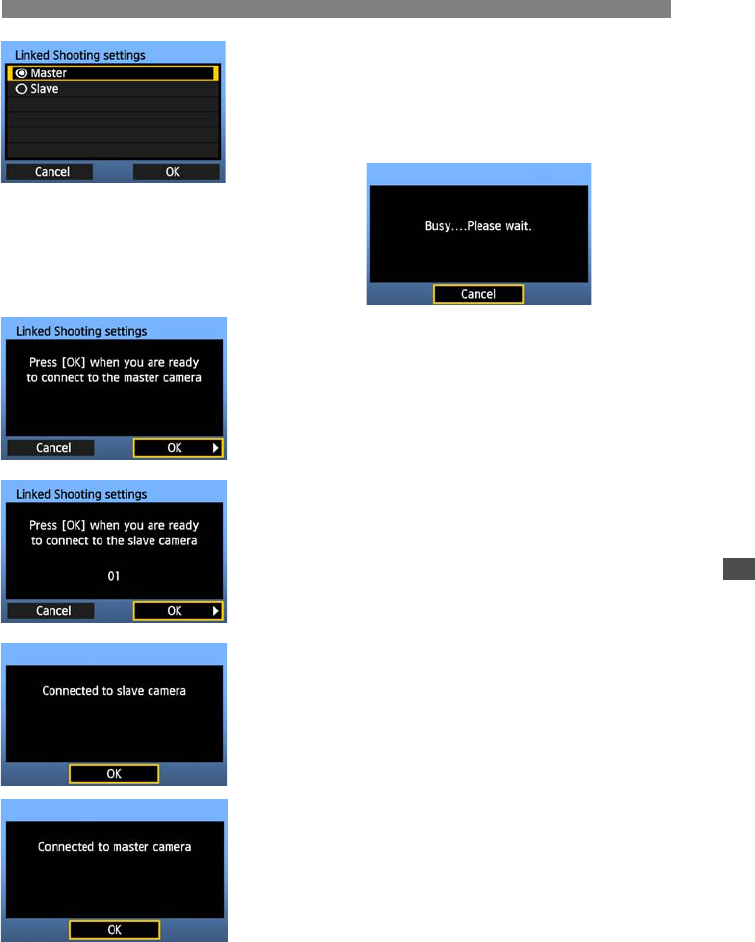

5Set up the master camera.
Configure the settings on the master camera
following steps 1-3 on the previous page, and then
select [Master].
XThe following screen is displayed.
6At this point, switch to setting up the
slave cameras.
On the slave cameras, select [OK].
7Check the number of slave cameras.
XOn the master camera LCD monitor, the number of
slave cameras detected is displayed.
8Establish the connection.
On the master camera and all slave cameras,
select [OK].
XA screen is displayed as the connection is tested.
The information you specified is stored on the
cameras. It is not stored on the transmitters.
72
Arrange the slave cameras in clear view of the master camera, without objects between
them.
You can arrange slave cameras in an overall circumference of up to approximately 150 m /
492 ft. However, the distance supported for linked shooting may be shorter depending on
the wireless communication conditions, which are affected by how the cameras are
arranged, the environment of use, and weather conditions.
There will be a slight delay after you release the master camera shutter until the slave
camera shutters are released. (Simultaneous capture is not possible.)

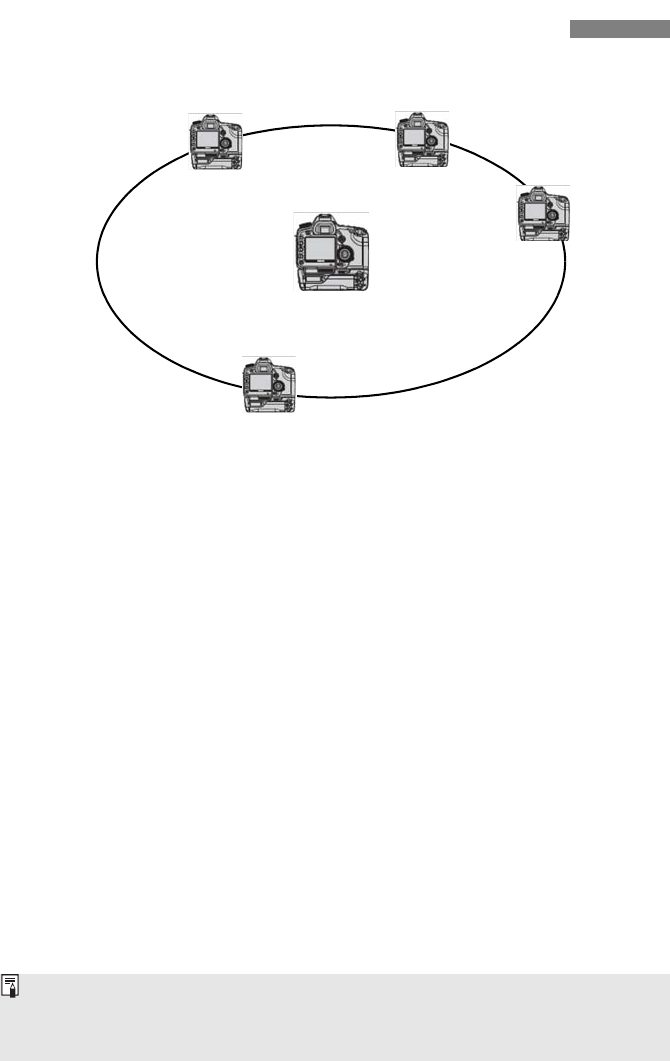

Arranging the Slave Cameras
Master camera
Slave cameras
Once you have established a connection between the master camera and slave cameras, the
settings are retained even after you replace the batteries.
If you will no longer use a slave camera in linked shooting, set [Communication mode] to
[Disconnect] on that slave camera.
73
Managing
Settings Information
74
Check the network settings as follows.
1In [WFT settings], select [Set up].
2 Select [Confirm settings].
XThe settings are displayed.
Checking Settings
E
xamp
l
e o
f
FTP
t
rans
f
er an
d
w
i
re
d
LAN
se
tti
ngs
E
xamp
l
e o
f
FTP
t
rans
f
er an
d
w
i
re
l
ess
LAN
se
tti
ngs
75

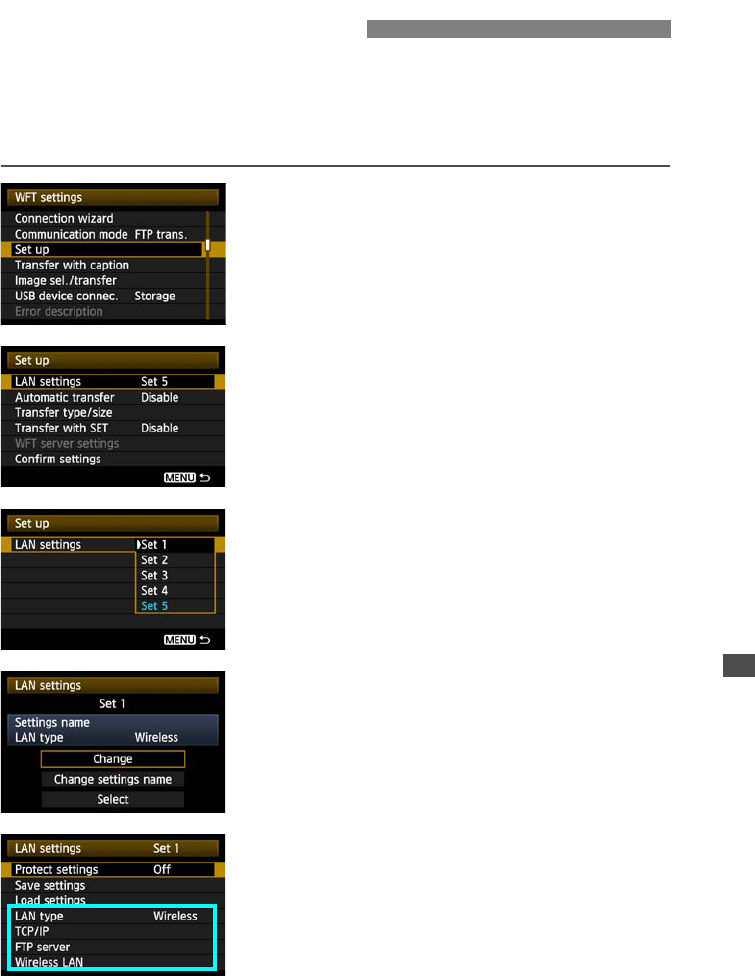

Settings originally completed using the connection wizard can be changed as follows. You can
also change IP security settings (IPsec) not completed using the connection wizard, as well as
other settings, such as the setting that determines what happens if an image of the same file
name as an existing file is sent to the FTP server. (p.76)
1In [WFT settings], select [Set up].
2Select [LAN settings].
3Select the settings number.
Here, select the settings number that identifies the
LAN settings.
4Select [Change].
After selecting [Change settings name], you can
rename the settings.
5Select the item to change.
Select the desired item from [LAN type], [TCP/IP],
[FTP server], or [Wireless LAN] and change the
setting.
Changing Settings
76
Changing Settings
Configured in [TCP/IP] [Security].
IPsec is a set of standards for encrypted communication over the Internet. It provides effective
security for both wireless and wired LANs. To use this function, you must enable IPsec in the
network settings of your computer. When IPsec is employed, only transport mode is supported,
and DES encryption and SHA1 authentication are used. Note that the IP address of the
computer for communication with the transmitter must be entered in [Destination address] on
the settings screen.
Configured in [FTP server] [Directory structure].
Selecting [Camera] automatically creates a folder structure matching that of the camera’s (such
as A/DCIM/100EOS7D) in the server’s root folder for image storage. If you have created a
subfolder in the root folder by changing the [Target folder] setting, a folder structure such as A/
DCIM/100EOS7D is automatically created in that folder for image storage.
Selecting [Default] will use the root folder for image storage. If you have created a subfolder in
the root folder by changing the [Target folder] setting, images are saved in that folder.
Configured in [FTP server] [Overwrite same file].
When the transmitter is configured to prevent overwriting
If there is already a file of the same name in the target folder on the FTP server, the new file is
saved with an extension consisting of an underline and a number, as in IMG_0003_1.JPG.
When you resend images if initial transfer fails
Even if the transmitter is configured to overwrite files of the same name, if you resend an image
file that could not be transferred initially, the existing file may not be overwritten in some cases.
If this happens, the new file is saved with an extension consisting of an underline, a letter, and
a number, as in IMG_0003_a1.JPG.
Configured in [FTP server] [Passive mode].
Enable this setting in network environments protected by a firewall. If an Error 41 occurs
(“Cannot connect to FTP server”), setting passive mode to [Enable] may enable access to the
FTP server.

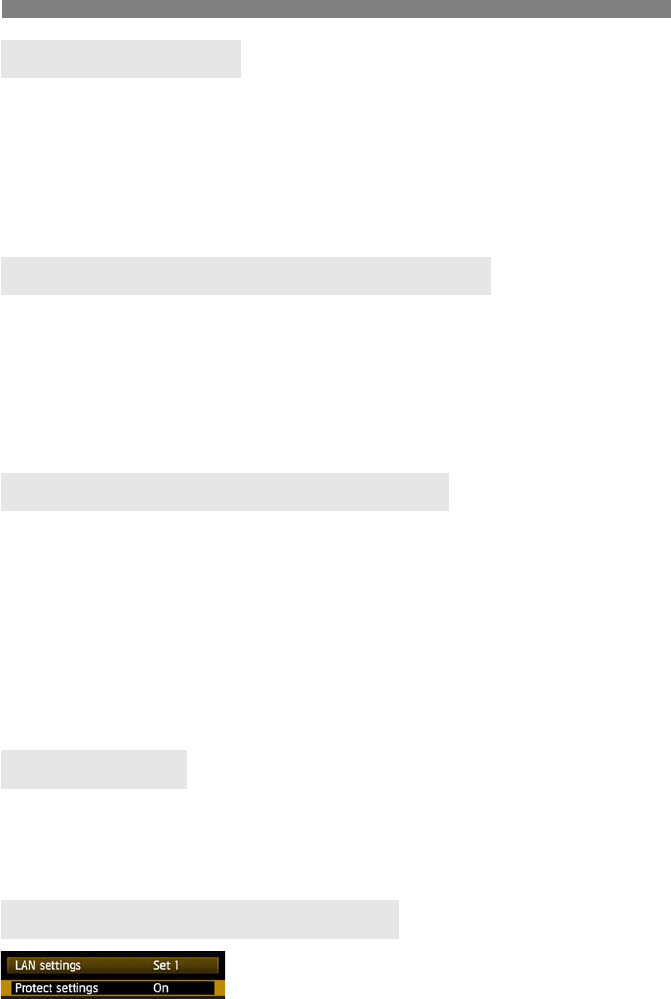

To prevent accidental changes to LAN settings, set [Protect
settings] to [On].
IP Security (IPsec)
Directory Structure of the Target Folder
Overwriting Files of the Same Name
Passive Mode
Preventing Changes to Settings
77

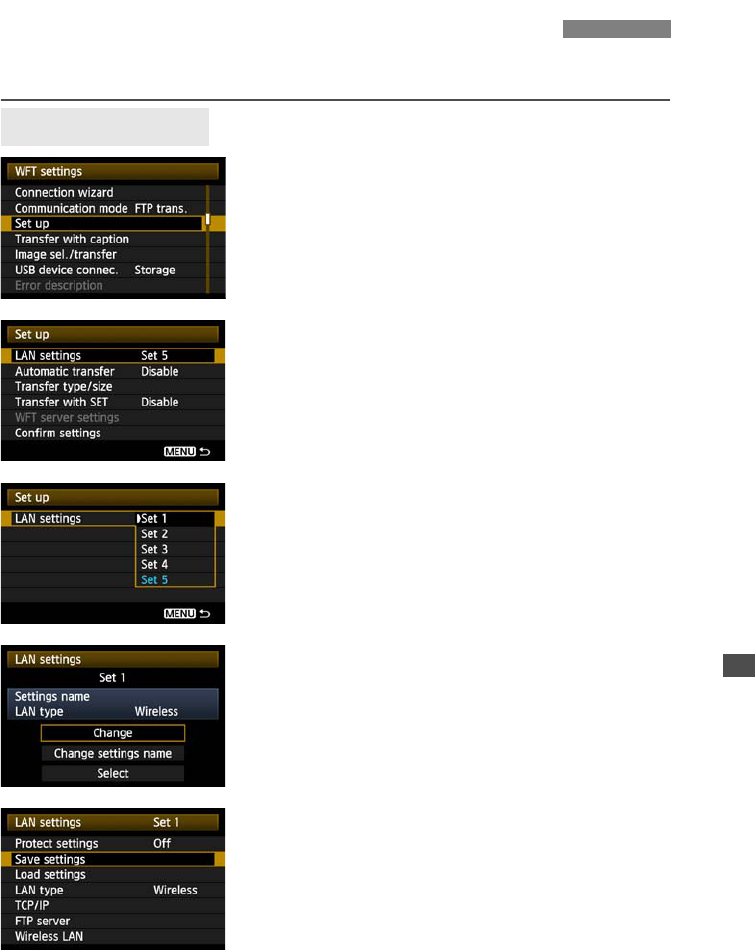

Network settings can be saved on a CF card for use with other cameras.
1In [WFT settings], select [Set up].
2Select [LAN settings].
3Select the settings number.
Here, select the settings number that identifies the
LAN settings.
4Select [Change].
5Select [Save settings].

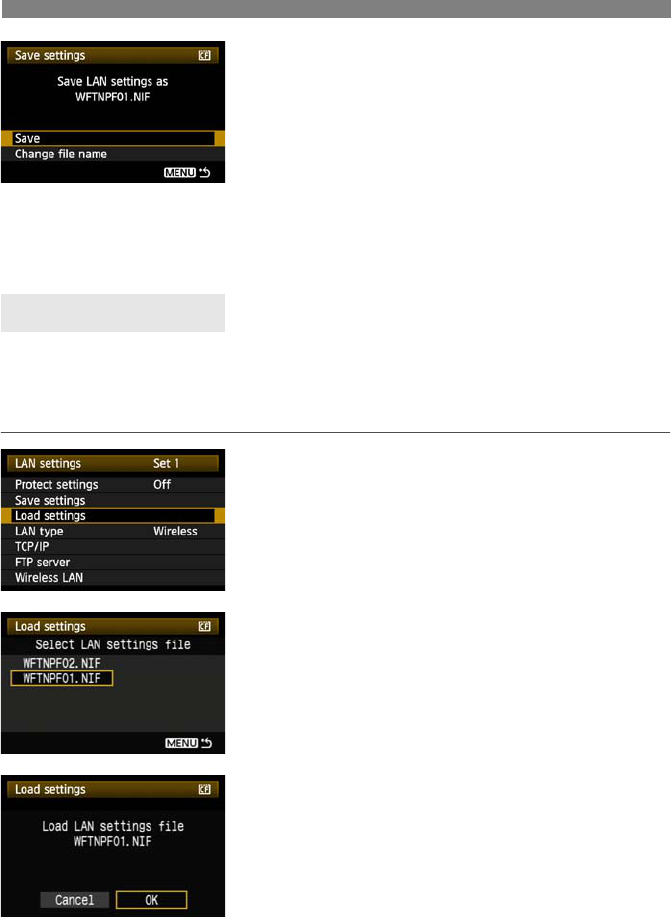

Saving and Loading Settings
Saving Settings
78
Saving and Loading Settings
6Select [Save].
XThe settings are now saved as a file on the CF
card.
The settings are saved as a file (WFTNPF**.NIF)
in the area of the CF card shown when the card is
opened (in the root directory).
The file name is determined automatically by the
camera: WFTNPF, followed by a number (01 to
99) and the extension NIF. You can rename the file
as desired by selecting [Change file name].
Load settings files stored on a CF card as follows. Also use this procedure when loading
settings files created on a computer.
Make sure the settings file is saved in the folder shown when the CF card is opened (that is, the
root directory).
1Select [Load settings].
2Select the settings file.
XSelect a settings file that matches your network
environment.
3Load the settings file.
XInformation from the settings file is loaded into the
selected settings number.
Loading Settings
79
Using External Media
Commercially available external media, connected via USB, can be used

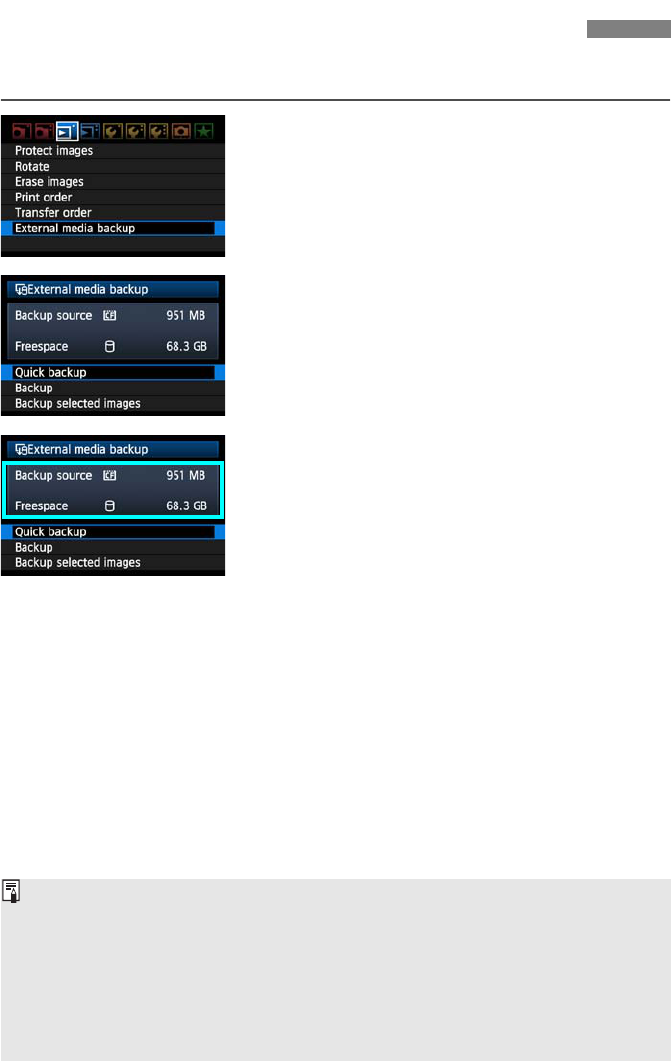

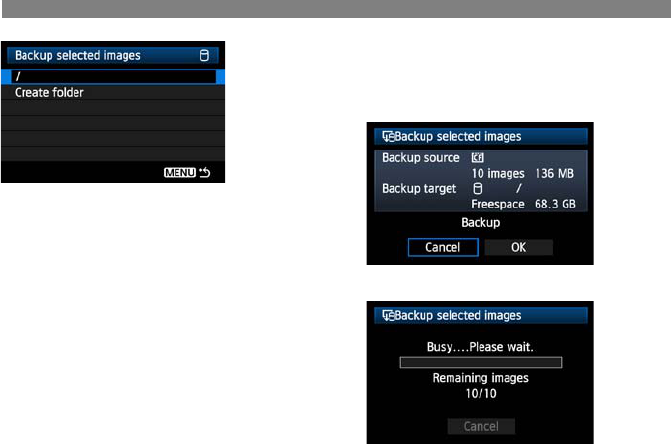

the same way as a CF card. You can also backup images from a CF card
onto external media.
Note that external media must meet the following requirements.
Use media conforming to the USB Mass Storage Class Specification.
If an external hard disk drive is used, use a self-powered drive. Bus-
powered drives do not work in some situations.
The main image storage area must be formatted with a FAT16 or
FAT32 file system.
Use media with a main image storage area of less than 1 TB
(terabyte), with 512 bytes per sector.
Do not use external media equipped with a card slot.
80
Before connecting external media to the transmitter, switch the camera’s power switch to
<
OFF
>. Also turn off external media that has its own power supply.
When connecting external media, be sure to use the USB cable provided with the camera.
The transmitter USB port is not hot-pluggable. USB cables cannot be connected or
disconnected at any time. Follow the instructions in this section when connecting or
disconnecting USB cables.

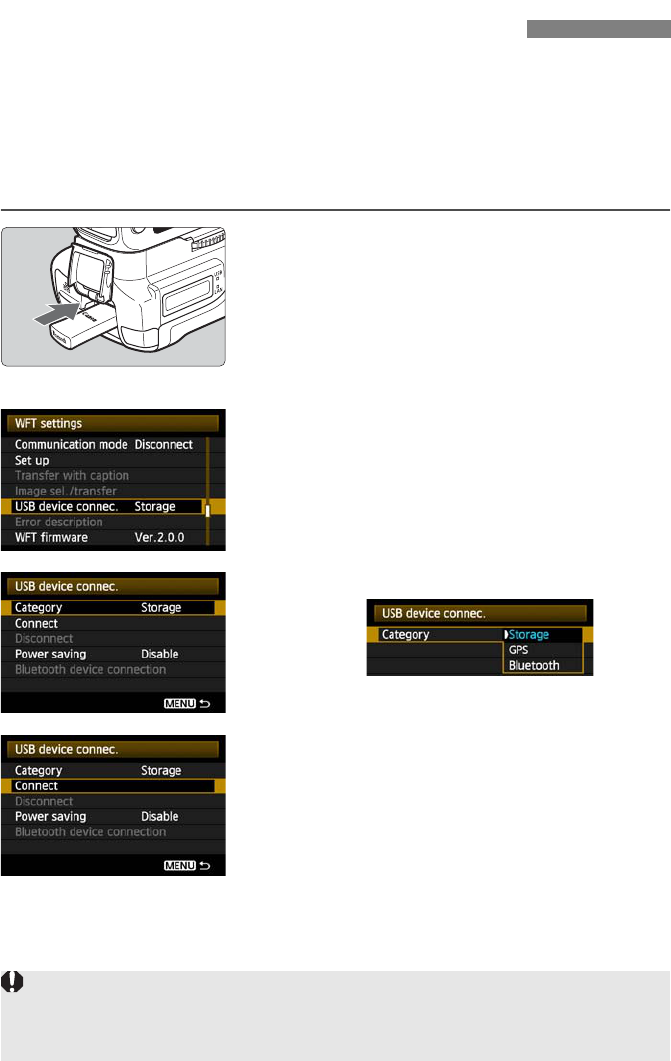

1Plug the external media into the USB
port.
Open the port cover and connect the external
media.
Do not connect external media via a USB hub.
If the external media is self-powered, turn it on
after connecting it.

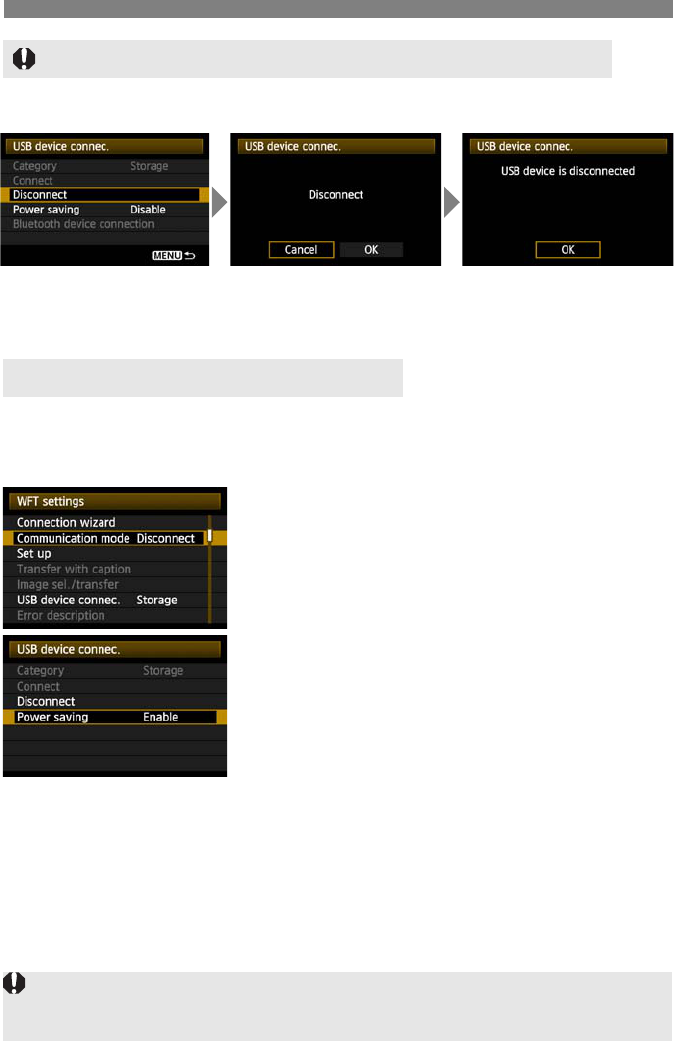

2In [WFT settings], select [USB device
connec.].
If you will not use a wireless or wired LAN at the
same time as the external media, set
[Communication mode] to [Disconnect].

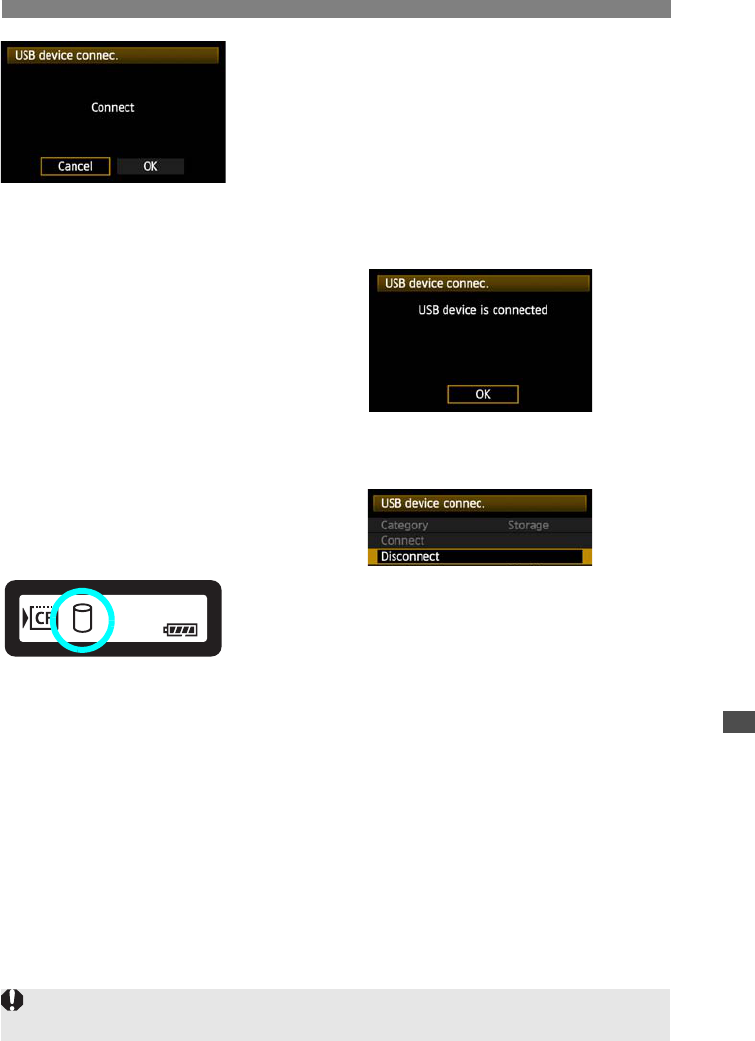

3Select [Storage].
4Select [Connect].
Connecting External Media
When replacing the transmitter’s battery, be sure to first set the camera’s power switch to <
OFF
>
before opening the transmitter’s battery compartment cover. If the transmitter’s battery compartment
cover is opened without setting the camera’s power switch to <
OFF
>, the connection operation for the
external media will have to be performed again.
81
Connecting External Media

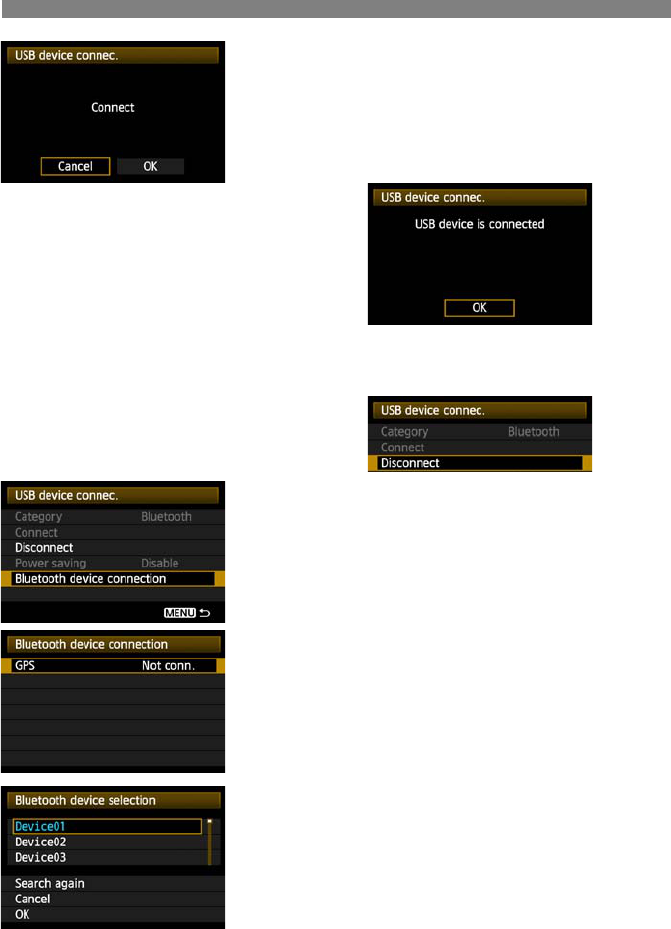

5Select [OK].
Camera operations such as shooting, menu
display, or image playback are not possible
until the connection is established.
When the transmitter is connected to the external
media, the transmitter’s <
USB
> lamp is lit in green
and a message is displayed indicating that a
connection has been established.
When the confirmation message is displayed,
select [OK].
XAt this point, the menu option [Disconnect]
becomes available. Select this option before
disconnecting the external media.
XAfter you exit the menu, the rear LCD panel
indicates that external media is connected.
External media cannot be formatted using the camera. Format it with a FAT16 or FAT32 file system
using the computer.
82
Connecting External Media
Before unplugging external media from the USB port, always select [Disconnect] as shown in
step 5. Follow the instructions displayed to terminate the connection.
The connection will not be terminated if you simply turn off the camera and external media. If
you unplug external media while the connection is still active, plug the external media into the
USB port again and follow the preceding steps to terminate the connection.
External media is powered via the transmitter’s USB port as needed. However, external hard
disk drives may not work after connection in some cases.
Power Management
If you will not use a wireless or wired LAN at the
same time as the external media, set
[Communication mode] to [Disconnect]. The
camera battery drains faster under settings other
than [Disconnect] because power saving is
disabled.
Setting [Power saving] to [Enable] enables the
power supply to external media to be stopped
automatically, conserving the camera battery.
Power is supplied again automatically during
shooting, when captured images are stored.
Unplugging External Media from the USB Port
Power Supply to External Media
Before shooting movie, set [Power saving] to [Disable] and make sure the transmitter’s <
USB
> lamp
is lit in green. If you start shooting movie when the <
USB
> lamp is out or blinking, the movie may not be
recorded to external media.
83
Images can be recorded to external media connected via USB. This enables recording of
images to external media without loading the CF card into the camera.
You can also create your own DCIM folders for storing images in the external media.
When recording movies to a hard disk, use a hard disk with fast writing specifications.

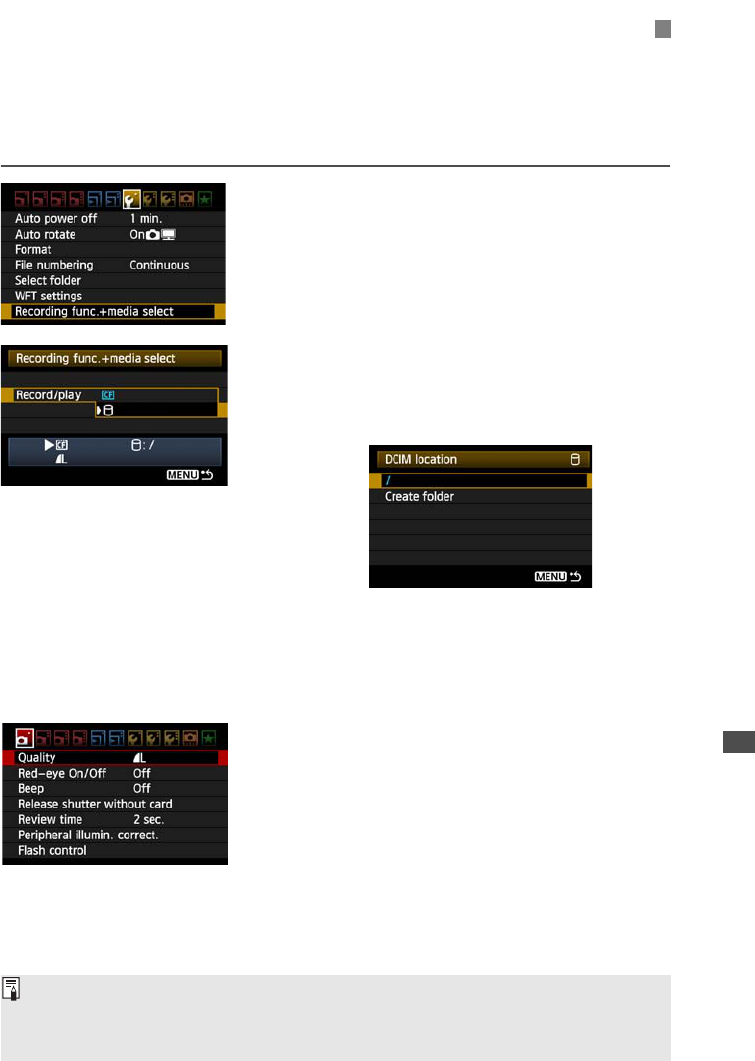

1On the [5] tab, select [Recording
func.+media select].
2Select [u] (external media) under
[Record/play].
XThe [DCIM location] screen is displayed. The
DCIM folder is the folder for storing images.
Select the initial setting of [/] and press the
<7> button to create a DCIM folder where the
external media is opened (that is, root directory).
When images are taken, they will be stored in the
DCIM folder of the external media.
3Select the recording quality.
The recording quality when external media is selected
is set to the same recording quality as the CF card.
The recording quality can be changed with [Quality]
on the [1] tab.
Choosing Recording Media When Shooting
Although the <
USB
> lamp will blink in green briefly if the camera is turned off and on or recovering from
auto power off, shooting (except shooting movie) is still possible. Any images captured at this time are
stored temporarily in the camera’s internal memory and then recorded on external media when the
<
USB
> lamp remains lit in green.
84
Choosing Recording Media When Shooting
Selecting [Create folder] enables the user to create a folder in the external media for storing
the DCIM folder. This is useful for separating DCIM folders by shooting dates, for instance.
1Select [Create folder].
2Check the folder name.
By default, the folder name comprises the current
date (last two digits of the year, in addition to the
month and day) and numbers representing the
order the folder was created, in a range of 01 to
99.
If the folder name is OK, press the <7> button.
XThe created folder is selected.
When changing the folder name, always use an
eight-character name. For instructions on entering
the folder name, refer to “Virtual Keyboard
Operation” (p.31).
Using [Create folder]
Erasing Images
Although “Erase all images on external media (except K images)” is displayed when [Erase images]
[All images on card] on the [3] tab is selected, what are actually erased are all images in [DCIM
location] folders, as described above.
85
When using external media connected via USB and a CF card loaded in the camera at the
same time, various types of image recordings can be made. Note that the settings made in
[Record func.] below are disabled in the Full Auto and Creative Auto modes.
1On the [5] tab, select [Recording
func.+media select].
2Select [Record func.].
Select the setting based on “[Record func.]
Options” below.
The recording quality is selected with [Quality] on
the [1] tab.
Standard
Images are recorded to the media selected in [Record/
play].
Auto switch media
Images are recorded to the media selected in [Record/
play], and when there is no more free space, the recording
of images is automatically switched to the other media.
Rec. separately
Whenever an image is taken, it is recorded to both the CF card and external media.
Selecting [Quality] on the [1] tab enables selection of a separate recording image quality
for the CF card and external media. Making this setting displays the image quality recorded
to the external media on the transmitter’s LCD panel.
Rec. to multiple
Whenever an image is captured, the same image is recorded to both the CF card and
external media. [Rec. to multiple] is not available for movies. Movies are recorded to media
selected in [Record/play].
Using Together With a CF Card
[Record func.] Options
86
Images recorded on the CF card can be backed up to external media.
1On the [3] tab, select [External media
backup].
2Select the method of backup.
3Check the free space on the media.
In [Quick backup] and [Backup], make sure that
the available space on the external media is larger
than the amount used on the CF card. If less free
space is available on the external media, backup is
not possible.
Backing Up on External Media
External media cannot be backed up onto CF cards.
If the backup destination already has a folder of the same number containing images of the same
file number, [Skip image and continue], [Replace existing image], and [Cancel backup] are
displayed. Select the backup method and press <0>.
•[Skip image and continue]: All images are backed up except for images of the same file number
as existing images
•[Replace existing image]: All images are backed up, including images of the same file number
as existing images
Shooting is not possible during backup. Press [Cancel] before shooting.
87
Backing Up on External Media

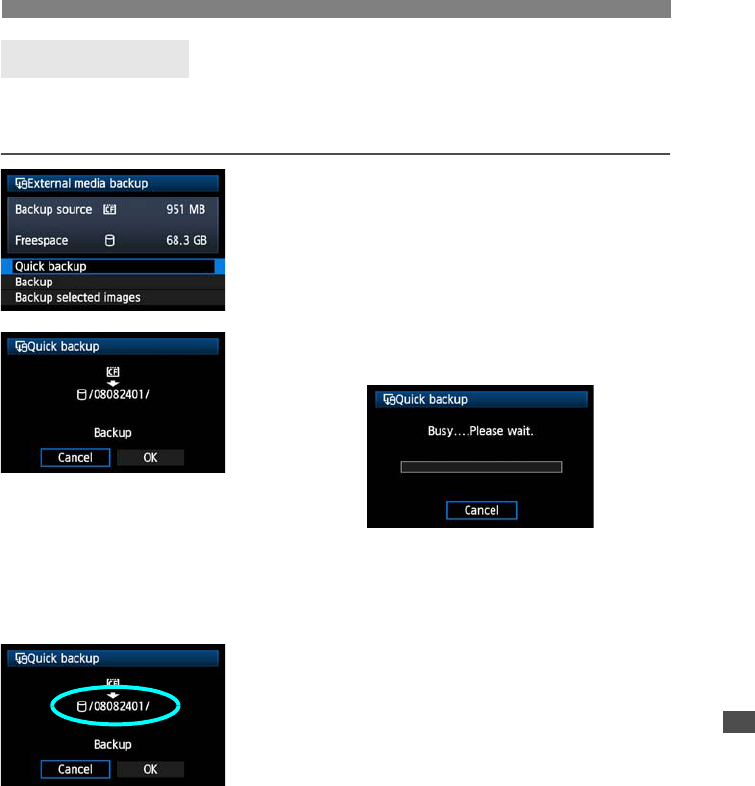

A simple method of backup is available. In [Quick backup], a folder with the current date is
automatically created where the external media is opened (that is, root directory), and the
DCIM folder containing the recorded images is stored inside this folder.
1Select [Quick backup].
2Select [OK].
XThe backup process now begins.
When the message indicating completion is
displayed, select [OK].
Where the DCIM Folder is Stored
The DCIM folder is stored in a directory indicated
by a file path such as [u/09083101/].
The target folder name comprises the current date
(last two digits of the year, in addition to the month
and day) and numbers representing the order the
folder was created, in a range of 01 to 99.
In the example shown at left, the folder displayed
when the external media is opened (that is, the
root directory) is named 09083101. The DCIM
folder is stored in this folder.
This is also the target folder name displayed when
using the regular [Backup] option.
Quick Backup
88
Backing Up on External Media

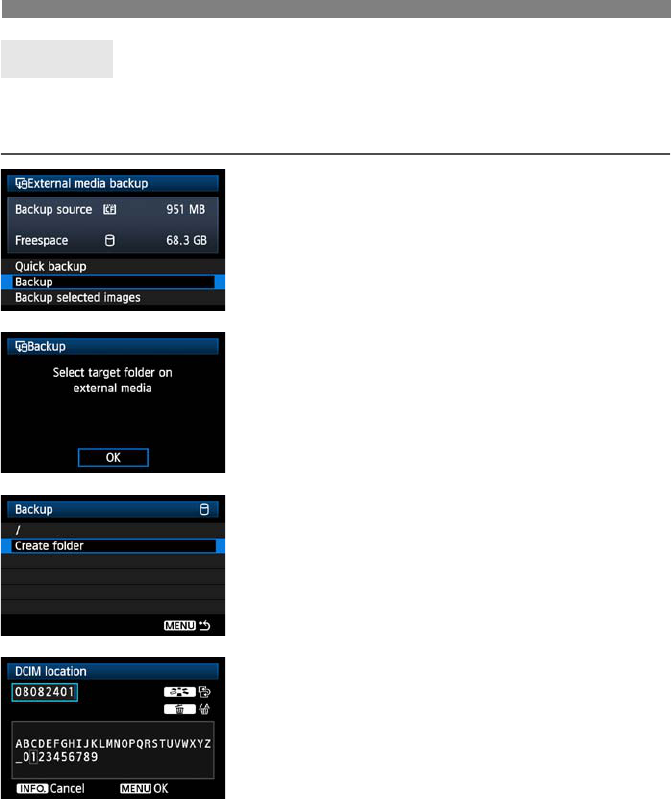

In [Backup], you can create a folder for backup in external media as desired, and save the
DCIM folder where images are stored in the selected folder. You can also name this folder as
desired. Other functions in this method of backup are the same as for [Quick backup].
1Select [Backup].
2Select [OK].
3Select [Create folder].
4Enter the [Folder name].
Always use 8 characters for the folder name.
For instructions on entering the folder name, refer
to “Virtual Keyboard Operation” (p.31).
Backup
89
Backing Up on External Media

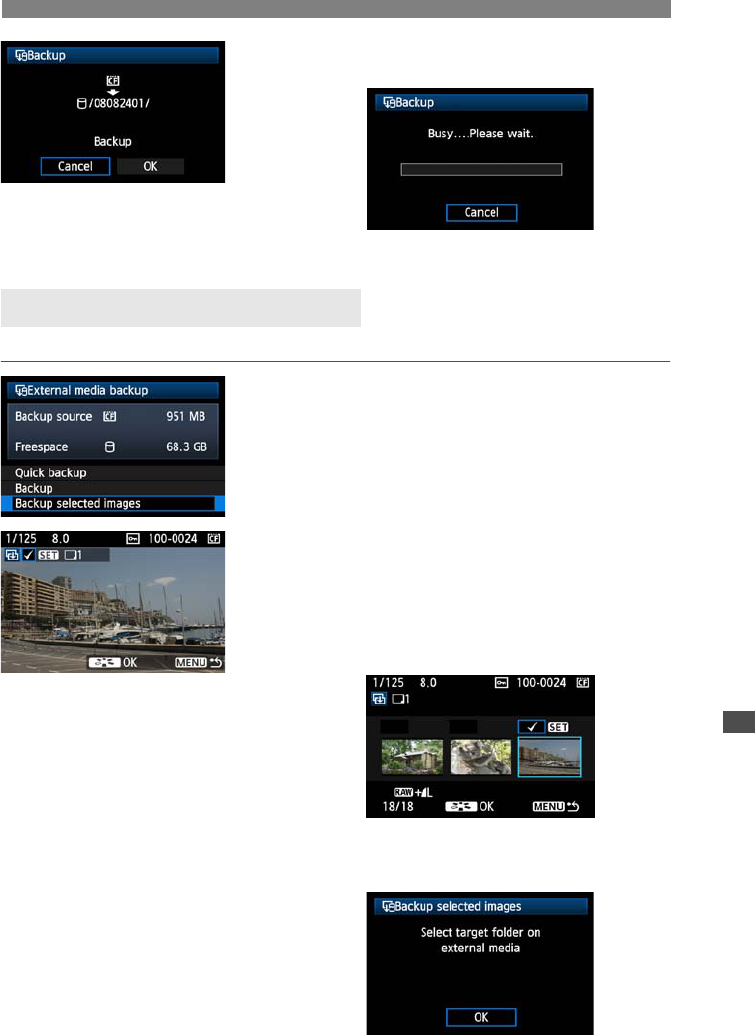

5Select [OK].
XThe backup process now begins.
When the message indicating completion is
displayed, select [OK].
Only the necessary images can be selected for backup to external media.
1Select [Backup selected images].
2Select the images for backup.
Turn the <
5
> dial to select the image, and then
press <
0
>.
X<X> is displayed at the top left of the image to be
backed up.
Press the <
y
> button to display three images per screen.
Press the <
u
> button to display one image per screen again.
After the images for backup are selected, press
the <A> button.
XSelect [OK] in the displayed screen.
Selecting Images for Backup
90
Backing Up on External Media
3Select [/], and then press the <7>
button.
XSelect [OK] in the displayed screen.
XBackup of the images will be started.
The images are stored into the DCIM folder
created where the external media is opened (that
is, root directory).
When backing up to a selected folder in external
media, select [Create folder]. For details, see
steps 3 and 4 on page 88.
91
Using GPS Devices
Commercially available GPS devices connected via USB can obtain
information including the latitude, longitude, altitude, and date and time of
shooting and add it to images. The additional information can be checked
on the camera as well as by using GPS-compatible mapping software.
The transmitter can be used with Garmin GPSMAP or eTrex series or
Magellan eXplorist series GPS devices that produce data in the format
NMEA 0183 Ver. 3.0.1, as well as some devices that produce Garmin
protocol data (as of September 2009).
For a list of specific GPS devices supported, contact the Canon Service
Center.
For GPS device instructions, refer to the device’s instruction manual or contact the
manufacturer.
92
Turn off the GPS device and camera before connecting them.
When connecting GPS devices, be sure to use the USB cable provided with the camera.
The transmitter USB port is not hot-pluggable. USB cables cannot be connected or
disconnected at any time. Follow the instructions in this section when connecting or
disconnecting USB cables.

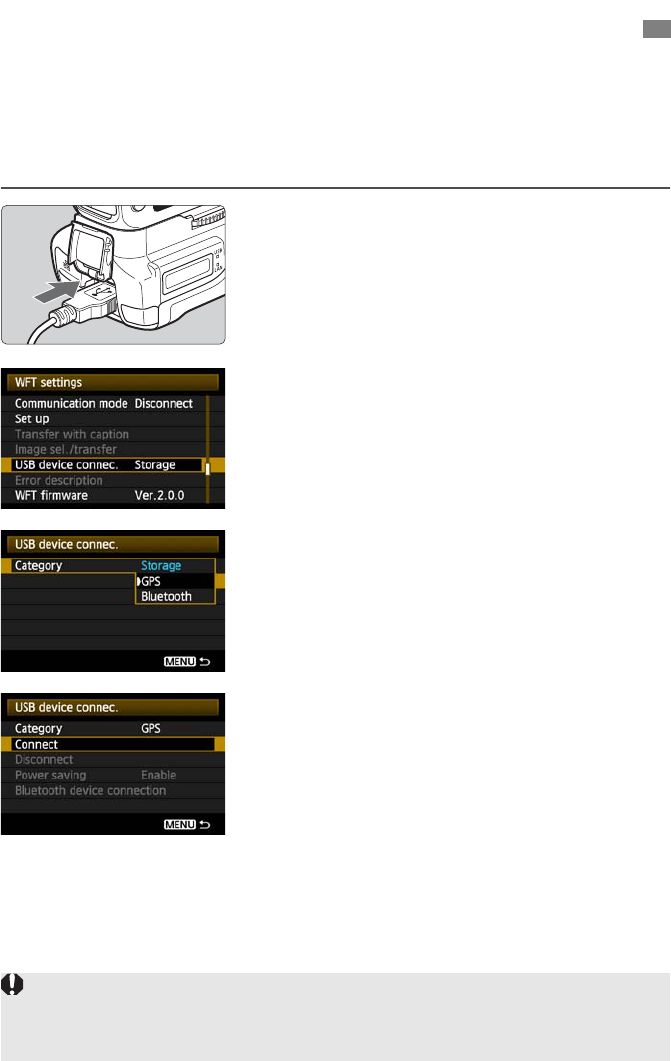

1Plug the GPS device into the USB port.
Open the port cover and connect the GPS device.
Do not connect GPS device via a USB hub.
Do not turn the GPS device on until step 5.
2In [WFT settings], select [USB device
connec.].
If you will not use a wireless or wired LAN at the
same time as the GPS device, set
[Communication mode] to [Disconnect].
3Select [GPS].
4Select [Connect].
Connecting GPS Devices with a USB Cable
When replacing the transmitter’s battery, be sure to first set the camera’s power switch to <
OFF
>
before opening the transmitter’s battery compartment cover. If the transmitter’s battery compartment
cover is opened without setting the camera’s power switch to <
OFF
>, the connection operation for the
GPS device will have to be performed again.
93
Connecting GPS Devices with a USB Cable

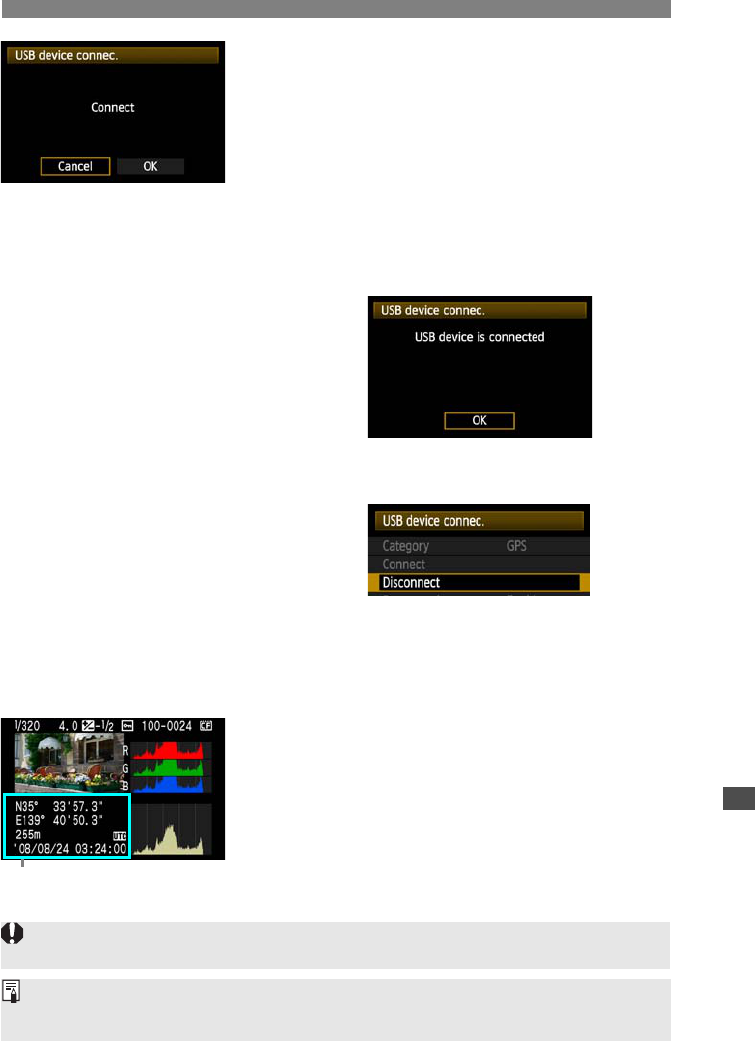

5Select [OK].
After selecting [OK], turn the GPS device on.
It may take a few minutes to establish a connection
with the GPS device. Camera operations such as
shooting, menu display, or image playback are
not possible until the connection is established.
When the transmitter is connected to the GPS
device, the transmitter’s <
USB
> lamp is lit in green
and a message is displayed indicating that a
connection has been established.
When the confirmation message is displayed,
select [OK].

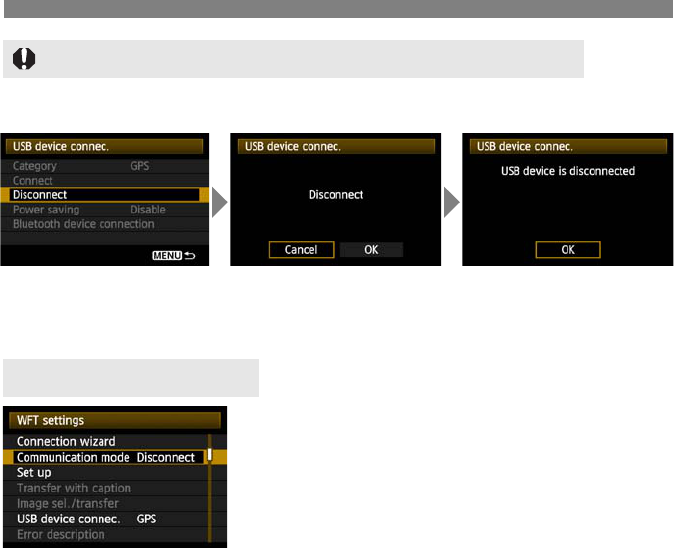

XAt this point, the menu option [Disconnect]
becomes available. Select this option before
disconnecting the GPS device.
6Take the picture.
Make sure the transmitter’s <
USB
> lamp is lit in
green before shooting.
If the <
USB
> lamp is not lit in green when you shoot,
correct GPS data will not be added to images.
7Check the GPS data.
View an image.
Press the <6> button to display the shooting
information screen with GPS data.
From top to bottom: latitude, longitude,
altitude, and Coordinated Universal Time
The date and time indicated is the Coordinated Universal Time (UTC) as obtained by the GPS device,
which is nearly the same as Greenwich Mean Time (GMT). In some cases, the date and time of the
zone specified on the GPS device is indicated.
If the camera is turned off and on or recovering from auto power off, do not shoot until the <
USB
> lamp remains
lit in green. If you shoot while the lamp is blinking, the correct GPS information may not be added to images.
94
Connecting GPS Devices with a USB Cable
Before unplugging GPS devices from the USB port, always select [Disconnect] as shown in
step 5. Follow the instructions displayed to terminate the connection.
The connection will not be terminated if you simply turn off the camera and GPS device. If you
unplug GPS device while the connection is still active, plug the GPS device into the USB port
again and follow the preceding steps to terminate the connection.
If you will not use a wireless or wired LAN at the
same time as the GPS device, set
[Communication mode] to [Disconnect]. The
camera battery drains faster under settings other
than [Disconnect] because power saving is
disabled.
Unplugging GPS Devices from the USB Port
Power Management
95
By attaching the Canon Bluetooth Unit BU-30 to the USB port, you can connect Bluetooth®
GPS devices wirelessly. (Bluetooth® devices other than GPS devices cannot be connected).
When using non-Canon Bluetooth units, confirm normal operation before use.
Turn off the GPS device and camera before attaching the Bluetooth unit to the transmitter.
The transmitter’s USB port is not hot-pluggable. Bluetooth units cannot be connected or
disconnected indiscriminately. Follow the instructions in this section when attaching or
detaching Bluetooth units.

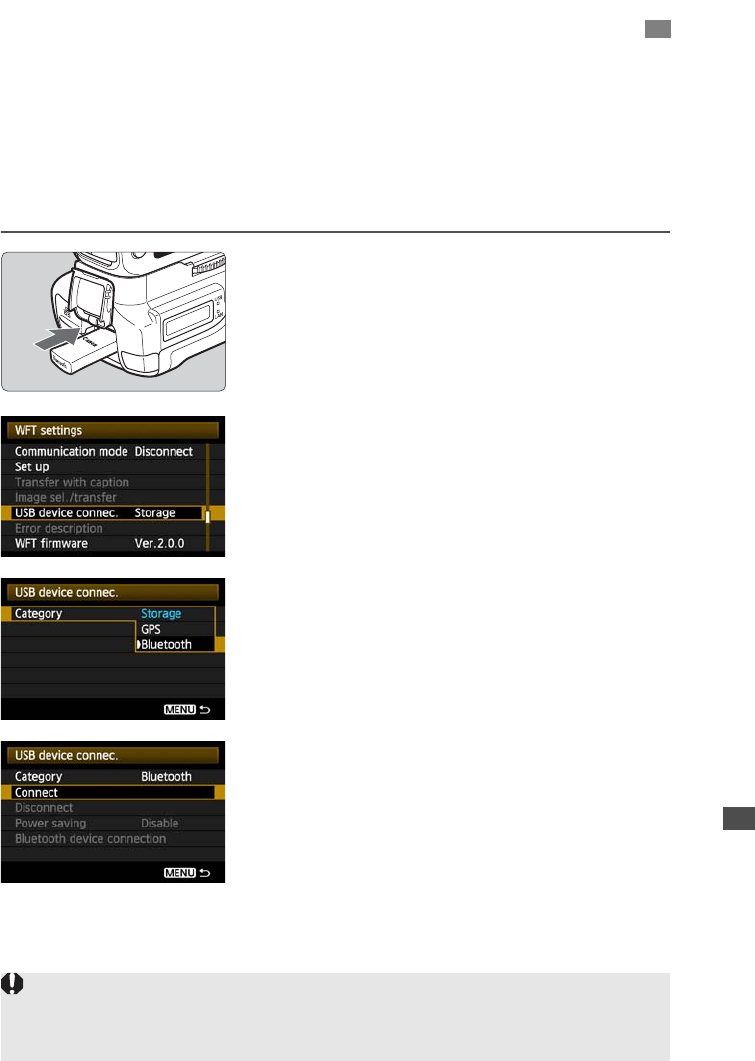

1Attach the Bluetooth unit.
Open the port cover and attach the Bluetooth unit.
2In [WFT settings], select [USB device
connec.]
If you will not use a wireless or wired LAN at the
same time as the Bluetooth unit, set
[Communication mode] to [Disconnect].
3Select [Bluetooth].
4Select [Connect].
Connecting GPS Devices via Bluetooth
When replacing the transmitter battery, always set the camera’s power switch to <
OFF
> before
opening the transmitter battery compartment cover. If the transmitter battery compartment cover is
opened without setting the camera’s power switch to <
OFF
>, you will need to reestablish the
connection to the Bluetooth unit.
96
Connecting GPS Devices via Bluetooth
5Select [OK].
After the Bluetooth unit is attached to the
transmitter, the transmitter’s <
USB
> lamp blinks in
green and a message is displayed indicating that a
connection has been established.
When the confirmation message is displayed, select [
OK
].
XAt this point, the menu option [Disconnect]
becomes available. Select this option before
detaching the GPS device.
6
Establish a wireless connection between
the GPS device and Bluetooth unit.
Turn on the GPS device and activate Bluetooth® on it.
Select [Bluetooth device connection].
XNearby Bluetooth® devices in use are listed. (Only
GPS devices can be connected.)
7Select the GPS device.
Press <0> to display the connection status of
Bluetooth® devices.
Pressing <
0
> when the status is [
Not connected
]
will list nearby Bluetooth® devices in use.
Turn the <5> dial to select [GPS] , and then
press <0>.
Select [OK] and press <0>.
If a Bluetooth® password has been set on the
GPS device, a password input screen is displayed.
Enter the password.
XThe transmitter now starts to establish a
connection with the GPS device.
It may take a few minutes to establish a
connection with the GPS device.
Camera operations such as shooting, menu
display, or image playback are not possible
until the connection is established.
97
Connecting GPS Devices via Bluetooth

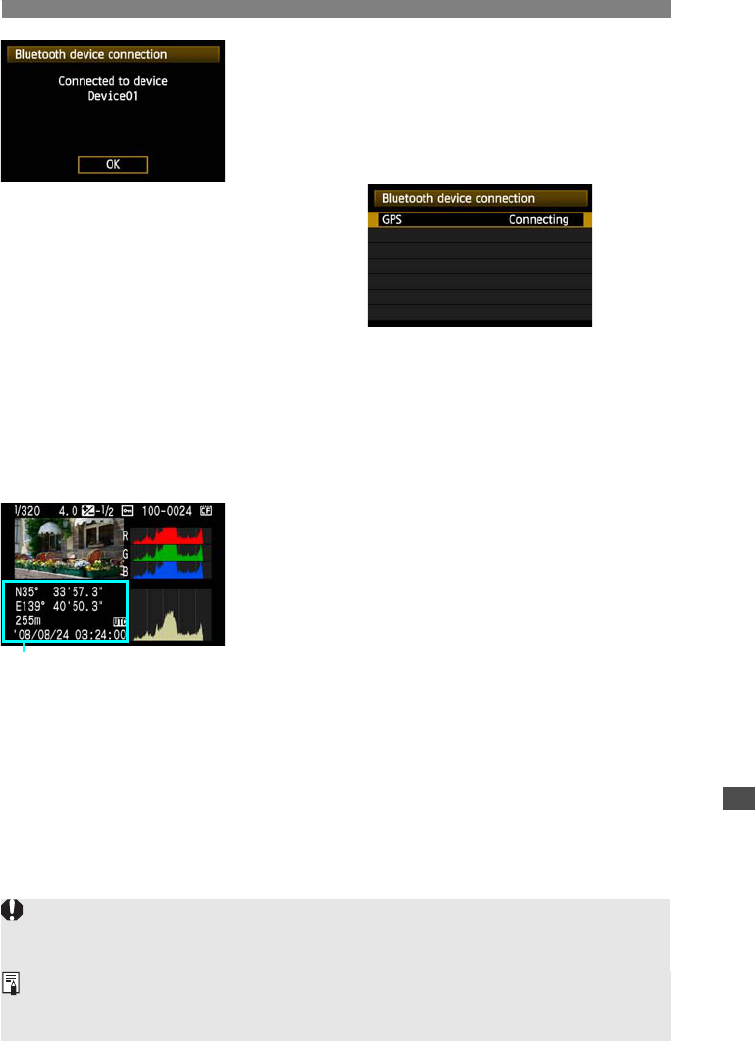

8When the confirmation message is
displayed, select [OK].
The GPS connection status changes to
[Connected]. Pressing <0> under these
conditions will enable you to disconnect the GPS
device
9Take the picture.
Make sure the transmitter’s <
USB
> lamp is lit in
green before shooting.
If the <
USB
> lamp is not lit in green when you
shoot, the correct GPS data will not be added
to images.
10Check the GPS data.
View an image.
Press the <6> button to display the shooting
information screen with GPS data.
From top to bottom: latitude, longitude,
altitude, and Coordinated Universal Time
If the camera is turned off and on or recovering from auto power off, do not shoot until the <
USB
> lamp
remains lit in green. If you shoot while the lamp is blinking, the correct GPS information may not be
added to images.
The date and time indicated is the Coordinated Universal Time (UTC) as obtained by the GPS device,
which is nearly the same as Greenwich Mean Time (GMT). In some cases, the date and time of the
zone specified on the GPS device is indicated.
98
Connecting GPS Devices via Bluetooth
Before detaching Bluetooth units from the USB port, always select [Disconnect] as shown in
step 5. Follow the instructions displayed to terminate the connection.
The connection with the Bluetooth unit will not be terminated if you simply turn off the camera. If
you detach a Bluetooth unit while the connection is still active, attach the Bluetooth unit again
and follow the preceding steps to terminate the connection.
If you will not use a wireless or wired LAN at the
same time as the Bluetooth unit, set
[Communication mode] to [Disconnect]. The
camera battery drains faster under settings other
than [Disconnect] because power saving is
disabled.
Detaching Bluetooth units from the USB port
Power Management
99
Troubleshooting
100
If transmitter errors are displayed on the camera LCD monitor, refer to the examples of
corrective actions in this section to eliminate the cause of the error. The error details can also
be checked on the [5] tab [WFT settings] [Error description].
Click the error number in the following chart to jump to the corresponding page.
Responding to Error Messages
11 (p.101) 12 (p.101)
21 (p.101) 22 (p.102) 23 (p.102) 24 (p.103) 25 (p.104)
26 (p.104)
31 (p.105) 32 (p.105) 33 (p.105) 34 (p.105)
41 (p.106) 42 (p.107) 43 (p.107) 44 (p.107) 45 (p.108)
46 (p.108) 47 (p.109)
51 (p.109) 52 (p.109) 53 (p.109) 54 (p.109)
61 (p.110) 62 (p.110) 63 (p.111) 64 (p.111) 65 (p.111)
66 (p.112) 67 (p.112) 68 (p.112) 69 (p.112)
71 (p.113) 72 (p.113)
81 (p.113)
99 (p.113)
101
Responding to Error Messages
Is the pairing software running?
XStart the pairing software and follow the instructions to re-establish the connection. (p.48)
Are the transmitter and wireless LAN terminal configured with the same encryption
key for authentication?
XThis error occurs if the encryption keys do not match when the authentication method for
encryption is [Open system].
The setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct encryption key for authentication is entered on the transmitter. (p.26)
Are the target computer and wireless LAN terminal on?
XTurn on the target computer and wireless LAN terminal.
What to check on the transmitter
On the transmitter, the network setting is [Auto setting] or the IP address setting is
[Auto assign]. Does the error occur under these settings?
XIf no DHCP server is used, set the transmitter’s network setting to [Manual setting] and
IP address setting to [Manual setting]. (p.29)
What to check on the DHCP server
Is the DHCP server on?
XTurn the DHCP server on.
Are there enough addresses for assignment by the DHCP server?
XIncrease the number of addresses assigned by the DHCP server.
XRemove devices assigned addresses by the DHCP server from the network to reduce the
number of addresses in use.
Is the DHCP server working correctly?
XCheck the DHCP server settings to make sure it is working correctly as a DHCP server.
XIf applicable, ask your network administrator to ensure the DHCP server is available.
11: Connection target not found
12: Connection target not found
21: No address assigned by DHCP server
Responding to Error Messages 21 - 26
Also check the following points when responding to errors numbered 21 - 26.
Are the transmitter and wireless LAN terminal configured with the same encryption key for
authentication?
XThis error occurs if the encryption keys do not match when the authentication method for
encryption is [Open system]. The setting is case-sensitive, so check upper- and lower-case
characters. Make sure the correct encryption key for authentication is entered on the transmitter.
(p.26)
102
Responding to Error Messages
What to check on the transmitter
On the transmitter, the DNS address setting is [Auto assign] or [Manual setting].
Does the error occur under these settings?
XIf no DNS server is used, set the transmitter’s DNS address setting to [Disable]. (p.29)
On the transmitter, does the DNS server’s IP address setting match the server’s
actual address?
XConfigure the IP address on the transmitter to match the actual DNS server address.
(p.29, 115)
What to check on the DNS server
Is the DNS server on?
XTurn the DNS server on.
Are the DNS server settings for IP addresses and the corresponding names
correct?
XOn the DNS server, make sure IP addresses and the corresponding names are entered
correctly.
Is the DNS server working correctly?
XCheck the DNS server settings to make sure the server is working correctly as a DNS
server.
XIf applicable, ask your network administrator to ensure the DNS server is available.
What to check on the network as a whole
Does your network include a router or similar device that serves as a gateway?
XIf applicable, ask your network administrator for the network gateway address and enter it
on the transmitter. (p.29, 115)
XMake sure the gateway address setting is correctly entered on all network devices,
including the transmitter.
What to check on the transmitter
Is another device on the transmitter network using the same IP address as the
transmitter?
XChange the transmitter’s IP address to avoid using the same address as another device
on the network. Otherwise, change the IP address of the device that has a duplicate
address.
XIn network environments with a DHCP server, if the transmitter’s IP address setting is
[Manual setting], change it to [Auto assign]. (p.29)
22: No response from DNS server
23: Duplicate IP address
103
Responding to Error Messages
What to check on the transmitter
The transmitter’s proxy server setting is [Enable]. Does the error occur under this
setting?
XIf no proxy server is used, set the transmitter’s proxy server setting to [Disable]. (p.34)
Do the transmitter’s [Address setting] and [Port No.] settings match those of the
proxy server?
XConfigure the transmitter’s proxy server address and port number to match those of the proxy
server. (p.34)
In the transmitter’s [Proxy server] settings, have you only entered [Server name]?
XIf the proxy server’s [Address] setting is not configured on the transmitter, enter it along
with the DNS server address. (p.29) Make sure the server name and port number for the
proxy server are entered correctly. (p.34)
What to check on the proxy server
Is the proxy server on?
XTurn the proxy server on.
Is the proxy server working correctly?
XCheck the proxy server settings to make sure the server is working correctly as a proxy
server.
XIf applicable, ask your network administrator for the proxy server address or server name
and port number, and then enter them on the transmitter.
What to check on the network as a whole
Does your network include a router or similar device that serves as a gateway?
XIf applicable, ask your network administrator for the network gateway address and enter it
on the transmitter.
XMake sure the gateway address setting is correctly entered on all network devices,
including the transmitter.
24: No response from proxy server
104
Responding to Error Messages
Is another device on the transmitter network using the same IP address as the
transmitter?
XThis error occurs if the transmitter is connected to a network where another device
subsequently connects with the same IP address. Change the transmitter’s IP address to
avoid using the same address as another device on the network. Otherwise, change the
IP address of the device that has a duplicate address.
What to check on the transmitter
On the transmitter, the network setting is [Auto setting]. Does the error occur under
this setting?
XIf no DHCP server is used, set the transmitter’s network setting to [Manual setting].
(p.29)
What to check on the DHCP server
Is the DHCP server on?
XTurn the DHCP server on.
Are the DHCP server settings for IP addresses and the corresponding names
correct?
XOn the DHCP server, make sure IP addresses and the corresponding names are entered
correctly.
Is the DHCP server working correctly?
XCheck the DHCP server settings to make sure it is working correctly as a DHCP server.
XIf applicable, ask your network administrator to ensure the DHCP server is available.
What to check on the network as a whole
Does your network include a router or similar device that serves as a gateway?
XIf applicable, ask your network administrator for the network gateway address and enter it
on the transmitter. (p.29)
XMake sure the gateway address setting is correctly entered on all network devices,
including the transmitter.
25: Another terminal has set the same IP address
26: No response from DHCP server
105
Responding to Error Messages
Has the USB cable been disconnected?
XAfter connecting the USB cable, in [WFT settings], select [USB device connec.] and
reconnect the device.
Is the USB device on?
XTurn the USB device on. Next, also in [WFT settings], select [USB device connec.] and
reconnect the device.
Have you connected a USB device other than external media, a GPS device, or a
Bluetooth unit?
XConnect only external media, GPS devices, or Bluetooth units.
The device is incompatible with the transmitter.
XExternal media with built-in card slots are not compatible. Similarly, USB card readers
cannot be used.
Is the external media formatted with a FAT16 or FAT32 file system?
XFormat the external media with a FAT16 or FAT32 file system using the computer.
The GPS device is incompatible with the transmitter.
XAmong GPS devices, we recommend devices for which operation has been verified by
Canon.
There is a problem with the external media.
XConnect the external media to a computer and confirm that it is working correctly.
Have you connected a USB device other than external media, a GPS device, or a
Bluetooth unit?
XConnect only external media, GPS devices, or Bluetooth units.
31: USB connection disconnected
32: Incompatible USB device
33: USB device error
34: Cannot connect to USB device
106
Responding to Error Messages
What to check on the transmitter
On the transmitter, does the FTP server’s IP address setting match the server’s
actual address?
XConfigure the IP address on the transmitter to match the actual FTP server address.
(p.34)
Are the transmitter and wireless LAN terminal configured with the same encryption
key for authentication?
XThis error occurs if the encryption keys do not match when the authentication method for
encryption is [Open system].
The setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct encryption key for authentication is entered on the transmitter. (p.26)
On the transmitter, does the [Port number setting] for the FTP server match the
actual port number of the FTP server?
XConfigure the same port number (usually 21) on the transmitter and FTP server.
Configure the port number on the transmitter to match the actual FTP server port number.
(p.34)
If only the FTP server’s [Server name] is configured on the transmitter, are the DNS
server settings complete?
XIf the FTP server’s [Address] setting is not configured on the transmitter, enable use of
the DNS server on the transmitter and enter its address. (p.29) Make sure the FTP server
name is entered correctly. (p.34)
What to check on the FTP server
Is the FTP server working correctly?
XConfigure the computer correctly to function as an FTP server.
XIf applicable, ask your network administrator for the FTP server address and port number,
and then enter them on the transmitter.
Is the FTP server on?
XTurn the FTP server on. The server may have been turned off because of an energy-
saving mode.
On the transmitter, does the FTP server’s IP address setting (in [Address]) match
the server’s actual address?
XConfigure the IP address on the transmitter to match the actual FTP server address.
(p.34)
Is a firewall or other security software enabled?
XSome security software uses a firewall to restrict access to the FTP server. Change the
firewall settings to allow access to the FTP server.
XYou may be able to access the FTP server by setting [Passive mode] to [Enable] on the
transmitter. (p.76)
41: Cannot connect to FTP server
107
Responding to Error Messages
Are you connecting to the FTP server via a broadband router?
XSome broadband routers use a firewall to restrict access to the FTP server. Change the
firewall settings to allow access to the FTP server.
XYou may be able to access the FTP server by setting [Passive mode] to [Enable] on the
transmitter. (p.76)
If you are using Windows XP Service Pack 2 or later, is access to the FTP server
blocked by [Windows Firewall]?
XChange the Windows Firewall settings to allow access to the FTP server.
What to check on the network as a whole
Does your network include a router or similar device that serves as a gateway?
XIf applicable, ask your network administrator for the network gateway address and enter it
on the transmitter. (p.29)
XMake sure the gateway address setting is correctly entered on all network devices,
including the transmitter.
What to check on the FTP server
Is the FTP server configured to restrict access to only some IP addresses?
XChange the FTP server settings to allow access from the [IP address] configured on the
transmitter in the TCP/IP settings.
What to check on the FTP server
Have you exceeded the maximum number of FTP server connections?
XDisconnect some network devices from the FTP server or increase the maximum number
of connections.
This error occurs if the transmitter fails to disconnect from the FTP server for some
reason.
XRestart the FTP server and camera.
42: FTP server rejected connection
43: Cannot connect to FTP server. Error code received from server.
44: Cannot disconnect FTP server. Error code received from server.
108
Responding to Error Messages
What to check on the transmitter
On the transmitter, is the [Login name] entered correctly?
XCheck the logon name for accessing the FTP server. The setting is case-sensitive, so
check upper- and lower-case characters. Make sure the correct logon name is entered on
the transmitter. (p.35)
On the transmitter, is the [Login password] entered correctly?
XIf a logon password is configured on the FTP server, check the upper- and lower-case
characters to make sure the password on the transmitter matches it. (p.35)
What to check on the FTP server
Do the user rights for the FTP server allow reading, writing, and log access?
XConfigure the FTP server’s user rights to allow reading, writing, and log access.
Is the folder specified as the transfer destination on the FTP server named with
ASCII characters (p.31)?
XUse ASCII characters for the folder name.
What to check on the FTP server
The connection was terminated by the FTP server.
XRestart the FTP server.
Do the user rights for the FTP server allow reading, writing, and log access?
XConfigure the FTP server’s user rights to allow reading, writing, and log access.
Do user rights allow access to the target folder on the FTP server?
XConfigure the user rights for access to the target folder on the FTP server to allow saving
images from the transmitter.
Is the FTP server on?
XTurn the FTP server on. The server may have been turned off because of an energy-
saving mode.
Is the hard disk of the FTP server full?
XIncrease available space on the hard disk.
45: Cannot login to FTP server. Error code received from server.
46: For the data session, error code received from FTP server
109
Responding to Error Messages
This error occurs if, for some reason, the transmitter fails to receive confirmation
from the FTP server that image file transfer is complete.
XRestart the FTP server and camera and send the images again.
Is the Bluetooth unit too far from the GPS device?
XBring the GPS device closer to the Bluetooth unit.
Are any obstacles blocking the line of sight between the Bluetooth unit and the
GPS device?
XMove the GPS device to a position visible from the point of view of the Bluetooth unit.
The Bluetooth unit and GPS device were disconnected, for some reason, and the
connection cannot be restored.
XThe connection is more likely to be lost if there are nearby wireless LAN terminals,
cordless telephones, microphones, microwave ovens, or similar devices operating on the
same 2.4 GHz band used for Bluetooth communication. Also note that the connection is
more likely to be lost in poor weather or high humidity.
Is the GPS device on?
XTurn the GPS device on.
Is the GPS device ready for the Bluetooth connection?
XTurn the GPS device on and set it up for connection via Bluetooth.
Is the Bluetooth unit too far from the GPS device?
XBring the GPS device closer to the Bluetooth unit.
Is the GPS device on?
XTurn the GPS device on.
Is the same password set on the Bluetooth unit and GPS device?
XThe setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct password is entered on the GPS device and Bluetooth unit.
The GPS device does not support SPP (Serial Port Profile).
XConfirm that the GPS device supports SPP.
47: Image file transfer completion not confirmed by FTP server
51: Connection with Bluetooth unit lost
52: Bluetooth unit not found
53: Incorrect Bluetooth password
54: No Bluetooth service
110
Responding to Error Messages
Are any obstacles blocking the line of sight between the transmitter and the
antenna of the wireless LAN terminal?
XMove the antenna to a position clearly visible from the point of view of the transmitter.
(p.114)
What to check on the transmitter
On the transmitter, does the SSID setting match that of the wireless LAN terminal?
XCheck the SSID on the wireless LAN terminal, and configure the same SSID on the
transmitter. (p.25)
What to check on the wireless LAN terminal
Is the wireless LAN terminal on?
XTurn on the wireless LAN terminal.
If you are filtering by MAC address, did you register the transmitter’s MAC address
on the wireless LAN terminal?
XRegister the transmitter’s MAC address (p.74) on the wireless LAN terminal.
What to check on the transmitter
Is the transmitter configured for communication in infrastructure mode?
XConfigure the transmitter for communication in ad hoc mode.
What to check on the wireless LAN terminal
Is there a nearby wireless LAN terminal for ad hoc communication?
XPrepare a wireless LAN terminal for ad hoc communication near the transmitter.
61: Same SSID wireless LAN terminal not found
62: No response from wireless LAN terminal
111
Responding to Error Messages
Are the transmitter and wireless LAN terminal configured for the same
authentication method?
XThe transmitter supports these authentication methods: [Open system], [Shared key],
[WPA-PSK], and [WPA2-PSK]. (p.25)
XWhen using an AirPort for communication in infrastructure mode, [Open system] is not
supported. Configure a [Shared key] on the transmitter. (p.25)
Are the transmitter and wireless LAN terminal configured with the same encryption
key for authentication?
XThe setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct encryption key for authentication is entered on the transmitter and wireless LAN
terminal. (p.26)
If you are filtering by MAC address, did you register the transmitter’s MAC address
on the wireless LAN terminal?
XRegister the transmitter’s MAC address (p.74) on the wireless LAN terminal.
Are the transmitter and wireless LAN terminal configured for the same encryption
method?
XThe transmitter supports these encryption methods: [WEP], [TKIP], and [AES]. (p.25)
If you are filtering by MAC address, did you register the transmitter’s MAC address
on the wireless LAN terminal?
XRegister the transmitter’s MAC address (p.74) on the wireless LAN terminal.
Are any obstacles blocking the line of sight between the transmitter and the
antenna of the wireless LAN terminal?
XMove the antenna to a position clearly visible from the point of view of the transmitter.
(p.114)
The wireless LAN connection was lost, for some reason, and the connection
cannot be restored.
XThe following are possible reasons: excessive access to the wireless LAN terminal from
other terminals, a microwave oven or similar appliance in use nearby (interfering with
IEEE 802.11b/g reception), or poor weather or high humidity. (p.114)
63: Wireless LAN authentication failed
64: Cannot connect to wireless LAN terminal
65: Wireless LAN connection lost
112
Responding to Error Messages
Are the transmitter and wireless LAN terminal configured with the same encryption
key for authentication?
XThe setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct encryption key for authentication is entered on the transmitter and wireless LAN
terminal. (p.26)
Note that if the authentication method is [Open system], an Error 41 (“Cannot connect to
FTP server”) is displayed.
Are the transmitter and wireless LAN terminal configured for the same encryption
method?
XThe transmitter supports these encryption methods: [WEP], [TKIP], and [AES]. (p.25)
If you are filtering by MAC address, did you register the transmitter’s MAC address
on the wireless LAN terminal?
XRegister the transmitter’s MAC address (p.74) on the wireless LAN terminal.
Have you pressed the Wi-Fi Protected Setup (WPS) button on the wireless LAN
terminal for as long as indicated in the wireless LAN terminal instructions?
XRefer to the instruction manual for the wireless LAN terminal to determine how long to
hold the WPS button.
Are you attempting to establish the connection near the wireless LAN terminal?
XTry establishing the connection when both devices are within reach of each other.
Connection is in progress by other wireless LAN terminals in Pushbutton
Connection mode (PBC mode) of Wi-Fi Protected Setup (WPS).
XWait a while before trying to establish the connection, or try to establish a connection in
PIN code connection mode (PIN mode). (p.28)
66: Incorrect wireless LAN encryption key
67: Incorrect wireless LAN encryption method
68: Cannot connect to wireless LAN terminal. Retry from the
beginning.
69: Multiple wireless LAN terminals have been found. Cannot
connect. Retry from the beginning.
113
Responding to Error Messages
Are you following the correct procedure to establish the connection with slave
cameras?
XOperate slave cameras by following the correct instructions (p.70, 71).
Are the slave cameras too far from the master camera?
XBring the slave cameras closer to the master camera.
Are you following the correct procedure to establish the connection with master
camera?
XOperate the master camera by following the correct instructions (p.70, 71).
Is the master camera too far from the slave cameras?
XBring the master camera closer to the slave cameras.
Is the LAN cable securely connected?
XReconnect the LAN cable between the transmitter and server. Because the cable may be
severed, try using another cable to connect the devices.
Is the hub or router on?
XTurn on the hub or router.
Is the server on?
XTurn the server on. The server may have been turned off because of an energy-saving
mode.
Another problem has occurred, identified with an error number other than 11 to 81.
XTurn the camera’s power switch off and on.
71: Cannot connect to slave cameras
72: Cannot connect to the master camera
81: Wired LAN connection lost
99: Other error
114
When using the transmitter with a wireless LAN, try the following corrective actions if the
transmission rate drops, the connection is lost, or other problems occur.
When using the transmitter indoors, install the wireless LAN terminal in the same room
where you are shooting.
Install the wireless LAN terminal higher than the transmitter.
Install the device where people or objects do not come between it and the camera.
Install the device as close as possible to the camera. In particular, note that during
outdoor use in poor weather, rain may absorb radio waves and disrupt the connection.
If the transmission rate over a wireless LAN drops because of interference from the following
electronic devices, switching to a wired LAN can resolve the problem.
The transmitter communicates over wireless LANs via IEEE 802.11b/g and Bluetooth
using radio waves in the 2.4 GHz band. For this reason, the wireless LAN transmission
rate may drop if there are nearby microwave ovens, cordless telephones, microphones,
or similar devices operating on the same frequency band.
If a wireless LAN terminal on the same frequency band as the transmitter is used nearby,
the transmission rate of the wireless LAN may drop.
If multiple transmitters are connected to a single wireless LAN terminal, be careful not to
use duplicate camera IP addresses.
Note that the transmission rate drops when multiple transmitters access a single wireless
LAN terminal.
To reduce radio wave interference when there are multiple wireless IEEE 802.11b/g
devices, leave a gap of four channels between each wireless LAN channel. For example,
use channels 1, 6, and 11, channels 2, 7, and 12, or channels 3, 8, and 13.
When IEEE 802.11a can be used, switch to IEEE 802.11a and specify a different channel.
Wireless LAN radio waves can be easily intercepted. For this reason, we recommend
activating encrypted communication in the wireless LAN terminal settings.
Wireless LAN Notes
Wireless LAN Terminal Installation and Antenna Position
Nearby Electronic Devices
Using Multiple Transmitters
Security
115
Click the Windows [Start] button [All Programs] [Accessories] [Command Prompt].
Type ipconfig/all and press the <
Enter
> key.
The IP address assigned to the computer is displayed, as well as the subnet mask, gateway,
and DNS server information.
To avoid using the same IP address for the computer and other devices on the network when
configuring the IP address assigned to the camera (page 29), change the rightmost numbers
here.
In Mac OS X, open the [Terminal] application, type ifconfig -a, and press the <
Return
> key.
The IP address assigned to the computer is indicated in the [en0] item by [inet], in the format
***.***.***.***.
To avoid using the same IP address for the computer and other devices on the network when
configuring the IP address assigned to the camera (page 29), change the rightmost numbers
here.
* For information on the [Terminal] application, refer to the Mac OS X help.
Checking Network Settings
Windows
Macintosh
116
117
Reference
118
You can configure the wireless or wired LAN settings by using the software provided with the
camera, WFT Utility. This is convenient if you want to create a wireless or wired LAN settings
file when the camera and transmitter are not nearby.
WFT Utility also enables you to create captions for attachment to images before transfer via
FTP.

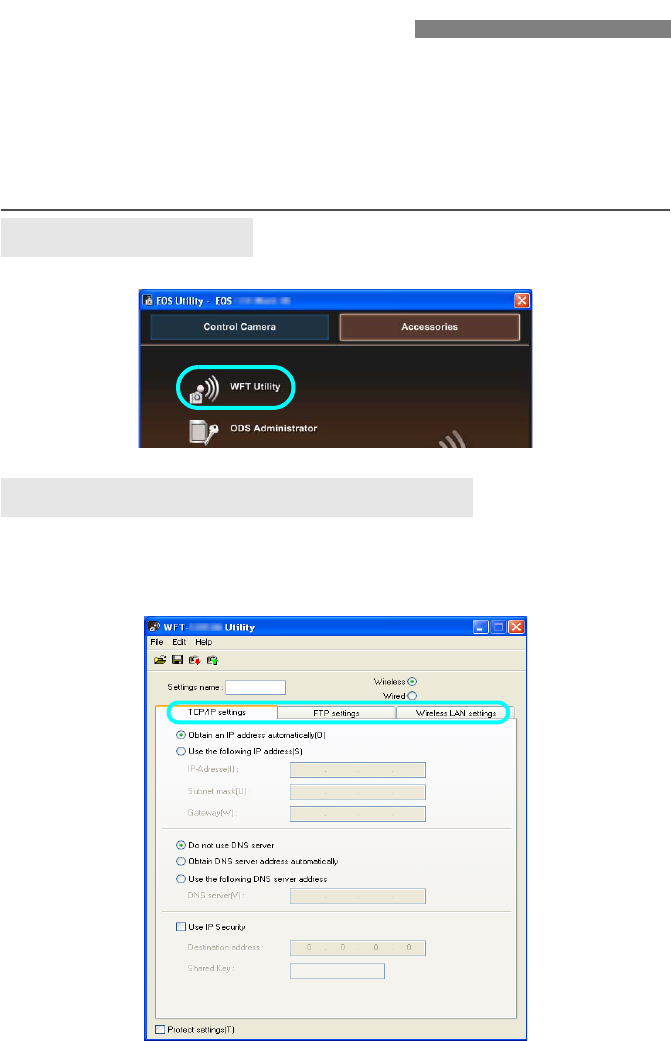

Start WFT Utility from EOS Utility.
In EOS Utility, access [Accessories] to start WFT Utility.
Click the tabs for the transmitter’s [TCP/IP settings], [FTP settings], and [Wireless LAN
settings] and complete the required settings for a wireless or wired LAN connection.
Settings available here are the same as settings on the camera, with the addition of settings
for creating captions.
WFT Utility (Software)
Starting WFT Utility
Using Wireless or Wired LAN Settings
119
WFT Utility (Software)

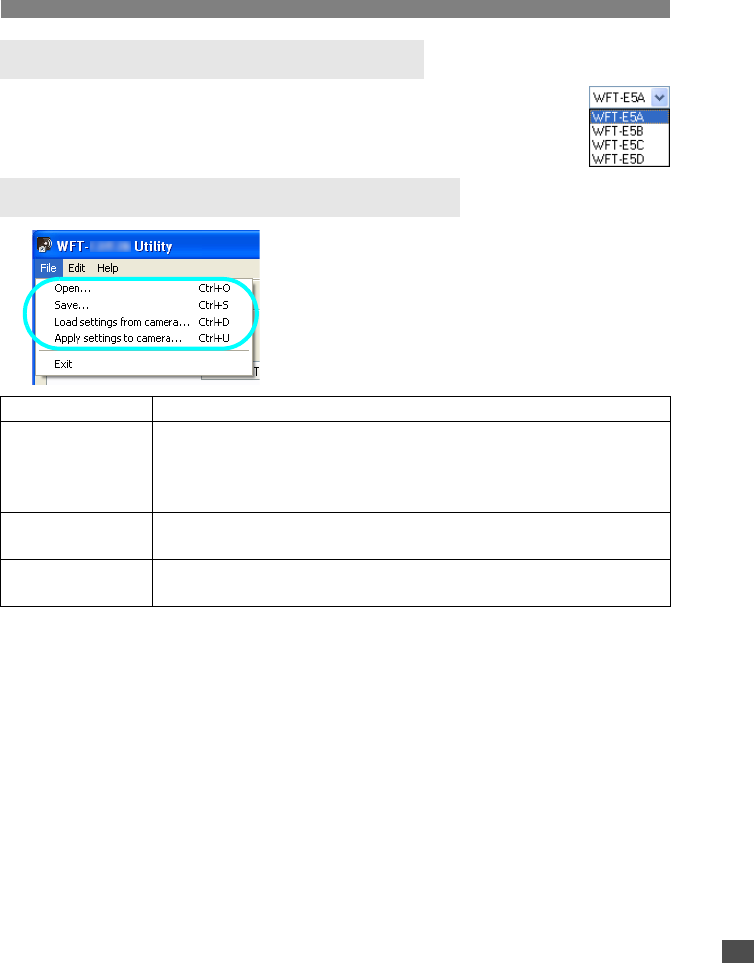

When setting the wireless LAN channel on the [Wireless LAN
Settings] tab, first select the version of transmitter used.
Settings files can be used as follows.
Setting the Wireless LAN Channel
Wireless or Wired LAN Settings Files
Open Open a settings file saved on the computer or a CF card.
Save
Save the settings file on the computer or a CF card. The [Settings name] is
used as the file name.
For instructions on applying a settings file on a CF card to the camera, refer
to page 78.
Load settings from
camera
Load a settings file on the camera to the computer. The camera and
computer must be connected with the USB cable.
Apply settings to
camera
Apply the settings file to a camera. The camera and computer must be
connected with the USB cable.
120
Follow these steps to create captions and register them on the camera, as introduced in
“Adding a Caption Before Transfer” (p.39). When creating and registering captions, use a
computer on which EOS Utility is installed.
Before you begin, attach the transmitter to the camera and use the USB cable provided
with the camera to connect the camera to the computer. For instructions on connecting the
camera to the computer with the USB cable and starting EOS Utility, refer to the Software
Instruction Manual (PDF) provided with the camera. Note that captions cannot be created for
cameras without an attached transmitter.
1Start EOS Utility and select [Camera
settings/Remote shooting].
XThe camera settings/remote
capture screen is displayed.
2On the [ ] tab, select [WFT Captions].
XThe screen for caption creation is displayed.
To acquire caption data stored on the camera,
select [Load settings].
3Enter the caption or captions.
Enter up to 31 characters (in ASCII format).
4Register the captions on the camera.
Select [Apply to camera] to register your new
captions on the camera.
Creating and Registering Captions
121
Type
Type: Image transfer accessory that can be used in wireless LANs and over
Ethernet in wired LANs (IPsec-compatible). Can be connected via USB
to external media, GPS devices, and Bluetooth units. Controls for
vertical shooting included.
Wireless LAN
Standards compliance: IEEE 802.11a (WFT-E5A/B/C) and ARIB STD-T71
IEEE802.11b and ARIB STD-T66
IEEE802.11g and ARIB STD-T66
Transmission method: OFDM modulation (IEEE 802.11a/g)
DS-SS modulation (IEEE 802.11b)
Transmission range: Approx. 150 m / 492 ft.
* With no obstructions between the transmitting and receiving antennas
and no radio interference
* With a large, high-performance antenna attached to the wireless LAN
access point
Transmission frequency: WFT-E5A: 5,180 - 5,320 MHz, channels 36 - 64
(central frequency) 5,745 - 5,825 MHz, channels 149 - 165
2,412 - 2,462 MHz, channels 1 - 11
WFT-E5B: 5,180 - 5,320 MHz, channels 36 - 64
5,500 - 5,700 MHz, channels 100 - 140
2,412 - 2,472 MHz, channels 1 - 13
WFT-E5C: 5,745 - 5,805 MHz, channels 149 - 161
2,412 - 2,472 MHz, channels 1 - 13
WFT-E5D: 2,412 - 2,462 MHz, channels 1 - 11
Connection method: Infrastructure or ad hoc mode
* Wi-Fi Protected Setup supported
Security: Authentication method: Open, shared key, WPA-PSK, and WPA2-PSK
Encryption: WEP, TKIP, and AES
Wired LAN
Standards compliance: IEEE 802.3u (Ethernet 10BASE-T and 100BASE-TX)
USB Connection
Connectable devices: External media, GPS devices, and Bluetooth units
Interfaces
Camera: Extension system terminal
Wired LAN: Ethernet RJ-45 port
External device: Hi-Speed USB port (for attaching external media, GPS devices, and
Bluetooth units)
Specifications
122
Specifications
Power Source
Battery: Battery Pack LP-E6; One battery is used.
Battery check: Automatic
Number of images
that can be transferred Approx. number of images
* Using a fully charged LP-E6. The number of images that can be
transferred is nearly the same at normal temperature (23°C / 73°F)
and low temperature (0°C / 32°F).
* When automatic transfer is performed during shooting of an image of
approx. *.* MB under conditions based on the CIPA (Camera &
Imaging Products Association) test standards.
* Fewer images can be transferred when transferring images over a
wireless LAN.
* Fewer images can be transferred when using bus-powered external
media or GPS devices.
Dimensions and Weight
Dimensions (W x H x D): *** x *** x *** mm / *** x *** x *** in.
Weight: Approx. *** g / *** oz. (Body only)
Operating Environment
Temperature: 0°C - 40°C / 32°F - 104°F
Humidity: 85% or less
All preceding specifications are based on Canon testing standards.
Transmitter specifications and appearance are subject to change without notice
LAN At Normal Temperature
(23°C / 73°F)
At Low Temperature
(0°C / 32°F)
Wireless LAN 2100 2100
Wired LAN 2400 2400
USA and Canada only:
The Lithium ion/polymer battery is recyclable. Please call 1-800-8-
BATTERY for information on how to recycle this battery.
When connecting to and using a household power outlet, use only AC Adapter
Kit ACK-E6 (rated input: 100-240 V AC 50/60 Hz, rated output: 8.0 V DC). Using
anything else can cause fire, overheating, or electrical shock.
Model Number
WFT-E5A : DS585782
WFT-E5B : DS585781
WFT-E5C : DS585783
WFT-E5D : DS585784
123

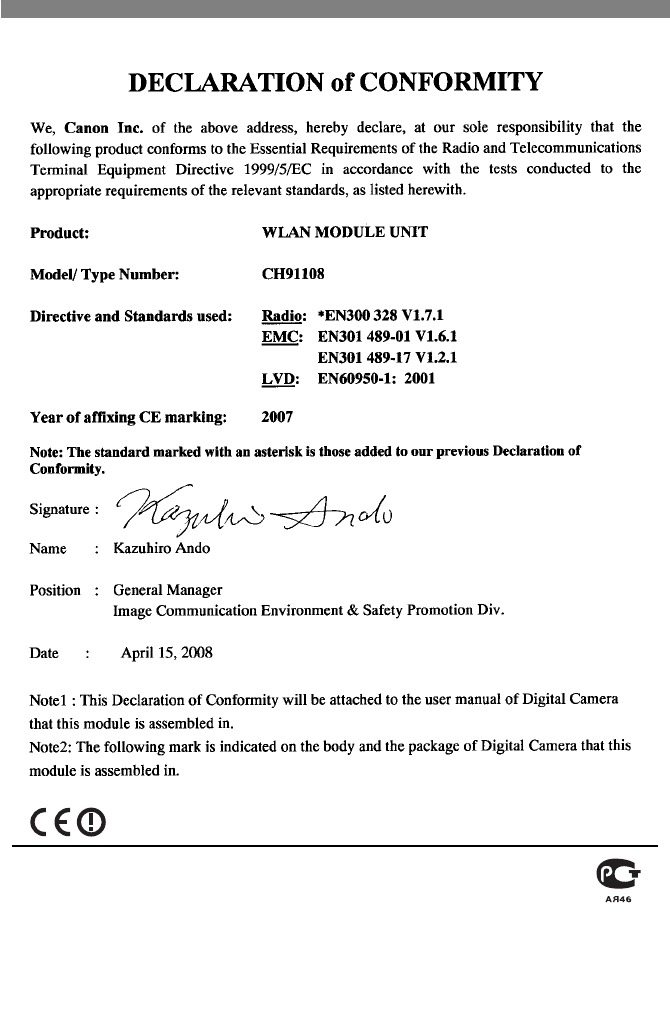

124
125
Statement on EC directive
Canon Inc. tímto prohlašuje, že tento CH9-1161 je ve shodČ se základními požadavky a dalšími pĜíslušnými
ustanoveními smČrnice 1999/5/ES.
Undertegnede Canon Inc. erklærer herved, at følgende udstyr CH9-1161 overholder de væsentlige krav og
øvrige relevante krav i direktiv 1999/5/EF.
Hiermit erklärt Canon Inc., dass sich das Gerät CH9-1161 in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Käesolevaga kinnitab Canon Inc. seadme CH9-1161 vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Hereby, Canon Inc., declares that this CH9-1161 is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Por medio de la presente Canon Inc. declara que el CH9-1161 cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
ȂǼ ȉǾȃ ȆǹȇȅȊȈǹ Canon Inc. ¨ǾȁȃǼǿ ȅȉǿ CH9-1161 ȈȊȂȂȅȇĭȃǼȉǹǿ ȆȇȅȈ ȉǿȈ ȅȊȈǿ¨ǼǿȈ
ǹȆǹǿȉǾȈǼǿȈ Ȁǹǿ ȉǿȈ ȁȅǿȆǼȈ ȈȋǼȉǿȀǼȈ ¨ǿǹȉǹȄǼǿȈ ȉǾȈ ȅ¨ǾīǿǹȈ 1999/5/ǼȀ.
Par la présente Canon Inc. déclare que l'appareil CH9-1161 est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
Con la presente Canon Inc. dichiara che questo CH9-1161 è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Ar šo Canon Inc. deklarƝ, ka CH9-1161 atbilst DirektƯvas 1999/5/EK bnjtiskajƗm prasƯbƗm un citiem ar to
saistƯtajiem noteikumiem.
Šiuo Canon Inc. deklaruoja, kad šis CH9-1161 atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Hierbij verklaart Canon Inc. dat het toestel CH9-1161 in overeenstemming is met de essentiële eisen en de
andere relevante bepalingen van richtlijn 1999/5/EG.
Hawnhekk, Canon Inc., jiddikjara li dan CH9-1161 jikkonforma mal-ƫtiƥijiet essenzjali u ma provvedimenti
oƫrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Alulírott, Canon Inc. nyilatkozom, hogy a CH9-1161 megfelel a vonatkozó alapvetõ követelményeknek és az
1999/5/EC irányelv egyéb elõírásainak.
Niniejszym Canon Inc. oĞwiadcza, Īe CH9-1161 jest zgodny z zasadniczymi wymogami oraz pozostaáymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Canon Inc. declara que este CH9-1161 está conforme com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
Canon Inc. izjavlja, da je ta CH9-1161 v skladu z bistvenimi zahtevami in ostalimi relevantnimi doloþili
direktive 1999/5/ES.
Canon Inc. týmto vyhlasuje, že CH9-1161 spĎĖa základné požiadavky a všetky príslušné ustanovenia
Smernice 1999/5/ES.
Canon Inc. vakuuttaa täten että CH9-1161 tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja
sitä koskevien direktiivin muiden ehtojen mukainen.
Härmed intygar Canon Inc. att denna CH9-1161 står I överensstämmelse med de väsentliga egenskapskrav
och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Hér með lýsir Canon Inc. yfir því að CH9-1161 er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru
í tilskipun 1999/5/EC.
Canon Inc. erklærer herved at utstyret CH9-1161 er i samsvar med de grunnleggende krav og øvrige
relevante krav i direktiv 1999/5/EF.
ɋ ɧɚɫɬɨɹɳɢɹ ɞɨɤɭɦɟɧɬ Canon Inc. ɞɟɤɥɚɪɢɪɚ,ɱɟ CH9-1161 ɟ ɜ ɫɴɝɥɚɫɢɟ ɫ ɨɫɧɨɜɧɢɬɟ ɢɡɢɫɤɜɚɧɢɹ ɢ
ɫɴɨɬɜɟɬɧɢɬɟ ɩɨɫɬɚɧɨɜɥɟɧɢɹ ɧɚ Ⱦɢɪɟɤɬɢɜɚ 1999/5/ȿɋ.
Prin prezenta, Canon Inc. declară că acest CH9-1161 este conform cu cerinĠele principale úi cu celelalte
prevederi relevante ale Directivei 1999/5/EC.
126
FCC / IC Notice
Model DS585782/DS585784 (including WLAN Module
Model CH9-1161, FCC ID is 161)
This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of this
device.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
The cable with the ferrite core provided with the digital camera must be used with this equipment
in order to comply with Class B limits in Subpart B of Part 15 of the FCC rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the
manual. If such changes or modifications should be made, you could be required to stop
operation of the equipment.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
The available scientific evidence does not show that any health problems are associated with
using low power wireless devices. There is no proof, however, that these low power wireless
devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency
energy (RF) in the microwave range while being used. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low-level RF that does not produce heating
effects causes no known adverse health effects. Many studies of low-level RF exposures have
not found any biological effects. Some studies have suggested that some biological effects
might occur, but such findings have not been con- firmed by additional research. DS585782/
DS585784 has been tested and found to comply with FCC/IC radiation exposure limits set forth
for an uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in
Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules.
Canon U.S.A Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516)328-5600
This class B digital apparatus complies with Canadian ICES-003.
127
A
AC adapter ................................................ 17
B
Battery ....................................................... 15
Battery check............................................. 16
H
Hand strap................................................. 14
Household power outlet............................. 17
L
LCD panel ................................................. 12
N
Nomenclature ............................................ 11
Number of images
that can be transferred .............................. 16
P
Power switch ............................................. 13
V
Vertical shooting........................................ 14
W
Waterproof/dustproof cap.......................... 12
A
Account ..................................................... 54
Ad hoc ................................................... 8, 25
Area of use .................................................. 8
Authentication...................................... 25, 76
Auto power off ........................................... 21
B
Batch transfer ................................ 40, 42, 43
Browser ..................................................... 56
C
Caption.............................................. 39, 118
Capture (Advanced).................................. 59
Capture (Basic) ......................................... 62
Channel....................................................... 8
Connection................................................ 21
D
DHCP server............................................. 29
Digital photo frame.................................... 65
DLNA ........................................................ 65
DNS address............................................. 29
DNS server ............................................... 34
E
Encryption ........................................... 25, 76
Encryption key .......................................... 26
EOS Utility..................................... 18, 47, 51
EOSUtility.................................................. 22
Error ........................................................ 100
ESS-ID ...................................................... 25
F
File of same name .................................... 76
Folder.................................................. 35, 45
FTP server .......................................... 18, 33
FTP trans. ................................................. 22
G
Gateway.................................................... 29
I
IEEE 802.11a.............................................. 8
IEEE 802.11b/g........................................... 8
Image transfer..................................... 18, 33
Infrastructure......................................... 8, 25
IP address........................................... 29, 34
IPsec ......................................................... 76
J
JPEG......................................................... 37
K
Key format................................................. 26
Keyboard................................................... 31
Power Supply and
Shooting Related
Wireless and Wired
LAN Functions
Index
128
Index
L
LAN cable.................................................. 24
Linked shooting ................................... 18, 69
LinkedShot ................................................ 23
Login.......................................................... 35
Logon name .............................................. 54
M
MAC address............................................. 48
Master camera .......................................... 71
Media player.............................................. 65
Media Server ....................................... 18, 65
MediaServ. ................................................ 23
Movie............................................. 36, 58, 59
N
Network ..................................................... 19
O
Open system ............................................. 25
P
Pairing ................................................. 30, 48
Passive mode............................................ 76
Password................................................... 54
PBC mode ................................................. 27
PIN code connection mode ....................... 28
PIN mode .................................................. 28
Port number............................................... 34
Protect settings.......................................... 76
Proxy ......................................................... 34
Pushbutton connection mode.................... 27
R
RAW .......................................................... 37
RAW+JPEG .............................................. 37
Remote capture........... 18, 47, 53, 59, 62, 63
Router........................................................ 29
S
Select folder .............................................. 35
Settings information................................... 73
Shared key ................................................ 25
Slave camera ............................................ 70
SSID .......................................................... 25
Stealth functions.................................. 27, 28
Storage...................................................... 45
Subnet mask ............................................. 29
T
Target........................................................ 35
Target folder.............................................. 76
Television............................................ 65, 67
TKIP .......................................................... 25
Transfer after shooting.............................. 40
Transfer history ......................................... 44
Transfer with SET ..................................... 38
Transferred images................................... 45
Transferring images, automatic ................ 36
Transferring images, individual images .... 38
Troubleshooting ........................................ 99
U
URL........................................................... 56
V
Viewing images......................................... 57
W
Web........................................................... 56
WEP.......................................................... 25
WFT Server......................................... 18, 53
WFTserver ................................................ 23
Wi-Fi Protected Setup............................... 27
Wired LAN................................................. 24
Wireless LAN specification ......................... 8
Wizard....................................................... 21
WPA2-PSK ............................................... 25
WPA-PSK ................................................. 25
WPS (Wi-Fi Protected Setup) ............. 27, 28
A
Auto switch media..................................... 85
B
Backup .................................... 79, 86, 88, 89
Bluetooth................................................... 95
Bus-powered............................................. 79
C
CF card ..................................................... 85
Functions When
Connected via USB
129
Index
E
Error ........................................................ 100
External media .............................. 18, 79, 83
F
Folder ........................................................ 84
G
GPS........................................................... 91
GPS data................................................... 93
GPS device ............................................... 18
H
Hard disk ............................................. 79, 83
M
Media................................................... 79, 85
Movie......................................................... 83
P
Power ........................................................ 82
Power management ............................ 82, 94
Q
Quick backup............................................. 87
R
Rec. separately ......................................... 85
Rec. to multiple.......................................... 85
Recording quality....................................... 83
S
Self-powered ............................................. 79
T
Troubleshooting......................................... 99
U
USB connection......................................... 79
CANON INC. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
U.S.A. CANON U.S.A. INC.
One Canon Plaza, Lake Success, NY 11042-1198, U.S.A.
For all inquires concerning this product, call toll free in the U.S.
1-800-OK-CANON
CANADA CANON CANADA INC. HEADQUARTERS
6390 Dixie Road, Mississauga, Ontario L5T 1P7, Canada
CANON CANADA INC. MONTREAL BRANCH
5990, Côte-de-Liesse, Montréal Québec H4T 1V7, Canada
CANON CANADA INC. CALGARY OFFICE
2828, 16th Street, N.E. Calgary, Alberta T2E 7K7, Canada
For all inquiries concerning this product, call toll free in Canada
1-800-OK-CANON
EUROPE, CANON EUROPA N.V.
AFRICA & Bovenkerkerweg 59-61, 1185 XB Amstelveen, The Netherlands
MIDDLE EAST CANON FRANCE S.A.S.
17,Quai du Président Paul Doumer, 92414 Courbevoie Cedex, France
CANON UK LTD.
Woodhatch Reigate, Surrey RH2 8BF, United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A10, 47807 Krefeld, Germany
CANON ITALIA S.p.A.
Via Milano 8, 20097 San Donato Milanese, (MI), Italy
CANON Schweiz A.G.
Industriestrasse 12, 8305 Dietlikon, Switzerland
Canon GmbH
Zetschegasse 11, A-1230 Vienna, Austria
CANON España,S.A.
Av. De Europa,6 Alcobendas 28108 Madrid, Spain
CANON Portugal S.A.
Rua Alfredo da Silva,14 Alfragide 2610-016 Amadora, Portugal
CENTRAL & CANON LATIN AMERICA, INC.
SOUTH AMERICA 703 Waterford Way, Suite 400 Miami, FL 33126, U.S.A.
ASIA CANON (China) Co., LTD
15F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005, China
CANON HONGKONG CO., LTD.
19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon, Hong Kong
CANON SINGAPORE PTE. LTD.
1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632
CANON KOREA CONSUMER IMAGING INC.
Gangnam Finance Center 17F, 737,Yeoksam-Dong, Gangnam-Gu, Seoul, 135-984, Korea
OCEANIA CANON AUSTRALIA PTY. LTD.
1 Thomas Holt Drive, North Ryde, Sydney N.S.W. 2113, Australia
CANON NEW ZEALAND LTD.
Akoranga Business Park, Akoranga Drive, Northcote, Auckland, New Zealand
JAPAN CANON MARKETING JAPAN INC.
16-6, Kohnan 2-chome, Minato-ku, Tokyo 108-8011, Japan
CT1-7833E-000 © CANON INC. 2009
This instruction manual is current as of September 2009. For information on using the transmitter
with accessories introduced after this date, contact your nearest Canon Service Center.

Navigation menu
