Wireless File Transmitter
WFT-E3
WFT-E3A
E
INSTRUCTION MANUAL
This product is offered in two versions, WFT-E3 and WFT-E3A. Each version operates on a
different number of wireless LAN channels. The WFT-E3 can transmit on 13 channels, and the
WFT-E3A, on 11 channels. This difference in the number of channels available is due to
varying radio regulations in areas of use.
In other respects, the WFT-E3 and WFT-E3A are identical. They are operated in the same
way. This instruction manual describes operation using the WFT-E3 as an example.
2
Thank you for purchasing a Canon product.
The Wireless File Transmitter WFT-E3 is an accessory for EOS 40D cameras. It gives the
camera wireless and wired LAN functionality and adds a USB port, enabling the following
operations. The WFT-E3 is compatible with IEEE 802.11b and IEEE 802.11g wireless LANs as
well as 100 Base-TX Ethernet wired LANs.
It also includes a vertical-grip shutter button for convenience in vertical shooting.

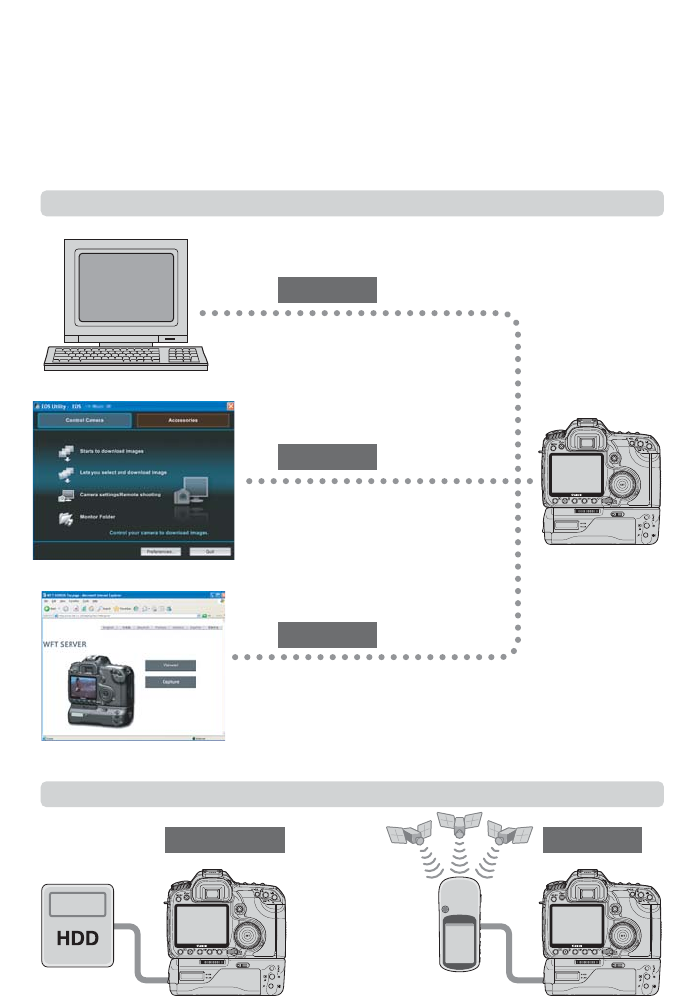

Wireless and Wired LAN Functions
Functions When Connected via USB
FTP
PTP
External Media GPS
HTTP
Transfer images to an FTP server
Use a web browser to capture, view,
and download images remotely
Use EOS Utility to capture, view, and
download images remotely
Record or backup images onto external media Add the latitude, longitude, altitude, date and
time, and other shooting information to images
3
Introduction
These instructions should be followed only after your wireless or wired LAN and FTP server
settings are complete. For details on configuring these settings, refer to the documentation
provided with the respective equipment.
Terms in brackets [ ] indicate button or icon names or other software elements. Brackets
also denote camera menu items.
Page numbers in parentheses indicate where you can find additional information.
Instructions on camera operations should be followed only after you have read the Camera
Instruction Manual and are familiar with operating the camera.
Sections of this manual labeled with the following symbols contain information of the
corresponding nature.
: Warnings to avoid potential problems are labeled with a caution symbol.
: Supplemental information is labeled with a note symbol.
Conventions Used in this Manual
Windows is a trademark or registered trademark of Microsoft Corporation in the United
States and other countries.
Macintosh is a registered trademark of Apple Corporation in the United States and other
countries.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Wi-Fi Certified, WPA, WPA2, and the Wi-Fi Certified logo are trademarks of the Wi-Fi
Alliance.
UPnP is a trademark of the UPnP Implementers Corporation.
All other corporate and brand names in this manual are trademarks or registered
trademarks of their respective owners.
Using the transmitter for remote image transfer, capture, or viewing requires adequate knowledge of
configuring your wireless or wired LAN and FTP server.
Canon cannot provide support for configuring wireless or wired LANs or FTP servers.
Note that Canon cannot be held liable for any loss or damage to the transmitter from erroneous network
or FTP server settings. In addition, Canon cannot be held liable for any other loss or damage caused by
use of the transmitter.
4
Introduction
Conventions Used in this Manual ...................................................................................................... 3
Areas of Use and Restrictions ........................................................................................................... 6
Safety Warnings................................................................................................................................. 7
Nomenclature..................................................................................................................................... 8
Attaching to the Camera .................................................................................................................. 10
Vertical Shooting Controls ............................................................................................................... 11

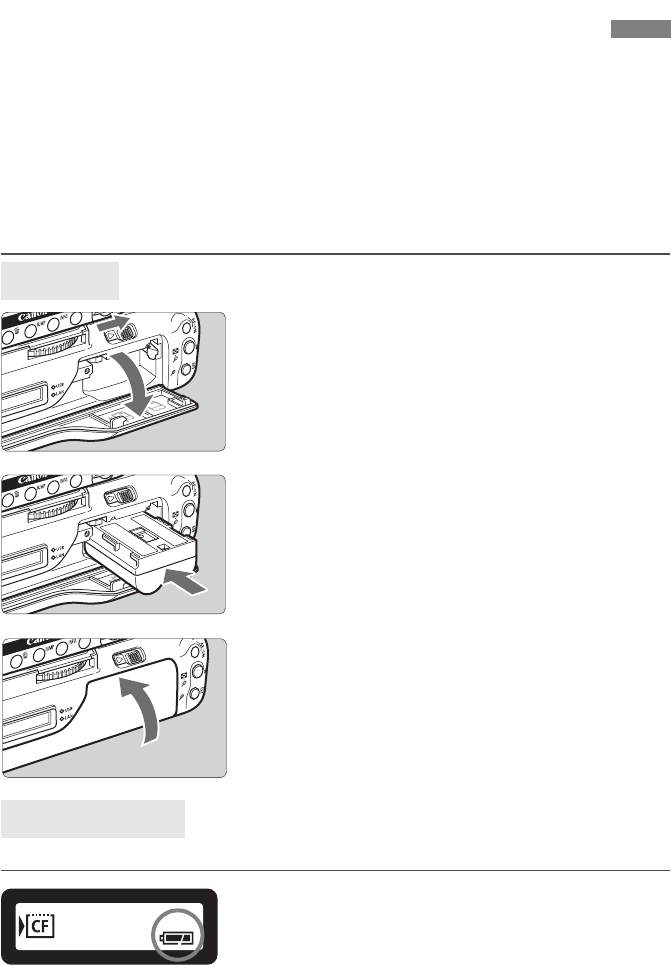

Loading and Unloading the Battery.................................................................................................. 12

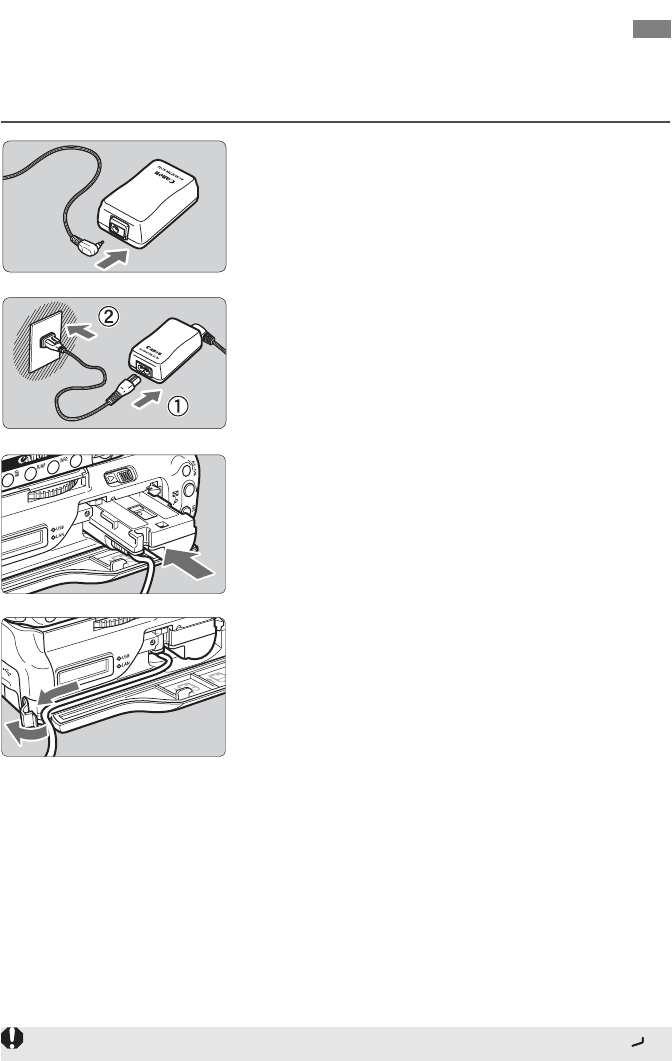

Using a Household Power Outlet..................................................................................................... 14
Subsequent Organization of This Manual........................................................................................ 15
1Basic Network Settings 17

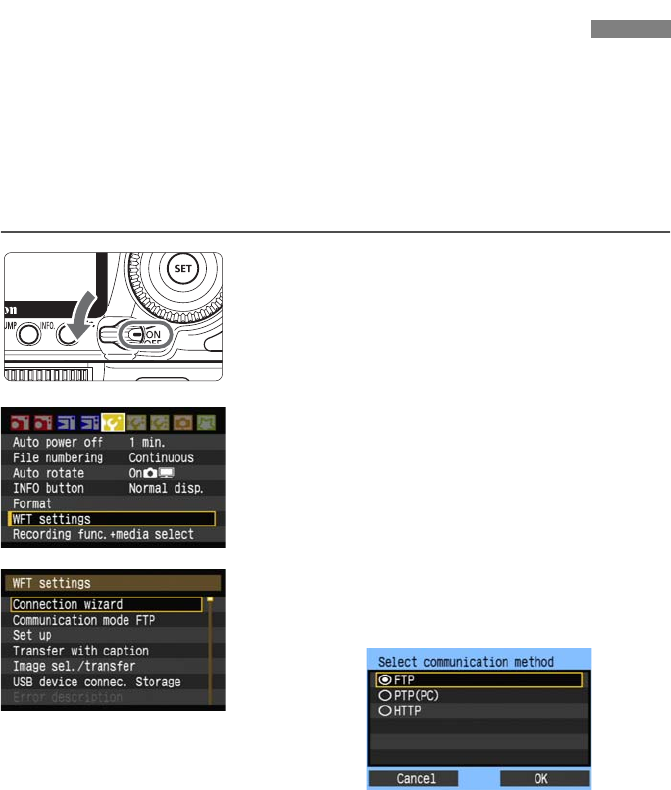

Displaying the Connection Wizard ................................................................................................... 18

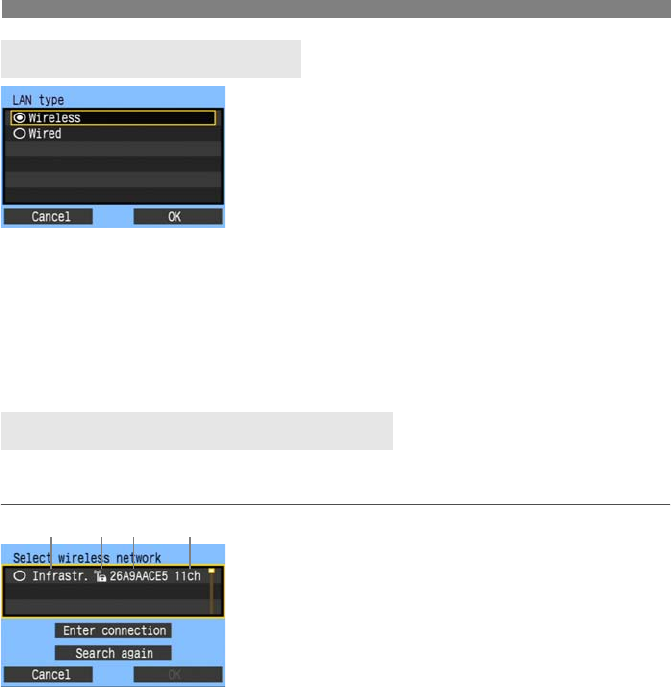

Following the Connection Wizard .................................................................................................... 19
2FTP Settings and Image Transfer 25

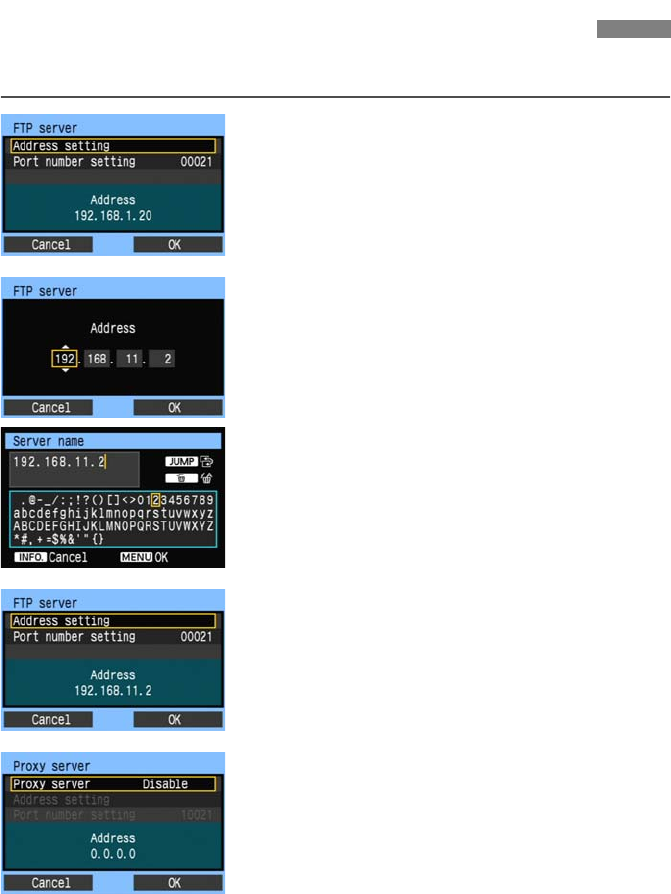

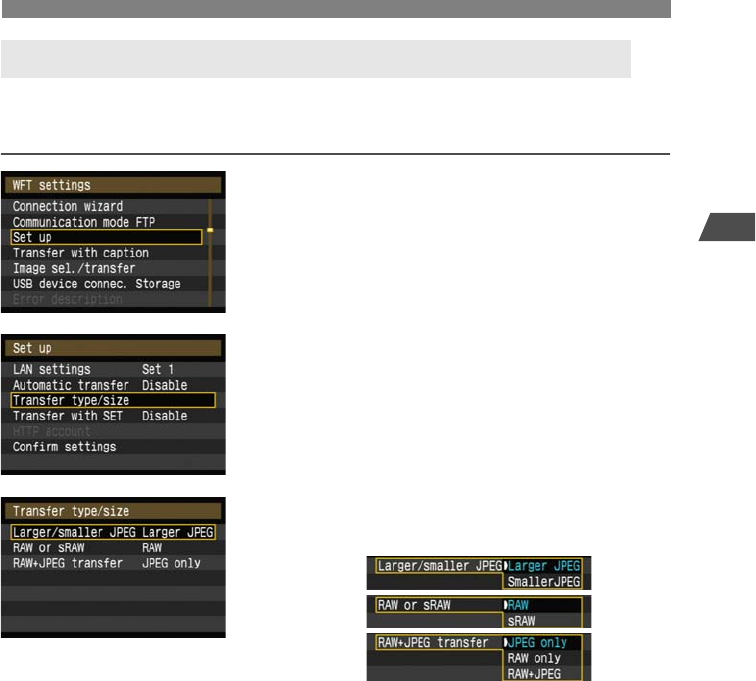

Configuring FTP Transfer Settings .................................................................................................. 26

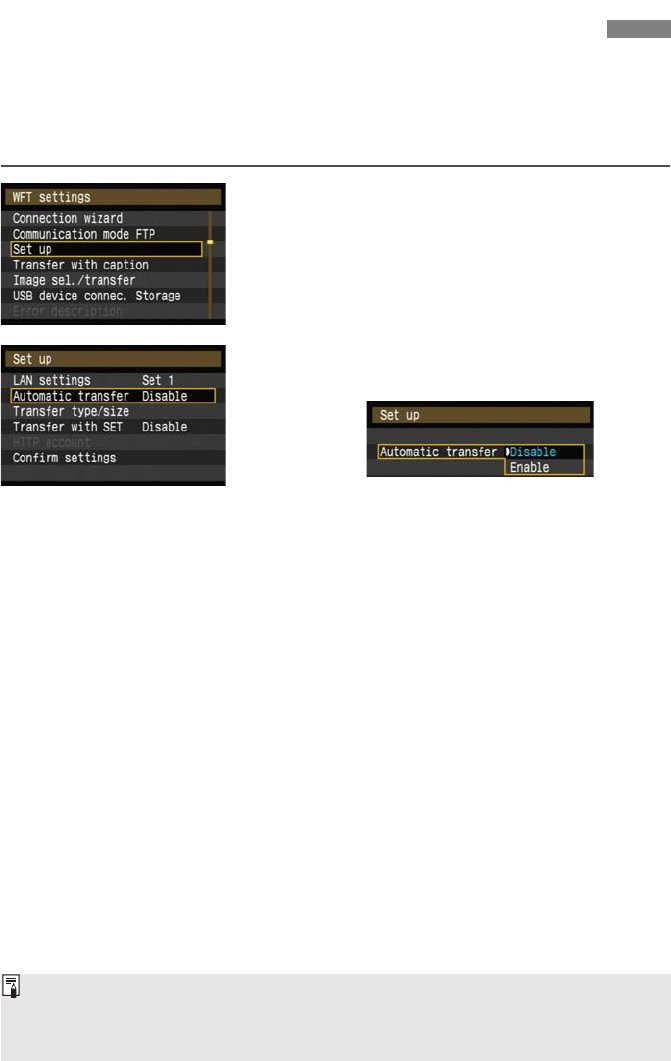

Automatic Image Transfer After Each Shot ..................................................................................... 28

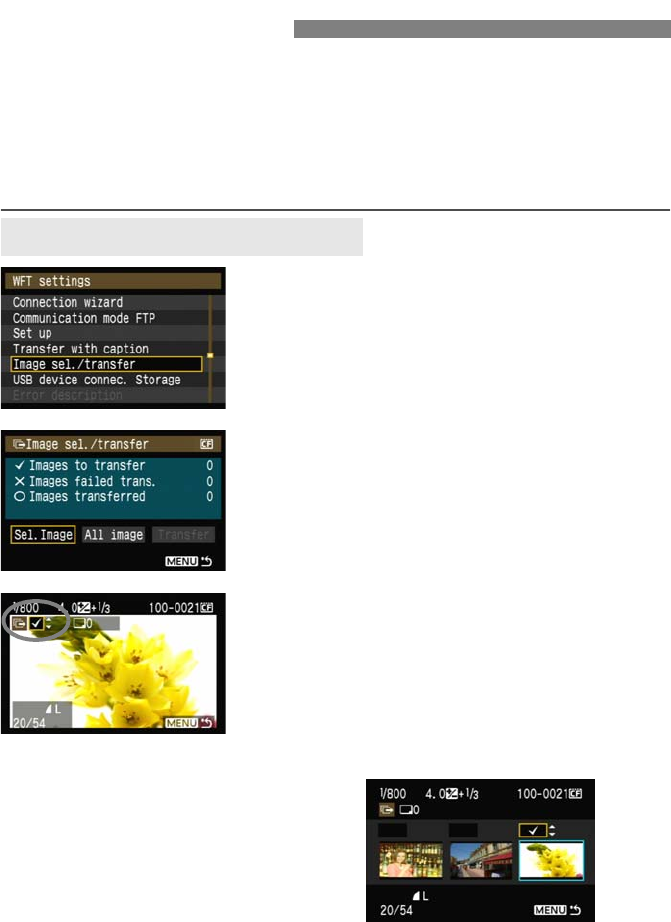

Transferring Images Individually ...................................................................................................... 30

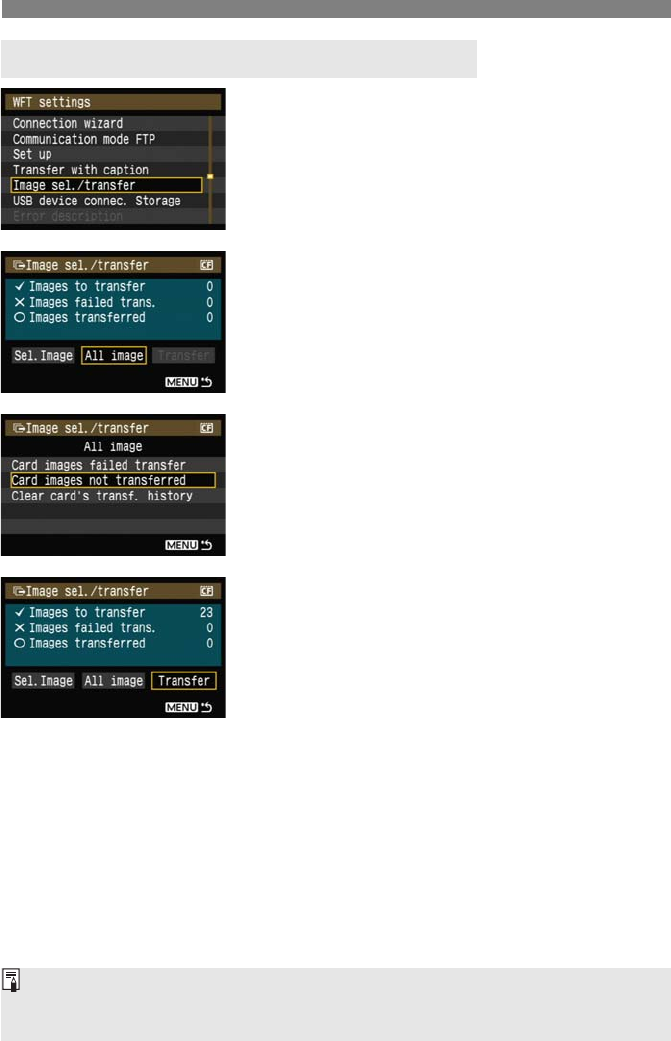

Batch Transfer ................................................................................................................................. 32
Checking Image Transfer History .................................................................................................... 35
Viewing Transferred Images ............................................................................................................ 36
3PTP Settings and Remote Capture 37
Configuring PTP Transfer Settings .................................................................................................. 38

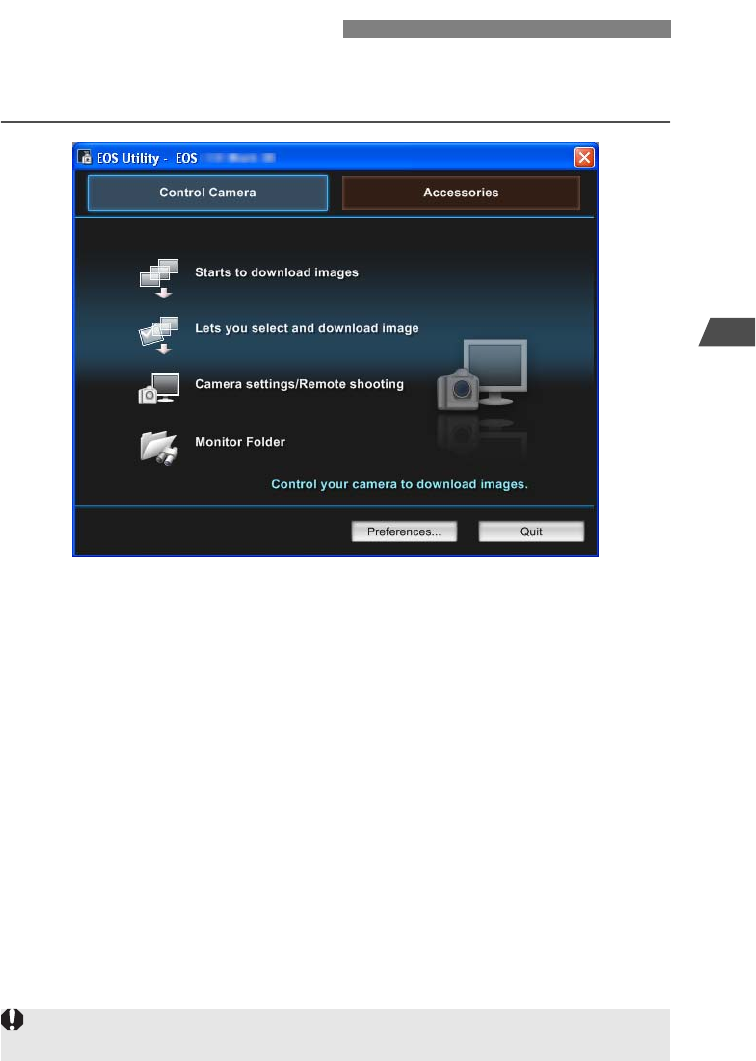

Using EOS Utility ............................................................................................................................. 41
4HTTP Settings and Remote Capture 43
Configuring HTTP Transfer Settings................................................................................................ 44

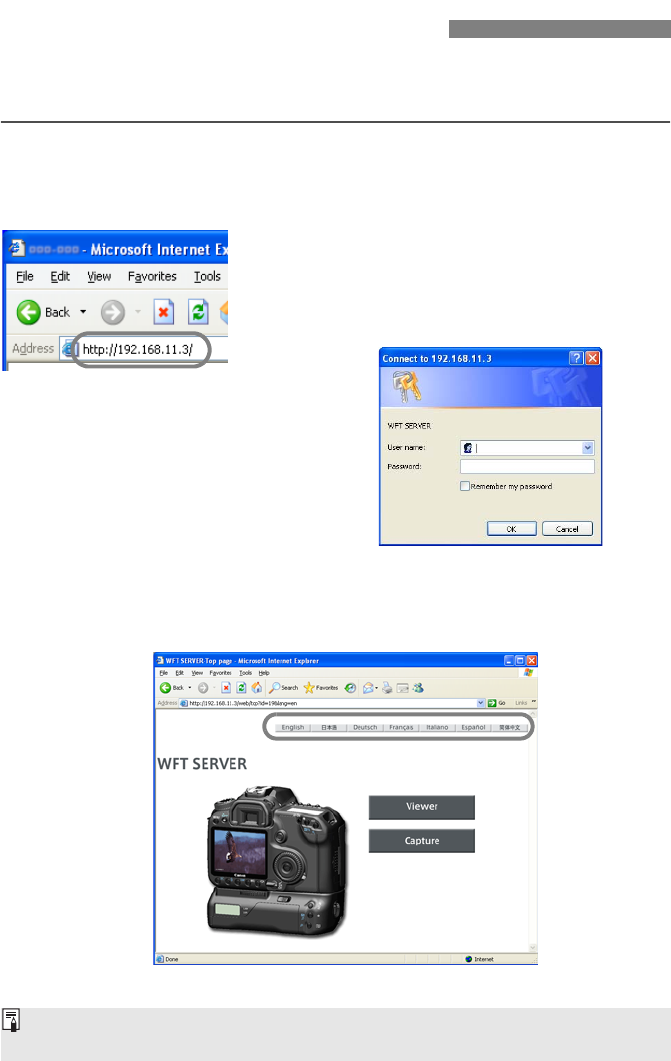

Displaying WFT Server .................................................................................................................... 46

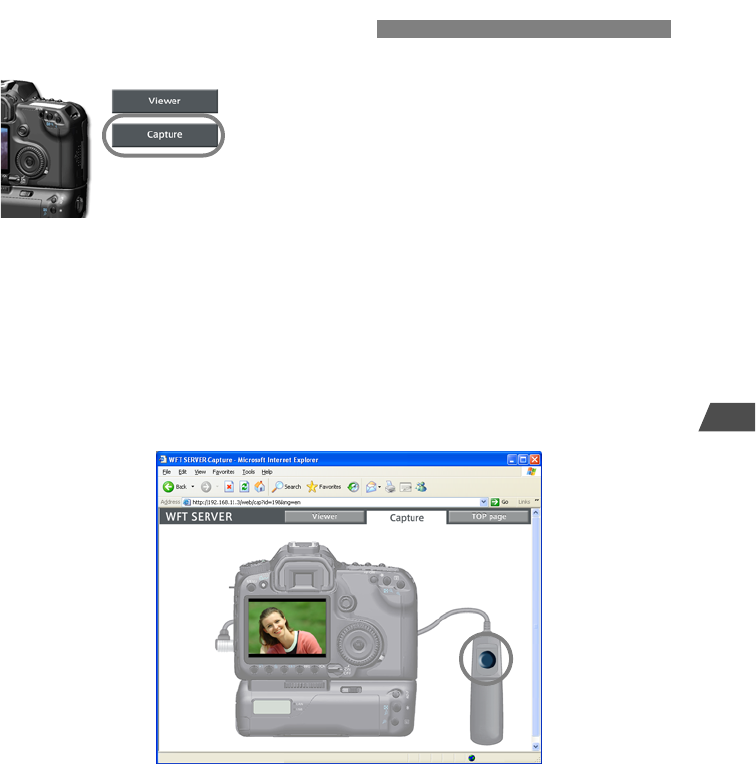

Shooting Remotely........................................................................................................................... 47

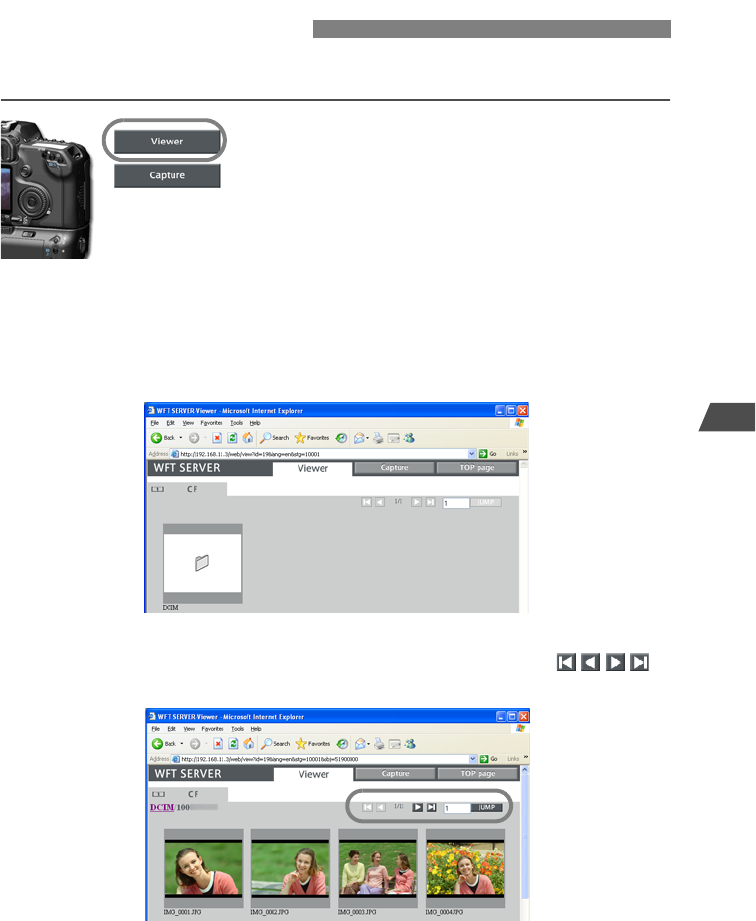

Viewing Images................................................................................................................................ 49
5Managing Settings Information 51
Checking Settings ............................................................................................................................ 52
Changing Settings............................................................................................................................ 53
Saving and Loading Settings ........................................................................................................... 55
6Using External Media 57
Connecting External Media.............................................................................................................. 58
Choosing Recording Media When Shooting .................................................................................... 61
Using Together With a CF Card....................................................................................................... 63
Backing Up on External Media......................................................................................................... 64
Contents
1
2
3
4
5
6
7
8
9
5
7Using GPS Devices 69
Connecting GPS Devices ................................................................................................................ 70
8Troubleshooting 73
Responding to Error Messages ....................................................................................................... 74
Wireless LAN Notes......................................................................................................................... 87
Checking Network Settings.............................................................................................................. 88
9Reference 89
WFT Utility (Software)...................................................................................................................... 90

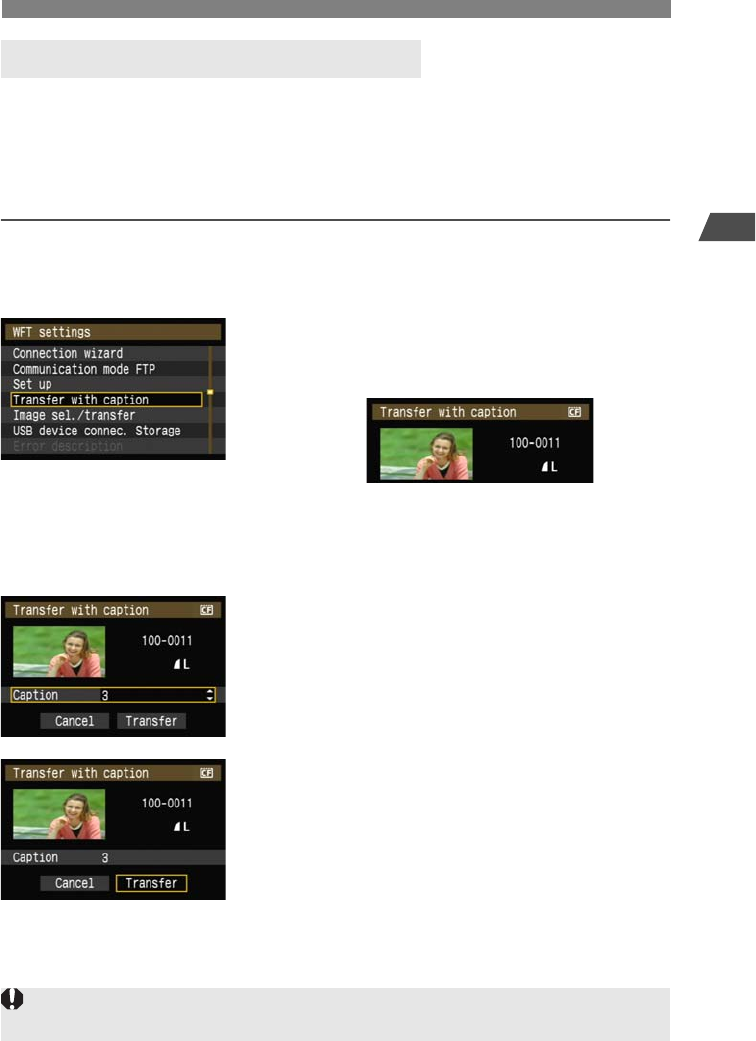

Creating and Registering Captions .................................................................................................. 92
EOS Utility System Requirements ................................................................................................... 93
Specifications................................................................................................................................... 94
Index .............................................................................................................................................. 100
Contents
6
The WFT-E3 can be used only in the following areas.
Japan, France, Italy, Germany, United Kingdom, Belgium, the Netherlands, Luxembourg,
Ireland, Denmark, Greece, Spain, Portugal, Austria, Finland, Sweden, Poland, Hungary,
Czech Republic, Slovakia, Slovenia, Estonia, Latvia, Lithuania, Cyprus, Malta, Iceland,
Norway, Switzerland, Australia, New Zealand, Singapore, Russia and China
The WFT-E3A can be used in the United States and Canada, in addition to the previous
areas.
For information on other areas where the transmitter can be used, contact the Canon
Service Center.
The WFT-E3, which operates on wireless LAN frequencies for 13 channels, cannot be used
in the United States or Canada. Instead, use the WFT-E3A, which operates on wireless LAN
frequencies for 11 channels.
In France, using the transmitter outdoors is prohibited.
In Italy, use outside of one’s own premises requires general authorization.
In Latvia, use outside of one’s own premises requires an individual radio license.
The following actions may be punishable under law. Disassembling or modifying the
transmitter, or removing the certification label on it.
Do not use the transmitter near other devices that emit radio waves, such as medical
equipment or electronic devices. The transmitter may interfere with operation of these
devices.
Use the transmitter only with a compatible EOS DIGITAL camera. Using it with incompatible
cameras may cause malfunction, accidents, and other problems not covered under
warranty.
Use the transmitter as a wireless or wired LAN device as described in this instruction
manual. If you use the transmitter for any other purpose, Canon cannot be held liable for
any loss or damage that may occur.
Areas of Use and Restrictions
7
Introduction
The following precautions are intended to prevent harm to you and others as well as damage to
equipment. Become familiar with the precautions before using the transmitter to ensure correct
and safe operation.
Be sure that you fully understand the safety precautions contained in the instruction manuals
for the battery, charger, and AC Adapter Kit before using them.
To prevent fire, excessive heat, chemical leakage, or explosion, follow these safety guidelines.
• Do not insert metallic objects between electrical contacts of the transmitter, accessories, or connecting cables.
Do not use the transmitter where there is flammable gas. There is a risk of explosion or fire.
If the transmitter is dropped and internal parts are exposed, do not touch the exposed parts. There is a risk of
electrical shock.
Do not disassemble or modify the transmitter. High-voltage internal parts may cause electrical shock.
Do not store the transmitter in dusty or humid places. There is a risk of fire or electrical shock.
Before using the transmitter on board airplanes or in hospitals, make sure use is permitted. Electromagnetic
waves emitted by the transmitter may interfere with instrumentation or medical equipment.
Do not leave the transmitter inside a vehicle in hot weather or near a heat source. The transmitter may become
hot and cause burns if touched.
Do not cover or wrap the transmitter with a cloth. This may trap heat inside, posing a risk of case deformation or
fire.
Do not use paint thinner, benzene, or other organic solvents to clean the transmitter. This poses a risk of fire and
may be hazardous to your health.
If the product malfunctions, becomes damaged, or requires repair, contact your dealer
or the nearest Canon Service Center.
The transmitter is a precision instrument. Do not drop it or subject it to shock.
The transmitter is not waterproof. Do not use it underwater.
Wipe off any moisture with a clean, dry cloth. If the transmitter has been exposed to salty air,
wipe it with a clean damp cloth after wringing it out to remove excess water.
Never leave the transmitter near any equipment that generates a strong magnetic field,
such as magnets or electric motors.
Do not leave the transmitter in excessive heat, such as in a vehicle in direct sunlight. High
temperature may damage the transmitter.
Do not wipe the transmitter using cleaners containing organic solvents. If the transmitter
becomes difficult to clean, take it to the nearest Canon Service Center.
To avoid corrosion, do not store the transmitter where there are strong chemicals, such as in
darkrooms or chemical labs.
Safety Warnings
Warning Preventing Serious Injury or Death
Caution Preventing Injury or Equipment Damage
Handling Precautions
8

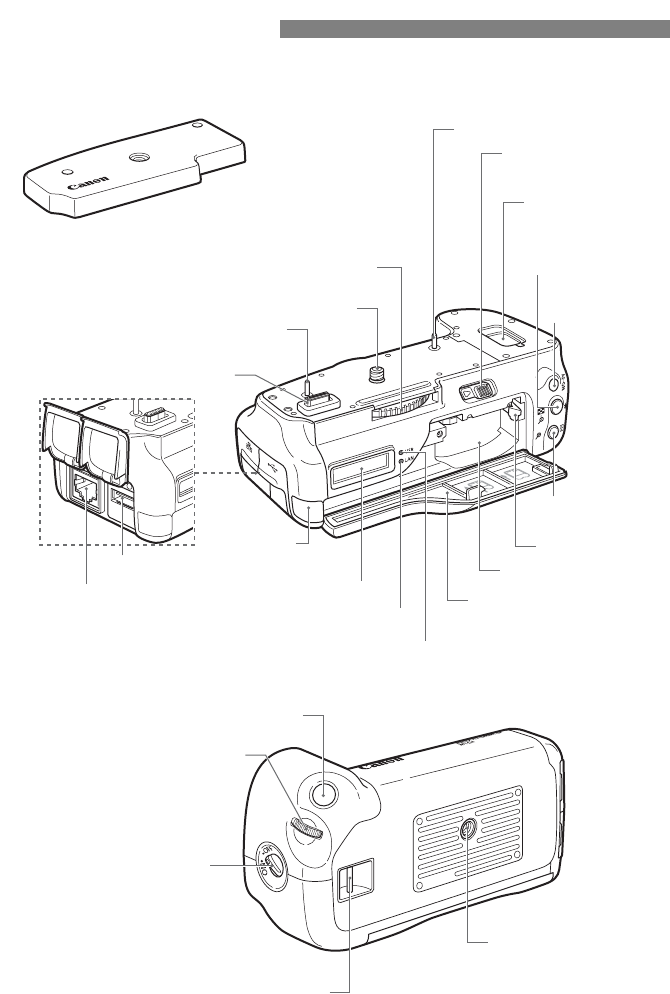

Nomenclature
Ethernet RJ-45 port
<
USB
> USB lamp
<
LAN
> Network lamp
LCD panel
USB port
DC coupler
cord notch
Positioning pin
Attachment knob
Terminal cap holder
Positioning pin
Battery compartment
cover release lever
AF point selection/
Enlarge button
Battery compartment
Battery lock lever
Tripod socket
Tripod screw AF start button
Battery compartment cover
Vertical-grip
<
ON
/
OFF
> switch
Main dial
* Turn the attachment knob to remove.
Protective cover
AE lock/FE lock/
Index/Reduce button
Terminal
Shutter button

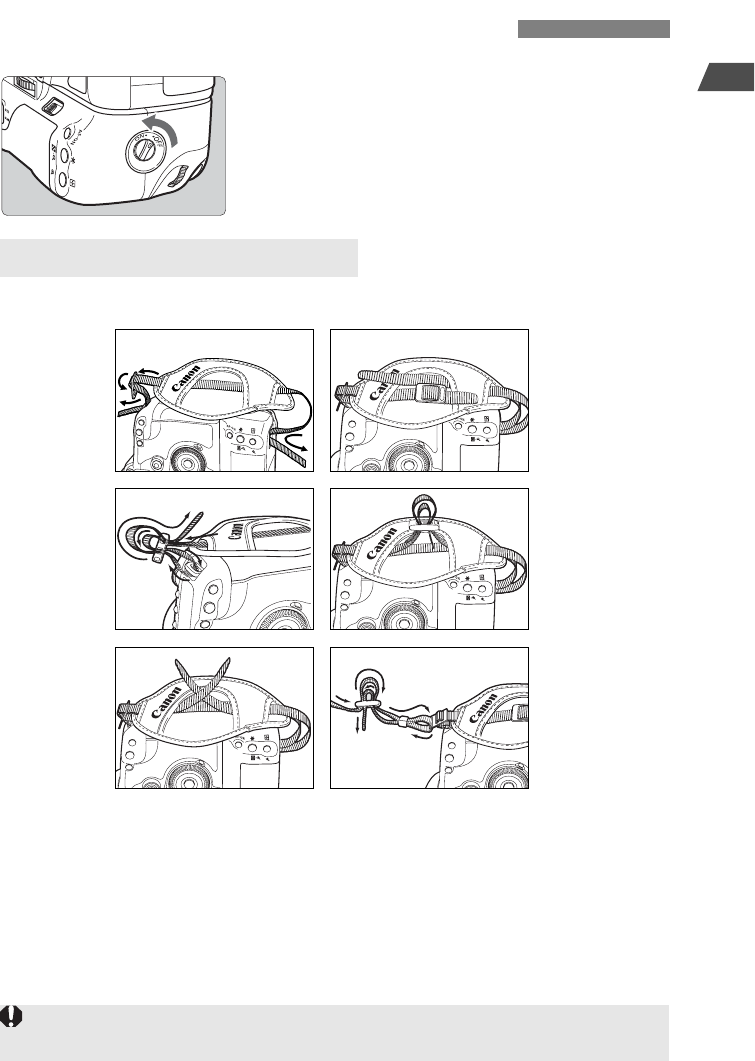

Hand strap mount
9
Nomenclature
Introduction

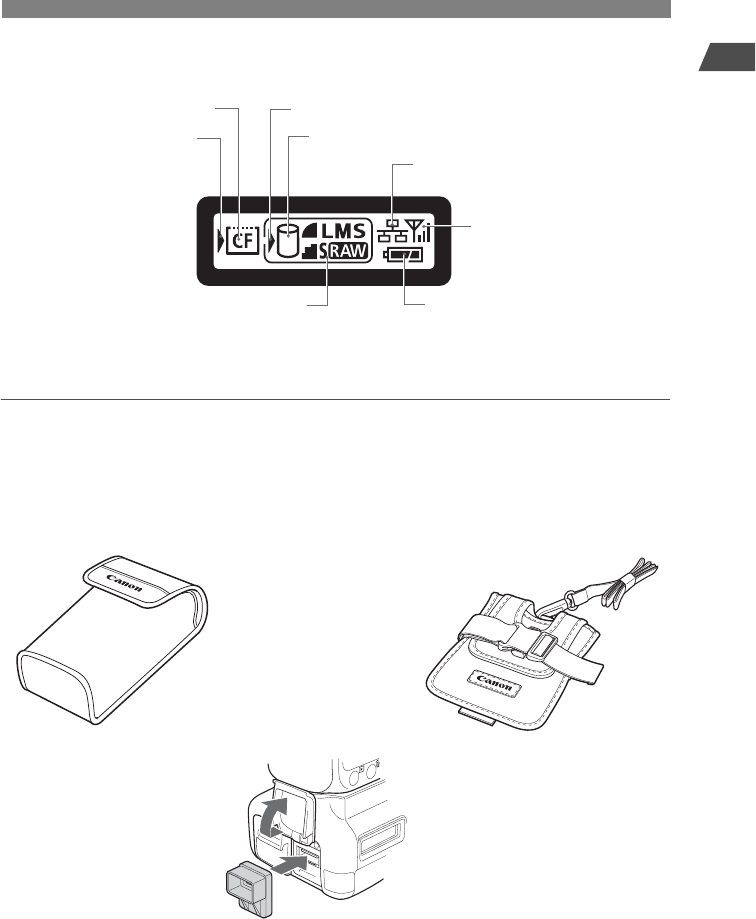

Recording quality at [Rec. separately] setting
External media selection mark
External media connection indicator
Wired LAN connection
Wireless LAN connection
Battery level indicator
CF card loading indicator
CF card selection mark
LCD panel
Transmitter Case
Waterproof/Dustproof USB Cap*2
*1: This can hold portable hard disks and other devices up to 120 x 75 x 15 mm / 4.72 x 2.95 x 0.59 in. in size.
*2: Attach this cap before connecting the USB cable in rainy weather or under other adverse conditions.
Accessories
External Media Case*1
10
Load a charged battery into the camera. Before attaching the transmitter to the camera, set the
camera’s power switch to <
OFF
>. The transmitter does not have a power switch. It is turned on
and off in conjunction with the camera’s power switch.
Before removing the transmitter, set the camera’s power switch to <
OFF
>.

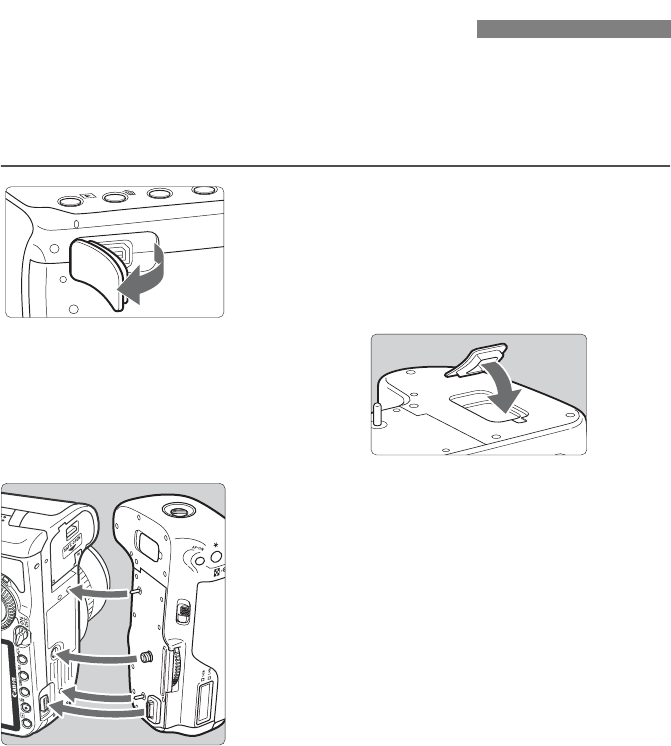

1Remove the terminal cap from the
camera.
Peel off the terminal cap on the camera bottom to
remove.
Attach the removed terminal cap to the
transmitter’s terminal cap holder.
2Attach the transmitter.
As shown in the figure, align the transmitter and
the camera, and turn the attachment knob to
attach to the camera.
Attaching to the Camera
11
Introduction
Setting the vertical-grip <
ON
/
OFF
> switch to <
ON
>
enables the vertical-grip shutter button and other
controls. These controls for shooting can still be used
even when batteries are not loaded in the transmitter.
The Hand Strap E1 (sold separately) is attached as shown in the figure.
Vertical Shooting Controls
Attaching the Hand Strap E1
1 4
2 5
3 6
After the hand strap is attached, check that all the slack at the buckle is removed and that there is no
looseness at the buckle even when pulled tight.
12
Use the Battery Pack BP-511A, 514, 511, or 512 for powering the transmitter. When replacing
the transmitter’s battery, be sure to first set the camera’s power switch to <
OFF
> before opening the
transmitter’s battery compartment cover. In particular, if the transmitter’s battery compartment
cover is opened without setting the camera’s power switch to <
OFF
> when an external media or a
GPS device is connected, the connection operation for the external media or GPS device will have
to be performed again.
The
transmitter’s
battery is not included. Customers who do not have one should purchase it
separately.
1 Open the cover.
Slide the lever to open the cover.
2 Load the battery.
Insert from the side with battery contacts.
Insert the battery all the way until it locks into
place.
3 Close the cover.
Press the cover up until it clicks into place.
The remaining battery power is displayed when the camera’s power switch is set to <
ON
>.
z:The battery has enough power.
x: The battery power is low.
n : The battery must be recharged.
Loading and Unloading the Battery
Loading
Battery check
13
Loading and Unloading the Battery
Introduction
Number of images that can be transferred
Approx. number of images
Using a fully charged BP-511A. The number of images that can be transferred is nearly the
same at normal temperature (23°C / 73°F) and low temperature (0°C / 32°F).
When automatic transfer is performed during shooting of an image of approx. 4MB under
conditions based on the CIPA (Camera & Imaging Products Association) test standards.
Fewer images can be transferred when transferring images over a wireless LAN.
Fewer images can be transferred when using bus-power external media or GPS devices.

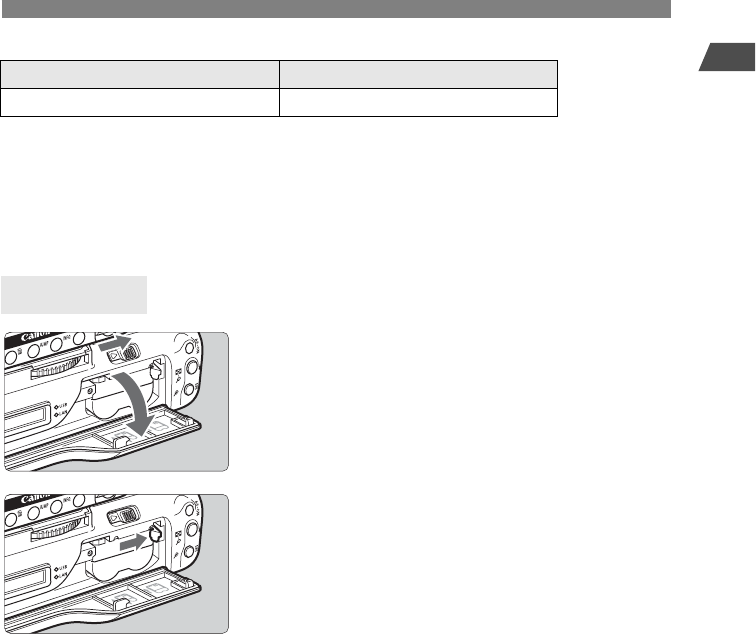

1Open the cover.
Slide the lever to open the cover.
2Unload the battery.
Press the battery lock lever in the direction of the
arrow to unlock, and then unload the battery.
To prevent a short-circuit, be sure to always attach
the protective cover to the battery.
At Normal Temperature (23°C / 73°F) At Low Temperature (0°C / 32°F)
2600 2600
Unloading
14
When the AC Adapter Kit ACK-E2 (sold separately) is used, a household power outlet can be
used to power the camera without worrying about the battery level.
1 Connect the DC coupler plug.
Connect the DC coupler plug to the socket of the
AC adapter.
2 Connect the power cord.
Connect the power cord to the AC adapter.
Insert the plug into the outlet.
After usage, unplug from the outlet.
3Load the DC coupler.
Open the cover, and insert the DC coupler firmly
until the lock position.
4 Close the cover.
Pass the cord through the groove while opening
the cap of the DC coupler cord notch, and then
close the cover.
Using a Household Power Outlet
Do not connect or disconnect the power cord while the camera’s power switch is set to <
ON
> or < >.
15
Introduction
In addition to wireless and wired LAN functions, the WFT-E3 can communicate with external
media and GPS devices.
For instructions on operations after you have attached the transmitter to the camera, click one
of the following chapter titles to view the corresponding page.
Subsequent Organization of This Manual
Using a Wireless or Wired LAN
(Basic Network Settings)
Chapters 1 to 5
Using External Media
Chapter 6
Using GPS Devices
Chapter 7
16
17
1
Basic Network Settings
Complete the basic network settings by following the instructions of the
transmitter connection wizard on the camera menu screen, which provides
guidance.
Getting Ready
The connection wizard helps you follow the steps to connect the transmitter to an
existing wireless or wired LAN.
To connect to a wireless LAN, prepare the wireless LAN device (wireless LAN access
point or wireless LAN adapter) and computer in advance so that they are ready for
you to connect the transmitter to the wireless network. When configuring the basic
network settings, bring the transmitter within 3 m / 9.8 ft. of the wireless LAN device.
To connect to a wired LAN, use a LAN cable to connect the transmitter and computer.
Prepare the transmitter for connection to the wired network.
18
This section describes the process of following the connection wizard instructions. If an error is
displayed, refer to “Troubleshooting” in Chapter 8 (p.73) and check the settings.
Pressing the shutter button or other camera controls during configuration by the connection
wizard will close the connection wizard. Do not press the shutter button or other controls
until configuration is finished.
On the [5] tab, set [Auto power off] to [Off]. If auto power off is activated, the connection
wizard will be closed during the configuration process.
1Turn the camera on.
2Display the transmitter menu.
On the camera, press the <7> button.
On the [5] tab, select [WFT settings] and press
<0>. [WFT settings] is added to the tab after you
attach the transmitter.
3Select [Connection wizard].
XThe [Select communication method] screen is
displayed.
XThe <
LAN
> lamp starts blinking.
Displaying the Connection Wizard
19
1
Basic Network Settings
Turn the <5> dial to select the communication
method, and then press <0>.
Select [OK] and press <0> to go to the next
screen.
• FTP
Choose this option to transfer captured images to an FTP server.
Images can be automatically transferred as you shoot them, or you can select images for
transfer later.
Computer Operating Systems
Operation via [FTP] requires that Windows Vista (Business, Enterprise, or Ultimate Edition
for 32- or 64-bit systems), Windows XP Professional, Windows 2000, or Mac OS X 10.4 be
installed on your computer. In addition, the computer must be prepared as an FTP server in
advance.
For instructions on preparing your computer as an FTP server, refer to the computer
documentation.
Windows Vista Home Premium and Home Basic Edition as well as Windows XP Home
Edition cannot be used because FTP server functionality is not supported.
• PTP
Choose this option when using EOS Utility for remote capture over a wireless or wired LAN.
In addition to remote capture, all camera operations in EOS Utility are supported because a
wireless or wired network is used with this option instead of the USB cable.
Computer Operating Systems
Operation via [PTP] requires that any edition of Windows Vista for 32- or 64-bit systems
(except Starter Edition), Windows XP (Home Edition or Professional, with Service Pack 2),
or Mac OS X 10.4 be installed on your computer.

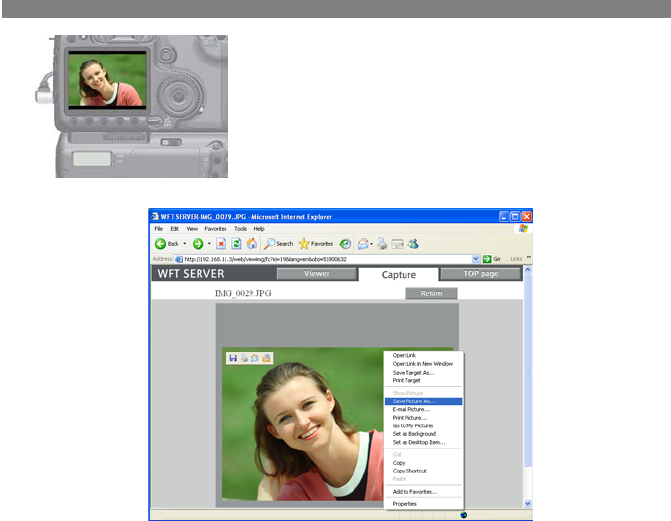

• HTTP
Choose this option for remote capture over a wireless or wired LAN.
In addition, images on a CF card in the camera can be viewed and downloaded to a computer.
The camera can be accessed like browsing a webpage, by users at up to three computers.
Computer Operating Systems
Any computer with a web browser can be used, regardless of the operating system.
Following the Connection Wizard
Selecting the Communication Method
20
Following the Connection Wizard
Turn the <5> dial to select the type of LAN, and
then press <0>.
Select [OK] and press <0> to go to the next
screen.
Wireless LAN
Active wireless LAN devices in your area are found and listed.
Wired LAN
The [Network] settings screen is displayed. If you have selected a wired network, refer to page
22, “Configuring Network Settings.”
Use a Category 5 or higher STP LAN cable. (STP: Shielded Twisted Pair)
Wireless LAN devices are listed with identifying information. Select the SSID (or ESS-ID) of
your desired wireless LAN device.
To select the wireless LAN device, press <0>.
Turn the <5> dial to select the wireless LAN
device, and then press <0>.
Select [OK] and press <0> to go to the next
screen.
1Indicates whether the device is in infrastructure or ad hoc mode
2An icon is displayed if the wireless LAN device is encrypting communication
3Indicates the first 9 characters of the SSID
4Indicates the channel used
Encryption by Wireless LAN Devices
If the wireless LAN device is encrypting communication, select the corresponding method in
[Authentication] and [Encryption].
[Authentication]: Open system, Shared key, WPA-PSK, or WPA2-PSK
[Encryption]: WEP, TKIP, or AES
Selecting the LAN Type
Selecting the Wireless Network
123 4
21
1
Following the Connection Wizard
Basic Network Settings
[Enter connection] and [Search again]
To configure settings for the wireless LAN device manually, select [Enter connection] and
press <0>. Complete the settings for the items displayed, one after another.
To search for wireless LAN devices again, select [Search again] and press <0>.
Next, enter the encryption key of the wireless LAN device. For details on the encryption key,
refer to the device’s instruction manual.
Note that the screens displayed in steps 1 to 3 below vary depending on the authentication and
encryption of the wireless LAN device.

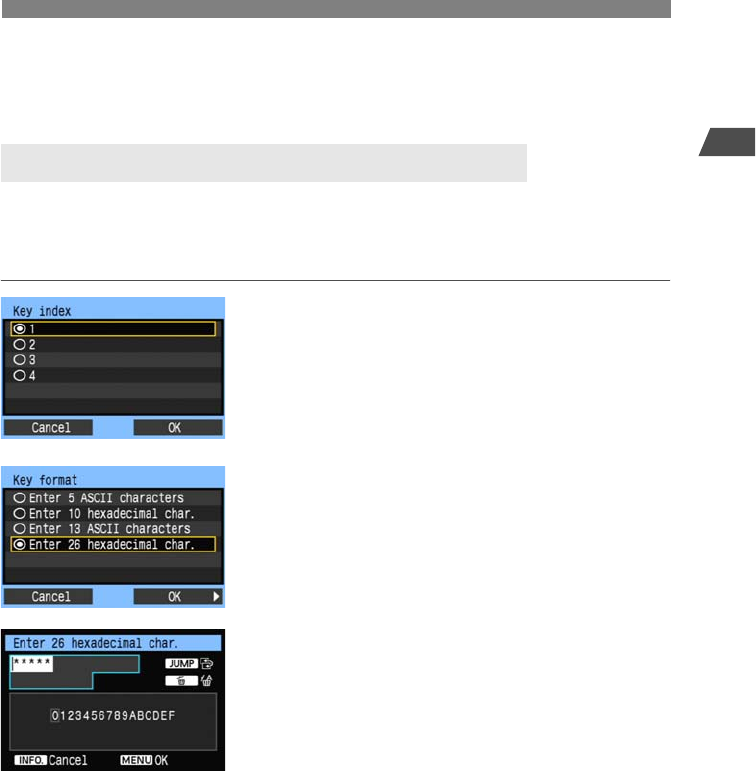

1 The [Key index] screen is displayed only if WEP
encryption is used by the wireless LAN device.
Turn the <5> dial to select the key index number
specified as the access point, and then press
<0>.
Select [OK] and press <0> to go to the next
screen.
2 Turn the <5> dial to select the key format, and
then press <0>.
Select [OK] and press <0> to go to the next
screen.
3 Enter the encryption key.
To switch between input areas, press the <
JUMP
>
button.
To move the cursor, turn the <5> dial.
In the bottom input area, turn the <5> dial and
press <0> to enter the encryption key.
If you make a mistake, press the <L> button to
erase it.
Press the <7> button to go to the next screen.
To return to the previous screen, press the
<6> button. The entry is erased.
Entering the Wireless LAN Encryption Key
22
Following the Connection Wizard

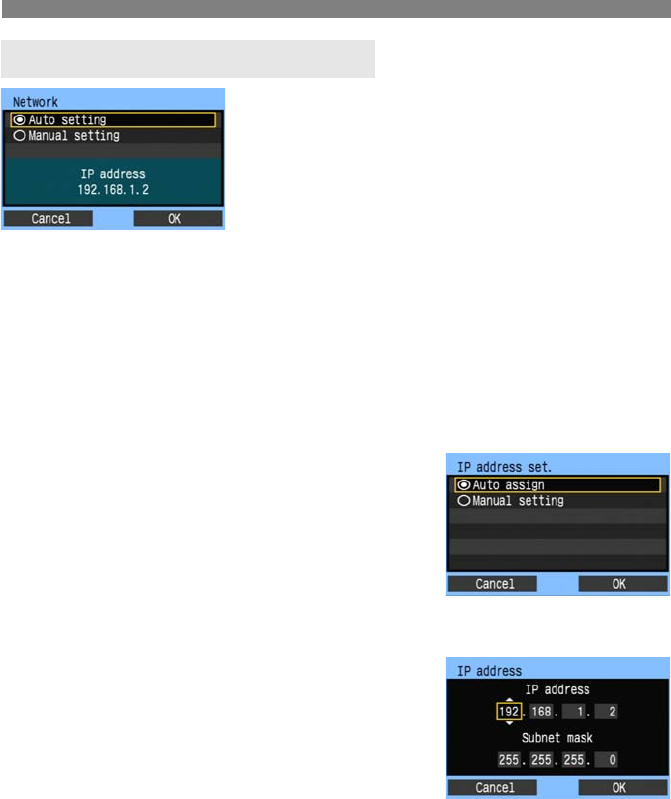

Turn the <5> dial to select how to configure the
network settings, and then press <0>.
Select [OK] and press <0> to go to the next
screen.
[Auto setting]
Settings otherwise configured with [Manual setting] can be configured automatically.
However, the IP address and similar settings must be automatically assigned and
configured in environments using DHCP servers or wireless LAN devices or routers
supporting DHCP server functions.
If an error is displayed, select [Manual setting] regardless of whether the IP address and
similar settings are automatically assigned and configured.
[Manual setting]
The [IP address set.] screen is displayed after you select
[Manual setting]. If [Auto setting] results in an error, enter
the IP address manually. As the IP address, enter the IP
address assigned to the camera.
Enter the [IP address], [Subnet mask], [Gateway], and
[DNS address] on each screen as they are displayed.
If you are not sure what to enter, refer to page 88, “Checking
Network Settings,” or ask the network administrator or
another person knowledgeable about the network.
When entering numbers for the IP address, subnet mask,
and so on, press <0> to move the input position and turn
the <5> dial to enter the number.
Configuring Network Settings
23
1
Following the Connection Wizard
Basic Network Settings
The following instructions are for settings screens that vary depending on the communication
method (FTP, PTP, or HTTP), as shown below. Read the page that introduces the selected
communication method.
FTP
Chapter 2 (p.25)
PTP
Chapter 3 (p.37)
HTTP
Chapter 4 (p.43)
Completing Settings for the Communication Method
Windows Vista Users
Before performing the operations from page 37, perform the operations below. If these operations are
not performed, the WFT Pairing Software described on page 38 may not start.
Open the [C Drive] [Program Files] [Canon] [EOS Utility] [WFTPairing] folder (in this
order), and then double-click the [WFT FirewallSettings] icon.
After performing this operation, perform the operation on page 37.
24
Following the Connection Wizard

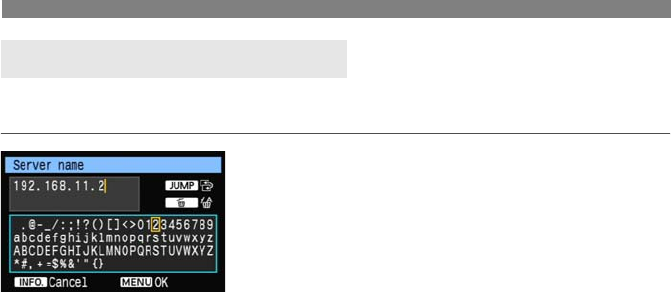

The virtual keyboard is displayed during entry of the encryption key, server name, and other
information.
Switching to other input areas
To switch between input areas, press the <
JUMP
>
button.
Moving the cursor
To move the cursor, turn the <5> dial.
You can also move the cursor using <9>.
Entering text
In the bottom input area, turn the <5> dial to move
the cursor and press <0> to enter text.
You can also move the cursor using <9>.
Deleting text
If you make a mistake, press the <L> button to erase
it.
Confirming entries
Press the <7> button to confirm what you have
entered and go to the next screen.
Canceling entries
Press the <6> button to erase the entry and
return to the previous screen.
Virtual Keyboard Operation
25
2
FTP Settings and
Image Transfer
You can configure the FTP settings for automatic transfer of each image as
you shoot or batch transfer after capture.
26
These instructions are continued from Chapter 1.

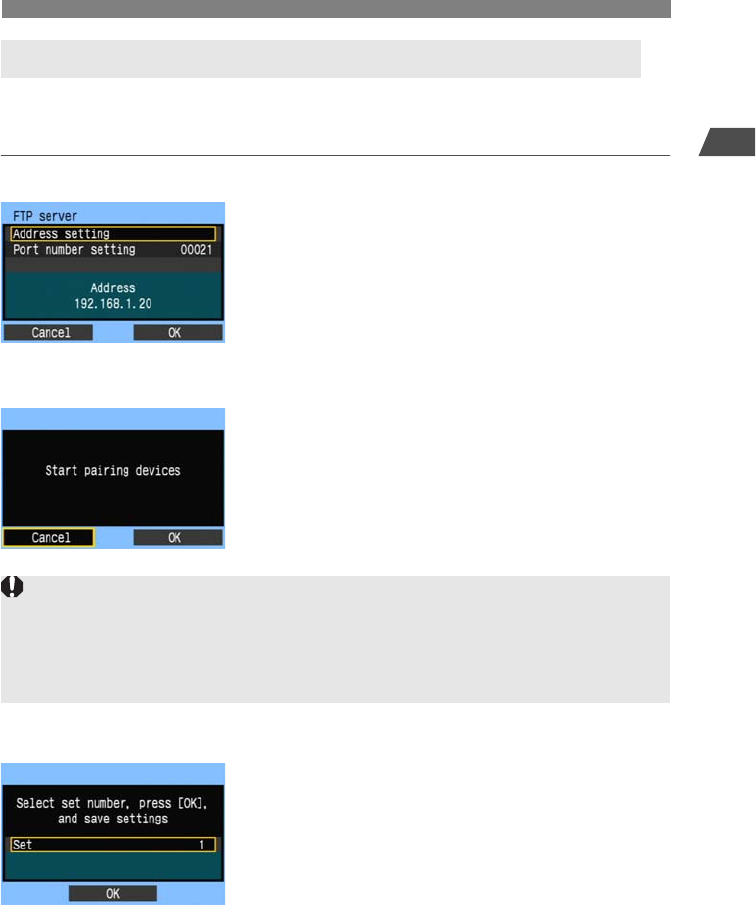

1 Turn the <5> dial to select [Address setting],
and then press <0>.
2 If you have set the DNS server setting to
[Disable], the screen at left is displayed.
Press <0> to select the input position, and then
turn the <5> dial to enter the IP address of the
FTP server.
If you have set the DNS server IP address setting
to [Auto assign] or [Manual setting], the screen
at left is displayed.
For instructions on screen operations, refer to
“Virtual Keyboard Operation” (p.24).
Enter the FTP server’s server name or IP address.
3 In [Port No.], enter 00021, in most cases.
Turn the <5> dial to select [OK], and then press
<0> to go to the next screen.
4 Complete the [Proxy server] settings.
Turn the <5> dial to select [OK], and then press
<0> to go to the next screen.
Configuring FTP Transfer Settings
27
Configuring FTP Transfer Settings
2
FTP Settings and Image Transfer
5 Complete the [Login method] settings.
Turn the <5> dial to select [OK], and then press
<0> to go to the next screen.
6 Complete the [Target folder] settings.
Select [Root folder] to have images saved in the
root folder as specified in FTP server settings.
(p.36)
Select [Select folder] to specify a subfolder in the
root folder. If no folder exists, a folder will be
created automatically.
Turn the <5> dial to select [OK], and then press
<0> to connect to the FTP server.
7 On the confirmation screen displayed next, select
[OK] and press <0>.
XThe <
LAN
> lamp is lit in green.
8 Press <0>. Turn the <5> dial to select the set
number, and then press <0>.
Turn the <5> dial to select [OK], and then press
<0>. After the connection wizard is closed, the
display reverts to the menu screen.
Settings information is stored on the camera. It is
not stored on the transmitter.
The FTP network settings are now complete.
28
An image can be automatically transferred to the FTP server immediately after shooting. You
can also continue shooting even while images are being transferred.
Before shooting, be sure to insert a CF card in the camera or connect external media (p.57). If
you shoot without recording images, they cannot be transferred.
1In [WFT settings], select [Set up].
2Select [Automatic transfer].
Select [Enable].
3Take the picture.
XThe captured image is transferred to the FTP
server.
During image transfer, the <
LAN
> lamp blinks.
Automatic Image Transfer After Each Shot
During continuous shooting, images are transferred to the FTP server in the order they are
captured.
The captured images are also stored on the CF card.
Any images for which transfer fails or is interrupted can transferred later together.
29
Automatic Image Transfer After Each Shot
2
FTP Settings and Image Transfer
In automatic transfer during shooting, you can choose which images to transfer if different size
images are recorded to the CF card and external media (p.63), or if different types of images
are recorded in RAW+JPEG shooting.
1In [WFT settings], select [Set up].
2Select [Transfer type/size].
3Select the size and type of images to
transfer.
For instance, if the camera is set up to record 73 images on a CF card and 83 images
on external media and you want to transfer 83 images, set [Larger/smaller JPEG] to
[Smaller JPEG].
If the camera is set up to record RAW images on a CF card and JPEGs on external media,
specify which images to transfer in the [RAW+JPEG transfer] setting. Similarly, complete
the same setting if RAW+JPEG images are recorded simultaneously on a single CF card.
Selecting Particular Sizes or Types of Images to Transfer
30
Simply press <0> to transfer the currently displayed image. You can also add a caption before
transferring images. You can also continue shooting even while images are being transferred.

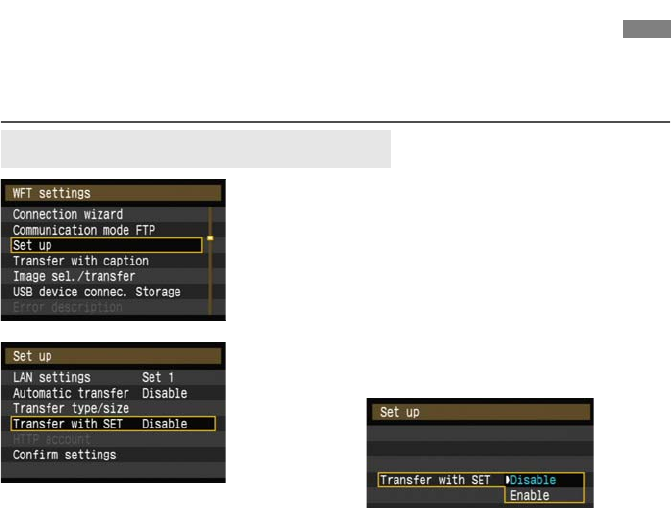

1In [WFT settings], select [Set up].
2Select [Transfer with SET].
Select [Enable].
3View the image.
On the camera body, press the <x> button.
Select the image to transfer, and then press <0>
to transfer the image.
Transferring Images Individually
Transferring the Current Image
31
Transferring Images Individually
2
FTP Settings and Image Transfer
You can add a registered caption to each image before transfer. This is effective if you want to
inform the recipient the printing quantity, for example. The caption is also added to images
stored on the camera.
For instructions on creating and registering captions, refer to page 92.
You can check for captions added to images by examining the Exif information, in the user
comments.
1Take the picture.
2In [WFT settings], select [Transfer with
caption].
XThe last captured image is displayed.
It is not possible to select other images on the
[Transfer with caption] screen. To select another
image for transfer with a caption, view that image
before following these steps.
3Select a caption.
Turn the <5> dial to select the [Caption] frame,
and then press <0>.
Turn the <5> dial to select the content of the
caption, and then press <0>.
4Transfer the image.
Turn the <5> dial to select [Transfer], and then
press <0>.
Adding a Caption Before Transfer
If you add captions to images that include original decision data, these images are no longer judged to
be original images.
32
After shooting, you can select multiple images as desired and transfer them all at once. You
can also transfer unsent images or images that could not be sent previously.
If both a camera CF card and external media are used at the same time, images are transferred
from the source specified on the menu [5] tab, in [Recording func.+media select]
[Record/play].
You can also continue shooting even while images are being transferred.
1In [WFT settings], select [Image sel./
transfer].
2Select [Sel.Image].
XAn image is displayed.
3Select images to transfer.
Press <0>. Turn the <5> dial to display <X> in
the upper left corner of the image to transfer.
Press <0> to confirm your selection.
You can select up to 9,999 images.
Press the <y> button to display three images per
screen. Press the <u> button to display one
image per screen again.
After selecting images to transfer, press the
<7> button.
Batch Transfer
Selecting Images to Transfer
33
Batch Transfer
2
FTP Settings and Image Transfer
4Transfer the images.
Select [Transfer].
Select [OK] on the confirmation screen displayed
next.
XA transfer progress screen is displayed.
During image transfer, the <
LAN
> lamp blinks.
You can use the menu even during image transfer. However, to prevent transfer problems,
some menu items are unavailable during transfer, including [WFT settings], [Protect images],
[Erase images], and [Format].
Menu Operation During Image Transfer
34
Batch Transfer
1In [WFT settings], select [Image sel./
transfer].
2Select [All image].
3Select [Card images not transferred].
To transfer images that could not previously be
transferred, select [Card images failed transfer].
4Transfer the images.
Select [Transfer].
Select [OK] on the confirmation screen displayed
next.
XA transfer progress screen is displayed.
During image transfer, the <
LAN
> lamp blinks.
Batch Transfer of Images on CF Cards
Selecting [Clear card’s transf. history] will set the transfer history of images on the CF card to
“unsent.” This enables you to resend all the images on the card later by selecting [Card images not
transferred].
35
2
FTP Settings and Image Transfer

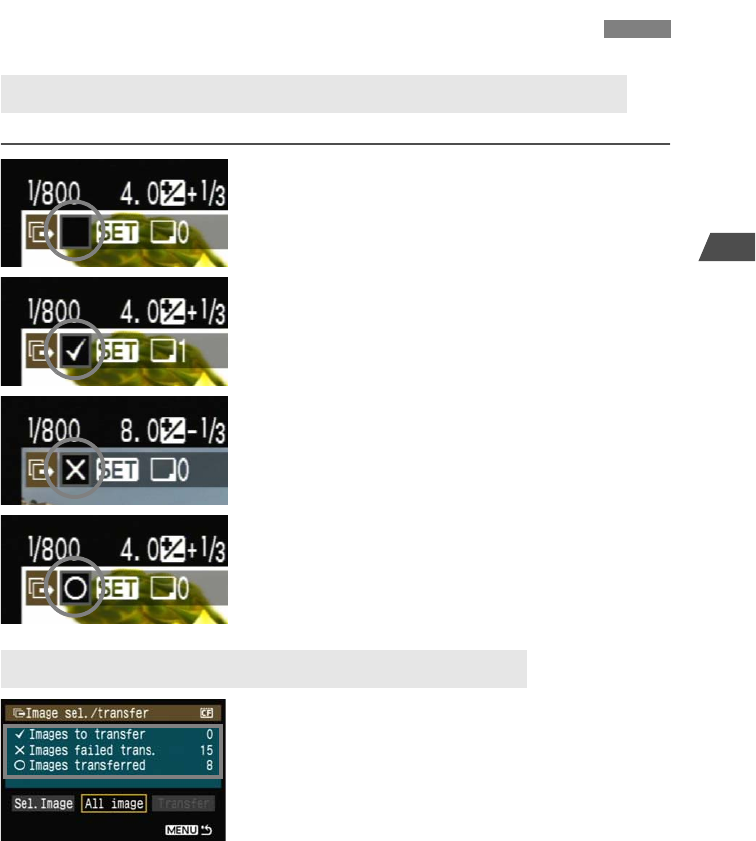

To check the transfer history, in [Image sel./transfer], select [Sel.Image].
Image not selected for transfer (no icon)
Image selected for transfer
Image could not be transferred
Image transferred
On the [Image sel./transfer] screen, you can check
the number of images for transfer as well as the
transfer history of images in the CF card. Specifically,
you can check the number of images classified as
[Images failed trans.] and [Images transferred].
Checking Image Transfer History
Checking the Transfer History of Individual Images
Checking the Transfer History of CF Cards
36
Images transferred to the FTP server are stored in the following folder as specified in the FTP
server settings.
Under the default settings of the FTP server, images are stored in [C drive] [Inetpub]
folder [ftproot] folder, or in a subfolder of this folder.
If the root folder of the transfer destination has been changed in the FTP server settings, ask
the FTP server administrator where images are transferred.
Open the [Macintosh HD] [Users] folder. The folder where images are stored is located
in the folder of the user currently logged on, or in a subfolder there.
Under the default transmitter settings, transferred images will be stored in the root folder
specified in the FTP server settings, in a folder structure such as A/DCIM/100CANON which is
automatically created.
Additionally, if you have selected a CF card as the media for recording and playback, a folder
structure such as “A/DCIM/100CANON” is automatically created for image storage. For
external media, “C/DCIM/100CANON” is created. (CF card images are assigned to the A folder,
and external media images to the C folder.)
Viewing Transferred Images
Windows
Macintosh
Folders for Image Storage
37
3
PTP Settings and
Remote Capture
You can use EOS Utility to shoot remotely over a wireless or wired LAN.
In addition to remote capture, all camera operations in EOS Utility are
supported because a wireless or wired network is used with this option
instead of the USB cable.
38
These instructions are continued from Chapter 1.
You can use the included WFT Pairing Software to enable the transmitter to communicate with
a computer via PTP.
WFT Pairing Software is installed automatically during easy installation of the software
provided with the camera. If it is not installed, install it on the computer for communication with
the transmitter before this procedure.
The configuration procedure is as follows, using Windows XP as an example.

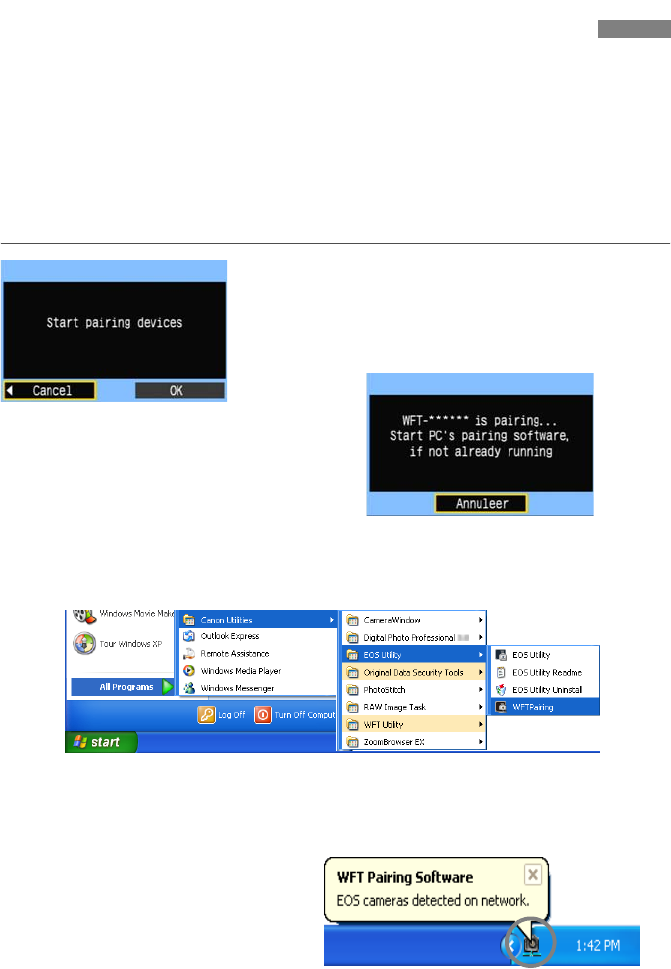

1 First, the pairing screen is displayed.
Turn the <5> dial to select [OK]. When you press
<0>, the following message is displayed. Here,
****** represents the last six digits of the MAC
address of the WFT-E3 for the connection.
2 Start the pairing software.
Normally, it is installed in the same location as
EOS Utility.
XAfter the pairing software starts up, an icon is
displayed in the task bar.
XWhen the camera is detected, a message is
displayed.
Configuring PTP Transfer Settings
39
Configuring PTP Transfer Settings
3
PTP Settings and Remote Capture
3 Double-click the pairing software icon.
XDetected cameras are listed. Cameras that have
already been connected are not included in the
list.
Click [Connect].
If multiple cameras are displayed, identify the
camera to connect to by its [MAC address] or [IP
address].
You can check the [MAC address] and [IP
address] by accessing [Confirm settings] in the
menu (p.52).
4 When the camera detects the computer on which
you clicked [Connect] in step 3, the message at
left is displayed.
Turn the <5> dial to select [OK], and then press
<0>.
5 Press <0>. Turn the <5> dial to select the set
number, and then press <0>.
After you turn the <5> dial to select [OK] and
press <0>, the connection wizard is closed and
EOS Utility starts up.
XThe <
LAN
> lamp on the transmitter is lit in green.
Settings information is stored on the camera. It is
not stored on the transmitter.
The PTP network settings are now complete.
40
Configuring PTP Transfer Settings
There is no need to complete pairing again if you will continue using a particular camera,
transmitter, and computer together after pairing without changing the settings.
Before your next PTP session, simply turn on the camera to which the transmitter is
attached and start the pairing software. The connection between the camera and computer
will be established automatically.
You can add the pairing software to the software launched at startup of your computer. In
EOS Utility on the [Preferences] [Basic Settings] tab, select [ Add WFT Pairing
Software to the Startup folder].
41
3
PTP Settings and Remote Capture
For EOS Utility instructions, refer to the Software Instruction Manual (PDF). You can take full
advantage of EOS Utility via the transmitter just as via a USB connection, without restrictions.
Using EOS Utility
In Remote Live View shooting, the rate of image transmission is slower than via USB. The motion of
moving subjects cannot be displayed smoothly.
42
43

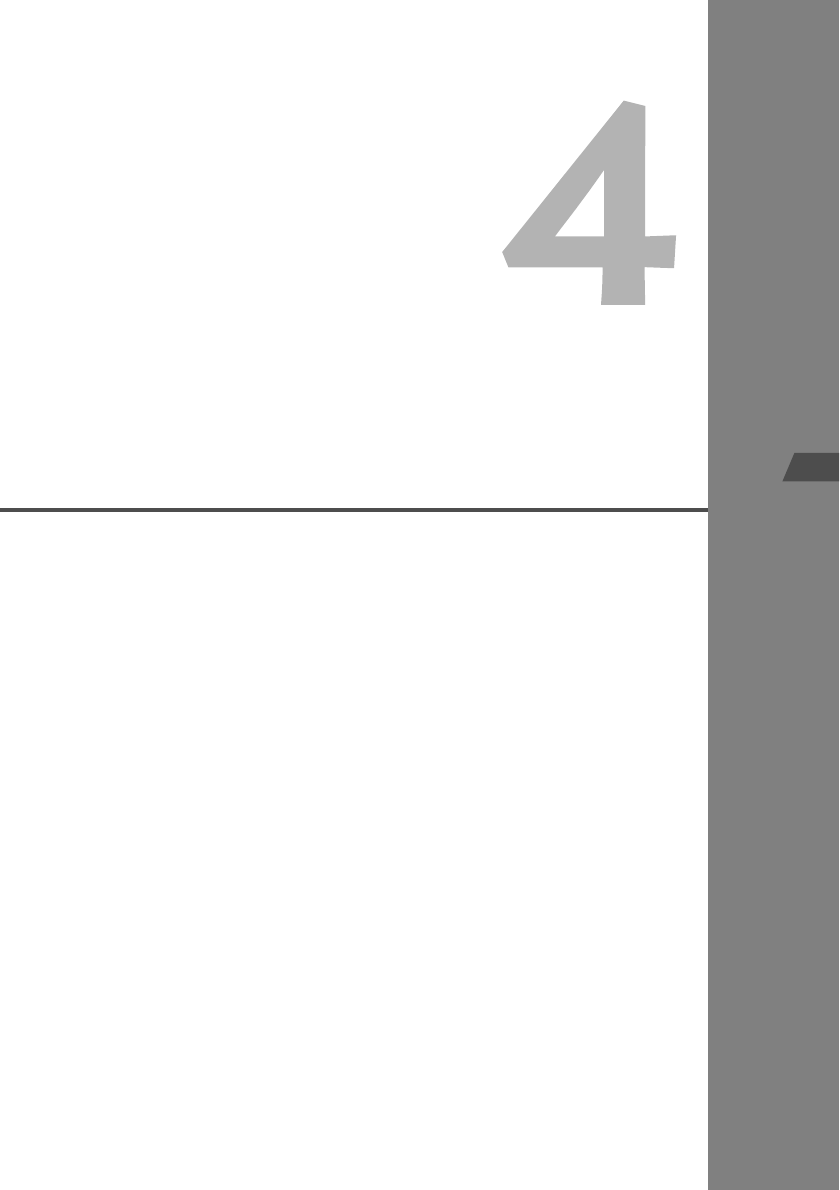

4
HTTP Settings and
Remote Capture
You can use a web browser to shoot remotely over a wireless or wired LAN.
In addition, images on a CF card in the camera can be viewed and
downloaded to a computer.
44
These instructions are continued from Chapter 1.
Press <0>. Turn the <5> dial to select the set
number, and then press <0>.
Turn the <5> dial to select [OK], and then press
<0>. After the connection wizard is closed, the
display reverts to the menu screen.
XThe <
LAN
> lamp on the transmitter is lit in green.
Settings information is stored on the camera. It is
not stored on the transmitter.
Enter a logon name and password for accessing the camera from a computer. The logon name
and password you specify here are used on the computer when connecting to the camera.
1 Turn the <5> dial to select [Set up], and then
press <0>.
2 Turn the <5> dial to select [HTTP account], and
then press <0>.
Configuring HTTP Transfer Settings
Setting up an Account
45
Configuring HTTP Transfer Settings
4
HTTP Settings and Remote Capture
3 Select a user number.
The camera can be accessed via HTTP from up to
three computers. Here, select a user number to
prevent conflicts when users at other computers
are connected to the transmitter simultaneously.
Turn the <5> dial to select [User *], and then
press <0>.
4 After you select [Login name] and [Password],
the following input screen is displayed.
For instructions on input screen operations, refer
to “Virtual Keyboard Operation” (p.24).
The HTTP network settings are now complete.
46
In the web browser, display WFT Server, a screen for transmitter operations.
Make sure you have already established a connection between the camera and computer.
1Start the web browser.
First, start Internet Explorer or another web
browser.
2Enter the URL.
In the address field, enter the IP address assigned
to the camera.
Press the <
Enter
> key.
XThe account screen is displayed.
Enter the login name and password as specified in
the procedure on page 45. Click [OK] to display the
WFT Server screen.
Select the language.
Displaying WFT Server
If you don’t know the URL (IP address)
You can check the URL (IP address) by accessing [Confirm settings] in the menu (p.52).
47
4
HTTP Settings and Remote Capture
1Click [Capture].
XThe capture screen is displayed.
2Take the picture.
Set the lens focus mode switch to <g> and
adjust the focus.
In the browser, click the release button of the
simulated remote controller. The camera will shoot
when the button is released.
XThe captured image is displayed in the simulated
camera monitor in the browser.
Captured images are stored on the CF card.
Shooting Remotely
48
Shooting Remotely
3Download images to the computer.
Click the image.
XThe image is displayed at a larger size.
Follow the web browser instructions to download
the image to the computer.
To return to the remote capture screen, click
[Return].
RAW images are not displayed at larger sizes, but they can be downloaded to the computer the
same way as JPEGs.
49
4
HTTP Settings and Remote Capture
Browse images on the camera’s CF card as follows.
1Click [Viewer].
XThe Viewer screen is displayed.
2Select the memory card.
If the camera is connected to external media, the
corresponding icon is also displayed.
Click the [DCIM] folder and select the folder where
images are stored.
3Select an image.
To view another image, click the < >
buttons or jump to other pages.
Viewing Images
50
Viewing Images

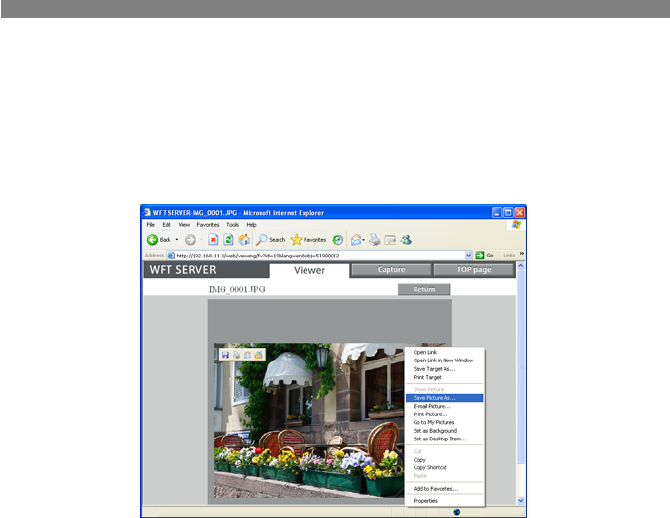

4Download images to the computer.
Click a thumbnail.
XThe image is displayed at a larger size.
Follow the web browser instructions to download
the image to the computer.
Click [Return] to return to the image viewing
screen.
RAW images are not displayed at larger sizes, but they can be downloaded to the computer the
same way as JPEGs.

Navigation menu
