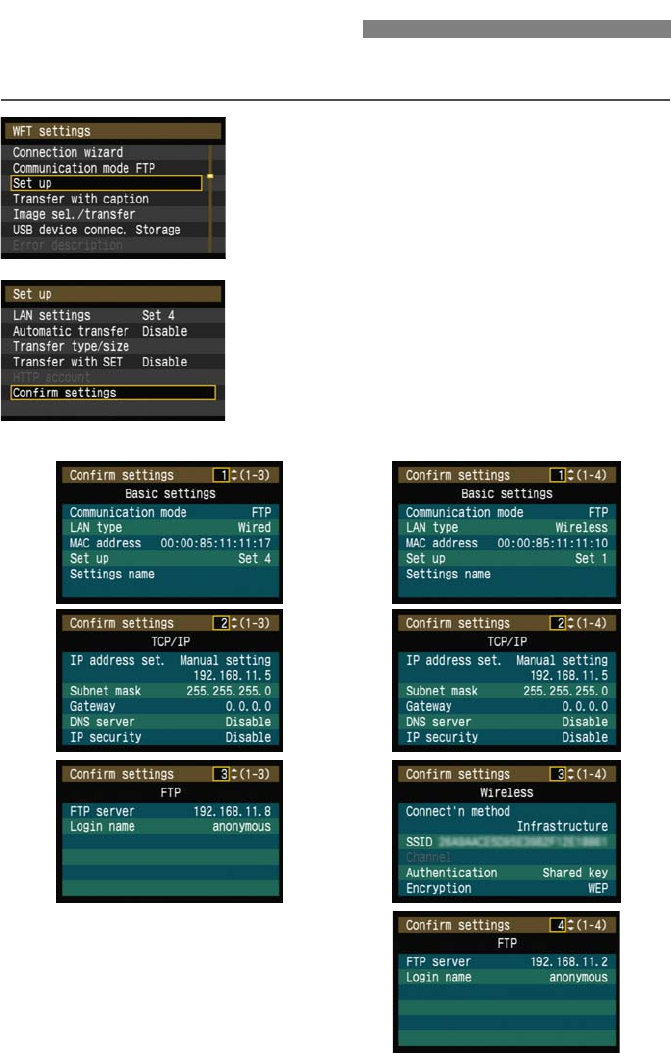

Check the network settings as follows.
1In [WFT settings], select [Set up].
2 Select [Confirm settings].
XThe settings are displayed.
Checking Settings
E
xamp
l
e o
f
FTP
an
d
w
i
re
d
LAN
se
tti
ngs
E
xamp
l
e o
f
FTP
an
d
w
i
re
l
ess
LAN
se
tti
ngs
53
5
Managing Settings Information
Settings originally completed using the connection wizard can be changed as follows. You can
also change IP security settings (IPsec) not completed using the connection wizard, as well as
other settings, such as the setting that determines what happens if an image of the same file
name as an existing file is sent to the FTP server. (p.54)

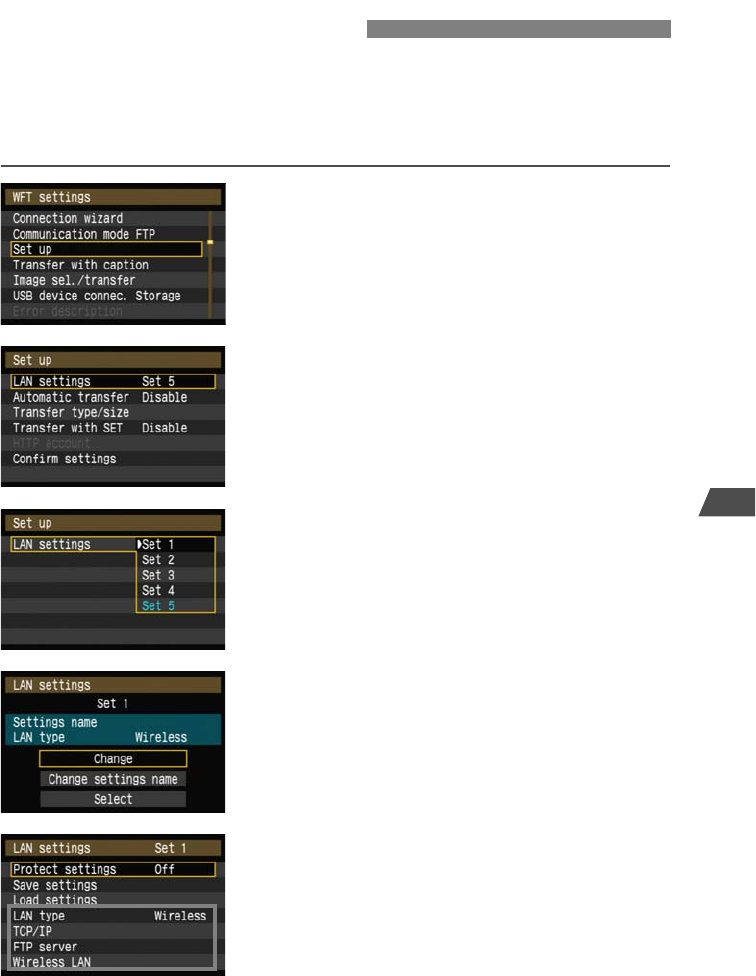

1In [WFT settings], select [Set up].
2Select [LAN settings].
3Select the settings number.
Here, select the settings number that identifies the
LAN settings.
4Select [Change].
After selecting [Change settings name], you can
rename the settings.
5Select the item to change.
Select the desired item from [LAN type], [TCP/IP],
[FTP server], or [Wireless LAN] and change the
setting.
Changing Settings
54
Changing Settings
Configured in [TCP/IP] [Security].
IPsec is a set of standards for encrypted communication over the Internet. It provides effective
security for both wireless and wired LANs. To use this function, you must enable IPsec in the
network settings of your computer. When IPsec is employed, only transport mode is supported,
and DES encryption and SHA1 authentication are used. Note that the IP address of the
computer for communication with the transmitter must be entered in [Destination address] on
the settings screen.
Configured in [FTP server] [Directory structure].
Selecting [Camera] automatically creates a folder structure matching that of the camera’s (such
as A/DCIM/100CANON) in the server’s root folder for image storage. If you have created a
subfolder in the root folder by changing the [Target folder] setting, a folder structure such as A/
DCIM/100CANON is automatically created in that folder for image storage.
Selecting [Default] will use the root folder for image storage. If you have created a subfolder in
the root folder by changing the [Target folder] setting, images are saved in that folder.
Configured in [FTP server] [Overwrite same file].
When the transmitter is configured to prevent overwriting
If there is already a file of the same name in the target folder on the FTP server, the new file is
saved with an extension consisting of an underline and a number, as in IMG_0003_1.JPG.
When you resend images if initial transfer fails
Even if the transmitter is configured to overwrite files of the same name, if you resend an image
file that could not be transferred initially, the existing file may not be overwritten in some cases.
If this happens, the new file is saved with an extension consisting of an underline, a letter, and
a number, as in IMG_0003_a1.JPG.
Configured in [FTP server] [Passive mode].
Enable this setting in network environments protected by a firewall. If an Error 41 occurs
(“Cannot connect to FTP server”), setting passive mode to [Enable] may enable access to the
FTP server.
To prevent accidental changes to LAN settings, set [Protect
settings] to [On].
IP Security (IPsec)
Directory Structure of the Target Folder
Overwriting Files of the Same Name
Passive Mode
Preventing Changes to Settings
55
5
Managing Settings Information

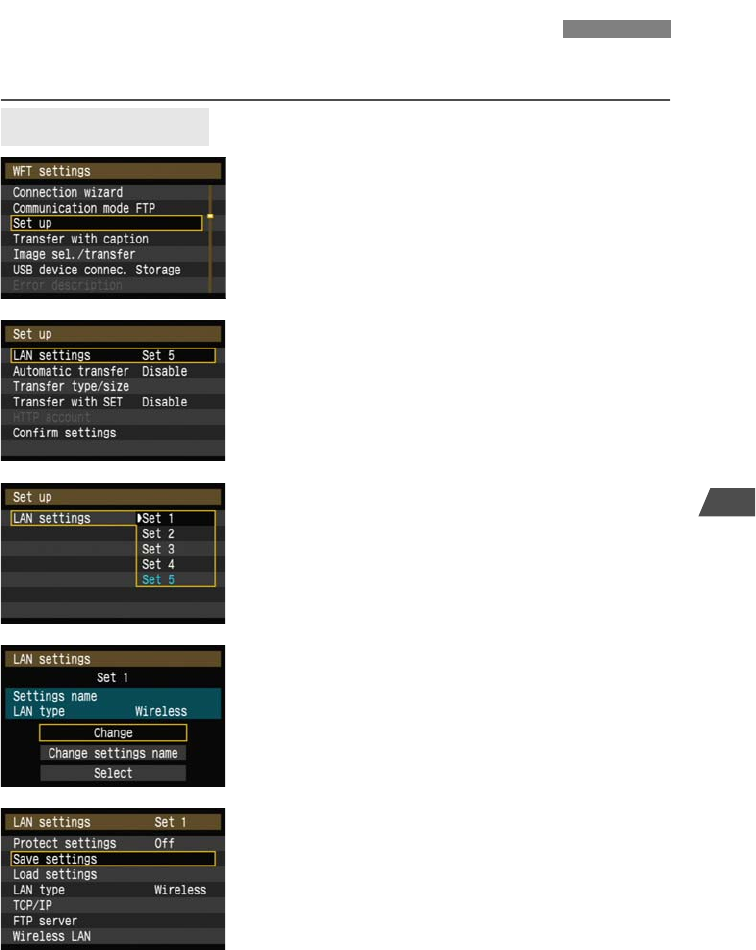

Network settings can be saved on a CF card for use with other cameras.
1In [WFT settings], select [Set up].
2Select [LAN settings].
3Select the settings number.
Here, select the settings number that identifies the
LAN settings.
4Select [Change].
5Select [Save settings].
Saving and Loading Settings
Saving Settings
56
Saving and Loading Settings

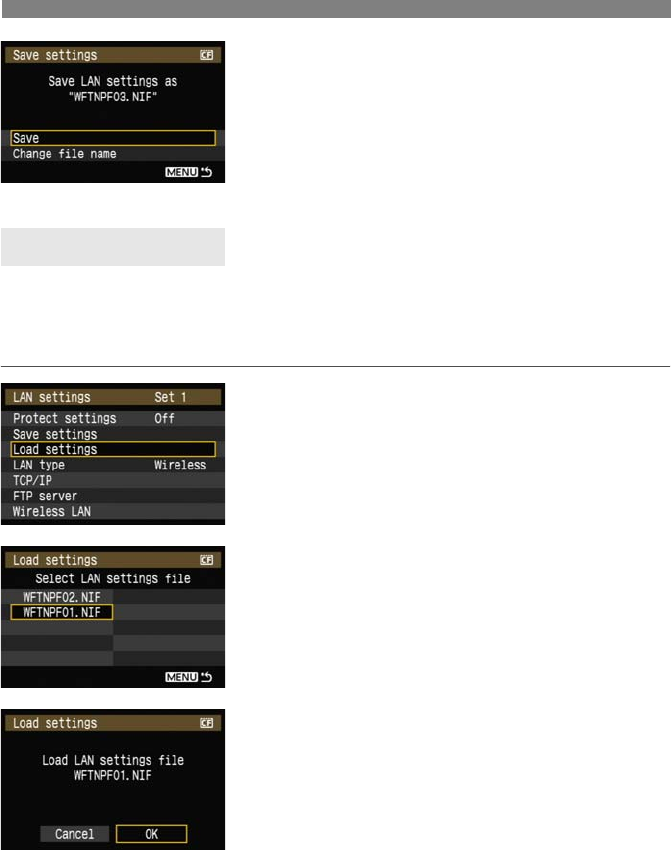

6Select [Save].
XThe settings are now saved as a file on the CF
card.
The file name is determined automatically by the
camera: WFTNPF, followed by a number (01 to
99) and the extension NIF. You can rename the file
as desired by selecting [Change file name].
Load settings files stored on a CF card as follows. Also use this procedure when loading
settings files created on a computer.
Make sure the settings file is saved in the folder shown when the CF card is opened (that is, the
root directory).
1Select [Load settings].
2Select the settings file.
XSelect a settings file that matches your network
environment.
3Load the settings file.
XInformation from the settings file is loaded into the
selected settings number.
Loading Settings
57
6
Using External Media
Commercially available external media, connected via USB, can be used
the same way as a CF card. You can also backup images from a CF card
onto external media.
Note that external media must meet the following requirements.
Use media conforming to the USB Mass Storage Class Specification.
If an external hard disk drive is used, use a self-powered drive. Bus-
powered drives do not work in some situations.
The main image storage area must be formatted with a FAT16 or
FAT32 file system.
Use media with a main image storage area of less than 1 TB
(terabyte), with 512 bytes per sector.
Do not use external media equipped with a card slot.
58
Before connecting external media to the transmitter, switch the camera’s power switch to
<
OFF
>. Also turn off external media that has its own power supply.
When connecting external media, be sure to use the USB cable provided with the camera.
The transmitter USB port is not hot-pluggable. USB cables cannot be connected or
disconnected at any time. Follow the instructions in this section when connecting or
disconnecting USB cables.

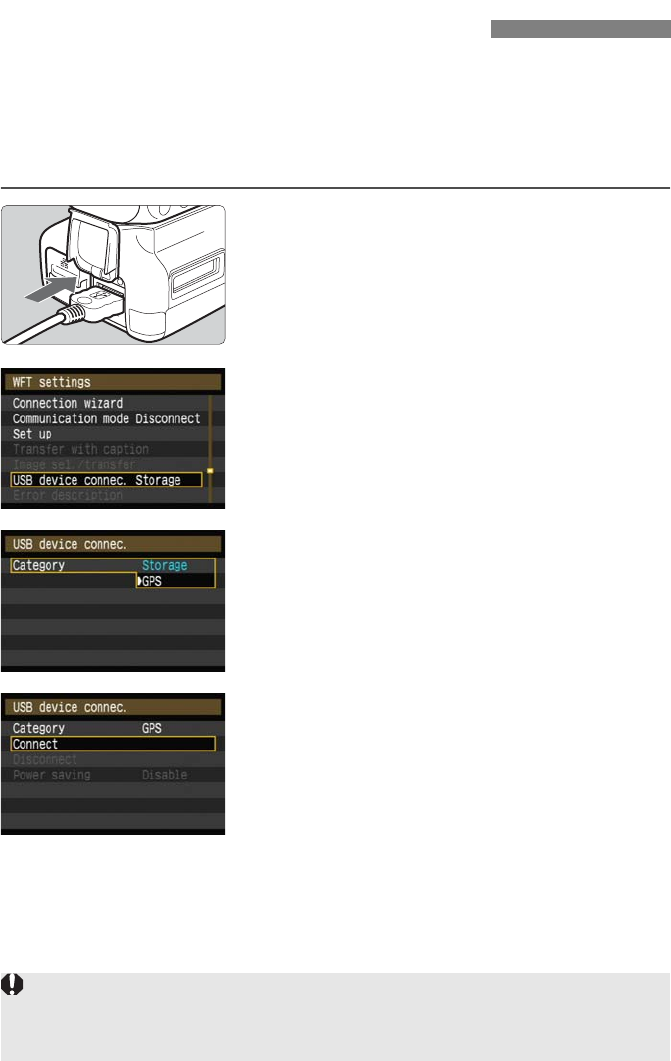

1Plug the external media into the USB
port.
Open the port cover and connect the external
media.
Do not connect external media via a USB hub.
If the external media is self-powered, turn it on
after connecting it.
2In [WFT settings], select [USB device
connec.].
If you will not use a wireless or wired LAN at the
same time as the external media, set
[Communication mode] to [Disconnect].
3Select [Storage].
4Select [Connect].
Connecting External Media
When replacing the transmitter’s battery, be sure to first set the camera’s power switch to <
OFF
>
before opening the transmitter’s battery compartment cover. If the transmitter’s battery compartment
cover is opened without setting the camera’s power switch to <
OFF
>, the connection operation for the
external media will have to be performed again.
59
Connecting External Media
6
Using External Media
5Select [OK].
Camera operations such as shooting, menu
display, or image playback are not possible
until the connection is established.

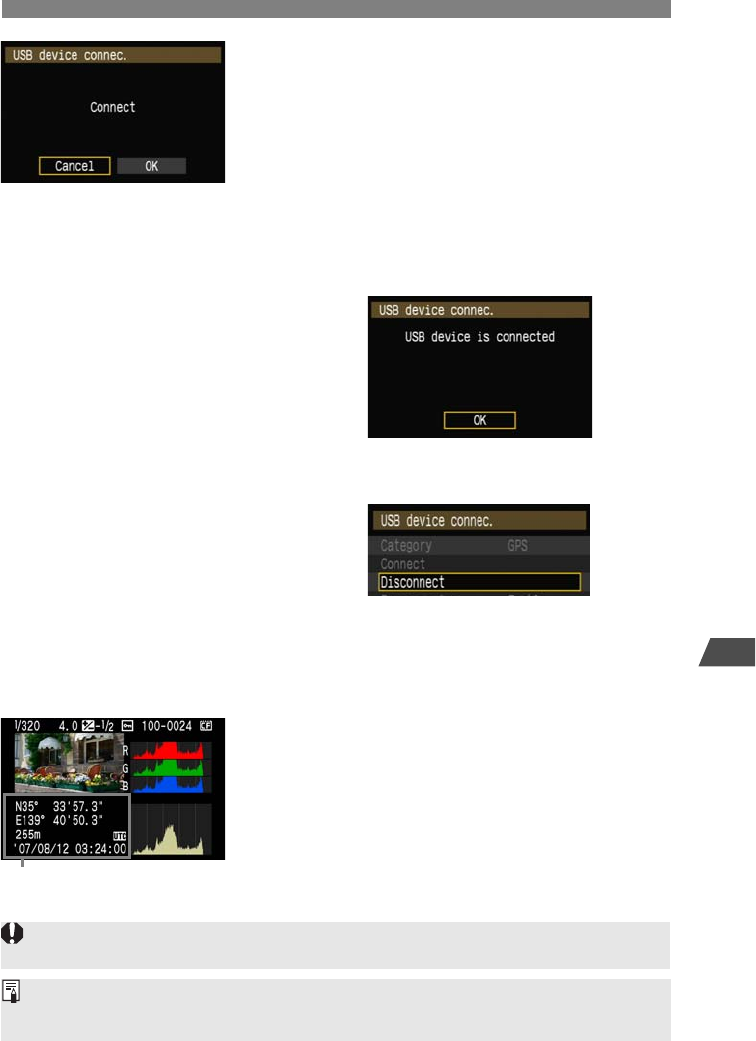

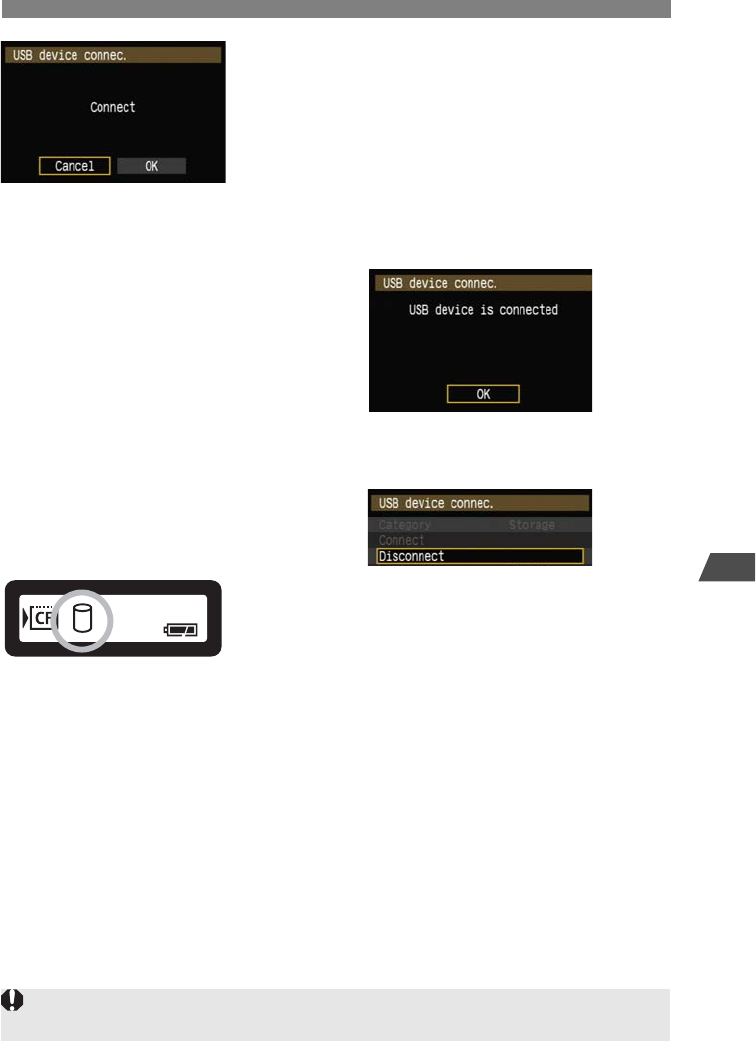

When the transmitter is connected to the external
media, the transmitter’s <
USB
> lamp is lit in green
and a message is displayed indicating that a
connection has been established.
When the confirmation message is displayed,
select [OK].
XAt this point, the menu option [Disconnect]
becomes available. Select this option before
disconnecting the external media.
XAfter you exit the menu, the rear LCD panel
indicates that external media is connected.
External media cannot be formatted using the camera. Format it with a FAT16 or FAT32 file system
using the computer.
60
Connecting External Media
Before unplugging external media from the USB port, always select [Disconnect] as shown in
step 5. Follow the instructions displayed to terminate the connection.
The connection will not be terminated if you simply turn off the camera and external media. If
you unplug external media while the connection is still active, plug the external media into the
USB port again and follow the preceding steps to terminate the connection.
External media is powered via the transmitter’s USB port as needed. However, external hard
disk drives may not work after connection in some cases.
Power Management
If you will not use a wireless or wired LAN at the
same time as the external media, set
[Communication mode] to [Disconnect]. The
camera battery drains faster under settings other
than [Disconnect] because power saving is
disabled.
Setting [Power saving] to [Enable] enables the
power supply to external media to be stopped
automatically, conserving the camera battery.
Power is supplied again automatically during
shooting, when captured images are stored.
Unplugging External Media from the USB Port
Power Supply to External Media
61
6
Using External Media
Images can be recorded to external media connected via USB. This enables recording of
images to external media without loading the CF card into the camera.
You can also create your own DCIM folders for storing images in the external media.

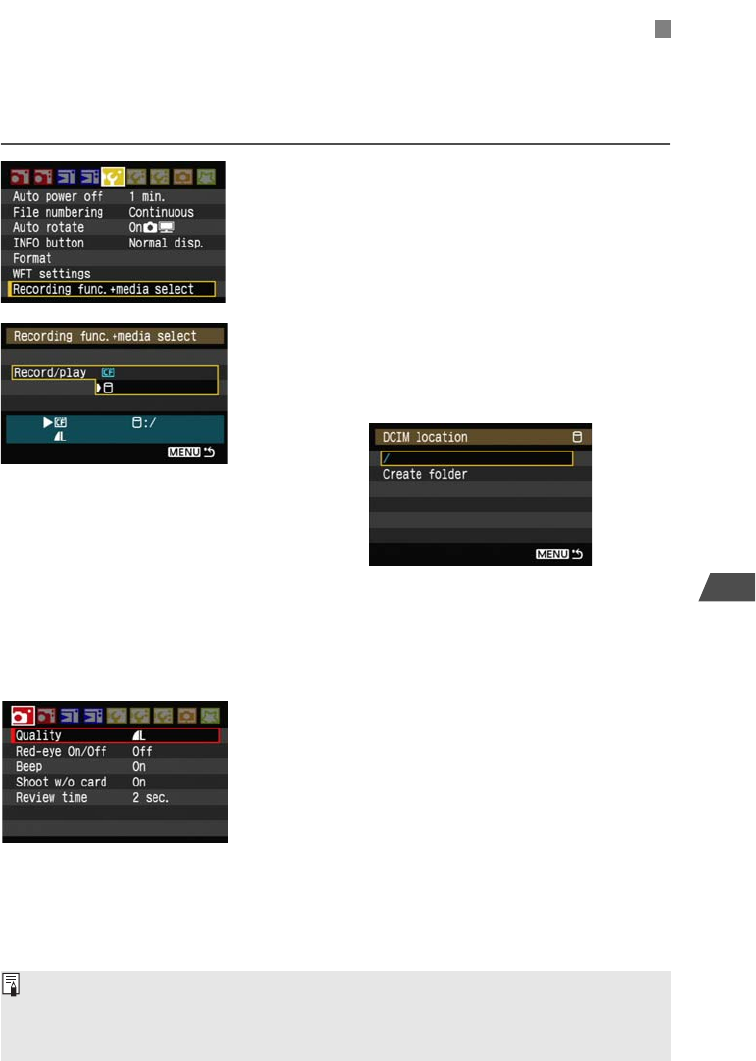

1On the [5] tab, select [Recording
func.+media select].
2Select [u] (external media) under
[Record/play].
XThe [DCIM location] screen is displayed. The
DCIM folder is the folder for storing images.
Select the initial setting of [/] and press the
<7> button to create a DCIM folder where the
external media is opened (that is, root directory).
When images are taken, they will be stored in the
DCIM folder of the external media.
3Select the recording quality.
The recording quality when external media is selected
is set to the same recording quality as the CF card.
The recording quality can be changed with [Quality]
on the [1] tab.
Choosing Recording Media When Shooting
Although the <
USB
> lamp will blink in green briefly if the camera is turned off and on or recovering from
auto power off, shooting is still possible. Any images captured at this time are stored temporarily in the
camera’s internal memory and then recorded on external media when the <
USB
> lamp remains lit in
green.
62
Choosing Recording Media When Shooting

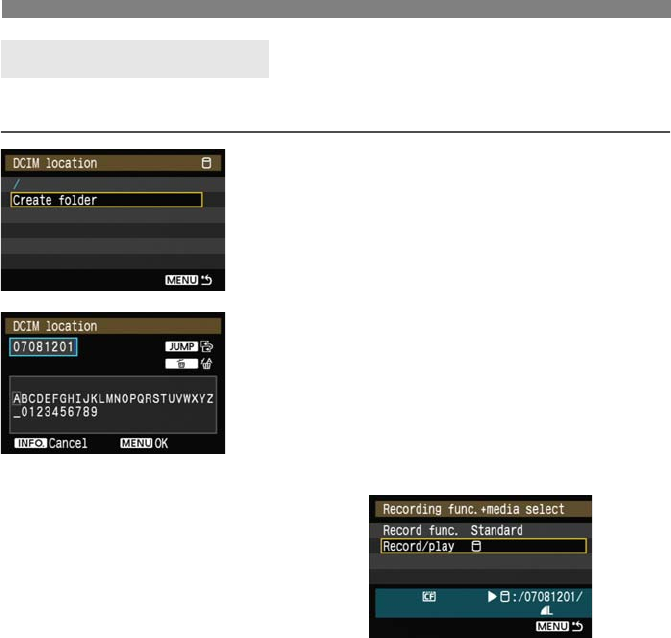

Selecting [Create folder] enables the user to create a folder in the external media for storing
the DCIM folder. This is useful for separating DCIM folders by shooting dates, for instance.
1Select [Create folder].
2Check the folder name.
By default, the folder name comprises the current
date (last two digits of the year, in addition to the
month and day) and numbers representing the
order the folder was created, in a range of 01 to
99.
If the folder name is OK, press the <7> button.
XThe created folder is selected.
When changing the folder name, always use an
eight-character name. For instructions on entering
the folder name, refer to “Virtual Keyboard
Operation” (p.24).
Using [Create folder]
63
6
Using External Media
When using external media connected via USB and a CF card loaded in the camera at the
same time, various types of image recordings can be made. The settings made in [Record
func.] below are valid in the Creative Zone modes only. Note that these settings are disabled in
the Basic Zone modes.

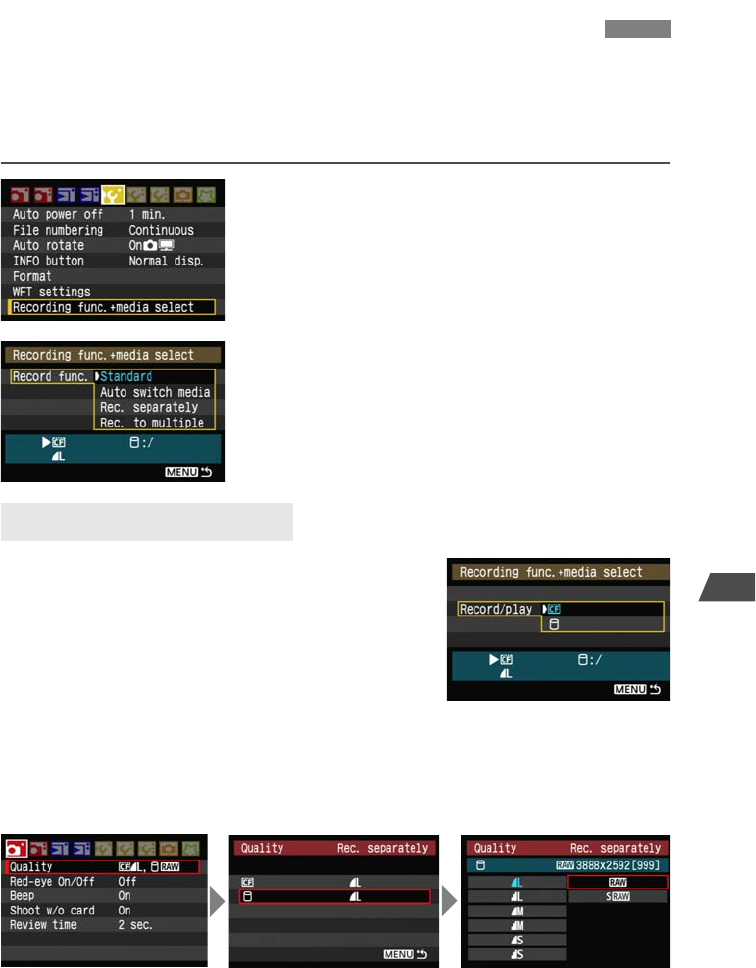

1On the [5] tab, select [Recording
func.+media select].
2Select [Record func.].
Select the setting based on “[Record func.]
Options” below.
The recording quality is selected with [Quality] on
the [1] tab.
Standard
Image are recorded to the media selected in [Record/
play].
Auto switch media
Images are recorded to the media selected in [Record/
play], and when there is no more free space, the recording
of images is automatically switched to the other media.
Rec. separately
Whenever an image is taken, it is recorded to both the CF card and external media.
Selecting [Quality] on the [1] tab enables selection of a separate recording image quality
for the CF card and external media. Making this setting displays the image quality recorded
to the external media on the transmitter’s LCD panel.
Rec. to multiple
Whenever an image is taken, the same image is recorded to both the CF card and external
media.
Using Together With a CF Card
[Record func.] Options
64

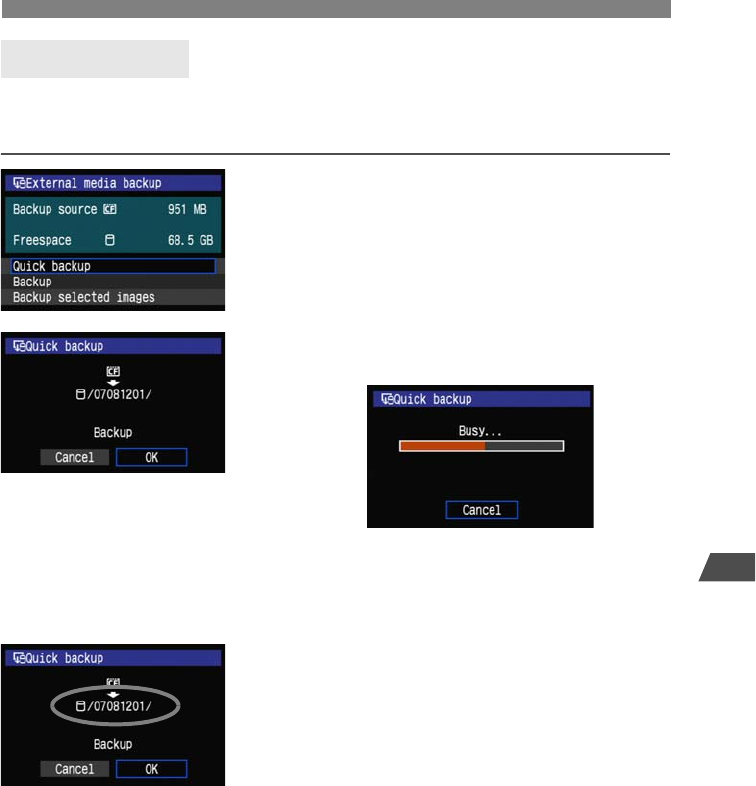

Images recorded on the CF card can be backed up to external media.

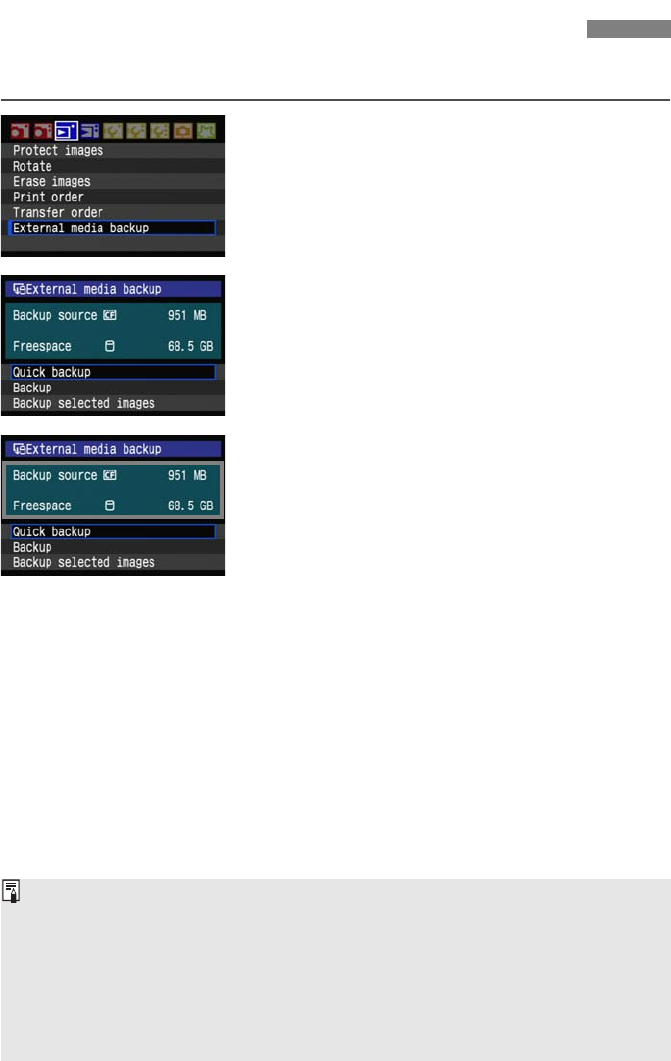

1On the [3] tab, select [External media
backup].
2Select the method of backup.
3Check the free space on the media.
In [Quick backup] and [Backup], make sure that
the available space on the external media is larger
than the amount used on the CF card. If less free
space is available on the external media, backup is
not possible.
Backing Up on External Media
External media cannot be backed up onto CF cards.
If the backup destination already has a folder of the same number containing images of the same
file number, [Skip image and continue], [Replace existing image], and [Cancel backup] are
displayed. Select the backup method and press <0>.
•[Skip image and continue]: All images are backed up except for images of the same file number
as existing images
•[Replace existing image]: All images are backed up, including images of the same file number
as existing images
Shooting is not possible during backup. Press [Cancel] before shooting.
65
Backing Up on External Media
6
Using External Media
A simple method of backup is available. In [Quick backup], a folder with the current date is
automatically created where the external media is opened (that is, root directory), and the
DCIM folder containing the recorded images is stored inside this folder.
1Select [Quick backup].
2Select [OK].
XThe backup process now begins.
When the message indicating completion is
displayed, select [OK].
Where the DCIM Folder is Stored
The DCIM folder is stored in a directory indicated
by a file path such as [u/07081201/].
The target folder name comprises the current date
(last two digits of the year, in addition to the month
and day) and numbers representing the order the
folder was created, in a range of 01 to 99.
In the example shown at left, the folder displayed
when the external media is opened (that is, the
root directory) is named 07081201. The DCIM
folder is stored in this folder.
This is also the target folder name displayed when
using the regular [Backup] option.
Quick Backup
66
Backing Up on External Media

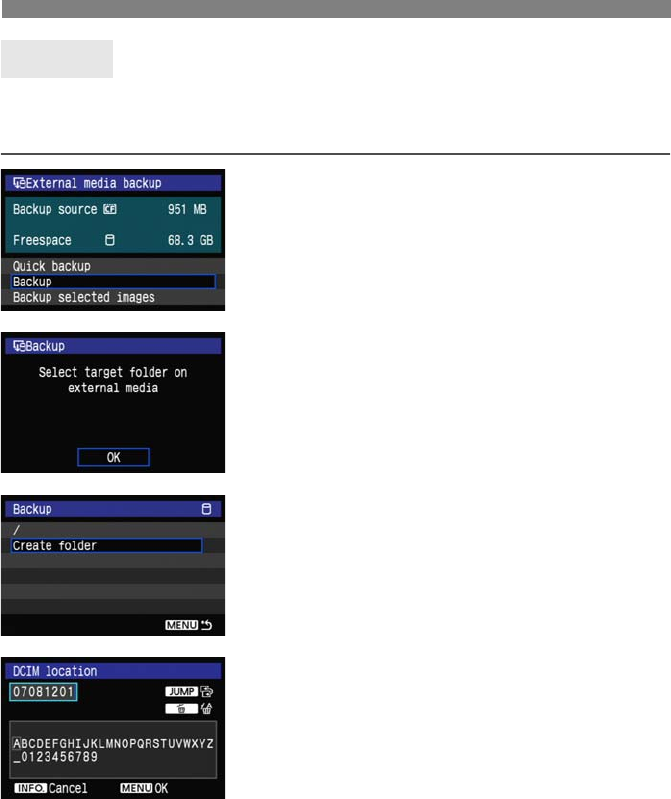

In [Backup], you can create a folder for backup in external media as desired, and save the
DCIM folder where images are stored in the selected folder. You can also name this folder as
desired. Other functions in this method of backup are the same as for [Quick backup].
1Select [Backup].
2Select [OK].
3Select [Create folder].
4Enter the [Folder name].
Always use 8 characters for the folder name.
For instructions on entering the folder name, refer
to “Virtual Keyboard Operation” (p.24).
Backup
67
Backing Up on External Media
6
Using External Media

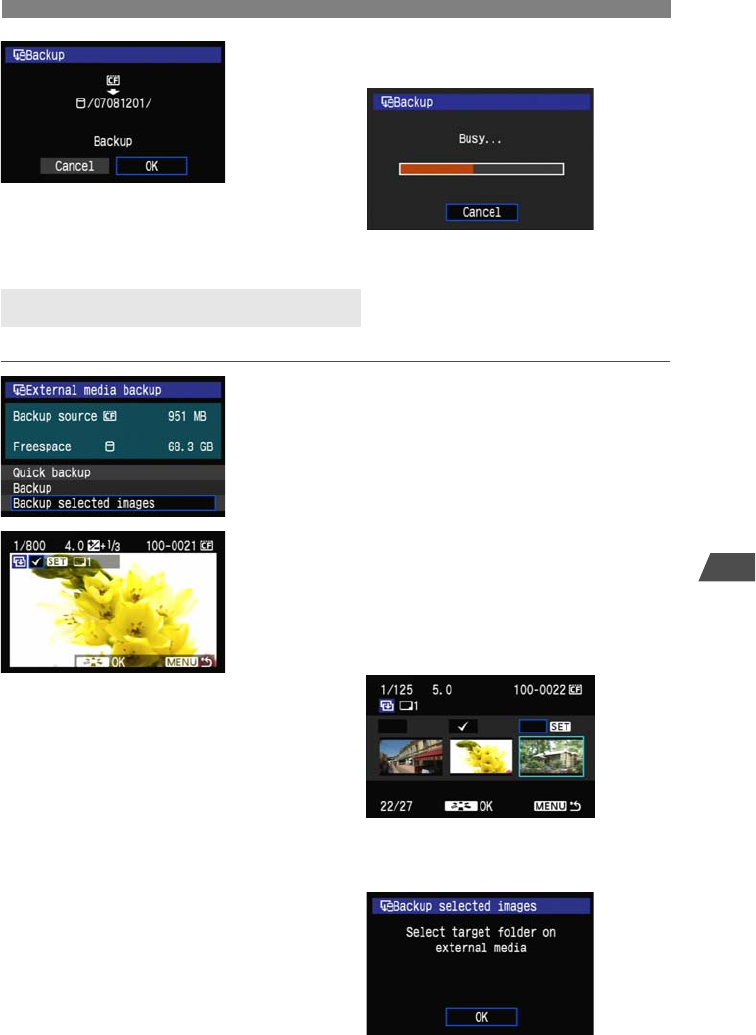

5Select [OK].
XThe backup process now begins.
When the message indicating completion is
displayed, select [OK].
Only the necessary images can be selected for backup to external media.
1Select [Backup selected images].
2Select the images for backup.
Turn the <
5
> dial to select the image, and then
press <
0
>.
X<X> is displayed at the top left of the image to be
backed up.
Press the <
y
> button to display three images per screen.
Press the <
u
> button to display one image per screen again.
After the images for backup are selected, press
the <A> button.
XSelect [OK] in the displayed screen.
Selecting Images for Backup
68
Backing Up on External Media
3Select [/], and then press the <7>
button.
XSelect [OK] in the displayed screen.
XBackup of the images will be started.
The images are stored into the DCIM folder
created where the external media is opened (that
is, root directory).
When backing up to a selected folder in external
media, select [Create folder]. For details, see
steps 3 and 4 on page 66.
69
7
Using GPS Devices
Commercially available GPS devices connected via USB can obtain
information including the latitude, longitude, altitude, and date and time of
shooting and add it to images. The additional information can be checked
on the camera as well as by using GPS-compatible mapping software.
The transmitter can be used with Garmin GPSMAP or eTrex series or
Magellan eXplorist series GPS devices that produce data in the format
NMEA 0183 Ver. 2.0.1, as well as some devices that produce Garmin
protocol data (as of August 2007).
For a list of specific GPS devices supported, contact the Canon Service
Center.
For GPS device instructions, refer to the device’s instruction manual or contact the
manufacturer.
70
Turn off the GPS device and camera before connecting them.
When connecting GPS devices, be sure to use the USB cable provided with the camera.
The transmitter USB port is not hot-pluggable. USB cables cannot be connected or
disconnected at any time. Follow the instructions in this section when connecting or
disconnecting USB cables.
1Plug the GPS device into the USB port.
Open the port cover and connect the GPS device.
Do not connect GPS device via a USB hub.
Do not turn the GPS device on until step 5.
2In [WFT settings], select [USB device
connec.].
If you will not use a wireless or wired LAN at the
same time as the GPS device, set
[Communication mode] to [Disconnect].
3Select [GPS].
4Select [Connect].
Connecting GPS Devices
When replacing the transmitter’s battery, be sure to first set the camera’s power switch to <
OFF
>
before opening the transmitter’s battery compartment cover. If the transmitter’s battery compartment
cover is opened without setting the camera’s power switch to <
OFF
>, the connection operation for the
GPS device will have to be performed again.
71
Connecting GPS Devices
7
Using GPS Devices
5Select [OK].
After selecting [OK], turn the GPS device on.
It may take a few minutes to establish a connection
with the GPS device. Camera operations such as
shooting, menu display, or image playback are
not possible until the connection is established.
When the transmitter is connected to the GPS
device, the transmitter’s <
USB
> lamp is lit in green
and a message is displayed indicating that a
connection has been established.
When the confirmation message is displayed, select
[
OK
].
XAt this point, the menu option [Disconnect]
becomes available. Select this option before
disconnecting the GPS device.
6Take the picture.
Make sure the transmitter’s <
USB
> lamp is lit in
green before shooting.
If the <
USB
> lamp is not lit in green when you shoot,
correct GPS data will not be added to images.
7Check the GPS data.
View an image.
Press the <6> button to display the shooting
information screen with GPS data.
From top to bottom: latitude, longitude,
altitude, and Coordinated Universal Time
The date and time indicated is the Coordinated Universal Time (UTC) as obtained by the GPS device,
which is nearly the same as Greenwich Mean Time (GMT). In some cases, the date and time of the
zone specified on the GPS device is indicated.
If the camera is turned off and on or recovering from auto power off, do not shoot until the <
USB
> lamp remains
lit in green. If you shoot while the lamp is blinking, the correct GPS information may not be added to images.
72
Connecting GPS Devices
Before unplugging GPS devices from the USB port, always select [Disconnect] as shown in
step 5. Follow the instructions displayed to terminate the connection.
The connection will not be terminated if you simply turn off the camera and GPS device. If you
unplug GPS device while the connection is still active, plug the GPS device into the USB port
again and follow the preceding steps to terminate the connection.
If you will not use a wireless or wired LAN at the
same time as the GPS device, set
[Communication mode] to [Disconnect]. The
camera battery drains faster under settings other
than [Disconnect] because power saving is
disabled.
Unplugging GPS Devices from the USB Port
Power Management
73
8
Troubleshooting
74
If transmitter errors are displayed on the camera LCD monitor, or if the <
USB
> or <
LAN
> lamps
blink in red, refer to the examples of corrective actions in this section to eliminate the cause of
the error. The error details can also be checked on the [5] tab [WFT settings] [Error
description].
Click the error number in the following chart to jump to the corresponding page.
Responding to Error Messages
11 (p.75) 12 (p.75)
21 (p.75) 22 (p.76) 23 (p.76) 24 (p.77) 25 (p.78)
26 (p.78)
31 (p.79) 32 (p.79) 33 (p.79) 34 (p.79)
41 (p.80) 42 (p.81) 43 (p.81) 44 (p.82) 45 (p.82)
46 (p.82) 47 (p.83)
61 (p.83) 62 (p.84) 63 (p.84) 64 (p.84) 65 (p.85)
66 (p.85) 67 (p.85)
81 (p.86)
99 (p.86)
75
Responding to Error Messages
8
Troubleshooting
Is the pairing software running?
XStart the pairing software and follow the instructions to re-establish the connection. (p.38)
Are the transmitter and wireless LAN device configured with the same encryption
key for authentication?
XThis error occurs if the encryption keys do not match when the authentication method for
encryption is [Open system].
The setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct encryption key for authentication is entered on the transmitter. (p.21)
Are the target computer and wireless LAN device on?
XTurn on the target computer and wireless LAN device.
What to check on the transmitter
On the transmitter, the network setting is [Auto setting] or the IP address setting is
[Auto assign]. Does the error occur under these settings?
XIf no DHCP server is used, set the transmitter’s network setting to [Manual setting] and
IP address setting to [Manual setting]. (p.22)
What to check on the DHCP server
Is the DHCP server on?
XTurn the DHCP server on.
Are there enough addresses for assignment by the DHCP server?
XIncrease the number of addresses assigned by the DHCP server.
XRemove devices assigned addresses by the DHCP server from the network to reduce the
number of addresses in use.
Is the DHCP server working correctly?
XCheck the DHCP server settings to make sure it is working correctly as a DHCP server.
XIf applicable, ask your network administrator to ensure the DHCP server is available.
11: Connection target not found
12: Connection target not found
21: No address assigned by DHCP server
Responding to Error Messages 21 - 26
Also check the following points when responding to errors numbered 21 - 26.
Are the transmitter and wireless LAN device configured with the same encryption key for
authentication?
XThis error occurs if the encryption keys do not match when the authentication method for
encryption is [Open system]. The setting is case-sensitive, so check upper- and lower-case
characters. Make sure the correct encryption key for authentication is entered on the transmitter.
(p.21)
76
Responding to Error Messages
What to check on the transmitter
On the transmitter, the DNS address setting is [Auto assign] or [Manual setting].
Does the error occur under these settings?
XIf no DNS server is used, set the transmitter’s DNS address setting to [Disable]. (p.22)
On the transmitter, does the DNS server’s IP address setting match the server’s
actual address?
XConfigure the IP address on the transmitter to match the actual DNS server address.
(p.22, 88)
What to check on the DNS server
Is the DNS server on?
XTurn the DNS server on.
Are the DNS server settings for IP addresses and the corresponding names
correct?
XOn the DNS server, make sure IP addresses and the corresponding names are entered
correctly.
Is the DNS server working correctly?
XCheck the DNS server settings to make sure the server is working correctly as a DNS
server.
XIf applicable, ask your network administrator to ensure the DNS server is available.
What to check on the network as a whole
Does your network include a router or similar device that serves as a gateway?
XIf applicable, ask your network administrator for the network gateway address and enter it
on the transmitter. (p.22, 88)
XMake sure the gateway address setting is correctly entered on all network devices,
including the transmitter.
What to check on the transmitter
Is another device on the transmitter network using the same IP address as the
transmitter?
XChange the transmitter’s IP address to avoid using the same address as another device
on the network. Otherwise, change the IP address of the device that has a duplicate
address.
XIn network environments with a DHCP server, if the transmitter’s IP address setting is
[Manual setting], change it to [Auto assign]. (p.22)
22: No response from DNS server
23: Duplicate IP address
77
Responding to Error Messages
8
Troubleshooting
What to check on the transmitter
The transmitter’s proxy server setting is [Enable]. Does the error occur under this
setting?
XIf no proxy server is used, set the transmitter’s proxy server setting to [Disable]. (p.26)
Do the transmitter’s [Address setting] and [Port No.] settings match those of the
proxy server?
XConfigure the transmitter’s proxy server address and port number to match those of the proxy
server. (p.26)
In the transmitter’s [Proxy server] settings, have you only entered [Server name]?
XIf the proxy server’s [Address] setting is not configured on the transmitter, enter it along
with the DNS server address. (p.22) Make sure the server name and port number for the
proxy server are entered correctly. (p.26)
What to check on the proxy server
Is the proxy server on?
XTurn the proxy server on.
Is the proxy server working correctly?
XCheck the proxy server settings to make sure the server is working correctly as a proxy
server.
XIf applicable, ask your network administrator for the proxy server address or server name
and port number, and then enter them on the transmitter.
What to check on the network as a whole
Does your network include a router or similar device that serves as a gateway?
XIf applicable, ask your network administrator for the network gateway address and enter it
on the transmitter.
XMake sure the gateway address setting is correctly entered on all network devices,
including the transmitter.
24: No response from proxy server
78
Responding to Error Messages
Is another device on the transmitter network using the same IP address as the
transmitter?
XThis error occurs if the transmitter is connected to a network where another device
subsequently connects with the same IP address. Change the transmitter’s IP address to
avoid using the same address as another device on the network. Otherwise, change the
IP address of the device that has a duplicate address.
What to check on the transmitter
On the transmitter, the network setting is [Auto setting]. Does the error occur under
this setting?
XIf no DHCP server is used, set the transmitter’s network setting to [Manual setting].
(p.22)
What to check on the DHCP server
Is the DHCP server on?
XTurn the DHCP server on.
Are the DHCP server settings for IP addresses and the corresponding names
correct?
XOn the DHCP server, make sure IP addresses and the corresponding names are entered
correctly.
Is the DHCP server working correctly?
XCheck the DHCP server settings to make sure it is working correctly as a DHCP server.
XIf applicable, ask your network administrator to ensure the DHCP server is available.
What to check on the network as a whole
Does your network include a router or similar device that serves as a gateway?
XIf applicable, ask your network administrator for the network gateway address and enter it
on the transmitter. (p.22)
XMake sure the gateway address setting is correctly entered on all network devices,
including the transmitter.
25: Another terminal has set the same IP address
26: No response from DHCP server
79
Responding to Error Messages
8
Troubleshooting
Has the USB cable been disconnected?
XAfter connecting the USB cable, in [WFT settings], select [USB device connec.] and
reconnect the device.
Is the USB device on?
XTurn the USB device on. Next, also in [WFT settings], select [USB device connec.] and
reconnect the device.
Have you connected a USB device other than external media or a GPS device?
XConnect only external media or a GPS device.
The device is incompatible with the transmitter.
XExternal media with built-in card slots are not compatible. Similarly, USB card readers
cannot be used.
Is the external media formatted with a FAT16 or FAT32 file system?
XFormat the external media with a FAT16 or FAT32 file system using the computer.
The GPS device is incompatible with the transmitter.
XAmong GPS devices, we recommend devices for which operation has been verified by
Canon.
There is a problem with the external media.
XConnect the external media to a computer and confirm that it is working correctly.
Have you connected a USB device other than external media or a GPS device?
XConnect only external media or a GPS device.
31: USB connection disconnected
32: Incompatible USB device
33: USB device error
34: Cannot connect to USB device
80
Responding to Error Messages
What to check on the transmitter
On the transmitter, does the FTP server’s IP address setting match the server’s
actual address?
XConfigure the IP address on the transmitter to match the actual FTP server address.
(p.26)
Are the transmitter and wireless LAN device configured with the same encryption
key for authentication?
XThis error occurs if the encryption keys do not match when the authentication method for
encryption is [Open system].
The setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct encryption key for authentication is entered on the transmitter. (p.21)
On the transmitter, does the [Port number setting] for the FTP server match the
actual port number of the FTP server?
XConfigure the same port number (usually 21) on the transmitter and FTP server.
Configure the port number on the transmitter to match the actual FTP server port number.
(p.26)
If only the FTP server’s [Server name] is configured on the transmitter, are the DNS
server settings complete?
XIf the FTP server’s [Address] setting is not configured on the transmitter, enable use of
the DNS server on the transmitter and enter its address. (p.22) Make sure the FTP server
name is entered correctly. (p.26)
What to check on the FTP server
Is the FTP server working correctly?
XConfigure the computer correctly to function as an FTP server.
XIf applicable, ask your network administrator for the FTP server address and port number,
and then enter them on the transmitter.
Is the FTP server on?
XTurn the FTP server on. The server may have been turned off because of an energy-
saving mode.
On the transmitter, does the FTP server’s IP address setting (in [Address]) match
the server’s actual address?
XConfigure the IP address on the transmitter to match the actual FTP server address.
(p.26)
Is a firewall or other security software enabled?
XSome security software uses a firewall to restrict access to the FTP server. Change the
firewall settings to allow access to the FTP server.
XYou may be able to access the FTP server by setting [Passive mode] to [Enable] on the
transmitter. (p.54)
41: Cannot connect to FTP server
81
Responding to Error Messages
8
Troubleshooting
Are you connecting to the FTP server via a broadband router?
XSome broadband routers use a firewall to restrict access to the FTP server. Change the
firewall settings to allow access to the FTP server.
XYou may be able to access the FTP server by setting [Passive mode] to [Enable] on the
transmitter. (p.54)
If you are using Windows XP Service Pack 2, is access to the FTP server blocked
by the [Windows Firewall]?
XChange the Windows Firewall settings to allow access to the FTP server.
What to check on the network as a whole
Does your network include a router or similar device that serves as a gateway?
XIf applicable, ask your network administrator for the network gateway address and enter it
on the transmitter. (p.22)
XMake sure the gateway address setting is correctly entered on all network devices,
including the transmitter.
What to check on the FTP server
Is the FTP server configured to restrict access to only some IP addresses?
XChange the FTP server settings to allow access from the [IP address] configured on the
transmitter in the TCP/IP settings.
What to check on the FTP server
Have you exceeded the maximum number of FTP server connections?
XDisconnect some network devices from the FTP server or increase the maximum number
of connections.
42: FTP server rejected connection
43: Cannot connect to FTP server. Error code received from server.
82
Responding to Error Messages
This error occurs if the transmitter fails to disconnect from the FTP server for some
reason.
XRestart the FTP server and camera.
What to check on the transmitter
On the transmitter, is the [Login name] entered correctly?
XCheck the logon name for accessing the FTP server. The setting is case-sensitive, so
check upper- and lower-case characters. Make sure the correct logon name is entered on
the transmitter. (p.27)
On the transmitter, is the [Login password] entered correctly?
XIf a logon password is configured on the FTP server, check the upper- and lower-case
characters to make sure the password on the transmitter matches it. (p.27)
What to check on the FTP server
Do the user rights for the FTP server allow reading, writing, and log access?
XConfigure the FTP server’s user rights to allow reading, writing, and log access.
What to check on the FTP server
The connection was terminated by the FTP server.
XRestart the FTP server.
Do the user rights for the FTP server allow reading, writing, and log access?
XConfigure the FTP server’s user rights to allow reading, writing, and log access.
Do user rights allow access to the target folder on the FTP server?
XConfigure the user rights for access to the target folder on the FTP server to allow saving
images from the transmitter.
Is the FTP server on?
XTurn the FTP server on. The server may have been turned off because of an energy-
saving mode.
Is the hard disk of the FTP server full?
XIncrease available space on the hard disk.
44: Cannot disconnect FTP server. Error code received from server.
45: Cannot login to FTP server. Error code received from server.
46: For the data session, error code received from FTP server
83
Responding to Error Messages
8
Troubleshooting
This error occurs if, for some reason, the transmitter fails to receive confirmation
from the FTP server that image file transfer is complete.
XRestart the FTP server and camera and send the images again.
Are any obstacles blocking the line of sight between the transmitter and the
antenna of the wireless LAN device?
XMove the antenna to a position clearly visible from the point of view of the transmitter.
(p.87)
What to check on the transmitter
On the transmitter, does the SSID setting match that of the wireless LAN device?
XCheck the SSID on the wireless LAN device, and configure the same SSID on the
transmitter. (p.20)
What to check on the wireless LAN device
Is the wireless LAN device on?
XTurn on the wireless LAN device.
On wireless LAN devices supporting IEEE 802.11a, are the device settings locked
on IEEE 802.11a?
XConfigure the wireless LAN device to allow access via IEEE 802.11b and g.
If you are filtering by MAC address, did you register the transmitter’s MAC address
on the wireless LAN device?
XRegister the transmitter’s MAC address (p.52) on the wireless LAN device.
47: Image file transfer completion not confirmed by FTP server
61: Same SSID wireless LAN terminal not found
84
Responding to Error Messages
What to check on the transmitter
Is the transmitter configured for communication in infrastructure mode?
XConfigure the transmitter for communication in ad hoc mode.
What to check on the wireless LAN device
Is there a nearby wireless LAN device for ad hoc communication?
XPrepare a wireless LAN device for ad hoc communication near the transmitter.
Are the transmitter and wireless LAN device configured for the same
authentication method?
XThe transmitter supports these authentication methods: [Open system], [Shared key],
[WPA-PSK], and [WPA2-PSK]. (p.20)
XWhen using an AirPort for communication in infrastructure mode, [Open system] is not
supported. Configure a [Shared key] on the transmitter. (p.20)
Are the transmitter and wireless LAN device configured with the same encryption
key for authentication?
XThe setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct encryption key for authentication is entered on the transmitter and wireless LAN
device. (p.21)
If you are filtering by MAC address, did you register the transmitter’s MAC address
on the wireless LAN device?
XRegister the transmitter’s MAC address (p.52) on the wireless LAN device.
Are the transmitter and wireless LAN device configured for the same encryption
method?
XThe transmitter supports these encryption methods: [WEP], [TKIP], and [AES]. (p.20)
If you are filtering by MAC address, did you register the transmitter’s MAC address
on the wireless LAN device?
XRegister the transmitter’s MAC address (p.52) on the wireless LAN device.
62: No response from wireless LAN terminal
63: Wireless LAN authentication failed
64: Cannot connect to wireless LAN terminal
85
Responding to Error Messages
8
Troubleshooting
Are any obstacles blocking the line of sight between the transmitter and the
antenna of the wireless LAN device?
XMove the antenna to a position clearly visible from the point of view of the transmitter.
(p.87)
The wireless LAN connection was lost, for some reason, and the connection
cannot be restored.
XThe following are possible reasons; excessive access to the wireless LAN device from
other terminals, a microwave oven or other devices in use nearby, or poor weather. (p.87)
Are the transmitter and wireless LAN device configured with the same encryption
key for authentication?
XThe setting is case-sensitive, so check upper- and lower-case characters. Make sure the
correct encryption key for authentication is entered on the transmitter and wireless LAN
device. (p.21)
Note that if the authentication method is [Open system], an Error 41 (“Cannot connect to
FTP server”) is displayed.
Are the transmitter and wireless LAN device configured for the same encryption
method?
XThe transmitter supports these encryption methods: [WEP], [TKIP], and [AES]. (p.20)
If you are filtering by MAC address, did you register the transmitter’s MAC address
on the wireless LAN device?
XRegister the transmitter’s MAC address (p.52) on the wireless LAN device.
65: Wireless LAN connection lost
66: Incorrect wireless LAN encryption key
67: Incorrect wireless LAN encryption method
86
Responding to Error Messages
Is the LAN cable securely connected?
XReconnect the LAN cable between the transmitter and server. Because the cable may be
severed, try using another cable to connect the devices.
Is the hub or router on?
XTurn on the hub or router.
Is the server on?
XTurn the server on. The server may have been turned off because of an energy-saving
mode.
Another problem has occurred, identified with an error number other than 11 to 81.
XTurn the camera’s power switch off and on.
81: Wired LAN connection lost
99: Other error
87
8
Troubleshooting
When using the transmitter with a wireless LAN, try the following corrective actions if the
transmission rate drops, the connection is lost, or other problems occur.
When using the transmitter indoors, install the wireless LAN device in the same room
where you are shooting.
Install the wireless LAN device higher than the transmitter.
Install the device where people or objects do not come between it and the camera.
Install the device as close as possible to the camera. In particular, note that during
outdoor use in poor weather, rain may absorb radio waves and disrupt the connection.
If the transmission rate over a wireless LAN drops because of interference from the following
electronic devices, switching to a wired LAN can resolve the problem.
The transmitter communicates over wireless LANs using radio waves in the 2.4 GHz
band. For this reason, the wireless LAN transmission rate may drop if there are nearby
microwave ovens, cordless telephones, microphones, or similar devices operating on the
same frequency band.
If a wireless LAN device on the same frequency band as the transmitter is used nearby,
the transmission rate of the wireless LAN may drop.
If multiple transmitters are connected to a single wireless LAN device, be careful not to
use duplicate camera IP addresses.
Note that the transmission rate drops when multiple transmitters access a single wireless
LAN device.
To reduce radio wave interference when using multiple transmitters and wireless LAN
devices in the same area, it is advisable to use three groups of devices or fewer. In this
case, leave a gap of four channels between each wireless LAN channel. For example,
use channels 1, 6, and 11; or channels 2, 7, and 12; or channels 3, 8, and 13.
Wireless LAN radio waves can be easily intercepted. For this reason, we recommend
activating encrypted communication in the wireless LAN device settings.
Wireless LAN Notes
Wireless LAN Device Installation and Antenna Position
Nearby Electronic Devices
Using Multiple Transmitters
Security
88
Click the Windows [Start] button [All Programs] [Accessories] [Command Prompt].
Type ipconfig/all and press the <
Enter
> key.
The IP address assigned to the computer is displayed, as well as the subnet mask, gateway,
and DNS server information.
To avoid using the same IP address for the computer and other devices on the network when
configuring the IP address assigned to the camera (page 22), change the rightmost numbers
here.
In Mac OS X, open the [Terminal] application, type ifconfig -a, and press the <
Return
> key.
The IP address assigned to the computer is indicated in the [en0] item by [inet], in the format
***.***.***.***.
To avoid using the same IP address for the computer and other devices on the network when
configuring the IP address assigned to the camera (page 22), change the rightmost numbers
here.
* For information on the [Terminal] application, refer to the Mac OS X help.
Checking Network Settings
Windows
Macintosh
89
9
Reference
90
You can configure the wireless or wired LAN settings by using the software provided with the
camera, WFT Utility. This is convenient if you want to create a wireless or wired LAN settings
file when the camera and transmitter are not nearby.
WFT Utility also enables you to create captions for attachment to images before transfer via
FTP.

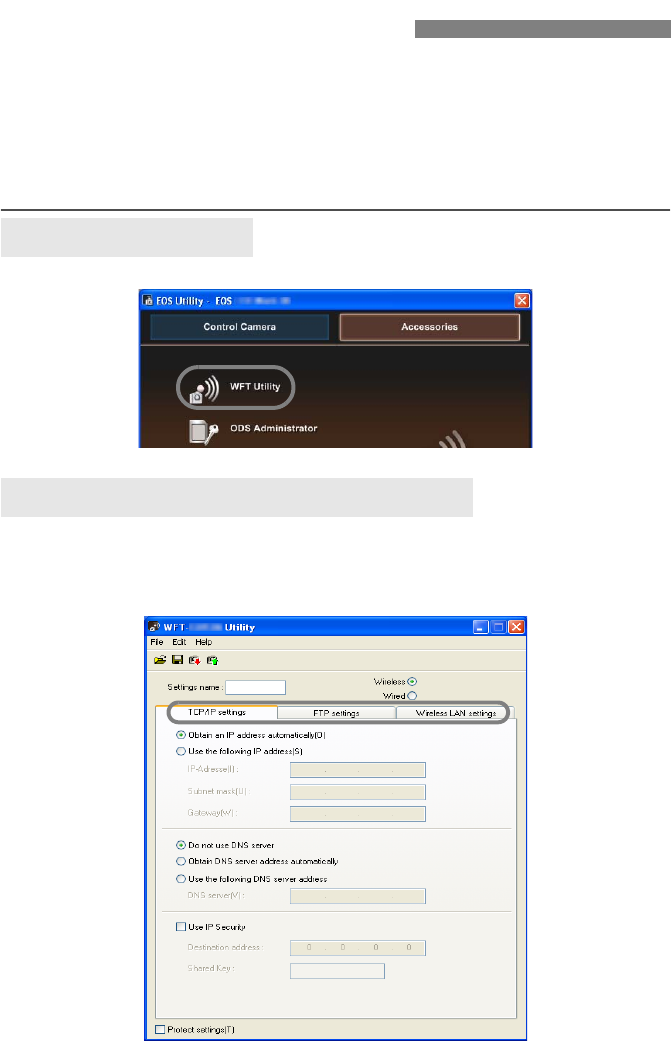

Start WFT Utility from EOS Utility.
In EOS Utility, access [Accessories] to start WFT Utility.
Click the tabs for the transmitter’s [TCP/IP settings], [FTP settings], and [Wireless LAN
settings] and complete the required settings for a wireless or wired LAN connection.
Settings available here are the same as settings on the camera, with the addition of settings
for creating captions.
WFT Utility (Software)
Starting WFT Utility
Using Wireless or Wired LAN Settings
91
WFT Utility (Software)
9
Reference

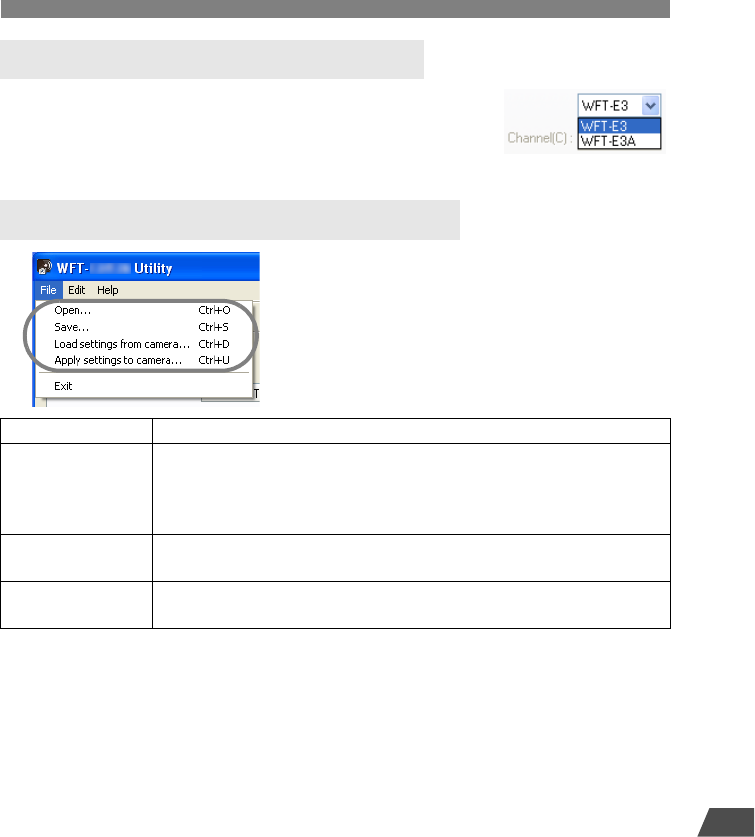

When setting the wireless LAN channel on the [Wireless LAN
settings] tab, first select [WFT-E3] or [WFT-E3A]. The WFT-E3
supports 13 channels, and the WFT-E3A, 11 channels.
Keep in mind that the WFT-E3A cannot be used on channels 12 and
13 as the [WFT-E3] can.
Settings files can be used as follows.
Setting the Wireless LAN Channel
Wireless or Wired LAN Settings Files
Open Open a settings file saved on the computer or a CF card.
Save
Save the settings file on the computer or a CF card. The [Settings name] is
used as the file name.
For instructions on applying a settings file on a CF card to the camera, refer
to page 56.
Apply settings to
camera
Apply the settings file to a camera. The camera and computer must be
connected with the USB cable.
Load settings from
camera
Load a settings file on the camera to the computer. The camera and
computer must be connected with the USB cable.
92
Follow these steps to create captions and register them on the camera, as introduced in
“Adding a Caption Before Transfer” (p.31). When creating and registering captions, use a
computer on which EOS Utility is installed.
Before you begin, attach the transmitter to the camera and use the USB cable provided
with the camera to connect the camera to the computer. For instructions on connecting the
camera to the computer with the USB cable and starting EOS Utility, refer to the Software
Instruction Manual (PDF) provided with the camera. Note that captions cannot be created for
cameras without an attached transmitter.

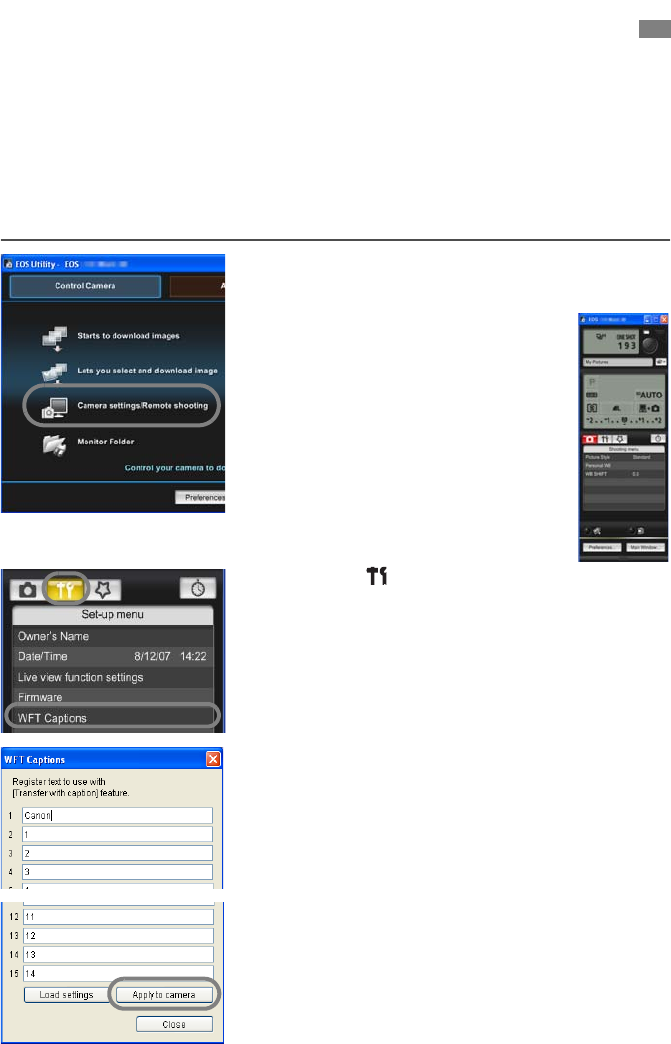

1Start EOS Utility and select [Camera
settings/Remote shooting].
XThe camera settings/remote
capture screen is displayed.
2On the [ ] tab, select [WFT Captions].
XThe screen for caption creation is displayed.
To acquire caption data stored on the camera,
select [Load settings].
3Enter the caption or captions.
Enter up to 31 characters (in ASCII format).
4Register the captions on the camera.
Select [Apply to camera] to register your new
captions on the camera.
Creating and Registering Captions
93
9
Reference
EOS Utility System Requirements
Windows
Operating system
Windows Vista (full version for 32-bit and 64-bit computers;
Starter Edition not supported), Windows XP (Professional or
Home Edition), or Windows 2000 Professional
Computer
Computer with one of the above operating systems preinstalled
and a USB port as a standard feature
Note: Operation not ensured on upgraded computers
Processor Windows Vista: Pentium processor, 1.3 GHz or faster
Windows XP or 2000: Pentium processor, 750 MHz or faster
RAM (memory) Windows Vista: Minimum 512 MB
Windows XP or 2000: Minimum 256 MB
Interface USB 1.1 to 2.0 Hi-Speed
Display Screen resolution: 1,024 x 768 pixels or more
Color quality: Medium (16 bit) or more
Macintosh
Operating system Mac OS X 10.3 to 10.4
Computer Macintosh computer with one of the above operating systems
installed and a USB port as a standard feature
Processor Minimum 400 MHz PowerPC G3, G4, G5, or Intel processor
RAM (memory) Minimum 256 MB
Interface USB 1.1 to 2.0 Hi-Speed, FireWire (IEEE 1394)
Display Resolution: 1,024 x 768 or more
Colors: Thousands or more
94
Type
Type: Image transfer accessory compatible with IEEE 802.11b/g wireless
LAN and Ethernet (wired LAN) (IPsec support). Can be connected via
USB to external media and GPS devices. Vertical shooting controls
included.
Network protocols: FTP, PTP, and HTTP
Wireless LAN
Standards compliance: ARIB STD-T66 (Low-Power Data Communication System/Wireless
LAN System), IEEE 802.11b, and IEEE 802.11g
Transmission method: DS-SS modulation (IEEE 802.11b) and OFDM modulation (IEEE
802.11g)
Transmission range: Approx. 150 m / 492 ft.
* With no obstructions between the transmitting and receiving
antennas and no radio interference
* With a large, high-performance antenna attached to the wireless LAN
access point
Transmission frequency: WFT-E3: 2,412 - 2,472 MHz (central frequency, 13 channels total)
WFT-E3A: 2,412 - 2,462 MHz (central frequency, 11 channels total)
Connection method: Infrastructure or ad hoc (IEEE 802.11b/g)
Security: Authentication method: Open, shared key, WPA-PSK, and WPA2-PSK
Encryption: WEP, TKIP, and AES
Wired LAN
Standards compliance: IEEE 802.3u (Ethernet 100 Base-TX)
USB Connection
Connectable devices: External media or GPS devices
Interfaces
Camera: Extension system terminal
Wired LAN: Ethernet RJ-45 port
External device: USB 2.0 Hi-Speed port (for connecting external media and GPS
devices)
Power Source
Battery: Battery Pack BP-511A, BP-514, BP-511, and BP-512; One battery is used.
Battery check: Automatic
Number of images
that can be transferred Approx. number of images
* Using a fully charged BP-511A. The number of images that can be
transferred is nearly the same at normal temperature (23°C / 73°F) and low
temperature (0°C / 32°F).
* When automatic transfer is performed during shooting of an image of
approx. 4MB under conditions based on the CIPA (Camera & Imaging
Products Association) test standards.
* Fewer images can be transferred when transferring images over a wireless
LAN.
* Fewer images can be transferred when using bus-power external media or
GPS devices.
Specifications
At Normal Temperature
(23°C / 73°F)
At Low Temperature
(0°C / 32°F)
2600 2600
95
Specifications
9
Reference
Dimensions and Weight
Dimensions (W x H x D): 142.8 x 45.0 x 75.4 mm / 5.6 x 1.8 x 3.0 in.
Weight: Approx. 340 g / 12.0 oz. (Body only)
Operating Environment
Temperature: 0°C - 40°C / 32°F - 104°F
Humidity: 85% or less
All preceding specifications are based on Canon testing standards.
Transmitter specifications and appearance are subject to change without notice.
When connecting to and using a household power outlet, use only AC Adapter
Kit ACK-E2 (rated input: 100-240 V AC 50/60 Hz, rated output: 7.8 V DC). Using
anything else can cause fire, overheating, or electrical shock.
U.S.A. and Canada only:
The Lithium ion/polymer battery that powers the product is recyclable.
Please call 1-800-8-BATTERY for information on how to recycle this
battery.
Model Number
WFT-E3 : DSDS585751
WFT-E3A : DSDS585752
DS585752
DS585751
96
97
9
Reference
98

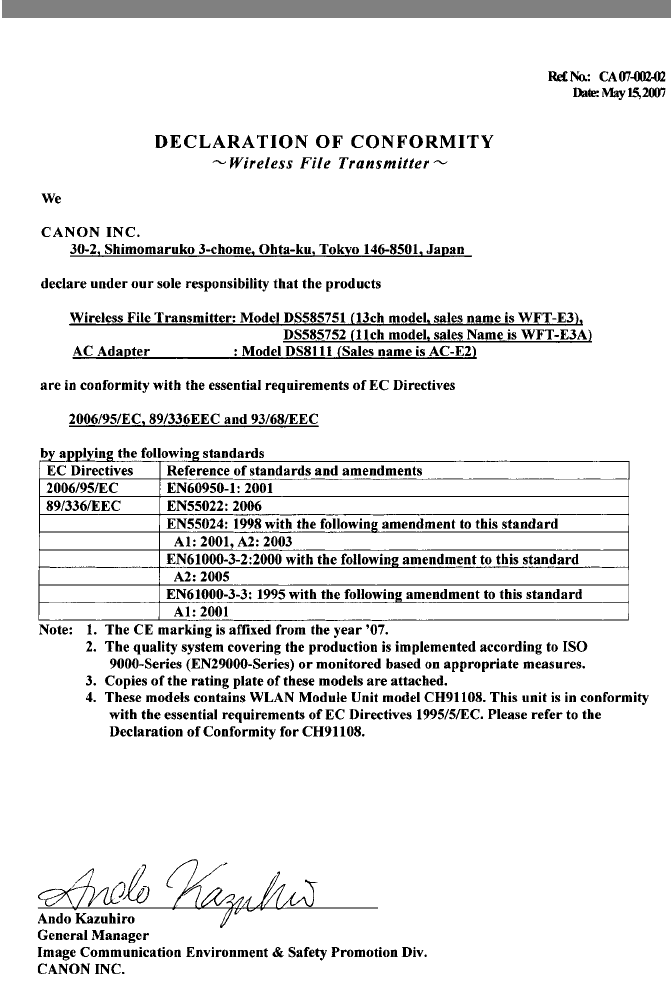

Statement on EC directive
Canon Inc. tímto prohlašuje, že tento CH91108 je ve shodČ se základními požadavky a dalšími pĜíslušnými
ustanoveními smČrnice 1999/5/ES.
Undertegnede Canon Inc. erklærer herved, at følgende udstyr CH91108 overholder de væsentlige krav og
øvrige relevante krav i direktiv 1999/5/EF.
Hiermit erklärt Canon Inc., dass sich das Gerät CH91108 in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Käesolevaga kinnitab Canon Inc. seadme CH91108 vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Hereby, Canon Inc., declares that this CH91108 is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Por medio de la presente Canon Inc. declara que el CH91108 cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
ȂǼ ȉǾȃ ȆǹȇȅȊȈǹ Canon Inc. ǻǾȁȍȃǼǿ ȅȉǿ CH91108 ȈȊȂȂȅȇĭȍȃǼȉǹǿ ȆȇȅȈ ȉǿȈ ȅȊȈǿȍǻǼǿȈ
ǹȆǹǿȉǾȈǼǿȈ Ȁǹǿ ȉǿȈ ȁȅǿȆǼȈ ȈȋǼȉǿȀǼȈ ǻǿǹȉǹȄǼǿȈ ȉǾȈ ȅǻǾīǿǹȈ 1999/5/ǼȀ.
Par la présente Canon Inc. déclare que l'appareil CH91108 est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
Con la presente Canon Inc. dichiara che questo CH91108 è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Ar šo Canon Inc. deklarƝ, ka CH91108 atbilst DirektƯvas 1999/5/EK bnjtiskajƗm prasƯbƗm un citiem ar to
saistƯtajiem noteikumiem.
Šiuo Canon Inc. deklaruoja, kad šis CH91108 atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Hierbij verklaart Canon Inc. dat het toestel CH91108 in overeenstemming is met de essentiële eisen en de
andere relevante bepalingen van richtlijn 1999/5/EG.
Hawnhekk, Canon Inc., jiddikjara li dan CH91108 jikkonforma mal-㭝ti㭗ijiet essenzjali u ma provvedimenti
o㭝rajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Alulírott, Canon Inc. nyilatkozom, hogy a CH91108 megfelel a vonatkozó alapvetõ követelményeknek és az
1999/5/EC irányelv egyéb elõírásainak.
Niniejszym Canon Inc. oĞwiadcza, Īe CH91108 jest zgodny z zasadniczymi wymogami oraz
pozostaáymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Canon Inc. declara que este CH91108 está conforme com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
Canon Inc. izjavlja, da je ta CH91108 v skladu z bistvenimi zahtevami in ostalimi relevantnimi
doloþili direktive 1999/5/ES.
Canon Inc. týmto vyhlasuje, že CH91108 spĎĖa základné požiadavky a všetky príslušné ustanovenia
Smernice 1999/5/ES.
Canon Inc. vakuuttaa täten että CH91108 tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja
sitä koskevien direktiivin muiden ehtojen mukainen.
Härmed intygar Canon Inc. att denna CH91108 står I överensstämmelse med de väsentliga egenskapskrav
och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Hér með lýsir Canon Inc. yfir því að CH91108 er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru
í tilskipun 1999/5/EC.
Canon Inc. erklærer herved at utstyret CH91108 er i samsvar med de grunnleggende krav og øvrige
relevante krav i direktiv 1999/5/EF.
99
9
Reference
FCC / IC Notice
Model DS585752
This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of this
device.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
The cable with the ferrite core provided with the digital camera must be used with this equipment
in order to comply with Class B limits in Subpart B of Part 15 of the FCC rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the
manual. If such changes or modifications should be made, you could be required to stop
operation of the equipment.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
The available scientific evidence does not show that any health problems are associated with
using low power wireless devices. There is no proof, however, that these low power wireless
devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency
energy (RF) in the microwave range while being used. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low-level RF that does not produce heating
effects causes no known adverse health effects. Many studies of low-level RF exposures have
not found any biological effects. Some studies have suggested that some biological effects
might occur, but such findings have not been con- firmed by additional research. WFT-E3A has
been tested and found to comply with FCC/IC radiation exposure limits set forth for an
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in
Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules.
Canon U.S.A Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516)328-5600
This class B digital apparatus complies with Canadian ICES-003.
100
A
AC adapter ................................................ 14
B
Battery ....................................................... 12
Battery check............................................. 12
H
Hand strap................................................. 11
Household power outlet............................. 14
N
Number of images that
can be transferred ..................................... 13
V
Vertical shooting........................................ 11
A
Account ..................................................... 44
Ad hoc ....................................................... 20
AES ........................................................... 20
Areas of use ................................................ 6
Authentication............................................ 20
Auto setting ............................................... 22
Automatic transfer ..................................... 28
B
Batch transfer ...................................... 32, 34
C
Caption ...................................................... 92
Captions, adding before transfer ............... 31
Channel ............................................... 20, 91
Confirm settings ........................................ 52
Connection wizard..................................... 18
D
Directory structure ..................................... 54
DNS address............................................. 22
DNS server ............................................... 26
E
Encryption ................................................. 20
Encryption key .......................................... 21
EOS Utility........................................... 37, 41
Error message .......................................... 74
ESS-ID ...................................................... 20
F
FTP ................................................. 2, 19, 25
FTP server ................................................ 26
G
Gateway.................................................... 22
H
HTTP............................................... 2, 19, 43
HTTP account ........................................... 44
I
Image sel./transfer .................................... 32
Infrastructure............................................. 20
IP address..................................... 22, 26, 39
IPsec ......................................................... 54
K
Key format................................................. 21
Key index .................................................. 21
L
Login method ............................................ 27
Login name ......................................... 45, 46
M
MAC address ............................................ 39
Manual setting........................................... 22
O
Open system............................................. 20
Overwriting same file ................................ 54
P
Pairing....................................................... 38
Passive mode ........................................... 54
Password ............................................ 45, 46
Power Supply and
Shooting Related
Wireless and Wired
LAN Functions
Index
101
Index
9
Reference
Port No. ..................................................... 26
Protect settings.......................................... 54
Proxy server .............................................. 26
PTP ................................................. 2, 19, 37
R
Remote capture............................. 37, 43, 47
Remote Live View shooting....................... 41
Root folder................................................. 27
S
Select folder .............................................. 27
Server name.............................................. 26
Set number................................................ 27
Settings information, managing................. 51
Shared key ................................................ 20
SSID .......................................................... 20
Subnet mask ............................................. 22
T
Target folder .............................................. 27
TKIP .......................................................... 20
Transfer destination................................... 36
Transfer history ......................................... 35
Transfer with SET...................................... 30
Transferring images, automatic................. 28
Transferring images,
individual images....................................... 30
Transferring images,
specifying sizes or types ........................... 29
Troubleshooting......................................... 73
U
URL ........................................................... 46
V
Virtual keyboard ........................................ 24
W
Web browser ....................................... 43, 46
WEP .......................................................... 20
WFT Pairing Software ............................... 38
WFT Server ............................................... 46
WFT Utility................................................. 90
Wired LAN ................................................. 20
Wireless LAN............................................. 20
WPA2-PSK................................................ 20
WPA-PSK.................................................. 20
A
Auto switch media..................................... 63
B
Backing up images.................................... 64
Backup ...................................................... 66
C
Coordinated Universal Time ..................... 71
E
Error message .......................................... 74
External media ................................ 2, 57, 61
G
GPS ...................................................... 2, 70
GPS data .................................................. 71
GPS device ............................................... 69
M
Media auto switching ................................ 63
P
Power management............................ 60, 72
Power supply ............................................ 60
Q
Quality....................................................... 63
Quick backup ............................................ 65
R
Rec. separately ......................................... 63
Rec. to multiple ......................................... 63
Record func............................................... 63
Replace existing image............................. 64
S
Selecting images for backup..................... 67
Separate recording quality ........................ 63
Skip image and continue........................... 64
Storage ..................................................... 58
Functions When
Connected via USB
102
Index
T
Troubleshooting......................................... 73
U
USB connection................................... 57, 69
CANON INC. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
U.S.A. CANON U.S.A. INC.
One Canon Plaza, Lake Success, NY 11042-1198, U.S.A.
For all inquires concerning this product, call toll free in the U.S.
1-800-OK-CANON
CANADA CANON CANADA INC. HEADQUARTERS
6390 Dixie Road, Mississauga, Ontario L5T 1P7, Canada
CANON CANADA INC. MONTREAL BRANCH
5990, Côte-de-Liesse, Montréal Québec H4T 1V7, Canada
CANON CANADA INC. CALGARY OFFICE
2828, 16th Street, N.E. Calgary, Alberta T2E 7K7, Canada
For all inquiries concerning this product, call toll free in Canada
1-800-OK-CANON
EUROPE, CANON EUROPA N.V.
AFRICA & Bovenkerkerweg 59-61, P.O. Box 2262, 1180 EG Amstelveen, The Netherlands
MIDDLE EAST CANON COMMUNICATION & IMAGE FRANCE S.A.S.
12 Rue de l’Industrie 92414 Courbevoie Cedex, France
CANON UK LTD.
Woodhatch Reigate Surrey RH2 8BF, United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A10, 47807 Krefeld, Germany
CANON ITALIA S.p.A.
Via Milano 8 I-20097 San Donato Milanese, Milano, Italy
CANON Schweiz AG
Geschäftsbereich Wiederverkauf, Industriestrasse 12, CH-8305 Dietlikon, Switzerland
CANON GMBH
Zetschegasse 11, A-1230 Wien, Austria
CANON España, S. A.
C/Joaquín Costa, 41, 28002 Madrid, Spain
SEQUE Soc. Nac. de Equip., Lda.,
Praça da Alegria, 58, 2°, 1269-149 Lisboa, Portugal
CENTRAL & CANON LATIN AMERICA, INC.
SOUTH AMERICA 703 Waterford Way, Ste. 400 Miami, FL 33126, U.S.A.
ASIA CANON (China) Co., Ltd.
15F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005, China
CANON HONGKONG CO., LTD.
19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon, Hong Kong
CANON SINGAPORE PTE. LTD.
1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632
CANON KOREA CONSUMER IMAGING INC.
Startower Bldg.17F,737,Yeoksam-Dong, Kangnam-Ku, Seoul, 135-984, Korea
OCEANIA CANON AUSTRALIA PTY. LTD.
1 Thomas Holt Drive, North Ryde, N.S.W. 2113, Australia
CANON NEW ZEALAND LTD.
Akoranga Business Park, Akoranga Drive, Northcote, Auckland, New Zealand
JAPAN CANON MARKETING JAPAN INC.
16-6, Kohnan 2-chome, Minato-ku, Tokyo 108-8011, Japan
CT1-7783E-000 © CANON INC. 2007
This instruction manual is current as of August 2007. For information on using the transmitter with
accessories introduced after this date, contact your nearest Canon Service Center.

Navigation menu
