Photo Printer
Quick Start Guide
Canon PIXMA iP4000R Photo Printer Quick Start Guide.
Copyright
This manual is copyrighted by Canon U.S.A., Inc. with all rights reserved. Under the copyright laws, this manual
may not be reproduced in any form, in whole or in part, without the prior written consent of Canon U.S.A., Inc.
© 2004 Canon U.S.A., Inc.
Disclaimer
Canon U.S.A., Inc. has reviewed this manual thoroughly in order that it will be an easy-to-use
guide to your Canon PIXMA iP4000R Photo Printer. All statements, technical information and recommendations
in this manual and in any guides or related documents are believed reliable, but the accuracy and completeness
thereof are not guaranteed or warranted, and they are not intended to be, nor should they be understood to be,
representation or warranties concerning the products described.
Specifications are subject to change without notice.
As an ENERGY STAR partner, Canon U.S.A., Inc., has determined that this product meets the ENERGY
STAR guidelines for energy efficiency.
All information regarding non-Canon products was compiled from publicly available information. No
representation is made regarding the accuracy thereof.
Trademarks
zCanon is a registered trademark of Canon Inc.
zPIXMA is a trademark of Canon Inc.
zPhotoRecord is a trademark of Canon Information System Research Australia.
zMacintosh, Mac and the Mac logo are registered trademarks of Apple Computer, Inc., registered in the U.S.
and other countries.
zMicrosoft® and Windows® are registered trademarks of Microsoft Corporation in the U.S. and other
countries.
zWi-Fi® is a registered trademark of the Wi-Fi Alliance.
zWi-Fi CERTIFIED is a certification mark of the Wi-Fi Alliance.
zAll other product and brand names are trademarks of their respective owners.
Canon U.S.A., Inc.
One Canon Plaza
Lake Success, NY 11042
Contents
1
Contents
Basic Printing
Turning on the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Using Specialty Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Printing with Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Printing with Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Canceling Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Advanced Printing

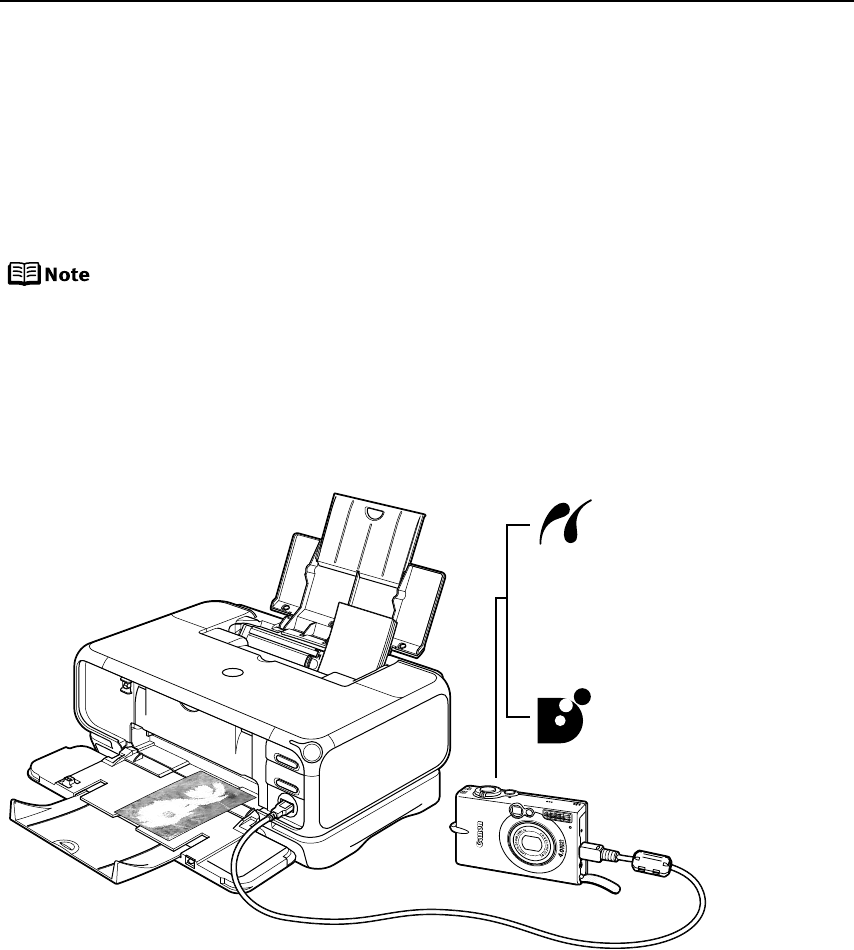

Printing Photographs Directly from a Digital Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Accessing the Printer Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adjusting the Print Quality for Photographs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using the Bundled Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Printing Borderless Photographs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Printing Maintenance
Replacing an Ink Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
When Printing Becomes Faint or Colors are Incorrect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Printing the Nozzle Check Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Print Head Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Print Head Deep Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Aligning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Troubleshooting
Cannot Install the Printer Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Print Quality is Poor or Contains Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Troubleshooting Printer Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Paper Does Not Feed Properly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Handling Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
An Error Message Appears on the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Cannot Print Properly from the Digital Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Appendix
User’s Guide Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
CANON U.S.A., INC. LIMITED WARRANTY --- (USA Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Basic Printing
2
Basic Printing
This
Quick Start Guide
describes some of the features of your printer and how
to use them. For more information, view the iP4000R
User’s Guide
on the
Setup
Software & User’s Guide CD-ROM
, or use the online help within your printer
driver interface:
While in the printer’s properties window, press the F
F
1 key, or click ?
?
in the upper
right corner. Then click the feature you want to know more about, or click the
Help button when displayed.
While in the P
P
age Setup dialog box or P
P
rint dialog box, click ?
?
in the lower left
corner.
Clicking ?
?
provides detailed information about each setting.
When the Help window appears, select your desired topic.
Turning on the Printer

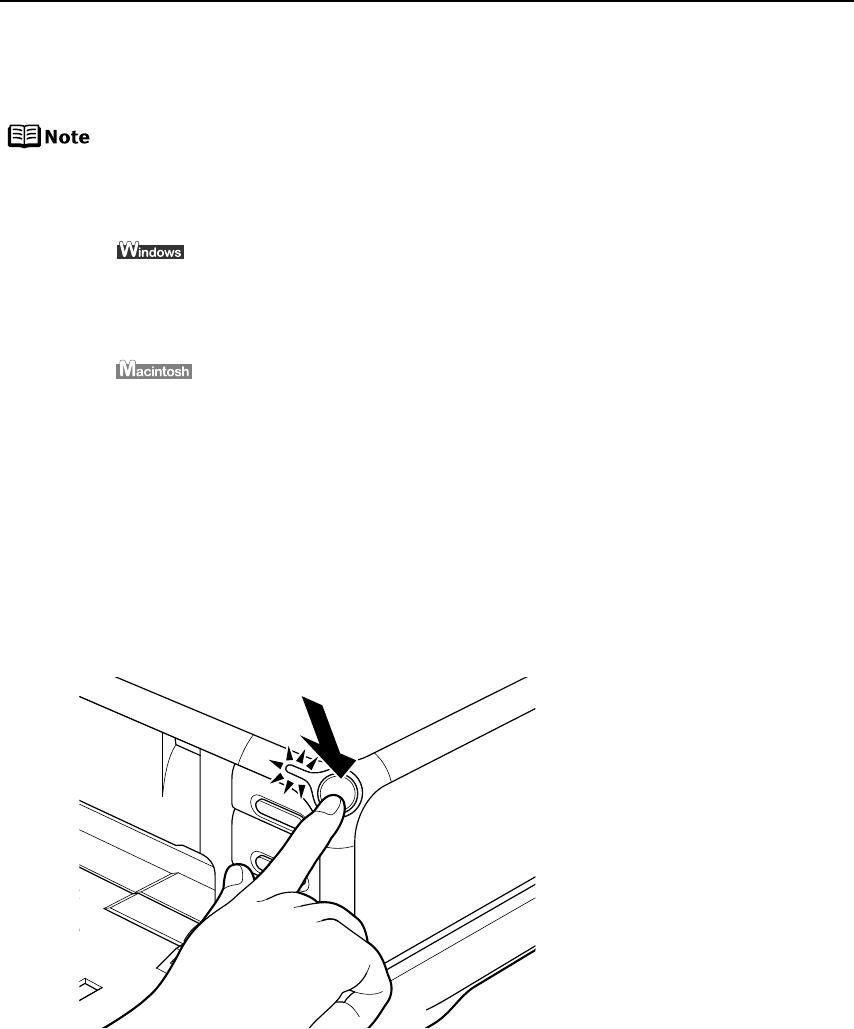

1Press the POWER button.
The P
P
OWER lamp flashes while the printer warms up and changes to steady (non-
flashing) green when the printer is ready.
Basic Printing
3
zBefore unplugging the power cord, turn off the printer and ensure that
the green lamp has gone out.
zIf the P
P
OWER lamp changes to orange and begins flashing, refer to
“H
H
andling Error Messageson page 75.
Loading Paper
This section describes how to load paper in the Sheet Feeder and the Cassette.
Print Media to Avoid
Do not use the following types of paper. Using such paper will not only produce
unsatisfactory results, but can also cause the printer to jam or malfunction.
Folded, curled or wrinkled paper
Damp paper
Excessively thin paper (less than 64 gsm or 17 lb)
Excessively thick paper* (more than 105 gsm or 28 lb)
* non-Canon branded paper
Picture postcards
Postcards affixed with photos or stickers
Envelopes with double flaps
Envelopes with sticker flaps
Envelopes with an embossed or treated surface
Any type of paper with holes (Loose-leaf paper is an exception; it is printable when
loaded from the Sheet Feeder.)
Sheet Feeder
Cassette
Basic Printing
4
Using the Sheet Feeder and the Cassette
You can load paper in both the Sheet Feeder and Cassette.
Loading paper in the Sheet Feeder is easy, and is convenient if you frequently switch to
and print on various sizes or types of paper.
Loading paper in the Cassette allows you to print without reloading paper for each job.
This is convenient for loading a large volume of the type of paper you regularly print
onto.
Loading paper in both the Sheet Feeder and Cassette makes the following paper feed
methods available:
Changing the paper source to feed different types/sizes of paper
If you load plain paper in the Cassette and photo paper in the Sheet Feeder, changing
the paper source allows you to print on both types of paper without removing and
reloading paper. To change the paper source, use the Paper Feed Switch on the
printer or printer driver.
You can also specify the type/size of paper to be fed from the Cassette for regular use
with the printer driver. For example, you can specify that Letter-sized plain paper is
always fed from the Cassette whenever you print.
For information on the printer driver settings, refer to “Changing the
Paper Source” in the
User’s Guide
.
Continuous printing on the same type/size of paper by using both the Sheet Feeder
and Cassette together
If the Sheet Feeder or Cassette runs out of paper, the paper source automatically
switches to the other one. This is useful for printing onto a large volume of paper. To
use this feature, you need to configure the printer driver beforehand.
For information on the printer driver settings, refer to “Changing the
Paper Source” in the
User’s Guide
.
Choosing the paper source to match the location of the printer
You can use just the Sheet Feeder or Cassette according to the location of the printer.
For example, if you intend to install the printer in a small place, such as on a shelf
with minimal space, you can use just the Cassette for printing.
Legal-sized paper and 2.13" x 3.39"/ 54.0 x 86.0 mm size paper are not
loadable in the Cassette.
For more information on the media loadable in the Sheet Feeder and the
Cassette, refer to “Printing Media” in the
User’s Guide
.
Basic Printing
5
Loading Plain Paper in the Sheet Feeder
zFor detailed information on the specialty media Canon provides for use
with its various printers, refer to “U
U
sing Specialty Mediaon page 13.
zSee “Printing Media” in the
User’s Guide
for detailed instructions on
how to load envelopes and specialty media into the printer.
1Flatten the four corners of the paper before loading it.
When paper is curled, hold the opposing curled corners and gently bend
them in the opposite direction until the paper becomes completely flat.
2Prepare to load paper.
You can also select the paper source with the printer driver. For details,
refer to “Changing the Paper Source” in the
User’s Guide
.

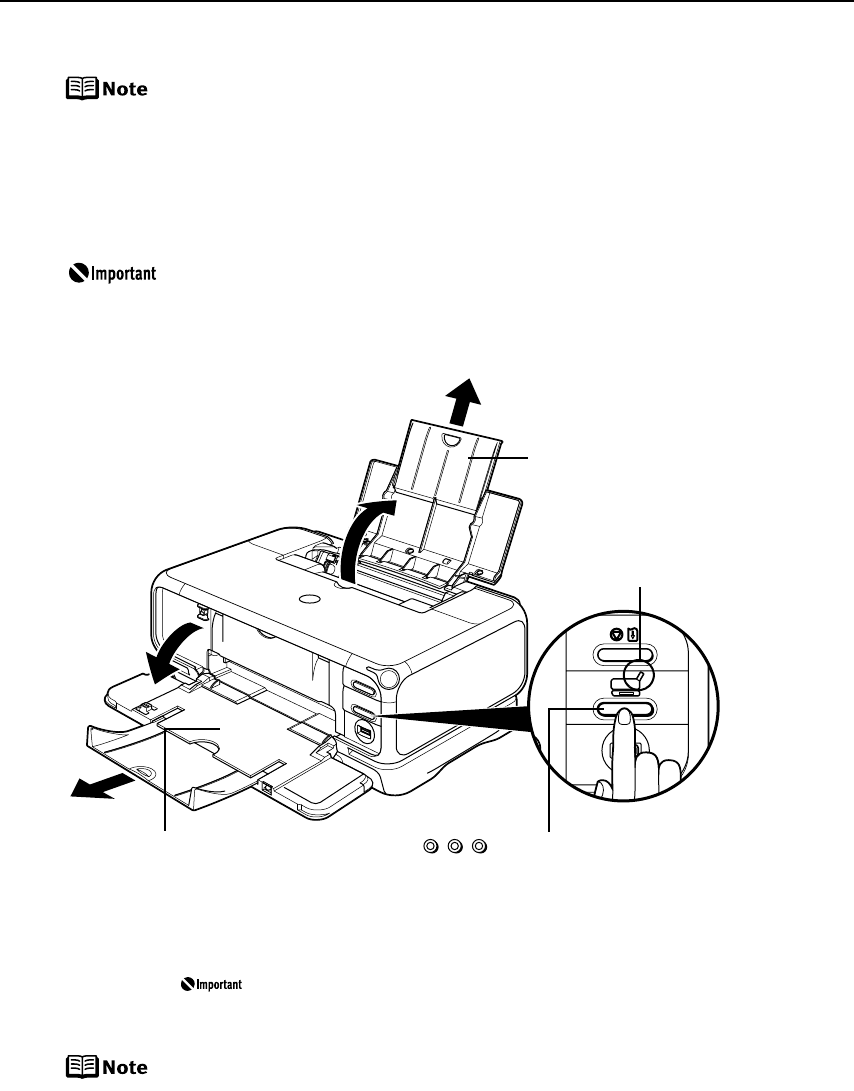

(1) 1 Open the Paper Support.
2 Pull out the Paper
Support Extension to
support the paper.

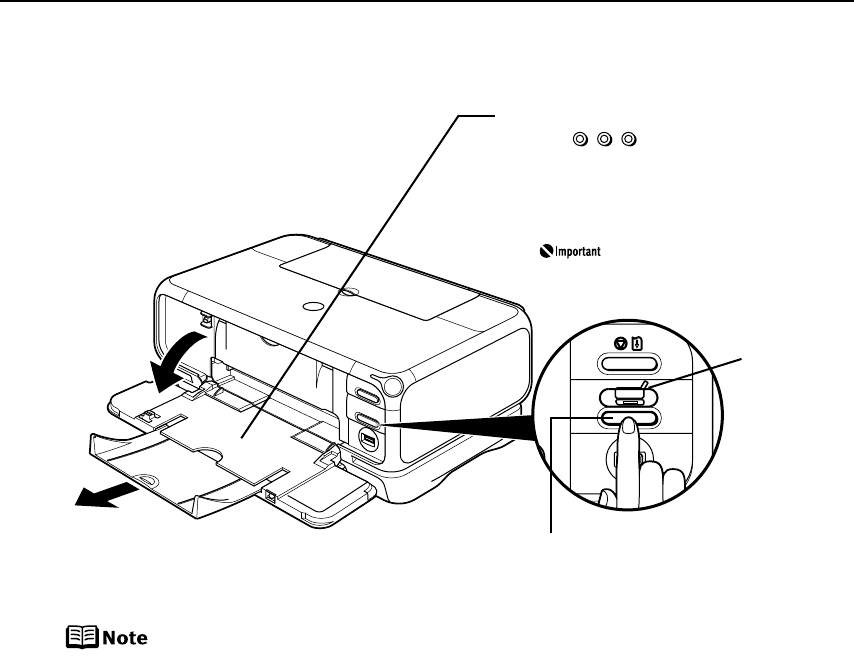

(2) 1 Push the upper center ( )
of the Front Cover to open the
Paper Output Tray.
2 Pull out the Paper Output Tray
Extension completely.
Support the Front Cover with your
hand when opening the tray.

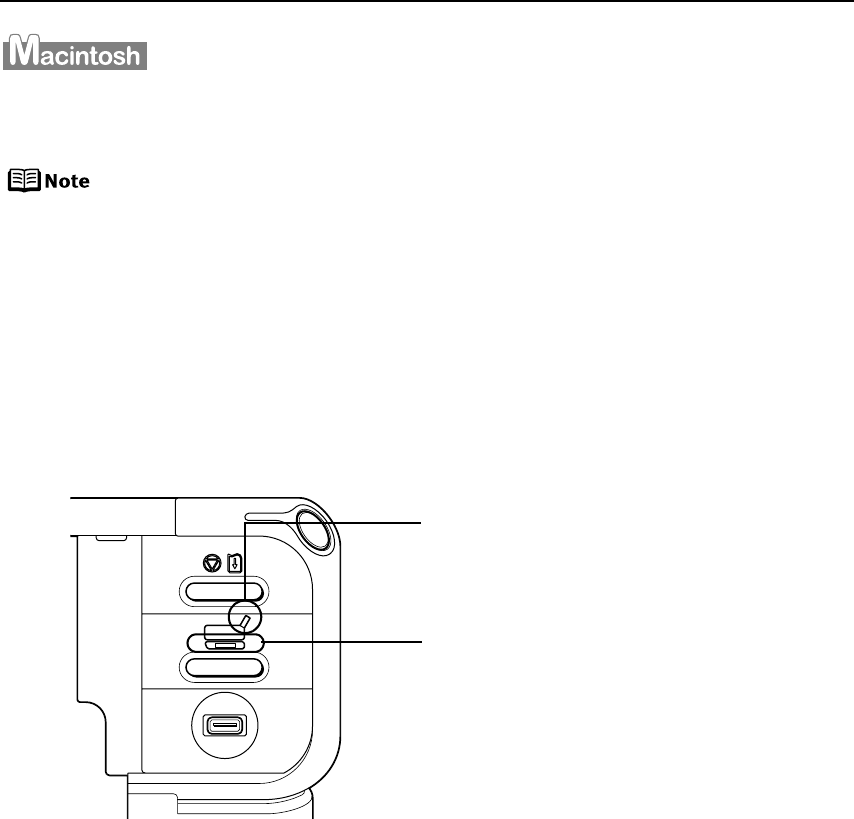

(3) Press the Paper Feed Switch
so that the Sheet Feeder
lamp lights.
Sheet Feeder Lamp
1
1
2
2
Basic Printing
6
3Load the paper.
zYou can use general copy paper or Canon’s Super White Paper SW-201.
zYou can load up to 150 sheets of plain paper (64 gsm or 17 lb, 13 mm
or 0.52 inches in height) in the Sheet Feeder. However, do not stack
more than 50 sheets in the Paper Output Tray.

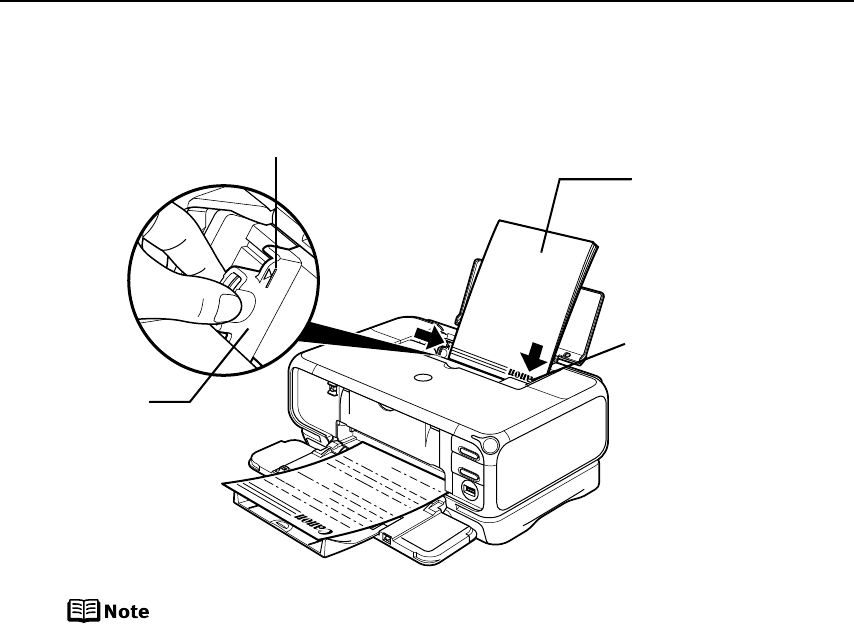

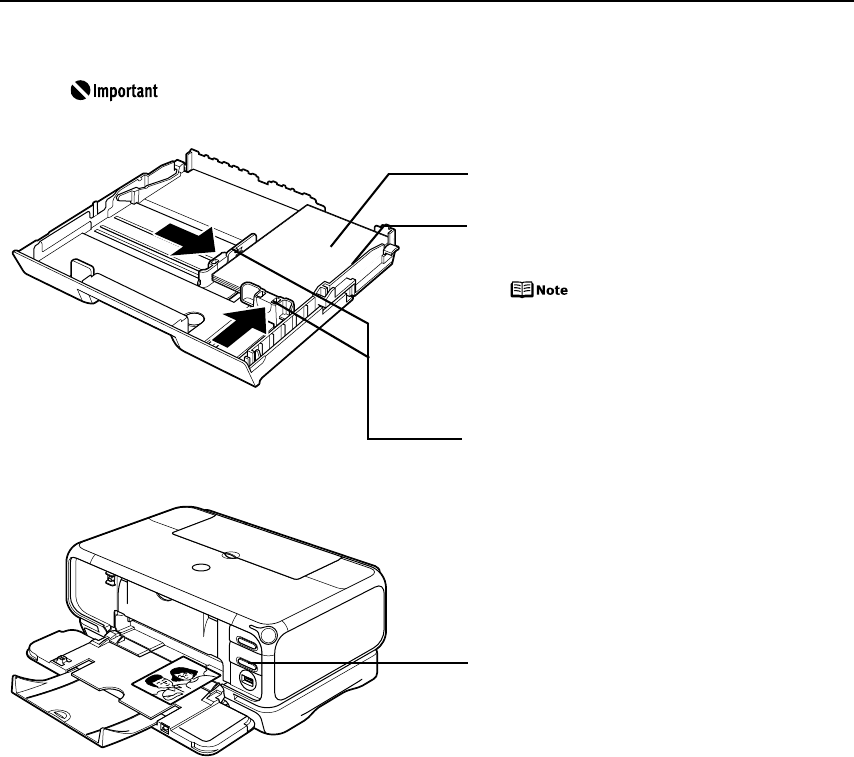

(2) Align the paper
stack against the
right side of the
Sheet Feeder.
(3) Slide the
paper guide
against the
left side of the
paper stack.

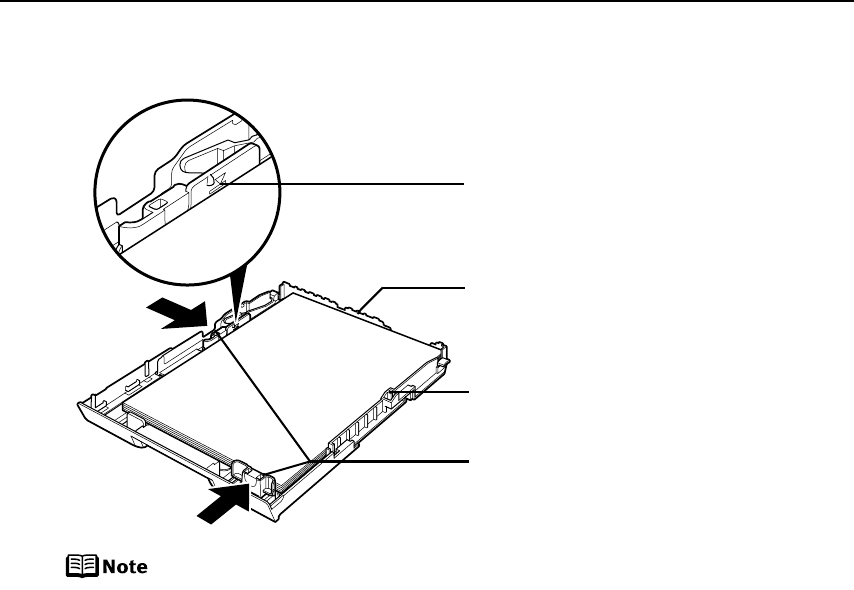

Load Limit Mark
Do not load beyond this Load Limit Mark.
(1) Load the paper
into the Sheet
Feeder with the
print side facing
UP.
Basic Printing
7

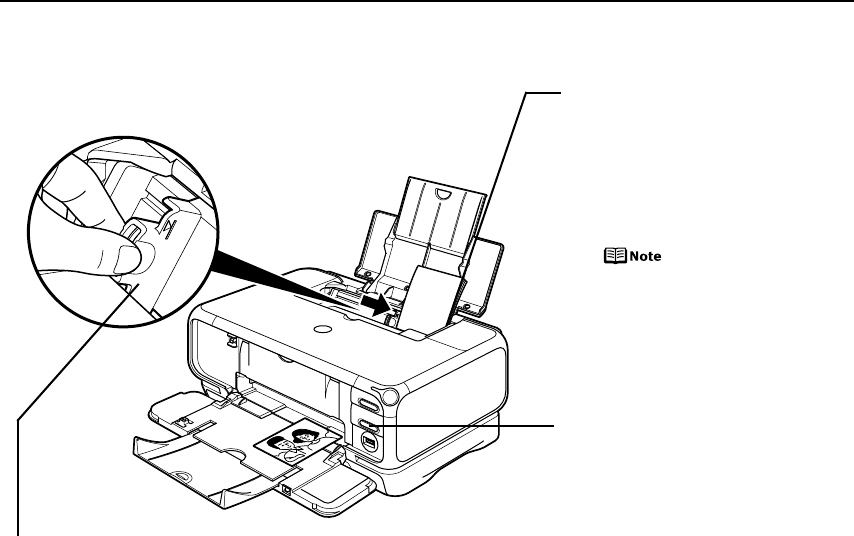

Loading 4" x 6"-Sized Paper in the Sheet Feeder
(4) Select 4
4
" x 6" from P
P
aper Size in the printer driver.
For a detailed description of the printer driver settings, refer to “P
P
rinting with
Windowson page 15, or “P
P
rinting with Macintoshon page 18.
(1) Load the paper into the
Sheet Feeder with the
print side facing UP and
align the paper stack
against the right side of
the Sheet Feeder.
Load the paper lengthways
regardless of the direction of
the document.
You can load up to 20 sheets
of 4" x 6"-sized paper.
(2) Slide the paper guide against the left side of the paper stack.
(3) Press the Paper Feed
Switch so that the Sheet
Feeder lamp lights.
Basic Printing
8
Loading Plain Paper in the Cassette
zFor detailed information on the specialty media Canon provides for use
with its various printers, refer to “U
U
sing Specialty Mediaon page 13.
zSee “Printing Media” in the
User’s Guide
for detailed instructions on
how to load envelopes and specialty media into the printer.
1Flatten the four corners of the paper before loading it.
When paper is curled, hold the opposing curled corners and gently bend
them in the opposite direction until the paper becomes completely flat.
2Prepare to load paper.

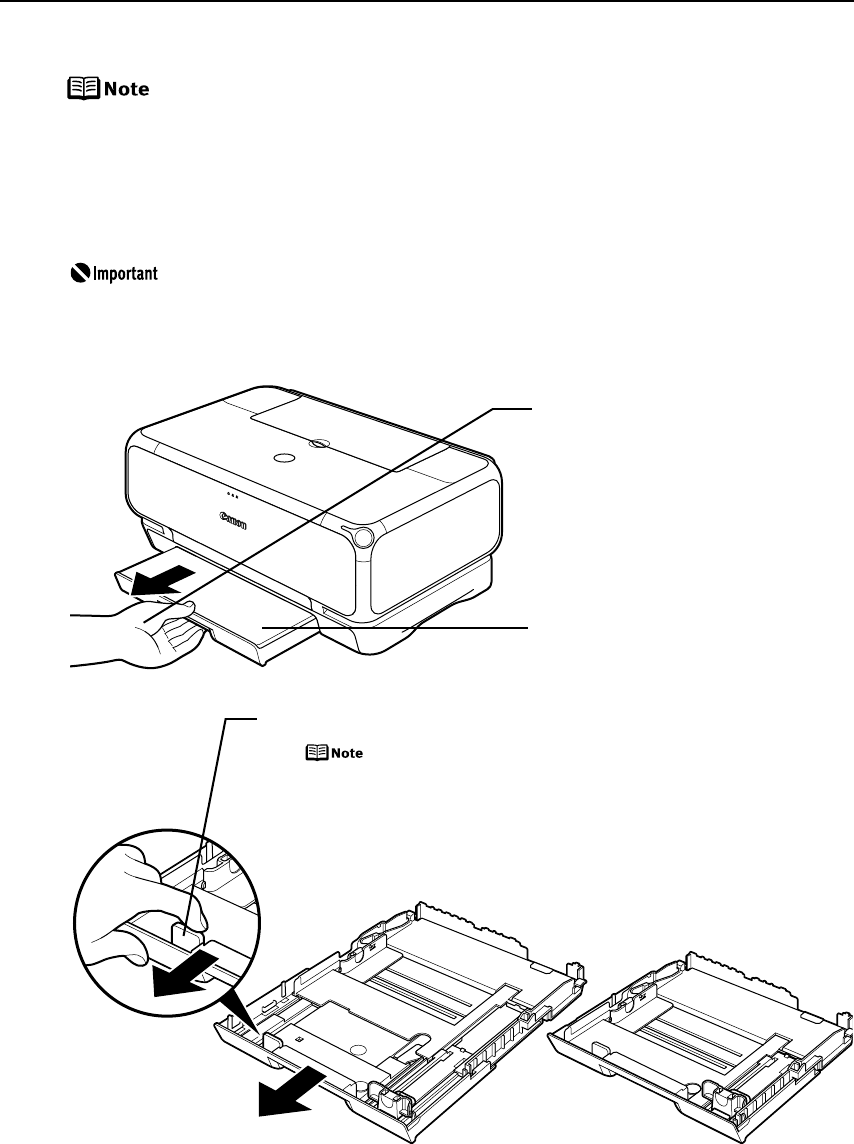

(1) Pull out the Cassette from
the printer.
(2) Remove the Cover on the
Cassette.
(3) Pinch the tab and extend the Cassette if needed.
When loading A5- or larger sized paper (nonstandard-size paper: 203
mm / 8 inches or longer in length), extend the Cassette.
When loading 5" x 7"- or smaller sized paper (nonstandard-size paper:
202 mm / 8 inches or shorter in length), do not extend the Cassette.
Legal-sized and 2.13" x 3.39"/ 54.0 x 86.0 mm size paper are not
loadable in the Cassette.
Basic Printing
9
3Load the paper.
zYou can use general copy paper or Canon’s Super White Paper SW-201.
zYou can load up to 150 sheets of plain paper (64 gsm or 17 lb, 13 mm
or 0.52 inches in height) in the Cassette. However, do not stack more
than 50 sheets in the Paper Output Tray.
(2) Align the paper stack against the
right side of the Cassette.
(3) Slide the paper guides to fit the
loaded paper stack.
Load Limit Mark
Do not load beyond this Load Limit
Mark.
(1) Load the paper into the Cassette
with the print side facing DOWN.
Basic Printing
10

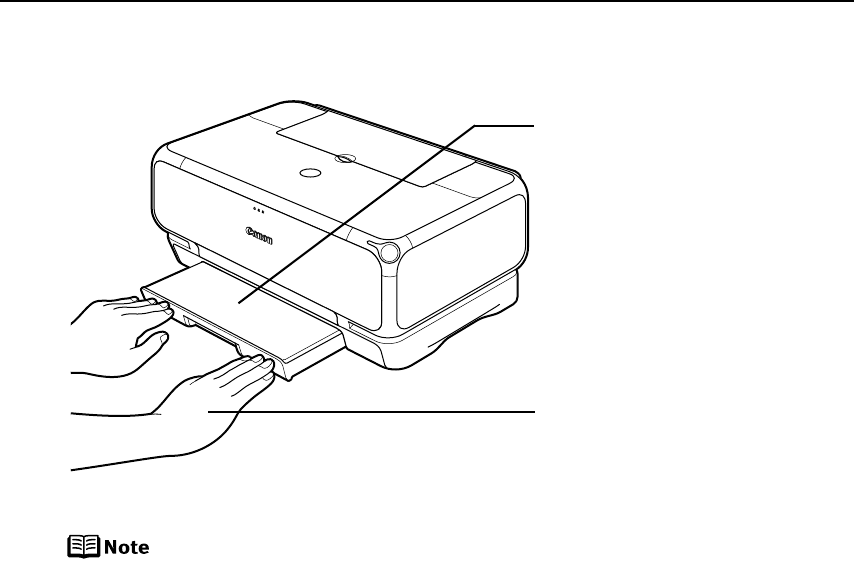

4Insert the Cassette into the printer.
If the Cassette has been extended to accommodate paper sizes lager than
5" x 7", the front edge of the cassette will extend beyond the front of the
printer.
(1) Set the Cover on the
Cassette.
(2) Insert the Cassette into the
printer.
Push the Cassette all the way
into the printer.
Basic Printing
11
5Prepare the Paper Output Tray.
You can also select the paper source with the printer driver. For details,
refer to “Changing the Paper Source” in the
User’s Guide
.

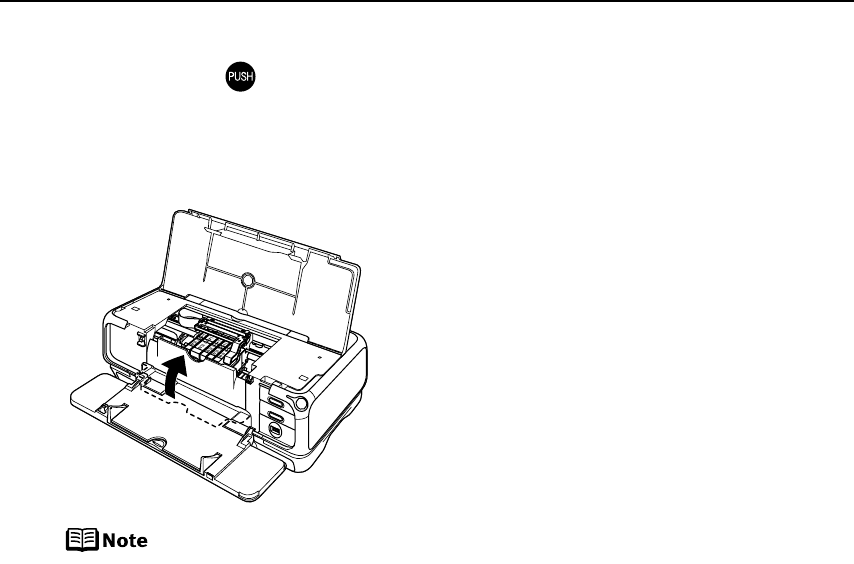

(1) 1 Push the upper center
( ) of the Front Cover to
open the Paper Output Tray.
2 Pull out the Paper Output Tray
Extension completely.
Support the Front Cover with
your hand when opening the
tray.
Cassette
Lamp
(2) Press the Paper Feed Switch so
that the Cassette lamp lights.
1
2
Basic Printing
12
Loading 4" x 6"-Sized Paper in the Cassette
Do not leave photo paper, such as Photo Paper Pro, in the Cassette for a
long time. This may cause paper discoloration due to natural aging.
(5) Select 4
4
" x 6" from P
P
aper Size in the printer driver.
For a detailed description of the printer driver settings, refer to “P
P
rinting with
Windowson page 15, or “P
P
rinting with Macintoshon page 18.
(1) Load the paper into the Cassette
with the print side facing DOWN.
(2) Align the paper stack against the
right side of the Cassette.
Do not extend the Cassette.
Load the paper lengthways regardless of
the direction of the document.
You can load up to 20 sheets of 4" x 6"-
sized paper.
(3) Slide the paper guides to fit the
loaded paper stack.
(4) Press the Paper Feed Switch so that
the Cassette lamp lights.
Basic Printing
13
Using Specialty Media
Canon recommends that you use genuine Canon media to ensure optimal print quality.
Photo Quality Media
Photo Paper Pro
Photo Paper Plus Glossy
Photo Paper Plus Double Sided
Photo Paper Plus Semi-gloss
Matte Photo Paper
Glossy Photo Paper
High Resolution Paper
Media Suited for Business
Documents
High Resolution Paper
• Transparencies
Basic Printing
14
Canon Specialty Media
* If paper does not feed properly, fan the paper to prevent sticking together. Then, load one sheet at a time.
zWhen using plain paper (64 gsm or 17 lb), up to 150 sheets (13 mm or
0.52 inches in height) can be loaded in the Sheet Feeder and Cassette
respectively. Select P
P
lain Paper from M
M
edia Type in the printer driver.
zFor a detailed description of printing media types, refer to the
User’s
Guide.
Media Type Paper Support Load Limit Printer Driver Setting
for Media Type
Sheet Feeder Cassette
Super White Paper Up to 13 mm or
0.52 inches
Up to 13 mm or
0.52 inches
Plain Paper
Photo Paper Pro Letter: up to 10
sheets*
4" x 6": up to 20
sheets
Letter: up to 10
sheets*
4" x 6": up to 20
sheets
Photo Paper Pro
Photo Paper Plus
Glossy
Letter: up to 10
sheets
5" x 7": up to 10
sheets
4" x 6": up to 20
sheets
Letter: up to 10
sheets
5" x 7": up to 10
sheets
4" x 6": up to 20
sheets
Photo Paper Plus
Glossy
Photo Paper Plus
Double Sided
Letter: up to 10
sheets
5" x 7": up to 10
sheets
Letter: up to 10
sheets
5" x 7": up to 10
sheets
Photo Paper Plus
Double Sided
Photo Paper Plus
Semi-gloss
Letter: up to 10
sheets
4" x 6": up to 20
sheets
Letter: up to 10
sheets
4" x 6": up to 20
sheets
Photo Paper Plus
Glossy
Matte Photo Paper Up to 10 sheets Up to 10 sheets Matte Photo Paper
Glossy Photo Paper Letter: up to 10
sheets
4" x 6": up to 20
sheets
2.13" x 3.39": up to
20 sheets
Letter: up to 10
sheets
4" x 6": up to 20
sheets
2.13" x 3.39": not
loadable
Glossy Photo Paper
High Resolution
Paper
Up to 80 sheets Up to 80 sheets High Resolution
Paper
T-Shirt Transfers 1 sheet 1 sheet T-Shirt Transfer
Transparencies Up to 30 sheets Up to 30 sheets Transparency
Basic Printing
15
Printing with Windows
zThe menu screens and dialog boxes that appear may vary, depending on the
software application you are using.
zThe steps described in this section are for printing in Windows XP.
1Turn on the printer.
See “T
T
urning on the Printeron page 2.
2Load the paper in the printer.
See “L
L
oading Paperon page 3.
3Ensure that the proper paper source is selected.
4Create a document or open a file to print.
When the Cassette lamp is lit, paper
is fed from the Cassette.
When the Sheet Feeder lamp is lit,
paper is fed from the Sheet Feeder.
Basic Printing
16

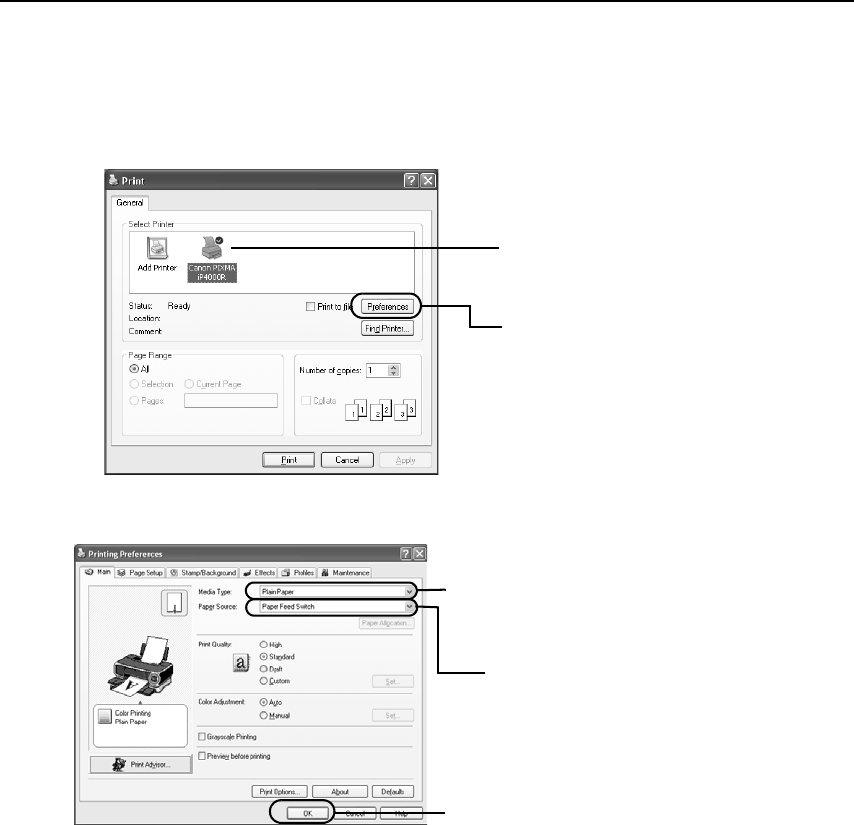

5Open the printer properties dialog box.
(1) Select P
P
rint from the application software’s F
F
ile menu.

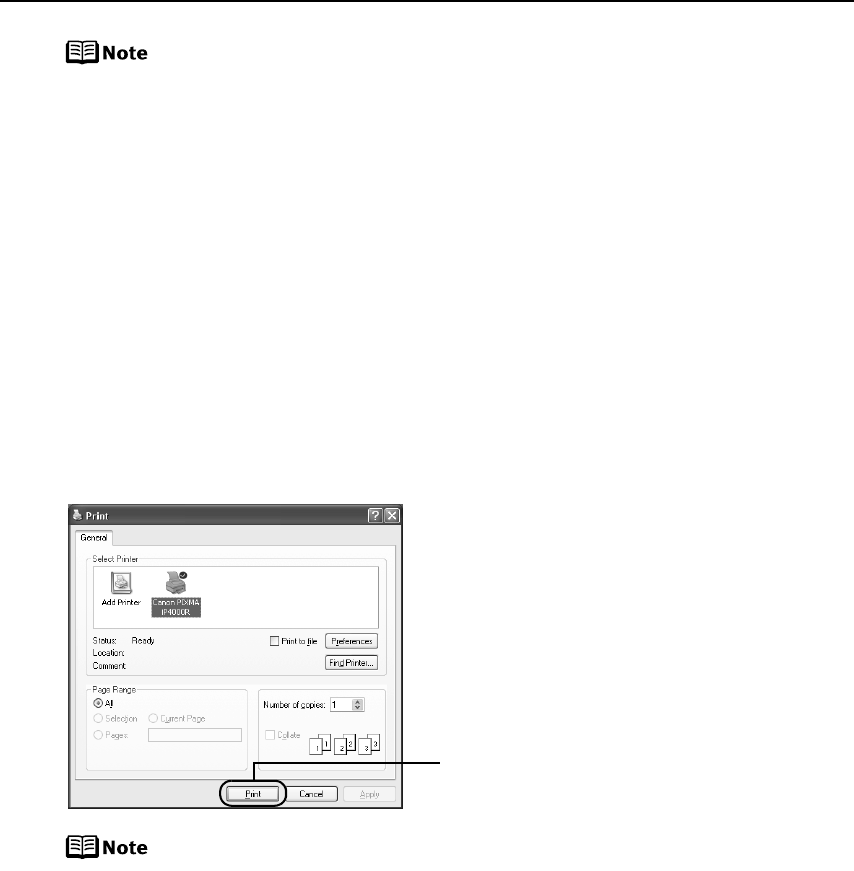

The P
P
rint dialog box opens.
6Specify the required settings.
(2) Ensure that your printer
is selected.
(3) Click P
P
references or
Properties.
(1) Click M
M
edia Type to select
the type of media loaded in
the printer.
(2) Click O
O
K.
Ensure that P
P
aper Feed
Switch is selected from
Paper Source.
Basic Printing
17
zFrom the P
P
age Setup tab, select the correct document size to be
printed.
zThis section describes the procedure for selecting the paper source
with the Paper Feed Switch on the printer. For a detailed description of
the P
P
aper Source settings, refer to “Changing the Paper Source” in the
User’s Guide
.

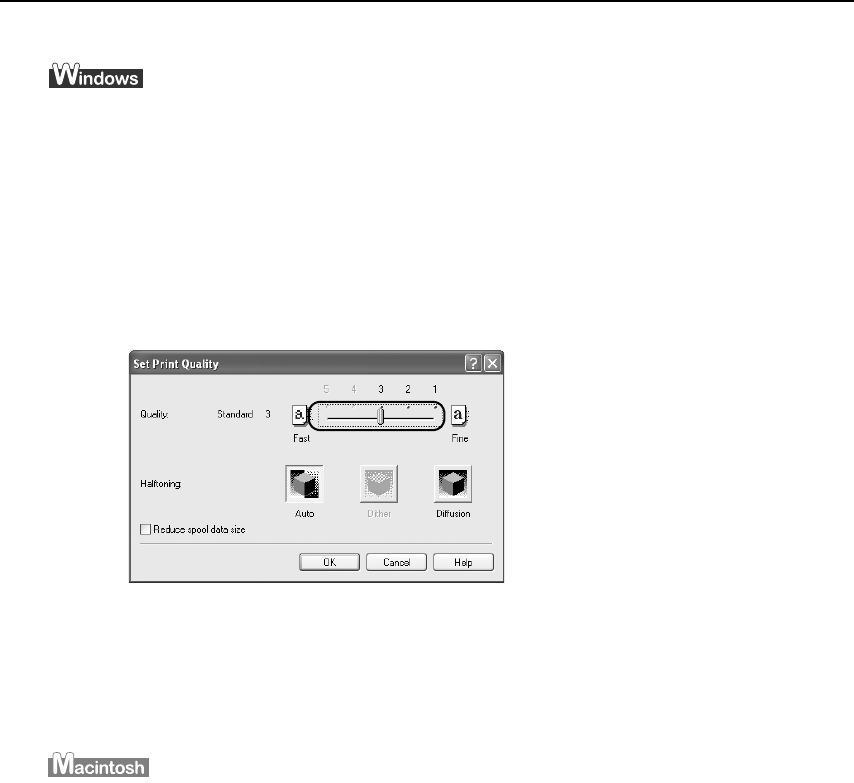

zTo adjust the P
P
rint Quality settings, select C
C
ustom and click S
S
et on the
Main tab. You can control the print quality in the S
S
et Print Quality
dialog box.
zFor details about other printer driver functions, refer to “Printer Driver
Functions (Windows)” in the
User’s Guide
or H
H
elp.
zSelecting the P
P
review before printing check box displays a preview
screen that allows you to confirm the selected printing effects and how
your document will look when printed. Some applications do not have
a preview function.
7Print the document.
zYou can cancel a print job in progress by simply pressing the R
R
ESUME/
CANCEL button on the printer.
See “C
C
anceling Printingon page 21.
zClick C
C
ancel Printing on B
B
J Status Monitor to stop printing. To show B
B
J
Status Monitor, click C
C
anon PIXMA iP4000R on the taskbar.
BJ Status Monitor opens automatically when a printer error occurs.
(1) Click P
P
rint or O
O
K.
Basic Printing
18
Printing with Macintosh
zThe menu screens and dialog boxes that appear may vary, depending on the
software application you are using.
zThe steps described in this section are for printing in Mac OS X v.10.3.x.
1Turn on the printer.
See “T
T
urning on the Printeron page 2.
2Load the paper on the printer.
See “L
L
oading Paperon page 3.
3Ensure that the proper paper source is selected.
4Create a document or open a file to print.
When the Cassette lamp is lit, paper
is fed from the Cassette.
When the Sheet Feeder lamp is lit,
paper is fed from the Sheet Feeder.
Basic Printing
19

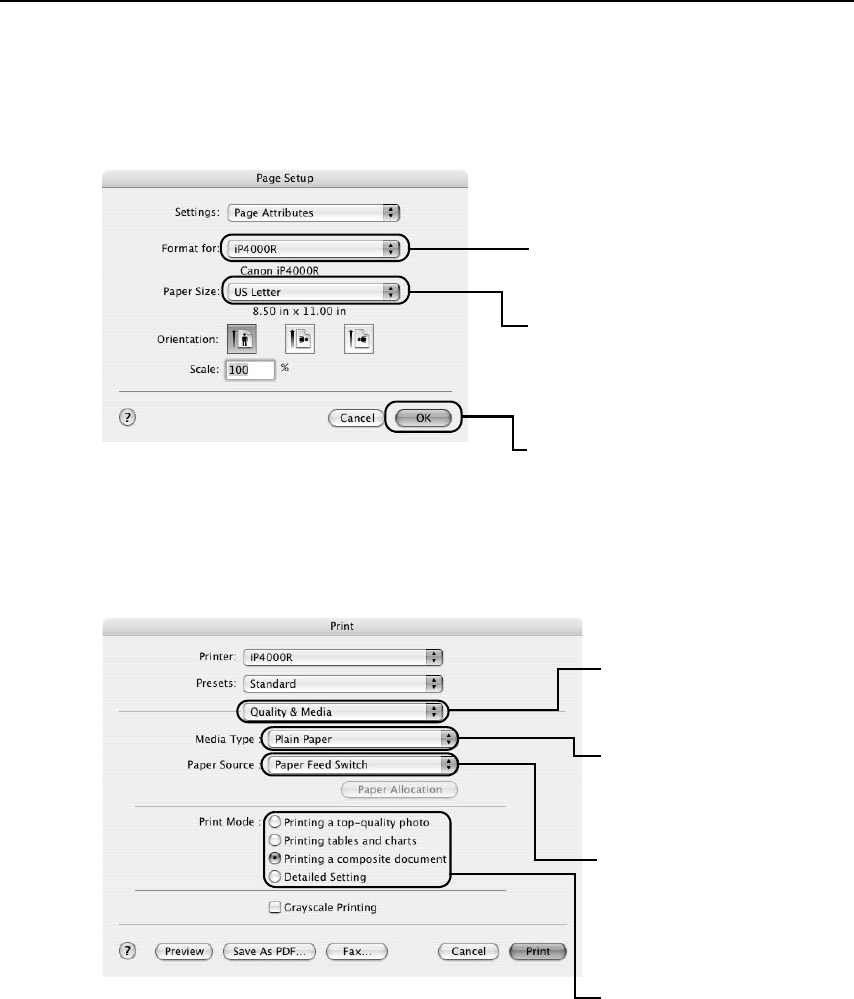

5Select P
P
aper Size.
(1) Select P
P
age Setup from the application software’s F
F
ile menu.
The P
P
age Setup dialog box opens.
6Specify the required settings.
(1) Select P
P
rint from the application software’s F
F
ile menu.
The P
P
rint dialog box opens.
(3) Select the desired
paper size from P
P
aper
Size.
(4) Click O
O
K.
(2) Select your printer from
Format for.

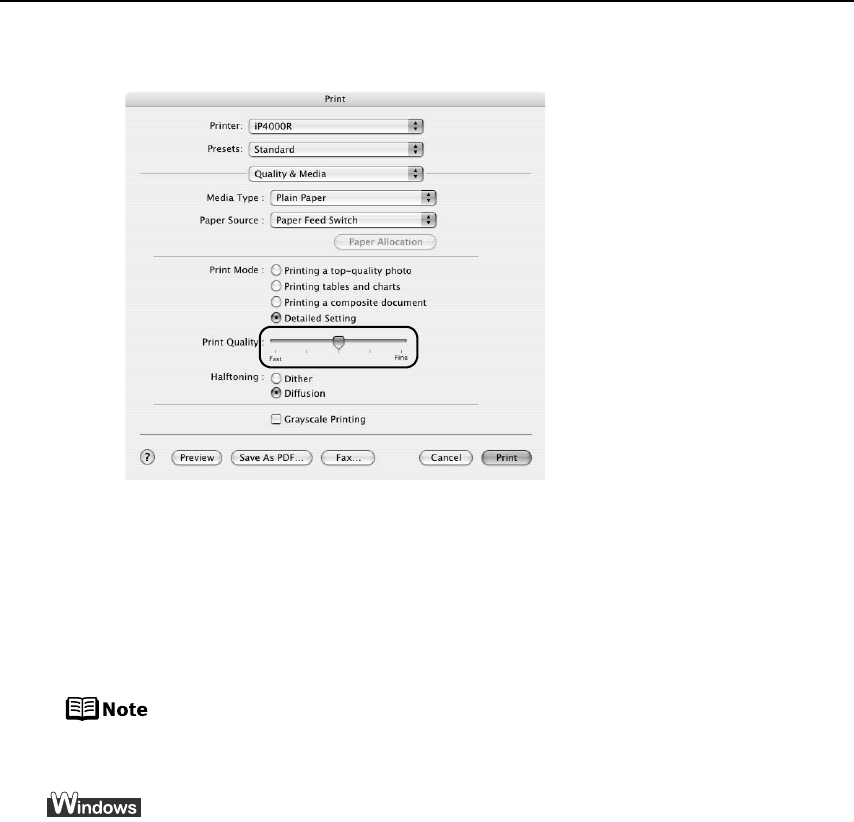

(2) Select Q
Q
uality &
Media from the pop-
up menu.
(3) Select the desired
media type from
Media Type.
(5) Select the print mode
appropriate to your
document from P
P
rint
Mode.
(4) Ensure that P
P
aper
Feed Switch is
selected from P
P
aper
Source.
Basic Printing
20
zThis section describes the procedure for selecting the paper
source with the Paper Feed Switch on the printer. For a detailed
description of the P
P
aper Source settings, refer to “Changing the
Paper Source” in the
User’s Guide
.
zWhen you select the print mode appropriate to your document
from P
P
rint Mode, the document will be printed in color and at a
print quality suited to the characteristics of the M
M
edia Type you
have selected.
-P
P
rinting a top-quality photo: Select when printing documents
consisting mainly of photographs and graphics featuring fine
color gradation.
-P
P
rinting tables and charts: Select when printing documents
consisting mainly of graphs and graphics (illustrations) with
strong color definition.
-P
P
rinting a composite document: Select when printing
documents consisting mainly of text.
-D
D
etailed Setting: Select to fine-tune the P
P
rint Quality and
Halftoning settings.
See “A
A
djusting Print Qualityon page 29.
zFor details about other printer driver functions, refer to “Printer
Driver Functions (Macintosh)” in the
User’s Guide
or H
H
elp.
zClicking the P
P
review button displays a preview screen that allows
you to confirm the selected printing effects and how your
document will look when printed. Some applications do not have
a preview function.

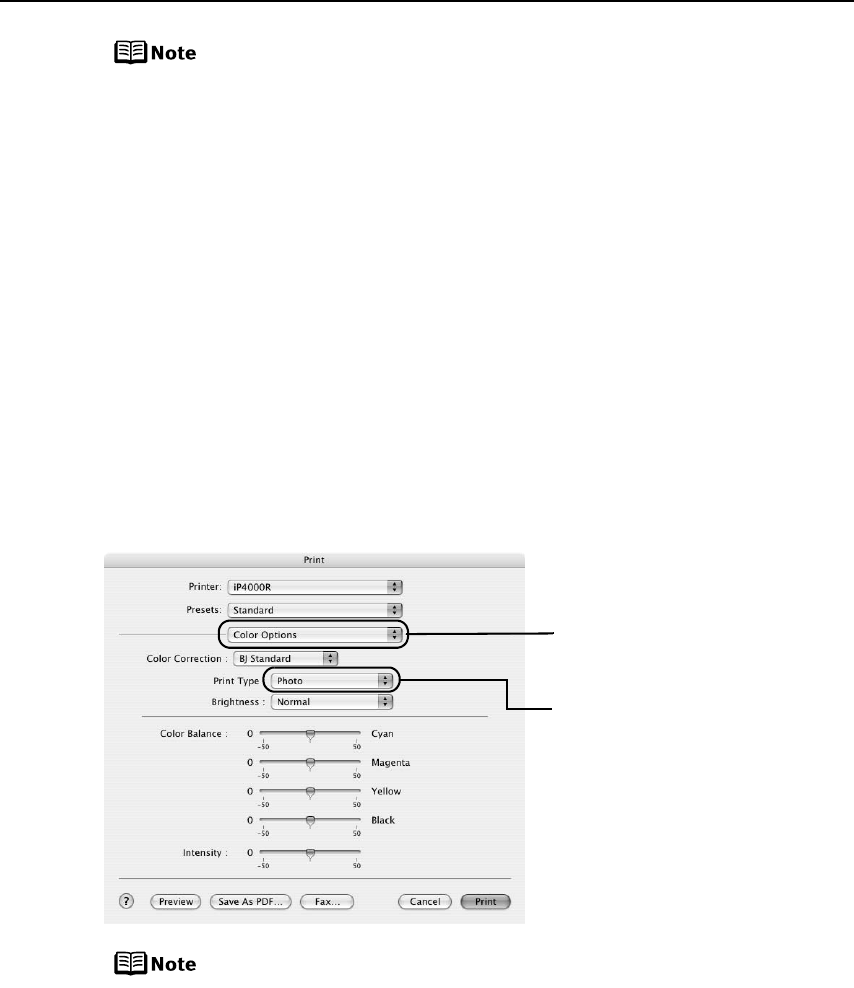

(6) Select C
C
olor Options
from the pop-up menu.
(7) Select the type of the
document from P
P
rint
Type.
Basic Printing
21
7Print the document.
(1) Click P
P
rint.
Double-clicking the name of your printer in the P
P
rinter list displays
a dialog that prompts you to confirm the status of the print job(s).
To cancel a job in progress, select the desired document, then click
Delete. To temporarily stop a job in progress, click P
P
ause. To cancel
all the jobs in the list, click S
S
top Printing.
Canceling Printing
You can cancel a print job while printing, with the R
R
ESUME/CANCEL button on the printer.
1Press the R
R
ESUME/CANCEL button while printing.
Printing is canceled and paper is fed out.
(1) Press the R
R
ESUME/CANCEL
button.
Advanced Printing
22
Advanced Printing
Printing Photographs Directly from a Digital Camera
Connecting a compatible digital still camera or camcorder to the printer allows you to print
recorded images directly without using a computer. This printer supports both PictBridge
and Canon Bubble Jet Direct.
zPictBridge is an industry standard enabling a range of digital photo
solutions, including the direct printing of photos from compatible digital still
cameras or digital video camcorders* without the need to use a computer.
zCanon Bubble Jet Direct allows you to print photos from Canon Bubble Jet
Direct compatible (PictBridge incompatible) digital camera or digital video
camcorder without a computer, by simply connecting the digital camera or
digital camcorder to this printer.
* Hereafter, the digital still camera and digital video camcorder are collectively called a digital camera or
camera.
See “P
P
rinting Photographs
Directly from a Canon
Bubble Jet Direct
Compatible Digital
Cameraon page 27.
See “D
D
irect Printing from
PictBridge-compatible
Digital Camerason page
24.
*This mark indicates that
the product is PictBridge-
compatible.
Advanced Printing
23
Connecting to a Digital Camera
Do not connect any equipment other than the camera ready for PictBridge
or Canon Bubble Jet Direct to the Direct Print Port of the printer. If you do
so, electric shock, fire, or damage to the camera could result.
zWhen printing photos with the digital camera connected to the printer,
it is advisable to use the AC adapter supplied with the camera. If you
use the camera battery, be sure to charge it fully.

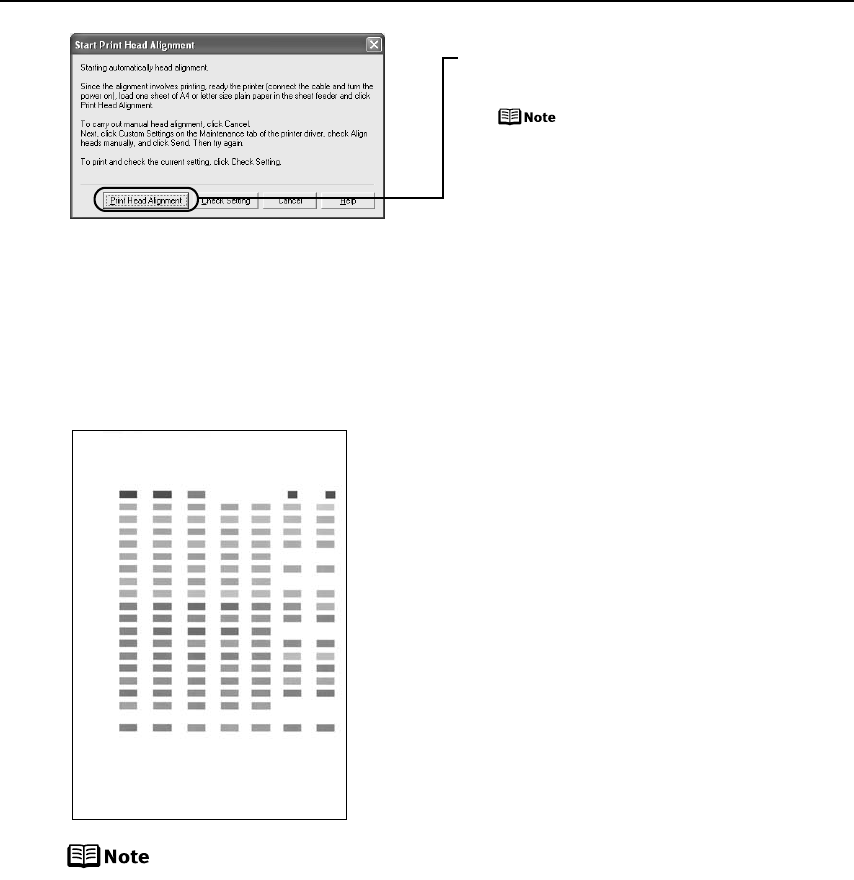

zThe Print Head cannot be aligned using the controls of the digital
camera. The print head alignment can be performed simply by pressing
the R
R
ESUME/CANCEL button on the printer, or by connecting the
printer to the computer and then executing automatic print head
alignment. Refer to “A
A
ligning the Print Headon page 61.
zDepending on the model or brand of your camera, you may have to
select a print mode compliant with PictBridge before connecting the
camera.
You may also have to turn on the camera or select Play mode manually
after connecting the camera to the printer.
Perform necessary operations according to the instruction manual
supplied with your camera.
zWhen printing from your PC, be sure to unplug the cable connecting the
digital camera.
1Set up the printer.
2Turn on the printer.
See “T
T
urning on the Printeron page 2.
3Load the paper in the printer.
See “L
L
oading Paperon page 3.
4Connect the digital camera to the printer.
(1) Make sure the camera is turned off.
(2) Connect the camera to the printer using the USB cable (for connection to a
computer) supplied with the camera.
Advanced Printing
24
(3) Turn on and set up the camera for direct printing.
When the connection between the camera and printer has been established, the
POWER lamp on the printer flashes once.
* The power-on sequence may differ depending on the model or brand of the camera.
Either of the following icons will display on the LCD display of the digital camera
when the printer is correctly connected.
A PictBridge-compliant digital camera.
A Canon Bubble Jet Direct compatible digital camera.
Direct Printing from PictBridge-compatible Digital Cameras
Default Camera Settings
When a PictBridge-compatible camera is connected and printing is started with no
printing option selected, this printer operates based on the following default settings:
Paper size .............. 4" x 6"
Paper type.............. Photo (Photo Paper Plus Glossy)
Advanced Printing
25
• Layout ....................Borderless
• Trimming ................Off (No trimming)
Image optimize .......On (ExifPrint)
Date print................Off (No printing)
Additional settings
The settings explained below cannot be made on some cameras. If any setting
cannot be made, the default setting explained above is used.
Names of settings that are displayed on Canon PictBridge-compatible cameras are
used in the description given below. Different names may be displayed on your
camera depending on the brand or model.
For details, refer to your camera’s instruction manual.
About Paper size and Paper type
To change the paper size or paper type, operate from the camera to select the
PictBridge print setup mode and confirm or check the settings.
By default, 4
4
" x 6" is selected from P
P
aper size and P
P
hoto (Photo Paper Plus Glossy) is
selected from P
P
aper type for this printer. To use Photo Paper Pro, select F
F
ast Photo from
Paper type.
If using a Canon PictBridge-compatible camera, you can select 5
5
" x 7" from P
P
aper size.
The following sizes and types of paper can be loaded in the printer by selecting options
from P
P
aper size and P
P
aper type.
When 4
4
" x 6" is selected from P
P
aper size, “2-up”, “4-up”, “9-up”, and “16-up” options
may be available in L
L
ayout.
Paper size setting Paper type setting Paper loaded in printer
10 x 15 cm/4" x 6"
(Default)
Photo (Default) Photo Paper Plus Glossy
Fast Photo Photo Paper Pro
Photo Photo Paper Plus Semi-gloss
Photo Glossy Photo Paper
13 x 18 cm/5" x 7" Photo Photo Paper Plus Glossy
A4/8.5" x 11" (Letter) Photo Photo Paper Plus Glossy
Fast Photo Photo Paper Pro
Photo Photo Paper Plus Semi-gloss
Photo Glossy Photo Paper
5.4 x 8.6 cm/Credit Card Photo Glossy Photo Paper
Advanced Printing
26
About Image optimize
If you use a Canon PictBridge-compatible camera, you can select V
V
IVID,N
N
R, or
VIVID+NR. (Note that these options cannot be selected for some models.)
zWhen V
V
IVID is selected, green and blue portions of photos are printed
vividly.
zWhen N
N
R (Noise Reduction) is selected, noise in blue portions, such as
the sky, and dark portions is removed.
zWhen V
V
IVID+NR is selected, functions of both V
V
IVID and N
N
R are
performed.
About Date print
If “On” is selected, the shooting date recorded in Exif image data is printed on the
lower-right corner of each photo.
zThis printer can handle only Exif/JPEG image data to produce photos
using PictBridge.
zNever disconnect the USB cable during printing.
zWhen disconnecting the USB cable between the digital camera and
printer, follow the instructions given in the Instruction Manual of
Camera.
zControls of the digital camera cannot be used for the following
functions:
- Print quality setting
- Printer maintenance
zFor the digital camera operation method and troubleshooting, refer to
your digital camera manual. For print error messages, see “C
C
annot
Print Properly from the Digital Cameraon page 81.
Advanced Printing
27
Printing Photographs Directly from a Canon Bubble Jet Direct
Compatible Digital Camera
Media Types for Digital Camera
When you connect a digital camera, you can use the following media:
zFor the digital camera operation method and troubleshooting, refer to
your digital camera manual. For print error messages, see “C
C
annot
Print Properly from the Digital Cameraon page 81.
zBy operating the digital camera, you can make the following prints:
- You can make a standard print from the image displayed in the single
display mode or in the index display mode.
- You can print specified numbers of images, or make an index print by
editing the DPOF.
- For the images taken with an ExifPrint-compatible digital camera, the
Photo Optimizer PRO function can be used.
- If date printing is set from the digital camera, the date when the
photograph was taken is to be printed (excluding the index print).
- Images will be scaled automatically according to the image size set
on the digital camera and the size of the media set on the printer.
zThe digital camera does not support the following functions:
- Print quality setting
- Printer maintenance
zImages other than Exif may not be index-printed.
Digital Camera Setting Media Type
Card #1 Photo Paper Pro 4" x 6" / 101.6 x 152.4 mm
Card #2 Photo Paper Plus Glossy 4" x 6" / 101.6 x 152.4 mm
Photo Paper Plus Semi-gloss 4" x 6" / 101.6 x 152.4 mm
Glossy Photo Paper 4" x 6" / 101.6 x 152.4 mm
Card #3 Photo Paper Plus Glossy 5" x 7" / 127.0 x 177.8 mm
LTR Photo Paper Pro Letter
Photo Paper Plus Glossy Letter
Photo Paper Plus Semi-gloss Letter
Glossy Photo Paper Letter
A4 Photo Paper Pro A4
Photo Paper Plus Glossy A4
Photo Paper Plus Semi-gloss A4
Glossy Photo Paper A4
Advanced Printing
28
Accessing the Printer Driver
The printer properties dialog box can be opened from either within an application, or
directly from the Windows S
S
tart menu.
This manual refers to Windows XP operation.
The operations may vary depending on your operating system.
Opening the Printer Properties Dialog Box from Your Application
Program
Depending on your application program, the command and menu names
may differ, and there may be more steps involved in opening the printer
properties dialog box. For more details, see the user’s manual for your
application.
1In your application, select the command to print a document.
The P
P
rint dialog box can usually be opened by selecting P
P
rint from the F
F
ile menu.
2Ensure that the name of your printer is selected. Then click P
P
references (or
Properties).
The printer properties dialog box opens.
Opening the Printer Properties Dialog Box Directly from the Start
Menu
This method is used for maintenance operations, such as P
P
rint Head Cleaning, or to
specify printer settings common to all application programs.
1Click S
S
tart and select C
C
ontrol Panel,P
P
rinters and O
O
ther Hardware, and then
Printers and Faxes.
For non-Windows XP, click S
S
tart, select S
S
ettings, and then P
P
rinters.
2Double-click the icon of your printer.
3Open the F
F
ile menu and select P
P
rinting Preferences (or P
P
roperties).
The printer properties dialog box opens.
When opening the printer properties dialog box from P
P
roperties, the default Window
tabs (e.g., the P
P
orts tab, or the D
D
etails tab) are displayed. These tabs are not
displayed, when the printer properties dialog box is opened from P
P
rinting
Preferences or applications. For details about these tabs, refer to the Windows
documentation.
Advanced Printing
29
Adjusting the Print Quality for Photographs
Improving the Quality of Printed Images
Two important factors control the quality and output of your printed images:
Paper and Ink
Using recommended Canon paper, specialty media, and inks for printing photographs
can significantly improve the quality of your printouts. See inside the back cover for a
list of Canon Specialty Papers and ink tanks for this printer.
For more detailed information, refer to “Printing Media” in the
User’s Guide
.
Printer Driver Settings
The printer driver has a variety of settings that can be used to creatively enhance the
colors and output of your photographs. Many of these features are covered in this
chapter.
You can also access the online help in either of the following ways
depending on your operating system:
In Windows
zPress the F
F
1 key.
zClick ? in the upper right corner, then click the feature you want to
know more about.
zClick the Help button when displayed.
In Macintosh
zClick ? in the P
P
age Setup dialog box or the P
P
rint dialog box.
Adjusting Print Quality
Features that affect the appearance and quality of your printed images can be
controlled with the printer driver.
Your printer automatically adjusts printer settings to improve print quality based on the
media type (plain paper, Photo Paper Pro, and so on). You can also customize the P
P
rint
Quality settings if desired.
Advanced Printing
30
To manually adjust Print Quality settings:
1Open the printer properties dialog box.
See “O
O
pening the Printer Properties Dialog Box from Your Application
Programon page 28.
2On the M
M
ain tab, select C
C
ustom from P
P
rint Quality, then click S
S
et to
open the S
S
et Print Quality dialog box.
3Move the slide bar to adjust the print quality.
4When the process is complete, click O
O
K.
5Click O
O
K on the M
M
ain tab.
6Click P
P
rint or O
O
K.
1Open the P
P
rint dialog box.
See “P
P
rinting with Macintoshon page 18.
2Select Q
Q
uality & Media from the pop-up menu, and then click D
D
etailed
Setting.
Advanced Printing
31
3Move the slide bar to adjust the print quality.
4When the process is complete, click P
P
rint.
To automatically optimize the image:
Photo Optimizer PRO automatically adjusts the photographs taken with a digital
camera. Use this feature to compensate for unsatisfactory color balance and over- or
under-exposure before printing. P
P
hoto Optimizer PRO is available for Windows only.
In Windows Me or Windows 98
If B
B
ackground Printing has been disabled, the P
P
hoto Optimizer PRO
function is not available.
1Open the printer properties dialog box.
See “O
O
pening the Printer Properties Dialog Box from Your Application
Programon page 28.
2Click the E
E
ffects tab.
Advanced Printing
32

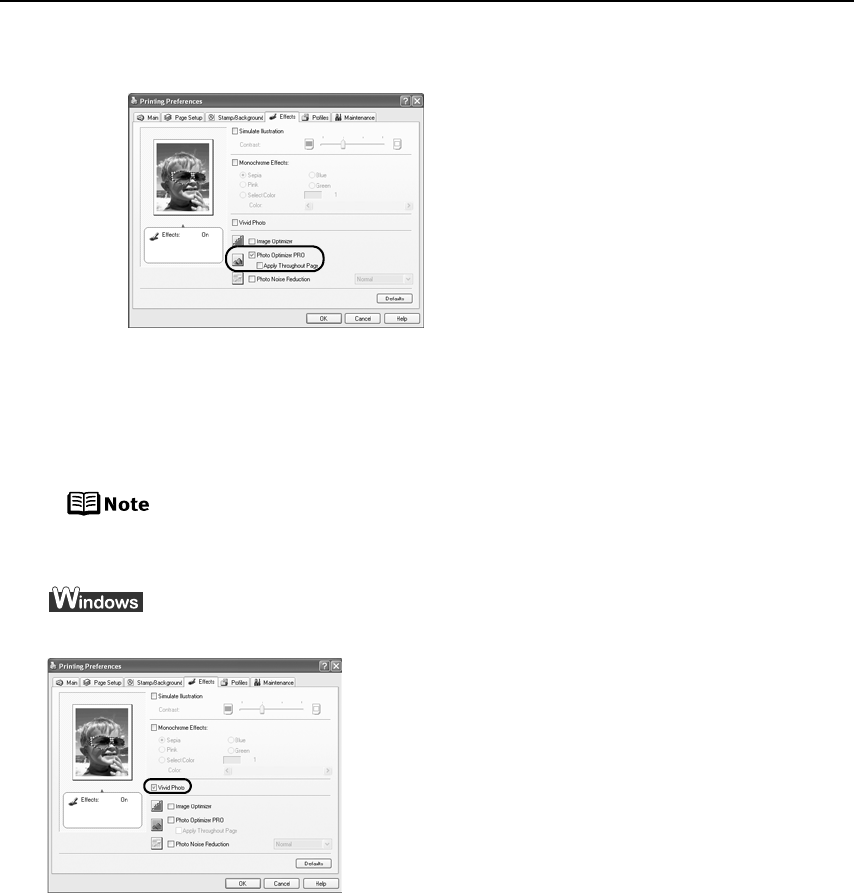

3Select the P
P
hoto Optimizer PRO check box.
4Click O
O
K.

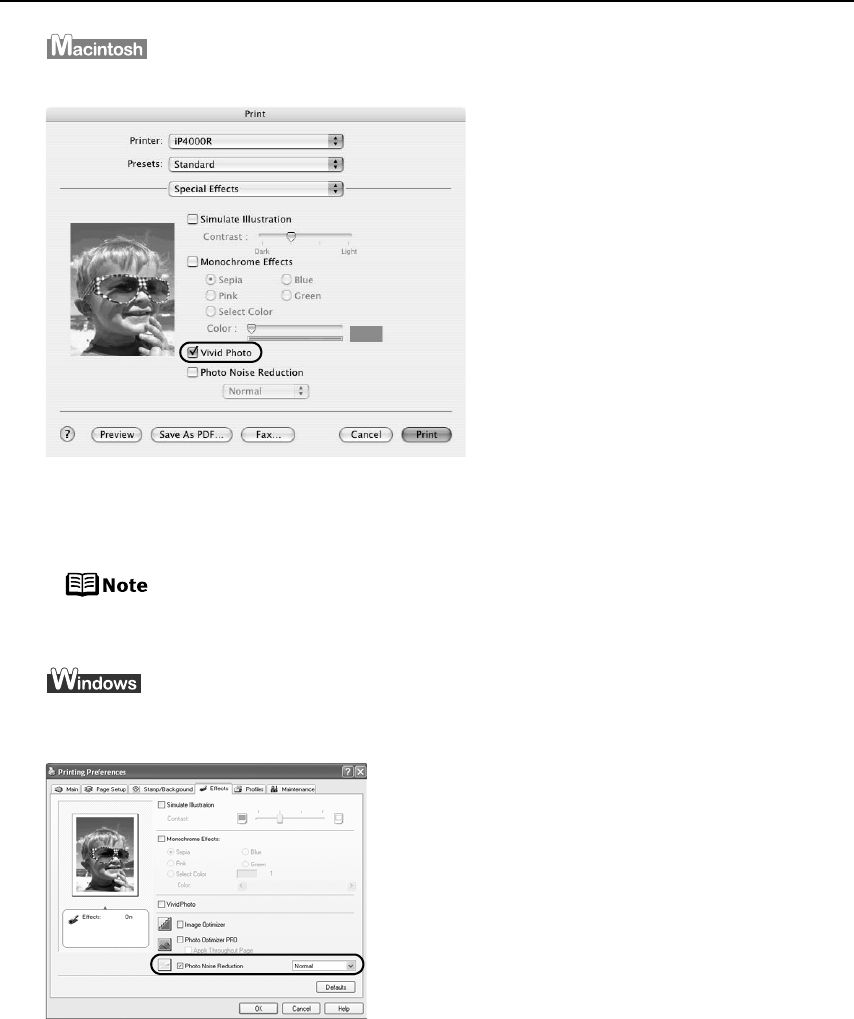

To use Vivid Photo option:
Vivid Photo intensifies background colors such as fields, trees, oceans and skies, while
maintaining natural skin tones in the images.
In Windows Me or Windows 98
If B
B
ackground Printing has been disabled, the V
V
ivid Photo function is not
available.
To use V
V
ivid Photo, select the V
V
ivid Photo check box on the E
E
ffects tab.
Advanced Printing
33
To use V
V
ivid Photo, select the V
V
ivid Photo check box under S
S
pecial Effects.
To reduce noise from images taken with a digital camera:
The P
P
hoto Noise Reduction function reduces noise from blue portions such as the sky,
and dark portions of the images taken with your digital camera.
In Windows Me or Windows 98
If B
B
ackground Printing has been disabled, the P
P
hoto Noise Reduction
function is not available.

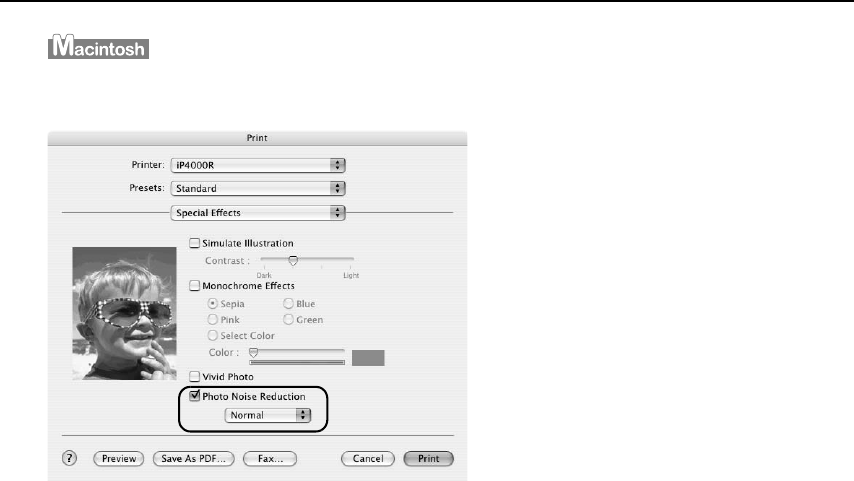

To use P
P
hoto Noise Reduction, select the P
P
hoto Noise Reduction check box on the
Effects tab.
Advanced Printing
34
To use P
P
hoto Noise Reduction, select the P
P
hoto Noise Reduction check box under
Special Effects.
Advanced Printing
35
Saving and Recalling Printer Driver Settings
When you change printer driver settings for a specific print job, such as printing black
and white photos, or printing documents with a special background, you can save and
name these settings for future use on similar print jobs.
1Open the printer properties dialog box.
See “O
O
pening the Printer Properties Dialog Box from Your Application
Programon page 28.
2In each tab, set all necessary items.

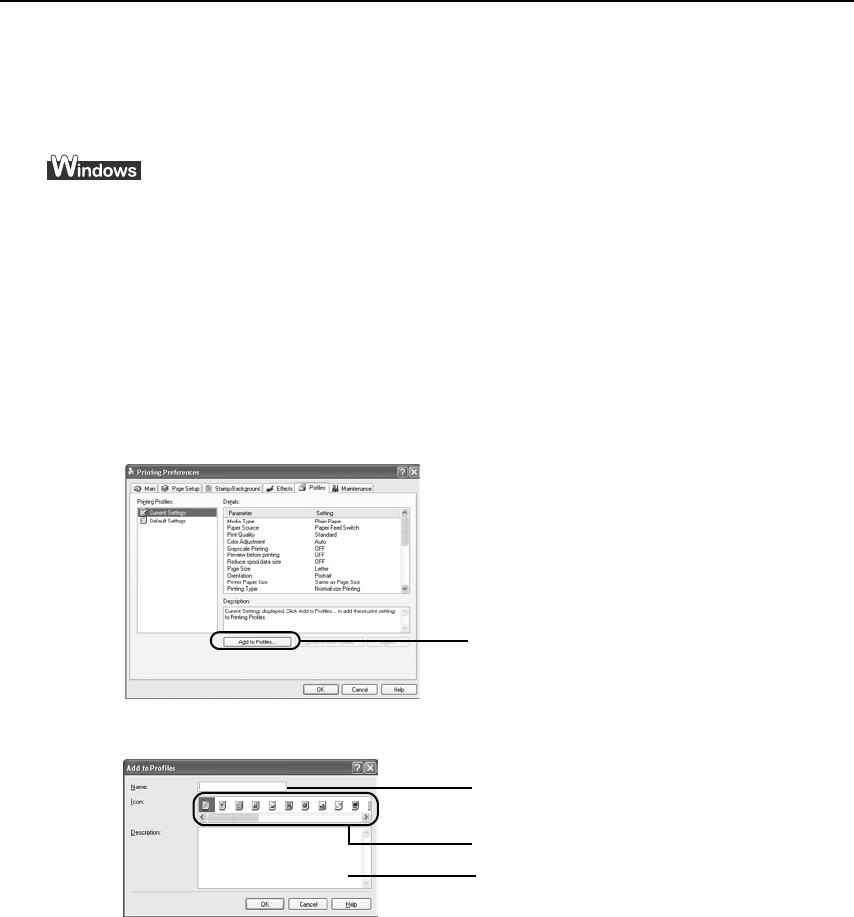

3Click the P
P
rofiles tab.
4Register new printer driver settings.
The A
A
dd to Profiles dialog box opens.
5Click O
O
K.
6Click O
O
K on the P
P
rofiles tab.
This registers your printer driver print settings.
(1) Click A
A
dd to Profiles.
(2) Enter a name of profile for
the settings.
(3) Select an icon.
(4) Enter a description of the
profile.
Advanced Printing
36
You can retrieve or delete the print settings profile at any time.
zRetrieving profile:
Select the desired profile from P
P
rinting Profiles, and click
Retrieve from P
P
rofiles.
zDeleting unwanted profile:
Select the desired profile from P
P
rinting Profiles, and click D
D
elete.
For details, click Help and refer to the topic of this function.
1Open the P
P
rint dialog box.
See “P
P
rinting with Macintoshon page 18.
2Set all necessary items.
3Register new printer driver settings.
The S
S
ave Preset dialog box opens.
4Click O
O
K.
This registers your printer driver settings.
You can retrieve or change the saved driver settings at any time.
zRetrieving the registered driver settings:
Select the name of the driver settings to retrieve from P
P
resets in
the P
P
rint dialog box.
zChanging the registered drivers settings:
Select the name of the driver settings to delete or change from
Presets in the P
P
rint dialog box.

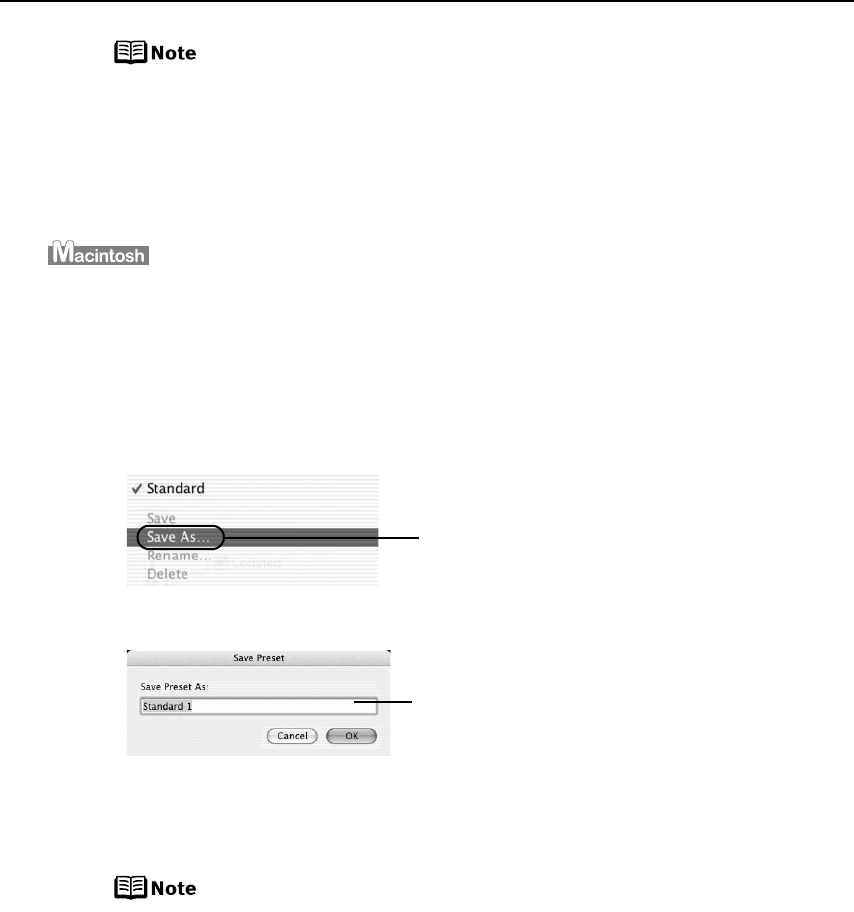

(1) Select S
S
ave As from P
P
resets.
(2) Enter a name for your
settings.
Advanced Printing
37
Using the Bundled Software
The
Setup Software & User’s Guide CD-ROM
includes photo applications designed to edit
the photographs taken by a digital camera and print them as photo-lab quality prints
without standard white borders. Please use the application(s) suitable for your print
purposes.
zTo install applications, refer to the
Setup Guide
.
zFor details about using the photo applications, refer to the
Photo Application
Guide
included on the
Setup Software & User’s Guide CD-ROM
.
Easy-PhotoPrint (Windows/Macintosh)
You can make a Borderless Print easily and quickly, just by selecting a photograph
taken with a digital camera and the paper type on which to print. Also it has tools to
correct red eye caused by the camera’s flash or smooth and beautify the facial skin. It
is compatible with ExifPrint*.
PhotoRecord (Windows)
You can create fun and unique photo albums with the decorative themes such as frame,
background, and clip-art. You can also copy or move the decorated photos.
It is compatible with ExifPrint*.
Easy-WebPrint (Windows)
You can easily print out homepages displayed on Internet Explorer in full size without
its right-hand side being cropped. This application is automatically added to the
Internet Explorer toolbar. Internet Explorer 5.5. or later must be installed.
For more information on the applications, refer to the
Photo Application Guide
.
* ExifPrint is the worldwide standard. Under ExifPrint, the digital camera can record data tags for specific camera
settings and functions such as whether the flash was on or off, if the camera was in portrait or night scene mode, etc.
Canon BJ Printers support ExifPrint and use a suitable photo application to read the camera data precisely, producing
optimal prints. This enables you to create prints that reproduce color more accurately.
Advanced Printing
38
Printing Borderless Photographs
This section describes how to print from Easy-PhotoPrint using the Borderless Printing
mode. Easy-PhotoPrint is included on your
Setup Software & User’s Guide CD-ROM
.
Media Types Suitable for Borderless Printing
zThe following media are compatible with B
B
orderless Printing:
- Photo Paper Pro (Letter and 4" x 6")
- Photo Paper Plus Glossy (Letter, 5" x 7", and 4" x 6")
- Photo Paper Plus Double Sided (Letter and 5" x 7")
- Photo Paper Plus Semi-gloss (Letter and 4" x 6")
- Matte Photo Paper (Letter)
- Glossy Photo Paper (Letter, 4" x 6", and 2.13" x 3.39")
zPrinting on paper other than the above may cause improper paper feeding,
may deteriorate the print quality or may produce prints in different color
tones.
zSelecting the wrong media type may affect the colors or cause printing to
slow down.
To ensure optimum printing results, select the correct media type that
matches the paper you are loading in the printer.
zBorderless Printing may not assure high print quality on the edges of the
print or may cause the edges of the print blurred.
Follow the steps below to produce color prints of digital camera photographs with Easy-
PhotoPrint using the B
B
orderless Printing function. Easy-PhotoPrint supports ExifPrint. Easy-
PhotoPrint can handle only JPEG files (file name extension: .jpg and .jpeg).
You can edit images taken with a digital camera by using the R
R
ed-Eye Correction function
and D
D
igital Face Smoothing function and print them with Easy-PhotoPrint. For more
information about Easy-PhotoPrint, refer to the
Photo Application Guide
.
This section provides the procedure for printing out photographs under Windows. The
procedure is the same with Macintosh.
1Turn on the printer.
See “T
T
urning on the Printeron page 2.
2Load the paper on the printer.
See “L
L
oading Paperon page 3.
Advanced Printing
39
3Ensure that the proper paper source is selected.

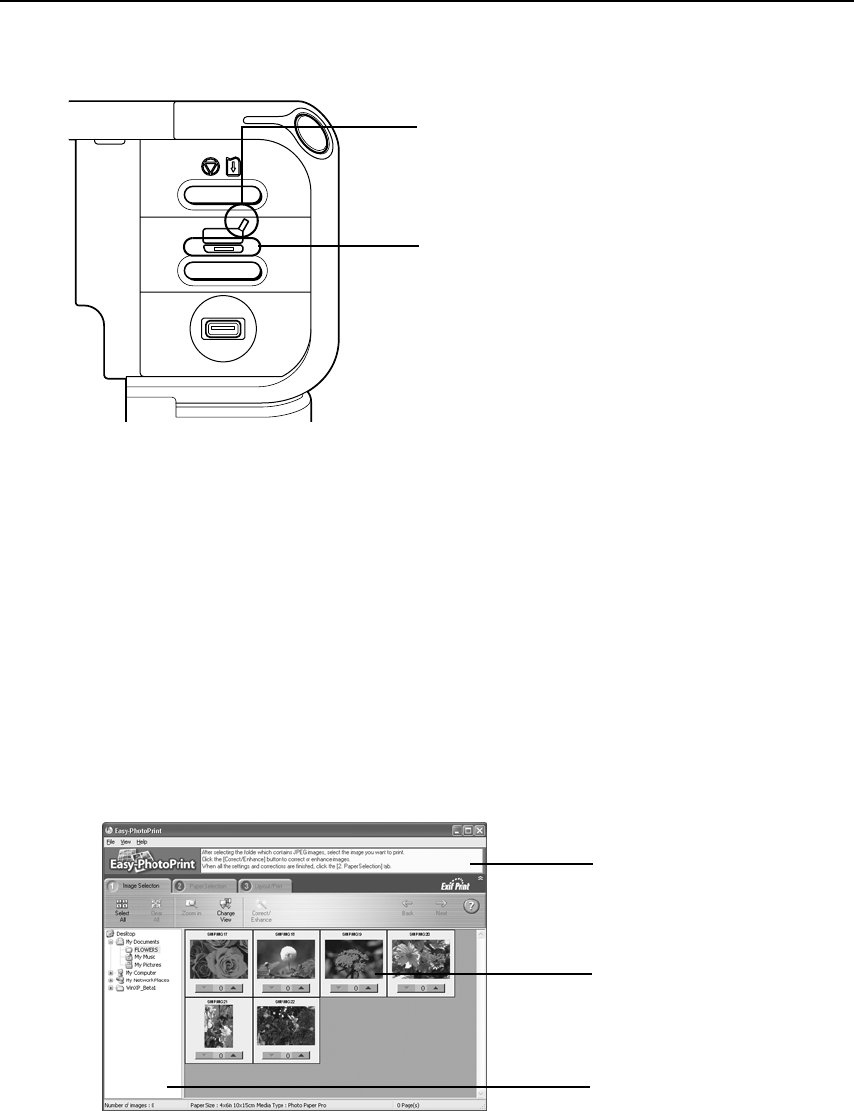

4Start Easy-PhotoPrint.
This section describes how to print out photographs stored in the folder on the hard
disk.
(1) Store the photographs you took with your digital camera in a folder on the hard
disk.
(2) In Windows, click S
S
tart, select A
A
ll Programs (or P
P
rograms), C
C
anon Utilities,E
E
asy-
PhotoPrint, and E
E
asy-PhotoPrint to open the Easy-PhotoPrint.
In Macintosh, double-click the hard disk icon, the A
A
pplications folder, the E
E
asy-
PhotoPrint folder, and then double-click the E
E
asy-PhotoPrint icon.
5Select photographs.
(1) Select the folder containing the photograph you want to print.
All photographs in the selected folder are displayed.
When the Cassette lamp is lit, paper
is fed from the Cassette.
When the Sheet Feeder lamp is lit,
paper is fed from the Sheet Feeder.
Guidance
Thumbnail
Folder window
Advanced Printing
40
(2) Click the [
[
T] [S] buttons on the thumbnail of the photograph you want to print
to specify the number of copies.
Clicking C
C
orrect/Enhance corrects photographs. For example, using
this feature, you can correct the red-eye caused by the camera’s
flash or smooth and beatify the facial skin. For more information,
refer to the
Photo Application Guide
.
6Select the paper.
This section only describes the steps when you have selected P
P
aper Feed
Switch from P
P
aper Source. For information about the other settings, refer
to “Changing the Paper Source” in the
User’s Guide
.
Increases the number of copies.
Displays the specified number of copies.
Decreases the number of copies.
(1) Click the P
P
aper Selection
tab.
(3) Select the size of the
paper you want to use
from P
P
aper Size.
(4) Select the type of the
paper you want to use
from M
M
edia Type.
(2) Ensure that P
P
aper Feed
Switch is selected from
Paper Source.
Advanced Printing
41

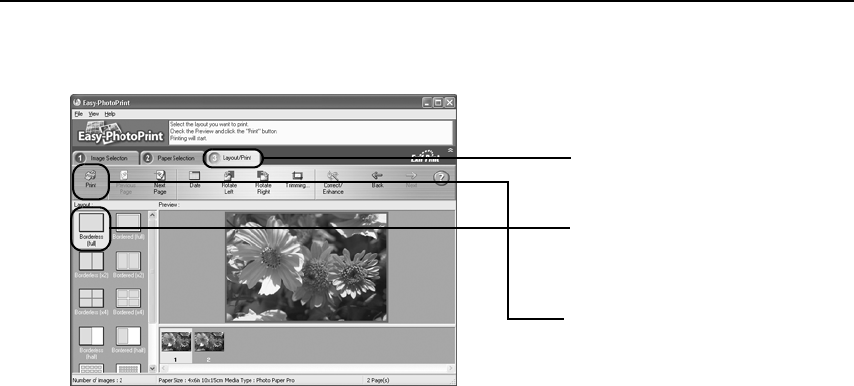

7Select the layout and print the photograph.
(1) Click the L
L
ayout/Print
tab.
(2) Select B
B
orderless (full).
(3) In Windows, click P
P
rint.
In Macintosh, click P
P
rint.
When the confirmation
message is displayed,
click O
O
K. And then, click
Print in the P
P
rint dialog
box.
Printing Maintenance
42
Printing Maintenance
Replacing an Ink Tank
When replacing an ink tank, check the model number very carefully.
The printer will not print properly if the wrong ink tank is used, or installed in the incorrect
position.

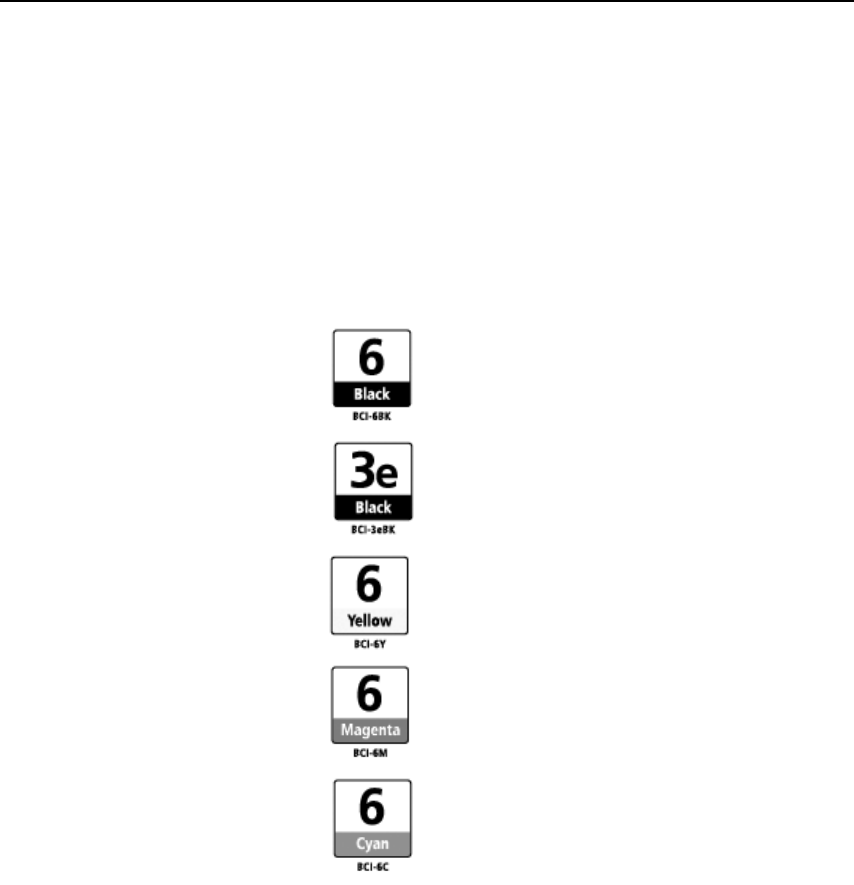

With your printer, ink tanks must be installed in the order of left to right as indicated below.
zBlack: BCI-6BK
zBlack: BCI-3eBK
zYellow: BCI-6Y
zMagenta: BCI-6M
zCyan: BCI-6C
Printing Maintenance
43

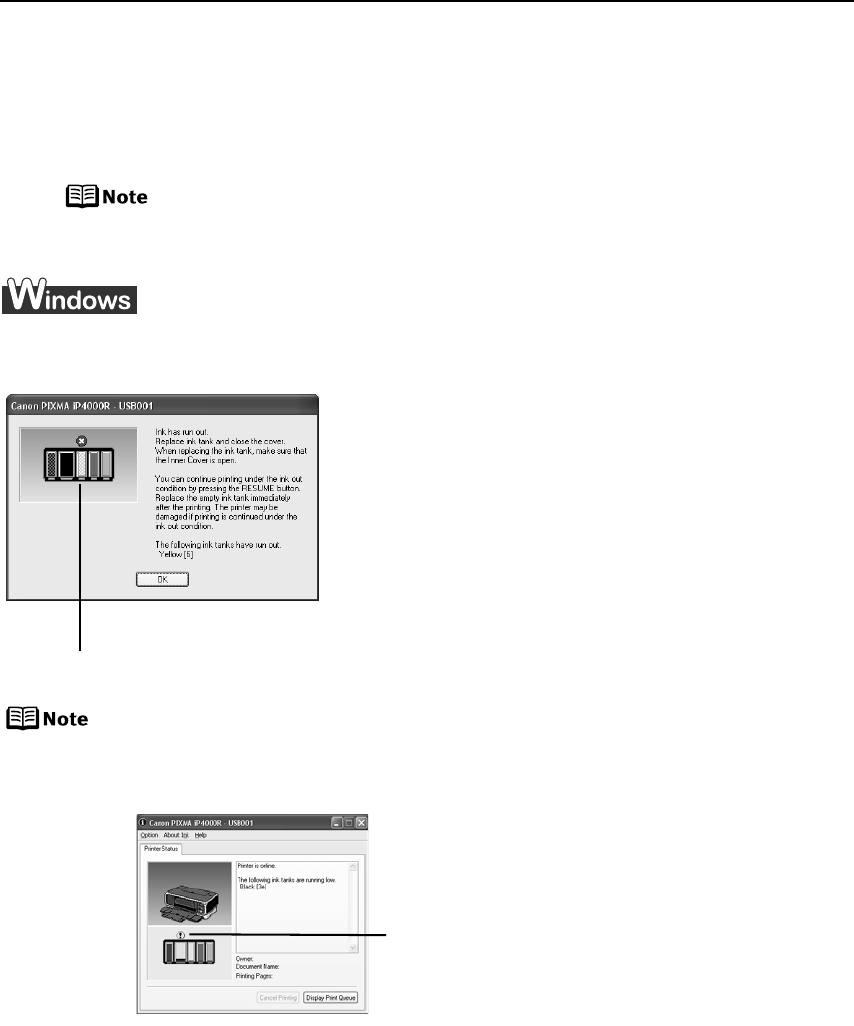

Knowing When to Replace Ink Tank
If an ink tank needs replacing, the P
P
OWER lamp will change from green to orange and
flash four times, as soon as printing begins. It is important to quickly identify the
empty tank using the B
B
J Status Monitor (Windows) or error messages (Macintosh) and
replace it.
Should missing characters or white streaks appear despite sufficient ink
levels, refer to “W
W
hen Printing Becomes Faint or Colors are Incorrecton
page 48.
The following message appears when ink is empty. Printing will resume as soon as ink tank
is replaced and the Inner Cover and the Top Cover are closed.
When Low Ink is Detected
The B
B
J Status Monitor appears as soon as a print job starts. [!] indicates a low
ink level. Obtain a replacement tank as soon as possible.
The ink tank with [X] symbol is out of ink.
Replace with a new ink tank.
zPress the R
R
ESUME/CANCEL button to resume
printing with an empty ink tank. When printing is
finished, replace the ink tank immediately. If you
continue printing with an empty ink tank, it may
cause problems.
zMenu screens will vary to some degree, depending
on your operating system.
Empty ink tank
Tank with low ink level
Printing Maintenance
44

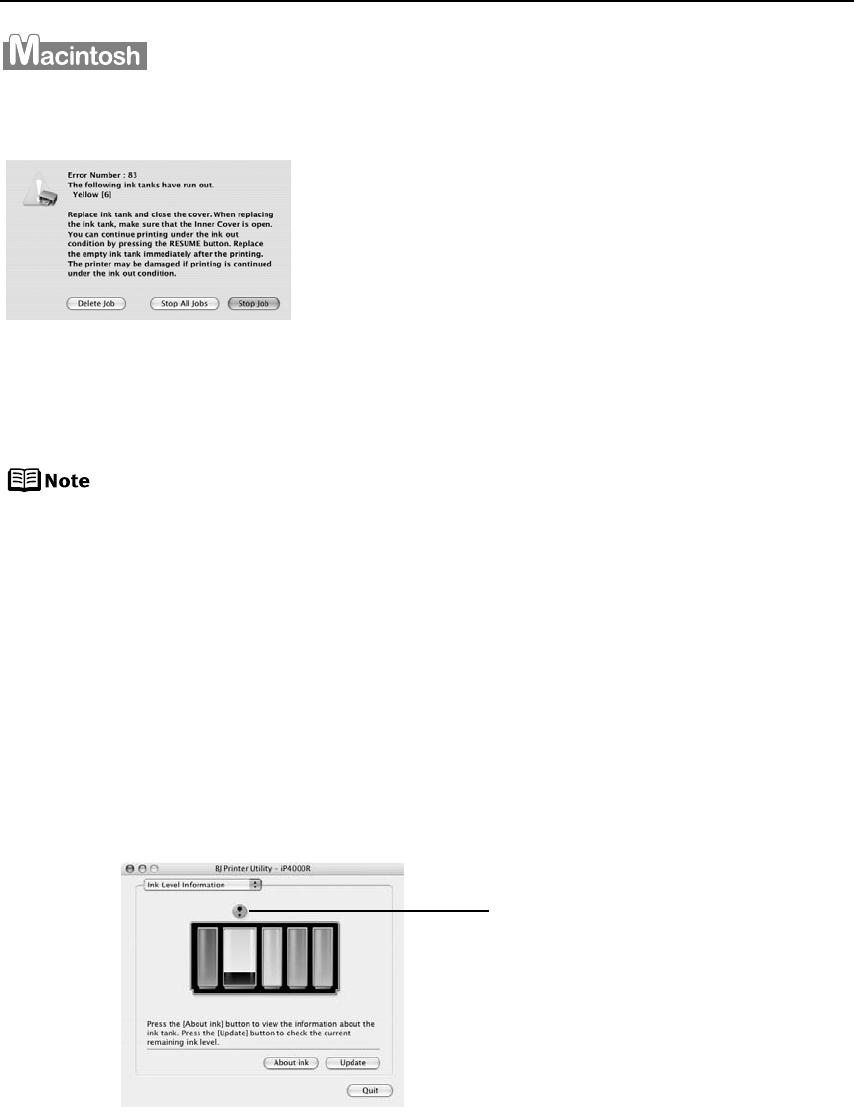

The following message is displayed when ink tank is empty. Printing will resume as soon as
ink tank is replaced and the Inner Cover and the Top Cover are closed.
Checking the ink level
(1) Double-click the hard disk icon where the printer driver was installed, the
Applications folder, and then the U
U
tilities folder.
(2) Double-click the P
P
rinter Setup Utility icon.
When using Mac OS X v.10.2, double-click the P
P
rint Center icon.
(3) Select the name of your printer from the N
N
ame list and click U
U
tility.
When using Mac OS X v.10.2, select the name of your printer from the N
N
ame
list and click C
C
onfigure.
(4) Select the name of your printer from the P
P
roduct list and click M
M
aintenance.
BJ Printer Utility appears.
(5) Select I
I
nk level Information from the pop-up menu.
[!] indicates a low ink level. Obtain a replacement tank as soon as possible.
Click A
A
bout Ink to show the ink tanks that are available on your printer.
zPress the R
R
ESUME/CANCEL button to resume
printing with the ink tank empty. When printing is
finished, replace the ink tank immediately. If you
continue printing with an empty ink tank, it may
cause problems.
zIf you click:
Delete Job, the printer cancels the current printing
job.
Stop Job, the printer stops the current printing
job.
Stop All Jobs, the printer stops all printing jobs.
Tank with low ink level
Printing Maintenance
45

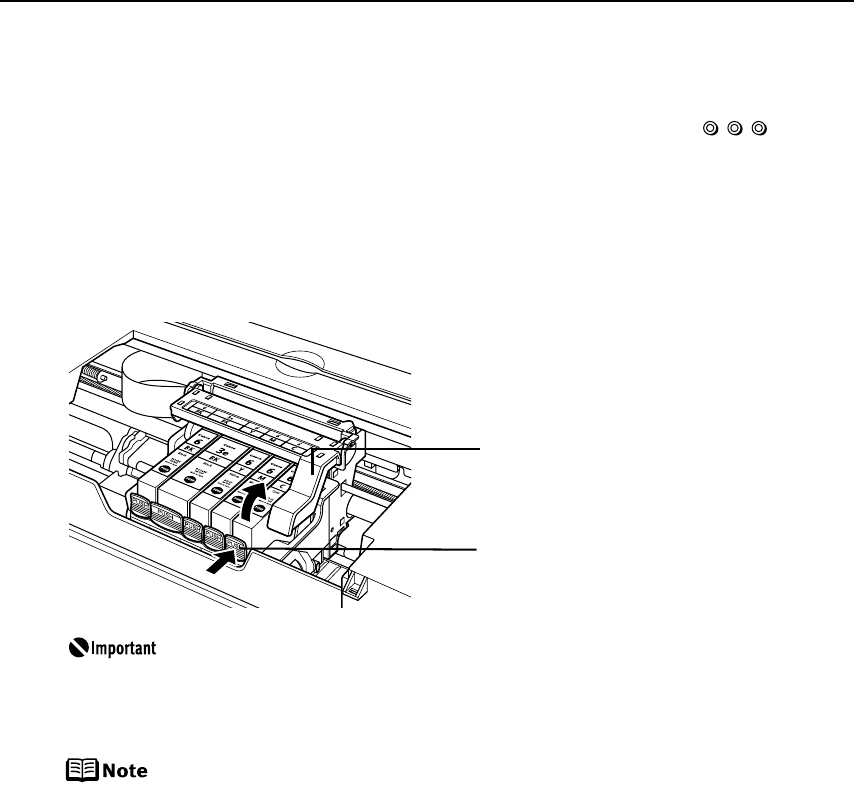

Replacing Ink Tanks
When an ink tank runs out of ink, replace it using the following steps.
1Ensure that the printer is on, and then push the upper center ( ) of the
Front Cover to open the Paper Output Tray.
2Open the Top Cover, and pull down the Inner Cover forward to open.
The Print Head Holder moves to the center.
3Remove the empty ink tank.
zHandle ink tanks carefully to avoid staining clothing or the surrounding
area.
zDiscard empty ink tanks according to the local laws and regulations
regarding disposal of consumables.
Be sure to replace ink tanks one by one when replacing more than one ink
tank.
Do not touch the lock lever;
remove only the ink tank.
Push the tab and remove
the ink tank.
Printing Maintenance
46

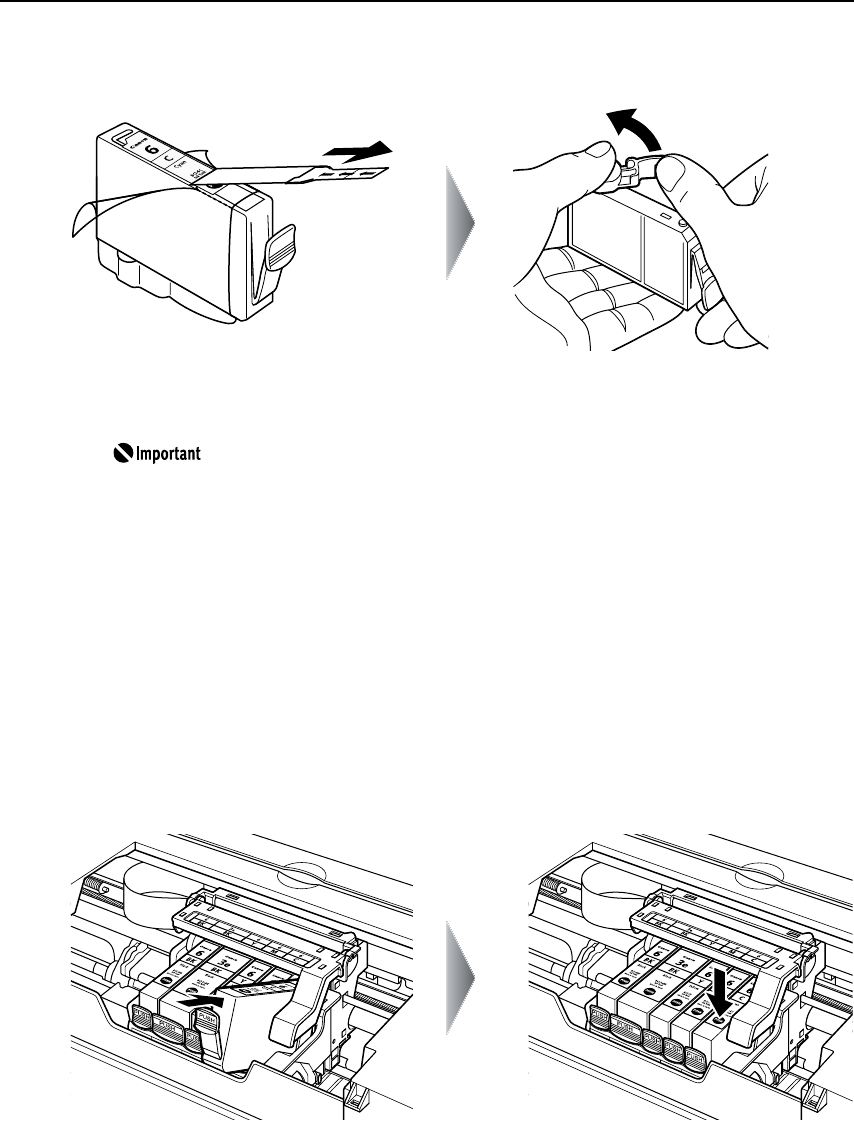

4Prepare a replacement tank.
(1) Unpack the new ink tank and pull off the orange tape. Then, remove the film.
(2) Remove the orange protective cap from the bottom of the ink tank and discard it.
zBe sure to remove the clear film from the ink tank in the exact
order shown in step 4-(1), as failure to follow this step may cause
the ink to leak and stain your clothes and hands.
zDo not squeeze the side of ink tanks as this may cause the ink to
leak out and stain your clothes and hands.
zDo not re-attach the protective cap once you have removed it.
zOnce the protective cap is removed, do not touch the open ink
port.
zEnsure that all the orange tape has been peeled off along the
perforation. If there remains a part of the orange tape, ink may
not be ejected correctly.
5Insert the ink tank.
Printing Maintenance
47
(1) Insert the ink tank into the Print Head.
(2) Press on the mark on the ink tank until the ink tank snaps firmly into place.
6Close the Inner Cover and the Top Cover.
The Print Head Holder moves to the right. The ink tank installation process is now
complete.
zEnsure that the Inner Cover is closed. Printing will not occur if the Inner
Cover is open.
zTo maintain optimal print quality, use an ink tank within six months of
its first use.
zOnce an ink tank has been used, do not remove it from the printer and
leave it out in the open. This will cause the ink tank to dry out and the
printer may not operate properly if it is reinstalled.
zColor ink consumption may occur even when black-and-white or
grayscale printing is specified.
Color ink is consumed in the head cleaning and deep cleaning, which
are necessary to maintain the printer’s capabilities.
zWhen you start printing after replacing the ink tank, the printer
executes P
P
rint Head Cleaning automatically. Do not perform any other
operations until the P
P
rint Head Cleaning finishes. The P
P
OWER lamp
flashes during cleaning.
Printing Maintenance
48
When Printing Becomes Faint or Colors are Incorrect
When printing becomes faint or colors are incorrect, even if ink remains in the ink tanks, the
Print Head nozzles are probably clogged. Follow the procedures below to clean the nozzles.
If the ruled lines are shifted after running the print head maintenance, align the Print Head.
Before printing the nozzle check pattern or cleaning the Print Head, check the
following;
zOpen the Top Cover, and make sure that the ink tank contains ink. If it is out
of ink, replace it.
zEnsure that all the orange tape of the ink tank has been peeled off.
zPress on the mark on the ink tank and ensure that the ink tank is
installed securely.
zEnsure that each ink tank is installed at the correct location.
zIncrease the P
P
rint Quality setting in the printer driver settings.
See “P
P
rint Quality is Poor or Contains Errorson page 67.
If P
P
rint Head Deep Cleaning does not resolve the problem, contact the Customer
Care Center.
Step 1
If white stripes appear
See “P
P
rint Head Cleaningon page 53
Step 2
If the problem remains after performing print head cleaning three times
See “P
P
rint Head Deep Cleaningon page 57
Step 3
After print head
cleaning, print the
nozzle check pattern.
See “P
P
rinting the Nozzle Check Patternon page 49
z If the ruled lines are shifted
See “A
A
ligning the Print Headon page 61
Step 1
Printing Maintenance
49
Printing the Nozzle Check Pattern
Print the nozzle check pattern to determine whether the ink ejects properly from the Print
Head nozzles. Use this function when printed results are blurred or the color is incorrect.
zEnsure that the Inner Cover is closed.
Printing the Nozzle Check Pattern Without a Computer
zNozzle check pattern printing can also be executed from the printer itself.
1. With the printer on, load a sheet of Letter-sized plain paper in the Sheet
Feeder or Cassette.
2. Press the Paper Feed Switch to select the paper source in which you loaded
the paper.
3. Hold down the R
R
ESUME/CANCEL button until the P
P
OWER lamp flashes
twice.
Printing the Nozzle Check Pattern
1With the printer on, load a sheet of Letter-sized plain paper in the Sheet
Feeder or Cassette.
2Press the Paper Feed Switch to select the paper source in which you loaded
the paper.
3Open the printer properties dialog box.
See “O
O
pening the Printer Properties Dialog Box Directly from the Start Menuon
page 28.
Printing Maintenance
50

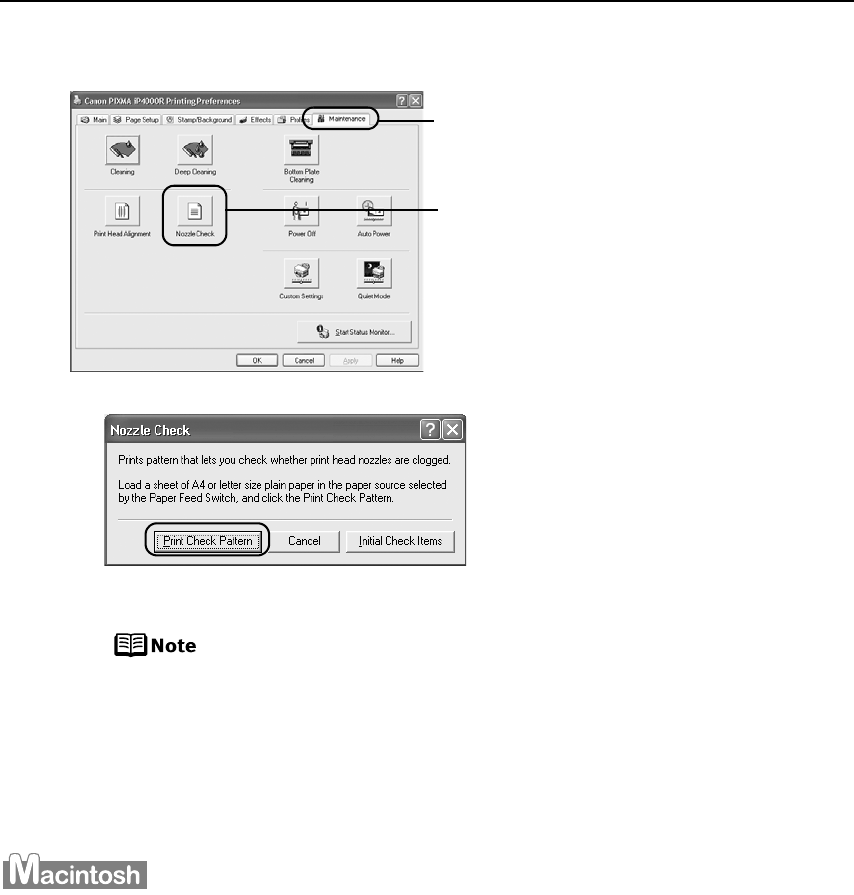

4Print the Nozzle Check Pattern.
(3) Read the message and click P
P
rint Check Pattern.
The nozzle check pattern will be printed.
Clicking I
I
nitial Check Items displays the items to be checked before
cleaning.
(4) When the confirmation message is displayed, click O
O
K.
(5) Ensure that the pattern is printed properly.
See “E
E
xamining the Nozzle Check Patternon page 52.
(6) If you want to start P
P
rint Head Cleaning, click C
C
leaning on the P
P
attern Check
dialog box. Otherwise, click E
E
xit to finish.
1With the printer on, load a sheet of Letter-sized plain paper in the Sheet
Feeder or Cassette.
2Press the Paper Feed Switch to select the paper source in which you loaded
the paper.
(1) Click the M
M
aintenance tab.
(2) Click N
N
ozzle Check.
Printing Maintenance
51
3Open the B
B
J Printer Utility dialog box.
(1) Double-click the hard disk icon where the printer driver was installed, the
Applications folder, and then the U
U
tilities folder.
(2) Double-click the P
P
rint Setup Utility icon.
When using Mac OS X v.10.2, double-click the P
P
rint Center icon.
(3) Select the name of your printer from the N
N
ame list and click U
U
tility.
When using Mac OS X v.10.2, select the name of your printer from the N
N
ame list
and click C
C
onfigure.
(4) Select the name of your printer from the P
P
roduct list and click M
M
aintenance.

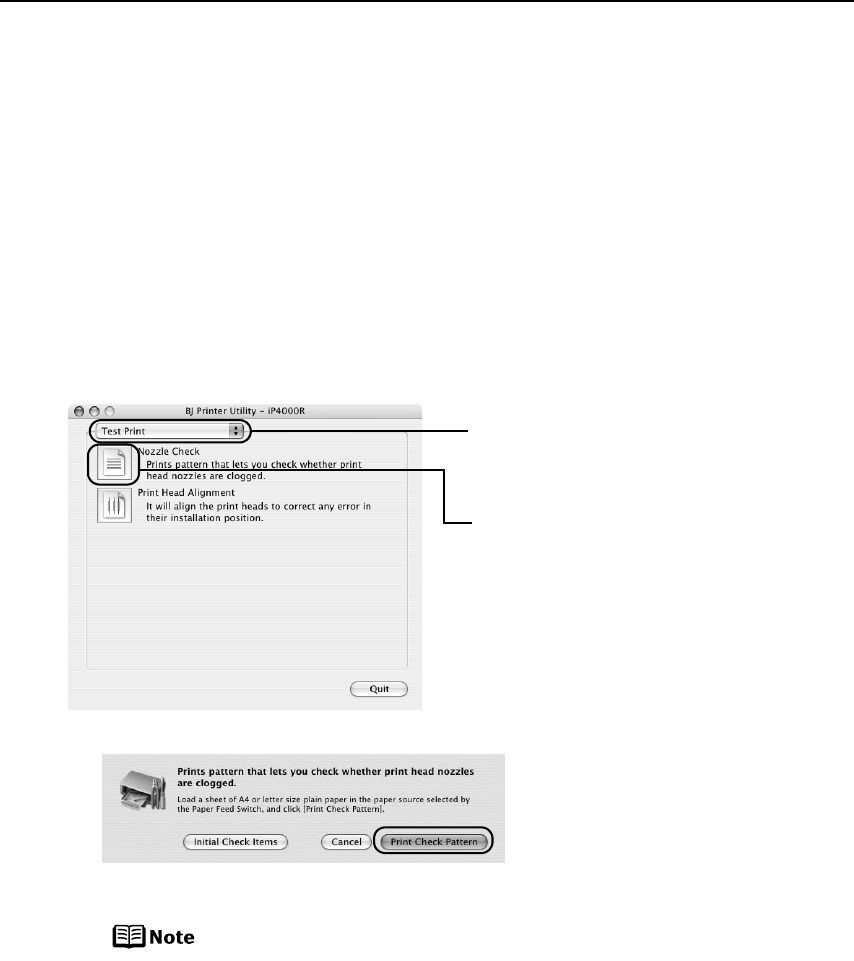

4Print the Nozzle Check Pattern.
(3) Read the message and click P
P
rint Check Pattern.
The nozzle check pattern will be printed.
Clicking I
I
nitial Check Items displays the items to be checked before
cleaning.
(4) Ensure that the pattern is printed properly.
See “E
E
xamining the Nozzle Check Patternon page 52.
(5) If you want to start P
P
rint Head Cleaning, click C
C
leaning on the P
P
attern Check
dialog box. Otherwise, click Q
Q
uit to finish.
(1) Select T
T
est Print from the
pop-up menu.
(2) Click N
N
ozzle Check.
Printing Maintenance
52

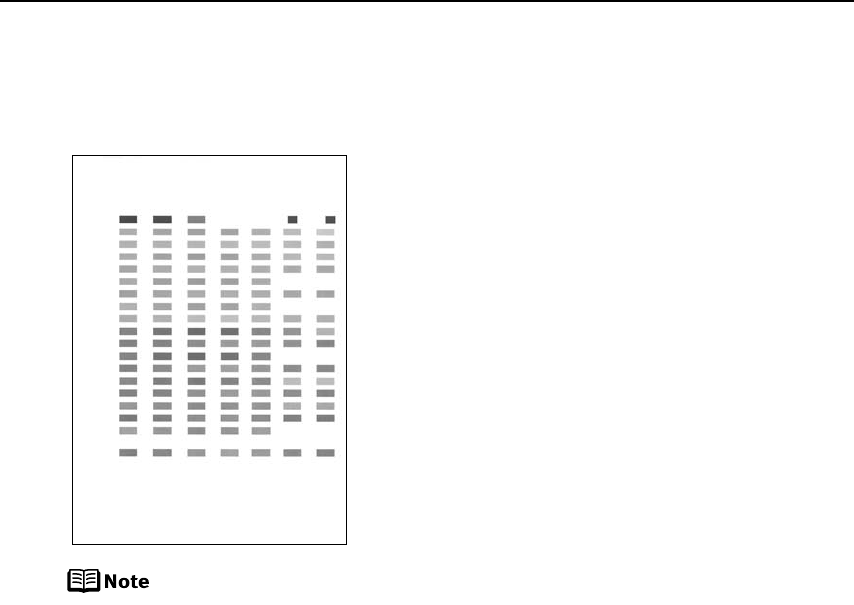

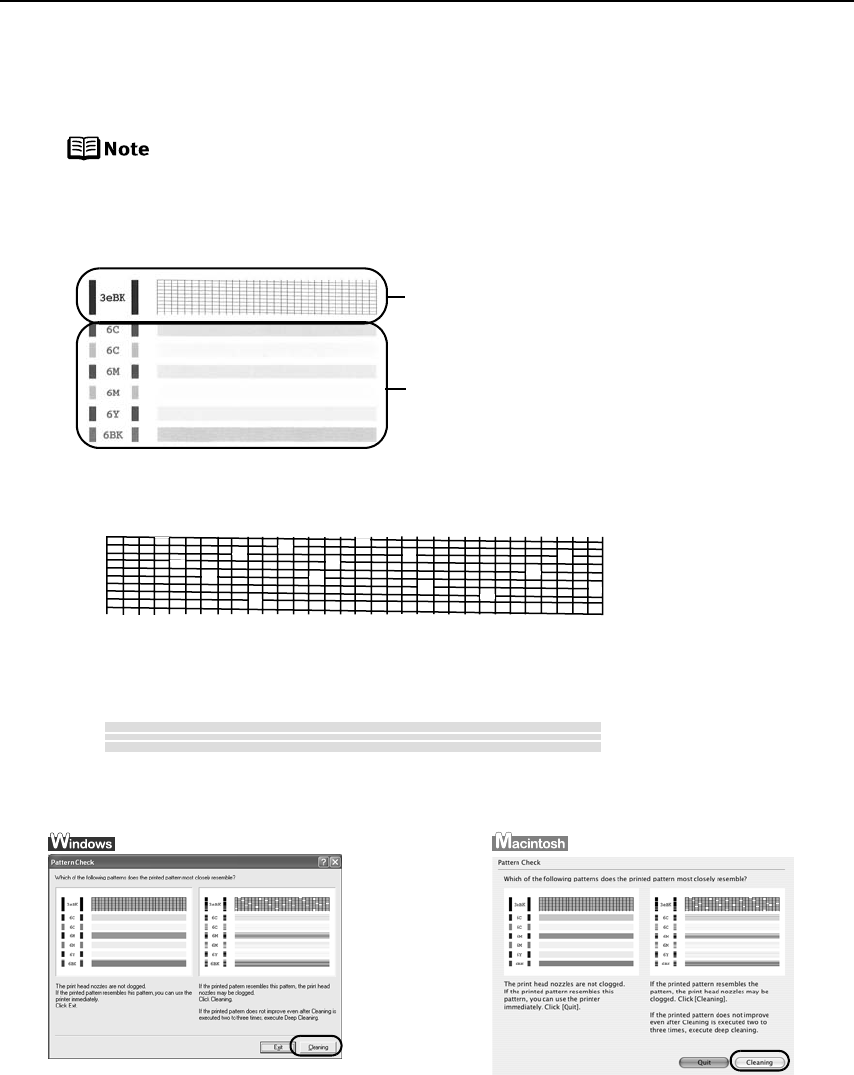

Examining the Nozzle Check Pattern
The nozzle check pattern should appear as follows when ink is discharged properly.
Examine the nozzle check pattern output by the printer.
The nozzle check pattern will not be printed correctly if there is not
enough ink. Replace the ink tank if the remaining amount of ink is
insufficient.
See “R
R
eplacing an Ink Tankon page 42.
(1) If lines of this pattern are missing, the “B
B
lack” print head nozzle needs cleaning.
(2) If these patterns have white stripes, the “C
C
olor” print head nozzle needs
cleaning.
Click C
C
leaning in the P
P
attern Check dialog box to start P
P
rint Head Cleaning.
See “P
P
rint Head Cleaningon page 53.
If no lines of the group (1) pattern are missing, and the group (2) patterns have no
white stripes, click E
E
xit or Q
Q
uit.N
N
ozzle Check Pattern finishes.
(1)
(2)
Example: When lines are missing
Example: When white stripes appear
Printing Maintenance
53
Print Head Cleaning
Clean the Print Head if missing lines or white stripes appear in the nozzle check pattern.
Note that cleaning the Print Head causes waste ink to be absorbed in the waste ink
absorber. Cleaning the Print Head consumes ink, so perform P
P
rint Head Cleaning only when
necessary.
zEnsure that the Inner Cover is closed.
Cleaning the Print Head Without a Computer
zThe Print Head can also be cleaned from the printer itself. With the printer on,
hold down the R
R
ESUME/CANCEL button until the P
P
OWER lamp flashes once.
The P
P
rint Head Cleaning dialog box of step 3-(3) is directly displayed when you
click C
C
leaning on the P
P
attern Check dialog box.
See “E
E
xamining the Nozzle Check Patternon page 52.
1Ensure that the printer is on.
2Open the printer properties dialog box.
See “O
O
pening the Printer Properties Dialog Box Directly from the Start Menuon
page 28.

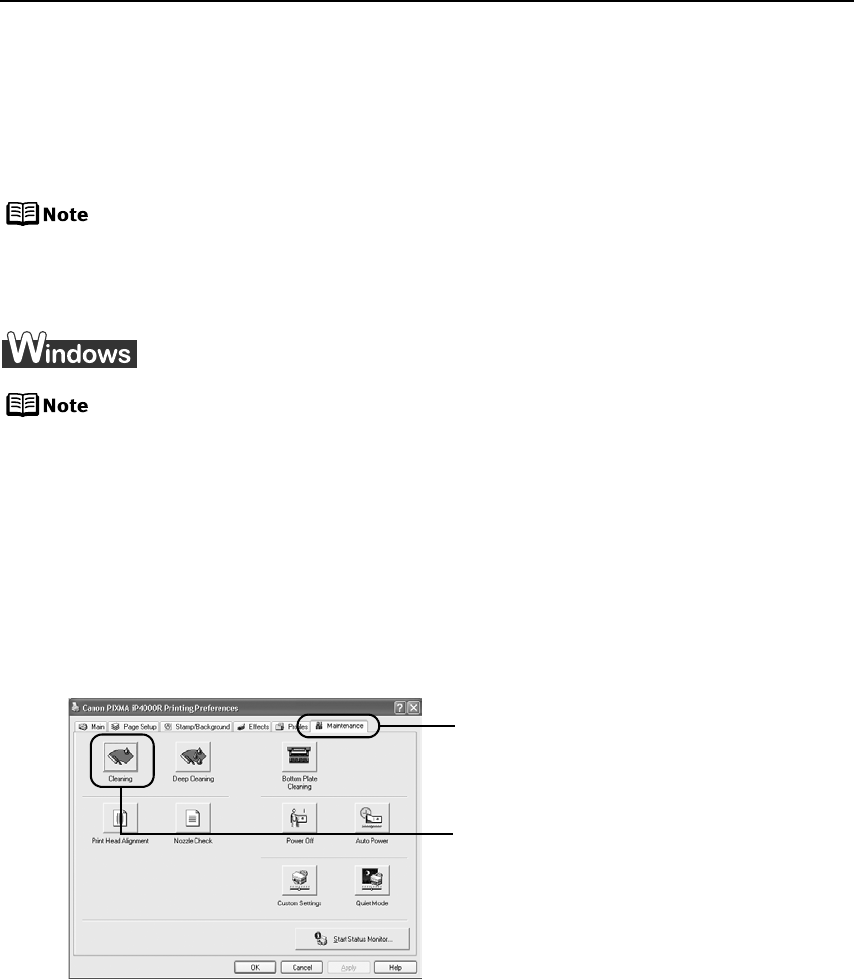

3Start Print Head Cleaning.
(1) Click the M
M
aintenance tab.
(2) Click C
C
leaning.
Printing Maintenance
54

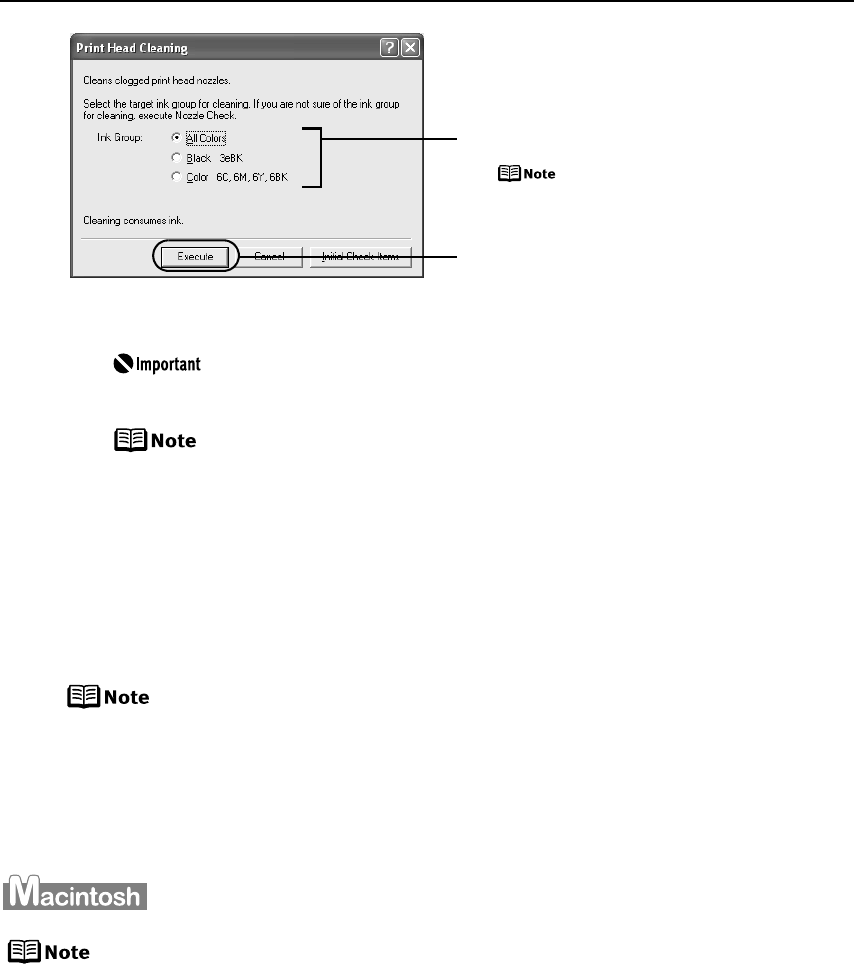

Print Head Cleaning starts when the P
P
OWER lamp starts blinking.
Do not perform any other operations until the P
P
rint Head Cleaning
finishes. This takes about 30 to 40 seconds.
Clicking I
I
nitial Check Items displays the items to be checked before
cleaning.
(5) When the confirmation message is displayed, click O
O
K.
(6) Read the message and click P
P
rint Check Pattern to print the nozzle check pattern.
The nozzle check pattern is printed.
4Check the Print Head condition with the printed nozzle check pattern.
See “P
P
rinting the Nozzle Check Patternon page 49.
zThe nozzle check pattern will not be printed correctly if there is not
enough ink. Replace the ink tank if the remaining amount of ink is
insufficient.
See “R
R
eplacing an Ink Tankon page 42.
zIf the problem remains after performing P
P
rint Head Cleaning three
times, try P
P
rint Head Deep Cleaning.
See “P
P
rint Head Deep Cleaningon page 57.
The P
P
rint Head Cleaning dialog box of step 3-(3) is directly displayed when you
click C
C
leaning on the P
P
attern Check dialog box.
See “E
E
xamining the Nozzle Check Patternon page 52.
1Ensure that the printer is on.
(3) Select the ink group to be cleaned.
When cleaning the nozzles of black
ink tanks: select B
B
lack to clean the
nozzles of BCI-3eBK, C
C
olor to clean
the nozzles of BCI-6BK.
(4) Click E
E
xecute.
Printing Maintenance
55
2Open the B
B
J Printer Utility dialog box.
(1) Double-click the hard disk icon where the printer driver was installed, the
Applications folder, and then the U
U
tilities folder.
(2) Double-click the P
P
rinter Setup Utility icon.
When using Mac OS X v.10.2, double-click the P
P
rint Center icon.
(3) Select the name of your printer from the N
N
ame list and click U
U
tility.
When using Mac OS X v.10.2, select the name of your printer from the N
N
ame list
and click C
C
onfigure.
(4) Select the name of your printer from the P
P
roduct list and click M
M
aintenance.
3Start Print Head Cleaning.
(1) Ensure that C
C
leaning is selected from
the pop-up menu.
(2) Click C
C
leaning.
(3) Select the ink group to be cleaned.
When cleaning the nozzles of black
ink tanks: select B
B
lack to clean the
nozzles of BCI-3eBK, C
C
olor to clean
the nozzles of BCI-6BK.
(4) Click O
O
K.
Printing Maintenance
56
Print Head Cleaning starts when the P
P
OWER lamp starts blinking.
Do not perform any other operations until the P
P
rint Head Cleaning
finishes. This takes about 30 to 40 seconds.
Clicking I
I
nitial Check Items displays the items to be checked before
cleaning.
(5) Read the message and click P
P
rint Check Pattern to print the nozzle check pattern.
The nozzle check pattern is printed.
4Check the Print Head condition with the printed nozzle check pattern.
See “P
P
rinting the Nozzle Check Patternon page 49.
zThe nozzle check pattern will not be printed correctly if there is not
enough ink. Replace the ink tank if the remaining amount of ink is
insufficient.
See “R
R
eplacing an Ink Tankon page 42.
zIf the problem remains after performing P
P
rint Head Cleaning three
times, try P
P
rint Head Deep Cleaning.
See “P
P
rint Head Deep Cleaningon page 57.
Printing Maintenance
57
Print Head Deep Cleaning
If print quality does not improve by standard P
P
rint Head Cleaning, try P
P
rint Head Deep
Cleaning, which is a more powerful process. Note that cleaning the Print Head causes waste
ink to be absorbed in the waste ink absorber.
Print Head Deep Cleaning consumes more ink
than standard Print Head Cleaning, so perform this procedure only when necessary.
Ensure that the Inner Cover is closed.
1Ensure that the printer is on.
2Open the printer properties dialog box.
See “O
O
pening the Printer Properties Dialog Box Directly from the Start Menuon
page 28.

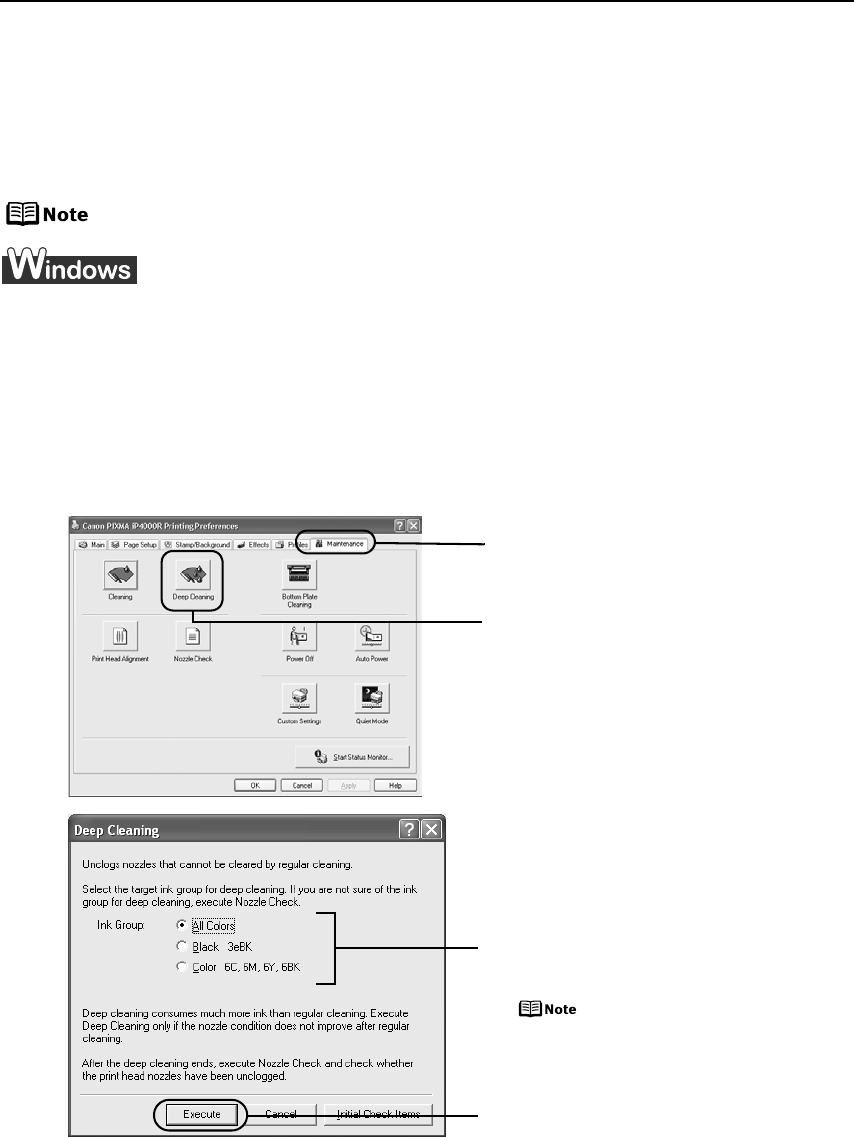

3Start Print Head Deep Cleaning.
(1) Click the M
M
aintenance tab.
(2) Click D
D
eep Cleaning.
(3) Select the ink group to be deeply
cleaned.
When cleaning the nozzles of
black ink tanks: select B
B
lack to
clean the nozzles of BCI-3eBK,
Color to clean the nozzles of BCI-
6BK.
(4) Click E
E
xecute.
Printing Maintenance
58
Print Head Deep Cleaning starts when the P
P
OWER lamp starts blinking.
Do not perform any other operation until the P
P
rint Head Deep
Cleaning finishes. This takes about one minute.
Clicking I
I
nitial Check Items displays the items to be checked before
cleaning.
4Print the nozzle check pattern to check the Print Head condition.
See “P
P
rinting the Nozzle Check Patternon page 49.
If a particular color is not printed properly, replace the ink tank of that color. See
“R
R
eplacing an Ink Tankon page 42.
zIf the print head nozzles are still not clean, open the Top Cover and
ensure that there are sufficient ink levels in all ink tanks and turn off
the printer. Be sure to perform another P
P
rint Head Deep Cleaning 24
hours after turning off the printer.
zIf this does not solve the problem, the Print Head may be worn out.
Contact the Customer Care Center.
1Ensure that the printer is on.
2Open the B
B
J Printer Utility dialog box.
(1) Double-click the hard disk icon where the printer driver was installed, the
Applications folder, and then the U
U
tilities folder.
(2) Double-click the P
P
rinter Setup Utility icon.
When using Mac OS X v.10.2, double-click the P
P
rint Center icon.
(3) Select the name of your printer from the N
N
ame list and click U
U
tility.
When using Mac OS X v.10.2, select the name of your printer from the N
N
ame list
and click C
C
onfigure.
(4) Select the name of your printer from the P
P
roduct list and click M
M
aintenance.
Printing Maintenance
59

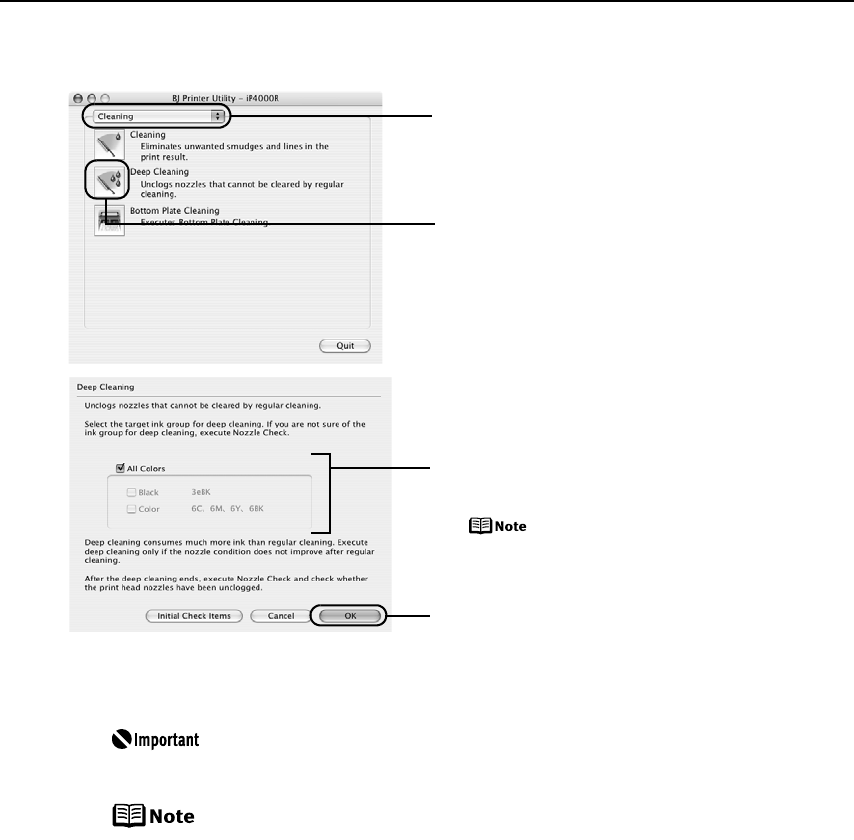

3Start Print Head Deep Cleaning.
Print Head Deep Cleaning starts when the P
P
OWER lamp starts blinking.
Do not perform any other operation until the P
P
rint Head Deep
Cleaning finishes. This takes about one minute.
Clicking I
I
nitial Check Items displays the items to be checked before
cleaning.
(1) Ensure that C
C
leaning is selected from
the pop-up menu.
(2) Click D
D
eep Cleaning.
(3) Select the ink group to be deeply
cleaned.
When cleaning the nozzles of black ink
tanks: select B
B
lack to clean the nozzles
of BCI-3eBK, C
C
olor to clean the nozzles
of BCI-6BK.
(4) Click O
O
K.
Printing Maintenance
60
4Print the nozzle check pattern to check the Print Head condition.
See “P
P
rinting the Nozzle Check Patternon page 49.
If a particular color is not printed properly, replace the ink tank of that color. See
“R
R
eplacing an Ink Tankon page 42.
zIf the print head nozzles are still not clean, open the Top Cover and
ensure that there are sufficient ink levels in all ink tanks and turn off
the printer. Be sure to perform another P
P
rint Head Deep Cleaning 24
hours after turning off the printer.
zIf this does not solve the problem, the Print Head may be worn out.
Contact the Customer Care Center.
Printing Maintenance
61

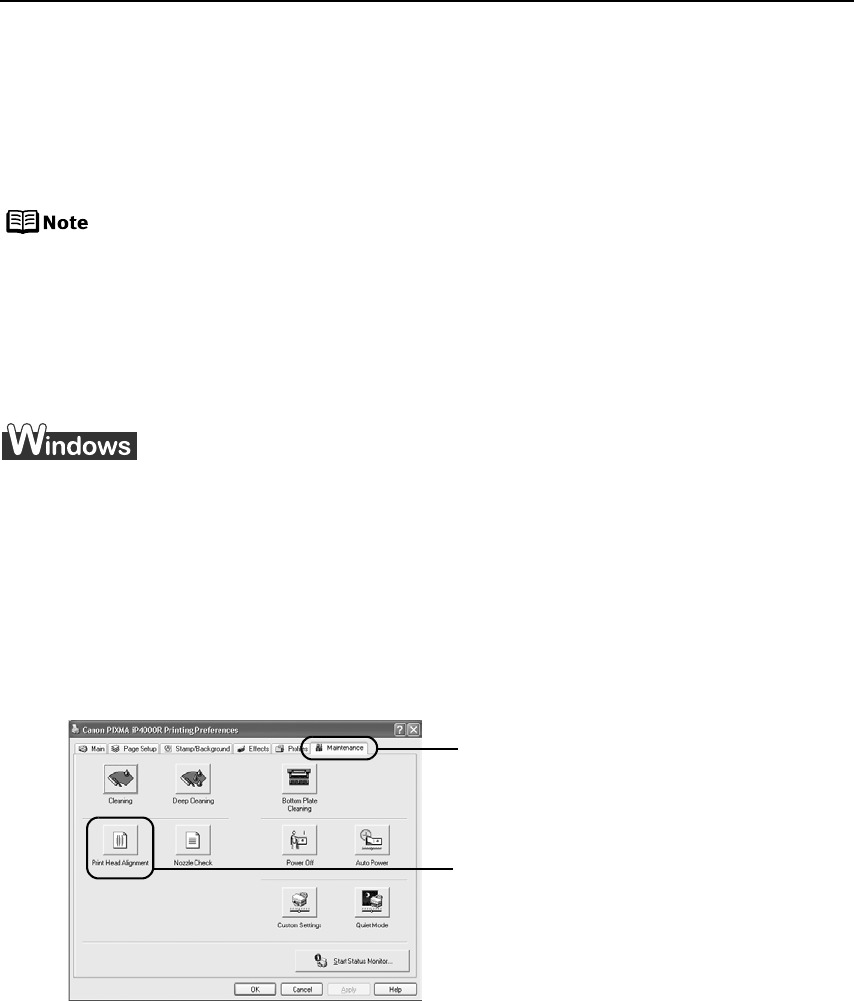

Aligning the Print Head
This operation must be carried out when using the printer for the first time. Aligning the
Print Head positions allows you to print without shifts in the color registration.
Print head alignment is performed either automatically or manually. This section deals with
automatic Print Head alignment only.
zEnsure that the Inner Cover is closed.
Aligning the Print Head Without a Computer
zThe Print Head can also be aligned from the printer itself.
1. With the printer on, load a sheet of Letter-sized plain paper in the Sheet
Feeder.
2. Hold down the R
R
ESUME/CANCEL button until the P
P
OWER lamp flashes four
times.
1With the printer on, load a sheet of Letter-sized plain paper in the Sheet
Feeder.
2Open the printer properties dialog box.
See “O
O
pening the Printer Properties Dialog Box Directly from the Start Menuon
page 28.
3Print the pattern.
(1) Click the M
M
aintenance tab.
(2) Click P
P
rint Head Alignment.
Printing Maintenance
62
4If a message warning you not to perform other operations is displayed, click
OK.
5Check the printed pattern.
If the pattern is printed as shown below, the Print Head is aligned automatically. The
printer is now ready to use.
zIf the pattern is not printed successfully, open the Top Cover and Inner
Cover, and ensure that the ink tanks are correctly installed.
zIf the pattern is still not printed successfully, refer to “Eleven flashes”
in “H
H
andling Error Messageson page 75.
zIf results of Automatic Print Head Alignment are not satisfactory, refer
to “Aligning the Print Head” in “Routine Maintenance” of the
User’s
Guide
and align the Print Head manually.
(3) Read the message and click P
P
rint
Head Alignment.
It takes about 80 seconds to
start printing. Do not open the
Top Cover while printing.
Printing Maintenance
63

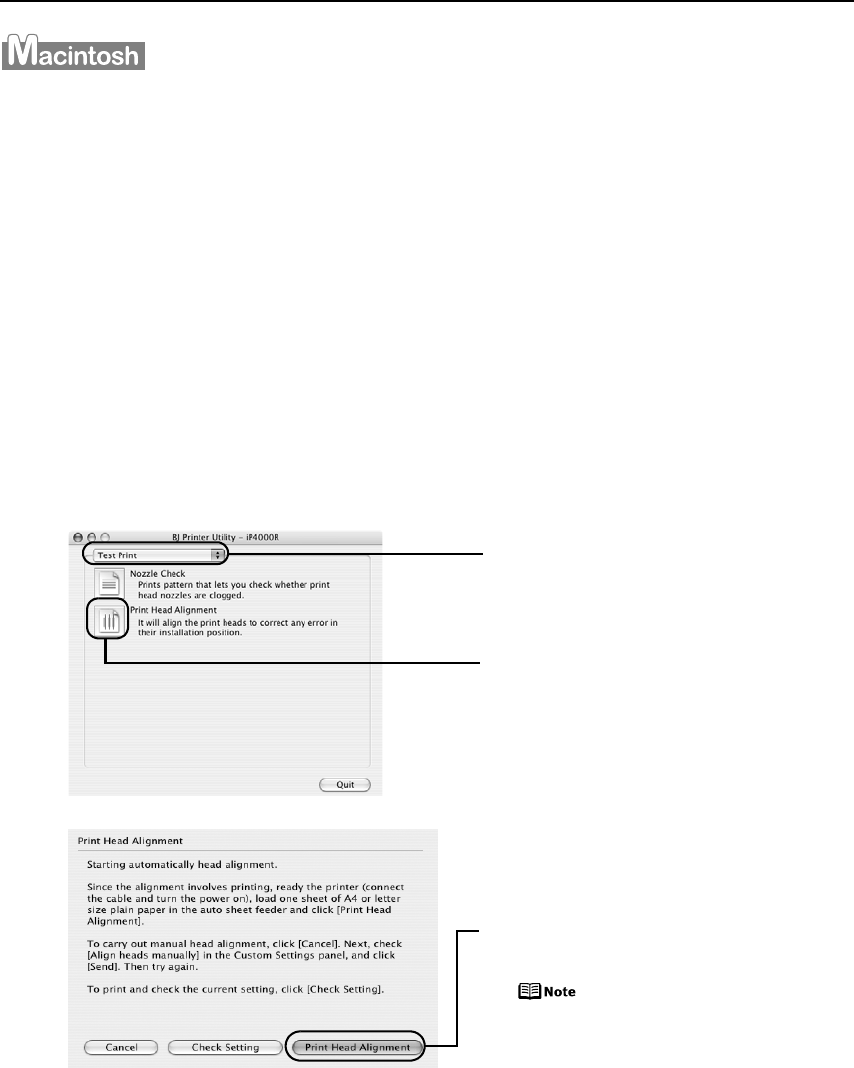

1With the printer on, load a sheet of Letter-sized plain paper in the Sheet
Feeder.
2Open the B
B
J Printer Utility dialog box.
(1) Double-click the hard disk icon where the printer driver was installed, the
Applications folder, and then the U
U
tilities folder.
(2) Double-click the P
P
rinter Setup Utility icon.
When using Mac OS X v.10.2, double-click the P
P
rint Center icon.
(3) Select the name of your printer from the N
N
ame list and click U
U
tility.
When using Mac OS X v.10.2, select the name of your printer from the N
N
ame list
and click C
C
onfigure.
(4) Select the name of your printer from the P
P
roduct list and click M
M
aintenance.
3Print the pattern.
(1) Select
Test Print from the
pop-up menu.
(2) Click P
P
rint Head Alignment.
(3) Read the message and click
Print Head Alignment.
It takes about 80
seconds to start printing.
Do not open the Top
Cover while printing.
Printing Maintenance
64
4Check the printed pattern.
If the pattern is printed as shown below, the Print Head is aligned automatically. The
printer is now ready to use.
zIf the pattern is not printed successfully, open the Top Cover and Inner
Cover, and ensure that the ink tanks are correctly installed.
zIf the pattern is still not printed successfully, refer to “Eleven flashes”
in “H
H
andling Error Messageson page 75.
zIf results of Automatic Print Head Alignment are not satisfactory, refer
to “Aligning the Print Head” in “Routine Maintenance” of the
User’s
Guide
and align the Print Head manually.
Troubleshooting
65
Troubleshooting
This section provides troubleshooting tips for the most common printing problems.
Troubleshooting usually falls into one of the following categories.
z“C
C
annot Install the Printer Driveron page 66
z“P
P
rint Quality is Poor or Contains Errorson page 67
z“T
T
roubleshooting Printer Hardwareon page 69
z“P
P
aper Does Not Feed Properlyon page 71
z“P
P
aper Jamson page 72
z“H
H
andling Error Messageson page 75
z“A
A
n Error Message Appears on the Screenon page 77
z“C
C
annot Print Properly from the Digital Cameraon page 81
Refer to the
User’s Guide
for additional information on topics not covered in this section.
When an Error Occurs
The B
B
J Status Monitor opens and displays a message when an error occurs. Take the
appropriate action described in the message.
The message may vary depending on your operating system.
Troubleshooting
66

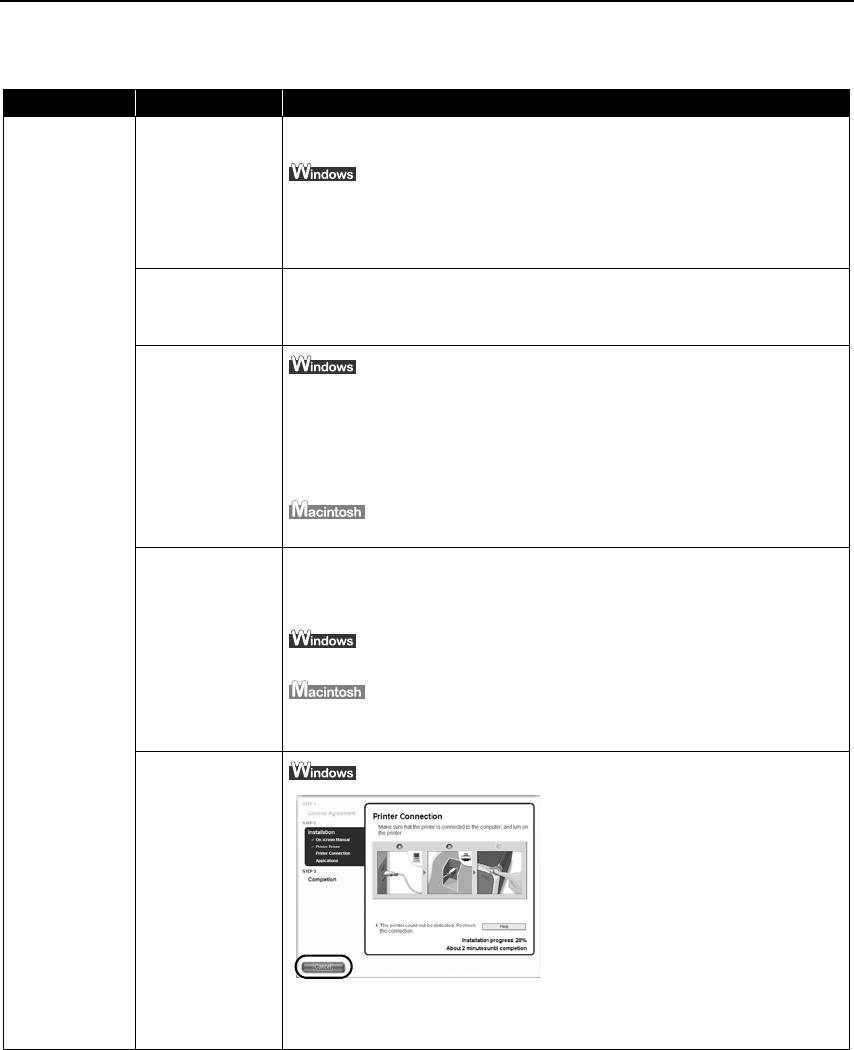

Cannot Install the Printer Driver
Problem Possible Cause Try This
Cannot Install the
Printer Driver
Installation
procedure not
followed correctly
Follow the
Setup Guide
packaged with your printer for proper printer driver
installation.
If the installer was forced to be terminated due to an error, Windows may be
unstable. Remove the CD-ROM from the CD-ROM drive and restart your computer.
Reinstall the printer driver. If this problem persists, refer to your Windows
documentation for more information.
Other applications
(including anti-virus
software) running
in the background
Other applications opened on your computer can interfere with the installation
routine. Close all open software applications before reinstalling the printer driver.
Refer to the
Setup Guide
for installing the printer driver.
Installation does
not start
automatically when
the
Setup Software
& User’s Guide CD-
ROM
is inserted
into the drive
If the printer driver installation did not start automatically when you inserted the
Setup Software & User’s Guide CD-ROM
into the CD-ROM drive:
1. Click S
S
tart and select M
M
y Computer.
2. Double-click the C
C
D-ROM icon.
For non-Windows XP, open the M
M
y Computer window, and then double-click the
CD-ROM icon.
Double-click the C
C
D-ROM icon on your desktop to start installation.
Installation CD-
ROM is not working
properly
Ensure that there are no problems with the
Setup Software & User’s Guide CD-
ROM
.
If there is any problem with the
Setup Software & User’s Guide CD-ROM
, contact
the Customer Care Center.
Use Windows Explorer to ensure that the CD-ROM can be read.
Ensure that the C
C
D-ROM icon is displayed on the desktop.
Unable to proceed
beyond the P
P
rinter
Port screen Reinstall the printer driver.
1.Click C
C
ancel on the P
P
rinter Connection
screen.
2.Click S
S
tart Over on the I
I
nstallation
Failure screen.
3.Click B
B
ack on the screen which appears
next.
4.Click E
E
xit on the W
W
elcome screen, then
remove the CD-ROM.
5. Turn the printer and the computer off.
6.Check the cable connection.
7.Restart the computer.
8.Carefully follow the procedures
described in the
Setup Guide
and
reinstall the driver.
Troubleshooting
67
Print Quality is Poor or Contains Errors
Problem Possible Cause Try This
Ink does not eject
properly/Printing is
Blurred/Colors are
Wrong/White
Streaks appear
Ink tank is not seated
properly/Ink tank is
empty
Check that the ink tanks are firmly seated in the Print Head and reseat them if
necessary.
Check that the correct ink tanks are installed and that they are in the correct
order.
Check to see if all the orange tape has been peeled off as shown in (1). If there
remains a part of the orange tape as shown in (2), remove it thoroughly.
If ink tank is empty, replace the ink tank. See “Replacing an Ink Tankon page
42.
Print Head is
misaligned
Align the Print Head.
See “Aligning the Print Headon page 61.
.
Print Head nozzles are
clogged
Print the nozzle check pattern to check for uneven ink output.
See “Printing the Nozzle Check Patternon page 49.
.
See “Print Head Cleaningon page 53.
Paper loaded wrong
side up
Check the print side of the paper.
Follow the instructions packaged with your specialty media for
loading and handling.
Incorrect paper type
On the M
M
ain tab of the printer driver, confirm that the M
M
edia Type selected
matches the paper loaded.
In the
Print dialog box of the printer driver, select Q
Q
uality & Media from the
pop-up menu, and then confirm that the M
M
edia Type selected matches the
paper loaded.
Glossy photo paper
other than the Canon
specialty media is
used
Select O
O
ther Photo Paper from M
M
edia Type. It may resolve the problem. Load
one sheet at a time and remove each sheet as soon as it is printed.
Print Quality is not set
properly
Be sure to set the P
P
rint Quality setting to H
H
igh in Windows, or F
F
ine in
Macintosh.
1. Open the printer properties dialog box.
2. On the M
M
ain tab, click H
H
igh for the P
P
rint Quality setting.
When you cannot choose the H
H
igh setting or when the print quality does
not improve, select C
C
ustom, click S
S
et and then adjust the Q
Q
uality bar for
higher print quality.
1. Open the P
P
rint dialog box.
2. Select Q
Q
uality & Media from the pop-up menu and then click D
D
etailed
Setting.
3. Drag the P
P
rint Quality slide bar to the F
F
ine end.
(1) (2)
Troubleshooting
68
Printed Paper Curls
or Ink Blots
Paper being used is
too thin
Use High Resolution Paper, Photo Paper Pro or other Canon specialty paper to
print images that have high color saturation.
Color Intensity setting
is too high
Reduce the I
I
ntensity setting in the printer driver and try printing again.
1. Open the printer properties dialog box.
2. On the M
M
ain tab, select M
M
anual for
Color Adjustment, and then click S
S
et.
3. Drag the I
I
ntensity slide bar to adjust the intensity.
1. Open the P
P
rint dialog box.
2. Select C
C
olor Options from the pop-up menu.
3. Drag the I
I
ntensity slide bar to set the intensity.
Paper feed roller is
dirty
Clean the paper feed roller.
See “P
P
aper Does Not Feed Properlyon page 71.
Back of Paper is
Smudged
Inside of the printer is
dirty
If the inside of the printer is dirty, printed paper may be smudged. Periodically
clean the inside of the printer.
See “C
C
leaning the Inside of the Printer” in the
User’s Guide
.
Paper feed roller is
dirty
Clean the paper feed roller.
See “P
P
aper Does Not Feed Properlyon page 71.
Media is curled If media is curled, its print side may be smudged by touching the Print Head.
Hold the opposite corners of the media, and gently bend them in the opposite
direction to uncurl the media.
Printed Surface is
Scratched
Inappropriate paper
type is used
Check to see if the paper you are printing on is too thick or curled.
See “Print Media to Avoidon page 3.
Note that smudging may occur at the top and bottom edges of the paper when
using B
B
orderless Printing. Ensure that the paper you are using is compatible
with B
B
orderless Printing.
See “M
M
edia Types Suitable for Borderless Printingon page 38.
Thick paper is used Select the P
P
revent paper abrasion check box to widen the clearance between
the Print Head and the loaded paper.
1. Open the printer properties dialog box.
2. Click the M
M
aintenance tab and then C
C
ustom Settings.
In Windows XP or Windows 2000
When not logged on as a computer administrator or
Administrators, you cannot open the C
C
ustom Setting dialog
box.
For further information on how to log on as an administrator,
refer to your Windows documentation.
3. Select the P
P
revent paper abrasion check box and click S
S
end.
Click O
O
K when the confirmation message appears.
1. Open the B
B
J Printer Utility dialog box.
2. Select C
C
ustom Settings from the pop-up menu.
3. Select P
P
revent paper abrasion.
When P
P
revent paper abrasion is selected in the printer properties dialog box
(Windows) or selected from C
C
ustom Settings in the B
B
J Printer Utility dialog box
(Macintosh), the setting is also applied under direct printing with the digital
camera.
Paper abrasion can be prevented by pressing the R
R
ESUME/
CANCEL button on the printer. With the printer on, hold down the
RESUME/CANCEL button until the P
P
OWER lamp flashes seven
times. To cancel the setting, turn off the printer.
Problem Possible Cause Try This
Troubleshooting
69
Troubleshooting Printer Hardware
Problem Possible Cause Try This
Printer Does Not
Start or Printer
Stops During
Print Jobs
Print Head has
overheated due to
long periods of
continuous printing
Stop printing and turn the printer off for at least 15 minutes to allow the Print Head
to cool down.
The Print Head tends to overheat when printing continuously for long periods of
time. The Print Head is designed to automatically pause at line breaks before
resuming printing in order to cool down.
The area around the Print Head can become extremely hot during
extended print operation. Always avoid touching the Print Head and
its peripheral components.
Printing high-
resolution
photographs and
graphics
Wait until the print job finishes.
The P
P
OWER lamp flashes green while the print data is being processed. Printing
photographs and high-density graphics can take time.
There may be
problems with your
operating system
Restart your computer. It may solve the problem.
Delete an undesired print job, if there is any. Use B
B
J Status Monitor in Windows or
Printer Setup Utility (or P
P
rint Center) in Macintosh for the deletion.
1. Open the printer properties dialog box.
See “O
O
pening the Printer Properties Dialog Box Directly from the Start Menu
on page 28.
2. Click the M
M
aintenance tab and then S
S
tart Status Monitor.
3. Click D
D
isplay Print Queue.
4. Select C
C
ancel All Documents in the P
P
rinter menu.
In Windows Me or Windows 98
Click to select an undesired document and select P
P
urge Print
Documents in the P
P
rinter menu.
5. When the confirmation message is displayed, click Y
Y
es.
The print job is deleted.
In Windows 2000, the print jobs may not be deleted.
1. Select A
A
pplications from the G
G
o menu.
2. Double-click the P
P
rinter Setup Utility icon in the U
U
tilities folder.
When using Mac OS X v.10.2, double-click the P
P
rint Center icon.
3. Double-click the name of your printer displayed under N
N
ame in the P
P
rinter List.
4. Click to select an undesired document and click .
The print job is deleted.
Incorrect paper
source is selected
Ensure that P
P
aper Feed Switch is selected from P
P
aper Source (Windows) or the
Print dialog box (Macintosh) in the printer driver. If P
P
aper Feed Switch is selected,
load paper in the paper source selected with Paper Feed Switch on the printer.
If you select other settings, ensure that paper is loaded in the correct paper
source.
For a detailed description of the printer driver settings, refer to “Changing the
Paper Source” in the
User’s Guide
.
Paper Output Tray is
closed
Open the Paper Output Tray.
Inner Cover is open Close the Inner Cover and press the R
R
ESUME/CANCEL button.
Troubleshooting
70
Problem Possible Cause Try This
Cannot Print to
End of Job
Incorrect page size
is selected
Ensure that the page size setting matches the size of the paper loaded in the
printer:
zCheck the P
P
aper Size setting from within your application to ensure that it
matches the size of the paper loaded.
zCheck P
P
aper Size on the P
P
age Setup tab in the printer properties dialog box of
the printer driver (Windows) or the P
P
age Setup dialog box of the printer driver
(Macintosh) to ensure that it matches the size of the paper loaded.
There is not enough
free space on the
hard disk
Your operating system may be out of free disk space.
Check the available space on your computer’s hard disk.
The size of the print
data is too large Check the size of the print data. For Windows XP and Windows 2000, if the size of
the data is too large, part of it may be lost. When the spool format is EMF, follow
the procedure below.
1. Open the printer properties dialog box.
2. On the M
M
ain tab, click P
P
rint Options.
3. Select the R
R
educe spool data size check box, and click O
O
K.
When R
R
educe spool data size is set, the print quality may be
degraded.
Use reduced
printing is not
selected when
performing
automatic duplex
printing
In automatic duplex printing, the printable area at the top of the page is 2 mm/
0.08 inches narrower than the usual area, therefore the bottom edge may not be
printed. To prevent this, select U
U
se reduced printing in the printer driver.
Print layout may be altered with the reduced printing function.
1. Open the printer properties dialog box.
2. Click P
P
rint Area Setup in the P
P
age Setup tab and select U
U
se reduced printing.
1. In the P
P
rint dialog box, select D
D
uplex Printing & Margin from the pop-up menu.
2. Select A
A
utomatic Duplex Printing, and select U
U
se reduced printing in P
P
rint
Area.
Troubleshooting
71
Paper Does Not Feed Properly
Problem Possible Cause Try This
Paper Does Not
Feed Properly
Inappropriate paper
type is used
Check to see if the paper you are printing on is too thick or curled.
See “P
P
rint Media to Avoidon page 3.
Flatten paper when it is curled.
Inner Cover is open Close the Inner Cover and press the R
R
ESUME/CANCEL button.
Ensure that the Inner Cover is completely closed, since if it is not, you cannot print
because the paper will not feed properly.
Paper Feed Roller is
dirty
Follow the steps described below to clean the Paper Feed Rollers.
1. Ensure that the printer is on and there is no paper loaded in the printer.
2. Select the Paper Feed Roller of the Sheet Feeder or Cassette by pressing the
Paper Feed Switch on the printer.
3. Hold down the R
R
ESUME/CANCEL button and release after the P
P
OWER lamp
flashes three times.
The Paper Feed Roller rotates as it cleans.
4. Repeat this cleaning operation twice.
5. Load three or more sheets of Letter-sized plain paper lengthways in the Sheet
Feeder or Cassette selected in step 2.
6. Hold down the R
R
ESUME/CANCEL button and release after the P
P
OWER lamp
flashes three times.
Paper is fed and output.
7. Repeat this operation three times.
If the printer still does not feed the paper properly through the printer, even after
the cleaning operation, repeat the procedure.
There are foreign
objects inside the
Sheet Feeder or
Cassette
If a foreign object, such as a paper clip or a pencil, has fallen into the printer, turn
off the printer and unplug the power cord from the power outlet before you try to
remove it. If you are unable to remove it easily, contact the Customer Care Center.
Paper is loaded
incorrectly
Ensure that paper is loaded correctly. Slide the paper guides against the paper
stack, and check to see if the paper is not loaded beyond the Load Limit Mark. See
“L
L
oading Paperon page 3 and “C
C
anon Specialty Mediaon page 14.
Troubleshooting
72

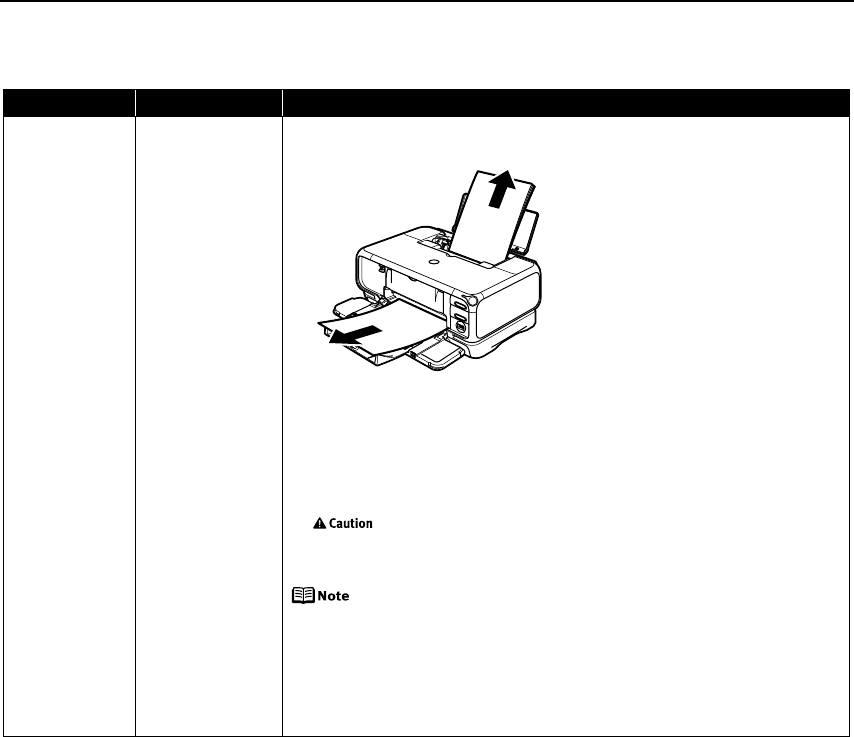

Paper Jams
Problem Possible Cause Try This
Paper Jams Paper jams in the
Paper Output Slot
Remove the paper according to the following procedure.
1. Slowly pull the paper out from the Paper Output Slot.
If the paper is jammed in the Sheet Feeder, slowly pull the paper out from
the Sheet Feeder.
If you cannot pull the paper out, turn the printer off, and then turn it back on.
The paper will be ejected automatically.
2. If you cannot pull the paper out in step 1, or the paper tears and a piece
remains inside the printer, open the Top Cover and remove it. After removing all
paper, close the Top Cover.
Be careful not to touch the components inside the printer.
3. Reload the paper into the printer and press the R
R
ESUME/CANCEL button on the
printer.
When reloading the paper into the printer, refer to “P
P
aper Does Not
Feed Properlyon page 71 to confirm that you are using the correct
paper and are loading it into the printer correctly.
If you have turned off the printer in step 1, you will need to retry
printing, because this operation cancels any print jobs in progress.
If you cannot remove the paper or the paper tears inside the printer,
or if the paper jam error continues after removing the paper, contact
the Customer Care Center.
Troubleshooting
73

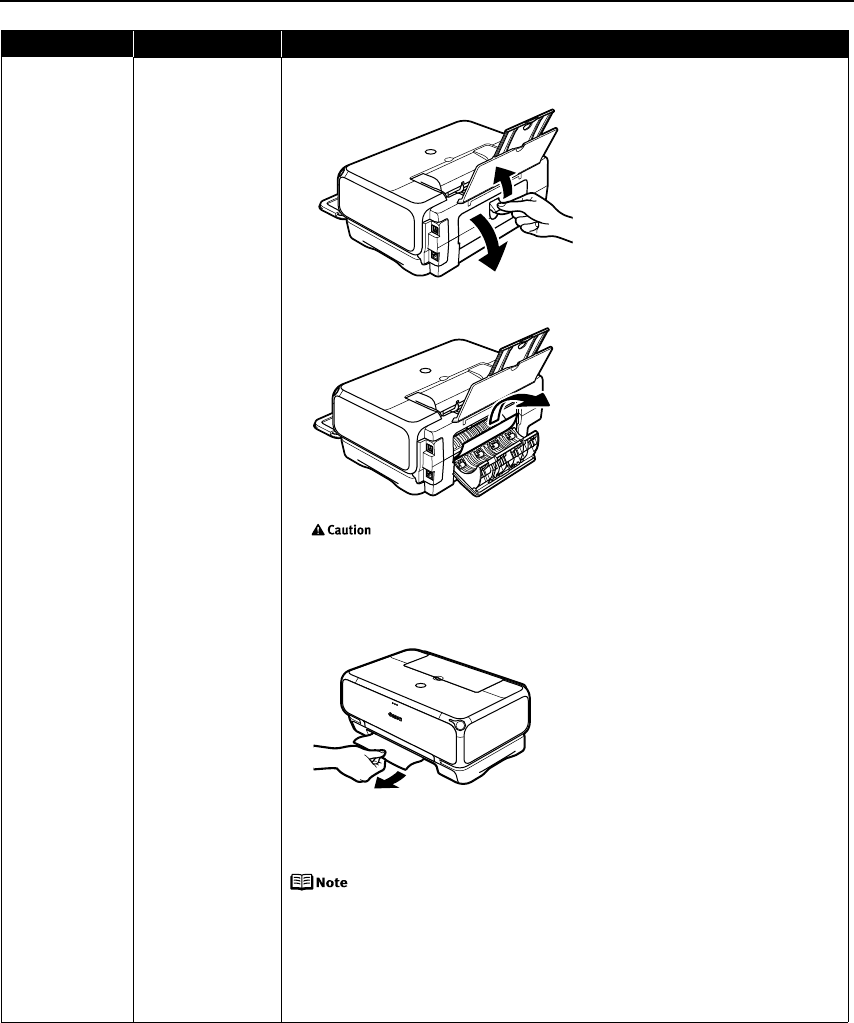

Paper Jams Paper jams inside
the Transport Unit
Remove the paper according to the following procedure.
1. Open the Rear Cover.
2. When you can see the jammed paper, slowly pull the paper out.
Be careful not to touch the components inside the printer.
If you cannot extract the paper, turn the printer off, and then turn it back on.
The paper will be ejected automatically.
3. Close the Rear Cover.
4. If you could not extract the paper in step 2, remove the Cassette.
5. Slowly pull the jammed paper out.
6. If any paper is sticking out of the Cassette, reload the paper in the Cassette.
7. Reload the paper in the Sheet Feeder if necessary, and press the R
R
ESUME/
CANCEL button on the printer.
When reloading the paper into the printer, refer to “P
P
aper Does Not
Feed Properlyon page 71 to confirm that you are using the correct
paper and are loading it into the printer correctly.
If you have turned off the printer in step 2, you will need to retry
printing, because this operation cancels any print jobs in progress.
If you cannot remove the paper or if the paper tears inside the printer,
or if the paper jam error continues after removing the paper, contact
the Customer Care Center.
Problem Possible Cause Try This
Troubleshooting
74
Paper Jams Paper jams inside
the Duplex
Transport Section
Remove the paper according to the following procedure.
1. Remove the Cassette.
If the paper is loaded in the Sheet Feeder, remove the paper from the Sheet
Feeder.
2. Stand the printer with the rear side down.
3. Slowly pull the jammed paper out while pulling the green cover toward you.
Put back the printer immediately after removing the jammed
paper.
4. If any paper is sticking out of the Cassette, reload the paper in the Cassette.
Reload paper in the Sheet Feeder, if necessary.
5. Insert the Cassette into the printer.
6. Press the R
R
ESUME/CANCEL button on the printer.
When reloading the paper into the printer, refer to “P
P
aper Does Not
Feed Properlyon page 71 to confirm that you are using the correct
paper and are loading it into the printer correctly.
If you cannot remove the paper or if the paper tears inside the printer,
or if the paper jam error continues after removing the paper, contact
the Customer Care Center.
Problem Possible Cause Try This
Troubleshooting
75

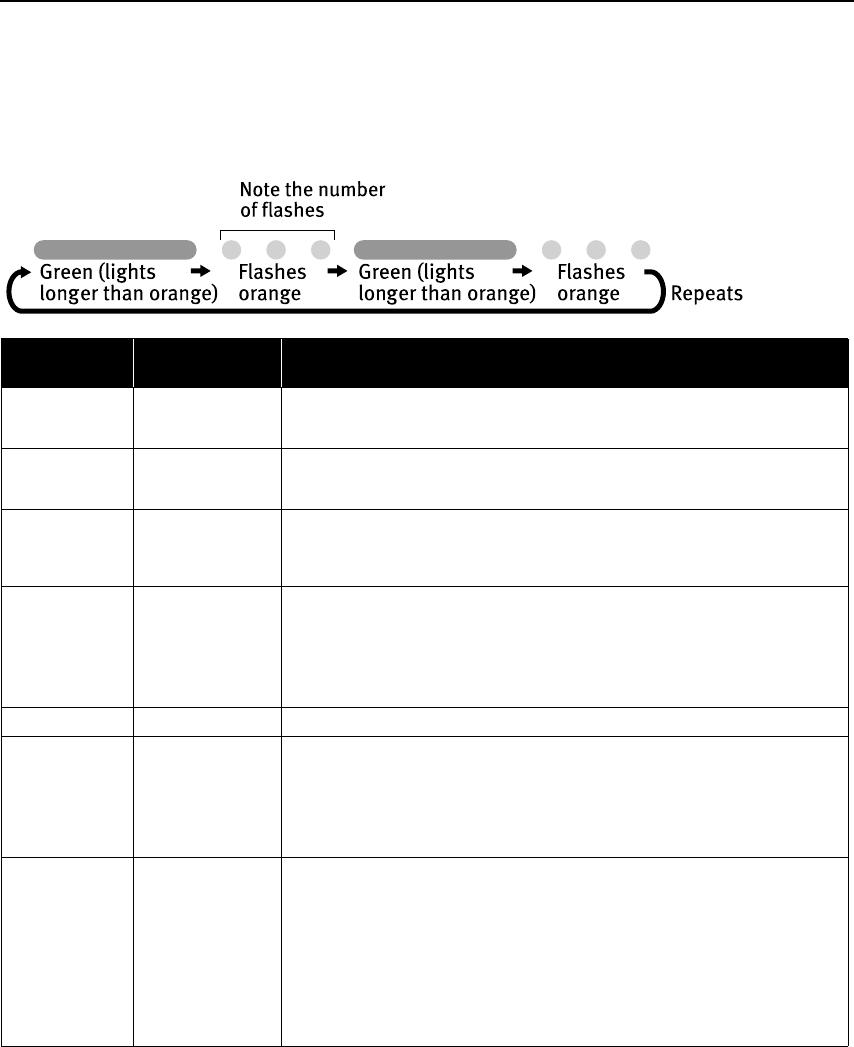

Handling Error Messages
When a printer error occurs, the POWER/ERROR lamp flashes. The number of flashes
indicates the type of error that has occurred. Count the flashes and take the appropriate
action to correct the error.
Number of
Flashes Possible Cause Try This
Two flashes Printer is out of
paper/Paper does
not feed
Reload paper in the Sheet Feeder or Cassette and press the R
R
ESUME/CANCEL
button.
Three flashes Paper jam/Paper
Output Tray is
closed
Clear the jammed paper, reload paper in the printer, then press the R
R
ESUME/
CANCEL button. If the Paper Output Tray is closed, open it.
See “P
P
aper Jamson page 72.
Four flashes Empty ink tank Press the R
R
ESUME/CANCEL button to resume printing with an empty ink tank.
Replace it with a new ink tank immediately after the printing. It may damage the
printer if you continue printing with an empty ink tank.
See “R
R
eplacing an Ink Tankon page 42.
Five flashes Print Head not
installed/Print
Head not installed
correctly/Defective
Print Head
Install the Print Head. If the Print Head is already installed, remove the Print Head
and check the electrical contacts for foreign matter, then reinstall.
After reinstalling the Print Head, you may need to realign it.
If this error still remains, the Print Head may be damaged. Contact the Customer
Care Center.
Six flashes Inner Cover is open Close the Inner Cover and press the R
R
ESUME/CANCEL button.
Eight flashes Waste ink absorber
almost full
The printer has a built-in waste ink absorber for the ink used during Print Head
Cleaning.
Eight flashes indicates that the waste ink absorber is nearly full.
Press the R
R
ESUME/CANCEL button to cancel the error so you can continue printing.
Before the waste ink absorber becomes completely full, contact the Customer Care
Center.
Nine flashes A specified period
of time has elapsed
without receiving a
response from the
digital camera/The
digital camera or
digital video
camcorder
connected is not
compatible with
this printer
Disconnect the camera cable, press the R
R
ESUME/CANCEL button and reconnect
the cable.
If the error is still unresolved, there is a possibility that you are using a digital
camera or digital video camcorder that is not supported by this printer. Use a
digital cameras or digital video camcorder compatible with this printer.
Troubleshooting
76
Ten flashes Cannot print on
both sides of the
page
The size of paper may not be compatible with Automatic Duplex Printing. Pressing
the R
R
ESUME/CANCEL button will discharge the paper, and restart printing from the
front side of the next paper. The reverse side will not be printed when an error
occurs.
For detailed information on the paper compatible with Automatic Duplex Printing,
refer to “Automatically Printing on Both Sides of the Page” in the
User’s Guide
.
Eleven flashes Automatic print
head alignment
failed
Possible causes are as follows:
zLetter-sized paper is not loaded on the Sheet Feeder.
zInk has run out or ink tanks are not installed correctly.
See “I
I
nk tank is not seated properly/Ink tank is emptyon page 67.
zInk level is low
zPrint Head nozzles are clogged.
Press the R
R
ESUME/CANCEL button.
See “P
P
rinting the Nozzle Check Patternon page 49 for information on how to
print a nozzle check pattern.
zThe Paper Output Slot has been exposed to a strong light source preventing
correct Print Head alignment.
Press the R
R
ESUME/CANCEL button and move the printer to a darker location.
Try to align the Print Head again.
If the print head alignment fails again, manually align the Print Head. For a
detailed description of manual alignment, refer to “Aligning the Print Head” in the
User’s Guide
.
POWER lamp flashes
alternately green and
orange
An error that requires contacting the Customer Care Center may have occurred.
Disconnect the printer cable from the printer, and then turn the printer off and
unplug the printer from the power supply. Plug the printer back in and turn the
printer back on after leaving it for a while.
If the problem remains, contact the Customer Care Center.
Number of
Flashes Possible Cause Try This
Troubleshooting
77
An Error Message Appears on the Screen
Problem Possible Cause Try This
Writing Error/
Output Error or
Communication
Error in USBnnn or
MPUSBPRNnn
Printer is not ready Ensure that the P
P
OWER lamp lights green.
If the P
P
OWER lamp is off, turn the printer on.
The P
P
OWER lamp will flash green when the printer is initializing. Wait until the
POWER lamp stops flashing.
When the P
P
OWER lamp is flashing orange, an error may occur in the printer. For
details on how to resolve the error, refer to “H
H
andling Error Messageson page
75.
Paper is not loaded Load paper and press the R
R
ESUME/CANCEL button.
If paper is loaded, ensure that the paper source is selected correctly. Select the
paper source with the Paper Feed Switch on the printer, or select it in the printer
driver.
Paper is not loaded
correctly
Remove the paper, fan the paper to ensure that sheets are not sticking together,
and reload the paper correctly into the Sheet Feeder or Cassette.
Printer port setting
does not match the
interface connected
to the printer
Check the printer port settings.
1. Open the printer properties dialog box.
See “O
O
pening the Printer Properties Dialog Box Directly from the Start
Menuon page 28.
2. Click the P
P
ort tab (or the D
D
etails tab) to confirm the port settings.
A USB port is selected if either U
U
SBnnn (Canon PIXMA iP4000R) or
MPUSBPRNnn (Canon PIXMA iP4000R) (where n is a number) is indicated. If
the port setting is not correct, change the port setting according to the
interface you are using on the P
P
ort tab (or the D
D
etails tab), or reinstall the
printer driver.
Faulty connection Ensure that the printer cable is securely connected to the computer.
zIf using a switching hub or other device, disconnect the printer
and reconnect it directly to the computer and try printing again.
If successful, the problem may have been with the device.
zThere could also be a problem with the cable(s). Replace the
cable(s) and try printing again.
Printer driver is not
installed properly
Uninstall then reinstall the printer driver.
1. Click S
S
tart, and select A
A
ll Programs (or P
P
rograms), the name of your printer,
and U
U
ninstall.
2. Follow the on-screen instructions to uninstall the driver.
3. Follow the procedures described in the
Setup Guide
and reinstall the printer
driver.
Troubleshooting
78
Writing Error/
Output Error in
CNBJNP nnnnnn
Printer is not ready Ensure that the P
P
OWER lamp lights green.
If the P
P
OWER lamp is off, turn the printer on.
The P
P
OWER lamp will flash green when the printer is initializing. Wait until the
POWER lamp stops flashing.
When the P
P
OWER lamp is flashing orange, an error may occur in the printer. For
details on how to resolve the error, refer to “H
H
andling Error Messageson page
75.
Paper is not loaded Load paper and press the R
R
ESUME/CANCEL button.
If paper is loaded, ensure that the paper source is selected correctly. Select the
paper source with the Paper Feed Switch on the printer, or select it in the printer
driver.
Printer port setting
does not match the
interface connected
to the printer
Check the printer port settings.
1. Open the P
P
rinter Properties dialog box.
See “O
O
pening the Printer Properties Dialog Box Directly from the Start
Menuon page 28.
2. Click the P
P
ort tab (or the D
D
etails tab) and select CNBJNPnnnnnn (“n”
represents a number) as the printer port to be used.
The settings of both
the access point
and the printer are
not identical.
Check the settings of the access point and modify the settings of printer as
same as those of the access point. For information on the access point settings,
refer to the access point manual.
For information on how to set a WEP, refer to “How to set a WEP key” of
“Troubleshooting” in the
Network Guide
.
The network setting
of the computer is
not correct.
Make sure that the computer can communicate with the access point.
The radio status is
poor.
Adjust the installation positions and the antenna direction while monitoring the
radio status with PIXMA Network Tool.
The distance
between printer
and access point is
too far.
Relocate the printer or the access point to close the distance between the printer
and access point within 50 meters.
There is an
obstruction or a
source of radio
wave interference
Communication between different rooms or floors is generally poor. Adjust the
installation locations of the devices.
There may be a device such as a microwave oven that is using the same
frequency bandwidth as the wireless station. Place the wireless LAN devices as
far away from the radio wave interference source as possible.
Printer setup is not
completed./The
printer driver is not
installed.
Complete the printer setup. If the printer driver in not installed, follow the
procedure described in the
Setup Guide
to install the printer driver.
The computer is
restricted to access
the access point. Register the MAC address of the computer (AirMac ID) to access point.
The MAC address
filtering is set to the
printer. Register the MAC address of the printer to the printer. Print out the network
setting information and verify the MAC address of the printer. For information on
how to print network setting information, refer to “Printing Out the Printer
Settings” of “Changing and Confirming Network Settings” in the
Network Guide
.
Problem Possible Cause Try This
Troubleshooting
79
Writing Error/
Output Error/
Communication
Error
Printer port error Verify the printer port status.
1. Click S
S
tart, right-click M
M
y Computer and select P
P
roperties.
When using versions of Windows other than Windows XP, right-click M
M
y
Computer on the desktop and select P
P
roperties.
2. Click the H
H
ardware tab and click D
D
evice Manager. Double-click U
U
niversal
Serial Bus controllers, and U
U
SB Printing Support.
When using Windows Me or Windows 98, click the D
D
evice Manager tab.
Double-click U
U
niversal Serial Bus controllers, and double-click the name of
your printer.
3. Check whether the G
G
eneral tab shows any unusual condition.
Cannot print with
Automatic Duplex
Printing
Size of loaded
paper is incorrect
Ensure that the size of loaded paper is suitable for A
A
utomatic Duplex Printing.
Incorrect paper size
is selected
Check the P
P
aper Size setting from within your application to ensure that it
matches the size of the paper loaded.
Check P
P
aper Size on the P
P
age Setup tab in the P
P
rinter Properties dialog box
(Windows) or the P
P
age Setup dialog box (Macintosh) to ensure that it matches
the size of the paper loaded.
For the paper size compatible with A
A
utomatic Duplex Printing, refer to
“Automatically Printing on Both Sides of the Page” in the
User’s Guide
.
To print on both sides of the page manually, follow the procedure
below.
On the P
P
age Setup tab, clear the A
A
utomatic check box. Then try printing again.
Mac OS X does not support the manual duplex printing.
“Error No.: 300”
Printer is not ready Ensure that the P
P
OWER lamp lights green.
If the P
P
OWER lamp is off, turn the printer on.
The P
P
OWER lamp will flash green when the printer is initializing. Wait until the
POWER lamp stops flashing.
When the P
P
OWER lamp is flashing orange, an error may occur in the printer. For
details on how to resolve the error, refer to “H
H
andling Error Messageson page
75.
Printer is not
properly connected
Ensure that the printer is securely connected to the computer.
zIf using a switching hub or other device, disconnect the printer
and reconnect it directly to the computer and try printing again.
If successful, the problem may have been with the device.
zThere could also be a problem with the cable(s). Replace the
cable(s) and try printing again.
Printer you want to
use is not selected
on the P
P
rinter pop-
up menu on the
Print dialog box.
Select i
i
P4000R on the P
P
rinter pop-up menu on the P
P
rint dialog box.
If i
i
P4000R does not appear on the P
P
rinter pop-up menu, add the printer
following the procedures described in the
Setup Guide
.
“Error No.:306”
Cannot print over
the wireless LAN.
Make sure that the printer is turned on. The printer cannot communicate
through the network, refer to “Troubleshooting” in the
Network Guide
.
“Error No.: 1700”
Waste ink absorber
almost full
The printer has a built-in waste ink absorber to hold the ink used during print
head cleaning. Eight flashes indicates that this absorber is nearly full.
Press the R
R
ESUME/CANCEL button to clear the error so you can continue
printing. Before the waste ink absorber becomes completely full, contact the
Customer Care Center.
“Error No.: 1851”
Inner Cover is open
when printing
starts
Close the Inner Cover, then press the R
R
ESUME/CANCEL button.
Problem Possible Cause Try This
Troubleshooting
80
“Error No.: 1856”
Inner Cover is
opened while
printing
Close the Inner Cover, then press the R
R
ESUME/CANCEL button. Try printing
again.
“Error No.: 2001”
A specified period
of time has elapsed
without receiving a
response from the
digital camera/The
digital camera or
digital video
camcorder
connected is not
compatible with
this printer
Disconnect the camera cable, press the R
R
ESUME/CANCEL button on the printer
and reconnect the cable.
If the error is still unresolved, there is a possibility that you are using a digital
camera or digital video camcorder that is not supported by this printer. Use a
digital camera or digital video camcorder compatible with this printer.
“Error No.: 2500”
Automatic Print
Head alignment
failed
See “Eleven flashes” in “H
H
andling Error Messageson page 75.
Problem Possible Cause Try This
Troubleshooting
81
Cannot Print Properly from the Digital Camera
The following are the possible errors that may occur when printing directly from a digital still
camera or digital video camcorder*, and the countermeasures to eliminate them.
*Hereafter, the digital still camera and digital video camcorder are collectively called a digital camera or camera.
*To resume printing, you can press the R
R
ESUME/CANCEL button on the printer instead of selecting C
C
ontinue.
Camera Error Message Possible Cause Try This
Printer in use Images are being printed from
the computer
Wait until printing ends. The printer automatically starts
printing the images from the camera after completing the
current printing.
Printer warming up The printer is warming up Wait until warm-up ends. When it is ready, the printer starts
printing automatically.
No paper No paper is loaded Load paper in either the Sheet Feeder or Cassette which you
have selected with the Paper Feed Switch on the printer, and
select C
C
ontinue* in the display on your camera.
Paper error The Paper Output Tray is
closed
Open it to resume printing. If the Inner Cover is open, close it.
Paper jam A paper is jammed in the
printer
Select S
S
top in the display on your camera to stop printing.
Remove the jammed paper, load new paper, and press the
RESUME/CANCEL button on the printer and retry printing.
Printer cover open The Top Cover is open Close the Top Cover on the printer.
No print head The Print Head is defective or
not installed (The P
P
OWER
lamp on the printer flashes
five times.)
Install a Print Head according to the
Setup Guide
.
If the Print Head has already been installed, remove it to check
for any dirt or debris at its contacts. After cleaning, reinstall the
Print Head.
If the error still remains, the Print Head may be defective.
Contact the Customer Care Center.
Waste tank (ink absorber)
full
The waste ink absorber is
nearly full
The printer has a built-in waste ink absorber to hold the ink
used during print head cleaning. This error message indicates
that the waste ink absorber is nearly full.
You can continue printing for a while by selecting C
C
ontinue* in
the display on your camera.
However, because printing is disabled once the waste ink
absorber becomes completely full, you are recommended to
contact the Customer Care Center as early as possible.
Ink is low It is about time to replace the
ink tank with a new one
Select C
C
ontinue* in the display on your camera to resume
printing.
Ink tank is empty Replace the ink tank with a
new one
Printing resumes once the Top Cover is closed after ink tank
replacement.
You can continue printing by selecting C
C
ontinue* in the display
on your camera with the ink tank empty. But, it is recommended
you replace it with a new one immediately after printing. It may
damage the printer if you continue printing with empty ink
tanks.
Printer error An error requiring servicing
might have occurred (the
POWER lamp on the printer
flashes alternately orange
and green).
Select S
S
top in the display on your camera to stop printing.
Disconnect the cable between the printer and the camera, turn
off the printer, and unplug the power cord of the printer from
the power supply. After a while, plug the power cord of the
printer back in, turn on the printer, and then reconnect the
camera to the printer.
If the same error occurs, contact the Customer Care Center.
Troubleshooting
82
zPictBridge or Canon Bubble Jet Direct compatible digital cameras can be
connected to your printer for direct printing.
zThis section describes errors that are indicated on Canon-brand PictBridge-
or Bubble Jet Direct-compatible cameras. The error messages and operations
may vary depending on the camera you are using.
For errors on non-Canon PictBridge-compatible cameras, count the number of
flashes the P
P
OWER lamp on the printer makes and check for the cause of the
error and take the appropriate action. For details, see “H
H
andling Error
Messageson page 75.
zConnecting a digital camera not compatible with PictBridge or Bubble Jet
Direct makes the P
P
OWER lamp on your printer flash nine times. In such a
case, unplug the cable connecting the camera to the printer, and press the
RESUME/CANCEL button on the printer.
zA communication time out occurs if printing takes a long time or if it takes too
much time to send data. This may stop printing. In such a case, disconnect
the cable between the printer and the camera, press the R
R
ESUME/CANCEL
button on the printer, and reconnect the cable between the printer and the
camera. Then, turn the camera on, if it does not automatically turn on. If the
problem is still unresolved, select some other photo and check if it can be
printed or not.
zThe print head nozzles may be clogged if printing becomes faint or colors are
incorrect. See “W
W
hen Printing Becomes Faint or Colors are Incorrecton page
48.
zIf the paper is curled or its surface is scratched during printing, make sure
that you are using the correct type of paper. If this error occurs even when
you are using the correct type of paper, select P
P
revent paper abrasion on
Custom Settings in the printer driver. See “P
P
rint Quality is Poor or Contains
Errorson page 67.
zTo disconnect the cable connected between the digital camera and printer,
follow the procedure below.
1. Disconnect the cable from the printer.
2. Turn off the digital camera.
3. Disconnect the cable from the digital camera.
When disconnecting the cable, be sure to hold the connector by its sides.
zFor the errors indicated on the camera and their solution, also refer to the
user’s manual of the camera. For other troubles on the digital camera,
contact the manufacturer.
Appendix
83
Appendix
User’s Guide Table of Contents
Your printer’s electronic
User’s Guide
, located on the
Setup Software and User’s Guide CD-
ROM
, offers detailed information on the following topics.
How to Use This Manual
How to Read This Manual
Safety Precautions
Printer Parts and Their Functions
Front View
Operation Panel
Rear View
Inside the Printer
Using the Sheet Feeder and the Cassette
Loading Paper
Changing the Paper Source
Further Printing Techniques
Printing Photographs
Automatically Printing on Both Sides of the
Page
Specifying Paper in the Cassette
Printer Driver Functions (Windows)
Printer Driver Functions (Macintosh)
BJ Printer Utility (Macintosh)
Printing Media
Compatible Media Types
High Resolution Paper
Glossy Photo Paper
Photo Paper Pro
Photo Paper Plus Glossy
Photo Paper Plus Double Sided
Photo Paper Plus Semi-gloss
Matte Photo Paper
Transparencies
T-Shirt Transfers
Envelopes
Checking the Status of the Printer
BJ Status Monitor Functions (Windows)
Printer Setup Utility (Macintosh)
Routine Maintenance
Replacing an Ink Tank
When Printing Becomes Faint or Colors are
Incorrect
Printing the Nozzle Check Pattern
Print Head Cleaning
Print Head Deep Cleaning
Aligning the Print Head
Cleaning the Inside of the Printer
Transporting Printer
Troubleshooting
Cannot Install Printer Driver
Print Quality is Poor
Printer Does Not Start or Stops During Print
Jobs
Paper Does Not Feed Properly
Paper Jams
The POWER Lamp Flashes Orange
An Error Message is Displayed on the Screen
Cannot Print Properly from the Digital Camera
Cannot Print Properly with Automatic Duplex
Printing
Problems Relating to Windows
Appendix
Printing Area
Uninstalling Printer Drivers
Uninstalling the Electronic Manual (Windows)
Specifications
Index
Appendix
84
Specifications
Printer
Printing resolution: 4800 x 1200 dpi. max.
Print speed *
* Print speed may vary with the content of the
document and the processing speed of the host
computer.
Black printing (text pattern)
Max Speed (Custom Setting 5): 25 ppm
Standard: 15 ppm
Color printing
Max Speed (Custom Setting 5): 17 ppm
Standard: 11 ppm
Print width: 203.2 mm max. (8.0 inches)
(for Borderless Printing: 215.9 mm / 8.5 inches)
Resident print control mode: Canon extended mode
Receive buffer: 42 KB
Interface: USB
Wireless LAN Interface (IEEE802.11g/IEEE802.11b)
Wired LAN Interface (RJ-45)
Acoustic noise level: Approx. 35 dB (A) (in the highest print quality mode)
Operating environment: Temperature: 5 to 35°C (41 to 95°F)
Humidity: 10 to 90%RH (no condensation)
Storage environment: Temperature: 0 to 40°C (32 to 104°F)
Humidity: 5 to 95% RH (no condensation)
Power supply: AC 110-120 V, 50/60 Hz
AC 220-240 V, 50/60 Hz
Power consumption: Print standby: Approx. 4 W
Printing: Approx. 16 W
Dimensions
(with the Paper Support and Paper Output
Tray retracted):
418 (W) x 286 (D) x 170 (H) mm
16.5 (W) x 11.2 (D) x 6.7 (H) inches
Weight: 6.9 kg (15.18 lb.)
Print Head: Black (BCI-3eBK): 320 nozzles (600 dpi)
Yellow (BCI-6Y), Black (BCI-6BK): 256 nozzles per color
(1200 dpi)
Cyan (BCI-6C), Magenta (BCI-6M): 512 nozzles per color
(1200 dpi)
Appendix
85
Ink Tanks: Capacity (pages):
Black (BCI-3eBK) approx. 740*1, approx. 1500*2
Black (BCI-6BK) approx. 2000*2
Cyan (BCI-6C) approx. 550*2
Magenta (BCI-6M) approx. 430*2
Yellow (BCI-6Y) approx. 360*2
*1 1500 characters per page, normal text, at standard and plain
paper mode with Windows XP printer driver
*2 Based on printing the ISO JIS-SCID No.5 pattern at standard and
plain paper mode with Windows XP printer driver
Network
Protocol TCP/IP
Operating Systems Windows XP/Windows 2000/Windows Me/Windows 98
Mac OS X v.10.2.1 to 10.3.x
Wireless LAN
Supported Networks IEEE802.11g/IEEE802.11b
Interface IEEE802.11g/IEEE802.11b Network Interface
Transfer Standard IEEE802.11g/IEEE802.11b
Access Mode CSMA/CA
Transmission Method OFDM/DS-SS
Frequency Bandwidth 2.412 GHz - 2.462 GHz
Wireless Channel 1 to 11
Network Type Infrastructure
Communication Distance Indoors 50m*
* Effective range differs depending on the installation
environment and location.
Security Encryption by WPA-PSK (TKIP) or WEP (64/128 bits), access
control by IP address and MAC address filtering, passwords
Certification Wi-Fi, TELEC, FCC, IC, ETSI, iDA
Wired LAN
Supported Networks 100BASE-TX/10BASE-T
Interface Wired LAN Interface (100 BASE-TX/10 BASE-T)
Compliant Standard IEEE802.3u (100BASE-TX)/IEEE802.3 (10BASE-T)
Transfer Speed 10 Mbps/100 Mbps (auto switchable)
Printer
Appendix
86
Camera Direct Print (Canon Bubble Jet Direct)
Interface Direct Print Port
(Connect a iP4000R-compatible digital camera or digital
video camcorder using the USB cable supplied with the
camera.)
Compatible digital cameras and digital video
camcorders
iP4000R-compatible digital cameras and digital video
camcorders
Compatible Paper Card #1 (Photo Paper Pro 4" x 6"/101.6 x 152.4 mm)
Card #2 (Photo Paper Plus Glossy, Photo Paper Plus Semi-
gloss, or Glossy Photo Paper 4" x 6"/101.6 x 152.4 mm)
Card #3 (Photo Paper Plus Glossy, or Photo Paper Plus
Double Sided 5" x 7"/127.0 x 177.8 mm)
LTR (Photo Paper Pro, Photo Paper Plus Glossy, Photo Paper
Plus Semi-gloss, or Glossy Photo Paper Letter size)
A4 (Photo Paper Pro, Photo Paper Plus Glossy, Photo Paper
Plus Semi-gloss, or Glossy Photo Paper A4 size)
Layout Print Standard: Borderless / with border, Index Print: 15-80
images (depending on the size of print media)
Print Quality Standard
Effect ExifPrint
DPOF Functions Ver. 1.00 compatible (Index print, number of copies, select
images, print special characters (date/image no.))
Camera Direct Print (PictBridge)
Paper size Default (Photo Paper Plus Glossy 10 x 15 cm/4" x 6")
10 x 15 cm/4" x 6" (Photo Paper Plus Glossy, Photo Paper
Pro, Photo Paper Plus Semi-gloss, Glossy Photo Paper)
13 x 18 cm/5" x 7" (Photo Paper Plus Glossy)*
5.4 x 8.6 cm/2.13" x 3.39" (Glossy Photo Paper)
A4/8.5" x 11" (Photo Paper Plus Glossy A4/Letter, Photo
Paper Pro A4/Letter, Photo Paper Plus Semi-gloss A4/
Letter, Glossy Photo Paper A4/Letter)
* If using a Canon PictBridge-compatible camera, you can select it.
Paper type Default (Photo Paper Plus Glossy), Photo (Photo Paper Plus
Glossy, Glossy Photo Paper), Fast Photo (Photo Paper Pro)
Layout Default (Borderless), Borderless, Bordered, 2-up/4-up/9-
up/16-up*
* When 4" x 6" is selected from Paper size, these options may be
available in Layout.
Trimming Off (No trimming)
Image optimize Default (On: ExifPrint), VIVID*, NR (Noise Reduction)*,
VIVID+NR*
* If using a Canon PictBridge-compatible camera, you can select it.
Date print Default (Off: No printing)
Appendix
87
BJ Printer Driver Systems Requirements
zUse a computer on which Windows XP, Windows 2000,
Windows Me or Windows 98 can operate.
zUSB interface*
zWireless LAN (IEEE802.11g/IEEE802.11b standard
compliance)
zWired LAN (IEEE802.3u/IEEE802.3 standard compliance)
zAvailable hard-disk space for printer driver installation
Windows XP/Windows 2000: 50 MB
Windows Me/Windows 98: 15 MB
* USB operation can only be guaranteed on a PC with pre-
installed Windows XP, Windows 2000, Windows Me, or
Windows 98.
zUse a Macintosh series computer equipped with USB
interface on which Mac OS X v.10.2.1 to 10.3.x can
operate.
See www.canontechsupport.com for Mac OS update
compatibility.
zWireless LAN (IEEE802.11g/IEEE802.11b standard
compliance)
zWired LAN (IEEE802.3u/IEEE802.3 standard compliance)
zAvailable hard-disk space for printer driver installation
Mac OS X v.10.2.x or later: 100 MB
zThe following functions are not supported when using Mac
OS X v.10.2 or later:
- Manual Duplex Printing
- Photo Optimizer PRO
- Poster Printing
- Fit-to-Page Printing
- Booklet Printing
- Reverse Order Printing (supported with Mac OS X
v.10.3.x)
Additional Systems Requirements for Electronic Manuals
zPentium®, 75 MHz equivalent or higher processor (Pentium®, 133 MHz equivalent or higher processor recommended)
z2x or higher CD-ROM drive (4x or higher recommended)
z15 MB of available hard disk space (when installing electronic manuals)
zWindows: Microsoft® Internet Explorer 5.0 or later
zMac OS: Microsoft® Internet Explorer 5.0 or later, Safari 1.0 or later
Appendix
88

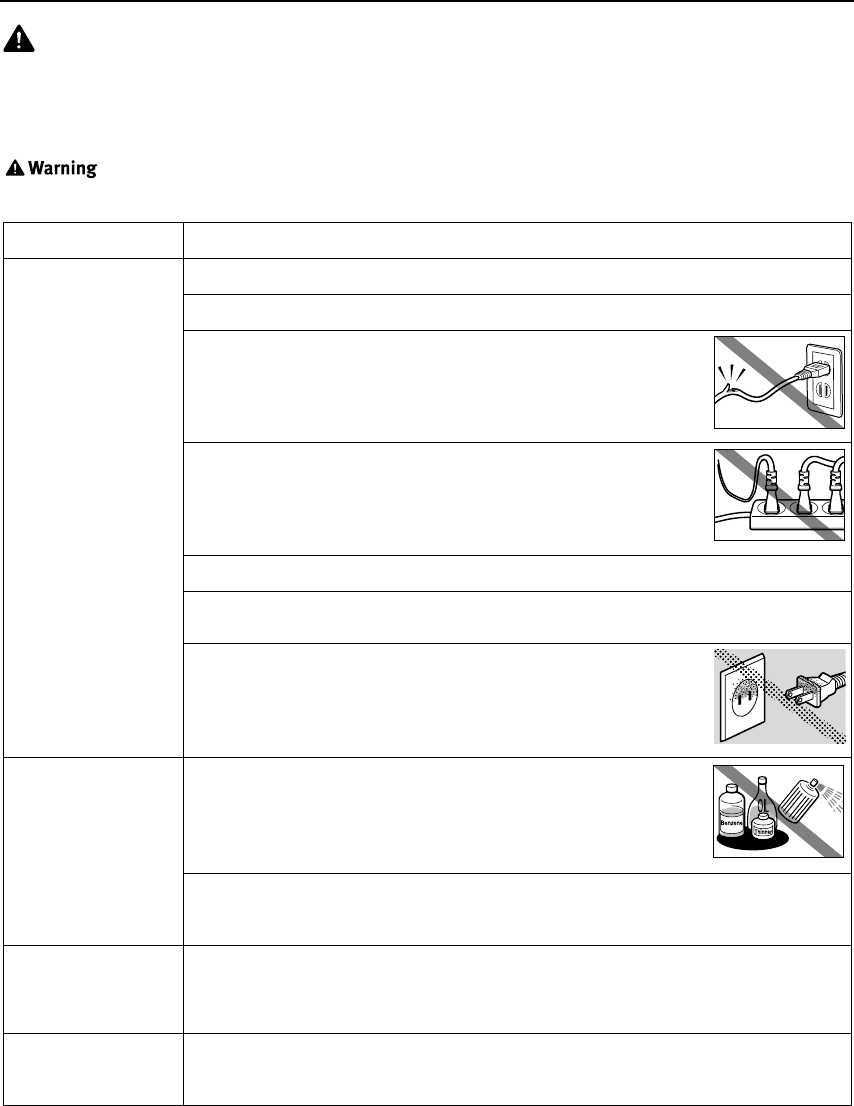

Safety Precautions
Please read the safety warnings and cautions provided in this manual to ensure that you use
your printer safely. Do not attempt to use printer in any way not described in this manual.
You may cause an electric shock, fire or damage the printer if you ignore any of
these safety precautions.
Choosing a location Do not place the printer close to flammable solvents such as alcohol or thinners.
Power supply Never attempt to plug in or unplug the printer from the power supply when your hands are wet.
Always push the plug all the way into the power outlet.
Never damage, modify, stretch or excessively bend or twist the power cord.
Do not place heavy objects on the power cord.
Never plug the printer into a power socket that is shared with other
equipment (extension lead/cord, 2- or 3-way adapter, etc.).
Never use the printer if the power cord is bundled or knotted.
If you detect smoke, unusual smells or strange noises around the printer, immediately unplug the
printer at the power supply and call for service.
Periodically, unplug the printer and use a dry cloth to wipe off any dust or
dirt collected on the plug and the power outlet. If the printer is placed at a
location exposed to a lot of dust, smoke, or high humidity, the dust
collected on the plug absorbs moisture and may cause insulation failure and
fire.
Cleaning the printer Use a damp cloth to clean the printer. Never use flammable solvents such
as alcohol, benzene or thinners.
If flammable solvents come in contact with electrical components inside the
printer, it could cause a fire or electric shock.
Always unplug the printer from the power outlet before cleaning the printer.
If you accidentally switch the printer on while cleaning it, you could injure yourself or damage the
printer.
Maintaining the printer Do not attempt to disassemble or modify the printer. There are no user serviceable parts inside
the printer.
The printer contains high-voltage components. Never attempt any maintenance procedure not
described in this guide.
Working around the
printer
Do not use flammable sprays near the printer.
This could cause a fire or electric shock if the spray comes into contact with electrical components
inside the printer.
Appendix
89
You may cause injury or damage the printer if you ignore any of these safety
precautions.
Choosing a location Do not install the printer in a location that is unstable or subject to excessive vibration.
Do not install the printer in locations that are very humid or dusty, in direct sunlight, outdoors, or
close to a heating source.
To avoid the risk of fire or electric shocks, install the printer in a location with an ambient
temperature range of 5°C to 35°C (41°F to 95°F) and humidity of 10% to 90% (condensation free).
Do not place the printer on a thick rug or carpet.
Ensure that the area around the power outlet is kept clear at all times so you
can easily unplug the power cord if necessary.
Do not place the printer with its back attached to the wall.
Power supply Never remove the plug by pulling on the cord.
Do not use an extension lead/ cord.
Never use a power supply source other than the one rated for the printer in the country where you
purchased the printer.
AC 110-120 V, 50/60 Hz
AC 220-240 V, 50/60 Hz
Working around the
printer
Never put your hands or fingers in the printer while it is printing.
Do not place any object on the printer.
Do not place metal objects (paper clips, staples, etc.) or containers of flammable solvents (alcohol,
thinners, etc.) on top of the printer.
If any foreign object (metal or liquid) fall into the printer, unplug the power cord and call for
service.
Do not transport or store the printer on a slant, vertically or upside-down, as the ink may leak and
damage the printer.
Print heads and ink tanks For safety reasons store Print Heads and ink tanks out of the reach of small children.
If a child ingests any ink, consult a doctor immediately.
Do not shake Print Heads or ink tanks.
Ink may leak out and stain clothing or the surrounding area.
Never touch the electrical contacts on a Print Head after printing.
The metal parts may be very hot and could cause burns.
Radio wave interference Since the microwave oven and the wireless LAN system use the same frequency bandwidth, the
microwave oven can be the potential source of interference when the microwave oven is on.
Placing this product close to microwave oven may result in the poor status of radio.
Appendix
90
Regulatory Information
Color Printer Model: K10245 (Contains FCC ID: AZDK30242)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
zConsult the dealer or an experienced radio/TV technician for help.
Use of a shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or
modifications should be made, you could be required to stop operation of the equipment.
FCC ID: AZDK30242
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for at uncontrolled equipment. This equipment should be
installed and operated with minimum distance at least 20cm between the radiator and persons body (excluding extremities:
hands, wrists, feet and legs) and must not be co-located or operated with any other antenna or transmitter.
Canon U.S.A., Inc.
One Canon Plaza
Lake Success, NY 11042
1-516-328-5600
Canadian Radio Interference Regulations
This digital apparatus does not exceed Class B limits for radio noise emissions from a digital apparatus as set out in the
interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry Canada.
Cet appareil numérique respecte les limites de bruits radio éléctiques applicables aux appareils numériques de Classe B
prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, NMB-003 édictée par l’Industrie Canada.
Appendix
91
CANON U.S.A., INC. LIMITED WARRANTY --- (USA Only)
The limited warranty set forth below is given by Canon U.S.A., Inc. (“Canon USA”) with respect to the new or refurbished
Canon-brand product (“Product”) packaged with this limited warranty, when purchased and used in the United States only.
The Product is warranted against defects in materials and workmanship under normal use and service (a) for a period of one
(1) year from the date of original purchase when delivered to you in new condition in its original container or (b) for 90 days
from the date of original purchase for refurbished Products. Defective parts or a defective Product returned to a Canon USA
repair facility or a Canon USA Authorized Service Facility (“ASF”), and proven to be defective upon inspection, will be repaired,
exchanged for new or comparable rebuilt parts, or exchanged for a refurbished Product, as determined by the Canon USA
repair facility or the ASF. Warranty repair or replacement shall not extend the original warranty period of the Product. A dated
proof of purchase is required at the time of warranty service. A copy of your dated bill of sale will satisfy this requirement. This
warranty does not cover any accessories, or any consumables, such as paper or ink cartridges, as to which there shall be no
warranty or replacement.
This limited warranty shall only apply if the Product is used in conjunction with compatible computers, peripheral equipment
and software. Canon USA shall have no responsibility for such items except for compatible Canon brand peripheral equipment
covered by a separate warranty (“Separate Warranty”). Repairs of such Canon brand peripheral equipment shall be governed
by the terms of the Separate Warranty. Non-Canon brand equipment and software that may be distributed with the Product are
sold “as is” and without warranty of any kind by Canon USA, including any implied warranty regarding merchantability or
fitness for a particular purpose, and all such warranties are disclaimed. The sole warranty, if any, with respect to such non-
Canon brand items is given by the manufacturer or producer thereof.
This limited warranty covers all defects encountered in normal use of the Product and does not apply in the following cases:
(a) Loss of or damage to the Product due to abuse, neglect, mishandling, improper packaging by you, alteration, accident,
electrical current fluctuations, improper use, failure to follow operating or maintenance instructions, or environmental
conditions, prescribed in Canon USA’s user’s manual or other documentation, or services performed by someone other
than a Canon USA repair facility or ASF. Without limiting the foregoing, dropping the Product, scratches, and abrasions
will be presumed to have resulted from misuse, abuse or failure to operate the Product as set forth in the user’s manual
or other documentation for the Product.
(b) Use of parts or supplies (other than those sold by Canon USA) that cause damage to the Product or cause abnormally
frequent service calls or service problems.
(c) If the Product has had its serial number or dating defaced, altered or removed.
ANY SYSTEM SOFTWARE (WHETHER FACTORY LOADED ON THE PRODUCT OR CONTAINED ON THE SOFTWARE DISKETTES OR CD-
ROM'S ENCLOSED WITH, OR ACCOMPANYING, THE PRODUCT), AND ANY UTILITY SOFTWARE, DISTRIBUTED WITH OR FOR THE
PRODUCT, IS SOLD “AS IS” AND WITHOUT WARRANTY BY CANON USA. THE SOLE WARRANTY WITH RESPECT TO SUCH SOFTWARE
IS CONTAINED IN THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT DISTRIBUTED THEREWITH, INCLUDING ANY
LIMITATIONS AND DISCLAIMERS THEREON. PLEASE CONTACT CANON USA IMMEDIATELY IF YOU HAVE NOT RECEIVED A COPY OF
THE SOFTWARE MANUFACTURER'S LICENSE AGREEMENT.
NO IMPLIED WARRANTY, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
APPLIES TO THE PRODUCT AFTER THE APPLICABLE PERIOD OF THE EXPRESS LIMITED WARRANTY STATED ABOVE, AND NO OTHER
EXPRESS WARRANTY OR GUARANTY, EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON OR ENTITY WITH RESPECT TO THE
PRODUCT SHALL BIND CANON USA, OR ITS ASF. (SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.) CANON USA SHALL NOT BE LIABLE FOR LOSS OF
REVENUES OR PROFITS, INCONVENIENCE, EXPENSE FOR SUBSTITUTE EQUIPMENT OR SERVICE, STORAGE CHARGES, LOSS OR
CORRUPTION OF DATA, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR
INABILITY TO USE THE PRODUCT REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF CANON USA
OR ITS ASF HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST CANON
USA OR ITS ASF BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT CAUSING THE ALLEGED DAMAGE.
WITHOUT LIMITING THE FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO YOU AND YOUR
PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE POSSESSION, USE, MISUSE, OR INABILITY TO USE THE
PRODUCT SOLD BY CANON USA NOT CAUSED SOLELY AND DIRECTLY BY THE NEGLIGENCE OF CANON USA, OR ITS ASF. (SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.) THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINAL PURCHASER OF THE PRODUCT OR THE PERSON FOR WHOM IT WAS PURCHASED AS A GIFT, AND STATES YOUR
EXCLUSIVE REMEDY.
Appendix
92
Canon USA offers a full range of customer technical support* options:
zFor interactive troubleshooting, e-mail technical support, the latest driver downloads and answers to frequently asked
questions (w
w
ww.canontechsupport.com)
zToll-free live technical support within the limited warranty Monday-Saturday (excluding holidays) at 1
1
-800-828-4040
zThe location of the ASF nearest you for carry-in service (1
1
-800-423-2366)
zTelephone Device for the Deaf (T
T
DD 1-866-251-3752)
If the problem cannot be corrected by using one of the above technical support options, repair options (i.e. Carry-In/Mail-In
Service*, InstantExchange Warranty Service*), along with details and conditions of each, are available at the time of your call
to the live technical support number(s) above or via the website at w
w
ww.canontechsupport.com. Please note that under the
InstantExchange program, a replacement product will be provided to you prior to your return of the defective product. Since
the defective product becomes the property of Canon USA at the time of the exchange, the defective product must be returned
in the shipping materials provided. If the defective product is not returned, as directed, you will be responsible for the value of
the replacement product, for which Canon USA may invoice you.
This limited warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
* Support program specifics are subject to change without notice.
Canon U.S.A., Inc.
One Canon Plaza
Lake Success, NY 11042
USA
Canon is a registered trademark of Canon Inc.
Index
93
Index
A
Accessing the Printer Driver ......................................... 28
Adjusting the Print Quality for Photographs ................. 29
Advanced Printing........................................................ 22
Aligning the Print Head ................................................ 61
An Error Message Appears on the Screen ..................... 77
Automatic Duplex Printing............................................ 79
B
BCI-3eBK Black ............................................................ 42
BCI-6BK Black .............................................................. 42
BCI-6C Cyan ................................................................. 42
BCI-6M Magenta .......................................................... 42
BCI-6Y Yellow............................................................... 42
BJ Printer Driver Systems Requirements ....................... 87
BJ Printer Utility dialog box (Macintosh) ....................... 51
BJ Status Monitor (Windows).................................. 65, 69
Borderless (full) ........................................................... 41
Borderless Printing ................................................ 38, 68
C
Camera Direct Print ...................................................... 86
Camera Error Message ................................................. 81
Canceling Print Jobs ..................................................... 17
Canceling Printing........................................................ 21
Cannot Install the Printer Driver ................................... 66
Cannot Print Properly from the Digital Camera.............. 81
CANON U.S.A., INC. LIMITED WARRANTY --- (USA Only).. 91
Cleaning ................................................................ 53, 55
D
Deep Cleaning........................................................ 57, 59
Driver
saving setting....................................................... 35
settings................................................................ 16
uninstalling.......................................................... 77
E
Easy-PhotoPrint ................................................37, 38, 39
Easy-WebPrint.............................................................. 37
Examining the Nozzle Check Pattern ............................ 52
ExifPrint ....................................................................... 37
G
Glossy Photo Paper...................................................... 14
H
Handling Error Messages ............................................. 75
Help button.................................................................... 2
High Resolution Paper.................................................. 14
L
Load Limit Mark ......................................................... 6, 9
Loading Paper................................................................ 3
Loading Paper in the Cassette ........................................ 8
Loading Paper in the Sheet Feeder ................................. 5
M
Matte Photo Paper ....................................................... 14
Media
specialty .............................................................. 13
to avoid.................................................................. 3
Media Type .......................................................14, 16, 19
Media Types Suitable for Borderless Printing ............... 38
N
Nozzle Check ......................................................... 50, 51
Nozzle Check Pattern
examining ............................................................ 52
printing ................................................................ 49
O
Opening the Printer Properties Dialog Box Directly from the
Start Menu ............................................................... 28
Opening the Printer Properties Dialog Box from Your
Application Program................................................. 28
P
Page Setup (Macintosh) ......................................... 19, 70
Page Setup dialog box (Macintosh) .............................. 70
Paper Does Not Feed Properly ...................................... 71
Paper Feed Roller ......................................................... 71
Paper Feed Switch.......................................................... 4
Paper Jams........................................................72, 73, 74
Paper Size.................................................................... 19
Paper Support Load Limit ............................................. 14
Photo Noise Reduction................................................. 33
Photo Optimizer PRO.................................................... 31
Photo Paper Plus Double Sided .................................... 14
Photo Paper Plus Glossy .............................................. 14
Photo Paper Plus Semi-gloss........................................ 14
Photo Paper Pro ........................................................... 14
PhotoRecord ................................................................ 37
POWER button................................................................ 2
POWER lamp ............................................................ 2, 75
Print dialog box...................................................... 16, 19
Print Head Alignment ............................................. 61, 63
Print Head Cleaning ..................................................... 53
Print Head Deep Cleaning............................................. 57
Print Head Holder......................................................... 45
Print Media to Avoid....................................................... 3
Index
94
Print Quality..................................................... 17, 29, 67
Print Quality is Poor or Contains Errors ......................... 67
Printer Driver Setting for Media Type ............................ 14
Printer Properties dialog box ...................... 16, 28, 49, 68
Printing Borderless Photographs.................................. 38
Printing Photographs Directly from a Digital Camera .... 22
Printing the Nozzle Check Pattern................................. 49
Printing with Macintosh ............................................... 18
Printing with Windows.................................................. 15
R
Recalling Driver Settings .............................................. 35
Regulatory Information................................................. 90
Replacing an Ink Tank .................................................. 42
RESUME/CANCEL button............................................... 17
S
Safety Precautions ....................................................... 88
Saving Driver Setting.................................................... 35
Specialty Media ........................................................... 14
Specifications .............................................................. 84
T
Transparencies............................................................. 14
Troubleshooting........................................................... 65
Troubleshooting Printer Hardware ................................ 69
T-Shirt Transfers........................................................... 14
Turning on the Printer..................................................... 2
U
Uninstalling the printer driver ...................................... 77
User’s Guide Table of Contents..................................... 83
Using Specialty Media.................................................. 13
Using the Bundled Software ......................................... 37
Using the Sheet Feeder and the Cassette........................ 4
V
Vivid Photo................................................................... 32
W
Warranty ...................................................................... 91
When Printing Becomes Faint or Colors are Incorrect .... 48
Ordering Information
For additional supplies, use the following descriptions and order numbers.
Description Order #
Ink Tanks
BCI-3e Black 4479A003
BCI-6 Black 4705A003
BCI-6 Cyan 4706A003
BCI-6 Magenta 4707A003
BCI-6 Yellow 4708A003
Canon Specialty Papers
Glossy Photo Paper (8.5" x 11"/20 sheets) 1026A009
High Resolution Paper (8.5" x 11"/100 sheets) 1033A011
Matte Photo Paper (8.5" x 11"/50 sheets) 7981A004
Photo Paper Plus Glossy (4" x 6"/20 sheets) 7980A007
Photo Paper Plus Glossy (4" x 6"/50 sheets) 7980A012
Photo Paper Plus Glossy (4" x 6"/120 sheets) 7980A022
Photo Paper Plus Glossy (5" x 7"/20 sheets) 7980A019
Photo Paper Plus Glossy (8.5" x 11"/20 sheets) 7980A006
Photo Paper Plus Semi-Gloss (4" x 6"/50 sheets) 8386A010
Photo Paper Pro for Borderless Printing (4" x 6"/20 sheets) 1029A014
Photo Paper Pro for Borderless Printing (4" x 6"/75 sheets) 1029A027
Photo Paper Pro (8.5" x 11"/15 sheets) 1029A004
Photo Paper Pro (8.5" x 11"/30 sheets) 1029A028
Transparencies (8.5" x 11"/50 sheets) 1043A004
Call 1-800-OK-CANON to locate a dealer near you, or visit the Canon eStore at
www.estore.usa.canon.com.
©2004 Canon U.S.A., Inc. Canon is a registered trademark of Canon Inc. All other product and brand names are trademarks of their
respective owners. As an ENERGY STAR® partner, Canon U.S.A., Inc., has determined that this product meets the ENERGY STAR®
guidelines for energy efficiency.
QA7-3434-V02 XXXXXXXX ©CANON INC.2004 PRINTED IN THAILAND
The following ink tanks are compatible with iP4000R.
For details on ink tank replacement, refer to “Replacing an Ink Tank” in this guide.
Quick Start Guide
Canon U.S.A., Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Canon Inc.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
Canon Canada, Inc.
6390 Dixie Road, Mississauga, Ontario, L5T 1P7, Canada
Canon Latin America, Inc.
703 Waterford Way, Suite 400, Miami, FL 33126, U.S.A.
Canon Mexicana S. de R.L. de C.V.
Periferico Sur No. 4124 Col. Ex-Rancho de Anzaldo, C.P. 01900, Mexico, D.F.

Navigation menu
