Casambi Technologies CBUTED Bluetooth controllable trailing-edge dimmer User Manual
Casambi Technologies Oy Bluetooth controllable trailing-edge dimmer
User Manual
Description
CBU-TED is a Bluetooth controllable trailing-edge dimmer for phase control of incandescent
lamps, dimmable LED lamps and dimmable LED control gear. It is to be connected between
the incoming line voltage and the light source. Maximum allowable ambient temperature must
be taken into concideration when selecting the mounting location.
CBU-TED is able to control up to 75 W at 120 VAC.
As a part of Casambi network, CBU-TED can be used to control lights based on multiple con-
trol strategies including preset scenes, automatic schedules and daylight responsive dimming.
CBU-TED can be congured and controlled with Casambi app, available for iOS and Android
devices, as well as with traditional wall switches.
Technical data
Lighting control for the Modern World

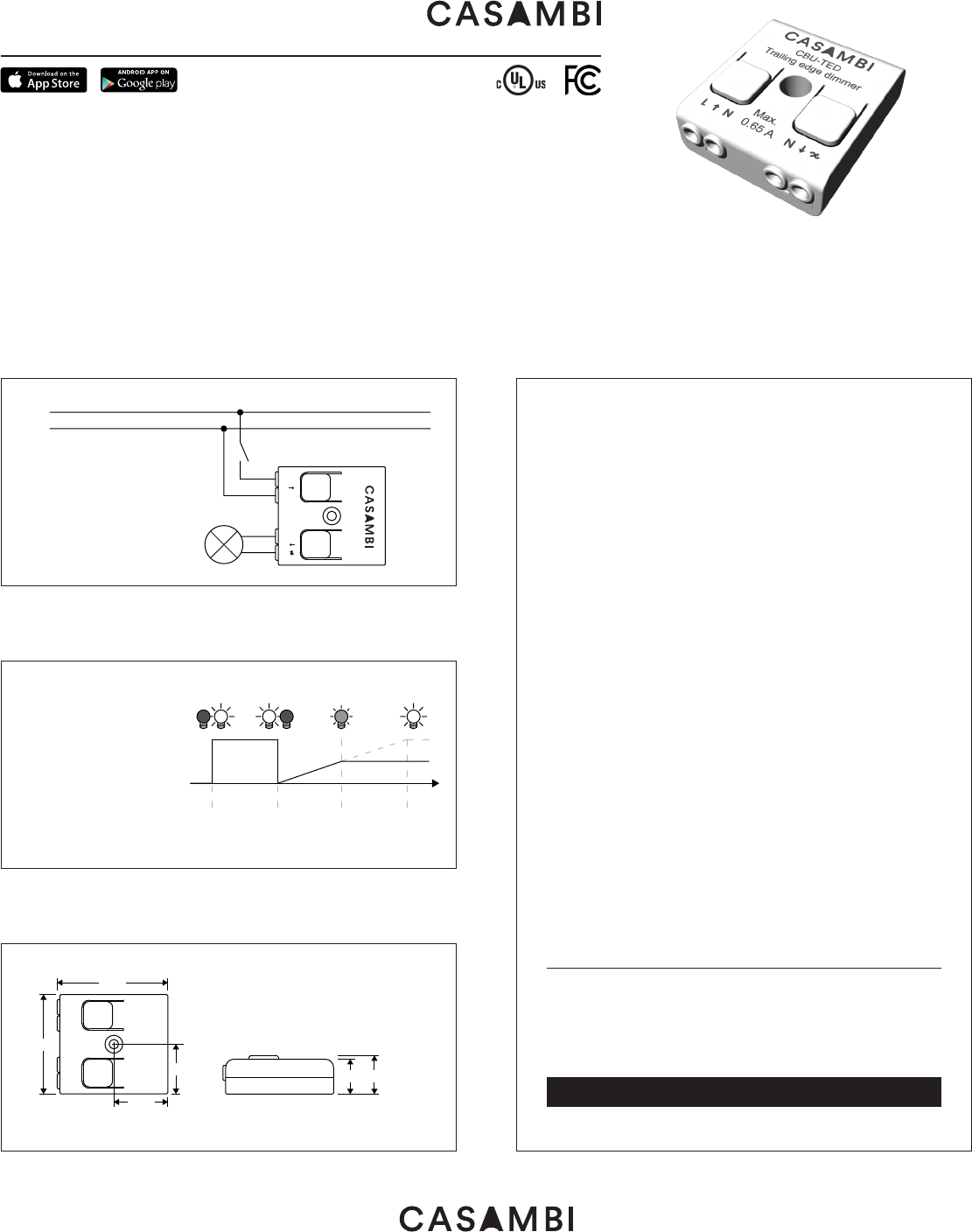

Wiring diagram
Dimming without App
Dimensions
CBU-TED USA & Canada
Bluetooth controllable trailing-edge dimmer www.casambi.com
L
N
Solid and stranded:
16-18 AWG/1-1,5 mm2
Strip length: 6-8 mm
Wire info:
120 VAC
60 Hz
1. Turn lights on from a wall switch.
2. Quickly ick the wall switch o (max.
1 sec.) and back on. The light level
starts to increase gradually.
3. Flick the switch again at desired dim
level. The selected level is saved
automatically.
4. If the second ick is not done within
8 sec. the light intensity reaches its
maximum level.
5. Flicking the switch can also be
used to switch between predened
scenes.
ON OFF/ON
(<1 sec.)
OFF/ON
(<1 sec.)
8 sec.
from 1st
OFF/ON
time
Type of load
Incandescent and high voltage halogens (R)
High quality dimmable LED and CFL bulbs (C) 1)
Trailing edge dimmable LED drivers (C) 1)
High voltage AC LED modules (R) 2)
Max. load
75 W
75 W
75 W
75 W
Never connect inductive loads, such as iron core transformers. This could cause
permanent damage to the dimmer. Do not mix dierent types of loads.
Wire wound transformers, electric motors and other inductive loads (I) Not allowed
Non-dimmable uorescent lamps, LED and CFL bulbs (C) Not allowed
Low voltage halogens with electronic transformers (C) 1) 75 W
1) Dimming quality depends solely on the load electronics. Do not mix dierent types of bulbs or loads.
2) Some LED modules may icker at low dimming levels.
Input
Voltage: 120 VAC
Frequency: 60 Hz
Max. mains current: 0,65 A
No-load standby power: < 0,3 W
Output
Dimming method: trailing-edge phase control
Max. output power: 75 W @ 120 VAC
Max. output current: 0,65 A
Min. load requirement: 1 W
Max. inrush current: 10 A, 100 ms
Radio transceiver
Operating frequencies: 2,4...2,483 Ghz
Maximum output power: +4 dBm
Operating conditions
Ambient temperature, ta: -4°F to 113°F (-20 to +45°C)
Max. case temperature, tc: 167°F (+75°C)
Location of tc point: bottom side, underneath output
connector
Storage temperature: -13°F to 122°F (-25...+50°C)
Max. relative humidity: 0...80%, non-cond.
Connectors
Wire range, solid & stranded: 16-18 AWG
1-1,5 mm2
Wire strip length: .25” (6-8 mm)
Mechanical data
Dimensions: 1.60 x 1.45 x 0.55 inch
40,4 x 36,3 x 14,0 mm
Weight: 0.5 oz (15 g)
Degree of protection: IP20 (indoor use only)
FCC ID: 2ALA3-CBUTED
IC: 22496-CBUTED
UL: UL Listed, E494741
Tc*
* Tc point is on bottom side
40,4
36,3
18,15
20,2
12.7 14.0
Dimensions are in mm.
Trailing edge dimmer
CBU-TED
L N N
Max.
0.65 A
Installation
Make sure that the mains voltage is switched o before making any connections. Use 16-18 AWG solid or stranded conductor electrical wires. Strip the
wire 6-8 mm from the end.
Press the buttons on top of the dimmer case and insert the wires to the corresponding holes. Make sure to connect the input and output correctly. Input
connector is marked with letters L and N, while the output connector is marked with letter N and a symbol with a wave and an arrow ( ).
If you install the dimmer into a heat sensitive environment (e.g. inside a luminaire or in a ceiling outlet box above a luminaire), make sure that the ambient
temperature does not exceed the specied maximum value. Using the dimmer in a heat sensitive environment may limit the maximum output power.
CBU-TED, as any other Casambi product, should not be placed in a metal enclosure, such as metal junction boxes. Metal will attenuate radio signals which
are crucial to the operation of the product. If the product will have to installed into a junction box, make sure to use a plastic junction box.
Range
The range between two CBU-TEDs or between a CBU-TED and a smart phone can vary a lot depending on obstacles and surrounding material. In open
air the range between two CBU-TEDs can be in excess of 200 ft, but if the unit is encapsulated into a metal structure, the range can be only few feet.
Therefore, thorough testing is highly suggested.
Casambi uses mesh network technology so each CBU-TED acts also as a repeater. When testing the network, it is important to test that each unit can
be controlled from any point of the network covered area.
Information in this document is subject to change.
CBU-TED User Guide v1.0B USA and Canada
Copyright Casambi Technologies Oy 2018.
Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Warning
Changes or modications not expressly approved by Casambi Technologies Oy could void the user’s authority to operate the equipment.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement for Canada
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
This equipment is exempt from the routine RF exposure evaluation requirements of RSS-102. This equipment should be installed and operated with a
minimum distance of 20 cm between the antenna and the user or bystanders.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Ce matériel n’est pas sujet à l’évaluation habituelle d’exposition RF selon RSS102. Ce matériel devrait être installé et exploité en gardant une distance
minimale de 20 cm entre l’antenne et l’utilisateur ou les spectateurs.
Radiation Exposure Statement for FCC
This device complies with FCC radiation exposure limits for an uncontrolled environment. This device shall be installed and operated with a minimum
distance of 0.8” (2cm) between users or bystanders and the device.
Casambi Technologies Oy
Bertel Jungin aukio 1 E, 02600 Espoo, Finland
