E-1
Contents
Safety Precautions .........................................................................................E-2
Operating Precautions ...................................................................................E-8
Important ........................................................................................................E-8
Regulatory Information ..................................................................................E-9
Handheld Terminal System Confi guration .................................................E-12
General Guide ...............................................................................................E-14
Loading and Removing the Battery Pack ...................................................E-15
Charging the Battery Pack ..........................................................................E-18
Attaching the Hand Belt ...............................................................................E-20
Confi guring Handheld Terminal Settings ...................................................E-21
Adjusting the Laser Light Emission Width .................................................E-22
Resetting the Handheld Terminal ................................................................E-24
Warning Label ...............................................................................................E-25
English
E-2
Safety Precautions
Congratulations upon your selection of this CASIO product. Be sure to read the
following Safety Precautions before trying to use it for the fi rst time.
Your neglect or avoidance of the warning and caution statements in the
subsequent pages causes the danger of fi re, electric shock, malfunction and
damage on the goods as well as personal injury.
Markings and Symbols
The following are the meanings of the markings and symbols used in these Safety
Precautions.
Danger This symbol indicates information that, if ignored or applied
incorrectly, creates the danger of death or serious personal injury.
Warning
This symbol indicates information that, if ignored or applied
incorrectly, creates the possibility of death or serious personal
injury.
Caution
This symbol indicates information that, if ignored or applied
incorrectly, creates the possibility of personal injury or property
damage.
A diagonal line indicates something you should not do. The symbol shown
here indicates you should not try to take the unit apart.
A black circle indicates something you should do. The symbol shown here
indicates you should unplug the unit from the wall outlet.
Warning
Disassembly and Modifi cation
Never try to disassemble or modify the Handheld Terminal and its options
including battery pack and battery in any way.
Abnormal Conditions
Should the Handheld Terminal and/or its options including battery pack and
battery become hot or start to emit smoke or a strange odor, immediately turn
off the power and contact your dealer or distributor whom you purchased the
product from, or an authorized CASIO service provider.
x
x
x
x
E-3
Warning
Dust and Moisture
Though the Handheld Terminal is dust and water splash resistant, its options
including the battery pack are not. Keep loose metal objects and containers
fi lled with liquid away from your Handheld Terminal and the options. Also,
never handle the Handheld Terminal and the options while your hands are
wet.
Laser Light
This product with the integrated laser scanning module scans bar codes
using laser light. Never look directly into the laser light or shine the laser
light into the eyes.
x
x
Warning
Interference with the Operation of Other Equipment
(Using Wireless Data Communication)
Keep your Handheld Terminal at least 22 centimeters (811/16") away from
anyone wearing a pacemaker. Radio waves emitted by the Handheld
Terminal can affect the operation of a pacemaker.
Before the use in aircraft, be sure to consult with cabin crew for interference
the Handheld Terminal emits.
Before the use in medical facility, be sure to consult with the facility
management or the manufacture of a specifi c medical equipment that the
Handheld Terminal may interfere with.
x
x
x
Caution
Foreign Objects
Take care to ensure that metals or combustible objects are not inserted into
the openings of the Handheld Terminal or its options, and not to allow
moisture to get inside of them.
Location
Install the cradle properly on a fl at and stable surface so that it cannot fall
down onto fl oor.
LCD Screen
Never apply strong pressure to the screen or subject it to strong impact.
Doing so can crack the LCD Screen.
x
x
x
E-4
Warning

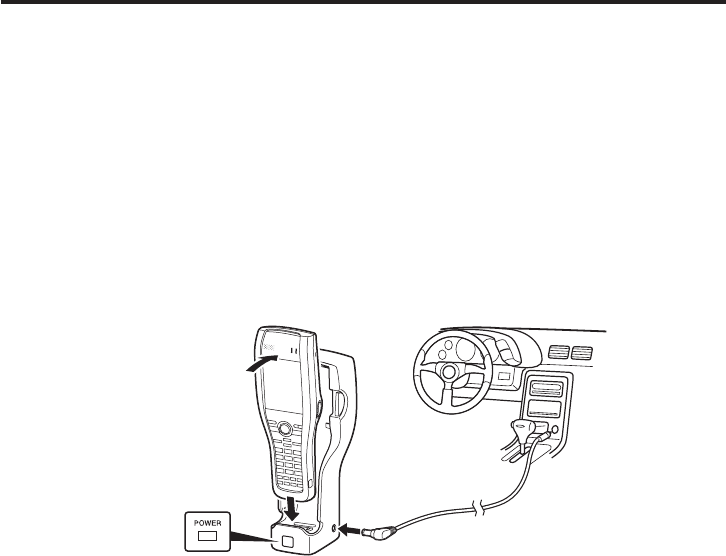

Avoiding Traffi c Accidents
Never use your Car Mounted-type Battery Charger while operating a motor
vehicle. Park your vehicle in a safe place before performing any operation.
Never locate the Car Mounted-type Battery Charger where it might interfere
with proper operation of the vehicle.
Locate connecting cables as instructed by the manual, avoiding locations
that can interfere with driving operations.
Car Battery Power
Should the Car Power Cable become damaged, replace it immediately with
a new Car Power Cable when using the Car Mounted-type Battery Charger.
x
x
x
x
Caution
Installing in Vehicle
To save your vehicle’s battery from running down, be sure that the Car
Power Cable should be unplugged from the cigarette lighter socket when
you do not use the Car Mounted-type Battery Charger and that the use of
the battery charger should be avoid while the vehicle’s engine is turned off.
Do not handle the Car Power Cable with wet hands.
Install the Car Mounted-type Battery Charger at location in a vehicle where
strong vibration, unstable, excessive of humidity and dust, and under direct
sunlight can be avoid. Also, avoid the area where the air bag infl ates or any
other area where your safe driving is blocked.
Do not leave the Handheld Terminal in vehicle for a long period of time.
x
x
x
x
E-5
Optional Lithium-ion Battery Pack
Danger
1HYHUXVHWKH+DQGKHOG7HUPLQDODQGLWVRSWLRQLQFOXGLQJWKHEDWWHU\SDFN
DQGEDWWHU\QH[WWRRSHQÀDPHQHDUDVWRYHRUDQ\RWKHUDUHDH[SRVHGWR
high heat, or leave them for a long period of time in a vehicle parked in
direct sunlight.
1HYHUXVHWKHEDWWHU\SDFNZLWKDQ\GHYLFHRWKHUWKDQWKH+DQGKHOG
Terminal.
1HYHUGLVSRVHRIWKHEDWWHU\SDFNE\LQFLQHUDWLQJLWRURWKHUZLVHH[SRVHLW
to heat.
1HYHUWUDQVSRUWRUVWRUHWKHEDWWHU\SDFNWRJHWKHUZLWKPHWDOREMHFWVWKDW
PD\UHVXOWLQVKRUWLQJSRVLWLYHDQGQHJDWLYH±WHUPLQDOVRIWKHEDWWHU\
SDFN%HVXUHWRSODFHWKHEDWWHU\SDFNLQLWVFDVHZKHQHYHUWUDQVSRUWLQJRU
storing it.
1HYHUWKURZWKHEDWWHU\SDFNRURWKHUZLVHVXEMHFWLWWRVWURQJLPSDFW
1HYHUSLHUFHWKHEDWWHU\SDFNZLWKQDLOVKLWLWZLWKDKDPPHURUVWHSRQLW
8VHRQO\WKHVSHFL¿HGEDWWHU\FKDUJHUWRFKDUJHWKHEDWWHU\SDFN
x
x
x
x
x
x
x
Warning
1HYHUSODFHWKHEDWWHU\SDFNLQDPLFURZDYHRYHQRUDQ\RWKHUKLJKYROWDJH
device.
,IWKHDPRXQWRIWLPHSHULRGWKHEDWWHU\SDFNFDQVHUYHEHFRPHV
FRQVLGHUDEO\VKRUWHYHQDIWHULWKDVEHHQIXOO\FKDUJHGIRUWKHVSHFL¿HGWLPH
period, stop using it.
6KRXOGWKHEDWWHU\SDFNVWDUWWROHDNRUHPLWDVWUDQJHRGRULPPHGLDWHO\
PRYHLWDZD\IURPDQ\QHDUE\ÀDPH/HDNLQJEDWWHU\ÀXLGLVFRPEXVWLEOH
6KRXOGÀXLGIURPWKHEDWWHU\SDFNDFFLGHQWDOO\JHWLQWR\RXUH\HVRURQWKH
VNLQGRQRWUXELW,PPHGLDWHO\ULQVHLWRIIZLWKFOHDQWDSZDWHUDQGWKHQ
FRQVXOWDSK\VLFLDQ
x
x
x
x
Caution
5HSODFHRQO\ZLWKWKHVDPHW\SHRIEDWWHU\SDFNUHFRPPHQGHGE\&$6,2
'LVSRVHRIXVHGEDWWHU\SDFNVDFFRUGLQJWRWKHORFDOUHJXODWLRQ
.HHSWKHEDWWHU\SDFNRXWRIWKHUHDFKRIVPDOOFKLOGUHQ
x
x
E-6
Power Supply / AC Adaptor
Warning
Do not use the Handheld Terminal at a voltage other than the specifi ed
voltage. Also, do not connect the Handheld Terminal to a multi-plug power
strip.
Never modify, sharply bend, twist, or pull on the power cord.
Never use a detergent to clean AC adaptor and its power cable, especially
on the plug and the jack.
When using the battery chargers and the cradles, be sure to use the
respective AC adaptors.
x
x
x
x
Caution
Never pull on the power cord when unplugging it. Always hold the plug
when unplugging it from the wall outlet.
Never touch the plug while your hands are wet.
Be sure to unplug the power cord from the wall outlet before cleaning the
battery chargers and the cradles.
Unplug the power cord from the wall outlet whenever leaving the battery
chargers and the cradles unattended for a long period.
The housing of the AC adaptor can become warm during normal use.
At least once a year, unplug the AC adaptor from the wall outlet and clean
any dust that builds up between the prongs of the plug.
Dust built up between the prongs can lead to the danger of fi re.
x
x
x
x
x
x
E-7
Backup Copies of All Important Data
Caution
Note that CASIO Computer Co., Ltd. shall not be held liable to you or any
third party for any damages or loss caused by deletion or corruption of data
due to use of the Handheld Terminal, malfunction or repair of the Handheld
Terminal or its peripherals, or due to the batteries going dead.
The Handheld Terminal employs electronic memory to store data, which
means that memory contents can be corrupted or deleted if power is
interrupted due to the batteries going dead or incorrect battery replacement
procedures. Data cannot be recovered once it is lost or corrupted. Be sure to
make backup copies of all important data. One way to do this is to use the
separately sold cradles to transfer data to a computer.
x
x
E-8
Operating Precautions
Your +DQGKHOG7HUPLQDODQGLWVRSWLRQVDUHSUHFLVLRQ. Improper operation or rough
handling can cause problems with data storage and other problems. Note and observe
the following precautions to ensure proper operation.
Do not leave dead battery pack in the Handheld Terminal for a long period.
'HDGEDWWHU\SDFNFDQOHDNOHDGLQJWRPDOIXQFWLRQDQGGDPDJHWRWKH+DQGKHOG
Terminal.
Stop or avoid using the Handheld Terminal and its options in areas and
conditions subject to the following.
²/DUJHDPRXQWVRIVWDWLFHOHFWULFLW\
²([WUHPHKHDWRUFROGRUKXPLGLW\
— Sudden temperature change
— Large amount of dust
²$IWHUODUJHDPRXQWRIUDLQRUZDWHUIDOOVRQWKH+DQGKHOG7HUPLQDO
²3UHVVLQJWKHVFUHHQRUNH\VZLWKH[FHVVLYHIRUFHZKHQXVLQJLQWKHUDLQ
Important
7KLVJXLGHGRHVQRWLQFOXGHDQ\LQIRUPDWLRQDERXWSURJUDPPLQJDQGGRZQORDG
procedures. See the applicable separate documentation for information about the
procedures.
After Service
6KRXOGWKLVSURGXFWHYHUPDOIXQFWLRQFRQWDFW\RXURULJLQDOUHWDLOHUSURYLGLQJ
LQIRUPDWLRQDERXWWKHSURGXFWQDPHWKHGDWH\RXSXUFKDVHGLWDQGGHWDLOVDERXWWKH
problem.
7KLVPDUNDSSOLHVWR(8FRXQWULHVDQG7XUNH\RQO\
x
x
x
x
E-9
Regulatory Information
The USA and Canada
GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THIS UNIT IN THE U.S.A. (not
applicable to other areas).
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
Changes or modifi cations not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Proper connectors must be used for connection to host computer and/or peripherals in order to meet FCC
emission limits.
Caution Exposure to radio frequency radiation (below is for portable device)
To comply with FCC RF exposure compliance requirements, this device must not be co-located or
operating in conjunction with any other antenna or transmitter.
•
•
•
•
Declaration of Conformity
Model Number: HA-G60IO, HA-G62IO
Trade Name: CASIO
Responsible party: Casio America, Inc. Industrial Handheld Division
Address: 10710 Baxter Avenue, Los Altos, California 94024 USA
Telephone number: 408-738-8220
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
For Users in Canada
These Class B digital apparatuses comply with Canadian ICES-003.
Cet appareil numériqué de la classes B est conformé à la norme NMB-003 du Canada.
These devices comply with RSS 210 of Industry Canada (IC).
Operation is subject to the following two conditions:
(1) These devices may not cause interference, and
(2) These devices must accept any interference, including interference that may cause undesired opera-
tion of this device.
()
E-10
L’ utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage et
(2) I’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre le fonctionnement du dispositif.
Exposure to radio frequency radiation
The installer of this radio equipment must ensure that the antenna is located or pointed such that it does
not emit RF fi eld in excess of Health Canada limits for the general population;
consult Safety Code 6, obtainable from Health Canada's website at
http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/99ehd-dhm237/index_e.html
Europe
DECLARATION OF CONFORMITY
We, the under signed, CASIO Europe GmbH, hereby declare that the following equipment:
Product: Handheld Terminal
Models: DT-X30G, DT-X30GR, DT-X30E and DT-X30R
Brand: CASIO
are in conformity with all the provisions of the following EC directive with meeting the
related test standards:
Council Directive: 1999/5/EC (R&TTE Directive):
Standards for all models:
EN 60950-1: 2001
EN 50371: 2002
EN 301 489-17 v1.2.1 (2002-08)
EN 300 328 v1.7.1 (2006-10)
Standards for DT-X30G and DT-X30GR only:
EN 50360:2002
EN 301 511 v9.0.2
EN 301 489-7 v1.3.1 (2005-11)
Hereunder, that this declaration is based on the above standards have been complied
fully, constructing into a Technical File and reviewing by the Notifi ed Body, Compliance
Certifi cation Services (NB Number; 0984).
Certifi cate/Expert Opinion issued by Compliance Certifi cate Services is available.
Manufacturer:
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan
Representative within the European Union:
CASIO Europe GmbH
Bornbarch 10, 22848 Norderstedt, Germany
E-11
Products are for distribution within
all member states of the EU.
France limited to 2446.5-2483.5 MHz Indoor use.
Belgium limited to 2400-2483.5 MHz Indoor, 2460-2483.5 MHz Outdoor use.
0984
0984
The information described above dates from January 2008 and may be subjected to future
changes.
Optional models HA-G60IO, HA-G62IO, HA-G30CHG, HA-G32DCHG and HA-G21BAT are
in conformity with the Council Directive 2004/108/EC.
Manufacturer:
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan
Representative within the European Union:
CASIO EUROPE GmbH
Bornbarch 10, 22848 Norderstedt, Germany
Declaration of compliance with other relevant standards can be referred to at
http://world.casio.com/system/pa/UsersGuide/sup85_e.html.
E-12
Handheld Terminal System Configuration
Please check the contents in the box before using the Handheld
Terminal for the first time.
Handheld Terminal
User's Guide (this manual)
Bundled Items
DT-X30 Series
DT-X30 Series
Hand Belt Stylus
The stylus is attached to
the Handheld Terminal.
Options
USB Cradle
HA-G60IO
Car Mounted-type
Battery Charger
HA-G35CHG
Ethernet Cradle
HA-G62IO
Cradle-type Battery Charger
HA-G30CHG
The illustration shows the
USB Cradle(HA-G60IO).
)RUWKHODWHVWRSWLRQVOLVWUHIHUWRWKH21/,1(PDQXDODYDLODEOHDW
KWWSZRUOGFDVLRFRPV\VWHPSD8VHUV*XLGHVXSBHKWPO
E-13
Power Cord for Europe AC-CORD-EU
Power Cord for North America AC-CORD-US
Power Cord for Taiwan AC-CORD-TW
Power Cord for Korea AC-CORD-KR
Power Cord for Australia AC-CORD-AU
Screen Protect Sheet
HA-G90PS5
HA-G20BAT
(Battery Pack)
Dual Battery Charger HA-G32DCHG
Battery Pack
AC Adaptor for USB Cradle/Ethernet Cradle/
Dual Battery Charger
AD-S42120B-N
Options
Cable DT-380USB
Soft Case
E-14
General Guide
Left Front Right Back
TOP
Bottom
18 19
14
15
1 23
4
6
9
5
7
8
10
12
11
13
19 18
20
21
22
23
14
2424
26
14
26
25
27
Battery compartment
29
28
1 Speaker 11 Numeric Keys 21 Camera Lens (Camera models)
2 Indicator 1 12 Fn Key 22 LED (Camera models)
3 Indicator 2 13 Function Keys 23 Expansion Port
4 Screen 14 Hand Belt Holes 24 Battery Pack Cover Lock Switch
5 Microphone 15 L Trigger Key 25 Battery Pack Cover
6 Power Key 16 R Trigger Key 26 Strap Holes
7 CLR Key 17 IR Port 27 Power Contacts
8 Center Trigger Key 18 Barcode Reader 28 MicroSD Card Slot
9 Enter Key 19 Stylus 29 SIM Card Slot (WWAN models)
10 Cursor Keys 20 Reset Switch
E-15
Loading and Removing the Battery Pack
<RXU+DQGKHOG7HUPLQDOXVHVWZRW\SHVRIEDWWHU\DEDWWHU\SDFNDQGDPHPRU\
EDFNXSEDWWHU\
7KHEDWWHU\SDFNLVXVHGWRSRZHUQRUPDORSHUDWLRQVDQGWRVWRUHGDWDZKLOHWKH
PHPRU\EDFNXSEDWWHU\EXLOWLQSURYLGHVWKHSRZHUUHTXLUHGWRPDLQWDLQPHPRU\
FRQWHQWVZKHQWKHEDWWHU\SDFNSRZHULVXQDEOHWRVXSSO\SRZHUIRUVRPHUHDVRQ
:KHQWKHEDWWHU\SDFNSRZHUJRHVORZLPPHGLDWHO\FKDUJHLWRUUHSODFHLWZLWKD
FKDUJHGEDWWHU\SDFN
<RXFDQXVHHLWKHU'XDO%DWWHU\&KDUJHU&UDGOHW\SH%DWWHU\&KDUJHU86%&UDGOH
RU(WKHUQHW&UDGOHWRFKDUJHDEDWWHU\SDFN6HHWKHUHVSHFWLYHXVHU¶VJXLGHVIRU
information about how to charge.
Important!
Remaining capacity on a battery pack when you purchase it may be depleted
due to testing at the factory or natural discharge during shipment and storage.
Be sure to charge the battery pack before you use it.
The life of a battery pack is limited, and charging a battery pack causes it to
gradually lose its ability to maintain the charge. If your battery pack seems to
require charging very frequently, it probably means it is time to purchase a new one.
If a battery pack is used past the end of its service life, it may swell up in size. In
such a case, replace the battery pack with a new one.
When the battery pack is attached, it takes 30 minutes for the backup battery to
obtain enough charge for maintaining memory (RAM) contents for 10 minutes.
It takes four days for the backup battery to achieve a full charge.
x
x
x
x
E-16
Loading
7XUQRYHUWKH+DQGKHOG7HUPLQDO
5HPRYHWKHEDWWHU\SDFNFRYHUDVIROORZV
6OLGHWKHOHIWDQGULJKWORFNVZLWFKHVIRUWKHEDWWHU\SDFNFRYHUWRWKH³)5((´
position.
+RRN\RXU¿QJHUWLSVLQWRWKHQRWFKHVLQWKH+DQGKHOG7HUPLQDODQGOLIWWKH
EDWWHU\SDFNFRYHUXSLQWKHGLUHFWLRQLQGLFDWHGE\WKHDUURZ
Notch
Notch
/RDGDEDWWHU\SDFN+$*%$77DNHFDUHWKDWWKHEDWWHU\SDFNLVRULHQWHG
FRUUHFWO\ZKHQ\RXORDGLW,QDGGLWLRQORDGWKHEDWWHU\SDFNZKLOHPDNLQJVXUHWKDW
WKHHQGRIWKHEDWWHU\SDFNUHPRYDOWDSHLVSURWUXGLQJDERYHWKHEDWWHU\SDFN
3XWEDFNWKHEDWWHU\SDFNFRYHULQWKHFRPSDUWPHQWDVLQVWUXFWHGE\WKHDUURZV
and LQWKHLOOXVWUDWLRQDQGWKHQUHWXUQWKHEDWWHU\SDFNFRYHUORFNVZLWFKHVWRWKH
³/2&.´SRVLWLRQ
E-17
Removing
0DNHVXUHWKDWWKH+DQGKHOG7HUPLQDOLVWXUQHGRII
 ,IWKHSRZHULVRQSUHVVWKHSRZHUNH\WRWXUQLWRII
7XUQRYHUWKH+DQGKHOG7HUPLQDO
5HIHUWR³/RDGLQJ´RQWKHSUHYLRXVSDJHDQGUHPRYHWKHEDWWHU\SDFNFRYHU
5HPRYHWKHEDWWHU\SDFNE\SXOOLQJXSWKHUHPRYDOWDSHDVVKRZQLQWKHLOOXVWUDWLRQ
Important!
When removing the battery pack, be sure you carefully follow the proper
procedure as explained in this guide.
Before starting to use the Handheld Terminal, ensure that the battery pack cover
is properly closed. If not, the power is not turned on or is turned off abruptly
while it is in use.
x
x
E-18
Charging the Battery Pack
To charge the battery pack, use one of the cradles and the battery chargers following
the procedure described below. Be sure to use the separately sold AC adaptor (AD-
S42120B-N) to power the cradle or charger.
Or, if you use the Car Mounted-type Battery Charger in a vehicle, use the accompanied
Car Power Cable to power the charger.
USB Cradle/Ethernet Cradle/Cradle-type Battery Charger
The power LED on the front of the Cradle will light green if the Handheld Terminal has
been properly mounted.
Status of Indicator 1 on DT-X30:
Orange: Charging
Red: Standby due to battery pack error or the surrounding temperature is out of the
charging temperature range
(charging begins when the temperature is within the charging temperature range)
Green: Charging complete
Dual Battery Charger
Taking care that the battery pack is oriented correctly, insert it into the Dual Battery
Charger.
This causes the Charge Indicator LED to light in red, indicating that charging has
started.
Status of Charge Indicator LED
Off: Not charging
Red: Charging
E-19
5HG)ODVKLQJ %DWWHU\SDFNSUREOHP
*UHHQ &KDUJLQJFRPSOHWH
*UHHQ)ODVKLQJ6WDQGE\GXHWRWKHVXUURXQGLQJWHPSHUDWXUHEHLQJEH\RQGWKH
VSHFL¿HGWHPSHUDWXUHUDQJH$SSUR[LPDWHO\&FKDUJLQJ
resumes when the temperature reaches the range.)
Car Mounted-type Battery Charger
3OXJLQWKH&DU3RZHU&DEOHDFFRPSDQLHGLQWKHER[WRWKH&DU0RXQWHGW\SH%DWWHU\
Charger as illustrated below and the other end to the cigarette lighter socket in vehicle.
7KHSRZHU/('RQWKHIURQWRIWKH&DU0RXQWHGW\SH%DWWHU\&KDUJHUZLOOOLJKWUHGLI
WKH+DQGKHOG7HUPLQDOKDVEHHQSURSHUO\PRXQWHG
Status of Indicator 1 on DT-X30:
2UDQJH &KDUJLQJ
5HG 6WDQGE\GXHWREDWWHU\SDFNHUURURUWKHVXUURXQGLQJWHPSHUDWXUHLVRXWRIWKH
charging temperature range
FKDUJLQJEHJLQVZKHQWKHWHPSHUDWXUHLVZLWKLQWKHFKDUJLQJWHPSHUDWXUHUDQJH
*UHHQ &KDUJLQJFRPSOHWH
E-20
Attaching the Hand Belt
The hand belt can be used to prevent the Handheld Terminal from dropping when
carrying it around. Attach the hand belt according to the procedure described below.
To attach the hand belt
1. Thread the belt through the hand belt hole as shown in the fi gure. Then fold it back
and secure using the hook-loop fastener.
2. Thread the other end of the belt through the hand belt hole and adjust the length so
that it fi ts comfortably on your hand. Then secure using the hook-loop fastener.
Important!
Stick the hook-loop fastener down straight.
Ensure that the folded-back part does not overlap.
See "Bad" example at right.
Good Bad Bad
x
x
E-21
Configuring Handheld Terminal Settings
Calibrating Touch Screen Alignment
:KHQHYHUWKHUHVSRQVHRIWKHWRXFKVFUHHQLVSRRURUWKHRSHUDWLRQVEHLQJH[HFXWHGGR
QRWPDWFKZLWKWKHORFDWLRQ\RXDUHWDSSLQJRQWKHWRXFKVFUHHQSOHDVHUHFDOLEUDWHWKH
alignment of the touch screen using the following method.
3UHVVWKH³)Q´NH\DQGWKHQSUHVVWKH³´NH\DIWHUFRQ¿UPLQJWKDW³)´LVGLVSOD\HG
LQWKHORZHUULJKWFRUQHURIWKHVFUHHQ7KHIROORZLQJVFUHHQLVGLVSOD\HG
 7KHVFUHHQFDQDOVREHGLVSOD\HGE\QDYLJDWLQJWR6WDUW Settings 6W\OXV
Calibration.
3UHVVWKHVW\OXVDJDLQVWWKHFHQWHURIWKHWDUJHWPDUNPDUNDVLQGLFDWHGRQWKH
VFUHHQ7KHVFUHHQVKRZQEHORZDSSHDUVDIWHU\RXSUHVVWKHVW\OXVDJDLQVWWKHWDUJHW
DW¿YHGLIIHUHQWORFDWLRQV
3UHVVWKH(QWHUNH\RUWDSDQ\ZKHUHRQWKHWRXFKVFUHHQ
x
x
x
E-22
Adjusting the Laser Light Emission Width
The emission width of the laser light emitted by the Handheld Terminal can be adjusted.
Adjust the emission width when it has been changed.
1. Tap the menus in order of Start Settings Control
Panel. The Control Panel appears as shown in the screen.
2. Double-tap the [Scanner Setting] icon. The Setting screen
appears as shown in the screen.
3. Tap the [Others] tab in the Scanner Setting screen.
E-23
7DSWKH>&DOLEUDWLRQ@EXWWRQ7KHGLVSOD\DSSHDUVDV
shown at right.
3UHVVWKH7ULJJHU.H\WRHPLWODVHUOLJKWDQGDOLJQWKH
light with the barcode for adjusting emission width.
Align the laser light with the narrow bars on both sides.
The message appears as shown at right when adjustment
is completed.
5HSHDWWKHVHWWLQJLI³6HWWLQJIDLOHG´PHVVDJHDSSHDUV
Emission Width Adjustment Bar code
x
x
x
E-24
Resetting the Handheld Terminal
Resetting the Handheld Terminal is the same as resetting a PC. Performing a reset
causes all unsaved inputs and edits to be lost, but data that is already stored in the
memory as well as all settings should be unaffected.
Use reset to restore normal operation whenever the Handheld Terminal operates
abnormally due to misoperation or some other reason.
Use a stylus to press the reset switch on the back of the DT-X30.
This starts the reset operation.
Do not use a toothpick or pencil or other sharp
object whose tip may break off the reset switch.
If reset does not fi nd a memory problem
The Handheld Terminal restarts, and normal operation is restored.
If reset fi nds a memory problem
A message like the one shown below appears on the display when the reset operation
discovers a memory problem.
R Trigge
r
Key
When this message appears, press the Trigger key to continue with the reset operation.
*
E-25
Warning Label
Laser Beam
This label is a warning and caution label for Class 2 laser products that comply
with IEC60825-1:1993+A1:1997+A2:2001.
Although Class 2 laser light is only emitted momentarily, never look directly into
the beam light.
The laser light emitted by this laser scanner has a maximum output of less than
1 mW and a wavelength of 650 nm.
Use of controls or adjustments or performance of procedures other than those
specifi ed herein may result in hazardous radiation exposure.
Warning!
Never look directly into the laser light.
This product with the integrated laser scanning module scans bar codes
using laser light. Never look directly into the laser light or shine the laser
light into the eyes.
x
x
x
x
x
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome
Shibuya-ku, Tokyo 151-8543, Japan
Printed on recycled paper.
PN430053-001
MO0806-000501-A Printed in Japan

Navigation menu
