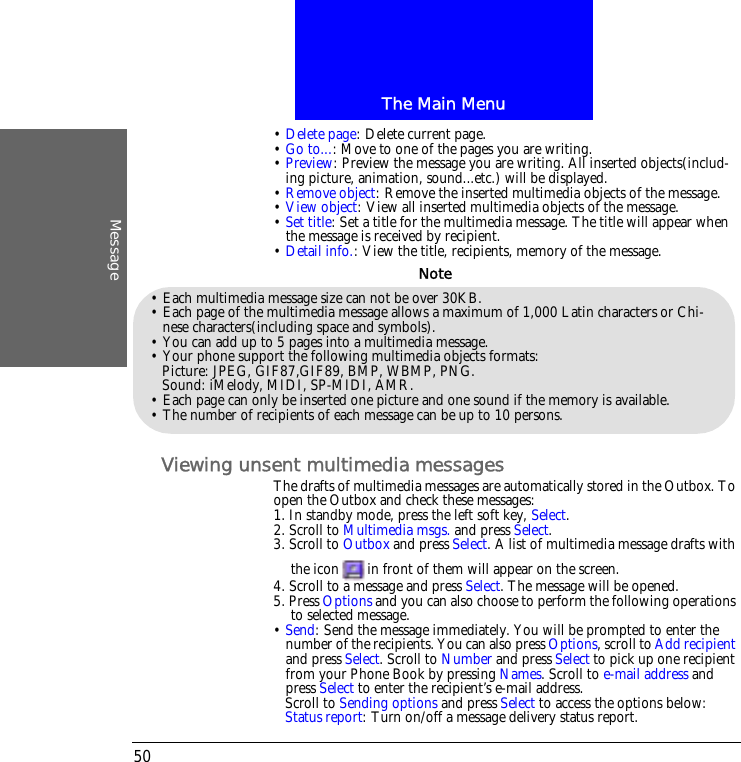

The Main MenuMessage50• Delete page: Delete current page.• Go to...: Move to one of the pages you are writing.• Preview: Preview the message you are writing. All inserted objects(includ-ing picture, animation, sound...etc.) will be displayed.• Remove object: Remove the inserted multimedia objects of the message.• View object: View all inserted multimedia objects of the message.• Set title: Set a title for the multimedia message. The title will appear when the message is received by recipient.• Detail info.: View the title, recipients, memory of the message.Viewing unsent multimedia messagesThe drafts of multimedia messages are automatically stored in the Outbox. To open the Outbox and check these messages:1. In standby mode, press the left soft key, Select.2. Scroll to Multimedia msgs. and press Select.3. Scroll to Outbox and press Select. A list of multimedia message drafts with the icon in front of them will appear on the screen.4. Scroll to a message and press Select. The message will be opened.5. Press Options and you can also choose to perform the following operations to selected message.• Send: Send the message immediately. You will be prompted to enter the number of the recipients. You can also press Options, scroll to Add recipient and press Select. Scroll to Number and press Select to pick up one recipient from your Phone Book by pressing Names. Scroll to e-mail address and press Select to enter the recipient’s e-mail address.Scroll to Sending options and press Select to access the options below:Status report: Turn on/off a message delivery status report.• Each multimedia message size can not be over 30KB.• Each page of the multimedia message allows a maximum of 1,000 Latin characters or Chi-nese characters(including space and symbols).• You can add up to 5 pages into a multimedia message.• Your phone support the following multimedia objects formats:Picture: JPEG, GIF87,GIF89, BMP, WBMP, PNG.Sound: iMelody, MIDI, SP-MIDI, AMR.• Each page can only be inserted one picture and one sound if the memory is available.• The number of recipients of each message can be up to 10 persons.Note

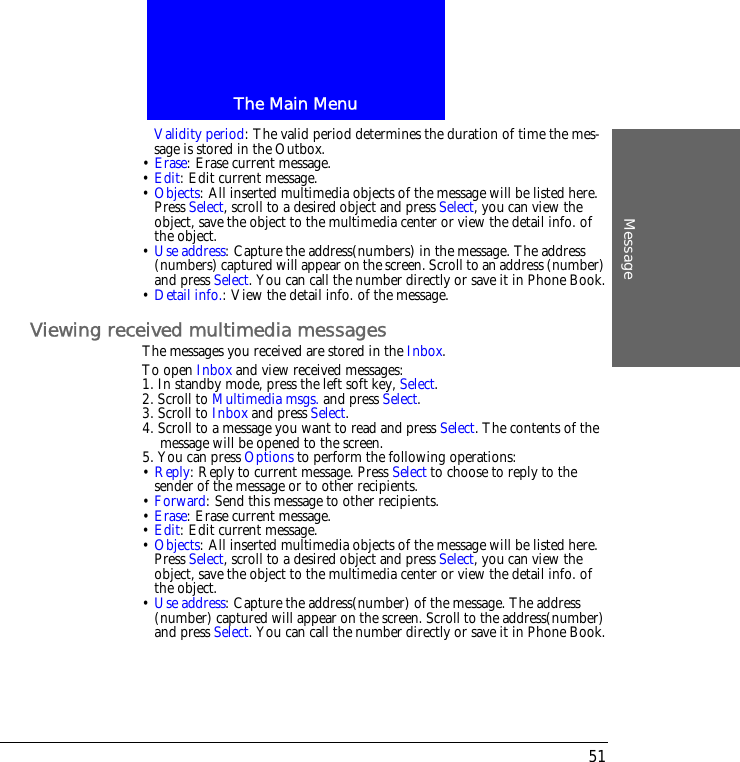

The Main MenuMessage51Validity period: The valid period determines the duration of time the mes-sage is stored in the Outbox.• Erase: Erase current message.• Edit: Edit current message.• Objects: All inserted multimedia objects of the message will be listed here. Press Select, scroll to a desired object and press Select, you can view the object, save the object to the multimedia center or view the detail info. of the object.• Use address: Capture the address(numbers) in the message. The address (numbers) captured will appear on the screen. Scroll to an address (number) and press Select. You can call the number directly or save it in Phone Book.• Detail info.: View the detail info. of the message.Viewing received multimedia messagesThe messages you received are stored in the Inbox.To open Inbox and view received messages:1. In standby mode, press the left soft key, Select.2. Scroll to Multimedia msgs. and press Select. 3. Scroll to Inbox and press Select. 4. Scroll to a message you want to read and press Select. The contents of the message will be opened to the screen. 5. You can press Options to perform the following operations:• Reply: Reply to current message. Press Select to choose to reply to the sender of the message or to other recipients.• Forward: Send this message to other recipients.• Erase: Erase current message.• Edit: Edit current message.• Objects: All inserted multimedia objects of the message will be listed here. Press Select, scroll to a desired object and press Select, you can view the object, save the object to the multimedia center or view the detail info. of the object.• Use address: Capture the address(number) of the message. The address (number) captured will appear on the screen. Scroll to the address(number) and press Select. You can call the number directly or save it in Phone Book.

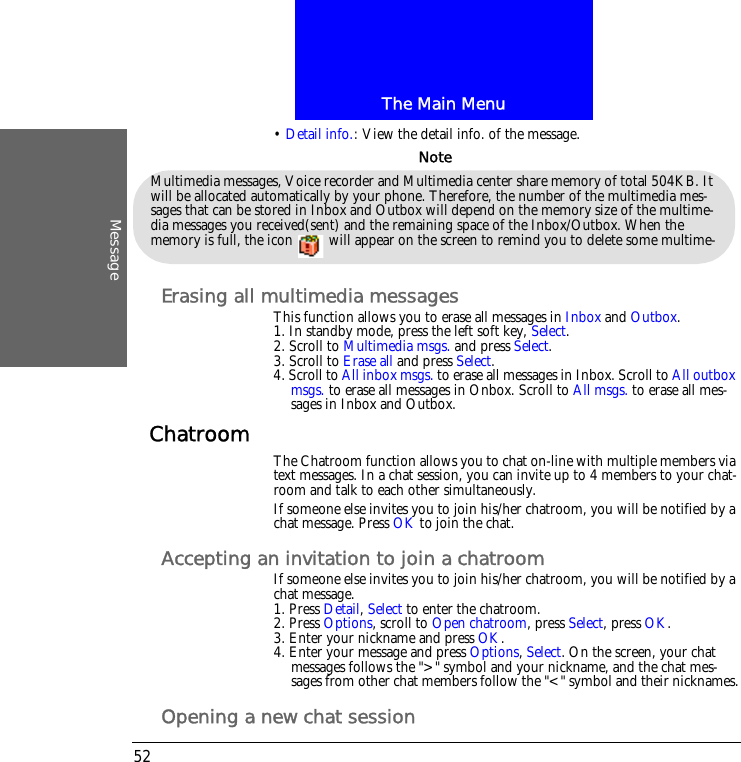

The Main MenuMessage52• Detail info.: View the detail info. of the message.Erasing all multimedia messagesThis function allows you to erase all messages in Inbox and Outbox.1. In standby mode, press the left soft key, Select.2. Scroll to Multimedia msgs. and press Select.3. Scroll to Erase all and press Select.4. Scroll to All inbox msgs. to erase all messages in Inbox. Scroll to All outbox msgs. to erase all messages in Onbox. Scroll to All msgs. to erase all mes-sages in Inbox and Outbox.Chatroom The Chatroom function allows you to chat on-line with multiple members via text messages. In a chat session, you can invite up to 4 members to your chat-room and talk to each other simultaneously.If someone else invites you to join his/her chatroom, you will be notified by a chat message. Press OK to join the chat.Accepting an invitation to join a chatroomIf someone else invites you to join his/her chatroom, you will be notified by a chat message.1. Press Detail, Select to enter the chatroom.2. Press Options, scroll to Open chatroom, press Select, press OK.3. Enter your nickname and press OK.4. Enter your message and press Options, Select. On the screen, your chat messages follows the ">" symbol and your nickname, and the chat mes-sages from other chat members follow the "<" symbol and their nicknames.Opening a new chat sessionMultimedia messages, Voice recorder and Multimedia center share memory of total 504KB. It will be allocated automatically by your phone. Therefore, the number of the multimedia mes-sages that can be stored in Inbox and Outbox will depend on the memory size of the multime-dia messages you received(sent) and the remaining space of the Inbox/Outbox. When the memory is full, the icon will appear on the screen to remind you to delete some multime-Note

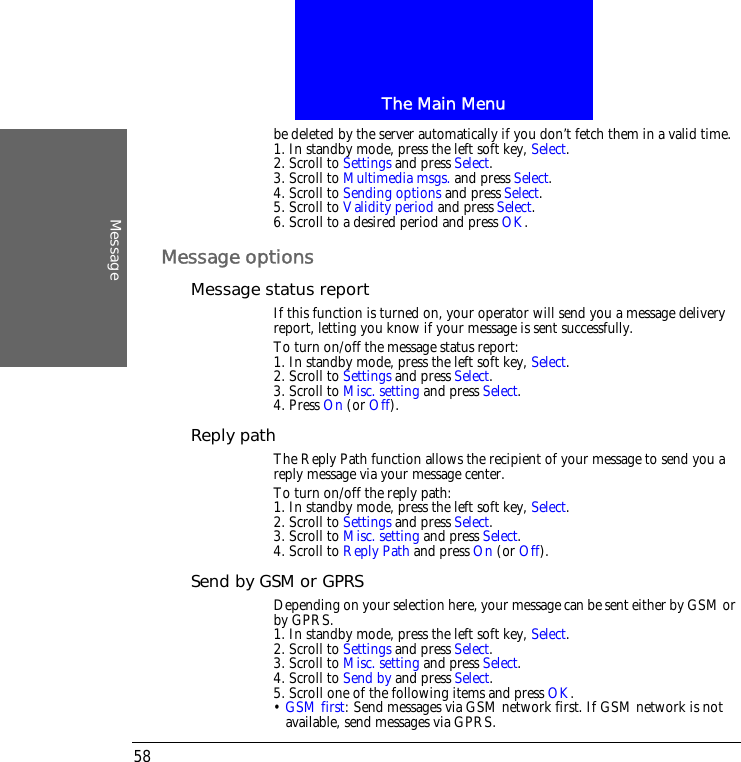

The Main MenuMessage58be deleted by the server automatically if you don’t fetch them in a valid time.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Multimedia msgs. and press Select.4. Scroll to Sending options and press Select.5. Scroll to Validity period and press Select.6. Scroll to a desired period and press OK.Message optionsMessage status reportIf this function is turned on, your operator will send you a message delivery report, letting you know if your message is sent successfully.To turn on/off the message status report:1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Misc. setting and press Select.4. Press On (or Off).Reply pathThe Reply Path function allows the recipient of your message to send you a reply message via your message center.To turn on/off the reply path:1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Misc. setting and press Select.4. Scroll to Reply Path and press On (or Off).Send by GSM or GPRSDepending on your selection here, your message can be sent either by GSM or by GPRS.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Misc. setting and press Select.4. Scroll to Send by and press Select.5. Scroll one of the following items and press OK.• GSM first: Send messages via GSM network first. If GSM network is not available, send messages via GPRS.

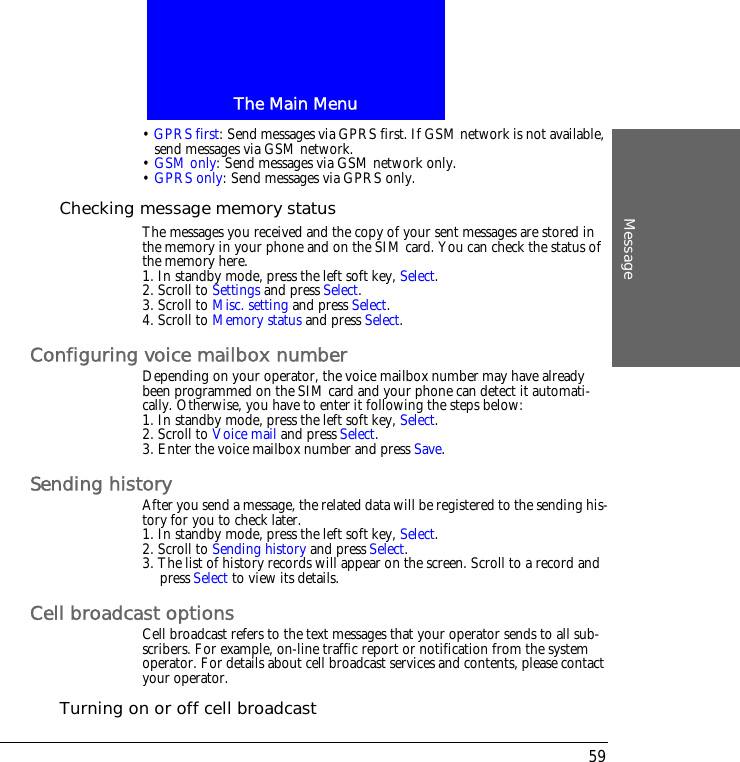

The Main MenuMessage59• GPRS first: Send messages via GPRS first. If GSM network is not available, send messages via GSM network.• GSM only: Send messages via GSM network only.• GPRS only: Send messages via GPRS only.Checking message memory statusThe messages you received and the copy of your sent messages are stored in the memory in your phone and on the SIM card. You can check the status of the memory here.1. In standby mode, press the left soft key, Select.2. Scroll to Settings and press Select.3. Scroll to Misc. setting and press Select.4. Scroll to Memory status and press Select.Configuring voice mailbox numberDepending on your operator, the voice mailbox number may have already been programmed on the SIM card and your phone can detect it automati-cally. Otherwise, you have to enter it following the steps below:1. In standby mode, press the left soft key, Select.2. Scroll to Voice mail and press Select.3. Enter the voice mailbox number and press Save.Sending historyAfter you send a message, the related data will be registered to the sending his-tory for you to check later.1. In standby mode, press the left soft key, Select.2. Scroll to Sending history and press Select.3. The list of history records will appear on the screen. Scroll to a record and press Select to view its details.Cell broadcast optionsCell broadcast refers to the text messages that your operator sends to all sub-scribers. For example, on-line traffic report or notification from the system operator. For details about cell broadcast services and contents, please contact your operator. Turning on or off cell broadcast

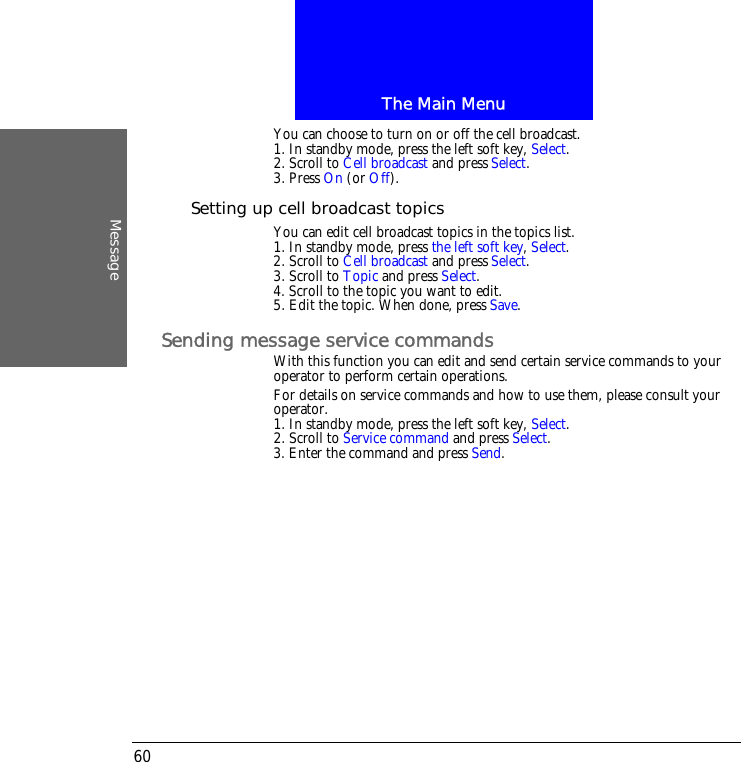

The Main MenuMessage60You can choose to turn on or off the cell broadcast.1. In standby mode, press the left soft key, Select.2. Scroll to Cell broadcast and press Select.3. Press On (or Off).Setting up cell broadcast topicsYou can edit cell broadcast topics in the topics list.1. In standby mode, press the left soft key, Select.2. Scroll to Cell broadcast and press Select.3. Scroll to Topic and press Select.4. Scroll to the topic you want to edit.5. Edit the topic. When done, press Save.Sending message service commandsWith this function you can edit and send certain service commands to your operator to perform certain operations.For details on service commands and how to use them, please consult your operator.1. In standby mode, press the left soft key, Select.2. Scroll to Service command and press Select.3. Enter the command and press Send.

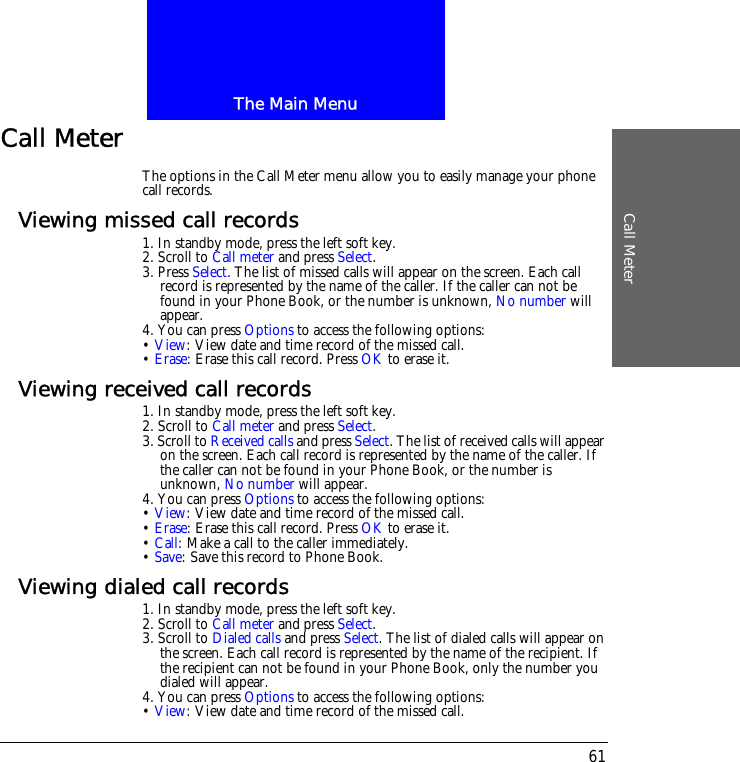

The Main MenuCall Meter61Call MeterThe options in the Call Meter menu allow you to easily manage your phone call records.Viewing missed call records1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Press Select. The list of missed calls will appear on the screen. Each call record is represented by the name of the caller. If the caller can not be found in your Phone Book, or the number is unknown, No number will appear.4. You can press Options to access the following options:• View: View date and time record of the missed call.• Erase: Erase this call record. Press OK to erase it.Viewing received call records1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Received calls and press Select. The list of received calls will appear on the screen. Each call record is represented by the name of the caller. If the caller can not be found in your Phone Book, or the number is unknown, No number will appear.4. You can press Options to access the following options:• View: View date and time record of the missed call.• Erase: Erase this call record. Press OK to erase it.• Call: Make a call to the caller immediately.• Save: Save this record to Phone Book.Viewing dialed call records1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Dialed calls and press Select. The list of dialed calls will appear on the screen. Each call record is represented by the name of the recipient. If the recipient can not be found in your Phone Book, only the number you dialed will appear.4. You can press Options to access the following options:• View: View date and time record of the missed call.

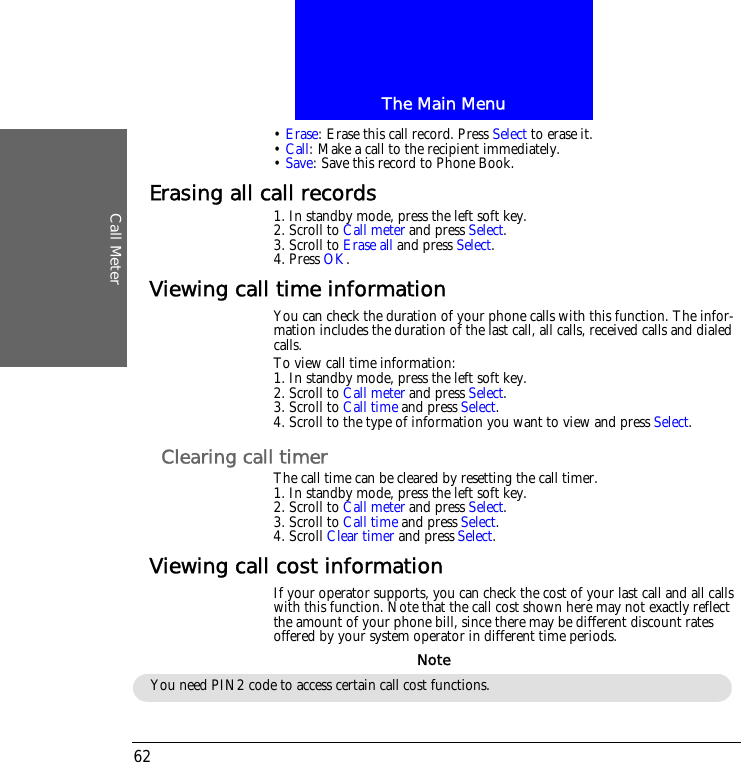

The Main MenuCall Meter62• Erase: Erase this call record. Press Select to erase it.• Call: Make a call to the recipient immediately.• Save: Save this record to Phone Book.Erasing all call records1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Erase all and press Select.4. Press OK.Viewing call time informationYou can check the duration of your phone calls with this function. The infor-mation includes the duration of the last call, all calls, received calls and dialed calls.To view call time information:1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Call time and press Select.4. Scroll to the type of information you want to view and press Select.Clearing call timerThe call time can be cleared by resetting the call timer.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Call time and press Select.4. Scroll Clear timer and press Select.Viewing call cost informationIf your operator supports, you can check the cost of your last call and all calls with this function. Note that the call cost shown here may not exactly reflect the amount of your phone bill, since there may be different discount rates offered by your system operator in different time periods.You need PIN2 code to access certain call cost functions.Note

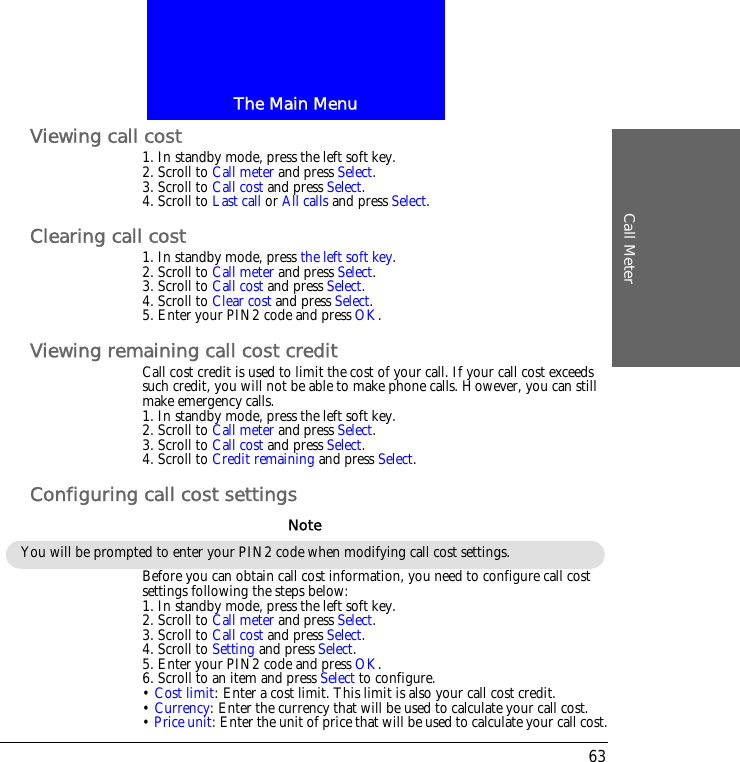

The Main MenuCall Meter63Viewing call cost1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Call cost and press Select.4. Scroll to Last call or All calls and press Select.Clearing call cost1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Call cost and press Select.4. Scroll to Clear cost and press Select.5. Enter your PIN2 code and press OK.Viewing remaining call cost creditCall cost credit is used to limit the cost of your call. If your call cost exceeds such credit, you will not be able to make phone calls. However, you can still make emergency calls.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Call cost and press Select.4. Scroll to Credit remaining and press Select.Configuring call cost settingsBefore you can obtain call cost information, you need to configure call cost settings following the steps below:1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Call cost and press Select.4. Scroll to Setting and press Select.5. Enter your PIN2 code and press OK. 6. Scroll to an item and press Select to configure.• Cost limit: Enter a cost limit. This limit is also your call cost credit.• Currency: Enter the currency that will be used to calculate your call cost.• Price unit: Enter the unit of price that will be used to calculate your call cost.You will be prompted to enter your PIN2 code when modifying call cost settings.Note

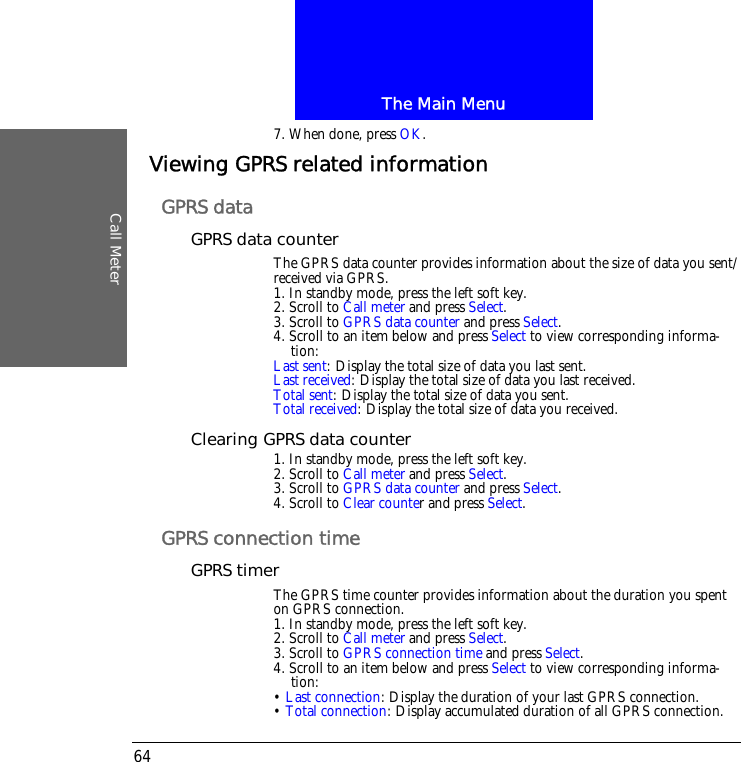

The Main MenuCall Meter647. When done, press OK.Viewing GPRS related informationGPRS dataGPRS data counterThe GPRS data counter provides information about the size of data you sent/received via GPRS.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to GPRS data counter and press Select.4. Scroll to an item below and press Select to view corresponding informa-tion:Last sent: Display the total size of data you last sent.Last received: Display the total size of data you last received.Total sent: Display the total size of data you sent.Total received: Display the total size of data you received.Clearing GPRS data counter1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to GPRS data counter and press Select.4. Scroll to Clear counter and press Select.GPRS connection timeGPRS timerThe GPRS time counter provides information about the duration you spent on GPRS connection.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to GPRS connection time and press Select.4. Scroll to an item below and press Select to view corresponding informa-tion:• Last connection: Display the duration of your last GPRS connection.• Total connection: Display accumulated duration of all GPRS connection.

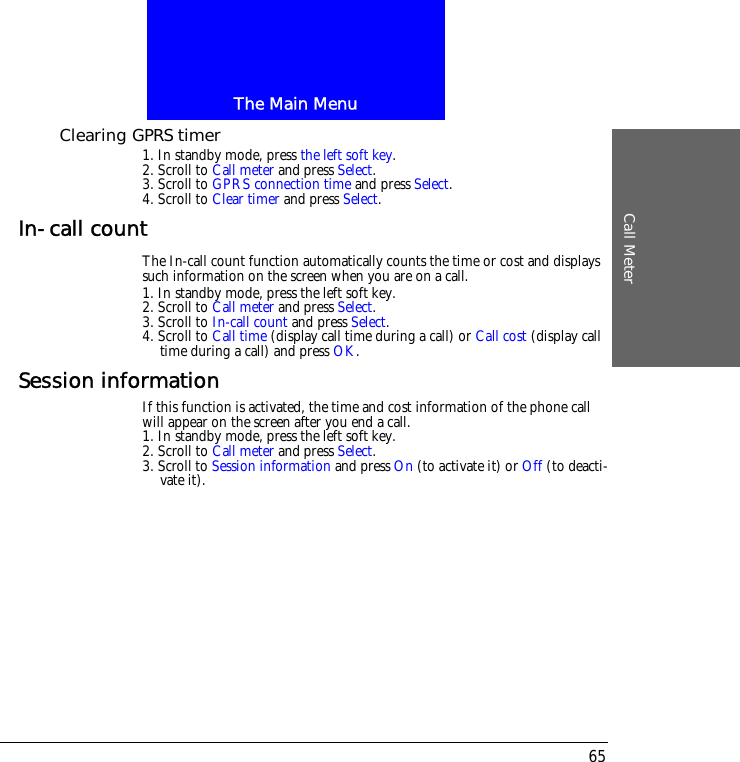

The Main MenuCall Meter65Clearing GPRS timer1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to GPRS connection time and press Select.4. Scroll to Clear timer and press Select.In-call countThe In-call count function automatically counts the time or cost and displays such information on the screen when you are on a call.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to In-call count and press Select.4. Scroll to Call time (display call time during a call) or Call cost (display call time during a call) and press OK.Session informationIf this function is activated, the time and cost information of the phone call will appear on the screen after you end a call.1. In standby mode, press the left soft key.2. Scroll to Call meter and press Select.3. Scroll to Session information and press On (to activate it) or Off (to deacti-vate it).

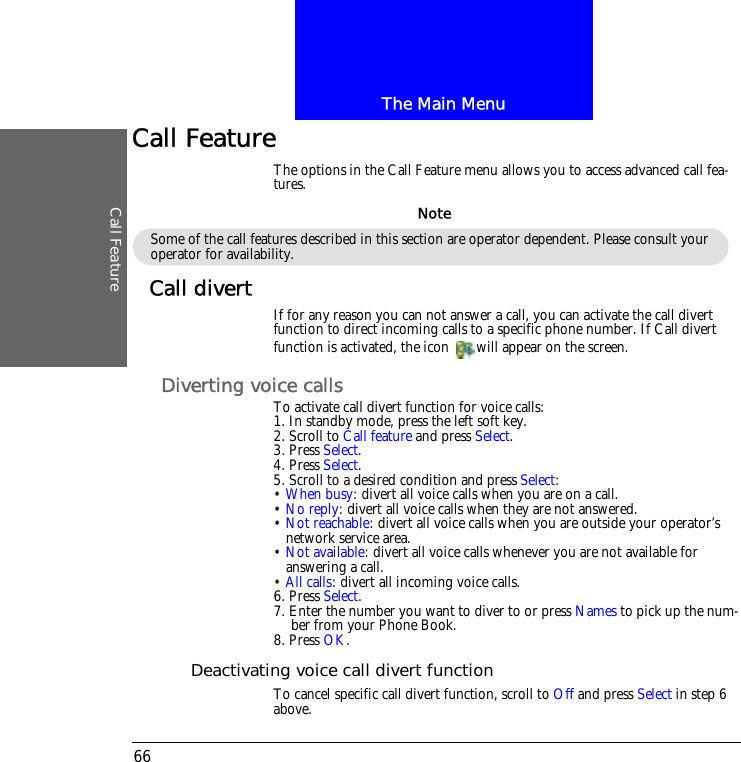

The Main MenuCall Feature66Call FeatureThe options in the Call Feature menu allows you to access advanced call fea-tures.Call divert If for any reason you can not answer a call, you can activate the call divert function to direct incoming calls to a specific phone number. If Call divert function is activated, the icon will appear on the screen.Diverting voice callsTo activate call divert function for voice calls:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Press Select.4. Press Select.5. Scroll to a desired condition and press Select:• When busy: divert all voice calls when you are on a call.• No reply: divert all voice calls when they are not answered.• Not reachable: divert all voice calls when you are outside your operator’s network service area.• Not available: divert all voice calls whenever you are not available for answering a call.• All calls: divert all incoming voice calls.6. Press Select.7. Enter the number you want to diver to or press Names to pick up the num-ber from your Phone Book.8. Press OK.Deactivating voice call divert functionTo cancel specific call divert function, scroll to Off and press Select in step 6 above.Some of the call features described in this section are operator dependent. Please consult your operator for availability.Note

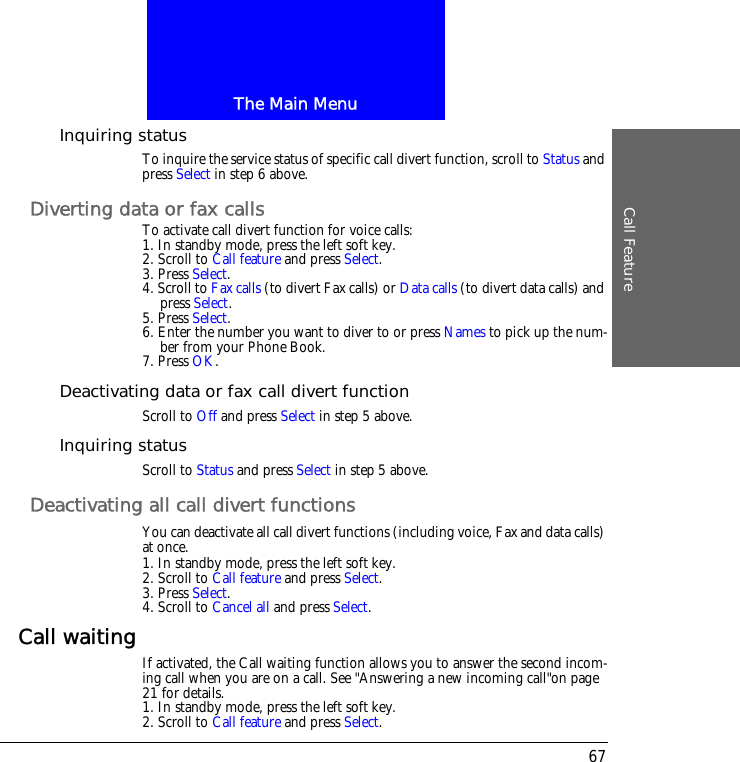

The Main MenuCall Feature67Inquiring statusTo inquire the service status of specific call divert function, scroll to Status and press Select in step 6 above.Diverting data or fax callsTo activate call divert function for voice calls:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Press Select.4. Scroll to Fax calls (to divert Fax calls) or Data calls (to divert data calls) and press Select.5. Press Select.6. Enter the number you want to diver to or press Names to pick up the num-ber from your Phone Book.7. Press OK.Deactivating data or fax call divert functionScroll to Off and press Select in step 5 above.Inquiring statusScroll to Status and press Select in step 5 above.Deactivating all call divert functionsYou can deactivate all call divert functions (including voice, Fax and data calls) at once.1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Press Select.4. Scroll to Cancel all and press Select.Call waiting If activated, the Call waiting function allows you to answer the second incom-ing call when you are on a call. See "Answering a new incoming call"on page 21 for details.1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.

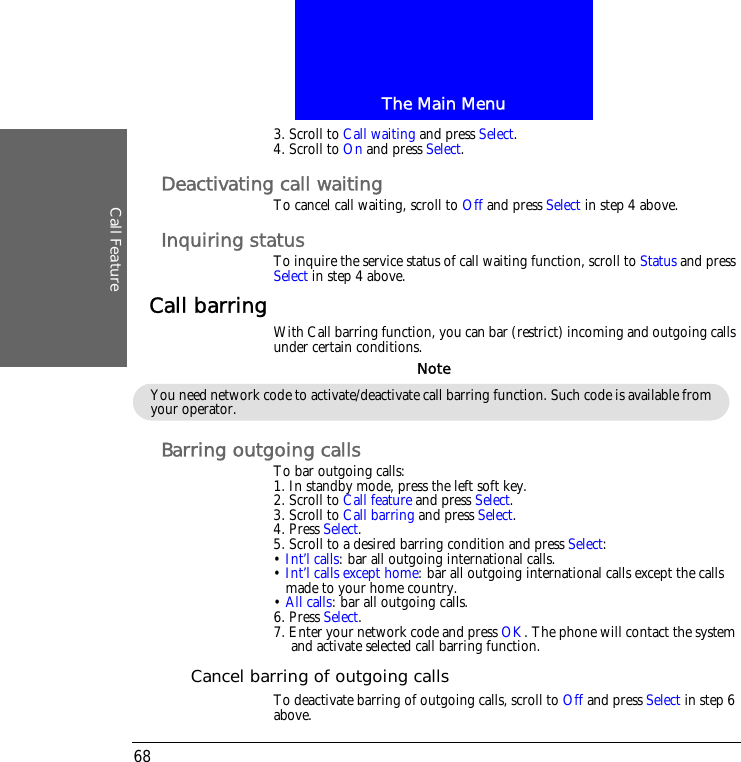

The Main MenuCall Feature683. Scroll to Call waiting and press Select.4. Scroll to On and press Select.Deactivating call waitingTo cancel call waiting, scroll to Off and press Select in step 4 above.Inquiring statusTo inquire the service status of call waiting function, scroll to Status and press Select in step 4 above.Call barring With Call barring function, you can bar (restrict) incoming and outgoing calls under certain conditions.Barring outgoing callsTo bar outgoing calls:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Call barring and press Select.4. Press Select.5. Scroll to a desired barring condition and press Select:• Int’l calls: bar all outgoing international calls.• Int’l calls except home: bar all outgoing international calls except the calls made to your home country.• All calls: bar all outgoing calls.6. Press Select.7. Enter your network code and press OK. The phone will contact the system and activate selected call barring function.Cancel barring of outgoing callsTo deactivate barring of outgoing calls, scroll to Off and press Select in step 6 above.You need network code to activate/deactivate call barring function. Such code is available from your operator.Note

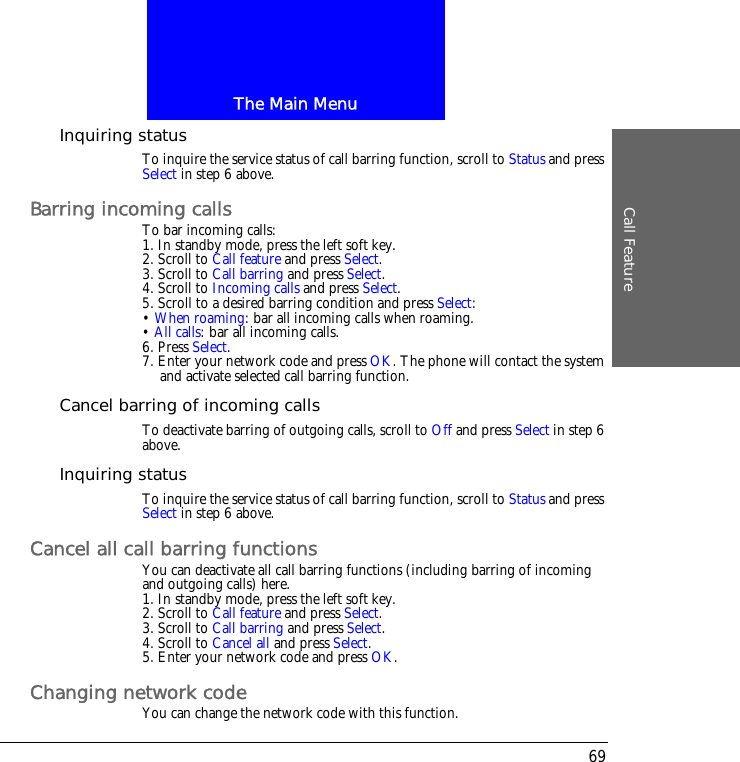

The Main MenuCall Feature69Inquiring statusTo inquire the service status of call barring function, scroll to Status and press Select in step 6 above.Barring incoming callsTo bar incoming calls:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Call barring and press Select.4. Scroll to Incoming calls and press Select.5. Scroll to a desired barring condition and press Select:• When roaming: bar all incoming calls when roaming.• All calls: bar all incoming calls.6. Press Select.7. Enter your network code and press OK. The phone will contact the system and activate selected call barring function.Cancel barring of incoming callsTo deactivate barring of outgoing calls, scroll to Off and press Select in step 6 above.Inquiring statusTo inquire the service status of call barring function, scroll to Status and press Select in step 6 above.Cancel all call barring functionsYou can deactivate all call barring functions (including barring of incoming and outgoing calls) here.1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Call barring and press Select.4. Scroll to Cancel all and press Select.5. Enter your network code and press OK.Changing network codeYou can change the network code with this function.

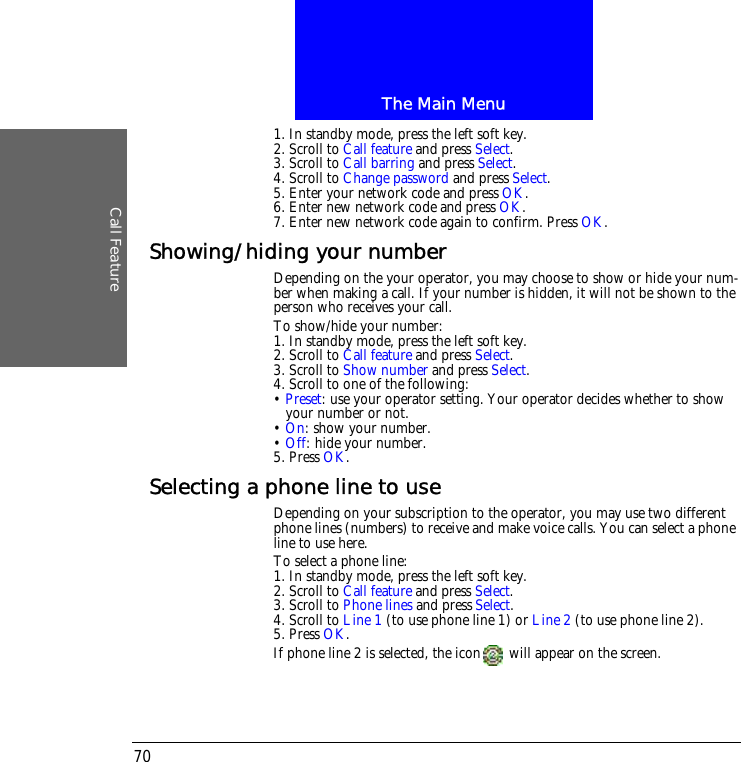

The Main MenuCall Feature701. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Call barring and press Select.4. Scroll to Change password and press Select.5. Enter your network code and press OK.6. Enter new network code and press OK.7. Enter new network code again to confirm. Press OK.Showing/hiding your numberDepending on the your operator, you may choose to show or hide your num-ber when making a call. If your number is hidden, it will not be shown to the person who receives your call.To show/hide your number:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Show number and press Select.4. Scroll to one of the following:• Preset: use your operator setting. Your operator decides whether to show your number or not.• On: show your number.• Off: hide your number.5. Press OK.Selecting a phone line to useDepending on your subscription to the operator, you may use two different phone lines (numbers) to receive and make voice calls. You can select a phone line to use here. To select a phone line:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Phone lines and press Select.4. Scroll to Line 1 (to use phone line 1) or Line 2 (to use phone line 2).5. Press OK.If phone line 2 is selected, the icon will appear on the screen.

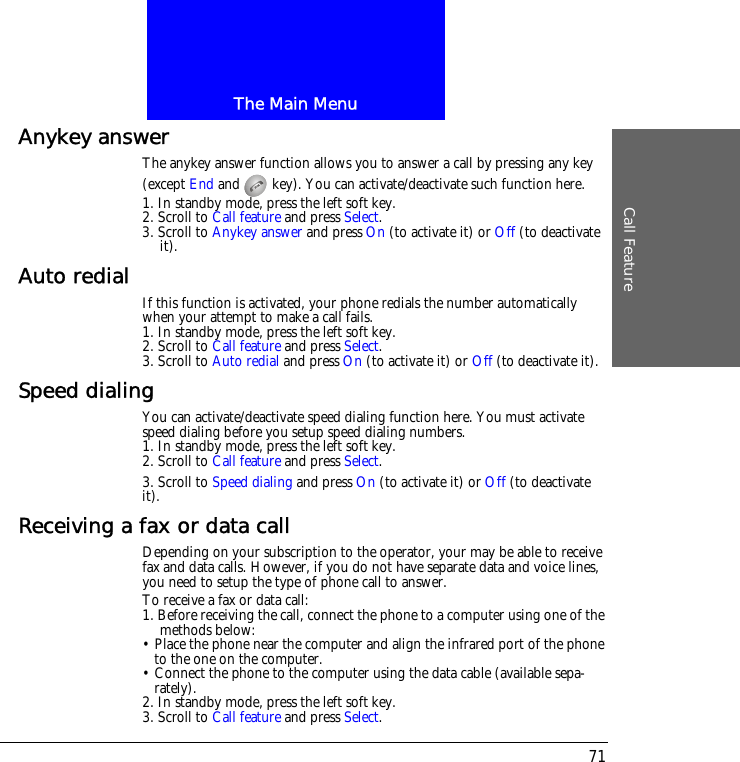

The Main MenuCall Feature71Anykey answerThe anykey answer function allows you to answer a call by pressing any key (except End and key). You can activate/deactivate such function here.1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Anykey answer and press On (to activate it) or Off (to deactivate it).Auto redial If this function is activated, your phone redials the number automatically when your attempt to make a call fails.1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Auto redial and press On (to activate it) or Off (to deactivate it).Speed dialingYou can activate/deactivate speed dialing function here. You must activate speed dialing before you setup speed dialing numbers.1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Speed dialing and press On (to activate it) or Off (to deactivate it).Receiving a fax or data callDepending on your subscription to the operator, your may be able to receive fax and data calls. However, if you do not have separate data and voice lines, you need to setup the type of phone call to answer.To receive a fax or data call:1. Before receiving the call, connect the phone to a computer using one of the methods below:• Place the phone near the computer and align the infrared port of the phone to the one on the computer.• Connect the phone to the computer using the data cable (available sepa-rately).2. In standby mode, press the left soft key.3. Scroll to Call feature and press Select.

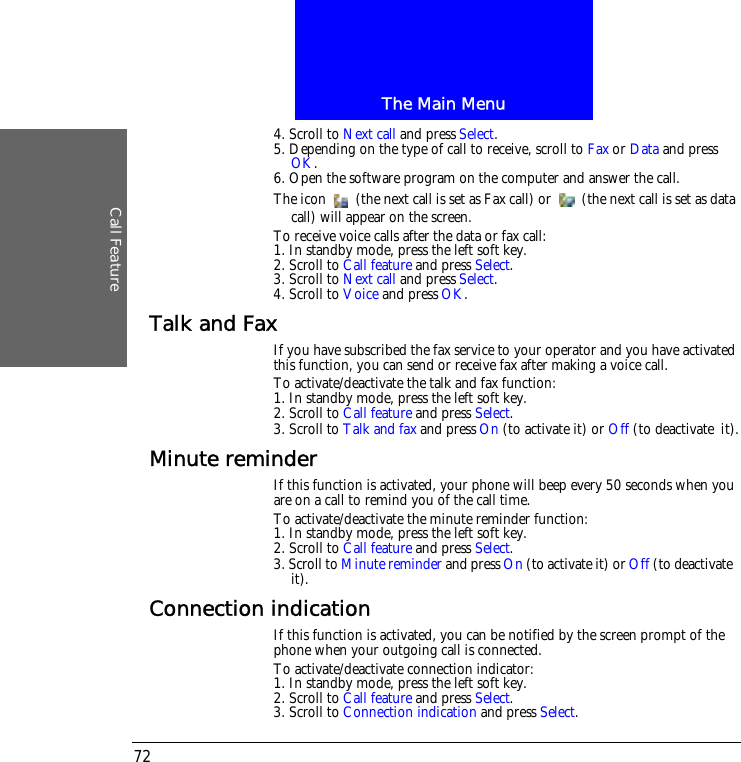

The Main MenuCall Feature724. Scroll to Next call and press Select.5. Depending on the type of call to receive, scroll to Fax or Data and press OK.6. Open the software program on the computer and answer the call.The icon (the next call is set as Fax call) or (the next call is set as data call) will appear on the screen.To receive voice calls after the data or fax call:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Next call and press Select.4. Scroll to Voice and press OK.Talk and FaxIf you have subscribed the fax service to your operator and you have activated this function, you can send or receive fax after making a voice call.To activate/deactivate the talk and fax function:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Talk and fax and press On (to activate it) or Off (to deactivate it).Minute reminderIf this function is activated, your phone will beep every 50 seconds when you are on a call to remind you of the call time.To activate/deactivate the minute reminder function:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Minute reminder and press On (to activate it) or Off (to deactivate it).Connection indicationIf this function is activated, you can be notified by the screen prompt of the phone when your outgoing call is connected.To activate/deactivate connection indicator:1. In standby mode, press the left soft key.2. Scroll to Call feature and press Select.3. Scroll to Connection indication and press Select.

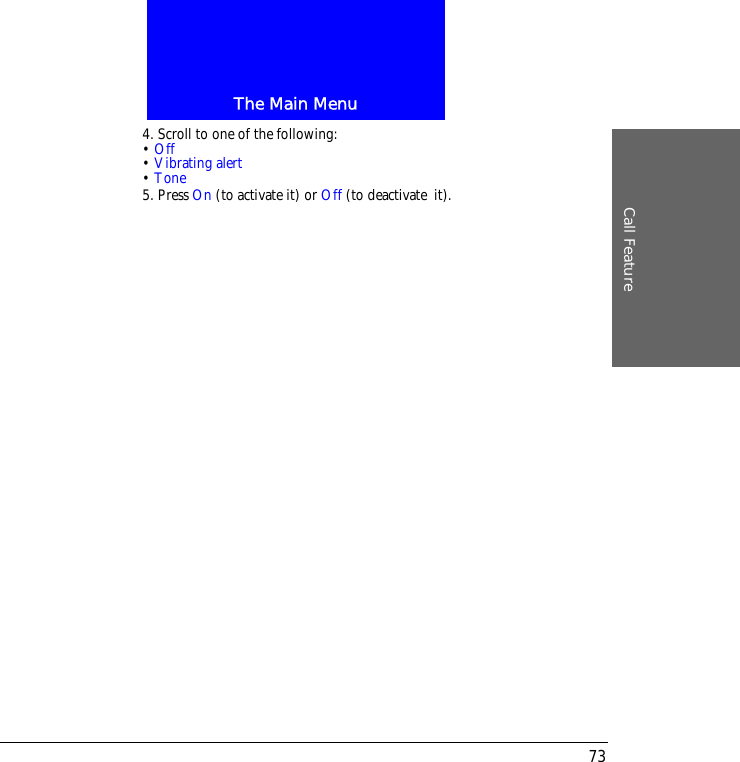

The Main MenuCall Feature734. Scroll to one of the following:• Off• Vibrating alert• Tone5. Press On (to activate it) or Off (to deactivate it).

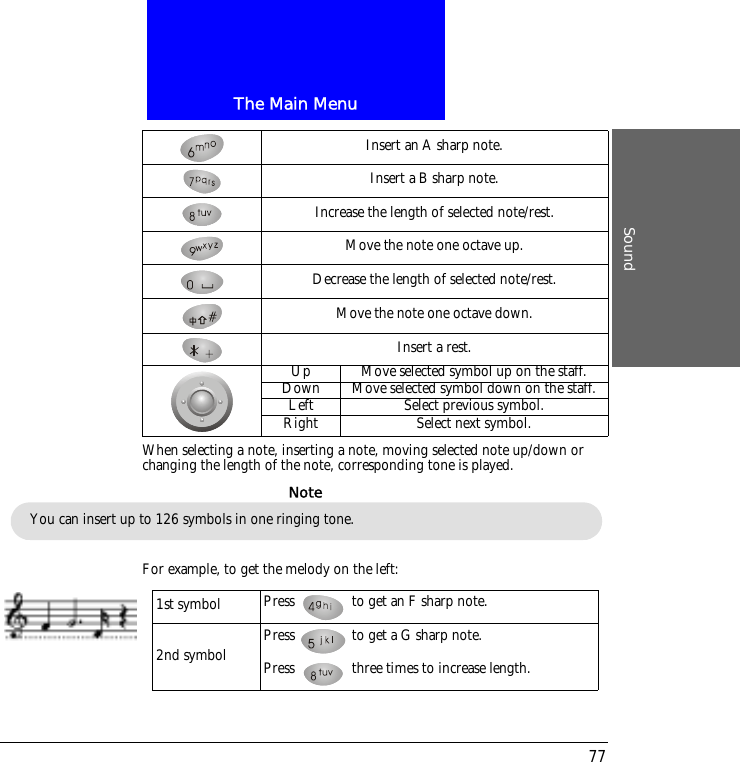

The Main MenuSound77When selecting a note, inserting a note, moving selected note up/down or changing the length of the note, corresponding tone is played.For example, to get the melody on the left:Insert an A sharp note.Insert a B sharp note.Increase the length of selected note/rest.Move the note one octave up.Decrease the length of selected note/rest.Move the note one octave down.Insert a rest.Up Move selected symbol up on the staff.Down Move selected symbol down on the staff.Left Select previous symbol.Right Select next symbol.You can insert up to 126 symbols in one ringing tone.Note1st symbol Press to get an F sharp note.2nd symbol Press to get a G sharp note.Press three times to increase length.

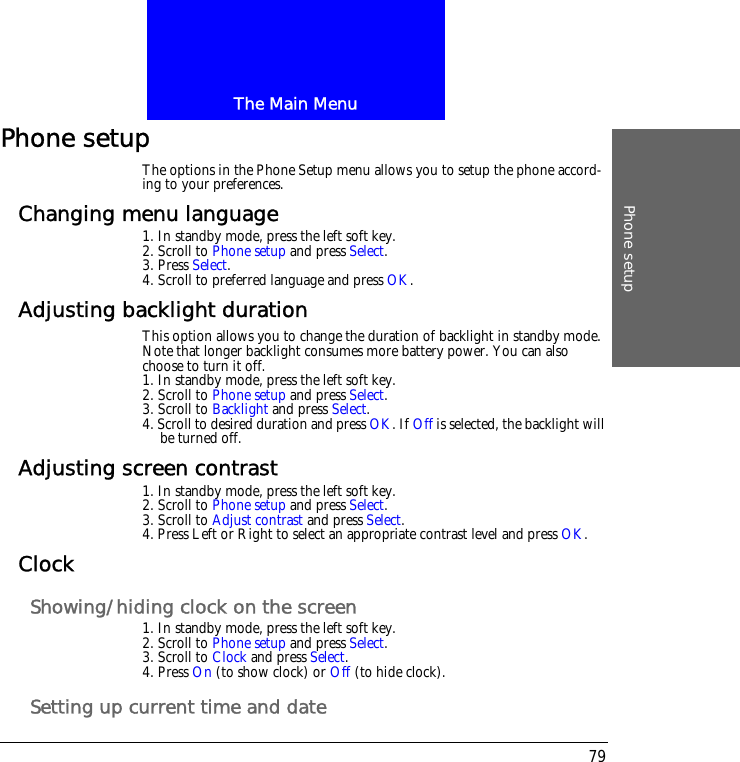

The Main MenuPhone setup79Phone setupThe options in the Phone Setup menu allows you to setup the phone accord-ing to your preferences.Changing menu language1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Press Select.4. Scroll to preferred language and press OK.Adjusting backlight durationThis option allows you to change the duration of backlight in standby mode. Note that longer backlight consumes more battery power. You can also choose to turn it off.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Backlight and press Select.4. Scroll to desired duration and press OK. If Off is selected, the backlight will be turned off.Adjusting screen contrast1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Adjust contrast and press Select.4. Press Left or Right to select an appropriate contrast level and press OK.ClockShowing/hiding clock on the screen1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Press On (to show clock) or Off (to hide clock).Setting up current time and date

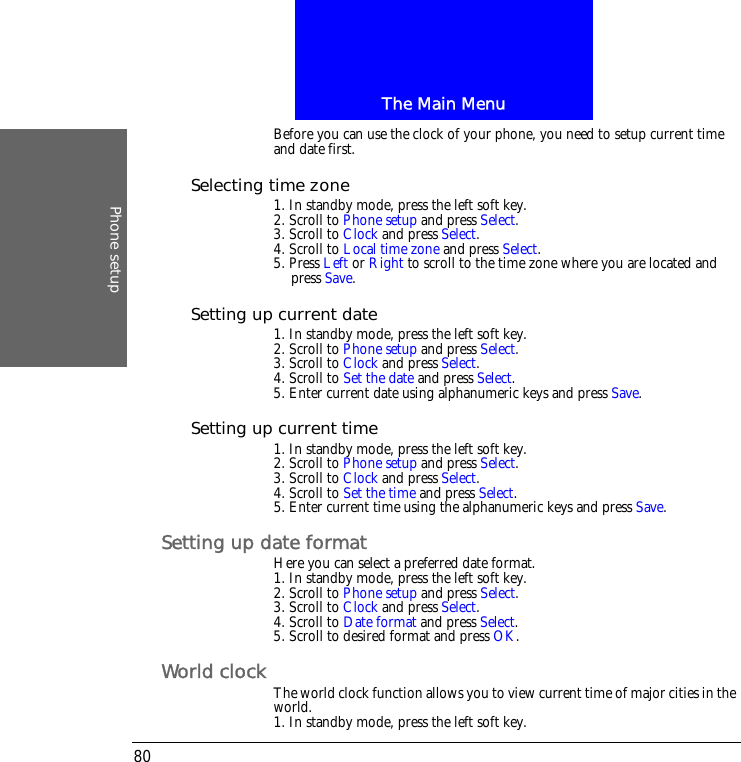

The Main MenuPhone setup80Before you can use the clock of your phone, you need to setup current time and date first.Selecting time zone1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to Local time zone and press Select.5. Press Left or Right to scroll to the time zone where you are located and press Save.Setting up current date1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to Set the date and press Select.5. Enter current date using alphanumeric keys and press Save.Setting up current time1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to Set the time and press Select.5. Enter current time using the alphanumeric keys and press Save.Setting up date formatHere you can select a preferred date format.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to Date format and press Select.5. Scroll to desired format and press OK.World clock The world clock function allows you to view current time of major cities in the world.1. In standby mode, press the left soft key.

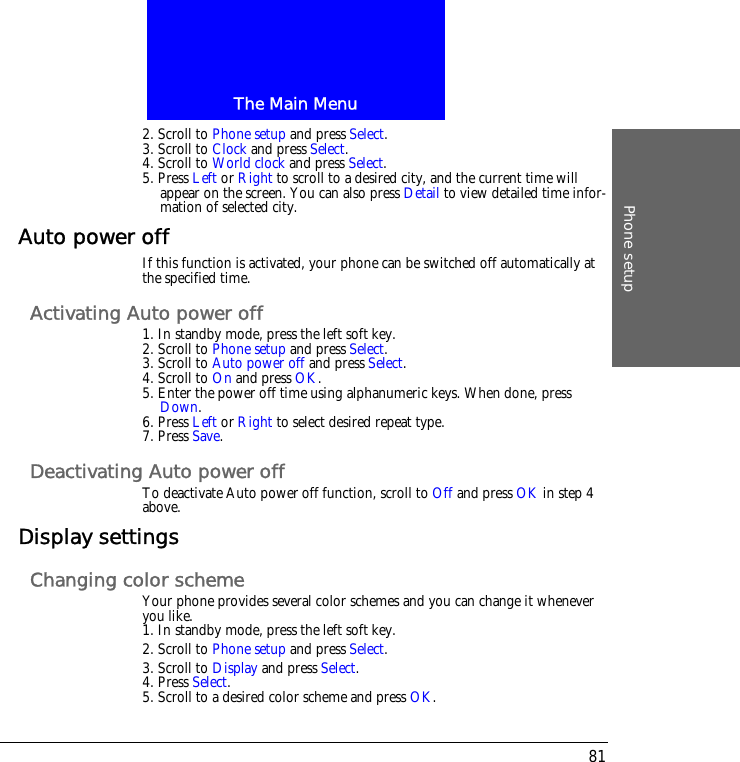

The Main MenuPhone setup812. Scroll to Phone setup and press Select.3. Scroll to Clock and press Select.4. Scroll to World clock and press Select.5. Press Left or Right to scroll to a desired city, and the current time will appear on the screen. You can also press Detail to view detailed time infor-mation of selected city.Auto power offIf this function is activated, your phone can be switched off automatically at the specified time.Activating Auto power off1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Auto power off and press Select.4. Scroll to On and press OK.5. Enter the power off time using alphanumeric keys. When done, press Down.6. Press Left or Right to select desired repeat type.7. Press Save.Deactivating Auto power offTo deactivate Auto power off function, scroll to Off and press OK in step 4 above.Display settingsChanging color schemeYour phone provides several color schemes and you can change it whenever you like.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Display and press Select.4. Press Select.5. Scroll to a desired color scheme and press OK.

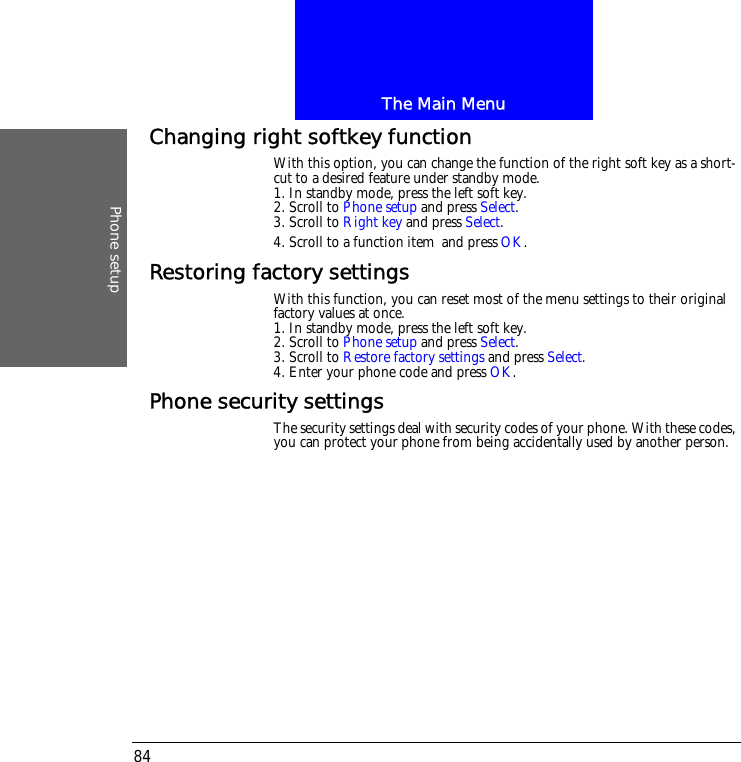

The Main MenuPhone setup84Changing right softkey functionWith this option, you can change the function of the right soft key as a short-cut to a desired feature under standby mode.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Right key and press Select.4. Scroll to a function item and press OK.Restoring factory settingsWith this function, you can reset most of the menu settings to their original factory values at once.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Restore factory settings and press Select.4. Enter your phone code and press OK.Phone security settingsThe security settings deal with security codes of your phone. With these codes, you can protect your phone from being accidentally used by another person.

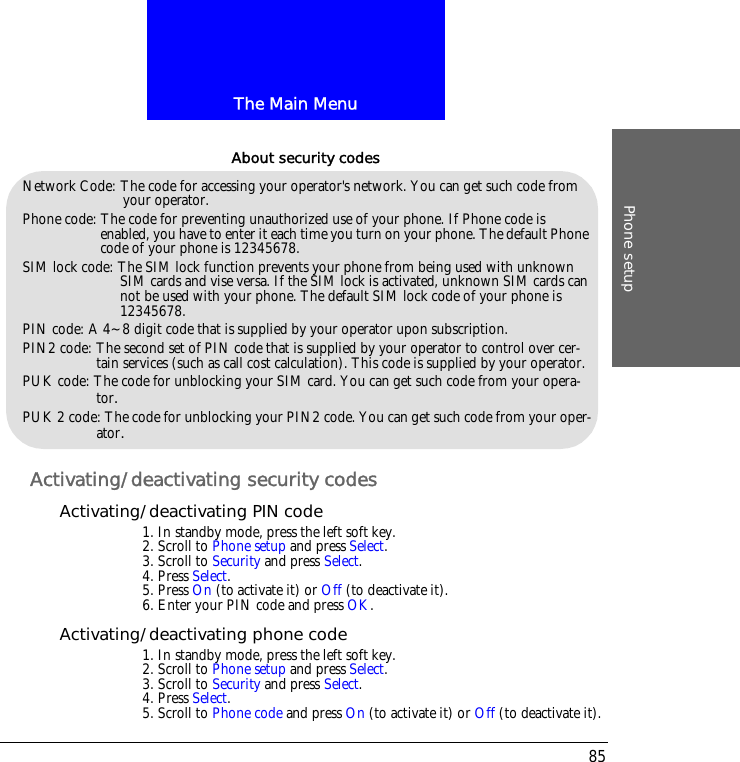

The Main MenuPhone setup85Activating/deactivating security codesActivating/deactivating PIN code1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Press Select.5. Press On (to activate it) or Off (to deactivate it).6. Enter your PIN code and press OK.Activating/deactivating phone code1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Press Select.5. Scroll to Phone code and press On (to activate it) or Off (to deactivate it).Network Code: The code for accessing your operator's network. You can get such code from your operator.Phone code: The code for preventing unauthorized use of your phone. If Phone code is enabled, you have to enter it each time you turn on your phone. The default Phone code of your phone is 12345678.SIM lock code: The SIM lock function prevents your phone from being used with unknown SIM cards and vise versa. If the SIM lock is activated, unknown SIM cards can not be used with your phone. The default SIM lock code of your phone is 12345678.PIN code: A 4~8 digit code that is supplied by your operator upon subscription.PIN2 code: The second set of PIN code that is supplied by your operator to control over cer-tain services (such as call cost calculation). This code is supplied by your operator.PUK code: The code for unblocking your SIM card. You can get such code from your opera-tor.PUK 2 code: The code for unblocking your PIN2 code. You can get such code from your oper-ator.About security codes

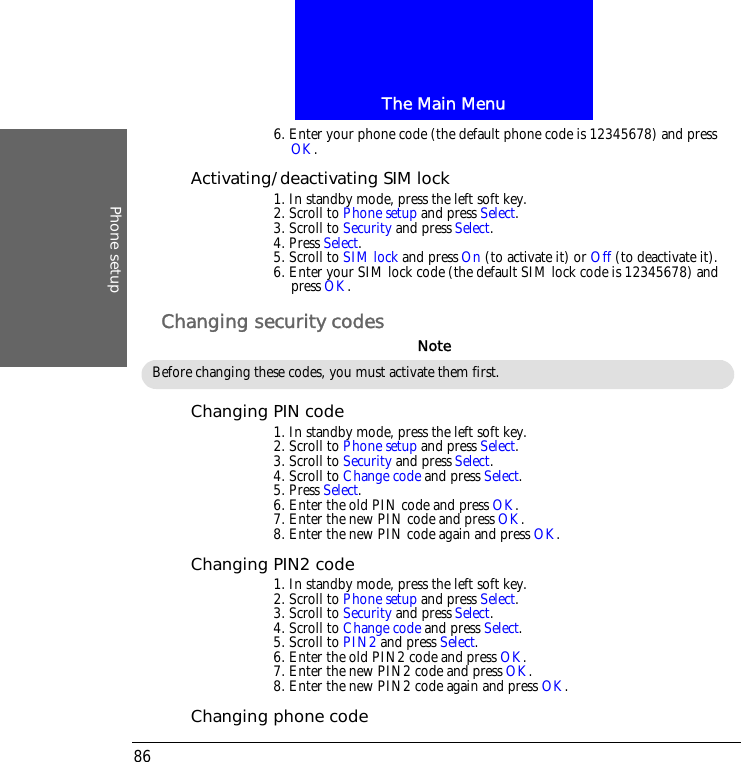

The Main MenuPhone setup866. Enter your phone code (the default phone code is 12345678) and press OK.Activating/deactivating SIM lock1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Press Select.5. Scroll to SIM lock and press On (to activate it) or Off (to deactivate it).6. Enter your SIM lock code (the default SIM lock code is 12345678) and press OK.Changing security codesChanging PIN code1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Change code and press Select.5. Press Select.6. Enter the old PIN code and press OK.7. Enter the new PIN code and press OK.8. Enter the new PIN code again and press OK.Changing PIN2 code1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Change code and press Select.5. Scroll to PIN2 and press Select.6. Enter the old PIN2 code and press OK.7. Enter the new PIN2 code and press OK.8. Enter the new PIN2 code again and press OK.Changing phone codeBefore changing these codes, you must activate them first.Note

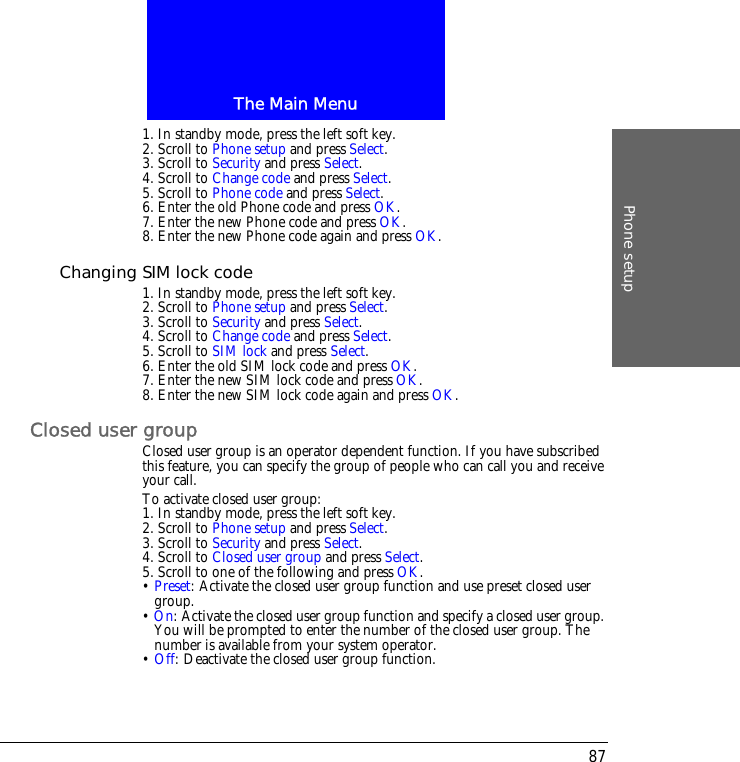

The Main MenuPhone setup871. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Change code and press Select.5. Scroll to Phone code and press Select.6. Enter the old Phone code and press OK.7. Enter the new Phone code and press OK.8. Enter the new Phone code again and press OK.Changing SIM lock code1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Change code and press Select.5. Scroll to SIM lock and press Select.6. Enter the old SIM lock code and press OK.7. Enter the new SIM lock code and press OK.8. Enter the new SIM lock code again and press OK.Closed user groupClosed user group is an operator dependent function. If you have subscribed this feature, you can specify the group of people who can call you and receive your call.To activate closed user group:1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Security and press Select.4. Scroll to Closed user group and press Select.5. Scroll to one of the following and press OK.• Preset: Activate the closed user group function and use preset closed user group.• On: Activate the closed user group function and specify a closed user group. You will be prompted to enter the number of the closed user group. The number is available from your system operator.• Off: Deactivate the closed user group function.

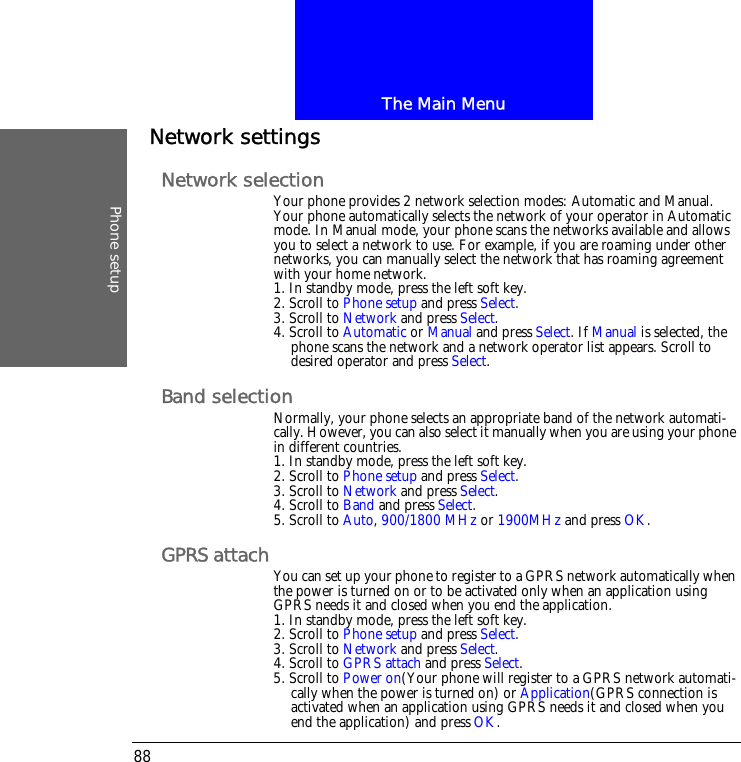

The Main MenuPhone setup88Network settingsNetwork selectionYour phone provides 2 network selection modes: Automatic and Manual. Your phone automatically selects the network of your operator in Automatic mode. In Manual mode, your phone scans the networks available and allows you to select a network to use. For example, if you are roaming under other networks, you can manually select the network that has roaming agreement with your home network.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Network and press Select.4. Scroll to Automatic or Manual and press Select. If Manual is selected, the phone scans the network and a network operator list appears. Scroll to desired operator and press Select.Band selectionNormally, your phone selects an appropriate band of the network automati-cally. However, you can also select it manually when you are using your phone in different countries.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Network and press Select.4. Scroll to Band and press Select.5. Scroll to Auto, 900/1800 MHz or 1900MHz and press OK.GPRS attach You can set up your phone to register to a GPRS network automatically when the power is turned on or to be activated only when an application using GPRS needs it and closed when you end the application. 1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Network and press Select.4. Scroll to GPRS attach and press Select.5. Scroll to Power on(Your phone will register to a GPRS network automati-cally when the power is turned on) or Application(GPRS connection is activated when an application using GPRS needs it and closed when you end the application) and press OK.

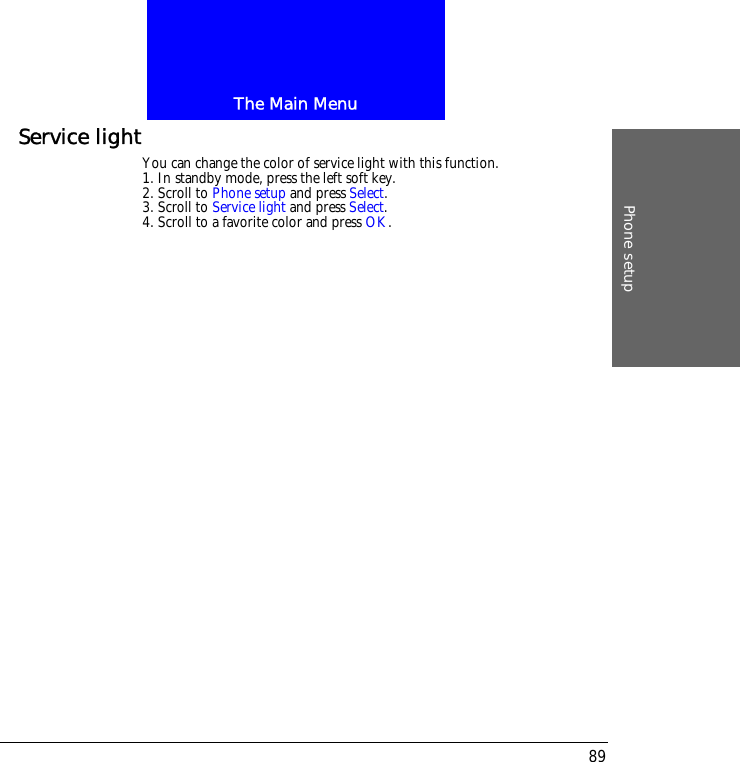

The Main MenuPhone setup89Service lightYou can change the color of service light with this function.1. In standby mode, press the left soft key.2. Scroll to Phone setup and press Select.3. Scroll to Service light and press Select.4. Scroll to a favorite color and press OK.

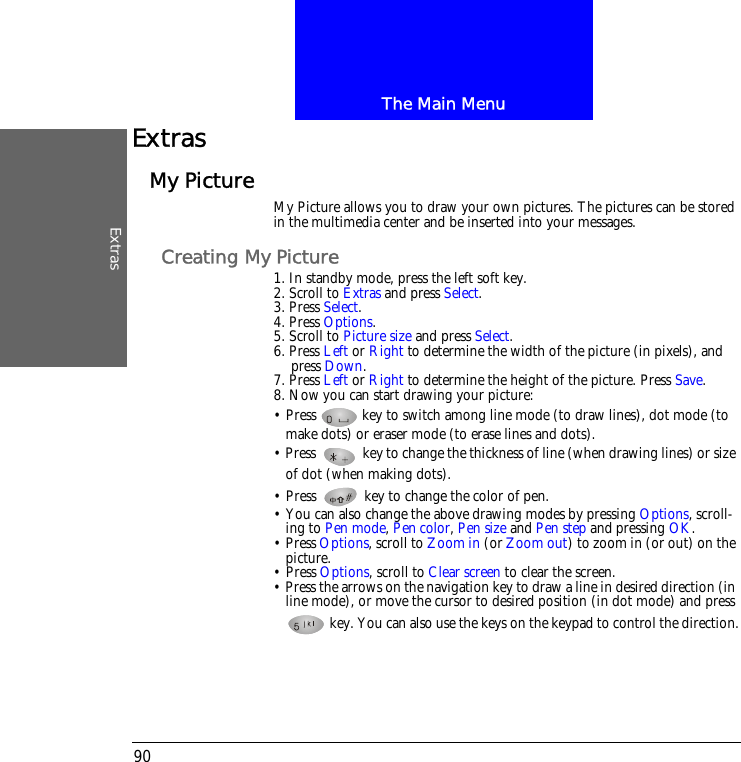

The Main MenuExtras90ExtrasMy Picture My Picture allows you to draw your own pictures. The pictures can be stored in the multimedia center and be inserted into your messages. Creating My Picture1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Press Select.4. Press Options.5. Scroll to Picture size and press Select.6. Press Left or Right to determine the width of the picture (in pixels), and press Down.7. Press Left or Right to determine the height of the picture. Press Save.8. Now you can start drawing your picture:• Press key to switch among line mode (to draw lines), dot mode (to make dots) or eraser mode (to erase lines and dots). • Press key to change the thickness of line (when drawing lines) or size of dot (when making dots).• Press key to change the color of pen. • You can also change the above drawing modes by pressing Options, scroll-ing to Pen mode, Pen color, Pen size and Pen step and pressing OK.• Press Options, scroll to Zoom in (or Zoom out) to zoom in (or out) on the picture.• Press Options, scroll to Clear screen to clear the screen.• Press the arrows on the navigation key to draw a line in desired direction (in line mode), or move the cursor to desired position (in dot mode) and press key. You can also use the keys on the keypad to control the direction.

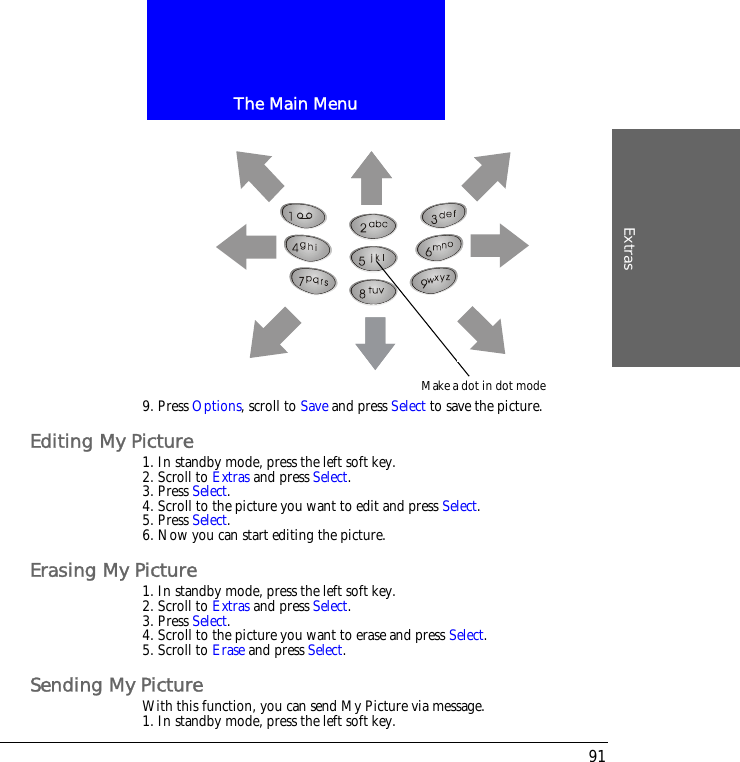

The Main MenuExtras919. Press Options, scroll to Save and press Select to save the picture.Editing My Picture1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Press Select.4. Scroll to the picture you want to edit and press Select.5. Press Select.6. Now you can start editing the picture.Erasing My Picture1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Press Select.4. Scroll to the picture you want to erase and press Select.5. Scroll to Erase and press Select.Sending My PictureWith this function, you can send My Picture via message.1. In standby mode, press the left soft key.Make a dot in dot mode

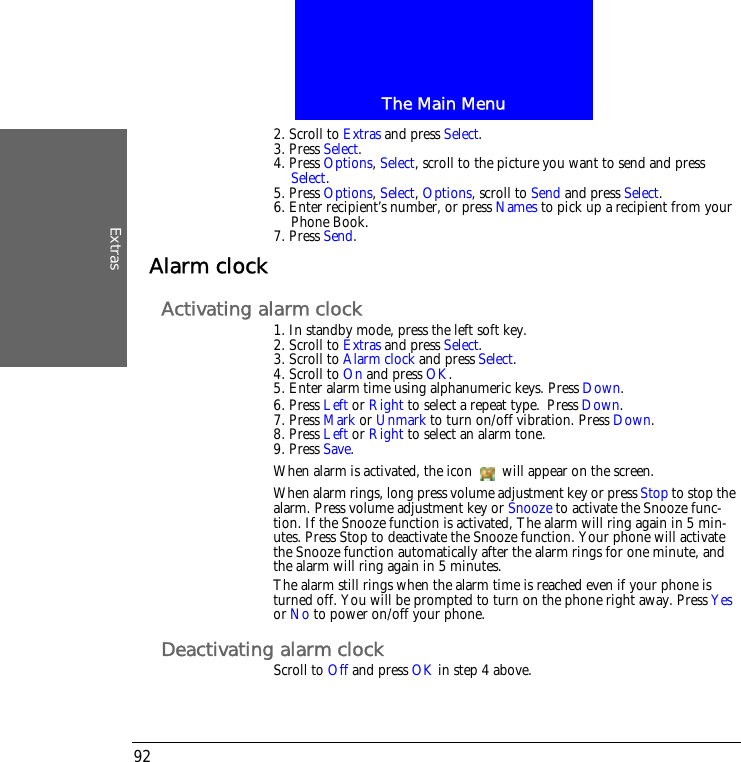

The Main MenuExtras922. Scroll to Extras and press Select.3. Press Select.4. Press Options, Select, scroll to the picture you want to send and press Select.5. Press Options, Select, Options, scroll to Send and press Select.6. Enter recipient’s number, or press Names to pick up a recipient from your Phone Book.7. Press Send.Alarm clockActivating alarm clock1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Alarm clock and press Select.4. Scroll to On and press OK.5. Enter alarm time using alphanumeric keys. Press Down.6. Press Left or Right to select a repeat type. Press Down.7. Press Mark or Unmark to turn on/off vibration. Press Down.8. Press Left or Right to select an alarm tone.9. Press Save.When alarm is activated, the icon will appear on the screen.When alarm rings, long press volume adjustment key or press Stop to stop the alarm. Press volume adjustment key or Snooze to activate the Snooze func-tion. If the Snooze function is activated, The alarm will ring again in 5 min-utes. Press Stop to deactivate the Snooze function. Your phone will activate the Snooze function automatically after the alarm rings for one minute, and the alarm will ring again in 5 minutes.The alarm still rings when the alarm time is reached even if your phone is turned off. You will be prompted to turn on the phone right away. Press Yes or No to power on/off your phone.Deactivating alarm clockScroll to Off and press OK in step 4 above.

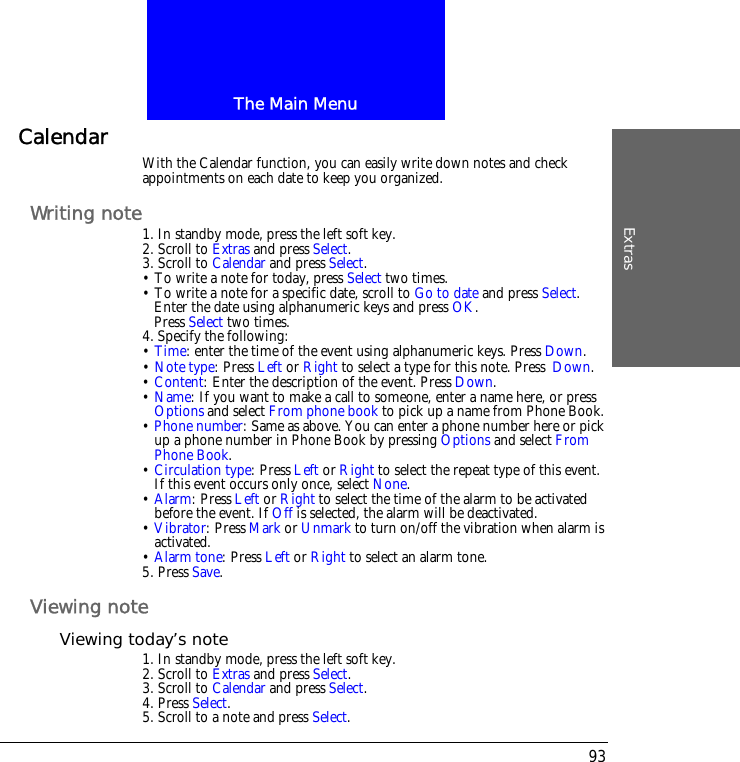

The Main MenuExtras93Calendar With the Calendar function, you can easily write down notes and check appointments on each date to keep you organized.Writing note1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.• To write a note for today, press Select two times.• To write a note for a specific date, scroll to Go to date and press Select.Enter the date using alphanumeric keys and press OK.Press Select two times.4. Specify the following:• Time: enter the time of the event using alphanumeric keys. Press Down.• Note type: Press Left or Right to select a type for this note. Press Down.• Content: Enter the description of the event. Press Down.• Name: If you want to make a call to someone, enter a name here, or press Options and select From phone book to pick up a name from Phone Book.• Phone number: Same as above. You can enter a phone number here or pick up a phone number in Phone Book by pressing Options and select From Phone Book. • Circulation type: Press Left or Right to select the repeat type of this event. If this event occurs only once, select None.• Alarm: Press Left or Right to select the time of the alarm to be activated before the event. If Off is selected, the alarm will be deactivated.• Vibrator: Press Mark or Unmark to turn on/off the vibration when alarm is activated.• Alarm tone: Press Left or Right to select an alarm tone.5. Press Save.Viewing noteViewing today’s note1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Press Select.5. Scroll to a note and press Select.

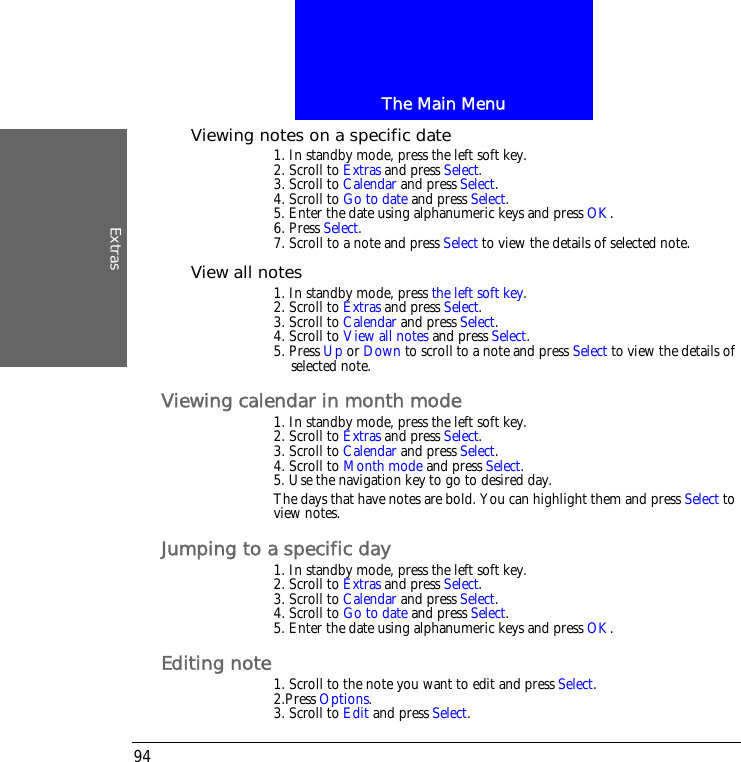

The Main MenuExtras94Viewing notes on a specific date1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Go to date and press Select.5. Enter the date using alphanumeric keys and press OK.6. Press Select.7. Scroll to a note and press Select to view the details of selected note.View all notes1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to View all notes and press Select.5. Press Up or Down to scroll to a note and press Select to view the details of selected note.Viewing calendar in month mode1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Month mode and press Select.5. Use the navigation key to go to desired day.The days that have notes are bold. You can highlight them and press Select to view notes.Jumping to a specific day1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Go to date and press Select.5. Enter the date using alphanumeric keys and press OK.Editing note1. Scroll to the note you want to edit and press Select.2.Press Options.3. Scroll to Edit and press Select.

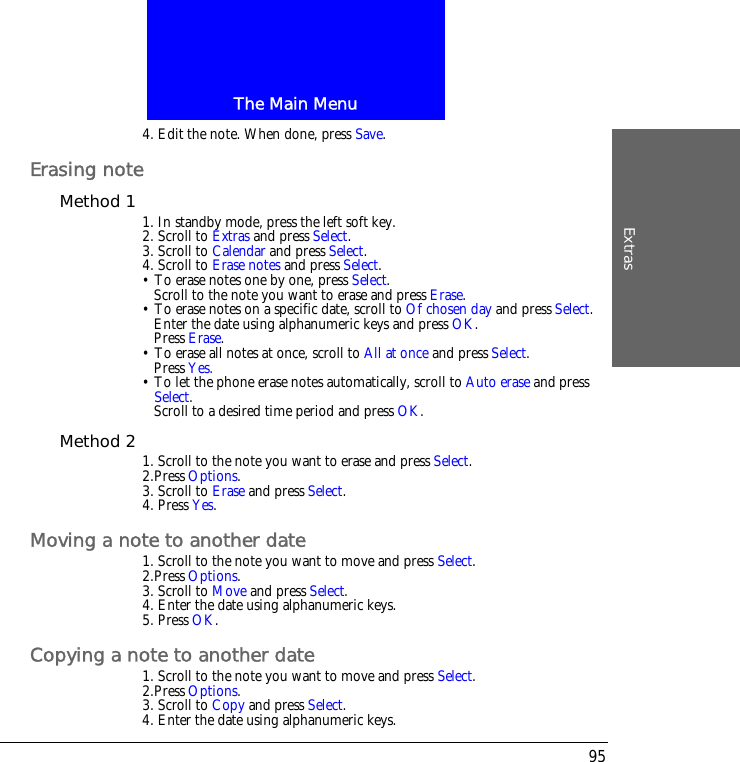

The Main MenuExtras954. Edit the note. When done, press Save.Erasing noteMethod 1 1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Erase notes and press Select.• To erase notes one by one, press Select. Scroll to the note you want to erase and press Erase.• To erase notes on a specific date, scroll to Of chosen day and press Select. Enter the date using alphanumeric keys and press OK.Press Erase.• To erase all notes at once, scroll to All at once and press Select.Press Yes.• To let the phone erase notes automatically, scroll to Auto erase and press Select.Scroll to a desired time period and press OK.Method 2 1. Scroll to the note you want to erase and press Select.2.Press Options.3. Scroll to Erase and press Select.4. Press Yes.Moving a note to another date1. Scroll to the note you want to move and press Select.2.Press Options.3. Scroll to Move and press Select.4. Enter the date using alphanumeric keys.5. Press OK.Copying a note to another date1. Scroll to the note you want to move and press Select.2.Press Options.3. Scroll to Copy and press Select.4. Enter the date using alphanumeric keys.

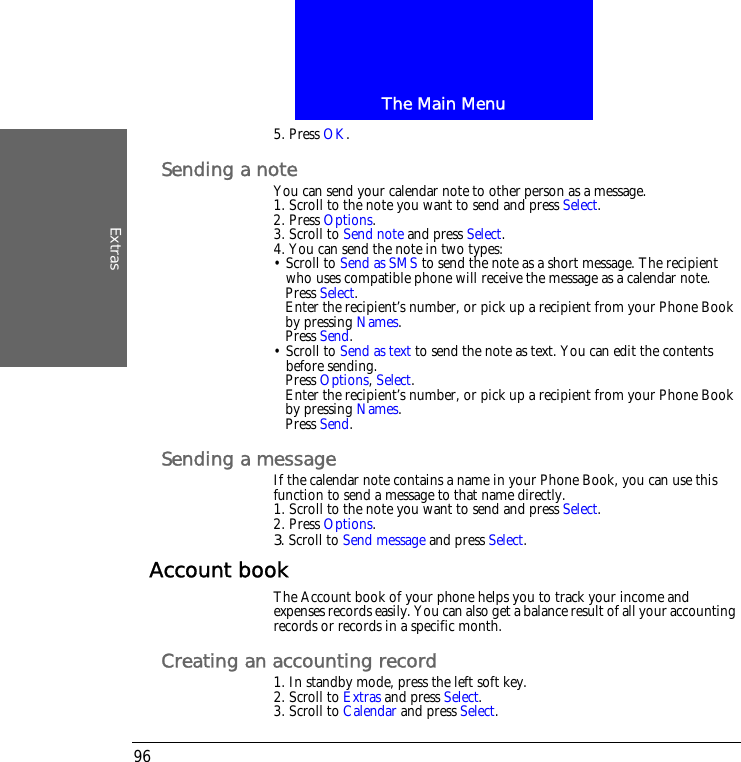

The Main MenuExtras965. Press OK.Sending a noteYou can send your calendar note to other person as a message.1. Scroll to the note you want to send and press Select.2. Press Options.3. Scroll to Send note and press Select.4. You can send the note in two types:• Scroll to Send as SMS to send the note as a short message. The recipient who uses compatible phone will receive the message as a calendar note.Press Select.Enter the recipient’s number, or pick up a recipient from your Phone Book by pressing Names.Press Send.• Scroll to Send as text to send the note as text. You can edit the contents before sending.Press Options, Select.Enter the recipient’s number, or pick up a recipient from your Phone Book by pressing Names.Press Send.Sending a messageIf the calendar note contains a name in your Phone Book, you can use this function to send a message to that name directly.1. Scroll to the note you want to send and press Select.2. Press Options.3. Scroll to Send message and press Select.Account bookThe Account book of your phone helps you to track your income and expenses records easily. You can also get a balance result of all your accounting records or records in a specific month.Creating an accounting record1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.

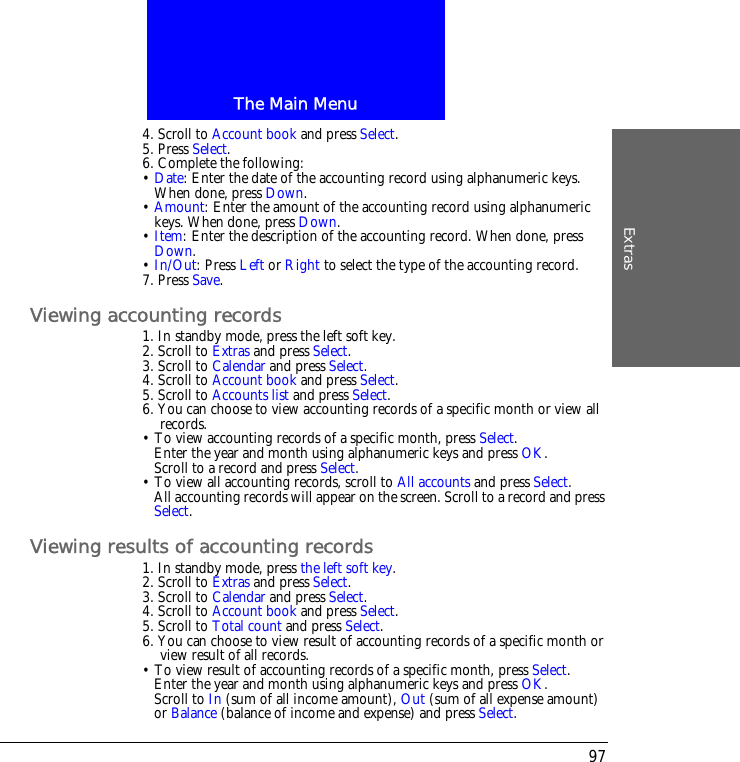

The Main MenuExtras974. Scroll to Account book and press Select.5. Press Select.6. Complete the following:• Date: Enter the date of the accounting record using alphanumeric keys. When done, press Down.• Amount: Enter the amount of the accounting record using alphanumeric keys. When done, press Down.• Item: Enter the description of the accounting record. When done, press Down.• In/Out: Press Left or Right to select the type of the accounting record.7. Press Save.Viewing accounting records1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Account book and press Select.5. Scroll to Accounts list and press Select.6. You can choose to view accounting records of a specific month or view all records.• To view accounting records of a specific month, press Select.Enter the year and month using alphanumeric keys and press OK.Scroll to a record and press Select.• To view all accounting records, scroll to All accounts and press Select.All accounting records will appear on the screen. Scroll to a record and press Select.Viewing results of accounting records1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Account book and press Select.5. Scroll to Total count and press Select.6. You can choose to view result of accounting records of a specific month or view result of all records.• To view result of accounting records of a specific month, press Select.Enter the year and month using alphanumeric keys and press OK.Scroll to In (sum of all income amount), Out (sum of all expense amount) or Balance (balance of income and expense) and press Select.

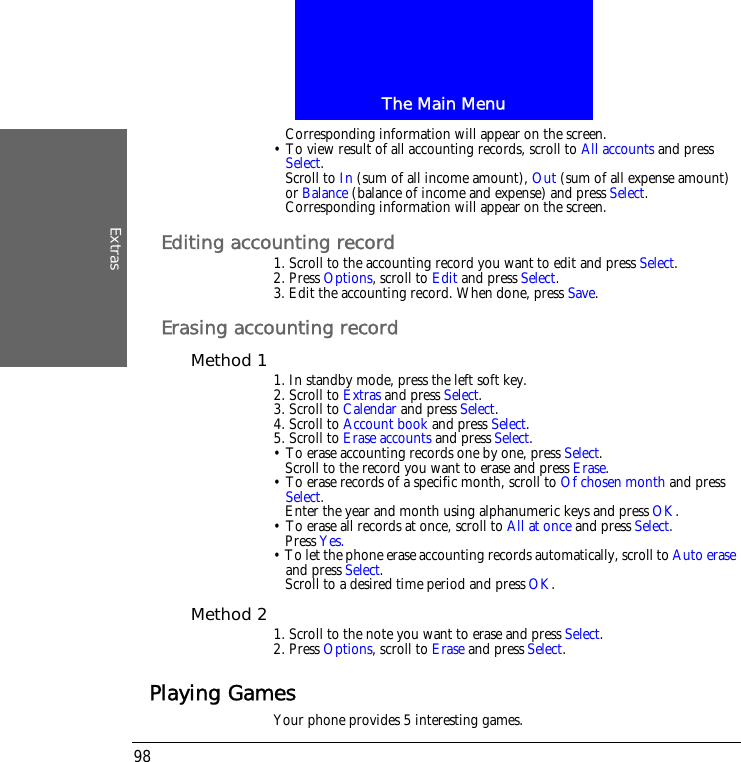

The Main MenuExtras98Corresponding information will appear on the screen.• To view result of all accounting records, scroll to All accounts and press Select.Scroll to In (sum of all income amount), Out (sum of all expense amount) or Balance (balance of income and expense) and press Select.Corresponding information will appear on the screen.Editing accounting record1. Scroll to the accounting record you want to edit and press Select.2. Press Options, scroll to Edit and press Select.3. Edit the accounting record. When done, press Save.Erasing accounting recordMethod 1 1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calendar and press Select.4. Scroll to Account book and press Select.5. Scroll to Erase accounts and press Select.• To erase accounting records one by one, press Select. Scroll to the record you want to erase and press Erase.• To erase records of a specific month, scroll to Of chosen month and press Select. Enter the year and month using alphanumeric keys and press OK.• To erase all records at once, scroll to All at once and press Select.Press Yes.• To let the phone erase accounting records automatically, scroll to Auto erase and press Select.Scroll to a desired time period and press OK.Method 2 1. Scroll to the note you want to erase and press Select.2. Press Options, scroll to Erase and press Select.Playing GamesYour phone provides 5 interesting games.

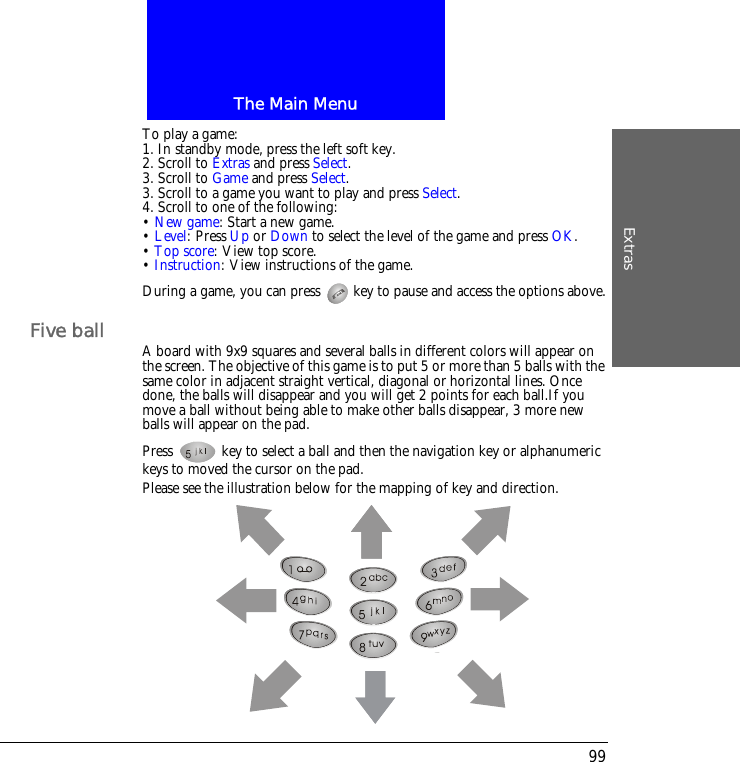

The Main MenuExtras99To play a game:1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Game and press Select.3. Scroll to a game you want to play and press Select.4. Scroll to one of the following:• New game: Start a new game.• Level: Press Up or Down to select the level of the game and press OK.• Top score: View top score.• Instruction: View instructions of the game.During a game, you can press key to pause and access the options above.Five ball A board with 9x9 squares and several balls in different colors will appear on the screen. The objective of this game is to put 5 or more than 5 balls with the same color in adjacent straight vertical, diagonal or horizontal lines. Once done, the balls will disappear and you will get 2 points for each ball.If you move a ball without being able to make other balls disappear, 3 more new balls will appear on the pad.Press key to select a ball and then the navigation key or alphanumeric keys to moved the cursor on the pad.Please see the illustration below for the mapping of key and direction.

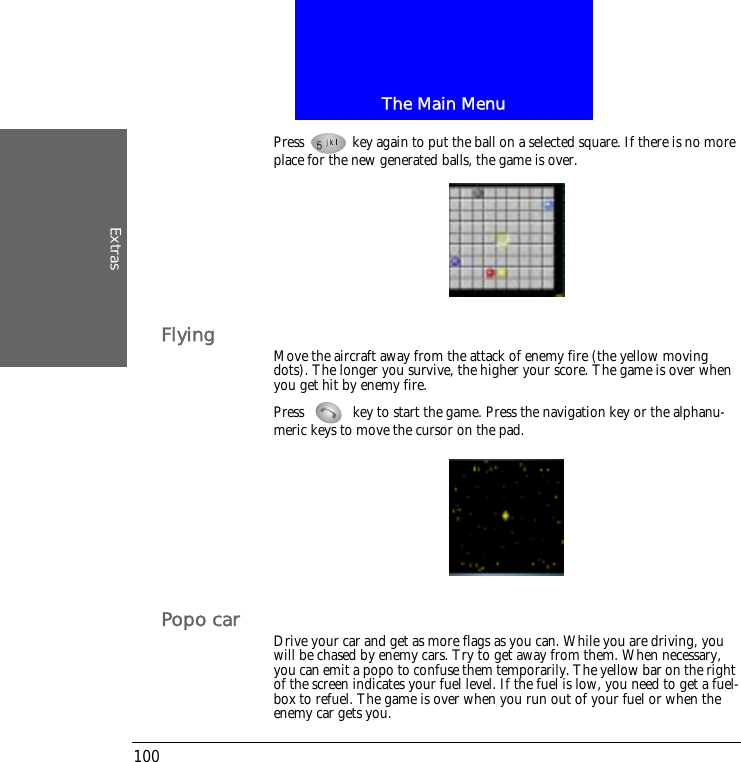

The Main MenuExtras100Press key again to put the ball on a selected square. If there is no more place for the new generated balls, the game is over.Flying Move the aircraft away from the attack of enemy fire (the yellow moving dots). The longer you survive, the higher your score. The game is over when you get hit by enemy fire.Press key to start the game. Press the navigation key or the alphanu-meric keys to move the cursor on the pad. Popo car Drive your car and get as more flags as you can. While you are driving, you will be chased by enemy cars. Try to get away from them. When necessary, you can emit a popo to confuse them temporarily. The yellow bar on the right of the screen indicates your fuel level. If the fuel is low, you need to get a fuel-box to refuel. The game is over when you run out of your fuel or when the enemy car gets you.

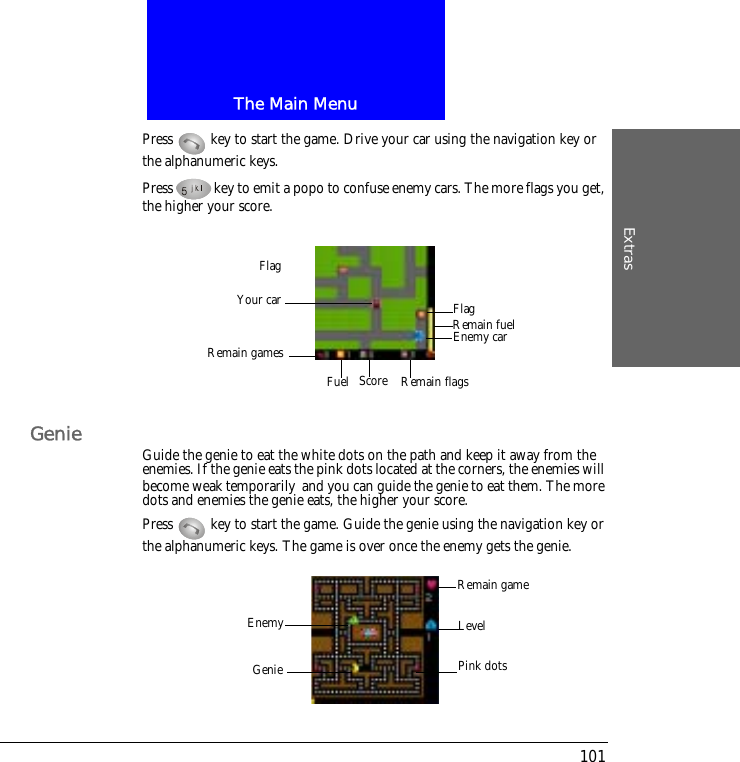

The Main MenuExtras101Press key to start the game. Drive your car using the navigation key or the alphanumeric keys. Press key to emit a popo to confuse enemy cars. The more flags you get, the higher your score.Genie Guide the genie to eat the white dots on the path and keep it away from the enemies. If the genie eats the pink dots located at the corners, the enemies will become weak temporarily and you can guide the genie to eat them. The more dots and enemies the genie eats, the higher your score.Press key to start the game. Guide the genie using the navigation key or the alphanumeric keys. The game is over once the enemy gets the genie.Remain fuelYour car FlagEnemy carRemain gamesScore Remain flagsFuelFlagRemain gameLevelGenieEnemyPink dots

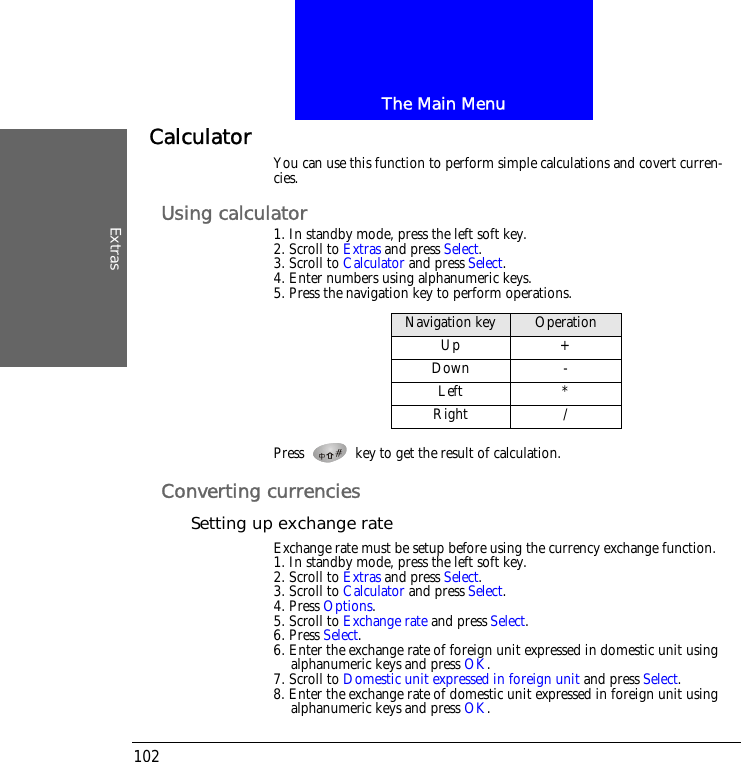

The Main MenuExtras102Calculator You can use this function to perform simple calculations and covert curren-cies.Using calculator1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calculator and press Select.4. Enter numbers using alphanumeric keys.5. Press the navigation key to perform operations.Press key to get the result of calculation.Converting currenciesSetting up exchange rateExchange rate must be setup before using the currency exchange function.1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calculator and press Select.4. Press Options.5. Scroll to Exchange rate and press Select.6. Press Select.6. Enter the exchange rate of foreign unit expressed in domestic unit using alphanumeric keys and press OK.7. Scroll to Domestic unit expressed in foreign unit and press Select.8. Enter the exchange rate of domestic unit expressed in foreign unit using alphanumeric keys and press OK.Navigation key OperationUp +Down -Left *Right /

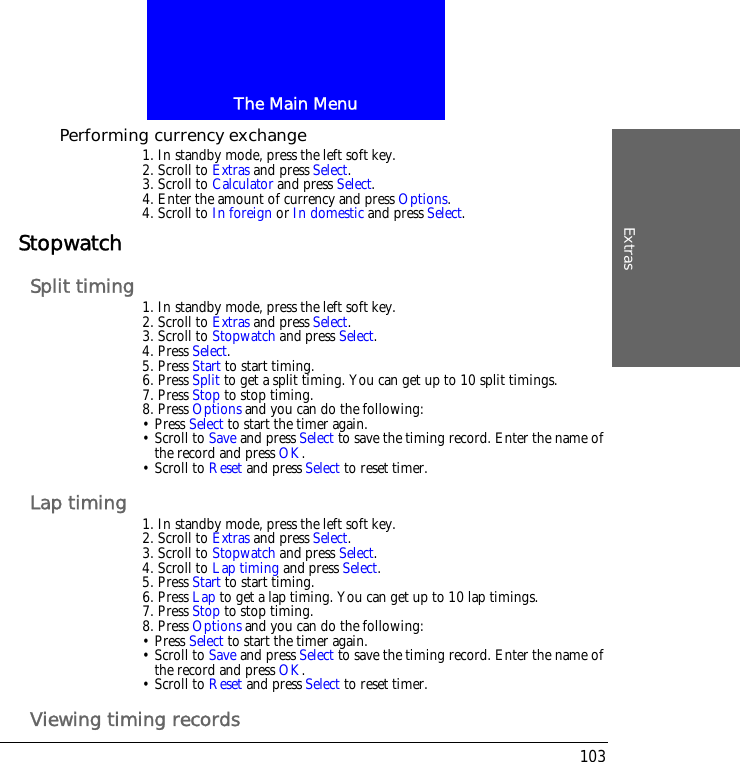

The Main MenuExtras103Performing currency exchange1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Calculator and press Select.4. Enter the amount of currency and press Options.4. Scroll to In foreign or In domestic and press Select.StopwatchSplit timing 1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Stopwatch and press Select.4. Press Select.5. Press Start to start timing.6. Press Split to get a split timing. You can get up to 10 split timings.7. Press Stop to stop timing.8. Press Options and you can do the following:• Press Select to start the timer again.• Scroll to Save and press Select to save the timing record. Enter the name of the record and press OK. • Scroll to Reset and press Select to reset timer.Lap timing 1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Stopwatch and press Select.4. Scroll to Lap timing and press Select.5. Press Start to start timing.6. Press Lap to get a lap timing. You can get up to 10 lap timings.7. Press Stop to stop timing.8. Press Options and you can do the following:• Press Select to start the timer again.• Scroll to Save and press Select to save the timing record. Enter the name of the record and press OK. • Scroll to Reset and press Select to reset timer.Viewing timing records

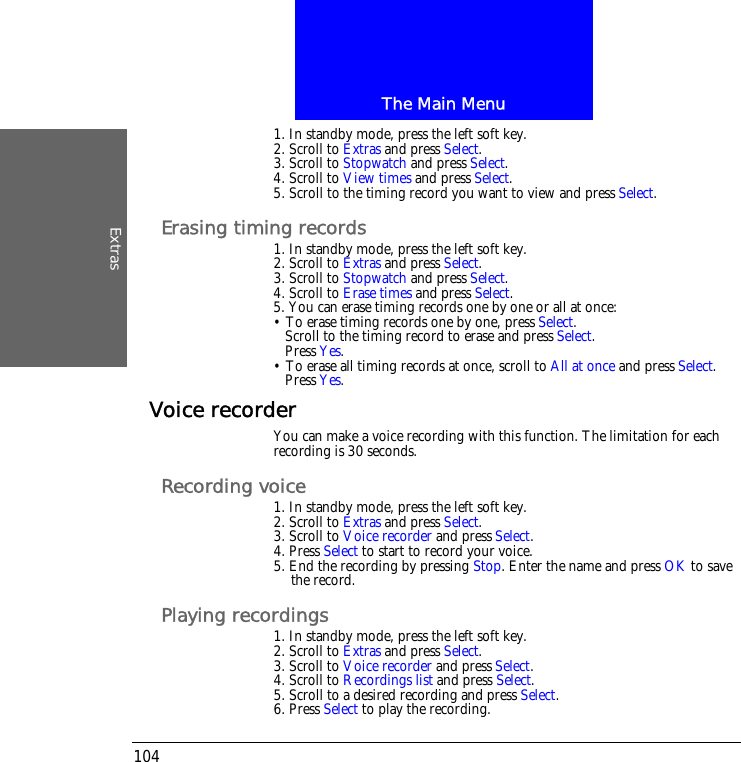

The Main MenuExtras1041. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Stopwatch and press Select.4. Scroll to View times and press Select.5. Scroll to the timing record you want to view and press Select.Erasing timing records1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Stopwatch and press Select.4. Scroll to Erase times and press Select.5. You can erase timing records one by one or all at once:• To erase timing records one by one, press Select.Scroll to the timing record to erase and press Select.Press Yes.• To erase all timing records at once, scroll to All at once and press Select.Press Yes.Voice recorderYou can make a voice recording with this function. The limitation for each recording is 30 seconds.Recording voice1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Voice recorder and press Select.4. Press Select to start to record your voice.5. End the recording by pressing Stop. Enter the name and press OK to save the record.Playing recordings 1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Voice recorder and press Select.4. Scroll to Recordings list and press Select.5. Scroll to a desired recording and press Select.6. Press Select to play the recording.

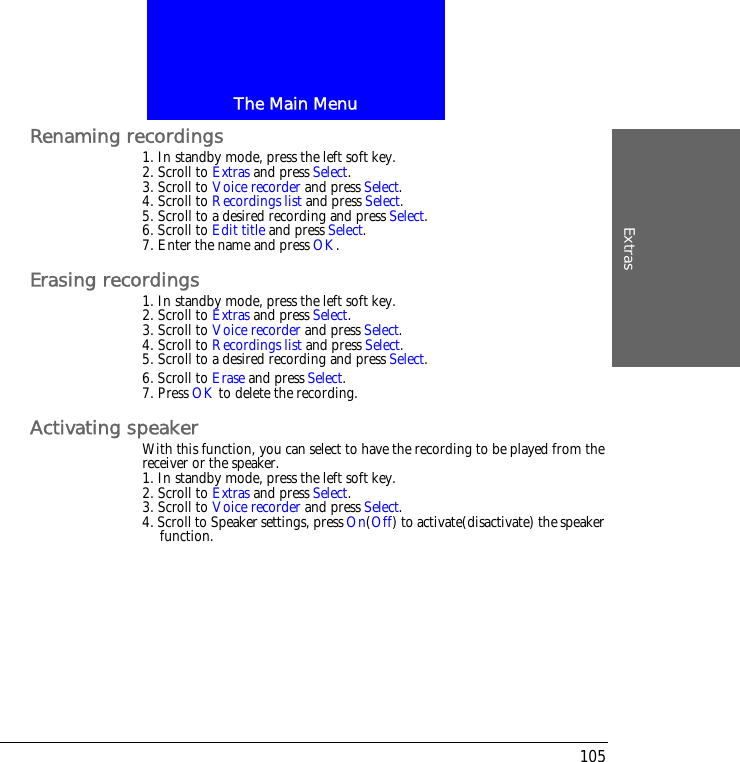

The Main MenuExtras105Renaming recordings1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Voice recorder and press Select.4. Scroll to Recordings list and press Select.5. Scroll to a desired recording and press Select.6. Scroll to Edit title and press Select.7. Enter the name and press OK.Erasing recordings1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Voice recorder and press Select.4. Scroll to Recordings list and press Select.5. Scroll to a desired recording and press Select.6. Scroll to Erase and press Select.7. Press OK to delete the recording.Activating speakerWith this function, you can select to have the recording to be played from the receiver or the speaker.1. In standby mode, press the left soft key.2. Scroll to Extras and press Select.3. Scroll to Voice recorder and press Select.4. Scroll to Speaker settings, press On(Off) to activate(disactivate) the speaker function.

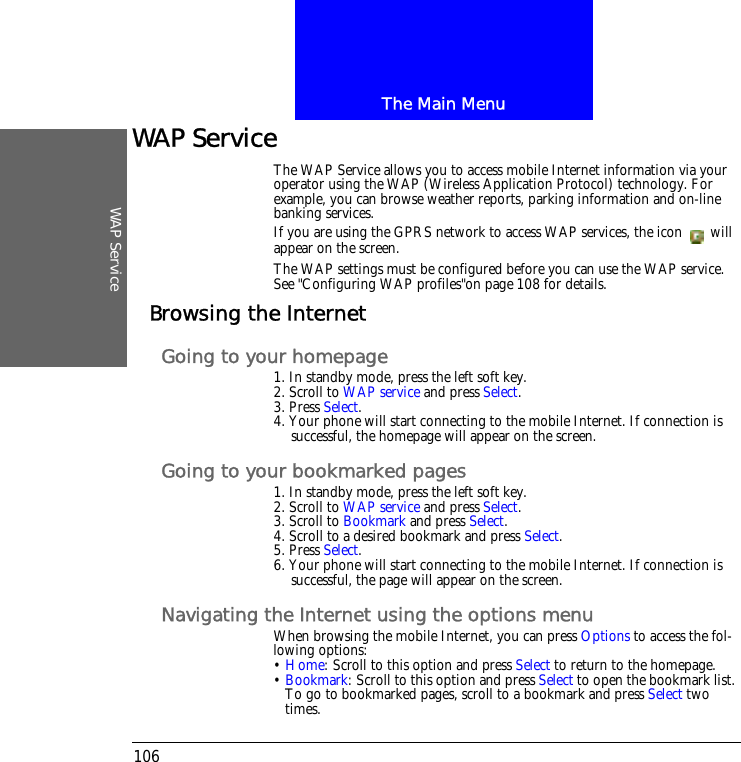

The Main MenuWAP Service106WAP ServiceThe WAP Service allows you to access mobile Internet information via your operator using the WAP (Wireless Application Protocol) technology. For example, you can browse weather reports, parking information and on-line banking services.If you are using the GPRS network to access WAP services, the icon will appear on the screen.The WAP settings must be configured before you can use the WAP service. See "Configuring WAP profiles"on page 108 for details.Browsing the InternetGoing to your homepage1. In standby mode, press the left soft key.2. Scroll to WAP service and press Select.3. Press Select.4. Your phone will start connecting to the mobile Internet. If connection is successful, the homepage will appear on the screen.Going to your bookmarked pages1. In standby mode, press the left soft key.2. Scroll to WAP service and press Select.3. Scroll to Bookmark and press Select.4. Scroll to a desired bookmark and press Select.5. Press Select.6. Your phone will start connecting to the mobile Internet. If connection is successful, the page will appear on the screen.Navigating the Internet using the options menuWhen browsing the mobile Internet, you can press Options to access the fol-lowing options:• Home: Scroll to this option and press Select to return to the homepage.• Bookmark: Scroll to this option and press Select to open the bookmark list. To go to bookmarked pages, scroll to a bookmark and press Select two times.

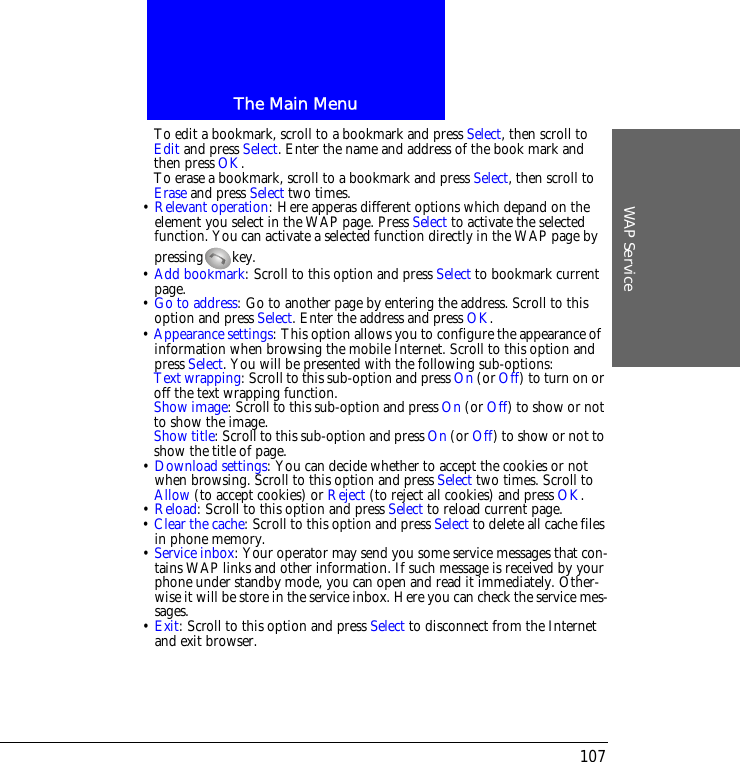

The Main MenuWAP Service107To edit a bookmark, scroll to a bookmark and press Select, then scroll to Edit and press Select. Enter the name and address of the book mark and then press OK.To erase a bookmark, scroll to a bookmark and press Select, then scroll to Erase and press Select two times.• Relevant operation: Here apperas different options which depand on the element you select in the WAP page. Press Select to activate the selected function. You can activate a selected function directly in the WAP page by pressing key.• Add bookmark: Scroll to this option and press Select to bookmark current page.• Go to address: Go to another page by entering the address. Scroll to this option and press Select. Enter the address and press OK.• Appearance settings: This option allows you to configure the appearance of information when browsing the mobile Internet. Scroll to this option and press Select. You will be presented with the following sub-options:Text wrapping: Scroll to this sub-option and press On (or Off) to turn on or off the text wrapping function.Show image: Scroll to this sub-option and press On (or Off) to show or not to show the image.Show title: Scroll to this sub-option and press On (or Off) to show or not to show the title of page.• Download settings: You can decide whether to accept the cookies or not when browsing. Scroll to this option and press Select two times. Scroll to Allow (to accept cookies) or Reject (to reject all cookies) and press OK.• Reload: Scroll to this option and press Select to reload current page.• Clear the cache: Scroll to this option and press Select to delete all cache files in phone memory.• Service inbox: Your operator may send you some service messages that con-tains WAP links and other information. If such message is received by your phone under standby mode, you can open and read it immediately. Other-wise it will be store in the service inbox. Here you can check the service mes-sages.• Exit: Scroll to this option and press Select to disconnect from the Internet and exit browser.

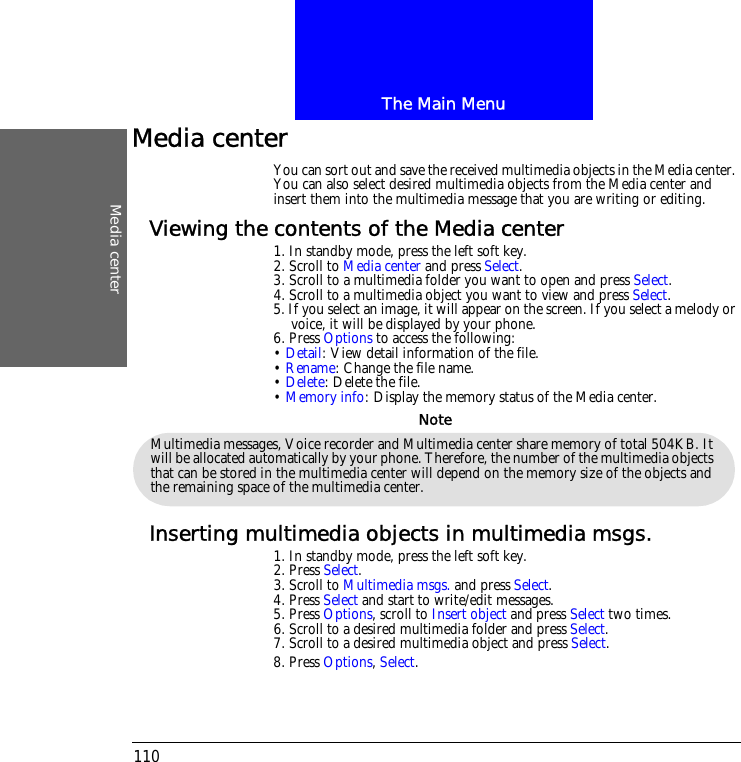

The Main MenuMedia center110Media centerYou can sort out and save the received multimedia objects in the Media center. You can also select desired multimedia objects from the Media center and insert them into the multimedia message that you are writing or editing.Viewing the contents of the Media center1. In standby mode, press the left soft key.2. Scroll to Media center and press Select.3. Scroll to a multimedia folder you want to open and press Select.4. Scroll to a multimedia object you want to view and press Select.5. If you select an image, it will appear on the screen. If you select a melody or voice, it will be displayed by your phone.6. Press Options to access the following:• Detail: View detail information of the file. • Rename: Change the file name.• Delete: Delete the file.• Memory info: Display the memory status of the Media center.Inserting multimedia objects in multimedia msgs.1. In standby mode, press the left soft key.2. Press Select.3. Scroll to Multimedia msgs. and press Select.4. Press Select and start to write/edit messages.5. Press Options, scroll to Insert object and press Select two times.6. Scroll to a desired multimedia folder and press Select.7. Scroll to a desired multimedia object and press Select.8. Press Options, Select.Multimedia messages, Voice recorder and Multimedia center share memory of total 504KB. It will be allocated automatically by your phone. Therefore, the number of the multimedia objects that can be stored in the multimedia center will depend on the memory size of the objects and the remaining space of the multimedia center. Note

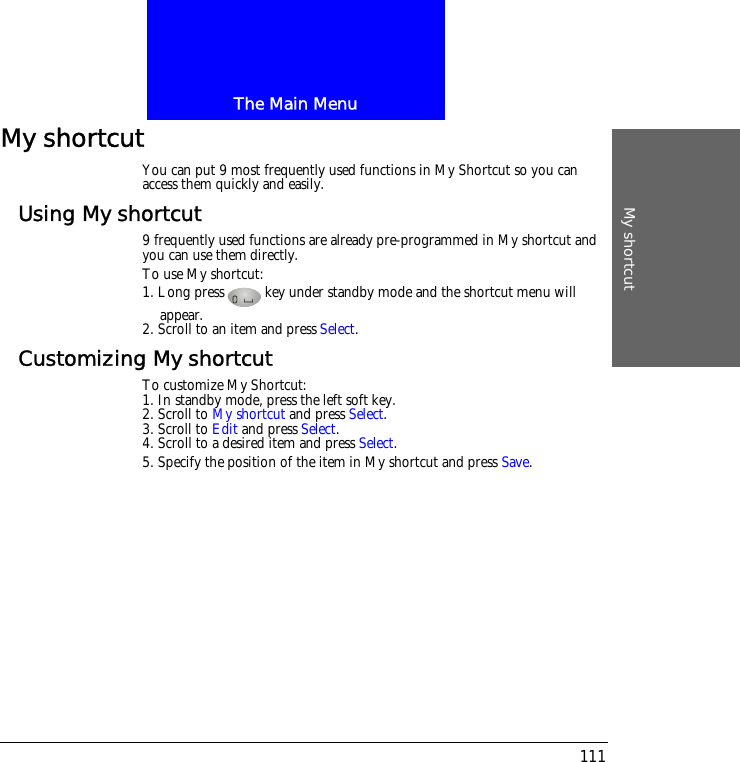

The Main MenuMy shortcut111My shortcutYou can put 9 most frequently used functions in My Shortcut so you can access them quickly and easily.Using My shortcut9 frequently used functions are already pre-programmed in My shortcut and you can use them directly. To use My shortcut:1. Long press key under standby mode and the shortcut menu will appear. 2. Scroll to an item and press Select.Customizing My shortcutTo customize My Shortcut:1. In standby mode, press the left soft key.2. Scroll to My shortcut and press Select.3. Scroll to Edit and press Select.4. Scroll to a desired item and press Select.5. Specify the position of the item in My shortcut and press Save.

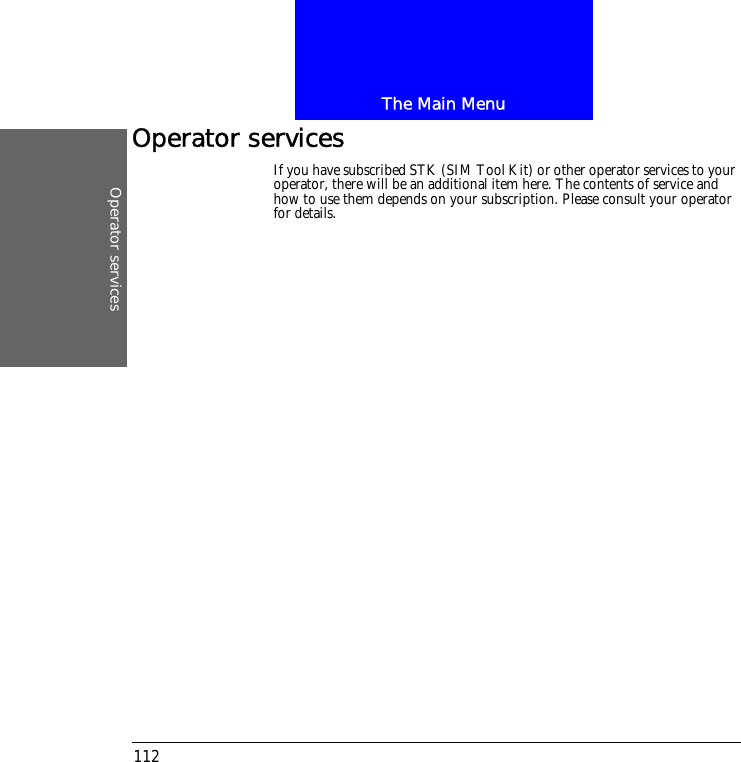

The Main MenuOperator services112Operator servicesIf you have subscribed STK (SIM Tool Kit) or other operator services to your operator, there will be an additional item here. The contents of service and how to use them depends on your subscription. Please consult your operator for details.

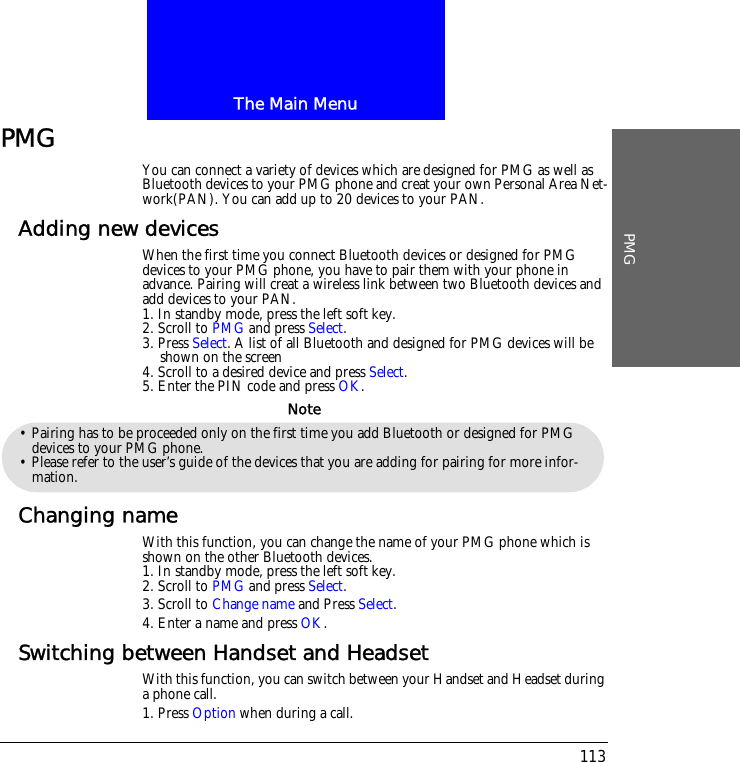

The Main MenuPMG113PMG You can connect a variety of devices which are designed for PMG as well as Bluetooth devices to your PMG phone and creat your own Personal Area Net-work(PAN). You can add up to 20 devices to your PAN.Adding new devicesWhen the first time you connect Bluetooth devices or designed for PMG devices to your PMG phone, you have to pair them with your phone in advance. Pairing will creat a wireless link between two Bluetooth devices and add devices to your PAN. 1. In standby mode, press the left soft key.2. Scroll to PMG and press Select.3. Press Select. A list of all Bluetooth and designed for PMG devices will be shown on the screen4. Scroll to a desired device and press Select.5. Enter the PIN code and press OK.Changing nameWith this function, you can change the name of your PMG phone which is shown on the other Bluetooth devices.1. In standby mode, press the left soft key.2. Scroll to PMG and press Select.3. Scroll to Change name and Press Select.4. Enter a name and press OK.Switching between Handset and HeadsetWith this function, you can switch between your Handset and Headset during a phone call.1. Press Option when during a call.• Pairing has to be proceeded only on the first time you add Bluetooth or designed for PMG devices to your PMG phone.• Please refer to the user’s guide of the devices that you are adding for pairing for more infor-mation.Note

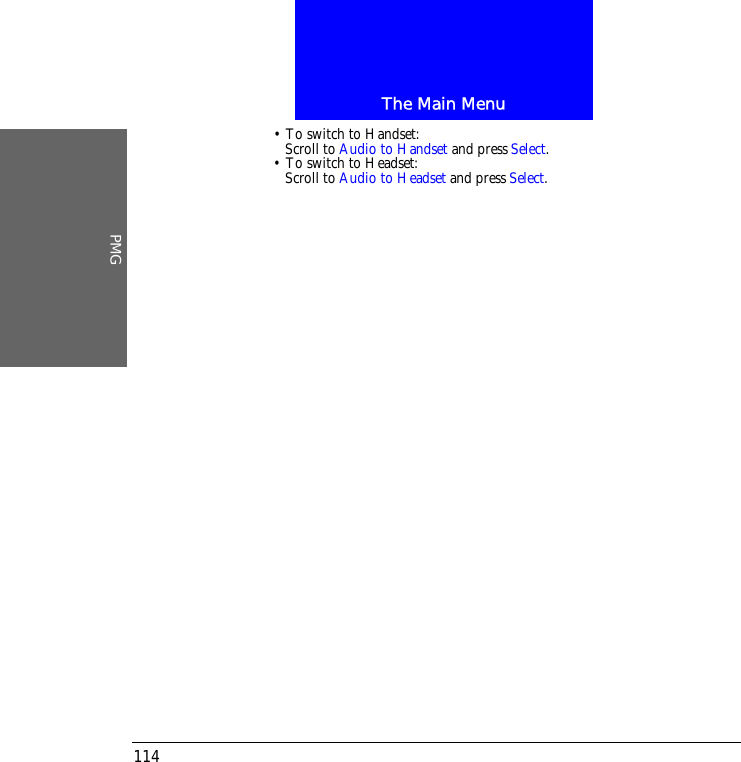

The Main MenuPMG114• To switch to Handset:Scroll to Audio to Handset and press Select.• To switch to Headset:Scroll to Audio to Headset and press Select.

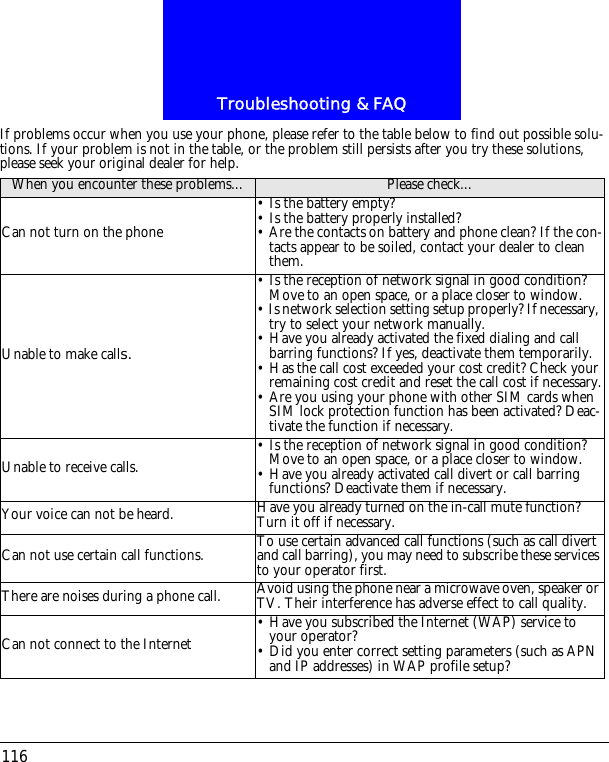

115Troubleshooting & FAQ

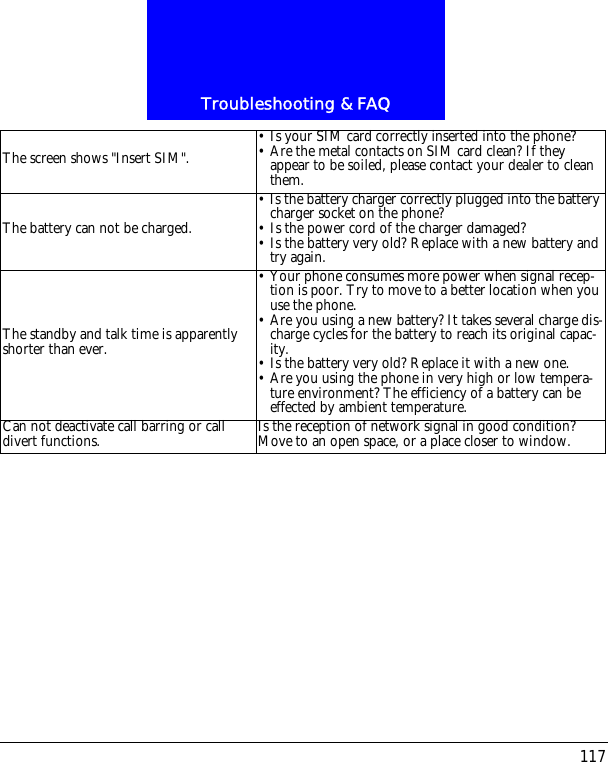

117Troubleshooting & FAQThe screen shows "Insert SIM". • Is your SIM card correctly inserted into the phone?• Are the metal contacts on SIM card clean? If they appear to be soiled, please contact your dealer to clean them.The battery can not be charged.• Is the battery charger correctly plugged into the battery charger socket on the phone?• Is the power cord of the charger damaged?• Is the battery very old? Replace with a new battery and try again.The standby and talk time is apparently shorter than ever.• Your phone consumes more power when signal recep-tion is poor. Try to move to a better location when you use the phone.• Are you using a new battery? It takes several charge dis-charge cycles for the battery to reach its original capac-ity. • Is the battery very old? Replace it with a new one.• Are you using the phone in very high or low tempera-ture environment? The efficiency of a battery can be effected by ambient temperature. Can not deactivate call barring or call divert functions. Is the reception of network signal in good condition? Move to an open space, or a place closer to window.

118Care and Maintenance

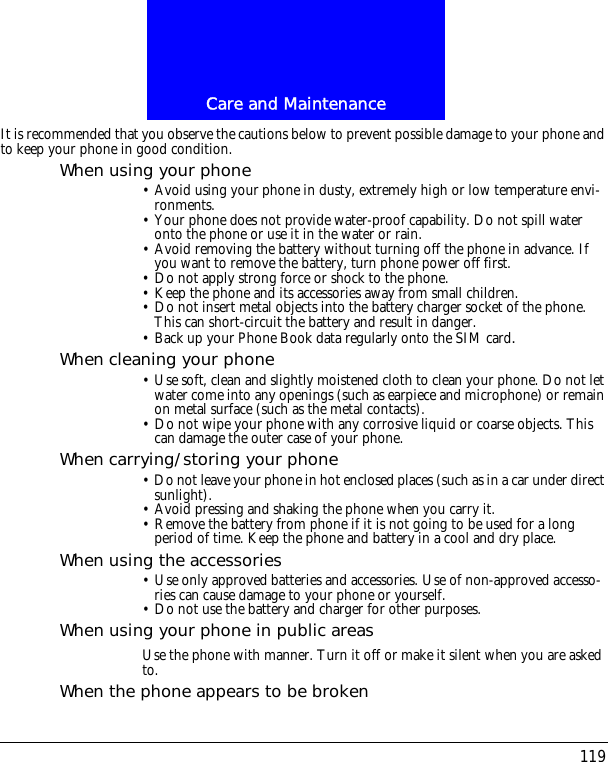

119Care and MaintenanceIt is recommended that you observe the cautions below to prevent possible damage to your phone and to keep your phone in good condition.When using your phone• Avoid using your phone in dusty, extremely high or low temperature envi-ronments.• Your phone does not provide water-proof capability. Do not spill water onto the phone or use it in the water or rain.• Avoid removing the battery without turning off the phone in advance. If you want to remove the battery, turn phone power off first.• Do not apply strong force or shock to the phone.• Keep the phone and its accessories away from small children.• Do not insert metal objects into the battery charger socket of the phone. This can short-circuit the battery and result in danger.• Back up your Phone Book data regularly onto the SIM card.When cleaning your phone• Use soft, clean and slightly moistened cloth to clean your phone. Do not let water come into any openings (such as earpiece and microphone) or remain on metal surface (such as the metal contacts).• Do not wipe your phone with any corrosive liquid or coarse objects. This can damage the outer case of your phone.When carrying/storing your phone• Do not leave your phone in hot enclosed places (such as in a car under direct sunlight).• Avoid pressing and shaking the phone when you carry it.• Remove the battery from phone if it is not going to be used for a long period of time. Keep the phone and battery in a cool and dry place.When using the accessories• Use only approved batteries and accessories. Use of non-approved accesso-ries can cause damage to your phone or yourself.• Do not use the battery and charger for other purposes.When using your phone in public areasUse the phone with manner. Turn it off or make it silent when you are asked to.When the phone appears to be broken

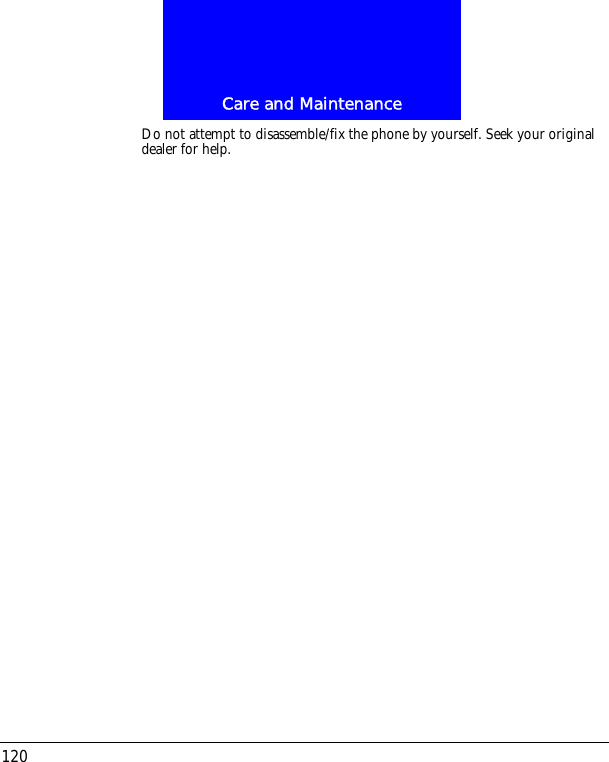

Care and Maintenance120Do not attempt to disassemble/fix the phone by yourself. Seek your original dealer for help.

121Appendix

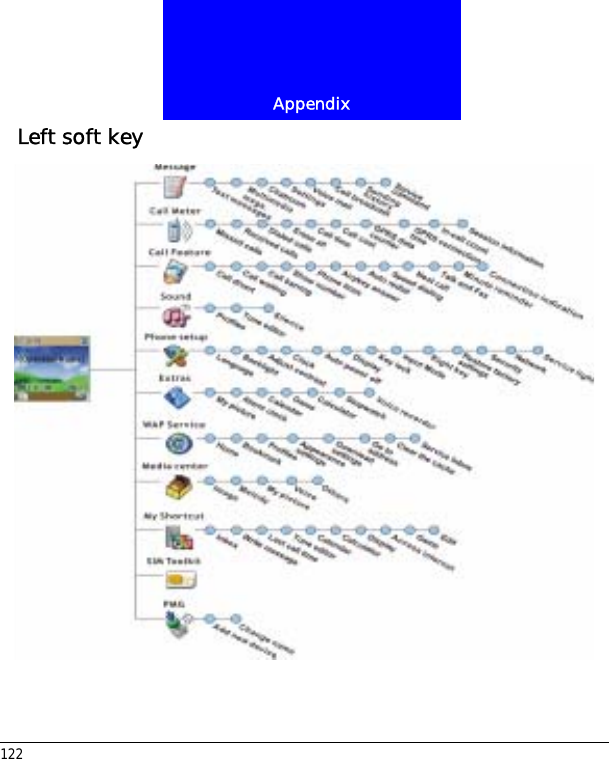

Appendix122Left soft key

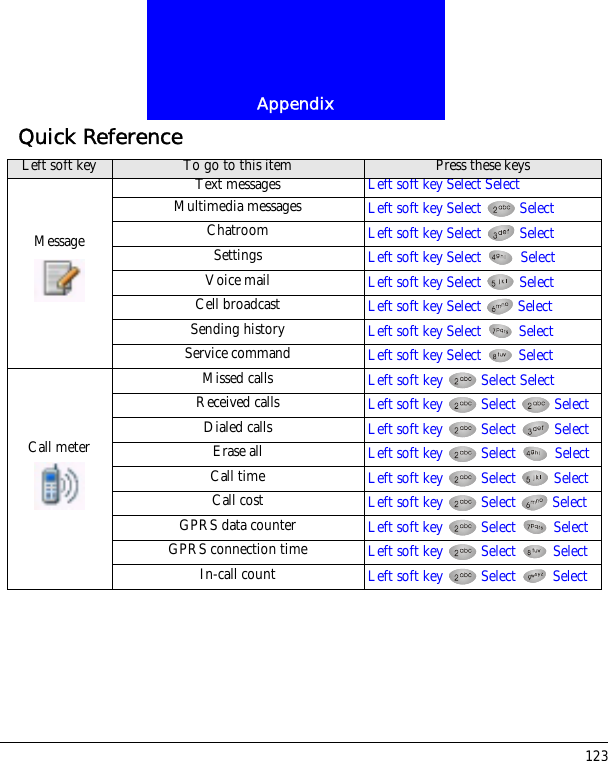

Appendix123Quick ReferenceLeft soft key To go to this item Press these keysMessageText messages Left soft key Select SelectMultimedia messages Left soft key Select SelectChatroom Left soft key Select SelectSettings Left soft key Select SelectVoice mail Left soft key Select SelectCell broadcast Left soft key Select SelectSending history Left soft key Select SelectService command Left soft key Select SelectCall meterMissed calls Left soft key Select SelectReceived calls Left soft key Select SelectDialed calls Left soft key Select SelectErase all Left soft key Select SelectCall time Left soft key Select SelectCall cost Left soft key Select SelectGPRS data counter Left soft key Select SelectGPRS connection time Left soft key Select SelectIn-call count Left soft key Select Select

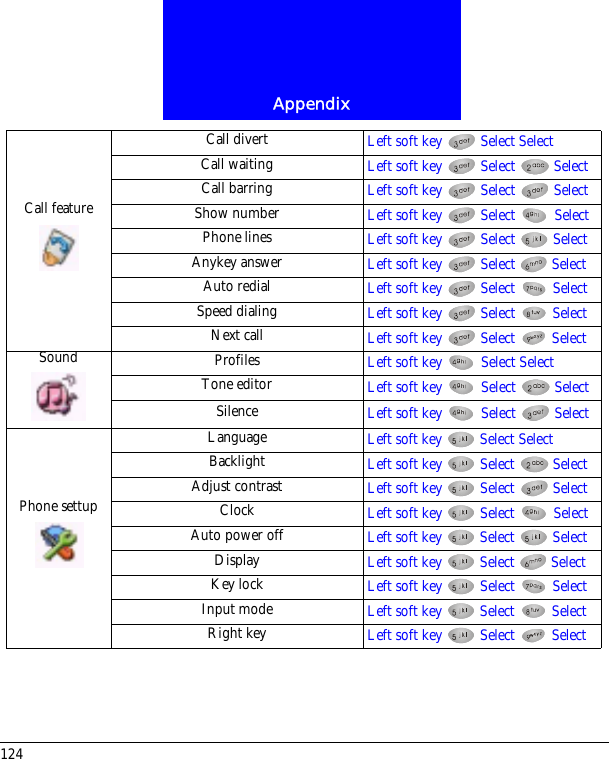

Appendix124Call featureCall divert Left soft key Select SelectCall waiting Left soft key Select SelectCall barring Left soft key Select SelectShow number Left soft key Select SelectPhone lines Left soft key Select SelectAnykey answer Left soft key Select SelectAuto redial Left soft key Select SelectSpeed dialing Left soft key Select SelectNext call Left soft key Select SelectSound Profiles Left soft key Select SelectTone editor Left soft key Select SelectSilence Left soft key Select SelectPhone settupLanguage Left soft key Select SelectBacklight Left soft key Select SelectAdjust contrast Left soft key Select SelectClock Left soft key Select SelectAuto power off Left soft key Select SelectDisplay Left soft key Select SelectKey lock Left soft key Select SelectInput mode Left soft key Select SelectRight key Left soft key Select Select

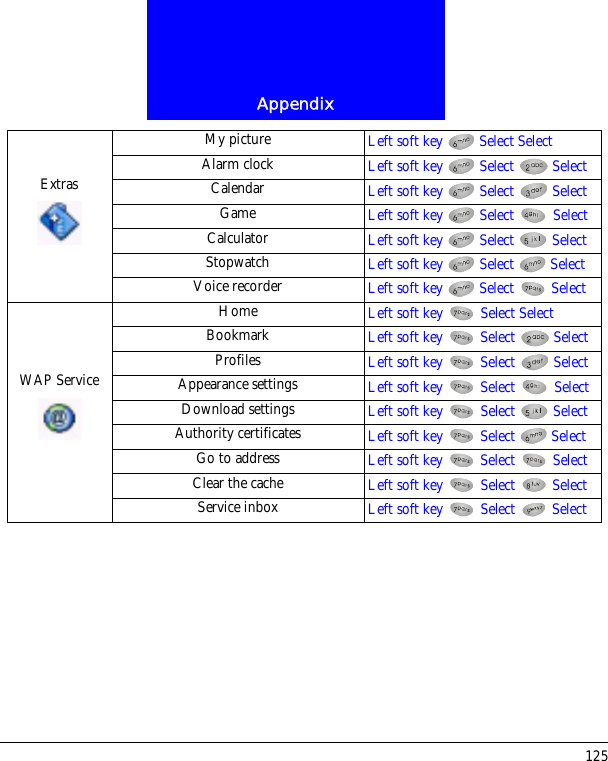

Appendix125ExtrasMy picture Left soft key Select SelectAlarm clock Left soft key Select SelectCalendar Left soft key Select SelectGame Left soft key Select SelectCalculator Left soft key Select SelectStopwatch Left soft key Select SelectVoice recorder Left soft key Select SelectWAP ServiceHome Left soft key Select SelectBookmark Left soft key Select SelectProfiles Left soft key Select SelectAppearance settings Left soft key Select SelectDownload settings Left soft key Select SelectAuthority certificates Left soft key Select SelectGo to address Left soft key Select SelectClear the cache Left soft key Select SelectService inbox Left soft key Select Select

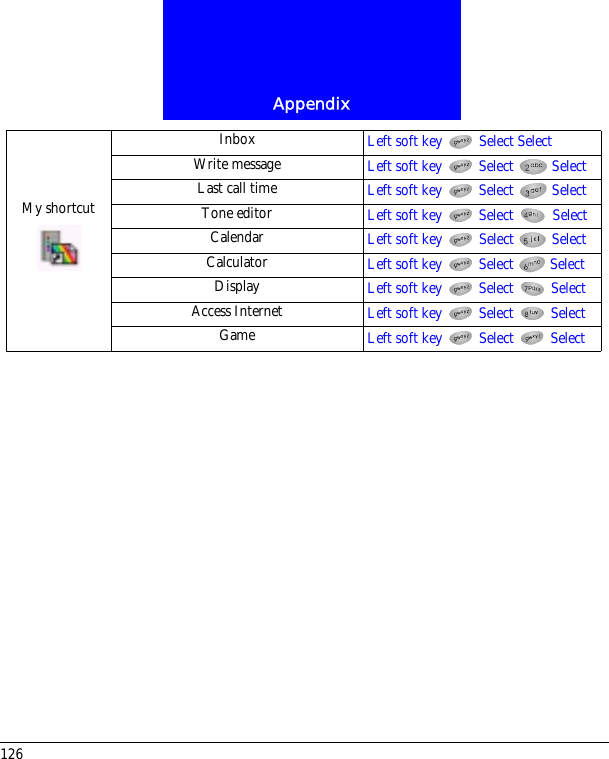

Appendix126My shortcutInbox Left soft key Select SelectWrite message Left soft key Select SelectLast call time Left soft key Select SelectTone editor Left soft key Select SelectCalendar Left soft key Select SelectCalculator Left soft key Select SelectDisplay Left soft key Select SelectAccess Internet Left soft key Select SelectGame Left soft key Select Select
