User Manual
WiFi Home Video Camera
User Manual
| 1
English
Names of Parts
Lens
LED
Indicator
Network
Indicator
Micro USB Port
Stand
Power/Mode
Button
Speaker
Reset microSD Card
Slot
1. Insert a microSD Card (suggested class 10, up to 64GB)
For initial use, mobile device needs to:
1. Connects to internet (via WiFi, 3G/4G).
2. Download and install App [Unieye Home] from
Google Play Store or Apple App Store.
Getting Started
2.

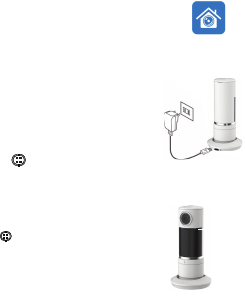

Power on: Plug a USB power cable with the included
5V/2A adapter into one of
to
cluded
3. Power off:
Press for 3 seconds to turn off camera.
Mobile device connects to smart WiFi Home Camera directly via App
[Unieye Home] for remote control, live view, Widget display and
receives push alerts when events are detected. Camera with 300° pan
motor could be remote controlled by Wi-Fi and Bluetooth.
Modes Switch in Camera
Network indicator shows current mode status.
Press to switch.
Steady purple for direct control
Steady blue for Internet control
Camera needs to:
Network
Indicator
Unieye Home
| 2
English
Wireless & App Operation
Run App [Unieye Home] on mobile device and navigate either one of
modes:

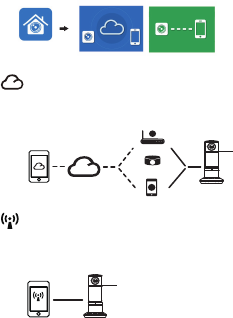

(I) Internet Mode - Internet (II) Local Mode - Direct control
Mobile Camera
Local
Status: Purple
Status:
Blue
Unieye
Server
AP
3G/4G Mobile Hotspot
Wireless Router
AP
Camera
3G/4G Mobile
Wireless Router
AP
Mobile
Internet
Unieye Home
Internet Mode Local Mode
(I) 【Internet Mode】
Mobile device connects to camera via internet for remote control,
Widget display and the instant live view from partner's camera.
【Local Mode】
(II)
Mobile device directly connects to camera via WiFi for remote
control, live view, pan angel change, camera setup and receives
push alerts when noise and motion events are detected.
| 3
English
Mobile Device Connects to Camera
1. F
or Android: Turn on [Wi-Fi].
For iOS: Go to [Settings] [Wi-Fi].
Turn on [Wi-Fi] and select the camera name.
2. Run [Unieye Home].
3. Tap【Local】and select the camera to enter View Page.
Tap [ ] to scan again if camera is not found.
Note:
iOS Settings
Before using 【Internet Mode】on mobile App, ensure WiFi on mobile
device
is on and network indicator on camera shows steady purple.
Remote Control Page

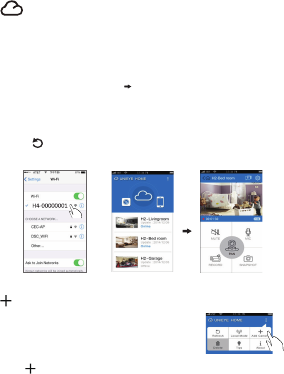

Internet Mode Main Page
【Internet Mode】
1. Run [Unieye Home] and tap .
2. Tap Add Camera in list. Enter camera ID and password.
Add Camera
!
mobile, ensure the
camera is in 【Internet Mode】
and status indicator shows steady green.
| 4
English
Remote Control :
Advance Setup
Items Descriptions
Talk to camera from mobile.
Mute the sound from camera.
Shoot videos or take photos and save to storage on mobile
"Album\Unieye Home\“
Pan camera view angel.

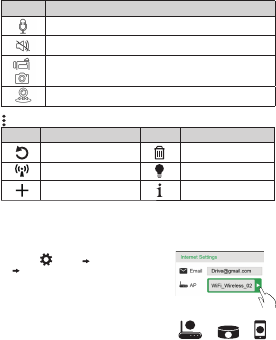

Items Descriptions Items Descriptions
Rescan for cameras Delete camera
Switch to local mode Tip for help
Add camera About
1. Go to [ Setup] [ Internet Settings]
Edit Email and AP
2. Tap [Save] to complete Email & AP
settings.
Camera Internet Setup
Before using internet cloud service, Email and AP must be properly
set up.
Note: AP(Access Point) can be
Wireless Router or
3G/4G Mobile Wireless Router or
3G/4G Mobile Hotspot
AP
AP
AP
Wireless Router 3G/4G Mobile
Wireless Router
3G/4G
Mobile Hotspot
| 5
English
Cloud Video Recording
Widget displays on mobile desktop
Cloud Video Recording (CVR) saves videos
and images in your cloud account. For initial
use, cloud account should be authenticated.
Widget is a small tool for Android that real time
shows alert inforamtion on Mobile desktop.
1. Go to [Setup] Turn on [Save to CVR]
2. Select a cloud account and enter account
information.
3. Tap Save on [Setup] page to activate CVR
function.
1. Add an Unieye Home Widget.
2. On widget setting page, select a camera and
adjust photo fetch interval.
#$%*+7
desktop.
Photos on widget update regularly or when events
detected.
Push Alert
When camera is in【Internet Mode】and events are detected,
Push alerts and Email will be sent to mobile device.
| 6
English
Note: Record event clips only when mobile device did not connect
to camera.
Groups Descriptions
Camera Settings
Edit name, password. Format SD card. Adjust
night vision, noise detection, motion detection,
image rotation, etc.
Internet Settings Edit Email and AP for【Internet Mode】.
Events (for camera)
In [Setup] Page, tap [Save] to complete settings to camera.
Tap [ ] and select [Local Mode] to switch to Local Mode .
Items Descriptions
Camera Videos
8
SD card during motion and noise detection.
Setup (for camera)
【Local Mode】

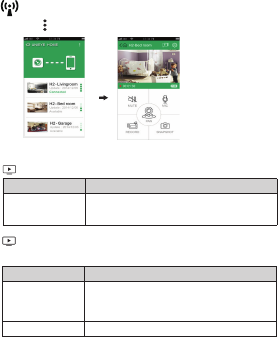

Local Mode Main Page Remote Control Page
| 7
English
Control Camera Angle
Set up camera lens angle by using APP.
1. Click [ Pan] .
2. Click arrows for control the lens angle.
3. Tap [ ] to set camera angle back to
latest setup.
| 8
English
| 9
English
Condition Status Indicator Beep
Power On
Flash for few seconds, then turn to
steady purple.
(For 1st power-on , LED status turns
blue; Network LED turns purple)
1 time
【Local Mode】Network LED shows steady purple N/A
【Internet Mode】Network LED shows steady blue N/A
Power Off No indication 1 time
Low Battery Flash in red 2 times
Fail connect to
【Internet】
Flash in blue for few seconds, then
turn to purple N/A
Factory Reset No change 3 times
Camera Hotkey
Forced Shutdown
Press and hold for 5 seconds to turn off camera.
Forced
Factory
Settings
9<=
paper clip into the hole and press lightly to reset.
>79
Go to App [Unieye Home]
Connect
【Local Mode】 [Setup] page Reset
factory settings.
Camera Indication
Camera Hotkey
Situation Cause/Solution
Camera cannot turn on Power is low. Recharge battery
Camera is frozen Press and hold for 5 seconds to force turn
off; press again to power on
Camera cannot record
No microSD card or microSD card is full
microSD card cannot be recognized
Format microSD card in [Unieye Home] or
replace microSD card
Camera cannot
connect to AP or could
server
=?
+@++
J7
@7K
>7
Camera
Camera not in WiFi coverage
Mobile WiFi is disabled
iOS user does not choose camera name in
Wi-Fi Settings
Tap [ ] on [Unieye Home]
Mobile cannot watch
live view +@+
7K7
Mobile cannot connect
to cloud server
Check mobile 3G/4G or WiFi internet
connection
@7K
Mobile cannot watch
live view $7!!
camera upload or mobile download
Factory Reset Open the top cover. Insert a small thin paper
clip into the hole and press lightly to reset.
Troubleshooting
【Internet Mode】
【Internet Mode】
【Local Mode】
【Local Mode】
