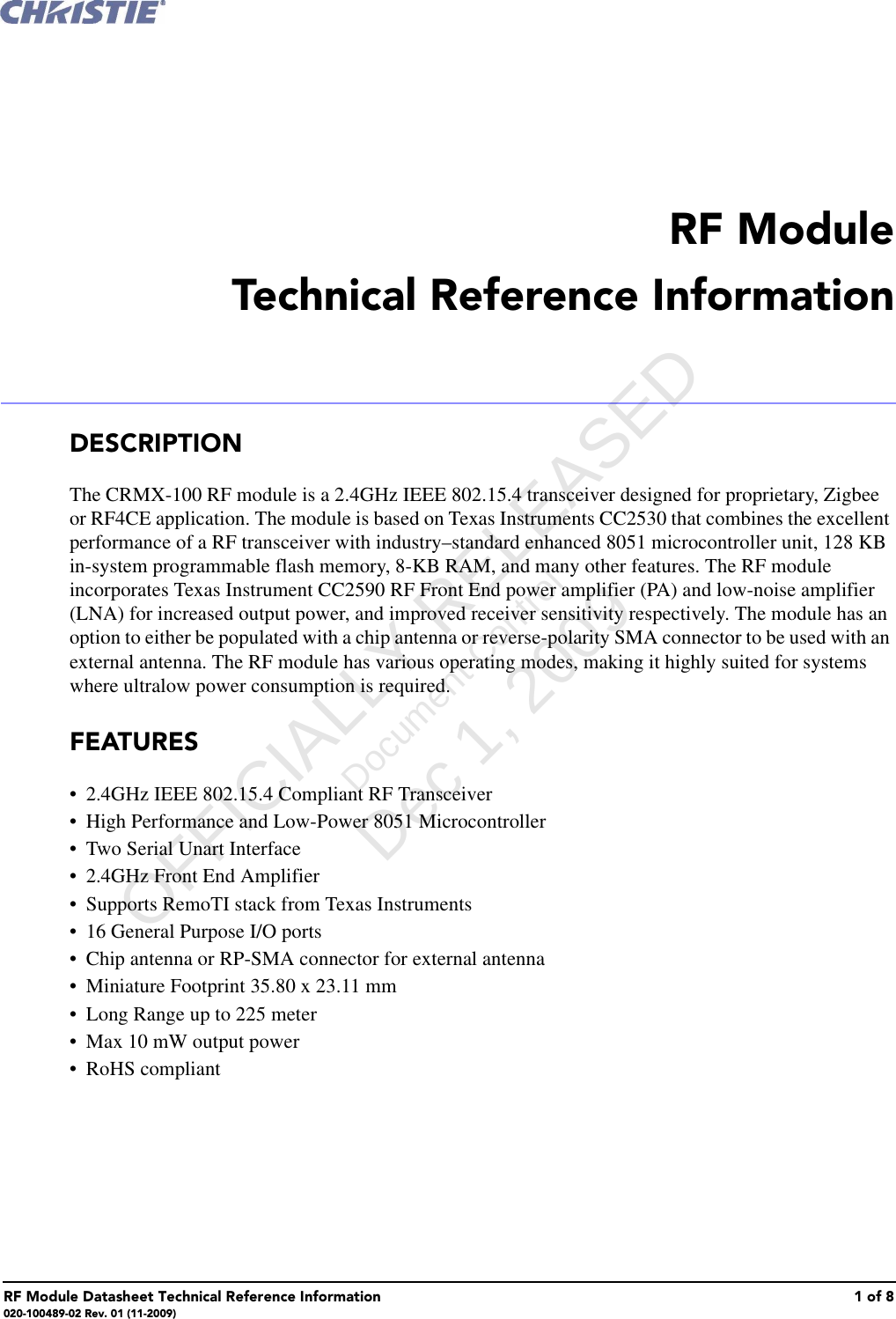

RF Module Datasheet Technical Reference Information 1 of 8020-100489-02 Rev. 01 (11-2009) RF ModuleTechnical Reference InformationDESCRIPTIONThe CRMX-100 RF module is a 2.4GHz IEEE 802.15.4 transceiver designed for proprietary, Zigbee or RF4CE application. The module is based on Texas Instruments CC2530 that combines the excellent performance of a RF transceiver with industry–standard enhanced 8051 microcontroller unit, 128 KB in-system programmable flash memory, 8-KB RAM, and many other features. The RF module incorporates Texas Instrument CC2590 RF Front End power amplifier (PA) and low-noise amplifier (LNA) for increased output power, and improved receiver sensitivity respectively. The module has an option to either be populated with a chip antenna or reverse-polarity SMA connector to be used with an external antenna. The RF module has various operating modes, making it highly suited for systems where ultralow power consumption is required. FEATURES• 2.4GHz IEEE 802.15.4 Compliant RF Transceiver•High Performance and Low-Power 8051 Microcontroller• Two Serial Unart Interface• 2.4GHz Front End Amplifier• Supports RemoTI stack from Texas Instruments• 16 General Purpose I/O ports• Chip antenna or RP-SMA connector for external antenna• Miniature Footprint 35.80 x 23.11 mm• Long Range up to 225 meter• Max 10 mW output power• RoHS compliant OFFICIALLY RELEASED Document Control Dec 1, 2009

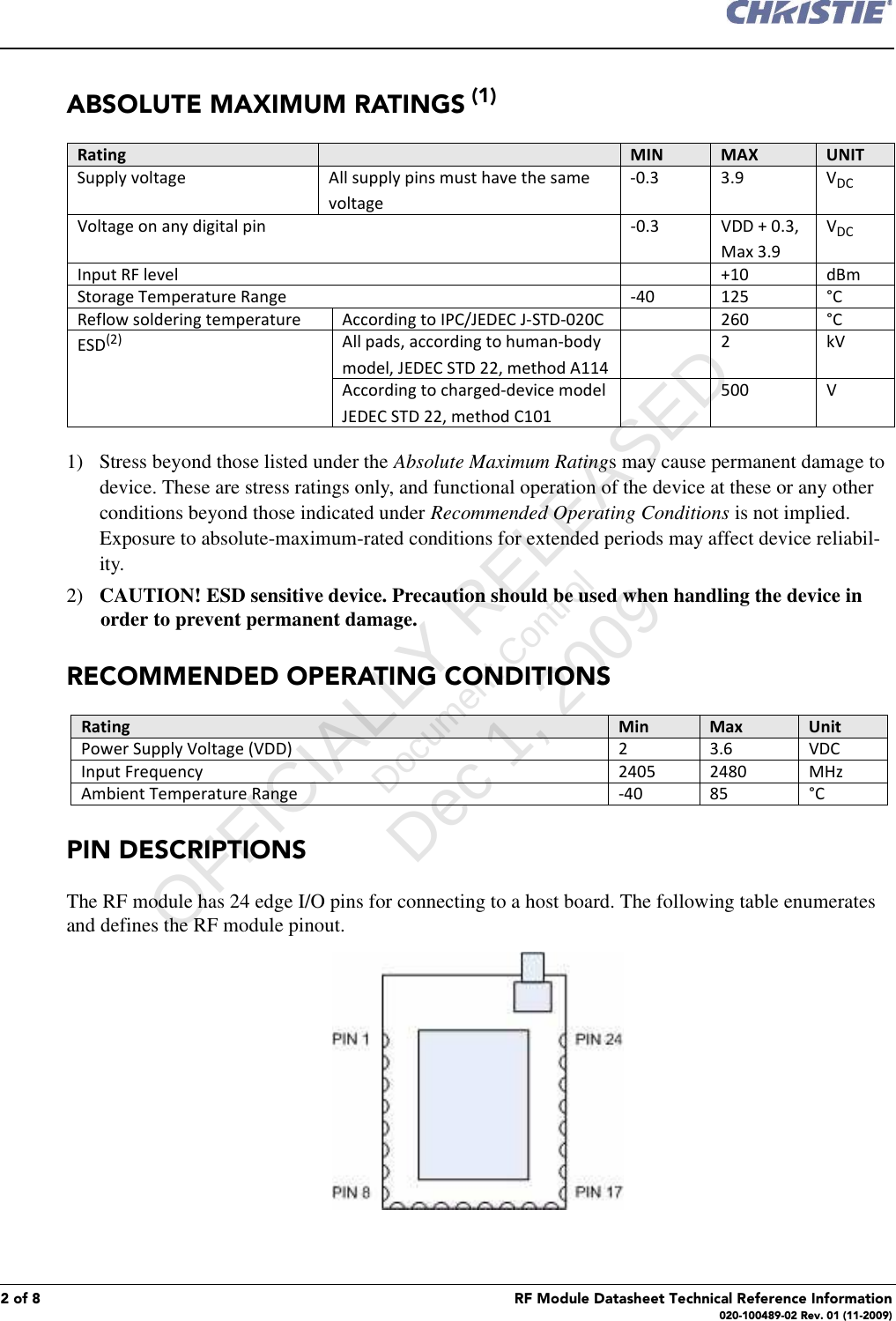

2 of 8 RF Module Datasheet Technical Reference Information020-100489-02 Rev. 01 (11-2009)ABSOLUTE MAXIMUM RATINGS (1)1) Stress beyond those listed under the Absolute Maximum Ratings may cause permanent damage to device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliabil-ity.2) CAUTION! ESD sensitive device. Precaution should be used when handling the device in order to prevent permanent damage. RECOMMENDED OPERATING CONDITIONSPIN DESCRIPTIONSThe RF module has 24 edge I/O pins for connecting to a host board. The following table enumerates and defines the RF module pinout.Rating MIN MAX UNITSupply voltage All supply pins must have the same voltage-0.3 3.9 VDCVoltage on any digital pin -0.3 VDD + 0.3, Max 3.9VDCInput RF level +10 dBmStorage Temperature Range -40 125 °CReflow soldering temperature According to IPC/JEDEC J-STD-020C 260 °CESD(2)All pads, according to human-body model, JEDEC STD 22, method A1142 kVAccording to charged-device model JEDEC STD 22, method C101500 VRating Min Max UnitPower Supply Voltage (VDD) 2 3.6 VDCInput Frequency 2405 2480 MHzAmbient Temperature Range -40 85 °C OFFICIALLY RELEASED Document Control Dec 1, 2009

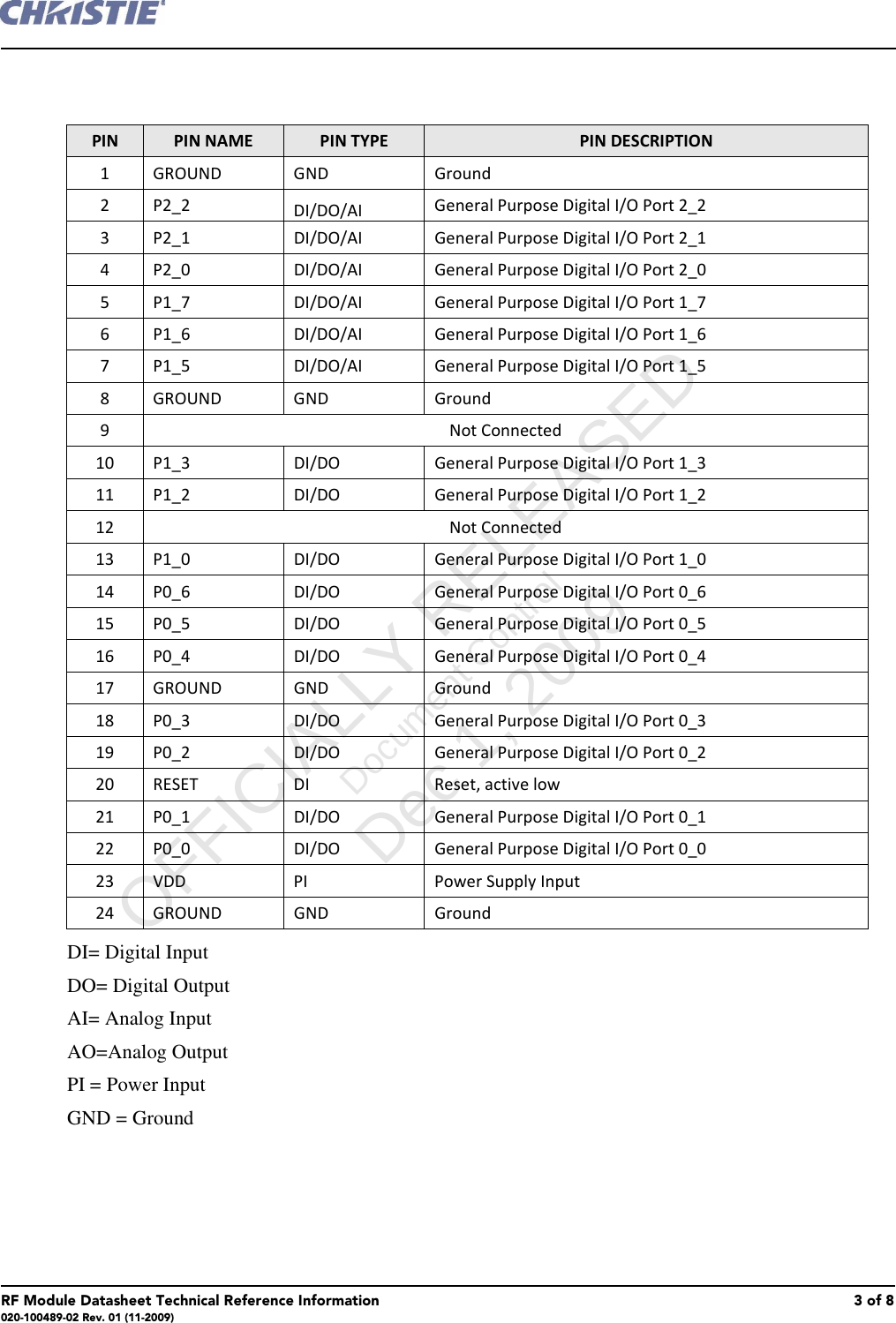

RF Module Datasheet Technical Reference Information 3 of 8020-100489-02 Rev. 01 (11-2009)DI= Digital InputDO= Digital OutputAI= Analog InputAO=Analog OutputPI = Power InputGND = GroundPIN PIN NAME PIN TYPE PIN DESCRIPTION1 GROUND GND Ground2 P2_2 DI/DO/AI General Purpose Digital I/O Port 2_2 3 P2_1 DI/DO/AI General Purpose Digital I/O Port 2_1 4 P2_0 DI/DO/AI General Purpose Digital I/O Port 2_0 5 P1_7 DI/DO/AI General Purpose Digital I/O Port 1_7 6 P1_6 DI/DO/AI General Purpose Digital I/O Port 1_6 7 P1_5 DI/DO/AI General Purpose Digital I/O Port 1_58 GROUND GND Ground9 Not Connected10 P1_3 DI/DO General Purpose Digital I/O Port 1_3 11 P1_2 DI/DO General Purpose Digital I/O Port 1_212 Not Connected13 P1_0 DI/DO General Purpose Digital I/O Port 1_014 P0_6 DI/DO General Purpose Digital I/O Port 0_615 P0_5 DI/DO General Purpose Digital I/O Port 0_516 P0_4 DI/DO General Purpose Digital I/O Port 0_417 GROUND GND Ground18 P0_3 DI/DO General Purpose Digital I/O Port 0_319 P0_2 DI/DO General Purpose Digital I/O Port 0_220 RESET DI Reset, active low21 P0_1 DI/DO General Purpose Digital I/O Port 0_122 P0_0 DI/DO General Purpose Digital I/O Port 0_023 VDD PI Power Supply Input24 GROUND GND Ground OFFICIALLY RELEASED Document Control Dec 1, 2009

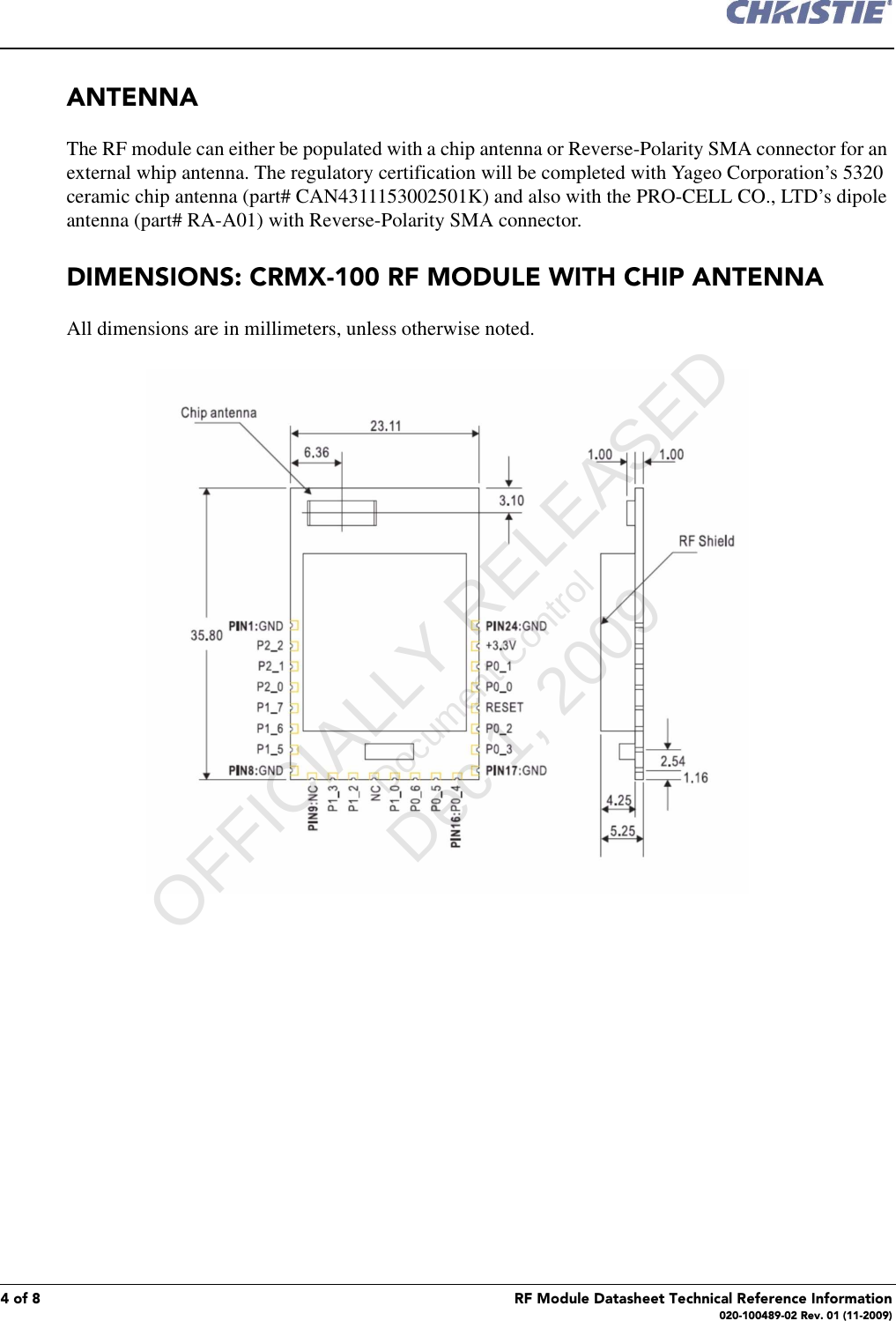

4 of 8 RF Module Datasheet Technical Reference Information020-100489-02 Rev. 01 (11-2009)ANTENNAThe RF module can either be populated with a chip antenna or Reverse-Polarity SMA connector for an external whip antenna. The regulatory certification will be completed with Yageo Corporation’s 5320 ceramic chip antenna (part# CAN4311153002501K) and also with the PRO-CELL CO., LTD’s dipole antenna (part# RA-A01) with Reverse-Polarity SMA connector. DIMENSIONS: CRMX-100 RF MODULE WITH CHIP ANTENNAAll dimensions are in millimeters, unless otherwise noted. OFFICIALLY RELEASED Document Control Dec 1, 2009

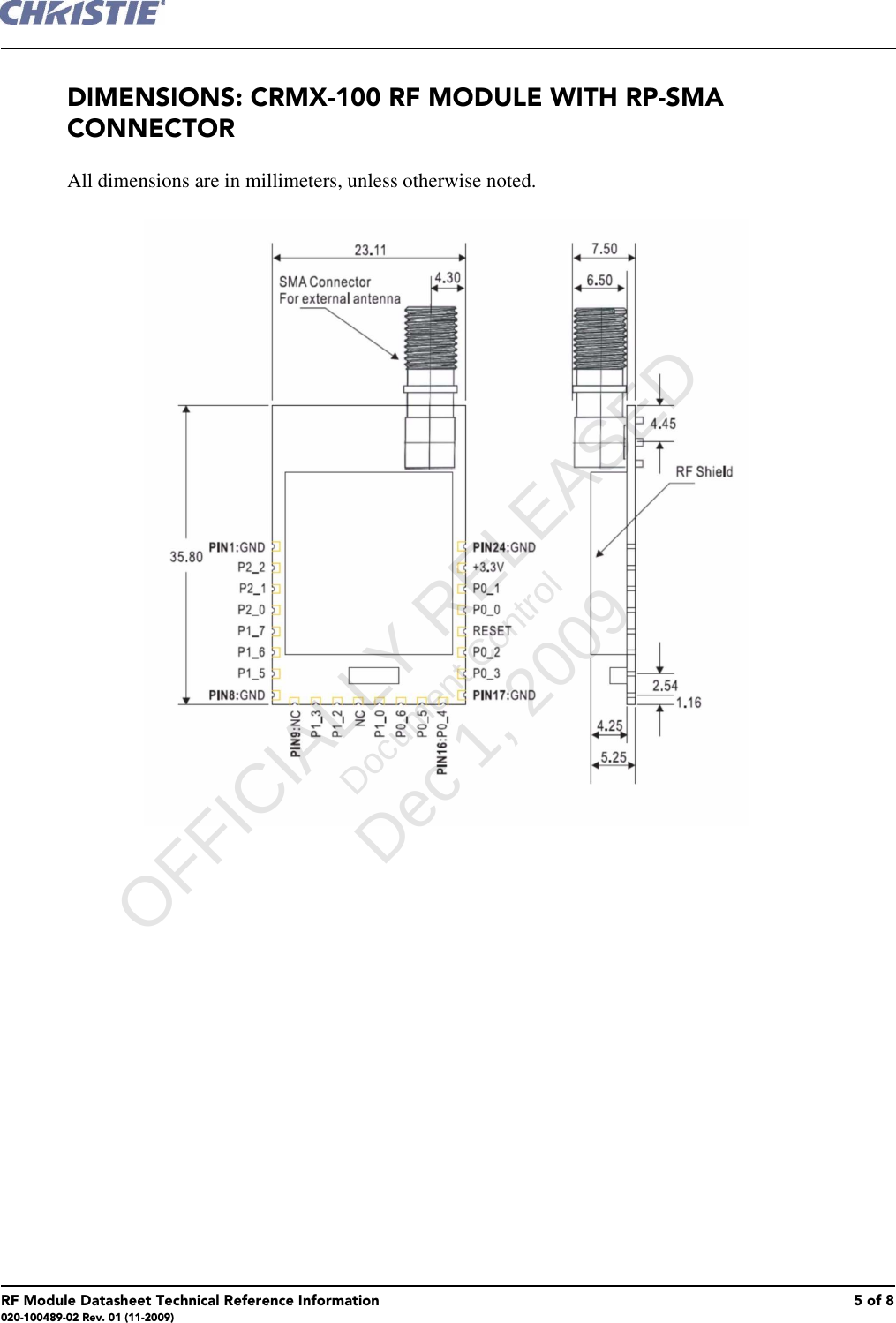

RF Module Datasheet Technical Reference Information 5 of 8020-100489-02 Rev. 01 (11-2009)DIMENSIONS: CRMX-100 RF MODULE WITH RP-SMA CONNECTORAll dimensions are in millimeters, unless otherwise noted. OFFICIALLY RELEASED Document Control Dec 1, 2009

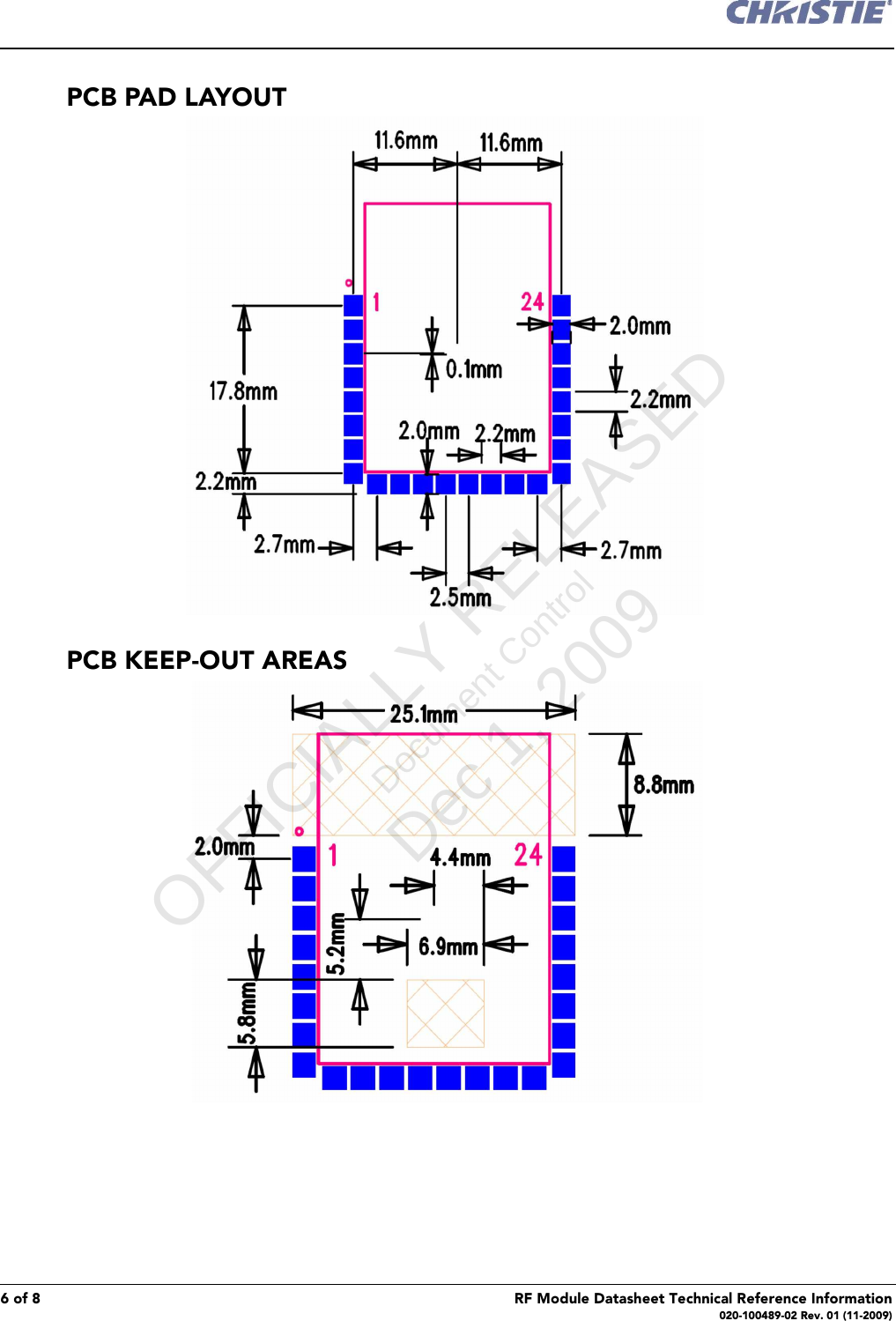

6 of 8 RF Module Datasheet Technical Reference Information020-100489-02 Rev. 01 (11-2009)PCB PAD LAYOUTPCB KEEP-OUT AREAS OFFICIALLY RELEASED Document Control Dec 1, 2009

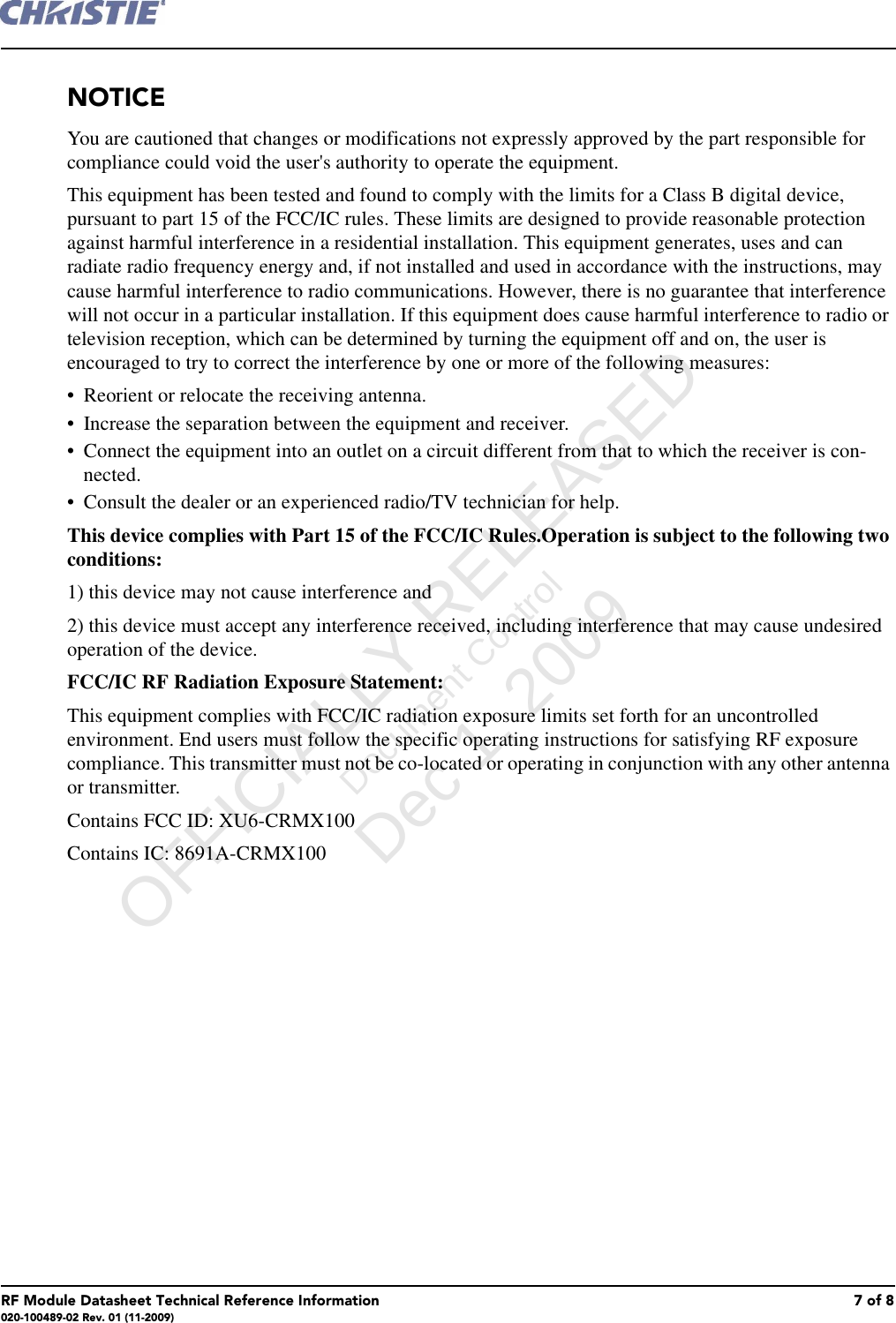

RF Module Datasheet Technical Reference Information 7 of 8020-100489-02 Rev. 01 (11-2009)NOTICEYou are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC/IC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected.• Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC/IC Rules.Operation is subject to the following two conditions:1) this device may not cause interference and2) this device must accept any interference received, including interference that may cause undesired operation of the device.FCC/IC RF Radiation Exposure Statement:This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Contains FCC ID: XU6-CRMX100Contains IC: 8691A-CRMX100 OFFICIALLY RELEASED Document Control Dec 1, 2009
8 of 8 RF Module Datasheet Technical Reference Information020-100489-02 Rev. 01 (11-2009) OFFICIALLY RELEASED Document Control Dec 1, 2009
