Chuango Security Technology MD9100 Pet-Immune PIR Motion Detector User Manual MD9100 UM EN V1 1

Chuango Security Technology Corporation Pet-Immune PIR Motion Detector MD9100 UM EN V1 1

User Manual

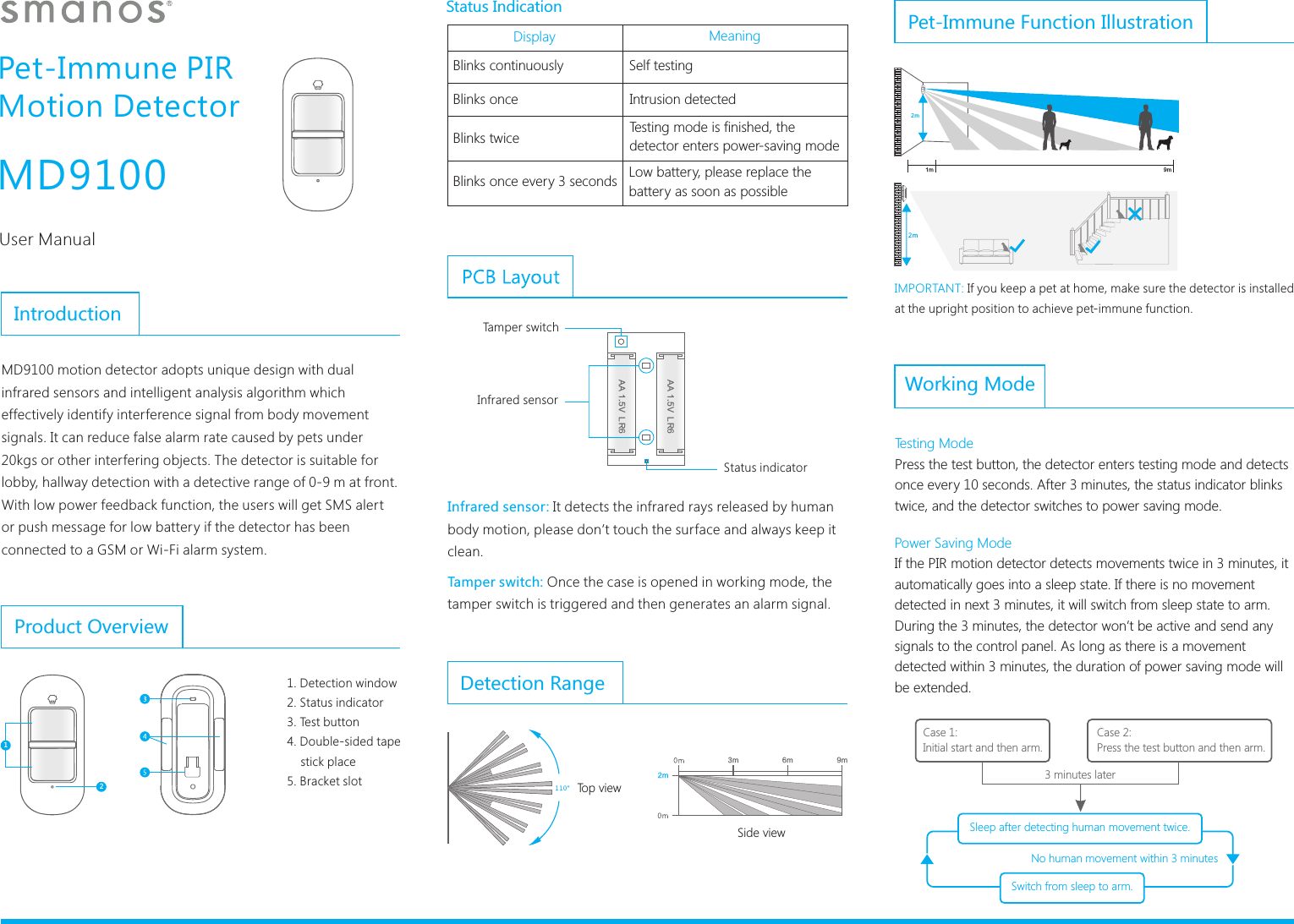

Pet-Immune Function IllustrationMD9100User ManualIntroductionMD9100 motion detector adopts unique design with dual infrared sensors and intelligent analysis algorithm which effectively identify interference signal from body movement signals. It can reduce false alarm rate caused by pets under 20kgs or other interfering objects. The detector is suitable for lobby, hallway detection with a detective range of 0-9 m at front. With low power feedback function, the users will get SMS alert or push message for low battery if the detector has been connected to a GSM or Wi-Fi alarm system.Product Overview1. Detection window2. Status indicator3. Test button4. Double-sided tape stick place5. Bracket slotDetection Range 12Infrared sensor: It detects the infrared rays released by human body motion, please don’t touch the surface and always keep it clean.Tamper switch: Once the case is opened in working mode, the tamper switch is triggered and then generates an alarm signal.Infrared sensorAA 1 . 5V LR6AA 1 . 5V LR6Status indicatorPet-Immune PIR Motion Detector Tamper switchBlinks twiceBlinks once every 3 secondsTesting mode is finished, the detector enters power-saving modeLow battery, please replace the battery as soon as possibleStatus IndicationDisplay MeaningBlinks continuouslyBlinks onceSelf testing Intrusion detectedWorking ModeTesting ModePress the test button, the detector enters testing mode and detects once every 10 seconds. After 3 minutes, the status indicator blinks twice, and the detector switches to power saving mode.2m1m 9 mSide viewIMPORTANT: If you keep a pet at home, make sure the detector is installed at the upright position to achieve pet-immune function.2m2m3m 6 m 9 mTop viewPower Saving ModeIf the PIR motion detector detects movements twice in 3 minutes, it automatically goes into a sleep state. If there is no movement detected in next 3 minutes, it will switch from sleep state to arm. During the 3 minutes, the detector won’t be active and send any signals to the control panel. As long as there is a movement detected within 3 minutes, the duration of power saving mode will be extended.Sleep after detecting human movement twice.Case 2: Press the test button and then arm.3 minutes laterNo human movement within 3 minutesSwitch from sleep to arm.Case 1: Initial start and then arm.

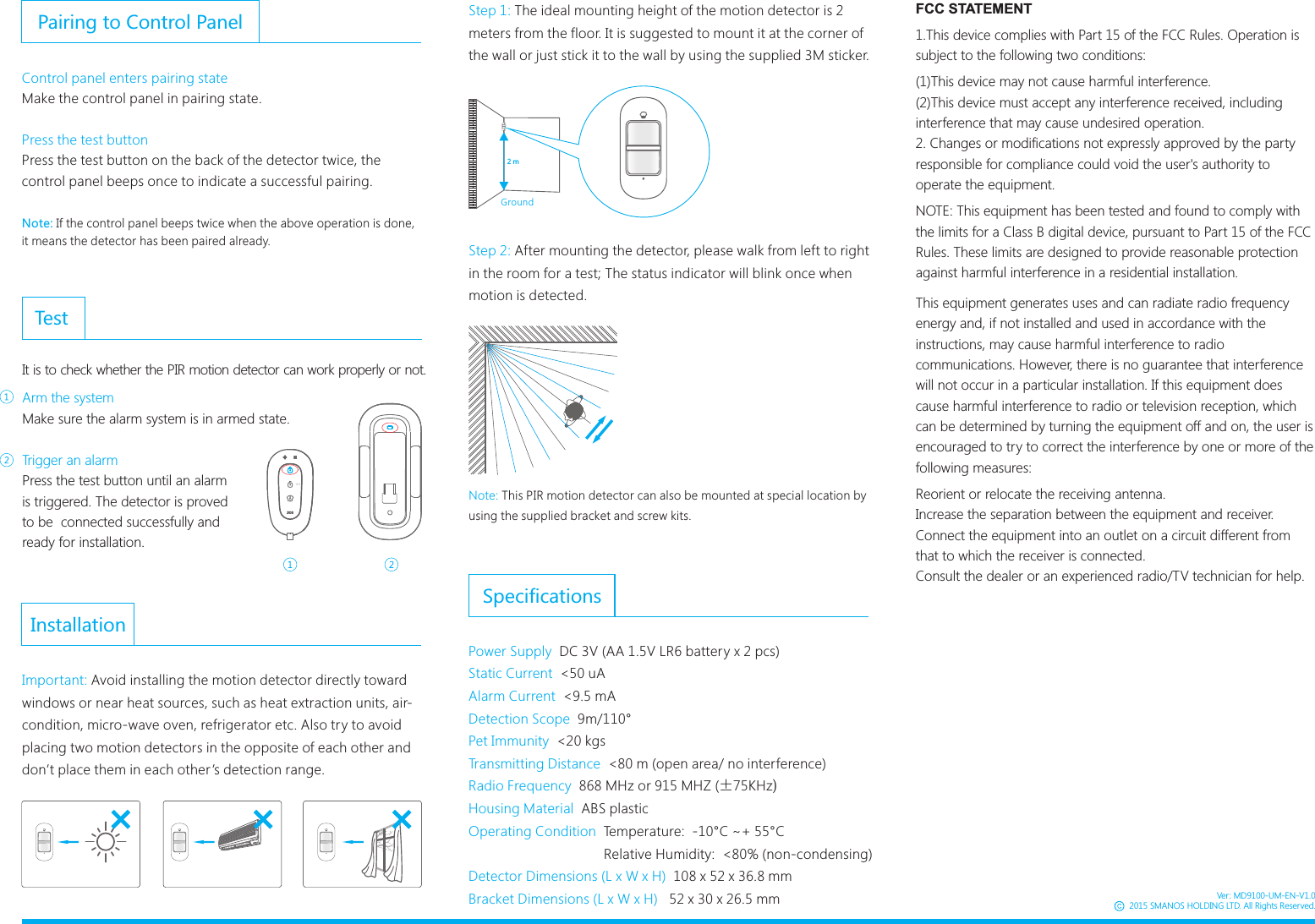

InstallationImportant: Avoid installing the motion detector directly toward windows or near heat sources, such as heat extraction units, air-condition, micro-wave oven, refrigerator etc. Also try to avoid placing two motion detectors in the opposite of each other and don’t place them in each other’s detection range. SpecificationsPower Supply DC 3V (AA 1.5V LR6 battery x 2 pcs)Static Current <50 uAAlarm Current <9.5 mADetection Scope 9m/110°Pet Immunity <20kgsTransmitting Distance <80 m (open area/ no interference)Radio Frequency 868 MHz or 915 MHZ (±75KHz)Housing Material ABS plasticOperating Condition Temperature: -10°C ~+ 55°C Relative Humidity: <80% (non-condensing)Detector Dimensions (L x W x H) 108 x 52 x 36.8 mmBracket Dimensions (L x W x H) 52 x 30 x 26.5 mmArm the systemMake sure the alarm system is in armed state. Trigger an alarmPress the test button until an alarm is triggered. The detector is proved to be connected successfully and ready for installation. TestIt is to check whether the PIR motion detector can work properly or not.Pairing to Control PanelControl panel enters pairing stateMake the control panel in pairing state.Press the test buttonPress the test button on the back of the detector twice, the control panel beeps once to indicate a successful pairing.Note: If the control panel beeps twice when the above operation is done, it means the detector has been paired already.Step 1: The ideal mounting height of the motion detector is 2 meters from the floor. It is suggested to mount it at the corner of the wall or just stick it to the wall by using the supplied 3M sticker.2 mONGroundNote: This PIR motion detector can also be mounted at special location by using the supplied bracket and screw kits.Step 2: After mounting the detector, please walk from left to right in the room for a test; The status indicator will blink once when motion is detected.Ver: MD9100-UM-EN-V1.02015 SMANOS HOLDING LTD. All Rights Reserved.FCC STATEMENT1.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference.(2)This device must accept any interference received, including interference that may cause undesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.
