Chuango Security Technology P900 P.I.R. Motion Detector User Manual 900 EN 1212 2 0

Chuango Security Technology Corporation P.I.R. Motion Detector 900 EN 1212 2 0

User Manual

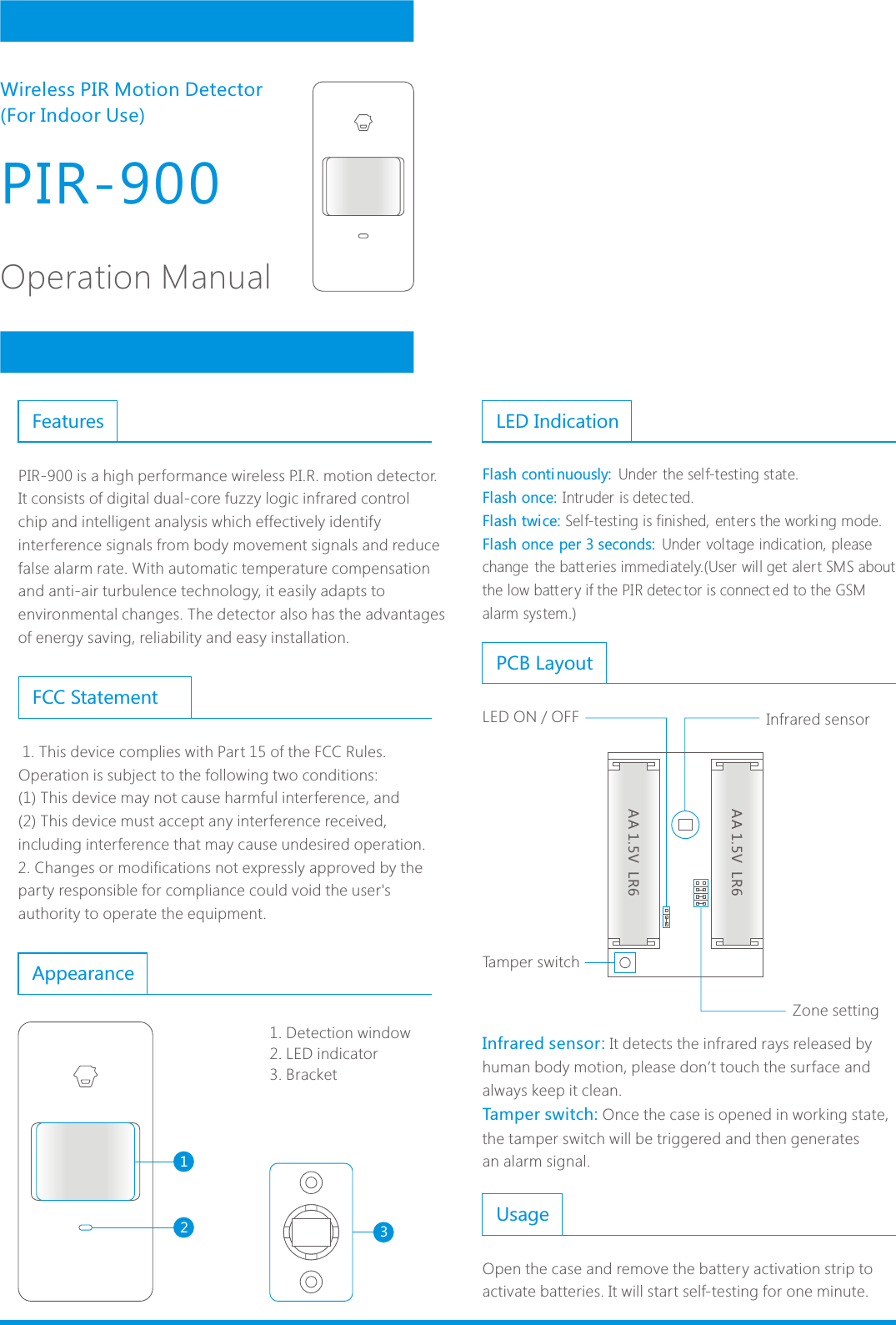

Appearance1231. Detection window2. LED indicator3. BracketPIR-900Operation ManualWireless PIR Motion Detector (For Indoor Use)Infrared sensor: Tamper switch: It detects the infrared rays released by human body motion, please don’t touch the surface and always keep it clean.Once the case is opened in working state, the tamper switch will be triggered and then generatesan alarm signal.PCB LayoutInfrared sensorTamper switchZone settingAA 1.5V LR6AA 1.5V LR6LED ON / OFFUsageOpen the case and remove the battery activation strip to activate batteries. It will start self-testing for one minute.LED IndicationFlash conti nuously: Flash once: Flash twice: Flash once per 3 seconds: Under the self-testing state.Intruder is detec ted. Self-testing is finished, enters the worki ng mode.Under voltage indication, please change the batt eries immediately.(User will get alert SMS about the low batt ery if the PIR detec tor is connect ed to the GSM alarm system.) 1. This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.FeaturesFCC StatementPIR-900 is a high performance wireless P.I.R. motion detector. It consists of digital dual-core fuzzy logic infrared control chip and intelligent analysis which effectively identify interference signals from body movement signals and reduce false alarm rate. With automatic temperature compensation and anti-air turbulence technology, it easily adapts to environmental changes. The detector also has the advantages of energy saving, reliability and easy installation.

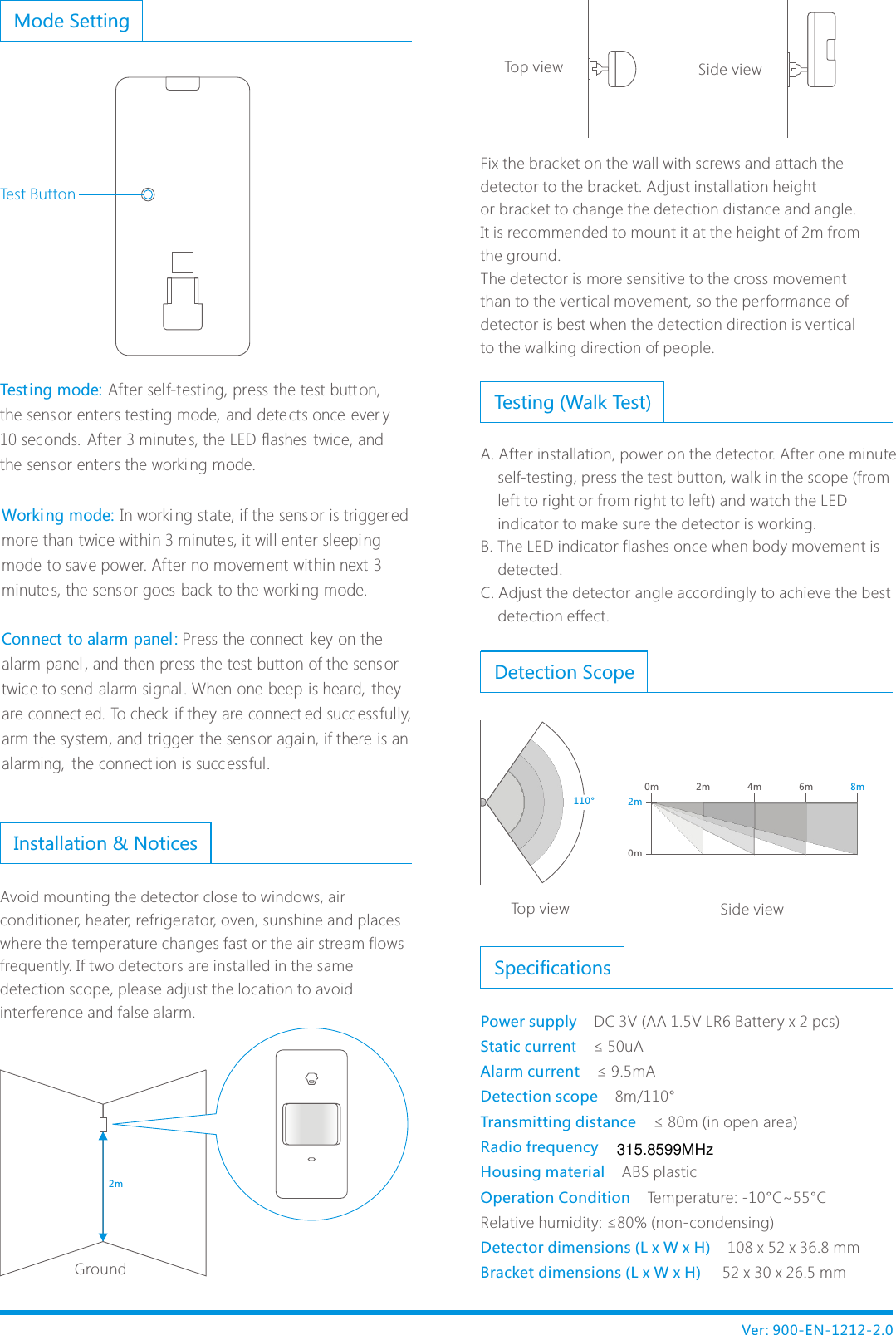

Fix the bracket on the wall with screws and attach the detector to the bracket. Adjust installation height or bracket to change the detection distance and angle.It is recommended to mount it at the height of 2m from the ground. The detector is more sensitive to the cross movement than to the vertical movement, so the performance of detector is best when the detection direction is vertical to the walking direction of people. Ver: 900-EN-1212-2.02mInstallation & NoticesAvoid mounting the detector close to windows, air conditioner, heater, refrigerator, oven, sunshine and places where the temperature changes fast or the air stream flows frequently. If two detectors are installed in the same detection scope, please adjust the location to avoid interference and false alarm. GroundTop view Side viewIn worki ng state, if the sensor is triggered more than twice within 3 minutes, it will enter sleeping mode to save power. After no movement within next 3 minutes, the sens or goes back to the worki ng mode.Press the connect key on the alarm panel , and then press the test butt on of the sensor twice to send alarm signal . When one beep is heard, they are connect ed. To check if they are connect ed succ essfully, arm the system, and trigger the sensor agai n, if there is an alarming, the connect ion is succ essful.Working mode: Connect to alarm panel : Detection Scope 2m 4m 6m 8m0m0m2m110°Top view Side viewTesting (Walk Test)A. After installation, power on the detector. After one minute self-testing, press the test button, walk in the scope (from left to right or from right to left) and watch the LED indicator to make sure the detector is working.B. The LED indicator flashes once when body movement is detected. C. Adjust the detector angle accordingly to achieve the best detection effect.Mode SettingTesting mode: After self-testing, press the test button, the sensor enters testing mode, and detects once ever y 10 seconds. After 3 minutes, the LED flashes twice, and the sensor enters the worki ng mode.Test ButtonSpecificationsPower supply Static current Alarm current Detection scope Transmitting distance Radio frequency Housing material Operation Condition Detector dimensions (L x W x H) Bracket dimensions (L x W x H) DC 3V (AA 1.5V LR6 Battery x 2 pcs)≤ 50uA≤ 9.5mA8m/110°≤ 80m (in open area)ABS plasticTemperature: -10°C~55°CRelative humidity: ≤80% (non-condensing)108 x 52 x 36.8 mm 52 x 30 x 26.5 mm315.8599MHz
