Chuango Security Technology P910 PIR Motion Detector User Manual 1

Chuango Security Technology Corporation PIR Motion Detector 1

Users manual

Pet Immune FunctionThis sensor adopts dual detection window design to improve detection accuracy. It was only when both two detection windows detect body movement will it trigger an alarm. While only one window will not cause an alarm. Based on this principle, pets less than 25 kgs will not be detected by the sensor.PIR-910Pet-Immune PIR Motion Detector User ManualIntroductionThe motion detector is with high performance. It consists of digital dual-core fuzzy logic infrared control chip and intelligent analysis which effectively identify interference signal from body movement signals from body movement signals and reduce false alarm rate. With automatic temperature compensation and anti-turbulence technology, it easily adapts to environment changes. The detector also has the advantage of energy saving, reliability and easy installation. It is suitable for lobby, hallway detection with a detective range of 0-8m at front. With low power feedback function, user will get SMS alert about low battery if the PIR detector is connected to GSM alarm system.Product OverviewLED IndicationDisplay Meaning1. Detection window2. LED indicator3. Snap joint4. Test button5. BracketWorking ModeTesting ModePress the test button, the detector enters testing mode and detects once every 10 seconds. After 3minutes, the LED indicator blinks twice, and the detector switches to power saving mode.Power Saving ModeThis motion detector has smart power saving function. If the detector is triggered twice within 3 minutes, it enters sleeping state immediately to save power. During this period, any movement detected does not generate an alarm. After no movement within the next 3 minutes, it goes back to working state again.Note: When the detector goes into sleeping state, the precondition of alarm is that no one moves in 3 minutes in the detection area; otherwise it will remain in the sleeping state.If the detector is in sleeping state, it is suggested to leave the room and make sure nobody moves in the detection area. The detector will go back to working state in 3 minutes.TestIt is to check whether the PIR Motion Detector can work properly or not.Remove the insulation stripPress down the snap joint, open the case, and remove the insulation strip to activate batteries. After self-testing for 1 minute, it enters working state.Arm the systemMake sure the alarm system is in armed state. Trigger an alarmPress the test button until an alarm is triggered. The detector is proved to be connected successfully and ready for installation. Side ViewTop ViewDetection Range Blink continuouslyBlink onceBlink twiceBlink once every 3 secondsSelf testing Intrusion detectedTesting mode is finished, the detector enters power-saving modeLow battery, please replace the battery as soon as possible12Infrared sensor: It detects the infrared rays released by human body motion, please don’t touch the surface and always keep it clean.Tamper switch: Once the case is opened in work mode, the tamper switch is triggered and then generates an alarm signal.Pairing to Control PanelControl panel enters paring stateMake the control panel in paring state.Press the test buttonPress the test button on the back of the detector twice, the control panel beeps once to indicate a successful pairing.Note: If the control panel beeps twice when the above operation is done, it means the detector has been paired already.LED ON / OFF Infrared sensorTamper switchZone settingInfrared sensor
2mGroundInstallationAfter making sure the detector works normally, do as follows:Choose a suitable installation locationFix the detectorFix the bracket on the wall with screws and attach the detector to the bracket.Test the PIR motion detectorPress the test button at the back. It switches to the testing mode and sustains for 3 minutes. Walk in the detection scope and observe the LED. When body movement is detected, the LED blinks once.Adjust the angleAdjust the bracket angle to achieve the best detection effect.Installation Notices Mount the detector in a proper angleThe installation angle affects detection sensitivity. The sensitivity is optimal when the walk direction is vertical to the infrared direction. Choose the best location and angle according to the actual situation and detection scope diagram.Don't face glass windows or doorsStrong light interferes with detection sensitivity. In addition, complicated situations, such as traffic flow, stream of people, also should be avoided.Don't face or position close to heat sources Heat and cold sources, such as heat extraction units, heaters, air conditioner, microwave oven, refrigerator, which may cause false alarm, should be avoided.ONDon't face swinging objectsSwinging objects may also trigger false alarm. Besides, if there are two detectors covering the save scope, adjust the locations to prevent cross-interference.SpecificationsPower SupplyDC 3V (AA 1.5V LR6 Battery x 2 pcs)Static Current≤ 90uAAlarm Current≤ 9.5mADetection Scope8m/110°Pet Immunity≤ 25kgsTransmitting Distance≤ 80m (Open area/ no interference)Radio Frequency315MHz (±75KHz) Housing MaterialABS plasticOperation ConditionTemperature: -10°C~+55°CRelative Humidity: ≤80% (non-condensing)Detector Dimensions (L x W x H)108 x 52 x 36.8 mmBracket Dimensions (L x W x H) 52 x 30 x 26.5 mmVer : PIR-910-EN-1405-V6.02014 Chuango. All rights reserved.Mount the detector to a location close to the entry or exitThe detector aims at preventing intrusion. Detecting human movement at the entry or exit is critical for security.It is recommended to mount it at the height of 2m from the ground.Note: If pet-immune function is applied, please do not adjust the angle up or down, but keep it parallel with the wall.FCC STATEMENTThis device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:This device may not cause harmful interference, andThis device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 1.(1) (2) 2.

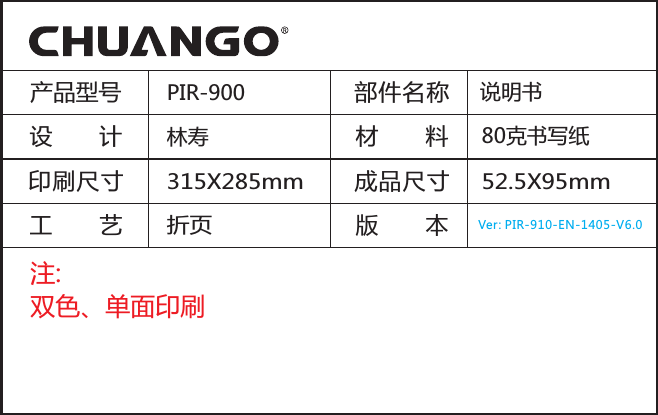

产品型号 PIR-900林寿说明书设       计印刷尺寸工       艺部件名称材       料版       本注:双色、单面印刷成品尺寸52.5X95mm80克书写纸折页315X285mmVer: PIR-910-EN-1405-V6.0Testing (Walk Test)A. After installation, power on the detector. After one minute     self-testing, press the test button, walk in the scope (from     left to right or from right to left) and watch the LED     indicator to make sure the detector is working.B. The LED indicator flashes once when body movement is     detected. C. Adjust the detector angle accordingly to achieve the best     detection effect.Detection Scope 2m 4m 6m 8m0m0m2m110°Top view                             Side viewSpecificationsPower supplyDC 3V (AA 1.5V LR6 Battery x 2 pcs)Static current≤ 90uAAlarm current≤ 9.5mADetection scope8m/110°Pet immunity≤ 25kgsTransmitting distance≤ 80m (in open area)Radio frequency315MHz/433MHz (± 75KHz)Housing materialABS plasticOperation ConditionTemperature: -10°C~55°CRelative humidity: ≤80% (non-condensing)Detector dimensions (L x W x H)108 x 52 x 36.8 mmBracket dimensions (L x W x H) 52 x 30 x 26.5 mm2mInstallation & NoticesAvoid mounting the detector close to windows, air conditioner, heater, refrigerator, oven, sunshine and places where the temperature changes fast or the air stream flows frequently. If two detectors are installed in the same detection scope, please adjust the location to avoid interference and false alarm. GroundTop view          Side viewFix the bracket on the wall with screws and attach the detector to the bracket. Adjust installation height or bracket to change the detection distance and angle.It is recommended to mount it at the height of 2m from the ground. The detector is more sensitive to the cross movement than to the vertical movement, so the performance of detector is best when the detection direction is vertical to the walking direction of people. In working state, if the sensor is triggered Working mode: twice within 3 minutes, it will enter sleeping mode immediately to save power. After no movement within next 3 minutes, the sensor goes back to the working mode.Press the connect key on the Connect to alarm panel: alarm panel, and then press the test button of the sensor twice to send alarm signal. When one beep is heard, they are connected. To check if they are connected successfully, arm the system, and trigger the sensor again, if there is an alarming, the connection is successful.Ver : PIR-910-EN-1401-V6.0Chuango. All rights reserved.PCB LayoutMode SettingUsageOpen the case and remove the battery activation strip to activate batteries. It will start self-testing for one minute.PIR-910Operation ManualWireless PIR Motion Detector Pet Immunity Indoor UseAppearance31. Detection window2. LED indicator3. BracketInfrared sensor: It detects the infrared rays released by human body motion, please do not touch the surface and always keep it clean.Once the case is opened in working state, Tamper switch: the tamper switch will be triggered and then generates an alarm signal.Testing mode: After self-testing, press the test button, the sensor enters testing mode, and detects once every 10 seconds. After 3 minutes, the LED flashes twice, and the sensor enters the working mode.AA 1.5V  LR6AA 1.5V  LR6LED ON / OFF Infrared sensorInfrared sensorZone settingTamper switchTest ButtonLED IndicationFlash continuously: Under the self-testing state.Intruder is detected. Flash once: Self-testing is finished, enters the working mode.Flash twice: Under voltage indication, please Flash once per 3 seconds: change the batteries immediately. (User will get alert SMS about the low battery if the PIR detector is connected to the GSM alarm system.) FeaturesPIR-900 is a high performance wireless P.I.R. motion detector. It consists of digital dual-core fuzzy logic infrared control chip and intelligent analysis which effectively identify interference signals from body movement signals and reduce false alarm rate. With automatic temperature compensation and anti-air turbulence technology, it easily adapts to environmental changes. The detector also has the advantages of energy saving, reliability and easy installation. With low power feedback function, user will get alert SMS about the low battery if the PIR detector is connected to the GSM alarm system.
