Chuango Security Technology P910 PIR Motion Detector User Manual 1
Chuango Security Technology Corporation PIR Motion Detector 1
Users manual
Pet Immune Function
This sensor adopts dual detection window design to improve detection
accuracy. It was only when both two detection windows detect body
movement will it trigger an alarm. While only one window will not cause
an alarm. Based on this principle, pets less than 25 kgs will not be
detected by the sensor.
PIR-910
Pet-Immune PIR
Motion Detector
User Manual
Introduction
The motion detector is with high performance. It consists of digital dual-
core fuzzy logic infrared control chip and intelligent analysis which
effectively identify interference signal from body movement signals from
body movement signals and reduce false alarm rate. With automatic
temperature compensation and anti-turbulence technology, it easily
adapts to environment changes. The detector also has the advantage of
energy saving, reliability and easy installation. It is suitable for lobby,
hallway detection with a detective range of 0-8m at front. With low
power feedback function, user will get SMS alert about low battery if the
PIR detector is connected to GSM alarm system.

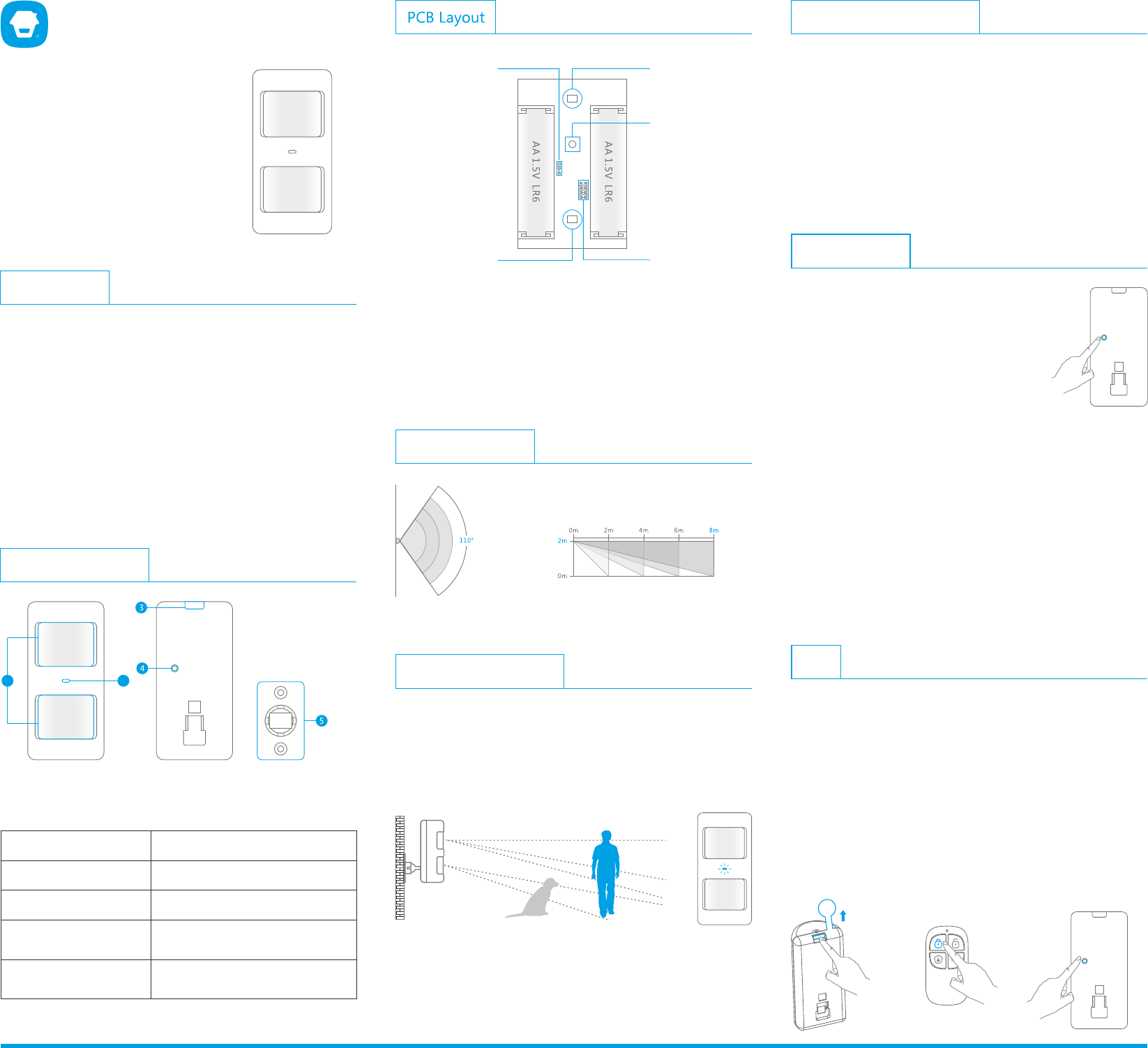

Product Overview
LED Indication
Display Meaning
1. Detection window
2. LED indicator
3. Snap joint
4. Test button
5. Bracket
Working Mode
Testing Mode
Press the test button, the detector enters
testing mode and detects once every 10
seconds. After 3minutes, the LED indicator
blinks twice, and the detector switches to power
saving mode.
Power Saving Mode
This motion detector has smart power saving function. If the detector is
triggered twice within 3 minutes, it enters sleeping state immediately to save
power. During this period, any movement detected does not generate an
alarm. After no movement within the next 3 minutes, it goes back to
working state again.
Note: When the detector goes into sleeping state, the precondition of alarm is that no
one moves in 3 minutes in the detection area; otherwise it will remain in the sleeping
state.
If the detector is in sleeping state, it is suggested to leave the room and make sure
nobody moves in the detection area. The detector will go back to working state in 3
minutes.
Test
It is to check whether the PIR Motion Detector can work properly or not.
Remove the insulation strip
Press down the snap joint, open the case, and remove the insulation strip to
activate batteries. After self-testing for 1 minute, it enters working state.
Arm the system
Make sure the alarm system is in armed state.
Trigger an alarm
Press the test button until an alarm is triggered. The detector is proved to
be connected successfully and ready for installation.
Side View
Top View
Detection Range
Blink continuously
Blink once
Blink twice
Blink once every 3 seconds
Self testing
Intrusion detected
Testing mode is finished, the detector
enters power-saving mode
Low battery, please replace the battery
as soon as possible
12
Infrared sensor: It detects the infrared rays released by human body
motion, please don’t touch the surface and always keep it clean.
Tamper switch: Once the case is opened in work mode, the tamper
switch is triggered and then generates an alarm signal.
Pairing to Control Panel
Control panel enters paring state
Make the control panel in paring state.
Press the test button
Press the test button on the back of the detector twice, the control panel
beeps once to indicate a successful pairing.
Note: If the control panel beeps twice when the above operation is done, it means
the detector has been paired already.
LED ON / OFF Infrared sensor
Tamper switch
Zone setting
Infrared sensor
2m
Ground

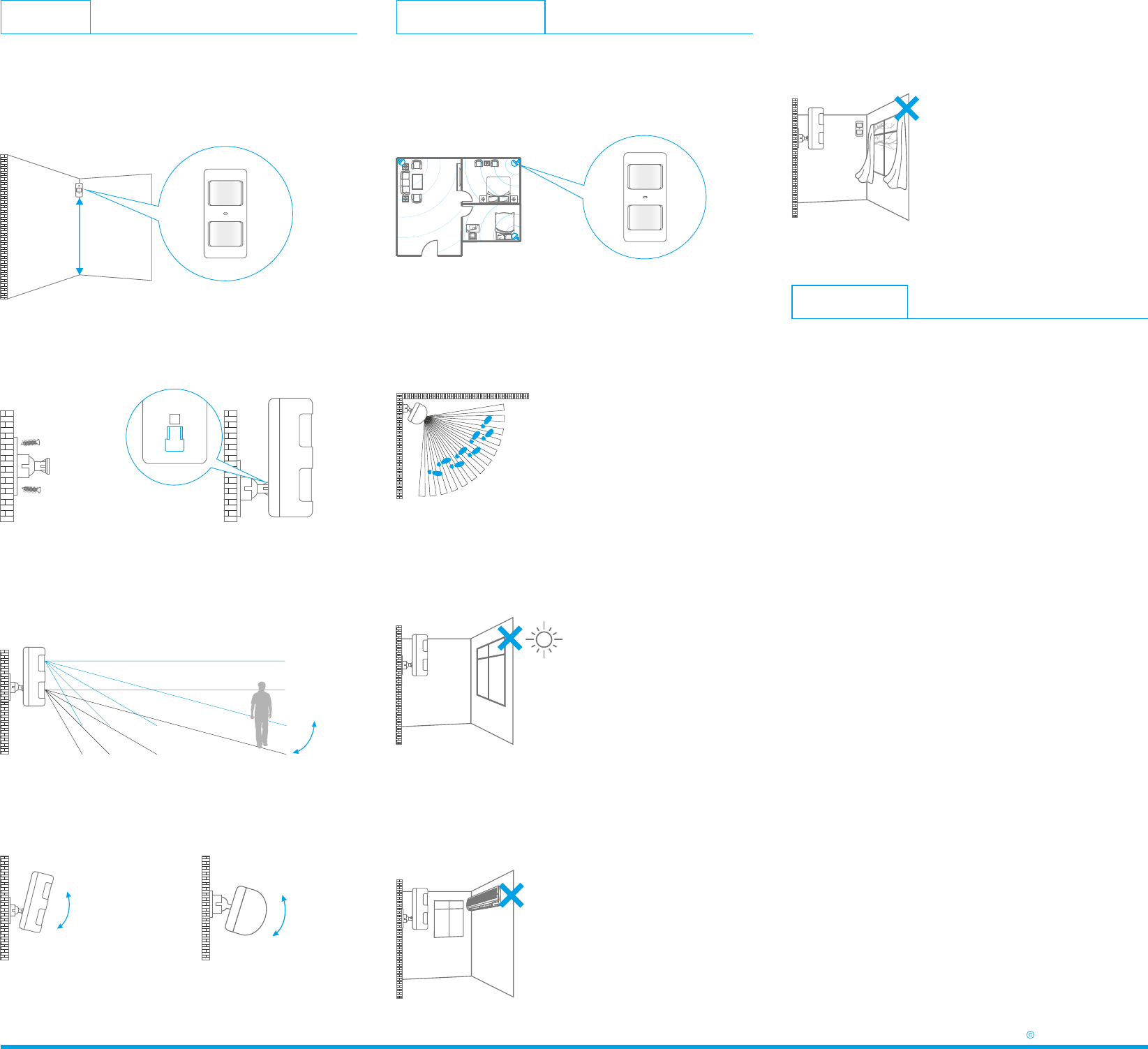

Installation
After making sure the detector works normally, do as follows:
Choose a suitable installation location
Fix the detector
Fix the bracket on the wall with screws and attach the detector to the
bracket.
Test the PIR motion detector
Press the test button at the back. It switches to the testing mode and
sustains for 3 minutes. Walk in the detection scope and observe the LED.
When body movement is detected, the LED blinks once.
Adjust the angle
Adjust the bracket angle to achieve the best detection effect.
Installation Notices
Mount the detector in a proper angle
The installation angle affects detection sensitivity. The sensitivity is optimal
when the walk direction is vertical to the infrared direction. Choose the best
location and angle according to the actual situation and detection scope
diagram.
Don't face glass windows or doors
Strong light interferes with detection sensitivity. In addition, complicated
situations, such as traffic flow, stream of people, also should be avoided.
Don't face or position close to heat sources
Heat and cold sources, such as heat extraction units, heaters, air conditioner,
microwave oven, refrigerator, which may cause false alarm, should be
avoided.
ON
Don't face swinging objects
Swinging objects may also trigger false alarm. Besides, if there are two
detectors covering the save scope, adjust the locations to prevent cross-
interference.
Specifications
Power Supply
DC 3V (AA 1.5V LR6 Battery x 2 pcs)
Static Current
≤ 90uA
Alarm Current
≤ 9.5mA
Detection Scope
8m/110°
Pet Immunity
≤ 25kgs
Transmitting Distance
≤ 80m (Open area/ no interference)
Radio Frequency
315MHz (±75KHz)
Housing Material
ABS plastic
Operation Condition
Temperature: -10°C~+55°C
Relative Humidity: ≤80% (non-condensing)
Detector Dimensions (L x W x H)
108 x 52 x 36.8 mm
Bracket Dimensions (L x W x H)
52 x 30 x 26.5 mm
Ver : PIR-910-EN-1405-V6.0
2014 Chuango. All rights reserved.
Mount the detector to a location close to the entry or exit
The detector aims at preventing intrusion. Detecting human movement at
the entry or exit is critical for security.
It is recommended to mount it at the height of 2m from the ground.
Note: If pet-immune function is applied, please do not adjust the angle up or
down, but keep it parallel with the wall.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
1.
(1)
(2)
2.
产品型号 PIR-900
林寿
说明书
设 计
印刷尺寸
工 艺
部件名称
材 料
版 本
注:
双色、单面印刷
成品尺寸
52.5X95mm
80克书写纸
折页
315X285mm
Ver: PIR-910-EN-1405-V6.0
Testing (Walk Test)
A. After installation, power on the detector. After one minute
self-testing, press the test button, walk in the scope (from
left to right or from right to left) and watch the LED
indicator to make sure the detector is working.
B. The LED indicator flashes once when body movement is
detected.
C. Adjust the detector angle accordingly to achieve the best
detection effect.
Detection Scope
2m 4m 6m 8m0m
0m
2m
110°
Top view Side view
Specifications
Power supply
DC 3V (AA 1.5V LR6 Battery x 2 pcs)
Static current
≤ 90uA
Alarm current
≤ 9.5mA
Detection scope
8m/110°
Pet immunity
≤ 25kgs
Transmitting distance
≤ 80m (in open area)
Radio frequency
315MHz/433MHz (± 75KHz)
Housing material
ABS plastic
Operation Condition
Temperature: -10°C~55°C
Relative humidity: ≤80% (non-condensing)
Detector dimensions (L x W x H)
108 x 52 x 36.8 mm
Bracket dimensions (L x W x H)
52 x 30 x 26.5 mm
2m
Installation & Notices
Avoid mounting the detector close to windows, air
conditioner, heater, refrigerator, oven, sunshine and places
where the temperature changes fast or the air stream flows
frequently. If two detectors are installed in the same
detection scope, please adjust the location to avoid
interference and false alarm.
Ground
Top view Side view
Fix the bracket on the wall with screws and attach the
detector to the bracket. Adjust installation height
or bracket to change the detection distance and angle.
It is recommended to mount it at the height of 2m from
the ground.
The detector is more sensitive to the cross movement
than to the vertical movement, so the performance of
detector is best when the detection direction is vertical
to the walking direction of people.
In working state, if the sensor is triggered Working mode:
twice within 3 minutes, it will enter sleeping mode
immediately to save power. After no movement within
next 3 minutes, the sensor goes back to the working mode.
Press the connect key on the Connect to alarm panel:
alarm panel, and then press the test button of the sensor
twice to send alarm signal. When one beep is heard, they
are connected. To check if they are connected successfully,
arm the system, and trigger the sensor again, if there is an
alarming, the connection is successful.
Ver : PIR-910-EN-1401-V6.0
Chuango. All rights reserved.
PCB Layout
Mode Setting
Usage
Open the case and remove the battery activation strip to
activate batteries. It will start self-testing for one minute.
PIR-910
Operation Manual
Wireless PIR
Motion Detector
Pet Immunity Indoor Use
Appearance
3
1. Detection window
2. LED indicator
3. Bracket
Infrared sensor: It detects the infrared rays released by
human body motion, please do not touch the surface
and always keep it clean.
Once the case is opened in working state, Tamper switch:
the tamper switch will be triggered and then generates
an alarm signal.
Testing mode: After self-testing, press the test button,
the sensor enters testing mode, and detects once every
10 seconds. After 3 minutes, the LED flashes twice, and
the sensor enters the working mode.
AA 1.5V LR6
AA 1.5V LR6
LED ON / OFF Infrared sensor
Infrared sensor
Zone setting
Tamper switch
Test Button
LED Indication
Flash continuously: Under the self-testing state.
Intruder is detected. Flash once:
Self-testing is finished, enters the working mode.Flash twice:
Under voltage indication, please Flash once per 3 seconds:
change the batteries immediately. (User will get alert SMS about
the low battery if the PIR detector is connected to the GSM
alarm system.)
Features
PIR-900 is a high performance wireless P.I.R. motion detector.
It consists of digital dual-core fuzzy logic infrared control chip
and intelligent analysis which effectively identify interference
signals from body movement signals and reduce false alarm
rate. With automatic temperature compensation and anti-air
turbulence technology, it easily adapts to environmental
changes. The detector also has the advantages of energy
saving, reliability and easy installation. With low power
feedback function, user will get alert SMS about the low
battery if the PIR detector is connected to the GSM alarm
system.
