Introduction
AboutModcam
Intelligentandopen–thebeginningofaneweraincomputervision.
Overtheyears,thehyper-growthinthemobileindustryhaspusheddowncostof
componentsimmenselyandopenedupforagreatdevelopercommunity.AtModcam,we
haveusedthisopportunityandappliedlogicsfromthesmartphoneindustrytodevelopa
newsolutionforcomputervision.
Modcamprovidesanoutstandingplatformforintelligentcomputervisionapplications.We
havecreatedasmartpieceofhardwareandanopensoftwarearchitecturetobreednew
excitingopportunitieswithincomputervision.Theplatformenablesvideosandpixelstobe
translatedintoinformation,beforebeingdistributedtoanetwork.Ourplatformistailored
forvideocontentanalyticsapplicationsthroughouruniqueknowledgeaboutimage
processingandtheinteractionbetweensoftware,hardware,andcamerasensor.Modcam
givesyoutheabilitytosee,understandandreact.
AbouttheMOD.01
TheMOD.01isapowerfulquadcoreARMv7platformwitha5megapixelcamerasensor,
GPS,accelerometer,compass,microphoneandenoughstorageandmemorytorun
advancedcomputervisionapplicationswithoutpause.
Itisphysicallybuiltandadaptedtobeasversatileaspossiblewithregardstomounting
needsandenvironmentalconditionsandpackagedinasleekandnon-intrusivedesign.It
comeswithfullWiFiandBluetooth4.0stacksandthereareoptionsforEthernetadapters
withPoEsupportforlargerinstallation.
WhiletheMOD.01ismainlydesignedtobecontinuouslypoweredviait’smicro-usb
connector,itcomeswitha800mAhbatteryinsidethatwillbothallowittoretainoperation
duringpoweroutagesandlastforuptoafulldaywhereexternalpowersupplyislimited.
Thisdocument
Thisdocumentdescribesbasicproperties,usageandhandlingoftheMOD.01hardware
product,includingsetupexperience,installationandmountingoptions.
 
>Revision
R3-2015-09-14
Generalproducthandling
Unpackingandgeneralconsiderations
IncludedwithyourMOD.01deviceshouldbeathreemetres,charging-only,Micro-bto
Type-AUSBcable,a1AUSBType-Apoweradapterforyourregionandastandardtwo-part
MOD.01ceilingmountintendedfortop-downcoverage .
1
Boot,shutdownandLEDpatterns
TheMOD.01devicewillautomaticallybootwheneveritreceivespowerthroughitsmicro-b
USBcontact.Thismeansthatasasafe-guardagainstpoweroutages,ifpowerisinserted,it
willautomaticallybootevenwhenmanualshutdownhasbeenperformed.
Uponboot,thedevicewillgothroughaseriesofpatternswiththefourLEDssituated
aroundthecameralensoftheunit.
Shutdown
Toturnoffthedevice,removeanypowersourceandpressthebuttonforatleast6
seconds.Duringthistime,theLEDswillshowacountdownpattern(afteracoupleof
seconds).ThecountdownendswithafourLEDwhiteflash,indicatingthattheshutdownis
complete.
StandardLEDbehaviour
1. Blue​lowerright/leftlight-Pre-bootphase.
2. Blue​lights,spinning-Booting.
3. Four​orange​lights,flashing-Notconnectedtonetwork,scanningforQRcode.
4. Four​green​lights,flashing-QRcodescanned.
5. Orange​lights,spinning-Connectingtonetwork.
6. Orange​lights,alternatelyflashingleft/right-Networkconnectionfailed.
7. Yellow​lights,pulsating-Connected,installationnotfinished,videostreampossible.
8. Whitelights,slowlypulsating-Connected,installedandready.
Note:​Spinningredlightsindicateanongoingover-the-air(OTA)upgrade.Nevershutdown
thedeviceduringthisprocess!
Configuration
1TheactualcontentsofyourpackagemayvarydependingofOEM-packagingandpointofresale.
>Revision
R3-2015-09-14

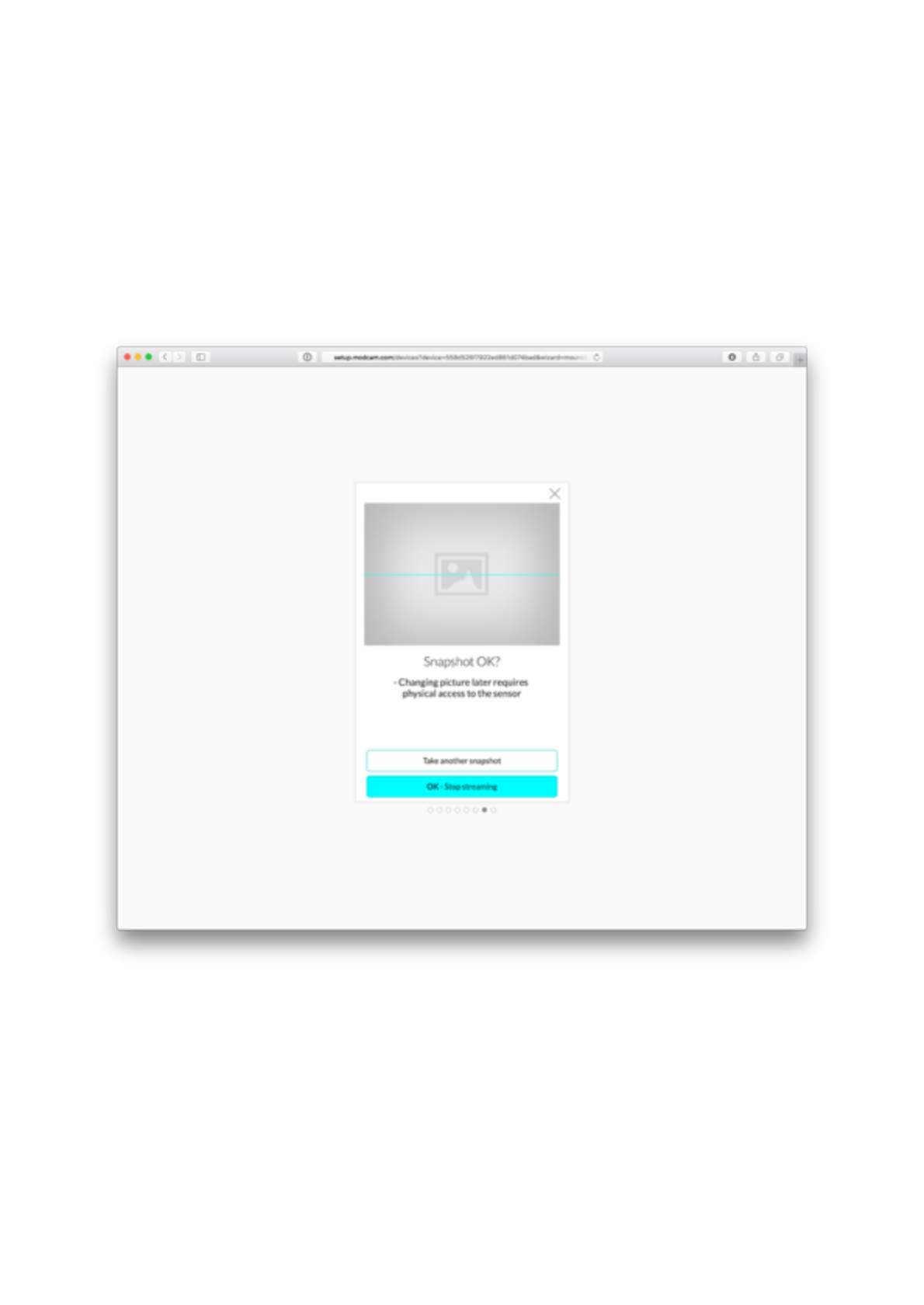

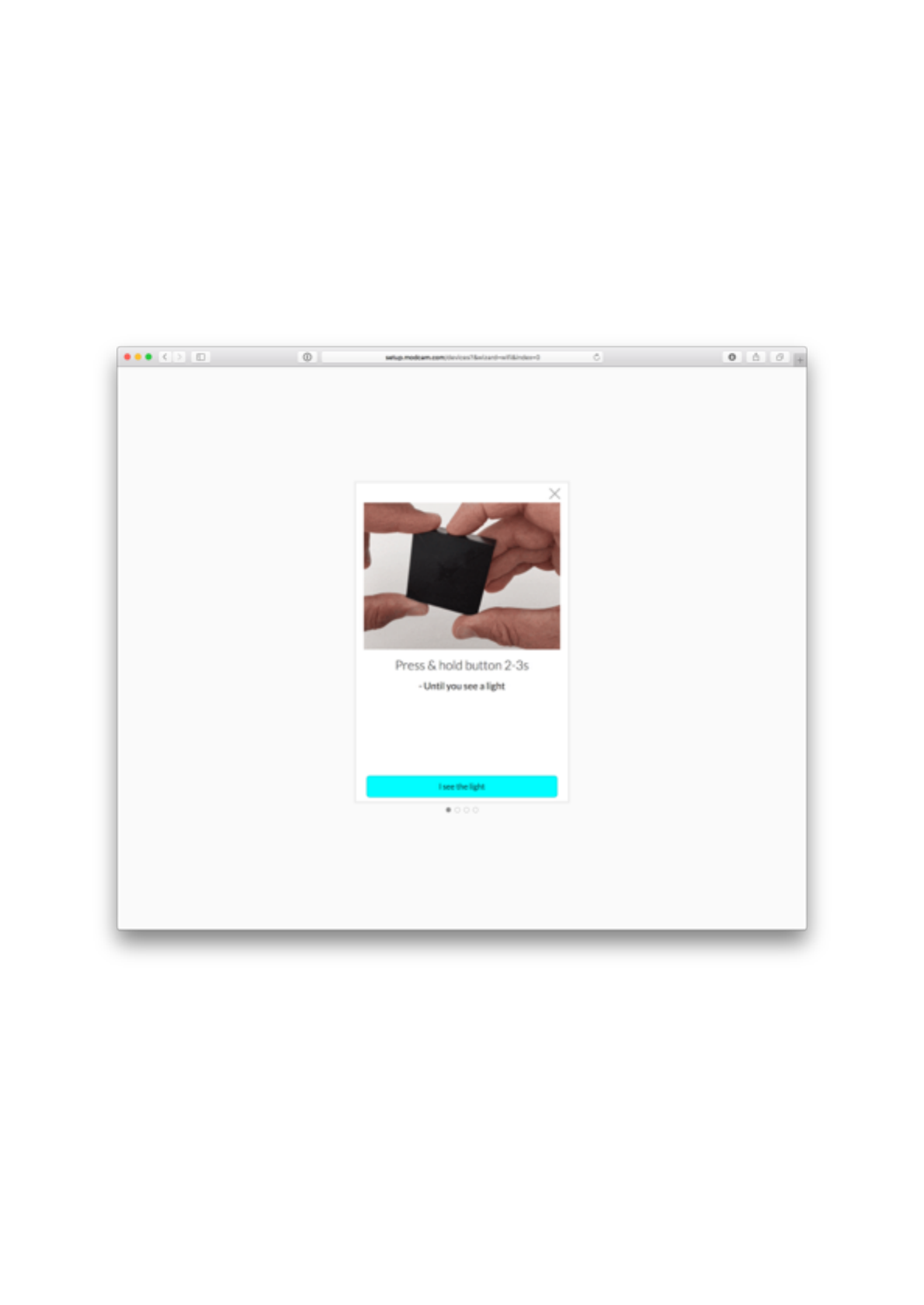

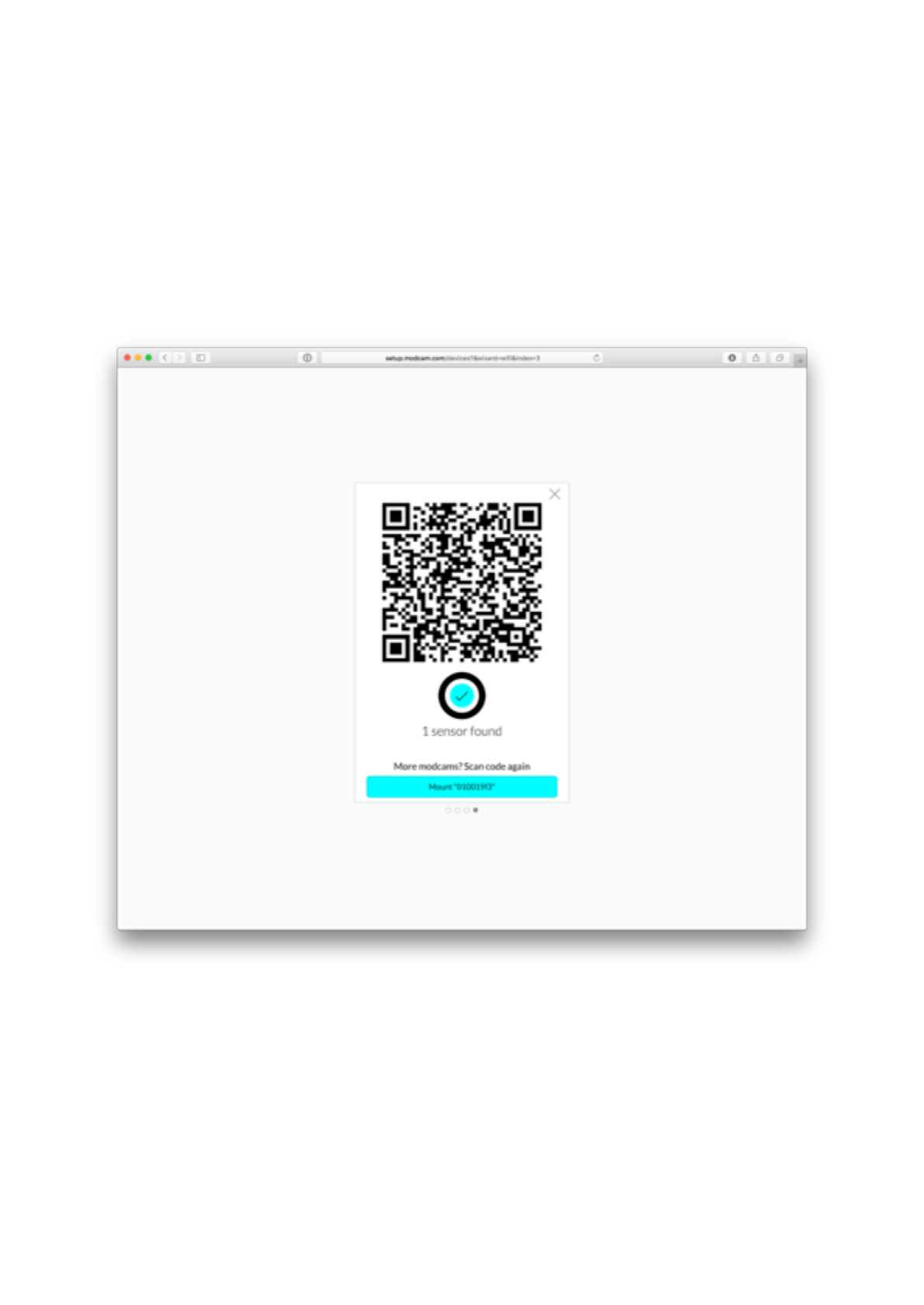

OnceyourdevicehascompletedbootingitwillstartflashingorangewithallfourLEDs,
indicatingthatitisreadytoreadaQRcodeforconfiguration.

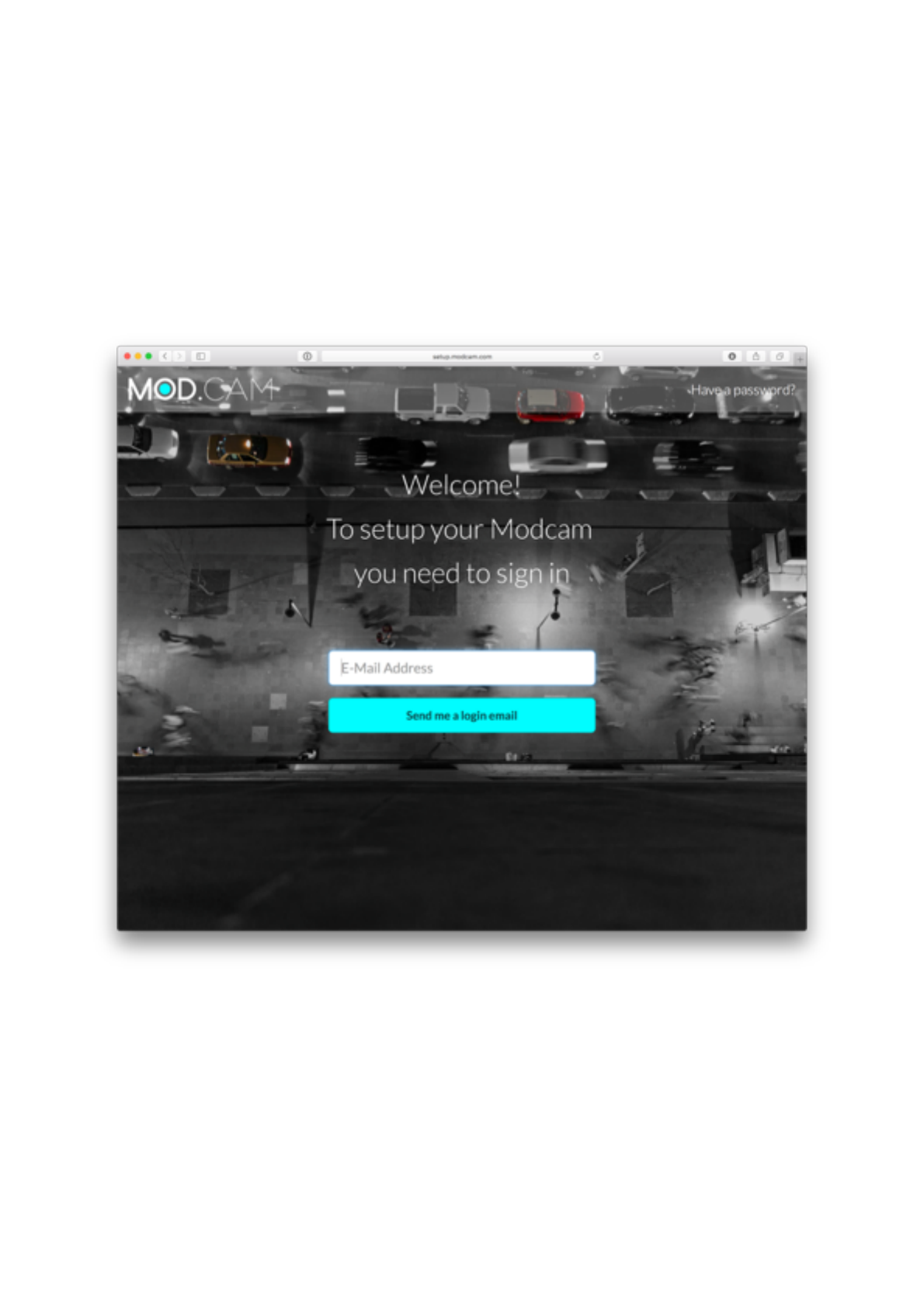

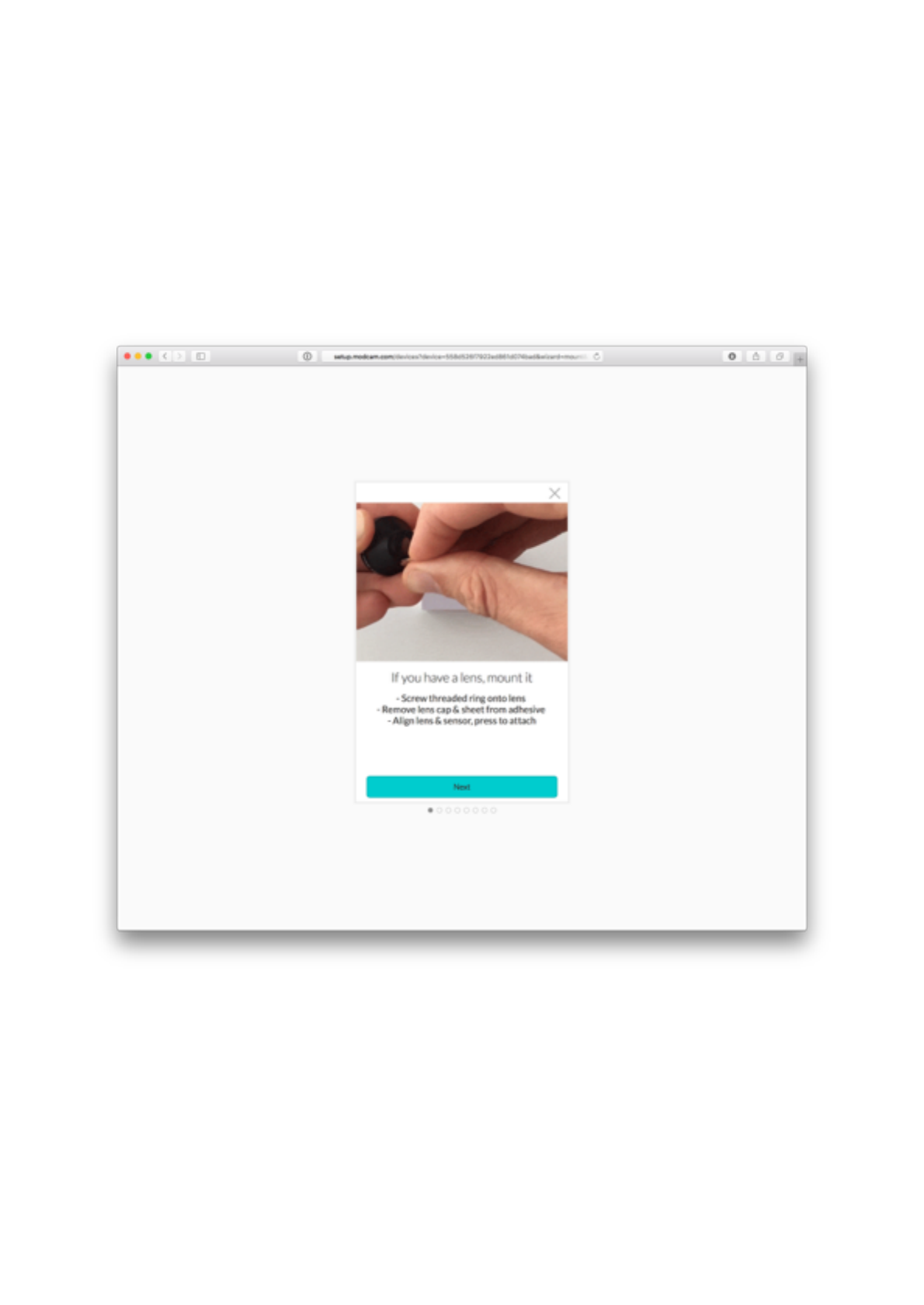

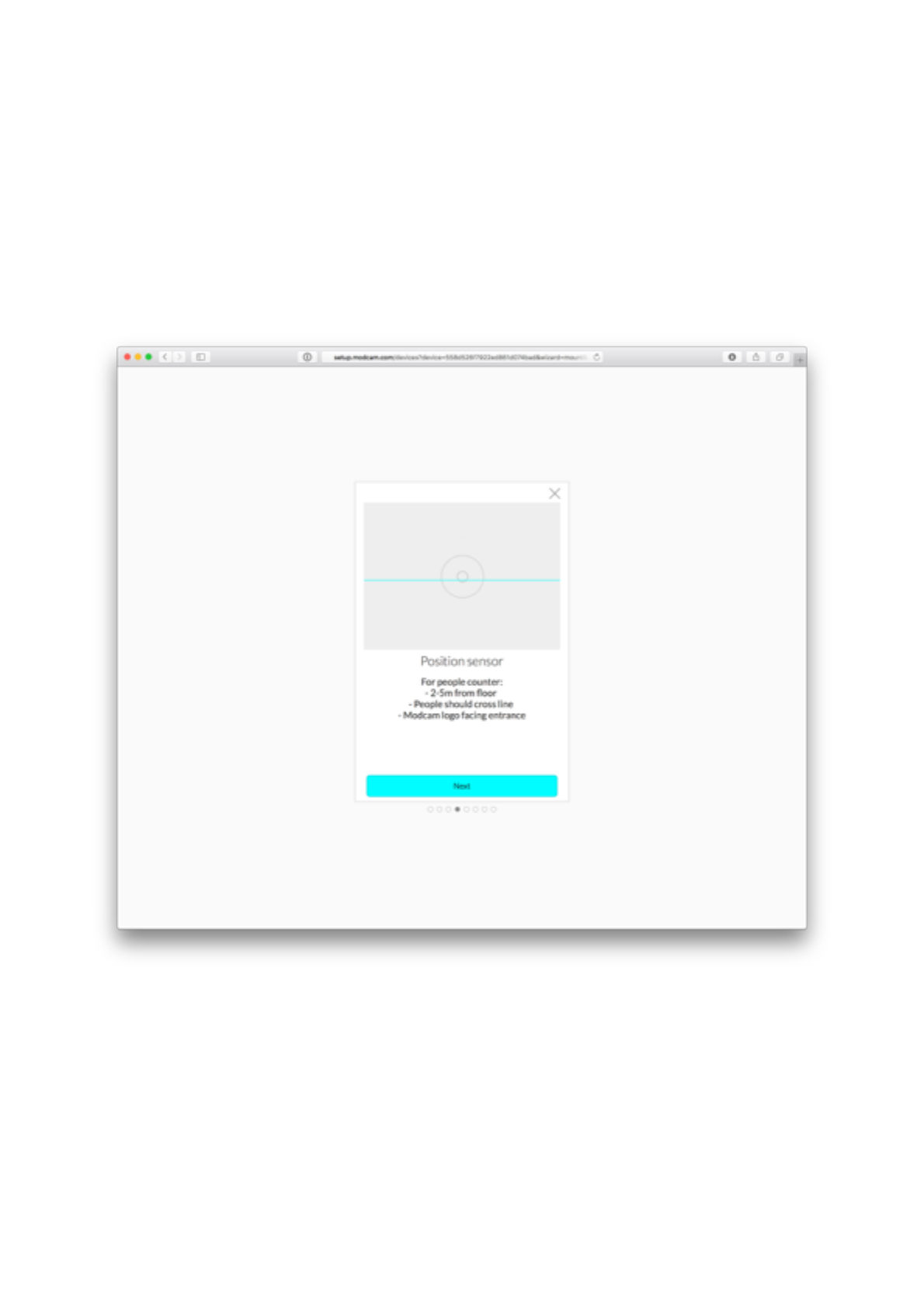

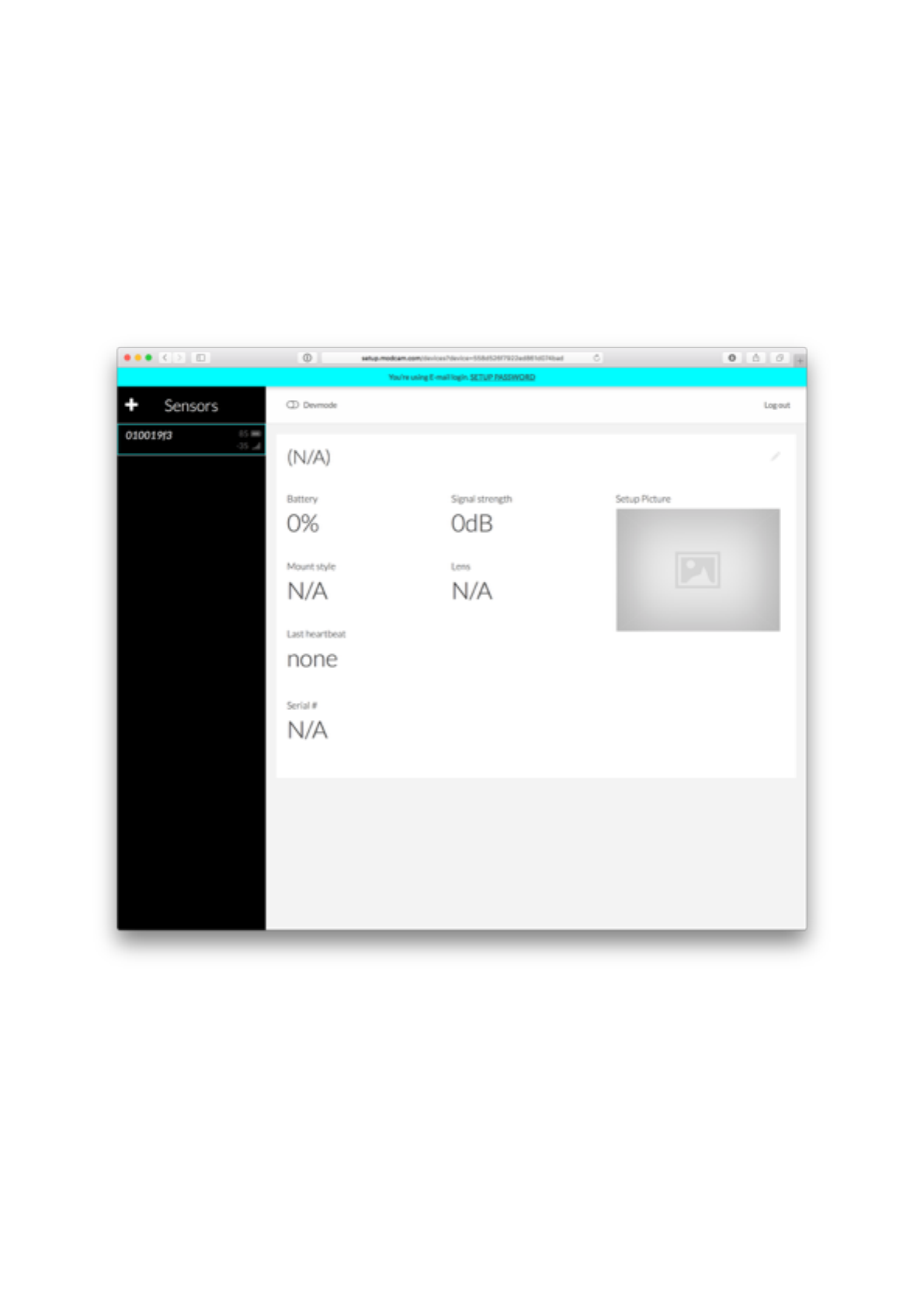

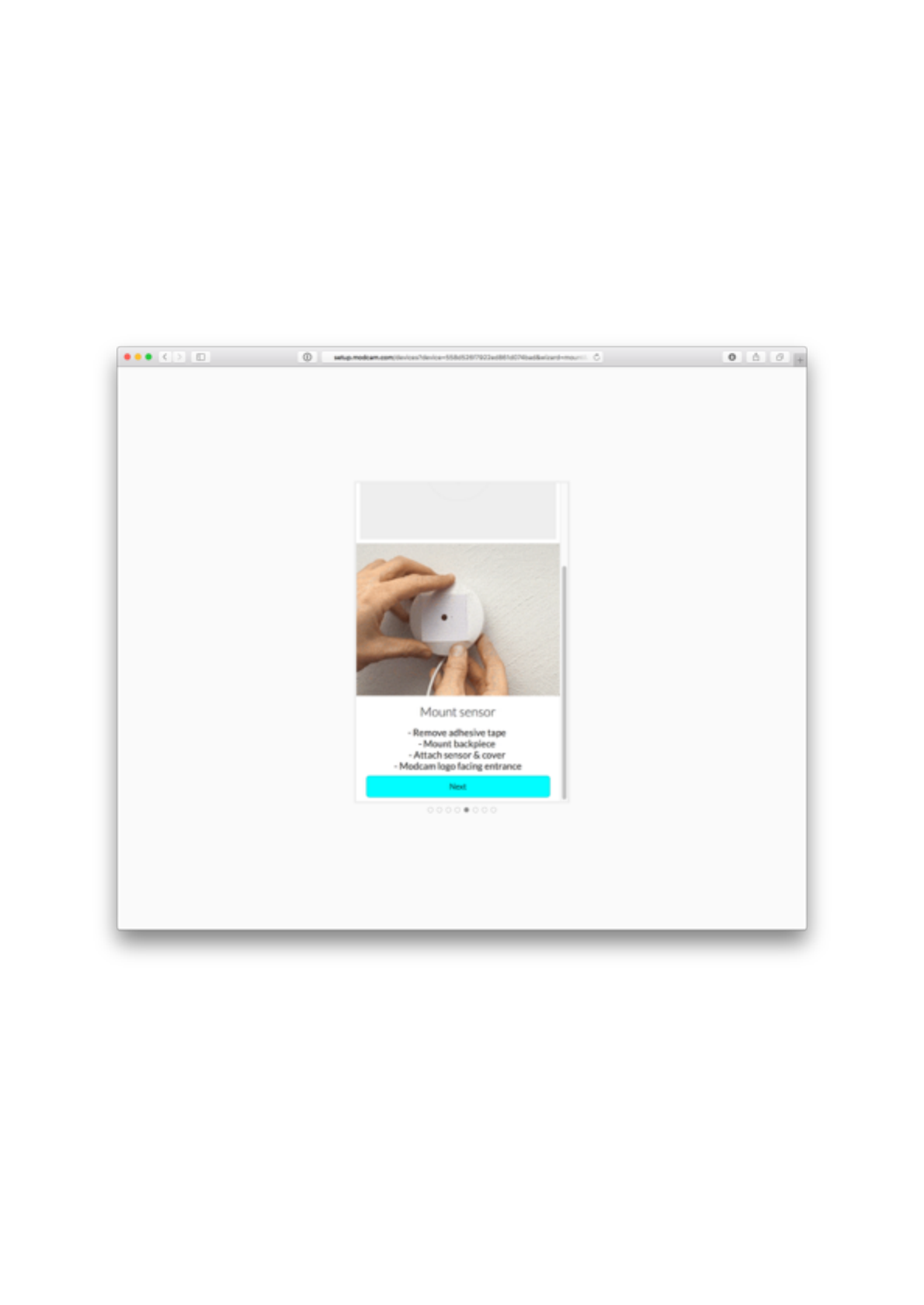

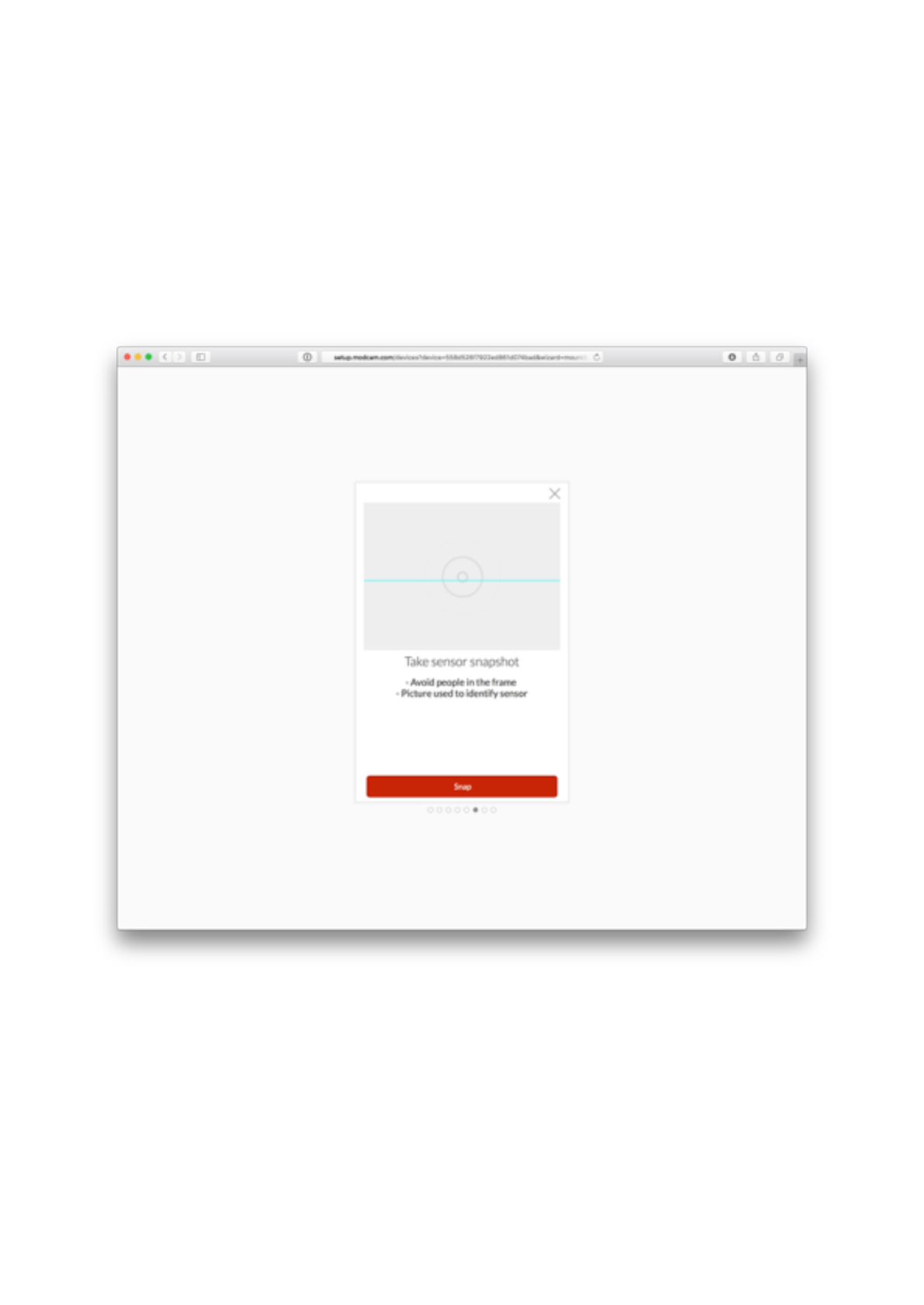

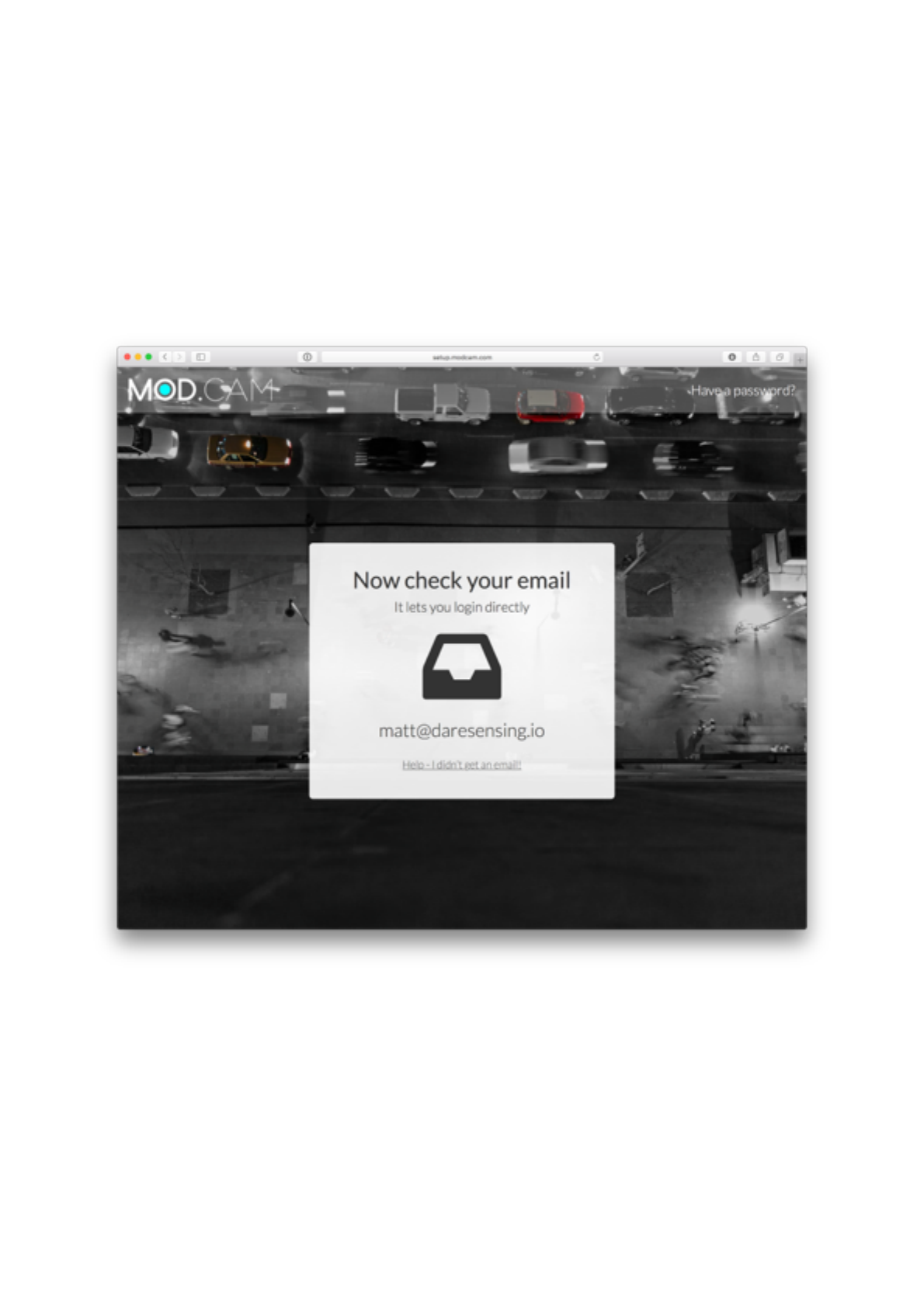

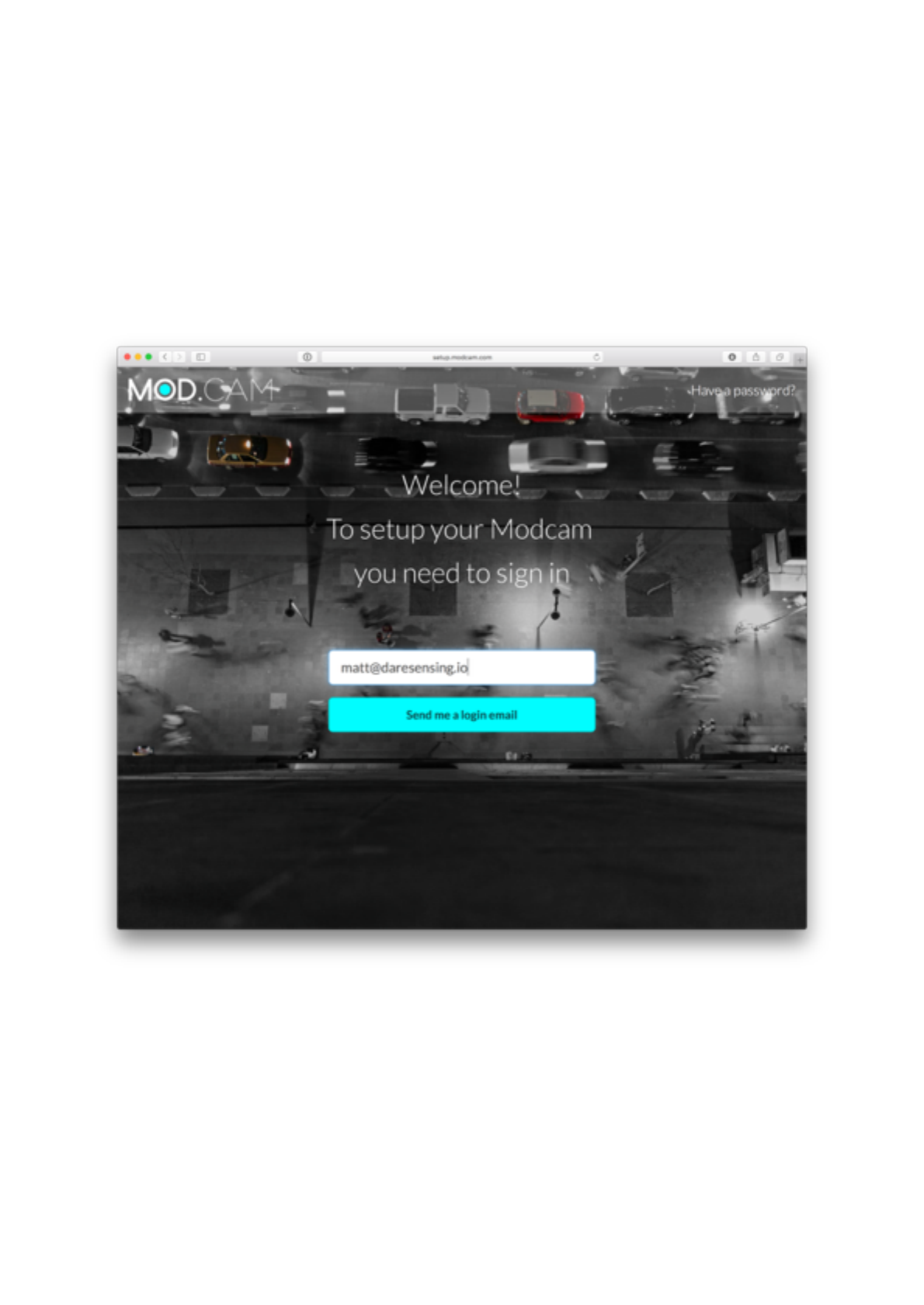

Inabrowser,navigateto​https://setup.modcam.com​andfollowtheinstructions!
Upgrades
Thedeviceupgradesitselfover-the-airwhenevernewsoftwareisreadytobedeployedto
thedevice.Anautomaticupdatecheckisperformedimmediatelyafteracquiringanetwork
connectionandthenonceevery24hours.Thetimeframefortheupdatecheckisbydefault
between3and4inthemorning,localtime.
Note:​Donotshutoffthedeviceonceithasstartedupgradingthesystem,indicatedby
spinningredLEDs.
Installation
Whenthedeviceisceiling-mountedyoucancalculatetheapproximatefloorcoveragearea
A​forheight​H​withtheformula:
.78HA = 1 2
Ifthesensorhastheoptionalwideanglelensattached,theformulatouseis
0.37HA = 1 2
Thismeansthatforaceilingheightof4metres,theapproximatefloorcoverageis~28m​2​,
or~166m​2​withthewideanglelens.
Applications
ForapplicationsrunningontheMOD.01,pleaserefertotheapplication-specific
documentation. 
>Revision
R3-2015-09-14
Specifications
Applicationprocessor
MOD.01isbuiltonaBroadcomchipset-BCM23550,compliantwithARMTrustZone®and
GlobalPlatformforsystem-levelsecurity.
●Quad1GHzA7CPUwithARM®NEON​TM​technology
●High-performanceVideoCoreIVGPU
●Integratedimagesignalprocessor(ISP)withsupportupto12megapixels
●HighqualityH.264fullHD(1080p30)camcorderandvideoplayback
●Powermanagementtechniquesthatincreaseefficiencyandoptimizeperformance
basedonworkloaddemands
Memorysubsystem
MOD.01holdsmemoryinpackagebasedonSamsung’sMCP(MultiChipPackage)
technologythatallowsintegrationofmultiplememorychipsofdifferenttypes,suchas
NANDflash,eMMCandmobileDRAM,inasinglepackage.MCP-basedmemoryenablesthe
restoftheapplicationtoviewthememorysubsystemasasingle,unified"block",letting
thememorysubsectionofferthehighestlevelsofperformanceforthedevice.
●Density:eMMC(4GB)+LPDDR2(1GB)
●Maxspeed:1066Mbps(LPDDR2)
Sensorsubsystem
Camera
MOD.01isusinga5megapixelcamerawithfixedfocus.
●Resolution:2592x1944pixels–5.0MP
●1/4”CMOSSensor(OmnivisionOV5648)
●Lenstype–fixedfocus(distance60cm)
●ViewAngle:87.9±3°
●Outputformat:8-/10bitRGBRAWoutput
●MaxS/Nratio:34dB
●DynamicRange:67dB@8xgain
●Transferrate:
○QSXGA(2592x1944)@15fps
○1080p@30fps
>Revision
R3-2015-09-14
○720p@60fps
○VGA@90fps
●Sensitivity:600mV/Lux-sec
●Rollingshutter
Accelerometer/Gyro
MOD.01isusingaBoschBMI055ultra-small,6axisinertialsensorwithverylow-noise
measurementofangularratesandaccelerationsin3perpendicularaxesandthussenses
tilt,motion,shockandvibration.
●digital,triaxial12bitaccelerationsensor
●digital,triaxial16bit,±2000°/sgyroscope.
eCompass
MOD.01isusingaBoschBMM150standalonegeomagneticsensorforconsumermarket
applications.Itallowsprogrammableandflexiblemeasurementsofthemagneticfieldin
threeperpendicularaxeswithultra-lowvoltageoperation.
Microphone
MOD.01isusinganomnidirectional,highsensitivity-“Ultra‑Mini”SiSonic​TM​Microphonefor
sensingnoiseinthesurroundingenvironment.
 
>Revision
R3-2015-09-14
Furtherquestionsandsupport
Forfurtherquestionsandsupport,pleasecontactModcamABdirectly.
contact@modcam.com
>Revision
R3-2015-09-14
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
User!Login:!
Please!login!at!:!dashboard.modcam.com!
!
!
!
!
User!Interface!and!People!count!
!
Depending!on!credentials!and!applications!the!user!have!bought!the!UI!is!looking!
as!below!–!the!user!has!the!possibility!to!watch,!compare,!extract!data!for!
multiple!sensors!
!
!

Navigation menu
