Cisco Systems, Inc.

www.cisco.com

Cisco has more than 200 offices worldwide.

Addresses, phone numbers, and fax numbers

are listed on the Cisco website at

www.cisco.com/go/offices.

Cisco Aironet 1560 Series Outdoor Access

Point Hardware Installation Guide

First Published: November 14, 2016

Text Part Number:

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL

STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT

WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT

SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE

OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required

to correct the interference at their own expense.

The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If the equipment causes interference to radio or television reception, which can be

determined by turning the equipment off and on, users are encouraged to try to correct the interference by using one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the product.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH

ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT

LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF

DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,

WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO

OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this

URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership

relationship between Cisco and any other company. (1110R)

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display

output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in

illustrative content is unintentional and coincidental.

iii

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

CONTENTS

Preface vii

Objectives vii

Audience vii

Organization vii

Conventions viii

Related Documents

To view all support information for the Cisco Aironet 1560 Series, see:

http://www.cisco.com/c/en/us/support/wireless/aironet-1560-series/tsd-products-support-series-home.h

tml

In addition to the documentation available on the support page, you will need to refer to the following

guides:

•Cisco Wireless LAN Controller Configuration Guide

•Release Notes for Cisco Wireless LAN Controllers and Lightweight Access Points

•Cisco Mobility Express Configuration and User Guide

•DHCP OPTION 43 for Lightweight Cisco Aironet Access Points Configuration Example

http://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/97066-dhcp-optio

n-43-00.html

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Finding the Product Serial Number

The access point serial number is on the side of the access point (refer to Figure 1).

Figure 1 Location of Serial Number Label on the Left of the AP

The access point serial number label contains the following information:

•Serial number, such as WCN0636279B (11 alphanumeric digits).

•Access point MAC address, for example 68BDABF54600 (12 hexadecimal digits). It is located

under the serial number.

You need your product serial number when requesting support from the Cisco Technical Assistance

Center.

Serial Number

xvi

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Obtaining Documentation, Support, and Security Guidelines

For information on obtaining documentation and support, providing documentation feedback, security

guidelines, and recommended aliases and general Cisco documents, see the monthly What’s New in

Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/c/en/us/td/docs/general/whatsnew/whatsnew.html

To view all new wireless documentation, click on Wireless.

CHAPTER

1-1

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Overview

The Cisco Aironet 1560 Series Outdoor Access Point (hereafter called the access point or AP) is a

wireless outdoor access point which is designed for use in a variety of network configurations. The

access point supports wireless client access, point-to-point bridging, point-to-multipoint bridging, and

point-to-multipoint mesh wireless connectivity.

About the 1560 Access Point

The 1560 access point supports two radios (2.4-GHz and 5-GHz) and provides client access using the

unlicensed RF Wi-Fi spectrum. The radios have 802.11ac Wave 2 capability.

The 5 GHz radios have 802.11ac Wave 2 capability. The 2.4 GHz or 5 GHz radio can be used for client

access or can be used for both client access and backhaul traffic. Depending on the model, the access

point can support up to 1.3 Gbps data rates.

The detailed technical specifications for the Cisco Aironet 1560 Series Outdoor Access Points are

available in the Cisco Aironet 1560 Series Outdoor Access Point Data Sheet, at the following URL:

http://www.cisco.com/c/en/us/products/collateral/wireless/aironet-1560-series/datasheet-c78-737416.h

tml

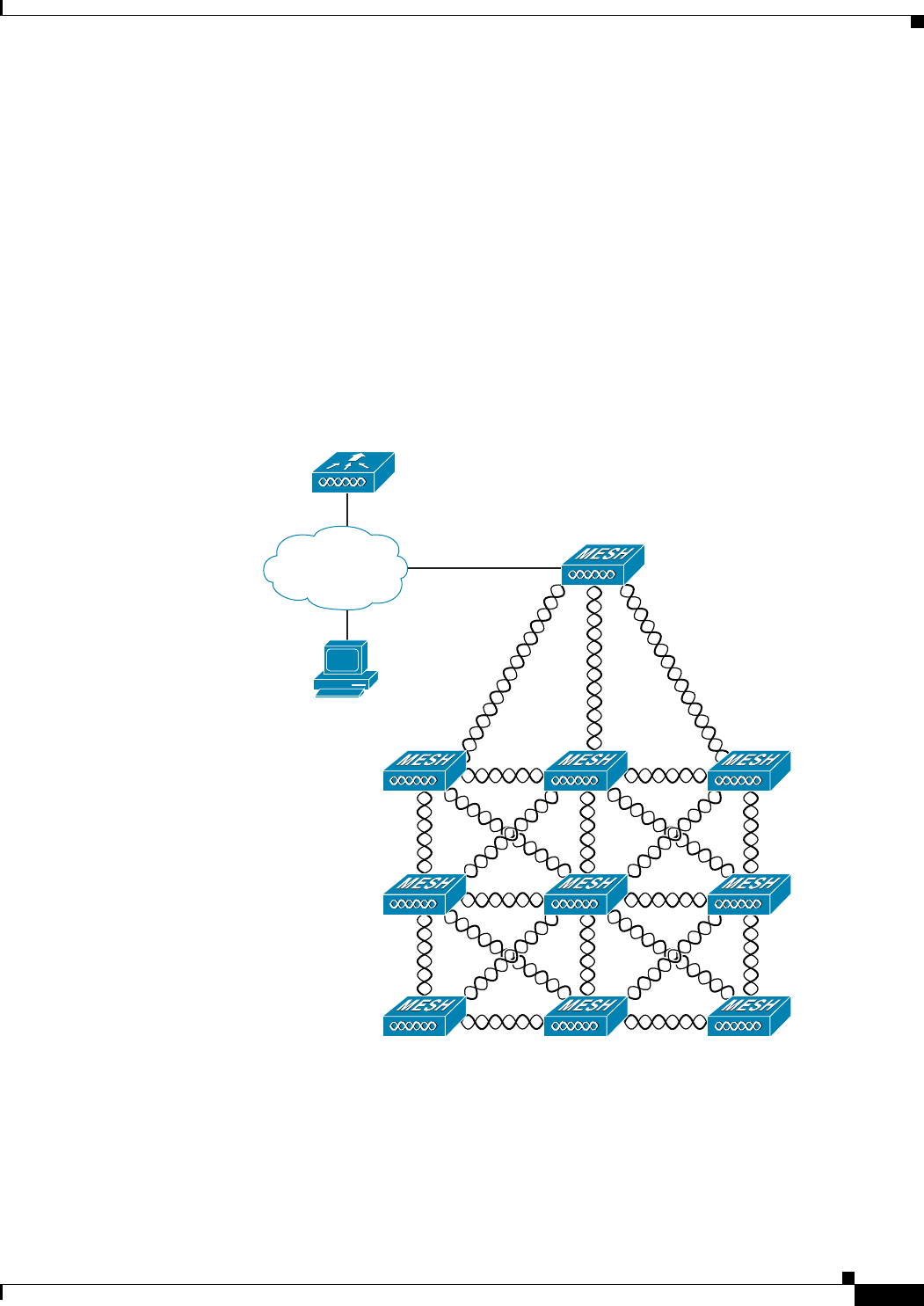

The access point is a standalone unit that can be wall, pole or tower mounted. The access point can also

operate as a relay node for other access points not directly connected to a wired network. Intelligent

wireless routing is provided by the patented Adaptive Wireless Path Protocol (AWPP). This enables each

access point to identify its neighbors and intelligently choose the optimal path to the wired network by

calculating the cost of each path in terms of signal strength and the number of hops required to get to a

controller.

The access point can be configured, monitored, and operated through a Cisco wireless LAN controller

(hereafter called a controller) as described in the Cisco Wireless LAN Controller Configuration Guide.

The Cisco Wireless Mesh Access Points, Design and Deployment Guide, describes how to plan and

initially configure the Cisco mesh network, which supports wireless point-to-point, point-to-multipoint,

and mesh deployments.

The controllers use a browser-based management system, a command-line interface (CLI), or the Cisco

Prime Infrastructure (PI) network management system to manage the controller and the associated

access points. The access point supports hardware-based advanced encryption standard (AES)

encryption between wireless nodes to provide end-to-end security.

1-2

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Access Point Models

The model numbers (or part numbers) and configuration for the Cisco Aironet 1560 Outdoor Access

Points are described in Table 1-1.

For a detailed description of the declarations of conformity and regulatory information for the 1560

access points refer to Appendix B, “Declarations of Conformity and Regulatory Information.”

Regulatory Domains

The “-x” in the 1560 model numbers represent the domain. For example, in AIR-AP1562I-x-K9, the -x

represents a regulatory domain for a specific country. For specific regulatory domains supported by each

1560 access point model, refer to the Wireless LAN Compliance Status at the following URL:

http://www.cisco.com/go/aironet/compliance

Table 1-1 1560 Access Point Model Numbers and Descriptions

Model (or part number) Configuration

AIR-AP1562I-x-K9 The AP 1562I has integrated omni antennas and

contains a 2.4 GHz and 5 GHz radio with an

option to configure in centralized, Flexconnect,

Mobility Express, or mesh mode.

This is a stand alone unit that can be wall, pole or

tower mounted. It can also operate as a relay node

for other access points that are not directly

connected to a wired network.

AIR-AP1562E-x-K9 The AP 1562E has 4 external antenna ports and

contains a 2.4 GHz and 5 GHz radio with an

option to configure in centralized, Flexconnect, or

mesh mode.

This is a stand alone unit that can be wall, pole or

tower mounted. It can also operate as a relay node

for other access points that are not directly

connected to a wired network.

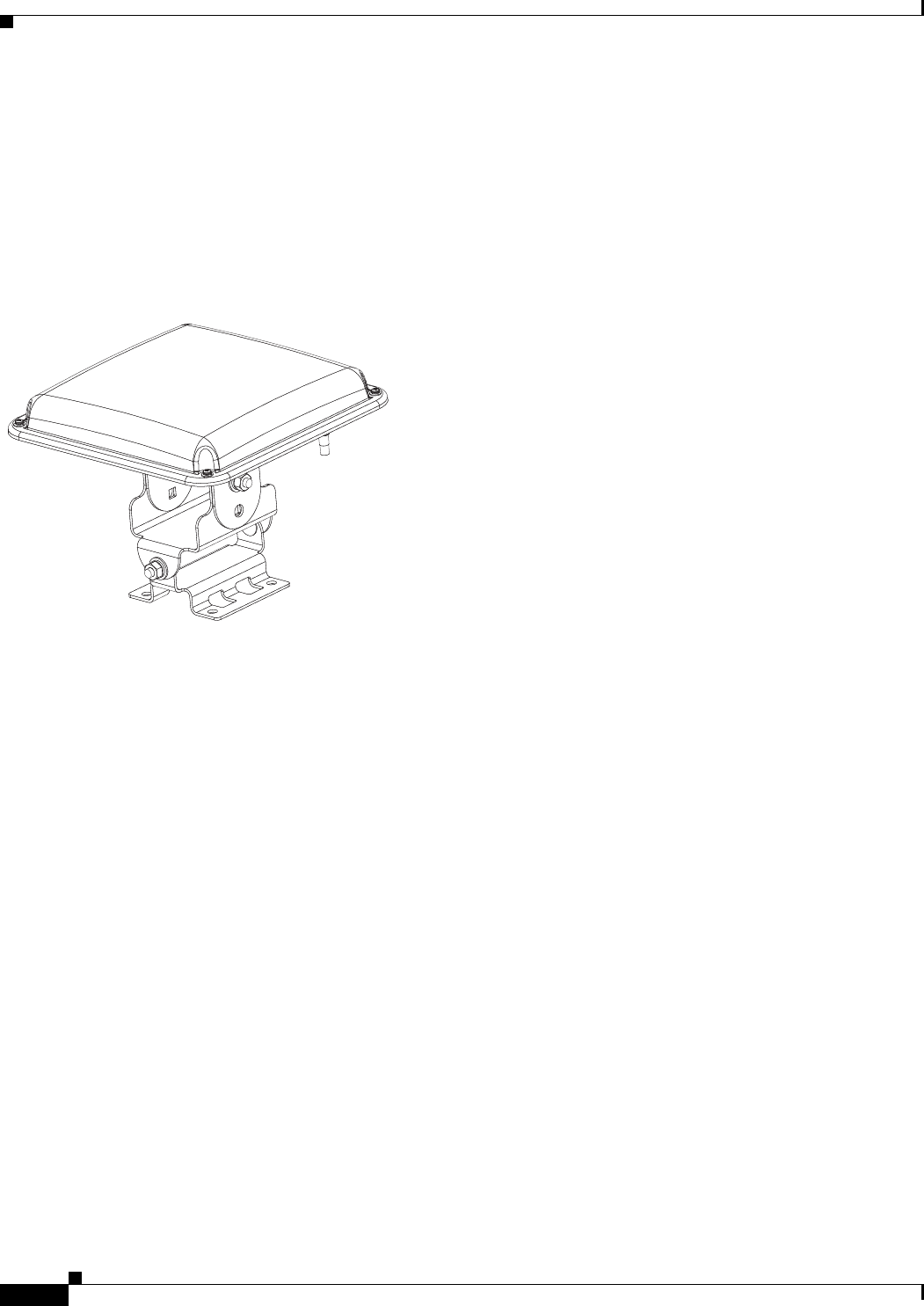

AIR-AP1562D-x-K9 The AP 1562 has integrated directional antennas

and contains a 2.4 GHz and 5 GHz radio with an

option to configure in centralized, Flexconnect, or

mesh mode.

This is a stand alone unit that can be wall, pole or

tower mounted. It can also operate as a relay node

for other access points that are not directly

connected to a wired network.

1-3

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Hardware Features

This section describes the hardware features of the 1560 access point models. The following hardware

features are described in this section:

•Ports and Connectors, page 1-3

•Internal Antenna Models, page 1-8

•External Antenna Model, page 1-10

•Power Sources, page 1-11

Ports and Connectors

Figure 1-4 and Figure 1-5 show the access point connectors for all models. Figure 1-1 shows the base

connectors for internal antenna model, and Figure 1-2 and Figure 1-3 show the external antenna Type-N

connectors.

Note The illustrations in this document show all available connections for the access point. Unused

connections are capped with a connector plug to ensure the watertight integrity of the access point.

Liquid-tight adapters are provided for connector openings, which can be installed before or after

deploying the access point.

1-4

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Hardware Features

Connectors on the Base

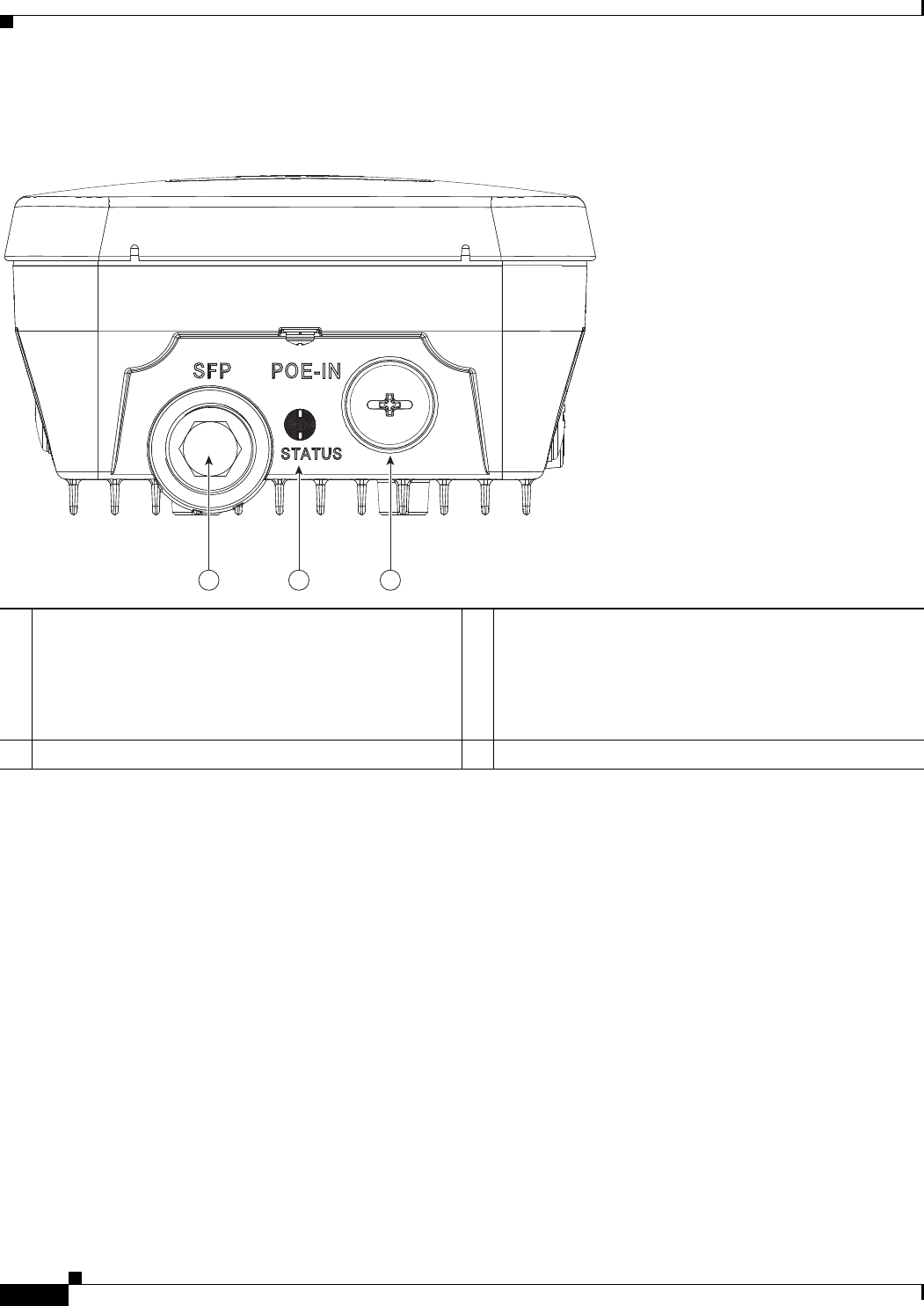

Figure 1-1 Access Point Models AP1562I and AP1562D Base Connectors

1SFP port

If the port is not being used, then do not remove the

covering plug. Otherwise, it may lead to water leaking

into the access point.

3Gigabit Ethernet and PoE-In port

If the port is not in use, then the covering plug must be

tightened to 12.5 lbf-in torque. Otherwise, it may lead to

water leaking into the access point.

2Status LED

354842

1 2 3

1-5

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Hardware Features

Figure 1-2 Access Point Model AP1562E Base Connectors

1Antenna 1 port 4Status LED

2Antenna 2 port 5Gigabit Ethernet/WAN and PoE-In port.

If the port is not in use, then the covering plug must be

tightened to 12.5 lbf-in torque. Otherwise, it may lead to

water leaking into the access point.

3SFP port

If the port is not being used, then do not remove the

covering plug. Otherwise, it may lead to water leaking

into the access point.

354843

3 4 5

1 2

1-6

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Hardware Features

Connectors on the Head

Note The AP1562I and AP1562D models do not have any connectors on the head of the AP.

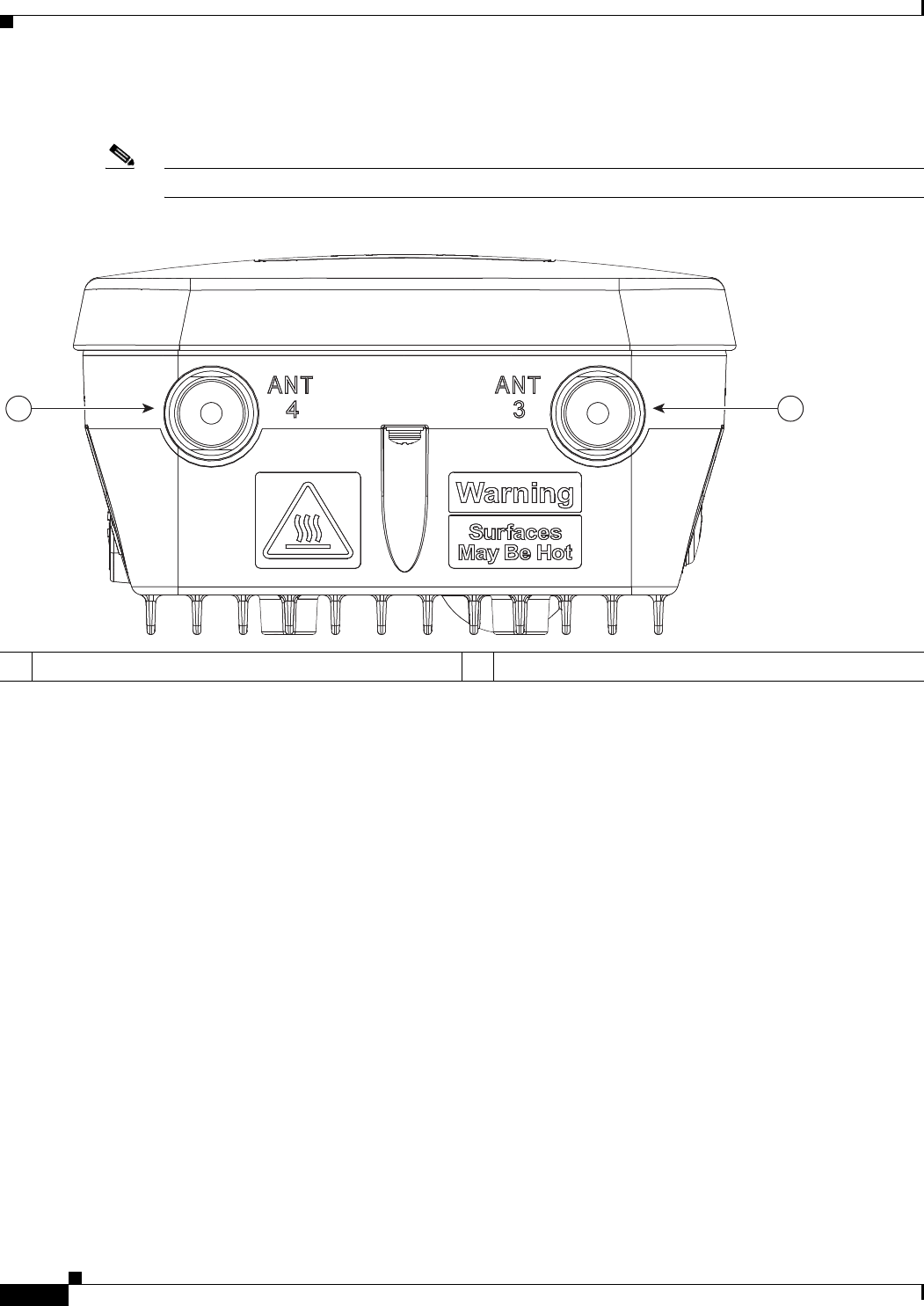

Figure 1-3 Access Point Model AP1562E Head Connectors

1Antenna port 4 2Antenna port 3

354844

1-7

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Hardware Features

Connectors on the Sides

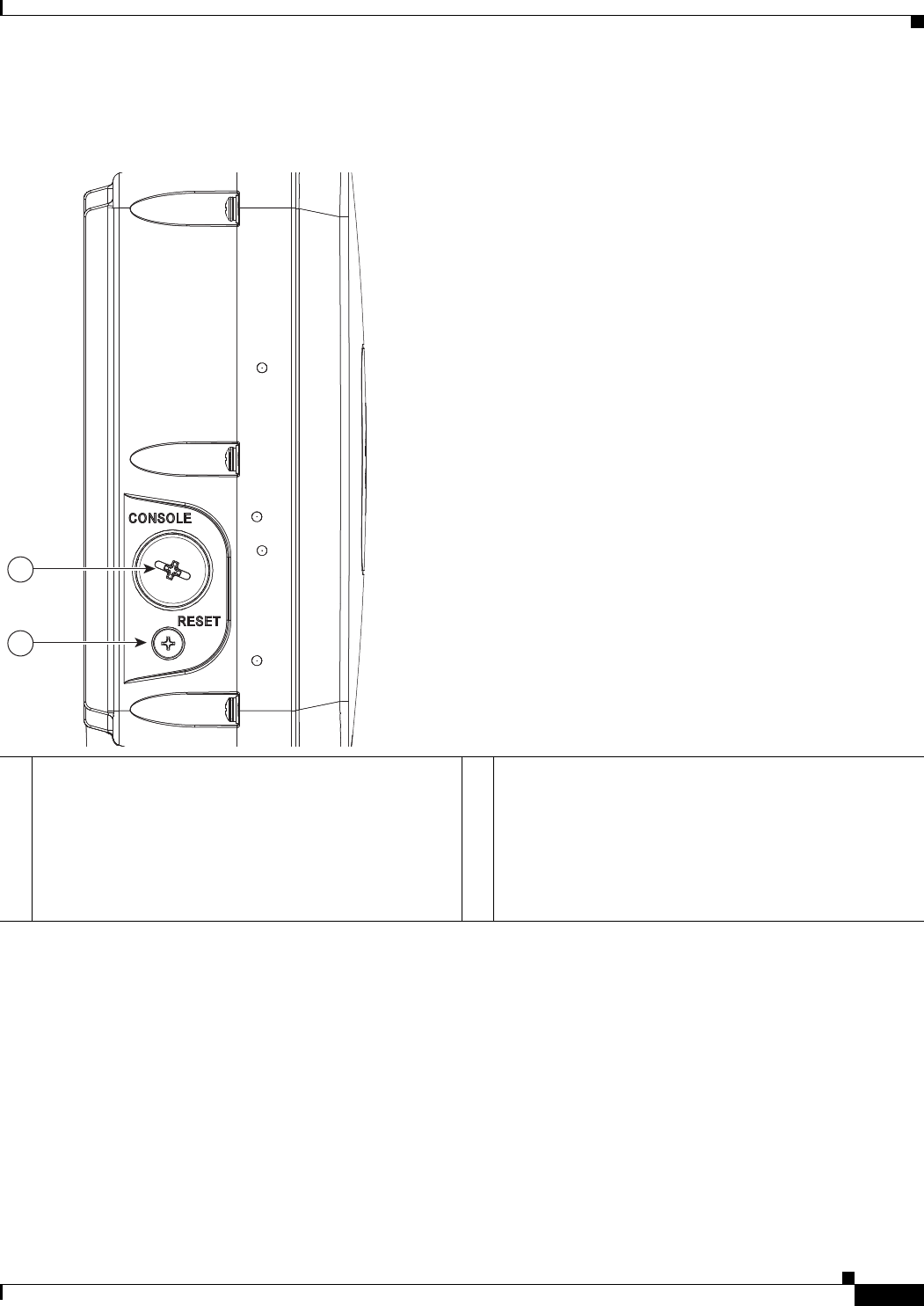

Figure 1-4 Right Side Connectors on all models

1Console port.

The console port is under a covering plug. Inspect the seal

of the plug and properly tighten it at the time of

installation, and also every time the plug is removed and

replaced. Tighten the plug to 12.5 lbf-in. If you do not

tighten the plug properly, it will not meet IP67 criteria,

and may lead to water leaking into the unit.

2Reset button.

The reset button is under a covering screw. Properly

tighten it at the time of installation, and also every time it

is removed and replaced. Tighten the screw to 24 lbf-in.

If you do not tighten the screw properly, it will not meet

IP67 criteria, and may lead to water leaking into the unit.

1-8

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Hardware Features

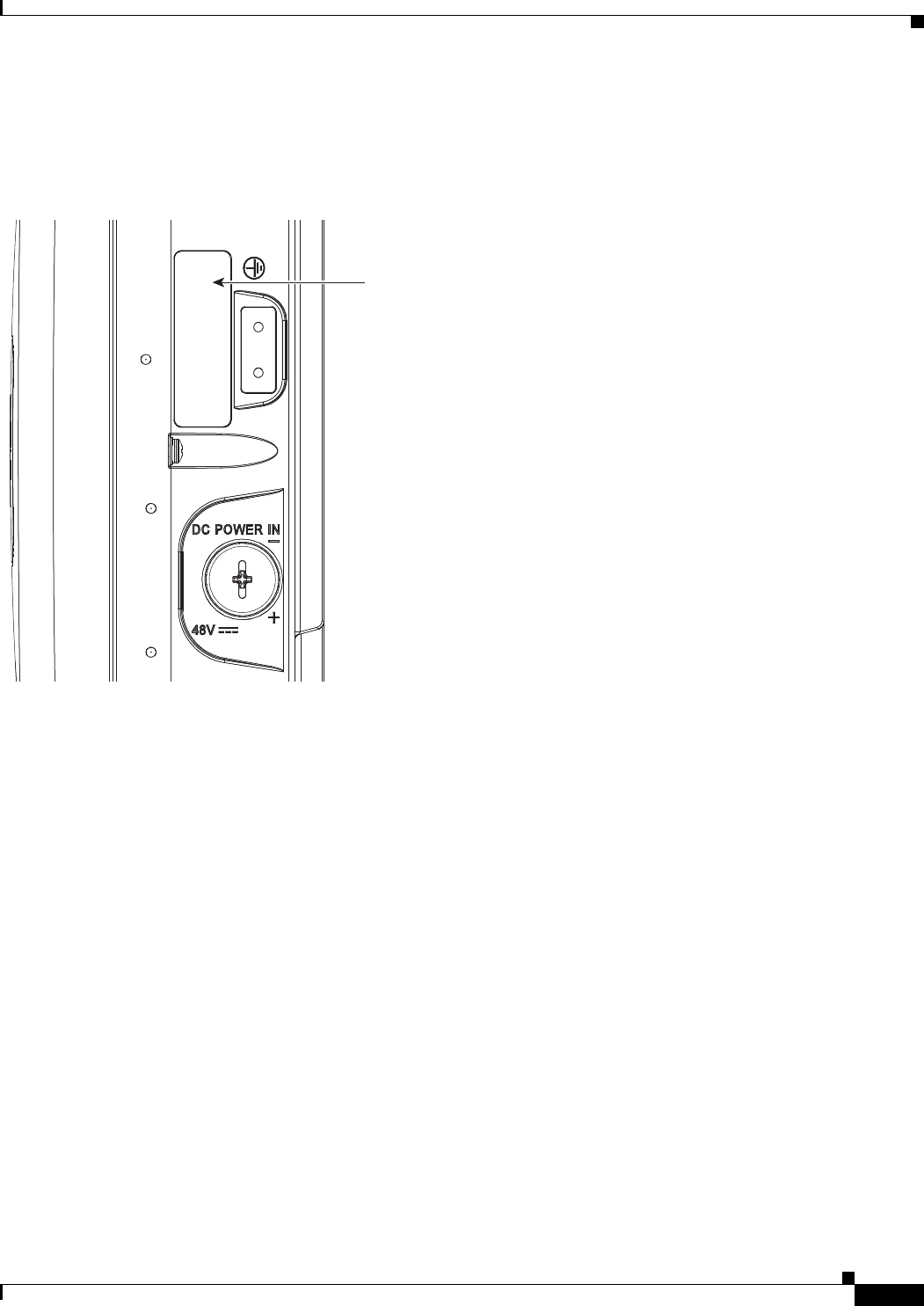

Figure 1-5 Left Side Connectors on All Models

Internal Antenna Models

AP1562I (Internal Antenna)

The AP1562I model has an internal omnidirectional antenna. The 1562I access point 802.11b/g/n radio

is used primarily for local access and its 802.11a/n/ac radio for wireless backhaul in the Mesh.

The 2 GHz b/g/n radio operates in 2.4 GHz ISM band. It supports channels 1-11 in the US, 1-13 in

Europe, and 1-13 in Japan. It has 3 transmitters with a maximum total output power of 29 dBm for

802.11b/g/n operation. Output power is configurable for 8 levels in 3 dB steps. It has three receivers that

enable maximum-ratio combining (MRC).

The 5 GHz a/n radio operates in the UNII-1 band (5.15-5.25 GHz), UNII-2 band (5.25 - 5.35 GHz),

UNII-2 Extended/ETSI band (5.47 - 5.725 GHz), and the upper ISM band (5.725 - 5.850 GHz). It has

three transmitters with a maximum total output power of 29 dBm depending on the regulatory domain.

Tx power settings will change depending on the regulatory domain. Output power is configurable in 3

dB steps. Its three receivers enable maximum-ratio combining (MRC).

1Ground Pad. 2DC Power-In (covered) (42 V – 57 V).

If the port is not in use, then the covering plug must be

tightened to 12.5 lbf-in torque. Otherwise, it may lead to

water leaking into the access point.

840

1-9

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Hardware Features

The 1562I access point is equipped with three integrated dual-band antennas with 7 dBi gain at 2 GHz

and 4 dBi gain at 5 GHz.

AP1562D (Internal Directional Antenna)

The 1562D access point 802.11b/g/n radio is used primarily for local access and its 802.11a/n/ac radio

for wireless backhaul in the Mesh.

The 2 GHz b/g/n radio operates in 2.4 GHz ISM band. It supports channels 1-11 in the US, 1-13 in

Europe, and 1-13 in Japan. It has 2 transmitters with a maximum total output power of 27 dBm for

802.11b/g/n operation. Output power is configurable for 8 levels in 3 dB steps. It has two receivers that

enable maximum-ratio combining (MRC).

The 5 GHz a/n radio operates in the UNII-1 band (5.15-5.25 GHz), UNII-2 band (5.25 - 5.35 GHz),

UNII-2 Extended/ETSI band (5.47 - 5.725 GHz), and the upper ISM band (5.725 - 5.850 GHz). It has

two transmitters with a maximum total output power of 27 dBm depending on the regulatory domain. Tx

power settings will change depending on the regulatory domain. Output power is configurable in 3 dB

steps. Its two receivers enable maximum-ratio combining (MRC).

The 1562D access point is equipped with two integrated dual-band antennas with 9 dBi gain at 2 GHz

and 10 dBi gain at 5 GHz.

1-10

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Hardware Features

External Antenna Model

Figure 1-6 shows the antenna port locations for model AP1562E. The ports used depend on the optional

antennas ordered. For detailed information on these antennas, refer to Installing External Antennas,

page 2-30.

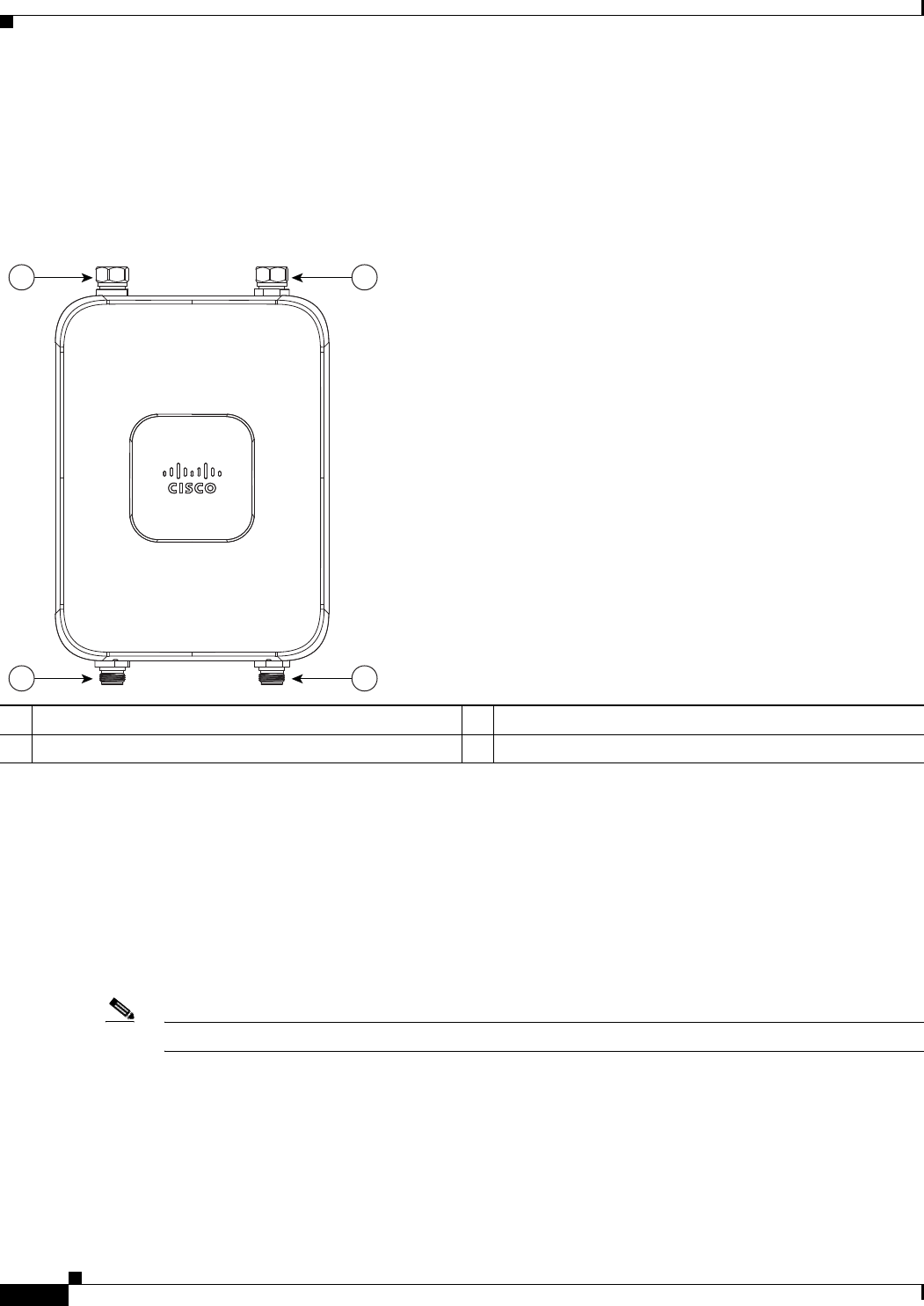

Figure 1-6 External Antenna Port Locations for Access Point Model AP1562E

AP1562E (External Antenna)

The 1562E access points is equipped with four N-type RF connectors. The 1562E can be configured via

software to support dual band or single band antennas. When configured for dual band antennas, antenna

ports 1 and 2 on the base of the unit (Figure 1-2) are used to support multiple input/multiple output

(MIMO) operation on both 2.4 and 5 GHz radios. When using the Cisco Aironet AIR-ANT2547V-N or

AIR-ANT2547VG-N omnidirectional antennas, the antenna can be connected directly to the access

point (Figure 2-17). If the antennas are remotely located, an appropriate low loss RF cable should be

used

Note Ensure that the antenna band mode is configured before the access point is installed.

When configured for single band antennas, antenna port 1 and antenna port 2 support MIMO operation

for the 2.4 GHz radio, and antenna ports 3 and 4 (Figure 1-3) support MIMO on the 5 GHz radio. See

the Cisco Wireless LAN Controller Configuration Guide for information on the software configuration.

1Antenna port 1 – Type N connector 3Antenna port 3– Type N connector (with cap)

2Antenna port 2- Type N connector 4Antenna port 4- Type N connector (with cap)

354864

1 2

3 4

1-11

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Hardware Features

The 2 GHz b/g/n radio operates in 2.4 GHz ISM band. It supports channels 1-11 in the US, 1-13 in

Europe, and 1-13 in Japan. It has 2 transmitters with a maximum total output power of 27 dBm for

802.11b/g/n operation. Output power is configurable for 8 levels in 3 dB steps. It has two receivers that

enable maximum-ratio combining (MRC).

The 5 GHz a/n radio operates in the UNII-1 band (5.15-5.25 GHz), UNII-2 band (5.25 - 5.35 GHz),

UNII-2 Extended/ETSI band (5.47 - 5.725 GHz), and the upper ISM band (5.725 - 5.850 GHz). It has

two transmitters with a maximum total output power of 27 dBm depending on the regulatory domain. Tx

power settings will change depending on the regulatory domain. Output power is configurable in 3 dB

steps. Its two receivers enable maximum-ratio combining (MRC).

Power Sources

The 1560 series access point supports these power sources:

•DC power – 42-57 VDC

•Power over Ethernet (PoE) – For more information, see “Powering the Access Point” section on

page 2-44.

Warning

Connect the unit only to DC power source that complies with the safety extra-low voltage (SELV)

requirements in IEC 60950 based safety standards.

Statement 1033

Caution Several forms of PoE are supported. See Table Table 2-9 for the PoE options and their corresponding

modes of operation.

Caution When the access point is installed outdoors or in a wet or damp location, the AC branch circuit that is

powering the access point should be provided with ground fault protection (GFCI), as required by Article

210 of the National Electrical Code (NEC).

Power Injectors

The 1560 series access points support the following power injectors:

•AIR-PWRINJ-60RGD1

•AIR-PWRINJ-60RGD2

Warning

To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord.

Statement 1023

Caution When the access point is installed outdoors, or in a wet or damp location, the AC branch circuit that is

powering the access point should be provided with ground fault protection (GFCI), as required by Article

210 of the National Electrical Code (NEC).

1-12

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Hardware Features

Ethernet (PoE) Ports

The access point supports an Ethernet uplink port (PoE-In). The access point Ethernet uplink port uses

an RJ-45 connector (with weatherproofing) to link the access point to the 10BASE-T, 100BASE-T or

1000BASE-T network. The Ethernet cable is used to send and receive Ethernet data and to optionally

supply inline power from the power injector or a suitably powered switch port.

Tip The access point senses the Ethernet and power signals and automatically switches internal circuitry to

match the cable connections.

Warning

To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

Statement 1023

The Ethernet cable must be a shielded outdoor rated Category 5e (CAT5e) or better cable. The access

point senses the Ethernet and power signals and automatically switches internal circuitry to match the

cable connections.

1-13

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Network Deployment Examples

The access point is a wireless device designed for wireless client access and point-to-point bridging,

point-to-multipoint bridging, and point-to-multipoint mesh wireless connectivity. The access point

provides 5-GHz backhaul capability to link with another access point to reach a wired network

connection or to provide repeater operations for other access points.

The access point plays two primary radio roles: a root access point (hereafter called a RAP) or a mesh

(non-root) access point (hereafter called a MAP), which is the default role of all access points. When the

access point has a fiber or wired Ethernet connection to the controller (through a switch), the radio role

is called a RAP. In order to be considered a RAP, the access point must be configured as a RAP. A RAP

is a parent node to any bridging or mesh network. A controller can support one or more RAPs, each one

parenting the same or different wireless networks. There can be more than one RAP for the same mesh

network for redundancy. RAPs and MAPs can support wireless clients on the 2.4-GHz and 5-GHz band.

Client access on 5-GHz is called universal client access.

When the access point does not have a wired Ethernet connection to the controller (through a switch),

the radio role is called a MAP. The MAPs have a wireless connection (through the backhaul interface)

to other MAPs and finally to a RAP which has an Ethernet connection through a switch to the controller.

MAPs may also have a wired Ethernet connection to a local LAN and serve as a bridge endpoint for that

LAN (using a point-to-point or point-to-multipoint bridge connection).

Wireless Backhaul

The access point supports wireless backhaul capability using the 5 GHz radio to bridge to another access

point to reach a wired network connection to a controller (see Figure 1-7). The access point connected

to the wired network is considered a RAP in this configuration. The remote access point is considered a

MAP and transfers wireless client traffic to the RAP for transfer to the wired network. Control And

Provisioning of Wireless Access Points (CAPWAP) control traffic is also transferred over this bridged

link.

Figure 1-7 Access Point Backhaul Example

Point-to-Point Bridging

The access points can be used to extend a remote network by using the 5 GHz backhaul radio to bridge

the two network segments as shown in Figure 1-8. To support Ethernet bridging, you must enable

bridging on the controller for each access point. By default this capability is turned-off for all access

points.

255493

(5 GHz) (2.4 GHz and 5 GHz)

1-14

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Network Deployment Examples

Wireless client access is supported; however, if bridging between tall buildings, the 2.4-GHz wireless

coverage area may be limited and possibly not suitable for direct wireless client access.

Figure 1-8 Access Point Point-to-Point Bridging Example

Point-to-Multipoint Bridging

The access points can be used as a RAP to connect multiple remote MAPs with their associated wired

networks. By default this capability is turned-off for all access points. To support Ethernet bridging, you

must enable bridging on the controller for each access point. Wireless client access can be provided over

the bridging link; however, if bridging between tall buildings, the 2.4-GHz wireless coverage area may

be limited and possibly not suitable for direct wireless client access. Figure 1-9 illustrates an example

of access point-to-multipoint bridging.

Figure 1-9 Access Point to Multipoint Bridging Example

255495

(5 GHz)

255494

(5 GHz)

1-15

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Network Deployment Examples

Point-to-Multipoint Mesh Network

The access point is typically deployed in a mesh network configuration. In a typical mesh deployment,

one or more RAPs have a wired network connection through a switch to a controller. Other remote MAPs

without wired network connections use the backhaul feature to optimally link to a RAP that is connected

to the wired network. In the mesh network, the links between the access points are referred to as the

backhaul links.

Intelligent wireless routing is provided by the Adaptive Wireless Path protocol (AWPP). This enables

each MAP to identify its neighbors and intelligently choose the optimal path to the RAP with the wired

network connection by calculating the cost of each path in terms of signal strength and the number of

hops required to get to a controller with signal strength given priority since signal strength determines

the data rate available for backhaul.

Figure 1-10 illustrates a typical mesh configuration using MAPs and RAPs.

Figure 1-10 Typical Mesh Configuration Using Access Points

351994

CPI

Network

RAP

MAP 1 MAP 2 MAP 3

MAP 4 MAP 6

MAP 5

MAP 7 MAP 8 MAP 9

1-16

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 1 Overview

Network Deployment Examples

Layer 3 Network Operation

The access points support Layer 3 network operation. Access points and controllers in Layer 3

configurations use IP addresses and UDP packets, which can be routed through large networks. Layer 3

operation is scalable and recommended by Cisco.

Figure 1-11 illustrates a typical Layer-3 wireless network configuration containing access points and a

controller.

Figure 1-11 Typical Layer 3 Access Point Network Configuration Example

148458

CHAPTER

2-1

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Installing the Access Point

This chapter describes how to install the 1560 access point and its accessories. It contains the following

sections:

•Unpacking the Access Point, page 2-2

•Mounting the Access Point, page 2-6

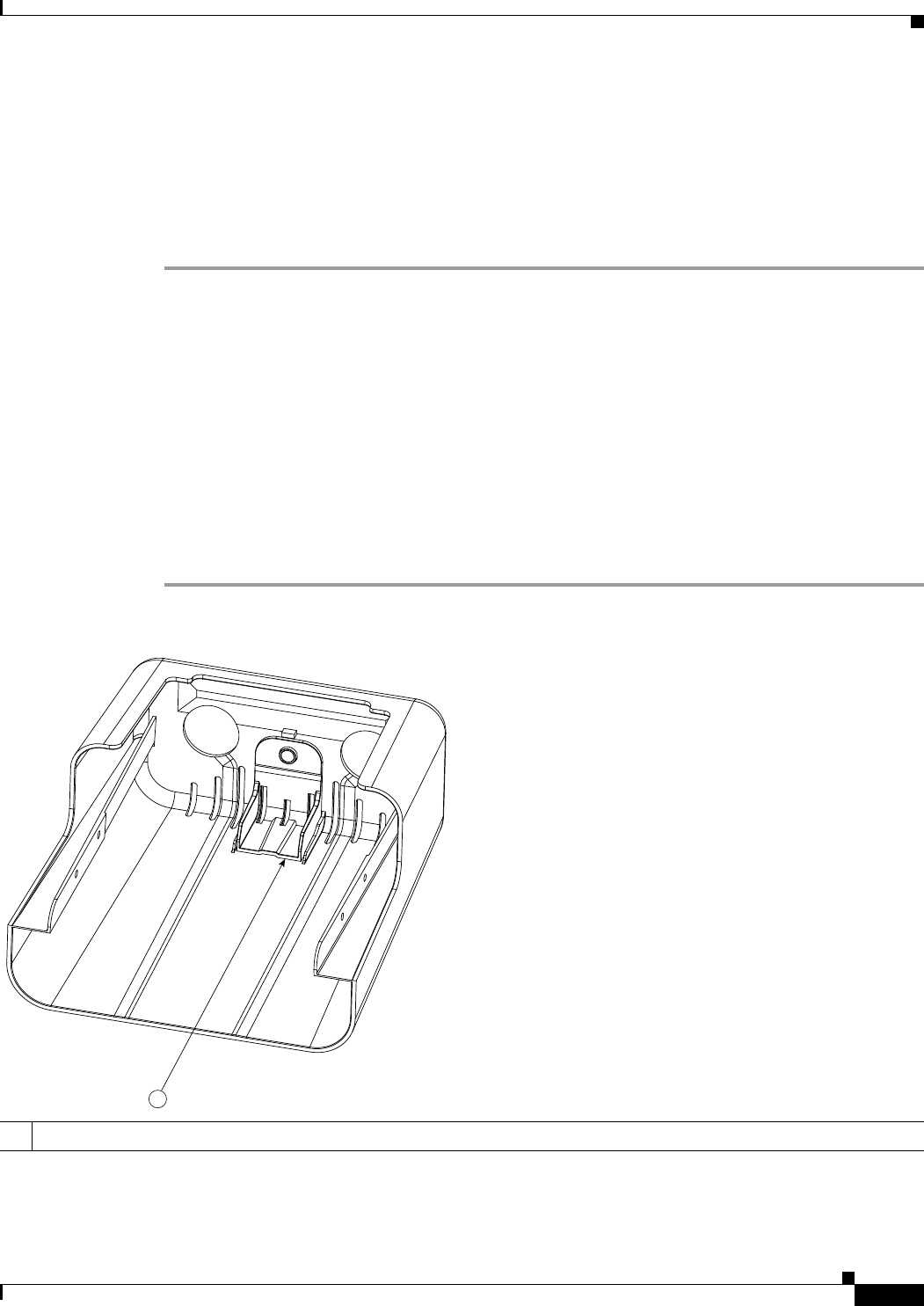

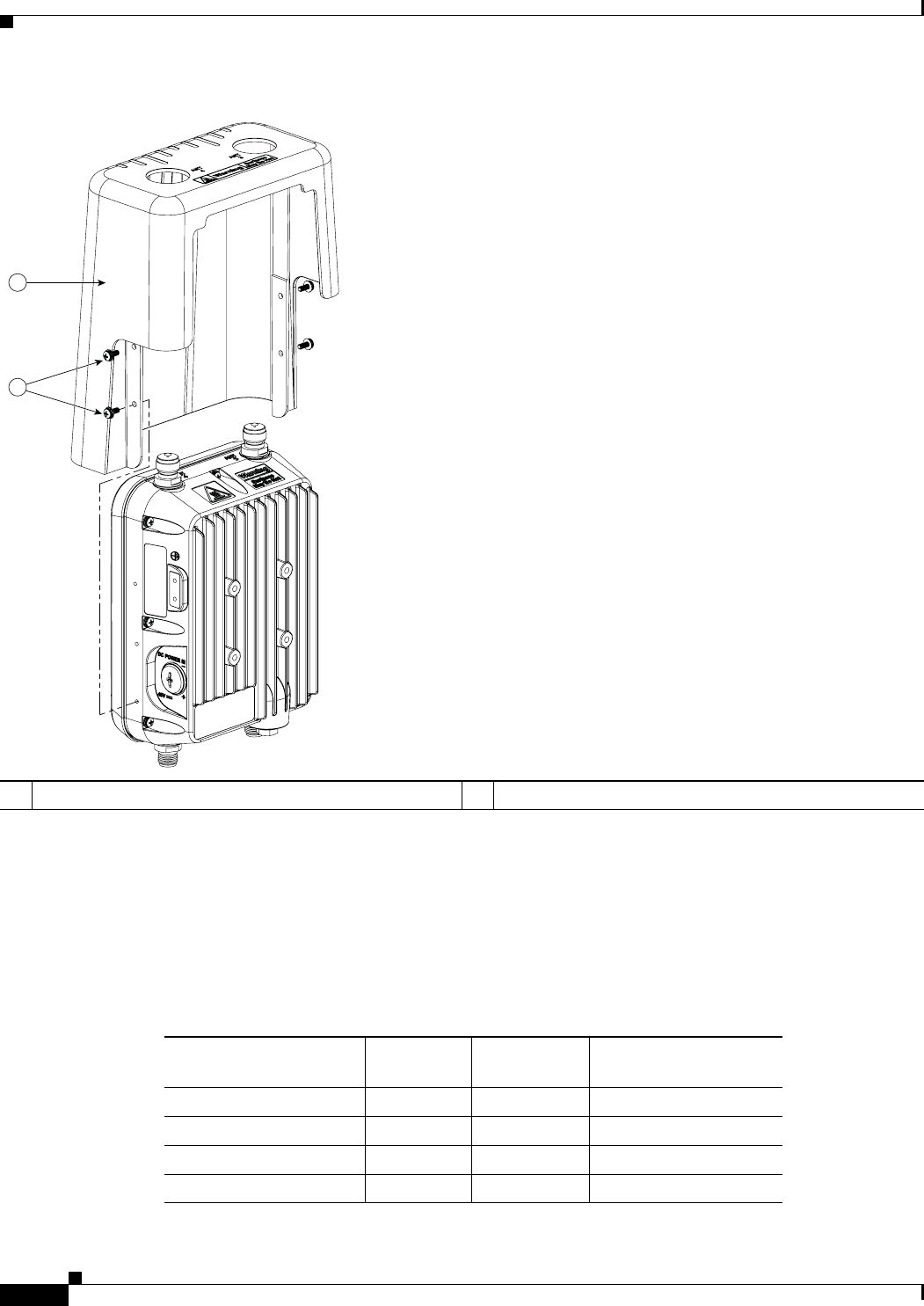

•Installing AP Cover AIR-ACC1560-CVR=, page 2-29

•Installing External Antennas, page 2-30

•Installing a Lightning Arrestor, page 2-40

•Grounding the Access Point, page 2-42

•Powering the Access Point, page 2-44

•Connecting Data Cables, page 2-52

•Configuring the Access Point, page 2-59

2-2

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Unpacking the Access Point

To unpack the access point, follow these steps:

Step 1 Open the shipping container and carefully remove the contents.

Step 2 Return all packing materials to the shipping container, and save it.

Step 3 Ensure that all items listed in “Package Contents” are included in the shipment. If any item is damaged

or missing, notify your authorized Cisco sales representative.

Your shipment may also contain additional equipment as per your order, as listed in Optional Tools and

Hardware From Cisco, page 2-2.

For additional hardware that is required for installation, see Additional Tools and Hardware Required

for Installation, page 2-3.

Package Contents

Each access point package contains the following items:

•One 1560 series access point

•Two-pin DC power connector

•Ground lug and screws with lock washers

•Plastic cable gland and rubber seal

•Weatherization tape and anti-corrosion sealant

•Cisco product documentation and pointer card

Optional Tools and Hardware From Cisco

Depending on what you ordered, the following optional equipment may be part of your shipment:

•External antennas. See the “Installing External Antennas” section on page 2-30.

•Wall/Pole mount bracket AIR-ACC1530-PMK1=

•Wall/Pole mount bracket for AP and AC/DC power adapter AIR-ACC1560-PMK1=

•Wall/Pole mount bracket with tilt mechanism, spare only AIR-ACC1530-PMK2=

•Street light power tap (AIR-PWR-ST-LT-R3P=), works only with the AC/DC power adapter.

•Power injector AIR-PWRINJ6=

•AP cover / Solar Shield for 1560, AIR-ACC1560-CVR=. Spare only.

•AC/DC power adapter, AIR-PWRADPT-RGD1=. Spare only.

•AIR-PWRINJ-60-PMK= mounting bracket for AIR-PWRINJ-60RGDx=

•Spare Parts kit containing extra cable glands, power connector, ground lug, etc.

(AIR-ACC1530-KIT1=)

•AIR-PWRINJ-60RGD1=

•AIR-PWRINJ-60RGD2=

2-3

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Unpacking the Access Point

•FIPS kit (AIRLAP-FIPSKIT=)

•Lightning Arrestor kit (AIR-ACC245LA-N=)

Additional Tools and Hardware Required for Installation

You need to independently procure the following tools and materials which maybe required during

various stages of installing the AP:

•Ground lug crimping tool (Panduit CT-720 with CD-720-1 die)

•6-AWG copper ground wire

•10 mm open end or box wrench

•13 mm box-end wrench or socket set

•16 mm box-end wrench or socket set

•Large flat or Phillips screw driver (for port plugs)

•Small flat screwdriver for DC power connector

•Shielded outdoor-rated Ethernet (CAT5e or better) cable of 0.20 to 0.35 inches (0.51 to 0.89 cm)

diameter.

•Ethernet RJ-45 connector and installation tool

•Shielded outdoor-rated DC power cable with 0.20 to 0.35 inch (.0.51 to 0.89 cm) diameter

•Ground rod, as required by local regulations

Pre-Installation Checks and Installation Guidelines

As the access point is a radio device, it is susceptible to common causes of interference that can reduce

throughput and range. Follow these basic guidelines to ensure the best possible performance:

•Thoroughly review the information provided in Safety Guidelines and Warnings, page A-1.

•For information on planning and initially configuring your Cisco Mesh network, refer to the Cisco

Wireless Access Points, Design and Deployment Guide, Release 7.3.

•Review the FCC guidelines for installing and operating outdoor wireless LAN devices at:

http://www.cisco.com/c/en/us/products/collateral/routers/3200-series-rugged-integrated-services-r

outers-isr/data_sheet_c78-647116.html

•Install the access point in an area where structures, trees, or hills do not obstruct radio signals to and

from the access point.

•We recommend installing the access points no higher than 40 feet to allow support for wireless

clients on the ground. Best throughput is achieved when all the access points are mounted at the

same height.

•The console port is under a sealed plug. Inspect the seal of the plug at the time of installation. Every

time the plug is removed or replaced, properly tighten it. Tighten the plug to 15 lbf-in. If you do not

tighten the plug properly, it will not meet IP67 criteria, and may lead to water leaking into the unit.

•If the DC power port, SFP port, or the PoE-In port is not in use, then the port’s covering plug must

be tightened to 12.5 lbf-in torque. Otherwise, it may lead to water leaking into the access point.

2-4

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Unpacking the Access Point

Note To calculate path loss and to determine how far apart to install access points, consult an RF planning

expert.

Before you begin the installation process, ensure the following:

•Perform a site survey. See the “Performing Site Surveys” section on page A-5.

•Your network infrastructure devices must be operational and properly configured.

•Your controllers are connected to switch trunk ports.

•Your switch is configured with untagged access ports for connecting your access points.

•A DHCP server with Option 43 configured is reachable by your access points, or manually configure

the controller information in the access point. For information on configuring the DHCP Option 43,

visit the following URL:

http://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/97066-dhcp-optio

n-43-00.html

•Become familiar with the access point installation components. See the “Typical Access Point

Installation Components” section on page 2-5.

2-5

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Unpacking the Access Point

Typical Access Point Installation Components

The access point is designed to be installed in an outdoor environment, such as the exterior roof overhang

of a tall building or a streetlight pole. Carefully review Figure 2-1 to become familiar with the system

components, connectors, indicators, cables, system interconnection, and grounding.

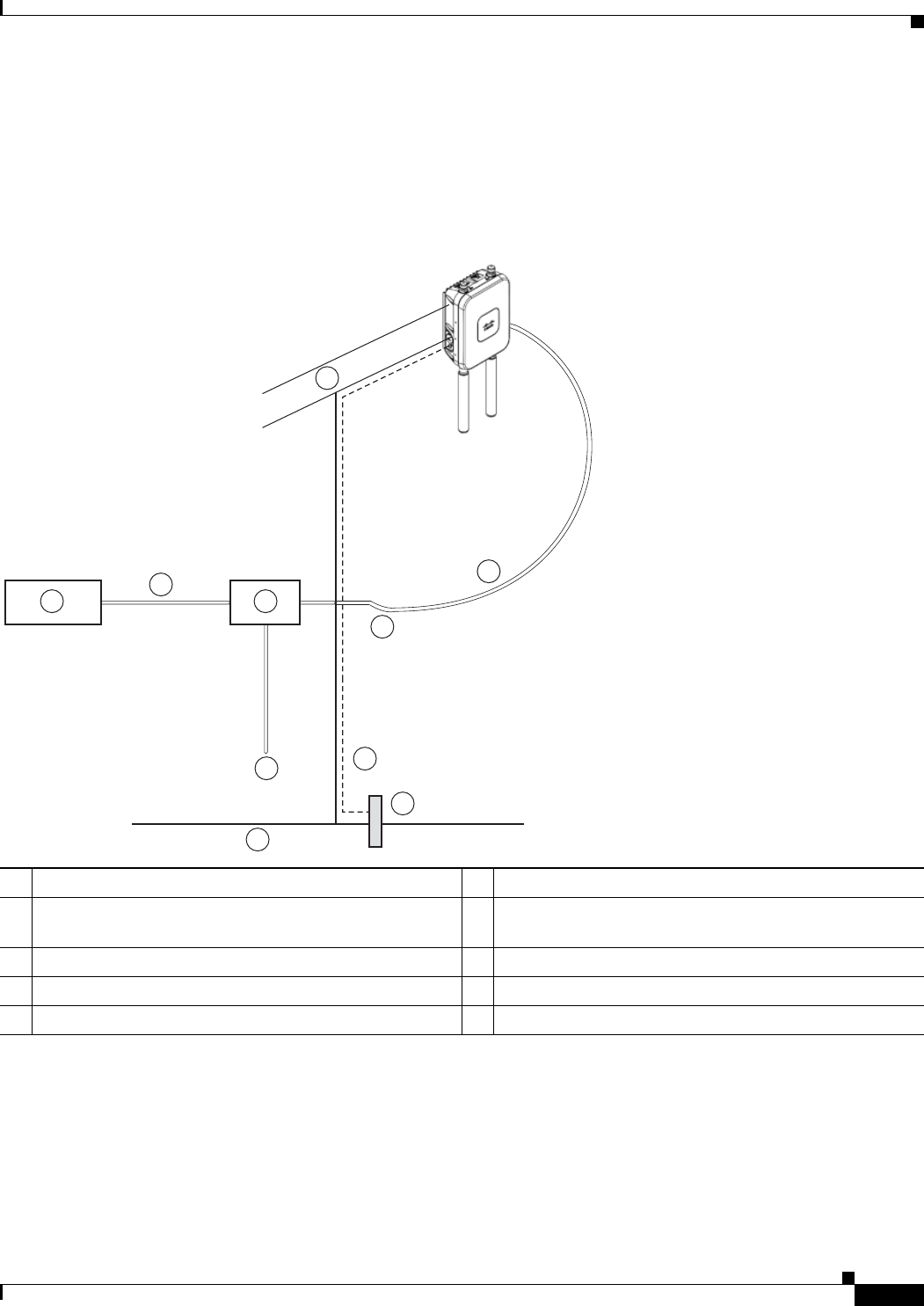

Figure 2-1 Components in a Typical Access Point Installation

1Building roof-overhang 6Ground

2Shielded outdoor-rated Ethernet

(CAT5e or better) cable1

1. Independently sourced by the user.

7Power cord

3Water drip loop 8Power injector

46-AWG copper grounding wire1 9Shielded Ethernet (CAT5e or better) cable1

5Ground rod1 10 Controller (through a switch)

354863

10 8

2-6

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

This section provides instructions for installing your access points. Personnel installing the access point

must have a good understanding of wireless access points, bridging techniques, and grounding methods.

Choosing a Mounting Kit

The 1560 Series Access Point can be wall, pole, or tower mounted. The available mounting kits are

provided in the table below.

Note • When mounting an access point vertically, ensure that the access point is oriented with the LED

indicators pointing down.

•You must also ensure the access point is mounted in such a way as to ensure that all antenna ports

and the console port are accessible for future use.

•Omnidirectional antennas should be mounted vertically.

Directional antennas should be installed with the main beam aimed parallel to or tilted down

toward the horizon

AP Mounting Kit Purpose

AIR-ACC1530-PMK1= Fixed mounting kit for vertical mounting on wall and pole. See:

•Wall Mounting the Access Point with AIR-ACC1530-PMK1=,

page 2-7

•Pole Mounting the Access Point with AIR-ACC1530-PMK1=,

page 2-13

AIR-ACC1560-PMK1= Fixed mounting kit, allowing mounting of both AP and power supply, for

vertical mounting on wall and pole. See:

•Wall Mounting the Access Point with AIR-ACC1560-PMK1=,

page 2-10

•Pole Mounting the Access Point with the AIR-ACC1560-PMK1= Kit,

page 2-15

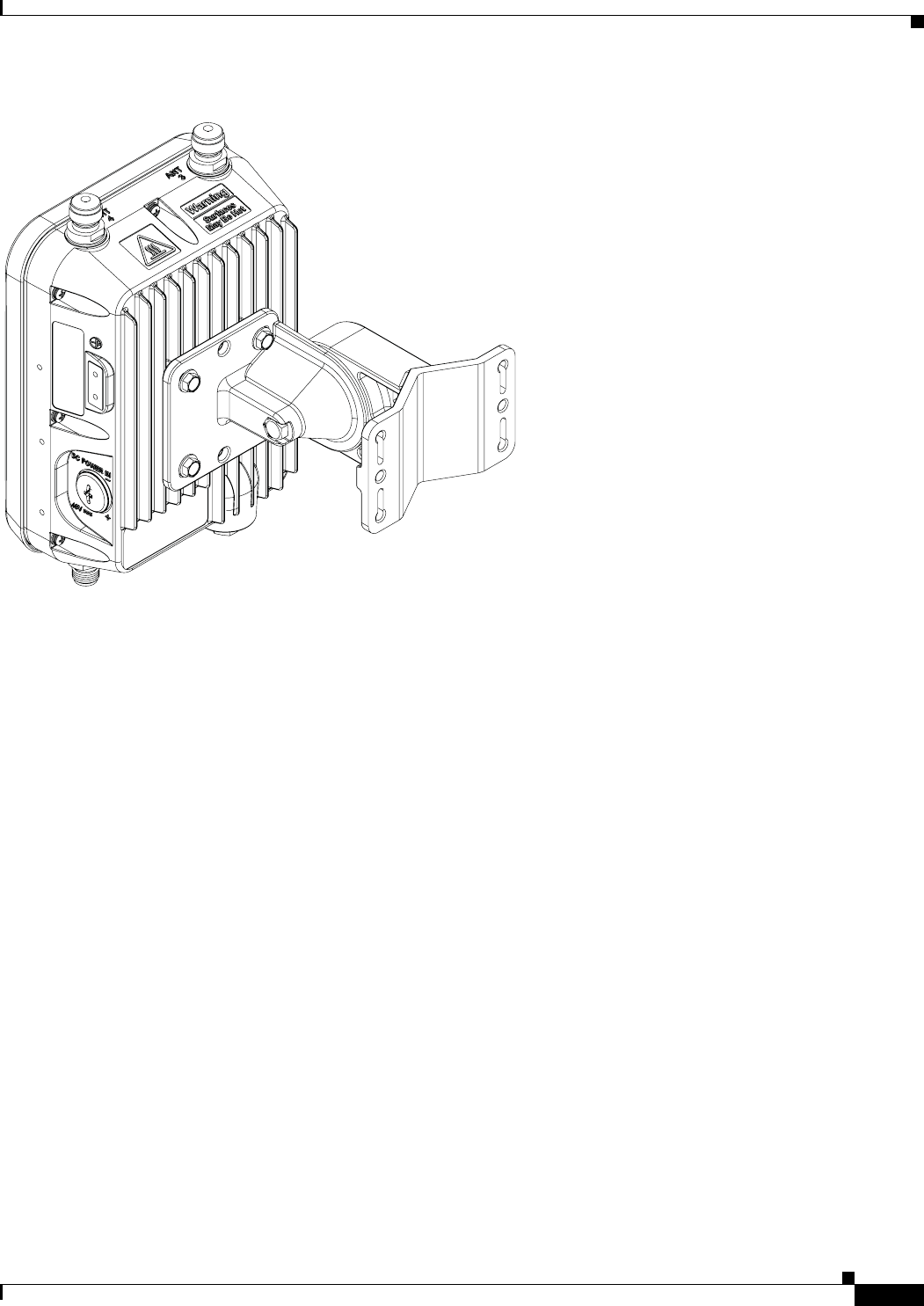

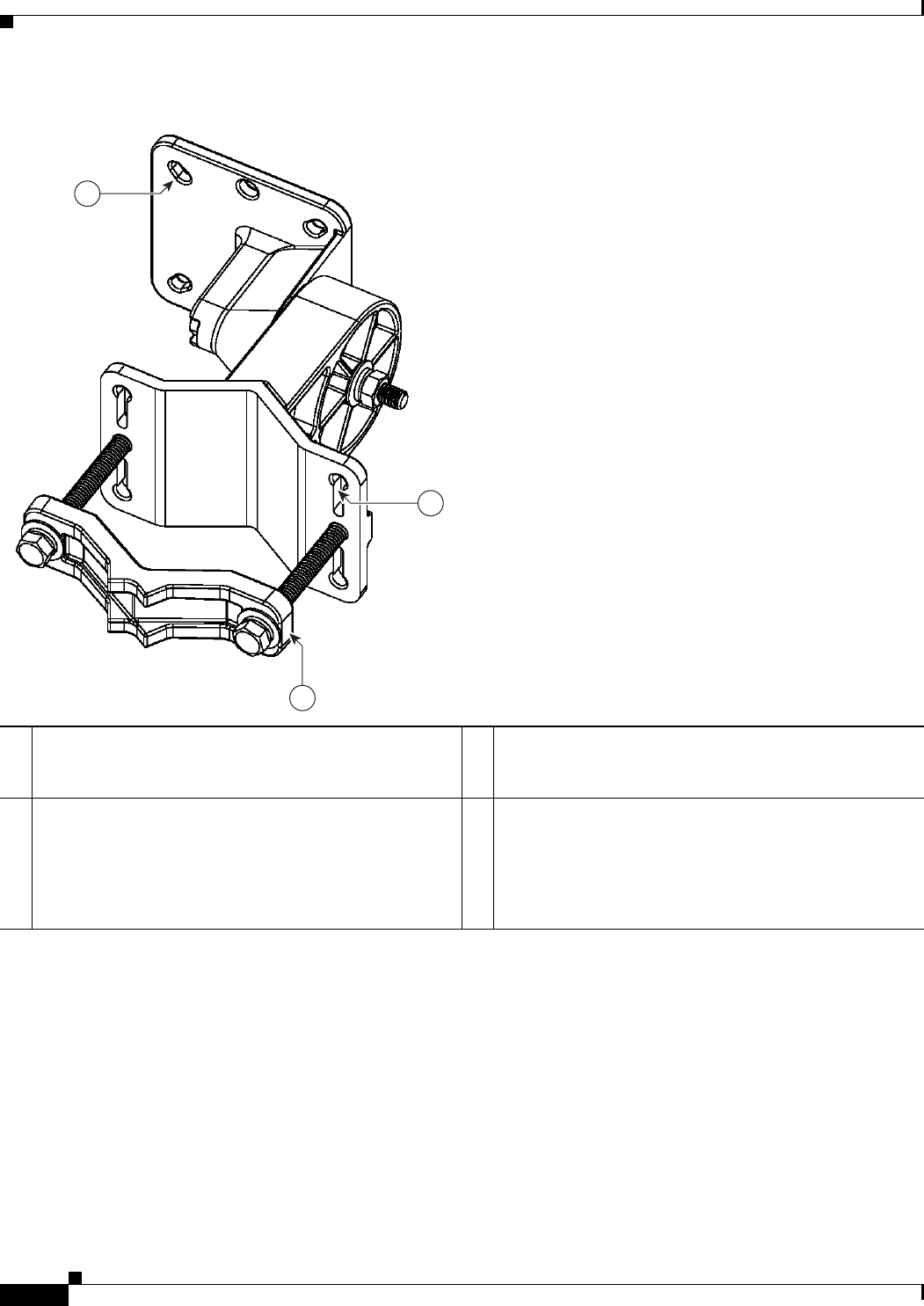

AIR-ACC1530-PMK2= Pivoted mounting kit for both vertical and horizontal mounting, on wall

and pole. See:

•Wall Mounting the AP using AIR-ACC1530-PMK2= Pivoting

Mounting Kit, page 2-17

•Pole Mounting the AP using AIR-ACC1530-PMK2= Pivoting

Mounting Kit, page 2-22

•Horizontally Mounting the Access Point using

AIR-ACC1530-PMK2=, page 2-26

•

2-7

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Wall Mounting the Access Point with AIR-ACC1530-PMK1=

The AIR-ACC1530-PMK1= mounting kit contains a mounting bracket for wall mounting or pole

mounting.

You can use the mounting bracket as a template to mark the positions of the mounting holes for your

installation, install the mounting bracket, and then attach the access point to the bracket.

Table 2-1 lists the materials needed for this installation.

Caution The mounting wall, attaching screws, and wall anchors must be able to support a 50-lb (22.7 kg) static

weight.

To mount the access point vertically on a wall, follow these instructions:

Step 1 Use the mounting bracket as a template to mark four screw hole locations on the mounting wall. The

mounting bracket screw hole locations are shown in Figure 2-2. The dimensions of the mounting

bracket is shown in Figure 2-3.

Step 2 Use four screws and, if required, wall anchors to attach the mounting plate to the mounting surface.

These screws and anchors are to be sourced independently.

Note You can use an exterior-grade plywood backboard to mount the access point to stucco, cement,

or drywall.

Table 2-1 Materials Required to Mount Access Point Using AIR-ACC1530-PMK1=

Materials Required In Kit?

Ground lug and screws (provided with access

point)

Yes

Wall Mount Bracket Yes

Four M6 x 12-mm Hex-head Bolts Yes

Crimping tool for ground lug, Panduit CT-720

with CD-720-1 die (http://www.panduit.com)

Four wall mounting screws No

Four wall anchors (specified for all material) No

Drill bit for wall anchors No

Electric drill and standard screwdriver No

#6 AWG ground wire No

Shielded outdoor-rated Ethernet (CAT5e or

better) cable

Grounding block No

Grounding rod No

10-mm box-end wrench or socket set No

2-8

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Note The mounting wall, attaching screws, and wall anchors must be able to support a 50-lb (22.7 kg)

static weight.

Step 3 Screw an M6 x12 mm bolt into each of the four support bolt holes on the back of the access point. Do

not screw the bolt all the way in, but leave a gap of approximately 0.13 inch (3.3 mm).

Step 4 Position the access point against mounting bracket such that the four support bolts on the back of the AP,

slot into the keyhole slots on the mounting bracket.

Step 5 Slide the access point down to sit securely in keyhole slots on the mounting bracket.

Note The access point should be mounted with the status LED on the base facing downwards.

Step 6 Using a 10mm wrench, tighten the four bolts that connect the access point to the bracket, to a torque of

40 lbf-in.

Step 7 Proceed with installing antennas (only for external antenna models), connecting the data cables,

grounding the access point, powering and configuring the access point.

2-9

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

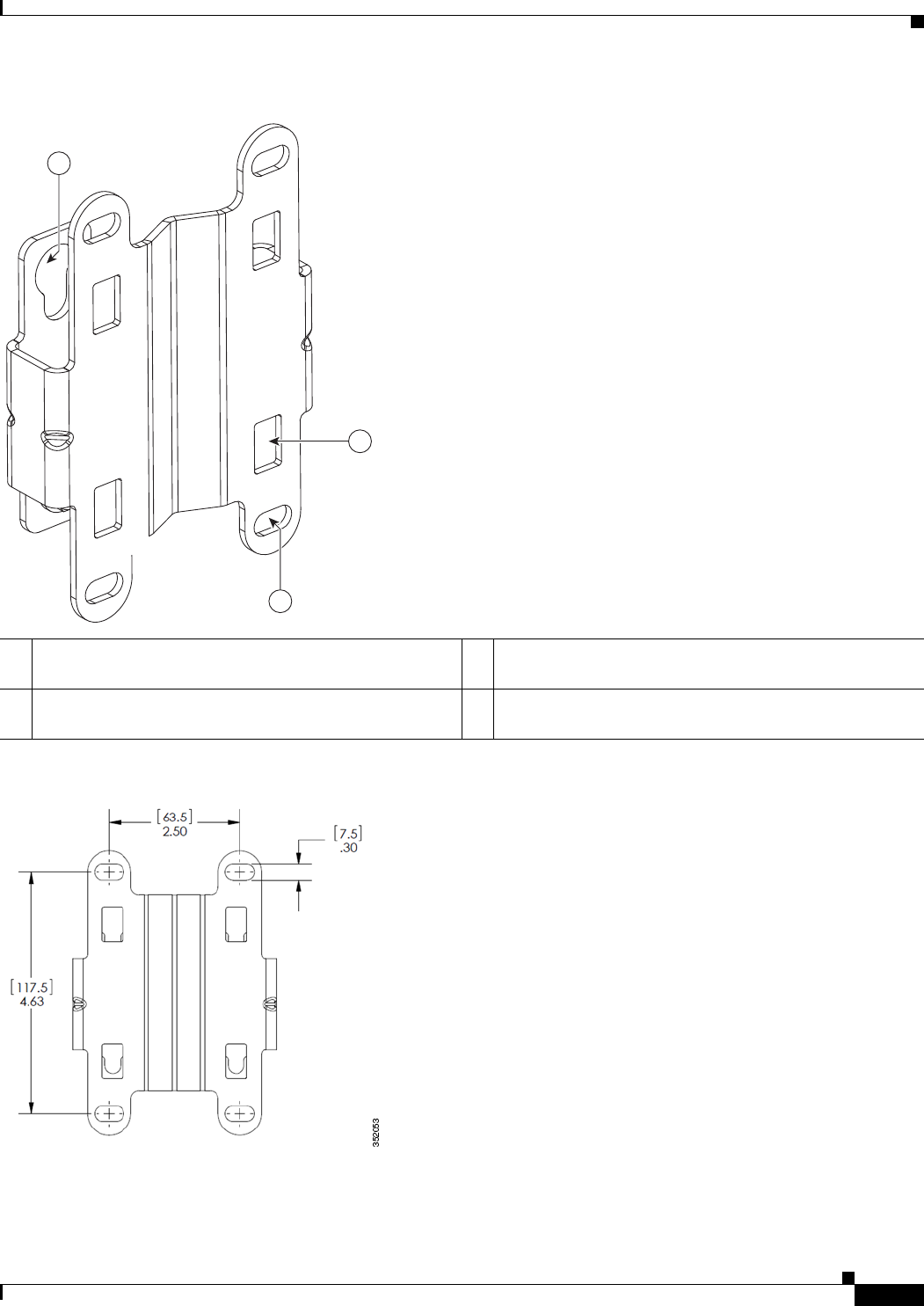

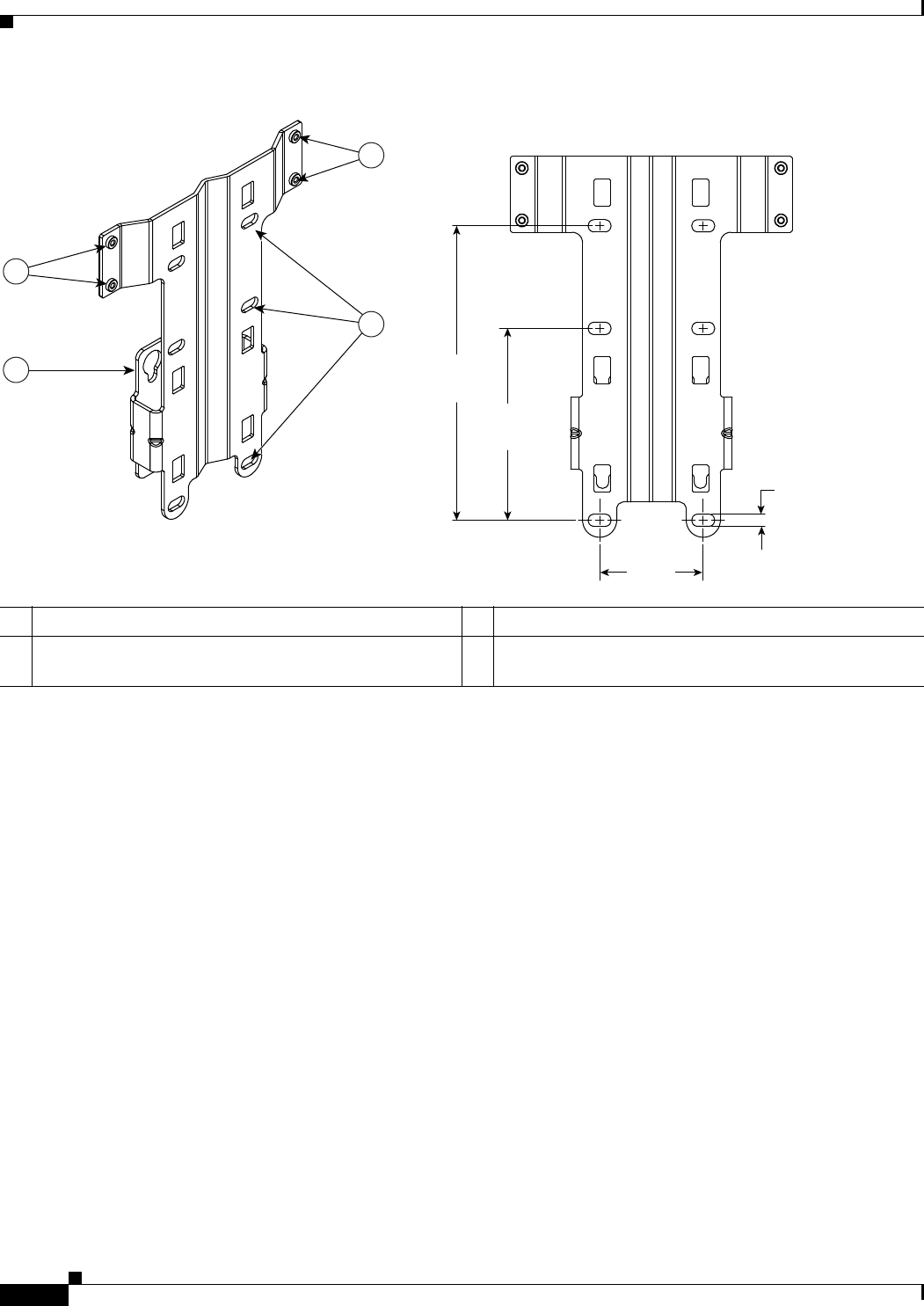

Figure 2-2 Mounting Bracket for Wall and Pole Mounting

Figure 2-3 Mounting Bracket Dimensions

1One of four keyhole slots for mounting the AP. 3Bracket mount holes for fastening bracket to the wall.

You can use bolts of up to 1/4" or 6 mm in diameter.

2One of four slots for steel band clamps, used for pole

mounting only.

354865

2-10

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Wall Mounting the Access Point with AIR-ACC1560-PMK1=

The AIR-ACC1560-PMK1= mounting kit contains a mounting bracket, for wall mounting or pole

mounting, the access point and the power supply together.

You can use the mounting bracket as a template to mark the positions of the mounting holes for your

installation, install the mounting bracket, and then attach the access point to the bracket.

Table 2-1 lists the materials needed for this installation.

Caution The mounting wall, attaching screws, and wall anchors must be able to support a 50-lb (22.7 kg) static

weight.

To mount the access point vertically on a wall, follow these instructions:

Step 1 Use the mounting bracket as a template to mark six screw hole locations on the mounting wall. The

mounting bracket screw hole locations and the dimensions of the mounting bracket are shown in

Figure 2-4.

Step 2 Use six screws and, if required, wall anchors to attach the mounting plate to the mounting surface. These

screws and anchors are to be sourced independently.

Note You can use an exterior-grade plywood backboard to mount the access point to stucco, cement,

or drywall.

Table 2-2 Materials Required to Mount Access Point using AIR-ACC1560-PMK1=

Materials Required In Kit?

Ground lug and screws (provided with access

point)

Yes

Wall Mount Bracket Yes

Four M6 x 12-mm Hex-head Bolts Yes

Four #8-32 screws to mount the power supply Yes

Crimping tool for ground lug, Panduit CT-720

with CD-720-1 die (http://www.panduit.com)

Four wall mounting screws No

Four wall anchors (specified for all material) No

Drill bit for wall anchors No

Electric drill and standard screwdriver No

#6 AWG ground wire No

Shielded outdoor-rated Ethernet (CAT5e or

better) cable

Grounding block No

Grounding rod No

10-mm box-end wrench or socket set No

2-11

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Note The mounting wall, attaching screws, and wall anchors must be able to support a 50-lb (22.7 kg)

static weight.

Step 3 Screw an M6 x12 mm bolt into each of the four support bolt holes on the back of the access point. Do

not screw the bolt all the way in, but leave a gap of approximately 0.13 inch (3.3 mm).

Step 4 Position the access point against mounting bracket such that the four support bolts on the back of the AP,

slot into the keyhole slots on the mounting bracket.

Step 5 Slide the access point down to sit securely in keyhole slots on the mounting bracket.

Note The access point should be mounted with the status LED on the base facing downwards.

Step 6 Using a 10mm wrench, tighten the four bolts that connect the access point to the bracket, to a torque of

40 lbf-in.

Step 7 Proceed with installing antennas (only for external antenna models), connecting the data cables,

grounding the access point, powering and configuring the access point..

2-12

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Figure 2-4 Mounting Bracket for Wall and Pole Mounting AP with Power Supply

1One of four keyhole slots for mounting the AP. 3Screw holes for fastening the power supply to the bracket.

2Three of six bracket mount holes for fastening the bracket

to a wall. Support bolts of up to 1/4" (6 mm) in diameter.

354847

7.10

[180.3]

[117.5]

4.63

[7.5]

.30

[63.5]

2.50

2-13

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Pole Mounting the Access Point with AIR-ACC1530-PMK1=

The AIR-ACC1530-PMK1= mounting kit contains a mounting bracket that can be used for both wall

mounting and pole mounting. This kit can be used to install the access point on a pole, mast or streetlight.

It supports metal, wood or fiberglass poles from 2 to 8 inches in diameter.

Ta b l e 2 - 3 Materials Needed to Mount the AP on a Vertical Pole

To mount the access point onto a vertical pole, follow these steps:

Step 1 Select a mounting location on the pole to mount the access point. You can attach the access point to a

pole having a diameter of 2 to 8 inches (5.1 to 20.1 cm).

Note If you will be using a streetlight power tap adapter, position the access point within 3 ft (1 m) of

the outdoor light control. An AC/DC adapter needs to be used for street light pole deployments.

Step 2 Hold the bracket up against the pole, and slide the two band straps through the top and bottom sets of

mounting slots on the mounting bracket (see Figure 2-5).

Step 3 Wrap the band straps around the pole, lock them and then lightly tighten the clamps using a wrench. Only

tighten them enough to keep the bracket from sliding down the pole

Step 4 Screw an M6 bolt into each of the four bolt holes on the back side of the access point. Do not screw the

bolt in all the way. Leave a gap of about 0.13" (3.3mm).

Step 5 Position the four bolts on the access point into the bracket keyhole slots. Check to be sure that the access

point is properly seated in the slots (see Figure 2-5).

Note The access point should be mounted with the status LED on the base facing downwards.

Step 6 Using a 10mm wrench, tighten the four bolts that connect the access point to the bracket to a torque of

40 lbf-in.

Materials Needed In Kit?

One wall mount bracket Yes

Four M6 x12mm hex head bolts Yes

Two stainless steel band clamps (adjustable 2"–5", 51–127

mm)

Yes

Two stainless steel band clamps (adjustable 5"–8", 127–203

mm)

Yes

10 mm box-end wrench No

Outdoor rated shielded Ethernet cable No

Ground lug (provided with the access point) Yes

Ground block and rod No

Crimping tool for ground lug, Panduit CT-720 with CD-720-1

die (http://www.panduit.com)

#6 AWG ground wire No

2-14

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Step 7 Locate the access point to its final position. Tighten the band clamps with the wrench so that the access

point does not slide on the pole. Ensure that the clamps are tight enough to not let the AP move.

Step 8 Proceed with installing antennas (only for external antenna models), connecting the data cables,

grounding the access point, powering and configuring the access point.

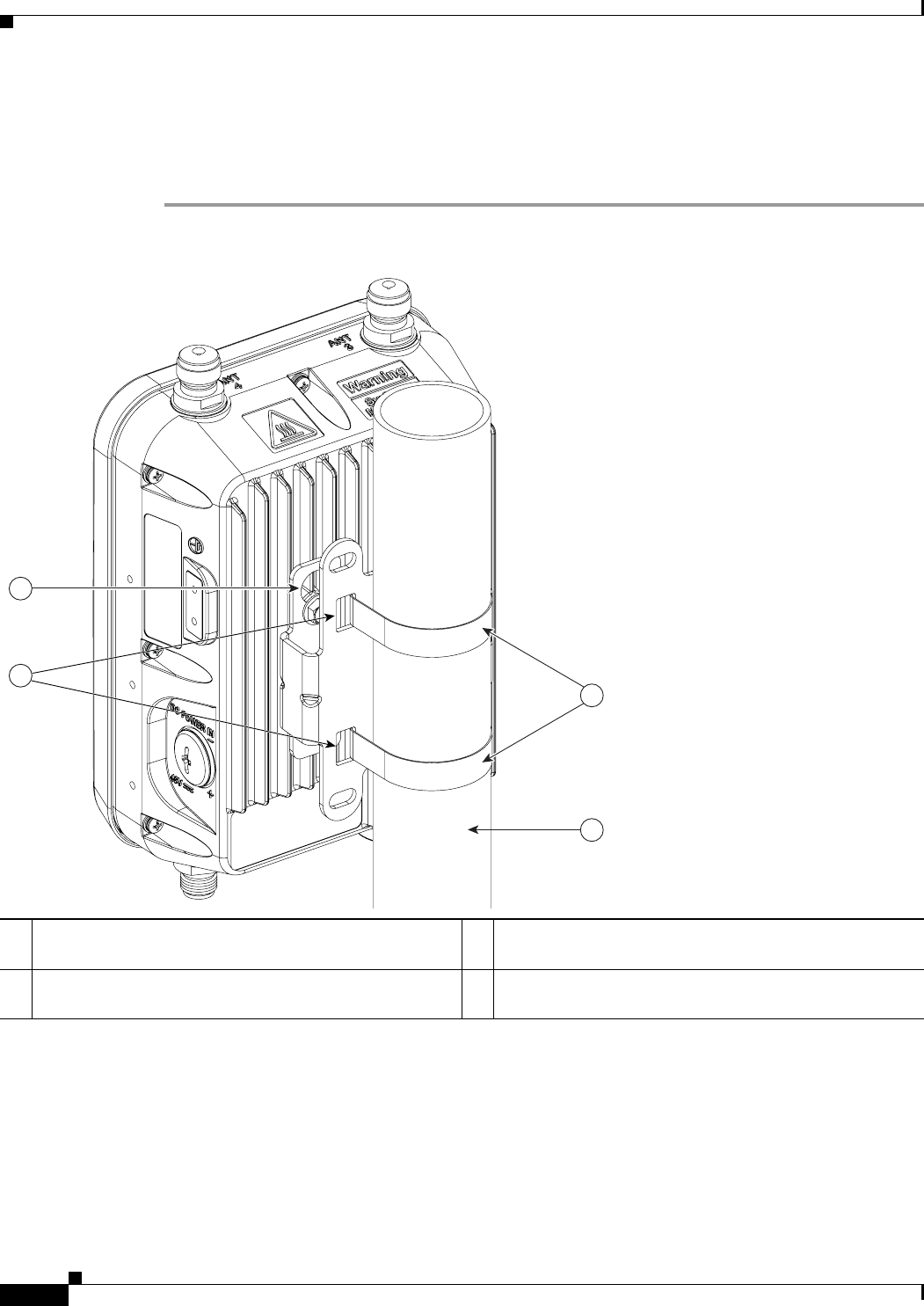

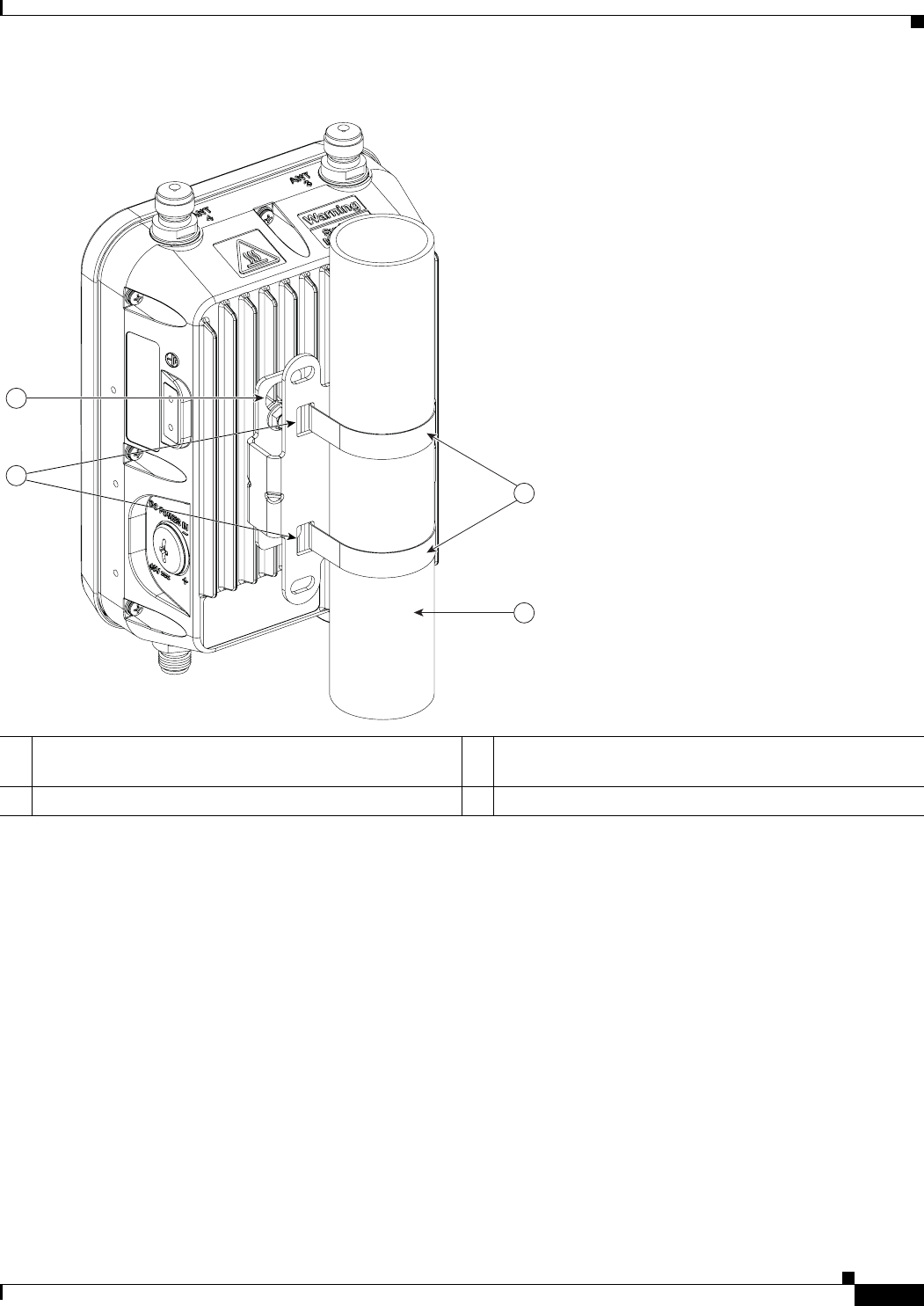

Figure 2-5 AP Mounted on a Pole

1One of four M6 keyhole slots for mounting the AP on the

bracket.

3Top and bottom steel band clamps

2Top and bottom sets of band clamp slots for passing the

clamps through.

4Pole (wood, metal, or fiberglass), 2 in. to 8 in. (50 mm to

203 mm) diameter

846

2-15

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Pole Mounting the Access Point with the AIR-ACC1560-PMK1= Kit

The AIR-ACC1560-PMK1= fixed mounting kit contains a mounting bracket, for both wall-mounting

and pole-mounting, the access point along with the power supply kit. This mounting kit supports metal,

wood or fiberglass poles from 2 to 8 inches in diameter.

Ta b l e 2 - 4 Materials Needed to Mount the AP

To mount the access point onto a vertical pole or streetlight pole, follow these steps:

Step 1 Select a mounting location on the pole to mount the access point. You can attach the access point to a

pole having a diameter of 2 to 8 inches (5.1 to 20.1 cm).

Note If you will be using a streetlight power tap adapter, position the access point within 3 ft (1 m) of

the outdoor light control. An AC/DC adapter needs to be used for street light pole deployments.

Step 2 Hold the bracket up against the pole, and slide the three band straps through the top, middle, and bottom

sets of mounting slots on the mounting bracket (see Figure 2-6).

Step 3 Wrap the band straps around the pole, lock them and then lightly tighten the clamps using a wrench. Only

tighten them enough to keep the bracket from sliding down the pole

Step 4 Screw an M6 bolt into each of the four bolt holes on the back side of the access point. Do not screw the

bolt in all the way. Leave a gap of about 0.13" (3.3mm).

Step 5 Position the four bolts on the access point into the bracket keyhole slots. Check to be sure that the access

point is properly seated in the slots (see Figure 2-6).

Note The access point should be mounted with the status LED on the base facing downwards.

Materials Needed In Kit?

One wall mount bracket Yes

Four M6 x12mm hex head bolts Yes

Four #8-32 screws to mount the power supply Yes

Three stainless steel band clamps (adjustable 2"–5", 51–127

mm)

Yes

Three stainless steel band clamps (adjustable 5"–8", 127–203

mm)

Yes

10 mm box-end wrench No

Outdoor rated shielded ethernet cable No

Ground lug (provided with the access point) Yes

Ground block and rod No

Crimping tool for ground lug, Panduit CT-720 with CD-720-1

die (http://www.panduit.com)

#6 AWG ground wire No

2-16

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Step 6 Using a 10mm wrench, tighten the four bolts that connect the access point to the bracket to a torque of

40 lbf-in.

Step 7 Mount the power supply to the bracket with four #8-32 screws.

Step 8 Locate the access point to its final position. Tighten the band clamps with the wrench. Ensure that the

clamps are tight enough to not let the AP move.

Step 9 Continue with the Grounding the Access Point, page 2-42.

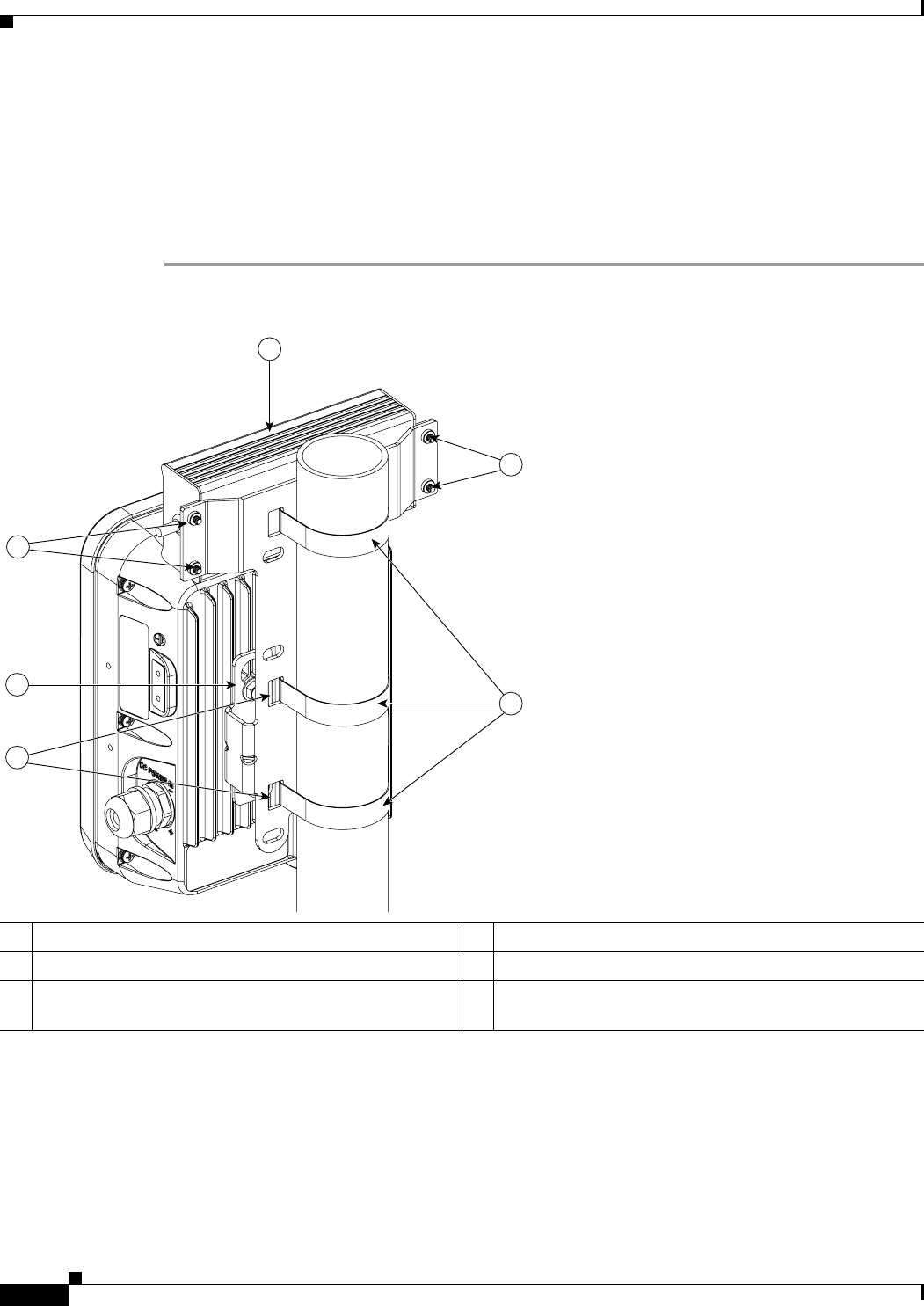

Figure 2-6 AP and Power Supply Mounted on a Pole

1Power supply. 4Band clamp slots for passing the clamps through.

2Screw holes for four #8-32 screws. 5Steel band clamps.

3One of four M6 keyhole slots for mounting the AP on the

bracket.

4848

2-17

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Wall Mounting the AP using AIR-ACC1530-PMK2= Pivoting Mounting Kit

The optional pivoting mounting kit AIR-ACC1530-PMK2= contains a pivoting mounting bracket for

both wall and pole mounting. This kit allows for adjusting the position of the AP by pivoting the AP

along its vertical plane.

Table 2-5 Materials for Mounting on Wall with Pivoting Mounting Kit

Caution The mounting surface, attaching screws and optional wall anchors must be able to support a 50-lb (22.7

kg) static weight.

To mount the access point vertically on a wall, follow these instructions:

Step 1 Disassemble the pivot kit, if not already disassembled. See Figure 2-7.

Step 2 Use the wall-plate end of the mounting bracket as a template to mark four screw hole locations on the

mounting surface. See Figure 2-7 for the mounting bracket screw hole locations (screw holes of

maximum 6 mm in size).

See Figure 2-8 for the dimensions of the pivoting mounting bracket.

Materials Required for mounting AP vertically on a wall

with pivoting mounting kit

In Kit

Ground lug and screws (provided with access point) Yes

Pivoting mount kit and hardware Yes

(8) M6 x 12-mm Hex-head Bolts Yes

Adapter bracket for option horizontal mount Yes

Two stainless steel band clamps (adjustable 2"-5", 51 mm -

127 mm)

Yes

Two stainless steel band clamps (adjustable 5"-8", 127 mm -

203 mm)

Yes

Crimping tool for ground lug, Panduit CT-720 with CD-720-1

die (http://www.panduit.com)

Four wall mounting screws (6mm max) No

Four wall anchors (specified for all material) No

Drill bit for wall anchors No

Electric drill and standard screwdriver No

#6 AWG ground wire No

Shielded outdoor-rated Ethernet (CAT5e or better) cable No

Grounding block No

Grounding rod No

13-mm box-end wrench or socket set No

10-mm box-end wrench No

2-18

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Step 3 Use four screws and, if required, wall anchors to attach the wall-plate end of the mounting bracket to the

mounting surface. These screws and anchors are to be sourced independently.

Note You can use an exterior-grade plywood backboard to mount the access point to stucco, cement,

or drywall.

Note The mounting wall, attaching screws, and wall anchors must be able to support a 50-lb (22.7 kg)

static weight.

Step 4 Align the AP-plate end of the bracket with the screw holes in the back of the access point.

Step 5 Fasten the bracket plate to the AP by using four M8 x12 mm bolts and a 10 mm box or socket wrench.

Torque the bolts to 40 lbf-in.

Step 6 Using the 90.0 mm M8 long screw and the hardware supplied with the pivoting bracket, bolt the AP and

bracket plate, to the wall plate mounted on the wall. See Figure 2-7 for this assembly. Do not fully

tighten the assembly.

Note The access point should be mounted with the status LED on the base facing downwards.

Step 7 Pivot the AP as required, and then fully tighten the 90.0 mm M8 long screw using a 13 mm wrench.

Step 8 Proceed with installing antennas (only for external antenna models), connecting the data cables,

grounding the access point, powering and configuring the access point..

2-19

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

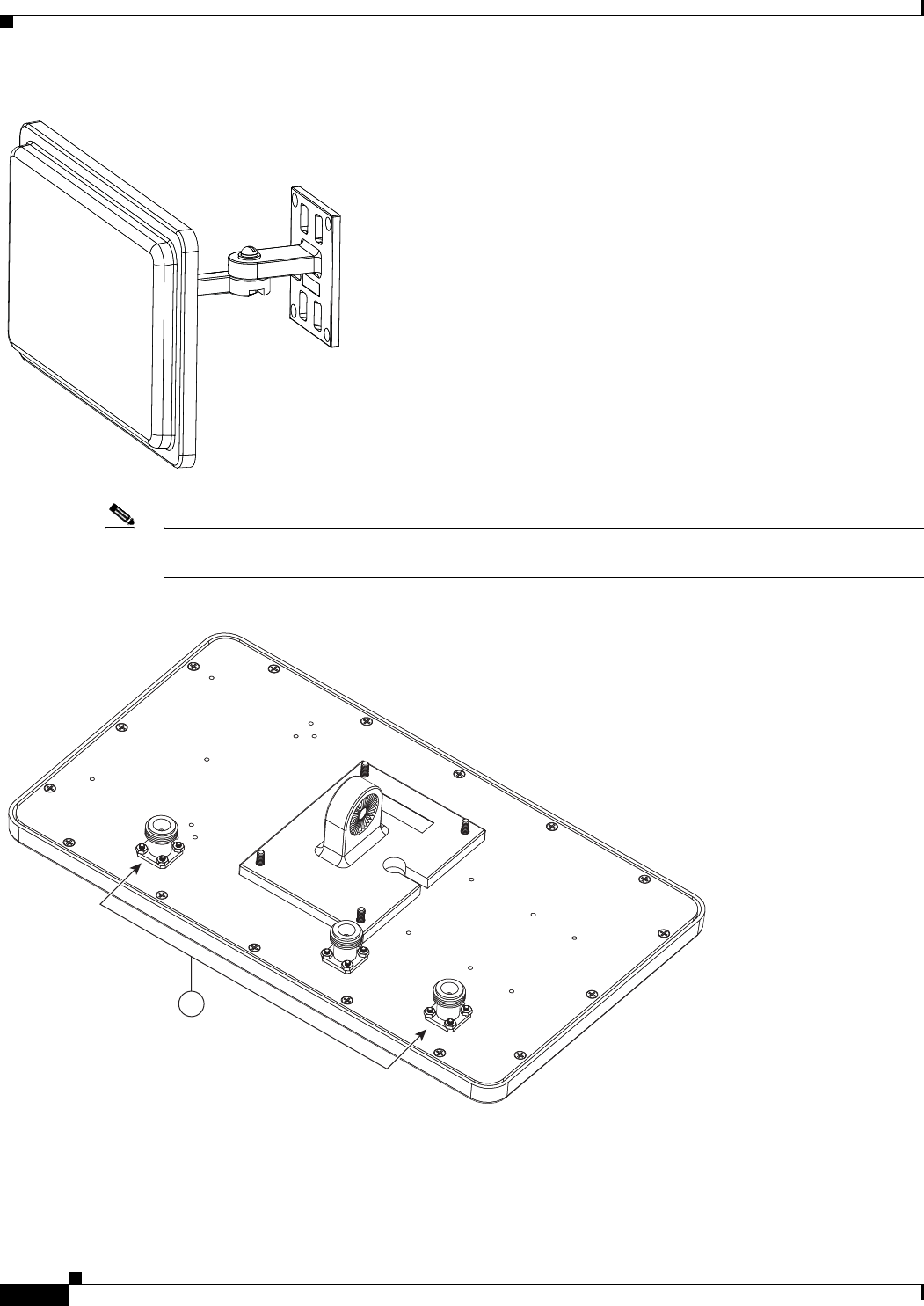

Figure 2-7 Pivoting Mounting Bracket

Figure 2-8 Pivoting Mounting Bracket Dimensions

1One of four bolt holes for fastening to the

back of the AP.

This is the AP-plate end of the bracket, and is

fastened to the back of the AP.

3Screw holes for wall mounting.

These screw holes can also be used as slots for

steel band clamps in pole-mount installations.

2Wall-plate end of the bracket. This plate is

fastened to the wall.

354866

352000

100

3.94

1.10

2.20

2x M8 THRU

4X 6.5MM THRU

17.10

.67

SLOT LENGTH [4.0]

.16

SLOT WIDTH

2-20

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Figure 2-9 Exploded View of the Pivoting Mounting Kit

190.0 mm M8 screw 4M8 nut

2M8 washer 580.0 mm M8 screw with washer and spring washer, for

fastening the pole-mount screw clamp to the pivoting

bracket base plate.

3M8 spring washer

354868

2-21

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Figure 2-10 Visualization of AP Fastened to the Pivoting Mounting Kit

354861

2-22

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Pole Mounting the AP using AIR-ACC1530-PMK2= Pivoting Mounting Kit

The optional pivoting mounting kit AIR-ACC1530-PMK2= contains a pivoting mounting bracket for

both wall and pole mounting. This kit can be used to install the access point on a pole, mast, or

streetlight. It supports metal, wood or fiberglass poles from 2 to 8 inches in diameter.

The AIR-ACC1530-PMK2= pivoting mounting kit allows for adjusting the position of the AP by

pivoting the AP along its vertical plane.

To mount the access point on a pole, follow these steps:

Step 1 Select a mounting location on the pole to mount the access point. You can attach the access point to any

pole with a diameter from 2 to 8 inches (5.1 to 40.6 cm).

Note If you will be using a streetlight power tap adapter, position the access point within 3 ft (1 m) of the

outdoor light control.

Step 2 Disassemble the pivot kit, if not already disassembled. See Figure 2-7.

Table 2-6 Materials for Mounting the AP on a Pole using AIR-ACC1530-PMK2=

Materials Required In Kit?

Ground lug and screws (provided with access

point)

Yes

Pivoting mount kit and hardware Yes

(8) M6 x 12-mm Hex-head Bolts Yes

Adapter bracket for option horizontal mount Yes

Two stainless steel band clamps (adjustable 2"-5",

51 mm - 127 mm)

Yes

Two stainless steel band clamps (adjustable 5"-8",

127 mm - 203 mm)

Yes

Crimping tool for ground lug, Panduit CT0720

with CD-720-1 die (http://www.panduit.com)

Four wall mounting screws (6mm max) No

Four wall anchors (specified for all material) No

Drill bit for wall anchors No

Electric drill and standard screwdriver No

#6 AWG ground wire No

Shielded outdoor-rated Ethernet (CAT5e or

better) cable

Grounding block No

Grounding rod No

13-mm box-end wrench or socket set No

10-mm box-end wrench No

2-23

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Step 3 Fasten the pivot bracket base plate to the pole using either one set of the adjustable band clamps or the

screw clamp (the screw clamp can be used only on poles that are not more than 3 inches in diameter).

Step 4 Position the pole clamp bracket on the pole as needed before tightening the steel bands clamps or the

screw clamp. Tighten only enough to hold the bracket base plate in place, so as to prevent it from sliding

along the pole. Fully tighten only after the access point is mounted and positioned.

Step 5 Align the AP-plate end of the bracket with the screw holes in the back of the access point.

Step 6 Fasten the bracket plate to the AP by using four M8 x12 mm bolts and a 10 mm box or socket wrench.

Torque the bolts to 40 lbf-in.

Step 7 Using the 90.0 mm M8 long screw and the hardware supplied with the pivoting bracket, bolt the AP and

bracket plate, to the base plate mounted on the pole. See Figure 2-12 for this assembly. Do not fully

tighten the assembly.

Note The access point should be mounted with the status LED on the base facing downwards.

Step 8 Pivot and position the AP as required, and then fully tighten the 90.0 mm M8 long screw using a 13 mm

wrench, and then tighten the clamps on the pole.

Step 9 Proceed with installing antennas (only for external antenna models), connecting the data cables,

grounding the access point, powering and configuring the access point.

2-24

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Figure 2-11 Pivoting Mounting Kit with Pole Mount Clamp

1One of four mounting holes for the access point. This is

the AP-plate end of the bracket, and is fastened to the

back of the AP.

3Pole mount screw clamp. It can fit poles having a

diameter of up to 3 in. (76mm).

2One of four slots for band clamps.

This is the pivot bracket base plate, and is fastened to the

pole.

Pole mount installation using band clamps are shown in

Figure 2-12.

354867

2-25

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Figure 2-12 AP Wall Mounted Using the Pivoting Mounting Bracket

1One of four mounting holes for mounting the access point

to the bracket.

3Steel band clamps.

2Slots for band clamps. 4Pole.

354846

2-26

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Horizontally Mounting the Access Point using AIR-ACC1530-PMK2=

The AIR-ACC1530-PMK2= pivoting pole mount kit contains a horizontal mount plate that allows the

AP to be mounted horizontally, as shown in Figure 2-14. The horizontal mounting provides better omni

antenna coverage.

To mount the AP horizontally using AIR-ACC1530-PMK2=, follow these steps:

Step 1 Mount the pivot bracket to a wall or a pole as shown in the previous procedures. However, stop before

mounting the pivot bracket plate directly to the access point.

Step 2 Using four M6 x 12 mm bolts, fasten the horizontal adapter plate to the pivot bracket plate.

Step 3 Using the remaining four M6 x 12 mm bolts, mount the other side of the horizontal mounting plate to

the AP. See Figure 2-13 for the exploded view.

Step 4 Using a 10 mm wrench or socket, tighten all M6 bolts to 40 lbf-in (4.5 Nm).

Step 5 Position and orient the access point as needed and tighten the mount kit bolts using a 13 mm wrench or

socket. See Figure 2-14.

Table 2-7 Materials Needed for Horizontally Mounting the AP using AIR-ACC1530-PMK2=

Materials Required In Kit?

Ground lug and screws (provided with access

point)

Yes

Pivoting mount kit and hardware Yes

8 M6 x 12-mm Hex-head Bolts Yes

Adapter bracket for option horizontal mount Yes

Two stainless steel band clamps (adjustable 2"-5",

51 mm - 127 mm)

Yes

Two stainless steel band clamps (adjustable 5"-8",

127 mm - 203 mm)

Yes

Crimping tool for ground lug, Panduit CT0720

with CD-720-1 die (http://www.panduit.com)

Four wall mounting screws (6mm max) No

Four wall anchors (specified for all material) No

Drill bit for wall anchors No

Electric drill and standard screwdriver No

#6 AWG ground wire No

Shielded outdoor-rated Ethernet (CAT5e or

better) cable

Grounding block No

Grounding rod No

13-mm box-end wrench or socket set No

10-mm box-end wrench No

2-27

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

Figure 2-13 Exploded View of the Pivot Bracket Parts with Horizontal Mount Plate

1Pivoting bracket. Can be mounted on a pole or a wall. 3Two out of four screw holes for mounting the horizontal

mounting plate to the pivoting bracket.

2Horizontal mounting plate. 4Two out of four screw holes for mounting the access point

to the horizontal mounting plate.

354858

2-28

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Mounting the Access Point

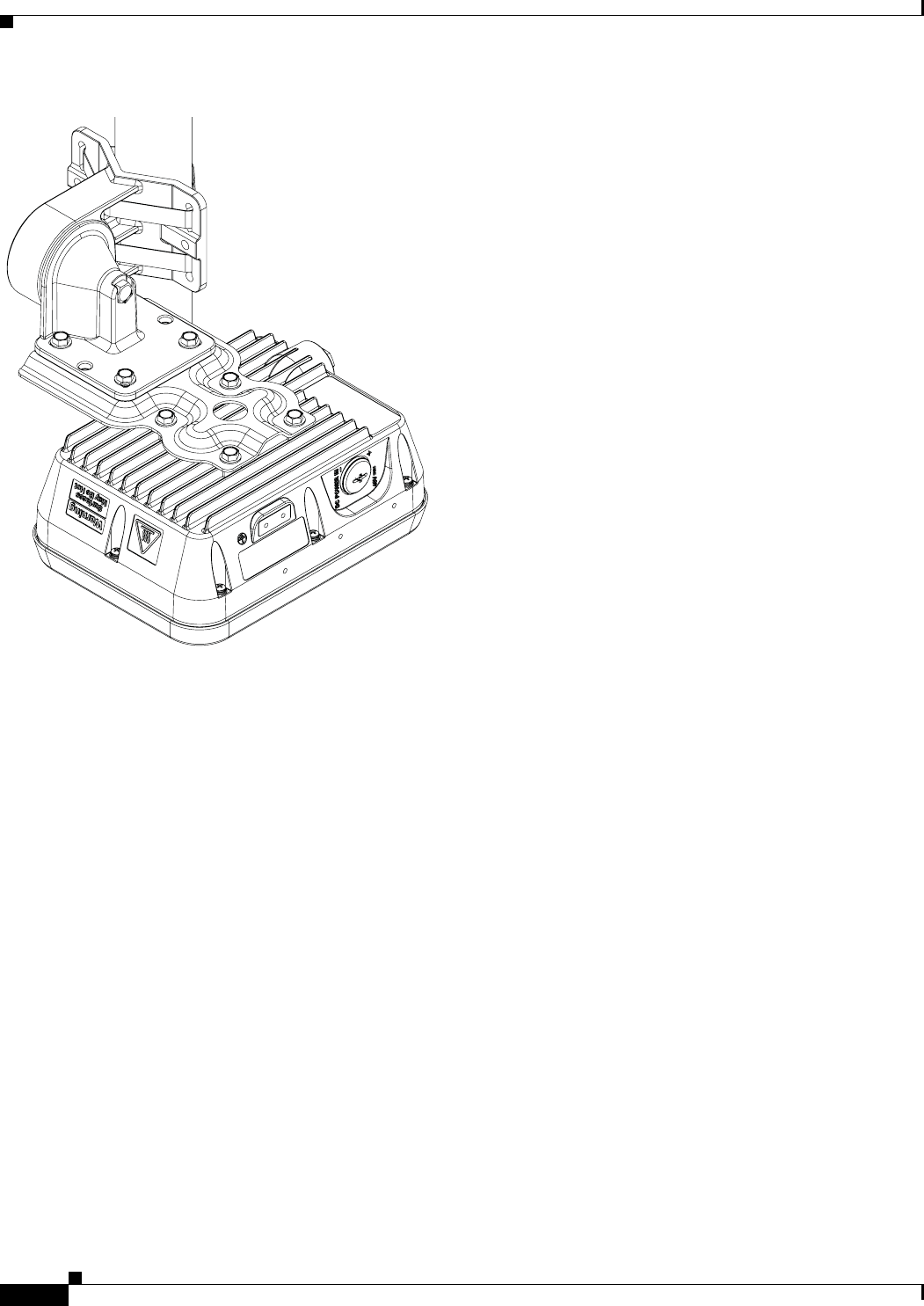

Figure 2-14 Access Point Horizontally Mounted using the Optional Horizontal Mount Plate

354862

2-29

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Installing AP Cover AIR-ACC1560-CVR=

You can install a cover AIR-ACC1560-CVR=, which also acts as a a solar shield. The cover can be

installed prior to or after all connections are made. However, if remote cabled antennas are to be

installed, the shield must be installed before the antenna cables are attached to the AP.

Step 1 This step applies only to AP1562D models.

The cover AIR-ACC1560-CVR= is factory fitted with an adapter for installing on AP models AP1562I

and AP1562E. You need to remove this adapter before installing the cover on AP1562D AP models. For

this:

a. Slide a large flat blade screw driver into the opening shown in Figure 2-15.

b. Pry up the adapter while pushing the screw driver further into it, until the adapter pop out.

c. Discard the adapter.

Step 2 Position and slide the cover over the AP as shown in Figure 2-16.

Step 3 Align the two holes on each side of the cover with the screw holes on corresponding side of the AP.

Step 4 Insert and install #8-32 screws through the screw holes in the cover and into the AP. Tighten the screws

to 10 lb-in.

Figure 2-15 Only for AP1562D - Removing the Adapter from the Cover

1Slide a large flat blade screw driver into this opening and the pry the adapter out.

354859

2-30

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Installing External Antennas

Figure 2-16 Installing the Cover on the AP

Installing External Antennas

Table 2-8 shows the external antennas supported by the 1562E access point and provides required

quantities for each model.

1Solar Shield 2Two of four #8-32 screws

354850

Table 2-8 1562E Access Point Supported External Antennas

Product ID

Frequency

Band Gain Type

AIR-ANT2547VG-N 2.4 / 5 GHz 4 / 7 dBi Omnidirectional (gray)

AIR-ANT2547V-N 2.4 / 5 GHz 4 / 7 dBi Omnidirectional (white)

AIR-ANT2568VG-N 2.4 / 5 GHz 6 / 8 dBi Omnidirectional (gray)

AIR-ANT2588P3M-N= 2.4 / 5 GHz 8 / 8 dBi Directional

2-31

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Installing External Antennas

For installation instructions and detailed information on any of these antennas, refer to the antenna guide

at:

http://www.cisco.com/c/en/us/support/wireless/aironet-antennas-accessories/products-installation-guid

es-list.html

Follow all safety precautions when installing the antennas. For information on safety, refer to “Safety

Precautions when Installing Antennas” section on page A-4.

Non-Cisco Antennas

Cisco does not support any third-party antennas. RF connectivity and compliance of third party antennas

is the user’s responsibility. Cisco does not recommend any third-party antennas, and Cisco Technical

Assistance Center will not be able to provide any support for third-party antennas. Cisco’s FCC Part 15

compliance is only guaranteed with Cisco antennas or antennas that are of the same design and gain as

Cisco antennas.

Cisco Flexible Antenna Port

The Cisco Flexible Antenna Port feature on the 1562 series access points allows support for either

dual-band or single-band antennas on the same AP. This is configurable using a CLI command from the

wireless LAN controller.

To have dual-band ports, use the two antenna ports on the base (ports 1 and 2) to connect to dual-band

omni or directional antennas.

To have single-band ports, use two separate 2.4 GHz and two 5 GHz antenna ports.

External Antenna Mounting Configurations

The selection of the antenna is determined in the configuration of the product. The 1562E antennas can

be mounted on a wall, pole and/or tower mounted. Always refer to the Ordering Guide for the updated

list of supported antennas.

The 1562E access point supports a variety of antennas designed for outdoor use with radios operating in

the 2.4-GHz and 5-GHz frequency bands. The 1562E supports the external antennas listed in the

following sections.

AIR-ANT2450V-N 2.4 GHz 5 dBi Omnidirectional

AIR-ANT2480V-N 2.4 GHz 8 dBi Omnidirectional

AIR-ANT2413P2M-N= 2.4 GHz 13 dBi Directional

AIR-ANT5180V-N 5 GHz 8 dBi Omnidirectional

AIR-ANT5114P2M-N= 5 GHz 14 dBi Directional

Table 2-8 1562E Access Point Supported External Antennas

Product ID

Frequency

Band Gain Type

2-32

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Installing External Antennas

Cisco Aironet Dual-Band Omnidirectional Antenna (AIR-ANT2547V-N, AIR-ANT2547VG-N)

The Dual-Band Omnidirectional Antenna, referred to as a “stick” antenna, is designed for outdoor use

with Cisco Aironet Outdoor Access Points with radios operating in the 2.4-GHz and 5-GHz frequency

bands (Figure 2-17). Basic operating features of the antenna are:

•Omnidirectional collinear array

•Operates in the 2.4 GHz and 5 GHz frequency bands

•Gain:

–

2400–2483 MHz — 4-dBi

–

5250–5875 MHz — 7-dBi

The antenna is designed to create an omnidirectional broadcast pattern. To achieve this pattern, mount

the access point clear of any obstructions to the sides of the radiating element.

For detailed information on this antenna, refer to the Cisco Aironet Dual-Band Omnidirectional Antenna

(AIR-ANT2547V-N, AIR-ANT2547VG-N) document. Follow all safety precautions when installing the

antennas. For information on safety, refer to “Safety Precautions when Installing Antennas” section on

page A-4.

2-33

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Installing External Antennas

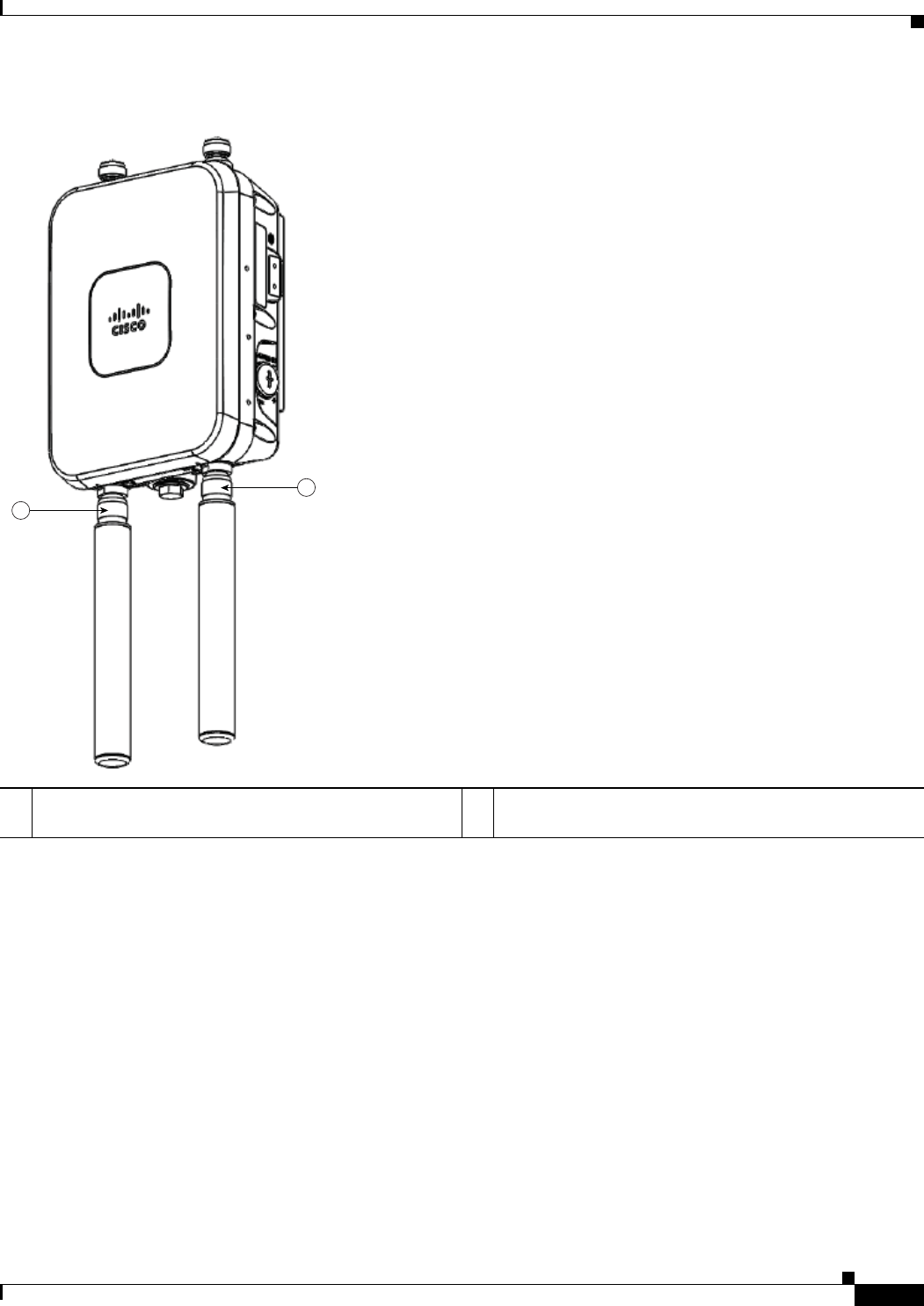

Figure 2-17 Cisco Aironet Dual-Band Omnidirectional Antenna - Installed Only on Model AIR-AP1562E-x-K9

Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)

The Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna is designed for outdoor use with Cisco

Aironet Outdoor Access Points with radios operating in both the 2.4-GHz and 5-GHz frequency bands.

This antenna has 8-dBi gain in both bands.

For detailed information on this antenna, refer to the Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional

Antenna (AIR-ANT2588P3M-N) document. Follow all safety precautions when installing the antennas,

for information on safety, refer to “Safety Precautions when Installing Antennas” section on page A-4.

1Antenna connected to antenna port 1(Type-N connector)

(TX/RX)

2Antenna connected to antenna port 2(Type-N connector)

(TX/RX)

354851

2-34

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Installing External Antennas

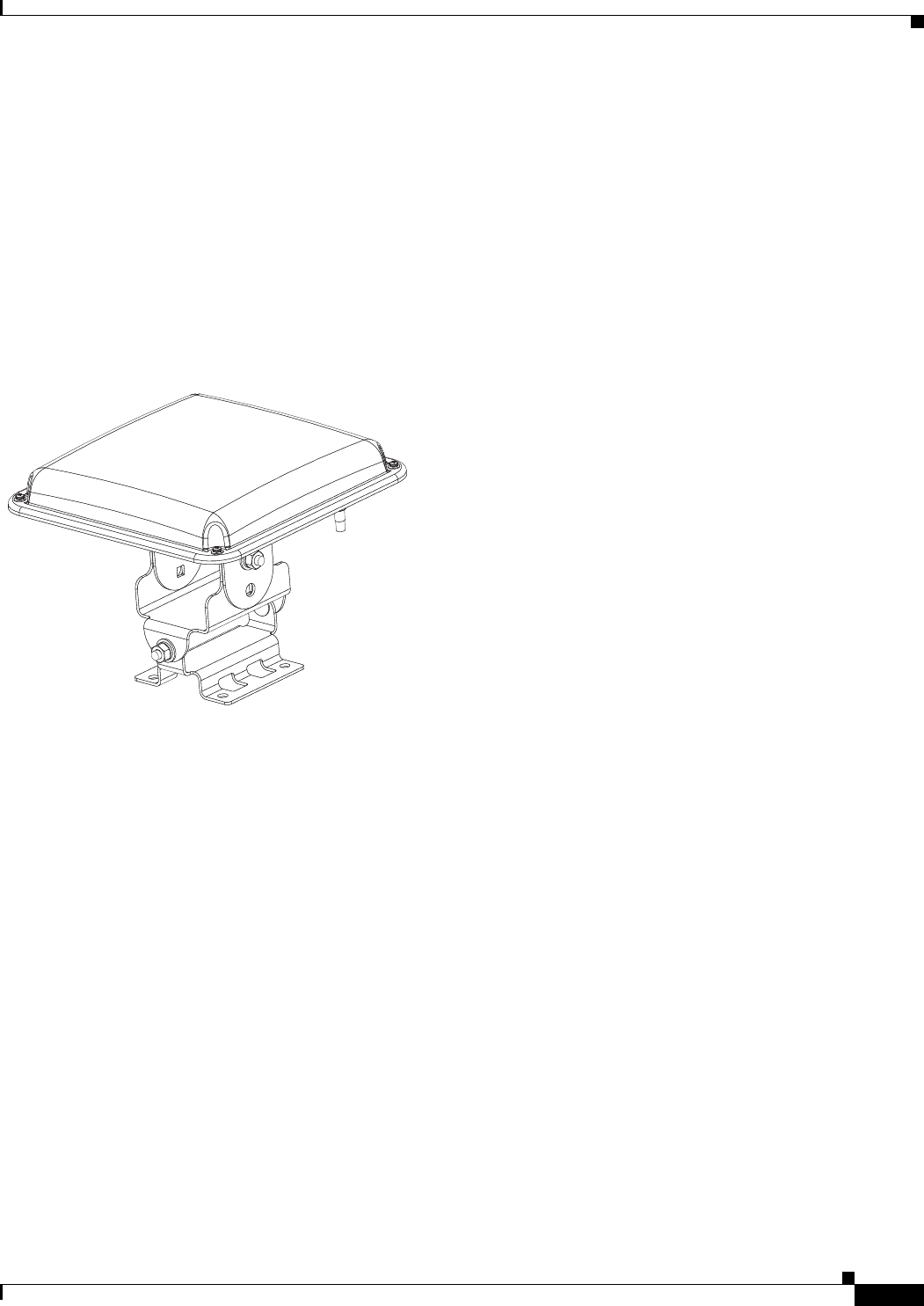

Figure 2-18 Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna - Installed Only on Model AIR-AP1562E-x-K9

Note When installing the AIR-ANT2588P3M-N with the Cisco Aironet 1560 Series AP, connect the

outermost antenna ports (marked ‘1’ in Figure 2-19) to the AP’s dual band antenna ports.

Figure 2-19 Antenna Ports For Connection to AP’s Dual Band Ports

334574

352639

2-35

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Installing External Antennas

Cisco Aironet 5-GHz 14-dBi 2-Port Directional Antenna (AIR-ANT5114P2M-N)

The Cisco Aironet 5-GHz 14-dBi 2-Port Directional Antenna is designed for outdoor use with Cisco

Aironet Outdoor Access Points with radios operating in the 5-GHz frequency band. This antenna has

14-dBi in the 5-GHz band.

For more information, see the Cisco Aironet 5-GHz 14-dBi Directional Antenna document, at the

following URL:

http://www.cisco.com/c/en/us/td/docs/wireless/antenna/installation/guide/ant5114p2m-n.html.

For detailed information on this antenna, see the Cisco Aironet 5-GHz 14-dBi Directional Antenna

(AIR-ANT5114P2M-N) document. Follow all safety precautions when installing the antennas, for

information on safety, refer to “Safety Precautions when Installing Antennas” section on page A-4.

Figure 2-20 Cisco Aironet 5-GHz 14-dBi Directional Antenna - Installed Only on Models AIR-AP1562E-x-K9

334576

2-36

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Installing External Antennas

Cisco Aironet 2.4-GHz 13-dBi 2-Port Directional Antenna (AIR-ANT2413P2M-N)

The Cisco Aironet 2.4-GHz 13-dBi 2-Port Directional Antenna is designed for outdoor use with Cisco

Aironet Outdoor Access Points with radios operating in the 2.4-GHz frequency band. This antenna has

13-dBi gain in the 2.4-GHz frequency band.

For detailed information on this antenna, refer to the Cisco Aironet 2.4-GHz 13-dBi Directional Antenna

(AIR-ANT2413P2M-N) document. Follow all safety precautions when installing the antennas, for

information on safety, refer to “Safety Precautions when Installing Antennas” section on page A-4.

Figure 2-21 Cisco Aironet 2.4-GHz 13-dBi Directional Antenna - Installed Only on Models AIR-AP1562E-x-K9

334576

2-37

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Installing External Antennas

Cisco Aironet 2.4-GHz 5-dBi Omnidirectional Antenna (AIR-ANT2450V-N)

The Cisco Aironet 2.4-GHz 5-dBi Omnidirectional Antenna is designed for outdoor use with Cisco

Aironet Outdoor Access Points with radios operating in the 2.4-GHz frequency band. This antenna has

a 5-dBi gain in the 2.4-GHz band.

For detailed information on this antenna, refer to the document Cisco Aironet 5-dBI Omnidirectional

Antenna (AIR-ANT2450V-N). Follow all safety precautions when installing the antennas. For

information on safety, refer to “Safety Precautions when Installing Antennas” section on page A-4.

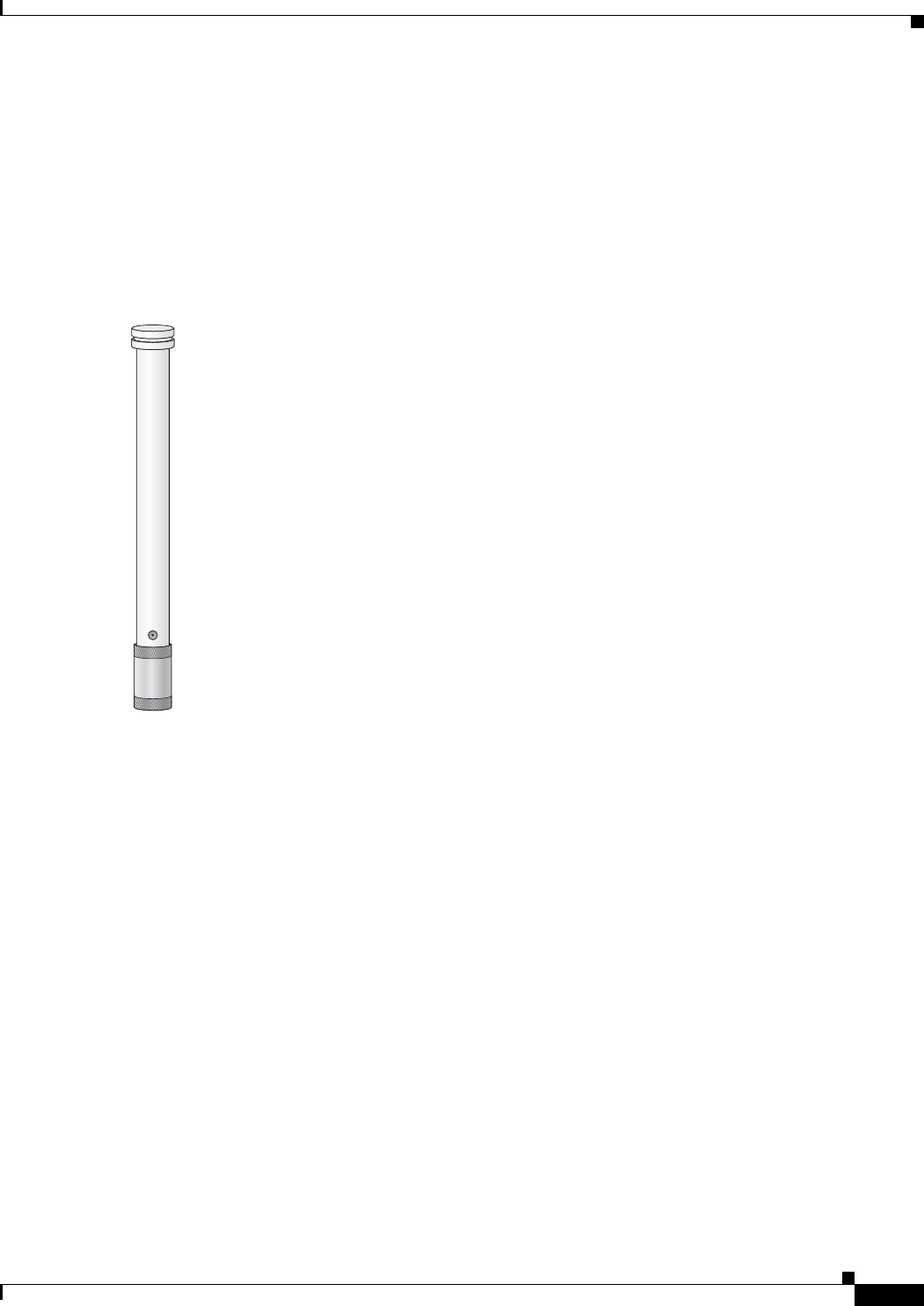

Figure 2-22 Cisco Aironet 2.4-GHz 5-dBi Omni Antenna - Installed Only on Model AIR-AP1562E-x-K9

231297

2-38

Cisco Aironet 1560 Series Outdoor Access Point Hardware Installation Guide

Chapter 2 Installing the Access Point

Installing External Antennas

Cisco Aironet 2.4-GHz 8-dBi Omnidirectional Antenna (AIR-ANT2480V-N)

The Cisco Aironet 2.4-GHz 8-dBi Omnidirectional Antenna is designed for outdoor use with Cisco

Aironet Outdoor Access Points with radios operating in the 2.4-GHz frequency band. This antenna has

8-dBi gain in the 2.4-GHz frequency band.

For detailed information on this antenna, refer to the document Cisco Aironet 8-dBi Omnidirectional

Antenna (AIR-ANT2480V-N). Follow all safety precautions when installing the antennas, for information

on safety, refer to “Safety Precautions when Installing Antennas” section on page A-4.

Figure 2-23 Cisco Aironet 2.4-GHz 8-dBi Omni Antenna - Installed Only on Model AIR-AP1562E-x-K9i

230540

Cisco Systems 102103 Cisco Aironet 802.11ac Dual Band Outdoor Access Point User Manual 1560hig

Cisco Systems Inc Cisco Aironet 802.11ac Dual Band Outdoor Access Point 1560hig

Contents

1560hig_1 of 2

Navigation menu

Namespaces

Views

Navigation
