Preface
Overview of Basic SNMP Building Blocks

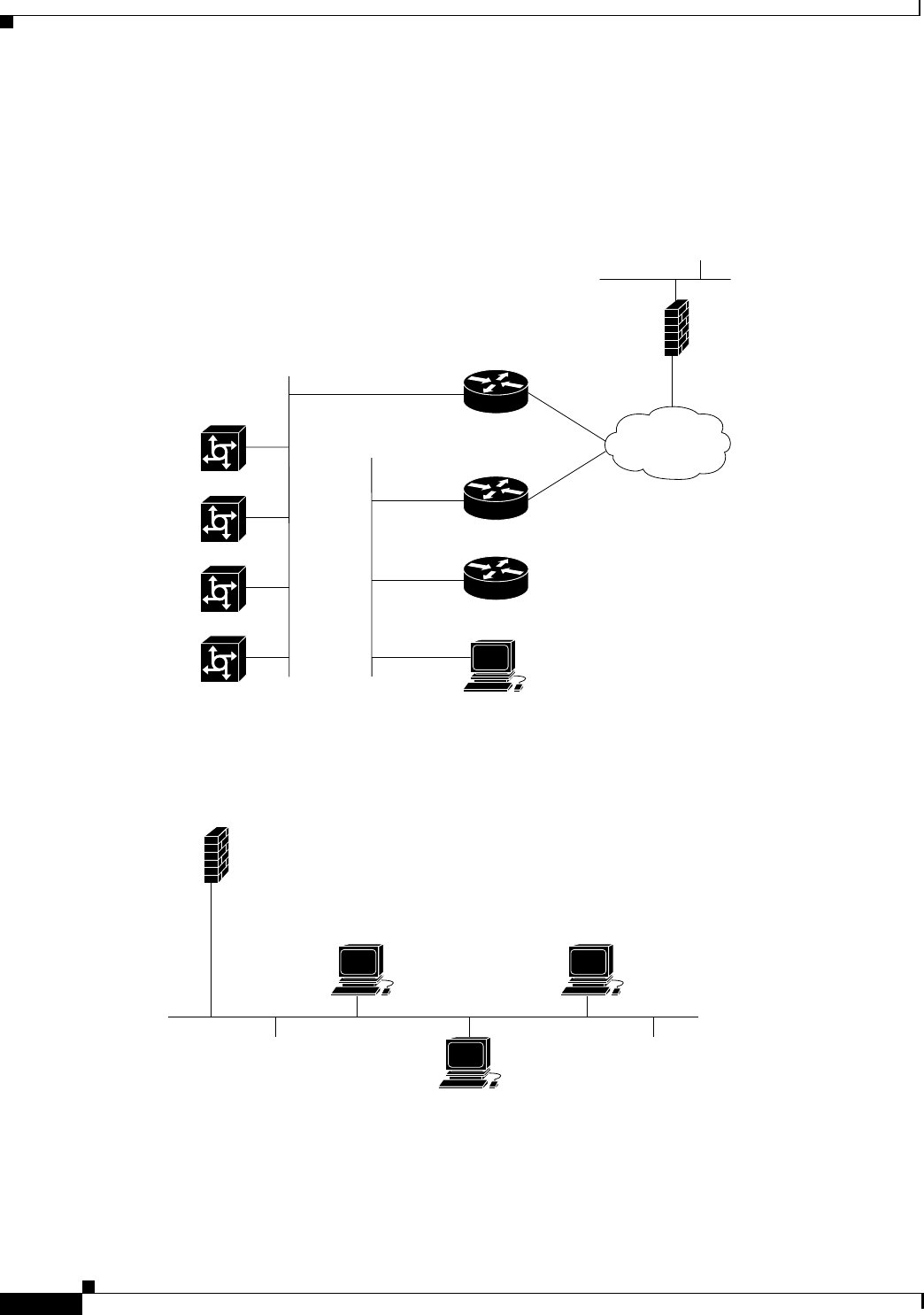

Network Design for a DialNMSCase Study
Dial MIBs and OIDs Used in the Case Study
Task 1—Enabling SNMP in a Cisco IOS Device
- About Enabling SNMP
  - Enabling SNMP
Task 2— Exploring SNMP Capabilities by Using UCD-SNMP
- About Using UCD-SNMP
  - Installing UCD-SNMP and Downloading Cisco MIBs
  - Exploring SNMP MIBs for Dial Networks

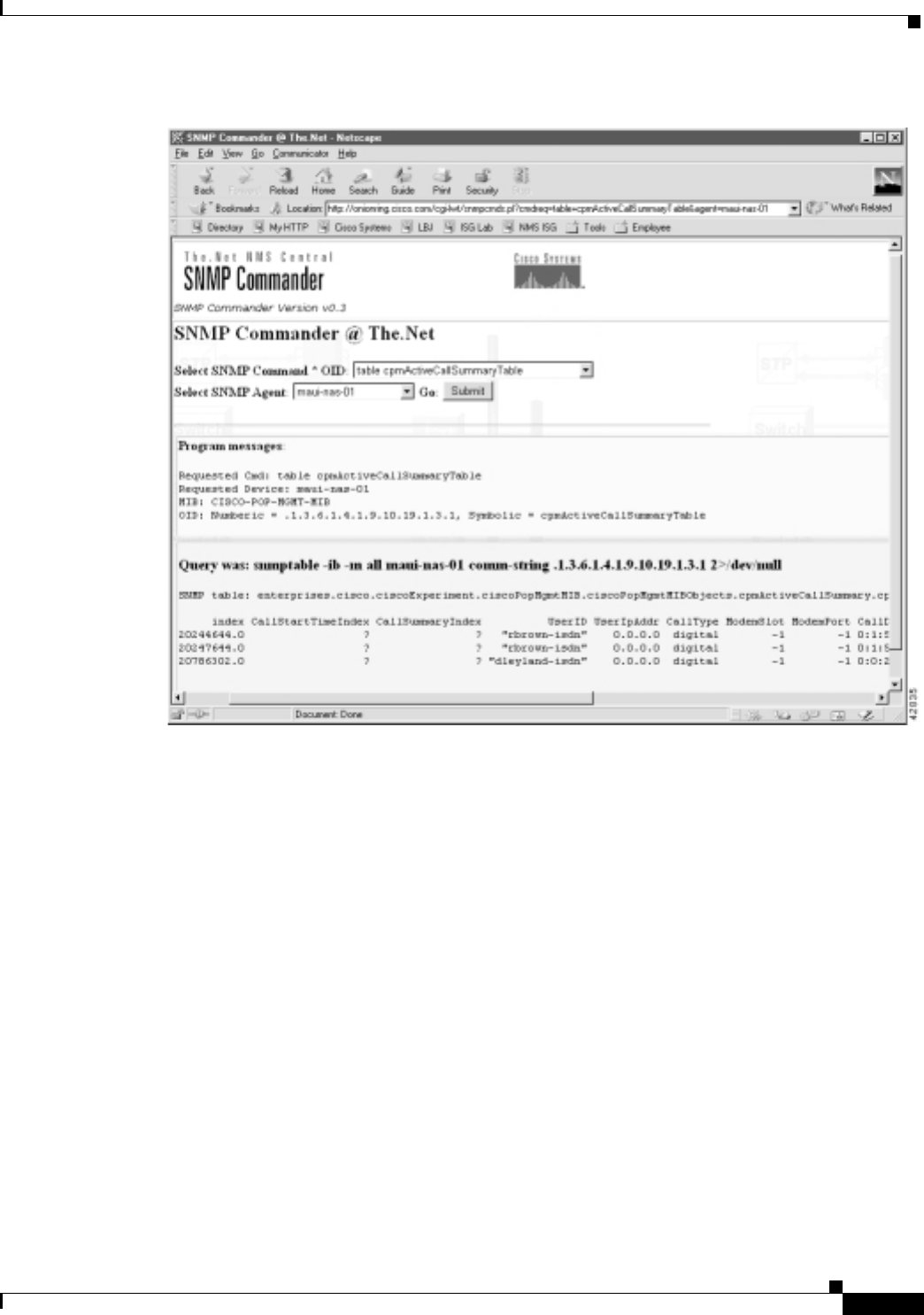

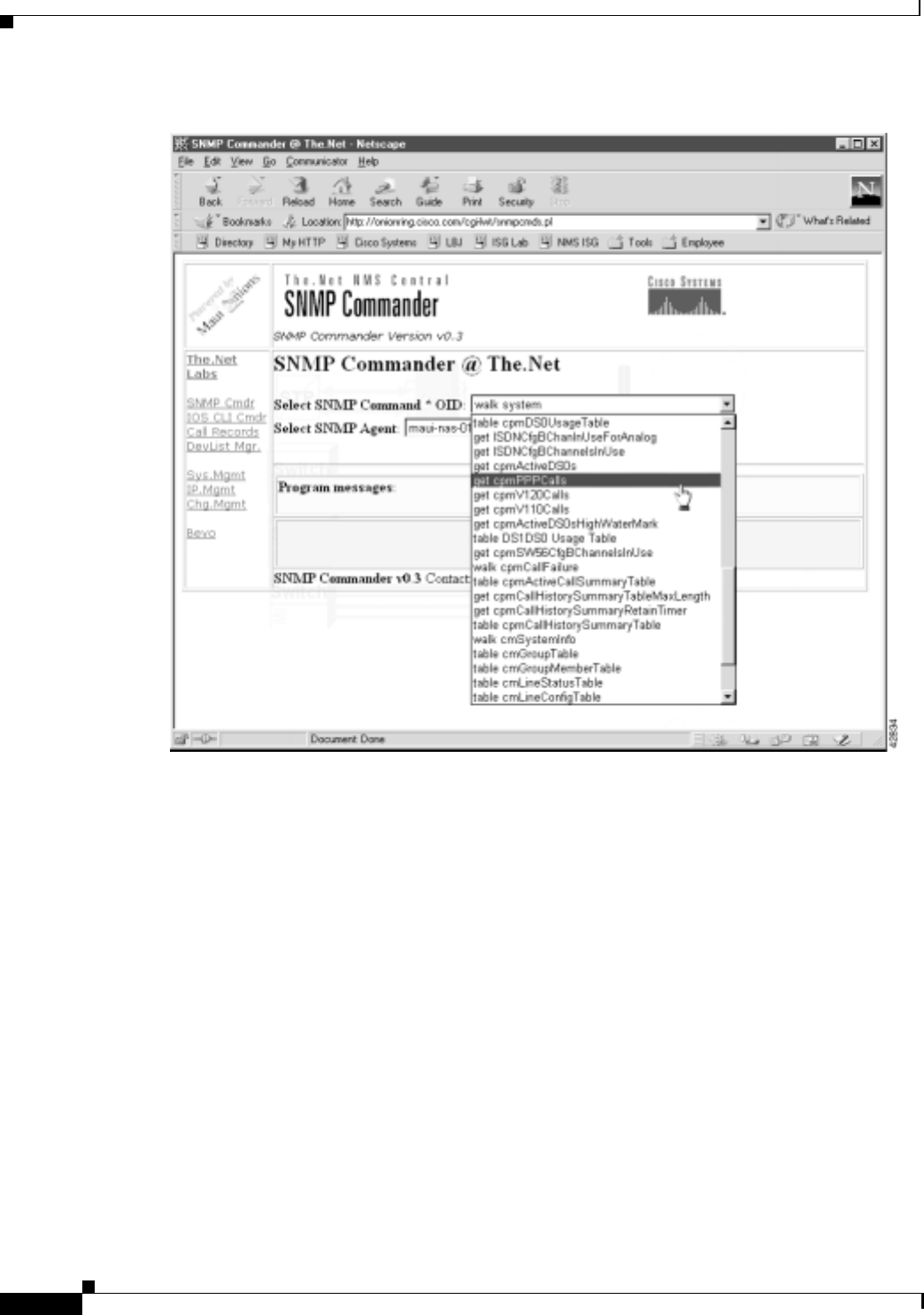

- About SNMP Commander
  - Setting Up SNMP Commander

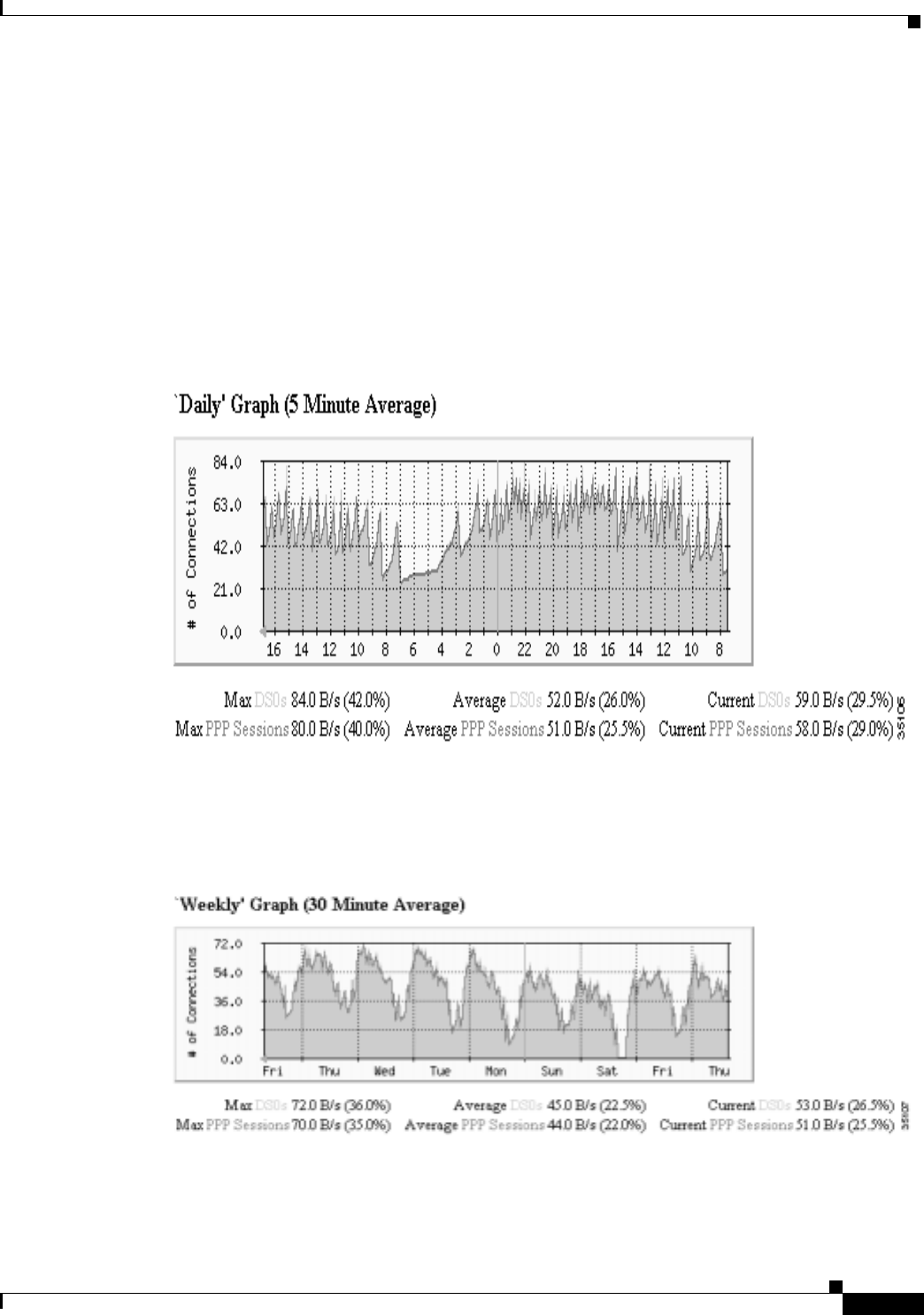

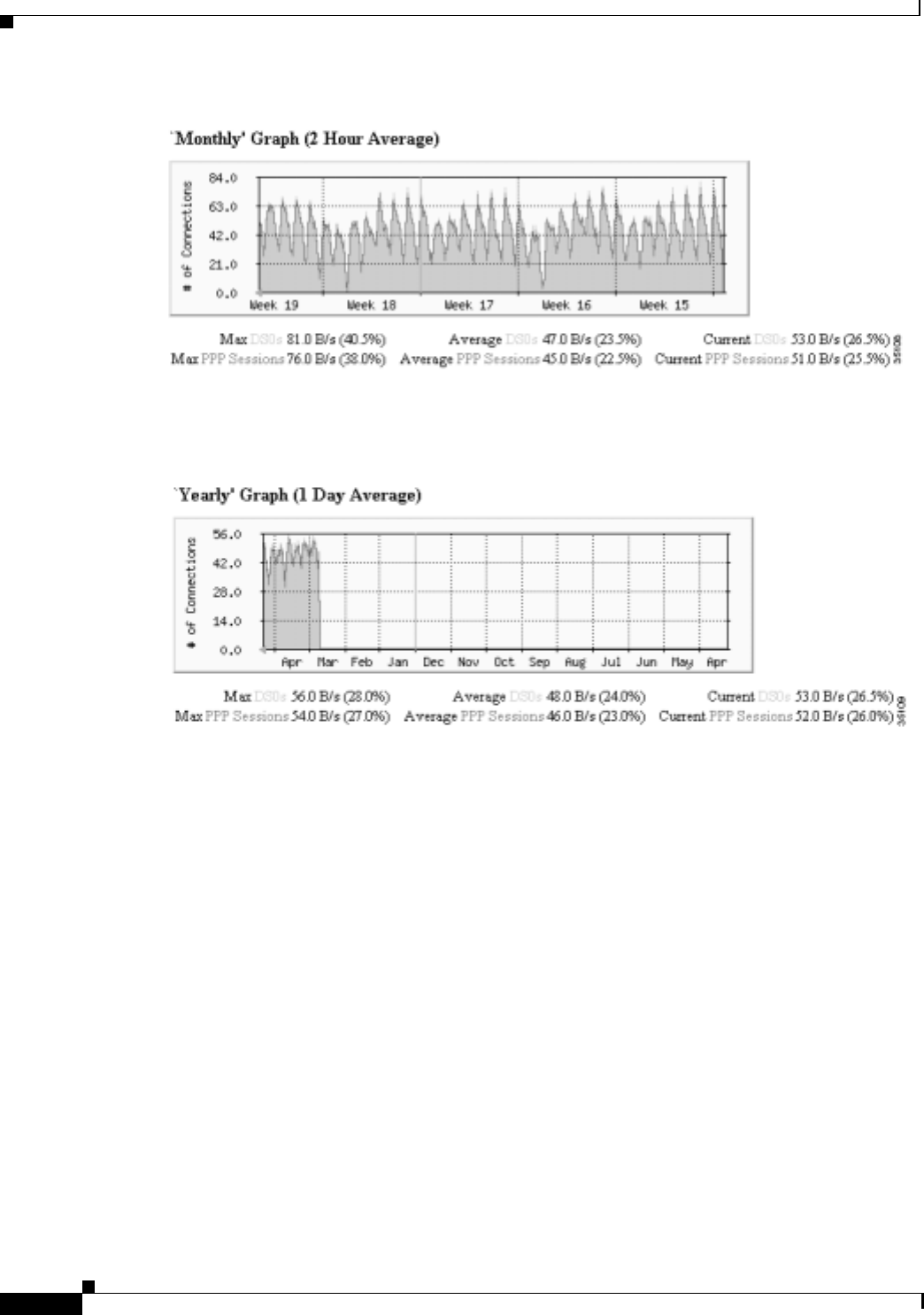

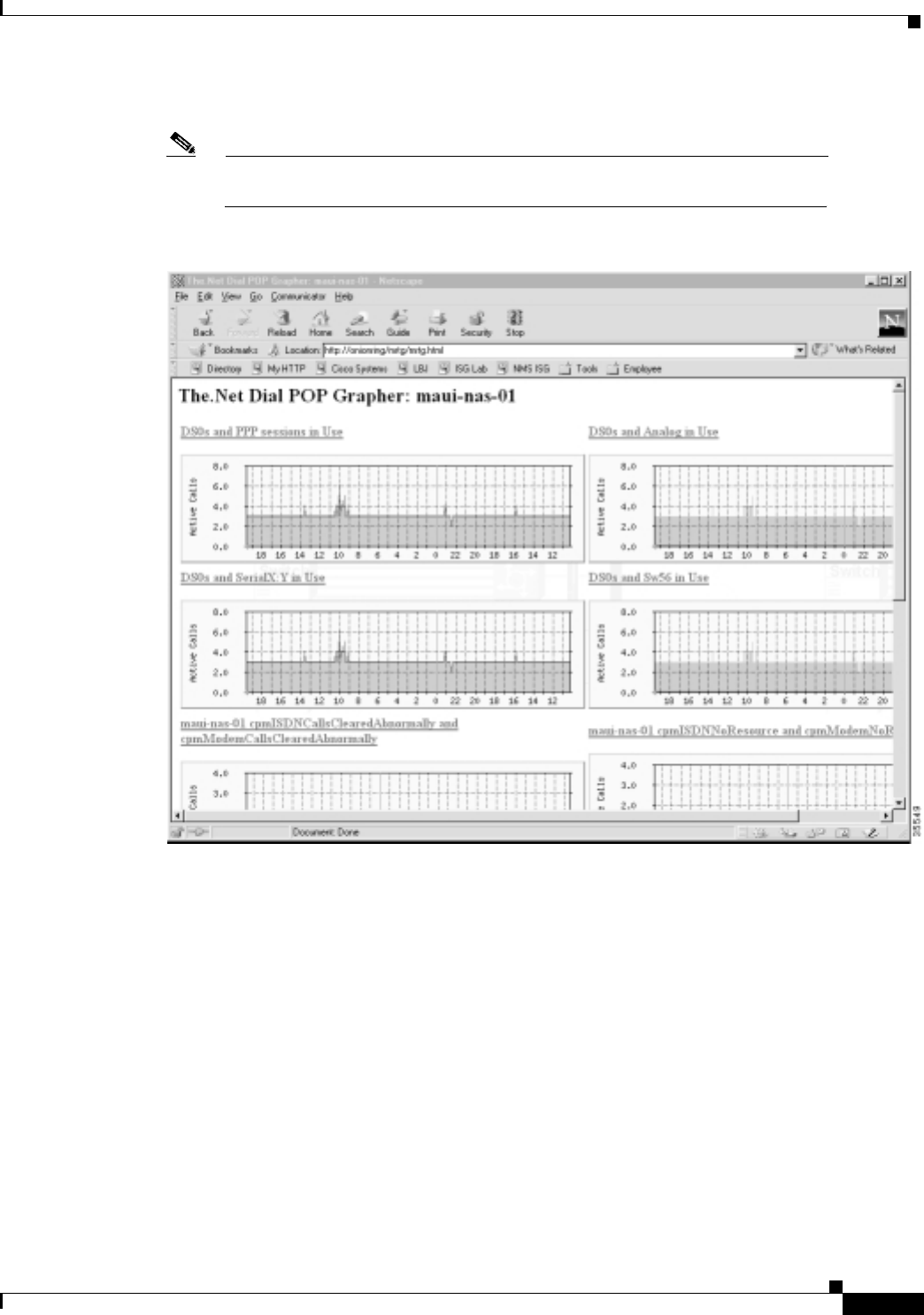

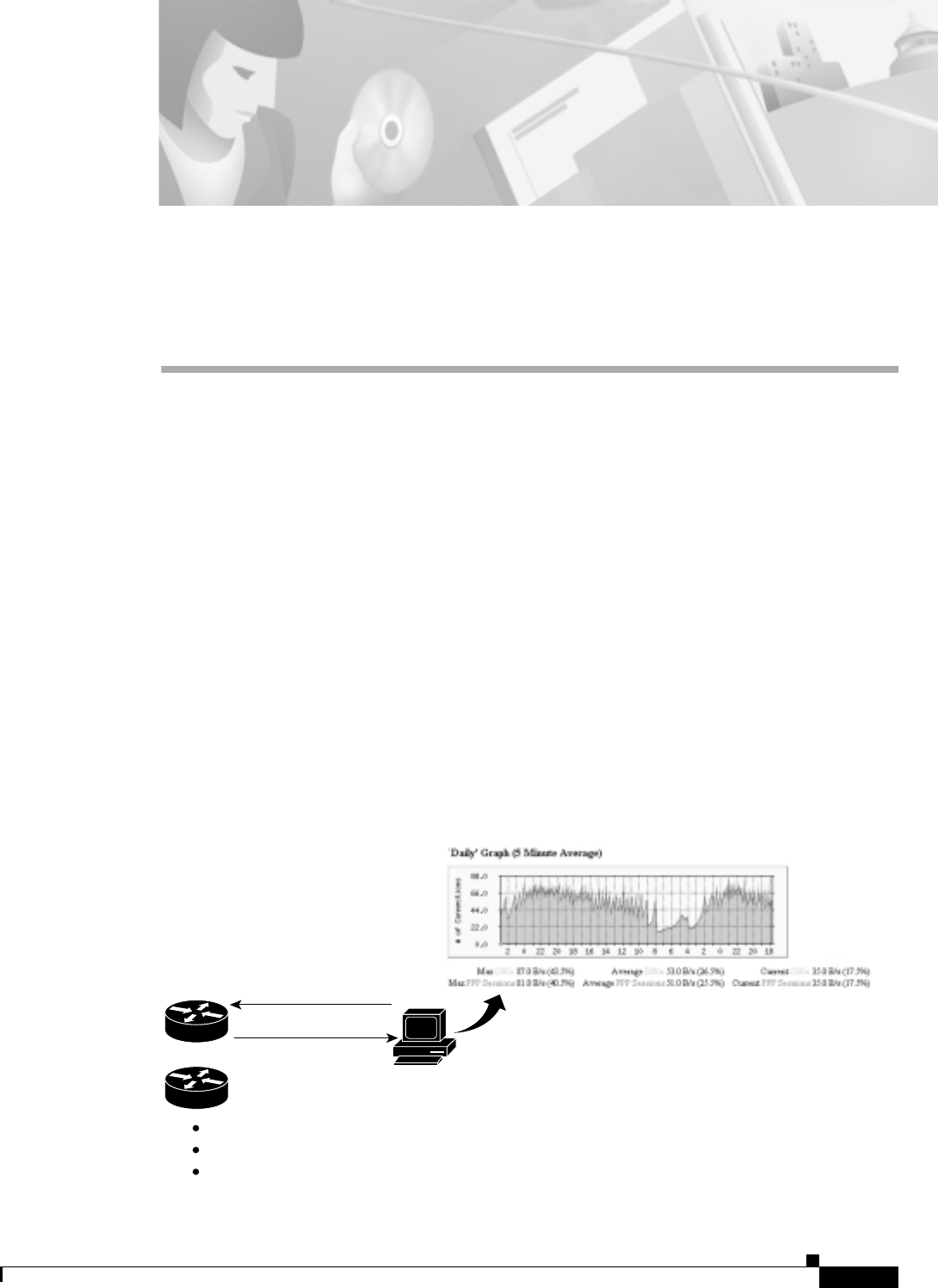

Task 3—Using MRTG to Monitor and Graph Traffic Loads

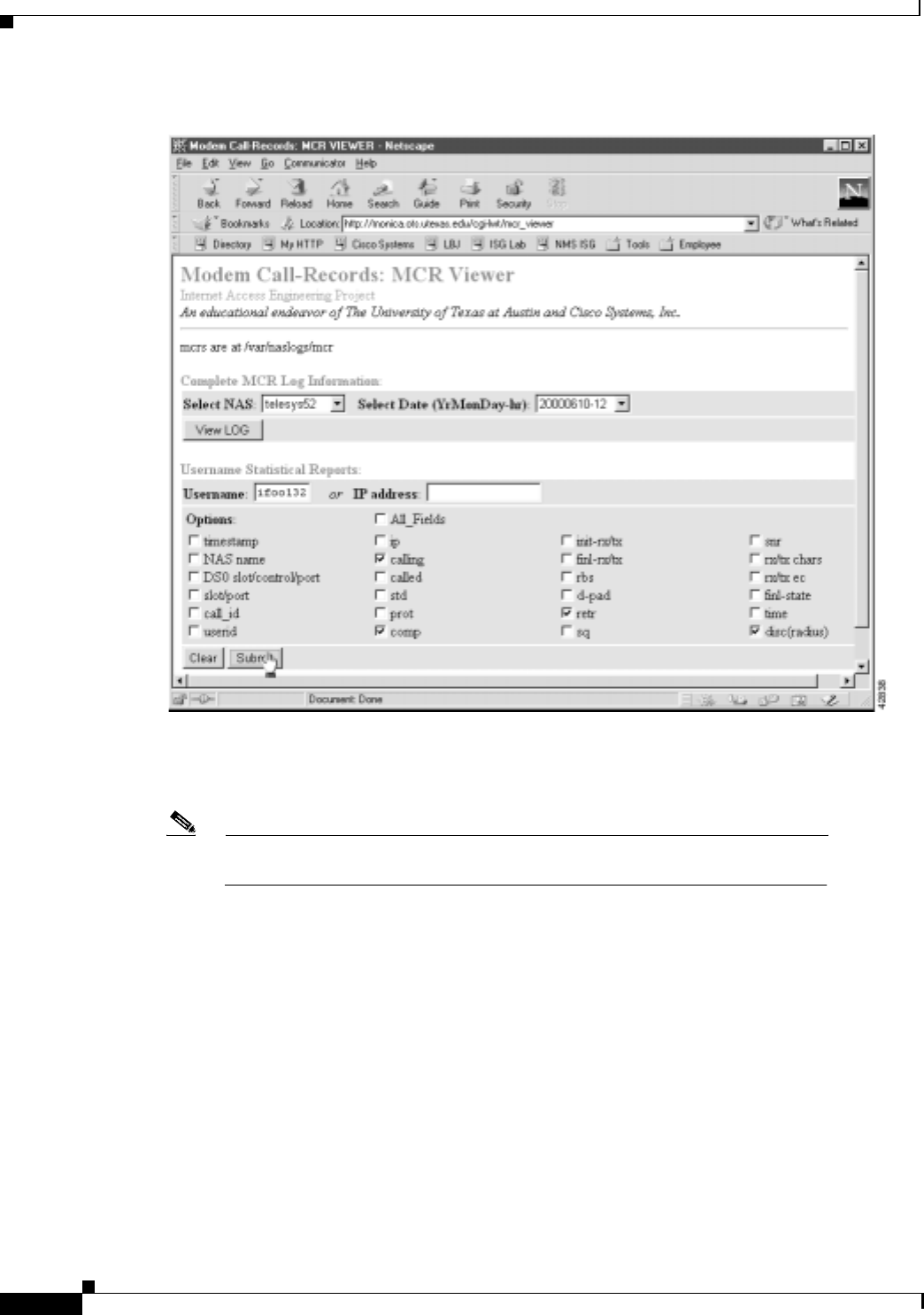

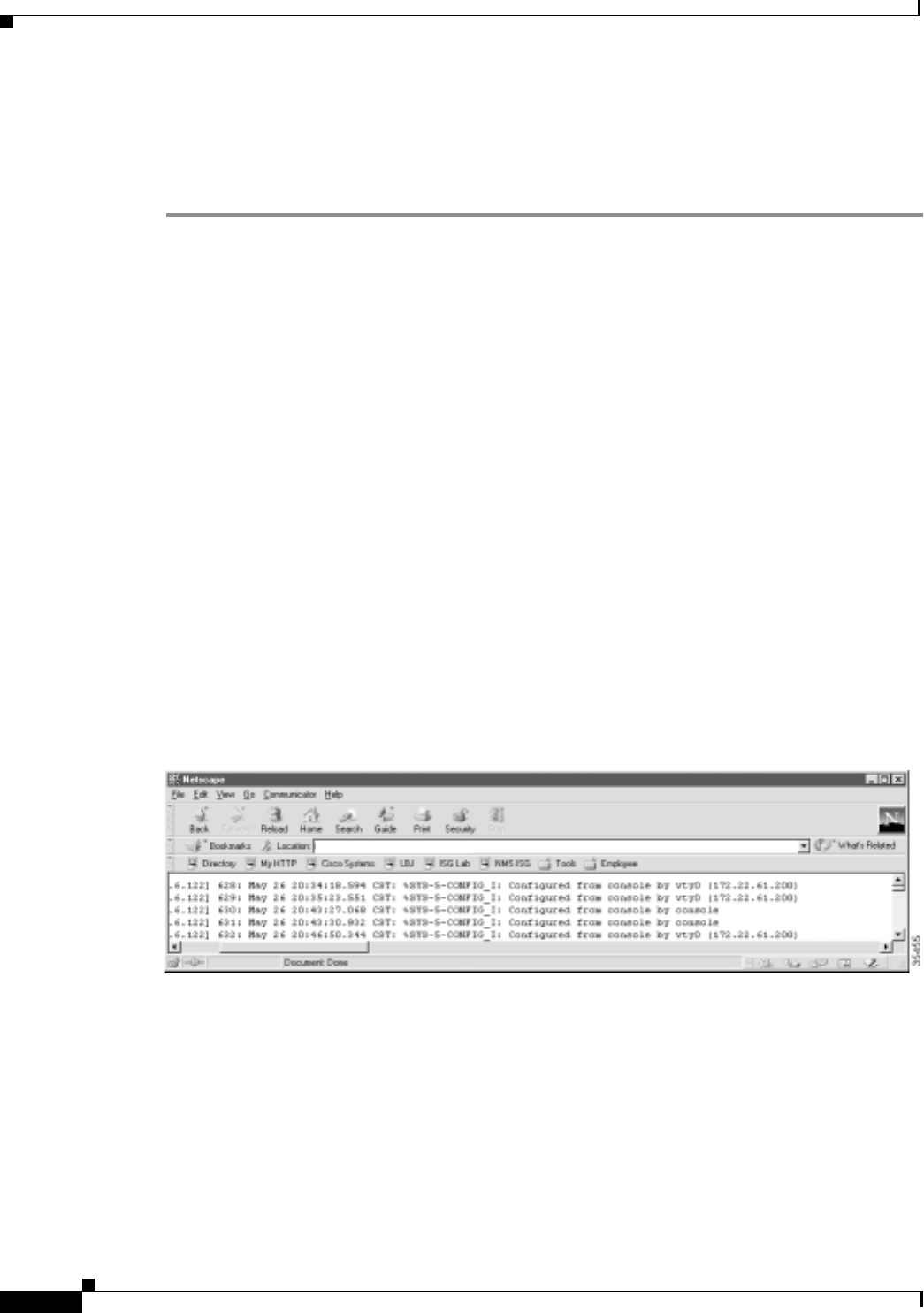

Task 4—Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults
Task 5—Setting Up a Web Portal forthe DialNMS
- About a Web Portal

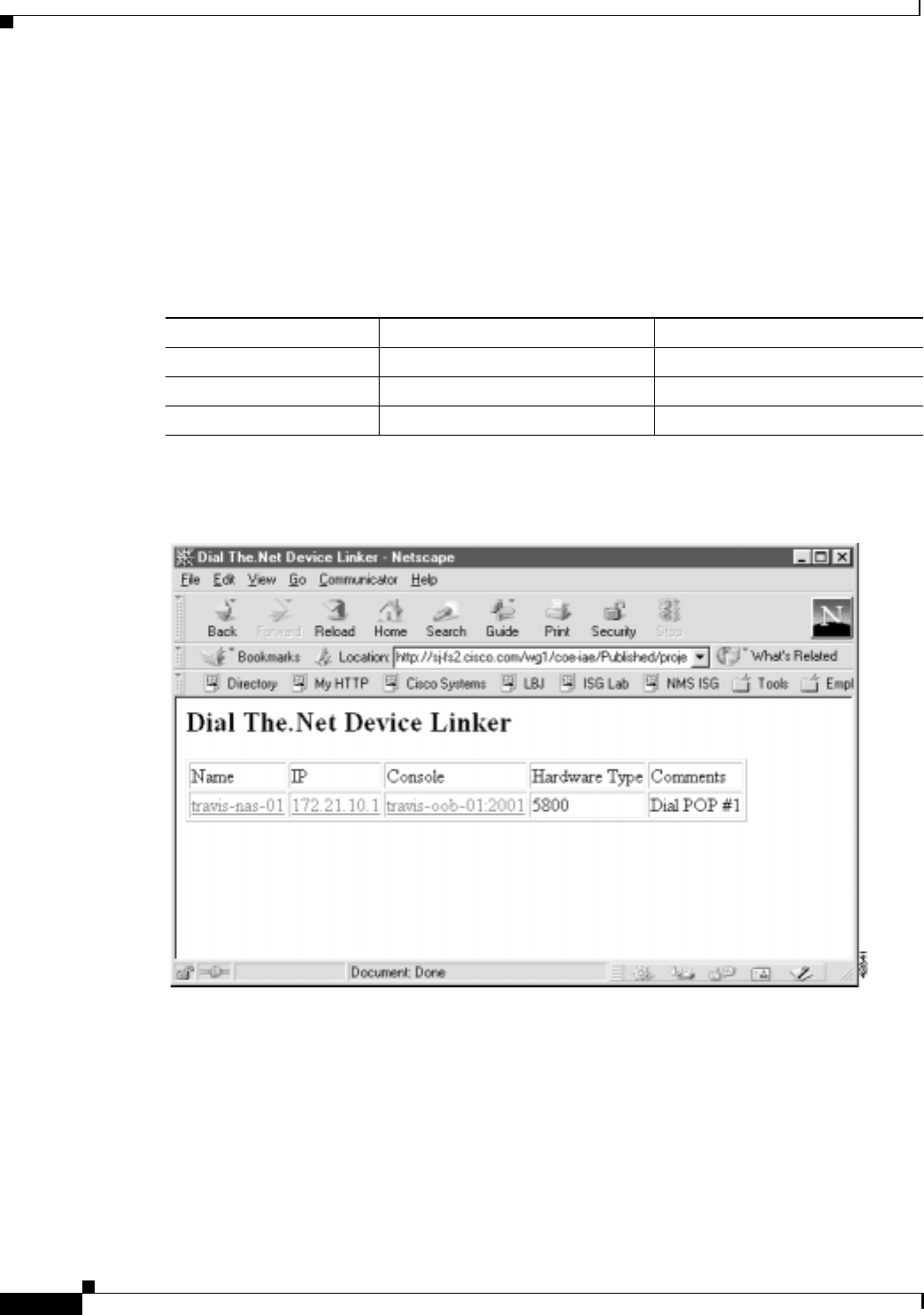

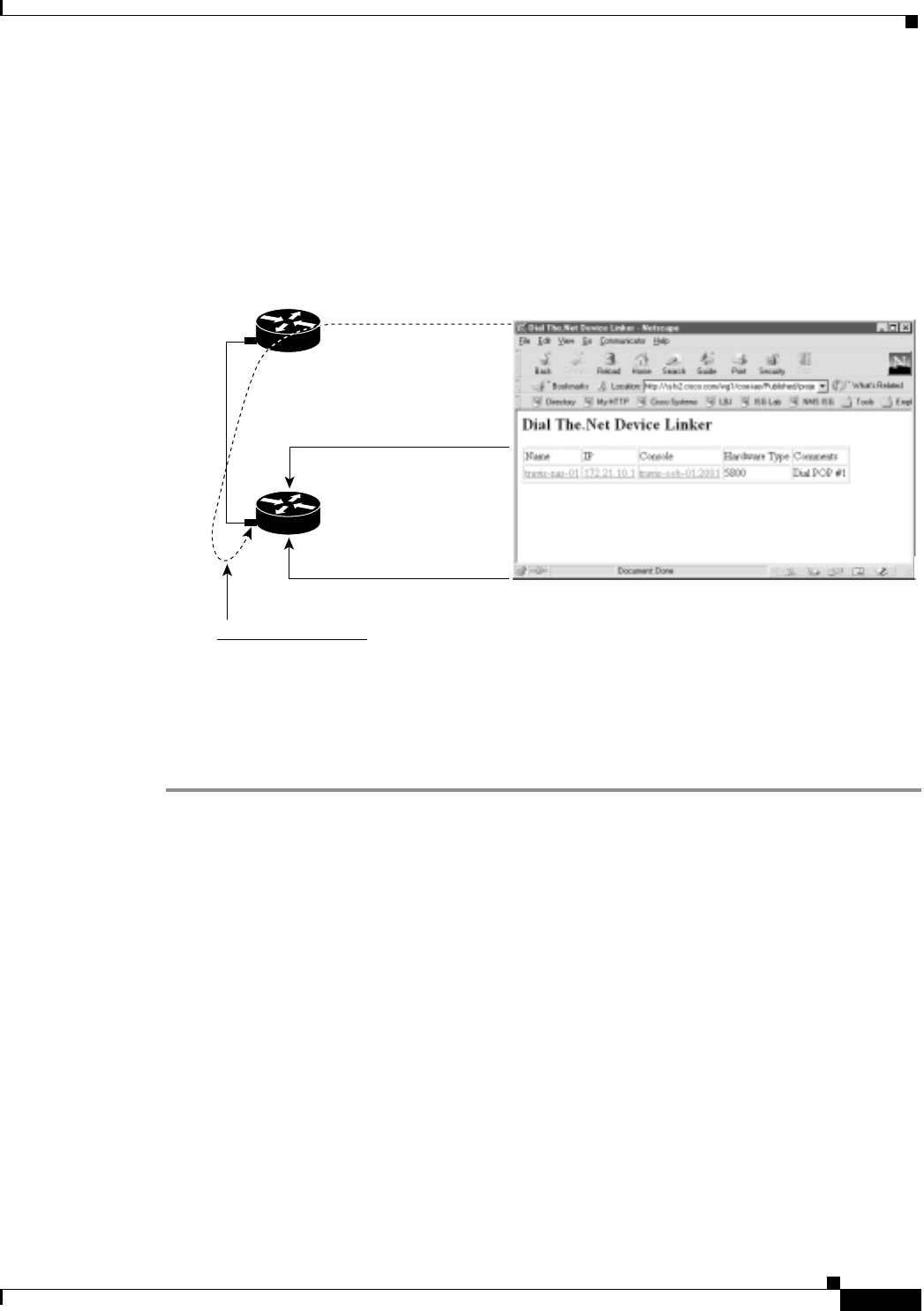

  - Building a Device Linker Web Page

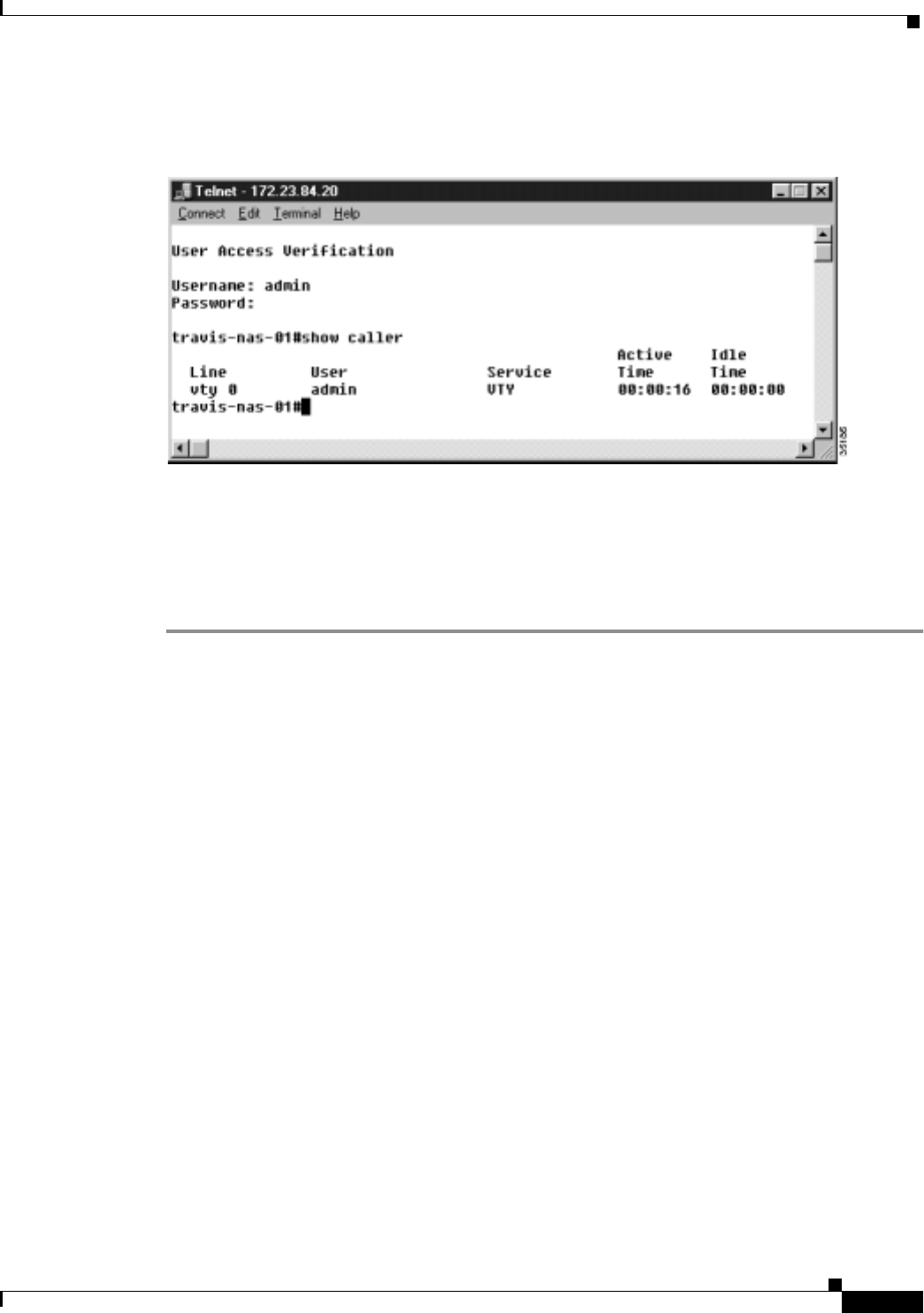

  - Troubleshooting a Cisco 2511 Console Connection

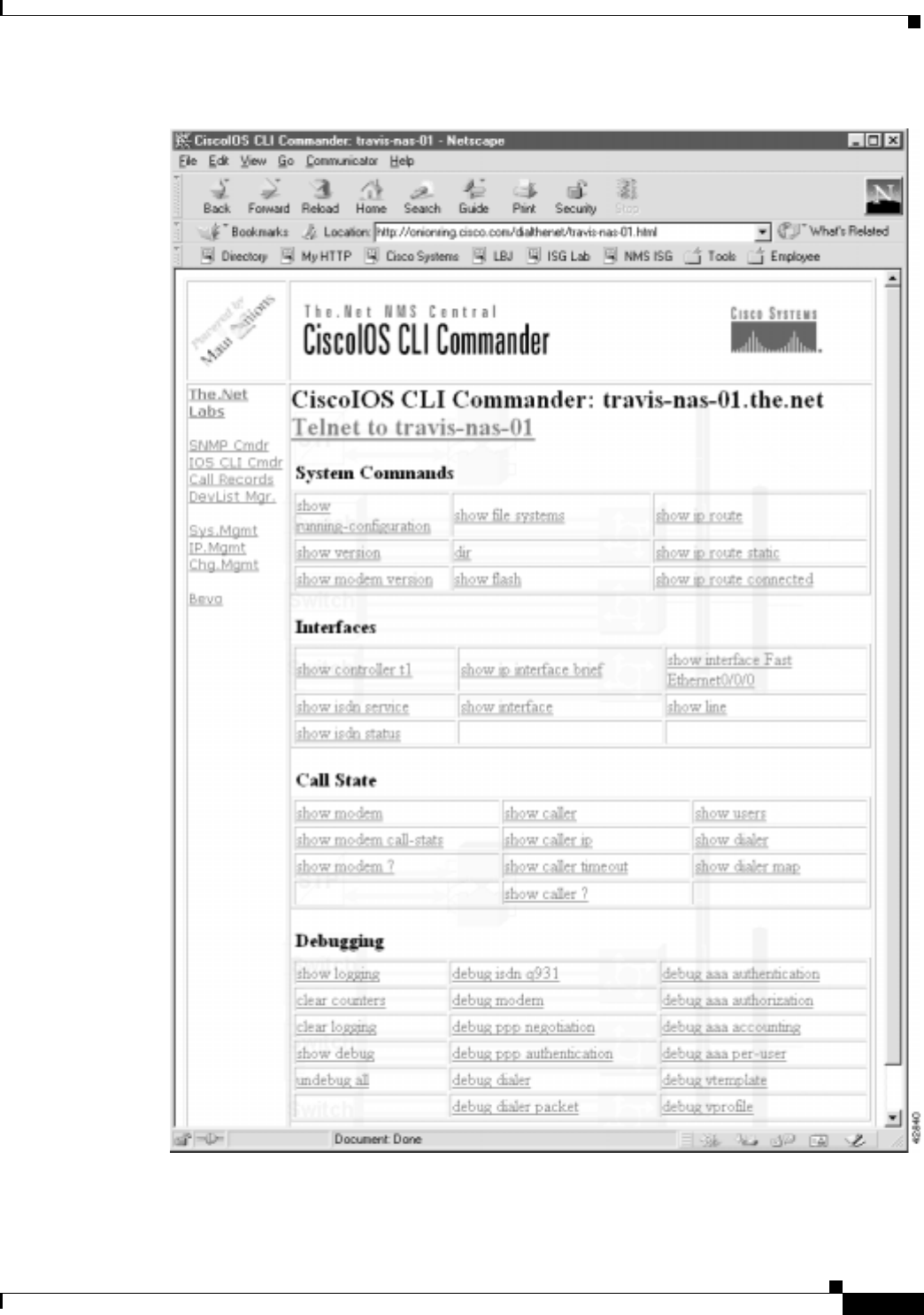

- About HTTP Access to the CLI
  - Using HTTP to Access CLI Commands

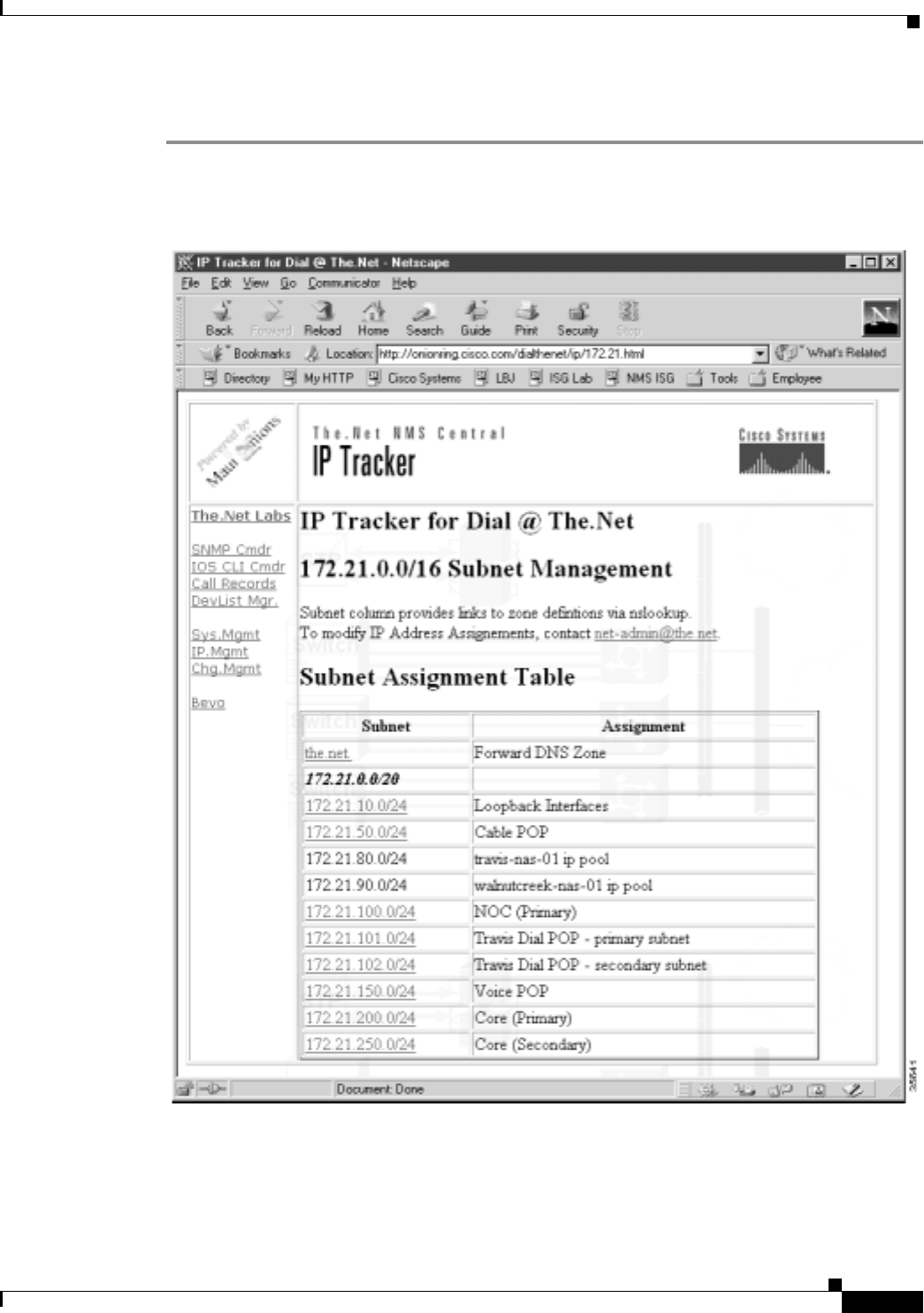

Task 6—Managing IP Addresses by Using DNS
- About Managing IP Addresses
- How to Create a Reverse DNS Zone

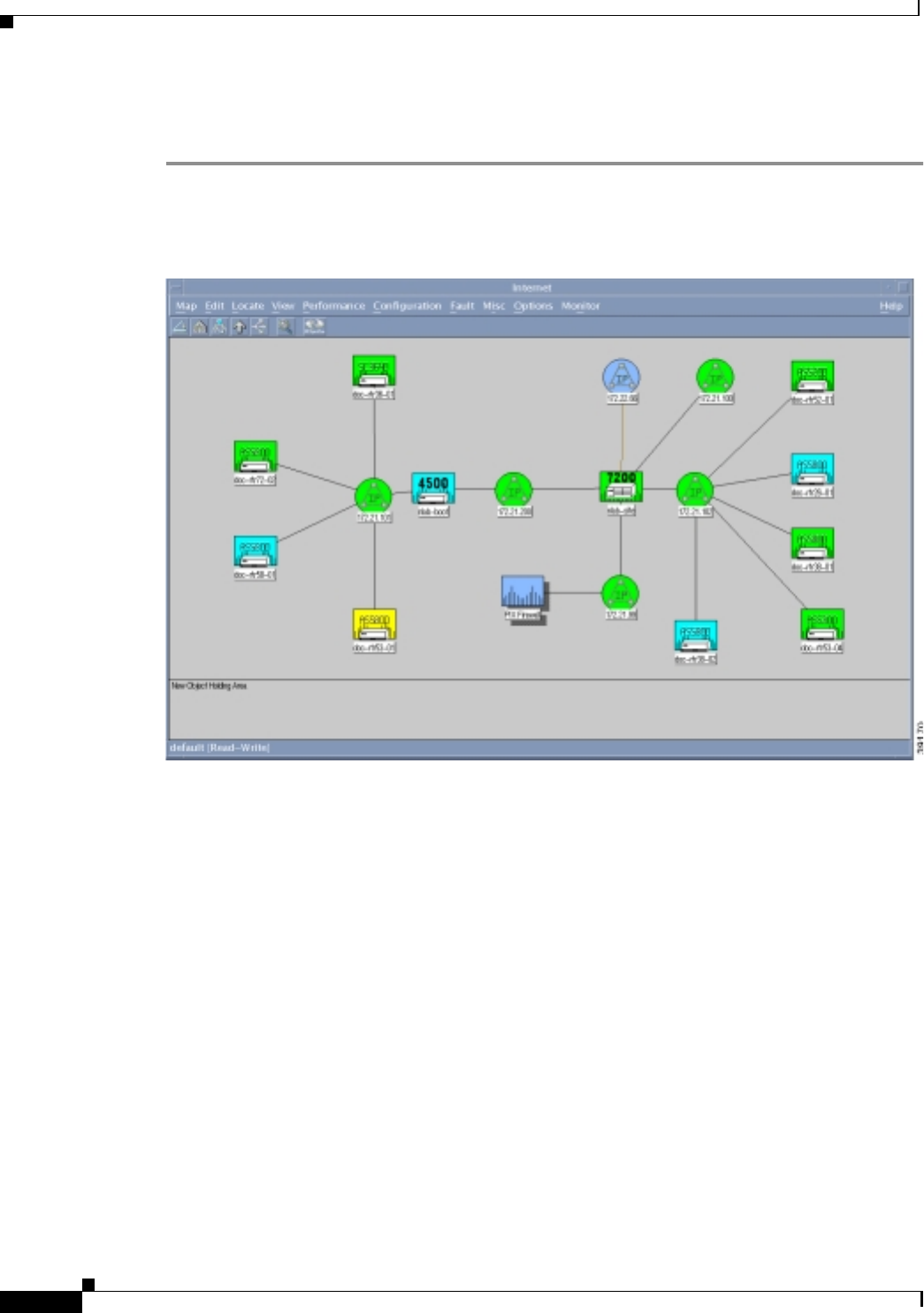

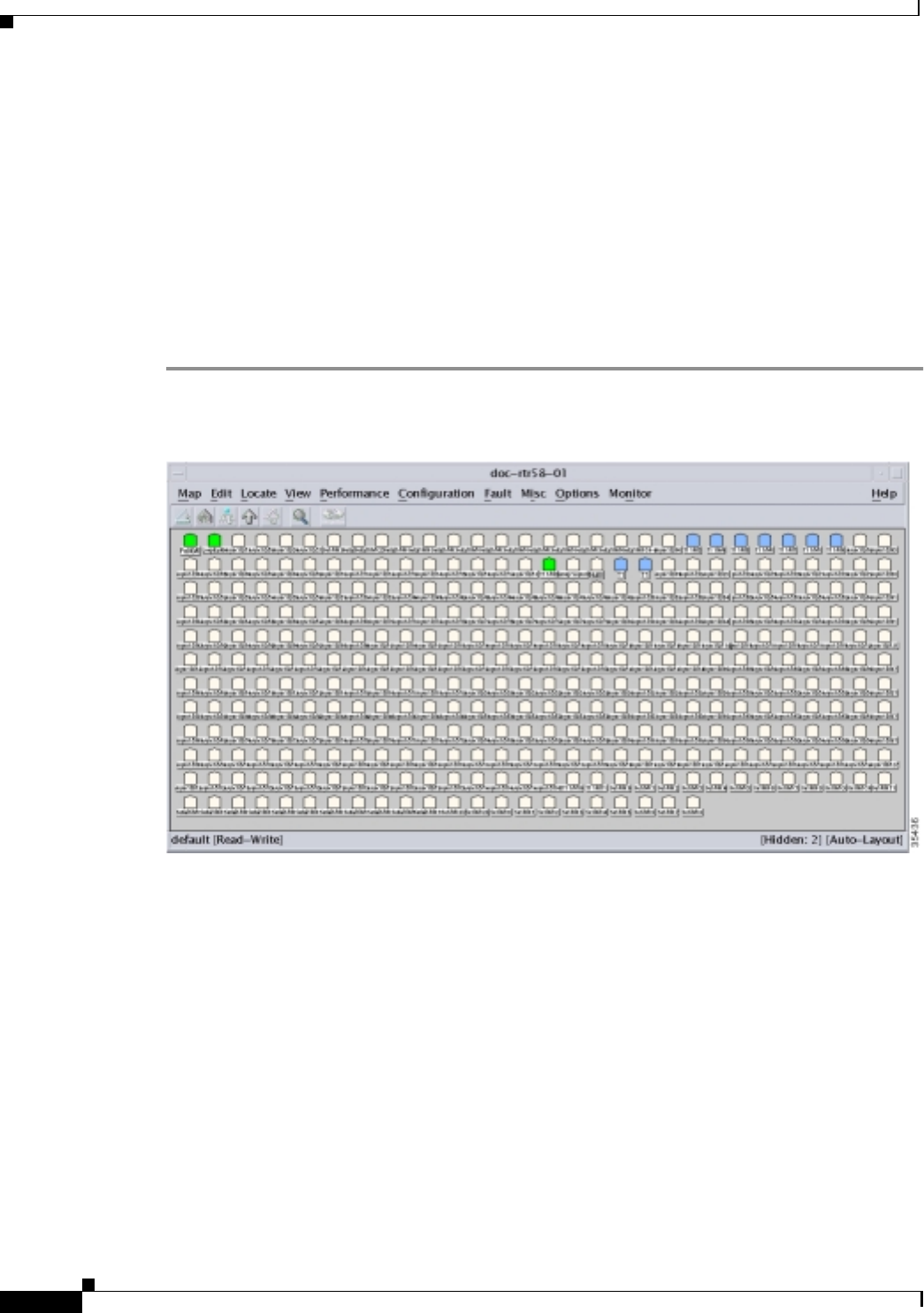

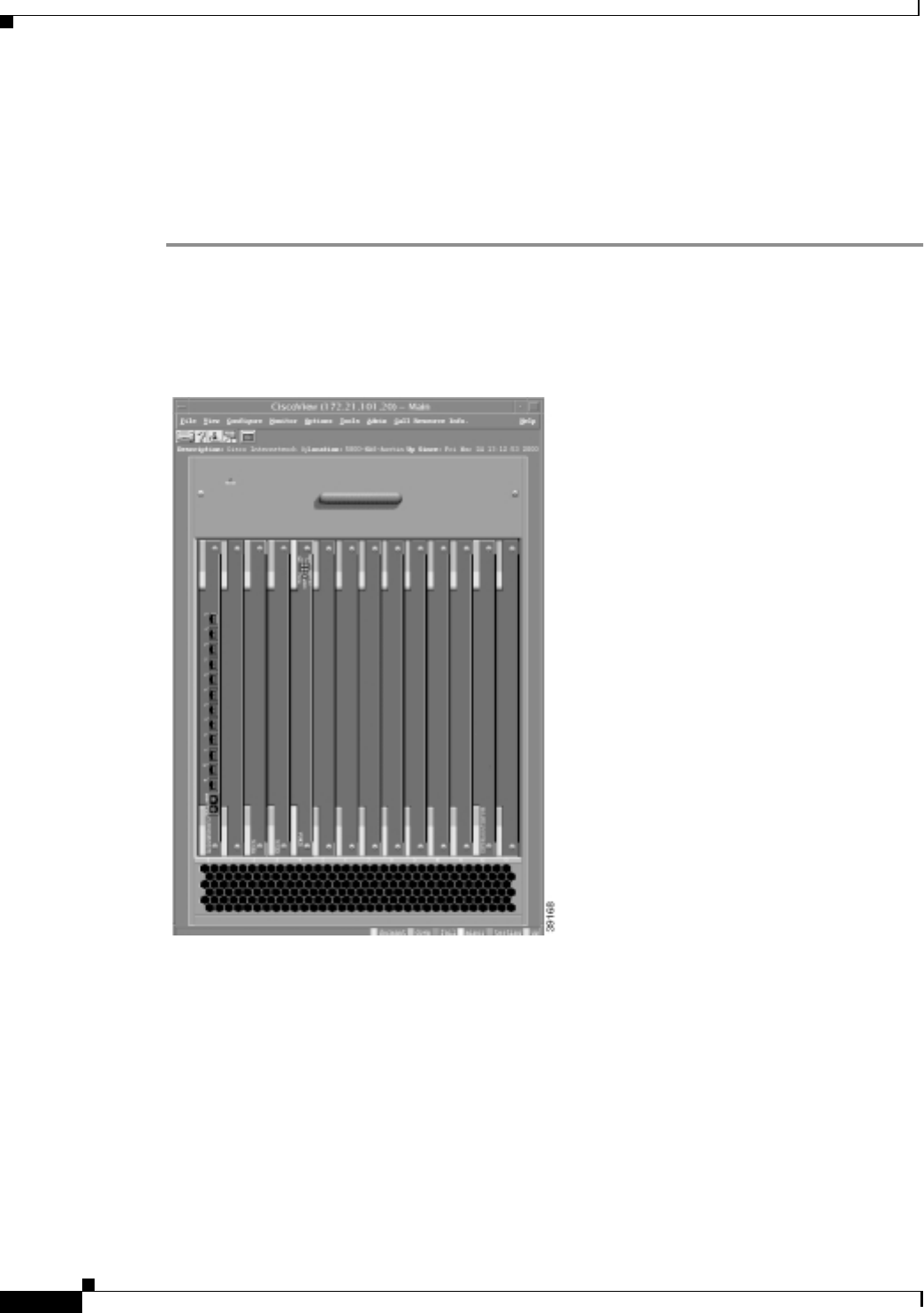

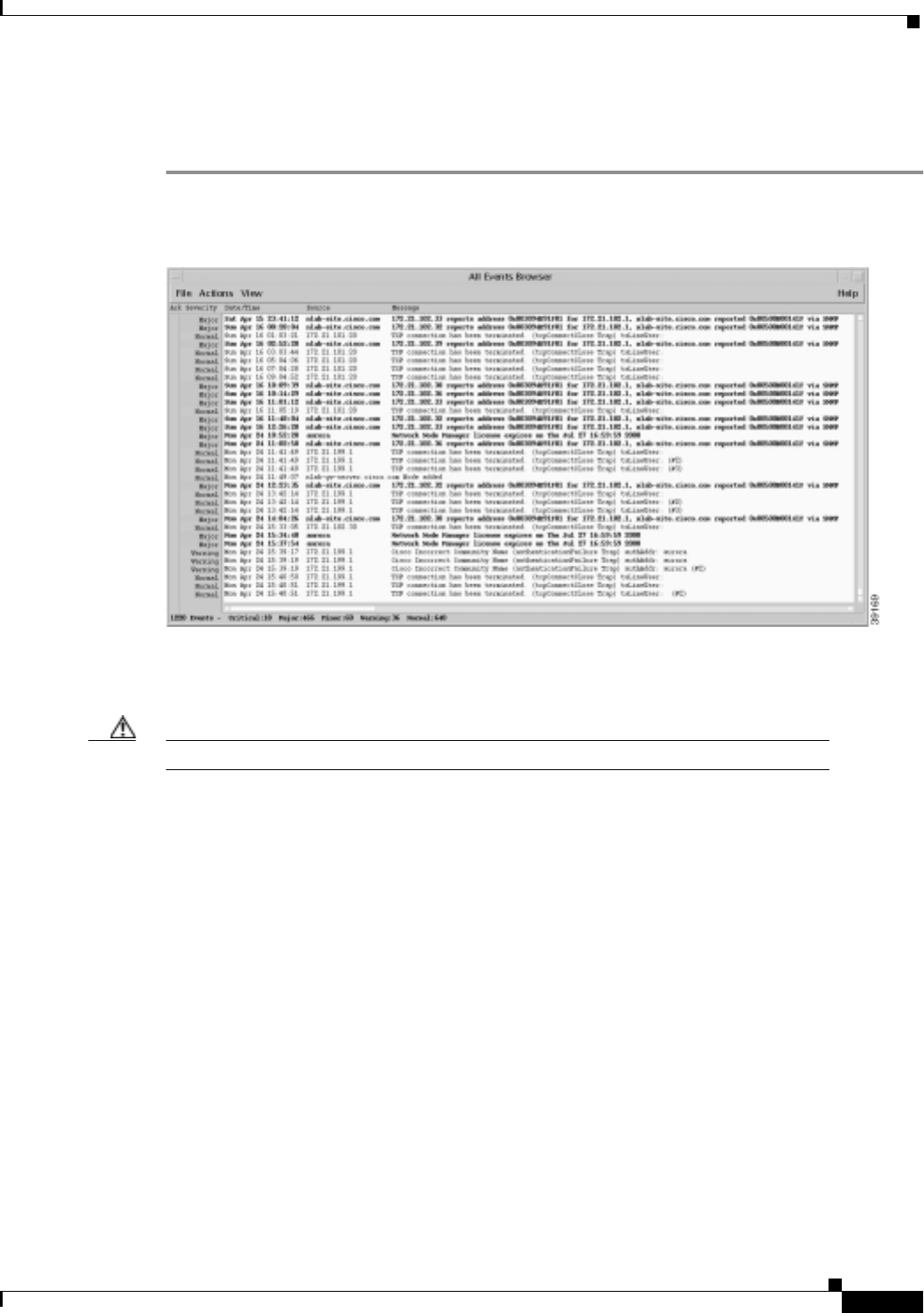

Task 7—Using HP OpenView to Create the SNMP Framework

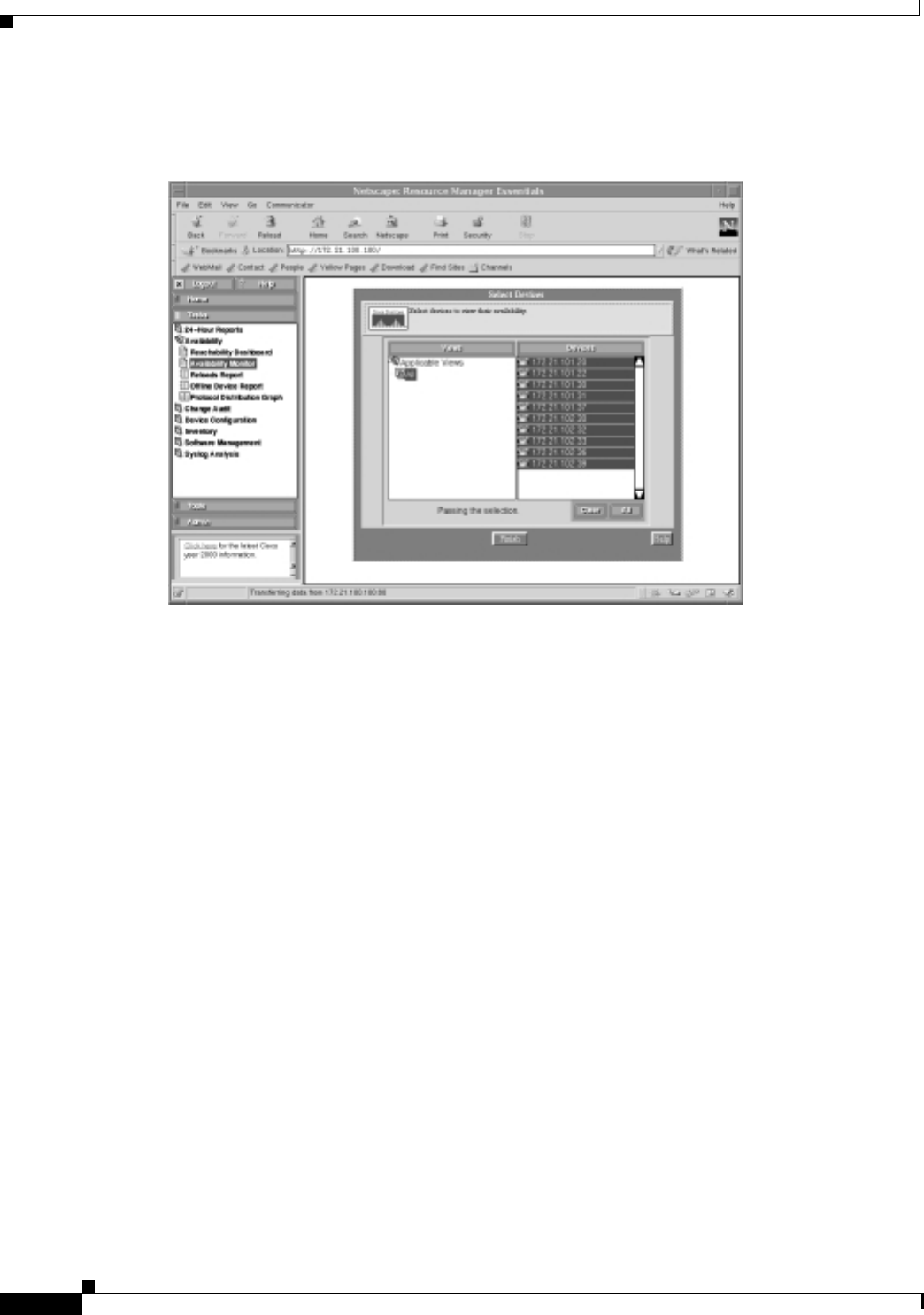

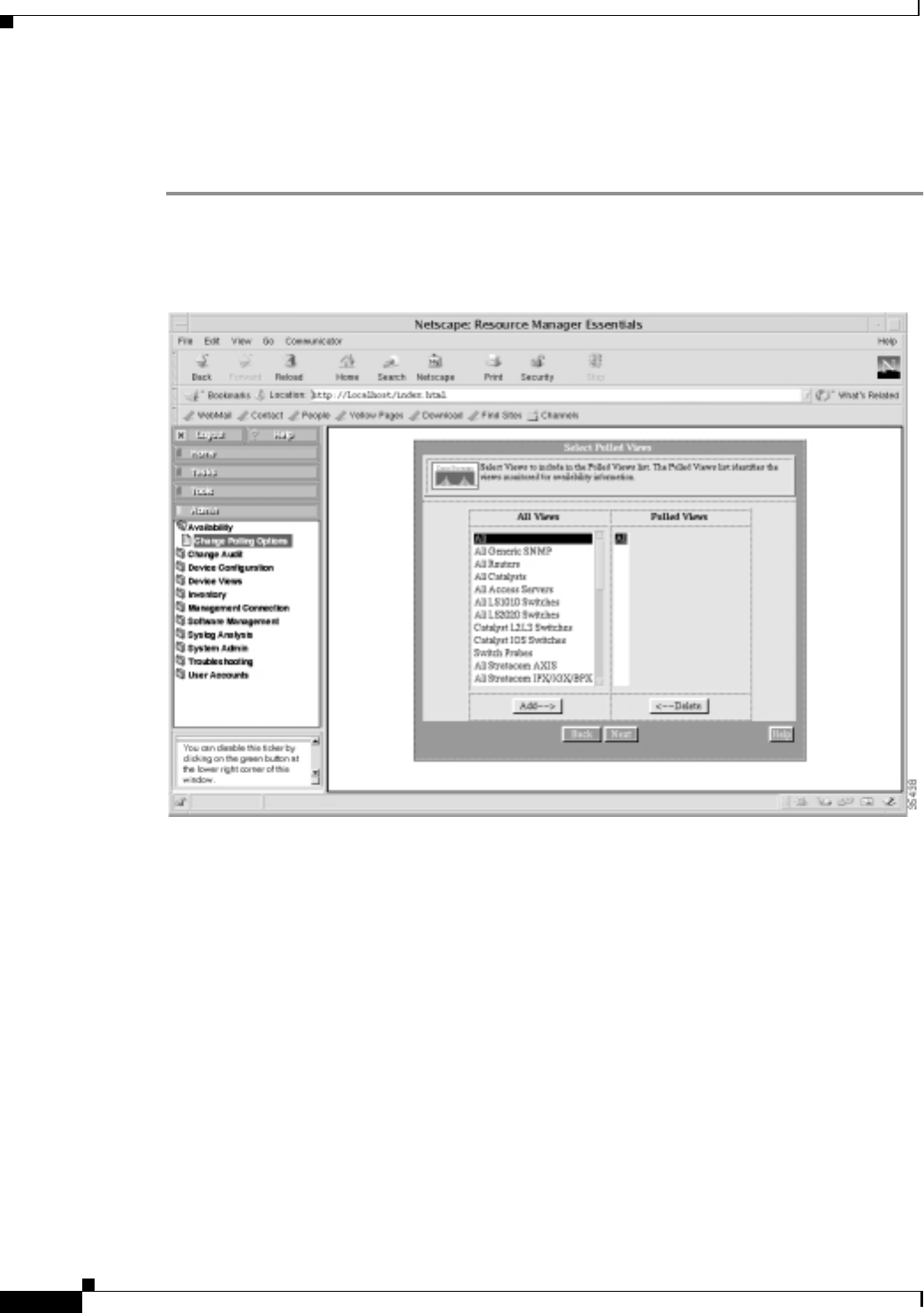

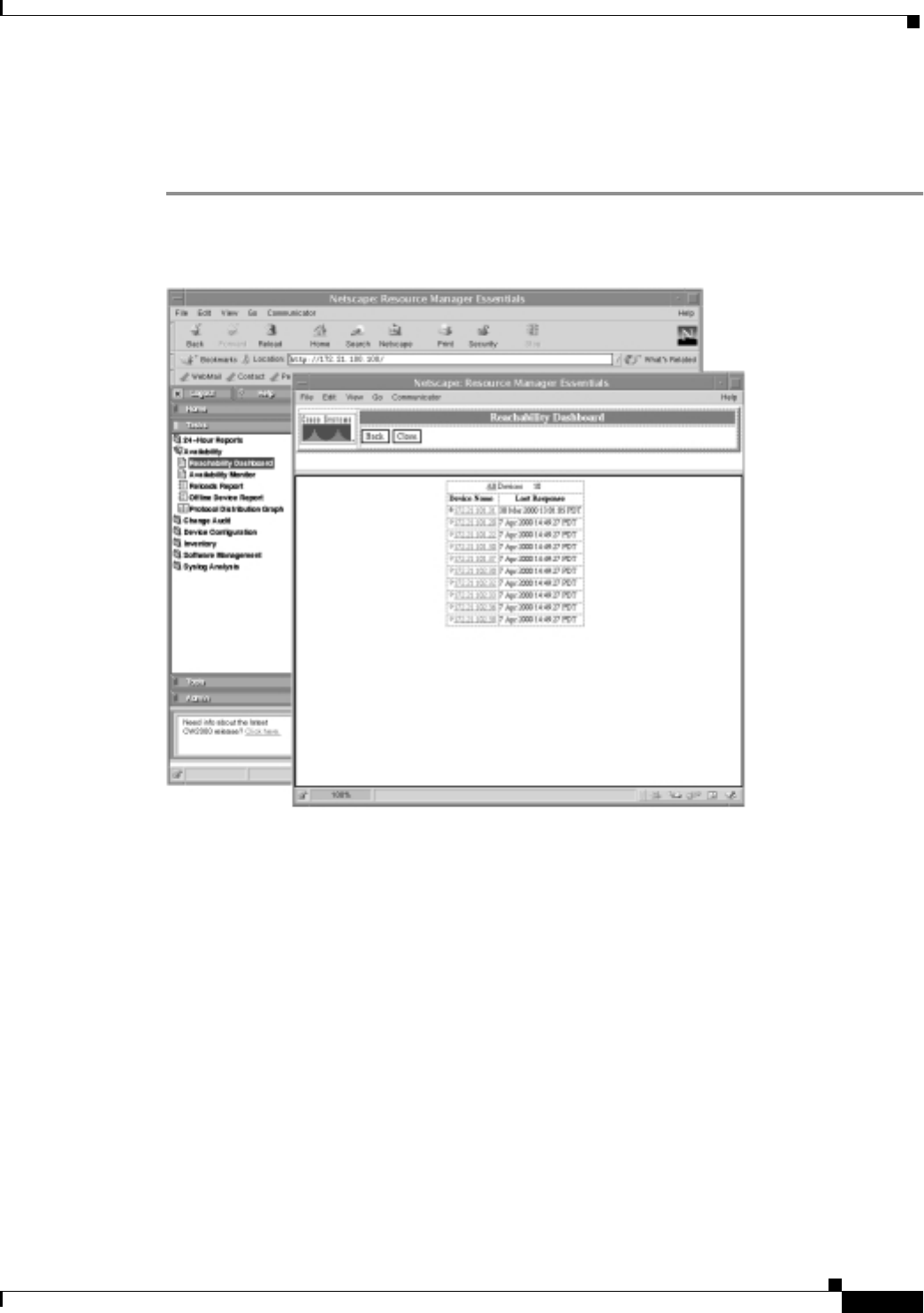

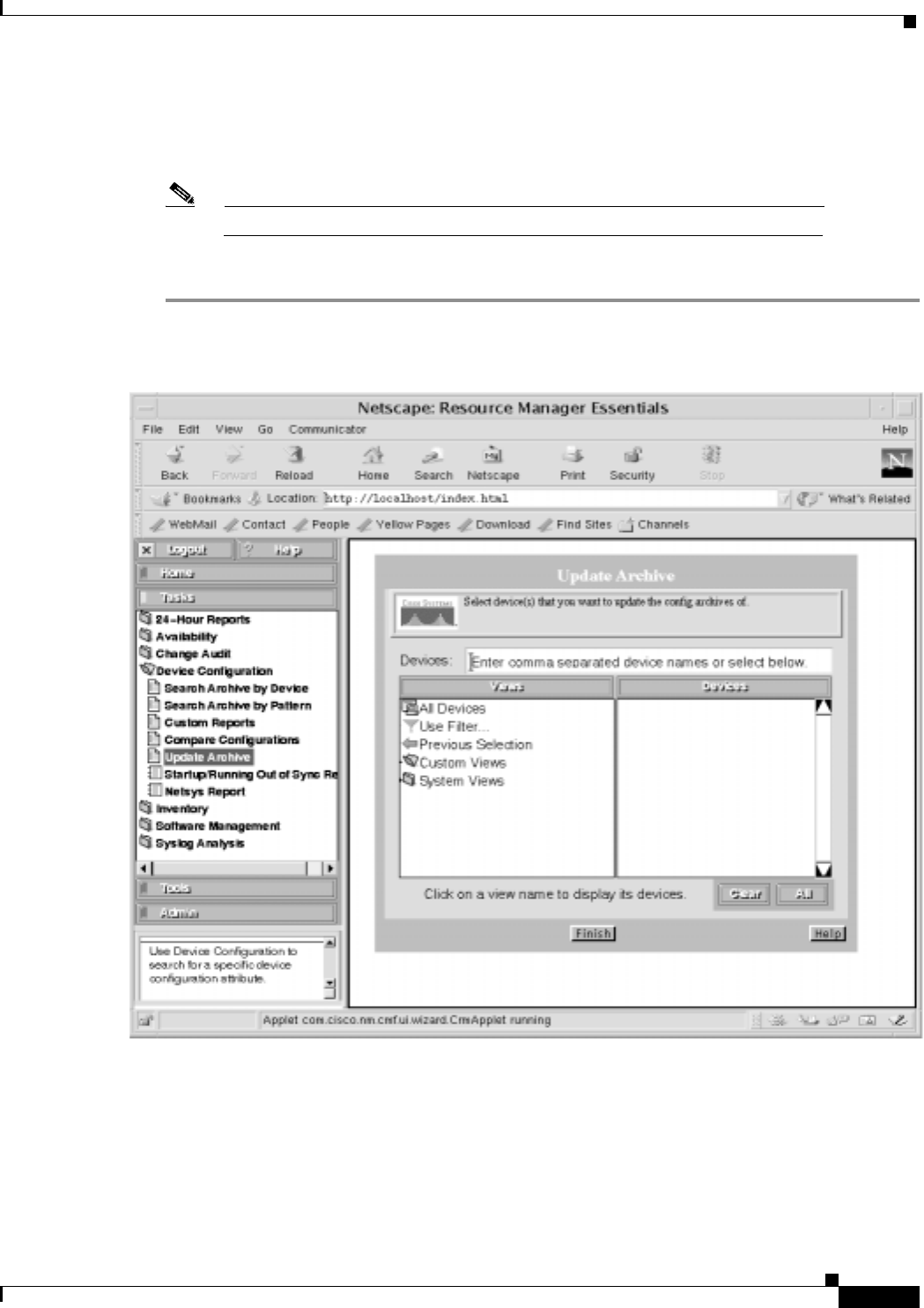

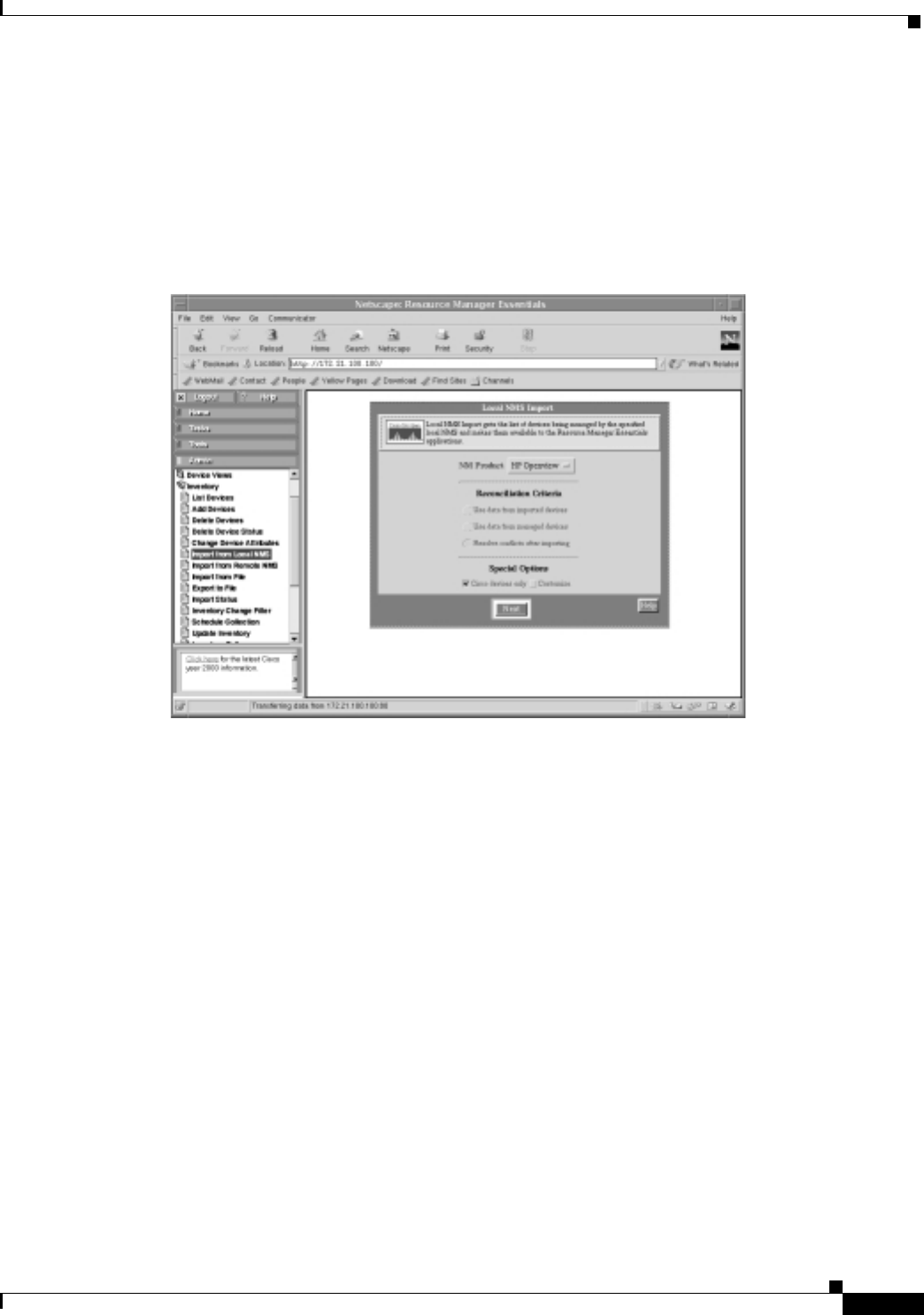

Task 8—Using CiscoWorks 2000 Resource Manager Essentials
- About CiscoWorks 2000 RME

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Cisco Systems, Inc.

Corporate Headquarters

Tel:

800 553-NETS (6387)

408 526-4000

Fax: 408 526-4100

Basic Dial NMS Implementation Guide

Internetworking Solutions Guide

August 2000

Text Part Number: OL-0556-01

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT

NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE

PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR

APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION

PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO

LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED

“AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED,

INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND

NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL

DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR

INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Access Registrar, AccessPath, Any to Any, Are You Ready, AtmDirector, Browse with Me, CCDA, CCDE, CCDP, CCIE, CCNA, CCNP, CCSI, CD-PAC,

the Cisco logo, Cisco Certified Internetwork Expert logo, CiscoLink, the Cisco Management Connection logo, the Cisco NetWorks logo, the Cisco Powered

Network logo, Cisco Systems Capital, the Cisco Systems Capital logo, Cisco Systems Networking Academy, the Cisco Systems Networking Academy

logo, the Cisco Technologies logo, Fast Step, FireRunner, Follow Me Browsing, FormShare, GigaStack, IGX, Intelligence in the Optical Core, Internet

Quotient, IP/VC, IQ Breakthrough, IQ Expertise, IQ FastTrack, IQ Readiness Scorecard, The IQ Logo, Kernel Proxy, MGX, Natural Network Viewer,

NetSonar, Network Registrar, the Networkers logo, Packet, PIX, Point and Click Internetworking, Policy Builder, Precept, RateMux, ReyMaster, ReyView,

ScriptShare, Secure Script, Shop with Me, SlideCast, SMARTnet, SVX, The Cell, TrafficDirector, TransPath, VlanDirector, Voice LAN, Wavelength

Router, Workgroup Director, and Workgroup Stack are trademarks; Changing the Way We Work, Live, Play, and Learn, Empowering the Internet

Generation, The Internet Economy, and The New Internet Economy are service marks; and Aironet, ASIST, BPX, Catalyst, Cisco, Cisco IOS, the Cisco

IOS logo, Cisco Systems, the Cisco Systems logo, the Cisco Systems Cisco Press logo, CollisionFree, Enterprise/Solver, EtherChannel, EtherSwitch,

FastHub, FastLink, FastPAD, FastSwitch, GeoTel, IOS, IP/TV, IPX, LightStream, LightSwitch, MICA, NetRanger, Post-Routing, Pre-Routing, Registrar,

StrataView Plus, Stratm, TeleRouter, and VCO are registered trademarks of Cisco Systems, Inc. or its affiliates in the U.S. and certain other countries. All

other trademarks mentioned in this document are the property of their respective owners. The use of the word partner does not imply a partnership

relationship between Cisco and any other company. (0005R)

Basic Dial NMS Implementation Guide

CONTENTS

EEE

Basic Dial NMS Implementation Guide

Preface vii

Purpose vii

Audience vii

Scope vii

Conventions viii

Related Documentation and Sites

Basic Dial NMS Implementation Guide

Access Technology Software Center—Provides the firmware for modem upgrades.

http://www.cisco.com/kobayashi/sw-center/sw-access.shtml

Increasing Security on IP Networks—Addresses network-layer security issues.

http://www.cisco.com/univercd/cc/td/doc/cisintwk/ics/cs003.htm

Carnegie Mellon CERT® Security Improvement Modules—Provides information about

security management.

http://www.cert.org/security-improvement/

Internetworking Solutions Guides

Cisco AS5x00 Case Study for Basic IP Modem Services—Describes how to configure, verify, and

troubleshoot basic IP modem services.

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/as5xipmo/index.htm

Cisco AAA Implementation Case Study—Describes how to design, implement, and operate basic

Cisco IOS AAA security and accounting functions.

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/aaaisg/index.htm

Access VPN Solutions Using Tunneling Technology—Describes how to configure, verify, and

troubleshoot access VPN solutions. See also Access VPDN Dial-in Using L2TP.

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/index.htm

Freeware

Sunfreeware.com—A repository of freeware programs and news for Solaris.

http://www.sunfreeware.com./

The UCD-SNMP Home Page—Provides an overview of UCD-SNMP, links to the FTP site,

recent news, documentation, bug reports, mailing lists, and where to go for more information.

http://ucd-snmp.ucdavis.edu/

Multi Router Traffic Grapher (MRTG) Product Site—Provides an overview of MRTG, links to the

FTP site, documentation, frequently asked questions, mailing lists, and contact information.

http://ee-staff.ethz.ch/~oetiker/webtools/mrtg/mrtg.html

Cisco Product Documentation

Modem Router Connection Guide—A starting point for understanding basic modem cabling and

configuration. To view this guide, you must be a CCO member.

http://cio.cisco.com/warp/customer/76/9.html

AT Command Sets and Register Summaries—A list of AT commands for configuring and operating

MICA and Microcom modems. Most modems function well with their default settings; however,

AT commands are required for special features and troubleshooting modems.

http://www.cisco.com/univercd/cc/td/doc/product/access/acs_serv/5300/mod_info/at/

index.htm

Preface

Cisco Connection Online

Basic Dial NMS Implementation Guide

Managing Modems (Cisco IOS 12.1)—Describes configuration and troubleshooting tasks for dial

access environments.

http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/dialts_c/dtsprt2/dcdm

odmg.htm

Modem Management Commands (Cisco IOS 12.1 and 12.0)—Provides two lists of Cisco IOS

modem commands used for configuring and troubleshooting modems.

http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/dial_r/drdshom.htm

http://www.cisco.com/univercd/cc/td/doc/product/software/ios120/12cgcr/dial_r/drprt1/drmodmgt

.htm

CiscoWorks 2000 Documentation Set—A collection of configuration guides and reference manuals.

http://www.cisco.com/univercd/cc/td/doc/product/rtrmgmt/cw2000/index.htm

Cisco Connection Online

Cisco Connection Online (CCO) is Cisco Systems' primary, real-time support channel. Maintenance

customers and partners can self-register on CCO to obtain additional information and services.

Available 24 hours a day, 7 days a week, CCO provides a wealth of standard and value-added services

to Cisco's customers and business partners. CCO services include product information, product

documentation, software updates, release notes, technical tips, the Bug Navigator, configuration notes,

brochures, descriptions of service offerings, and download access to public and authorized files.

CCO serves a wide variety of users through two interfaces that are updated and enhanced

simultaneously: a character-based version and a multimedia version that resides on the World Wide Web

(WWW). The character-based CCO supports Zmodem, Kermit, Xmodem, FTP, and Internet e-mail, and

it is excellent for quick access to information over lower bandwidths. The WWW version of CCO

provides richly formatted documents with photographs, figures, graphics, and video, as well as

hyperlinks to related information.

You can access CCO in the following ways:

WWW: http://www.cisco.com

WWW: http://www-europe.cisco.com

WWW: http://www-china.cisco.com

Telnet: cco.cisco.com

Modem: From North America, 408 526-8070; from Europe, 33 1 64 46 40 82. Use the following

terminal settings: VT100 emulation; databits: 8; parity: none; stop bits: 1; and connection rates up

to 28.8 kbps.

For a copy of CCO's Frequently Asked Questions (FAQ), contact cco-help@cisco.com. For additional

information, contact cco-team@cisco.com.

Note If you are a network administrator and need personal technical assistance with a Cisco

product that is under warranty or covered by a maintenance contract, contact the Cisco

Technical Assistance Center (TAC) at 800 553-2447, 408 526-7209, or tac@cisco.com. To

obtain general information about Cisco Systems, Cisco products, or upgrades, contact 800

553-6387, 408 526-7208, or cs-rep@cisco.com.

Preface

Documentation CD-ROM

NEE

Basic Dial NMS Implementation Guide

Documentation CD-ROM

Cisco documentation and additional literature are available in a CD-ROM package that ships with your

product. The Documentation CD-ROM, a member of the Cisco Connection Family, is updated monthly.

Therefore, it might be more current than printed documentation. To order additional copies of the

Documentation CD-ROM, contact your local sales representative or call customer service. The

CD-ROM package is available as a single package or as an annual subscription.

You can also access Cisco documentation on the World Wide Web at http://www.cisco.com,

http://www-china.cisco.com, or http://www-europe.cisco.com.

Documentation Feedback

If you are reading Cisco product documentation on the World Wide Web, you can submit comments

electronically. Click Feedback in the toolbar and select Documentation. After you complete the form,

click Submit to send it to Cisco.

You can also submit feedback on Cisco documentation by sending an e-mail to bug-doc@cisco.com or

sending a fax to (408) 527-8089. We appreciate your comments.

Acknowledgements

This guide was created as a collaborative effort. The following Cisco team members participated:

David Anderson, Oscar Bauer, Robert Brown, Drew Cupp, Katie Creegan, Barry Raveendran Greene,

Jessica Janis, Andrew Kennedy, Jim Leonard, Robert Lewis, Lori Livingston, Greg McMillan,

Roger Moises, Rizwan Mushtaq, Anjali Puri, Annie Shi, David Simms, Jim Thompson,

Kris Thompson, Craig Tobias, Patrick Van Deynse, and Mario Villarreal.

!

Basic Dial NMS Implementation Guide

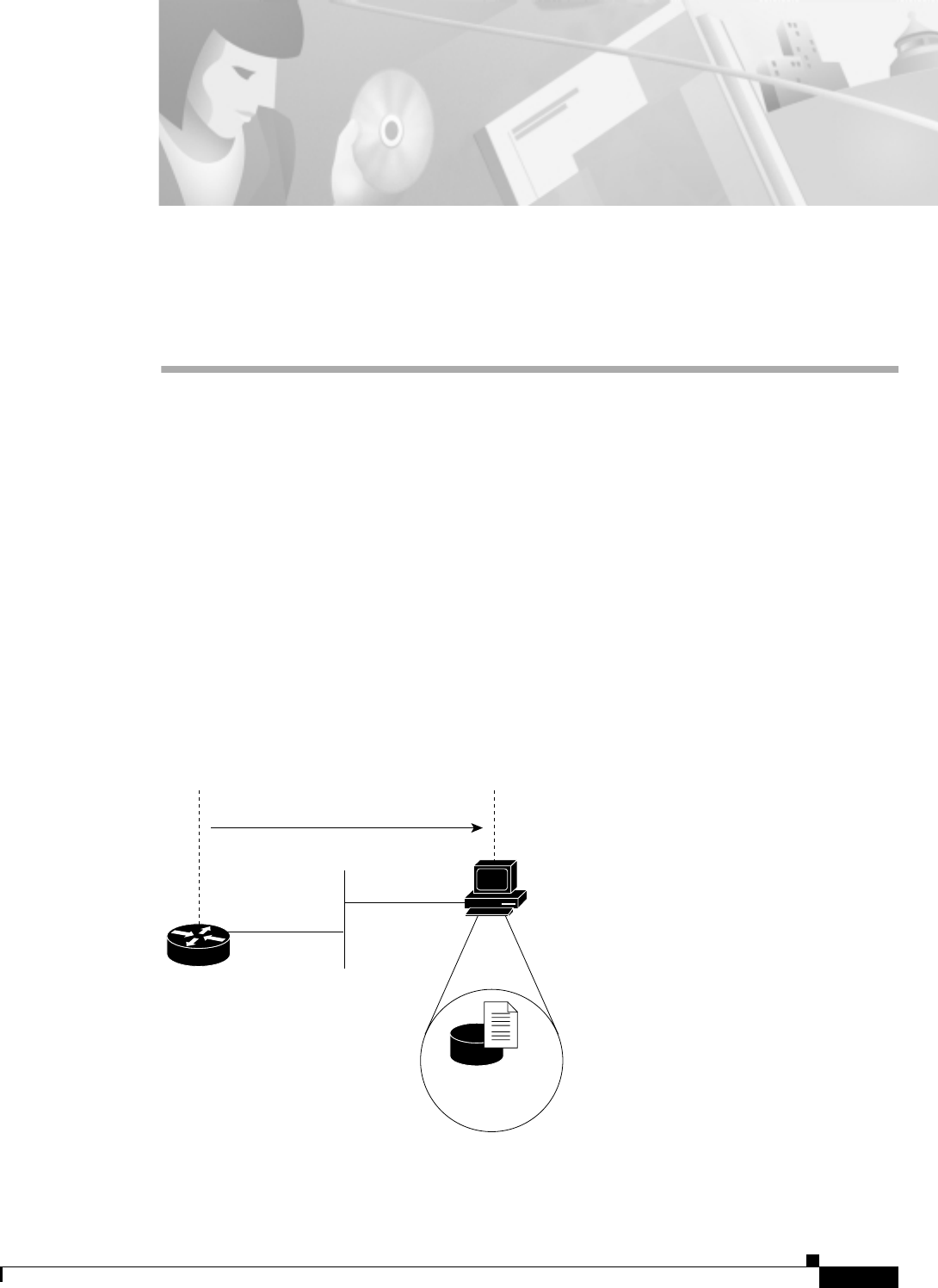

Overview of Basic SNMP Building Blocks

About SNMP

The Simple Network Management Protocol (SNMP) is an application-layer protocol that facilitates the

exchange of management information between a network management system (NMS), agents, and

managed devices. SNMP uses the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol

suite.

There are three versions of SNMP:

SNMP Version 1 (SNMPv1)—The initial implementation of the SNMP protocol, which is

described in RFC 1157 (http://www.ietf.org/rfc/rfc1157).

SNMP Version 2 (SNMPv2)—An improved version of SNMPv1 that includes additional protocol

operations. For the SNMPv2 Structure of Management Information (SMI), see RFC 1902

(http://www.ietf.org/rfc/rfc1902).

SNMP Version 3 (SNMPv3)—SNMPv3 has yet to be standardized.

The case study in this guide describes how to create a dial NMS environment. To successfully manage

the environment, you must be familiar with the SNMP feature set. The following NMS applications use

SNMP to help manage the network devices in the case study:

UCD-SNMP

Multi-Router Traffic Grapher (MRTG)

HP OpenView (HPOV)

Cisco Works 2000 Resource Manager Essentials (CW2000 RME)

Overview of Basic SNMP Building Blocks

What are the Basic Components of SNMP?

"

Basic Dial NMS Implementation Guide

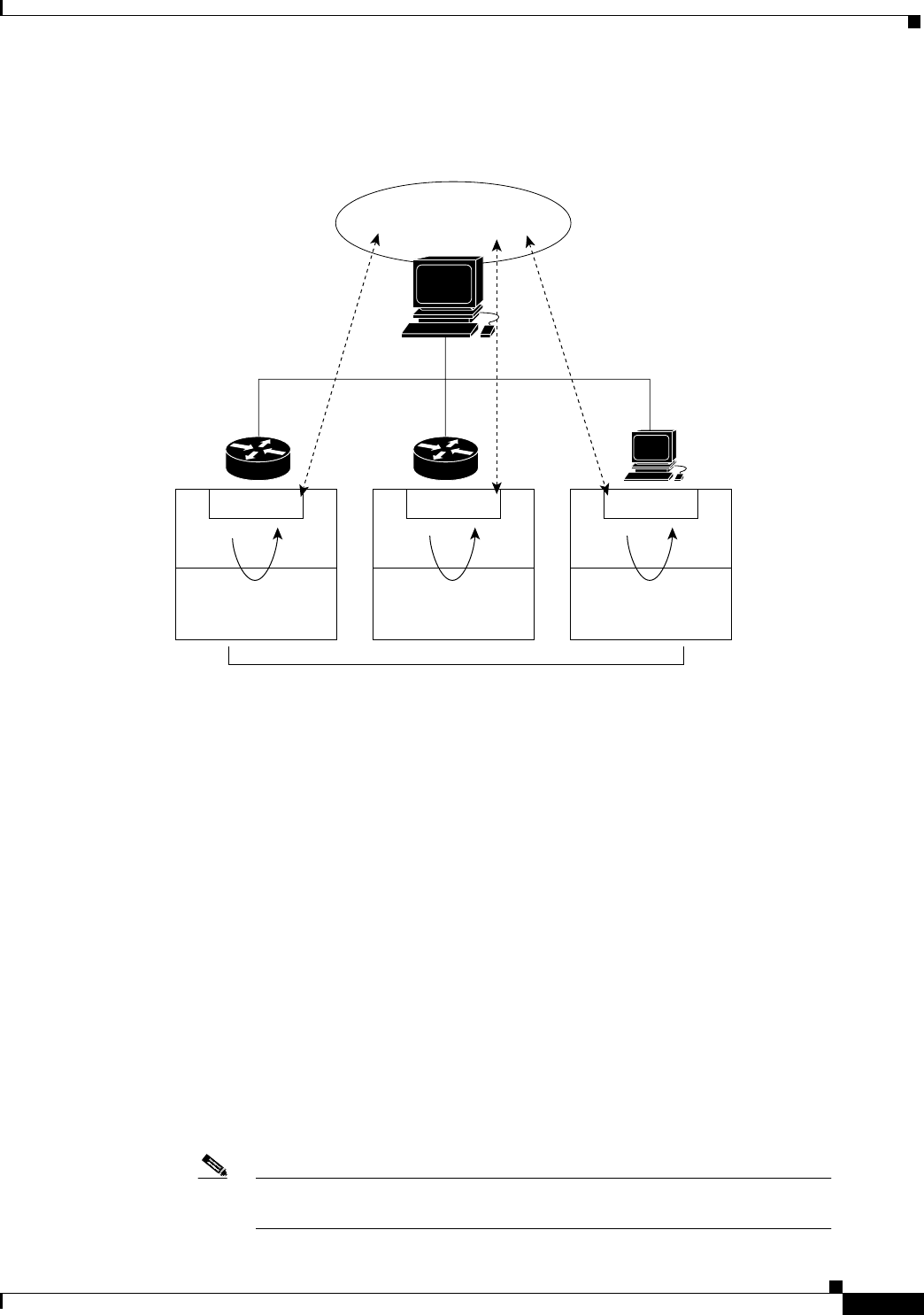

What are the Basic Components of SNMP?

An SNMP-managed network consists of three key components: managed devices, agents, and network

management systems (NMS).

Managed devices

`Contain an SNMP agent and reside on a managed network.

`Collect and store management information and make it available to NMS by using SNMP.

`Include routers, access servers, switches, bridges, hubs, hosts, or printers.

Agent—A network-management software module, such as the Cisco IOS software, that resides in

a managed device. An agent has local knowledge of management information and makes that

information available by using SNMP.

Network Management Systems (NMS)—Run applications that monitor and control managed

devices. NMS provide resources required for network management. In the case study, the NMS

applications are:

`UCD-SNMP

`MRTG

`HPOV

`CW2000 RME

Table 1 Related SNMP Documentation and Sites

Site Description URL

SNMP Technology TAC Page—Network

design tips, implementation and operation

guidelines, which are continually updated by

Cisco TAC engineers.

http://www.cisco.com/pcgi-bin/Support/PSP/psp_vie

w.pl?p=Internetworking:SNMP

The SimpleWeb—Public domain software

packages, which are available on the Internet.

Most of the software is a spin-off from SNMP

related research.

http://penta.ufrgs.br/gereint/impl.htm

SNMP FAQ—Frequently asked questions

about SNMP. http://www.pantherdig.com/snmpfaq/

http://www.faqs.org/rfcs/rfc1382.html

Overview of Basic SNMP Building Blocks

About Basic SNMP Message Types and Commands

#

Basic Dial NMS Implementation Guide

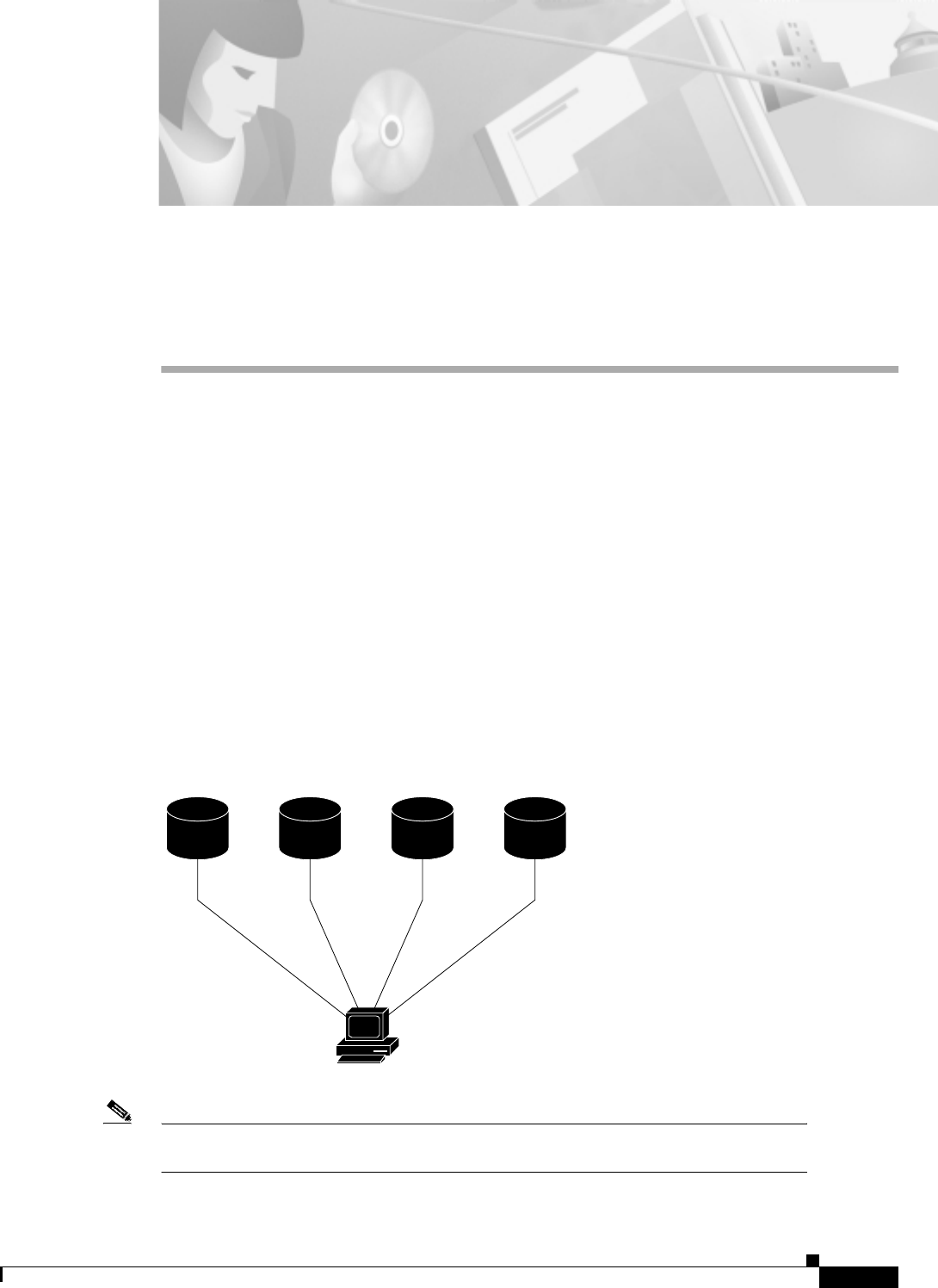

Figure 1 illustrates the relationship between the managed devices, the agent, and the NMS.

Figure 1 An SNMP-Managed Network

About Basic SNMP Message Types and Commands

There are three basic SNMP message types:

Get—NMS-initiated requests used by an NMS to monitor managed devices. The NMS examines

different variables that are maintained by managed devices.

Set—NMS-initiated commands used by an NMS to control managed devices. The NMS changes

the values of variables stored within managed devices.

Trap—Agent-initiated messages sent from a managed device, which reports events to the NMS.

The Cisco IOS generates SNMP traps for many distinct network conditions. Through SNMP traps,

the Network Operations Center (NOC) is notified of network events, such as:

`Link up/down changes

`Configuration changes

`Temperature thresholds

`CPU overloads

Note For a list of Cisco-supported SNMP traps, go to

http://www.cisco.com/public/mibs/traps/

Management

Entity

Agent

Management

Database

Agent

NMS

Management

Database

Managed Devices

Agent

Management

Database

35640

Overview of Basic SNMP Building Blocks

What are SNMP MIBs?

$

Basic Dial NMS Implementation Guide

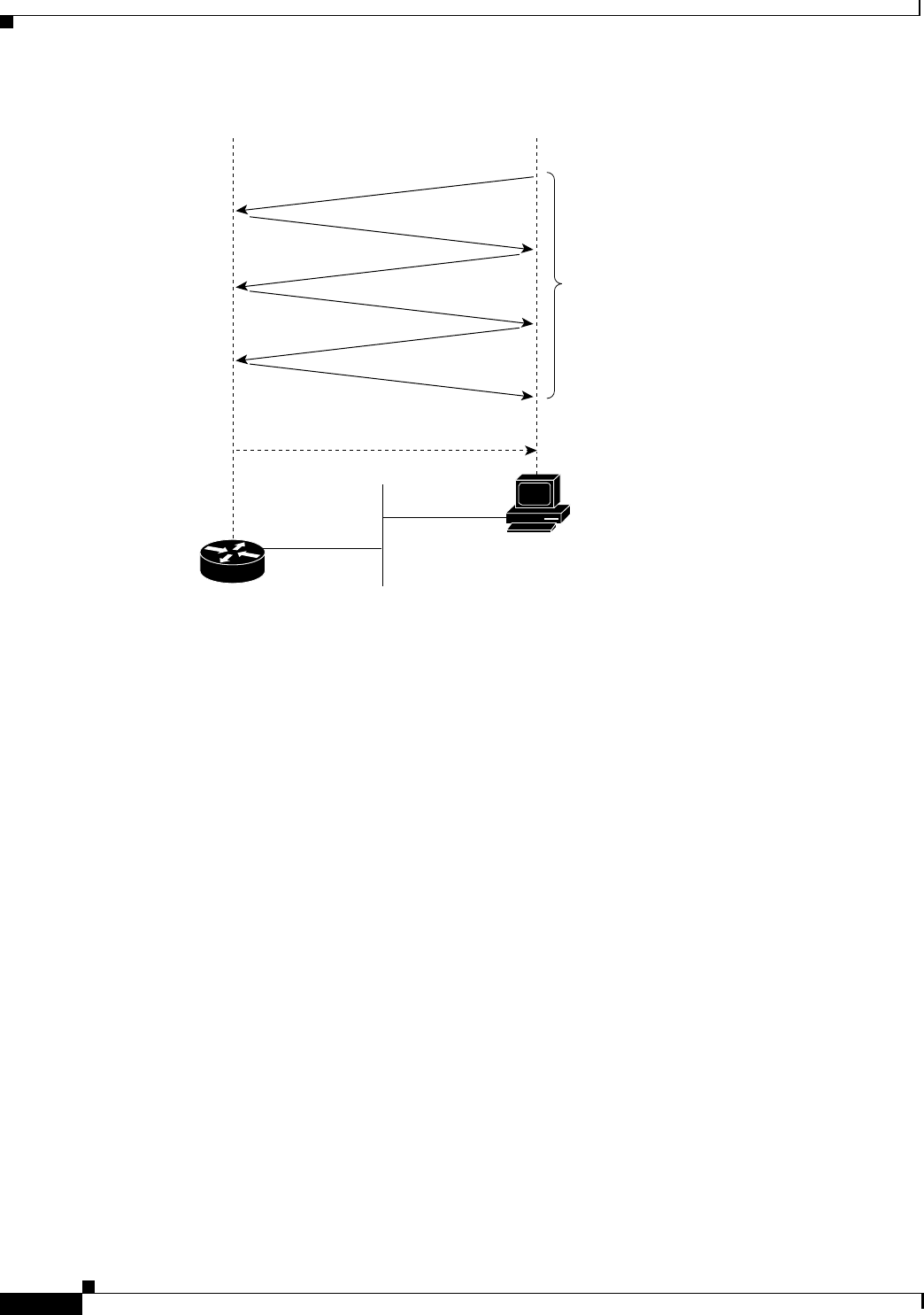

Figure 2 SNMP Event Interactions Between the NMS and the Agent

What are SNMP MIBs?

A Management Information Base (MIB):

Presents a collection of information that is organized hierarchically.

Is accessed by using a network-management protocol, such as SNMP.

References managed objects and object identifiers.

Managed object—A characteristic of a managed device. Managed objects reference one or more object

instances (variables). Two types of managed objects exist:

Scalar objects—Define a single object instance.

Tabular objects—Define multiple-related object instances that are grouped together in MIB tables.

Object identifier (or object ID)—Identifies a managed object in the MIB hierarchy. The MIB hierarchy

is depicted as a tree with a nameless root. The levels of the tree are assigned by different organizations

and vendors.

Agent

(Cisco IOS device)

NMS

initiated

Trap (agent initiated)

Get request

Get next

Response

26095

Overview of Basic SNMP Building Blocks

What are SNMP MIBs?

%

Basic Dial NMS Implementation Guide

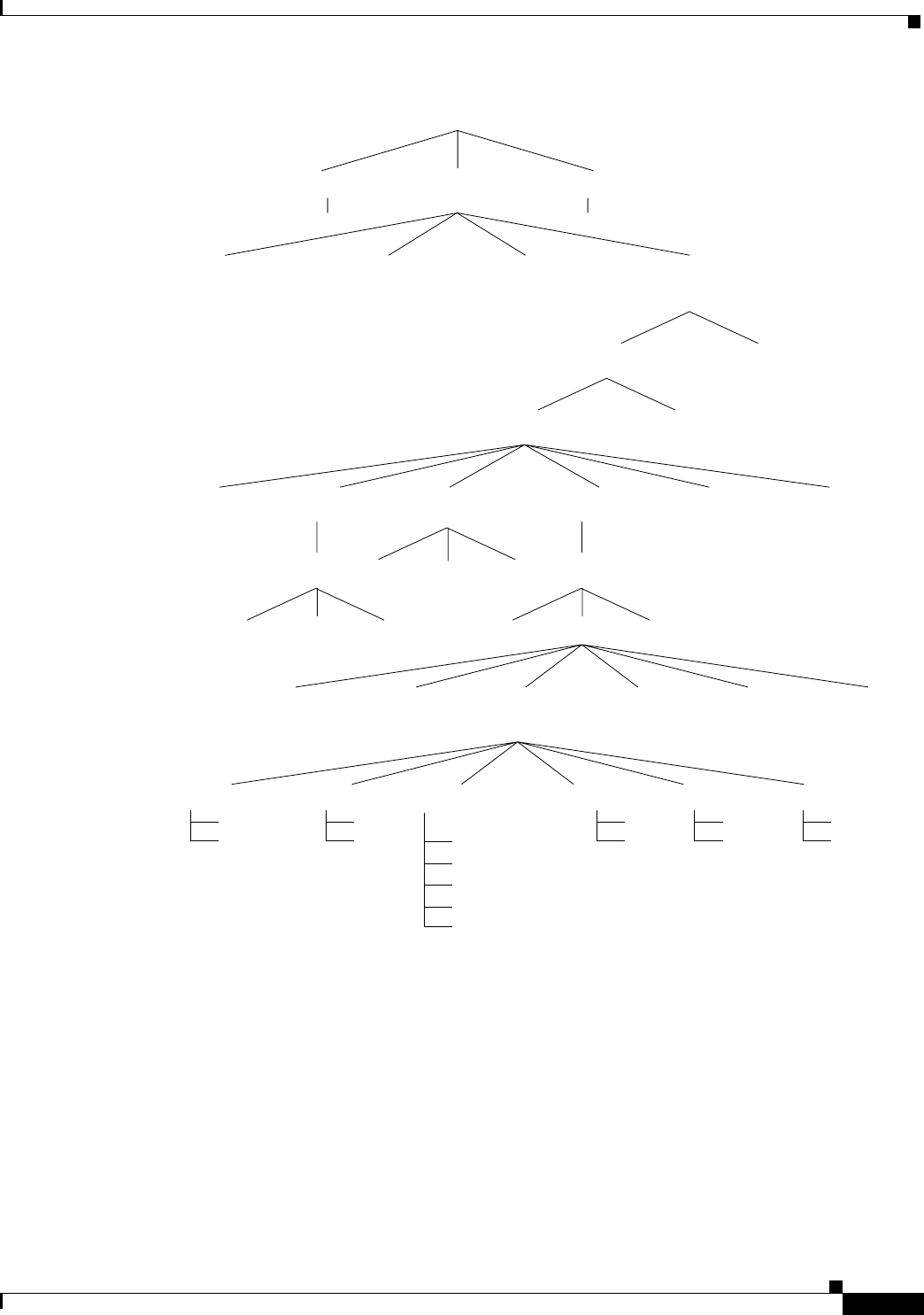

Figure 3 The MIB Tree and Its Various Hierarchies

As shown in Figure 3, top-level MIB object IDs belong to different standards organizations while

low-level object IDs are allocated by associated organizations. Vendors define private branches that

include managed objects for products. Non standard MIBs are typically in the experimental branch.

A managed object has these unique identities:

The object name—For example, iso.identified-organization.dod.internet.private.enterprise.cisco.

temporary variables.AppleTalk.atInput

The equivalent object descriptor—For example, 1.3.6.1.4.1.9.3.3.1.

ccitt (0)

…

………

iso (1) iso-ccitt (2)

registration-

authority (1)

standard (0)

dod (6) …

member-

body (2) identified-

organization (3)

mgmt (2)directory (1) experimental (3) private (4) security (5) snmpV2 (6)

internet (1) …

mib-2 (1) enterprise (1)

cisco (9)……

………

…

…… temporary

variables (3)

…… …

Apple Talk (3)

atForward (4)

Novell (3) VINES (4) Chassis (5)DECnet (1) XNS (2)

…

……

…

atBcastin (3)

atLocal (2)

atInput (1) …

……

…

24187

Overview of Basic SNMP Building Blocks

What is SNMPv1?

&

Basic Dial NMS Implementation Guide

SNMP must account for and adjust to incompatibilities between managed devices. Different computers

use different data-representation techniques, which can compromise the ability of SNMP to exchange

information between managed devices.

What is SNMPv1?

SNMPv1 is the initial implementation of the SNMP protocol and is described in RFC 1157

(http://www.ietf.org/rfc/rfc1157).

SNMPv1:

Functions within the specifications of the Structure of Management Information (SMI).

Operates over protocols such as User Datagram Protocol (UDP), Internet Protocol (IP), OSI

Connectionless Network Service (CLNS), AppleTalk Datagram-Delivery Protocol (DDP),

and Novell Internet Packet Exchange (IPX).

Is the de facto network-management protocol in the Internet community.

The SMI defines the rules for describing management information by using Abstract Syntax Notation

One (ASN.1). The SNMPv1 SMI is defined in RFC 1155 (http://www.ietf.org/rfc/rfc1155). The SMI

makes three specifications:

ASN.1 data types

SMI-specific data types

SNMP MIB tables

SNMPv1 and ASN1 Data Types

The SNMPv1 SMI specifies that all managed objects must have a subset of associated ASN.1 data types.

Three ASN.1 data types are required:

Name—Serves as the object identifier (object ID).

Syntax—Defines the data type of the object (for example, integer or string). The SMI uses a subset

of the ASN.1 syntax definitions.

Encoding—Describes how information associated with a managed object is formatted as a series

of data items for transmission over the network.

SNMPv1 and SMI-Specific Data Types

The SNMPv1 SMI specifies the use of many SMI-specific data types, which are divided into two

categories:

Simple data types—Including these three types:

`Integers—A signed integer in the range of -2,147,483,648 to 2,147,483,647.

`Octet strings—Ordered sequences of zero to 65,535 octets.

`Object IDs— Come from the set of all object identifiers allocated according to the rules

specified in ASN.1.

Overview of Basic SNMP Building Blocks

What is SNMPv2?

'

Basic Dial NMS Implementation Guide

Application-wide data types—Including these seven types:

`Network addresses—Represent addresses from a protocol family. SNMPv1 supports only

32-bit IP addresses.

`Counters—Nonnegative integers that increase until they reach a maximum value; then, the

integers return to zero. In SNMPv1, a 32-bit counter size is specified.

`Gauges—Nonnegative integers that can increase or decrease but retain the maximum value

reached.

`Time ticks—A hundredth of a second since some event.

`Opaques—An arbitrary encoding that is used to pass arbitrary information strings that do not

conform to the strict data typing used by the SMI.

`Integers—Signed integer-valued information. This data type redefines the integer data type,

which has arbitrary precision in ASN.1 but bounded precision in the SMI.

`Unsigned integers—Unsigned integer-valued information that is useful when values are always

nonnegative. This data type redefines the integer data type, which has arbitrary precision in

ASN.1 but bounded precision in the SMI.

The SNMPv1 SMI defines structured tables that are used to group the instances of a tabular object (an

object that contains multiple variables). Tables contain zero or more rows that are indexed to allow

SNMP to retrieve or alter an entire row with a single Get, GetNext, or Set command.

SNMPv1 Protocol Operations

SNMP is a simple request-response protocol. The NMS issues a request, and managed devices return

responses. This behavior is implemented by using one of four protocol operations:

Get—Used by the NMS to retrieve the value of one or more object instances from an agent. If the

agent responding to the Get operation cannot provide values for all the object instances in a list, the

agent does not provide any values.

GetNext—Used by the NMS to retrieve the value of the next object instance in a table or list within

an agent.

Set—Used by the NMS to set the values of object instances within an agent.

Trap—Used by agents to asynchronously inform the NMS of a significant event.

What is SNMPv2?

SNMPv2 is an improved version of SNMPv1. Originally, SNMPv2 was published as a set of proposed

Internet standards in 1993; currently, it is a Draft Standard. As with SNMPv1, SNMPv2 functions

within the specifications of the SMI. SNMPv2 offers many improvements to SNMPv1, including

additional protocol operations.

Overview of Basic SNMP Building Blocks

About SNMP Management



Basic Dial NMS Implementation Guide

SNMPv2 and SMI

The SMI defines the rules for describing management information by using ASN.1.

RFC 1902 (http://www.ietf.org/rfc/rfc1902) describes the SNMPv2 SMI and enhances the SNMPv1

SMI-specific data types by including:

Bit strings—Comprise zero or more named bits that specify a value.

Network addresses—Represent an address from a protocol family. SNMPv1 supports 32-bit IP

addresses, but SNMPv2 can support other types of addresses too.

Counters—Non-negative integers that increase until they reach a maximum value; then, the

integers return to zero. In SNMPv1, a 32-bit counter size is specified. In SNMPv2, 32-bit and 64-bit

counters are defined.

SMI Information Modules

The SNMPv2 SMI specifies information modules, which include a group of related definitions. Three

types of SMI information modules exist:

MIB modules—Contain definitions of interrelated managed objects.

Compliance statements—Provide a systematic way to describe a group of managed objects that

must conform to a standard.

Capability statements—Used to indicate the precise level of support that an agent claims with

respect to a MIB group. An NMS can adjust its behavior towards agents according to the capability

statements associated with each agent.

SNMPv2 Protocol Operations

The Get, GetNext, and Set operations used in SNMPv1 are exactly the same as those used in SNMPv2.

SNMPv2, however, adds and enhances protocol operations. The SNMPv2 trap operation, for example,

serves the same function as the one used in SNMPv1. However, a different message format is used.

SNMPv2 also defines two new protocol operations:

GetBulk—Used by the NMS to efficiently retrieve large blocks of data, such as multiple rows in a

table. GetBulk fills a response message with as much of the requested data as fits.

Inform—Allows one NMS to send trap information to another NMS and receive a response. If the

agent responding to GetBulk operations cannot provide values for all the variables in a list, the

agent provides partial results.

About SNMP Management

SNMP is a distributed-management protocol. A system can operate exclusively as an NMS or an agent,

or a system can perform the functions of both.

When a system operates as both an NMS and an agent, another NMS can require the system to:

Query managed devices and provide a summary of the information learned.

Report locally stored management information.

Overview of Basic SNMP Building Blocks

About SNMP Security



Basic Dial NMS Implementation Guide

About SNMP Security

SNMP lacks authentication capabilities, which results in a variety of security threats:

Masquerading—An unauthorized entity attempting to perform management operations by

assuming the identity of an authorized management entity.

Modification of information—An unauthorized entity attempting to alter a message generated by

an authorized entity, so the message results in unauthorized accounting management or

configuration management operations.

Message sequence and timing modifications—Occurs when an unauthorized entity reorders,

delays, or copies and later replays a message generated by an authorized entity.

Disclosure—Results when an unauthorized entity extracts values stored in managed objects.

The entity can also learn of notifiable events by monitoring exchanges between managers and

agents.

Note Because SNMP does not implement authentication, many vendors do not implement Set

operations, which reduce SNMP to a monitoring facility.

Overview of Basic SNMP Building Blocks

About SNMP Security

Basic Dial NMS Implementation Guide

Network Design for a Dial NMS Case Study

Introduction to the Case Study

This case study describes:

How one Internet service provider (ISP) designs, implements, and operates a dial network

management system (NMS) for a dial Internet access service (DIAS).

How to implement dial NMS protocols, applications, and other utilities.

THEnet is an ISP in Austin, Texas that wants to develop a dial NMS and integrate it with its existing

Network Operations Center (NOC). THEnet has two dial point-of-presences (POPs) that provide

dial-up services for the following types of customers:

Residential subscribers

Corporations who outsource their dial-up services and want to avoid the overhead of operating their

own dial POP.

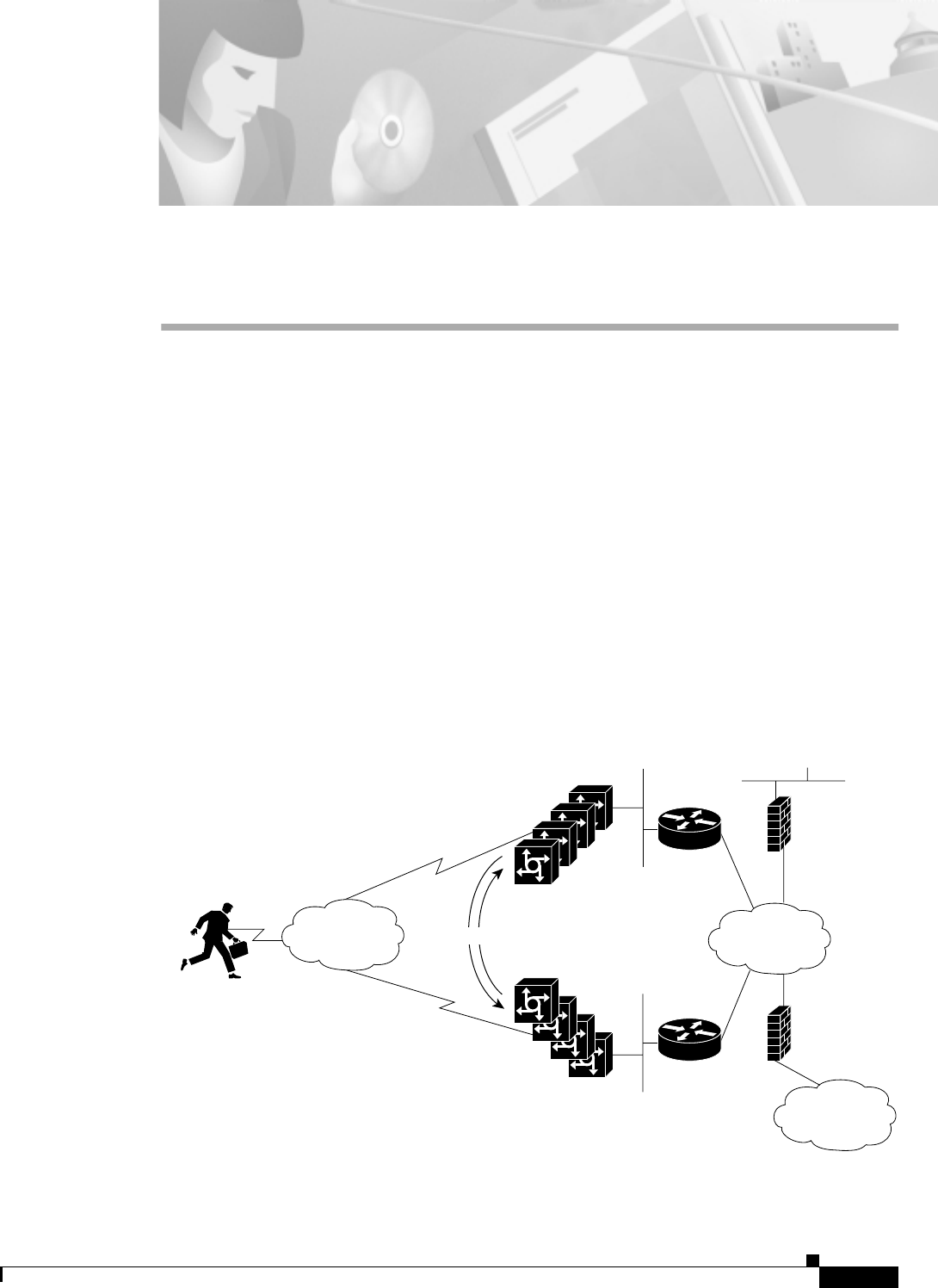

Figure 4 THEnet Operates Two POPs from One NOC

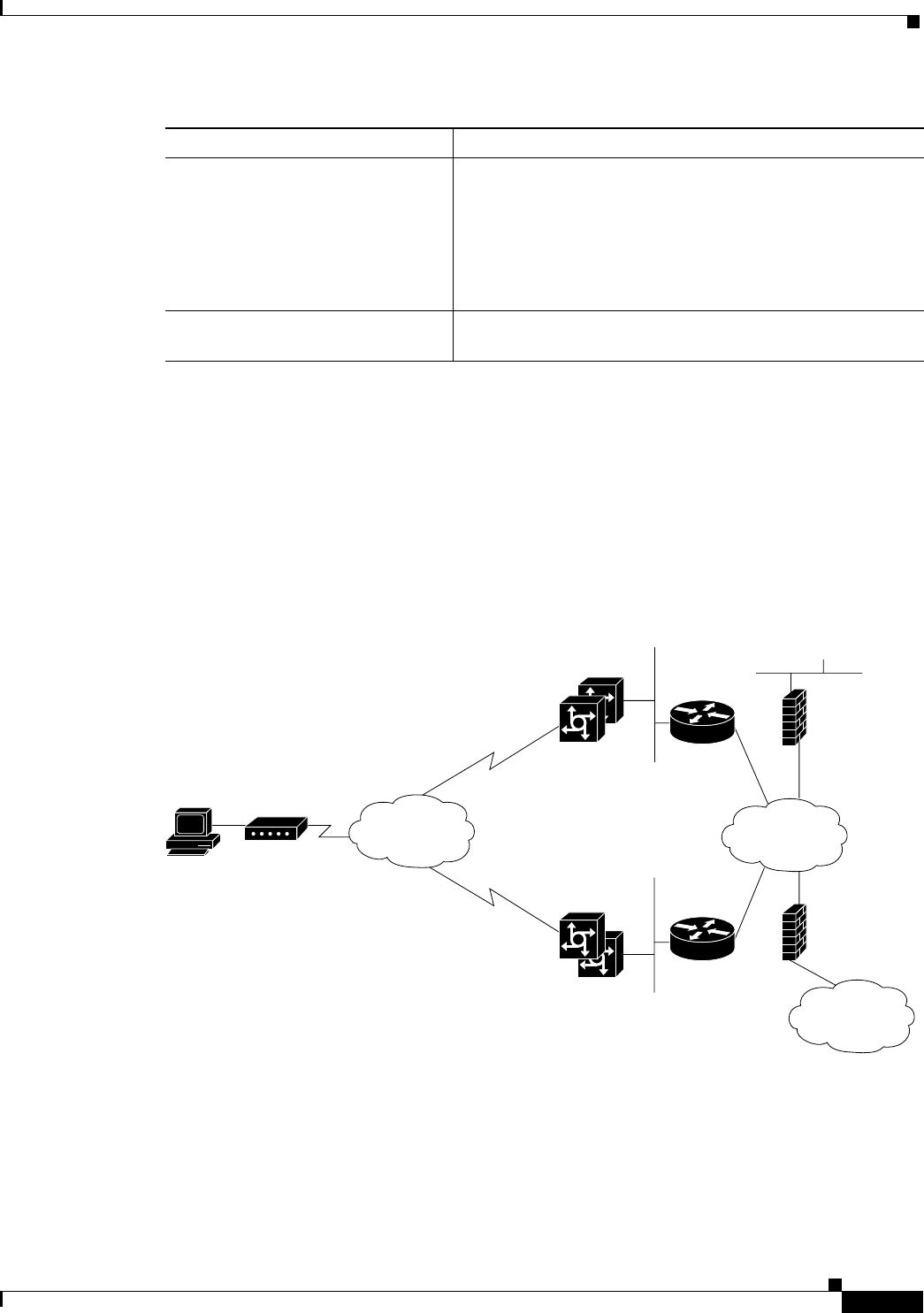

38198

POP #1

POP #2

PSTN

Internet

Redundancy

Remote modem

users

Firewall

NOC

Firewall

Backbone

router

Backbone

router

Intranet

WAN

Network Design for a Dial NMS Case Study

Benefits of a Dial NMS

Basic Dial NMS Implementation Guide

All remote modem users share a common pool of modem resources. Users can dial in to either POP.

The dial POPs are redundant. If one POP loses service, traffic is re-routed to the other POP.

Describing how traffic is re-routed is outside the scope of this case study, and the diagrams in the

case study show simplified IP paths only.

THEnet uses this model to identify the different functional areas of the dial NMS:

F = Fault management

C = Configuration management

A = Accounting management

P = Performance management

S = Security management

A dial NMS provides the FCAPS management functions for a DIAS.

Benefits of a Dial NMS

A dial NMS:

Increases network availability

Improves end-user satisfaction by improving service performance

Provides fault-isolation capabilities, which improves fault-analysis information

Reduces network support costs

Enables capacity plannning

Enables security improvements

Provides accounting (for example, billing and chargeback)

Processes important connection events and alarms for statistical analysis

Provides performance-reporting capabilities for a dial Internet access service

Enables standardized software releases (for example, software versions and configuration files)

Addresses the perception problems that are commonly associated with dial access networks

Network Design for a Dial NMS Case Study

Dial NMS Planning Questionnaire

Basic Dial NMS Implementation Guide

Dial NMS Planning Questionnaire

This planning questionnaire describes information that is essential for creating a dial NMS service

definition. A questionnaire helps network engineers make accurate design decisions and consider

alternative solutions. The network engineers at THEnet answered the design questions as shown in

Table 2.

Table 2 Network Design Questions and Answers

Network Design Questions

THEnet

Answers

What types of services does your network provide? Dial Internet access services

(V.90 analog modem services)

How many dial POP sites are you managing? Two sites in Austin, Texas

What types of network services will the DIAS support?

(Network management is based on customer requirements.)

Residential subscriber

services

Corporate-outsourcing

services

What is the user-growth projection for the next 5 years?

3 months = Current deployment requirement.

1 year = Current design plan requirement.

5 years = Future scalability plan requirement.

3 months—50,000 users

1 year—100,000 users

5 years—1 million users

What is the user-to-line ratio during busy hours? 10:1

What level of service must you guarantee to your customers? Guaranteed up time

Do you have redundant connections to the Internet? Yes

Do you have redundant connections to the NOC? Yes

What existing servers do you have available in the NOC? SNMP management server

Syslog server

AAA server

Database server

What SNMP framework management system do you want to

use? HP OpenView (HPOV)

What element management system do you use for collecting and

managing syslog? CiscoWorks 2000 Resource

Manager Essentials

(CW2000 RME)

Do you have a preferred platform and operating system for

monitoring the network? Yes

Sun Sparc, Solaris 2.6

What type of network access servers will you use? Cisco AS5800s

Do you have a staff of UNIX experts? Yes

Network Design for a Dial NMS Case Study

Dial NMS Planning Questionnaire

Basic Dial NMS Implementation Guide

Do you provide reports for any service level commitments with

your customers? If yes, what management systems will you use? Yes

Multi Router Traffic Grapher

(MRTG)

Custom-based AAA

accounting tools and database

query tools

Identify the types of users who require network management

reports.

Network managers

Network operators

Network engineers

Help desk operators

Corporations who outsource

their dial-up service

End users

What types of reports do you provide? Periodic performance reports

Billing reports

Security reports

Router operations reports

High-priority syslog reports

What format do the managers want to view the reports in? HTML web pages and

online graphs

Who will monitor the management systems? The network operations staff

How will network operators be notified of network problems? By sending e-mail to their pagers

For fault and performance management purposes, do you need to

provide call detail records? Yes

Disconnect cause codes and retrain

counters must be inspected.

What security protocols do you use for authentication,

authorization, and accounting (AAA)?

RADIUS for the remote

modem users

TACACS+ for the router

administrators in the NOC

What dial NMS freeware do you plan to use? MRTG, UCD-SNMP, Linux, and

Apache

What software tools do you plan to develop internally? Log File Rotator

Device Navigator

Modem Call Record Viewer

Web-based management

War Dialer for performance

testing (optional)

Do you plan to build and maintain customized scripts? Yes

Table 2 Network Design Questions and Answers (continued)

Network Design Questions

THEnet

Answers

Network Design for a Dial NMS Case Study

Dial NMS Service Definition

Basic Dial NMS Implementation Guide

Dial NMS Service Definition

A service definition is a statement that describes required services for a network design.

The dial NMS service definition determined for THEnet is based on:

The answers provided in Table 2

The FCAPS model

`Fault management

`Configuration management

`Accounting management

`Performance management

`Security management

Table 3 Dial NMS Service Definition for THEnet

FCAPS

Function Service Requirements and Ways to Collect Management Data

Fault

management SNMP—Use UCD-SNMP and HPOV to explore the SNMP Management

Information Bases (MIBs) and create the SNMP framework for the

dial NMS.

The Cisco IOS command-line interface (CLI)—Troubleshoot network

connectivity problems by collecting robust network statistics.

For example, use the following commands:

`show controller t1

`show isdn status

`debug ppp negotiation

`show isdn service

`debug ppp error

`debug isdn events

`debug isdn q921

`debug isdn q931

Syslog—Troubleshoot and isolate faults in the network by collecting

syslog data and modem call records. Important syslog messages will be

e-mailed daily to the operations staff.

Log file management—Collect and archive syslog data from network

access servers.

Web-based management—Navigate devices and enable HTTP access to

the CLI.

AAA—Collect accounting disconnect cause codes and view authentication

and authorization failures.

Network Design for a Dial NMS Case Study

Dial NMS Service Definition

Basic Dial NMS Implementation Guide

Configuration

management SNMP—Use CW2000 RME to archive configuration files, manage

Cisco IOS images, determine how much memory is installed, and discover

which boot ROMs are present.

CLI—Inspect and modify Cisco IOS configuration files and images.

For example, use the following commands:

`show version

`show running

`show modem version

AAA authentication—Control access to the routers.

AAA authorization—Limit CLI command access to router administrators

on a per group basis. Authorization is also used for limiting network

service assignments, such as static IP addresses and access lists.

AAA accounting—Monitor which configuration changes are made to the

routers and identify who is making the changes. Authenticated usernames

also appear in syslog.

Effective IP address management—Manage all assigned IP subnets by

using a DNS server and the application Cisco Network Registrar.

Web-based management—Navigate devices and enable HTTP access to

the CLI.

Accounting

management Send accounting information to a database that is accessible by Standard

Query Language (SQL). Archive user-accounting data for billing and

auditing purposes.

Syslog—Collect basic accounting information by using modem call

records.

CLI—Collect accounting statistics. For example, use the following

commands:

`show interface accounting

`show isdn history

`show controller t1 call-counters

`show modem log

`show modem summary

`show modem call-stats

Table 3 Dial NMS Service Definition for THEnet (continued)

FCAPS

Function Service Requirements and Ways to Collect Management Data

Network Design for a Dial NMS Case Study

Dial NMS Service Definition

Basic Dial NMS Implementation Guide

Performance

management

SNMP—For the initial installation, use MRTG to monitor key Object

Identifications (OIDs) in the device MIBs. In the future, use commercial

software applications that collect mass scale management data streams for

large numbers of access servers.

CLI—Monitor the performance of the access servers. For example, use the

following commands:

`show modem operational-status

`show modem connect-speeds

`show modem summary

`show modem call-stats

Web-based management—Navigate devices and enable HTTP access to

the CLI.

War Dialer—Test remote client PCs by using a free client simulator.

Security

management Authenticate, authorize, and account for dial access clients (modem users)

in each POP by using RADIUS.

Authenticate, authorize, and account for router administrators in the NOC

by using TACACS+.

Review the AAA service security logs.

Review the AAA server database by using SQL queries.

CLI—Inspect security information. For example, use the following

commands:

`show snmp group

`show access-lists

`show location

`show tacacs

`show radius statistics

`show logging

Web-based management—Navigate devices and enable HTTP access to

the CLI.

Table 3 Dial NMS Service Definition for THEnet (continued)

FCAPS

Function Service Requirements and Ways to Collect Management Data

Network Design for a Dial NMS Case Study

Network Topology

!

Basic Dial NMS Implementation Guide

Network Topology

Based on the dial NMS service definition in Table 3, the network engineers at THEnet defined

the network topology for the POPs and NOC.

Figure 5 Network Topology for One POP

An intranet WAN connects the two POPs together and routes traffic to the Internet. The NOC collects

management data from both POPs.

Figure 6 Network Topology for the NOC

An important design issue to consider is where to send syslog data. If syslog data is sent back to a

central site NOC, the syslog data must travel across WAN links. Estimate and monitor how much syslog

data is generated by each POP and the impact on the WAN links. Modem call records can add a

significant amount of traffic to syslog data.

38197

Cisco AS5800

access servers

Firewall

NOC

Intranet

WAN

Data Control

Backbone

router

Backbone

router

Cisco 2511

OOB console server

AAA server

(for remote client users)

HP OpenView

CW 2000

AAA

UCD-SNMP

MRTG

38199

Cisco PIX

firewall

Network Design for a Dial NMS Case Study

Hardware Requirements

!

Basic Dial NMS Implementation Guide

In this case study, THEnet initially sends syslog data across WAN links to the NOC. The WAN links are

designed to support a large network capacity in a metropolitan area. Collecting syslog locally in each

POP is a future design consideration.

Hardware Requirements

To design the dial NMS for the two POPs and the NOC, the network engineers at THEnet defined these

hardware requirements:

The following capacity-planning calculations were made to determine the number of required lines and

Cisco AS5800s for the next five years.

Basic parameters:

There are 23 available bearer channels per PRI line

There are 28 PRI lines per T3 card (644 channels)

Each Cisco AS5800 has two T3 cards

There are 1288 available bearer channels per dual T3 Cisco AS5800

Table 4 Hardware Description for Two POPs and the NOC

Hardware Purpose

4 Cisco AS5800

access servers Two access servers in each POP to provide access in to the Internet from the

PSTN. Cisco IOS Release 12.0(7)T is installed in each access server.

2 backbone

gateways Enables management data streams to enter the NOC.

Routes traffic to the intranet WAN and the Internet.

2 Cisco 2511 OOB

console servers Accesses the console ports in the Cisco AS5800s by using out-of-band (OOB)

management lines.

3 AAA servers One server in each POP to authenticate, authorize, and account for dial access

clients by using RADIUS.

One server in the NOC to authenticate, authorize, and account for router

administrators by using TACACS+.

1 Cisco PIX firewall Protects the NOC by filtering the devices that can access management services,

such as TACACS+, RADIUS, syslog, and SNMP.

3 Sun Ultra 10

workstations Operates the dial NMS inside the NOC. Solaris version 2.6 is used.

Table 5 Capacity-Planning Matrix for the Line and Chassis Requirements

Time

Busy Hour

Ratio

Users

Required

Lines

Required Chassis Calculation

AS5800s

Required

3 months 10:1 50,000 5000 5000 lines / 1288 = 3.88 chassis 4 AS5800s

1 year 10:1 100,000 10,000 10,000 lines / 1288 = 7.76 chassis 8 AS5800s

5 years 10:1 1,000,000 100,000 100,000 lines / 1288 = 77.64 chassis 78 AS5800s

Network Design for a Dial NMS Case Study

Software Requirements

Basic Dial NMS Implementation Guide

These calculations in Table 5 are based on a PRI system integration—not a system signalling 7 (SS7)

integration.

For each POP site, also plan for the following elements:

Power, space, and cooling for each Cisco AS5800

Required number of AAA servers

Required number of Cisco 2511s (OOB ports)

WAN link capacity

Software Requirements

To design the dial NMS inside the NOC, the network engineers at THEnet identified these software and

management system requirements:

Table 6 Dial NMS Software and Management System Requirements

Software and Management Systems Purpose

UCD-SNMP Uses CLI-based SNMP freeware to explore the SNMP MIBs

and OIDs that are useful for operating a dial network.

Multi Router Traffic Grapher

(MRTG), version 2.8.12 Monitors and graphs the traffic load on the network.

Web-based management Manages a network by using light-weight NMS tools (LWT).

A LWT is light on:

Budget

Staff support

Course requirements

GUI requirements

THEnet requires the following LWTs:

Device Navigator—A web page that links network devices

together.

Cisco IOS Command Center—A web page that provides

HTTP access to the CLI.

Log File Rotator—A freeware script that archives, sorts,

and deletes syslogs.

Modem Call Record Viewer—A tool that enables you to

view modem records and syslogs on a web page.

HP OpenView (HPOV) Network

Node Manager Release 5.0 Creates the SNMP framework for the dial NMS and identifies

what is breaking in the network.

CiscoWorks 2000, maintenance

release 2

Resource Manager Essentials

(RME), version 2.2

Archives configuration files, upgrades the Cisco IOS,

determines how much memory is installed, and discovers what

boot ROMs are present.

You can install HPOV and CW2000 RME on the same Sun

workstation—without conflicts.

Network Design for a Dial NMS Case Study

Configuration Design Parameters

Basic Dial NMS Implementation Guide

Configuration Design Parameters

Before THEnet can implement and operate the dial NMS, several design parameters must be defined by

the network engineers and operators.

Each dial POP requires enough IP address space for the POP to grow to its maximum size. For THEnet,

each POP must support up to 50,000 lines. Therefore, an entire class B network is initially assigned to

each POP.

Figure 7 IP Subnetting Diagram for the THEnet

To simplify IP address management, each POP uses a similar IP subnetting plan.

CiscoSecure Unix, version 2.3(3) Authenticates, authorizes, and accounts for dial access

clients in each POP by using RADIUS.

Authenticates, authorizes, and accounts for router

administrators in the NOC by using TACACS+.

Uses AAA accounting records to collect performance

data, fault data, and track router configuration changes.

War Dialer Runs performance tests by using a dial simulator and

client PCs.

Table 6 Dial NMS Software and Management System Requirements (continued)

Software and Management Systems Purpose

35229

POP #1

172.21.0.0/16

POP #2

172.22.0.0/16

Device ID

IP pool

Device ID

IP pool

PSTN

Modems

Clients

Internet

Firewall

NOC

Firewall

Access

Intranet

WAN

Network Design for a Dial NMS Case Study

Configuration Design Parameters

Basic Dial NMS Implementation Guide

Caution Do not use “public” or “private” strings, which are well known in the industry, are

common hardware defaults, and invite attacks from hackers—regardless if you use filters.

To maximize security, choose community strings that are not associated with your

personal life or company.

Table 7 IP Subnetting Plan for POP #1 and POP #2

Network Name Assigned IP Subnet Description

POP #1 172.21.0.0/16 Class B IP subnet assigned to POP #1.

POP #2 172.22.0.0/16 Class B IP subnet assigned to POP #2.

NOC 172.23.10.0/24 Class C IP subnet assigned to the NOC.

Access 172.21.101.0/24

172.21.102.0/24

172.22.101.0/24

172.22.102.0/24

Primary and secondary class C access Ethernet subnets.

All the access devices in each POP are directly connected

to these subnets.

DeviceID 172.21.10.0/24

172.22.10.0/24 Identifies each Cisco IOS device with a unique, fixed, and

stable loopback IP address for network management

purposes.

One IP address is assigned to the loopback 0 interface of

each Cisco IOS device.

One IP address block is used to simplify IP-security

filtering at the NOC. This technique protects the NOC

from devices that should not access management

services, such as TACACS+, RADIUS, syslog, and

SNMP.

IP pool 172.21.103.0/24

172.21.104.0/22

172.22.103.0/24

172.22.104.0/22

Hosts a pool of IP addresses for the dial access clients

with modems.

This IP assignment provides 1280 IP addresses to each

POP. The access servers create the IP routes to support

the IP pools.

Few IP routes are summarized to the backbone instead of

advertising 1280 host routes.

Table 8 SNMP Community Strings Used at THEnet

Community Strings Purpose

5urf5h0p Assigns a read-only (RO) community string to enable SNMP polling and

SNMP get requests.

5crapmeta1 Assigns a read-write (RW) community string to enable router configuration

changes.

Network Design for a Dial NMS Case Study

Implementation and Operation Tasks

Basic Dial NMS Implementation Guide

The information in Table 9 is posted and maintained on web-based management pages. Easy access to

this information reduces network downtime.

Implementation and Operation Tasks

THEnet implements and operates the dial NMS in two phases:

Phase A—Exploring and setting up basic dial NMS functions by using free management software

and light-weight NMS tools:

Task 1—Enabling SNMP in a Cisco IOS Device

Task 2— Exploring SNMP Capabilities by Using UCD-SNMP

Task 3—Using MRTG to Monitor and Graph Traffic Loads

Task 4—Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

Task 5—Setting Up a Web Portal for the Dial NMS

Phase B—Monitoring and maintaining basic dial NMS functions by using commercially available

management systems:

Task 6—Managing IP Addresses by Using DNS

Task 7—Using HP OpenView to Create the SNMP Framework

Task 8—Using CiscoWorks 2000 Resource Manager Essentials

Note Providing information for integrating high-end management systems is

beyond the scope of this case study.

The examples in this document are taken from a Sun Microsystems workstation running Solarus 2.6.

Some commands and filenames may vary slightly on other Unix systems, such as Linux and HP UX.

Table 9 T1 Support Management Information at THEnet

T1 Dial-in Number Circuit ID

Support

Contract

Contact Phone

Number

512-111-2222 72ABCA047006-001PT ABC 512-555-1212

512-333-4444 72ABCA047006-002PT DEF 512-555-1212

Network Design for a Dial NMS Case Study

Implementation and Operation Tasks

Basic Dial NMS Implementation Guide

Dial MIBs and OIDs Used in the Case Study

This section describes the MIBs and OIDs used to manage the dial Internet access service in the

case study.

See the following tables and choose the variables you want to use in your network. Explore the OIDs

and determine whether to poll and graph the results on a regular basis.

To explore the MIBs and OIDs, use UCD-SNMP. For more information, see the

“Task 2— Exploring SNMP Capabilities by Using UCD-SNMP” section on page 45.

To graph the trending statistics for a specific OID, use Multi Router Traffic Grapher (MRTG).

For more information, see the “Task 3—Using MRTG to Monitor and Graph Traffic Loads” section

on page 53.

Caution Be cautious when polling network elements. Polling OIDs that retrieve large amounts of

data can cause CPU problems on a Cisco IOS device. For example, do not get the ARP

table, walk large portions of a MIB tree, poll the wrong OID too frequently, or get statistics

that have an entry for every interface. For example, a Cisco 7200 may have 10 interfaces;

whereas, a Cisco AS5800 may have 3,000 interfaces.

For a complete list of available Cisco MIBs, go to

http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml

For a list of Cisco-supported traps, go to http://www.cisco.com/public/mibs/traps

Table 10 MIBs to Consider Using for the Dial NMS

Dial Related System Management MIB II / Interfaces

CISCO-POP-MGMT-MIB1OLD-CISCO-CHASSIS RFC1213-MIB

CISCO-MODEM-MGMT-MIB CISCO-MEMORY-POOL-MIB IF-MIB

CISCO-VPDN-MGMT-MIB CISCO-SYSTEM-MIB CISCO-CAS-IF-MIB

CISCO-AAA-SESSION-MIB CISCO-FLASH-MIB CISCO-ISDN-MIB

CISCO-AAA-SERVER-MIB CISCO-CONFIG-MAN-MIB

CISCO-CALL-HISTORY-MIB CISCO-PROCESS-MIB

CISCO-DIAL-CONTROL-MIB

CISCO-CALL-RESOURCE-POOL-MIB

1. This MIB was enhanced in Cisco IOS Release 12.1(2)XH and later releases.

Dial MIBs and OIDs Used in the Case Study

Basic Dial NMS Implementation Guide

For more information about other NMS enhancements for dial, see Call Tracker plus ISDN and

AAA Enhancements for the Cisco AS5300 and Cisco AS5800 at

http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121newft/121limit/121x/121xh

/121xh_2/dt_cltrk.htm

Note To protect a network access server from over polling, use the SNMP get bulk feature.

It’s available in SNMP v2 in CISCO-BULK-FILE-MIB.

Table 11 and Table 12 identify useful OIDs and variables within selected MIBs from Table 10.

Equivalent Cisco IOS commands are shown wherever applicable. Sometimes data is more clearly

inspected by using OIDs and a graphing tool instead of CLI commands.

To see the complete structure of the CISCO-POP-MGMT-MIB and CISCO-MODEM-MGMT-MIB,

go to the following URLs:

CISCO-POP-MGMT-MIB

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/dialnms/popmgt.txt

CISCO-MODEM-MGMT-MIB

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/dialnms/modemmgt.txt

Table 11 Description of CISCO-POP-MGMT-MIB

Description OID

Equivalent Cisco IOS

Command

Number of analog calls connected cpmISDNCfgBChanInUseForAn

alog

.1.3.6.1.4.1.9.10.19.1.1.2

show modem summary

Number of active DS0s in use cpmActiveDS0s

.1.3.6.1.4.1.9.10.19.1.1.4

show controllers t1

call-counters

show isdn memory (See the

number of call control

blocks, CCBs, in the

command output.)

Total call count per DS0 cpmCallCount

.1.3.6.1.4.1.9.10.19.1.1.1.1.7

show controllers t1

call-counters

Total time in use for each DS0 cpmTimeInUse

.1.3.6.1.4.1.9.10.19.1.1.1.1.8

show controllers t1

call-counters

Total octets received on a DS0 cpmInOctets

.1.3.6.1.4.1.9.10.19.1.1.1.1.9

None available

Total octets transmitted on a DS0 cpmOutOctets

.1.3.6.1.4.1.9.10.19.1.1.1.1.10

None available

Total packets received on a DS0 cpmInPackets

.1.3.6.1.4.1.9.10.19.1.1.1.1.11

None available

Dial MIBs and OIDs Used in the Case Study

Basic Dial NMS Implementation Guide

Total packets transmitted on a DS0 cpmOutPackets

.1.3.6.1.4.1.9.10.19.1.1.1.1.12

None available

Number of active PPP calls cpmPPPCalls

.1.3.6.1.4.1.9.10.19.1.1.5

None available

Number of active V120 calls cpmV120Calls

.1.3.6.1.4.1.9.10.19.1.1.6

None available

Number of active V110 calls cpmV110Calls

.1.3.6.1.4.1.9.10.19.1.1.7

None available

Maximum number of DS0s used

simultaneously cpmActiveDS0sHighWaterMark

.1.3.6.1.4.1.9.10.19.1.1.8

show controllers t1

call-counters

Type of call currently connected to

each DS0 cpmDS0CallType

.1.3.6.1.4.1.9.10.19.1.1.1.1.5

None available

Table 11 Description of CISCO-POP-MGMT-MIB (continued)

Description OID

Equivalent Cisco IOS

Command

Table 12 Description of CISCO-MODEM-MGMT-MIB

Variable Description OID

Equivalent Cisco IOS

Command

Modems available to take calls cmSystemModemsAvailable

.1.3.6.1.4.1.9.9.47.1.1.7

show modem summary

Average call duration for each

modem cmCallDuration

.1.3.6.1.4.1.9.9.47.1.3.1.1.9

show modem

Number of times each modem

failed to answer cmRingNoAnswers

.1.3.6.1.4.1.9.9.47.1.3.3.1.1

show modem

Number of times each modem

failed to train up successfully cmIncomingConnectionFailures

.1.3.6.1.4.1.9.9.47.1.3.3.1.2

show modem

Number of times each modem

successfully trained up cmIncomingConnectionCompleti

ons

.1.3.6.1.4.1.9.9.47.1.3.3.1.3

show modem

Current TX speed for all the

modems cmTXRate

.1.3.6.1.4.1.9.9.47.1.3.1.1.14

show modem

connect-speeds

Current RX speed for all the

modems cmRXRate

.1.3.6.1.4.1.9.9.47.1.3.1.1.15

show modem

connect-speeds

List of users currently connected

and authenticated

cpmActiveUserID

.1.3.6.1.4.1.9.10.19.1.3.1.1.3

show caller

Call durations for currently

connected and authenticated users cpmActiveCallDuration

.1.3.6.1.4.1.9.10.19.1.3.1.1.8

show caller

Dial MIBs and OIDs Used in the Case Study

"

Basic Dial NMS Implementation Guide

List of user CLIDs cpmActiveRemotePhoneNumber

.1.3.6.1.4.1.9.10.19.1.3.1.1.2

show caller ip

show isdn history

List of called DNIS phone numbers cpmActiveLocalPhoneNumber

.1.3.6.1.4.1.9.10.19.1.3.1.1.13

show caller ip

List of TTY interfaces in use cpmActiveTTYNumber

.1.3.6.1.4.1.9.10.19.1.3.1.1.14

show caller ip

List of which user is using which

modem slot cpmActiveModemSlot

.1.3.6.1.4.1.9.10.19.1.3.1.1.6

show caller user

List of which user is using which

modem port cpmActiveModemPort

.1.3.6.1.4.1.9.10.19.1.3.1.1.7

show caller user

List of which IP addresses are

currently in use cpmActiveUserIpAddr

.1.3.6.1.4.1.9.10.19.1.3.1.1.4

show caller ip

Table 12 Description of CISCO-MODEM-MGMT-MIB (continued)

Variable Description OID

Equivalent Cisco IOS

Command

"

Basic Dial NMS Implementation Guide

Task 1Enabling SNMP in a Cisco IOS Device

About Enabling SNMP

In this case study:

Each Cisco IOS device is identified by a fixed and stable loopback IP address for network

management purposes. The IP address functions as an device ID.

One block of loopback IP addresses is used to simplify IP-security filtering at the NOC. This

technique protects the NOC from devices that should not access management services, such as

TACACS+, RADIUS, syslog, and SNMP.

The dial NMS environment interfaces with SNMP through these applications:

`UCD-SNMP

`SNMP Commander

`Multi-Router Traffic Grapher (MRTG)

`HP OpenView (HPOV)

`Cisco Works 2000 Resource Manager Essentials (CW2000 RME)

Caution Avoid using well-known community strings, such as “public,” “private,” or “cisco.”

These strings are easily guessed and leave your device open to malicious attacks or

inadvertent access. To further enhance SNMP security, apply access lists to the community

strings.

Task 1Enabling SNMP in a Cisco IOS Device

About Enabling SNMP

Basic Dial NMS Implementation Guide

Enabling SNMP

To enable SNMP on a Cisco IOS device in the network, follow these steps.

Note In some software releases, the commands snmp-server engineID local and

snmp-server packetsize are enabled by default.

Step 1 To use Loopback0 for device management and set SNMP traps to use that IP address, enter the

following commands. This configuration also eliminates the need to change IP addresses if a different

interface is used to send traps.

interface Loopback0

ip address 172.21.10.1 255.255.255.255

snmp-server trap-source Loopback0

Step 2 To enable a basic SNMP configuration, enter the following commands. See Table 13 for descriptions of

each command.

snmp-server community 5urf5h0p RO

snmp-server community 5crapmeta1 RW

snmp-server location Lake Travis (Austin) Dial POP

snmp-server contact net-admin@aurora.the.net

snmp-server enable traps

snmp host 172.23.10.1 traps SNMPv1

Table 13 SNMP Command Descriptions

Command Purpose

snmp-server community 5urf5h0p RO Assigns a read only (RO) community string. Only get

requests (queries) can be performed.

The RO community string in this example (5urf5h0p)

allows Get requests but no Set operations. The NMS and the

managed device must reference the same community string.

snmp-server community 5crapmeta1 RW Assigns a read write (RW) community string. SNMP

applications require RW access for Set operations.

The RW community string in this example (5crapmeta1)

enables write access to OID values. For example, you can

shut down an interface, download a configuration file, or

change a password.

snmp-server location Lake Travis

(Austin) Dial POP Specifies the location of the device for administrative

purposes.

snmp-server contact admin

net-admin@aurora.the.net Specifies a contact name to notify whenever a MIB problem

occurs.

Task 1Enabling SNMP in a Cisco IOS Device

About Enabling SNMP

Basic Dial NMS Implementation Guide

snmp-server enable traps Enables traps for unsolicited notifications for configuration

changes, environmental variables, and critical device

conditions.

This command enables 14+ other commands for distinct

types of SNMP traps. Edit this command list to include only

the traps that are used by your network environment.

snmp host 172.23.10.1 traps SNMPv1 Identifies the host destination for the traps. Traps are sent in

the SNMP v1 format in this case study.

Table 13 SNMP Command Descriptions (continued)

Command Purpose

Task 1Enabling SNMP in a Cisco IOS Device

About Enabling SNMP

Basic Dial NMS Implementation Guide

Task 2 Exploring SNMP Capabilities by Using

UCD-SNMP

About Using UCD-SNMP

Researching and identifying which functions are available in SNMP are part of building a dial NMS

environment. In this case study, UCD-SNMP, an opensource freeware application that allows access to

SNMP functions from a command line interface (CLI), is used to explore the capabilities of SNMP.

There are many benefits to using UCD-SNMP.

You can:

Gain a fundamental understanding of how SNMP functions and protocols work in a dial access

environment. This knowledge provides a solid foundation for using automated and GUI-based

SNMP applications.

Learn how to use a low-level troubleshooting capability in the event that other SNMP applications

produce questionable results.

Poll any OID and verify SNMP agent responses.

Use stable and reliable CLI commands. UCD-SNMP is unobstructed by GUI functionality.

Explore and research MIB content.

Discover what functions are available to manage a Cisco IOS device.

Create customized scripts and tools.

For this case study, the dial engineers at THEnet created a tool called SNMP Commander. The tool

aided the MIB research task by enabling dial engineers to build web-based object identification (OIDs)

bookmarks, which they could go to without using a keyboard.

By using UCD-SNMP and SNMP Commander, the dial engineers at THEnet identified which items the

commercial NMS applications would monitor within the network operations center (NOC).

Task 2 Exploring SNMP Capabilities by Using UCD-SNMP

About Using UCD-SNMP

Basic Dial NMS Implementation Guide

Installing UCD-SNMP and Downloading Cisco MIBs

To install UCD-SNMP and download MIBs from the Cisco FTP site, follow these steps.

Note You can also download individual MIBs from

http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml

Step 1 Go to http://ucd-snmp.ucdavis.edu

Step 2 Download, compile, and install UCD-SNMP. In this case study, the UCD-SNMP commands are

installed in the /usr/local/bin directory.

Step 3 From the Cisco FTP site, download the MIBs into the /usr/local/share/snmp/mibs directory on your

Solaris workstation. By using the following Unix commands, you can copy the entire bundled v1 MIB

tar file from ftp.cisco.com.

cd /usr/local/share/snmp/mibs

ftp ftp.cisco.com

cd /pub/mibs/v1

bin

get v1.tar.gz

exit

Step 4 Decompress and untar the files in the /usr/local/share/snmp/mibs directory:

gzip -d v1.tar.gz

tar -xvf v1.tar

Note There are many MIBs in the tar file that you may not use. Regardless, Cisco

recommends you keep all the MIBs on file to support your evolving network

needs.

Exploring SNMP MIBs for Dial Netwo rks

To explore the MIBs for a Cisco IOS device by using SNMP CLI commands, follow the steps in this

section. Poll OID variables by using the commands snmpget, snmpwalk, and snmptable.

Note This section assumes you already have a basic understanding of UCD-SNMP

and know how to use its CLI commands.

Step 1 To determine the last restart reason for the router, enter the snmpget command and the relevant OID.

In the following example, the restart reason is “reload.”

onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p .1.3.6.1.4.1.9.2.1.2.0

Counter32 (is a reserved word): At line 6 in /usr/local/share/snmp/mibs/SNMPv2-S

MI-V1SMI.my

Gauge32 (is a reserved word): At line 7 in /usr/local/share/snmp/mibs/SNMPv2-SMI

-V1SMI.my

Integer32 (is a reserved word): At line 8 in /usr/local/share/snmp/mibs/SNMPv2-S

MI-V1SMI.my

Did not find 'mib-2' in module RFC1213-MIB (/usr/local/share/snmp/mibs/IANAifTyp

e-MIB-V1SMI.my)

Task 2 Exploring SNMP Capabilities by Using UCD-SNMP

About Using UCD-SNMP

Basic Dial NMS Implementation Guide

enterprises.9.2.1.2.0 = "reload"

If SNMP-parsing errors are generated, suppress them by appending 2>/dev/null to the end of the

command. Standard output is tagged as 1. Error output is tagged as 2.

onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p .1.3.6.1.4.1.9.2.1.2.0 2> /dev/null

enterprises.9.2.1.2.0 = "reload"

onionring:~$

Note If no response is returned by the SNMP agent, allow error messages to print to the

screen by removing the 2>/dev/null argument.

Step 2 Check the system up time by entering the snmpget command and sysUpTime OID:

onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p .1.3.6.1.2.1.system.sysUpTime.0 2>

/dev/null

system.sysUpTime.0 = Timeticks: (45450609) 5 days, 6:15:06.09

onionring:~$

Step 3 To gather basic configuration management information about the Cisco IOS device, enter the

snmpwalk command and the system OID.

onionring:~$ snmpwalk travis-nas-01.the.net 5urf5h0p system 2> /dev/null

system.sysDescr.0 = "Cisco Internetwork Operating System Software ..IOS (tm) 5800

Software (C5800-P4-M), Version 12.1(2a)T1, RELEASE SOFTWARE (fc2)..Copyright

system.sysObjectID.0 = OID: enterprises.9.1.188

system.sysUpTime.0 = Timeticks: (45492606) 5 days, 6:22:06.06

system.sysContact.0 = "net-admin@aurora.the.net"

system.sysName.0 = "travis-nas-01.the.net"

system.sysLocation.0 = "Lake Travis (Austin) Dial POP"

system.sysServices.0 = 78

system.8.0 = Timeticks: (0) 0:00:00.00

onionring:~$

Step 4 Change the OID environmental prefix by entering the commands prefix and export prefix. This step

reduces the number of key strokes you must enter at the command line.

onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p .1.3.6.1.4.1.9.2.1.2.0 2> /

dev/null

enterprises.9.2.1.2.0 = "reload"

onionring:~$ PREFIX=.1.3.6.1.4.1.9

onionring:~$ export PREFIX

onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p 2.1.2.0 2> /dev/null

enterprises.9.2.1.2.0 = "reload"

onionring:~$

The UCD-SNMP application attaches a prefix to the requested variable unless it is fully qualified (for

example, unless the variable starts with a period “.”). By default, the prefix points to the MIB-II node

.1.3.6.1.2.1 location. The Cisco enterprises prefix points to .1.3.6.1.4.1.9

Step 5 Inspect the IP address entry table by entering the snmptable command and ipAddrTable OID:

onionring:~$ snmptable travis-nas-01.the.net 5urf5h0p ip.ipAddrTable 2> /dev/null

SNMP table: ip.ipAddrTable.ipAddrEntry

ipAdEntAddr ipAdEntIfIndex ipAdEntNetMask ipAdEntBcastAddr ipAdEntReasmMaxSize

172.21.10.1 351 255.255.255.255 1 18024

172.21.101.20 289 255.255.255.0 1 18024

onionring:~$

Task 2 Exploring SNMP Capabilities by Using UCD-SNMP

About Using UCD-SNMP

Basic Dial NMS Implementation Guide

Step 6 Poll the interfaces table and redirect the output to a text file by entering the snmptable command and

ifTable OID:

onionring:~$ snmptable travis-nas-01.the.net 5urf5h0p interfaces.ifTable

> /export/home/www/travis-nas-01_ifTable.txt

onionring:~$

Note Do not forget the space between > and /export

Step 7 Inspect the contents of the interfaces table by entering the cat command. In the following Cisco AS5800

example, notice the interface descriptions (ifDescr) and types (ifType). There is one PPP and DS0 entry

for each serial interface.

onionring:~$ cat /export/home/www/travis-nas-01_ifTable.txt

SNMP table: interfaces.ifTable.ifEntry

ifIndex ifDescr ifType ifMtu ifSpeed ........

1 "Async1/2/00" other 1500 9000

2 "Async1/2/01" other 1500 9000

3 "Async1/2/02" other 1500 9000

289 "FastEthernet0/0/0" ethernetCsmacd 1500 100000000

290 "Null0" other 1500 4294967295

291 "T1 1/0/0" ds1 ? ?

292 "T1 1/0/1" ds1 ? ?

301 "T1 1/0/10" ds1 ? ?

302 "T1 1/0/11" ds1 ? ?

303 "Serial1/0/0:0" propPointToPointSerial 1500 64000

304 "Serial1/0/0:1" propPointToPointSerial 1500 64000

326 "Serial1/0/0:23" lapd 1500 64000

327 "Serial1/0/0:23-Signaling" isdn 1500 64000

328 "Serial1/0/0:0-Bearer Channel" ds0 ? ?

329 "Serial1/0/0:1-Bearer Channel" ds0 ? ?

350 "Serial1/0/0:22-Bearer Channel" ds0 ? ?

351 "Loopback0" softwareLoopback 15144294967295

To view the complete, unabridged output for this example, go to

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/dialnms/iftable.txt

Task 2 Exploring SNMP Capabilities by Using UCD-SNMP

About SNMP Commander

Basic Dial NMS Implementation Guide

About SNMP Commander

The dial engineers at THEnet created a tool called SNMP Commander that:

Provides web-based access to UCD-SNMP CLI commands.

Builds web-based OID bookmarks, which enable you to go to OIDs without using a keyboard.

Aids the MIB exploration and NMS design tasks.

By using SNMP Commander and a web browser, you can:

Create URL links for the network staff and help desk.

Identify target OIDs you want to graph by using MRTG.

Inspect thresholds and events to monitor by using other NMS systems.

The following two components work together to create SNMP Commander:

snmpcmds.dat—A comma separated variables file, which includes a list of SNMP CLI commands.

This file is read by the snmpcmds.pl script.

For the source code, go to

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/dialnms/snmpdat.txt

snmpcmds.pl—A script that loads and reads a data file. You can use additional data files by

creating multiple instances of the original script and altering the data file descriptor.

For the source code, go to

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/dialnms/snmppl.txt

Setting Up SNMP Commander

To set up SNMP Commander, follow these steps:

Step 1 From CCO, download snmpcmds.dat and snmpcmds.pl

Step 2 Customize the files for your environment. When you find useful OIDs, enter them in the snmpcmds.dat

file and use the web-based form of the script to research the MIBs. The web tool functions like an SNMP

OID bookmarker.

Step 3 Test SNMP Commander by using a web browser:

a. Select an SNMP command and OID.

b. Select an SNMP agent (Cisco IOS device).

c. Click Submit.

d. Inspect the program and query messages.

Task 2 Exploring SNMP Capabilities by Using UCD-SNMP

About SNMP Commander

#

Basic Dial NMS Implementation Guide

Figure 8 SNMP Commander Tool

Task 2 Exploring SNMP Capabilities by Using UCD-SNMP

About SNMP Commander

#

Basic Dial NMS Implementation Guide

Figure 9 Polling Results from the table cpmActiveCallSummaryTable Command

Task 2 Exploring SNMP Capabilities by Using UCD-SNMP

About SNMP Commander

Basic Dial NMS Implementation Guide

Task 3Using MRTG to Monitor and Graph

Traffic Loads

About MRTG

Multi Router Traffic Grapher (MRTG) is a free performance management application for Unix that

monitors SNMP statistics from any SNMP capable device on your network and performs the following

functions:

Captures, stores, and graphically presents SNMP data. By default, a web page with four graphs per

MIB object (OID) is created by MRTG. The graphs show the variation of MIB data over time.

Runs from the crontab. Every five minutes, a cron job runs MRTG to query a user-configured list

of OIDs and network devices. After each data collection cycle, the MRTG perl script posts updated

graphs to a web page.

Efficiently compresses and archives data samples to create graphs.

Enables you to determine if trending data is useful for monitoring your environment before you

invest in costly network performance software. If trending data is critical to manage your network,

it may be necessary to purchase a commercial network performance package, such as Concord

Network Health. However, you may find that MRTG is all you need.

Figure 10 MRTG Polls for OIDs; OID Values that Are Returned to MRTG

35193

Polling OID

Returning OID valves

Cisco

IOS

devices

MRTG

Task 3Using MRTG to Monitor and Graph Traffic Loads

About Selecting Dial OIDs

Basic Dial NMS Implementation Guide

For each OID referenced in the configuration file, MRTG creates the following graphs:

Daily graph—5 minute average data points with approximately 33 hours of data presented.

Weekly graph—30 minute average data points with approximately 8 days of data presented.

Monthly graph—2 hour average data points with approximately 5 weeks of data presented.

Yearly graph—1 day average data points with approximately 1 year of data presented.

To quickly create images by using the GD graphics library, go to http://www.boutell.com/gd

About Selecting Dial OIDs

To select which dial OIDs to query when monitoring dial-up activity, see the OIDs listed in the

following tables:

Circuit utilization OIDs (Table 14)

Modem information OIDs (Table 15)

User information OIDs (Table 16)

Caution Be cautious when polling network elements. Polling OIDs that retrieve large amounts of

data can cause CPU problems on a Cisco IOS device. For example, do not get the ARP

table, walk large portions of a MIB tree, poll the wrong OID too frequently, or get statistics

that have an entry for every interface. For example, a Cisco 7200 may have 10 interfaces;

whereas, a Cisco AS5800 may have 3,000 interfaces.

In this case study, the tools UCD-SNMP and SNMP Commander were used to inspect and understand

the MIBs. Based on this research, the network engineers at THEnet identified the OIDs in the following

tables to program in to MRTG.

To see the complete structure of the CISCO-POP-MGMT-MIB and CISCO-MODEM-MGMT-MIB,

go to the following URLs:

CISCO-POP-MGMT-MIB

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/dialnms/popmgt.txt

CISCO-MODEM-MGMT-MIB

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/dialnms/modemmgt.txt

Table 14 Circuit Utilization OIDs

Variable Base MIB and OID Description

Analog calls CISCO-POP-MGMT-MIB

1.3.6.1.4.1.9.10.19.1.1.2

The number of analog calls connected.

Active DS0s CISCO-POP-MGMT-MIB

1.3.6.1.4.1.9.10.19.1.1.4

The total number of calls connected.

Call count CISCO-POP-MGMT-MIB

1.3.6.1.4.1.9.10.19.1.1.1.1.7

The number of calls that have occupied a

specific DS0.

Task 3Using MRTG to Monitor and Graph Traffic Loads

About Selecting Dial OIDs

Basic Dial NMS Implementation Guide

Time in use CISCO-POP-MGMT-MIB

1.3.6.1.4.1.9.10.19.1.1.1.1.8

The time for each DS0.

PPP calls CISCO-POP-MGMT-MIB

1.3.6.1.4.1.9.10.19.1.1.5

The number of active PPP calls.

DS0 high

water mark CISCO-POP-MGMT-MIB

1.3.6.1.4.1.9.10.19.1.1.8

The maximum number of DS0s ever used

simultaneously.

Table 14 Circuit Utilization OIDs (continued)

Variable Base MIB and OID Description

Table 15 Modem Information OIDs

Variable Base MIB and OID Description

Modems

available CISCO-MODEM-MGMT-MIB

1.3.6.1.4.1.9.9.47.1.1.7

The number of modems currently available to

take calls.

Average call

duration CISCO-MODEM-MGMT-MIB

1.3.6.1.4.1.9.9.47.1.3.1.1.9

The average call duration for each modem in the

NAS.

No answers CISCO-MODEM-MGMT-MIB

1.3.6.1.4.1.9.9.47.1.3.3.1.1

The number of calls not answered by a modem.

Failed Train CISCO-MODEM-MGMT-MIB

1.3.6.1.4.1.9.9.47.1.3.3.1.2

The number of modem calls that failed to train

up.

It’s normal behavior for most modems to not

have a 100 percent success rate.

Successful

train CISCO-MODEM-MGMT-MIB

1.3.6.1.4.1.9.9.47.1.3.3.1.3

The number of modem calls that successfully

trained up.

It’s normal for most modems to not have a 100

percent success rate.

TX speed CISCO-MODEM-MGMT-MIB

1.3.6.1.4.1.9.9.47.1.3.1.1.14

The current transmit speed (TX) of all the

modems in the NAS.

If a modem does not have an active call, zero is

returned.

RX speed CISCO-MODEM-MGMT-MIB

1.3.6.1.4.1.9.9.47.1.3.1.1.15

The current receive speed (RX) of all the

modems in the NAS.

If a modem does not have an active call, zero is

returned.

Task 3Using MRTG to Monitor and Graph Traffic Loads

How to Inspect and Interpret Data

Basic Dial NMS Implementation Guide

How to Inspect and Interpret Data

Internet users spend approximately 80 percent of their time reading information—not downloading

data. Modem traffic is very limited on a per user basis. People cannot read as fast as modems can

download. Therefore, watch for the following types of trends and performance data on the access

servers:

PPP sessions in use.

DS0s in use.

Modem calls that have been rejected.

The number of calls coming in to the access server and at what time.

Spikes or dips in total calls connected outside the normal call pattern.

Long-term trends that may mean that you need to upgrade components in your network.

Throughput that has been reduced to unacceptable levels (potential bottlenecks).

For disaster recovery purposes, when fail over events and routing swaps occur, look for drops in the

primary data path and jumps in the backup path.

The utilization of the IP backbone, such as a Frame Relay link or Ethernet campus.

Table 16 User Information OIDs

Variable Base MIB and OID Description

Active user ID CISCO-MODEM-MGMT-MIB

.1.3.6.1.4.1.9.10.19.1.3.1.1.3

List of users currently connected

and authenticated.

Active call duration CISCO-MODEM-MGMT-MIB

.1.3.6.1.4.1.9.10.19.1.3.1.1.8

Call durations for currently

connected and authenticated users.

User CLID CISCO-MODEM-MGMT-MIB

.1.3.6.1.4.1.9.10.19.1.3.1.1.2

List of user Caller IDs (CLID).

DNIS phone number CISCO-MODEM-MGMT-MIB

.1.3.6.1.4.1.9.10.19.1.3.1.1.13

List of called Dialed Number

Information Service (DNIS) phone

numbers.

Active TTY CISCO-MODEM-MGMT-MIB

.1.3.6.1.4.1.9.10.19.1.3.1.1.14

List of asynchronous terminal lines

(TTY) in use.

Active modem slot CISCO-MODEM-MGMT-MIB

.1.3.6.1.4.1.9.10.19.1.3.1.1.6

List of which user is using which

modem slot.

Active modem port CISCO-MODEM-MGMT-MIB

.1.3.6.1.4.1.9.10.19.1.3.1.1.7

List of which user is using which

modem port.

Active user IP CISCO-MODEM-MGMT-MIB

.1.3.6.1.4.1.9.10.19.1.3.1.1.4

List of which IP addresses are

currently in use.

Task 3Using MRTG to Monitor and Graph Traffic Loads

How to Inspect and Interpret Data

Basic Dial NMS Implementation Guide

The Connection Success Rate (CSR) is an important metric for tracking and measuring the stability of

a dial service. The CSR is defined by the number of modems that successfully train up and go in to

connected state. In addition to the CSR, you must track and analyze additional areas. For example,

SNMP MIBs can be used to measure the success rate for items such as PPP, AAA, and IP negotiation.

To collect the CSR service level counters, inspect the connection success and failure rate by using

modem OIDs or the show modem Cisco IOS command. SNMP, rather than the Cisco IOS CLI, is the

preferred method to collect these counters. SNMP can scale to support large numbers of access servers.

The following graphs show the DS0s and PPP sessions in use for 70,000 modem users calling in to a

dial-up service at a large university. The graphs are taken from one Cisco AS5300 in a large dial-up

modem pool.

Figure 11 Daily Graph: DS0s and PPP Sessions in Use

The jagged saw-tooth pattern at the top of the graph indicates a telephone-switch hunt group for the dial

lines passing by the access servers. A “jump up” occurs each time the hunt group passes by a different

T1 line. For a hunt group that rotates in a round-robin fashion, a jagged saw-tooth pattern is normal.

Figure 12 Weekly Graph: DS0s and PPP Sessions in Use

Task 3Using MRTG to Monitor and Graph Traffic Loads

How to Inspect and Interpret Data

Basic Dial NMS Implementation Guide

Figure 13 Monthly Graph: DS0s and PPP Sessions in Use

MRTG efficiently compresses and archives data to create graphs. For example, you can keep

information for an entire year on a server without using much disk space.

Figure 14 Yearly Graph: DS0s and PPP Sessions in Use

The configuration file used to create these graphs is posted at

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/dialnms/mrtg53.txt

Note the numeric OIDs in the configuration file.

Task 3Using MRTG to Monitor and Graph Traffic Loads

How to Inspect and Interpret Data

Basic Dial NMS Implementation Guide

Creating and Editing a Configuration File

Because dial interfaces normally go up and down as calls connect and disconnect, monitor counters

such as:

PPP sessions in use

DS0s in use

Modem calls that have been rejected

Depending on how the dial interfaces are used on a access server, different types of counters may not

be valuable to monitor, such as byte-packet counters on the interfaces in Table 17.

To enable MRTG to locate a device and poll it for network statistics, follow these steps:

Step 1 Collect the hostnames, IP address, and read only (RO) SNMP community strings for the devices to be

monitored.

Step 2 Download, compile, and install MRTG on to a Solaris workstation:

For the source code, go to http://ee-staff.ethz.ch/~oetiker/webtools/mrtg/pub/

For the documentation, see the section “Getting and Installing MRTG on a UNIX System” at

http://ee-staff.ethz.ch/~oetiker/webtools/mrtg/mrtg.html

Step 3 Create a configuration file.

There are two basic ways to create the file:

Manually create it by using the MRTG files config.text and sample-mrtg.config. These files are in

the /mrtg/doc directory.

Use the configuration maker (cfgmaker) in the /mrtg/run directory. MRTG creates a basic

configuration file for you. The default configuration file made with cfgmaker automatically polls

for a standard set of MIBs and pre-defined values.

Generic command syntax:

./cfgmaker communitystring@hostname-or-ipaddress >> outputfilename.cfg

Table 17 Dial Interface Types on a Cisco AS5800

Interface Type Syntax Example

Asynchronous Async1/2/00

B-channel serial Serial1/0/0:1

D-channel serial Serial1/0/0:23

Group asynchronous Group-Async0

T1/E1 controllers T1 1/0/0

Task 3Using MRTG to Monitor and Graph Traffic Loads

How to Inspect and Interpret Data

$

Basic Dial NMS Implementation Guide

Example:

./cfgmaker 5urf5h0p@travis-nas-01 >> travis-nas-01.cfg

In the previous example:

5urf5h0p is the SNMP community string.

travis-nas-01 is the hostname of the managed device.

travis-nas-01.cfg is the configuration file that MRTG reads each time it starts up.

Note If the domain name server (DNS) is not working, MRTG cannot use a hostname.

You must use an IP address instead.

Step 4 By using a text editor, edit the configuration file (.cfg) to enable polling of dial variables and OIDs.

For a complete list of OIDs to poll, see the “About Selecting Dial OIDs” section on page 54.

The following configuration file is from a Cisco AS5300. This file can be used as a configuration

template for your environment, but use your own community string, work directory, and device name.

The following definitions are used in the example:

The RO community string is 5urf5h0p

The work directory is WorkDir: /export/home/www/mrtg/travis-nas-01/dial

The device name is travis-nas-01

An electronic copy of this template is available at

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/dialnms/dialmrtg.txt

WorkDir: /export/home/www/mrtg/travis-nas-01/dial

# set defaults

Options[_]: growright

# make legends reflect these are call counters

YLegend[_]: Active Calls

ShortLegend[_]: calls

LegendI[_]:  calls:

LegendO[_]:  calls:

######################################################################

#----------------------------------------------------------------------------------------

------

# purpose: DS0s and PPP Sessions.

#----------------------------------------------------------------------------------------

------

Target[travis-nas-01_DS0PPP]:

1.3.6.1.4.1.9.10.19.1.1.4.0&1.3.6.1.4.1.9.10.19.1.1.5.0:5urf5h0p@travis-nas-01

MaxBytes1[travis-nas-01_DS0PPP]: 200

MaxBytes2[travis-nas-01_DS0PPP]: 200

Title[travis-nas-01_DS0PPP]: DS0s and PPP sessions in Use

PageTop[travis-nas-01_DS0PPP]: <H2>DS0s and PPP sessions in Use</H2>

<TABLE>

<TR><TD>Device:</TD><TD>travis-nas-01</TD></TR>

</TABLE>

Options[travis-nas-01_DS0PPP]: gauge

Task 3Using MRTG to Monitor and Graph Traffic Loads

How to Inspect and Interpret Data

$

Basic Dial NMS Implementation Guide

#---------------------------------------------------------------------------------------

# purpose: DS0s and Analog

#---------------------------------------------------------------------------------------

Target[travis-nas-01_DS0ANALOG]:

1.3.6.1.4.1.9.10.19.1.1.4.0&1.3.6.1.4.1.9.10.19.1.1.2.0:5urf5h0p@travis-nas-01

MaxBytes1[travis-nas-01_DS0ANALOG]: 200

MaxBytes2[travis-nas-01_DS0ANALOG]: 200

Title[travis-nas-01_DS0ANALOG]: DS0s and Analog in Use

PageTop[travis-nas-01_DS0ANALOG]: <H2>DS0s and Analog in Use</H2>

<TABLE>

<TR><TD>Device:</TD><TD>travis-nas-01</TD></TR>

</TABLE>

Options[travis-nas-01_DS0ANALOG]: gauge

#----------------------------------------------------------------------------------------

------

# purpose: DS0s and SerialX:Y

#----------------------------------------------------------------------------------------

------

Target[travis-nas-01_DS0SERIAL]:

1.3.6.1.4.1.9.10.19.1.1.4.0&1.3.6.1.4.1.9.10.19.1.1.3.0:5urf5h0p@travis-nas-01

MaxBytes1[travis-nas-01_DS0SERIAL]: 200

MaxBytes2[travis-nas-01_DS0SERIAL]: 200

Title[travis-nas-01_DS0SERIAL]: DS0s and SerialX:Y in Use

PageTop[travis-nas-01_DS0SERIAL]: <H2>DS0s and SerialX:Y in Use</H2>

<TABLE>

<TR><TD>Device:</TD><TD>travis-nas-01</TD></TR>

</TABLE>

Options[travis-nas-01_DS0SERIAL]: gauge

#----------------------------------------------------------------------------------------

------

# purpose: DS0s and Sw56

#----------------------------------------------------------------------------------------

------

Target[travis-nas-01_DS0Sw56]:

1.3.6.1.4.1.9.10.19.1.1.4.0&1.3.6.1.4.1.9.10.19.1.1.10.0:5urf5h0p@travis-nas-01

MaxBytes1[travis-nas-01_DS0Sw56]: 200

MaxBytes2[travis-nas-01_DS0Sw56]: 200

Title[travis-nas-01_DS0Sw56]: DS0s and Sw56 in Use

PageTop[travis-nas-01_DS0Sw56]: <H2>DS0s and Sw56 in Use</H2>

<TABLE>

<TR><TD>Device:</TD><TD>travis-nas-01</TD></TR>

</TABLE>

Options[travis-nas-01_DS0Sw56]: gauge

#----------------------------------------------------------------------------------------

------

# purpose: cpmISDNCallsRejected and cpmModemCallsRejected

#----------------------------------------------------------------------------------------

------

Target[travis-nas-01_callrejects]:

1.3.6.1.4.1.9.10.19.1.2.1.0&1.3.6.1.4.1.9.10.19.1.2.2.0:5urf5h0p@travis-nas-01

MaxBytes1[travis-nas-01_callrejects]: 200

MaxBytes2[travis-nas-01_callrejects]: 200

Title[travis-nas-01_callrejects]: travis-nas-01 cpmISDNCallsRejected and

cpmModemCallsRejected

PageTop[travis-nas-01_callrejects]: <H2>cpmISDNCallsRejected and

cpmModemCallsRejected</H2>

<TABLE>

<TR><TD>Device:</TD><TD>travis-nas-01</TD></TR>

Task 3Using MRTG to Monitor and Graph Traffic Loads

How to Inspect and Interpret Data

Basic Dial NMS Implementation Guide

</TABLE>

#----------------------------------------------------------------------------------------

------

# purpose: cpmISDNCallsClearedAbnormally and cpmModemCallsClearedAbnormally

#----------------------------------------------------------------------------------------

------

Target[travis-nas-01_clearAbnormal]:

1.3.6.1.4.1.9.10.19.1.2.3.0&1.3.6.1.4.1.9.10.19.1.2.4.0:5urf5h0p@travis-nas-01

MaxBytes1[travis-nas-01_clearAbnormal]: 200

MaxBytes2[travis-nas-01_clearAbnormal]: 200

Title[travis-nas-01_clearAbnormal]: travis-nas-01 cpmISDNCallsClearedAbnormally and

cpmModemCallsClearedAbnormally

PageTop[travis-nas-01_clearAbnormal]: <H2>cpmISDNCallsClearedAbnormally and

cpmModemCallsClearedAbnormally</H2>

<TABLE>

<TR><TD>Device:</TD><TD>travis-nas-01</TD></TR>

</TABLE>

#----------------------------------------------------------------------------------------

------

# purpose: cpmISDNNoResource and cpmModemNoResource

#----------------------------------------------------------------------------------------

------

Target[travis-nas-01_callNoResource]:

1.3.6.1.4.1.9.10.19.1.2.5.0&1.3.6.1.4.1.9.10.19.1.2.6.0:5urf5h0p@travis-nas-01

MaxBytes1[travis-nas-01_callNoResource]: 200

MaxBytes2[travis-nas-01_callNoResource]: 200

Title[travis-nas-01_callNoResource]: travis-nas-01 cpmISDNNoResource and

cpmModemNoResource

PageTop[travis-nas-01_callNoResource]: <H2>cpmISDNNoResource and cpmModemNoResource</H2>

<TABLE>

<TR><TD>Device:</TD><TD>travis-nas-01</TD></TR>

</TABLE>

#----------------------------------------------------------------------------------------

------

# purpose: cmSystemModemsInUse and cmSystemModemsAvailable

#----------------------------------------------------------------------------------------

------

Target[travis-nas-01_modemcount]:

1.3.6.1.4.1.9.9.47.1.1.6.0&1.3.6.1.4.1.9.9.47.1.1.7.0:5urf5h0p@travis-nas-01

MaxBytes1[travis-nas-01_modemcount]: 200

MaxBytes2[travis-nas-01_modemcount]: 200

Title[travis-nas-01_modemcount]: cmSystemModemsInUse and cmSystemModemsAvailable

PageTop[travis-nas-01_modemcount]: <H2>cmSystemModemsInUse and

cmSystemModemsAvailable</H2>

<TABLE>

<TR><TD>Device:</TD><TD>travis-nas-01</TD></TR>

</TABLE>

Options[travis-nas-01_modemcount]: gauge

#----------------------------------------------------------------------------------------

------

# purpose: cvpdnTunnelTotal and cvpdnDeniedUsersTotal

#----------------------------------------------------------------------------------------

------

Target[travis-nas-01_vpdn_tunnelanddenied]:

1.3.6.1.4.1.9.10.24.1.1.1.0&1.3.6.1.4.1.9.10.24.1.1.3.0:5urf5h0p@travis-nas-01

MaxBytes1[travis-nas-01_vpdn_tunnelanddenied]: 200

Task 3Using MRTG to Monitor and Graph Traffic Loads

How to Inspect and Interpret Data

Basic Dial NMS Implementation Guide

MaxBytes2[travis-nas-01_vpdn_tunnelanddenied]: 200

Title[travis-nas-01_vpdn_tunnelanddenied]: cvpdnTunnelTotal and cvpdnDeniedUsersTotal

PageTop[travis-nas-01_vpdn_tunnelanddenied]: <H2>cvpdnTunnelTotal and

cvpdnDeniedUsersTotal</H2>

<TABLE>

<TR><TD>Device:</TD><TD>travis-nas-01</TD></TR>

</TABLE>

Options[travis-nas-01_vpdn_tunnelanddenied]: gauge

#----------------------------------------------------------------------------------------

------

# purpose: activeDS0s and cvpdnSessionTotal

#----------------------------------------------------------------------------------------

------

Target[travis-nas-01_activeDS0vpdnSession]:

1.3.6.1.4.1.9.10.19.1.1.4.0&1.3.6.1.4.1.9.10.24.1.1.2.0:5urf5h0p@travis-nas-01

MaxBytes1[travis-nas-01_activeDS0vpdnSession]: 200

MaxBytes2[travis-nas-01_activeDS0vpdnSession]: 200

Title[travis-nas-01_activeDS0vpdnSession]: activeDS0s and cvpdnSessionTotal

PageTop[travis-nas-01_activeDS0vpdnSession]: <H2>activeDS0s and cvpdnSessionTotal</H2>

<TABLE>

<TR><TD>Device:</TD><TD>travis-nas-01</TD></TR>

</TABLE>

Options[travis-nas-01_activeDS0vpdnSession]: gauge

Step 5 Open the crontab file in your system by entering crontab -e. The -e enables edit mode. You can run

crontab from any directory.

igloo:/ ->crontab -e

"/tmp/crontabmMaqZd" 14 lines, 610 characters

#ident "@(#)root 1.19 98/07/06 SMI" /* SVr4.0 1.1.3.1 */

# The root crontab should be used to perform accounting data collection.

# The rtc command is run to adjust the real time clock if and when

# daylight savings time changes.

10 3 * * 0,4 /etc/cron.d/logchecker

10 3 * * 0 /usr/lib/newsyslog

15 3 * * 0 /usr/lib/fs/nfs/nfsfind

1 2 * * * [ -x /usr/sbin/rtc ] && /usr/sbin/rtc -c > /dev/null 2>&1

30 3 * * * [ -x /usr/lib/gss/gsscred_clean ] && /usr/lib/gss/gsscred_clean

Caution Although the crontab file is a flat text file, do not manually edit it by using vi crontab.

vi can corrupt the crontab, which causes all cron jobs to stop working. You must use the

crontab -e command, which synchronizes and updates all the crontab daemons

accordingly.

Step 6 Insert the directory path for the MRTG configuration file (.cfg) you created. At the bottom of the file,

enter a line similar to this one:

0,5,10,15,20,25,30,35,40,45,50,55 * * * * /opt/mrtg/run/mrtg

/opt/mrtg/run/conf/travis-nas-01.cfg

Note Do not forget to include a space between /mrtg and /opt

Task 3Using MRTG to Monitor and Graph Traffic Loads

How to Inspect and Interpret Data

Basic Dial NMS Implementation Guide

"/tmp/crontabmMaqZd" 14 lines, 610 characters

#ident "@(#)root 1.19 98/07/06 SMI" /* SVr4.0 1.1.3.1 */

# The root crontab should be used to perform accounting data collection.

# The rtc command is run to adjust the real time clock if and when

# daylight savings time changes.

10 3 * * 0,4 /etc/cron.d/logchecker

10 3 * * 0 /usr/lib/newsyslog

15 3 * * 0 /usr/lib/fs/nfs/nfsfind

1 2 * * * [ -x /usr/sbin/rtc ] && /usr/sbin/rtc -c > /dev/null 2>&1

30 3 * * * [ -x /usr/lib/gss/gsscred_clean ] && /usr/lib/gss/gsscred_clean

0,5,10,15,20,25,30,35,40,45,50,55 * * * * /opt/downloads/mrtg/mrtg-2.8.8/run/mrtg

/opt/downloads/mrtg/mrtg-2.8.8/run/travis-nas-01.cfg

On a 5-minute time interval, MRTG will start up, read the configuration file, and re-generate

performance graphs.

Sending MRTG Graphs to a Web Server

MRTG builds all the graphs and web pages.

To browse and view the graphs produced by MRTG, make sure the web server is running. For

information on how to set up a web server, go to http://www.apache.org/

To send MRTG graphs to a web server, follow these steps:

Step 1 Verify that the configuration file points to the correct working directory (WorkDir:) on your web server

by entering the more command. See WorkDir: in the following example.

igloo:/opt/downloads/mrtg/mrtg-2.8.8/run ->more travis-nas-01.cfg

WorkDir: /export/home/www/mrtg/travis-nas-01/dial

# set defaults

Options[_]: growright

# make legends reflect these are call counters

YLegend[_]: Active Calls

ShortLegend[_]: calls

LegendI[_]:  calls:

LegendO[_]:  calls:

Step 2 To send the web pages and graphs to the web-server directory, enter the following command:

igloo:/opt/downloads/mrtg/mrtg-2.8.8/run ->./mrtg travis-nas-01.cfg

igloo:/opt/downloads/mrtg/mrtg-2.8.8/run ->

Now, the crontab will automatically perform this function every five minutes.

Ignore any Rateup WARNING errors, which means that crontab is working in the background.

Rateup WARNING: .//rateup The backup log file for 172.21.101.20.178 was invalidl

Rateup WARNING: .//rateup Can't remove 172.21.101.20.178.old updating log file

Rateup WARNING: .//rateup Can't rename 172.21.101.20.178.log to 172.21.101.20.1e

Rateup WARNING: .//rateup could not read the primary log file for 172.21.101.209

Task 3Using MRTG to Monitor and Graph Traffic Loads

How to Inspect and Interpret Data

Basic Dial NMS Implementation Guide

Step 3 Use a web browser to view the MRTG output files in the web page directory.

Note If the domain name server (DNS) is not working, a hostname cannot be used by

MRTG. Use the IP address instead.

Figure 15 MRTG Graphs Viewed by Using a Web Browser

Task 3Using MRTG to Monitor and Graph Traffic Loads

How to Inspect and Interpret Data

Basic Dial NMS Implementation Guide

Task 4Using Syslog, NTP, and Modem Call

Records to Isolate and Troubleshoot Faults

About Syslog

Syslog, Network Time Protocol (NTP), and modem call records work together to isolate and

troubleshoot faults in a dial access network.

Syslog enables you to:

Centrally log and analyze configuration events and system error messages, such as router

configuration changes, interface up and down status, modem events, security alerts, environmental

conditions, trace backs, and CPU process overloads.

Capture client debug output sessions in a real-time scenario.

Reserve telnet sessions for making configurations changes and using show commands.

Telnet sessions that are cluttered with debug output interfere with troubleshooting procedures.

Reduce network downtime by knowing when the network has quality problems.

Figure 16 Cisco IOS Sending Syslog Messages to a Syslog Server

You can enable syslog in any Cisco IOS device and send syslog messages to many different destinations

(host, buffer, console, history, and monitor).

Cisco IOS

Syslog server

Syslog messages

Internal view

24528

Syslog messages

written to

hard disk

Task 4Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

About Syslog

Basic Dial NMS Implementation Guide

By using the logging ? command, you can see the log settings for distinct destinations:

travis-nas-01(config)#logging ?

Hostname or A.B.C.D IP address of the logging host

buffered Set buffered logging parameters

console Set console logging level

facility Facility parameter for syslog messages

history Configure syslog history table

monitor Set terminal line (monitor) logging level

on Enable logging to all supported destinations

rate-limit Set messages per second limit

source-interface Specify interface for source address in logging

transactions

trap Set syslog server logging level

There are eight levels of syslog information in the Cisco IOS software. Monitor and manage logs

according to the severity level of the syslog message. By using the logging trap ? command, you can

see the logging severity levels:

travis-nas-01(config)#logging trap ?

<0-7> Logging severity level

alerts Immediate action needed (severity=1)

critical Critical conditions (severity=2)

debugging Debugging messages (severity=7)

emergencies System is unusable (severity=0)

errors Error conditions (severity=3)

informational Informational messages (severity=6)

notifications Normal but significant conditions (severity=5)

warnings Warning conditions (severity=4)

<cr>

In this case study, syslog is enabled on all Cisco access servers and backbone routers. Each device sends

syslog messages to the same log file on the same syslog server.

The terminology in the syslog messages can vary between different versions of Cisco IOS software.

To effectively manage syslog messages, ensure that wherever possible, the same version of Cisco IOS

software is running on all routers.

Note For background information on syslog, go to

http://www.cert.org/security-improvement/practices/p041.html

Table 18 Logging Trap Severity Definitions

Message Type Description Syslog Message Severity Level

emergencies System unusable LOG_EMERG 0

alerts Immediate action needed LOG_ALERT 1

critical Critical conditions LOG_CRIT 2

errors Error conditions LOG_ERR 3

warnings Warning conditions LOG_WARNING 4

notifications Normal but significant condition LOG_NOTICE 5

informational Informational messages only LOG_INFO 6

debugging Debugging messages LOG_DEBUG 7

Task 4Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

About NTP

Basic Dial NMS Implementation Guide

About NTP

The Network Time Protocol (NTP):

Provides a synchronized time base for networked routers, servers, and other devices.

Coordinates the time of network events, which helps you understand and troubleshoot the time

sequence of network events. For example, call records for specific users can be correlated within

one millisecond.

Enables you to compare time logs from different networks, which is essential for:

`Tracking security incidents

`Analyzing faults

`Troubleshooting

Without precise time synchronization between all the various logging, debug output, management,

and AAA functions in the network, you cannot make time comparisons.

For a list of NTP clients, go to http://www.eecis.udel.edu/~ntp/software.html

About Modem Call Records

A modem call record (MCR) is a type of syslog message that is:

Created when a user dials in and hangs up, but it is not generated until the end of the call.

Used to gather statistics and modem-performance logs on a per-call basis, such as:

`Modulation trends (V.90 verses V.34).

`Call time durations (consistent short connection times on a modem, regular Lost Carrier

counts).

`Unavailable user IDs.

`PPP negotiation or authentication failures.

In this case study, the engineers filter modem call records out of syslog and store them into flat files on

a Unix host. The records are sorted by using cron jobs and perl scripts. A web-based MCR viewer

facility is used to:

Search the call records.

Extract historical and statistical information about individual users and access servers.

Task 4Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

About Modem Call Records

%

Basic Dial NMS Implementation Guide

Figure 17 Web-Based MCR Viewer

You can view entire log files or portions of logs in the MCR viewer. In addition, you can parse for

specific users and other call attributes for a modem call (for example, modulation, error correction,

compression, disconnect causes, and retrains).

Note Modem call records are available in syslog starting with Cisco IOS

Releases 11.3AA and 12.0T.

Task 4Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

About Modem Call Records

%

Basic Dial NMS Implementation Guide

Enabling NTP on a Cisco IOS Device

To enable NTP and related clocking services, follow these steps.

Step 1 From the Cisco IOS device, enter the following commands. Enable debug timestamps and include the

date, time, and milliseconds relative to the local time zone:

service timestamps debug datetime msec localtime show-timezone

service timestamps log datetime msec localtime show-timezone

Step 2 Identify the local timezone and enable recurring time adjustments for daylight savings time by entering

the following commands:

clock timezone CST -6

clock summer-time CST recurring

Step 3 Locate an NTP server that can be reached by the Cisco IOS device.

Step 4 Specify the IP address for the NTP server and enable automatic-calendar updates by entering the

following commands:

ntp update-calendar

ntp server 172.22.255.1

Note By default, the ntp clock-period command is enabled in some Cisco IOS releases.

The Cisco IOS software appends an arbitrary number to the end of the command.

Step 5 Verify that the clock is synchronized with the NTP server by entering the following command:

travis-nas-01>show ntp status

Clock is synchronized, stratum 9, reference is 172.22.255.1

nominal freq is 250.0000 Hz, actual freq is 249.9987 Hz, precision is 2**24

reference time is BD123336.28CCF0C4 (18:09:42.159 CST Sat Jul 8 2000)

clock offset is 0.1183 msec, root delay is 61.84 msec

root dispersion is 0.93 msec, peer dispersion is 0.79 msec

travis-nas-01>

Inspect the status and time association. Clock sources are identified by their stratum levels. The

previous display shows a stratum level nine clock.

Note If the NTP synchronization does not take place, reload the router.

Task 4Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

About Modem Call Records

Basic Dial NMS Implementation Guide

Step 6 Verify that the router is receiving NTP packets from the NTP server by entering the following command:

travis-nas-01>show ntp association

address ref clock st when poll reach delay offset disp

*~172.22.255.1 127.127.7.1 8 984 1024 377 60.3 -0.89 0.8

* master (synced), # master (unsynced), + selected, - candidate, ~ configured

travis-nas-01>

The tilde (~) next to the IP address of the NTP server means the NTP service is configured. The asterisk

(*) indicates successful synchronization with the master clock.

Setting Up an NTP Client

To set up an NTP client on a Solaris v2.6 workstation, follow these steps.

Note Additional software is not required to set up NTP on the workstation if it is

running Solaris v2.6 (or later).

Step 1 Locate an NTP server that can be reached by the workstation. There are many available NTP servers on

the Internet. If your workstation cannot reach the Internet, locate an NTP server within your network.

Note A common practice is to configure an area border router as an NTP server for a

particular subnet. The area border router then points to an external NTP server.

Other equipment on that subnet uses the loopback 0 IP address on the area border

router as an NTP server.

Step 2 Go to the /etc/inet directory and inspect the template file called ntp.client:

onionring:~$ cd /etc/inet

onionring:/etc/inet$ more ntp.client

# @(#)ntp.client 1.2 96/11/06 SMI

# /etc/inet/ntp.client

# An example file that could be copied over to /etc/inet/ntp.conf; it

# provides a configuration for a host that passively waits for a server

# to provide NTP packets on the ntp multicast net.

multicastclient 224.0.1.1

Step 3 Copy ntp.client and create the ntp.conf configuration file in the /etc/inet default directory:

onionring:/etc/inet$ cp ntp.client ntp.conf

onionring:/etc/inet$

The NTP daemon reads ntp.conf at startup to locate the NTP server.

Note You must have root-level permissions to edit or copy any files in the /etc/inet/

directory.

Task 4Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

About Modem Call Records

Basic Dial NMS Implementation Guide

Step 4 Edit the ntp.conf file by changing multicastclient to server followed by the IP address of the target

NTP server:

# @(#)ntp.client 1.2 96/11/06 SMI

# /etc/inet/ntp.client

# An example file that could be copied over to /etc/inet/ntp.conf; it

# provides a configuration for a host that passively waits for a server

# to provide NTP packets on the ntp multicast net.

server 172.22.255.1

Step 5 Go to the directory /usr/lib/inet/ and start the NTP daemon by entering the xntpd command.

The daemon sets and maintains the time-of-day of the operating system in agreement with the master

time server.

onionring:/etc/inet$ cd /usr/lib/inet/

onionring:/usr/lib/inet$ ls

in.dhcpd xntpd

onionring:/usr/lib/inet$ xntpd

onionring:/usr/lib/inet$

Step 6 Verify that the NTP daemon is running by entering the ntpq -p command:

onionring:/usr/lib/inet$ ntpq -p

remote refid st t when poll reach delay offset disp

==============================================================================

*maui-rtr-01.mau CHU(1) 8 u 49 64 377 1.08 -0.131 0.08

onionring:/usr/lib/inet$

The following information appears:

The remote NTP server to which the workstation is connected.

The reference ID.

The stratum level of the server.

The type of NTP packet that was received by the client (local, unicast, multicast, or broadcast).

The polling interval in seconds.

The reachability register in octal.

The current delay of the server in seconds.

The current offset of the server in seconds and the dispersion of the server in seconds.

The delay, offset, and displacement between the client and the server in seconds.

When the daemon starts, most of the time values will be zeros until there is a sufficient number of

queries taken by the daemon to determine the correct offset.

Task 4Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

About Modem Call Records

Basic Dial NMS Implementation Guide

Troubleshooting the NTP Client

Enabling Syslog and Modem Call Records in the Cisco IOS Software

To enable syslog messages in the Cisco IOS software and send them to a syslog server,

follow these steps:

Step 1 Inspect the current logging status by entering the following command:

travis-nas-01#show logging

Syslog logging: enabled (0 messages dropped, 0 flushes, 0 overruns)

Console logging: level debugging, 42 messages logged

Monitor logging: level debugging, 93 messages logged

Buffer logging: level debugging, 3 messages logged

Trap logging: level informational, 121 message lines logged

Log Buffer (8192 bytes):

travis-nas-01#

Step 2 Set up a basic syslog configuration by entering the following commands. See Table 20 for command

descriptions.

logging buffered 10000 debugging

no logging console guaranteed

logging console informational

logging trap debugging

logging facility local0

logging 172.21.100.100

Table 19 NTP Problems and Solutions

Problem Solution

The ntp.client file or the xntpd

daemon cannot be found in the

directories shown in the examples.

Verify that the workstation is running Solaris v2.6 or a later

version of Solaris. Enter the uname -a command to see the

version.

Versions earlier than Solaris v2.6 do not support NTP and must

be supplemented with additional NTP software available from

http://www.sunfreeware.com/

The error message “No Associations

IDs Returned” when you enter the

ntpq -p command.

There are three possible solutions:

The network traffic is slow, and the workstation has not

had time to poll the NTP server. Allow the workstation

enough time to issue the poll (a few seconds); then, enter

the ntpq -p command.

The mulitcastclient line in the ntp.conf file was not

replaced with the server line.

The NTP server you have chosen is down, or it is not

configured correctly.

Task 4Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

About Modem Call Records

Basic Dial NMS Implementation Guide

Step 3 Enable modem call records in the Cisco IOS by entering the following command:

modem call-record terse

A modem call record, which is a syslog message, looks like this:

May 26 22:04:23.346 CST: %CALLRECORD-3-MICA_TERSE_CALL_REC: DS0 slot/contr/chan=

0/0/0, slot/port=2/14, call_id=26, userid=(n/a), ip=0.0.0.0, calling=4082322078,

called=3241933, std=V.34+, prot=LAP-M, comp=V.42bis both, init-rx/tx b-rate=264

00/24000, finl-rx/tx b-rate=28800/24000, rbs=0, d-pad=None, retr=1, sq=4, snr=27

, rx/tx chars=136/6470, bad=2, rx/tx ec=134/184, bad=0, time=594, finl-state=Ste

ady, disc(radius)=(n/a)/(n/a), disc(modem)=DF03 Tx (host to line) data flushing

- OK/Requested by host/DTR dropped

Table 20 Logging Command Descriptions

Command Purpose

logging buffered 10000 debugging Sets the internal log buffer to 10000 bytes for debug output.

New messages overwrite old messages.

You can tune buffered-logging parameters for collecting logs

on a NAS when you are at a remote location. For example, turn

on debugs and start logging them in the history buffer. Make

your test call; then, re-connect in shell mode and inspect the

debugs.

logging console informational

no logging console guaranteed Sends the most urgent informational logs to the console port in

the event the IP network or syslog server fails. Alternatively,

send messages to the console by using the commands logging

console errors or logging console warnings.

Caution Logging console can cause the router to

intermittently freeze up as soon as the

console port overloads with log

messages. Debugs and modem call

records sent to the console port are

potentially destructive to the Cisco IOS

software.

logging trap debugging Enables logging up to the debug level (all eight levels).

logging 172.21.100.100 Specifies the IP address of the syslog server.

logging facility local0 Assigns a logging-facility tag (local0) to the syslog messages

for this device. The tag must match the facility number

configured in the syslog.conf file on the Unix host. See Step 1

in “Configuring the Syslog Daemon” section on page 76.

In this case study, each device sends syslog messages to the

same log file on the same syslog server.

Task 4Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

About Modem Call Records

Basic Dial NMS Implementation Guide

Step 4 (Optional) To disable syslog messages and SNMP traps when dial interfaces go up and down, use the

commands no logging event link-status and no snmp trap link-status. Although up and down events

are legitimate events on dial interfaces, these events should not cause alarms as LAN and WAN

interfaces would.

interface Serial1/0/0:4:23

no logging event link-status

no snmp trap link-status

interface Group-Async0

no logging event link-status

no snmp trap link-status

In this example, only the fourth T1 of a T3 card is shown.

Note In some Cisco IOS images, the logging event link-status command is disabled by

default.

Configuring the Syslog Daemon

In this case study, all the syslog messages from the access servers are sent to a single log file. The syslog

messages from the backbone routers are sent to a different log file.

To configure the syslog daemon on a Solaris syslog server, follow these steps:

Step 1 On the syslog server, edit the file syslog.conf in the /etc/ directory by using a text editor. To get syslog

working, you must add the following line to the file:

local0.debug /var/log/router.log

The local facility number is local0.debug. It must match the facility number configured in the

Cisco IOS device. See the logging facility command in Table 20.

The log file path name is /var/log/router.log

One tab exists between the facility number and the path name. Spaces are not permitted.

You can define any directory location/path for the .txt log file.

In the following example, the new line is in bold:

"syslog.conf" 53 lines, 1861 characters

#ident "@(#)syslog.conf 1.3 93/12/09 SMI" /* SunOS 5.0 */

# syslog configuration file.

# This file is processed by m4 so be careful to quote (`') names

# that match m4 reserved words. Also, within ifdef's, arguments

# containing commas must be quoted.

Task 4Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

About Modem Call Records

Basic Dial NMS Implementation Guide

#Following is the new line. It adds a logging facility number and direcory path for the

#log file (router.log).

local0.debug /var/log/router.log

Note The previous syslog.conf example has been abbreviated to fit this document. The

actual file size is much larger than the example. Add the new line to the end of the

file.

Step 2 Create the log file and check the read/write privileges by entering the following commands:

aurora:/etc ->touch /var/log/router.log

aurora:/etc ->ls -l /var/log/router.log

-rw-r--r-- 1 root other 27110 Jul 8 19:56 /var/log/router.log

aurora:/etc ->

Step 3 Verify the syslog daemon is running by entering the ps -elf | grep syslog command from the

/etc directory. If the daemon is running, a process ID is returned by the system (for example, 169). If the

daemon is not running, no ID is returned.

aurora:/etc ->ps -elf | grep syslog

8 S root 169 1 0 41 20 60756cc8 187 604e3156 Jun 19 ? d

aurora:/etc ->

Step 4 Activate the configuration changes you made in syslog.conf by restarting the syslog daemon. Enter the

start/stop S74syslog scripts from the /etc/rc2.d directory.

aurora:/etc ->rc2.d/S74syslog stop

Stopping the syslog service.

aurora:/etc ->rc2.d/S74syslog start

syslog service starting.

aurora:/etc ->ps -elf | grep syslog

8 S root 4405 1 0 44 20 6042d320 187 604e3156 09:16:35 ? d

aurora:/etc ->

Confirm that a new syslog process ID was assigned (for example, 4405) after the start/stop process.

Note You must have root-level permissions to run system scripts, such as the files in

/etc/rc2.d

Task 4Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

About Modem Call Records

Basic Dial NMS Implementation Guide

Inspecting Syslog Messages in t he Log File

To inspect syslog messages by using Cisco IOS commands, Unix commands, FTP, and a web browser,

follow these steps:

Step 1 From the Cisco IOS device, create basic syslog messages by entering these commands:

travis-nas-01#configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

travis-nas-01(config)#^Z

travis-nas-01#configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

travis-nas-01(config)#^Z

travis-nas-01#

Step 2 From the syslog server, verify that the syslog messages went in to the log file. Enter the tail -f command

to monitor the last 10 lines of an active log file. To exit tail -f mode, press Ctrl-C.

aurora:/etc ->tail -f /var/log/router.log

May 26 17:43:12 [172.21.101.20.6.122] 629: May 26 20:35:23.551 CST: %SYS-5-CONFIG_I:

Configured from console by vty0 (172.22.61.200)

May 26 17:51:15 [172.21.101.20.6.122] 630: May 26 20:43:27.068 CST: %SYS-5-CONFIG_I:

Configured from console by console

May 26 17:51:19 [172.21.101.20.6.122] 631: May 26 20:43:30.932 CST: %SYS-5-CONFIG_I:

Configured from console by console

May 26 17:54:38 [172.21.101.20.6.122] 632: May 26 20:46:50.344 CST: %SYS-5-CONFIG_I:

Configured from console by vty0 (172.22.61.200)

aurora:/etc ->

Step 3 View the syslog messages in a web browser. Notice the wide horizontal scroll bar, which is helpful for

viewing debug messages and modem call records.

Figure 18 Syslog Messages that Appear by Using FTP and a Web Browser

ftp://sam@172.23.84.22/var/log/router.log

Task 4Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

About Modem Call Records

Basic Dial NMS Implementation Guide

Table 21 shows the generic URL syntax to use. Be sure to replace the variables with your own

information. The FTP server automatically prompts you for a login password.

Table 21 URL Syntax Descriptions and Examples

Generic URL Syntax Description Example

ftp://username@host/directory-path Uses FTP to view

logs from a remote

location.

ftp://sam@172.23.84.22/var/log/router.l

file://directory-path Views logs on a

local host. file://var/log/router.log

Task 4Using Syslog, NTP, and Modem Call Records to Isolate and Troubleshoot Faults

About Modem Call Records

&

Basic Dial NMS Implementation Guide

&

Basic Dial NMS Implementation Guide

Task 5Setting Up a Web Portal for the

Dial NMS

About a Web Portal

A web portal for the dial NMS is a combination of CGI scripts and HTML links used to support a dial

Internet access service.

As the number of devices and applications in a network increase, the operations support team may

become inundated with a myriad of management products. To support a dial service, a web portal

provides easy access to:

Product manuals, design guides, white papers, and troubleshooting guides.

Light-weight tools and scripts.

Network policies, procedures, and reports.

Periodic and just-in-time reporting.

`The help desk can access operational information

(for example, current connected caller status).

`The operations staff can report on current service levels.

Tips For more information on building a management intranet, go to

http://www.cisco.com/warp/public/cc/serv/mkt/nmps/ent/tech/bmi_wi.htm

Table 22 Utilities Provided by the Web Portal for the Dial NMS

Utility Function

Documentation Center A web server used as an online-documentation hub to share

network operations information.

Device Linker A web page used for bookmarking URLs for quick device telnet

and out of band (console) access.

See the “Building a Device Linker Web Page” section on page 83.

Task 5Setting Up a Web Portal for the Dial NMS

About a Web Portal

Basic Dial NMS Implementation Guide

Cisco IOS CLI Command Center A web page that provides HTTP access to frequently used

Cisco IOS CLI commands. The operations team and help desk can

use this utility to troubleshoot connectivity problems.

See the “Using HTTP to Access CLI Commands” section on

page 86.

IP Tracker A web page that uses two scripts to keep track of IP address block

assignments by using DNS reverse lookup zones.

See the “Creating an IP Tracker Web Page” section on page 96.

SNMP Commander A script that aids the MIB research task by enabling engineers to

build web-based object identification (OIDs) bookmarks. You can

poll for network statistics by using OID bookmarks and a web

browser. No keyboard is required.

See the “About SNMP Commander” section on page 49.

Syslog Viewer A utility that uses FTP to access a syslog server and a web browser

to view syslog messages. Migration to HTTP is straightforward

after security issues are addressed. The use of non-wrapping text

is useful when viewing debug messages and modem call records.

See the “Inspecting Syslog Messages in the Log File” section on

page 78.

Modem Call Record Viewer Light-weight scripts used to parse and view modem call records.

See the “About Syslog” section on page 67.

CiscoWorks 2000 Resource

Manager Essentials A utility used to remotely monitor and maintain devices through

a web-based browser interface.

See the “Task 8—Using CiscoWorks 2000 Resource Manager

Essentials” section on page 117.

Table 22 Utilities Provided by the Web Portal for the Dial NMS (continued)

Utility Function

Task 5Setting Up a Web Portal for the Dial NMS

About a Web Portal

Basic Dial NMS Implementation Guide

Building a Device Linker Web Page

A device linker web page:

Simplifies access to the many device-management interfaces in the network.

Provides links to the telnet, console, and HTTP ports of Cisco IOS devices.

Figure 19 Device Linker Used to Access Devices

By using a Cisco terminal server for out-of-band console access, such as a Cisco 2511, the consoles are

available at TCP port 20xx on a terminal server. The target line number replaces xx. For example to get

to line 1, telnet to port 2001. The equivalent URL is telnet://172.21.101.250:2001

To build a device linker web page, follow these steps:

Step 1 Collect the IP addresses for the Cisco IOS devices.

Step 2 Collect the device console out-of-band (OOB) paths for the terminal server and the lines connected to

Cisco IOS devices.

Step 3 Create a basic HTML table and enter the information for each device. The telnet and HTTP information

is in bold in the following HTML code fragment. Step 4 shows what the table looks like in a web

browser.

<html>

<head>

<title>Dial The.Net Device Linker</title>

</head>

<body>

<h2>Dial The.Net Device Linker</h2>

<tr>

<td>Console</td>

<td>Hardware Type</td>

<td>Comments</td>

</tr>

<tr>

Line 1

RS-232

cable

Device Linker

Cisco AS5800

Cisco 2511 terminal server

Telnet access

telnet://172.21.10.10

HTTP access to the CLI

http://172.21.10.10

35192

OOB console access

telnet://172.21.10.1:2001

Task 5Setting Up a Web Portal for the Dial NMS

About a Web Portal

Basic Dial NMS Implementation Guide

<td><a href="http://172.21.10.1">travis-nas-01</a></td>

<td><a href="telnet://172.21.101.250:2001">travis-oob-01:2001</a></td>

</tr>

</table>

</body>

</html>

Step 4 Post the device linker web page to a WWW server in the NOC.

Figure 20 A Device Linker Management Page

Table 23 Functions and Parameters for Designing a Device Linker Web Page

Function Formula Example

OOB console access telnet://termserver-ip:20XX telnet://172.21.101.250:2001

Basic IP access telnet://ip-address telnet://172.21.10.1

IOS HTTP access http://ip-address http://172.21.10.1

Task 5Setting Up a Web Portal for the Dial NMS

About a Web Portal

Basic Dial NMS Implementation Guide

Step 5 Click on an active device link. After a telnet session opens, log in.

Figure 21 Console Port Login

Troubleshooting a Cisco 2511 Console Connection

If you cannot access the console of a device, follow these steps:

Step 1 Verify that the configuration on the terminal server is correct. Telnet is the only service that must be

supported to access the lines. The following configuration fragment shows you how to configure

16 TTY lines on a Cisco 2511 terminal server.

line 1 16

no exec

transport input telnet

Step 2 If the console port is blocked, you may need to telnet to the terminal server and clear the line. Enter the

show users EXEC command followed by the clear line type number command.

c2511-oob#show users

Line User Host(s) Idle Location

0 con 0 admin idle

4 tty 4 admin incoming 0 dhcp-172-71-218-198.guessme.com

* 10 vty 0 admin incoming 0 dhcp-172-71-218-198.guessme.com

c2511-oob#clear line tty 4

[confirm]

[OK]

c2511-oob#show users

Line User Host(s) Idle Location

0 con 0 admin idle

* 10 vty 0 admin incoming 0 dhcp-172-71-218-198.guessme.com

Task 5Setting Up a Web Portal for the Dial NMS

About HTTP Access to the CLI

Basic Dial NMS Implementation Guide

Step 3 (Optional) Sometimes administrators inadvertently leave lines in use. To make idle telnet sessions end

after 30 minutes, enter the exec-timeout 30 0 command on all the lines.

line 1 16

no exec

exec-timeout 30 0

transport input telnet

About HTTP Access to the CLI

Using web-based access to the CLI reduces the need for telnet sessions to monitor or verify network

operations. Telnet sessions can be reserved for actions such as making configuration changes.

Additionally, sending syslog to a syslog server prevents telnet sessions from becoming cluttered with

debug output.

HTTP access to the CLI is:

Very difficult to secure. One way of securing a router is to use access-control lists on all VTY lines.

Enable only devices in the NOC to access the VTY lines.

Not recommended for service providers. If used, you should weigh the perceived ease of use versus

the additional security issues involved with HTTP access to a network device.

The Cisco IOS CLI Command Center is a web page utility that provides HTTP access to CLI commands

on a router. HTTP access to the CLI simplifies the troubleshooting tasks for a help desk.

Using HTTP to Access CLI Commands

To manage a dial Internet access service by using HTTP access to CLI commands, follow these steps:

Step 1 Enable HTTP services on the Cisco IOS device by entering the following commands:

ip http server

ip http authentication aaa

Table 24 Command Descriptions

Command Purpose

ip http server Enables the router to function as an HTTP server.

ip http authentication aaa Uses the AAA facility as an authentication method

for HTTP server users.

Task 5Setting Up a Web Portal for the Dial NMS

About HTTP Access to the CLI

Basic Dial NMS Implementation Guide

Step 2 Create a table in an HTML web page and enter your list of frequently used Cisco IOS CLI commands.

Note To create the link for a CLI command, specify the IP address of the Cisco IOS

device followed by the command. Remember to include the forward slashes (/)

between each command mode and key word.

The web page can include many types of commands useful for managing a dial Internet access service,

including:

System commands (Table 26)

Interface commands (Table 27)

Call state commands (Table 28)

Debug commands (Table 29)

Table 25 Formula and Example for Linking a CLI Command

Formula Example

http://ip-address/exec/ios-key-word/.../cr http:/172.23.84.20/exec/sh/caller/cr

Table 26 System Commands

show running configuration show file systems show ip route

show version dir show ip route static

show modem version show flash show ip route connected

Table 27 Interface Commands

show controller t1 show ip interface brief show interface Fast

Ethernet0/0/0

show isdn service show interface show line

show isdn status

Task 5Setting Up a Web Portal for the Dial NMS

About HTTP Access to the CLI

Basic Dial NMS Implementation Guide

Step 3 Post the HTML page that you created in Step 2 to a web server.

Table 28 Call State Commands

show modem show caller show users

show modem call-stats show caller ip show dialer

show modem ? show caller timeout show dialer map

show caller ?

Table 29 Debugging Commands

show logging debug isdn q931 debug aaa

authentication

clear counters debug modem debug aaa

authorization

clear logging debug ppp negotiation debug aaa accounting

show debug debug ppp authentication debug aaa per-user

undebug all debug dialer debug vtemplate

debug dialerpacket debug vprofile

Task 5Setting Up a Web Portal for the Dial NMS

About HTTP Access to the CLI

Basic Dial NMS Implementation Guide

Figure 22 Cisco IOS CLI Commander

For the source code that created the Cisco IOS CLI Commander in Figure 22, go to

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/dialnms/httpcli.txt

Task 5Setting Up a Web Portal for the Dial NMS

About HTTP Access to the CLI

'

Basic Dial NMS Implementation Guide

Step 4 Click on a CLI command and view the command output in a web page.

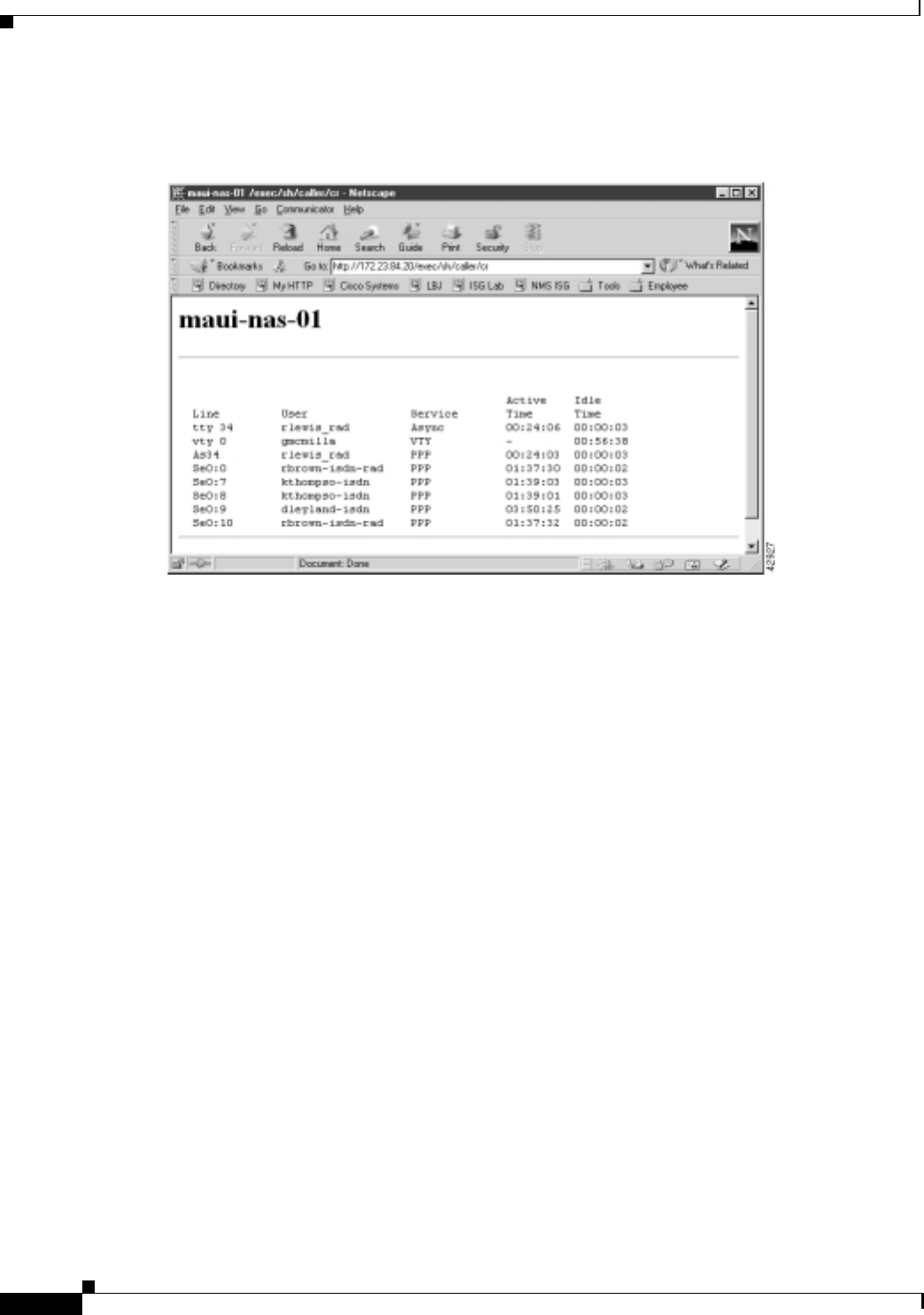

Figure 23 Output for the Show Caller Command

'

Basic Dial NMS Implementation Guide

Task 6Managing IP Addresses by Using DNS

About Managing IP Addresses

Managing IP addresses is a primary network administration function. Assigning and removing

IP addresses can be tedious and error prone. Regardless—you must manage IP addresses to avoid

duplicate IP subnets and addresses.

Domain Name System (DNS) servers provide two kinds of fundamental lookup services:

Forward lookups—Used for looking up the IP address of a provided device name. This is the most

common kind of lookup performed.

Reverse lookups—Used for looking up a device name of a provided IP address. Administratively,

reverse-lookup zones are important tools used for tracking IP address assignments.

In this case study, the dial engineers at THEnet:

Have received a block of IP addresses from the NOC with DNS administrative rights and

instructions for setting up IP address space.

Track IP address assignments by using DNS reverse lookup zones within the existing DNS service.

Use the application Cisco Network Registrar (CNR) and its CLI to manage the IP address database.

CNR is a full-featured IP address management solution for both enterprise and service provider

networks. It includes advanced DNS and Dynamic Host Configuration Protocol (DHCP) servers.

Note This section assumes you are familiar with the basics of DNS. For more information about

DNS, see DNS and Bind, Third Edition, by Paul Albitz and Cricket Liu. The ISBN number

is 1565925122.

Table 30 Related References and Documents

Reference URL

Internet Software Consortium for BIND (Berkeley Internet

Name Daemon)—Describes the DNS protocols. http://www.isc.org/products/BIND/

Cisco Network Registrar—A collection of DNS/DHCP

user guides and reference manuals. http://www.cisco.com/univercd/cc/td/doc

/product/rtrmgmt/ciscoasu/nr/index.htm

Task 6Managing IP Addresses by Using DNS

About Managing IP Addresses

Basic Dial NMS Implementation Guide

Using Cisco Network Registrar CLI Command s

Database locking prevents multiple users from writing to the same database records concurrently.

However, an administrator may occasionally not exit a session properly, and the database may be left

locked. To release the lock on the database, use the force-lock network registrar command.

Network registrar commands sent from the Unix shell lock the database only while commands are

running.

The name for a reverse zone is the inverse of your Internet network number, added to the special domain

in-addr.arpa. For example if the network number is 1.2.3.0, the reverse zone name is 3.2.1.in-addr.arpa.

A second example is the network number 1.2.0.0 with the reverse zone of 2.1.in-addr.arpa.

For a description of the network registrar CLI commands, go to

http://www.cisco.com/univercd/cc/td/doc/product/rtrmgmt/ciscoasu/nr/nr30t/cliref/cli01.htm#68483

To quickly perform administrative tasks by using CNR CLI commands, follow these steps:

Step 1 Log in to the Cisco Network Registrar application by entering the following directory path:

/opt/nwreg2/usrbin/nrcmd

nrcmd>

After logging in, the command mode is accessed and the prompt “nrcmd>” appears.

Step 2 To create an account for an administrator, enter the admin command and an associated password:

nrcmd> admin bob create password=xyz

In this example, the administrator name is bob. The password is xyz.

Step 3 To see a list of existing administrators, enter the admin list command:

nrcmd> admin list

bob: password=********;

omar: password=********;

padma: password=********;

Note The admin list command is a read-only command.

Step 4 Inspect a reverse zone by entering the zone command and listRR option:

nrcmd> zone 101.21.172.in-addr.arpa. listRR

100 Ok

Static Resource Records

@ IN SOA onionring.the.net. netadmin.the.net 1997121601

3600 1800 86400 86400

@ IN NS onionring.the.net.com.

205 IN PTR unused-205.the.net.

203 IN PTR unused-203.the.net.

210 IN PTR unused-210.the.net.

204 IN PTR unused-204.the.net.

1 IN PTR unused-1.the.net.

10 IN PTR unused-10.the.net.

101 IN PTR unused-101.the.net.

102 IN PTR unused-102.the.net.

103 IN PTR unused-103.the.net.

104 IN PTR unused-104.the.net.

(truncated for brevity)

Task 6Managing IP Addresses by Using DNS

About Managing IP Addresses

Basic Dial NMS Implementation Guide

Step 5 When working with a reverse zone, you can map an IP address to a router by entering the zone command

and the addRR resource record (RR) option:

nrcmd> zone 101.21.172.in-addr.arpa. addRR 7 PTR bobslake-nas-01.the.net

Step 6 Remove a resource record by entering the zone command and removeRR option:

nrcmd> zone 101.21.172.in-addr.arpa. removeRR 7 PTR unused-07.the.net

Step 7 To minimize the lock-time on the database, enter the following CNR command from the Unix command

line. Use quotations (“ ”) to contain the command and pass it to the shell.

/opt/nwreg2/usrbin/nrcmd "zone 101.21.172.in-addr.arpa. listRR"

Note The NRCMD command mode is not used.

Step 8 Sort the records and parse the output by entering the following CNR command from the Unix command

line:

/opt/nwreg2/usrbin/nrcmd "zone 101.21.172.in-addr.arpa. listRR" | sort -n | more

username: password:

0 IN PTR broadcast-0.the.net.

@ IN NS onionring.the.net.

@ IN SOA onionring.the.net. netadmin.the.net.101.

21.172.in-addr.arpa. 1997121606 3600 1800 86400 86400

Dynamic Resource Records

Static Resource Records

1 IN PTR unused-1.the.net.

2 IN PTR unused-2.the.net.

3 IN PTR unused-3.the.net.

4 IN PTR unused-4.the.net.

5 IN PTR unused-5.the.net.

6 IN PTR unused-6.the.net.

7 IN PTR unused-7.the.net.

8 IN PTR unused-8.the.net.

9 IN PTR unused-9.the.net.

10 IN PTR unused-10.the.net.

(truncated for brevity)

Task 6Managing IP Addresses by Using DNS

About Managing IP Addresses

Basic Dial NMS Implementation Guide

Step 9 To add an “A” Resource Record (RR) to a forward zone (domain) and map a name to an IP address,

enter the zone command:

nrcmd> zone the.net. addRR bobslake-nas-02 A 172.21.10.18

@ IN NS onionring.the.net.

@ IN SOA onionring.the.net. netadmin.the.net. 56 10800

3600 604800 86400

Dynamic Resource Records

Static Resource Records

aurora IN A 172.21.100.100

bobslake-nas-01 IN A 172.21.10.10

bobslake-nas-02 IN A 172.21.10.18

doc-2610-01 IN A 172.21.10.13

doc-3810a-01 IN A 172.21.10.14

doc-3810d-01 IN A 172.21.10.15

doc-AS5850-01 IN A 172.21.10.11

doc-core-01 IN A 172.21.10.5

doc-core-02 IN A 172.21.10.6

doc-core-03 IN A 172.21.10.7

(truncated for brevity)

In the previous example, the zone command:

Creates an A record for the.net

Assigns the IP address 172.21.10.18 to the router bobslake-nas-02

Step 10 To reload the server to make all IP assignments or changes take effect, enter the following command:

nrcmd> server dns reload

Note Reload all changes into the DNS database, so that the changes can be resolved

upon lookup.

Task 6Managing IP Addresses by Using DNS

About Managing IP Addresses

Basic Dial NMS Implementation Guide

Using a Batch File to Make Changes to a DNS Configuration

CNR can use batch files to make large and small-scale changes to the DNS configuration within your

network.

To use the batch-file facility to add and remove entries, follow these steps:

Step 1 Define the batch file by entering zone commands:

zone the.net. addRR doc-core-02 A 172.21.10.6

zone the.net. addRR doc-core-03 A 172.21.10.7

zone 10.21.172.in-addr.arpa. removeRR 6 PTR unused-6.the.net.

zone 10.21.172.in-addr.arpa. removeRR 7 PTR unused-7.the.net.

zone 10.21.172.in-addr.arpa. addRR 6 PTR doc-core-02.the.net.

zone 10.21.172.in-addr.arpa. addRR 7 PTR doc-core-03.the.net.

server dns reload

The previous batch-file example shows how to add two new device/IP addresses. In addition to adding

two “A” records (lines 1 and 2), remove the “unused” PTR records from the reverse zone (lines 3 and

4) before adding the new “PTR” records, in place of the unused records, to the reverse zone (lines 5 and

6). See line 7 to reload the DNS server.

Step 2 Run the script by using the -b option:

nrcmd> -b < 172.21.10.batch

The following output appears:

nrcmd>

zone the.net. addRR doc-core-02 A 172.21.10.6

100 Ok

doc-core-02 IN A 172.21.10.6

nrcmd>

zone the.net. addRR doc-core-03 A 172.21.10.7

100 Ok

doc-core-03 IN A 172.21.10.7

nrcmd>

zone 10.21.172.in-addr.arpa. removeRR 6 PTR unused-6.the.net.

100 Ok

removing 6 IN PTR unused-6.the.net.

nrcmd>

zone 10.21.172.in-addr.arpa. removeRR 7 PTR unused-7.the.net.

100 Ok

removing 7 IN PTR unused-7.the.net.

nrcmd>

zone 10.21.172.in-addr.arpa. addRR 6 PTR doc-core-02.the.net.

100 Ok

6 IN PTR doc-core-02.the.net.

nrcmd>

zone 10.21.172.in-addr.arpa. addRR 7 PTR doc-core-03.the.net.

100 Ok

7 IN PTR doc-core-03.the.net.

nrcmd>

server dns reload

100 Ok

Task 6Managing IP Addresses by Using DNS

About Managing IP Addresses

Basic Dial NMS Implementation Guide

Creating a Primary Forward Zone

To create a domain (or forward zone) and include all forward mapping (the “A” records) for the domain,

follow these steps:

Step 1 Create a domain and include all forward mapping (the “A” records) by entering the zone command with

the create option:

nrcmd> zone the.net create primary file=the.net.zone.txt

To create new subnets by using the CLI, import a BIND zone definition file, which can be edited by

using an ASCI text editor. The following example shows an edited BIND file.

@ IN SOA onionring.the.net. netadmin.the.net. (

2000071600 ; serial number

3600 ; Refresh 1 hours

1800 ; Retry 30 minutes

86400 ; Expire 24 hours

86400 ; TTL 24 hours

)

IN NS onionring.the.net.

doc-rtr58-01 IN A 172.21.101.20

doc-rtr54-01 IN A 172.21.101.21

doc-rtr53-01 IN A 172.21.101.22

doc-rtr53-05 IN A 172.21.101.23

doc-3810a-01 IN A 172.21.10.14

doc-3810d-01 IN A 172.21.10.15

doc-ubr7246-01 IN A 172.21.10.16

doc-switch-02 IN A 172.21.10.17

Step 2 Verify that the primary zone was created by entering the zone command with the listRR option:

nrcmd> zone the.net listRR

100 Ok

Static Resource Records

@ IN SOA onionring.the.net.

netadmin.the.net.0

@ IN NS onionring.the.net.

doc-rtr58-01 IN A 172.21.101.20

doc-rtr54-01 IN A 172.21.101.21

doc-rtr53-01 IN A 172.21.101.22

doc-rtr53-05 IN A 172.21.101.23

(Truncated for brevity)

Dynamic Resource Records

Creating an IP Tracker Web Page

An IP tracker web page:

Provides web access to the IP database that is managed by Cisco Network Registrar.

Retrieves current IP address block assignments from a DNS server.

Uses two CGI scripts to provide a web-enabled look into DNS for each zone.

Task 6Managing IP Addresses by Using DNS

About Managing IP Addresses

Basic Dial NMS Implementation Guide

To create an IP tracker web page, follow these steps:

Step 1 Become familiar with the layout of an IP tracker web page. In Figure 24, the subnet column shows a list

of all managed zones. The assignment column describes the purpose of each zone.

Figure 24 IP Tracker Web Page

Task 6Managing IP Addresses by Using DNS

About Managing IP Addresses

Basic Dial NMS Implementation Guide

Step 2 Understand how the CGI scripts function.

There are two scripts that work together to return an NSLOOKUP list query (ls) for a specified zone in

a CGI link.

dnszone.pl—Runs the CGI process. In the subnet column in Figure 24, the entry 172.21.10.0/24 is

an active link that calls the dnszone.pl script.

The active link is coded as:

Once invoked, dnszone.pl calls the second script, dnszone_dump.

dnszone_dump—An expect script that steps through the NSLOOKUP interactive mode and returns

the output of a “ls [ZONE]” command to the dnszone.pl script. The zone list, returned to the

requesting web-based management browser, appears:

ls 10.21.172.in-addr.arpa.

[www.the.net]

0 host = broadcast-0.the.net

1 host = unused-1.the.net

2 host = unused-2.the.net

3 host = unused-3.the.net

4 host = unused-4.the.net

5 host = doc-core-01.the.net

6 host = doc-core-02.the.net

7 host = doc-core-03.the.net

8 host = doc-ls1010-01.the.net

9 host = doc-switch-01.the.net

10 host = doc-pix-01.the.net

10.21.172.in-addr.arpa. server = onionring.the.net

11 host = doc-AS5850-01.the.net

12 host = doc-oob-03.the.net

13 host = doc-2610-01.the.net

14 host = doc-3810a-01.the.net

15 host = doc-3810d-01.the.net

16 host = doc-ubr7246-01.the.net

17 host = doc-switch-02.the.net

Step 3 Download the source code for the scripts and customize them for your environment.

Go to http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/dialnms/dnszone.txt

Task 6Managing IP Addresses by Using DNS

How to Create a Reverse DNS Zone

Basic Dial NMS Implementation Guide

How to Create a Reverse DNS Zone

By creating reverse lookup zones for each IP subnet, you gain a robust database that can be used to track

assignments within an IP address space. Reverse lookups can determine the allocation status of any

address from any DNS client.

Network operators must account for used and unused IP addresses. It is recommended that each IP

address be given a DNS PTR Resource Record, even if the address is unused. For example, you can look

up and resolve an IP address as “unused-XXX.the.net.”

See the following example to create a zone from a BIND file by entering the zone command:

nrcmd> zone 101.21.172.in-addr.arpa. create primary file=the.net_rev_zone.txt

The following edited BIND definition file is for “the.net_rev_zone.txt.”

@ IN SOA onionring.the.net

esupport-austin.the.net. (

2000071600 ; serial number

3600 ; Refresh 1 hours

1800 ; Retry 30 minutes

86400 ; Expire 24 hours

86400 ; TTL 24 hours

)

;

IN NS onionring.the.net.

;

0 IN PTR broadcast-0.the.net.

1 IN PTR unused-1.the.net.

2 IN PTR unused-2.the.net.

3 IN PTR unused-3.the.net.

4 IN PTR unused-4.the.net.

5 IN PTR unused-5.the.net.

6 IN PTR unused-6.the.net.

7 IN PTR unused-7.the.net.

8 IN PTR unused-8.the.net.

9 IN PTR unused-9.the.net.

10 IN PTR unused-10.the.net.

11 IN PTR unused-11.the.net.

12 IN PTR unused-12.the.net.

13 IN PTR unused-13.the.net.

14 IN PTR unused-14.the.net.

15 IN PTR unused-15.the.net.

16 IN PTR unused-16.the.net.

17 IN PTR unused-17.the.net.

18 IN PTR unused-18.the.net.

19 IN PTR unused-19.the.net.

20 IN PTR doc-rtr58-01.the.net.

21 IN PTR doc-rtr54-01.the.net.

22 IN PTR doc-rtr53-01.the.net.

23 IN PTR doc-rtr53-01.the.net.

(Truncated for brevity..)

253 IN PTR unused-253.the.net.

254 IN PTR unused-254.the.net.

255 IN PTR broadcast-255.the.net.

For a sample BIND file that can be used as a template and edited for your environment, go to

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/dialnms/bindtemp.txt

Task 6Managing IP Addresses by Using DNS

How to Create a Reverse DNS Zone



Basic Dial NMS Implementation Guide



Basic Dial NMS Implementation Guide

Task 7Using HP OpenView to Create the

SNMP Framework

About HP OpenView

The primary function of HP OpenView (HPOV) is to manage faults.

In this case study, HP OpenView:

Discovers all the devices in the network.

Functions as the central-starting point for other element managers (EM). After HPOV is installed,

the remaining components of the network management architecture are built around HPOV.

Resides on the same Unix workstation as CiscoWorks 2000 Resource Manager Essentials,

which gathers the following database information from HPOV:

`Device names and IP addresses

`Community strings

Figure 25 Other Element Managers Start from HPOV

Note This section assumes that HP Network Node Manager Release 5.0 is already installed on

a Solaris workstation.

EM1 EM2

HPOV

EM3 EM4

42830

Task 7Using HP OpenView to Create the SNMP Framework

About HP OpenView



Basic Dial NMS Implementation Guide

Describing the advanced capabilities of HPOV is outside the scope of this document. For more

information, go to http://ovweb.external.hp.com/lpe/doc_serv/ and http://www.openview.hp.com

For Cisco IOS SNMP configurations, see the “Task 1—Enabling SNMP in a Cisco IOS Device” section

on page 41.

Verifying the SNMP Configuration

To verify that the HPOV daemons are running and the SNMP configuration is correct, follow these

steps:

Step 1 Start HPOV from the command line by entering the ovw& command from the /opt/OV/bin directory:

aurora:/opt/OV/bin ->ovw&

[1] 5079

Step 2 Verify that all the HPOV daemons are running by entering the ovstatus command from the root

directory:

aurora:/ ->ovstatus

object manager name: OVsPMD

state: RUNNING

PID: 430

exit status: -

object manager name: ovwdb

state: RUNNING

PID: 431

last message: Initialization complete.

exit status: -

object manager name: ovtrapd

state: RUNNING

PID: 433

last message: Initialization complete.

exit status: -

object manager name: ovactiond

state: RUNNING

PID: 434

last message: Initialization complete.

exit status: -

object manager name: pmd

state: RUNNING

PID: 432

last message: Initialization complete.

exit status: -

object manager name: ovtopmd

state: RUNNING

PID: 435

last message: Connected to native database: "openview".

exit status: -

object manager name: netmon

state: RUNNING

PID: 450

last message: Initialization complete.

exit status: -

Task 7Using HP OpenView to Create the SNMP Framework

About HP OpenView

!

Basic Dial NMS Implementation Guide

object manager name: snmpCollect

state: RUNNING

PID: 451

last message: No values configured for collection.

exit status: -

object manager name: ovrepld

state: RUNNING

PID: 452

last message: Initialization Complete.

exit status: -

Note If a daemon is not running, try restarting it by using the commands ovstop

daemon-name and ovstart daemon-name. If a daemon is still not running, an

HPOV license issue may exist. For more information, go to

http://www.openview.hp.com

Step 3 From HPOV, enter the SNMP community strings and target loopback IP addresses for each Cisco IOS

device. From the Options menu, select SNMP Configuration.

In the SNMP Configuration screen, enter the following information:

Target field—The target loopback IP address (for example, 172.21.10.1)

Community field—The Read-Only (RO) community string (for example, 5urf5h0p)

Set Community field—The Read-Write (RW) community string (for example, 5crapmeta1)

Note Accept the default SNMP parameters in the other fields in the SNMP Configuration

screen.

Caution Do not use the SNMP community strings “public,” “private,” or “cisco.” These strings are

well-known within the industry, and they are common defaults. These strings are open

invitations to attacks—even if you use filters.

Task 7Using HP OpenView to Create the SNMP Framework

About HP OpenView

"

Basic Dial NMS Implementation Guide

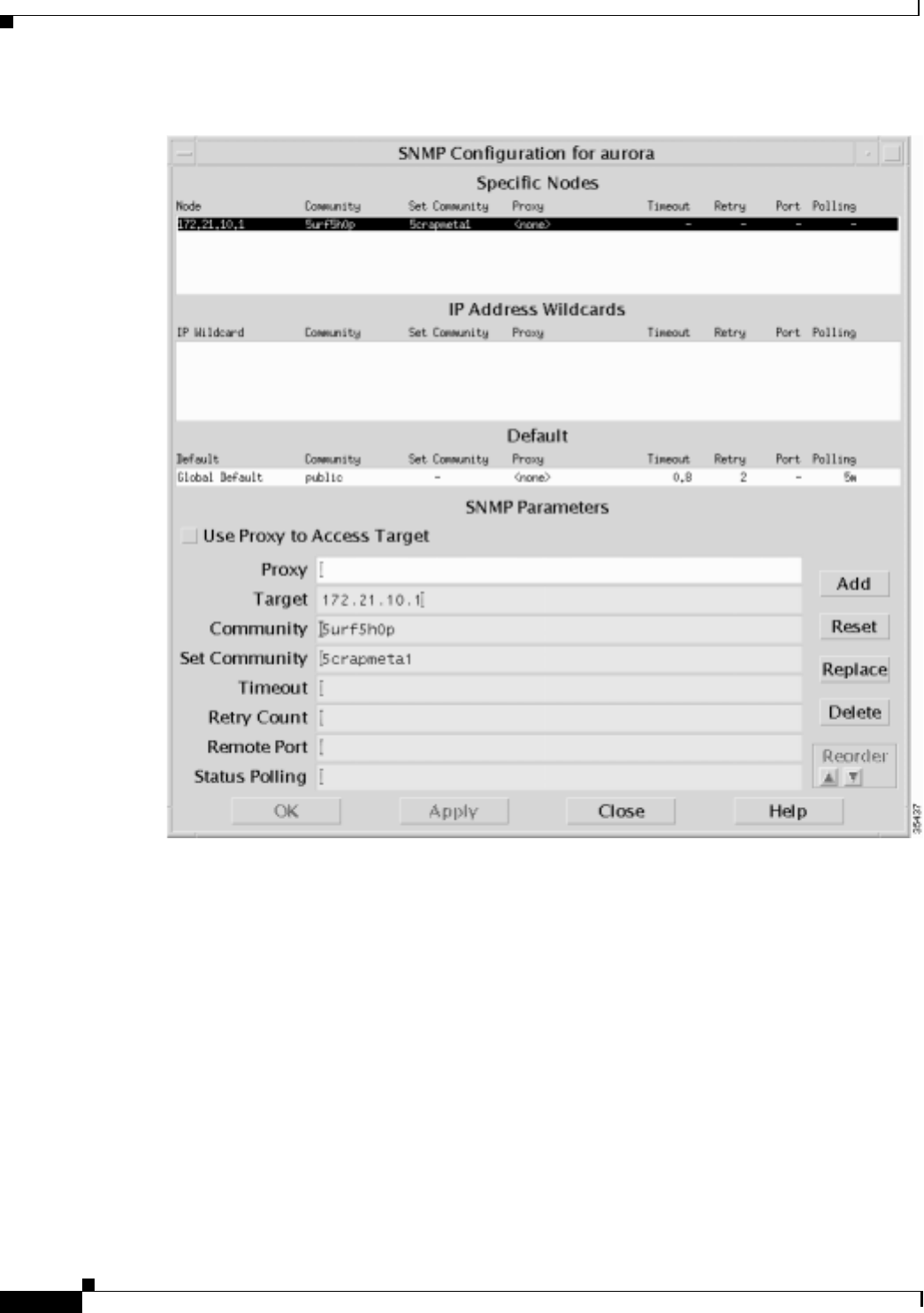

Figure 26 SNMP Configuration: Loopback IP Address and Community Strings

Step 4 Click Add and Apply to submit the entries.

Task 7Using HP OpenView to Create the SNMP Framework

About SNMP Demand Polls

#

Basic Dial NMS Implementation Guide

About SNMP Demand Polls

Perform an SNMP demand poll for a new managed device if you do not want to wait for the next

automatic topology poll. HPOV performs less frequent automatic topology demand polls as your

network and the HPOV device database becomes more static.

When the HPOV daemons start, HPOV discovers the devices in your network. Depending on which

discovery options are configured, the device map is based on Layer 2 or Layer 3 information.

Choosing discovery options is outside the scope of this document.

Depending on the number of devices that need to be discovered, it could take hours or even days for

HPOV to discover a device. If HPOV cannot find a device, enter the device manually in to the database.

See the “Using the HPOV CLI to Enter a Device into the Database” section on page 115.

To organize and adjust the top-level map, see the “Creating and Adjusting Maps” section on page 111.

Performing an SNMP Demand Poll

To perform an SNMP demand poll, follow these steps:

Step 1 From the Root screen, double click the planet Earth Internet icon.

Step 2 Inspect the top-level map of the discovered devices in your network.

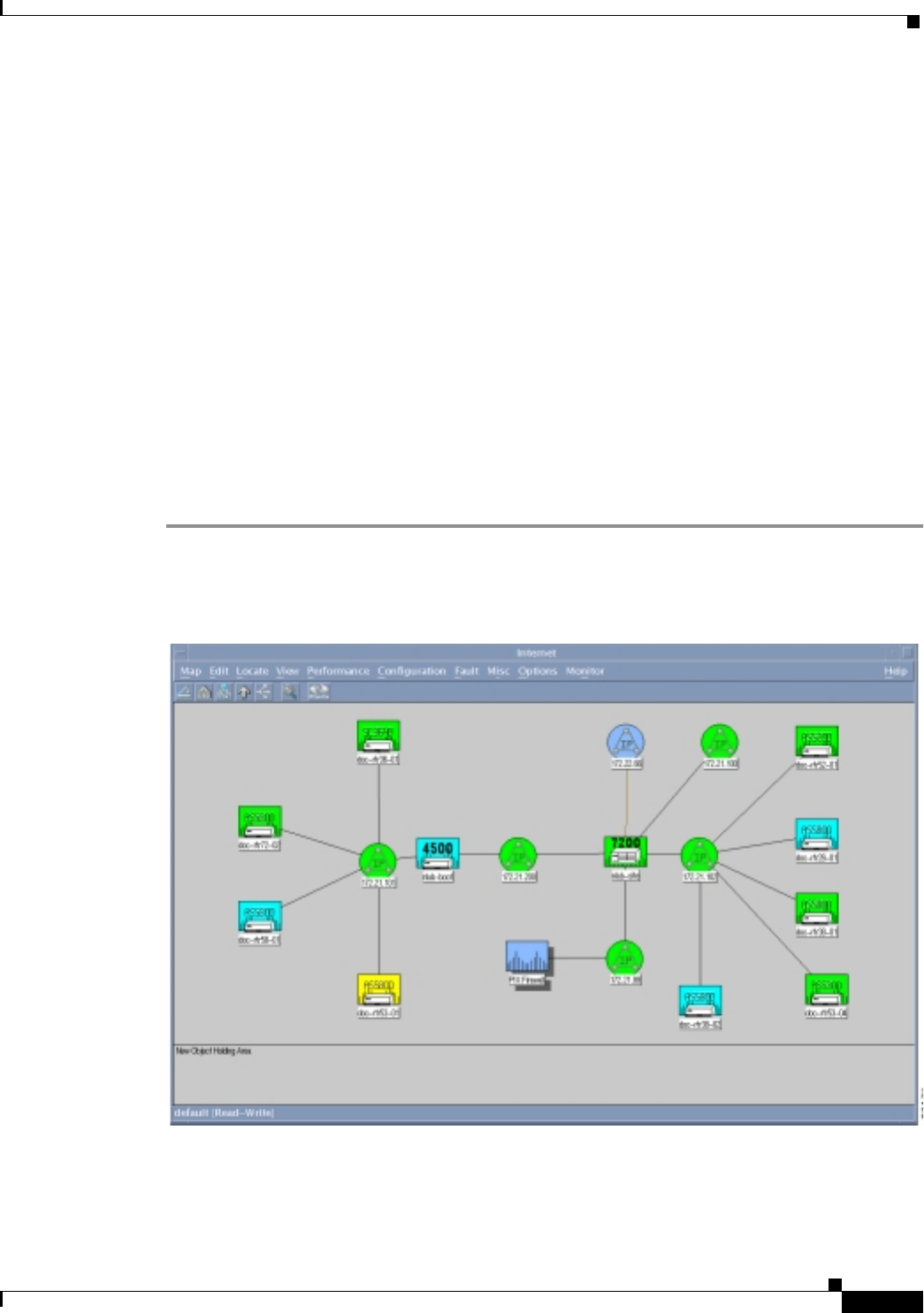

Figure 27 The Top-Level Device Map

Task 7Using HP OpenView to Create the SNMP Framework

About SNMP Demand Polls

$

Basic Dial NMS Implementation Guide

Map color legend:

Green—The device is up.

Yellow—Multiple interfaces are down.

Light blue—One interface is down.

Dark blue—The device is detected, but it has never been managed. The device is unreachable.

Red—The device is down and unreachable.

Step 3 Select a device icon in the map (single click).

Step 4 Go to Fault.

Step 5 Select Network Connectivity: Poll Node.

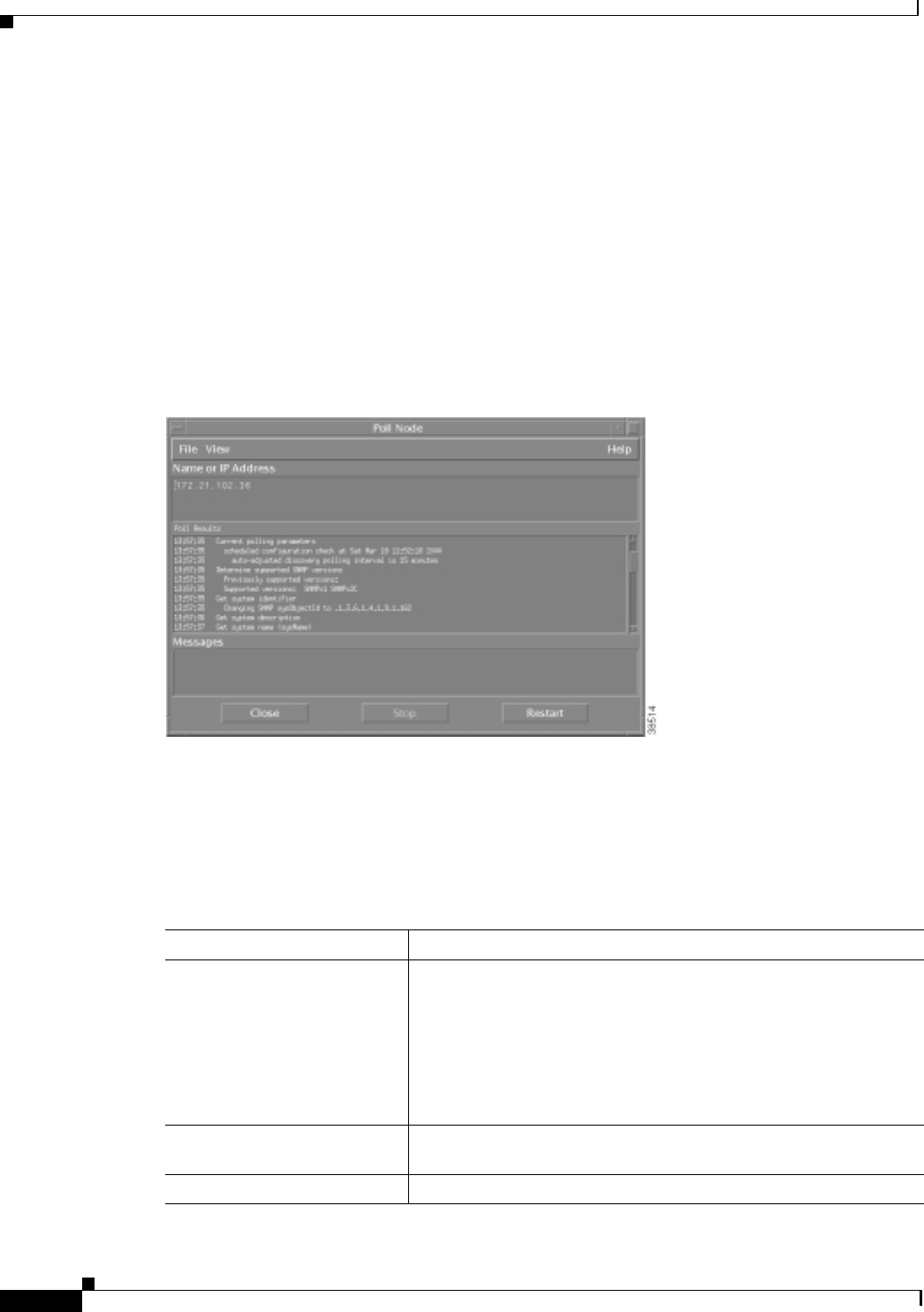

Figure 28 SNMP Walk-Polling Results

Demand polls enable HPOV to:

Detect the sysobjectID (vendor ID) for each Cisco device.

Associate MIBs with each device.

Collect interface information.

Table 31 Important Fields to Inspect In the Polling Results

Field Description

Changing SNMP sysobjectID

to .1.3.6.1.4.1.9.1.162 Indicates SNMP is working and the system identifier for the device

was found. This field appears only the first time a device is

successfully polled.

HPOV changes a generic router icon into a Cisco device icon after

the sysobjectID is found. The trailing number series, for example

.1.3.6.1.4.1.9.1.162, is the OID that identifies a node as a

Cisco device.

Supported versions Describes which versions of SNMP are supported by HPOV, such as

SNMPv1 and SNMPv2C.

Verify node name Verifies the node name is valid.

Task 7Using HP OpenView to Create the SNMP Framework

About SNMP Demand Polls

%

Basic Dial NMS Implementation Guide

Testing SNMP Get Requests

To test that a device responds to SNMP Get requests, follow these steps:

Step 1 Select a device icon in the map (single click).

Step 2 From the Fault menu, select Test IP/TCP/SNMP.

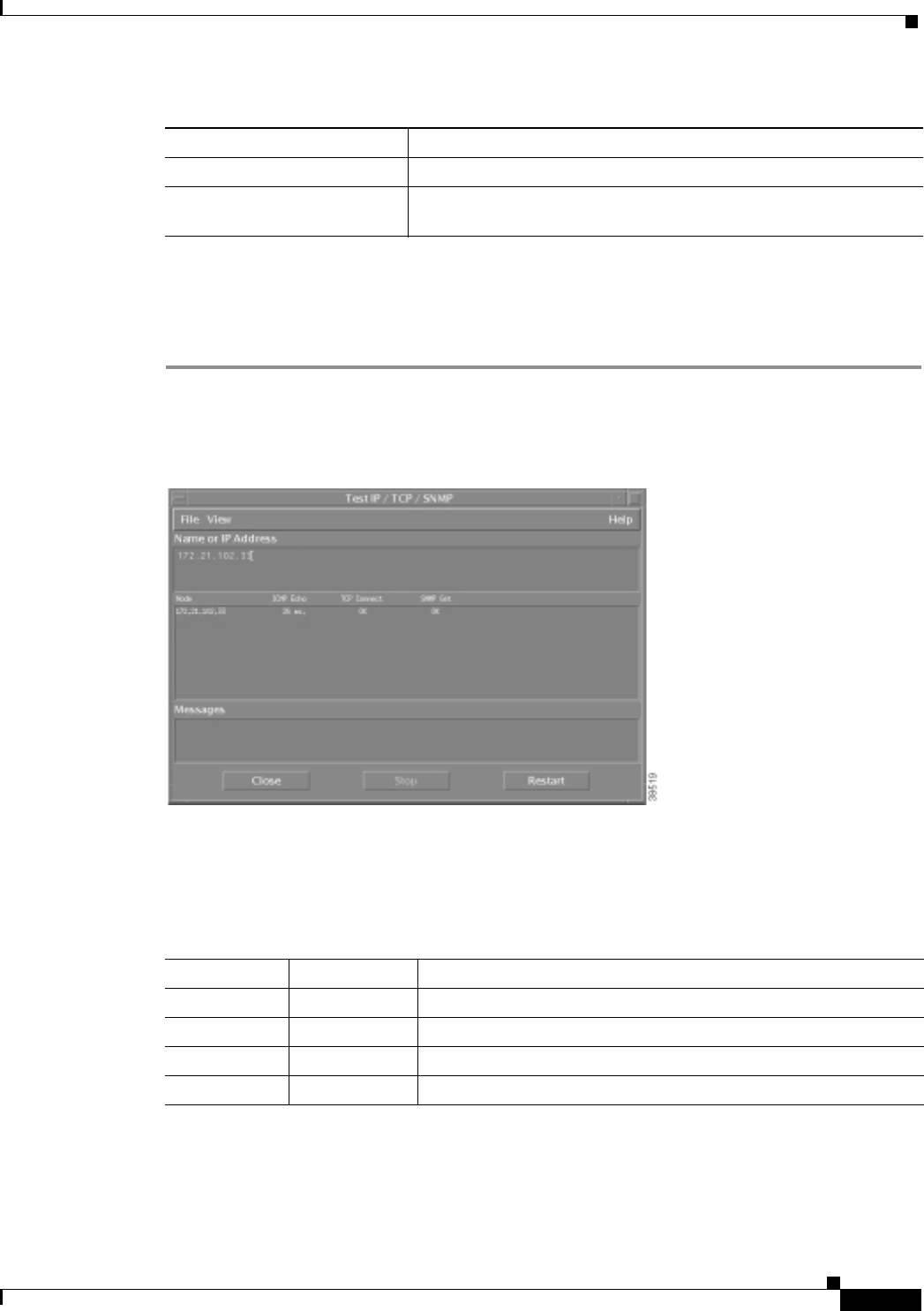

Figure 29 Successful SNMP Test

This action performs one ICMP echo, one TCP connection, and one SNMP get. SNMP is working if the

“OK” message appears under the SNMP Get field.

Table 32 describes the important fields in Figure 29.

Interface Confirms the interfaces were successfully pinged.

Get system description Verifies that the system description information was collected, so

you can identify the software version running on the device.

Table 31 Important Fields to Inspect In the Polling Results (continued)

Field Description

Table 32 Test IP/TCP/SNMP Field Descriptions

Field Returned Value Description

Node 172.21.102.33 The target loopback IP address of the Cisco device.

ICMP Echo 26 ms HPOV successfully pinged the device.

TCP Connect OK HPOV successfully made a TCP connection with the device.

SNMP Get OK HPOV successfully made an SNMP query to the device.

Task 7Using HP OpenView to Create the SNMP Framework

About SNMP Demand Polls

&

Basic Dial NMS Implementation Guide

Troubleshooting SNMP and a Demand Poll

If a device is not responding to a demand poll, follow these steps:

Step 1 Poll a different device to see if it responds to SNMP. If the device responds, HPOV is not the problem.

Step 2 Ping the device that is not responding. If the ping works, the devices are communicating.

Note A firewall in the communication path can block ping and SNMP packets.

Step 3 Verify that the SNMP community strings are correct.

Step 4 Try polling the device from the HPOV command line. For example, enter the commands snmpwalk and

snmpget.

The syntax for the snmpget command line is as follows:

snmpget [options] node object-id [object-id]...

Options:

-d dump ASN.1 packet trace

-v version protocol version (1 or 2c)

-c community community string

-p port remote port

-t timeout retransmission timeout (1/10th seconds)

-r retries maximum retransmission attempts

Caution Overpolling the wrong OIDs overloads CPUs and crashes network devices.

Verifying that SNMP Traps Are Received

Traps appear in the All Events Browser, which reports what is happening in the network. The events are

updated every few seconds. Understanding the severity level of a trap is important. One trap can be

critical; whereas, another trap can be informative.

Other ways to look for traps include:

Using a network analyzer to capture and inspect data on the line.

Using the snoop Unix command to sniff the line and inspect data.

To monitor the limits of a network, configure thresholds to set off alarms. For example, set up an alarm

for a CPU that sustains a 98 percent utilization for a specific amount of time.

Common mistakes include:

Setting thresholds too low.

HPOV is in a constant alarm state because you do not understand how to operate or monitor the

dynamics of the equipment.

Task 7Using HP OpenView to Create the SNMP Framework

About SNMP Demand Polls

'

Basic Dial NMS Implementation Guide

Setting up alarms for different kinds of traps is outside the scope of this document.

To verify that HPOV is receiving traps from devices in the network, follow these steps:

Step 1 Open the All Events Browser. From the Fault menu, select Events.

Figure 30 Traps in the All Events Browser

Step 2 Force a trap to be sent into the browser by manually causing a fault. Pull out a card on a Cisco device

or shut down an interface.

Caution Do not shut down a communication link that can cause a service outage.

Step 3 Look for traps in the browser.

Task 7Using HP OpenView to Create the SNMP Framework

About SNMP Demand Polls



Basic Dial NMS Implementation Guide

Unmanaging the Dial Ports

Do not poll the asynchronous and serial interfaces on Cisco access servers. The reasons for this

recommendation include:

As remote users dial in to an access server, it is normal behavior for asynchronous and serial

interfaces to regularly go up and down.

On an average 20-minute call, one modem normally produces three alerts. At approximately 6 alerts

per hour, one modem can produce up 144 events each day. One Cisco AS5800 fitted with 1296

modems can produce up to 186,624 modem events per day.

To unmanage the asynchronous and serial interfaces for a Cisco access server, follow these steps:

Step 1 From the top-level map, double click on an access server icon. The available interfaces and ports appear.

Figure 31 Available Interfaces and Ports for a Cisco AS5800

Color legend:

Green—The port is managed, and it is up.

Blue—The port is managed, but it is administratively down on the Cisco IOS.

Tan—The port is unmanaged.

Red—The port is managed, but it is in a down state.

Task 7Using HP OpenView to Create the SNMP Framework

About SNMP Demand Polls



Basic Dial NMS Implementation Guide

Step 2 Find the following interfaces:

Serial interface channels (B and D channels). For example, Se1/0/0:6 and Se1/0/0:23

Asynchronous interfaces. For example, Async 1/2/1

Step 3 Select a group of ports to unmanage. Draw a box around the ports, or select them individually.

Step 4 From the Map menu, select Unmanage Objects. Unmange all ports except the T1 trunks, loopback

management interface, and Ethernet interface. Statistics are polled from managed ports.

Note You must unmanage the serial and asynchronous ports, which appear tan.

Tips When the status of an object changes (to managed or unmanaged), HPOV switches to

synchronization mode.

Creating and Adjustin g Maps

Maps provide a view of the network topology, and they enable you to quickly troubleshoot faults in the

network. HPOV automatically polls devices and builds maps for you; however, devices often get stacked

in the map, which is undesirable.

The following procedure saves you from having to refresh all your submaps each time a new device

appears in the network. After you implement the following procedure, new devices will appear in the

New Object Holding Area.

Caution Deleting a device from a submap removes the device from the database. To load a device

back into the database, see the “Using the HPOV CLI to Enter a Device into the Database”

section on page 115.

Task 7Using HP OpenView to Create the SNMP Framework

About Discovery Filters



Basic Dial NMS Implementation Guide

To manually re-structure device maps to adequately represent your network and turn off the

automatic-layout function for the top-level map, follow these steps:

Step 1 Re-structure the top-level map by selecting and moving device icons. For example, put a collapsed

backbone in the center of the map; then, position devices around the backbone.

Figure 32 Top-Level Map Adjustments

Step 2 Go to View.

Step 3 Select Automatic Layout.

Step 4 Choose Off For This Submap.

About Discovery Filters

A discovery filter is an ASCII file that HPOV reads to limit the discovery of devices on the network.

Use a discovery filter to:

Define the subnets and devices you want to monitor.

Avoid managing PCs and other non SNMP devices on the network.

Sometimes HPOV discovers too many devices. If HPOV discovers devices beyond your target network,

such as the entire Internet, the performance of the Unix host decreases significantly. If the device maps

begin filling up with networks, routers, and other devices that do not belong to you, use a discovery

filter.

Task 7Using HP OpenView to Create the SNMP Framework

About Discovery Filters

!

Basic Dial NMS Implementation Guide

After a filter is set up, HPOV will not discover devices unless they are defined by the filter. Edit the

filter each time a new device is added to the network.

For more information about discovery filters, go to http://www.openview.hp.com

Setting Up and Editing a Discover y Filter

The filter file is located in the /etc/opt/OV/share/conf/C directory. A sample file is shown in the

following step-by-step example. The file has been manually edited and abbreviated to include a specific

node list and filter list for this case study:

Node list—A list of specific devices. In the example, the list is called TheNetNodes. There are two

devices in the list: AS5800-1 and AS5800-2.

Filter list—A list of attributes for the specified devices. In the example, the list is called

TheNetFilters, which specifies the filtering attributes for the devices in the node list. For example,

all devices must be SNMP compliant and Cisco devices.

To see a complete filter file, go to

http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/dialnms/filter.txt

To set up and edit a discovery filter, follow these steps:

Step 1 Find the filters file on your Unix workstation:

aurora:/etc/opt/OV/share/conf/C ->ls

filters oid_to_sym trapd.conf

Step 2 Edit the filters file by using a text editor to include a node list and a filter list for your network

environment:

aurora:/etc/opt/OV/share/conf/C ->vi filters

// @(#)$OV_CONF/$LANG/filters

// @(#)HP OpenView NNM Release B.05.01 Jun 21 1997

// $Revision: /main/TORNADO/NNM_NT/5 $ $Date: 1997/01/13 19:35 UTC $

// This is the default filter file. These filters are examples

// which may be useful in your environment. Feel free to modify

// these filters and/or add your own. See OVfilterIntro(5)

// for more information on this file.

// NOTE: The behavior of topology filters in a distributed environment

// changed as of DFIX 5027. This file documents the behavior as of that

// patch level. This should be considered the correct specification of

// how topology filtering behaves in a distributed environment.

// Sets are a simple way to list string values to test

// against in a filter. The "IN" operator tests a field value

// for membership in a set defined here.

Sets {

// These are simple examples of sets.

servers "Set of Servers" { "sv1", "sv2", "sv3" }

gateways "Backbone gateways " { "gw1", "gw2", "gw3" }

TheNetNodes "TheNet Node List" { "AS5800-1", “AS5800-2" }

Task 7Using HP OpenView to Create the SNMP Framework

About Discovery Filters

"

Basic Dial NMS Implementation Guide

}

FilterExpressions {

// The following combines the two set filters

// defined above into one FilterExpression.

// It works unmodified as a discovery filter.

// To work as a map filter, network and segment filtering

// must be added (see below).

VitalNodes "All Gateways and Servers" { GatewaysSet || ServersSet }

// One can turn the filters defined above into viable map or

// topology filters by simply adding "|| NetsNSegs". (Doing so

// does not invalidate the filters as discovery

// filters. It just adds a superfluous test.)

VitalNodesMap "All nets & segs, but only gateway and server nodes"

{ GatewaysSet || ServersSet || NetsNSegs}

LocalLANView "All nets & segs, but only local nodes"

{ LocalLAN || NetsNSegs }

NetInfrastructure "Any network connecting device and what they connect"

{ Routers || Bridges || Hubs || NetsNSegs }

NetBackbone "Networks and gateways/routers"

{ Routers || Networks }

// Using the filters defined above that include only a specific

// network, we can also exclude the specific network like this

// Note the use of the more specific form to exclude only the segments

// in the engineering lan. This could have been specified directly

// as a negation in the filter part, but this form works well if you

// have several networks to manipulate in this manner.

EverythingButEngr "Everything but the engineering LAN"

{ !EngrLan2 }

// Of course the above filter expressions, when used as

// map filters, pass all networks and segments. You

// may wish to see only a particular network. The following map

// filters accomplish this. Note that though segments

// and nodes from other networks will pass the filters, IP Map

// will ignore them because their parent networks will not pass.

// NOTE: These filters will not work as Discovery

// filters because all network and segments automatically pass

// Discovery and Topology filters.

MyNetMap "Only the network of interest and all its constituent parts"

{ MyNet || Segments || Nodes}

MyVitalNodesMap "Gateways, servers and segments in the net of interest"

{ MyNet || Segments || GatewaysSet || ServersSet }

TheNetNodeList "This is the filter for TheNet nodeslist

{ TheNetNodes || TheNetFilters }

// This is a map persistence filter which ensures that

// all Ungermann-Bass are kept in memory and up to date.

// Note that this will also keep any containing submaps in memory.

PersFilter "Objects to keep in map memory" { UBNodes }

}

Task 7Using HP OpenView to Create the SNMP Framework

About Discovery Filters

#

Basic Dial NMS Implementation Guide

Using the HPOV CLI t o Enter a Device into the Database

Sometimes devices do not appear in the device map, or they are accidentally deleted from the HPOV

database.

To manually load devices in to the HPOV database by using the CLI, follow these steps:

Step 1 This step ensures that new host entries are safely loaded in to the database. Shutdown the netmon

daemon by entering the ovstop netmon command from the root directory. All automatic network

polling and database updates stops.

aurora:/ ->ovstop netmon

aurora:/ ->ovstatus netmon

object manager name: netmon

state: NOT_RUNNING

PID: 450

last message: Exited due to user request

exit status: Exit(0)

Step 2 To load new devices in to the database, enter the loadhosts -m command from the root directory

followed by a single netmask for the devices. Include an end of file statement (EOF) to enter multiple

lines with one return.

aurora:/ ->loadhosts -m 255.255.255.0 <<EOF

> 10.10.10.104 hostname

> 14.14.14.14 host2name

> EOF

aurora:/ ->

Note Enter devices by using a DNS format (IP address then hostname). Use spaces (not

tabs) to separate IP addresses from hostnames.

Step 3 Restart the netmon daemon by entering the following commands:

aurora:/ ->ovstart netmon

aurora:/ ->ovstatus netmon

object manager name: netmon

state: RUNNING

PID: 12812

last message: Initialization complete.

exit status:

Step 4 Go to the GUI and look for the new devices that appear in the new object holding area.

Step 5 Perform a demand poll on each device to get the sysobjectIDs. After the demand poll is performed,

HPOV puts each new device into its correct place in the map.

Task 7Using HP OpenView to Create the SNMP Framework

About Discovery Filters

$

Basic Dial NMS Implementation Guide

%

Basic Dial NMS Implementation Guide

Task 8Using CiscoWorks 2000 Resource

Manager Essentials

About CiscoWorks 2000 RME

Cisco Works 2000 Resource Manager Essentials (CW2000 RME) is an element manager used to

routinely manage Cisco equipment.

In this case study, CW2000 RME is used for the following tasks:

Inspecting syslogs to isolate faults and device problems.

Sorting syslog messages based on device and date.

Polling for device and interface status.

Backing up and restoring Cisco IOS configurations (images and configuration files).

The following installation assumptions are made in this case study:

CW2000 maintenance release 2 has been installed on a Solaris workstation. RME version 2.2 is

available.

CW2000 is installed on the same Unix workstation as HP OpenView (HPOV).

CiscoView uses HPOV as a starting point.

Table 33 Related References and Documents

Reference URL

CiscoWorks 2000 TAC Support Page—Provides links to

technical information for implementing, operating, and

troubleshooting Cisco Works 2000.

http://www.cisco.com/pcgi-bin/Support/

PSP/psp_view.pl?p=Software:CiscoWor

ks2000

CiscoWorks 2000 Documentation Set—A collection of

configuration guides and reference manuals. http://www.cisco.com/univercd/cc/td/do

c/product/rtrmgmt/cw2000/index.htm

Task 8Using CiscoWorks 2000 Resource Manager Essentials

About CiscoWorks 2000 RME

&

Basic Dial NMS Implementation Guide

Importing Devices from HPOV and Popul ating the Databases

In this case study, CW2000 RME relies on the automatic-discovery mechanism in HPOV to discover

devices in the network. CW2000 RME extracts the following information from the HPOV database after

HPOV discovers the devices:

SNMP community strings

Device IP addresses

Device names

Device information is stored in the following database locations:

For HPOV, /var/opt/OV/share/databases

For CW2000, /opt/CSCOpx/objects/db/px.db

Note Alternatively, you can use Cisco Works for Switched Internetworking (CWSI) to

discover devices instead of using HPOV.

To import the list of devices and SNMP community strings from HPOV into CW2000 RME, follow

these steps:

Step 1 Verify that the basic setup for HPOV is working correctly.

Incorrect SNMP community strings prevent polling cycles. For basic verification steps, see the

“Task 7—Using HP OpenView to Create the SNMP Framework” section on page 101.

Step 2 From the root directory, verify that the HPOV database daemon is running in the background by

entering the ovstatus ovwdb command:

aurora:/ ->ovstatus ovwdb

object manager name: ovwdb

state: RUNNING

PID: 442

last message: Initialization complete.

exit status: -

aurora:/ ->

Note If a daemon is not running, try restarting it by using the commands ovstop

daemon-name and ovstart daemon-name. If a daemon is still not running, an

HPOV license issue may exist. For more information, go to

http://www.openview.hp.com

Step 3 From a web browser, log in to CW2000 RME.

Step 4 Click on the Admin menu on the left toolbar.

Step 5 Select Inventory: Import from Local NMS.

Task 8Using CiscoWorks 2000 Resource Manager Essentials

About CiscoWorks 2000 RME

'

Basic Dial NMS Implementation Guide

Step 6 In the Import from Local NMS screen:

Select HP Openview from the NM Product rectangular-shaped menu.

Choose Resolve conflicts after importing.

Choose Cisco devices only.

The SNMP community strings are automatically set during the import operation.

Figure 33 Devices Imported from HP OpenView

Step 7 Click Next.

The devices are imported and a status summary appears.

Step 8 Click Update until you see all the devices classified as managed devices.

A constant pending or conflicting state indicates a problem that requires resolution:

Inspect the details of the device.

Verify that the SNMP community strings are correct.

38628

Task 8Using CiscoWorks 2000 Resource Manager Essentials

About CiscoWorks 2000 RME

 

Basic Dial NMS Implementation Guide

Verifying that Device Polling is Turned On

To verify that polling is enabled or to alter any polling settings, follow these steps.

Step 1 From the Admin menu, click on Availability: Change Polling Options.

Step 2 In the Select Polled Views screen, select All Views and All Polled Views.

Figure 34 Polling Setup

Step 3 Click Next.

Step 4 To accept the default settings, click Finish.

Task 8Using CiscoWorks 2000 Resource Manager Essentials

About CiscoWorks 2000 RME

 

Basic Dial NMS Implementation Guide

Polling the Devices

To inspect the status and availability of the devices, follow these steps.

Step 1 From the Tasks menu, click on Availability: Reachability Dashboard.

Figure 35 The Status of the Devices

Step 2 Click a device to become familiar with the different management elements. Green arrows indicate

devices that are up. Red arrows indicate devices that are down.

Step 3 To turn on continuous availability monitoring and reporting, go to the Tasks menu. Click on

Availability: Availability Monitor.

38629

Task 8Using CiscoWorks 2000 Resource Manager Essentials

About CiscoWorks 2000 RME



Basic Dial NMS Implementation Guide

Step 4 Select All in the Views window.

Figure 36 Devices Listed in the Availability Monitor

Step 5 Select one or more devices.

Step 6 Click Finish.

Step 7 Inspect the available elements for the devices.

38630

Task 8Using CiscoWorks 2000 Resource Manager Essentials

About CiscoWorks 2000 RME

 !

Basic Dial NMS Implementation Guide

Backing up Cisco IOS Configurations

Having quick access to archived configuration files reduces network downtime when problems occur.

Note You can only back up managed devices.

To back up the Cisco IOS start-up configuration files for devices within the network, follow these steps:

Step 1 From the Tasks menu, select Device Configuration: Update Archive.

Figure 37 The Update Archive Screen

Step 2 Select All Devices.

Step 3 Select one or more devices from the list that appears.

Step 4 Click Finish.

The Cisco IOS start-up configuration file is copied from the router to the Unix workstation.

Task 8Using CiscoWorks 2000 Resource Manager Essentials

About CiscoWorks 2000 RME

 "

Basic Dial NMS Implementation Guide

Using CiscoView

CiscoView is a GUI-based device management software application that lets you access dynamic status,

statistics, and comprehensive configuration information for Cisco products.

To inspect device-specific characteristics on different Cisco devices, follow these steps:

Step 1 From the top-level map in HPOV, select a device.

Step 2 Go to Monitor: CiscoView.

Step 3 Select and view different system components.

Figure 38 Card Positions in the Cisco AS5800 Dial Shelf

Task 8Using CiscoWorks 2000 Resource Manager Essentials

About CiscoWorks 2000 RME

 #

Basic Dial NMS Implementation Guide

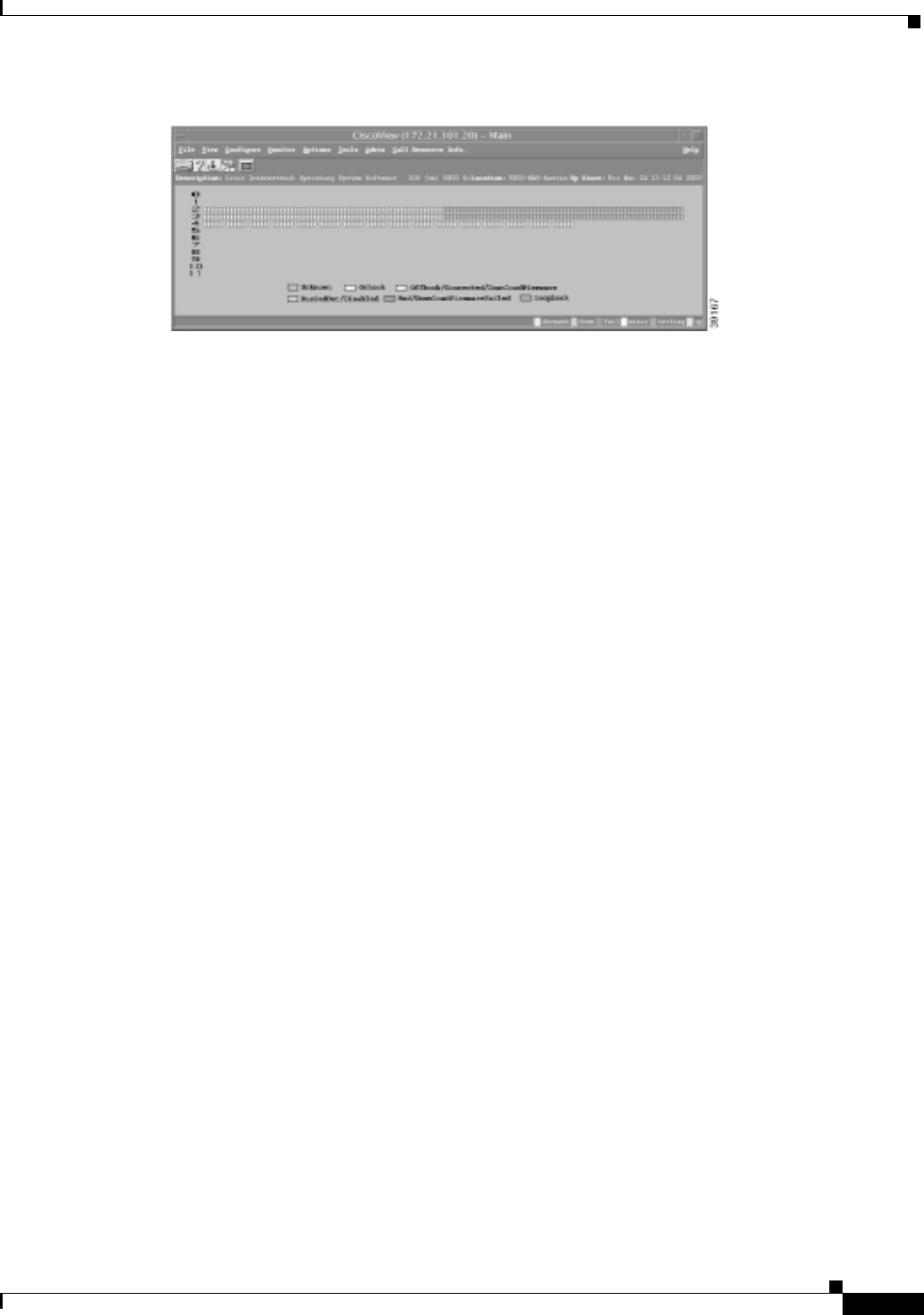

Figure 39 Available Modems in the Cisco AS5800 Dial Shelf

Task 8Using CiscoWorks 2000 Resource Manager Essentials

About CiscoWorks 2000 RME

 $

Basic Dial NMS Implementation Guide



Basic Dial NMS Implementation Guide

INDEX

AAA

case study x

CLI commands 27, 28

design 27

negotiation 57

servers 31

busy hour ratio 31

capacity planning 31

Cisco 2511 31

setting up 83

Cisco 2511, console connection, troubleshooting 85

Cisco AS5300

MRTG configuration file 60

MRTG graphs 57

Cisco AS5800 31

Cisco IOS CLI Commander 89

Cisco IOS configurations

HTTP 86

modem call records 75

NTP 71

SNMP 41

syslog 67

terminal server, Cisco 2511 85

troubleshooting 87

Cisco IOS configurations, backing up 123

Cisco Network Registrar

about 91

batch files, using 95

CLI commands, using 92

forward zone, creating 96

reverse zone, creating 99

Cisco PIX 31

CiscoSecure Unix 33

Cisco TAC online ix

CiscoView 124

CiscoWorks 2000 RME

about 117

configurations, backing up 123

design 32

devices, importing 118

devices, polling 120

clear line command 85

CLI commands for dial operations 27, 38, 87

clocking, NTP configuration 71

clock summer-time command 71

clock timezone command 71

community strings 42

configuration management

Cisco IOS, backing up 123

CiscoView 124

CiscoWorks 2000 RME 117

CLI commands 87

design 27, 28

IP addresses, managing 91

MIBs to use 37

console server, setting up 83, 85

crontab 63

Index

Basic Dial NMS Implementation Guide

Device Linker, setting up 83

dial NMS

benefits 24

case study 23

configuration design parameters 33

hardware requirements 31

implementation and operation tasks 35

network topology 30

planning questionnaire 25

service definition 27

software requirements 32

dir command 87

DNS

about 91

IP addresses 91

fault management

CLI commands 27, 88

description 67

HP OpenView, using 101

syslog and NTP, configuring 69

FCAPS 27

freeware

Cisco IOS CLI Command Center 86

IP tracker web page 96

Modem Call Record Viewer 70

MRTG 53

SNMP Commander 49

UCD-SNMP 45

FTP

MIBs 46

syslog messages 78

hardware for a dial NMS 30

HP OpenView

about 101

basic setup 102

CLI, entering devices 115

color legend 106, 110

design 32

devices, entering 115

dial ports, unmanaging 110

discovery filters

about 112

setting up 113

filters, setting up 112

get requests, testing 107

maps, adjusting 111

polling devices

about 105

demand polls, performing 105

SNMP, troubleshooting 108

SNMP configuration, verifying 102

sysobjectID 106

traps, verifying 108

web site 102

HTTP

access to CLI commands, using 86

implemenation tasks for a dial NMS 35

interface loopback command 42

interfaces

capacity planning 31

unmanaging 110

IOS, See Cisco IOS 41

IP addresses, managing 91, 96

IP design 33, 34

ip http authentication aaa command 86

Index

Basic Dial NMS Implementation Guide

ip http server command 86

line requirements 31

loadhosts -m command 115

logging, See syslog 67

logging buffered command 75

logging command 75

logging console command 75

logging facility command 75

logging trap command 75

loopback address 34

MIBs

about 16

downloading from Cisco 46

exploring by using UCD-SNMP 45

ftp.cisco.com 46

new dial features 38

OIDs for MRTG 54

recommended for the dial NMS 37

modem call records

about 69

Cisco IOS configuration 75

modems

call records 70, 75

modulation trends 69

OIDs to poll 55

MRTG

configuration files, editing 59, 60

design 32

dial counters 54, 59

electronic template 60

functions 53

installing 59

OIDs to poll 54

web site 59

network topology, dial NMS 30

NTP

about 69

client, setting up 72

client, troubleshooting 74

enabling on a Cisco IOS device 71

verifying 71

ntp clock-period command 71

ntpq -p command 73

ntp server command 71

ntp update-calendar command 71

OIDs 38

circuit utilization 54

description 16

modem information 54

user information 54

OpenView, See HP OpenView 101

operation tasks for a dial NMS 35

out-of-band console 83

ovstatus command 102, 115

ovstop command 115

ovw& command 102

performance management

CLI commands 27, 29

Connection Success Rate 57

OIDs to query 54

planning questionnaire 25

Index

Basic Dial NMS Implementation Guide

polling devices

CiscoWorks 2000 RME 120

warnings 37, 54

portal, for a dial NMS 81

PPP 57, 69

PRI lines 31

ps -elf command 77

RADIUS design 26, 29

security management

AAA case study x

CLI commands 27, 29

for IP networks x

HTTP 86

incident tracking 69

SNMP 21

service definition 27

service timestamps command 71

show caller command 39, 88

show controllers t1 call-counters command 38

show dialer command 88

show file systems command 87

show flash command 87

show ip interface brief command 87

show ip route command 87

show isdn history command 40

show isdn memory command 38

show isdn service command 87

show isdn status command 87

show logging command 74

show modem call-stats command 88

show modem command 39, 88

show modem connect-speeds command 39

show modem summary command 38

show modem version command 87

show ntp association command 72

show ntp status command 71

show users command 85, 88

SNMP

about 13

agent 14

community strings 42

enabling in a Cisco IOS device 41

FAQ 14

managed devices 14

management 20

message types and commands 15

MIBs 16

NMS 14

security 21

SNMPv1 18

SNMPv2 19

TAC support 14

trap link status events, disabling 76

using HP OpenView 102

using MRTG 53

SNMP Commander

about 49

setting up 49

snmp host command 42

snmp-server community command 42

snmp-server contact command 42

snmp-server enable command 42

snmp-server engineID command 42

snmp-server location command 42

snmp-server packetsize command 42

snmp-server trap-source command 42

software for a dial NMS 32

Solaris workstations 31

subnetting plan 33

syslog

about 67

Index

Basic Dial NMS Implementation Guide

console warnings 75

daemon, configuring 76

design 30

destinations 68

enabling on a Cisco IOS device 74

link status events, disabling 76

log file, inspecting 78

server 68

severity levels 68

WAN links 31

T3 cards 31

TACACS+ design 26, 29

tail -f command 78

terminal server, setting up 83

topology

NOC 30

POP 30

touch command 77

troubleshooting

HP OpenView 108

terminal server 85

using modem call records 69, 75

using NTP 69

using syslog 69

UCD-SNMP

about 45

design 32

downloading MIBs 46

installing 46

MIBs for dial, exploring 46

web-based access, setting up 49

web site 46

Unix workstations 31

user-growth projections 25, 31

user IDs 69

War Dialer 33

web server, setting up 64

xntpd command 73

Index

Basic Dial NMS Implementation Guide

Cisco Systems Dial Nms Operating Instructions Dnmsb

Navigation menu

Versions of this User Manual:

Views

Navigation
