Catalyst 4500 E-Series Switches Installation Guide
Contents
Preface
Product Overview
Preparing for Installation
Installing the Switch in a Rack
Removing and Replacing FRUs
Troubleshooting
Specifications
Repacking a Switch
Initial Configuration for the Switch
Module Overview and Specifications
Index

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

Catalyst 4500 E-Series Switches

Installation Guide

November 2007

Text Part Number: OL-13972-01

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL

STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT

WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT

SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE

OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required

to correct the interference at their own expense.

The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate radio-frequency energy. If it is not

installed in accordance with Cisco’s installation instructions, it may cause interference with radio and television reception. This equipment has been tested and found to

comply with the limits for a Class B digital device in accordance with the specifications in part 15 of the FCC rules. These specifications are designed to provide reasonable

protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.

Modifying the equipment without Cisco’s written authorization may result in the equipment no longer complying with FCC requirements for Class A or Class B digital

devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television

communications at your own expense.

You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its

peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:

• Turn the television or radio antenna until the interference stops.

• Move the equipment to one side or the other of the television or radio.

• Move the equipment farther away from the television or radio.

• Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits

controlled by different circuit breakers or fuses.)

Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH

ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT

LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF

DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,

WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO

OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

CCVP, the Cisco logo, and Welcome to the Human Network are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn is a service mark of

Cisco Systems, Inc.; and Access Registrar, Aironet, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, Cisco, the Cisco Certified Internetwork Expert logo,

Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step,

Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, iQuick Study,

LightStream, Linksys, MeetingPlace, MGX, Networkers, Networking Academy, Network Registrar, PIX, ProConnect, ScriptShare, SMARTnet, StackWise, The Fastest Way

to Increase Your Internet Quotient, and TransPath are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship

between Cisco and any other company. (0711R)

Catalyst 4500 E-Series Switches Installation Guide

iii

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

CONTENTS

Preface vii

Audience vii

Organization vii

Related Documentation

Refer to the fo llow ing docum ents fo r additional Catalyst 4500 series and Catalyst 4500 E-series

information:

• Catalyst 4500 Series Module Installation Guide at

http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/module/guide/

mod_inst.html

for information about individual switching modules and supervisors not discussed in this

publication.

• Regulatory Compliance and Safety Information for the Catalyst 4500 Series Switches at

http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/regulatory/compliance/

78_13233.html

• The release note appropriate to your software version. Release notes are at:

http://www.cisco.com/en/US/products/hw/switches/ps4324/prod_release_notes_list.html

• The software configuration guide appropriate to your software version. Software configuration

guides are at:

http://www.cisco.com/en/US/products/hw/switches/ps4324/products_installation_and_configurati

on_guides_list.html

• The command reference appropriate to your software version. Command references are at:

http://www.cisco.com/en/US/products/hw/switches/ps4324/prod_command_reference_list.html

• The system message guide appropriate to your software version. System message guides are at:

http://www.cisco.com/en/US/products/hw/switches/ps4324/products_system_message_guides_list

.html

• There are a number of installation notes and technical tips available for this switch. The top level

Catalyst 4500 and Catalyst 4500-E documentation and technical support page is at

http://www.cisco.com/en/US/products/hw/switches/ps4324/tsd_products_support_

series_home.html

Conventions

This docum ent uses the fo llow ing conventions:

A ppendix C In itial C onfiguration

fo r the Sw itch

Provides a very minimal configuration. For fu ll

configuration of features and interfaces, refer to the

software configuration guide for your software release.

A ppendix D Module Overview and

Specifications

Provides sp ecifications and other information about the

Catalyst 4500 E-series sw itching m odules.

Chapter Title Description

Convention Description

boldface font C om m ands and keyw ords are in boldface.

italic font Argum ents for which you sup p ly values are in italics.

[ ] Elem ents in squ are brackets are optional.

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Preface

Conventions

Notes use the follow ing conventions:

Note Means reader take note. Notes contain helpful suggestions or references to material not covered in the

publication.

Cautions use the follow ing conventions:

Caution Means rea d er be careful. In this situation, you might do som ething that could result in

equipm ent dam age or lo ss of data.

{ x | y | z }Alternative keyw ords are grouped in braces and sep arated by vertical bars.

[ x | y | z ]Optional alternative keyw ords are grouped in brackets and separated by

vertical bars.

string A nonquoted set of characters. Do not use quotation marks around the

string, because the string will include the quotation marks.

screen font Terminal sessions and inform ation that the sy stem displays are in screen

fo n t.

boldface screen

font

In fo rmation that you must enter is show n in boldface screen font.

italic screen

font Argum ents for which you supply values are in

italic screen

font.

Ctrl- Ctrl- rep resents the key labeled C ontrol—for exam ple, the key com bination

Ctrl-D m eans to hold dow n the Control key while you press the D key.

< > Characters that do not print, such as passw o rds, are show n within angle

brackets.

Convention Description

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Preface

Conventions

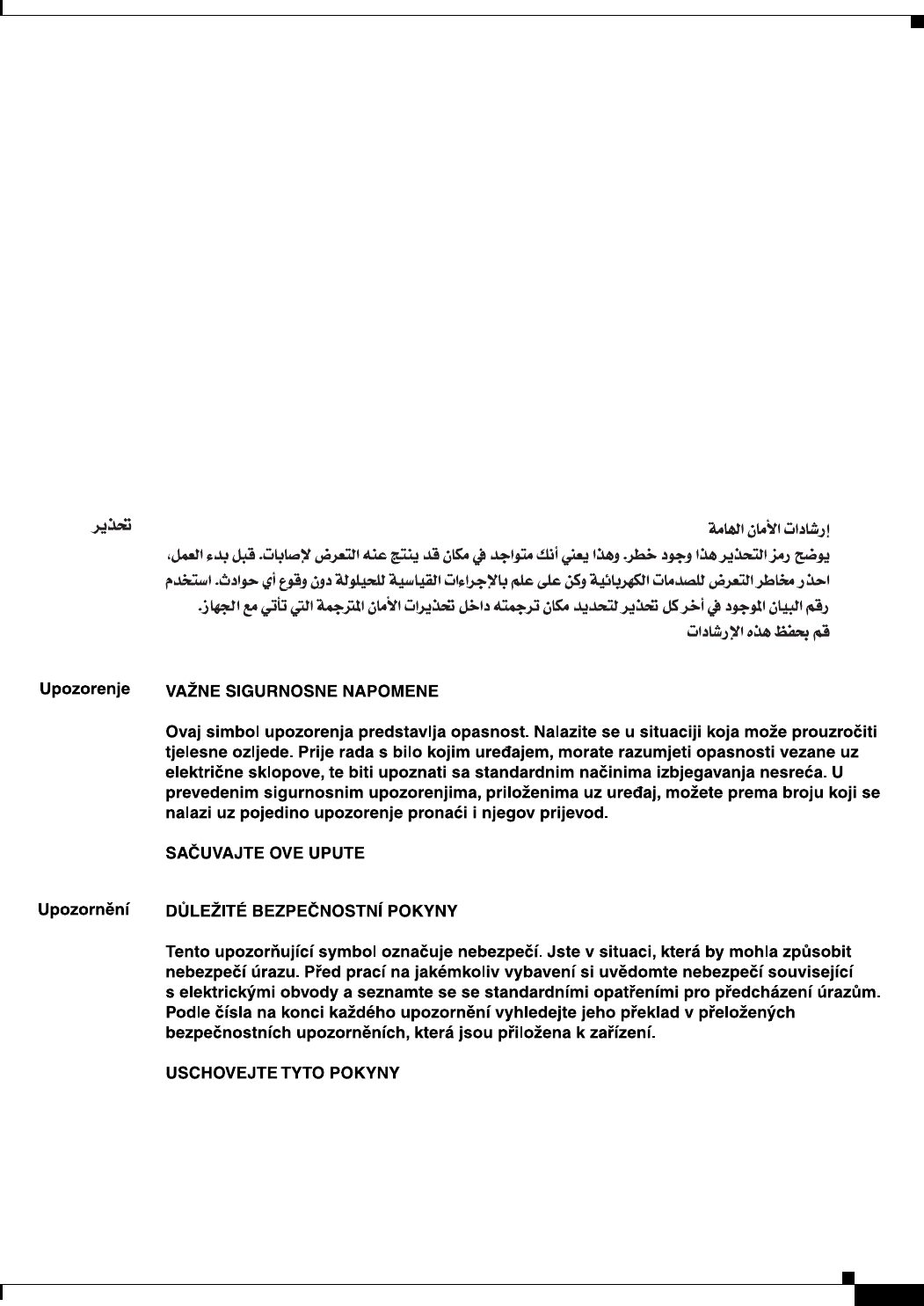

Warnings use the following conventions:

Warning

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you

work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar

with standard practices for preventing accidents. Use the statement number provided at the end of

each warning to locate its translation in the translated safety warnings that accompanied this

device.

Statement 1071

SAVE THESE INSTRUCTIONS

Waarschuwing

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan

veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij

elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard

praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de

waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt

raadplegen.

BEWAAR DEZE INSTRUCTIES

Varoitus

TÄRKEITÄ TURVALLISUUSOHJEITA

Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin

käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu

onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen

mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien

lausuntonumeroiden avulla.

SÄILYTÄ NÄMÄ OHJEET

Attention

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant

entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez

conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures

couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des

avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil,

référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.

CONSERVEZ CES INFORMATIONS

Warnung

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen

kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und

den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder

Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten

Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Preface

Conventions

Avvertenza

IMPORTANTI ISTRUZIONI SULLA SICUREZZA

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle

persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli

relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti.

Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le

traduzioni delle avvertenze riportate in questo documento.

CONSERVARE QUESTE ISTRUZIONI

Advarsel

VIKTIGE SIKKERHETSINSTRUKSJONER

Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du

begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med

elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten

av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne

enheten.

TA VARE PÅ DISSE INSTRUKSJONENE

Aviso

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de

lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos

perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de

prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para

localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.

GUARDE ESTAS INSTRUÇÕES

¡Advertencia!

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular

cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los

procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el

número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña

a este dispositivo.

GUARDE ESTAS INSTRUCCIONES

Varning!

VIKTIGA SÄKERHETSANVISNINGAR

Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada.

Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och

känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av

varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna

anordning.

SPARA DESSA ANVISNINGAR

xii

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Preface

Conventions

xiii

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Preface

Conventions

Aviso

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões

corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os

circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o

número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de

segurança traduzidos que acompanham o dispositivo.

GUARDE ESTAS INSTRUÇÕES

Advarsel

VIGTIGE SIKKERHEDSANVISNINGER

Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for

legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de

involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til

undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de

oversatte advarsler, der fulgte med denne enhed.

GEM DISSE ANVISNINGER

xiv

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Preface

Conventions

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Preface

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional

information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and

revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed

and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free

service and Cisco currently supports RSS version 2.0.

xvi

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Preface

Obtaining Documentation and Submitting a Service Request

CHAPTER

1-1

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Product Overview

This chapter provides an overview of the features and components of the Catalyst 4500 E-series

switches. The Catalyst 4500 E-series switches are the Catalyst 4503-E switch, the Catalyst 4506-E

switch, the Catalyst 4507R-E switch, and the Catalyst 4510R-E switch. The information is presented in

these major sections:

• Switch Features, page 1-1

• Supervisor Engines, page 1-16

• Fan Assembly, page 1-24

• Power Supplies, page 1-25

• System Architecture, page 1-31

Switch Features

The following sections describe the features of the Catalyst 4500 E-series switches:

• Power Redundancy, page 1-1

• Catalyst 4503-E Switch Features, page 1-2

• Catalyst 4506-E Switch Features, page 1-5

• Supervisor Engine Redundancy, page 1-8

• Catalyst 4507R-E Switch Features, page 1-9

• Catalyst 4510R-E Switch Features, page 1-13

Power Redundancy

All Catalyst 4500-E switches offer 1+1 power redundancy, so that in the event of a power interruption

the switch can still operate using power from another circuit. The power supplies can also run in a

combined mode so that chassis can have power from both supplies at once. You will need to use the

power redundancy-mode command to configure combined mode. Redundant mode is the default.

Catalyst 4500-E switches support power supply redundancy only between power supplies of equal

wattage and type. A mix of power supplies is not supported. The second power supply recognized is

placed into err-disable mode.

1-2

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

A more detailed discussion of power redundancy is in the Environmental Monitoring and Power

Management chapter of the software configuration guide. Refer to the appropriate guide for your

software release.

Catalyst 4503-E Switch Features

The Catalyst 4503-E switch (see Figure 1-1) is a three-slot switch designed for high-performance

high-density wiring closet applications.

Figure 1-1 Catalyst 4503-E Switch (Front View)

The Catalyst 4503-E switch supports the Supervisor Engine II+, Supervisor Engine II+TS, Supervisor

Engine II+10GE, Supervisor Engine IV, Supervisor Engine V, Supervisor Engine V-10GE, and

Supervisor Engine 6-E. The supervisor engine has a nonblocking, full-duplex, switching fabric that

provides connections between the supervisor engine and the switching modules. Some supervisor

engines use SFP modules for Gigabit Ethernet connections, or X2 modules for 10-Gigabit Ethernet

connections. Refer to the installation note for your supervisor engine for more details on these modules.

Slot 1 is reserved for the supervisor engine only, which provides switching, local and remote

management, and switch-status monitoring. Slots 2 and 3 are available for switching modules. The

chassis will support up to 24 Gbps per slot for slots 2 and 3, for a maximum of 116 ports with a

Supervisor Engine II+TS, or 96 ports and 2 uplinks for other supervisors.

1Fan assembly 3Supervisor engine (Slot 1)

2Switching modules (Slots 2 and 3) 4 Power supplies

231362

4503

1-3

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

Table 1-1 describes the features of the Catalyst 4503-E switch.

Ta b l e 1-1 Features of the Catalyst 4503 Switch

Feature Description

Ethernet speeds • Ethernet (10BASE-T) interface to workstations and repeaters

• Fast Ethernet (100BASE-T) interface to workstations, servers, switches,

and routers

Note Autonegotiation of link speed on each 10/100 port allows migration to

100BASE-T from a 10BASE-T installed base.

• Gigabit Ethernet (1000BASE-T and 1000BASE-X) interfaces for

backbone interconnection of high-performance workstations, servers,

switches and routers

• 10-Gigabit Ethernet interfaces for backbone interconnection of

high-performance switches and routers

Standard equipment • Three-slot modular chassis with one slot reserved for a supervisor engine

and two slots for switching modules

• One hot-swappable fan assembly

• Two power supply bays

Power supplies • Supports a 1000 W, 1300 W, 1400 W, 2800 W, or 4200W AC-input power

supply or a 1400 W DC-input single input or triple-input power supply1

• Optional redundant power supply

Supervisor engine

support

• Supports the WS-X4013+, WS-X4013+TS, WS-X4013+10GE,

WS-X4515, WS-X4516, WS-X4516-10GE, and WS-X45-Sup6-E

supervisor engines

• Holds the ASIC-based forwarding engine (data path) and the management

processor and software (control path)

• Features interface monitoring, environmental status, and SNMP and

console/Telnet interface

Note Packets are not forwarded while the module is removed; a system

reboot occurs when a supervisor engine is reinserted.

Switching module

support

• 24-port 10/100BASE-TX Fast Ethernet switching module

(WS-X4124-RJ45)

• 24-port 100BASE-FX Fast Ethernet switching module

(WS-X4124-FX-MT)

• 48-port 100BASE-FX Fast Ethernet switching module

(WS-X4148-FX-MT)

• 48-port 100BASE-LX10 Fast Ethernet switching module

(WS-X4148-FE-LX-MT)

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ)

• 48-port 100BASE-BX10-D Fast Ethernet switching module

(WS-X4148-FE-BD-LC)

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ21)

1-4

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

Switching module

support (continued)

• 48-port 100BASE-X Fast Ethernet switching module

(WS-X4248-FE-SFP)

• 24-port IEEE 802.3af-compliant PoE 10/100BASE-TX switching module

(WS-X4224-RJ45V)

• 48-port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-45 switching

module (WS-X4248-RJ45V)

• 48 port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-21 switching

module (WS-X4248-RJ21V)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port Gigabit Ethernet switching

module (WS-X4232-GB-RJ)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port 1000BASE-X Layer 3

Gigabit Ethernet routing module (WS-X4232-L3)

• 32-port 10/100-Mbps Fast Ethernet switching module with modular

uplink support (WS-X4232-RJ-XX)

–

4-port MT-RJ uplink module (WS-U4504-FX-MT) (optional)

• 2-port Gigabit Ethernet switching module (WS-X4302-GB)

• 6-port 1000BASE-X Gigabit Ethernet switching module (WS-X4306-GB)

• 6-port Gigabit Ethernet switching module (WS-X4506-GB-T)

• 18-port Gigabit Ethernet switching module (WS-X4418-GB)

• 24-port 10/100/1000B A SE-T Gigabit Ethernet sw itching m odule

(WS-X4424-GB-RJ45)

• 48-port Gigabit Ethernet 1000 BASE LX (SPF) switching module

(WS-X4448-GB-LX)

• 48-port 10/100/1000B A SE-T Gigabit Ethernet sw itching m odule

(WS-X4448-GB-RJ45)

• 24-port IEEE 802.3af-compliant PoE 10/100/1000BASE-T RJ-45

switching module (WS-X4524-GB-RJ45V)

• 48-port 10/100/1000B A SE-T Gigabit Ethernet sw itching m odule

(WS-X4548-GB-RJ45)

• 48-port Gigabit Ethernet switching module (WS-X4448-GB-SFP)

• 48-port IEEE 802.3af compliant PoE 10/100/1000BASE-T Gigabit

Ethernet sw itching module (WS-X4548-GB-RJ45V)

• Backplane channel module (WS-X4019)

• 6-port 10GbE X2 switching module (WS-X4606-X2-E)

• 48-port 802.3af PoE 10/100/1000 RJ45 switching module

(WS-X4648-RJ45V-E)

• 48-port Premium PoE 10/100/1000 (RJ45) switching module

(WS-X4648-RJ45V+E)

1. You will need to configure the 1400 W DC input current as appropriate for the model of switch. Refer to Appendix A,

“Specifications.”

Table 1-1 Features of the Catalyst 4503 Switch (continued)

Feature Description

1-5

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

Catalyst 4506-E Switch Features

The Catalyst 4506-E switch (see Figure 1-2) is a six-slot switch designed for high-performance

high-density wiring closet applications.

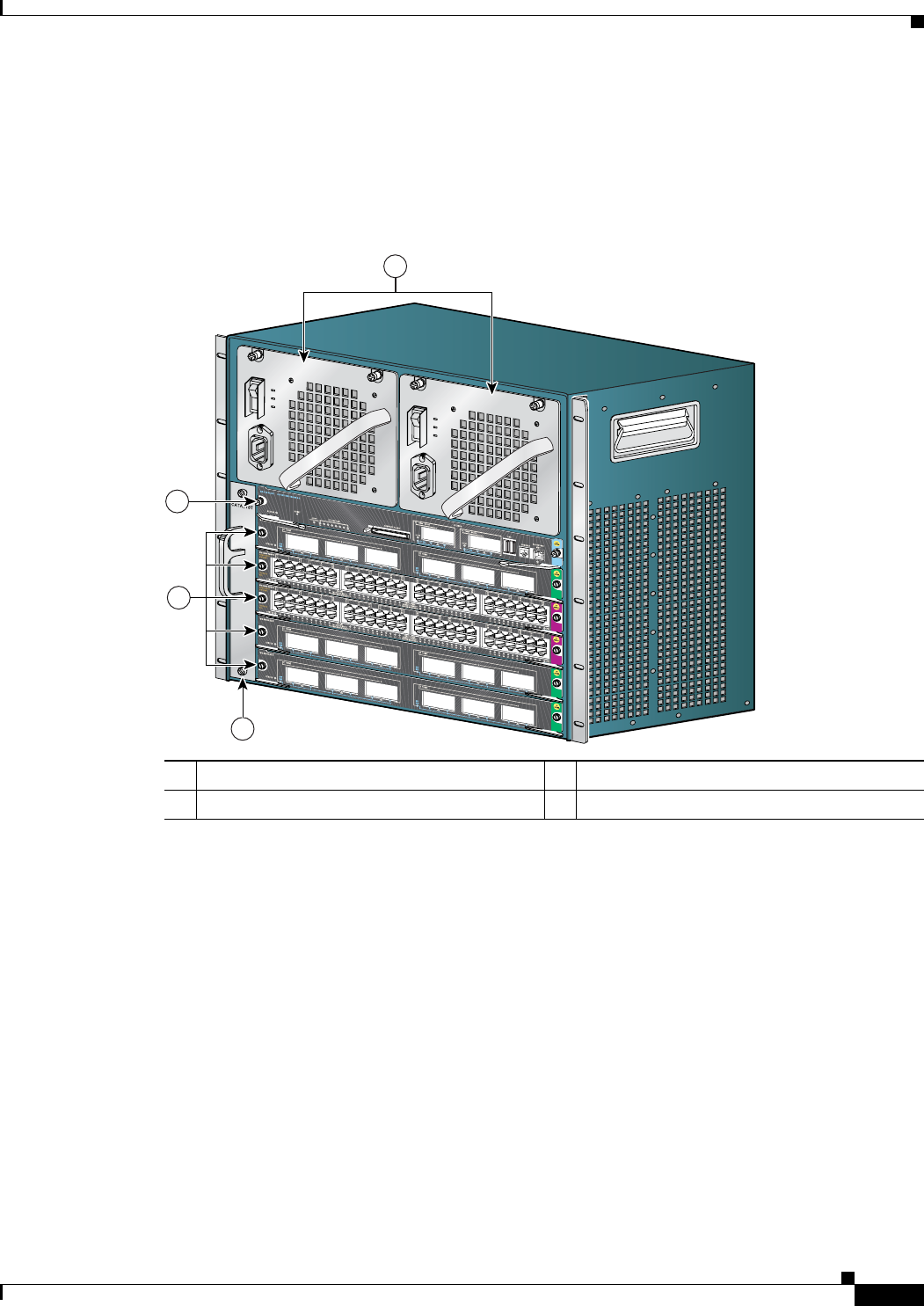

Figure 1-2 Catalyst 4506-E Switch (Front View)

The Catalyst 4506-E switch supports the Supervisor Engine II+, Supervisor Engine II+10GE, Supervisor

Engine IV, Supervisor Engine V, Supervisor Engine V-10GE, and Supervisor Engine 6-E. The supervisor

engine has a nonblocking, full-duplex, switching fabric that provides connections between the

supervisor engine and the switching modules. Some supervisor engines use SFP modules for Gigabit

Ethernet connections, or X2 modules for 10-Gigabit Ethernet connections. Refer to the installation note

for your supervisor engine for more details on these modules.

Slot 1 is reserved for the supervisor engine only, which provides switching, local and remote

management, and switch-status monitoring. Slots 2 through 6 are available for switching modules. The

chassis will support up to 24 Gbps per slot for slots 2 through 6, for a maximum of 240 ports and 2

uplinks.

1Fan assembly 3Supervisor engine (Slot 1)

2Switching modules (Slots 2 to 6) 4 Power supplies

231363

4506

1-6

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

Table 1-2 describes the features of the Catalyst 4506-E switch.

Ta b l e 1-2 Features of the Catalyst 4506-E Switch

Feature Description

Ethernet speeds • Ethernet (10BASE-T) interface to workstations and repeaters

• Fast Ethernet (100BASE-T) interface to workstations, servers, switches,

and routers

Note Autonegotiation of link speed on each 10/100 port allows migration

to 100BASE-T from a 10BASE-T installed base.

• Gigabit Ethernet (1000BASE-T and 1000BASE-X) interfaces for

backbone interconnection of high-performance workstations, servers,

switches and routers

• 10-Gigabit Ethernet interfaces for backbone interconnection of

high-performance switches and routers

Standard equipment • Six-slot modular chassis with one slot reserved for a supervisor engine

and five slots for switching modules

• One hot-swappable fan assembly

• Two power supply bays

Power supplies • Supports a 1000 W, 1300 W, 1400 W, 2800 W, or 4200 W AC-input

power supply or a 1400 W DC-input single or triple-input power supply1

• Optional redundant power supply

Supervisor engine

support

• Supports the WS-X4013+, WS-X4515, WS-X4516, WS-X4516-10GE,

and WS-X45-Sup6-E Supervisor Engines

• Holds the ASIC-based forwarding engine (data path) and the

management processor and software (control path)

• Features interface monitoring, environmental status, and SNMP and

console/Telnet interface

Note Packets are not forwarded while the module is removed; a system

reboot occurs when a supervisor engine is reinserted.

Switching module

support

• 24-port 10/100BASE-TX Fast Ethernet switching module

(WS-X4124-RJ45)

• 24-port 100BASE-FX Fast Ethernet switching module

(WS-X4124-FX-MT)

• 48-port 100BASE-FX Fast Ethernet switching module

(WS-X4148-FX-MT)

• 48-port 100BASE-LX10 Fast Ethernet switching module

(WS-X4148-FE-LX-MT)

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ)

• 48-port 100BASE-BX10-D Fast Ethernet switching module

(WS-X4148-FE-BD-LC)

1-7

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

Switching module

support (continued)

• 48-port 10/100-Mbps Fast Ethernet switching module

(WS-X4148-RJ21)

• 24-port IEEE 802.3af-compliant PoE 10/100BASE-TX switching

module (WS-X4224-RJ45V)

• 48-port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-45 switching

module (WS-X4248-RJ45V)

• 48-port 100BASE-X Fast Ethernet switching module

(WS-X4248-FE-SFP)

• 48 port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-21 switching

module (WS-X4248-RJ21V)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port Gigabit Ethernet

switching module (WS-X4232-GB-RJ)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port 1000BASE-X Layer 3

Gigabit Ethernet routing module (WS-X4232-L3)

• 32-port 10/100-Mbps Fast Ethernet switching module with modular

uplink support (WS-X4232-RJ-XX)

• 2-port Gigabit Ethernet switching module (WS-X4302-GB)

• 6-port 1000BASE-X Gigabit Ethernet switching module

(WS-X4306-GB)

• 6-port Gigabit Ethernet switching module (WS-X4506-GB-T)

• 18-port Gigabit Ethernet switching module (WS-X4418-GB)

• 24-port 10/100/1000B A SE -T Gigabit Ethernet sw itching m odule

(WS-X4424-GB-RJ45)

• 48-port Gigabit Ethernet 1000 BASE LX (SPF) switching module

(WS-X4448-GB-LX)

• 48-port 10/100/1000B A SE -T Gigabit Ethernet sw itching m odule

(WS-X4448-GB-RJ45)

• 24-port IEEE 802.3af-compliant PoE 10/100/1000BASE-T RJ-45

switching module (WS-X4524-GB-RJ45V)

• 48-port 10/100/1000B A SE -T Gigabit Ethernet sw itching m odule

(WS-X4548-GB-RJ45)

• 48-port Gigabit Ethernet switching module (WS-X4448-GB-SFP)

• 48-port IEEE 802.3af compliant PoE 10/100/1000BASE-T Gigabit

Ethernet sw itching m odule (WS-X4548-GB-RJ45V)

• Backplane channel module (WS-X4019)

• 6-port 10GbE X2 switching module (WS-X4606-X2-E)

• 48-port 802.3af PoE 10/100/1000 RJ45 switching module

(WS-X4648-RJ45V-E)

• 48-port Premium PoE 10/100/1000 RJ45 switching module

(WS-X4648-RJ45V+E)

Table 1-2 Features of the Catalyst 4506-E Switch (continued)

Feature Description

1-8

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

Supervisor Engine Redundancy

The Catalyst 4507R-E and Catalyst 4510R-E switches support supervisor engine redundancy.

Redundancy allows a second supervisor engine to take over if the active supervisor engine fails.

With supervisor engine redundancy enabled, if the active supervisor engine fails or if a manual

switchover is performed, the redundant supervisor engine becomes the active supervisor engine. The

redundant supervisor engine is automatically initialized with the startup configuration of the active

supervisor engine. Depending on the configuration this shortens the switchover time from 30 seconds or

longer in Route Processor Redundancy (RPR) mode, to less than a second in Stateful Switch Over (SSO)

mode.

In addition to the reduced switchover time, supervisor engine redundancy supports these:

• Online insertion and removal (OIR) of the redundant supervisor engine

Supervisor engine redundancy allows OIR of the redundant supervisor engine for maintenance.

When the redundant supervisor engine is inserted, the active supervisor engine detects it. The

redundant supervisor engine boots into a partially initialized state in RPR mode and a fully

initialized state in SSO mode.

• Software upgrade

Load the new image on the redundant supervisor engine and conduct a switchover. This minimizes

downtime during software changes on the supervisor engine.

When power is first applied to a switch, the supervisor engine that boots first becomes the active

supervisor engine and remains active until a switchover occurs.

Redundancy requires that both supervisor engines in the chassis are of the same supervisor engine

model, and that they use the same Cisco IOS software image.

For more detail about redundancy, refer to the Configuring Supervisor Engine Redundancy Using RPR

and SSO chapter of the software configuration guide for your software release.

1. You will need to configure the 1400 W DC input current as appropriate for the model of switch. Refer to Appendix A,

“Specifications.”

1-9

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

Catalyst 4507R-E Switch Features

The Catalyst 4507R-E switch (see Figure 1-3) is a seven-slot switch designed for high-performance

high-density wiring closet applications.

Figure 1-3 Catalyst 4507R-E Switch (Front View)

The Catalyst 4507R-E switch supports the Supervisor Engine II+, Supervisor Engine IV, Supervisor

Engine V, Supervisor Engine V-10GE, and Supervisor Engine 6-E. The supervisor engine has two

Gigabit Ethernet ports and a nonblocking, full-duplex, switching fabric that provides connections

between the supervisor engine and the switching modules. Some supervisor engines use SFP modules

for Gigabit Ethernet connections or X2 modules for 10-Gigabit Ethernet connections. Refer to the

installation note for your supervisor engine for more details on these modules.

Slot 3 is reserved for the supervisor engine only, which provides switching, local and remote

management, and switch-status monitoring. Slot 4 is reserved for a redundant supervisor engine only.

Slots 1, 2, 5, 6, and 7 are available for switching modules and provide 24 Gbps per slot for a maximum

of 240 ports and 4 uplinks.

1Fan Tray 3Supervisor engines (primary in slot 3,

secondary in slot 4)

2Switching modules (slots 1, 2, 5, 6, 7) 4Power supplies

231952

4506

1-10

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

Table 1-3 describes the features of the Catalyst 4507R-E switch.

Ta b l e 1-3 Features of the Catalyst 4507R-E Switch

Feature Description

Ethernet speeds • Ethernet (10BASE-T) interface to workstations and repeaters

• Fast Ethernet (100BASE-T) interface to workstations, servers, switches, and

routers

Note Autonegotiation of link speed on each 10/100 port allows migration to

100BASE-T from a 10BASE-T installed base.

• Gigabit Ethernet (1000BASE-T and 1000BASE-X) interfaces for backbone

interconnection of high-performance switches and routers

• 10-Gigabit Ethernet interfaces for backbone interconnection of

high-performance switches and routers

Standard equipment • Seven-slot modular chassis with one slot reserved for a supervisor engine,

one slot reserved for a redundant supervisor engine, and five slots for

switching modules

• Two power supply bays

• One hot-swappable fan assembly

Power supplies • Can support a 1000 W, 1300 W, 1400 W, 2800 W, or 4200W AC-input power

supply or a 1400 W DC-input single or triple-input power supply1

• Optional redundant power supply

Supervisor engine

support

• Supports the WS-X4013+, WS-X4515, WS-X4516, WS-X4516-10GE, and

WS-X45-Sup6-E Supervisor Engines

• Holds the ASIC-based forwarding engine (data path) and the management

processor and software (control path)

• Features interface monitoring, environmental status, and SNMP and

console/Telnet interface

Note With a single supervisor, packets are not forwarded while the module is

removed; a system reboot occurs when a supervisor engine is reinserted.

In redundant systems, removing the active supervisor causes the standby

supervisor to become active.

1-11

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

Switching module

support

• 32-port 10/100-Mbps Fast Ethernet plus 2-port Gigabit Ethernet switching

module (WS-X4232-GB-RJ)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port 1000BASE-X Layer 3

Gigabit Ethernet routing module (WS-X4232-L3)

• 32-port 10/100-Mbps Fast Ethernet switching module with modular uplink

support (WS-X4232-RJ-XX)

–

4-port MT-RJ uplink module (WS-U4504-FX-MT) (optional)

• 2-port Gigabit Ethernet switching module (WS-X4302-GB)

• 24-port 10/100BASE-TX Fast Ethernet switching module

(WS-X4124-RJ45)

• 24-port 100BASE-FX Fast Ethernet switching module (WS-X4124-FX-MT)

• 48-port 100BASE-FX Fast Ethernet switching module (WS-X4148-FX-MT)

• 48-port 100BASE-LX10 Fast Ethernet switching module

(WS-X4148-FE-LX-MT)

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ)

• 48-port 100BASE-BX10-D Fast Ethernet switching module

(WS-X4148-FE-BD-LC)

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ21)

• 48-port 100BASE-X Fast Ethernet switching module (WS-X4248-FE-SFP)

Table 1-3 Features of the Catalyst 4507R-E Switch (continued)

Feature Description

1-12

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

Switching module

support (continued)

• 24-port IEEE 802.3af-compliant PoE 10/100BASE-TX switching module

(WS-X4224-RJ45V)

• 48-port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-45 switching

module (WS-X4248-RJ45V)

• 48 port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-21 switching

module (WS-X4248-RJ21V)

• 6-port 1000BASE-X Gigabit Ethernet switching module (WS-X4306-GB)

• 6-port Gigabit Ethernet switching module (WS-X4506-GB-T)

• 18-port Gigabit Ethernet switching module (WS-X4418-GB)

• 24-port 10/100/1000B A SE-T Gigabit Ethernet sw itching m odule

(WS-X4424-GB-RJ45)

• 48-port Gigabit Ethernet 1000 BASE LX (SPF) switching module

(WS-X4448-GB-LX)

• 48-port 10/100/1000B A SE-T Gigabit Ethernet sw itching m odule

(WS-X4448-GB-RJ45)

• 24-port IEEE 802.3af-compliant PoE 10/100/1000BASE-T RJ-45 switching

module (WS-X4524-GB-RJ45V)

• 48-port 10/100/1000B A SE-T Gigabit Ethernet sw itching m odule

(WS-X4548-GB-RJ45)

• 48-port Gigabit Ethernet switching module (WS-X4448-GB-SFP)

• 48-port IEEE 802.3af compliant PoE 10/100/1000BASE-T Gigabit Ethernet

sw itching m odule (WS-X4548-GB-RJ45V)

• 6-port 10GbE X2 switching module (WS-X4606-X2-E)

• 48-port 802.3af PoE 10/100/1000 RJ45 switching module

(WS-X4648-RJ45V-E)

• 48-port Premium PoE 10/100/1000 RJ45 switching module

(WS-X4648-RJ45V+E)

1. You will need to configure the 1400 W DC input current as appropriate for the model of switch. Refer to Appendix A,

“Specifications.”

Table 1-3 Features of the Catalyst 4507R-E Switch (continued)

Feature Description

1-13

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

Catalyst 4510R-E Switch Features

The Catalyst 4510R-E switch (see Figure 1-4) is a ten-slot switch designed for high-performance

high-density wiring closet applications.

Figure 1-4 Catalyst 4510R-E Switch (Front View)

The Catalyst 4510R-E switch supports the Supervisor Engine V, Supervisor Engine V-10GE, and

Supervisor Engine 6-E. The supervisor engine has a nonblocking, full-duplex, switching fabric that

provides connections between the supervisor engine and the switching modules. Some supervisor

engines use SFP modules for Gigabit Ethernet connections, or X2 modules for 10 Gigabit Ethernet

connections. Refer to the installation note for your supervisor engine for more details on these modules.

Slot 5 is reserved for the supervisor engine only, which provides switching, local and remote

management, and switch-status monitoring. Slot 6 is reserved for a redundant supervisor engine only.

Slots 1, 2, 3, 4, 7, 8, 9, and 10 are available for switching modules and provide up to 24 Gbps per slot

1Fan Tray 3Supervisor engines (primary in slot 5,

secondary in slot 6)

2Switching modules (slots 1, 2, 3, 4, 7, 8, 9, 10) 4Power supplies

231953

4506

TUS

10/100BASE-TX

ETHERNET

MULTI-SPEED

GIGABIT ETHERNET

SWITCHING MODULE

TUS

10/100BASE-TX

ETHERNET

MULTI-SPEED

GIGABIT ETHERNET

SWITCHING MODULE

1-14

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

for a maximum of 384 ports and 4 uplinks. With a Supervisor Engine 6-E, slots 8 to 10 provide 6 Gbps

per slot and all other slots provide 24 Gbps per slot. With a Supervisor Engine V or Supervisor Engine

V-10GE, all slots are 6 Gbps and E-series switching modules can not be used.

Table 1-4 describes the features of the Catalyst 4510R-E switch.

Ta b l e 1-4 Features of the Catalyst 4510R-E Switch

Feature Description

Ethernet speeds • Ethernet (10BASE-T) interface to workstations and repeaters

• Fast Ethernet (100BASE-T) interface to workstations, servers, switches, and

routers

Note Autonegotiation of link speed on each 10/100 port allows migration to

100BASE-T from a 10BASE-T installed base.

• Gigabit Ethernet (1000BASE-T and 1000BASE-X) interfaces for backbone

interconnection of high-performance switches and routers

• 10-Gigabit Ethernet interfaces for backbone interconnection of

high-performance switches and routers

Standard equipment • Ten-slot modular chassis with one slot reserved for a supervisor engine, one

slot reserved for a redundant supervisor engine, and eight slots for switching

modules

• Two power supply bays

• One hot-swappable fan assembly

Power supplies • Can support a 1400 W, 2800 W, or 4200 W AC-input power supply or a

1400 W DC-input single or triple-input power supply1, 2

• Optional redundant power supply

Supervisor engine

support

• Supports the WS-X4516, WS-X4516-10GE, and WS-X45-Sup6-E

Supervisor Engines

• Holds the ASIC-based forwarding engine (data path) and the management

processor and software (control path)

• Features interface monitoring, environmental status, and SNMP and

console/Telnet interface

Note With a single supervisor, packets are not forwarded while the module is

removed; a system reboot occurs when a supervisor engine is reinserted.

In redundant systems, removing the active supervisor causes the standby

supervisor to become active.

1-15

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Switch Features

Switching module

support

• 24-port 10/100BASE-TX Fast Ethernet switching module

(WS-X4124-RJ45)

• 24-port 100BASE-FX Fast Ethernet switching module (WS-X4124-FX-MT)

• 48-port 100BASE-FX Fast Ethernet switching module (WS-X4148-FX-MT)

• 48-port 100BASE-LX10 Fast Ethernet switching module

(WS-X4148-FE-LX-MT)

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ)

• 48-port 100BASE-BX10-D Fast Ethernet switching module

(WS-X4148-FE-BD-LC)

• 48-port 10/100-Mbps Fast Ethernet switching module (WS-X4148-RJ21)

• 24-port IEEE 802.3af-compliant PoE 10/100BASE-TX switching module

(WS-X4224-RJ45V)

• 48-port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-45 switching

module (WS-X4248-RJ45V)

• 48-port 100BASE-X Fast Ethernet switching module (WS-X4248-FE-SFP)

• 48 port IEEE 802.3af compliant PoE 10/100BASE-TX RJ-21 switching

module (WS-X4248-RJ21V)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port Gigabit Ethernet switching

module (WS-X4232-GB-RJ)

Table 1-4 Features of the Catalyst 4510R-E Switch (continued)

Feature Description

1-16

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Supervisor Engines

The following supervisor engines are available for the Catalyst 4500 series and Catalyst 4500 E-series

switches:

• Supervisor Engine II-Plus (WS-X4013+) (Figure 1-5)

• Supervisor Engine II-Plus TS (WS-X4013+TS) (Figure 1-6)

• Supervisor Engine II-Plus 10GE (WS-X4013+10GE) (Figure 1-7)

Switching module

support (continued)

• 32-port 10/100-Mbps Fast Ethernet plus 2-port 1000BASE-X Layer 3

Gigabit Ethernet routing module (WS-X4232-L3)

• 32-port 10/100-Mbps Fast Ethernet switching module with modular uplink

support (WS-X4232-RJ-XX)

–

4-port MT-RJ uplink module (WS-U4504-FX-MT) (optional)

• 2-port Gigabit Ethernet switching module (WS-X4302-GB)

• 6-port 1000BASE-X Gigabit Ethernet switching module (WS-X4306-GB)

• 6-port Gigabit Ethernet switching module (WS-X4506-GB-T)

• 18-port Gigabit Ethernet switching module (WS-X4418-GB)

• 24-port 10/100/1000B A SE-T Gigabit Ethernet sw itching m odule

(WS-X4424-GB-RJ45)

• 48-port Gigabit Ethernet 1000 BASE LX (SPF) switching module

(WS-X4448-GB-LX)

• 48-port 10/100/1000B A SE-T Gigabit Ethernet sw itching m odule

(WS-X4448-GB-RJ45)

• 24-port IEEE 802.3af-compliant PoE 10/100/1000BASE-T RJ-45 switching

module (WS-X4524-GB-RJ45V)

• 48-port 10/100/1000B A SE-T Gigabit Ethernet sw itching m odule

(WS-X4548-GB-RJ45)

• 48-port Gigabit Ethernet switching module (WS-X4448-GB-SFP)

• 48-port IEEE 802.3af compliant PoE 10/100/1000BASE-T Gigabit Ethernet

sw itching m odule (WS-X4548-GB-RJ45V)

• 6-port 10GbE X2 switching module (WS-X4606-X2-E)

• 48-port 802.3af PoE 10/100/1000 RJ45 switching module

(WS-X4648-RJ45V-E)

• 48-port Premium PoE 10/100/1000 RJ45 switching module

(WS-X4648-RJ45V+E)

1. You will need to configure the 1400 W DC input current as appropriate for the model of switch. Refer to Appendix A,

“Specifications.”

2. 1000W AC and 1300W AC power supplies will fit and function; however, power management is cautioned and only some

configurations will have adequate power. Please refer to the Cisco Power Calculator at http://tools.cisco.com/cpc/ before

configuring these power supplies.

Table 1-4 Features of the Catalyst 4510R-E Switch (continued)

Feature Description

1-17

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Supervisor Engines

• Supervisor Engine IV (WS-X4515) (Figure 1-8)

• Supervisor Engine V (WS-X4516) (Figure 1-9)

• Supervisor Engine V-10GE (WS-X4516-10GE) (Figure 1-10)

• Supervisor Engine 6-E (WS-X45-Sup6-E) (Figure 1-11)

Note If you move a supervisor engine from a Catalyst 4500 series chassis to a Catalyst 4500-E chassis it must

use Cisco IOS Release 12.2(37)SG or later. Refer to the release note for software upgrade procedures if

needed:

http://www.cisco.com/en/US/products/hw/switches/ps4324/prod_release_note09186a0080758ff3.html

#wp305142

The Catalyst 4500 series and Catalyst 4500 E-series supervisor engines have the following features:

Ta b l e 1-5 Supervisor Engine Features

Feature Description

Data path and control Available on all network interfaces

Management functions Interface monitoring

Environmental status

SNMP and console/Telnet interface

MAC addresses supported 32,768 per system (Cisco IOS only)

VLANS Up to 4,096 VLANs with IEEE 802.1Q VLAN tagging on all ports and

VLAN Trunking Protocol (VTP)

Port aggregation PAgP1 for 100-Mbps and 1000-Mbps EtherChannel

SNMP Full implementation, including entity-MIB, all relevant standard MIBs,

and all relevant Cisco MIBs

RMON The first four groups (Ethernet statistics, Alarms, Events, and History)

are on a per-port basis without an optional RMON processing module

SPAN2Supported, which allows you to redirect traffic from any port or VLAN

to a SPAN destination port

Performance management Information provided

Hot-swappable Supported. On non-redundant systems, packets are not forwarded while

the supervisor engine is removed, and a system reboot occurs when a

supervisor engine is reinserted.

Gigabit Ethernet (using a

GBIC or SFP)

Includes two (four on WS-X4516-10GE and WS-X4013+10GE) Gigabit

Ethernet (1000BASE-X) interfaces for backbone interconnection of

high-performance switches and routers

10-Gigabit Ethernet

(WS-X4516-10GE,

WS-X4013+10GE and

WS-X45-Sup6-E)

Includes two 10 Gigabit Ethernet interfaces for backbone

interconnection of high-performance switches and routers

Forwarding Layer 2, 3, and 4 forwarding (Cisco IOS only)

1-18

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Supervisor Engines

To install the supervisor engine, refer to the procedure in the Catalyst 4500 Series Module Installation

Guide. The various supervisor engine models are shown in Figure 1-5 to Figure 1-10.

Figure 1-5 Supervisor Engine II-Plus (WS-X4013+)

Supervisor Engine II-Plus 64 Gbps, 48 Mpps (with Catalyst 4506-E and 4507R-E, or 28-Gbps, 21

Mpps with Catalyst 4503-E) full-duplex Gigabit Ethernet switching

engine

Supervisor

Engine II-Plus TS

64 Gbps, 48 Mpps (with Catalyst 4503-E only) full-duplex Gigabit

Ethernet switching engine

Supervisor

Engine II-Plus 10GE

108 Gbps, 81 Mpps full-duplex Gigabit Ethernet switching engine

Supervisor Engine IV 64 Gbps, 48 Mpps (with Catalyst 4506-E and 4507R-E, or 28-Gbps, 21

Mpps with Catalyst 4503-E) full-duplex Gigabit Ethernet switching

engine

Supervisor Engine V 96-Gbps, 72 Mpps (with Catalyst 4510R-E, 68 Gbps, 51 Mpps with

Catalyst 4507R-E, 64 Gbps, 48 Mpps with Catalyst 4506-E, 28 Gbps,

21 Mpps with Catalyst 4503-E) full-duplex Gigabit Ethernet switching

engine

Supervisor Engine V-10GE 136-Gbps, 101 Mpps (with Catalyst 4510R-E, 68 Gbps, 51 Mpps with

Catalyst 4507R-E, 64 Gbps, 48 Mpps with Catalyst 4506-E, 28 Gbps,

21 Mpps with Catalyst 4503-E) full-duplex Gigabit Ethernet switching

engine

Supervisor Engine 6-E 320-Gbps, 250 Mpps (with Catalyst 4510R-E, 280 Gbps, 210 Mpps with

Catalyst 4507R-E, 280 Gbps, 210 Mpps with Catalyst 4506-E,

136 Gbps, 102 Mpps with Catalyst 4503-E) full-duplex Gigabit Ethernet

switching engine

1. PAgP = Port Aggregation Protocol

2. SPAN = switched port analyzer

Table 1-5 Supervisor Engine Features (continued)

Feature Description

1Status LED 5Management Port

231960

UPLINKUPLINK

2UPLINKS ENABLED

RESET

STATUS

1%100%

UTILIZATION

CONSOLE 10/100 MGT

EJECT

FLASH

1-19

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Supervisor Engines

Figure 1-6 Catalyst 4500 Series Supervisor Engine II-Plus TS (WS-X4013+TS)

Figure 1-7 Supervisor Engine II-Plus 10GE (WS-X4013+10GE)

2GBIC uplink ports 6Compact flash port

3Switch load indicators 7Reset button

4Console port

1Status LED 5Management port

2PoE status LED 6Compact Flash port

3Switch load indicators 7Reset button

4Console port

231961

1Compact flash port 5Gigabit SFP ports

2Switch load indicator 6Management port

3RESET button 7CONSOLE port

410GE uplink ports 8STATUS LED

231961

EJECT

1-20

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Supervisor Engines

Figure 1-8 Supervisor Engine IV (WS-X4515)

Figure 1-9 Supervisor Engine V (WS-X4516)

1Status LED 5Management port

2GBIC uplink ports 6Compact flash port

3switch load indicators 7Reset button

4Console port

231960

UPLINKUPLINK

2UPLINKS ENABLED

RESET

STATUS

1%100%

UTILIZATION

CONSOLE 10/100 MGT

EJECT

FLASH

1Status LED 5Management port

2GBIC uplink ports 6Compact Flash port

3Switch load indicators 7Reset button

4Console port

231960

UPLINKUPLINK

2UPLINKS ENABLED

RESET

STATUS

1%100%

UTILIZATION

CONSOLE 10/100 MGT

EJECT

FLASH

1-21

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Supervisor Engines

Figure 1-10 Supervisor Engine V-10GE (WS-X4516-10GE)

Figure 1-11 Supervisor Engine 6-E (WS-X45-Sup6-E)

For information about the connectors, LEDs, and switches located on the front panel of the supervisor

engine, see these sections:

• LEDs, page 1-22

• Gigabit Ethernet Uplink Ports, page 1-22

• 10-Gigabit Ethernet Uplink Ports, page 1-23

• 10/100BASE-T Management Port, page 1-23

• CONSOLE Port, page 1-23

1Compact flash port 5Gigabit SFP ports

2Switch load indicator 6Management port

3RESET button 7CONSOLE port

410GE uplink ports 8STATUS LED

231961

EJECT

1Status LED 6Uplink ports

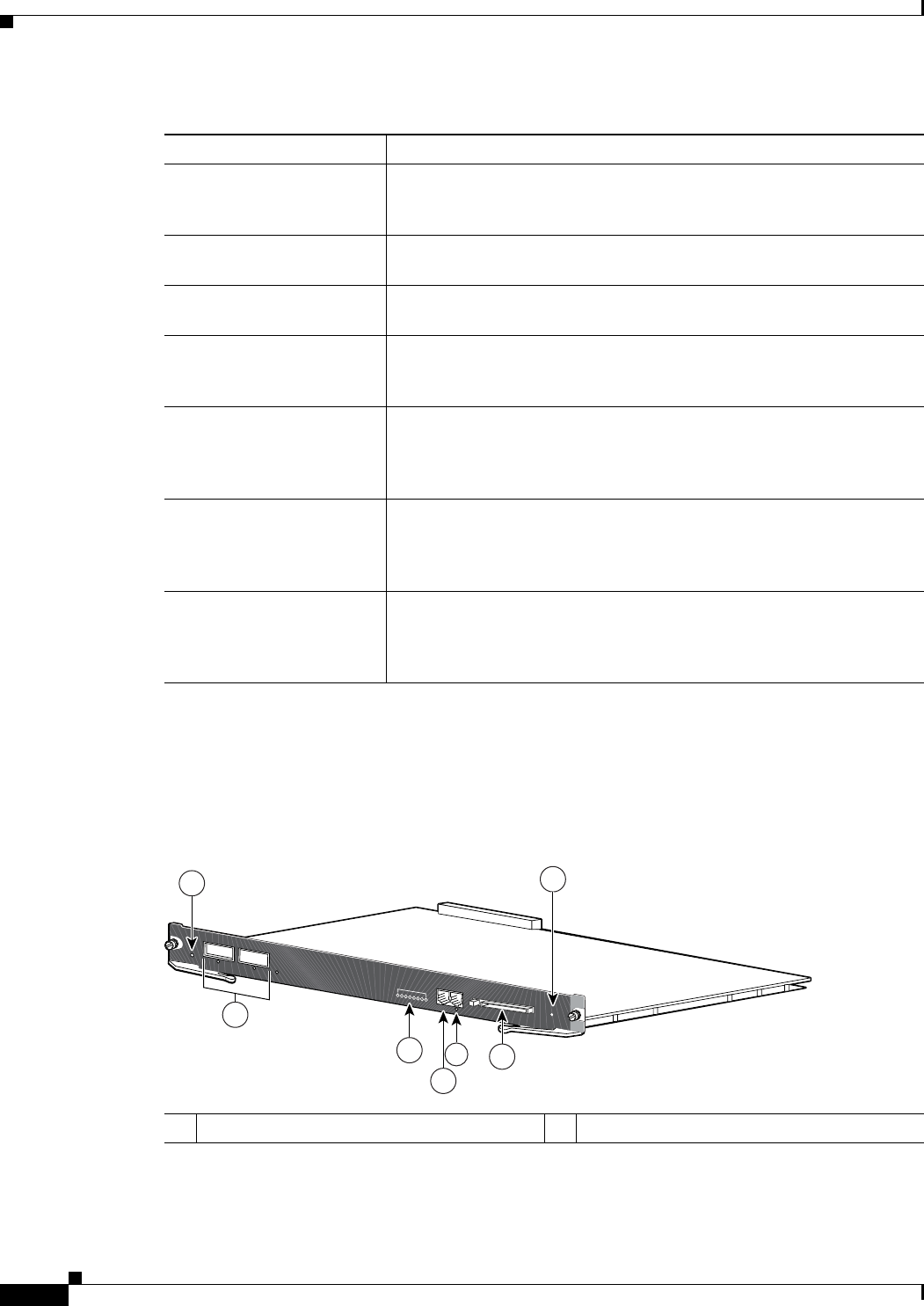

2Reset button 7USB port

3Active supervisor LED 8Console port

4Utilization LEDs 9Management port

5Compact flash port

211396

1-22

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Supervisor Engines

• RESET Button, page 1-24

• Compact Flash Slot, page 1-24

LEDs

Table 1-6 describes the supervisor engine LEDs.

Gigabit Ethernet Uplink Ports

The Gigabit Ethernet uplink ports operate in full-duplex mode only. GBICs have SC connectors to

interface with multimode fiber (MMF) and single-mode fiber (SMF) cable. For more information about

GBICs, refer to the Catalyst 4500 Series Module Installation Guide. Frequently updated compatibility

information for GBICs, X2s, and SFPs are in documents at:

http://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html

When two Supervisor Engine Vs are present in a Catalyst 4507R-E and Catalyst 4510R-E, all four

uplinks are active on both Primary (active) and Secondary (standby) supervisor engines by default, or

two uplinks are active in a non-redundant configuration. This limits access to slot 10 on the Catalyst

4510R to ports 3 and 4 only. You can only use the 2-port Gigabit Ethernet switching module

(WS-X4302-GB) in slot 10 (flex-slot) when a Supervisor Engine V is used.

Ta b l e 1-6 Supervisor Engine LEDs

LED Color/State Description

STATUS Indicates the results of a series of self-tests:

Green All diagnostic tests passed.

Red A test failed.

Orange System boot or diagnostic test is in progress, or two power

supplies are installed but only one is turned on.

Off Module is disabled.

UTILIZATION Green 1–100% If the switch is operational, this display indicates the current

traffic load over the backplane (as an approximate percentage).

LINK Indicates the status of the 10/100BASE-T port,

10/100/1000BASE-T or uplink ports:

Green The link is operational.

Orange The link is disabled by user.

Flashing orange The power-on self-test indicates a faulty port.

Off No signal is detected or there is a link configuration failure.

ACTIVE Indicates whether the uplink port is active or not:

(uplink port) Green The port is active.

Off The port is not active.

ACTIVE The LED to the right of the uplink ports is only used in switches

with two supervisors. The LED lights on the active supervisor.

1-23

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Supervisor Engines

10-Gigabit Ethernet Uplink Ports

The 10-Gigabit Ethernet uplink ports operate in full-duplex mode only, and are only on the

WS-X4516-10GE, WS-X4013+10GE, and WS-45-Sup6-E. These ports use the hot-swappable

10GBASE X2 optical transceivers. The X2s have SC connectors to interface with multimode fiber

(MMF) and single-mode fiber (SMF) cable.

On a Catalyst 4510R-E with a Supervisor Engine V-10GE, the user can use either four Gigabit Ethernet

uplinks using SFPs or two 10-Gigabit Ethernet uplinks using X2s. The user also has the option of using

the Gigabit Ethernet and 10-Gigabit Ethernet uplinks simultaneously. With this option, the tenth slot can

only support the WS-X4302-GB switching module. On a Catalyst 4507R-E, the user can use the Gigabit

Ethernet uplinks and 10-Gigabit Ethernet uplinks simultaneously.

When two Supervisor Engine V-10GEs are present in a Catalyst 4510R-E or Catalyst 4507R-E switch,

or two Supervisor Engine II-Plus 10GEs are present in a Catalyst 4507R-E, one X2 uplink is active on

both the primary (active) and secondary (standby) supervisor engines by default, or two uplinks are

active in a non-redundant configuration.

On a Catalyst 4510R-E with a Supervisor Engine 6-E, 10-Gigabit Ethernet uplinks using X2s are the

only available uplinks. Slots 8-10 are intended for Catalyst 4500 classic switching modules only and all

other slots may use classic or E-series switching modules.

When two Supervisor Engine 6-Es are present in a Catalyst 4510R-E or Catalyst 4507R-E switch, or two

Supervisor Engine II-Plus 10GEs are present in a Catalyst 4507R-E, one X2 uplink is active on both the

primary (active) and secondary (standby) supervisor engines by default, or two uplinks are active in a

non-redundant configuration.

SFP Ports

Gigabit Ethernet SFP ports operate in full-duplex mode only and are present on the WS-X4013+TS,

WS-X4516-10GE, and WS-X4013+10GE supervisors, as well as some switching modules.

WS-X45-Sup6-E supervisors can use Cisco TwinGig converters to support two SFPs per X2 uplink port,

for a maximum of 4 SFP ports per supervisor. SFP connectors vary with interface type and may use

multimode fiber (MMF), single-mode fiber (SMF) cable, or copper Ethernet cables. SFPs use LC type

fiber connectors and RJ-45 copper connectors.

10/100BASE-T Management Port

The 10/100BASE-T Management port supports emergency image recovery. The 10/100BASE-T port

supports image downloads from the ROMMON. You can use this feature when the onboard Flash

memory does not contain any IOS images, usually after all images were accidentally deleted from

onboard Flash.

CONSOLE Port

The CONSOLE port has an EIA/TIA-232 RJ-45 connector. The CONSOLE port allows you to perform

the following functions:

• Configure the switch from the CLI

• Monitor network statistics and errors

• Configure SNMP agent parameters

1-24

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Fan Assembly

Note EIA/TIA-232 was known as recommended standard RS-232 before its acceptance as a standard by the

Electronic Industries Alliance (EIA) and Telecommunications Industry Association (TIA).

RESET Button

The RESET button is used to restart the switch.

Note Use a paper clip or other small, pointed object to press the Reset button.

Compact Flash Slot

The Compact Flash slot accepts a Type 1 Compact Flash disk. You can use it for file transfer tasks such

as loading a new software image. The Compact Flash card is optional. For more information, refer to

Using the Compact Flash on the Catalyst 4500 Supervisor Engines at the following URL:

http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/configuration/notes/

OL_2788.html

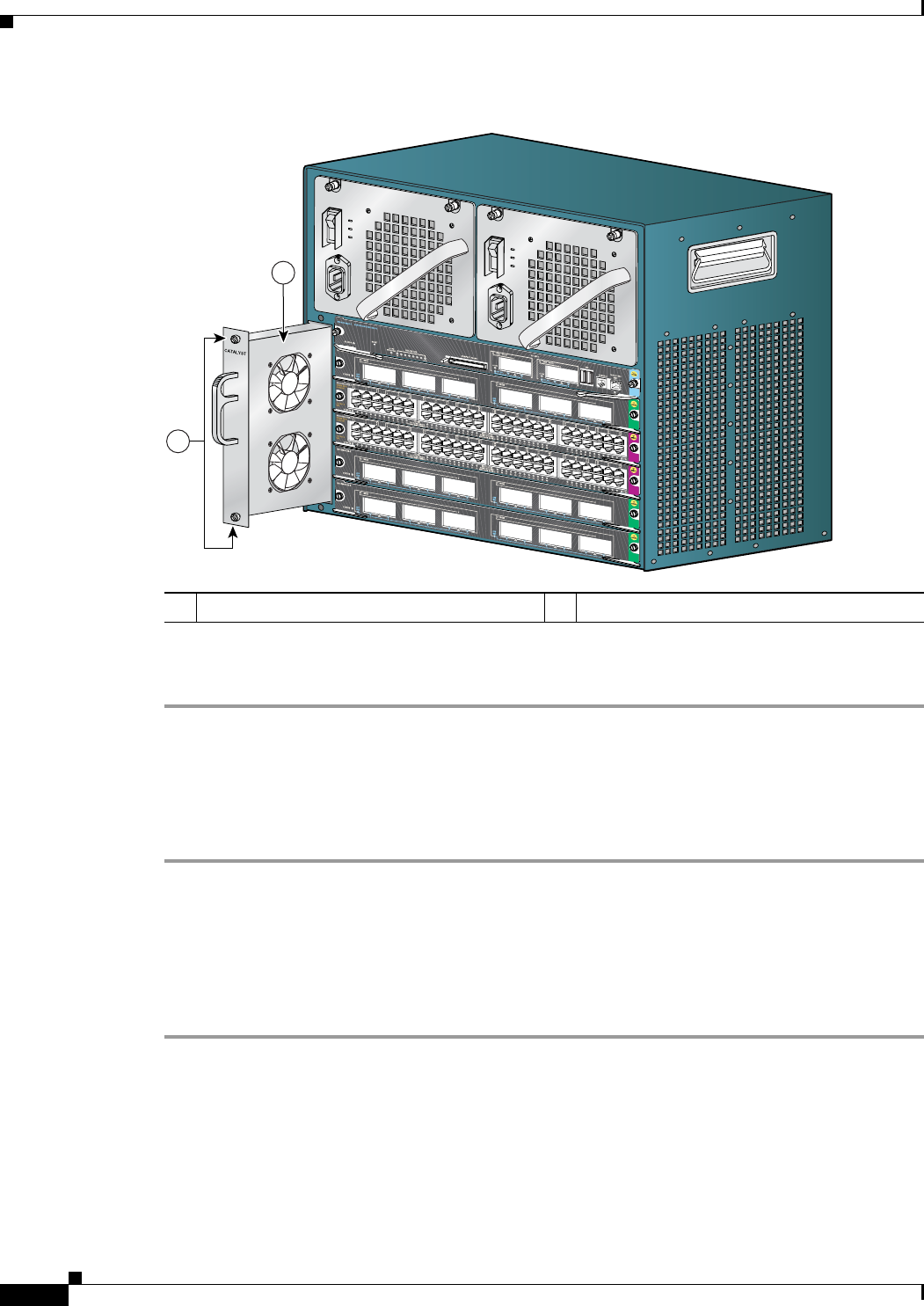

Fan Assembly

Note For complete environmental specifications, including airflow requirements, see Appendix A,

“Specifications.”

The system fan assembly provides cooling air for the internal chassis components. The fan assembly is

a tray of fans that you can insert and remove from the chassis while the system is on line. The

Catalyst 4503-E fan assembly has two fans and the Catalyst 4506-E fan assembly has four fans, the

Catalyst 4507R-E fan assembly has eight fans, and the Catalyst 4510R-E fan assembly has ten fans. The

fans draw in fresh air from one side and exhaust air on the other side. Catalyst 4506-E airflow is shown

in Figure 1-12, the others in the series are the same direction.

Caution You must install module filler plates on unused switching module slots to ensure proper airflow.

1-25

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Power Supplies

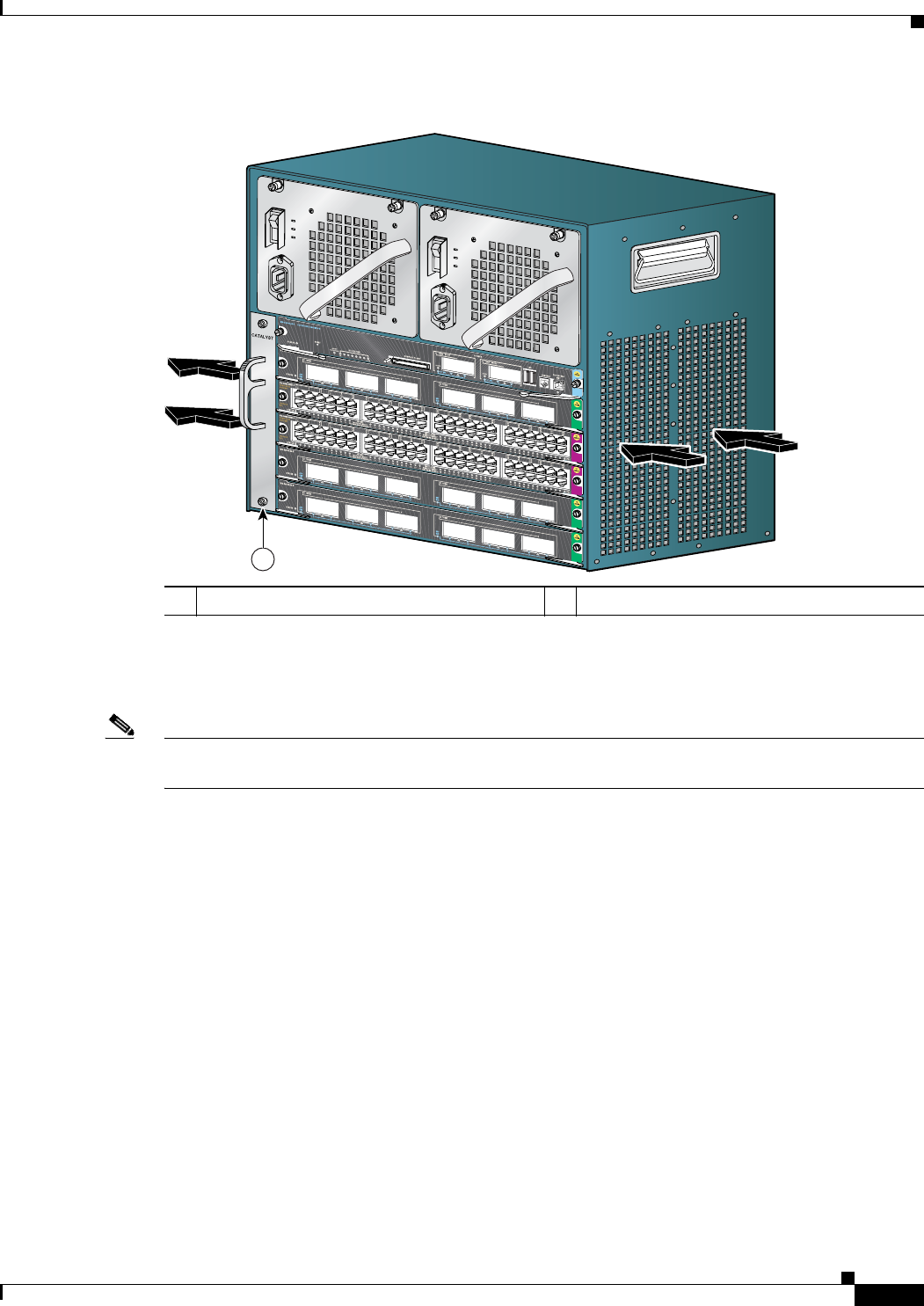

Figure 1-12 Catalyst 4506-E Airflow

Power Supplies

Note For detailed specifications on all Catalyst 4500 power supplies, refer to the “Catalyst 4507R-E Switch

Specifications” section on page A-3.

A Catalyst 4500 E-series switch can use a 1000 W, 1300 W, 1400 W, 2800 W (see Figure 1-13), or

4200 W (with two inputs, see Figure 1-14) AC-input power supply, a 1400 W DC-input power supply

with integrated PEM (see Figure 1-15), or a 1400 W DC multiple-input power supply (see Figure 1-16).

The power supplies are hot-swappable. If you have power supplies of different types installed in the two

bays, only one will be active and some power features will not be available. The power supply in the left

bay is PS1, the one in the right bay is PS2.

The AC-input power supply has a power cord that connects each power supply to the site power source.

The DC-input power supply is equipped with a input terminal block that is directly connected to the site

power wiring.

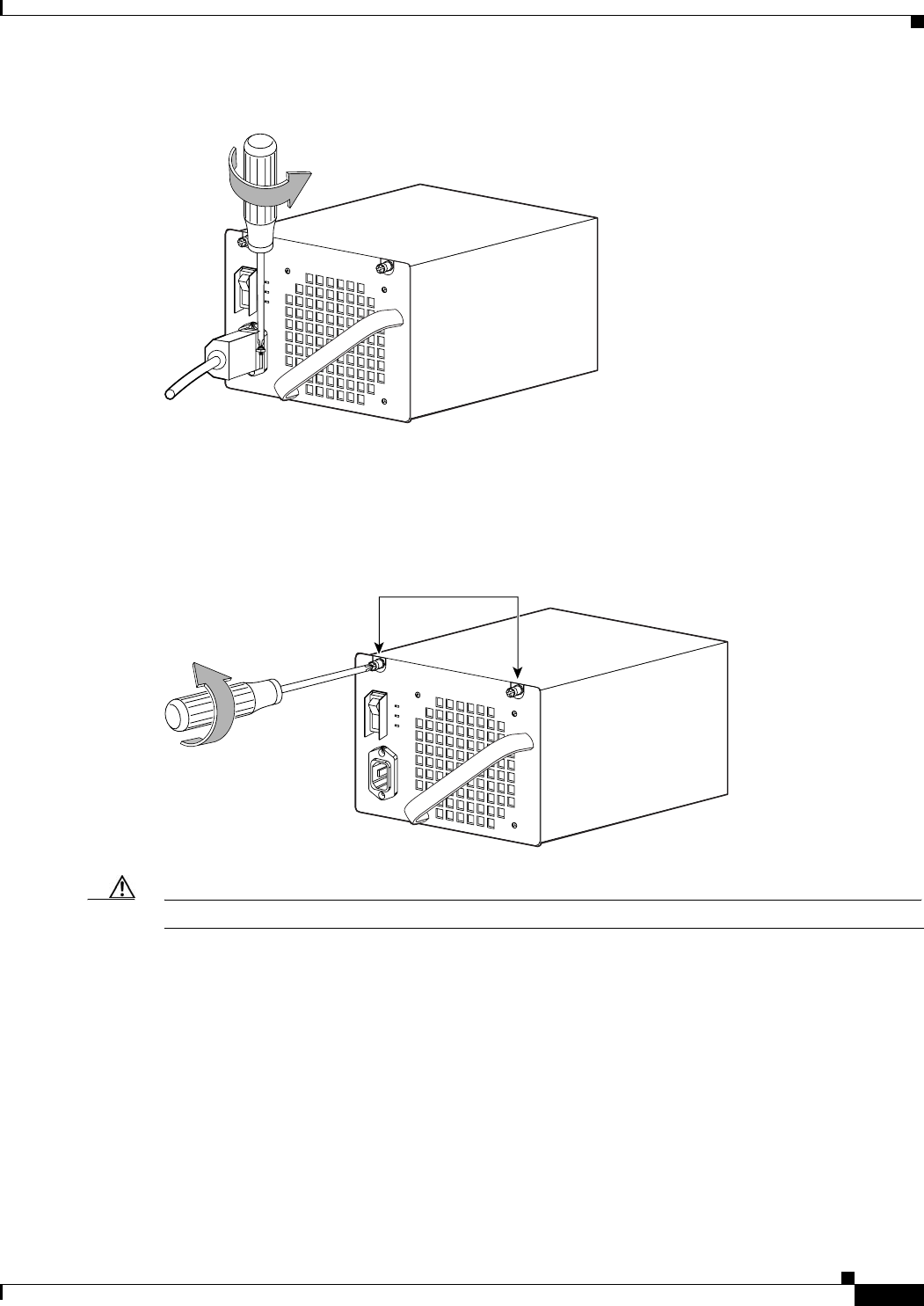

Each power supply has an ON/OFF switch that supplies power to the switch. For information on

removing and replacing power supplies, see the “Removing and Replacing the Power Supply” section

on page 4-2.

1Fan assembly

231365

4506

1-26

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Power Supplies

Figure 1-13 AC-Input Power Supply (All Except 4200 W)

Figure 1-14 4200 W Dual Input AC Power Supply

Note The 4200 W AC power supply should not be used in mixed-voltage configurations. All the inputs in a

chassis must be the same voltage (110 or 220 V).

1AC receptacle 3Captive screws

2Power switch

231375

1AC input 2 receptacle 4AC input 1 receptacle

2AC input 2 on switch 5Captive screws

3AC input 1 on switch

231376

100-120V-

12A

50/60Hz

100-120V-

12A

50/60Hz

INPUT 1

INPUT 2

POE ENABLED

4600ACV

OUTP{UT FAI:

FAN OK

1-27

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Power Supplies

Figure 1-15 1400 W DC-Input Power Supply

Figure 1-16 1400 W DC Triple-Input Power Supply

Note The 1400 W DC triple-input power supply is not compatible with other power supplies used on these

products, and can only be used with similar supplies. In redundant mode, the two power supplies must

have identical inputs.

The 1400 W DC input power supply (either single or triple-input) may be used with the Catalyst 4500

Series AC Power Shelf. Documentation for the Catalyst 4500 Series AC Power Shelf is at

http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/configuration/notes/

78_15068.html

Catalyst 4500 E-series switches support one power supply and an optional redundant power supply. Each

AC power supply has an individual power cord and status LEDs. Systems with redundant power supplies

will share the load, with each unit providing approximately one-half of the total load. For information

about configuring your switch for redundant and combined modes, refer to the software configuration

guide for your switch.

The Catalyst 4510R-E requires at least 1400 W of input power. (The 1000 W AC and 1300 W AC power

supplies will fit and function in a Catalyst 4510R-E; however, power management may be required in high

density configurations.) Cisco recommends the use of the 1400 W DC, 1400 W AC, and 2800 W AC

power supplies for the Catalyst 4510R-E.

When power is removed from one power supply on a Catalyst 4500 E-series switch that has two power

supplies, the redundant power feature causes the second power supply to produce full power.

To replace a power supply, see the “Removing and Replacing the Power Supply” section on page 4-2.

231377

231378

1-28

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Power Supplies

Power Supply LEDs

Table 1-7 describes the power supply LEDs.

Power Supply Fan

Each power supply has a built-in fan. Air enters the front of the power supply (power-input end) and exits

through the back. An air dam keeps the airflow separate from the rest of the chassis, which is cooled by

the system fan assembly.

Load-Sharing Feature

When you install and turn on a second power supply on a Catalyst 4500 E-series switch, it provides

approximately one-half of the required power to the system. If one power supply fails, the other power

supply immediately assumes full power to maintain uninterrupted system operation.

Note Load sharing works only when both power supplies in the chassis are the same type.

Ta b l e 1-7 Power Supply LEDs

LED Color/State Description

INPUT OK Indicates whether the input voltage is within the required

range:

Green Input voltage is within the required range.

Flashing Input voltage is present, but is below required range.

Off Input voltage is below the required range or the power supply

is off.

OUTPUT FAIL

Red Output voltage is not within the specified range.

Off Output voltage is within the specified range.

FAN OK Indicates the status of the power supply fans:

Green The fans are operational.

Off The fans are not operational.

In-line PWR (for

1400 W DC single

input power supplies)

Green –48 V passthru output voltage is enabled and is greater than

–39 V and less than –60 V.

Off Indicates any of the following:

• Passthru breakers are not enabled.

• DC input is less than –40.5 V.

• One or more –48 V outputs is less than –39 V.

Amber Passthru breakers are enabled and input voltage exceeds

–60 V.

1-29

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Power Supplies

When you install a redundant power supply, load sharing and fault tolerance are enabled automatically;

no additional software configuration is required.

Environmental Monitoring Feature

With the environmental monitoring and reporting feature, you can keep your system running by

resolving adverse environmental conditions before loss of operation.

The power supply monitors its own internal temperature and voltages. In the event of excessive internal

temperature, the power supply shuts down to prevent damage. When the power supply returns to a safe

operating temperature, it restarts. If the power supply output voltage is not within the specified range,

the LED labeled OUTPUT FAIL will light. An instance of substantial output overvoltage can shut down

the power supply.

An instance of substantial input over-voltage (greater than –75 V DC continuous) can damage the power

supply input circuitry and can cause it to shut down permanently.

For a 1400 W DC power supply, the main power switch has an input range of –40.5 to –72 V DC, while

the –48 V PoE operates over a range of –40.5 to –56 V DC. The PoE either fails to start or shuts down

if exposed to greater than –56 V DC input. PoE recovers after you recycle input power within the proper

voltage range. If the PoE shuts down due to input over-voltage (greater than –56 V DC), the main

converter section does not shut down.

The supervisor engine monitors the status of each power supply and provides a status report through the

switch software. For more details on how the supervisor engine monitors the power supplies, refer to the

“Environmental Monitoring and Power Management” chapter of the Catalyst 4500 Series Switch Cisco

IOS Software Configuration Guide.

1400 W DC Triple-input Power Supply Operational Modes

The 1400 W DC Triple Input SP Power Supply (data only) allows added redundancy by providing

terminals for two DC inputs rated at 15 A and one rated at 12.5 A per power supply.

This power supply has five operational modes depending on the inputs receiving power. When all three

inputs are active, at input voltages greater than –44.0 V DC, the power supply delivers 1400 W maximum

total output. Table 1-8 provides output information for these modes, given a single supply.

Ta b l e 1-8 Input Modes

Input

Mode

Input

Number Input Configuration

Maximum Total Output

Power

1 1 1 x 12.5 A 386 W @ –40.5 V DC

412 W @ –44.0 V DC

22 OR 3 1 x 15 A 466 W @ –40.5 V DC

495 W @ –44.0 V DC

31, 2 OR 3 1 x 12.5 A and

1 x 15 A

845 W @ –40.5 V DC

908 W @ –44.0 V DC

42, 3 2 x 15A 914 W @ –40.5 V DC

990 W @ –44.0 V DC

51, 2, 3 1 x 12.5A and

2 x 15 A

1294 W @ –40.5 V DC

1400 W @ –44.0 V DC

1-30

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

Power Supplies

The maximum total input current is 42.5A and the maximum ambient temperature is 55 C. To determine

total maximum input power to a supply, add up the active individual module input power ratings.

Table 1-9 provides output information for these modes, given two supplies working in combined mode.

Table 1-10 provides output information for these modes, given two supplies working in redundant mode.

Note In a redundant configuration with all inputs supplied, there must be a 100 W minimum system load or

the OUTPUT FAIL LED shows a false failure.

The 1400 W DC Triple Input SP Power Supply requires a minimum draw from the system that it is

installed in. Table 1-11 shows the minimum draw for the possible modes.

Ta b l e 1-9 Combined Mode Power Supply Configuration

(2450 W Max Output Power)

Input

Number Maximum Input Current

Maximum Input

Power @ –44 V DC

112.5 A @ –44 V DC 550 W

215 A @ –44 V DC 660 W

315 A @ –44 V DC 660 W

Ta b l e 1-10 Dual Redundant Mode Power Supply Configuration

(1400 W Max Output Power)

Input

Number

Approximate

Input Current

Approximate Input

Power @ –40.5 V DC

Approximate Input

Power @ –44 V DC

16.25 A @

–40.5 / –44 V DC

253 W 275 W

27.5 A @ –40.5 /

–44 V DC

304 W 330 W

37.5 A @ –40.5 /

–44 V DC

304 W 330 W

Ta b l e 1-11 Minimum Load Table

PSU1 PSU2

Input 1 Input 2 Input 3 Input 1 Input 2 Input 3

12V

Minimum

Load

3.3V

Minimum

Load

Single Operation

Mode 1 ON OFF OFF –––1.33A 0.6A

Mode 2 OFF ON OFF –––1.33A 0.6A

OFF OFF ON –––1.33A 0.6A

Mode 3 ON ON OFF –––2.66A 0.6A

ON OFF ON –––2.66A 0.6A

Mode 4 OFF ON ON –––2.66A 0.6A

1-31

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

System Architecture

This section describes the interaction between the various system components of Catalyst 4500 E-series

switches. Only the Catalyst 4503-E switch is shown in the examples.

Mode 5 ON ON ON –––4A 0.6A

Dual Redundant Operation

Mode 1 ON OFF OFF ON OFF OFF 2.66A 1.2A

Mode 2 OFF ON OFF OFF ON OFF 2.66A 1.2A

OFF OFF ON OFF OFF ON 2.66A 1.2A

Mode 3 ON ON OFF ON ON OFF 5.32A 1.2A

ON OFF ON ON OFF ON 5.32A 1.2A

Mode 4 OFF ON ON OFF ON ON 5.32A 1.2A

Mode 5 ON ON ON ON ON ON 8A 1.2A

Table 1-11 Minimum Load Table (continued)

PSU1 PSU2

Input 1 Input 2 Input 3 Input 1 Input 2 Input 3

12V

Minimum

Load

3.3V

Minimum

Load

1-32

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

System Architecture

Power Flow

Figure 1-17 shows power ingress and flow through the system.

Figure 1-17 Power Flow

Power enters the switch through the power supplies. Several types of power supplies are available,

depending on the power needs for your system and the power type available on your site. All power

supplies provide a 3.3 V circuit (shown as a dash-dot line) to the components on the backplane and a

12 V circuit (shown as a solid line) that is carried over the backplane to the fans, supervisor engine, and

switching modules. Power supplies that support PoE (1300 W AC, 2800 W AC, 4200 W AC or 1400 W

DC) also provide a –48 V circuit (shown as a dashed line) to PoE-enabled switching modules, which is

then available to the powered device connected to the switching module.

Note The Supervisor Engine II-Plus TS has internal DC-to-DC converters that use the 12 V circuit to provide

PoE to powered devices connected to the Supervisor engine only. If your system has a Supervisor Engine

II-Plus TS in slot 1, you still need a PoE-enabled power supply to provide PoE to the other slots.

All Catalyst 4500 E-series switches support dual power supplies, configurable for combined mode or

redundant mode. In combined mode, the switch has available the combined rated wattage of both power

supplies, less some expected efficiency loss. In redundant mode, one power supply provides power to

the system and the other supply is on standby should there be a failure in either the power supply or the

input voltage source it is connected to.

Power over Ethernet

The Cisco Catalyst 4500 E-series switches support the 802.3af standard for PoE on 10/100 or

10/100/1000 ports, enabling customers to support telephones, wireless base stations, video cameras, and

other appliances. PoE makes it possible to place devices in unique locations without having to provide

Ingress to PS Ingress to PS

Backplane

PS1 PS2

Fan

tray

120919

Supervisor engine

Switching module

12 V

3.3 V

48 V

1-33

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

System Architecture

new outlets and costly electrical circuits. PoE also enables businesses to isolate critical devices on a

single power system so that the entire system can be supported by uninterruptable power supply (UPS)

backup.

All new Cisco Catalyst PoE switching modules can support 15.4 W of power per port simultaneously.

Not only do the modules support the IEEE standard, including the optional power classifications, but the

Cisco pre-standard power implementation is also supported to help ensure backward compatibility with

existing Cisco powered devices. The modules are compatible with any chassis and supervisor engine.

Most importantly, the Catalyst 4500 E-series switch has the power supplies and accessories to support

15.4 W per port on every port simultaneously in any fully loaded chassis. (This requires an external power

shelf or a 4200 W dual-input power supply.)

PoE Over-subscription

With the advent of powered devices requiring as much as 15.4 W and the different combinations of

power supplies and chassis port densities, it becomes quite possible to over-subscribe the PoE capacity

of the power supplies. This temporary over-subscription typically occurs when a power supply

configured in combined mode fails or when the user has not kept track of the powered devices and plugs

in one too many. The best practice is to design a PoE system in which all devices receive the power

needed at all times. When a power supply is over-subscribed—more power is being drawn from it than

it can supply—the power supply shuts down. There are several ways to predictably manage a temporary

PoE over-subscription:

1. Configure unused ports to never receive PoE. This prevents a user from inadvertently plugging a

powered device into a port and causing problems for other powered devices.

2. Configure ports to be in static mode. This is for ports that have highest priority, such as phones for

executives or wireless access points. If ports need to be disabled because of a power shortage, auto

ports are disabled before static ports.

3. Configure the maximum wattage on ports to be less than the default, based on the maximum power

consumption of the powered device. This disallows devices demanding unexpected amounts of

power and also stretches the finite resources of the power supplies. For example, the default port

wattage is 15.4 W. By configuring a maximum of 7 W, twice as many PoE powered devices can be

supported with the same power supply.

PoE Switching Modules

The Cisco Catalyst 4500 E-series offers switching modules, power supplies, and accessories required to

deploy and operate a standards-based PoE internetwork. PoE provides –48 V DC power over standard

Category 5 unshielded twisted-pair (UTP) cable up to 100 meters when an IEEE 802.3af-compliant or

Cisco pre-standard powered device is attached to the PoE switching module port. Instead of requiring

wall power, attached devices such as IP phones, wireless base stations, video cameras, and other

IEEE-compliant appliances can use power provided by the PoE switching modules. This capability gives

network administrators centralized control over power and eliminates the need to install outlets in

ceilings and other out-of-the-way places where a powered device may be installed.

Although references to “PoE,” “inline-power,” and “voice” power supplies and switching modules are

synonymous, there are only two versions: Cisco prestandard and IEEE 802.3af compliant. Every Cisco

Catalyst 4500 E-series chassis and PoE power supply supports the IEEE 802.3af standard and the Cisco

prestandard power implementation ensuring backward compatibility with existing Cisco powered

devices. All IEEE 802.3af-compliant switching modules can distinguish an IEEE or Cisco prestandard

powered device from an unpowered network interface card (NIC), ensuring that power is applied only

when an appropriate device is connected.

1-34

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

System Architecture

All PoE switching modules can distinguish an IEEE or Cisco prestandard powered device from an

unpowered network interface card (NIC) to ensure power is applied only when an appropriate device is

connected. With a Cisco PoE network, administrators can depend on a robust network that is safe to

deploy and simple to maintain.

Deploying PoE on the Cisco Catalyst 4500 E-series

When the switch is properly configured, implementing PoE is easy when it is used with a Cisco powered

device that supports Cisco Discovery Protocol. All PoE switching modules automatically detect an

attached powered device the moment it is installed. Also, the switch returns unused port power to the

system power budget for use by other devices because it supports the IEEE802.3af optional power

classifications.

The Cisco Catalyst 4500 E-series offers internal power supplies and external power devices for multiple

deployment scenarios. These scenarios include small and large deployments in AC or DC environments

for data-only configurations, and scalability of up to 15.4 W per port for PoE configurations.

The switches share a common power supply form factor. Each Cisco Catalyst 4500 E-series chassis is

designed for 1 + 1 power protection while meeting the needs of PoE demands. In addition to power

resiliency, the Cisco Catalyst 4500 E-series includes 1 + 1 supervisor-engine redundancy (Cisco Catalyst

4507R-E and Catalyst 4510R-E only) and software-based fault tolerance. Integrated resiliency in both

hardware and software minimizes network downtime, helping ensure workforce productivity, portability,

and customer success.

All available Cisco Catalyst 4500 E-series compatible power supplies can be used for data-only

deployments, which typically require just a few hundred watts. For deployments that dictate support for

PoE power, Cisco offers several options.

The Cisco Catalyst 4500 E-series offers several internal supplies: 1000 W AC (data only), 1400 W AC

(data only), 1300 W (data and PoE), 1400 W DC (data and PoE), 2800 W (data and PoE), and 4200 W

AC (data and PoE). When more than 4200 W of redundant data and PoE are required for a Cisco Catalyst

4500 E-series chassis in an AC-powered environment, Cisco offers an external AC power shelf that

houses two 2500 W AC power supplies. When two power shelves are combined, they can produce

7500 W—the remaining 2500 W supply can be used for N + 1 protection.

The Cisco Catalyst 4500 E-series has two DC power options; one is optimized for data-only deployments

in service provider central offices (part number PWR-C45-1400DC), and the other is used for

high-power PoE deployments (part number PWR-C45-1400DC-P).

Cisco Catalyst 4500 Series External AC Power Shelf and

1400 W DC Power Supply with Integrated Power Entry Module

The external AC power shelf must be used in conjunction with the 1400 W DC power supply. In addition

to providing power for the chassis, fans, and non-PoE switching modules, the 1400 W DC power supply

contains a power entry module (PEM). The PEM is used to pass additional power to the chassis

backplane, power demanded by the PoE switching modules. The chassis power trace used for PoE is

independent from the one used by the supervisor engine(s), fan tray, and backplane components. The

1400 W DC power supply can accept up to 7500 W DC for data and PoE applications. Up to 1400 W can

be dedicated for data (supervisor engine, fan tray, etc.), while the remaining power is passed through via

the PEM and is used for PoE.

When only one external AC power shelf is used (with two 2500 W AC power supplies), it provides the

1400 W DC power supply with 5000 W of DC power in total. When two AC power shelves are strapped

together, the switch can provide up to 7500 W of DC power (3 + 1 redundant).

1-35

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

System Architecture

Cisco Catalyst 4500 Series Service Provider DC Power Supply

The triple-input 1400 W DC power supply is optimized for service provider or central-office

deployments. By providing multiple inputs, the service provider DC power supply enables central-office

technicians to customize the output power to meet their application needs. Many central-office

deployments require only a fraction of the 1400 W available in the service provider power supply. Low

current inputs mean technicians can connect the supply to smaller fuses and breakers. The service

provider power supply makes it possible to deploy a Cisco Catalyst 4503-E with a single 15 A circuit.

Likewise, it is possible to deploy a fully populated Cisco Catalyst 4510R-E with two 20 A and one 15 A

circuits rather than a single 60 A connection, which often requires rack rewiring.

Management Flow

Figure 1-18 shows management and status information flow through the system.

Figure 1-18 Management Flow

Each system component has an EEPROM that identifies it to the supervisor engine over a serial

connection on the backplane, which also passes along information like temperature, fan speed, power

draw per slot and port, and port activity. LED status information is also sent to the supervisor engine,

which makes it available to an administrator through a terminal connection or management software.

All Catalyst 4500 E-series switches support:

• Cisco Group Management Protocol, for standards-based and Cisco technology-enhanced efficient

multimedia networking.

• Simple Network Management Protocol (SNMP).

• CiscoWorks, which can manage critical network characteristics such as availability, responsiveness,

resilience, and security.

• Cisco NetFlow Services. The Cisco NetFlow Services Card for the Supervisor Engine IV and V

support statistics capture in hardware for flow-based and VLAN-based statistics monitoring. This

data can be exported, collected, and analyzed for virus detection and mitigation, network-traffic

accounting, usage-based network billing, network planning, network monitoring, and data-mining

capabilities. Cisco NetFlow Services is integral to the Supervisor Engine V-10GE.

Backplane

PS1 PS2

Fan

tray

120920

Supervisor engine

Switching module

Terminal

1-36

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

System Architecture

Switching Traffic Flow

All Catalyst 4500 series switches use a shared memory switching fabric. All forwarding decisions, QoS,

security policies and transmit queuing are implemented in the Supervisor Engine. Individual switching

modules are transparent, and only contain simple stub ASICs and PHYs; they do not perform buffering

or local switching. Classic switching modules and Classic IOS supervisor engines have a per slot

switching capacity of 6 Gbps, while E-series switching modules and supervisor engines have a per slot

switching capacity of 24 Gbps.

Frames flow into the switch through interfaces on the switching modules. Each switching module

connects to a backplane that supports a connection of up to 24 Gbps up to the supervisor engine. When

a frame reaches the supervisor engine, and a forwarding decision is made, the packet is sent out a port

on the same switching module, a different switching module, or the supervisor engine uplinks.

Figure 1-19 shows a conceptual diagram of switching traffic flow through the system.

Figure 1-19 Switching Traffic Flow

Over-subscription

Classic Catalyst 4500 Series 48 port 10/100/1000 E-Series Switching modules are 8:1 oversubscribed

and Catalyst 4500 E-Series 48 port 10/100/1000 Switching modules are 2:1 oversubscribed. On both

types of switching modules, there are multiplexing ASIC's which group the front panel ports and

multiplex them to the internal switch fabric. On a 48 port 10/100/1000 Classic Catalyst 4500 Series

switching module, eight front panel ports are multiplexed into a a single, nonblocking, full-duplex

Gigabit Ethernet connection to the internal switch fabric of the Catalyst 4500 Classic Supervisors or the

Supervisor 6-E. On the Catalyst 4500 E-series 48 port 10/100/1000 switching modules, six front panel

ports are multiplexed into a 3 gigabit nonblocking, full-duplex Ethernet connection to the internal switch

fabric on the Supervisor Engine 6-E.

If the data rate received for a port presents a potential overflow condition, flow control sends pause

frames to the remote port to temporarily stop traffic and prevent frame loss. For both Classic and E-series

switching modules each port operates independently so that flow control, or configuration of one port,

does not block or degrade the performance of another port in that group.

The 6 port 2.5:1 oversubscribed 10GbE X2 based switching module operates in a similar way. The six

front panel ports are multiplexed by groups of three into two ASICS, each having a 12 gigabit connection

into the internal switch fabric.

202518

Supervisor Engine

Uplinks

network

Classic switching module

6 Gbps per slot

24 Gbps per slot

E-Series switching module

chassis

1-37

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

System Architecture

In a Catalyst 4500 E-series chassis with the Supervisor 6-E, there is no performance degradation when

both Classic and E-series line cards are mixed within the chassis. The Classic switching modules will

continue to operate at 6 gigabits per slot and the E-series switching modules will operate at 24 gigabits

per slot.

Supervisor Redundancy

The Cisco Catalyst 4507R-E and Catalyst 4510R-E switches support 1+1 supervisor-engine redundancy

for integrated resiliency. Redundant supervisor engines help minimize network downtime. With the

support of stateful switchover (SSO), the secondary supervisor engine serves as a backup to immediately

take over after a primary supervisor failure. During the switchover, Layer 2 links are maintained

transparently without the need to renegotiate sessions. As a result, business-critical applications such as

Voice-over-IP (VoIP) calls are not dropped. The Nonstop Forwarding (NSF) Aware feature in Cisco IOS

software is also supported, providing the ability to interface with NSF-capable devices and to continue

forwarding packets as routing information is updated upon a supervisor-engine switchover.

1-38

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 1 Product Overview

System Architecture

CHAPTER

2-1

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Preparing for Installation

Warning

This unit is intended for installation in restricted access areas. A restricted access area can be

accessed only through the use of a special tool, lock and key, or other means of security.

Statement 1017

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Warning

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the

absence of a suitably installed ground conductor. Contact the appropriate electrical inspection

authority or an electrician if you are uncertain that suitable grounding is available.

Statement 1024

Warning

Class 1 laser product.

Statement 1008

If you will be using your switch as a PoE source, the following warning applies:

Warning

Voltages that present a shock hazard can exist on inline power circuits if interconnections are made

by using uninsulated exposed metal contacts, conductors, or terminals. Avoid using such

interconnection methods unless the exposed metal parts are in a restricted access location and users

and service people who are authorized to access the location are made aware of the hazard. A

restricted access area can be accessed only through the use of a special tool, lock and key, or other

means of security.

Statement 1072

This chapter describes how to prepare your site for the installation of the switch. The information is

presented in these sections:

• Electrostatic Discharge, page 2-2

• Site Power Requirements and Heat Dissipation, page 2-3

• Power Connection Guidelines for AC-Powered Systems, page 2-3

• Site-Planning Checklist, page 2-11

2-2

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 2 Preparing for Installation

Electrostatic Discharge

Note See the Site-Planning Checklist at the end of this chapter to help ensure that you complete all

site-planning activities before you install the switch.

Electrostatic Discharge

Electrostatic discharge is common on Category 5E and Category 6 cabling systems.

Category 5E and Category 6 cables have higher capacitance than Category 5 cables. As a result, Category

5E and Category 6 cables can store higher voltages than Category 5 cables and are more prone to

damaging networking equipment if a differential discharge event occurs.

Unshielded twisted-pair cables can store high voltages. When these charged cables are connected to

networking equipment, energy is discharged into the networking equipment; this is known as

electrostatic discharge (ESD). Networking equipment is commonly designed and tested to withstand

common mode ESD events of up to 2000 V. The design for the common mode event is based on the

expectation that the discharge is delivered to all pins of a port at once. Sometimes, voltage is discharged

to some of the pins of the connector and not others, or to some pins on the connector before others. This

is known as a differential discharge event, which can damage the networking equipment being

connected.

You can take the following measures to prevent ESD cable damage:

• Ground the cable before connecting the networking equipment. You can create a grounding cable

using an RJ-45 patch cable by doing the following:

–

Bare the wires on one end

–

Connect the wires to a suitable and safe earth ground

–

Connect the RJ-45 cable to a female RJ-45 connector

• Briefly connect all cables to the grounded cable before connecting to networking equipment.

• Leave cables from the networking equipment in the distribution closet connected to ports at user

desktops. After you make connections on either side of the cable to networking equipment, the cable

will not build up charge.

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) damage, which can occur when electronic cards or components are

improperly handled, results in complete or intermittent failures. Port adapters and processor modules

consist of printed circuit boards that are fixed in metal carriers. Electromagnetic interference (EMI)

shielding and connectors are integral components of the carrier. Although the metal carrier helps to

protect the board from ESD, use a preventive antistatic strap during handling.

Following are guidelines for preventing ESD damage:

• Always use an ESD wrist or ankle strap and ensure that it makes good skin contact.

• Connect the equipment end of the strap to an unfinished chassis surface.

• When installing a component, use any available ejector levers or captive installation screws to

properly seat the bus connectors in the backplane or midplane. These devices prevent accidental

removal, provide proper grounding for the system, and help to ensure that bus connectors are

properly seated.

2-3

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 2 Preparing for Installation

Site Power Requirements and Heat Dissipation

• When removing a component, use any available ejector levers or captive installation screws to

release the bus connectors from the backplane or midplane.

• Handle carriers by available handles or edges only; avoid touching the printed circuit boards or

connectors.

• Place a removed component board-side-up on an antistatic surface or in a static shielding container.

If you plan to return the component to the factory, immediately place it in a static shielding

container.

• Avoid contact between the printed circuit boards and clothing. The wrist strap only protects

components from ESD voltages on the body; ESD voltages on clothing can still cause damage.

• Never attempt to remove the printed circuit board from the metal carrier.

Caution For safety, periodically check the resistance value of the antistatic strap. The measurement should be

between 1 and 10 megohm (Mohm).

Site Power Requirements and Heat Dissipation

This section provides module power requirements and heat dissipation specifications for the

Catalyst 4500 E-series switches. You should verify site power before you install the switch.

For more information about power management and planning, refer to the “Environmental Monitoring

and Power Management” chapter in the Catalyst 4500 Series Switch Cisco IOS Software Configuration

Guide version appropriate for your software.

Knowing the power requirements is useful for planning the power distribution system needed to support

the switches. You should consider the heat dissipation specifications when estimating the

air-conditioning requirements for an installation. For all Catalyst 4500 series switches, supervisor

engines, and switching modules in AC or DC environments see the Catalyst 4500 Series Module

Installation Guide at:

http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/module/guide/

0aspecs.html#wp1007594

Catalyst 4500 E-series supervisor engines and switching modules are discussed elsewhere in this book.

Power Connection Guidelines for AC-Powered Systems

This section provides guidelines for connecting the Catalyst 4500 E-series switch AC power supplies to

the site power source. Basic guidelines include the following:

• Make sure each chassis power supply has its own dedicated branch circuit.

• Size the circuits according to local and national codes.

• If you are using a 200/240 VAC power source in North America, use a two-pole circuit breaker to

protect the circuit.

• Place the source AC outlet within 6 feet (1.8 meters) of the system and make sure it is easily

accessible.

2-4

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 2 Preparing for Installation

Power Connection Guidelines for AC-Powered Systems

• Make sure the AC power receptacles used to plug in the chassis are the grounding type. The

grounding conductors that connect to the receptacles should connect to protective earth ground at

the service equipment.

Four types of AC-input power supplies are available:

• 1000 W—Table 2-1 lists the AC-input power cord options, specifications, Cisco part numbers, and

shows the different styles of 1000 W AC-input power cord wall plugs that are available for North

America and international locations as well as the appliance coupler that is attached to the power

supply end of the power cord.

• 1300 W—Table 2-1 lists the AC-input power cord options, specifications, and Cisco product

numbers, and shows the different styles of 1300 W AC-input power cord wall plugs that are

available for North America or various international locations as well as the appliance coupler that

is attached to the power supply end of the power cord.

Note For North America, the power cord plug types and appliance couplers on the power supplies

are different for the 1000 W power supplies and the 1300 W power supplies; for other

countries, the plugs shown are the same for the 1000 W and 1300 W power supplies.

• 1400 W—Table 2-1 lists the AC-input power cord options, specifications, and Cisco product

numbers, and shows the different styles of 1400 W AC-input power cord wall plugs that are

available for North America or various international locations as well as the appliance coupler that

is attached to the power supply end of the power cord.

• 2800 W—Table 2-1 lists the AC-input power cord options, specifications, and Cisco part numbers,

and shows the different styles of 2800 W AC-input power cord wall plugs that are available for

North America and international locations as well as the appliance coupler that is attached to the

other end of the 2800 W power supply power cord.

• 4200 W—Table 2-1 lists the AC-input power cord options, specifications, and Cisco part numbers,

and shows the different styles of 4200 W AC-input power cord wall plugs that are available for

North America and international locations as well as the appliance coupler that is attached to the

other end of the 4200 W power supply power cord.

The cable part numbers use standard conventions as shown in this example: CAB-L620P-C19-US.

CAB-L means the cable will lock to the outlet. 620P means the cable is intended for a NEMA 220V 20

AMP circuit connection. C19 refers to the appliance side connector shape, rated for 20 Amps. US is the

country the cable is intended for use in.

2-5

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 2 Preparing for Installation

Power Connection Guidelines for AC-Powered Systems

Ta b l e 2-1 AC-Input Power Cord Options

Locale Part Number Length Plug Rating Plug Type

1000 W Power Supply (PWR-C45-1000AC=)

Appliance

Coupler

North America CAB-7KAC= 8.2 ft (2.5 m) 125 VAC, 15 A NEMA 5-15P

Australia,

New Zealand

CAB-7KACA= 8.2 ft (2.5 m) 250 VAC, 15 A SAA/3,

AS/NZS 3112-1993

Europe (except

Italy)

CAB-7KACE= 8.2 ft (2.5 m) 250 VAC, 16 A CEE 7/7

Italy CAB-7KACI= 8.2 ft (2.5 m) 250 VAC, 16 A 1/3/16 CEI 23-16

United

Kingdom

CAB-7KACU= 8.2 ft (2.5 m) 250 VAC, 13 A BS 89/13

BS 1363/A

Argentina CAB-7KACR= 8.2 ft (2.5 m) 250 VAC, 10 A IRAM 2073

1300 W (PWR-C45-1300ACV=) and

1400 W (PWR-C45-1400AC=) Power Supplies

Appliance Coupler

North America CAB-7513AC= 14 ft (4.3 m) 125 VAC, 20 A NEMA 5-20

120352

120354

120356

120357

120358

120359

120356

120353

120362

2-6

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 2 Preparing for Installation

Power Connection Guidelines for AC-Powered Systems

Australia,

New Zealand

CAB-7513ACA= 14 ft (4.3 m) 250 VAC, 15 A SAA/3,

AS/NZZS 3112-1993

Europe (except

Italy)

CAB-7513ACE= 14 ft (4.3 m) 250 VAC, 16 A CEE 7/7

Italy CAB-7513ACI= 14 ft (4.3 m) 250 VAC, 16 A 1/3/16, CEI 23-16

United

Kingdom

CAB-7513ACU= 14 ft (4.3 m) 250 VAC, 13 A BS 89/13

BS 1363/A

Argentina CAB-7513ACR= 14 ft (4.3 m) 250 VAC, 10 A IRAM 2073

North America

(locking)

200–240 VAC

operation

CAB-AC-2800W-TWLK= 13.6 ft

(4.1 m)

250 VAC, 16 A NEMA L6-20

North America

(non-locking)

200–240 VAC

operation

CAB-AC-2800W-6-20 13.2 ft

(4.0 m)

250 VAC, 16 A NEMA 6-20

non-locking

Europe CAB-AC-2800W-EU= 13.2 ft

(4.0 m)

250 VAC, 16 A CEE 7/7

Table 2-1 AC-Input Power Cord Options (continued)

Locale Part Number Length Plug Rating Plug Type

120356

120357

120358

120359

120356

120361

120355

120357

2-7

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 2 Preparing for Installation

Power Connection Guidelines for AC-Powered Systems

International CAB-AC-2800W-INT= 13.6 ft

(4.1 m)

250 VAC, 16 A IEC 309

2800 W Power Supply (PWR-C45-2800ACV=)

Appliance Coupler

North America

(locking)

200–240 VAC

operation

CAB-AC-2800W-TWLK= 13.6 ft

(4.1 m)

250 VAC, 16 A NEMA L6-20

North America

(non-locking)

200–240 VAC

operation

CAB-AC-2800W-6-20 13.2 ft

(4.0 m)

250 VAC, 16 A NEMA 6-20

non-locking

Europe CAB-AC-2800W-EU= 13.2 ft

(4.0 m)

250 VAC, 16 A CEE 7/7

International CAB-AC-2800W-INT= 13.6 ft

(4.1 m)

250 VAC, 16 A IEC 309

4200 W Power Supply (PWR-C45-4200ACV=)

Appliance Coupler

North America

120 VAC

operation

CAB-US515P-C19-US 9.8 ft

(2.98 m)

125VAC, 15A NEMA 5-15P

North America

(locking)

200–240 VAC

operation

CAB-L620P-C19-US 14 ft (4.2 m) 250 VAC, 20 A NEMA L6-20

Table 2-1 AC-Input Power Cord Options (continued)

Locale Part Number Length Plug Rating Plug Type

120360

120353

120361

120355

120357

120360

120353

120354

120361

2-8

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 2 Preparing for Installation

Power Connection Guidelines for AC-Powered Systems

North America

(non-locking)

200–240 VAC

operation

CAB-US620P-C19-US 13.2 ft

(4.02 m)

250 VAC, 20 A NEMA 6-20

non-locking

Europe CAB-CEE77-C19-EU 13.2 ft

(4.0 m)

250 VAC, 15 A CEE 7/7

International

(including

Argentina and

South Africa)

CAB-I309-C19-INT 13.6 ft

(4.1 m)

250 VAC, 16 A IEC 309

Australia CAB-A3112-C19-AUS 14 ft (4.3 m) 250 VAC, 15 A AS/NZZS 3112

Italy CAB-C2316-C19-IT 14 ft (4.3 m) 250 VAC, 16 A CEI 23-16

United

Kingdom

CAB-BS1363-C19-UK 14 ft (4.3 m) 250 VAC, 15 A BS 1363

Israeli CAB-S132-C19-ISRL 14 ft (4.3 m) 250 VAC, 16 A SI32

UPS 220V CAB-C19-CBN 9 ft (2.74 m) 250 VAC, 20 A IEC-60320-C20

UPS 110V CAB-C19-C14 14 ft (4.3 m) 125 VAC, 16 A IEC-60320-C14

Table 2-1 AC-Input Power Cord Options (continued)

Locale Part Number Length Plug Rating Plug Type

120355

120357

120360

120356

120358

120359

130922

130923

130924

2-9

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 2 Preparing for Installation

Power Connection Guidelines for DC-Powered Systems

This section provides the basic guidelines for connecting the Catalyst 4500 E-series switch compatible

DC-input power supplies to the site power source or AC power shelf:

• All power connection wiring should conform to local and national codes.

• DC (–) and DC return (+) terminals are evaluated for use with 1/0 AWG wire (1400W DC supply

only).

• The ground terminal is evaluated for use with 6 AWG wire (10 AWG for the multi-input power

supply).

• DC (–) and DC return (+) wire lugs shall not exceed 0.83 inches in width (0.378 inches for the

multi-input power supply).

• For DC power cables, we recommend that you use commensurately rated, high-strand-count copper

wire cable. Connection to the DC-input power supply requires one earth ground cable, one source

DC (–), and one source DC return (+). The length of the cables depends on your switch location.

These cables are not available from Cisco Systems. They are available from any commercial cable

vendor.

• The color coding of the source DC power cable leads depends on the color coding of the site DC

power source. Typically, green or green and yellow indicate that the cable is a ground cable. Because

there is no color code standard for source DC wiring, you must ensure that the power cables are

connected to the DC-input power supply terminal block in the proper (+) and (–) polarity. In some

cases, the source DC cable leads might have a positive (+) or a negative (–) label. This label is a

relatively safe indication of the polarity, but you must verify the polarity by measuring the voltage

between the DC cable leads. When making the measurement, the positive (+) lead and the negative

(–) lead must always match the (+) and (–) labels on the DC-input power supply terminal block.

Calculating DC Input Current

Complete power usage tables are in the Catalyst 4500 Series Module Installation Guide. To calculate the

DC input current needed for data and inline power applications, use the following steps (the example

shows the DC input current requirement in a Catalyst 4503-E with a Supervisor Engine II and two

WS-X4306-GB modules, and assumes a DC input voltage of -48 VDC):

Step 1 Add the power requirement for each component in your system.

• Catalyst 4503-E uses 54 W

• Supervisor Engine II+ uses 147 W

• WS-X4306-GB uses 2 X 47 = 94 W

• Total DC input power = 295 W

Step 2 After the entries for all components have been added together, divide that number by the DC input

voltage to determine the DC input current.

• Input current = 295 W/48 VDC = 6.14 A for data only.

Step 3 to Step 5 are for applications requiring inline power. If your configuration does not include inline

power devices, the DC input current is the result of Step 2.

Step 3 If you want to add an inline-capable module (WS-X4148-RJ45V) with 10 inline devices (such as IP

Phones) to your system, calculate the DC output power sent to inline devices.

2-10

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 2 Preparing for Installation

Ventilation

• 10 X 6.3 W = 63 W for inline devices.

6.3 Watts is correct for a Cisco IP phone. Wattage consumption will depend on the inline device used.

Step 4 Find the DC input power using the DC output power.

• 63/.96 (efficiency) = 65 W of DC input power.

Step 5 Divide the DC input power by the DC voltage input of –48 V to find the DC input current used by inline

devices.

• 65/48 = 1.4 Amps for inline devices.

Step 6 Add the DC input current used by data and the DC input current used by inline devices to find the total

DC input current.

• Total DC input current = 6.14 + 1.4 = 7.54 A.

Ventilation

Planning a proper location for the switch and the layout of your equipment rack or wiring closet is

essential for successful system operation. You should install the switch in an enclosed, secure area,

ensuring that only qualified personnel have access to the switch and control of the environment.

Equipment placed too close together or inadequately ventilated can cause system overtemperature

conditions. In addition, poor equipment placement can make chassis panels inaccessible and difficult to

maintain.

The switch operates as a standalone system mounted in a rack in a secure wiring closet. It requires a dry,

clean, well-ventilated, and air-conditioned environment. To ensure normal operation, maintain ambient

airflow. If the airflow is blocked or restricted, or if the intake air is too warm, an overtemperature

condition can occur. The switch environmental monitor can then shut down the system to protect the

system components.

To ensure normal operation and avoid unnecessary maintenance, plan your site configuration and

prepare your site before installation. After installation, make sure the site maintains an ambient

temperature of 0 to 40ºC (32 to 104ºF). It is essential to keep the area around the chassis as free from

dust and foreign conductive material (such as metal flakes from nearby construction activity) as is

possible.

Multiple switches can be rack-mounted with little or no clearance above and below the chassis. However,

when mounting a switch in a rack with other equipment, or when placing it on the floor near other

equipment, ensure that the exhaust from other equipment does not blow into the intake vent of the

chassis.

Cooling air is drawn in through the right side of the chassis. Keep the right side clear of obstructions,

including dust and foreign conductive material, and away from the exhaust ports of other equipment.

Appendix A, “Specifications,” lists the operating and nonoperating environmental site requirements for

the switches. To maintain normal operation and ensure high system availability, maintain an ambient

temperature and clean power at your site. The environmental ranges listed in Appendix A,

“Specifications,” are those within which the switch will continue to operate; however, a measurement

that approaches the minimum or maximum of a range indicates a potential problem. You can maintain

normal operation by anticipating and correcting environmental anomalies before they exceed the

maximum operating range.

2-11

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 2 Preparing for Installation

Site-Planning Checklist

Calculating System Heat Dissipation

To calculate the expected heat dissipation from a switch, add the total amount of power drawn from

power supply by the system's configuration, then divide the total amount of power by the efficiency of

the power supply. Multiply the result by 3.415 to get the system heat dissipation in BTUs/hr.

First example (System without any powered devices):

Note All power supplies have different efficiencies, An average efficiency figure of 75% was chosen.

Second example (same system but this time with one IEEE class 3 device):

Note Although a class 3 device needs 15.4 W to power up, 17.3 W need to be generated from the backplane

in order to have 15.4 W at the switch port. 17.3 W comes from the WS-X4248-RJ45V DC-DC

converter’s efficiency (89%).

Site-Planning Checklist

Table 2-2 lists the site-planning activities that you should complete before you install a Catalyst 4500

E-series switch. Completing each activity helps to ensure a successful switch installation.

Components Output Power

1 - Catalyst 4506-E with fans 50 W

1 - Supervisor Engine IV 145 W

1 - WS-X4248-RJ45V with no phones 72 W

total output power 267 W

Total heat dissipated by system = (267/.75) * 3.415 = 1215 BTUs/hr

Components Output Power

1 - Catalyst 4506-E with fans 50 W

1 - Supervisor Engine IV 145 W

1 - WS-X4248-RJ45V with no phones 72 W

1 - IEEE class 3 device 17.3 W

total output power 284 W

Total heat dissipated by system = (284/.75) * 3.415 = 1293 BTUs/hr

2-12

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 2 Preparing for Installation

Site-Planning Checklist

Ta b l e 2-2 Site-Planning Checklist

Task No. Planning Activity Verified by Time Date

1Space evaluation:

• Space and layout

• Floor covering

• Impact and vibration

• Lighting

• Maintenance access

2Environmental evaluation:

• Ambient temperature

• Humidity

• Altitude

• Atmospheric contamination

• Airflow

3Power evaluation:

• Input power type

• Receptacle proximity to the equipment

• Dedicated (separate) circuits for redundant

power supplies

• UPS for power failures

4Grounding evaluation:

• Circuit breaker size

5Cable and interface equipment evaluation:

• Cable type

• Connector type

• Cable distance limitations

• Interface equipment (transceivers)

6EMI evaluation:

• Distance limitations for signaling

• Site wiring

• RFI levels

CHAPTER

3-1

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Installing the Switch in a Rack

Warning

This unit is intended for installation in restricted access areas. A restricted access area can be

accessed only through the use of a special tool, lock and key, or other means of security.

Statement 1017

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Warning

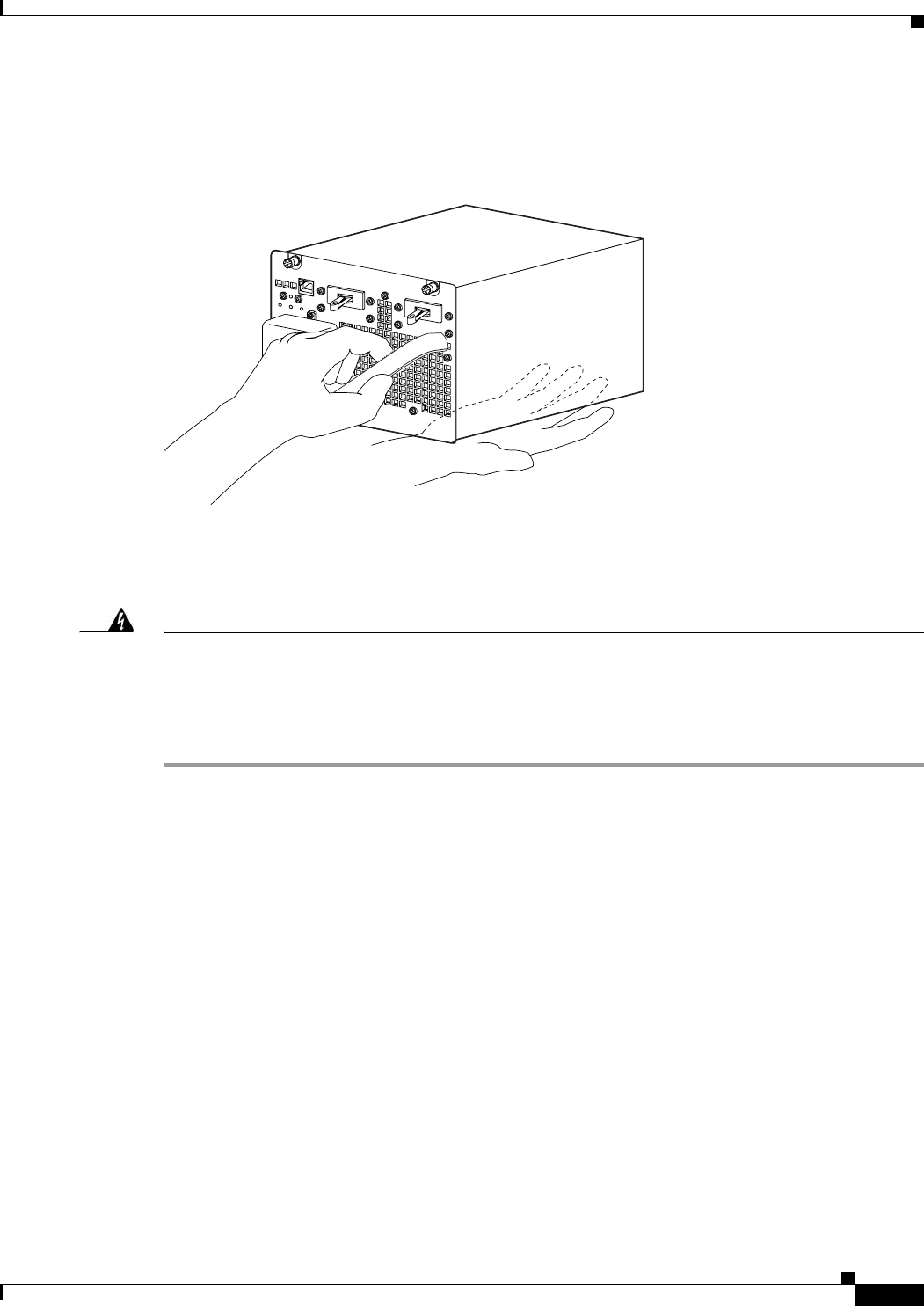

To prevent personal injury or damage to the chassis, never attempt to lift or tilt the chassis using the

handles on modules (such as power supplies, fans, or cards); these types of handles are not designed

to support the weight of the unit.

Statement 1032

This chapter describes how to install Catalyst 4500 E-series switches in a rack. For first-time

installations, perform the procedures in the following sections in the order listed:

• Checking the Shipping Container Contents, page 3-1

• Rack-Mounting the Switch, page 3-2

Note Before starting the installation procedures in this chapter, complete the site-planning checklist in

Table 2-2 of Chapter 2, “Preparing for Installation.”

Note For information on installing the supervisor engine and switching modules and verifying switch

operation, refer to the Catalyst 4500 Series Module Installation Guide. For information on configuring

the switching modules, refer to the software configuration guide for your switch and software release.

Checking the Shipping Container Contents

Note Do not discard the shipping cartons and poly bag when you unpack the switch. Flatten and store them.

You will need the containers if you need to move or ship the switch in the future. Repacking instructions

are provided in Appendix B, “Repacking a Switch.”

3-2

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 3 Installing the Switch in a Rack

Rack-Mounting the Switch

Follow these steps to check the contents of the shipping cartons:

Step 1 Check the contents of the accessories box against the Accessories Box Components Checklist and the

packing slip that were included with your switch. Verify that you received all listed equipment, including

the following:

• Switch hardware documentation and software documentation (if ordered)

• Optional equipment that you ordered, such as network interface cables, transceivers, or special

connectors

Step 2 Check the switching modules in each slot. Ensure that the configuration matches the packing list and

that all the specified interfaces are included.

Rack-Mounting the Switch

A standard rack-mount kit is included for mounting the switch in a standard 19-inch (48.3 cm)

equipment rack with two unobstructed outer posts, with a nominal depth (between the front and rear

mounting posts) of 19.25 inches (48.9 cm) and a maximum depth of 32 inches (81.3 cm). This kit is not

suitable for racks with obstructions (such as a power strip) that could impair access to the

field-replaceable units (FRUs) of the switch.

Alternatively, you can obtain a 23-inch rack-mount kit.

Required Installation Tools

You will need the following tools and equipment to install the chassis in a rack:

• Number 1 and number 2 Phillips screwdrivers to tighten the captive installation screws on most

systems

• 3/16-inch flat-blade screwdriver for the captive installation screws on the supervisor engine and

switching modules on some systems

• Antistatic mat or antistatic foam in case you need to remove switching modules to troubleshoot the

installation

• Rack-mount kit

• Tape measure

• Level

• Your own electrostatic discharge (ESD) grounding strap or the disposable ESD strap included with

the system

3-3

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 3 Installing the Switch in a Rack

Rack-Mounting the Switch

Rack-Mounting Catalyst 4500 E-series Switches

Note If you move a supervisor engine from a Catalyst 4500 series chassis to a Catalyst 4503-E chassis or

Catalyst 4506-E chassis, it must use Cisco IOS Release 12.2(37)SG or later. Refer to the release note for

software upgrade procedures if needed:

http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/release/note/OL_5184.html#wp305142

Follow these steps to install a Catalyst 4500 E-series switch in a rack:

Step 1 Prepare for installation as follows:

a. Place the chassis on the floor or on a sturdy table as close as possible to the rack. Leave enough

clearance to allow you to move around the chassis.

b. Use a tape measure to measure the depth of the rack. Measure from the outside of the front mounting

posts to the outside of the rear mounting strip. The depth must be at least 19.25 inches (48.9 cm) but

not greater than 32 inches (81.3 cm).

c. Measure the space between the inner edges of the left front and right front mounting posts to ensure

that it is 17.75 inches (45.09 cm) wide. (The chassis is 17.25 inches [43.8 cm] wide and must fit

between the mounting posts.)

Note Some equipment racks provide a power strip along the length of one of the rear posts. If your

rack has this feature, consider the position of the strip when planning fastener points. Before

installing the L brackets on the chassis, determine whether to install the chassis from the front

or the rear of the rack.

d. Attach the cable guide, if needed, using the M3 screws provided in the cable management kit. The

cable guide attaches to the L bracket. Attach the cable guide to the right side of the switch to prevent

the cables from obscuring module LEDs.

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special

precautions to ensure that the system remains stable. The following guidelines are provided to

ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest

component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in

the rack.

Statement 1006

3-4

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 3 Installing the Switch in a Rack

Rack-Mounting the Switch

See Figure 3-1 for the Catalyst 4506-E switch, the other switches will be very similar.

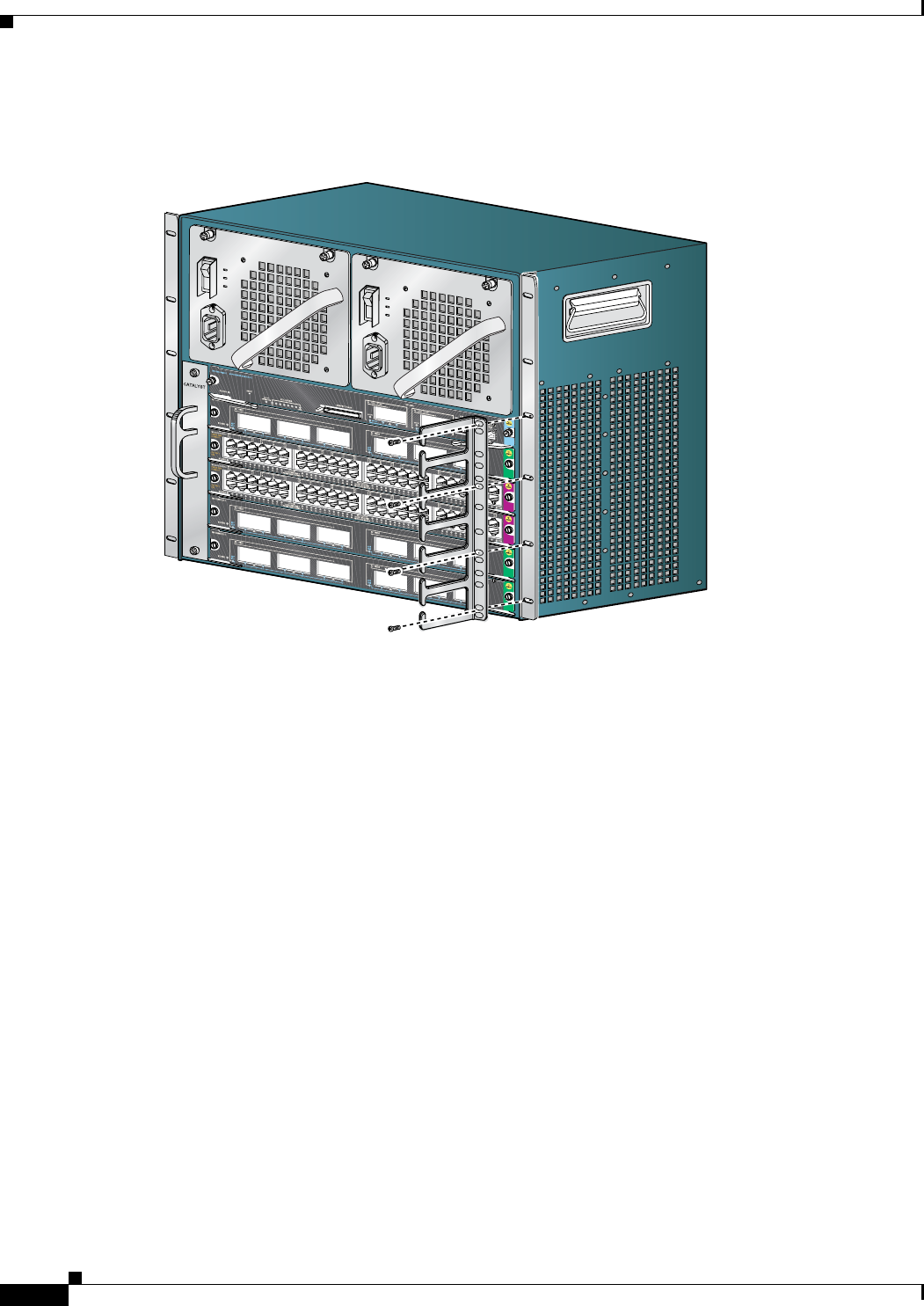

Figure 3-1 Attaching the Cable Guide to the Catalyst 4506-E Switch

Step 2 Install the chassis in the rack as follows:

a. Insert the rear of the chassis between the mounting posts.

See Figure 3-2 to see how to install a Catalyst 4506-E switch in a rack. Other switches in the series

mount in the same manner.

b. Align the mounting holes in the L bracket with the mounting holes in the equipment rack.

c. Secure the chassis using at least six (three per side) 12-24 x 3/4-inch screws through the elongated

holes in the L bracket and into the threaded holes in the mounting post.

d. Use a tape measure and level to ensure that the chassis is installed straight and level.

231369

4506

3-5

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 3 Installing the Switch in a Rack

System Ground Connection Guidelines

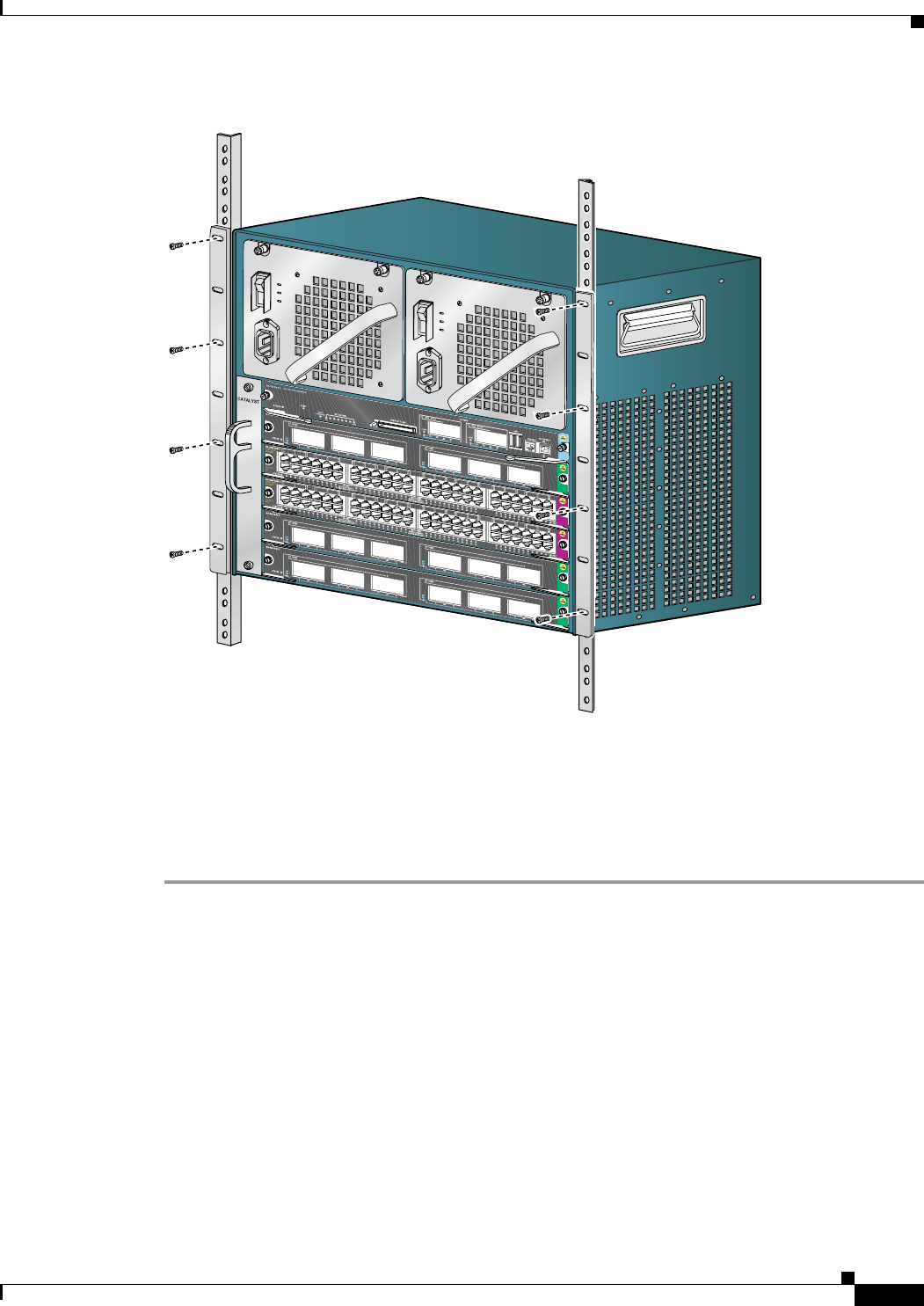

Figure 3-2 Installing a Catalyst 4506-E Switch in the Rack

Step 3 Make sure that the ejector levers are completely closed and the supervisor engine and switching modules

are installed securely.

Step 4 Tighten any loose captive installation screws on the supervisor engine and the switching module.

Step 5 Connect fiber and copper cables for switching traffic and uplinks or PoE as appropriate.

Step 6 Connect the switch to an appropriate ground. Refer to System Ground Connection Guidelines, page 3-5.

The system must have a ground connection before power is supplied to the switch.

System Ground Connection Guidelines

A grounding pad with two system (earth) grounding holes is provided in an enclosure near the left power

supply (PS1) on the Catalyst 4500 E-series switches (See Figure 3-3).

231371

4506

3-6

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 3 Installing the Switch in a Rack

System Ground Connection Guidelines

Parts and Required Tools

Note Some parts and required tools described in this section are not available from Cisco Systems. The

grounding lug and associated screws are included with the accessory kit.

To make an adequate grounding connection, you will need the following parts and tools:

• Grounding lug—The grounding lug has two #10 AWG holes spaced 0.63 in center to center. A

Panduit LCDX6-10A-L or Pencom EL1033 lug may be used if the lug from the accessory kit has

been misplaced.

• Two M4 (metric) hex-head screws.

• One grounding wire (6 AWG recommended)—The length of the grounding wires depends on the

location of your switch within the site and its proximity to proper grounding facilities.

• Number 2 Phillips screwdriver.

• Crimping tool—This tool must be large enough to accommodate the girth of the grounding lug when

you crimp the grounding cable into the lug.

• Wire-stripping tool.

Connecting System Ground and Power

This section describes how to connect the Catalyst 4500 E-series switches to earth ground. The system

ground connection is required if FXS modules are installed or if this equipment is installed in a US or

European Central Office.You must complete this procedure before connecting system power or turning

on your switch.

To attach the grounding lug and cable to the grounding pad on your Catalyst 4500 E-series switch,

perform the following steps:

Step 1 Using a wire-stripping tool, remove approximately 0.75 inches (19 mm) of the covering from the end of

the grounding wire.

Step 2 Insert the stripped end of the grounding wire into the open end of the grounding lug (Figure 3-3).

Step 3 Using a crimping tool, secure the grounding wire in place in the grounding lug.

Step 4 Locate the grounding pad on the switch. (See Figure 3-3).

3-7

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 3 Installing the Switch in a Rack

System Ground Connection Guidelines

Figure 3-3 Connecting System Ground on the Switch

Step 5 Remove the label that covers the grounding pad.

Step 6 Place the grounding lug against the grounding pad, aligning the holes. Insert the two M4 screws through

the holes in the grounding lug and grounding pad.

Ensure that the grounding lug and the attached wire will not interfere with other switch hardware or rack

equipment.

Step 7 Tighten the screws to secure the grounding lug to the grounding pad.

Step 8 Repeat steps 1 through 3 to prepare the other end of the grounding wire and connect it to an appropriate

grounding point at your site to ensure adequate earth ground for the switch.

Step 9 Connect the power supply cords. DC power supplies will have a separate ground connection, both

chassis and power supply grounds are needed for the system.The switch comes on when the cords are

connected and the power supply on/off switch is on.

Note This equipment is suitable for connection to intra-building wiring only.

Note If you are using a DC power supply, the DC return connection to this system should remain

isolated from the system frame and chassis (DC-I).

This completes the installation of the Catalyst 4500 E-series switches.

1Grounding wire 4Grounding pad

2Screws (M4)

3Grounding lug

231374

4503

3-8

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 3 Installing the Switch in a Rack

System Ground Connection Guidelines

Note If you move a supervisor engine from a Catalyst 4500 series chassis to a Catalyst 4503-E chassis or

Catalyst 4506-E chassis, it must use Cisco IOS Release 12.2(37)SG or later. Refer to the release note for

software upgrade procedures if needed:

http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/release/note/OL_5184.html#wp305142

At this point you should use the RJ-45-to-RJ-45 rollover cable to connect the console port to a PC that

runs terminal emulation software. Configure your terminal emulation program for 9600 baud, 8 data bits,

no parity, no flow control, and 1 stop bit. With this console connection, you can configure the switch as

described in Appendix C, “Initial Configuration for the Switch,” and then as discussed in the software

configuration guide appropriate for your switch’s software release, and monitor the software as the

switch goes through its startup routine. The pinout for the console port is detailed in the module

installation guide at:

http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/module/guide/0aspecs.html#wp

1003825

CHAPTER

4-1

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Removing and Replacing FRUs

Warning

Read the installation instructions before connecting the system to the power source.

Statement 1004

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Warning

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the

absence of a suitably installed ground conductor. Contact the appropriate electrical inspection

authority or an electrician if you are uncertain that suitable grounding is available.

Statement 1024

Warning

Before working on equipment that is connected to power lines, remove jewelry (including rings,

necklaces, and watches). Metal objects will heat up when connected to power and ground and can

cause serious burns or weld the metal object to the terminals.

Statement 43

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

This chapter tells you how to remove and replace Catalyst 4500 E-series field-replaceable units (FRUs).

The information is presented in these sections:

• Removing and Replacing the Power Supply, page 4-2

• Removing and Replacing the Chassis Fan Assembly, page 4-13

• Replacing Backplane Modules, page 4-15

For instructions on installing and replacing supervisor engine and switching modules, refer to the

Catalyst 4500 Series Module Installation Guide.

4-2

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Removing and Replacing the Power Supply

This section describes how to remove and install the AC-input power supply and DC-input power supply

for the Catalyst 4500 E-series switches. This information is presented in the following sections:

• Required Tools, page 4-4

• Removing an AC-Input Power Supply, page 4-4

• Installing an AC-Input Power Supply, page 4-6

• Removing a DC-Input Power Supply, page 4-8

• Installing a DC-Input Power Supply, page 4-11

Warning

Hazardous voltage or energy is present on the backplane when the system is operating. Use caution

when servicing.

Statement 1034

Figure 4-1 and Figure 4-2 show the AC-input power supplies. Figure 4-3 and Figure 4-4 show a the

DC-input power supplies. Locate your power supply and notice the location of the captive installation

screws.

Note The power supplies are hot-swappable, so in redundant mode you will not need to power down the switch

to replace or upgrade most power supplies. In combined mode some slots may lose power during an

upgrade or power supply replacement.

Figure 4-1 AC-Input Power Supply

1AC receptacle 3Captive screws

2Power switch

231375

4-3

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Removing and Replacing the Power Supply

Figure 4-2 4200 W Dual-Input AC Power Supply

Figure 4-3 DC-Input Power Supply

1AC input 2 receptacle 4AC input 1 receptacle

2AC input 2 on switch 5Captive screws

3AC input 1 on switch

231376

100-120V-

12A

50/60Hz

100-120V-

12A

50/60Hz

INPUT 1

INPUT 2

POE ENABLED

4600ACV

OUTP{UT FAI:

FAN OK

Captive screw

In-line power switch

Serial communication

connector

Main power switch

Terminal block

79160

4-4

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Removing and Replacing the Power Supply

Figure 4-4 1400 W DC Triple-input Power Supply

Required Tools

You will need a flathead or Phillips screwdriver to perform these procedures.

Removing an AC-Input Power Supply

Follow these steps to remove the AC-input power supply:

Step 1 Press the power switch on the AC-input power supply down to the off (O) position (see Figure 4-5).

Figure 4-5 Powering Off the Power Switch

Note There are two on/off switches on a 4200 W AC power supply, one for each input.

Step 2 Loosen the side-clamp screw on the right side of the power cord plug (see Figure 4-6).

Captive screws

120562

Power switch

79138

4-5

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Removing and Replacing the Power Supply

Figure 4-6 Loosening the Side-Clamp Screw

Step 3 Disconnect the power cord from the power supply being removed.

Step 4 Loosen the two captive screws (see Figure 4-7).

Figure 4-7 Loosening the Captive Screws

Caution Use both hands to grasp a power supply.

Step 5 Grasp the power supply handle with one hand. Place your other hand underneath to support the bottom

of the power supply, as shown in Figure 4-8.

79139

Captive screws

79140

4-6

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Removing and Replacing the Power Supply

Figure 4-8 Handling an AC-Input Power Supply

Step 6 Pull the power supply out of the bay and set it aside.

Warning

Blank faceplates and cover panels serve three important functions: they prevent exposure to

hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI)

that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not

operate the system unless all cards, faceplates, front covers, and rear covers are in place.

Statement 1029

Step 7 If the power supply bay is to remain empty, install a blank power supply filler plate over the opening.

Secure the filler plate with the two mounting screws and tighten them with a screwdriver.

Installing an AC-Input Power Supply

Warning

The plug-socket combination must be accessible at all times, because it serves as the main

disconnecting device.

Statement 1019

Follow these steps to install an AC-input power supply:

Step 1 Make sure that the power supply you are installing is not plugged in to a power outlet and that the power

cord is not connected to the power supply.

Step 2 Remove the two Phillips-head screws from the power supply filler plate (if a filler plate is present).

Step 3 Remove the power supply filler plate (if one is present) and set it aside.

Caution Use both hands to grasp a power supply.

Step 4 Grasp the power supply handle with one hand. Place your other hand underneath to support the bottom

of the power supply, as shown earlier in Figure 4-8.

Step 5 Slide the power supply all the way into the power supply bay.

79141

4-7

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Removing and Replacing the Power Supply

Step 6 Using a screwdriver, tighten the two captive installation screws (see Figure 4-1) on the front panel of the

AC-input power supply.

Step 7 Make sure the power supply power switch is in the off position (O).

Step 8 Before you connect the power supply to a power source, ensure that all site power and grounding

requirements have been met.

Step 9 Plug the power cord into the power supply (see Figure 4-9).

Figure 4-9 Plugging the Power Cord into the Power Supply

Step 10 Connect the other end of the power cord to an AC-power input source.

Caution In a system with multiple power supplies, connect each power supply to a separate AC power source. In

the event of a power source failure, if the second source is still available, it can maintain maximum

overcurrent protection for each power connection.

Step 11 Press the power switch down to the on (|) position (see Figure 4-10).

Figure 4-10 Powering On the Power Supply

Step 12 Verify power supply operation by checking the power supply’s front-panel LEDs. You should see the

following:

• The LED labeled GOOD is green.

• The LED labeled FAIL is not lit.

• The LED labeled FAN OK is green.

79142

Power switch

79143

4-8

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Removing and Replacing the Power Supply

Step 13 Check the power supply and system status from the system console by entering show power command.

For more information on this command, refer to the command reference publication for your switch.

Step 14 If the LEDs or show power command output indicate a power problem or other system problem, see

Chapter 5, “Troubleshooting,” for more information.

Removing a DC-Input Power Supply

This section describes how to remove a DC-input power supply.

Required Tools

You will need the following tools to perform this procedure:

• A Phillips screwdriver

• A 10-mm wrench/socket

Removal Procedure

Warning

Before performing any of the following procedures, ensure that power is removed from the DC circuit.

Statement 1003

Follow these steps to remove a DC-input power supply:

Step 1 Turn off the in-line power switch. (Single input only. The triple-input power supply does not have this

switch.)

Step 2 Turn off the main power switch.

Step 3 Verify that power is off to the DC circuit on the power supply you are removing.

Step 4 Loosen the screw on the terminal block cover and remove it from the terminal block (see Figure 4-11 or

Figure 4-12). The triple-input power supply has two screws on the cover.

4-9

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Removing and Replacing the Power Supply

Figure 4-11 DC-Input Power Supply

Figure 4-12 DC Triple-input Power Supply

Step 5 Disconnect the DC-input wires from the terminal block. Disconnect the ground wire last (see

Figure 4-13 or Figure 4-14).

Warning

When installing or replacing the unit, the ground connection must always be made first and

disconnected last.

Statement 1046

Captive screw

In-line power switch

Serial communication

connector

Main power switch

Terminal block

79160

231891

Power switch 1, 2, 3 Terminal block

Ground lugs

Input OK 1, 2, 3 LEDs

Fan OK LED

Output Fail LED

Captive screw

Captive

screw

Minus (-)

Plus (+)

4-10

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Removing and Replacing the Power Supply

Figure 4-13 Connecting the DC-Input Wires

Figure 4-14 Connecting the DC-Input Wires (Triple-input Power Supply)

Step 6 Using a screwdriver, loosen and remove the captive screws on the power supply. (See Figure 4-15, which

shows the single input power supply. The triple-input power supply has captive screws in the same

location.)

Figure 4-15 Loosening the Captive Screws

RS-485 serial

communnication

connector

79161

Grounding lug

Grounding lug nuts

DC-input wires

Negative

Positive

Ground

231892

Grounding lugs (2)

Grounding lug nut

DC-input wires

Negative

Positive

Ground

Captive screws

79162

4-11

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Removing and Replacing the Power Supply

Step 7 Grasp the power supply handle with one hand. Place your other hand underneath as you slowly pull the

power supply out of the bay (see Figure 4-16).

Figure 4-16 Handling a DC-Input Power Supply

Step 8 If the bay is to remain empty, install a blank power supply filler plate over the opening and secure it with

the mounting screws. This protects the inner chassis from dust and prevents accidental contact with live

voltage at the rear of the bay.

Warning

Blank faceplates and cover panels serve three important functions: they prevent exposure to

hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI)

that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not

operate the system unless all cards, faceplates, front covers, and rear covers are in place.

Statement

1029

Installing a DC-Input Power Supply

This section describes how to install a DC-input power supply.

Required Tools

You will need the following tools to perform this procedure:

• A Phillips screwdriver

• A 10-mm wrench/socket

• Connectors and wire for the DC circuit or circuits

79163

4-12

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Removing and Replacing the Power Supply

Installation Procedure

Warning

Before performing any of the following procedures, ensure that power is removed from the DC circuit.

Statement 1003

Warning

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.

Statement

1022

Warning

This product requires short-circuit (overcurrent) protection, to be provided as part of the building

installation. Install only in accordance with national and local wiring regulations.

Statement 1045

Warning

Use copper conductors only.

Statement 1025

Warning

When stranded wiring is required, use approved wiring terminations, such as closed-loop or

spade-type with upturned lugs. These terminations should be the appropriate size for the wires and

should clamp both the insulation and conductor.

Statement 1002

Follow these steps to install a DC-input power supply, connect it to a power source, and verify its

operation:

Step 1 Verify that power is off to the DC circuit or circuits on the power supply you are installing.

Step 2 Grasp the power supply handle with one hand. Place your other hand underneath it as you slowly insert

the power supply into the bay (as shown earlier in Figure 4-16).

Step 3 Using a screwdriver, tighten the captive screws on the power supply (see Figure 4-15).

Step 4 Before you connect the power supply to a power source, ensure that all site power and grounding

requirements have been met.

Step 5 Connect the DC-input wires to the power supply terminal block. The proper wiring sequence is ground

to ground, positive to positive, and negative to negative (see Figure 4-13 or Figure 4-14 depending on

your installation).

The 1400W triple-input power supply has two grounding posts; use the one that is most convenient for

your installation.

Warning

When installing or replacing the unit, the ground connection must always be made first and

disconnected last.

Statement 1046

Step 6 Replace the terminal cover.

Step 7 Connect the other end of the power cords to a DC-power input source.

4-13

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Removing and Replacing the Chassis Fan Assembly

Caution In a system with multiple power supplies or a single triple-input power supply, connect each power

supply to a separate DC power source. In the event of a power source failure, if the second source is still

available, it can maintain maximum overcurrent protection for each power connection.

Step 8 Verify power supply operation by checking the power supply’s front-panel LEDs. You should see the

following:

• The LED labeled INPUT OK is green.

• The LED labeled OUTPUT FAIL is not lit.

Step 9 Check the power supply and system status from the system console by entering the show power

command. For more information on the commands, refer to the command reference publication for your

switch and software.

Step 10 If the LEDs or the show power command (Cisco IOS) output indicate a power problem or other system

problem, see Chapter 5, “Troubleshooting,” for more information.

Removing and Replacing the Chassis Fan Assembly

This section describes how to remove and install the chassis fan assembly for the Catalyst 4500 E-series

switches. See Figure 4-17 for the Catalyst 4506-E system fan assembly, other fan assemblies attach in a

very similar way.

Required Tools

You will need a Phillips screwdriver for the following two procedures.

Removing the Fan Assembly

Warning

When removing the fan tray, keep your hands and fingers away from the spinning fan blades. Let the

fan blades completely stop before you remove the fan tray.

Statement 258

Caution Never operate the system for an extended period if the fan assembly is removed or if it is not functioning

properly. An over-temperature condition can cause severe equipment damage.

Follow these steps to remove the existing chassis fan assembly:

Step 1 Loosen the two captive installation screws on the fan assembly by turning them counterclockwise.

4-14

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Removing and Replacing the Chassis Fan Assembly

Figure 4-17 Catalyst 4506-E System Fan Assembly

Step 2 Grasp the fan assembly with both hands and pull it outward; gently move it side to side if necessary to

unseat it from the backplane. Slide it out of the chassis and place it in a safe place.

Installing the Fan Assembly

Follow these steps to install the new fan assembly:

Step 1 Hold the fan assembly with the fans facing to the right.

Step 2 Place the fan assembly into the fan assembly bay so it rests on the chassis, and then lift the fan assembly

up slightly, aligning the top and bottom guides.

Step 3 Slide the fan assembly into the chassis until the two captive installation screws make contact with the

chassis.

Step 4 Using a screwdriver, tighten the two captive installation screws by turning them clockwise.

1Captive installation screws 2Fan assembly

231372

4506

4-15

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Replacing Backplane Modules

Verifying the Installation

Note To check the operation of the fans, you need to power up the chassis.

Follow these steps to verify that the new fan assembly was installed correctly:

Step 1 Listen for the fans; you should immediately hear them operating. If you do not hear them, ensure that

the fan assembly is inserted completely in the chassis and that the faceplate is flush with the switch back

panel.

Step 2 The fan tray LED should light and be green.

Step 3 If after several attempts the fans do not operate, or if you experience trouble with the installation (for

instance, if the captive installation screws do not align with the chassis holes), contact the Cisco TAC

for assistance.

Replacing Backplane Modules

There are 5 redundancy modules (also called mux buffers) and 1 clock module on a Catalyst 4507R-E

chassis backplane. A Catalyst 4510R-E has 8 redundancy modules on its backplane. They are accessible

from the front if the switching modules and supervisor engines are removed. There are two types of

redundancy modules, and they are interchangeable.

The clock module replacement procedure is identical to the redundancy module replacement procedure,

the connectors are the same. These modules are not hot-swappable, the switch must be taken out of

service to replace them.

To replace the backplane modules:

Step 1 Make sure you are grounded with an ESD strap.

Step 2 Turn off the power to the chassis.

Step 3 Remove all supervisor engines and switching modules from the chassis, and find the backplane modules

you need to replace.

Note Keep a record of switching module and their slots, so that you can put them back correctly.

Note Generic switching module replacement procedures are documented at:

http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/configuration/notes/gM

dCf_nt.html

Figure 4-18 shows the front view of the backplane with supervisors and switching modules removed.

4-16

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Replacing Backplane Modules

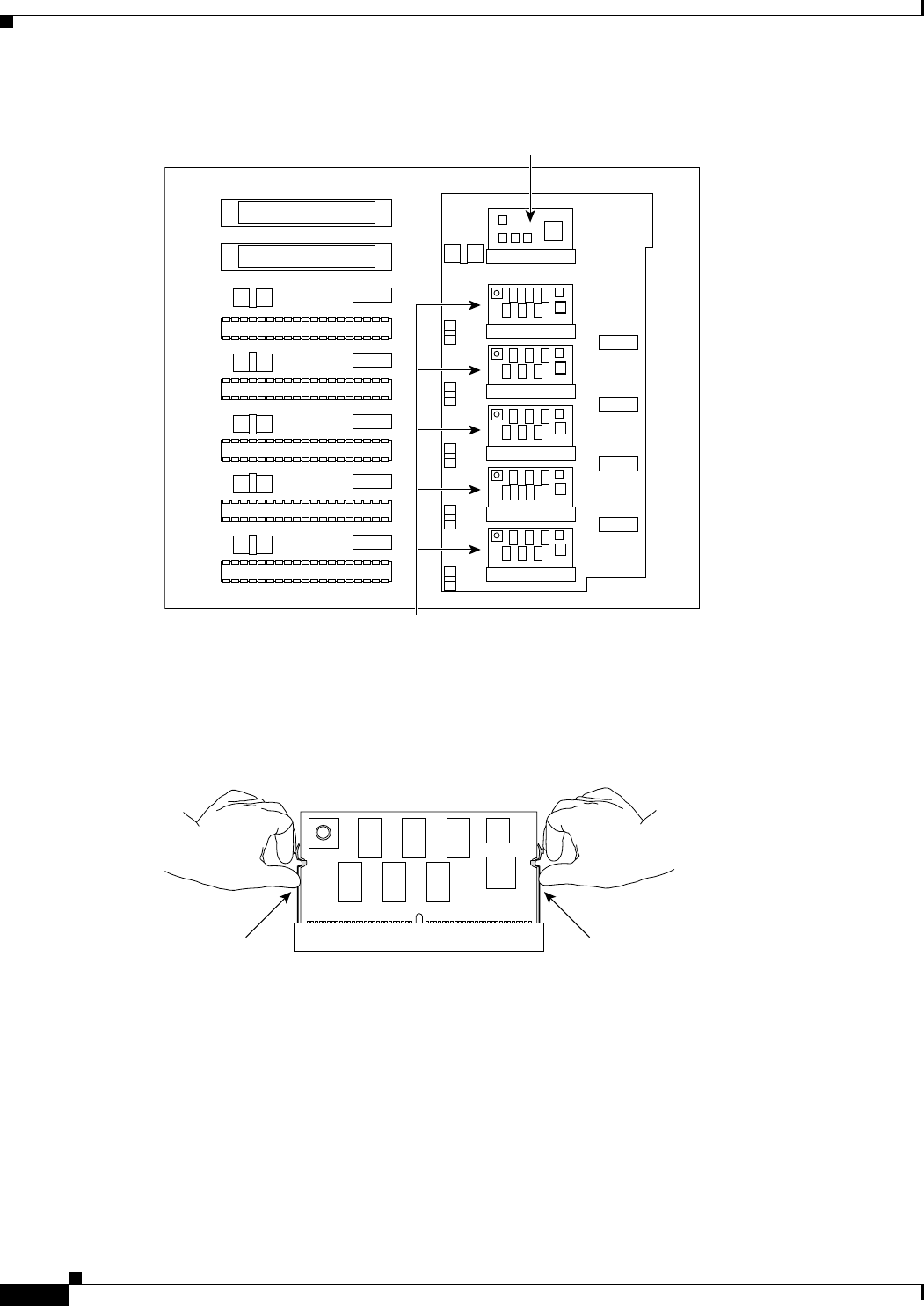

Figure 4-18 Catalyst 4507R-E Backplane

Step 4 If you are removing a clock module, remove the two screws that attach the module to the backplane.

Step 5 Find the seating levers on both sides of the connector for the module you wish to replace. (See

Figure 4-19.)

Figure 4-19 Finding the Seating Levers

Step 6 To release the module from its connector, pull the levers outward with your fingernails. The module will

pop out slightly. (See Figure 4-20.)

Mux buffers

Clock module

130657

130658

4-17

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Replacing Backplane Modules

Figure 4-20 Releasing the Module

Step 7 Pull out the module while holding the top left and top right corners. (See Figure 4-21.)

Note When handling the modules, do not touch the chips or the gold edge contacts on the module.

Figure 4-21 Removing the Module

Step 8 Put the replacement module in at roughly a 30 degree angle, and gently push the module down. Make

sure you apply force evenly on the left and right. (See Figure 4-22.)

Figure 4-22 Seating the Replacement Module

Step 9 Make sure the module is fully seated. (See Figure 4-23.)

130659

130660

130661

4-18

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Replacing Backplane Modules

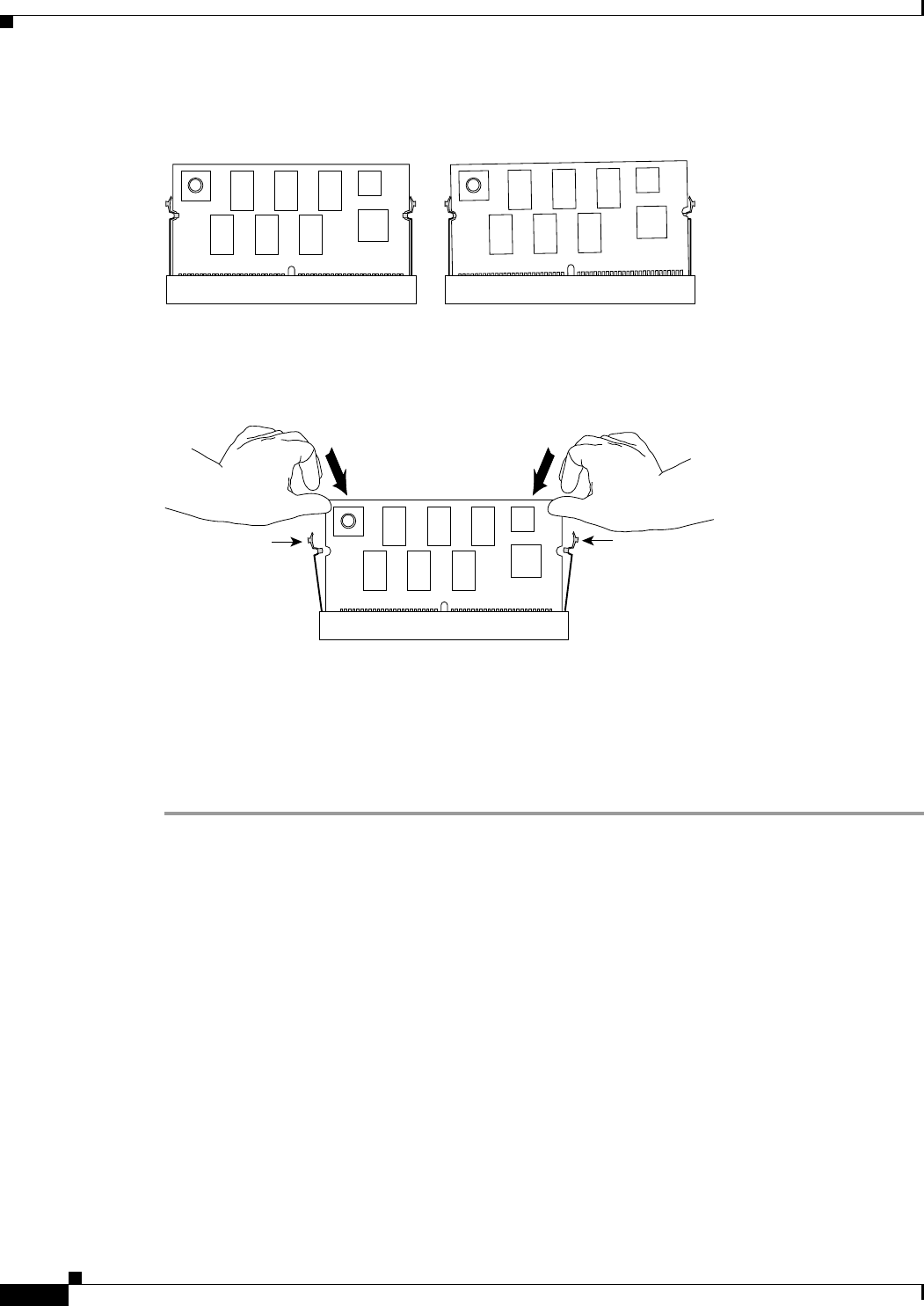

Figure 4-23 Correct Module Seating

Step 10 Push the module toward the back of the chassis and make sure it is clipped in by the levers on both sides.

(See Figure 4-24.)

Figure 4-24 Securing the Module

Step 11 Repeat Step 4 to Step 10 for the other modules you need to replace.

Step 12 If you are installing a clock module, secure the module to the backplane using the screws from the earlier

removal.

Step 13 Replace the supervisor engines and switching modules to their previous slots.

Step 14 Restore power to the switch.

Verify the New Modules

After the switch is reassembled and power is restored, connect a terminal to the supervisor engine and

monitor the boot process. Look for the following messages (or any others), which may indicate a

problem with the replaced modules:

00:00:20: %C4K_SUPERVISOR-2-MUXBUFFERNOTPRESENT: Mux buffer (WS-X4K-MUX) 3 is not present

00:00:20: %C4K_SUPERVISOR-2-MUXBUFFERNOTPRESENT: Mux buffer (WS-X4K-MUX) 4 is not present

00:00:20: %C4K_SUPERVISOR-2-MUXBUFFERNOTPRESENT: Mux buffer (WS-X4K-MUX) 7 is not present

The above messages (either at startup or output from a show logging command) indicate that the

mux-buffer is not present in slots 3, 4 and 7. You need to reinsert and reseat the modules in those slots.

If the switch has already started up, you may also verify the correct function of the new modules with

the show logging command.

Good Bad

130662

130663

4-19

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Supervisor Memory Upgrade

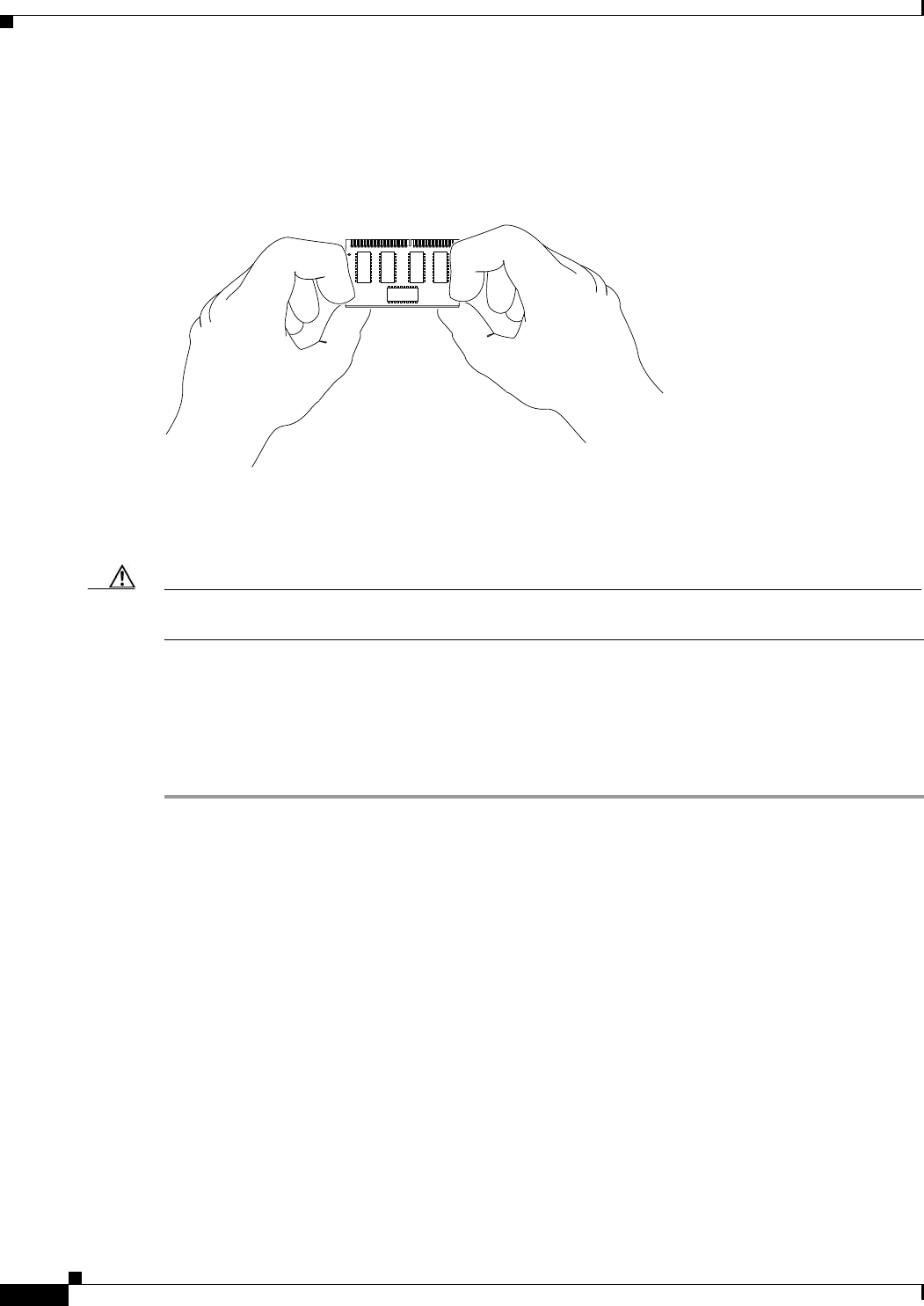

This section describes how to perform a memory upgrade. You might need to upgrade memory on the

Supervisor Engine 6-E for the following reasons:

• To upgrade to a new Cisco IOS feature set or release that requires additional memory. (Memory

requirements for each feature set and release are available in the release notes for that release.)

• To use very memory-intensive features.

This document describes how to upgrade dynamic memory. The Supervisor Engine 6-E ships with 512

MB and can be upgraded to 1 GB in the form of an SDRAM miniDIMM.

Tools and Equipment Needed

You need the following tools and equipment to remove and install miniDIMMs in a Supervisor

Engine 6-E:

• Number 2 Phillips screwdriver

• Small flat-blade screwdriver

• ESD-preventive wrist strap

• Antistatic mat

Removing Memory

You will not need to remove the base memory to perform a memory upgrade, but it may make installing

the new memory easier. This procedure presumes you have already removed the supervisor engine from

the switch. To remove an SDRAM miniDIMM:

Step 1 Attach an ESD-preventive wrist strap and ensure that it makes good contact with your skin. Connect the

equipment end of the wrist strap to the metal back plate of the chassis, avoiding contact with the

connectors.

Step 2 On the mainboard, locate the SDRAM miniDIMM sockets. (See Figure 4-25.)

4-20

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Supervisor Memory Upgrade

Figure 4-25 Catalyst 4500 E-Series Supervisor Engine 6-E (WS-Sup-6-E)

Caution Handle the miniDIMM by the edges only; do not touch the memory modules, pins, or traces (metal

fingers along the connector edge). Handle carefully. MiniDIMMs are ESD-sensitive components and can

be damaged by mishandling.

Step 3 Release the metal clips from the miniDIMM, which releases the miniDIMM from its socket. (See

Figure 4-26.)

1Lower slot (u50)

Additional memory to be installed in this slot

2Upper slot (u39)

base memory is already installed

530

4-21

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Supervisor Memory Upgrade

Figure 4-26 Removing and Installing SDRAM MiniDIMMs

Step 4 When both ends of the miniDIMM are released from the socket, grasp the ends of the miniDIMM with

your thumb and forefinger and pull it completely out of the socket. Place it in an antistatic bag to protect

it from ESD damage.

Step 5 Proceed to the “Installing SDRAM MiniDIMMs” section on page 4-21.

Installing SDRAM MiniDIMMs

To install SDRAM MiniDIMMs, follow these steps:

Step 1 Attach an ESD-preventive wrist strap and ensure that it makes good contact with your skin. Connect the

equipment end of the wrist strap to the metal back plate of the chassis, avoiding contact with the

connectors.

Step 2 On the mainboard, locate the SDRAM miniDIMM sockets. (See Figure 4-25.)

Caution Handle the miniDIMM by the edges only; do not touch the memory modules, pins, or traces (metal

fingers along the connector edge). Handle carefully. miniDIMMs are ESD-sensitive components and can

be damaged by mishandling.

Memory module

Pull the tabs away with

your thumbs, bracing your

forefingers against the

rails. The memory module

will pop loose. Then raise the

memory module to a

vertical position.

48065

4-22

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 4 Removing and Replacing FRUs

Supervisor Memory Upgrade

Step 3 Hold the miniDIMM component-side up, with connector edge (the metal fingers) away from you. Keep

the sides of the miniDIMM between your thumb and middle finger, with your forefinger against the far

edge and opposite the connector edge. (See Figure 4-27.)

Figure 4-27 Handling a miniDIMM

Step 4 Tilt the miniDIMM to the same angle as the socket, then insert the connector edge into the socket. Gently

push into place until the metal clips snap into place.

Caution It is normal to feel some resistance when installing a miniDIMM, but do not use excessive force and do

not touch the surface components.

Step 5 Check the two alignment holds and ensure that the metal clips are visible. If necessary, carefully remove

and reseat the miniDIMM.

Step 6 If you are upgrading memory from 512 Mb to 1 Gb and you have removed the miniDIMM in u39, replace

it as in steps 3-5.

Step 7 Replace the supervisor engine in the switch.

33115

CHAPTER

5-1

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Troubleshooting

If your system has problems during start up or operation, use the information in this chapter to help

isolate the cause. Problems with the initial startup are often caused by a switching module that has

become dislodged from the backplane or a power cord that is disconnected from the power supply.

Although temperature conditions above the maximum acceptable level rarely occur at initial startup,

some environmental monitoring functions are included in this chapter because they also monitor power

supply output voltages.

Information about troubleshooting software features and configuration problems is not discussed in this

chapter.

More up to date information can be found in the release notes or Error Message Decoder tool.

Information specific to your software release can be found in the software configuration guide for that

release, or in the system message guide for your release. The following links may be useful in

combination with this chapter:

• Release notes

http://www.cisco.com/en/US/products/hw/switches/ps4324/prod_release_notes_list.html

• Error Message Decoder

http://www.cisco.com/cgi-bin/Support/Errordecoder/index.cgi

• Software configuration guide

http://www.cisco.com/en/US/products/hw/switches/ps4324/products_installation_and_configurati

on_guides_list.html

• System message guide

http://www.cisco.com/en/US/products/hw/switches/ps4324/products_system_message_guides_list

.html

This chapter presented in the following sections:

• System Boot Verification, page 5-2

• Using LEDs to Identify Startup Problems, page 5-2

• System Messages, page 5-4

• Troubleshooting with Software, page 5-4

• Troubleshooting the Power Supply, page 5-4

• Troubleshooting the Fan Assembly, page 5-6

5-2

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

System Boot Verification

• Troubleshooting Backplane Modules, page 5-7

• Troubleshooting Switching Modules, page 5-8

• Troubleshooting Supervisor Engines, page 5-10

• Some Problems and Solutions, page 5-14

Note This chapter covers only the chassis component hardware aspects of troubleshooting. For software

configuration issues, refer to the software configuration guide

http://www.cisco.com/en/US/products/hw/switches/ps4324/products_installation_and_configuration_g

uides_list.html

or command reference

http://www.cisco.com/en/US/products/hw/switches/ps4324/prod_command_reference_list.html

for your software release.

System Boot Verification

When the initial system boot is complete, verify the following:

• That the system software boots successfully

Hook up a terminal and view the startup banner. Use an RJ-45-to-RJ-45 rollover cable to connect

the console port to a PC with terminal emulation software set for 9600 baud, 8 data bits, no parity,

and 1 stop bit. Watch for any system messages after startup.

• That the power supplies are supplying power to the system

The power supply’s LEDs should be green. Use the show environment Cisco IOS command to view

power supply activity.

• That the system fan assembly is operating

Listen for fan activity. The Fan tray LED should be green during operation. Use the show

environment Cisco IOS command to view fan tray activity.

• That the supervisor engine and all switching modules are installed properly in their slots, and that

each initialized without problems

If all of these conditions are met and the hardware installation is complete, refer to the software

configuration guide and command reference publications for your switch so that you can troubleshoot

the software.

If any of these conditions is not met, use the procedures in this chapter to isolate and, if possible, resolve

the problem.

Using LEDs to Identify Startup Problems

The key to success when troubleshooting the system is to isolate the problem to a specific system

component. Your first step is to compare what the system is doing to what it should be doing. All system

states in the startup sequence are indicated by LEDs. By checking the LEDs, you can determine when

5-3

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Using LEDs to Identify Startup Problems

and where the system failed in the startup sequence. If you have problems after the switch is on, refer to

the following subsystem troubleshooting information and the configuration procedures in the software

configuration guide for your switch.

After you connect the power cords to your Catalyst 4500 series switch, follow these steps to determine

whether your system is operating properly:

Step 1 Check the power supply LEDs:

• The LED labeled GOOD should turn green when power is applied to the supply. The LED should

remain on during normal system operation.

• If the LED labeled GOOD does not light, or if the LED labeled FAIL lights, see the

“Troubleshooting the Power Supply” section on page 5-4.

Note If a power supply is installed and not connected to a power source, power supply LEDs indicate

a failure.

Step 2 Listen for the system fan assembly. The system fan assembly should be operating whenever system

power is on. If you do not hear it when the switch is on, see the “Troubleshooting the Fan Assembly”

section on page 5-6.

Step 3 Check that the LEDs on the supervisor engine light as follows:

• The LED labeled STATUS flashes orange once and stays orange during diagnostic boot tests.

–

It turns green when the module is operational (online).

–

If the system software is unable to start up, this LED stays orange.

–

If the LED labeled STATUS on the supervisor engine front panel is red or orange, connect a

console to the management port and use the show environment command to check for possible

problems.

• The Ethernet management port LED turns green when the module is operational (online) and a link

is established with another network device. If no signal is detected, the LED labeled LINK turns off.

If there is a problem with the supervisor engine, try reseating the supervisor engine in the chassis

and restarting the switch. For more information about LED meanings, refer to the “LEDs” section

on page 1-22. For more troubleshooting information, see the “Troubleshooting Supervisor Engines”

section on page 5-10.

Step 4 Verify that the LEDs labeled STATUS on each switching module are green when the supervisor engine

completes initialization.

This LED indicates that the supervisor engine and switching modules are receiving power, have been

recognized by the supervisor engine, and contain a valid Flash code version. However, this LED does

not indicate the state of the individual interfaces on the switching modules. If an LED labeled STATUS

is red or orange, try reseating the switching module or supervisor engine and restarting the switch. For

more information, see the “Troubleshooting Switching Modules” section on page 5-8. If you determine

that the switching module is not operating, contact Cisco TAC as described in the “Some Problems and

Solutions” section on page 5-14.

Step 5 If the boot information and system banner are not displayed, verify that the terminal is set for 9600 baud,

8 data bits, no parity, and 1 stop bit and connected properly to the console port.

5-4

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

System Messages

System messages appear on the console if you have enabled console logging or appear in the syslog if

you have enabled syslog. Many messages are for informational purposes only and do not indicate an

error condition. Enter the show logging command to display the log messages. To better understand a

specific system message, refer to the system message guide for your software release. Most messages

are also documented in the Error Message Decoder tool at:

http://www.cisco.com/cgi-bin/Support/Errordecoder/index.cgi

System messages specific to the system components are mentioned in the corresponding sections that

follow. If you see one of these messages, use the Decoder tool and follow the suggestion provided there.

Troubleshooting with Software

Many problems can be identified with CLI commands, and following sections will mention them as

appropriate.

Certain problems can be due to not having the right software to support your hardware. For the most

recent software release to get the current recommended version for a particular system component,

please refer to the release notes at

http://www.cisco.com/en/US/products/hw/switches/ps4324/prod_release_notes_list.html

Troubleshooting the Power Supply

To help isolate a power subsystem problem, follow these steps:

Step 1 Check whether the power supply LED labeled GOOD is on or the LED labeled FAIL is on. (on the DC

multi-input power supply, the LEDs are labeled INPUT 1, 2, or 3 or OUTPUT FAIL.)

Step 2 If the LED labeled GOOD is off or if the LED labeled FAIL is on, take the following steps:

• Ensure that the power supply is flush with the back of the chassis.

• Unplug the power cord, loosen and reinstall the power supply, tighten the captive installation screws,

and then plug in the power cord.

Step 3 If the LED labeled GOOD remains off, there might be a problem with the AC source or the power cable.

Connect the power cord to another power source if one is available. Verify that the source power is

acceptable within the specifications of the power supply.

Step 4 If the LED labeled GOOD fails to light after you connect the power supply to a new power source,

replace the power cord.

Note If this unit has more than one power cord, repeat Step 1 through Step 4 for each power input.

Step 5 If the LED labeled GOOD still fails to light when the switch is connected to a different power source

with a new power cord, the power supply is probably faulty. See the “System Messages and Power

Problems” section on page 5-5. You may need to replace the power supply.

5-5

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Troubleshooting the Power Supply

Step 6 If the LED labeled FAN OK fails to light when the switch is connected to a good power source with a

known good power cord, there is a malfunction in the fan that cools the power supply. Replace the power

supply.

Step 7 If a second power supply is available, install it in the second power supply bay.

Step 8 Check that the LED labeled GOOD is on for the additional power supply. Check that the LED labeled

FAIL is off.

Step 9 If the LEDs are not on, repeat the previous procedure to troubleshoot the second power supply.

If you are unable to resolve the problem, or if you determine that either a power supply or backplane

connector is faulty, contact Cisco Technical support for instructions.

System Messages and Power Problems

Check for system messages related to the power supply, and refer to the system message guide for your

software release. You may need to add a power supply or upgrade to a larger one for your current

configuration or verify that the switches are set properly on the power supply. Connect a terminal to the

console port, and look for any of the following system messages (there may be others, depending on the

software release):

C4K_CHASSIS-2-INLINEPOWEROFF

C4K_IOSMODPORTMAN-4-INLINEPOWERSUPPLYBAD

C4K_IOSMODPORTMAN-4-INLINEPOWEROVERMAX

C4K_CHASSIS-2-INSUFFICIENTPOWERDETECTED

C4K_CHASSIS-2-INSUFFICIENTPOWERSHUTDOWN

C4K_CHASSIS-3-INSUFFICIENTPOWER

C4K_CHASSIS-3-INSUFFICIENTPOWERSUPPLIESDETECTED

C4K_CHASSIS-3-MIXINPOWERDETECTED

C4K_IOSMODPORTMAN-3-UNKNOWNPOWERSUPPLY

C4K_IOSMODPORTMAN-4-POWERSUPPLYBAD

C4K_IOSMODPORTMAN-4-POWERSUPPLYFANBAD

C4K_SUPERVISOR-3-POWERSUPPLYSTATUSREADFAILED

C4K_SUPERVISOR-3-POWERSUPPLYSEEPROMREADFAILED

C4K_SUPERVISOR-3-POWERSUPPLYSEEPROMINVALID

If you see any of these messages or other messages, go to the following location and enter the message

text to find recommendations for your situation.

http://www.cisco.com/cgi-bin/Support/Errordecoder/index.cgi

Useful CLI Commands

You may also use the show environment status powersupply, show module all, and show power

commands to monitor PS status, load, and activity.

5-6

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Troubleshooting the Fan Assembly

If the show module command output shows a message that states "not enough power for module," check

the “Catalyst 4500 Power Supplies” section on page A-6 for the minimum power requirements for the

power supply. There may be a problem with the power source itself.

Power Supply Mixing

The 1400 W DC multi-input supply can not be used with other power supply types, but other power

supplies in this product line work with the other types during an upgrade. If you mix power supplies in

a Catalyst 4500 series chassis, the switch detects the type of power supply in power supply bay 1 (PS1)

and ignores the power supply in power supply bay 2 (PS2) while issuing system messages and showing

the power supply in bay 2 as in the err-disable state in the output of the show power command. When

the power supply in bay 1 is removed, the switch recognizes the power supply in bay 2, and you may

then put a new matching power supply in bay 1. Both supplies should resume normal function.

Troubleshooting the Fan Assembly

Note All fans must be operating or a failure will occur.

Environmental problems may initially appear to be problems with the fan tray. To help isolate a fan

assembly problem, follow these steps:

Step 1 Check the status LED on the fan tray.

• If the LED is off and the rest of the system is functioning, the fan tray is not getting power or is not

seated correctly on the backplane.

• If the LED is green, the fans are operating normally. There may be conditions impairing fan

performance, but they are minimal in impact.

• If the LED is red, one or more fans have failed.

Step 2 Connect a terminal and determine the fan tray status shown by the show environment status CLI

command. The status and sensor columns should say good.

Step 3 Determine whether the airflow is restricted or if the ambient temperature in the room is too warm.

Step 4 Determine whether the power supply is functioning properly. See the “Troubleshooting the Power

Supply” section on page 5-4.

Step 5 Verify that the fan assembly is properly seated in the backplane by loosening the captive installation

screws, removing the fan assembly, and reinstalling it.

Step 6 Restart the system.

Step 7 Verify that all fans are operating. You should hear the fans at system start.

Step 8 If the system is still detecting a fan assembly failure, check for details using the CLI and contact the

Cisco TAC for assistance.

5-7

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Troubleshooting Backplane Modules

System Messages and Fan Problems

Look for system messages reporting a temperature problem or problem with the fans. Individual

messages may suggest different solutions. Connect a terminal to the console port, and look for any of

the following system messages:

C4K_CHASSIS-2-INSUFFICIENTFANSDETECTED

C4K_CHASSIS-2-INSUFFICIENTFANSSHUTDOWN

C4K_IOSMODPORTMAN-4-CRITICALTEMP

C4K_IOSMODPORTMAN-4-FANTRAYBAD

C4K_IOSMODPORTMAN-4-FANTRAYPARTIALFAILURE

C4K_IOSMODPORTMAN-4-FANTRAYREMOVED

C4K_SUPERVISOR-3-FANTRAYREADFAILED

C4K_SUPERVISOR-3-FANTRAYSEEPROMREADFAILED

C4K_SUPERVISOR-3-FANTRAYSEEPROMINVALID

C4K_IOSMODPORTMAN-4-TEMPHIGH

C4K_IOSMODPORTMAN-4-TEMPUNDERCRITICAL

C4K_CHASSIS-2-OVERHEATINGSHUTDOWN

If you see any of these messages or other messages related to fans, go to the following location and enter

the message text to find recommendations for your situation.

http://www.cisco.com/cgi-bin/Support/Errordecoder/index.cgi

Useful CLI Commands

The show environment status fantray command can give additional information useful in diagnosing

fan tray problems.

Troubleshooting Backplane Modules

The Cisco Catalyst 4500 E-series redundancy scheme uses removable redundancy modules (also called

mux-buffers), on the passive backplane to switch traffic to the active supervisor engine. There is one

redundancy module per switching module. Redundancy modules and a redundant clock ship standard

with every Cisco Catalyst 4507R-E and 4510R-E chassis. Spare redundancy modules (WS-X4590-E=)

and a clock module (WS-X4K-CLOCK-E=) are available for serviceability.

The following conditions indicate that you may need to replace the redundancy modules and clock

module:

• The switch powers down and stays down for a few minutes to a few days for no clear reason.

• The output-fail LED on the power supplies are red and no power is delivered to the chassis. The

other LEDs on the power supply are green.

• The Status LEDs on the switching modules and the supervisor engine are flashing green.

• CPU Utilization LEDs are flashing green or off.

5-8

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Troubleshooting Switching Modules

If you observe these conditions, contact the Cisco TAC for assistance in ordering replacement

redundancy modules and a clock.

Troubleshooting Switching Modules

Each switching module has one LED labeled STATUS that provides information about the module and

one numbered LED labeled LINK for each port on the module. Figure 5-1 shows the Gigabit Ethernet

port and status LEDs. Figure 5-2 shows the 10/100BASE-T port LEDs. Table 5-1 describes the

switching module LEDs and their expected behavior.

Figure 5-1 Gigabit Ethernet Port and Status LEDs

Figure 5-2 10/100BASE-T Port LEDs

26854

1000BASE-X SWITCHING MODULE

STATUS

2 3

WS-X4306-GB GIGABIT ETHERNET

Ta b l e 5-1 Switching Module LEDs

LED Color/State Description

STATUS Indicates the results of a series of self-tests and

diagnostic tests performed by the switch.

Green All the tests pass.

Red A test other than an individual port test failed.

Orange System boot, self-test diagnostics running, or the

module is disabled.

LINK Indicates the status of the port.

Green The port is operational (a signal is detected).

Orange The link has been disabled by software.

Flashing

orange

The link has been disabled due to a hardware failure.

Off No signal is detected.

17407

STATUS

WS-X4148-RJ

4 PORT

10/100 B

5-9

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Troubleshooting Switching Modules

System Messages and Switching Modules

Connect a terminal to the console port, and look for any of the following system messages:

C4K_CHASSIS-3-LINECARDMUXBUFFERTOSUPALIGNMENTWRONG

C4K_CHASSIS-3-LINECARDNOTVALIDINSLOT

C4K_CHASSIS-3-MODULENOTSUPPORTHALF

C4K_IOSINTF-5-STALEPHYPORT

C4K_IOSMODPORTMAN-4-INLINEPOWEROVERMAX

If you see any of these messages or other messages, go to the following location and enter the message

text to find recommendations for your situation.

http://www.cisco.com/cgi-bin/Support/Errordecoder/index.cgi

Useful CLI Commands

Some problems can be solved by resetting the switching module. Use the hw-module module <n> reset

command to reset a switching module, or remove and re-insert the switching module, which resets,

restarts, and power cycles the switching module. The show module and show diagnostics online

module commands can also provide information useful in solving problems with ports on individual

modules.

Not all software versions support all switching modules. If you are having trouble with a module, refer

to the software release notes to be sure that it is supported by your software.

Port

Status1

Indicates individual port status.

Green The port is operational (a signal is detected).

Orange The link has been disabled by software.

Flashing

orange

The link has been disabled due to a hardware failure.

Off No signal is detected.

1. LEDs labeled 1 through the number of ports on the switching module are the individual port link

LEDs.

Table 5-1 Switching Module LEDs (continued)

LED Color/State Description

5-10

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Troubleshooting Supervisor Engines

This section only addresses problems with hardware. Problems with features or configuration are not

covered here. Refer for your software configuration guide and release notes for information on

configuring features or identifying known problems.

Table 5-2 describes the supervisor engine LEDs. Check the LEDs on your supervisor and compare them

to the described LED behaviors.

System Messages and Supervisor Engines

Connect a terminal to the console port, and look for any of the following system messages:

C4K_CHASSIS-3-LINECARDMUXBUFFERTOSUPALIGNMENTWRONG

C4K_SUPERVISOR-3-MUXBUFFERREADSUPERVISORSELECTIONFAILED

C4K_CHASSIS-3-TEMPERATURESENSORREADFAILED

C4K_HW-3-X2IDENTIFICATIONFAILURE

Ta b l e 5-2 Supervisor Engine LEDs

LED Color/State Description

STATUS Indicates the results of a series of self-tests.

Green All diagnostic tests passed.

Red A test failed.

Orange System boot or diagnostic test is in

progress.

Off Module is disabled.

UTILIZATION Green 1–100% If the switch is operational, this display

indicates the current traffic load over the

backplane (as an approximate percentage).

LINK Indicates the status of the 10/100BASE-T

Ethernet management port or uplink ports.

Green The link is operational.

Orange The link is disabled by user.

Flashing orange The power-on self-test indicates a faulty

port.

Off No signal is detected or there is a link

configuration failure.

ACTIVE Indicates whether the uplink port is active

or not.

Green The port is active.

Off The port is not active.

ACTIVE The LED to the right of the uplink ports is

used to identify the active supervisor engine

in switches with two supervisor engines.

5-11

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Troubleshooting Supervisor Engines

C4K_HW-3-X2OUIREGREADFAILURE

C4K_HWACLMAN-4-CLASSIFCAMPARITYERROR

C4K_HWACLMAN-4-CLASSIFCAMREPLYPARITYERROR

C4K_HWACLMAN-4-CLASSIFCAMREQPARITYERROR

C4K_HWNETFLOWMAN-3-NETFLOWSTOPPED

C4K_HWNETFLOWMAN-4-FATALERRORINTERRUPTSEEN

C4K_HWNETFLOWMAN-4-NONFATALPARITYERRORINTERRUPTSEEN

C4K_IOSMODPORTMAN-4-NFLABSENT

C4K_IOSMODPORTMAN-4-NFLIDPROMINVALID

C4K_IOSMODPORTMAN-4-NFLMISMATCH

C4K_REDUNDANCY-2-HANDSHAKE_TIMEOUT

C4K_REDUNDANCY-2-POSTFAIL_RESET

C4K_REDUNDANCY-2-INCOMPATIBLE_SUPERVISORS

C4K_REDUNDANCY-2-IOS_VERSION_CHECK_FAIL

C4K_REDUNDANCY-2-IOS_VERSION_INCOMPATIBLE

C4K_REDUNDANCY-2-NON_SYMMETRICAL_REDUNDANT_SYSTEM

C4K_REDUNDANCY-2-POSTFAIL

C4K_REDUNDANCY-2-POSTFAIL_RESET

C4K_REDUNDANCY-4-CONFIGSYNCFAIL

C4K_SUPERVISOR-2-SUPERVISORSEEPROMINVALID

C4K_SUPERVISOR-3-RETIMERDISABLEFAILED

C4K_SUPERVISOR-3-RETIMERINITFAILED

C4K_SUPERVISOR-3-SEEPROMREADFAILED

C4K_SUPERVISOR-4-INLINEVOLTAGEOUTOFRANGE

C4K_SUPERVISOR-7-SEEPROMWRITEFAILED

C4K_SWITCHMANAGER-3-SSOACTIVEPORTACKTIMEOUT

C4K_SYSMAN-2-POWERONSELFTESTFAIL

These system messages indicate a problem with the supervisor engine. Some problems will prevent a

console connection and will not allow you to use messages in diagnosing a problem. If you are unable

to establish a terminal connection and the STATUS LED is red, contact Cisco TAC immediately to order

a replacement.

Problems with redundant supervisor systems are often due to mismatched active and standby supervisor

engines. Redundancy requires that both supervisor engines be the same model, have the same amount of

SDRAM memory and running the same Cisco IOS release. If one supervisor has a NetFlow service card,

the other must as well.

Some problems with supervisor engines are due to backplane connections that are not fully seated. If

removing and reinserting the supervisor engine and then restarting the switch does not solve the problem,

you may need to call Cisco TAC and replace the supervisor engine.

5-12

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Troubleshooting Supervisor Engines

Useful CLI Commands

Some problems can be solved by resetting the supervisor engine. Use the hw-module module <n> reset

power-cycle command to reset a switching module, or remove and re-insert the switching module,

which resets, restarts and power cycles the switching module. Pressing the reset button on the supervisor

engine causes the software to reload, but does not power cycle the supervisor engine.

Note When you power-cycle or remove a supervisor engine in a redundant system the other supervisor engine

becomes the active supervisor and the ports retain connectivity. In a non-redundant system, all of the

switching modules lose connectivity until the supervisor engine is reinserted and completely restarted.

The show diagnostics power-on command may provide useful information for some supervisor engine

problems.

Not all software versions support all supervisor engines. If you are having trouble with a supervisor

engine, refer to the software release notes to be sure that it is supported by your software.

Standby Supervisor Engine Problems

If the standby supervisor engine module is not online or status indicates “other” or “faulty” in the output

of the show module command or an amber status LED, create a console connection to the standby

supervisor engine and verify that it is in ROMmon mode or in continuous reboot. If the standby

supervisor engine is in either of these two states, refer to:

http://www.cisco.com/en/US/products/hw/switches/ps663/products_configuration_example09186a008

0094ecf.shtml

switch# show module

Mod Ports Card Type Model Serial No.

----+-----+--------------------------------------+-----------------+-----------

1 2 1000BaseX (GBIC) Supervisor(active) WS-X4515 JAB0627065V

2 Standby Supervisor

3 48 10/100/1000BaseTX (RJ45) WS-X4448-GB-RJ45 JAB053606AG

4 48 10/100BaseTX (RJ45)V WS-X4148-RJ45V JAE060800BL

M MAC addresses Hw Fw Sw Status

--+--------------------------------+---+------------+----------------+---------

1 0009.e845.6300 to 0009.e845.6301 0.4 12.1(12r)EW( 12.1(12c)EW, EAR Ok

2 Unknown Unknown Unknown Other

3 0001.6443.dd20 to 0001.6443.dd4f 0.0 Ok

4 0008.2138.d900 to 0008.2138.d92f 1.6 Ok

Make sure that the supervisor engine module properly seats in the backplane connector and that you have

completely screwed down the captive screws for the supervisor engine.

In order to determine whether the standby supervisor engine is faulty, enter the redundancy reload peer

command from the active supervisor engine and through the console to the standby supervisor engine.

Observe the bootup sequence in order to identify any hardware failures. Currently, the active supervisor

engine cannot access the power-on diagnostics results of the standby supervisor engine.

Make sure that these configurations are synchronized between the active and redundant supervisor

engines:

• Startup configuration

• Boot variable

5-13

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Troubleshooting Supervisor Engines

• Configuration register

• Calendar

• VLAN database

If a software upgrade is performed on both the active and standby supervisor engines, verify that both

supervisor engines are running the same new software image. If the software images are not the same,

upgrade the software image. Use the procedure in the software configuration guide for your release.

If the standby supervisor engine still does not come on line, create a service request with Cisco Technical

Support. Use the log of the switch output that you collected from the previous troubleshooting steps.

Switch Self-reset

If the switch has reset or rebooted on its own, verify that the power source for the switch did not fail. If

you use an uninterruptable power supply (UPS), make sure that the UPS does not have any problems.

The switch might have had a software crash. Enter the more crashinfo:data command to display the

crash information including date and time of the last time that the switch crashed. To display the standby

supervisor engine crash data, enter the more slavecrashinfo:data command. The crash data are not

present if the switch has never crashed.

Switch# more crashinfo:data

Current time: 04/21/2000 19:58:10

Last crash: 04/21/2000 03:58:56

!--- Output suppressed.

If the output indicates a software crash at the time that you suspect that the switch rebooted, the problem

can be something other than a hardware failure. Contact Cisco Technical Support with the output of these

commands:

• show tech-support

• show logging

• more crashinfo:data

If you are still unable to determine the problem, contact Cisco Technical Support.

Ports 1/2 and 2/2 Do Not Function

If you have dual supervisor engines in a Catalyst 4507R or a Catalyst 4510R chassis and your ports 1/2

and 2/2 do not function, the system is functioning as designed, which is to have two uplinks operational

at all times. The dual uplinks must also work when only one supervisor engine is present. This means

that if only one supervisor engine is present and is in slot 1, both ports 1/1 and 1/2 are functional. Also,

if only one supervisor engine is present and is in slot 2, ports 2/1 and 2/2 are functional. When dual

supervisor engines are present, only ports 1/1 and 2/1 are functional and 1/2 and 2/2 are not functional.

For more information, refer to the redundancy chapter in the software configuration guide.

Packet Loss

If your system exhibits partial or full loss of network connectivity or packet loss, perform basic

troubleshooting procedures to eliminate the common causes. The common causes include:

• Bad cabling

5-14

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Troubleshooting Supervisor Engines

• A bad port

• Speed and duplex mismatch

• Network interface card (NIC) issues

If you troubleshoot these common reasons and you are not able to narrow down the problem, follow the

steps in this section and capture the output of commands at each step, then contact Cisco Technical

Support for additional troubleshooting assistance.

Step 1 Power cycle the switch and observe the POST results at bootup.

Step 2 Enter the show diagnostics power-on command to verify the POST results from bootup and determine

if diagnostics fail again. If diagnostics fail again, the problem is most likely hardware. Contact Cisco

Technical Support for further assistance. If the supervisor engine passes the diagnostic tests without any

failure after the power cycle in Step 4, perform these steps:

a. Collect the output from the show tech-support command.

b. Remove all power supplies from the box, and collect the serial numbers, Cisco part number, and

manufacturer of the power supplies.

c. Contact Cisco Technical Support with the information that you collected.

Note If Cisco Technical Support did not assist with the troubleshoot procedure, you must provide the

information in the order of these steps.

Some Problems and Solutions

Module Not Online

Part or all of the module can fail to come online. You may have a module failure if you see an amber or

red status LED or if you see one of these statuses in the output of the show module command:

• other

• faulty

• err-disable

• power-deny

• power-bad

Make sure that the module is properly seated and that you have completely screwed down the module.

If the module still does not come online, enter the hw-module slot slot number reset command. If the

module still does not come online, try the module in a spare slot, swap the module with the slot of a

module that works, or try the module in a different chassis.

If the status is “power-deny,” the switch does not have enough power available to power this module.

Enter the show power command in order to confirm whether enough power is available. For more

information, refer to the “Environmental Monitoring and Power Management” chapter in the software

configuration guide for your software release.

5-15

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Troubleshooting Supervisor Engines

If the status is “power-bad,” the switch detects a switching module but is unable to allocate power. This

situation is possible if the supervisor engine cannot able to access the serial PROM (SPROM) contents

on the module in order to determine the identification of the line card. Enter the show idprom module

slot command to verify that the SPROM is readable. If the SPROM is not accessible, reset the module.

Enter the show diagnostics online module slot number command to identify hardware failures on the

module. If the module still does not come online, create a service request with Cisco Technical Support

in order to troubleshoot further. Use the log of the switch output that you collected in the above output

and the troubleshooting steps that you performed.

Interface Problems

If you see an error mentioned in the output of the show interface command, the reason could be:

• A physical layer problem, such as a faulty cable or NIC

• A configuration problem, such as a speed and duplex mismatch

• A performance problem, such as an oversubscription

In order to understand and troubleshoot these problems, refer to Troubleshooting Switch Port and

Interface Problems at:

http://www.cisco.com/en/US/products/hw/switches/ps700/products_tech_note09186a008015bfd6.shtm

Workstation Is Unable to Log In to the Network

If you observe that a workstation is unable to log into the network during startup or unable to obtain the

DHCP address when you have powered up a client machine or rebooted, an initial connectivity delay that

the switch introduced could be the problem. To verify this, check the following:

• Microsoft network client displays "No Domain Controllers Available".

• DHCP reports "No DHCP Servers Available."

• A Novell Internetwork Packet Exchange (IPX) network workstation does not have the Novell login

screen upon bootup.

• An AppleTalk network client displays, "Access to your AppleTalk network has been interrupted. In

order to reestablish your connection, open and close the AppleTalk control panel." The AppleTalk

client chooser application can either fail to display a zone list or display an incomplete zone list.

• IBM Network stations can have one of these messages:

–

NSB83619—Address resolution failed

–

NSB83589—Failed to boot after 1 attempt

–

NSB70519—Failed to connect to a server

The reason for these symptoms can be an interface delay that either Spanning Tree Protocol (STP),

EtherChannel, trunking, or an autonegotiation delay causes. For more information about these delays

and possible solutions, refer to

http://www.cisco.com/en/US/products/hw/switches/ps700/products_tech_note09186a00800b1500.sht

If you review and follow the procedure in the document and you still have issues, contact Cisco Technical

Support.

5-16

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Troubleshooting Supervisor Engines

NIC Compatibility Issues

You can have NIC compatibility or misconfiguration issues with the switch if you experience one of

these symptoms:

• A server or client connection to the switch does not come up

• Autonegotiation issues

• Errors on the port

The reason for these symptoms can be a known NIC driver issue, speed and duplex mismatch, or

autonegotiation or cabling problems. For more troubleshooting information, refer to:

http://www.cisco.com/en/US/products/hw/switches/ps700/products_tech_note09186a00800a7af0.shtm

If you still have issues after you review and follow the procedure in the document Troubleshooting Cisco

Catalyst Switches to NIC Compatibility Issues, contact Cisco Technical Support for further assistance.

Interface Is in Errdisable

If the interface status is err-disable in the output of the show interface status command, some possible

reasons include:

• Duplex mismatch

• Port channel misconfiguration

• Bridge protocol data unit (BPDU) guard violation

• UniDirectional Link Detection (UDLD) condition

• Late-collision detection

• Link-flap detection

• Security violation

• Port Aggregation Protocol (PAgP) flap

• Layer Two Tunneling Protocol (L2TP) guard

• DHCP snooping rate-limit

In order to troubleshoot these scenarios, refer to the specific feature information in the Catalyst 4500

Series Switch Cisco IOS Software Configuration Guide for your software release.

Faulty Supervisor Engine

If the supervisor engine STATUS LED is red, establish a console connection to the supervisor engine

and enter the show diagnostics power-on command, if you can. If you are unable to get a console

connection or the command output indicates a failure, contact Cisco Technical Support.

If the switch does not boot and fails self diagnostics during the boot sequence, capture the console output

of the startup sequence then contact Cisco Technical Support.

If you do not see any hardware failure in the boot sequence or in the output of the show diagnostics

power-on command, contact Cisco Technical Support.

5-17

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Troubleshooting Supervisor Engines

Boot Problems

If the switch is in a continuous boot loop, is in ROMmon mode, or does not have a system image, there

is mostly likely not a hardware problem. The supervisor engine operates in a continuous loop if you have

not set the boot variable correctly and you have set the configuration register to 0x2102. For instructions

on how to recover the supervisor engine, refer to the “Recovering from a Continuous Reboot” section of

the document at this location:

http://www.cisco.com/en/US/products/hw/switches/ps663/products_configuration_example09186a008

0094ecf.shtml

The supervisor engine goes into ROMmon mode or fails to boot when the system image is either corrupt

or absent. For instructions on how to recover the supervisor engine, refer to the “Recovering from a

Corrupt or Missing Image” section of the document at this location:

http://www.cisco.com/en/US/products/hw/switches/ps663/products_configuration_example09186a008

0094ecf.shtml

The supervisor engines have onboard system Flash memory (bootflash), which should easily hold

multiple system images. Therefore, have a backup image. In addition to the bootflash, the supervisor

engine supports up to 128 MB of compact Flash in the slot0: device. The supervisor engine also provides

for transfer via TFTP of the image from ROMmon mode, which enables faster recovery of absent or

corrupt images.

Cannot Connect to a Switch Through the Console Port

Make sure you are using the correct type of cable. Make sure the terminal configuration matches the

switch console port configuration—default console port settings are 9600 baud, 8 data bits, no parity,

1 stop bit. Make sure the cable pinouts are correct for your supervisor engine (refer to the hardware

documentation for your supervisor engine).

Cannot communicate with another device, Cannot Telnet to the switch, Cannot communicate with a local or remote host

Follow these steps:

Step 1 Make sure the LINK LED for the port is green.

Step 2 Check the cabling:

• Host-to-switch 10BASET connections and router-to-switch 10BASET or 100BASETX connections

typically are made using a straight-through cable.

• Switch-to-switch connections typically are made using a rollover cable.

• For SC- or ST-type fiber connections, make sure transmit (Tx) on one end of the link connects to

receive (Rx) on the other end of the link.

Step 3 Make sure the interface you are connecting to (sc0 or me1) is configured UP (use the show interface

command to check).

Step 4 Make sure the IP address, subnet mask, and VLAN membership of the switch interface (sc0 or me1) is

correct (use the show interface command).

Step 5 To prevent conflicts, make sure the me1 and sc0 interfaces are configured with IP addresses and subnet

masks in different subnets (use the show interface command to check), or disable one of the interfaces

using the set interface {sc0 | me1} disable command.

Step 6 Make sure the host configuration (IP address, subnet mask, default gateway, speed, and duplex setting)

is correct.

5-18

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Contacting the Cisco Technical Assistance Center

Step 7 If you cannot connect to the switch through the me1 interface, make sure the connected device is

configured for half-duplex 10-Mbps operation.

Step 8 If the host is in the same subnet as the switch interface, make sure the switch interface and the switch

port to which the host is connected are assigned to the same VLAN (use the show interface and show

port commands to check).

Step 9 If the host is in a different subnet, make sure the default gateway (default route) on the switch is

configured with the address of a router in the same subnet as the switch interface (use the show ip route

command).

Step 10 Check the status of the port connection—should be “connected” (use the show port command).

Step 11 Check the spanning-tree state on the port (use the show spantree mod_num/port_num command)—if the

port is in listening or learning mode, wait until the port is in forwarding mode and try to connect to the

host again.

Step 12 Make sure the speed and duplex settings on the host and the appropriate switch ports are correct (use the

show port command).

Step 13 If the connected device is an end station:

a. Enable spanning-tree PortFast on the port (use the set spantree portfast enable

command)—PortFast places the port in forwarding mode immediately, bypassing listening and

learning modes (do not use this feature for connections to non-end station devices).

b. Disable trunking on the port (use the set trunk mod_num/port_num off command).

c. Disable channeling on the port (use the set port channel port_list off command)—you must specify

a valid port range with this command—you cannot specify a single port.

Step 14 Make sure the switch is learning the MAC address of the host (use the show cam dynamic command).

Step 15 If possible, try connecting to another port.

Cannot autonegotiate the port speed/duplex

Make sure autonegotiation is configured on both ends of the link (use the show port command)—you

cannot configure settings manually on one end of the link and configure the other end of the link for

autonegotiation. If autonegotiation fails when you connect a client NIC to the switch, check the NIC and

drivers to make sure that autonegotiation is supported.

If autonegotiation is supported and properly configured but you still cannot connect, turn off

autonegotiation and set the speed and duplex manually (use the set port speed and set port duplex

commands).

Contacting the Cisco Technical Assistance Center

If you are unable to solve a startup problem after using the troubleshooting suggestions in this chapter,

contact a Cisco TAC representative for assistance and further instructions.

Before you call, have the following information ready to help the Cisco TAC assist you as quickly as

possible:

• Date you received the switch

• Chassis serial number (refer to Figure 5-3 for serial number locations)

• Type of software and release number

5-19

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Contacting the Cisco Technical Assistance Center

• Maintenance agreement or warranty information

• Brief description of the problem

• Console captures related to your problem

• Brief explanation of the steps you have already taken to isolate and resolve the problem

See the “Obtaining Documentation and Submitting a Service Request” section on page xv for more

information about contacting the TAC.

Serial Numbers

When you contact TAC, have the serial number of your switch available. Refer to Figure 5-3 to locate

the serial number on your switch. You may also get the serial number from the output of a show version

or show idprom all command.

Figure 5-3 Catalyst 4500 E-series Serial Number Location

SN: NNNNNNNN

230808, 781-00518-01

5-20

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Chapter 5 Troubleshooting

Contacting the Cisco Technical Assistance Center

A-1

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

APPENDIX

Specifications

Cable and technical specifications for Catalyst 4500 E-series switches are provided in the following

sections:

• Catalyst 4503-E Switch Specifications, page A-1

• Catalyst 4506-E Switch Specifications, page A-2

• Catalyst 4507R-E Switch Specifications, page A-3

• Catalyst 4510R-E Switch Specifications, page A-5

• Catalyst 4500 Power Supplies, page A-6

Note Specifications for individual switching modules and supervisor engines, including power consumption

and thermal output information, are in the Catalyst 4500 Series Module Installation Guide, available

online at:

http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/module/guide/mod_inst.html

Catalyst 4503-E Switch Specifications

Table A-1 lists the Catalyst 4503-E switch specifications.

Ta b l e A-1 Catalyst 4503-E Switch Specifications

Item Specification

Environmental

Temperature,

ambient operating

32 to 104°F (0 to 40°C)

Temperature,

ambient nonoperating and storage

–40 to 167°F (–40 to 75°C)

Humidity (RH), ambient (noncondensing),

operating

10 to 90%

Humidity (RH), ambient (noncondensing),

nonoperating and storage

5 to 95%

Altitude,

operating and nonoperating

–196 to 6561 ft (–60 to 2000 m)

A-2

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix A Specifications

Catalyst 4506-E Switch Specifications

Table A-2 lists the Catalyst 4506-E switch specifications.

Switching Components

Backplane 24 Gbps full duplex backplane

Port density 116 10/100/1000 ports when using a Catalyst 4500 Series

Supervisor Engine II-Plus TS, 96 10/100/1000 ports with

other supervisor engines, or 12 10-Gbps X2 ports

Two 10-Gbps Uplinks, and up to 12 10-Gbps ports on

switching module slots

Inline power integrated support, 820 W per switching module

Physical Characteristics

Dimensions (H x W x D) 12.25'' x 17.31'' x 12.50'' in

311.15 mm x 439.7 mm x 317.5 mm

Weight Minimum weight: 32.25 lbs (14.65 kg)

Maximum weight: 75 lbs (34 kg)

Chassis and backplane: 32.25 lbs (14.65 kg)

Fan tray: 2.75 lbs (1.24 kg)

Airflow

Switch Right to left

Power supply Front to back

Power

PoE supplied –48 VDC

Power to Modules and fans 12 VDC

Power to backplane components 3.3 VDC

Redundancy

Supervisor engine no

Power supply 1 + 1

Table A-1 Catalyst 4503-E Switch Specifications (continued)

Item Specification

Ta b l e A-2 Catalyst 4506-E Switch Specifications

Item Specification

Environmental

Temperature, ambient operating

ambient nonoperating and storage

32 to 104°F (0 to 40°C)

–40 to 167°F (–40 to 75°C)

Humidity (RH), ambient (noncondensing):

operating

nonoperating and storage

10 to 90%

5 to 95%

A-3

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix A Specifications

Catalyst 4507R-E Switch Specifications

Table A-3 lists the Catalyst 4507R-E switch specifications.

Altitude:

operating and nonoperating

–196 to 6561 ft (–60 to 2000 m)

Switching Components

Backplane 120 Gbps full duplex

Port density 240 (max) 10/100/1000 ports

Two 10-Gbps Uplinks, and up to 30 10-Gbps ports on

switching module slots

Inline power integrated support, 820 W per line card

Physical Characteristics

Dimensions (H x W x D) 17.38 x 17.31 x 12.5 in. (441.3 x 439.7 x 317.5 mm)

Weight Minimum weight: 34.5 lbs (15.6 kg)

Maximum weight: 100 lbs (45.4 kg)

Chassis and backplane = 39.5 lbs (17.95 kg)

Fan tray: 5.0 lbs (2.2 kg)

Airflow

Switch Right to left

Power supply Front to back

Power

PoE supplied –48 VDC

Power to Modules and fans 12 VDC

Power to backplane components 3.3 VDC

Redundancy

Supervisor engine no

Power supply 1 + 1

Table A-2 Catalyst 4506-E Switch Specifications (continued)

Item Specification

Ta b l e A-3 Catalyst 4507R-E Switch Specifications

Item Specification

Environmental

Temperature,

ambient operating

ambient nonoperating and storage

32 to 104°F (0 to 40°C)

–40 to 167°F (–40 to 75°C)

Humidity (RH), ambient (noncondensing):

operating

nonoperating and storage

10 to 90%

5 to 95%

A-4

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix A Specifications

Catalyst 4507R-E Switch Specifications

Altitude:

operating

nonoperating

–196 to 6561 ft (–60 to 2000 m)

–1000 to 30,000 ft (–300 to 9150 m)

Switching Components

Backplane 120 Gbps full duplex

4 Gbps Uplinks with Sup II+, Sup IV, and Sup 6-E with

TwinGig converters

8 Gbps Uplinks with Supervisor Engine V

two 10 Gbps Uplinks with Sup V-10GE and Sup 6-E

Port density 240 (max) 10/100/1000 ports

Two 10-Gbps Uplinks, and up to 30 10-Gbps ports on

switching module slots

Inline power integrated support, 820 W per line card

Physical Characteristics

Dimensions (H x W x D) 19.15 x 17.22 x 12.5 in. (49 x 44 x 32 cm)

Weight Minimum weight: 45.5 lbs (20.68 kg)

Maximum weight: 100 lbs (45.4 kg)

Chassis and backplane: 45.5 lbs (20.68 kg)

Fan tray: 6 lbs (2.7 kg)

Airflow

Switch Right to left

Power supply Front to back

Power

PoE supplied –48 VDC

Power to Modules and fans 12 VDC

Power to backplane components 3.3 VDC

Redundancy

Supervisor engine yes

Power supply 1 + 1

Table A-3 Catalyst 4507R-E Switch Specifications (continued)

Item Specification

A-5

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix A Specifications

Catalyst 4510R-E Switch Specifications

Table A-4 lists the Catalyst 4510R-E switch specifications.

Ta b l e A-4 Catalyst 4510R-E Switch Specifications

Item Specification

Environmental

Temperature,

ambient operating

ambient nonoperating and storage

32 to 104°F (0 to 40°C)

–40 to 167°F (–40 to 75°C)

Humidity (RH), ambient (noncondensing):

operating

nonoperating and storage

10 to 90%

5 to 95%

Altitude:

operating

nonoperating

–196 to 6561 ft (–60 to 2000 m)

–1000 to 30,000 ft (–300 to 9150 m)

Switching Components

Backplane 88 Gbps full duplex with Supervisor Engine V,

96 Gbps with Supervisor Engine V-10GE

386 Gbps with Supervisor Engine 6-E

4 Gbps Uplinks with Sup II+, Sup IV, and Sup 6-E with

TwinGig converters

8 Gbps Uplinks with Supervisor Engine V

20 Gbps Uplinks with Supervisor Engine V-10GE

two 10 Gbps Uplinks with Sup V-10GE and Sup 6-E

Port density 386 maximum 10/100/1000 ports

Two 10-Gbps Uplinks, and up to 30 10-Gbps ports on

switching module slots with Supervisor Engine 6-E

Inline power integrated support, 820 W per line card

Physical Characteristics

Dimensions (H x W x D) 24.35 x 17.31 x 12.5 in. (618.4 x 439.7 x 317.5 mm)

Weight Minimum weight: 54.5 lbs (24.77 kg)

Maximum weight: 108 lbs (45.4 kg)

Chassis and backplane: 54.5 lbs (24.77 kg)

Fan tray: 8.0 lbs (3.6 kg)

Airflow

Switch Right to left

Power supply Front to back

Power

PoE supplied –48 VDC

Power to Modules and Fans 12 VDC

Power to backplane components 3.3 VDC

A-6

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix A Specifications

Catalyst 4500 Power Supplies

Tables A-5 through A-12 list the specifications for the Catalyst 4500 series power supplies, which can

be used in any Catalyst 4500 E-series switch.

Note All Catalyst 4500 series switch AC-input power supplies require single-phase source AC. The source AC

can be out of phase between multiple power supplies or multiple AC-power plugs on the same power

supply because all AC power supply inputs are isolated. Each chassis power supply should have its own

dedicated branch circuit: 15 A or 20 A for North America and circuits sized to local and national codes

for International locations.

For more information about power management and planning, refer to the “Environmental Monitoring

and Power Management” chapter in the Catalyst 4500 Series Switch Cisco IOS Software Configuration

Guide version appropriate for your software.

Redundancy

Supervisor engine yes

Power supply 1 + 1

Table A-4 Catalyst 4510R-E Switch Specifications (continued)

Item Specification

A-7

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix A Specifications

Catalyst 4500 Power Supplies

Ta b l e A-5 1000 W AC-Input Power Supply Specifications

Item Specification

Minimum software requirement Cisco IOS Release 12.1(12c)EW

Power over Ethernet Not supported1

1. A Catalyst 4503 with a Catalyst 4500 series Supervisor Engine II-Plus TS and a 1000W pow er supply will be able to provide

158.4 W of Pow er over Ethernet to ports on the supervisor engine. Sw itching modules in other slots will not be able to provide PoE.

AC-input type Autoranging input with power factor corrector

AC-input voltage 100 to 240 VAC (±10% for full range)

AC-input current 12 A @ 100 VAC, 5 A @ 240 VAC

Maximum KVA rating 1.32 KVA

AC-input frequency 50/60 Hz (nominal) (±3 Hz for full range)

Power supply output capacity 1050 W plus 40 W (fan)

Power supply output 12 V @ 83.4 A, 3.3V @12.2 A, 1667 W maximum

Output holdup time 20 ms minimum

Max heat dissipation 943 BTUs/hr

Ta b l e A-6 1300 W AC-Input Power Supply Specifications

Item Specification

Minimum software requirement Cisco IOS Release 12.1(12c)EW

Power over Ethernet Supported, up to 800 W

(211 Cisco phones in combined mode)

AC-input type Autoranging input with power factor corrector

AC-input voltage 100 to 240 VAC (±10% for full range)

AC-input current 16 A @ 100 VAC, 7 A @ 240 VAC

AC-input frequency 50/60 Hz (nominal) (±3 Hz for full range)

Maximum KVA rating 1.76 KVA

Power supply output 1300 W maximum

1050 W+ 40 W redundant mode (Data)

1667 W maximum in combined mode (Data)

800 W maximum each in redundant mode (PoE)

1333 W maximum in combined mode (PoE)

Power supply output (AC supply) 12 V @ 84.7 A, 3.3 V @ 12.5 A (Data),

–50 V @ 16.7 A (PoE)

Max heat dissipation 1568 BTUs/hr

Output holdup time 20 ms minimum

A-8

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix A Specifications

Catalyst 4500 Power Supplies

Caution Do not mix the 1400 W DC power supply with any other power supply, even for a hot swap or other

short-term emergency. Doing so can seriously damage your switch.

The 1400W DC Input power supply may be used with the Catalyst 4500 Series AC Power Shelf.

Documentation for the Catalyst 4500 Series AC Power Shelf is at:

http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/hardware/configuration/notes/

78_15068.html

Ta b l e A-7 1400 W AC-Input Power Supply Specifications

Item Specification

Minimum software requirement Cisco IOS Release 12.2(18)EW

Power over Ethernet Not supported1

1. A Catalyst 4503-E with a Catalyst 4500 series Supervisor Engine II-Plus TS and a 1400W AC pow er supply provides 158.4 W

of PoE to ports on the su pervisor engine. Sw itching m odules in other slots will not be able to provide PoE.

AC-input type Autoranging input with power factor corrector

AC-input voltage 100 to 240 VAC (±10% for full range)

AC-input current 16 A @ 100 VAC, 7 A @ 240 VAC

AC-input frequency 50/60 Hz (nominal) (±3 Hz for full range)

Maximum KVA rating 1.76 KVA

Power supply output 2473 W maximum

1360 W+ 40 W redundant mode (Data)

Power supply output (AC supply) 12 V @ 113.4 A, 3.3 V @ 12.2 A (Data)

Max heat dissipation 1048 BTUs/hr

Output holdup time 20 ms minimum

Ta b l e A-8 1400 W DC-Input Power Supply Specifications

Item Specification

Minimum software requirement Cisco IOS Release 12.1(19)EW

Power over Ethernet Supported, up to 7500 W minus power consumed for data

(240 Cisco phones in combined mode)

DC-input voltage Data only: –48 to –60 VDC

Inline devices: –48 to –56 VDC

DC-input current Data only: 31 A @ –60 VDC

Data and inline devices: 180 A maximum @ –48 VDC input

Note The input power is configurable in the CLI. The Cisco

IOS command is power dc input. Configure the

switch software to match the requirements of your

switch. To learn how to calculate the DC input current

for your system, refer to the “Calculating DC Input

Current” section on page 2-9.

A-9

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix A Specifications

Catalyst 4500 Power Supplies

Input power

Current draw At –40.5 V (min voltage)

Current draw at –72 V (max voltage)

Max heat dissipation at 1866 W

1866 W (Data only)

46 A

25.9 A

5760 BTUs

179 A max @ 48 VDC

Maximum KVA rating 1.87 (data)

9.15 (data and voice)

Power supply output (DC supply) Data: 12 V @120 A, 3.3 V @ 10 A

Inline devices: 140 A total maximum (35 A maximum each

per 5 channels) @–48 to 60 VDC input

1367 W+ 40 W redundant mode (Data)

2267 W maximum in combined mode (Data)

7500 W maximum each in redundant mode (PoE)

7280 W maximum in combined mode (PoE)

DC input terminal block Accepts FCI p/n YAV25L2TC14FX90 or equivalent,

barrel-type lug terminals with 90-degree angle, two- hole

tongue, which accommodates 1/0 AWG size copper wire. The

connector tongue width is 0.82 in, the stud hole spacing is 5/8 in,

and the hole size is 1/4 in.

Output holdup time 4 ms

Max heat dissipation 1591 BTUs/hr (data)

2905 BTUs/hr (data and voice)

Catalyst 4503-Specific Power Usage (data

only)

Maximum draw 475 W

Maximum input 633 W

Current draw at –40.5 V (min voltage)

Current draw at –72 V (max voltage)

15.6 A

8.8 A

Max heat dissipation at 633 W 2160 BTUs

Catalyst 4506-Specific Power Usage (data

only)

Maximum draw (data only) 850 W

Maximum input 1133 W

Current draw at –40.5 V (min voltage)

Current draw at –72 V (max voltage)

28 A

15.8 A

Max heat dissipation at 1133 W 3515 BTUs

Catalyst 4507R-E Specific Power Usage

(data only)

Maximum draw (data only) 1080 W

Max input is 1080 W / 0.75 = 1440 W

Table A-8 1400 W DC-Input Power Supply Specifications (continued)

Item Specification

A-10

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix A Specifications

Catalyst 4500 Power Supplies

Current draw at –40.5 V (min voltage)

Current draw at –72 V (max voltage)

35.6 A

20 A

Max heat dissipation 1440 W 4910 BTUs

Ta b l e A-9 1400 W DC Triple-Input Power Supply Specifications

Item Specification

Minimum software requirement Cisco IOS Release 12.2(25)EW

Power over Ethernet Not supported

DC-input voltage Domestic and international: –48 to –60 VDC

DC-input current 42.5 A maximum @ –48 VDC input

Input 1: 12.5 A at –48 to –60 VDC

Input 2: 15 A at –48 to –60 VDC

Input 3: 15 A at –48 to –60 VDC

Input power

Current draw At –40.5 V (min voltage)

Current draw at –72 V (max voltage)

Max heat dissipation at 1400 W

1772 W @ 1400 W output power

42.5 A

25 A

1269 BTUs

Maximum KVA rating 1.77 at 1400 W load

Power supply output (DC supply) 12 V@ 8 A minimum, 115.3 A maximum

3.3 V @ 1.2 A minimum, 12.5 A maximum

1360 W+ 40 W redundant mode

2450 W maximum in combined mode

DC input terminal block Model: Cooper Bussmann Magnum. Accepts terminals with

flat angle, one hole tongue, which accommodates 10 to 12

AWG size copper wire. The connector the barrier spacing is

0.378 in (9.6 mm), and the screw size is 8-32.

Output holdup time 8 ms

Max heat dissipation 1269 BTUs/hr

Table A-8 1400 W DC-Input Power Supply Specifications (continued)

Item Specification

A-11

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix A Specifications

Catalyst 4500 Power Supplies

Catalyst 4503-E Specific Power Usage

(data only) Two modules minimum required @ –40.5 VDC input

One 15A module minimum required @ –44 VDC input

Maximum draw 475 W

Maximum input 609 W total / # of modules = W per module

Current draw at –40.5 V (min voltage)

Current draw at –72 V (max voltage)

15 A total / # of modules = A per module

8.5 A total / # of modules = A per module

Max heat dissipation at 609 W 2078 BTUs

Catalyst 4506-E Specific Power Usage

(data only) Two modules minimum required @ –44 VDC input

Three modules minimum required @ –40.5 VDC input

Maximum draw (data only) 850 W

Maximum input 1076 W total / # of modules = W per module

Current draw at –40.5 V (min voltage)

Current draw at –72 V (max voltage)

26.6 A total / # of modules = A per module

15 A total / # of modules = A per module

Max heat dissipation at 1076 W 3671 BTUs

Catalyst 4507R-Specific Power Usage

(data only) Three modules minimum required

Maximum draw (data only) 1080 W

Max input is 1080 W 1367 W total / # of modules = W per module

Current draw at –40.5 V (min voltage)

Current draw at –72 V (max voltage)

33.75 A total / # of modules = A per module

19 A total / # of modules = A per module

Max heat dissipation 1367 W 4665 BTUs

Ta b l e A-10 Input Modes

Input

Mode

Input

Number Input Configuration

Maximum Total Output

Power

1 1 1 x 12.5 A 386 W @ –40.5 VDC

412 W @ –44.0 VDC

22 OR 3 1 x 15 A 466 W @ –40.5 VDC

495 W @ –44.0 VDC

31, 2 OR 3 1 x 12.5 A and

1 x 15 A

845 W @ –40.5 VDC

908 W @ –44.0 VDC

42, 3 2 x 15 A 914 W @ –40.5 VDC

990 W @ –44.0 VDC

51, 2, 3 1 x 12.5 A and

2 x 15 A

1294 W @ –40.5 VDC

1400 W @ –44.0 VDC

Table A-9 1400 W DC Triple-Input Power Supply Specifications (continued)

Item Specification

A-12

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix A Specifications

Catalyst 4500 Power Supplies

Ta b l e A-11 Allowable Power with Two 1400 W DC Triple-Input Power Supplies in Combined

Mode

PS1/PS2 12 or 3

1 and

(2 or 3) 2 and 3 1 and 2 and 3

1824 W 907 W 1320 W 1400 W 1700 W

2 or 3 907 W 990 W 1400 W 1450 W 1750 W

1 and (2 or 3) 1320 W 1400 W 1700 W 1750 W 1900 W

2 and 3 1400 W 1450 W 1750 W 1820 W 2130 W

1 and 2 and 3 1700 W 1750 W 1900 W 2130 W 2450 W

Ta b l e A-12 2800 W AC-Input Power Supply Specifications

Item Specification

Minimum software requirement Cisco IOS Release 12.1(13)EW

Power over Ethernet Supported, up to 1400 W

(240 Cisco phones in combined mode)

AC-input type Autoranging input with power factor corrector

AC-input voltage 200 to 240 VAC (±10% for full range)

AC-input current 16 A maximum at 200 VAC

AC-input frequency 50/60 Hz (nominal) (±3% for full range)

Maximum KVA rating 3.52 KVA

Power supply output 2800 W maximum

12 V @113.3 A, 3.3 V @12.1 A (Data)

–50 V @28 A (PoE)

1360 W+ 40 W redundant mode (Data)

2473 W maximum in combined mode (Data)

1400 W maximum each in redundant mode (PoE)

2333 W maximum in combined mode (PoE)

Max heat dissipation 2387 BTUs/hr.

Output holdup time 20 ms minimum

Ta b l e A-13 4200 W AC-Input Power Supply Specifications

Item Specification

Minimum software requirement Cisco IOS Release 12.2(25)EWA

Power over Ethernet Supported, up to 4200 W

AC-input type Autoranging input with power factor corrector

AC-input voltage 100 to 240 VAC (±10% for full range)

AC-input current 16 A maximum at 200 VAC

AC-input frequency 50/60 Hz (nominal) (±3% for full range)

A-13

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix A Specifications

Catalyst 4500 Power Supplies

Note The 4200 W AC power supply should not be used in mixed-voltage configurations. All the inputs in a

chassis must be at the same voltage (110 VAC or 220 VA C ) .

Table A-14 shows the wattage output possible with the 4200W power supply in redundant mode. In

redundant mode, both power supplies must have identical inputs and all inputs must be at the same

voltage. If the input voltages are mismatched, choose the value matching the weaker of the two power

supplies.

Table A-15 shows the wattage output possible with the 4200 W power supply in combined mode.

Maximum KVA rating 5.25 KVA

Power supply output 4200 W maximum @ 230 VAC

12 V @ 115.3 A, 3.3 V @12.5 A (Data)

–50 V @ 77.1 A (PoE) with two inputs

2100 W maximum @ 230 VAC

12 V @115.3 A, 3.3 V @12.5 A (Data)

–50 V @ 38.5 A (PoE) with one input

2100 W maximum @ 120 VAC

12 V @115.3 A, 3.3 V @12.5 A (Data)

–50 V @ 38.0 A (PoE) with two inputs

1050 W maximum @ 120 VAC

12 V @ 55.9 A, 3.3 V @12.5 A (Data)

–50 V @ 14.6 A (PoE) with one input

Max heat dissipation 3583 BTUs/hr.

Output holdup time 20 ms minimum

Table A-13 4200 W AC-Input Power Supply Specifications

Item Specification

Ta b l e A-14 Redundant Mode Output

12V 3.3V -50V Total

110 660 40 700 1050

110+110 or 220 1360 40 1850 2100

220+220 1360 40 3700 4200

Ta b l e A-15 Combined Mode Output

12 V 3.3 V -50 V Total

Both sides at 110 1200 40 1200 1873

110+110, other side 110 1360 40 2000 2728

220+220 1360 40 3100 3782

Both sides at 110+110 1360 40 3100 3782

A-14

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix A Specifications

Catalyst 4500 Power Supplies

Both sides at 220 1360 40 4700 5493

Both sides at 220+220 1360 40 6800 7600

Ta b l e A-16 AC and DC Power Information and Heat Dissipation Specifications

Module Type/

Model Number

AC or

Input

Power

(W)

Output

Power

(W)

Reset

Mode

(W)

Heat

Dissipation

(BTU/Hr)

Input

Current

at 90

VAC (A)

Input

Current

at 120

VAC (A)

Input

Current

at 180

VAC (A)

Input

Current

at 240

VAC (A)

Catalyst 4503-E

chassis (with fans)

80 60 —273 0.89 0.67 0.44 0.33

Catalyst 4506- E

chassis (with fans)

160 120 —546 1.78 1.33 0.89 0.67

Catalyst 4507R-E

chassis (with fans)

180 135 —614 2.00 1.50 1.00 0.75

Catalyst 4510R-E

chassis (with fans)

267 200 —909 2.96 2.22 1.48 1.11

WS-X45-SUP6-E 347 200 200 1182 3.85 2.89 1.93 1.44

WS-X4606-X2-E 173 130 80 227 0.74 0.56 0.37 0.28

WS-X4648-RJ45V-E 123 92 10 418 1.36 1.02 0.68 0.51

WS-X4648-RJ45V+E 123 92 10 418 1.36 1.02 0.68 0.51

Ta b l e A-17 DC Power Requirements and Heat Dissipation Specifications

Model Number/

Module Type

Input

Power

(W)

Output

Power

(W)

Heat

Dissipation

(BTU/Hr)

Input

Current

at -42

VDC (A)

Input

Current

at -48

VDC (A)

Input

Current

at -52

VDC (A)

Input

Current

at -58

VDC (A)

Catalyst 4503-E chassis

(with fans)

80 60 273 1.90 1.67 1.54 1.38

Catalyst 4506-E chassis

(with fans)

160 120 546 3.81 3.33 3.08 2.76

Catalyst 4507R-E chassis

(with fans)

180 135 614 4.29 3.75 3.46 3.10

Catalyst 4510R-E chassis

(with fans)

276 200 909 6.35 5.56 5.13 4.60

WS-X45-SUP6-E 347 200 1182 8.25 7.22 6.67 5.98

WS-X4606-X2-E 66.67 130 227 1.59 1.39 1.28 1.15

WS-X4648-RJ45V-E 122.67 92 418 2.92 2.56 2.31 2.07

WS-X4648-RJ45V+E 122.67 92 418 2.92 2.56 2.36 2.11

Table A-15 Combined Mode Output

12 V 3.3 V -50 V Total

B-1

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

APPENDIX

Repacking a Switch

If you need to return your Catalyst 4500 E-series switch to the factory, use the instructions in this

appendix to repack your switch in preparation for shipping.

To repack the switch using the original packaging material, follow these steps:

Step 1 Slide the pieces of the packing foam over the Catalyst 4500 E-series switch. (See Figure B-1.)

Step 2 Place the documentation and accessory kit in the box or poly bag provided.

Step 3 Place the box or poly bag containing the documentation and accessory kit on top of the packing material.

Step 4 Place the switch (with packing foam pieces) into the packing carton.

Step 5 Fold in the top flaps of the packing carton and seal with packing tape.

B-2

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix B Repacking a Switch

Figure B-1 Catalyst 4500 E-series Switch Packing Material

Packing

carton

Packing foam

Documentation and

accessories

68117

C-1

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

APPENDIX

Initial Configuration for the Switch

This chapter provides a quick step-by-step initial setup procedure for a switch.

These steps describe how to do a simple installation:

1. Connecting to the Switch, page C-2

2. Starting the Terminal-Emulation Software, page C-2

3. Connecting to a Power Source, page C-2

4. Entering the Initial Configuration Information, page C-3

Note If you are using a DC power supply, see the “Power Connection Guidelines for DC-Powered Systems”

section on page 2-9 for more information about setting up your switch with a DC power supply.

Note You need to provide the Category 5 straight-through cables to connect the switch ports to other

Ethernet devices.

Note If you move a supervisor engine from a Catalyst 4500 series chassis to a Catalyst 4503-E chassis or

Catalyst 4506-E chassis, it must use Cisco IOS Release 12.2(37)SG or later. Refer to the release note for

software upgrade procedures if needed:

http://www.cisco.com/en/US/docs/switches/lan/catalyst4500/release/note/OL_5184.html#wp305142

C-2

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix C Initial Configuration for the Switch

Connecting to the Switch

You must use the console port to perform the initial configuration. To connect the switch console port to

a PC, use the supplied RJ-45-to-DB-9 adapter cable.

Follow these steps to connect the PC or terminal to the switch:

Step 1 Using the supplied RJ-45-to-DB-9 adapter cable, insert the RJ-45 connector into the console port that is

located on the front of the supervisor engine.

Step 2 Attach the DB-9 female DTE of the adapter cable to a PC serial port, or attach an appropriate adapter to

the terminal.

Starting the Terminal-Emulation Software

Before you power on the switch, start the terminal-emulation session so that you can see the output

display from the power-on self-test (POST).

The terminal-emulation software—frequently a PC application such as Hyperterminal or

ProcommPlus—makes communication between the switch and your PC or terminal possible.

Step 1 Start the terminal-emulation program if you are using a PC or terminal.

Step 2 Start a terminal-emulation session.

Step 3 Configure the baud rate and character format of the PC or terminal to match these console port default

characteristics:

• 9600 baud

• 8 data bits

• 1 stop bit

• No parity

• None (flow control)

Connecting to a Power Source

Follow these steps to connect to a power source:

Step 1 If you are using an AC power supply, connect one end of the supplied AC power cord to the power

connector on the switch, and then connect the other end of the power cable to a grounded AC outlet.

Step 2 If you are using a DC power supply, see the instructions on how to install the DC power supply in

Chapter 3, “Installing the Switch in a Rack.”

C-3

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix C Initial Configuration for the Switch

Entering the Initial Configuration Information

As the switch powers on, it begins the POST, a series of tests that runs automatically to ensure that the

switch functions properly.

POST lasts approximately 1 minute. After POST is complete, the system and status LEDs remain green.

If the switch fails POST, the system LED turns amber.

Note POST failures are usually fatal. Call Cisco Systems if your switch does not pass POST.

If you started the terminal-emulation program before you powered on your switch, the PC or terminal

displays the bootloader sequence. You need to press Enter to display the setup program prompt.

Entering the Initial Configuration Information

To set up the switch, you need to assign an IP address and other configuration information necessary for

the switch to communicate with the local routers and the Internet. The minimal configuration provided

here does not cover most of the features, it simply allows you to preform other configuration tasks using

a telnet connection from your management network. To configure other features and interfaces, please

refer to the Catalyst 4500 Series Switch Software Configuration Guide.

IP Settings

You will need this information from your network administrator:

• Switch IP address

• Subnet mask (IP netmask)

• Default gateway (router)

• Enable secret password

• Enable password

• Telnet password

Performing the Initial Configuration

Follow these steps to complete the initial configuration for the switch:

Step 1 At the terminal prompt, enter the enable command to enter privileged exec mode:

Switch> enable

Password:

password

Switch#

Step 2 Set the system time using the clock set command in privileged EXEC mode.

Switch# clock set

20:09:01 3 Apr 2006

Step 3 Verify the change by entering the show clock command.

Switch# show clock

20:09:06.079 UTC Thu Apr 3 2006

C-4

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix C Initial Configuration for the Switch

Entering the Initial Configuration Information

Step 4 Enter the configure terminal command to enter global configuration mode.

Switch# configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

Switch (config)#

Step 5 Configure the system prompt and host name for the switch, and press Return. To remove the new prompt

and return the prompt to its default, use the no hostname command.

Switch (config)# hostname Switch1

Step 6 Use the banner motd global configuration command to set location information in the login banner. You

can also set a system contact using this command.

Switch1(config)# banner motd c

170 West Tasman Drive, San Jose, CA

Switch1 (config)# banner motd c

170 West Tasman Drive, San Jose, CA; Tech Support 408 123

4567

Step 7 Configure an enable secret password, and press Return.

The password can be from 1 to 25 alphanumeric characters, can start with a number, is case sensitive,

allows spaces, but ignores leading spaces. The secret password is encrypted and the enable password is

in plain text.

Switch1 (config)# enable secret

SecretPassword

Step 8 Configure an enable password, and press Return.

Switch1 (config)# enable password

EnablePassword

Step 9 Configure a virtual terminal (Telnet) password, and press Return.

The password can be from 1 to 25 alphanumeric characters, is case sensitive, allows spaces, but ignores

leading spaces.

Switch1 (config)# password

terminal-password

Switch1 (config)# line vty

0 15

Step 10 Configure the interface that connects to the management network. (The IP address and subnet mask

shown are for example only. Use an address appropriate for your network.)

Switch1 (config)# ip routing

Switch1 (config)# interface gigabitethernet

3/24

Switch1 (config-if)# no switchport

Switch1 (config-if)# no shutdown

Switch1 (config-if)# ip address

10.4.120.106 255.0.0.0

Switch1 (config-if)# exit

Step 11 Exit from global configuration mode:

Switch (config)# exit

Switch #

Step 12 View the configuration you just created and confirm that it is what you want.

Switch1# show run

hostname Switch1

banner motd ^C

170 West Tasman Drive, San Jose, CA ^C

C-5

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix C Initial Configuration for the Switch

Entering the Initial Configuration Information

!--- Output suppressed.

Step 13 Configure a default route:

Switch1(config)#ip route 0.0.0.0 0.0.0.0 172.16.1.1

Step 14 Verify the IP information by using the show ip interface brief and show ip route commands.

Switch1# show ip interface brief

Interface IP-Address OK? Method Status Protocol

Vlan1 10.4.220.206 YES manual up up

FastEthernet1 unassigned YES unset up up

!--- Output suppressed.

Switch1# show ip route

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

i - IS-IS, L1 - ISIS level-1, L2 - ISIS level-2, ia - ISIS inter area

* - candidate default, U - per-user static route, o - ODR

P - periodic downloaded static route

Gateway of last resort is 172.16.1.1 to network 0.0.0.0

172.16.0.0/24 is subnetted, 1 subnets

C 172.16.1.0 is directly connected, Vlan1

S* 0.0.0.0/0 [1/0] via 172.16.1.1

Switch1#

Step 15 Save the running configuration:

Switch1# copy system:running-config nvram:startup-config

You have now completed the initial configuration of the switch, so you may now configure other

interfaces and features over a network connection without having to directly connect to the console port

of the supervisor engine.

To use the CLI to perform additional configuration or management tasks, enter commands at the Switch>

prompt through the console port by using a terminal program or through the network by using Telnet.

For configuration information, refer to the switch software configuration guide or the switch command

reference.

C-6

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix C Initial Configuration for the Switch

Entering the Initial Configuration Information

D-1

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

APPENDIX

Module Overview and Specifications

This chapter provides an overview of the features of the Catalyst 4500 E-series supervisor engine and

switching modules. The information is presented in the following major sections:

• Catalyst 4500 Series Switches, page D-1

• Catalyst 4500E Series Switches, page D-1

• Supervisor Engines, page D-1

• Switching Modules, page D-4

• Switching Module LEDs, page D-7

• Hot-Swapping Feature, page D-8

Catalyst 4500 Series Switches

The Catalyst 4500 series switches consist of the Catalyst 4503 switch, the Catalyst 4506 switch, the

Catalyst 4507R switch, and the Catalyst 4510R switch. The switches are designed for high-performance,

high-density wiring closet applications. A detailed overview of these switches is in the Catalyst 4500

Series Installation Guide.

Catalyst 4500 E-Series Switches

The Catalyst 4500E series switches consist of the Catalyst 4503-E switch, the Catalyst 4506-E switch,

the Catalyst 4507R-E switch, and the Catalyst 4510R-E switch. The switches are designed for

high-performance, high-density wiring closet applications.

Supervisor Engines

Catalyst 4500 E-series switches can use many of the same supervisor engines and switching modules as

the Catalyst 4500 series switches. This section describe the supervisor engine newly available for the

Catalyst 4500 E-series switches or Catalyst 4500 classic switches:

• Catalyst 4500 E-Series Supervisor Engine 6-E, WS-X45-Sup6-E1

1. A WS-X45-Sup6-E will work in a Catalyst 4500 series classic switch, but will only support 6 Gbps per slot.

D-2

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix D Module Overview and Specifications

Supervisor Engines

On the Catalyst 4503-E and 4506-E switches, you can install the Supervisor Engine in slot 1 only. On

the Catalyst 4507R-E switch, you install the primary supervisor engine in slot 3, and you can install an

optional redundant supervisor engine in slot 4. On the 4510R-E switch, you install the primary

supervisor engine in slot 5, and you can install an optional redundant supervisor engine in slot 6.

The supervisor engines have the following features:

• Data path and control for all network interfaces

• Management functions:

–

Interface monitoring

–

Environmental status

–

SNMP and console/Telnet interface

• Hot-swapping

Note Packets are not forwarded while the module is removed. A system reboot occurs when a

supervisor engine is reinserted.

To install a supervisor engine, follow the procedure in its installation note.

The supervisor engine introduced with Catalyst 4500-E switches is shown in Figure D-1.

Figure D-1 Supervisor Engine 6-E, 2x10GE(X2) w/ Twin Gig (WS-X45-Sup6-E)

1Status LED 6Uplink ports

2Reset button 7USB port

3Active Supervisor LED 8Console port

4Utilization LEDs 9Management port

5Compact flash port

D-3

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix D Module Overview and Specifications

Supervisor Engines

Front-Panel Components

The following connectors, LEDs, and buttons are located on the front panel of the supervisor engine:

• The STATUS LED, which indicates the operating state of the module

• Four SFP Gigabit uplinks ports (via the Twin Gig converter) or 2 10-Gigabit X2 uplink ports

• Eight unmarked switch load indicator LEDs, which provide an approximation of the current traffic

across the backplane

• A console port (RJ-45)

• An Ethernet management port (RJ-45)

• A link status LED, which provides status for the management port (10/100BASE-T on the

WS-X4516-10GE supervisor engine)

• The Reset button (recessed), which allows you to reset the system

• The Compact Flash port and eject button (refer to Using the Compact Flash on the Catalyst 4500

Supervisor Engines.)

• The Twin Gig ports are the modules described in

http://www.cisco.com/en/US/products/ps7077/prod_module_installation_guide09186a00807e0ca4

.html

Table D-1 describes the supervisor engine LEDs.

Ta b l e D-1 Supervisor Engine LEDs

LED Color/State Description

STATUS Indicates the results of a series of self-tests.

Green All diagnostic tests passed.

Red A test failed.

Orange System boot or diagnostic test is in

progress.

Off Module is disabled.

UTILIZATION Green 1–100% If the switch is operational, this display

indicates the current traffic load over the

backplane (as an approximate percentage).

LINK Indicates the status of the 10/100BASE-T

Ethernet management port or uplink ports.

Green The link is operational.

Orange The link is disabled by user.

Flashing orange The power-on self-test indicates a faulty

port.

Off No signal is detected or there is a link

configuration failure.

ACTIVE Indicates whether the uplink port is active

or not.

Green The port is active.

Off The port is not active.

D-4

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix D Module Overview and Specifications

Switching Modules

Ethernet Management Port

The WS-X4013+10GE supervisor engine modules have a 10/100/1000BASE-T Ethernet management

port. Supervisor engines use an RJ-45 connector on the front panel with a link status LED. For the

location of the port, see Figure D-1 (WS-X4516-10GE).

TCP/IP-based management services available through inband access also are provided through this port

(Telnet and SNMP). This management port also supports image download.

Note The 10BASE-T and 10/100BASE-T Ethernet management ports are for network management only.

These ports do not support network switching.

Console Port

The console port is an RJ-45 receptacle. The console port allows you to perform the following functions:

• Configure the switch from the CLI

• Monitor network statistics and errors

• Configure SNMP agent parameters

• Download software updates to the switch or distribute software images residing in Flash memory to

attached devices

Note EIA/TIA-232 was known as recommended standard RS-232 before its acceptance as a standard by the

Electronic Industries Association (EIA) and Telecommunications Industry Association (TIA).

Supervisor Memory

Table D-2 lists the memory and processor specifications for the Supervisor engine.

Switching Modules

This section describes the Catalyst 4500 E-series Gigabit Ethernet switching modules and includes the

following sections:

• WS-X4606-X2-E, page D-5

• WS-X4648-RJ45V-E, page D-5

• WS-X4648-RJ45V+E, page D-6

• Switching Module LEDs, page D-7

Ta b l e D-2 Supervisor Memory

Supervisor Engine

Supervisor Engine 6-E 512 GB SDRAM Upgradeable to 1GB

128 MB Flash memory

512 KB NVRAM

D-5

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix D Module Overview and Specifications

Switching Modules

WS-X4606-X2-E

The WS-X4606-X2-E 6-Port 10GbE (X2) switching module (see Figure D-2) has the following

specifications:

Figure D-2 WS-X4606-GB 6-Port Gigabit Ethernet Switching Module

WS-X4648-RJ45V-E

The WS-X4648-RJ45V-E 48-Port PoE 802.3af 10/100/1000(RJ45) switching module (see Figure D-3)

has the following specifications:

Specification Description

Module type 10Gig X2 or TwinGig fiber Ethernet switching module

Port duplex mode Full duplex mode

Port speed 10 Gbps or 2 Gbps when using a Cisco TwinGig converter and 2 SFPs

Number of ports 6

Connector type SC type

Cable type MMF or SMF

211397

Specification Description

Module type 10/100/1000BASE-T Fast Ethernet switching module

with IEEE802.3af PoE

Port duplex mode Half or full duplex mode

Jumbo frame support No

Port speed 10, 100, or 1000 Mbps

Number of ports 48

Connector type RJ-45

Cable type Category 5

Power over Ethernet 15.4 W per powered device on all 48 ports

D-6

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix D Module Overview and Specifications

Switching Modules

211397

Figure D-3 WS-X4548-GB-RJ45V-E 48-Port IEEE-Compliant PoE 10/100/1000BASE-T Switching

Module

To provide PoE with the 48-port PoE 10/100/1000BASE-T switching module in a Catalyst 4500 E-series

switch, you must have an PoE-enabled power supply. All power supplies support PoE except the 1000 W

and 1400 W AC power supplies.

Note Auto MDIX is supported on this PoE enabled switching module.

WS-X4648-RJ45V+E

The WS-X4648-RJ45V+E 48-Port Premium PoE 10/100/1000(RJ45) switching module (see

Figure D-3) has the following specifications:

Figure D-4 WS-X4548-GB-RJ45V+E 48-Port Premium PoE 10/100/1000BASE-T Switching Module

To provide PoE with the 48-port PoE 10/100/1000BASE-T switching module in a Catalyst 4500 E-series

switch, you must have an PoE-enabled power supply. All power supplies support PoE except the 1000 W

and 1400 W AC power supplies.

Note Auto MDIX is supported on this PoE enabled switching module.

211398

Specification Description

Module type 10/100/1000BASE-T Fast Ethernet switching module with IEEE802.3af

PoE

Port duplex mode Half or full duplex mode

Jumbo frame support Yes

Port speed 10, 100, or 1000 Mbps

Number of ports 48

Connector type RJ-45

Cable type Category 5

Power over Ethernet 15.4 W per powered device on all 48 ports,

software upgradeable to 30W per port

211398

D-7

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix D Module Overview and Specifications

Switching Modules

Switching Module LEDs

Each switching module has one LED labeled STATUS that provides information about the module and

one numbered LED labeled LINK for each port on the module. Figure D-5 shows the Gigabit Ethernet

port and status LEDs. Figure D-6 shows the 10/100BASE-T port LEDs. Table D-3 describes the

switching module LEDs.

Figure D-5 Gigabit Ethernet Port and Status LEDs

Figure D-6 10/100BASE-T Port LEDs

26854

1000BASE-X SWITCHING MODULE

STATUS

2 3

WS-X4306-GB GIGABIT ETHERNET

17407

STATUS

WS-X4148-RJ

4 PORT

10/100 B

Ta b l e D-3 Switching Module LEDs

LED Color/State Description

STATUS Indicates the results of a series of self-tests and

diagnostic tests performed by the switch.

Green All the tests pass.

Red A test other than an individual port test failed.

Orange System boot, self-test diagnostics running, or the

module is disabled.

LINK1Indicates the status of the 10BASE-T port.

Green The port is operational (a signal is detected).

Orange The link has been disabled by software.

Flashing

orange

The link has been disabled due to a hardware failure.

Off No signal is detected.

Port

Status2

Indicates individual port status.

Green The port is operational (a signal is detected).

Orange The link has been disabled by software.

D-8

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

Appendix D Module Overview and Specifications

Hot-Swapping Feature

Catalyst 4500 E-series switches allow you to remove and replace switching modules without powering

down the switch. This feature is known as hot swapping.

When you remove or insert a switching module while the switch is operating, the system does the

following:

1. Scans the backplane for configuration changes.

2. Initializes all newly inserted switching modules, notes any removed modules, and places them in the

administratively shutdown state.

3. Places any previously configured interfaces on the switching module back to the state they were in

when they were removed. Any newly inserted interfaces are put in the administratively shutdown

state, as if they were present (but unconfigured) at boot time. If you insert a similar

switching-module type into a slot, its ports are configured and brought online up to the port count

of the original switching module.

The system runs diagnostic tests on any new interfaces. If the test passes, the system is operating

normally. If the new switching module is faulty, the system resumes normal operation but places the new

module in the “faulty” state.

If the diagnostic test fails, the system crashes, which usually indicates that the new switching module

has a problem and should be removed.

Caution To avoid erroneous failure messages, allow at least 15 seconds for the system to re initialize, and note

the current configuration of all interfaces before you remove or insert another switching module.

When you hot swap switching modules, the system displays status messages on the console screen. The

following sample display shows the messages logged by the system when a switching module is removed

from slot 2:

Console> (enable)

2001 Sep 09 12:23:26 %SYS-5-MOD_REMOVE:Module 3 has been removed

Console> (enable)

2001 Sep 09 12:23:44 %SYS-5-MOD_INSERT:Module 3 has been inserted

Console> (enable)

2001 Sep 09 12:23:47 %SYS-5-MOD_OK:Module 3 is online

Console> (enable)

If you use the show port command to query the module before reinstalling a module to replace the

removed one, the system responds, “Module 3 is not installed.” When the module is reinserted, the

system recognizes the module as ready again.

Flashing

orange

The link has been disabled due to a hardware failure.

Off No signal is detected.

1. Used on the WS-X4232-L3 Ethernet routing module.

2. LEDs labeled 1 through the number of ports on the switching module are the individual port link

LEDs.

Table D-3 Switching Module LEDs (continued)

LED Color/State Description

IN-1

Catalyst 4500 E-Series Switches Installation Guide

OL-13972-01

INDEX

Numerics

10/100BASE-T

Ethernet management port D-4

port LEDs 5-8, D-7

1000BASE-T

interfaces 1-3, 1-6, 1-10, 1-14

1000BASE-X

Ethernet interfaces 1-17

port and status LEDs (figure) 5-8, D-7

1000 W power supplies

power cord plugs 2-4

power cords (table) 2-5

100BASE-T

interfaces 1-3, 1-6, 1-10, 1-14

10BASE-T

Ethernet management ports D-4

interfaces 1-3, 1-6, 1-10, 1-14

1300 W power supplies

power cord plugs 2-4

power cords (table) 2-5

1400 W power supplies

power cord plugs 2-4

power cords (table) 2-5

2800 W power supplies

power cord plugs 2-4

power cords (table) 2-7

AC-input power cords

product numbers (table) 2-5

AC-input power supplies

description 1-25

environmental monitoring 1-29

figure 1-26, 4-3

handling (figure) 4-6

installing 4-6

removing 4-4

replacing 4-6

source circuit requirements 2-3

troubleshooting 5-4

verifying operation 4-7
