INSTRUCTION MANUAL OF UGZZ5-X02
1. BLUETOOTH MODULE SPECIFICATION
1-1. PRODUCT NAME
UGZZ5-X02
1-2. MANUFACTURE
ALPS ELECTRIC
1-3. FEATURES
Bluetooth䉼S
p
ecification V1.2 su
pp
ort
Complete type of Bluetooth module, built-in various profile
Built-in Link controller, Link Manager Protocol
Output Power class2 compliant
Type with a chip antenna
Full custom package with pwb can be fit to only navigation products made by Xanavi
Built-in Flash memory(8Mbit), system clock 26MHz(OSC)
BtoBinterface
1-4. SPECIFICATION
1-4-1. MECHANICAL SPECIFICATION

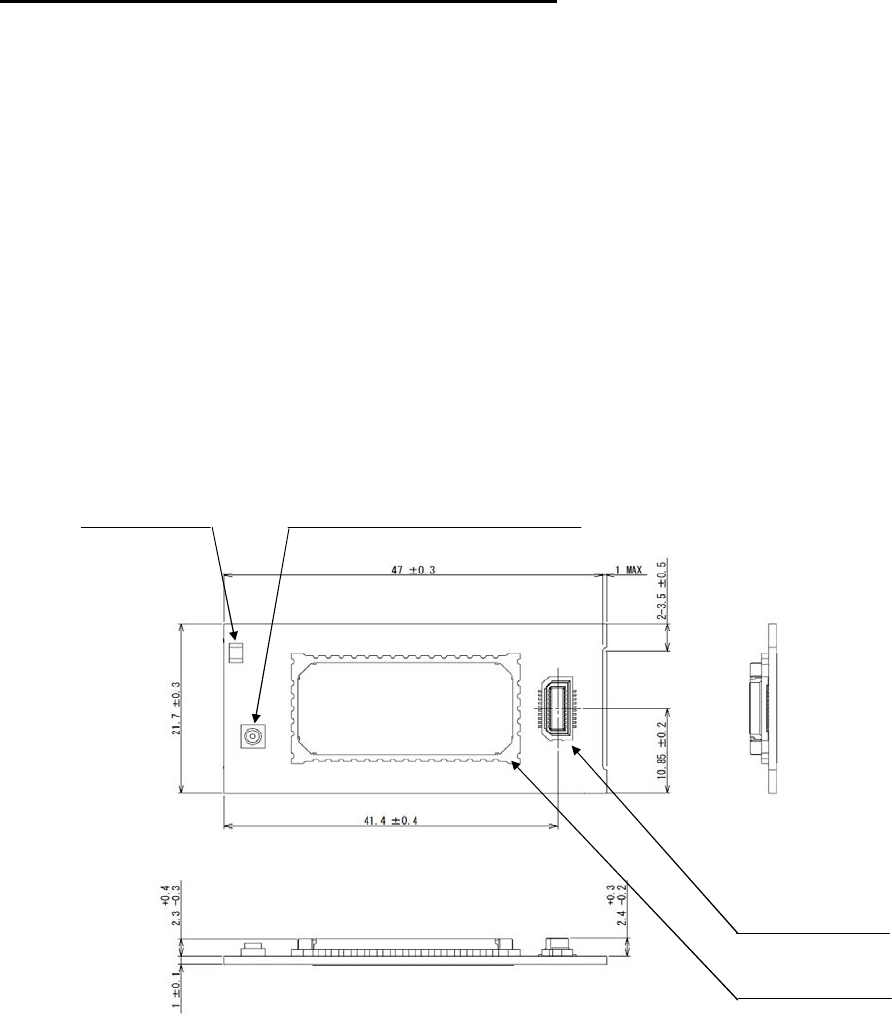

1-4-1-1. EXTERNAL DIMENSIONS
Refer to the following page.
1-4-1-2. MASS
4.4 [g]
1-4-2. ELECTRIC SPECIFICATION
1-4-2-1. POWER-SUPPLY-VOLTAGE
DC +3.1 to +3.5 [V]
1-4-2-2. TEMPERATURE RANGE
-30 to +85 [degree C]
1-4-3. RF SPECIFICATION
1-4-3-1. NORMAL TRANSMIT POWER(AVERAGED POWER)
-6 to +4
[
dBm
]
1-4-3-2. REFERENCE SENSITIVITY LEVEL(BER=0.001%)
MAX. -70 [dBm]
Chip Antenna
TAIYO YUDEN
A
F216M245001
Coaxial Connectors with Switch
Murata Manufacturing
MM8430-2610
BtoB Connector
Matsushita Electric
A
XK620347
Y
BLUETOOTH MODULE
A
LPS ELECTRIC
UGZZ5-611B
INSTRUCTION MANUAL OF NAU-P8100EU - 1 / 5 -
㼄㼍㼚㼍㼢㼕㻌㻵㼚㼒㼛㼞㼙㼍㼠㼕㼏㼟㻌㻯㼛㼞㼜㼛㼞㼍㼠㼕㼛㼚
㻯㻻㻺㻲㻵㻰㻱㻺㼀㻵㻭㻸
1-5. LABEL INFORMATION

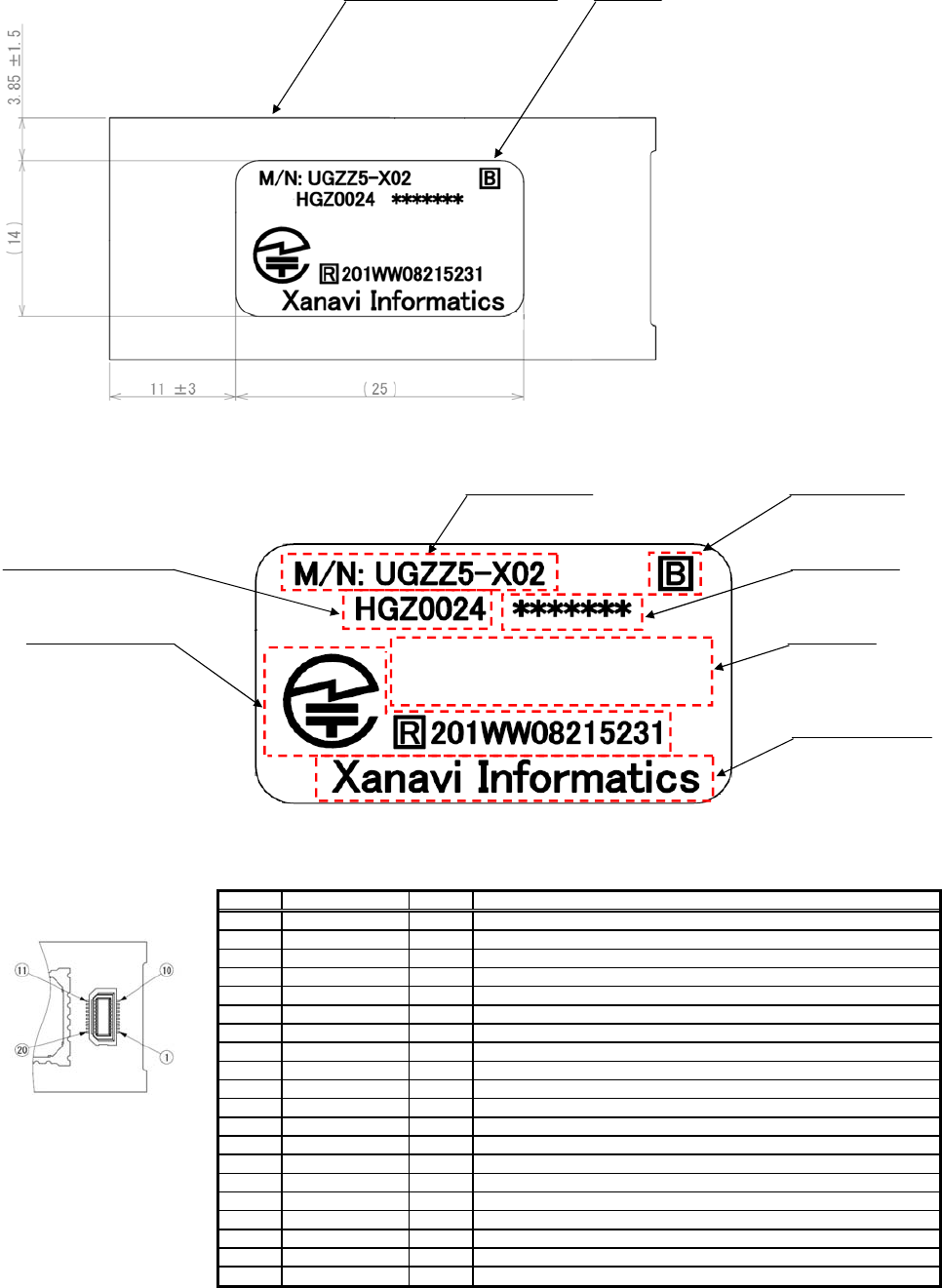

1-5-1. LABEL LAYOUT
1-5-2. CONTENTS OF LABEL
1-6. CONNECTOR PIN ASSIGNMENT
20 VCC I Power Supply 3.3V
19 RESETP
/
I
Reset(Active Low)
18 PTE5 O PCM_Mute
17 BOOT_E I
BOOT Enable
16 PTA6 I MODE Select
15 CLK11/12M I AV Master clock Input
14 SIOF_RXD I AV/HF Input
13 SIOF_SCK O
Audio Clock
12 SCIF0_TXD O UART_T
X
11 SCIF0_RXD I
UART_RX
10 SCIF0_CTS I UART_CTS
9 SCIF0_RTS O UART_RTS
8 GND - Ground
7SIOF_TXDO
AV/HF Output
6 SIOF_SYNC O Audio Frame signal
5PTA5O
HF/AV Status signal
4PTE0O
PCM_Reset(Active Low)
3 PTB1 O AV Master Clock Select(44.1kHz=Low, 48kHz=High)
2 GND - Ground
1 VCC I Power Supply 3.3V
NO. PIN NAME NO. DESCRIPTION
UGZZ5-X02(Back View) Label
Model Number Rev. Number
Xanavi Parts Numbe
r
Lot Number
TELEC Mark & ID
Company Name
FCC/IC ID
BtoB Connector terminal NO.
FCC ID: SJ2HGZ0024
IC ID:5527A-HGZ0024
FCC ID: SJ2HGZ0024
IC ID:5527A-HGZ0024
INSTRUCTION MANUAL OF NAU-P8100EU - 2 / 5 -
㼄㼍㼚㼍㼢㼕㻌㻵㼚㼒㼛㼞㼙㼍㼠㼕㼏㼟㻌㻯㼛㼞㼜㼛㼞㼍㼠㼕㼛㼚
㻯㻻㻺㻲㻵㻰㻱㻺㼀㻵㻭㻸

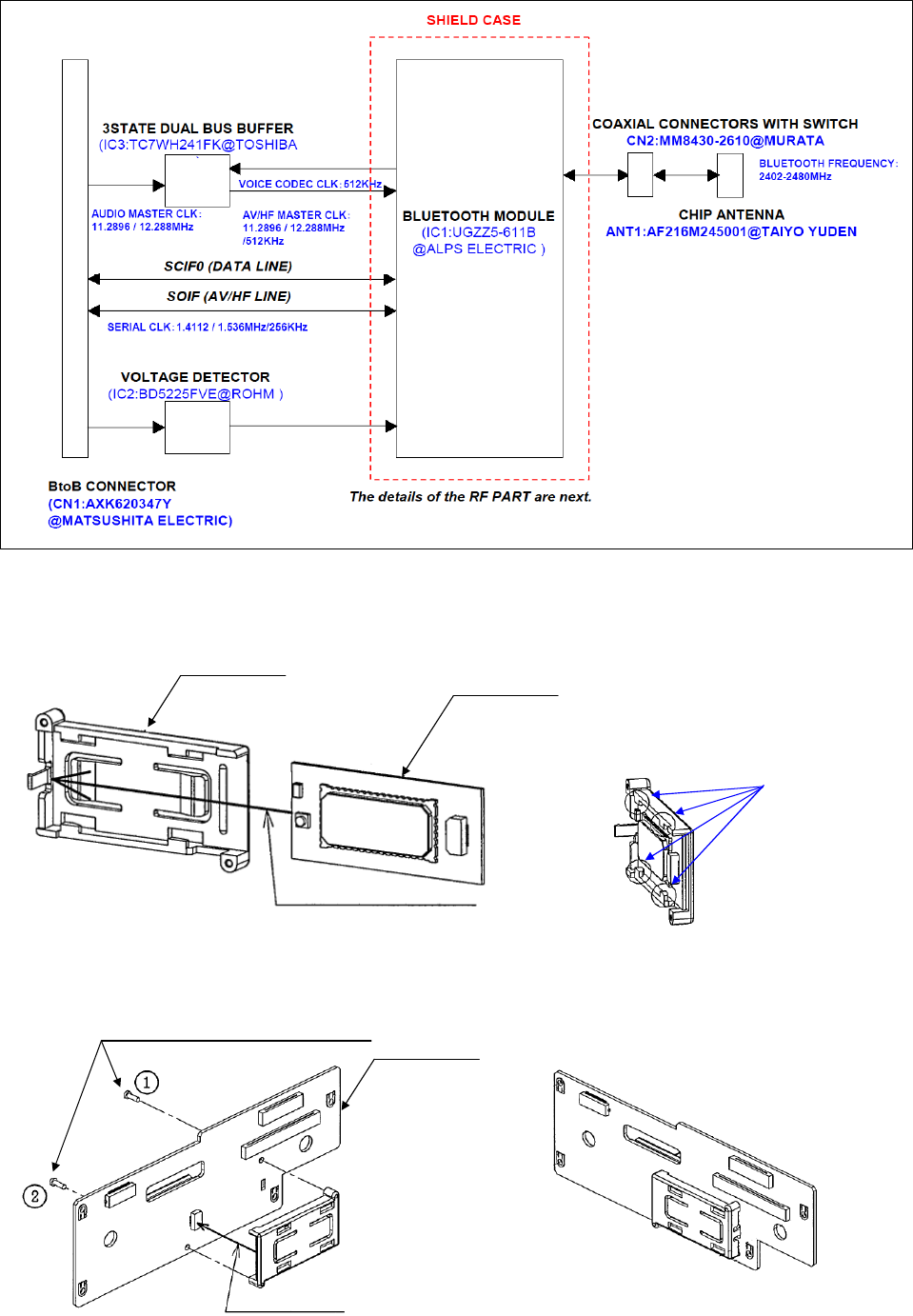

1-7. BLOCK DIAGRAM
2. PROCEDURE TO BUILD IN
2-1. PROCEDURE FOR UGZZ5-XO2

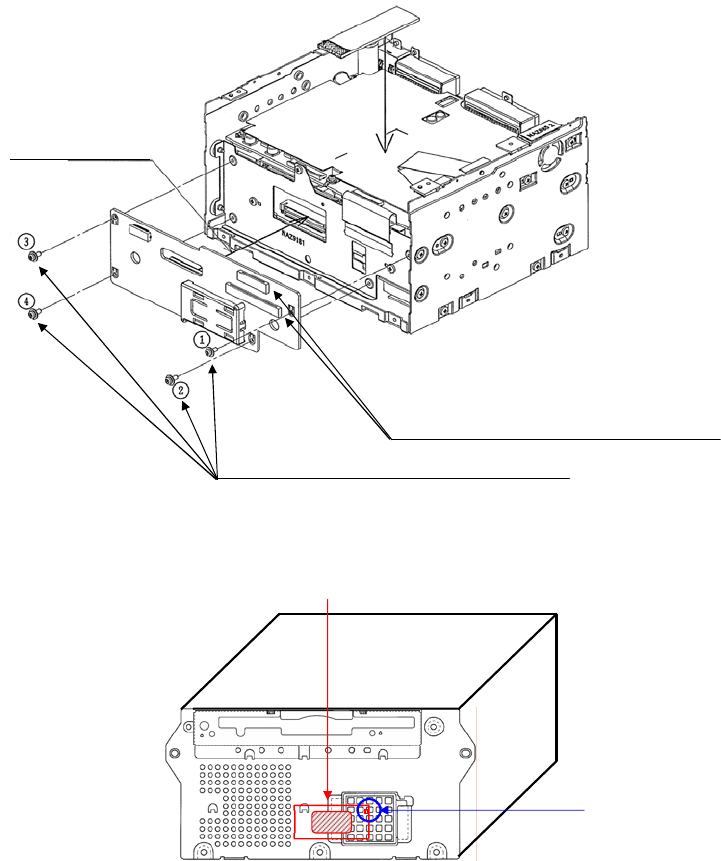

(1)Install UGZZ5-X02 to BT-CAP
After install UGZZ5-X02 to BT-CAP
(BT-MODULE-AS)
Slide to 4 points of Board-guide, and sandwich the module.
(2)Connect BT-MODULE-AS to FRONT PCB by BtoB connection
Tighten up a screw in order of one to two. After Connect BT-MODULE-AS to FRONT PCB
by BtoB connection (FRONT-PCB-AS)
SLIDE
UGZZ5-X02
BT-CAP
FRONT PCB
B to B connection
BOARD-GUIDE
INSTRUCTION MANUAL OF NAU-P8100EU - 3 / 5 -
㼄㼍㼚㼍㼢㼕㻌㻵㼚㼒㼛㼞㼙㼍㼠㼕㼏㼟㻌㻯㼛㼞㼜㼛㼞㼍㼠㼕㼛㼚
㻯㻻㻺㻲㻵㻰㻱㻺㼀㻵㻭㻸
(3)Install FRONT-PCB-AS to Navigation-unit
Connect FRONT-PCB-AS to Navi-board
by FCC cable connection.
Tighten up a screw in order of one to four.
(4)Install DVD-AS to Navigation-unit
(
5
)
Install UPPER-COVER to Navi
g
ation-unit
(
6
)
Install FRONT-COVER to Navi
g
ation-unit
(7)Install REAR-COVER to Navigation-unit
B to B connection
CONDUCTIVE SHEET
Chi
p
Antenna
p
osition
UGZZ5-X02 installation
p
osition
INSTRUCTION MANUAL OF NAU-P8100EU - 4 / 5 -
㼄㼍㼚㼍㼢㼕㻌㻵㼚㼒㼛㼞㼙㼍㼠㼕㼏㼟㻌㻯㼛㼞㼜㼛㼞㼍㼠㼕㼛㼚
㻯㻻㻺㻲㻵㻰㻱㻺㼀㻵㻭㻸
3. NOITCE
-Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
-Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
-Please note that this users manual should not be
p
rovided to end-users.
-The followin
g
sentence has to be dis
p
la
y
ed on the outside of the device in which the module is installed:
"Contains Transmitter Module FCC ID: SJ2HGZ0024", or "Contains FCC ID: SJ2HGZ0024"
-This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
INSTRUCTION MANUAL OF NAU-P8100EU - 5 / 5 -
