Components
Diagram Apply a small amount of pressure on the
indention of the battery compartment cover
located on the rear of the unit and open and
away from the unit simultaneously to release
the cover. See the following diagram.
Please be informed. The sensor warm-up
process will take around 5 min after first
insertion of the coin battery.
Introduction
There are different types of Alcohol Breath Tester available. You can get simple devices meant
for home use and professional devices like those used by police for suspected drunk drivers.
WearSmith Alcohol Breath Tester is designed for your Personal use , it is a part of accessory in
your modern life. It is an easies way to know your breath alcohol concentration in a short time.
WearSmith Smartphone application can guide you to take an accurate measurement and
analyze your recovery time to zero by linking to the tester via Bluetooth Smart Technology .
You can also use it standalone, and it will show the result on the OLED display.
Contents
Alcohol Breath Tester ( x 1 ) , Mouthpieces( x 1 ) , CR2032 Battery ( x1 ) ,
Silicon Rubber Ring ( x1 ) , Charm ( x 1 ) and User Manual ( x1)
IMPORTANT
Please gargle with water before test. This can avoid heavy alcohol concentration remaining
in your mouth injures the electrochemical sensor.
To avoid alcohol remains in mouthpiece, remember to wash mouthpiece frequently or blow
more fresh-air to clean it whenever you get non-zero result after fresh-air blowing.
Test subjects should wait 20 minutes after eating, drinking, or smoking before blowing into
the WearSmith.
DO NOT USE THIS DEVICE AS A TOOL TO DETERMINE WHETHER YOU OR ANYONE ELSE
SHOULD OPERATE ANY MOTOR VEHICLE OR MACHINERY.
DO NOT DRINK AND DRIVE. ALWAYS HAVE A DESIGNATED DRIVER WHEN YOU DRINK
ALCOHOL.
Front
Digital LED Display
Power Bottom
Inlets Battery Socket
Back
A
C
D
ONE year LIMITED Warranty
The WearSmith Alcohol Breath Tester provide the product to be free from defects in
workmanship or materials which also excluding calibration Under normal use for 12 months
from the date to purchase.
The WearSmith Alcohol Breath Tester obligation under this warranty is limited to replacing,
Adjusting or repairing the unit if returned along with proof of purchase.
This product is for personal use, is not recommended to share with others.
Due to personal health and hygiene issues, after use do not accept returns.
The Warranty is void if the unit has been tampered with Or maliciously damaged.
Warnings
Do not blow smoke, saliva or other contaminants into mouthpiece as this may damage the
sensor.
Product Maintenance
Clean the Mouthpiece
Cleaning is a normal part of owning and operating a professional level of Alcohol breath
tester . WearSmith recommends that you cleaning your mouthpiece at least once a week,
depending on the performance you observe and require. If the product is used every day, it
may need to be clean the mouthpiece more frequently.
5096-SAT
Battery
+
Battery Cover
Outlets
Accessory hole
Silicon Ring
B
Q : How to get a correct test value?
A : Check following tips :
- Please gargle with water before test.
- Test subjects should wait 20 minutes after eating, drinking, or smoking before
blowing into the WearSmith. When testing, continuously blow for 5 sec without
interruption.
- Blowing strength can be referred to APP pressure bar ( if connected with handset
APP ) for blow-learning.
- Whaen blowing, your lips need close to the mouthpieces.
Q : Why it show WAIT for a long time?
A : WAIT means device sensor is calibrating itself to avoid heavy alcohol concentration
remaining in your mouth to injure the electrochemical sensor.
There are two situations to see WAIT during operation :
- Insert new battery and power-on first time.
- Once device reports heavy alcohol concentration.
Q : Can I shorten the WAIT time?
A : In case the WAIT is caused by heavy alcohol concentration, you can remove the
mouthpiece and blow with fresh air. It can let the alcohol evaporate and sensor can
recover faster.
Q&A
Mobile App
In order to use WearSmith , you will need to download the WearSmith App for your
Smartphone.
Once you have done this, open the app, pair your device with your smartphone and you are
Ready to start using WearSmith .
Setup Process
1. Download the WearSmtih App from the App store or Google play.
2. Go to Settings on your mobile device and make sure Bluetooth is switched on.
Pairing takes place within the WearSmith App.
3. Press the Power Button on your WearSmith Alcohol Breath Tester, then release, powering
it on and allowing it be found. No cords or adapters are needed. Open the app
from the home screen and press the “Connect WearSmith ” button.
Testing air
Analysis of concentration
None value icon
Acceptable range icon
Warning range icon
Harmful to health icon
Low battery icon
FW upgrade ready icon
Wait for creating an air current
Ready for testing
Sensor need release to 100%
Battery is installed
FW version
Wait sensor warm up
Over testing range 1.50mg/L
WearSmith

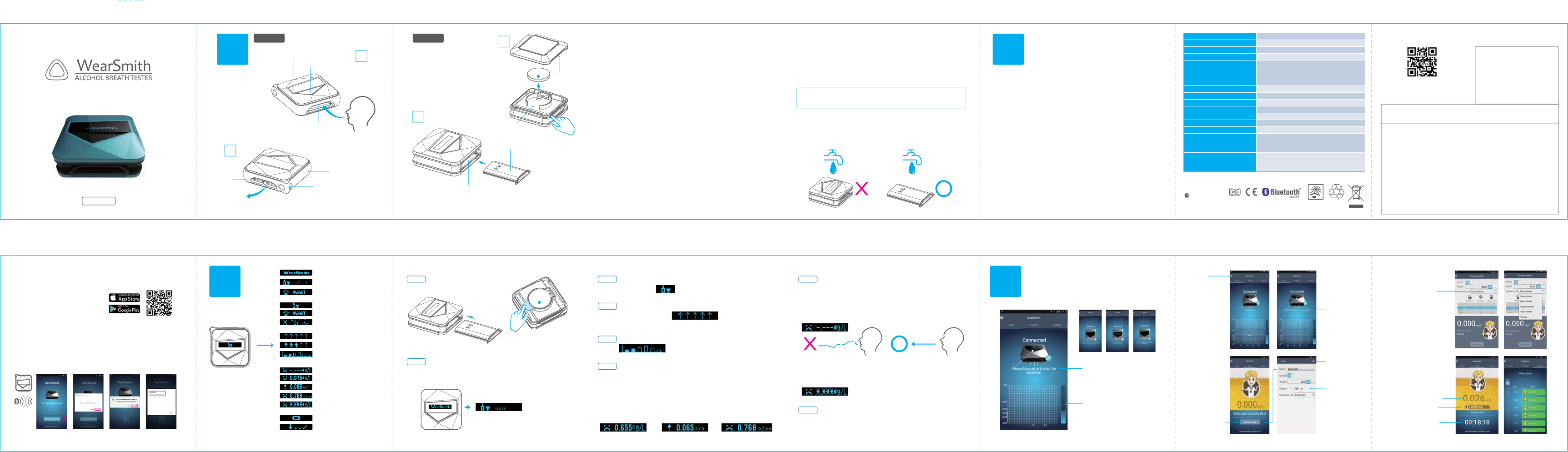

Screen Flow
Front
Back
折線 Size 76x76mm
STEP.7
Error Message 1.
The user had a short exhale time during the test, which likely means the user did not
exhale STEADILY AND CONTINUOUSLY FOR AT LEAST 5 SECONDS. Repeat steps 1 – 5
above to perform another test.
None Value
Error Message 2.
The unit detected a very high alcohol concentration (above 1.50mg/L).
Above 1.50mg/L
STEP. 8
WearSmith will turn itself off by a default time out 20 seconds if disconnection. When it
connects to Smartphone, it will wait for 30 seconds then turn off.
Weak Strong
Message Alert
The average position of blowing
pressure reference
Starting
blow into
Menu
Analysis of
breath alcohol
concentration
Blow failed,
please re-test
Test Result
Edit your profile to
calculate body
recovery time
Save the data
Personal Profile
Body recovery time
to zero
Last measurement
Alcohol Concetration
How to use
STEP. 1
Check the Mouthpiece In slot.
Remove MYLAR for start device
STEP. 2
Press the "POWER" button once,
if sensor needs to be warm-up first, the screen will show "Wait" process. And after
warm-up ready, directly go to STEP.3.
STEP. 3
When the screen remains the , press the “ power “Button again until “ wait “
display .
STEP. 4
When the screen on your device reads blow into the mouthpiece
for 5 seconds until all the arrows are illuminated.
STEP. 5
The digit will be shown on the display as the device analyzes the
sample.
STEP. 6
When analysis is complete, the test result will be displayed. Once your WearSmith has analyzed
the sample, it will communicate the reading to your mobile device and the WearSmith value
will display. The result will be shown for about 20seconds then the unit will shut itself off
automatically. The Unit of measurement can be optional selecting for %, mg/L , ‰ on user
smartphone.
Example :
Breath Alcohol Content in mg/L Blood Alcohol Content in % Blood Alcohol Content in ‰
Calculator for
Drinking Capability
Unlick Batter cover to open
Inserting the Mouthpiece
Do not cover the holes while testing and
Do not test without mouthpiece.
Mouthpiece
Battery
+
Product Name WearSmith - Smart Alcohol Tester (BT)
Dimension 38 x 38 x 15 mm
Weight 19.91 g
Sensor Electrochemical Fuel Cell
Unit of Measurement
Can be set to following unit by Smartphone
- Breath Alcohol Content in mg/L
- Conver Blood Alcohol Content in %
- Conver Blood Alcohol Content in ‰
Measurement Range 0 to 1.5 mg/L
Operation temperature range 5 to 40 °C
Operation Humidity Range 0 to 100% RH non-condensing
Battery DC 3V, Type CR2032 Lithium battery
Battery Life Up to 1,000 tests, standby time up to 3 months
Display Monochrome OLED graphics display
Communication Bluetooth 4.0 Low Energy (Bluetooth Smart)
Smartphone APP
Free APP available for iPhone iOS9 and above,
Android 5.0 and above; Android Phone BLE
performance depends on Smartphone Types
Warranty
1 year limited warranty
Due to pwesonal health and hygiene issues, after use
do not accept returns.
For more information, please visit
WWW.AIR-MENTOR.COM
AIR MENTOR Technology by
CoAsia Microelectronics Corp.
©2016 All Right Reserved.
Design and Made In Taiwan
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference and (2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try
to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modications not expressly approved by the party responsible for compliance could
void your authority to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must
follow the specic operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
