SHENZHEN COMPARE ELECTRONICS CO., LTD. 深圳市宝安区西乡街道固戍朱坳工业园中泰工业区D栋7楼 TEL:0755-29063503           FAX:0755-29063506            网址:www.szcompare.com      邮编:518040    OMPARE     Compare IEEE 802.11 b/g/n WLAN – USB  Product Specifications      Model: CP318      VER:V2.2 DATE:2011/4

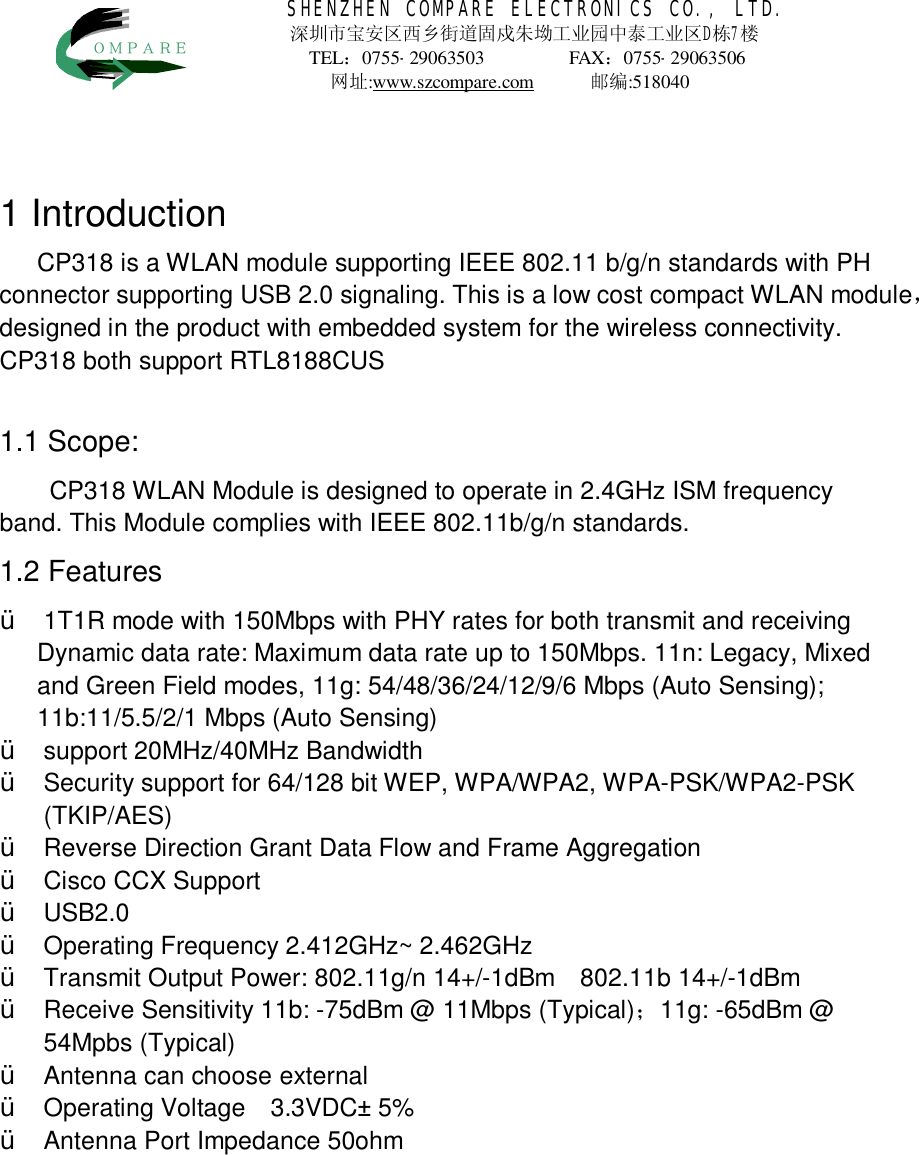

46214SHENZHEN COMPARE ELECTRONICS CO., LTD. 深圳市宝安区西乡街道固戍朱坳工业园中泰工业区D栋7楼 TEL:0755-29063503           FAX:0755-29063506            网址:www.szcompare.com      邮编:518040    OMPARE  1 Introduction CP318 is a WLAN module supporting IEEE 802.11 b/g/n standards with PH connector supporting USB 2.0 signaling. This is a low cost compact WLAN module,designed in the product with embedded system for the wireless connectivity. CP318 both support RTL8188CUS  1.1 Scope: CP318 WLAN Module is designed to operate in 2.4GHz ISM frequency band. This Module complies with IEEE 802.11b/g/n standards. 1.2 Features Ÿ 1T1R mode with 150Mbps with PHY rates for both transmit and receiving Dynamic data rate: Maximum data rate up to 150Mbps. 11n: Legacy, Mixed and Green Field modes, 11g: 54/48/36/24/12/9/6 Mbps (Auto Sensing); 11b:11/5.5/2/1 Mbps (Auto Sensing) Ÿ support 20MHz/40MHz Bandwidth Ÿ Security support for 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) Ÿ Reverse Direction Grant Data Flow and Frame Aggregation Ÿ Cisco CCX Support Ÿ USB2.0 Ÿ Operating Frequency 2.412GHz~ 2. GHz  Ÿ Transmit Output Power: 802.11g/n 14+/-1dBm  802.11b +/-1dBm Ÿ Receive Sensitivity 11b: -75dBm @ 11Mbps (Typical);11g: -65dBm @ 54Mpbs (Typical) Ÿ Antenna can choose     external Ÿ Operating Voltage  3.3VDC± 5% Ÿ Antenna Port Impedance 50ohm

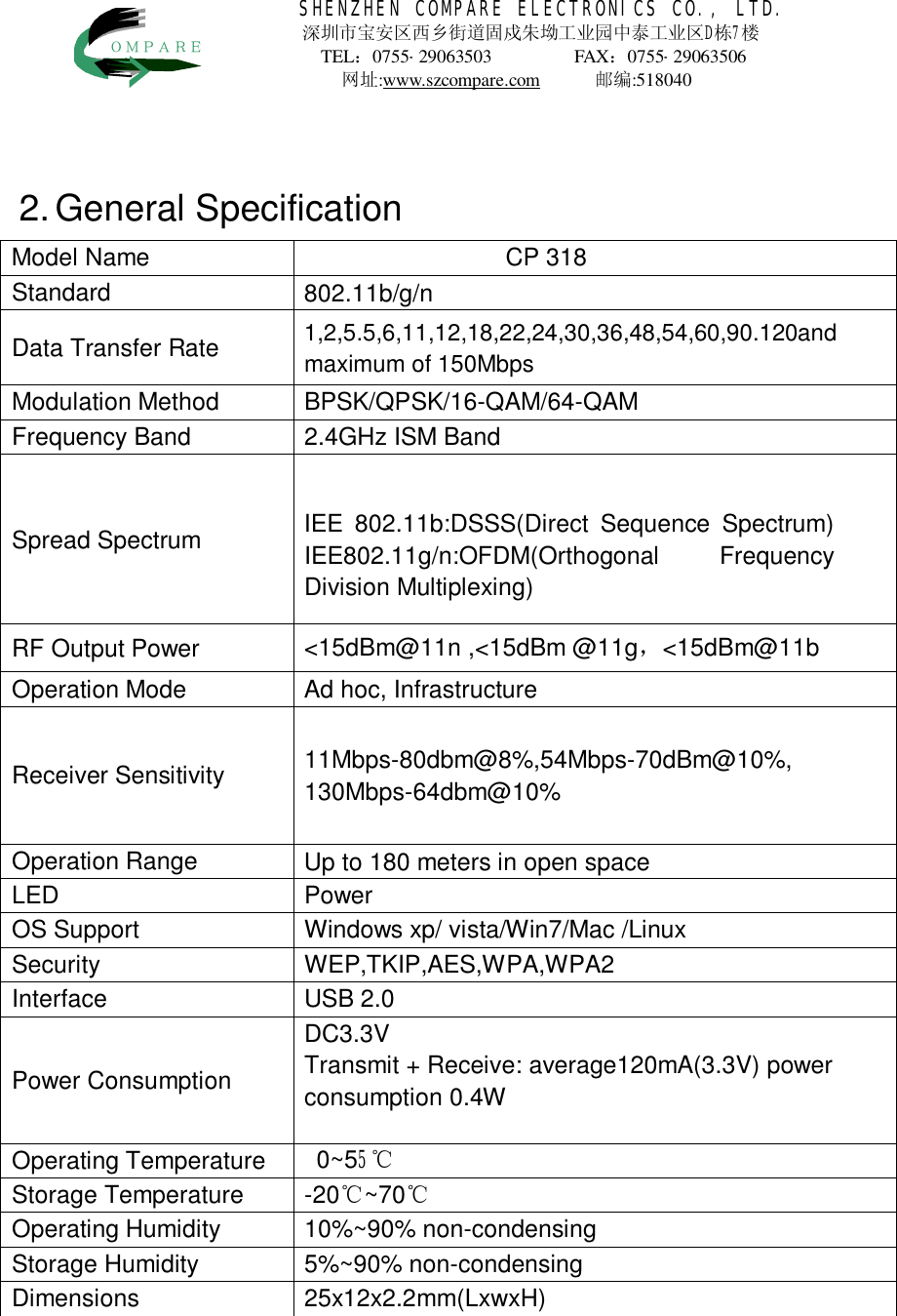

15d15d15dSHENZHEN COMPARE ELECTRONICS CO., LTD. 深圳市宝安区西乡街道固戍朱坳工业园中泰工业区D栋7楼 TEL:0755-29063503           FAX:0755-29063506            网址:www.szcompare.com      邮编:518040    OMPARE  2. General Specification Model Name             CP 318 Standard  802.11b/g/n Data Transfer Rate  1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90.120and maximum of 150Mbps Modulation Method  BPSK/QPSK/16-QAM/64-QAM Frequency Band  2.4GHz ISM Band Spread Spectrum  IEE 802.11b:DSSS(Direct Sequence Spectrum)       IEE802.11g/n:OFDM(Orthogonal Frequency Division Multiplexing) RF Output Power  <Bm@11n ,<Bm @11g,<Bm@11b Operation Mode  Ad hoc, Infrastructure Receiver Sensitivity  11Mbps-80dbm@8%,54Mbps-70dBm@10%, 130Mbps-64dbm@10% Operation Range  Up to 180 meters in open space LED  Power OS Support  Windows xp/ vista/Win7/Mac /Linux Security  WEP,TKIP,AES,WPA,WPA2 Interface  USB 2.0 Power Consumption DC3.3V                                     Transmit + Receive: average120mA(3.3V) power consumption 0.4W  Operating Temperature  0~55℃  Storage Temperature  -20℃~70℃ Operating Humidity  10%~90% non-condensing Storage Humidity  5%~90% non-condensing Dimensions  25x12x2.2mm(LxwxH)

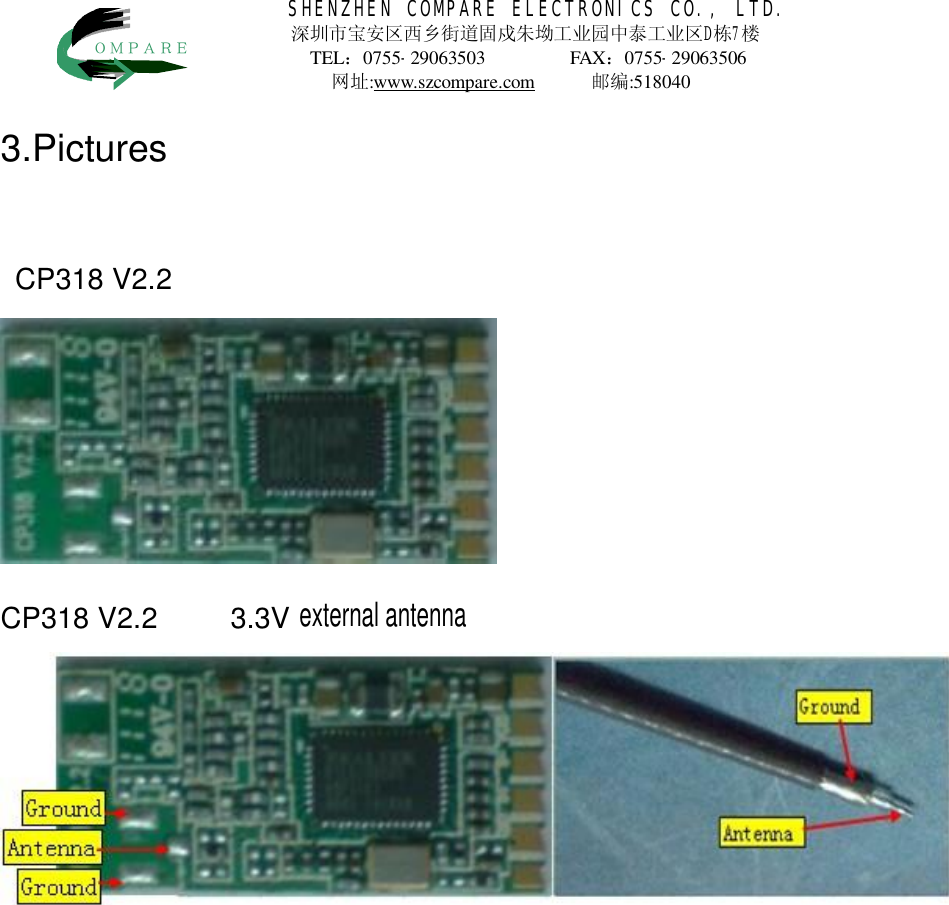

SHENZHEN COMPARE ELECTRONICS CO., LTD. 深圳市宝安区西乡街道固戍朱坳工业园中泰工业区D栋7楼 TEL:0755-29063503           FAX:0755-29063506            网址:www.szcompare.com      邮编:518040    OMPARE 3.Pictures   CP318 V2.2         CP318 V2.2     3.3V       external antenna

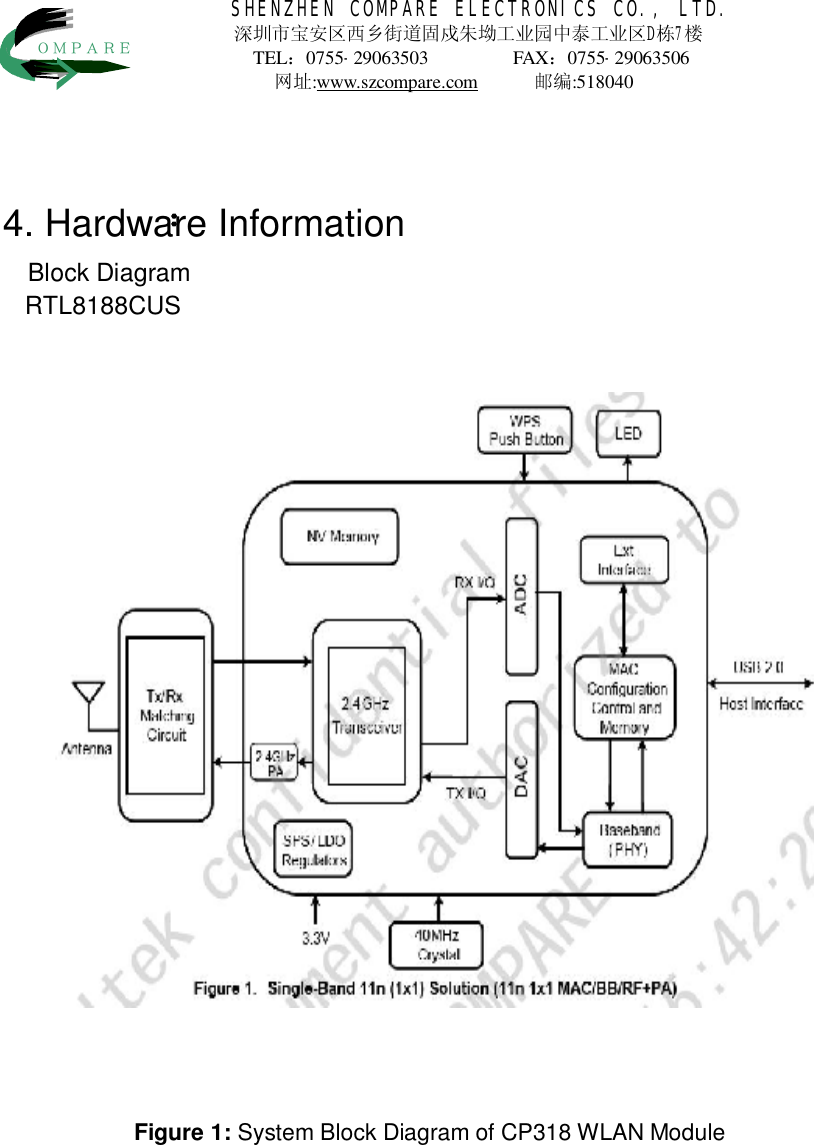

4SHENZHEN COMPARE ELECTRONICS CO., LTD. 深圳市宝安区西乡街道固戍朱坳工业园中泰工业区D栋7楼 TEL:0755-29063503           FAX:0755-29063506            网址:www.szcompare.com      邮编:518040    OMPARE   :                                 . Hardware Information Block Diagram RTL8188CUS Figure 1: SystemBlock Diagramof CP318WLANModule

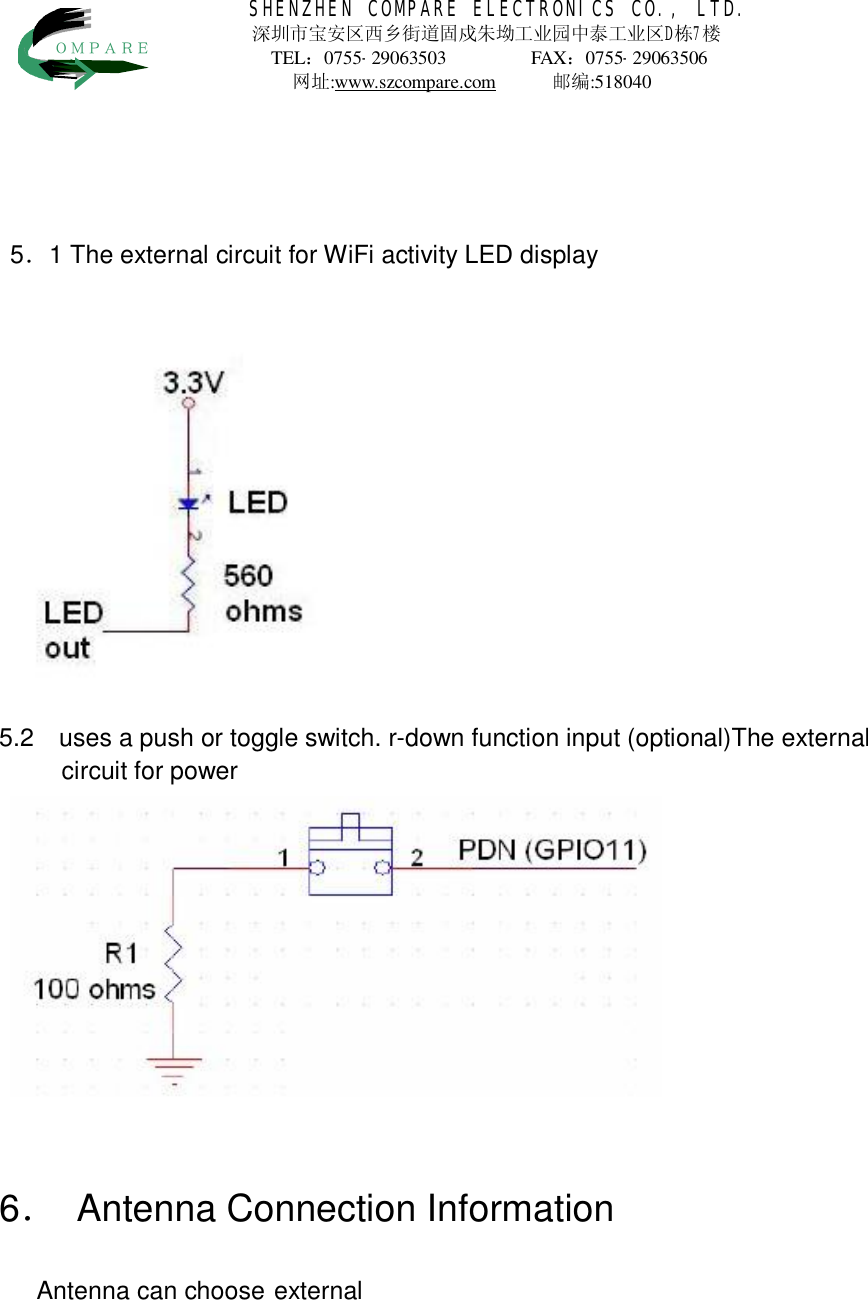

SHENZHEN COMPARE ELECTRONICS CO., LTD. 深圳市宝安区西乡街道固戍朱坳工业园中泰工业区D栋7楼 TEL:0755-29063503           FAX:0755-29063506            网址:www.szcompare.com      邮编:518040    OMPARE                             5.1The externalcircuit forWiFiactivityLEDdisplay 5.2  usesa pushor toggleswitch. r-down functioninput(optional)The external circuit forpower 6.AntennaConnection Information Antenna can choose external
SHENZHEN COMPARE ELECTRONICS CO., LTD. 深圳市宝安区西乡街道固戍朱坳工业园中泰工业区D栋7楼 TEL:0755-29063503           FAX:0755-29063506            网址:www.szcompare.com      邮编:518040    OMPARE                                                     7. Mechanical Information 7.1Dimensions Size: 25mm(Length)x12mm (Width) MechanicalDrawing: PinDefinition 1  5  GND 2  3.3V  6  RF/LED3  D-          4  D+          7.2USB ConnectionInformation 6inintoin=2.0mmppp

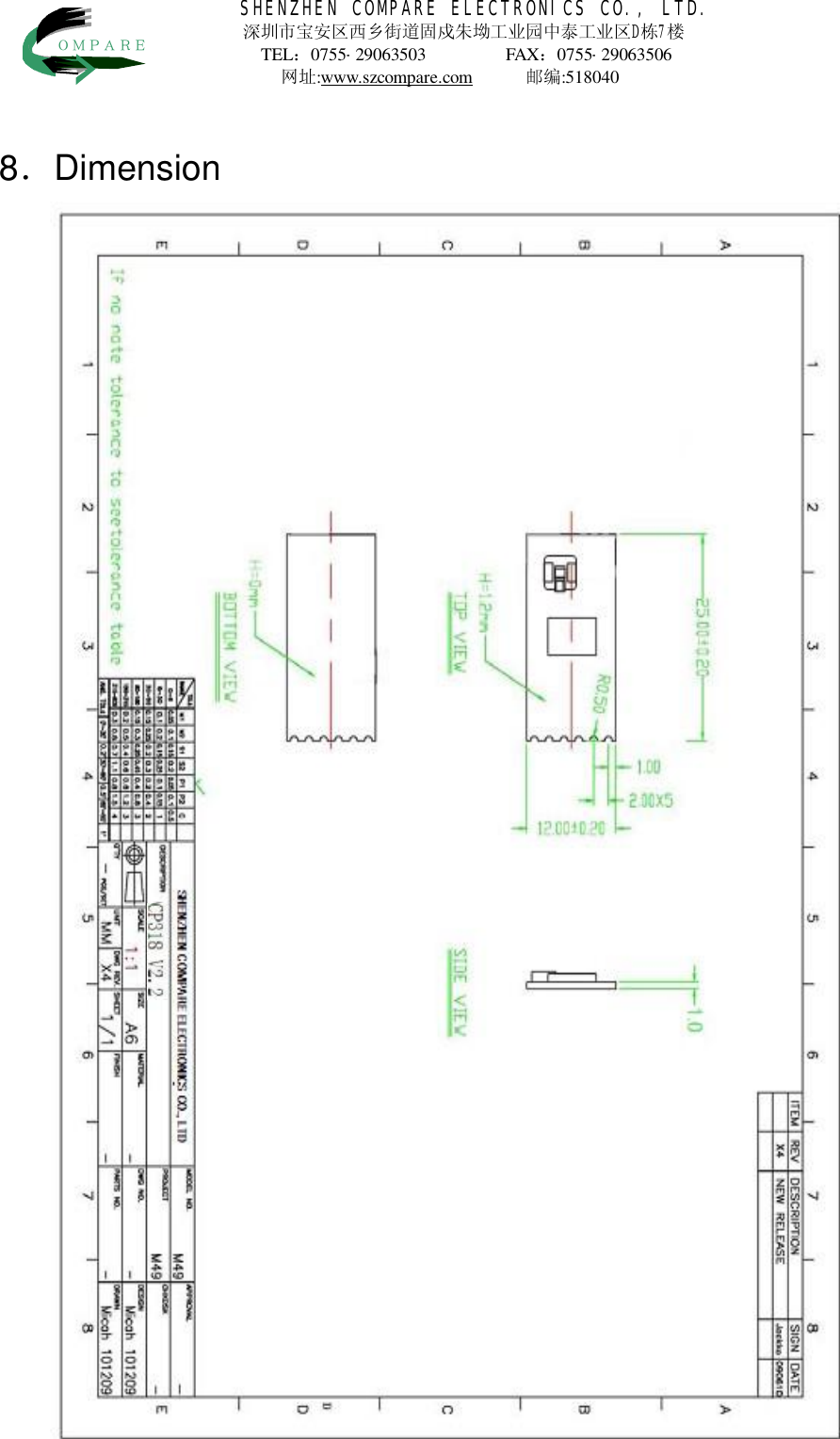

SHENZHEN COMPARE ELECTRONICS CO., LTD. 深圳市宝安区西乡街道固戍朱坳工业园中泰工业区D栋7楼 TEL:0755-29063503           FAX:0755-29063506            网址:www.szcompare.com      邮编:518040    OMPARE                             8.Dimension

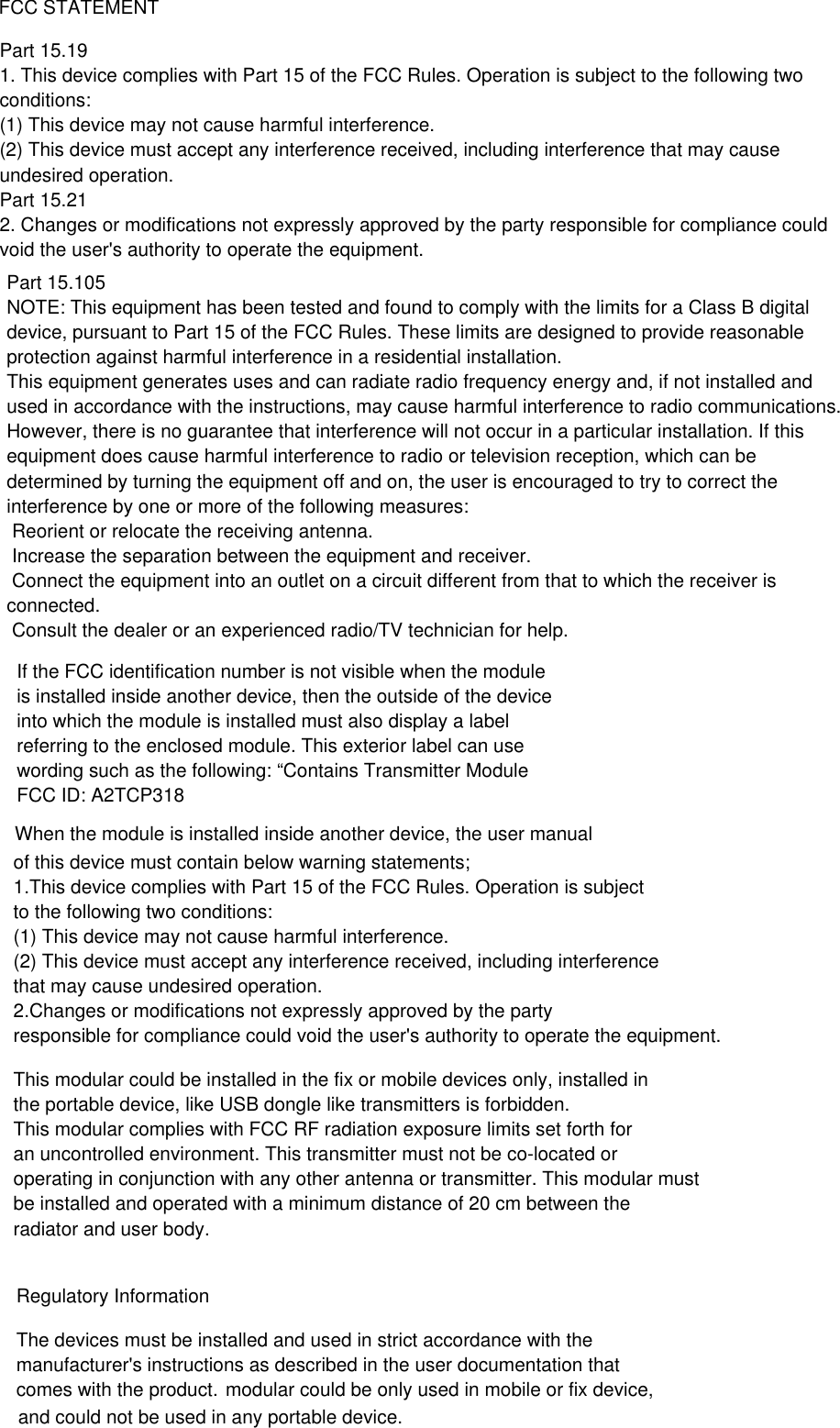

modular could be only used in mobile or fix device, 2.Changes or modifications not expressly approved by the party 1.This device complies with Part 15 of the FCC Rules. Operation is subject               FCC STATEMENTPart 15.191. This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may causeundesired operation.Part 15.212. Changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment.When the module is installed inside another device, the user manual of this device must contain below warning statements;to the following two conditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may cause undesired operation.responsible for compliance could void the user's authority to operate the equipment.This modular could be installed in the fix or mobile devices only, installed in the portable device, like USB dongle like transmitters is forbidden.This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular mustbe installed and operated with a minimum distance of 20 cm between the radiator and user body.Regulatory InformationThe devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product.and could not be used in any portable device.Part 15.105NOTE: This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed andused in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If thisequipment does cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected. Consult the dealer or an experienced radio/TV technician for help.If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: A2TCP318
