Compex Systems WLE600VX 802.11ac Dual Band Module User Manual ah
Compex Systems Pte Ltd 802.11ac Dual Band Module ah
Contents
User Manual
product datasheet
•
Qualcomm-Atheros QCA9892
•
2.4GHz max 21dBm & 5GHz max 21dBm output power (per chain)
•
IEEE 802.11ac complaint & backward compatible with 802.11a/b/g/n
•
2X2 MIMO Technology & up to 867Mbps
•
MiniPCI Express 1.1 interface
•
Supports Spatial Multiplexing, low-density parity, check (LDPC), Maximal Ratio Combining (MRC), Space
Time Block Code (STBC)
•
Supports IEEE 802.11d, e, h, I, k, RO, v time stamp, and w standards
•
Supported by either CompexWRT with Atheros Reference Wireless Driver OR
OpenWRT with ath10k Wireless Driver on WPJ344
•
Cards are individually calibrated for Quality Assurance
2x2 2.4/5GHz 11ac miniPCIe Radio
Model: WLE600VX
Revision:1.04 IL
Date: 2015,03,30
Features
Technical Specifications
System Information
Chipset
QCA9892
Host Interface
PCI-Express 1.1 Standard
Operating Voltage
3.3 VDC
Power Consumption
3.5W
Antenna Connector
2 x U.F L
Frequency Range
2.4G: 2.412 ~ 2.472 GHz 5G: 5.180 ~ 5.825 GHz
Modulation Techniques
BPSK, QPSK, DBPSK,DQPSK,CCK,16-QAM, 64-QAM, 256-QAM
RoHS Compliance
Yes
Temperature Range
Operating: -20ºC to 70ºC;
Storage: -40ºC to 90ºC
Humidity
Operating:5% to 95% (non-condensing)
Storage: Max.90% (non-condensing)
Dimensions (mm)
50.95 x 30 x 3.2 (H x W x D)
Band
TX Specifications
RX Specifications
802.11bg
Data
Rate
TX Power
(per chain)
TX Power
(2 chains)
Tolerance
Data
Rate
Sensitivity
Tolerance
6-24Mbps
20dBm
--
± 2dB
6Mbps
-94dBm
± 2dB
36Mbps
19dBm
--
± 2dB
36Mbps
-86dBm
± 2dB
48Mbps
18dBm
--
± 2dB
48Mbps
-82dBm
± 2dB
54Mbps
17dBm
--
± 2dB
54Mbps
-80dBm
± 2dB
2.4GHz 11n
HT20
MCS 0
19dBm
23dBm
± 2dB
MCS 0
-94dBm
± 2dB
MCS 1
18dBm
22dBm
± 2dB
MCS1
-94dBm
± 2dB
MCS 2
18dBm
22dBm
± 2dB
MCS2
-92dBm
± 2dB
MCS 3
17dBm
22dBm
± 2dB
MCS 3
-88dBm
± 2dB
MCS 4
17dBm
22dBm
± 2dB
MCS 4
-84dBm
± 2dB
MCS 5
17dBm
22dBm
± 2dB
MCS 5
-81dBm
± 2dB
MCS 6
16dBm
21dBm
± 2dB
MCS 6
-78dBm
± 2dB
MCS 7
15dBm
19dBm
± 2dB
MCS 7
-77dBm
± 2dB
2.4GHz 11n
HT40
MCS 0
19dBm
23dBm
± 2dB
MCS 0
-93dBm
± 2dB
MCS 1
18dBm
22dBm
± 2dB
MCS1
-91dBm
± 2dB
MCS 2
18dBm
22dBm
± 2dB
MCS2
-90dBm
± 2dB
MCS 3
17dBm
22dBm
± 2dB
MCS 3
-85dBm
± 2dB
MCS 4
17dBm
22dBm
± 2dB
MCS 4
-82dBm
± 2dB
MCS 5
17dBm
22dBm
± 2dB
MCS 5
-78dBm
± 2dB
MCS 6
16dBm
21dBm
± 2dB
MCS 6
-77dBm
± 2dB
MCS 7
15dBm
19dBm
± 2dB
MCS 7
-75dBm
± 2dB
802.11a
6-24Mbps
19dBm
--
± 2dB
6Mbps
-94dBm
± 2dB
36Mbps
18dBm
--
± 2dB
36Mbps
-86dBm
± 2dB
48Mbps
18dBm
--
± 2dB
48Mbps
-82dBm
± 2dB
54Mbps
17dBm
--
± 2dB
54Mbps
-80dBm
± 2dB
5GHz 11an/ac
HT20
MCS0
19dBm
21dBm
± 2dB
MCS0
-93dBm
± 2dB
MCS1
19dBm
21dBm
± 2dB
MCS1
-91dBm
± 2dB
MCS2
19dBm
21dBm
± 2dB
MCS2
-90dBm
± 2dB
MCS3
18dBm
20dBm
± 2dB
MCS3
-85dBm
± 2dB
MCS4
18dBm
20dBm
± 2dB
MCS4
-82dBm
± 2dB
MCS5
17dBm
20dBm
± 2dB
MCS5
-78dBm
± 2dB
MCS6
16dBm
19dBm
± 2dB
MCS6
-77dBm
± 2dB
MCS7
16dBm
19dBm
± 2dB
MCS7
-75dBm
± 2dB
MCS8
15dBm
18dBm
± 2dB
MCS8
-73dBm
± 2dB
MCS9
15dBm
18dBm
± 2dB
MCS9
-71dBm
± 2dB
5GHz 11n/ac
HT40
MCS0
19dBm
21dBm
± 2dB
MCS0
-93dBm
± 2dB
MCS1
19dBm
21dBm
± 2dB
MCS1
-91dBm
± 2dB
MCS2
19dBm
21dBm
± 2dB
MCS2
-90dBm
± 2dB
MCS3
18dBm
20dBm
± 2dB
MCS3
-85dBm
± 2dB
MCS4
18dBm
20dBm
± 2dB
MCS4
-82dBm
± 2dB
MCS5
16dBm
19dBm
± 2dB
MCS5
-78dBm
± 2dB
MCS6
15dBm
18dBm
± 2dB
MCS6
-77dBm
± 2dB
MCS7
15dBm
18dBm
± 2dB
MCS7
-75dBm
± 2dB
MCS8
14dBm
17dBm
± 2dB
MCS8
-73dBm
± 2dB
MCS9
14dBm
17dBm
± 2dB
MCS9
-71dBm
± 2dB
5GHz11ac
HT80
MCS0
19dBm
21dBm
± 2dB
MCS0
-89dBm
± 2dB
MCS1
19dBm
21dBm
± 2dB
MCS1
-88dBm
± 2dB
MCS2
19dBm
21dBm
± 2dB
MCS2
-85dBm
± 2dB
MCS3
18dBm
20dBm
± 2dB
MCS3
-81dBm
± 2dB
MCS4
18dBm
20dBm
± 2dB
MCS4
-79dBm
± 2dB
MCS5
16dBm
19dBm
± 2dB
MCS5
-75dBm
± 2dB
MCS6
15dBm
18dBm
± 2dB
MCS6
-74dBm
± 2dB
MCS7
15dBm
18dBm
± 2dB
MCS7
-72dBm
± 2dB
MCS8
14dBm
17dBm
± 2dB
MCS8
-70dBm
± 2dB
MCS9
14dBm
17dBm
± 2dB
MCS9
-68dBm
± 2dB
Ordering Information
Compex Systems Pte Ltd
135 Joo Seng Road #08-01
Singapore 368363
Tel: +65 6286 2086
Fax: +65 6280 9947
Email: sales@compex.com.sg
Compex (Suzhou) Co Ltd
No.12 ChuangTou Industrial Square
LouFeng North, Suzhou Industrial Park
Suzhou, Jiangsu Province China 215122
Tel: +86 512 62950050
Fax: +86 512 62950026
www.compex.com.sg
www.facebook.com/compexsystems
Copyright 2013 Compex Systems. All rights reserved. COMPEX and the COMPEX logo are registered trademarks
of COMPEX Inc. While every effort is made to ensure the information is accurate, Compex does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.

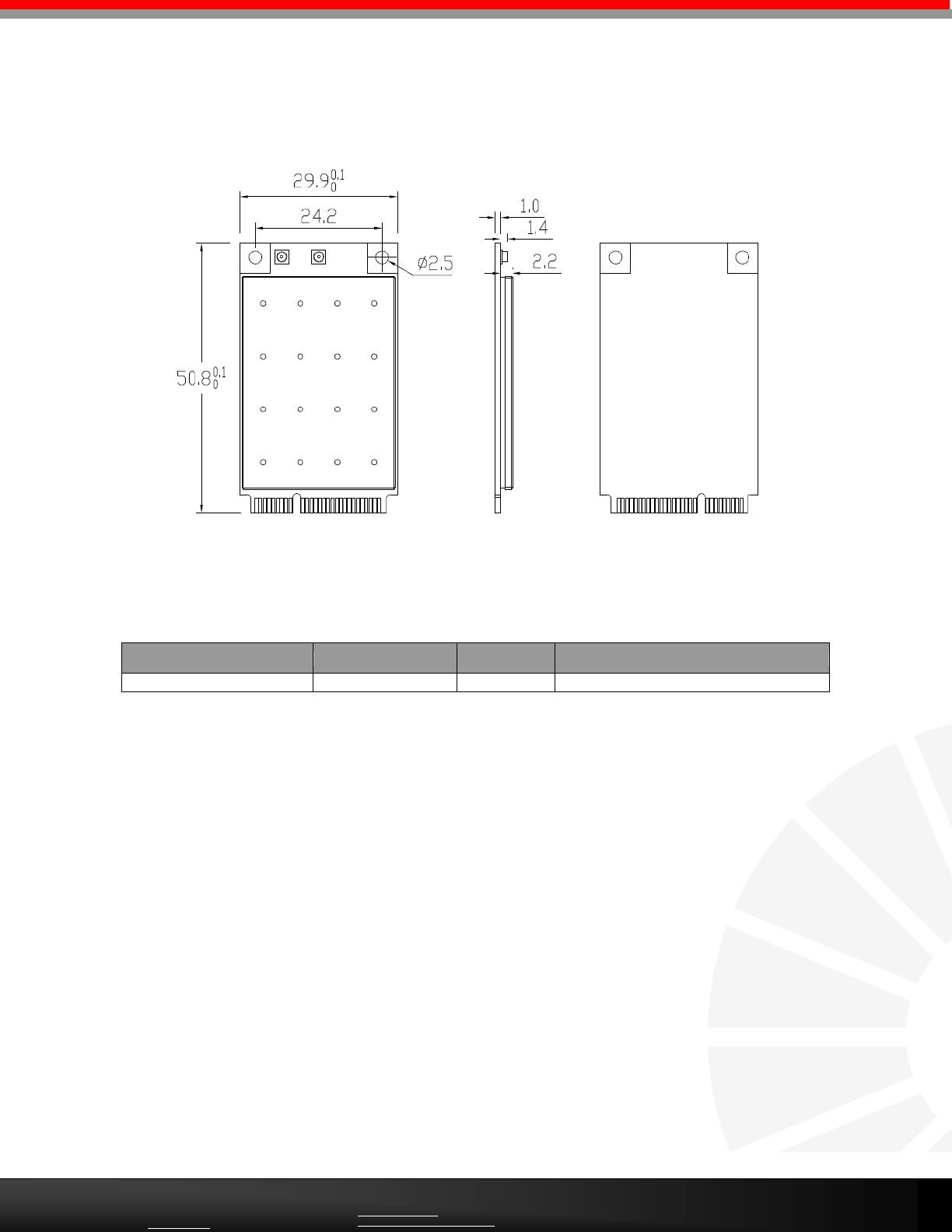

Dimension Drawing
Item Code
Chipset
Form factor
Card Information
WLE600VX
Atheros 9892
Full size
2x2 802.11ac 2.4G/5G PCIe mini card
: 5.725~5.850GHz bands use the max antenna gain 10dBi, 5.15~5.35GHz and 5.
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This device must accept any interference received, including interference that may cause undesired operation. Product that is a
radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least cm
from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. End-users and
installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
(2) Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate
the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user
authority to operate the equipment.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-
location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on
the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including
the transmitter) and obtaining a separate FCC authorization.
The antenna gain which being use as below:
Antenna Type
Manufacturer
Tx Paths
Max
Directional Gain (dBi)
Panel Antenna 1#
Compex Systems Pte Ltd
2.4GHz: 11.0
Panel Antenna 2#
Kenbotong Communication LTD
2.4GHz: 10.0, 5GHz: 10.0
Panel Antenna 3#
Smart Ant Inc
2.4GHz: 7.0, 5GHz: 7.0
Panel Antenna 4#
TAOGLAS Inc
2.4GHz: 4.5, 5GHz: 6.7
Panel Antenna 5#
Compex Systems Pte Ltd
2.4GHz: 5.0, 5GHz: 5.0
Panel Antenna 6#
Compex Systems Pte Ltd
2.4GHz: 5.0, 5GHz: 5.0
Dipole Antenna 1#
Kunshan Wavelink Electronic Co., Ltd.
2.4GHz: 2.0, 5GHz: 2.0
20
Note: 5.725~5.850GHz support the max antenna 10dBi,5.15~5.35,5.47~5.725GHz support the max antenna 7dBi.
This device is only a client equipment,the device is not radar detection and not ad-hoc operation in the DFS band.
2
2
2
2
2
2
2
OEM integration instructions：
This device is intended only for OEM integrators under the following conditions：
The module is only limited to installation in mobile applications. The antenna must be installed such that 20 cm is
maintained between the antenna and users，and the transmitter module may not be co-located with any other transmit or
antenna. The module shall be only used with the integral antenna(s) that has been originally tested and certified with this
module.
As long as 3 conditions above are met，further transmitter test will not be required.
However，the OEM integrator is still responsible for testing their end-product for any additional compliance requirement with
this module installed (for example，digital device emission，PC peripheral requirements，etc.)
OEM integration instructions：
In the event that these conditions cannot be met (for example certain laptop configuration or co-location with another
transmitter), then the FCC authorization for this module in combination with the host equipment is no longer considered valid
and the FCC ID of the module cannot be used on the final product. In these and circumstance，the OEM integrator will be
responsible for re-evaluating. The end product (including the transmitter) and obtaining a separate FCC authorization
End product labeling：
This transmitter module is authorization only for use in device where the antenna may be installed such that cm may be
maintained between the antenna and users. The final end product must be labeled in a visible area with the following：
“Contains Transmitter Module FCC ID: TK4WLE600VX or Contains FCC ID: TK4WLE600VX”
Information that must be placed in the end user manual：
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF
module in the user’s manual of the end product which integrates this module. The end user manual shall include all required
regulatory information/warning as show in this manual.
