WLE600VX_User Manual 2017-06-05

product datasheet
•
Qualcomm-Atheros QCA9892
•
2.4GHz max 24dBm & 5GHz max 23dBm output power
•
IEEE 802.11ac complaint & backward compatible with 802.11a/b/g/n
•
2X2 MIMO Technology & up to 867Mbps
•
MiniPCI Express 1.1 interface
•
Supports Spatial Multiplexing, Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
•
Supports IEEE 802.11d, e, h, I, k, RO, v time stamp, and w standards
•
Supports Client Dynamic Frequency Selection (DFS)
•
Cards are individually calibrated for Quality Assurance
•
Supported by either CompexWRT with Atheros Reference Wireless Driver

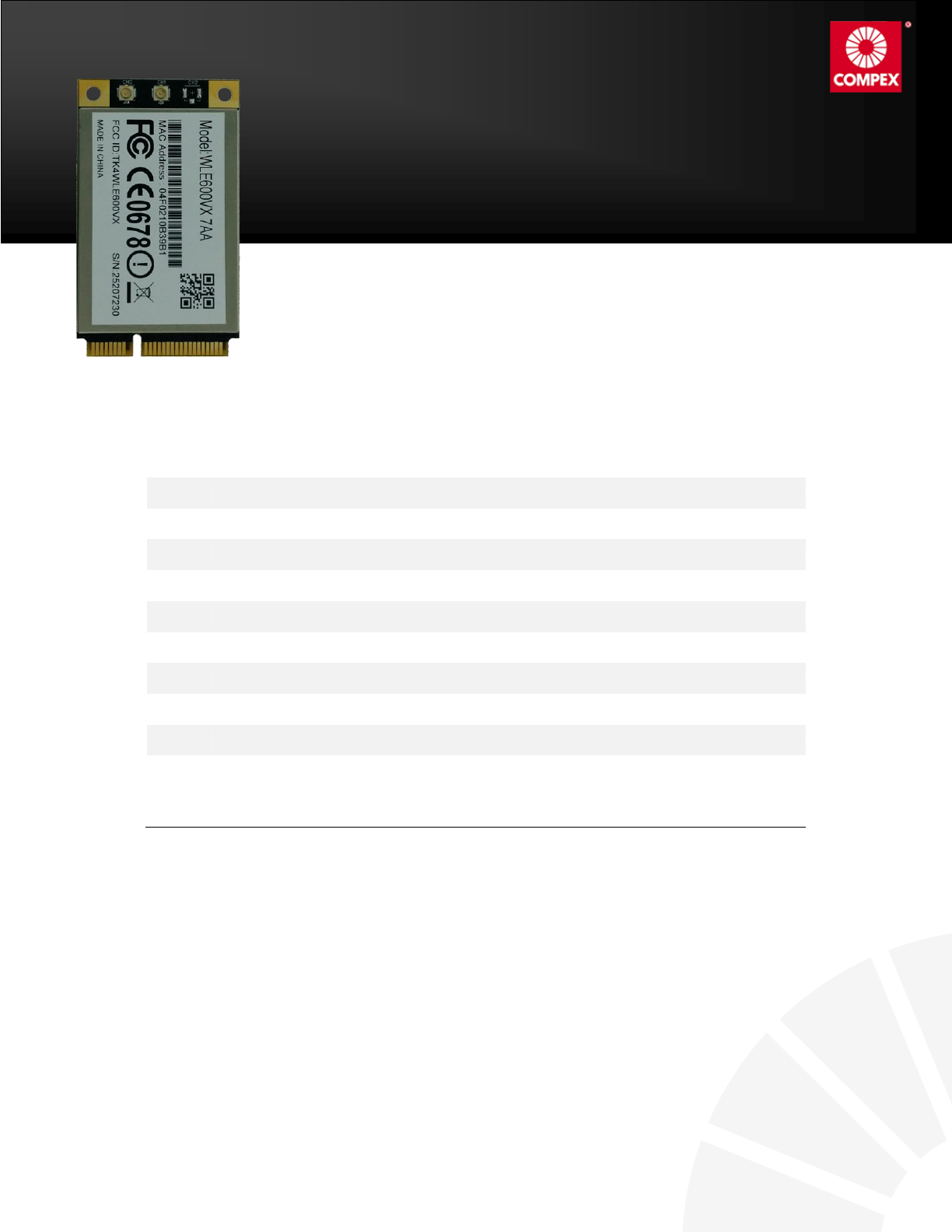

2x2 2.4/5GHz 11ac miniPCIe Radio
Model: WLE600VX, WLE600VX-I
Revision:1.04 IL
Date: 2015,03,30
Features
Technical Specifications
System Information
Chipset
QCA9892
Host Interface
PCI-Express 1.1 Standard
Operating Voltage
3.3 VDC
Power Consumption
3.5W
Antenna Connector
2 x U.F L
Frequency Range
2.4G: 2.412 ~ 2.462 GHz 5G: 5.180 ~ 5.825 GHz
Modulation Techniques
BPSK, QPSK, DBPSK,DQPSK,CCK,16-QAM, 64-QAM, 256-QAM
RoHS Compliance
Yes
Temperature Range
Operating: -20ºC to 70ºC;
Storage: -40ºC to 90ºC
Humidity
Operating:5% to 95% (non-condensing)
Storage: Max.90% (non-condensing)
Dimensions (mm)
50.95 x 30 x 3.2 (H x W x D)
Band
TX Specifications
RX Specifications
802.11bg
Data
Rate
TX Power
(per chain)
TX Power
(2 chains)
Tolerance
Data
Rate
Sensitivity
Tolerance
6-24Mbps
22dBm
N/A
±0.5dB
6Mbps
-94dBm
±2dB
36Mbps
21dBm
N/A
±0.5dB
36Mbps
-86dBm
±2dB
48Mbps
20dBm
N/A
±0.5dB
48Mbps
-82dBm
±2dB
54Mbps
19dBm
N/A
±0.5dB
54Mbps
-80dBm
±2dB
2.4GHz 11n
HT20
MCS 0
N/A
24dBm
±0.5dB
MCS 0
-94dBm
±2dB
MCS 1
N/A
24dBm
±0.5dB
MCS1
-94dBm
±2dB
MCS 2
N/A
24dBm
±0.5dB
MCS2
-92dBm
±2dB
MCS 3
N/A
23dBm
±0.5dB
MCS 3
-88dBm
±2dB
MCS 4
N/A
23dBm
±0.5dB
MCS 4
-84dBm
±2dB
MCS 5
N/A
23dBm
±0.5dB
MCS 5
-81dBm
±2dB
MCS 6
N/A
21dBm
±0.5dB
MCS 6
-78dBm
±2dB
MCS 7
N/A
19dBm
±0.5dB
MCS 7
-77dBm
±2dB
2.4GHz 11n
HT40
MCS 0
N/A
19dBm
±0.5dB
MCS 0
-93dBm
±2dB
MCS 1
N/A
19dBm
±0.5dB
MCS1
-91dBm
±2dB
MCS 2
N/A
19dBm
±0.5dB
MCS2
-90dBm
±2dB
MCS 3
N/A
17dBm
±0.5dB
MCS 3
-85dBm
±2dB
MCS 4
N/A
17dBm
±0.5dB
MCS 4
-82dBm
±2dB
MCS 5
N/A
17dBm
±0.5dB
MCS 5
-78dBm
±2dB
MCS 6
N/A
16dBm
±0.5dB
MCS 6
-77dBm
±2dB
MCS 7
N/A
16dBm
±0.5dB
MCS 7
-75dBm
±2dB
802.11a
6-24Mbps
N/A
21dBm
±0.5dB
6Mbps
-94dBm
±2dB
36Mbps
N/A
20dBm
±0.5dB
36Mbps
-86dBm
±2dB
48Mbps
N/A
19dBm
±0.5dB
48Mbps
-82dBm
±2dB
54Mbps
N/A
18dBm
±0.5dB
54Mbps
-80dBm
±2dB
5GHz 11an/ac
HT20
MCS0
N/A
23dBm
±0.5dB
MCS0
-93dBm
±2dB
MCS1
N/A
23dBm
±0.5dB
MCS1
-91dBm
±2dB
MCS2
N/A
23dBm
±0.5dB
MCS2
-90dBm
±2dB
MCS3
N/A
22dBm
±0.5dB
MCS3
-85dBm
±2dB
MCS4
N/A
22dBm
±0.5dB
MCS4
-82dBm
±2dB
MCS5
N/A
20dBm
±0.5dB
MCS5
-78dBm
±2dB
MCS6
N/A
19dBm
±0.5dB
MCS6
-77dBm
±2dB
MCS7
N/A
19dBm
±0.5dB
MCS7
-75dBm
±2dB
MCS8
N/A
18dBm
±0.5dB
MCS8
-73dBm
±2dB
MCS9
N/A
18dBm
±0.5dB
MCS9
-71dBm
±2dB
5GHz 11n/ac
HT40
MCS0
N/A
23dBm
±0.5dB
MCS0
-93dBm
±2dB
MCS1
N/A
23dBm
±0.5dB
MCS1
-91dBm
±2dB
MCS2
N/A
23dBm
±0.5dB
MCS2
-90dBm
±2dB
MCS3
N/A
21dBm
±0.5dB
MCS3
-85dBm
±2dB
MCS4
N/A
21dBm
±0.5dB
MCS4
-82dBm
±2dB
MCS5
N/A
19dBm
±0.5dB
MCS5
-78dBm
±2dB
MCS6
N/A
18dBm
±0.5dB
MCS6
-77dBm
±2dB
MCS7
N/A
18dBm
±0.5dB
MCS7
-75dBm
±2dB
MCS8
N/A
17dBm
±0.5dB
MCS8
-73dBm
±2dB
MCS9
N/A
17dBm
±0.5dB
MCS9
-71dBm
±2dB
5GHz11ac
HT80
MCS0
N/A
20dBm
±0.5dB
MCS0
-89dBm
±2dB
MCS1
N/A
20dBm
±0.5dB
MCS1
-88dBm
±2dB
MCS2
N/A
20dBm
±0.5dB
MCS2
-85dBm
±2dB
MCS3
N/A
19dBm
±0.5dB
MCS3
-81dBm
±2dB
MCS4
N/A
19dBm
±0.5dB
MCS4
-79dBm
±2dB
MCS5
N/A
19dBm
±0.5dB
MCS5
-75dBm
±2dB
MCS6
N/A
18dBm
±0.5dB
MCS6
-74dBm
±2dB
MCS7
N/A
18dBm
±0.5dB
MCS7
-72dBm
±2dB
MCS8
N/A
17dBm
±0.5dB
MCS8
-70dBm
±2dB
MCS9
N/A
17dBm
±0.5dB
MCS9
-68dBm
±2dB
Ordering Information

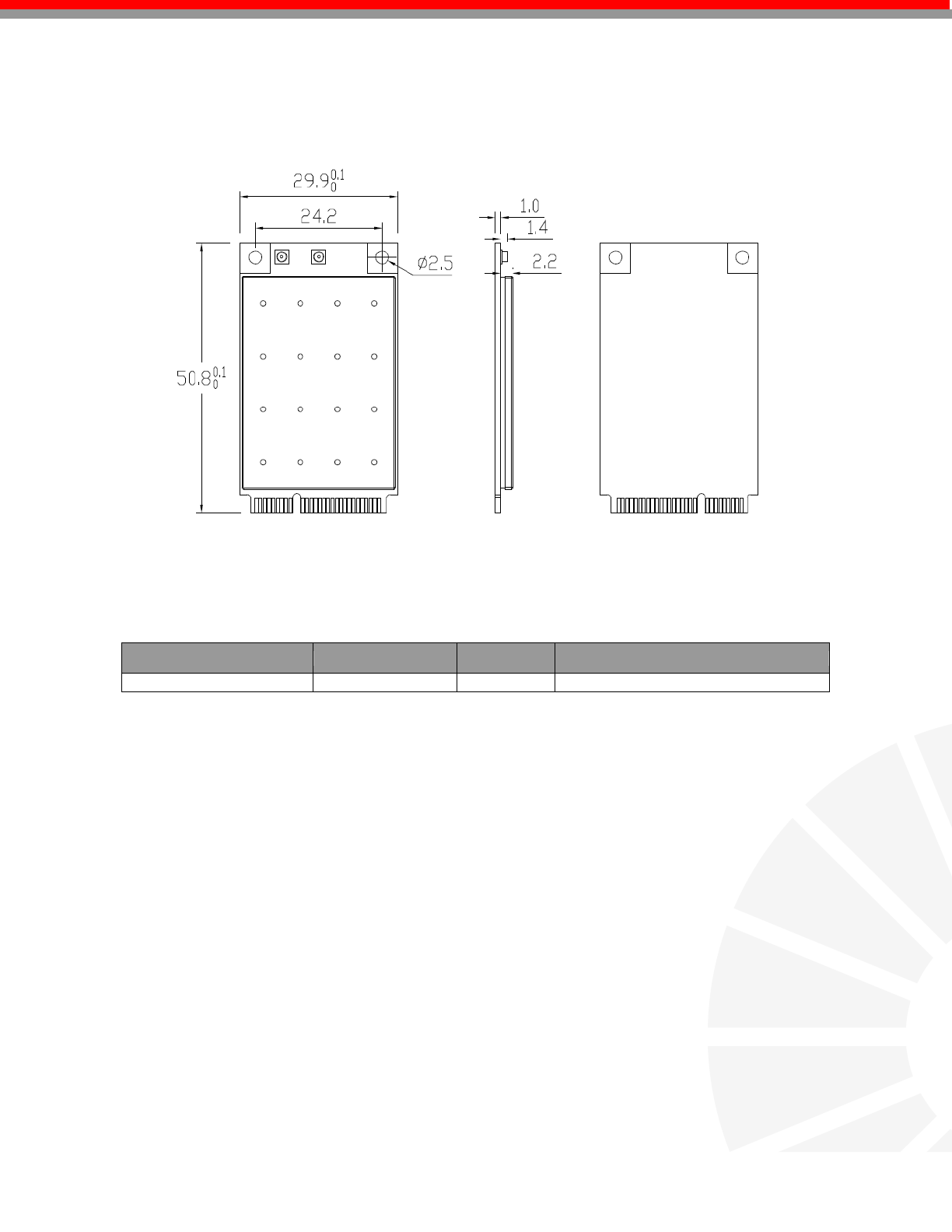

Dimension Drawing
Item Code
Chipset
Form factor
Card Information
WLE600VX
Atheros 9892
Full size
2x2 802.11ac 2.4G/5G PCIe mini card
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This device must accept any interference received, including interference that may cause
undesired operation. Product that is a radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be installed and operated
in accordance with provided instructions and the antenna(s) used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons and must not be
collocated or operating in conjunction with any other antenna or transmitter. End-users and
installers must be provided with antenna installation instructions and transmitter operating
conditions for satisfying RF exposure compliance.
(2) Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user authority to operate the equipment.
IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is
no longer considered valid and the FCC ID cannot be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
(1) The modules FCC ID is not visible when installed in the host, or
(2) If the host is marketed so that end users do not have straight forward commonly used
methods for access to remove the module so that the FCC ID of the module is visible;
then an additional permanent
Caution1:
When the module uses the frequency band 5150 - 5250 MHz & 5725 - 5850 MHz, the
module should be applied to the P-T-P end-product, 5250 - 5350 MHz & 5470 - 5725 MHz
can’t use in these type products.
Caution2:
Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can’t transmit simultaneously.

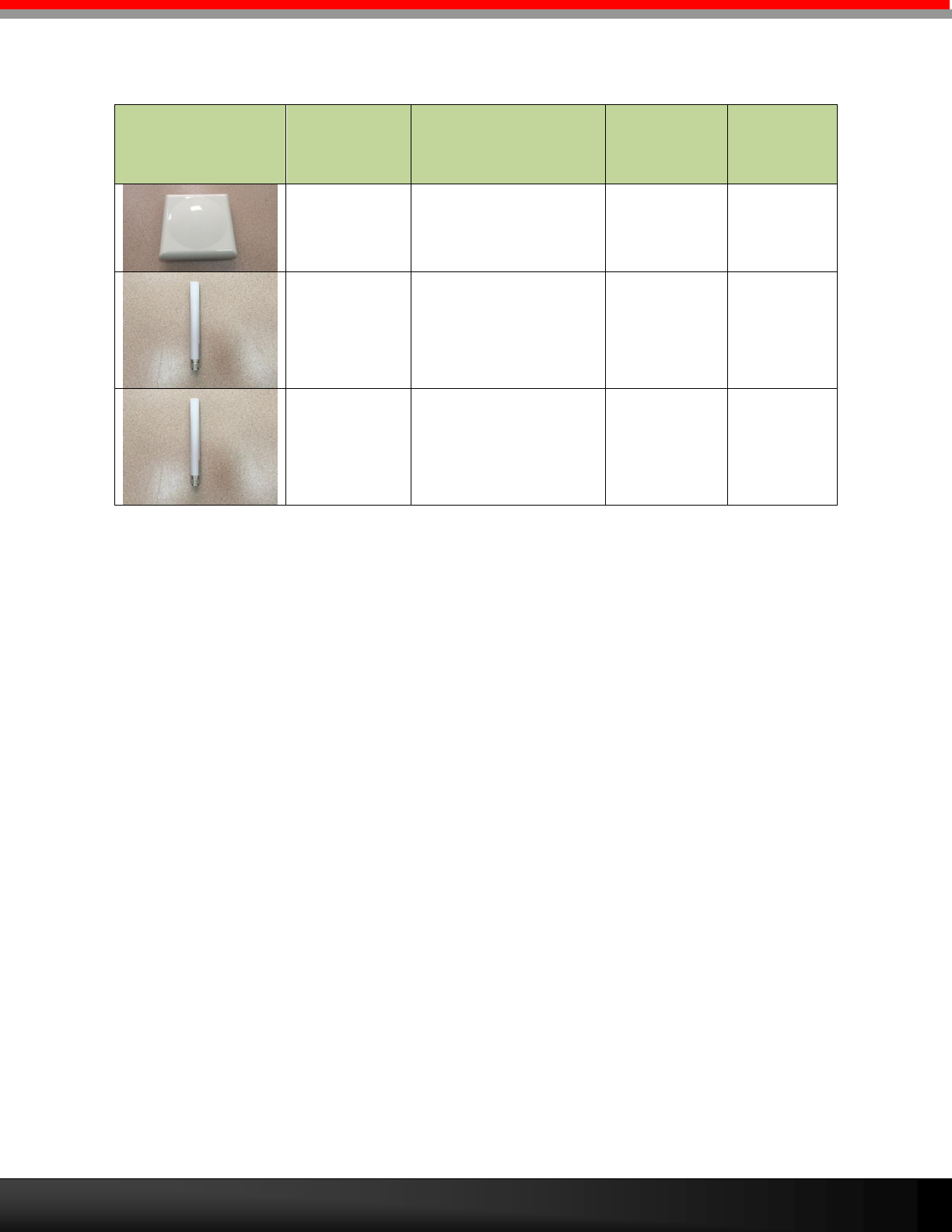

The antenna gain which being use as below:
Antenna Type
Frequency
Band
(MHz)
Model
Model
Max Peak
Antenna
Gain
(dBi)
5150 ~ 5875
MTI Wireless Edge Ltd.
MT-485001
18.0
4900 ~ 5875
PENSON Wireless,
Inc., Taiwan
OM24580703
7.0
2412 ~ 2462
PENSON Wireless,
Inc., Taiwan
OM24580703
5.0
OEM integration instructions：
This device is intended only for OEM integrators under the following conditions：
The antenna must be installed such that 20 cm is maintained between the antenna and users,
and the transmitter module may not be co-located with any other transmit or antenna. The
module shall be only used with the integral antenna(s) that has been originally tested and
certified with this module.
As long as 3 conditions above are met，further transmitter test will not be required.
However，the OEM integrator is still responsible for testing their end-product for any
additional compliance requirement with this module installed (for example，digital device
emission，PC peripheral requirements，etc.)
End product labeling：
This transmitter module is authorization only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following：“Contains Transmitter Module
FCC ID: TK4WLE600VX or Contains FCC ID: TK4WLE600VX”.
Information that must be placed in the end user manual：
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module. The end user manual shall include all required regulatory
information/warning as show in this manual.
