Compoka Electronic Technology KBJ-225N FOLDABLE BLUETOOTH HEADPHONE User Manual KBJ 225N

Shenzhen Compoka Electronic Technology Co., Ltd FOLDABLE BLUETOOTH HEADPHONE KBJ 225N

User manual

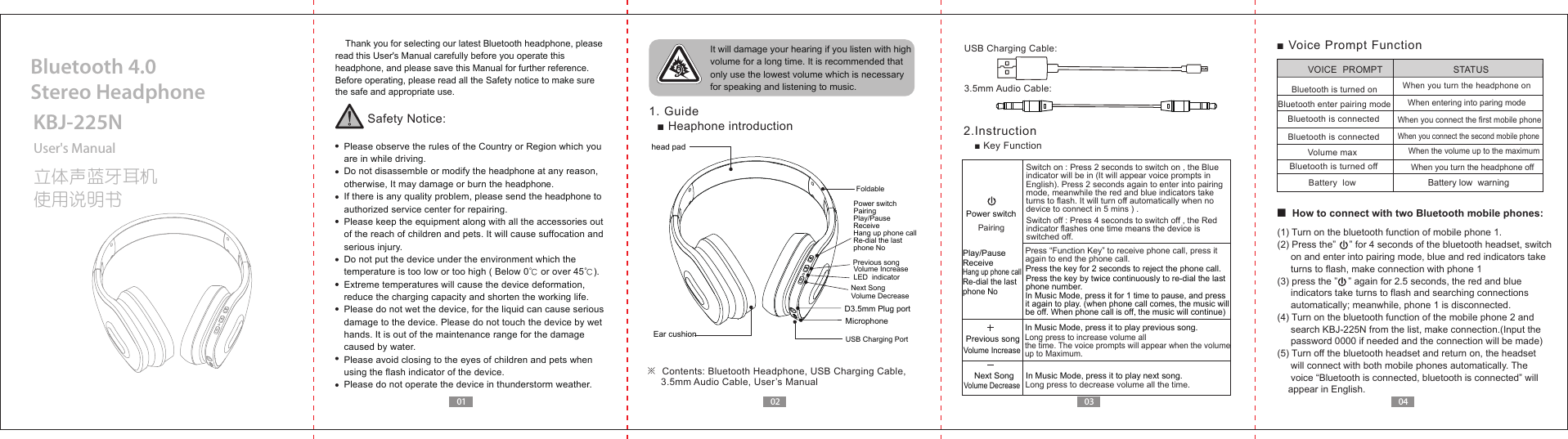

0201 03 04    Thank you for selecting our latest Bluetooth headphone, please read this User's Manual carefully before you operate this headphone, and please save this Manual for further reference.Before operating, please read all the Safety notice to make sure the safe and appropriate use.Safety Notice:  Please observe the rules of the Country or Region which you   are in while driving.  Do not disassemble or modify the headphone at any reason,   otherwise, It may damage or burn the headphone.  If there is any quality problem, please send the headphone to   authorized service center for repairing.  Please keep the equipment along with all the accessories out   of the reach of children and pets. It will cause suffocation and   serious injury.  Do not put the device under the environment which the   temperature is too low or too high ( Below 0℃ or over 45℃).  Extreme temperatures will cause the device deformation,  reduce the charging capacity and shorten the working life.  Please do not wet the device, for the liquid can cause serious   damage to the device. Please do not touch the device by wet   hands. It is out of the maintenance range for the damage   caused by water.  Please avoid closing to the eyes of children and pets when   using the flash indicator of the device.  Please do not operate the device in thunderstorm weather. It will damage your hearing if you listen with high volume for a long time. It is recommended that only use the lowest volume which is necessary for speaking and listening to music.  1. Guide■ Heaphone introduction 2.Instruction■ Key FunctionUser's ManualKBJ-225N立体声蓝牙耳机使用说明书Bluetooth 4.0 Stereo Headphone■ How to connect with two Bluetooth mobile phones:Play/PauseReceiveHang up phone callRe-dial the last phone NoPrevious songVolume IncreaseNext SongVolume Decreasehead pad   Ear cushionD3.5mm Plug portFoldableMicrophoneUSB Charging PortPower switchPairingLED  indicator※  Contents: Bluetooth Headphone, USB Charging Cable,       3.5mm Audio Cable, User’s ManualUSB Charging Cable:3.5mm Audio Cable:Switch on : Press 2 seconds to switch on , the Blue indicator will be in (It will appear voice prompts in English). Press 2 seconds again to enter into pairing mode, meanwhile the red and blue indicators take turns to flash. It will turn off automatically when no device to connect in 5 mins ) .Switch off : Press 4 seconds to switch off , the Red indicator flashes one time means the device is switched off. Press “Function Key” to receive phone call, press it again to end the phone call.Press the key by twice continuously to re-dial the last phone number.Press the key for 2 seconds to reject the phone call.In Music Mode, press it for 1 time to pause, and press it again to play. (when phone call comes, the music will be off. When phone call is off, the music will continue)In Music Mode, press it to play previous song.In Music Mode, press it to play next song.Long press to increase volume all the time. The voice prompts will appear when the volume up to Maximum.Previous songNext SongVolume IncreaseVolume DecreasePlay/PauseReceiveHang up phone callRe-dial the last phone NoPower switchPairingLong press to decrease volume all the time. ■ Voice Prompt Function Battery low  warningBluetooth is turned onBluetooth enter pairing modeVolume max Bluetooth is turned offVOICE  PROMPT STATUSWhen you turn the headphone off When you turn the headphone onWhen entering into paring modeWhen you connect the second mobile phoneWhen the volume up to the maximum  When you connect the first mobile phoneBluetooth is connectedBluetooth is connectedBattery  low(1) Turn on the bluetooth function of mobile phone 1.(2) Press the”     ” for 4 seconds of the bluetooth headset, switch      on and enter into pairing mode, blue and red indicators take      turns to flash, make connection with phone 1(3) press the ”    ” again for 2.5 seconds, the red and blue      indicators take turns to flash and searching connections      automatically; meanwhile, phone 1 is disconnected.(4) Turn on the bluetooth function of the mobile phone 2 and     search KBJ-225N from the list, make connection.(Input the      password 0000 if needed and the connection will be made)(5) Turn off the bluetooth headset and return on, the headset      will connect with both mobile phones automatically. The      voice “Bluetooth is connected, bluetooth is connected” will     appear in English.

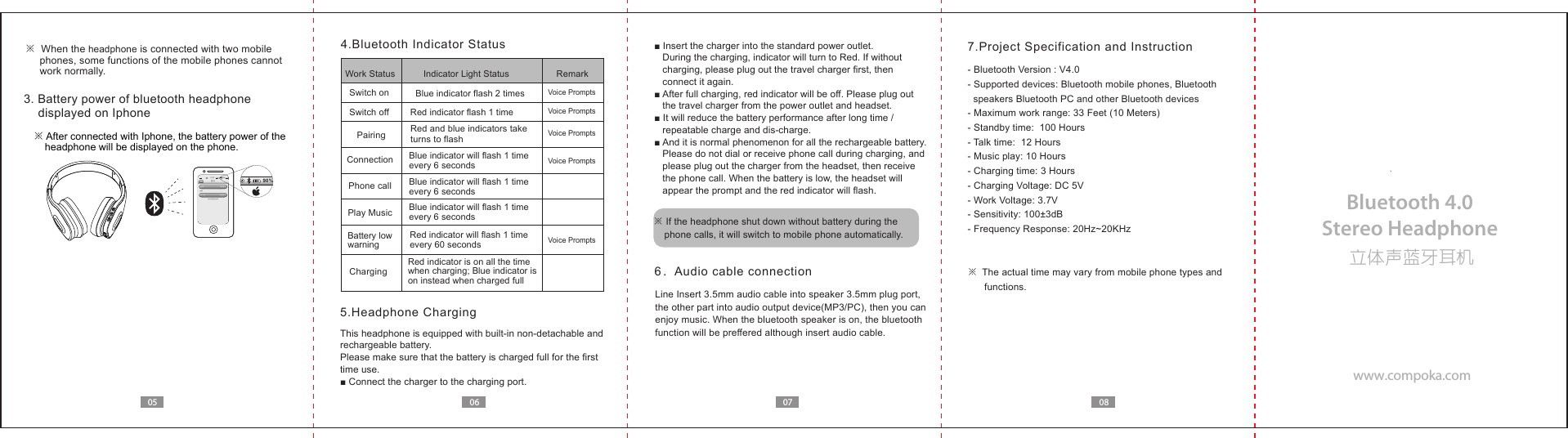

www.compoka.com立体声蓝牙耳机Bluetooth 4.0 Stereo Headphone 06 07 08057.Project Specification and Instruction- Bluetooth Version : V4.0- Supported devices: Bluetooth mobile phones, Bluetooth   speakers Bluetooth PC and other Bluetooth devices- Maximum work range: 33 Feet (10 Meters)- Standby time:  100 Hours- Talk time:  12 Hours- Music play: 10 Hours- Charging time: 3 Hours- Charging Voltage: DC 5V- Work Voltage: 3.7V- Sensitivity: 100±3dB - Frequency Response: 20Hz~20KHz※  The actual time may vary from mobile phone types and      functions.3. Battery power of bluetooth headphone     displayed on Iphone※ After connected with Iphone, the battery power of the     headphone will be displayed on the phone.4.Bluetooth Indicator Status5.Headphone ChargingThis headphone is equipped with built-in non-detachable and rechargeable battery.Please make sure that the battery is charged full for the first time use.■ Connect the charger to the charging port.※  When the headphone is connected with two mobile      phones, some functions of the mobile phones cannot      work normally.10:30 90%KBJ-101N蓝牙现为可被发现状态设备已连接ON/OFF蓝牙通用 90%6.Audio cable connection■ Insert the charger into the standard power outlet.    During the charging, indicator will turn to Red. If without    charging, please plug out the travel charger first, then    connect it again. ■ After full charging, red indicator will be off. Please plug out   the travel charger from the power outlet and headset.■ It will reduce the battery performance after long time /    repeatable charge and dis-charge.■ And it is normal phenomenon for all the rechargeable battery.    Please do not dial or receive phone call during charging, and    please plug out the charger from the headset, then receive    the phone call. When the battery is low, the headset will    appear the prompt and the red indicator will flash.Line Insert 3.5mm audio cable into speaker 3.5mm plug port,the other part into audio output device(MP3/PC), then you can enjoy music. When the bluetooth speaker is on, the bluetooth function will be preffered although insert audio cable. Red indicator will flash 1 time every 60 secondsChargingWork Status  Indicator Light Status RemarkSwitch on Blue indicator flash 2 timesSwitch off Red indicator flash 1 timeConnection Blue indicator will flash 1 time every 6 secondsPhone call Blue indicator will flash 1 time every 6 secondsBlue indicator will flash 1 time every 6 secondsPlay MusicBattery low  warningPairing  Red and blue indicators take turns to flash Voice PromptsVoice PromptsVoice PromptsVoice PromptsVoice PromptsRed indicator is on all the time when charging; Blue indicator is on instead when charged full※ If the headphone shut down without battery during the     phone calls, it will switch to mobile phone automatically.

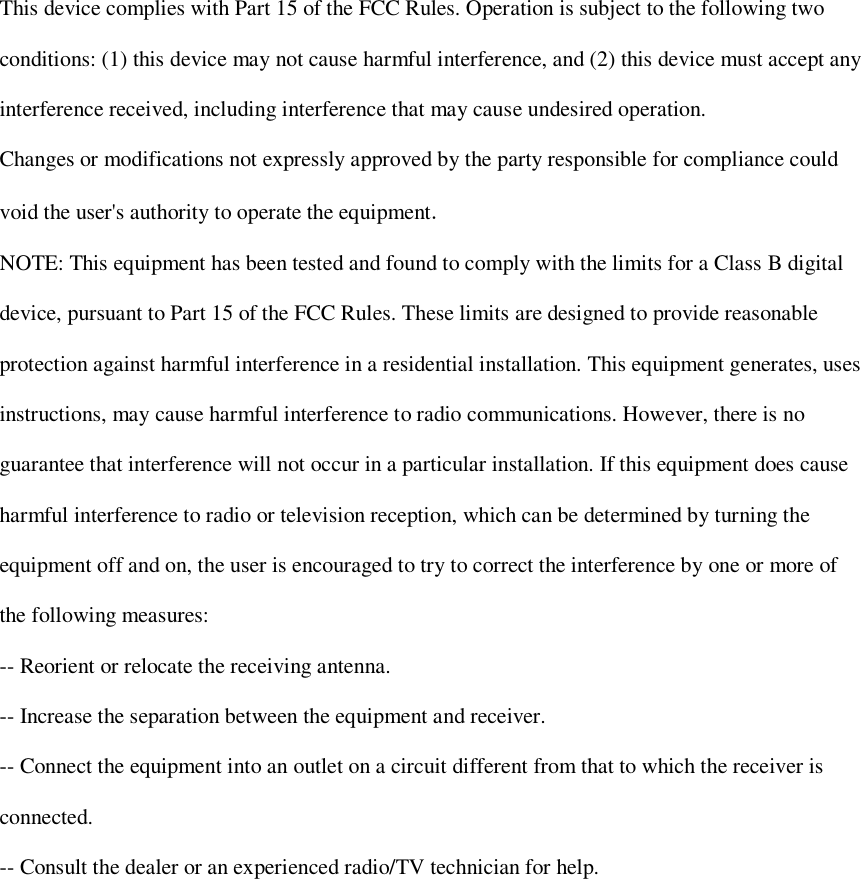

   This device complies with Part 15 of the FCC Rules. Operation is subject to the following two  conditions: (1) this device may not cause harmful interference, and (2) this device must accept any  interference received, including interference that may cause undesired operation.  Changes or modifications not expressly approved by the party responsible for compliance could  void the user's authority to operate the equipment.  NOTE: This equipment has been tested and found to comply with the limits for a Class B digital  device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable  protection against harmful interference in a residential installation. This equipment generates, uses  instructions, may cause harmful interference to radio communications. However, there is no  guarantee that interference will not occur in a particular installation. If this equipment does cause  harmful interference to radio or television reception, which can be determined by turning the  equipment off and on, the user is encouraged to try to correct the interference by one or more of  the following measures:  -- Reorient or relocate the receiving antenna.  -- Increase the separation between the equipment and receiver.  -- Connect the equipment into an outlet on a circuit different from that to which the receiver is  connected.  -- Consult the dealer or an experienced radio/TV technician for help.
