Configuration Parameters
By default, the vehicle type is set to property-carrying vehicle
with trailer.
To change the setting from the Configuration Parameters
screen, use the arrows to scroll to the Property with trailer
line. Tap the line. RoadLog displays the Configuration Type
screen.
Setting the Vehicle Type Automatically
From the Configuration Type screen, select Automatic.
RoadLog displays the Fleet Key Configuration Value
screen showing the Vehicle Type that was entered in the
Fleet Software for the vehicle.

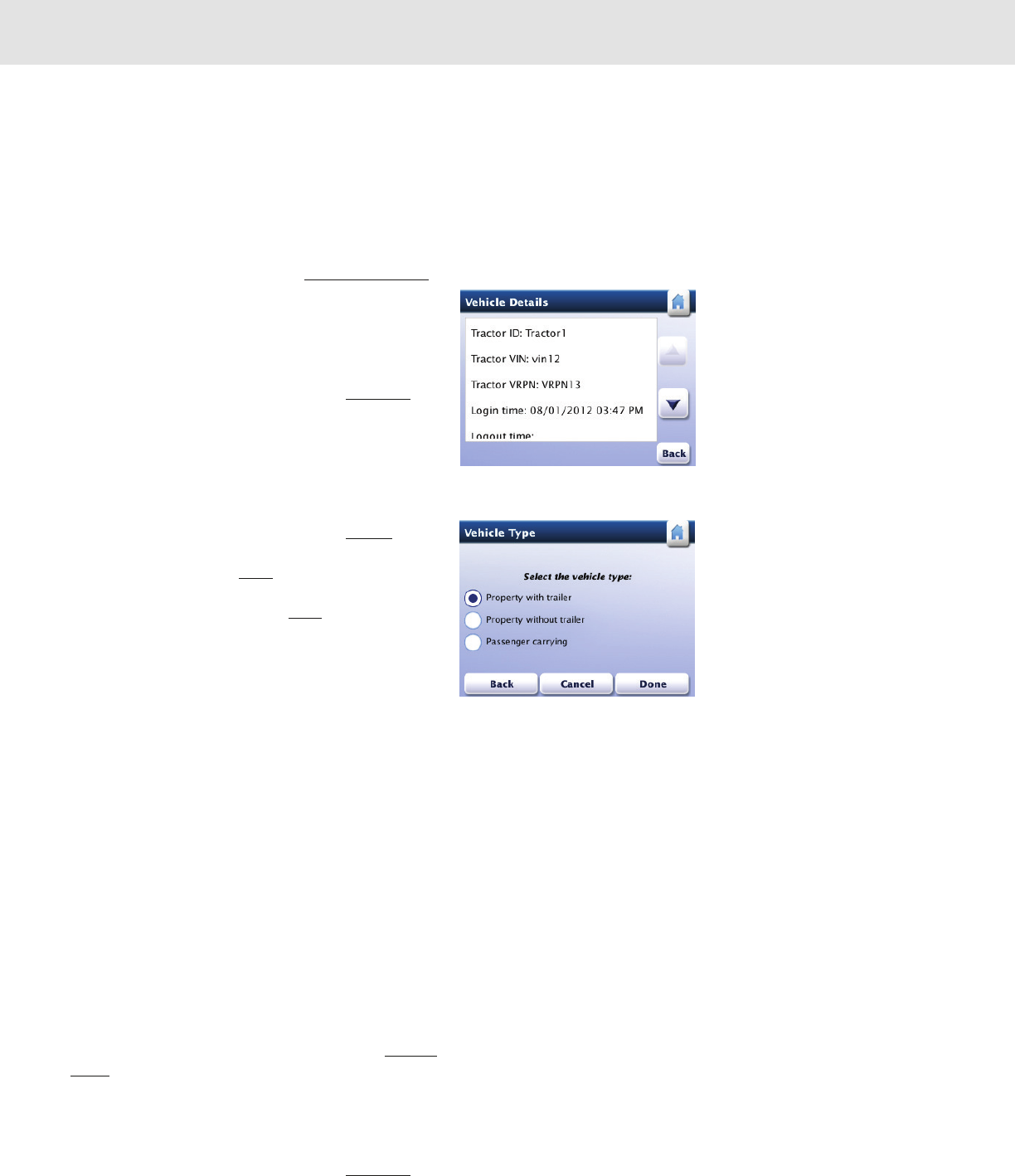

Setting the Vehicle Type Manually
From the Configuration Type screen, select Manual.
RoadLog displays the Vehicle Type screen. Tap the
selection you want and tap Done to confirm the selection.
Tap the selection you want and tap Done to confirm the
selection. RoadLog returns to the Configuration
Parameters screen.
Setting the Printing Speed
RoadLog’s built-in printer can be set to print at low speed or
high speed. At low speed, the RMS current consumption is
approximately 1A. At high speed the RMS current
consumption is approximately 3A.
CAUTION: Before choosing high printing speed, be certain
your line can supply the 3A necessary. Insufficient power can
cause the unit to shut down, data loss and other
unpredictable behavior. If uncertain of your power supply,
consult the vehicle manufacturer.
By default, the printing speed is set to low speed.
To change the printing speed from the Configuration
Parameters screen, use the arrows to scroll to the Printing
speed line. Tap the line. RoadLog displays the
Configuration Type screen.
Setting the Printing Speed Automatically
From the Configuration Type screen, select Automatic.
RoadLog displays the Fleet Key Configuration Value
screen showing the printing speed for the vehicle that was
entered in the Fleet Software.
Vehicle Type
Vehicle Details
72
Configuration Parameters

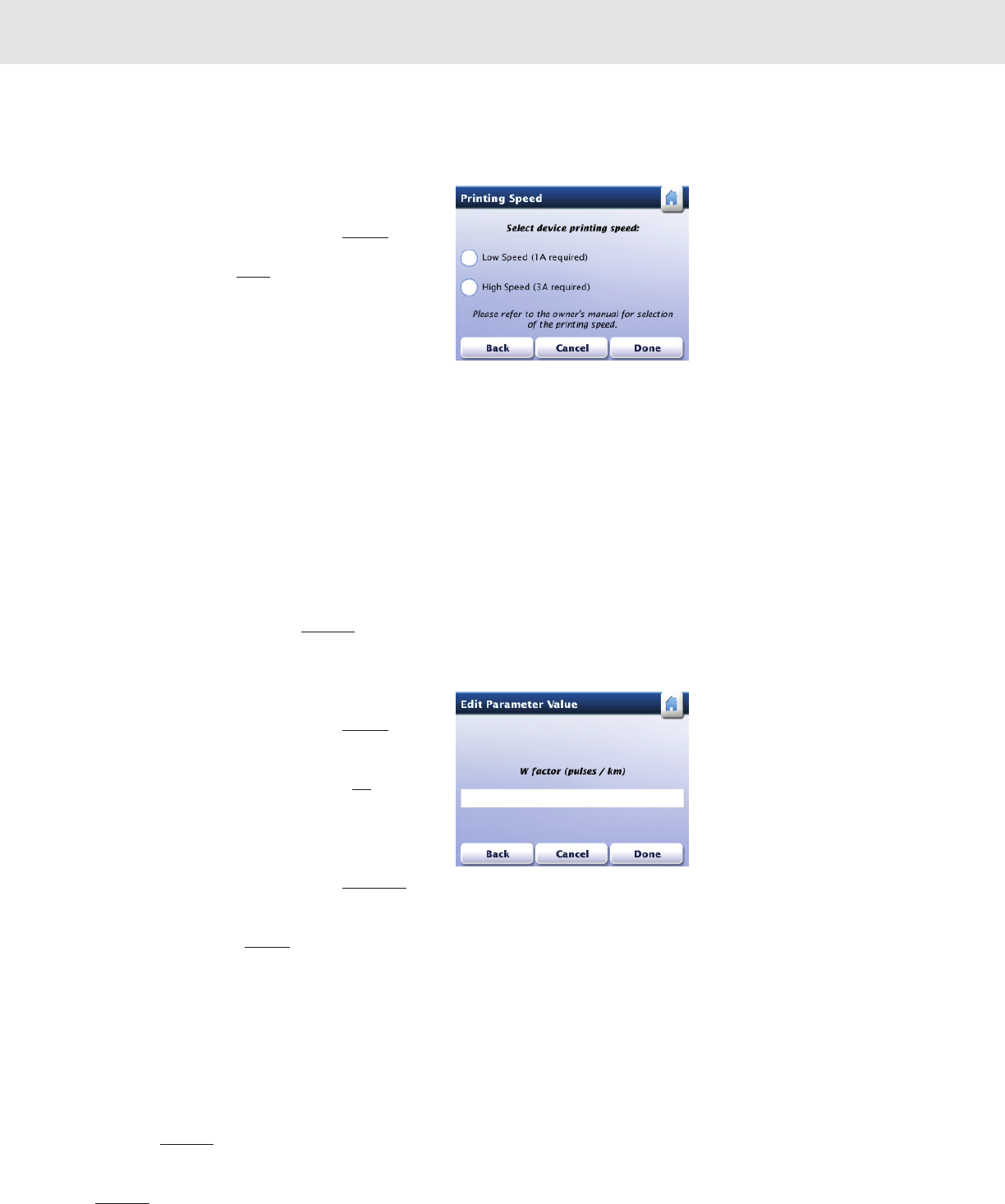

Setting the Printing Speed Manually
From the Configuration Type screen, select Manual.
RoadLog displays the Printing Speed screen. Tap the
selection you want and tap Done to confirm the selection.
RoadLog returns to the Configuration Parameters screen.
Setting the W Factor
The vehicle’s W factor is the number of pulses that are
generated by the vehicle speed sensor when the vehicle
travels a distance of 1 kilometer. The vehicle W factor is
used only when RoadLog is synchronized with the vehicle
using the pulse inputs interface, which is uncommon. In this
case, the W factor is used by RoadLog to calculate the
vehicle distance travelled.
By default, the W factor parameter is set to 8,000 pulses/
km. There are three ways to change the W factor value. To
change the W factor from the Configuration Parameters
screen, use the arrows to scroll to the W factor line. Tap the
line. RoadLog displays the Configuration Type screen.
Setting the W Factor Manually
From the Configuration Type screen, select Manual.
RoadLog display the Edit Parameters Value screen. Tap
the editable field to enter the W factor. RoadLog displays the
popup keyboard. Type in the W factor and tap Go. RoadLog
returns to the Configuration Parameters screen.
Setting the W Factor Automatically
From the Configuration Type screen, select Automatic.
RoadLog displays the Fleet Key Configuration Value
screen showing the W factor that was entered in the Fleet
Software for the vehicle. Tap Accept. RoadLog returns to
the Configuration Parameters screen.
Setting the W Factor by Measurement
If you are not certain of the vehicle’s W factor, you can
determine it by driving and entering the initial and final
odometer values.
From the Configuration Parameters screen, use the arrows
to scroll to the W factor line. Tap the line. RoadLog displays
the Configuration Type screen.

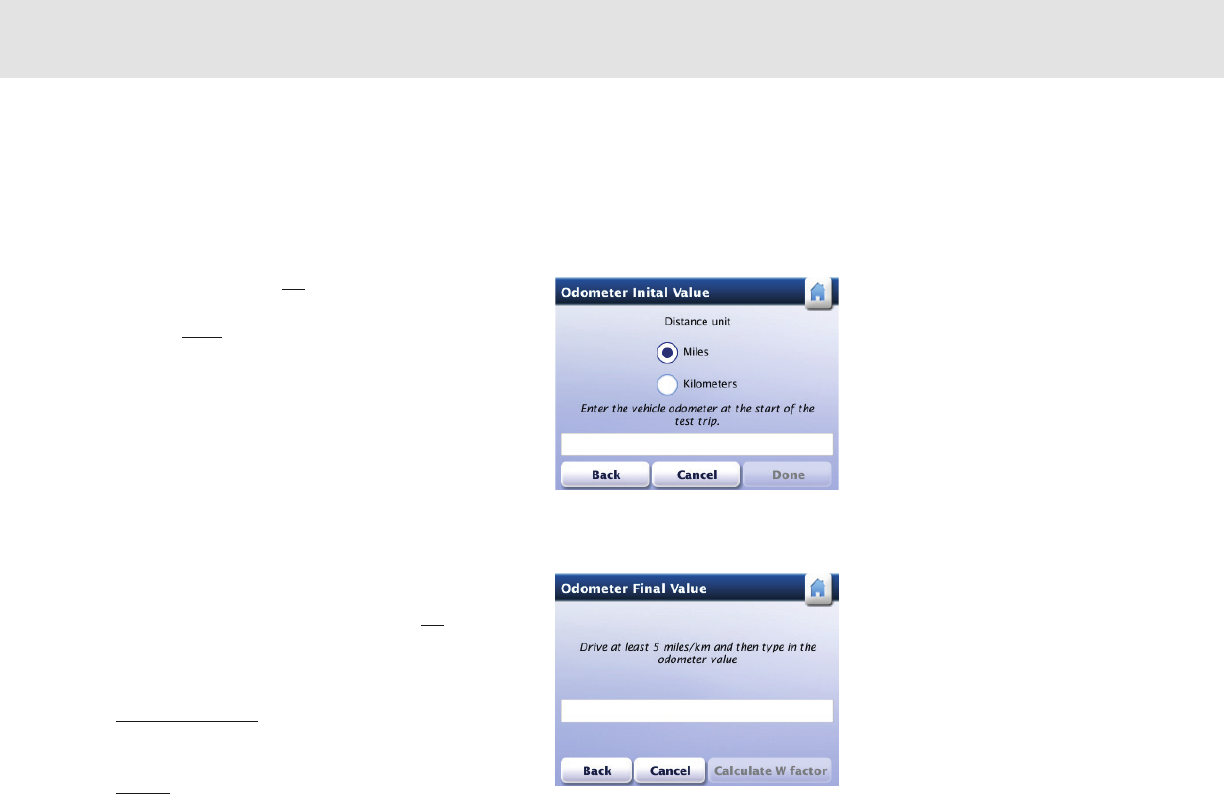

Tap Measure. RoadLog displays the Odometer Initial Value
screen. Select miles or kilometers and tap the editable field
Set Printing Speed Manually
Enter W Factor Manually
73
Configuration Parameters
to enter the odometer value at the start of the test trip.
RoadLog displays the Keyboard screen.Type in the vehicle
odometer reading and tap Go. RoadLog displays the
Odometer Initial Value screen with the value for odometer
entered. Tap Done. RoadLog displays the Odometer Final
Value screen.
Drive the vehicle at least 5 miles.
Note: The longer the trip distance, the more accurate
the W factor measurement is.
At the end of the test trip, when the vehicle is stopped, tap
the editable field in the Odometer Final Value screen.
RoadLog displays the Keyboard screen.
Type in the vehicle odometer reading and tap Go. RoadLog
displays the Odometer Final Value screen with the value for
odometer entered.
Tap Calculate W factor. RoadLog calculates the W factor
and displays the W Factor Value screen.
Tap Accept. RoadLog displays the W Factor Value screen
showing the new setting for the W factor parameter.
Note: As the Vehicle is driven, RoadLog will compare
distance measured by GPS against distance
calculated using the W factor. If there is a significant
discrepancy between the distance calculated by the
use of W factor and the GPS coordinates, the system
will go into the “no ECM” mode, and calibration will
need to be repeated.
Odometer Final Value
Odometer Initial Value
74
Configuration Parameters
Saving new Configuration Parameters to
the Fleet Key
Whenever vehicle parameters are entered into RoadLog in
the vehicle, you’ll want to transfer those parameters to the
RoadLog Fleet Software.
To save new configuration parameters to the Fleet Key,
insert the Fleet Key into RoadLog.
From the Configuration Parameters screen, tap Update
all. Then tap Save. RoadLog displays the Configuration
Person Name screen.
Tap the first name field to enter the first name of the person
updating the Configuration Parameters. RoadLog displays
the Keyboard screen.
Type in the first name and tap Go. RoadLog displays the
Configuration Person Name screen with the first name
entered. Enter the last name and tap Go.
Tap Done. RoadLog displays the Fleet Key Update screen.
Tap Yes to update the values saved on the Fleet Key, or tap
No to save the changes to RoadLog, but leave the values
unchanged on the Fleet Key.
RoadLog displays the Transfer in Progress screen during
data transfer and the Configuration Update Completed
screen when data transfer is completed.
Tap OK. RoadLog displays the Configuration Completed
screen to indicate that the Configuration process has been
completed successfully.
Unplug the Fleet Key. RoadLog displays the Menu screen.
Note: The Menu screen serves as the home screen when a
company is logged in but no Drivers are logged in. The
Menu screen can also be reached by tapping Menu on the
Driver Overview screen.

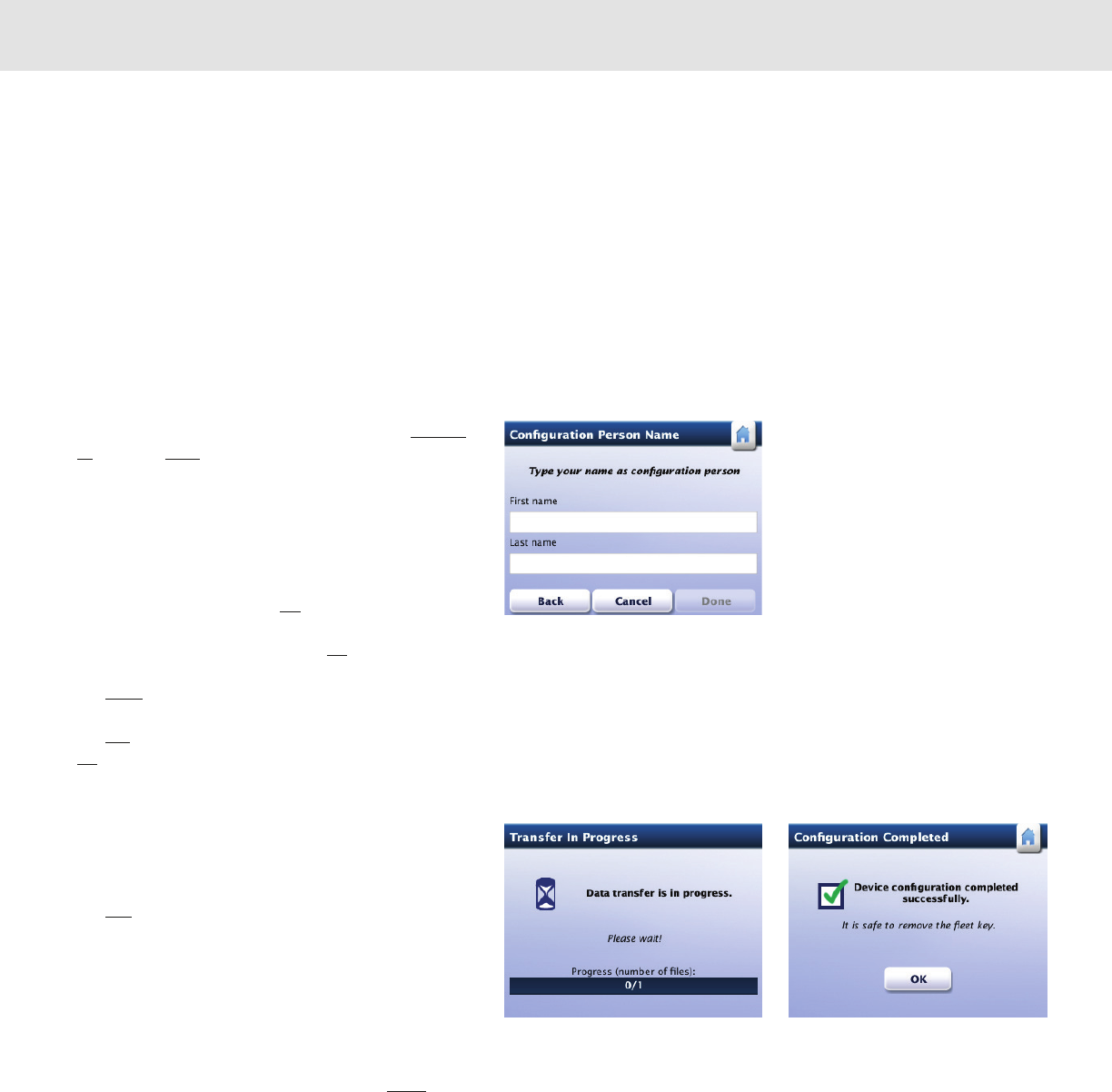

Configuration Person Name
Transfer in progress Configuration Completed
75
The User Settings Menu
5. The User Settings
Menu

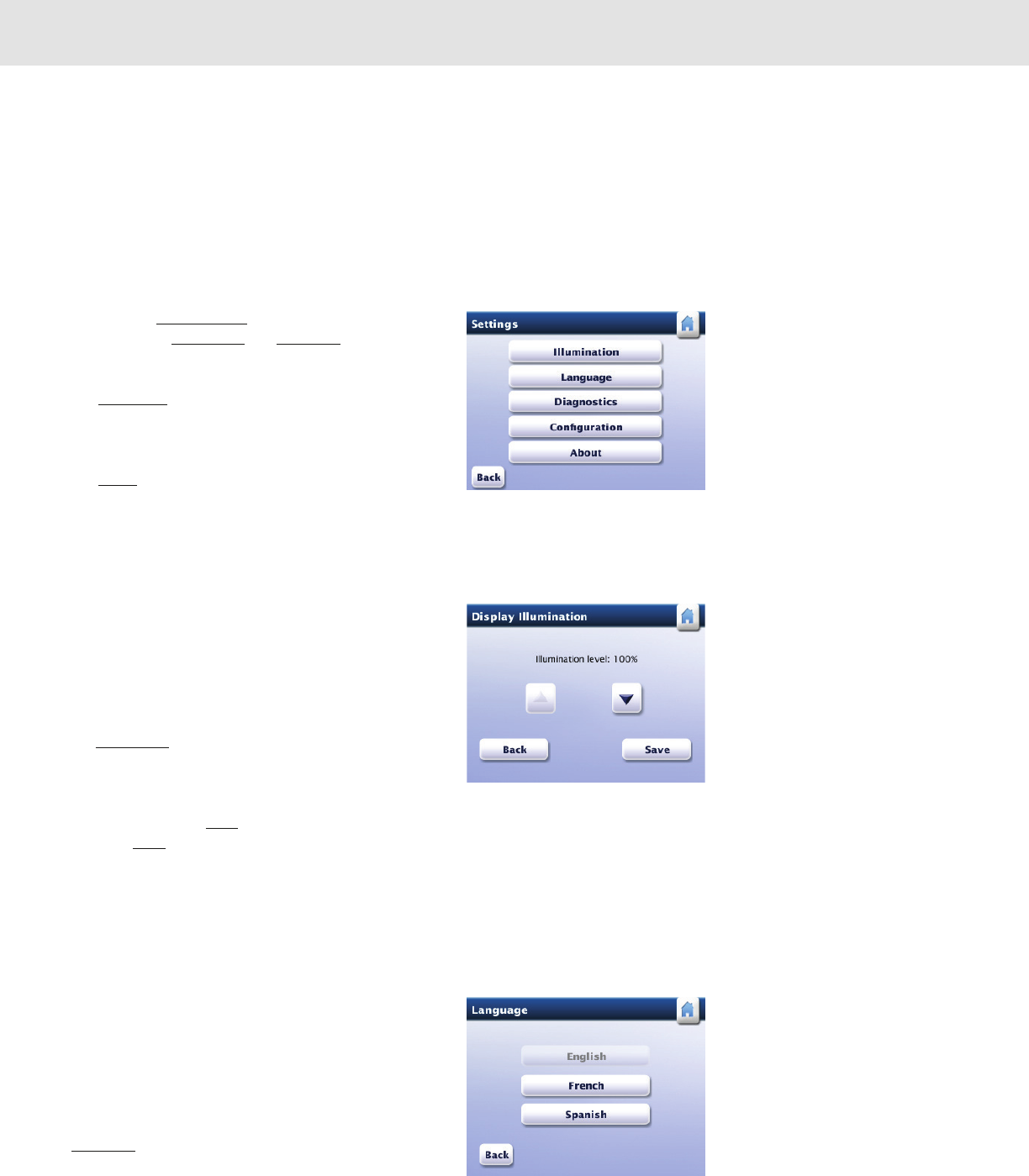

In addition to Configuration, the Settings menu screen
choices include Illumination and Language buttons that
allow the user to customize the display settings.
The Diagnostic button allows users to see the diagnostic
events, check on the diagnostic status and run the memory
self test.
The About button takes you to a display of the Serial
Number, Hardware Version (HW) and Software Version (SW)
number of your RoadLog. The About screen also provides a
link to legal information about the RoadLog system.
Adjusting Illumination
At first power up, the screen illumination is set to maximum
brightness.
To adjust the screen brightness from the Settings screen
tap Illumination. RoadLog displays the Display Illumination
screen.
Use the up and down arrows to adjust screen illumination to
the desired level. Tap Save to save the current illumination
level. Tap Back to go to the Settings screen.
Note: If the RoadLog vehicle synchronization calibration
parameter is configured to J1939, and it receives illumination
level data from the vehicle, RoadLog will use the vehicle
illumination setting instead of the RoadLog user setting.
Change Language
RoadLog uses English as the default language at first start
up.
To change the language from the Settings screen, tap
Language. RoadLog displays the Language screen.
Select the new language by tapping the corresponding
button. RoadLog sets the selected language and returns to
the Settings screen.
Settings
Display Illumination
Language
76
The User Settings Menu
Diagnostic Functions

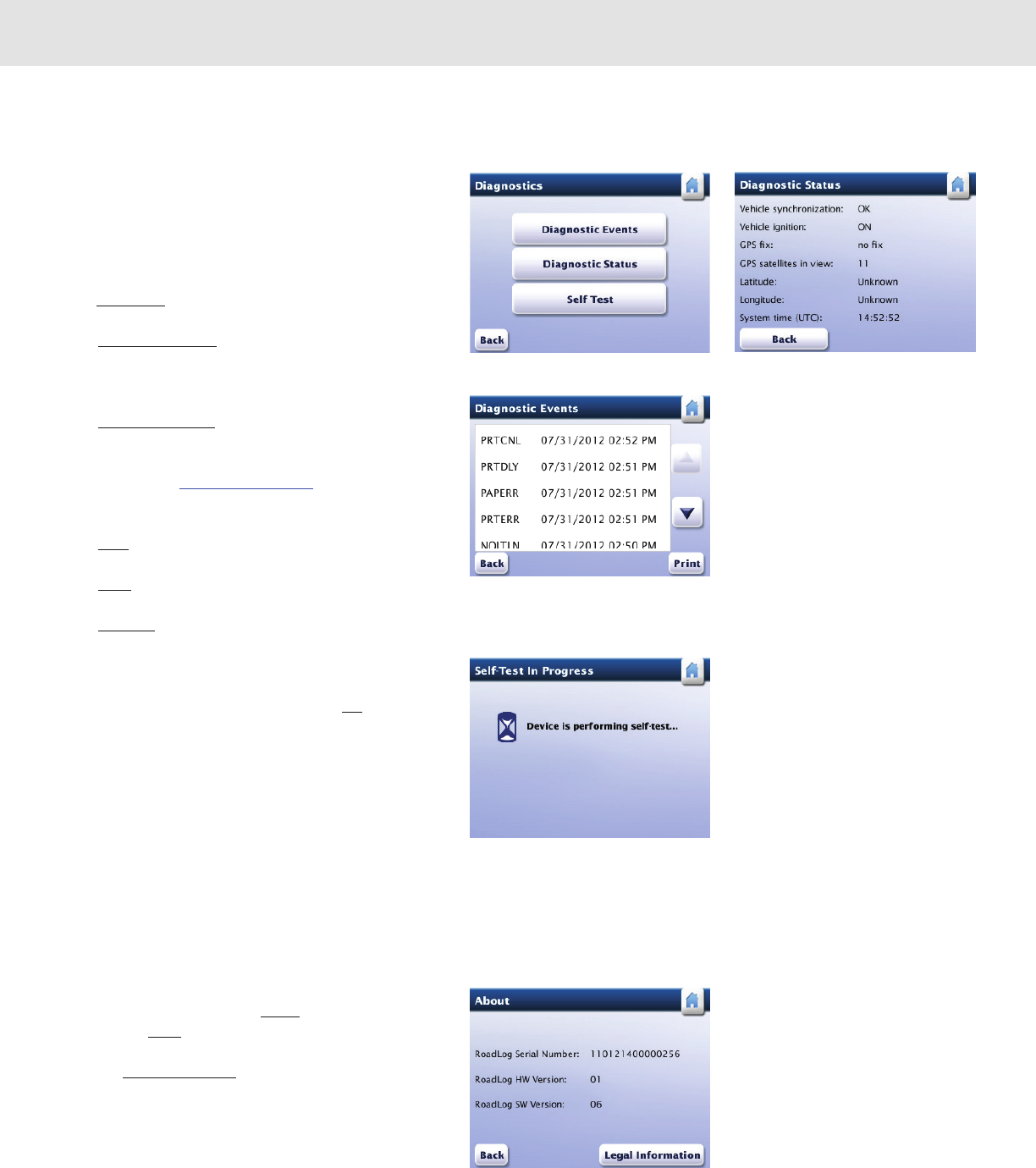

You can view RoadLog’s diagnostic status, view historical
diagnostic events or perform a device self-test.
To perform a diagnostic function from the Settings screen
tap Diagnostic. RoadLog displays the Diagnostics screen.
Tap Diagnostic Status to display the Diagnostic Status
screen showing the status of Vehicle synchronization,
ignition, GPS, position and time.
Tap Diagnostic Events to display the Diagnostic Events
screen showing the history of diagnostic events.
Note: See Diagnostic events list for explanation of the
diagnostic codes.
Tap Print to print the diagnostic events list.
Tap Back to return to the Diagnostics screen.
Tap Self-Test to start a self-test. RoadLog displays the Self-
Test in Progress screen.
When the self-test is successfully completed, RoadLog
displays the Self-Test Passed screen. Tap OK to return to
the Diagnostics screen.
Note: If the self-test fails, RoadLog displays the
Self-Test Failed screen. In this case, the device is not
operational and will need to be serviced by a factory
certified service provider.
About – RoadLog Device Information
You can view the Serial Number, Hardware Version (HW) and
Software Version (SW) number of your RoadLog.
From the Settings screen tap About to display the About
screen. Tap Back to return to the Settings screen. You can
also view legal information from the About screen by
tapping Legal Information.
Diagnostics
Diagnostic Events
Self-Test in Progress
About
Diagnostic Status
77
Daily Operations
6. Daily Operations
Once RoadLog has been installed, the Company has been
logged in and first start up procedures have been
completed, RoadLog is ready for daily operational use.
When you start the engine, RoadLog will automatically go
from sleep mode to active mode.
Note: If no Driver is logged in at start up, you’ll see
the Menu screen. From here you can log in, review the
DVIR or view the RoadLog settings.
Driver Log In
At the start of each workday, Drivers must log in to RoadLog
in order to record their duty status and activities for that day.

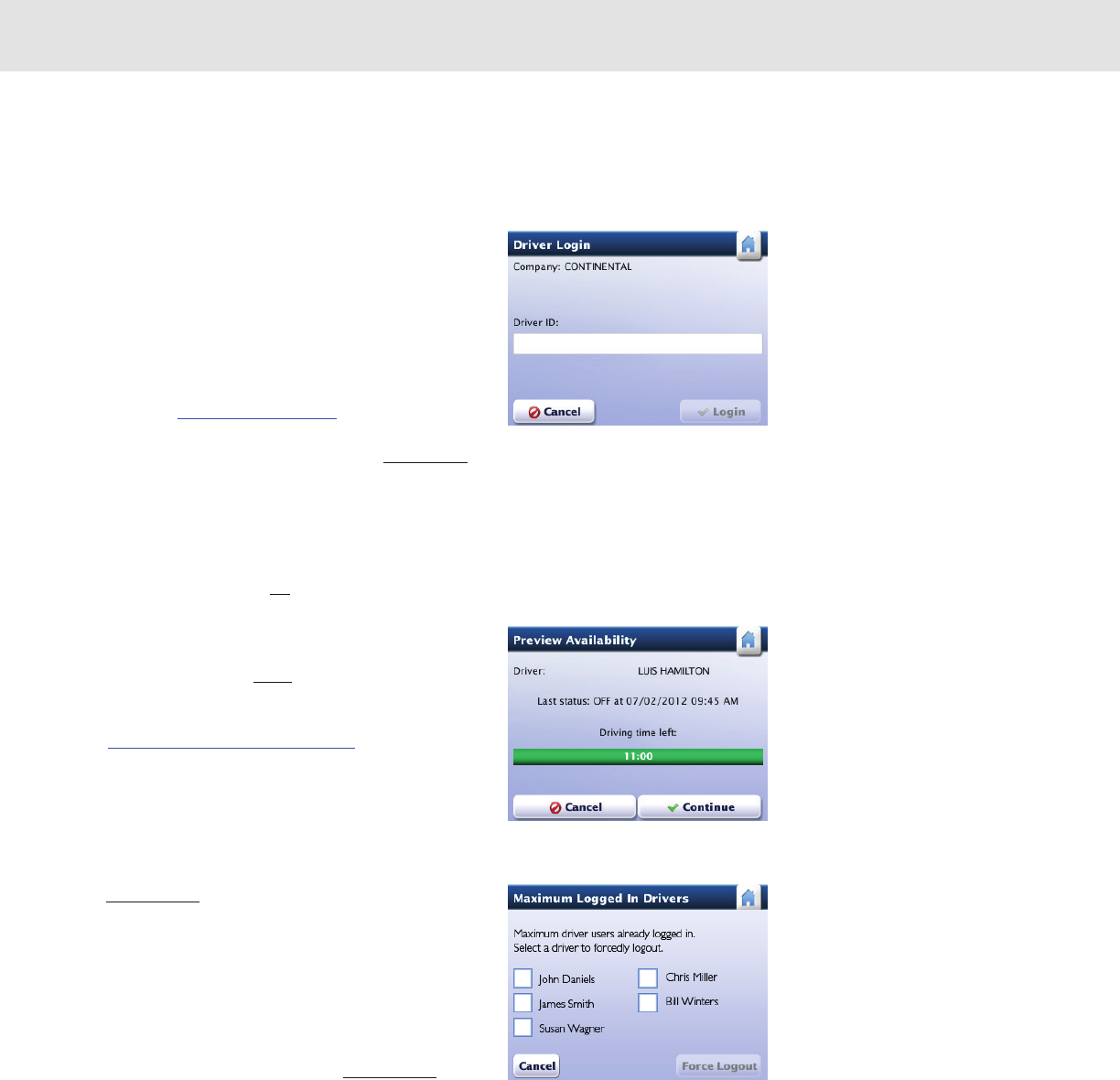

Drivers can log in automatically with their Driver Key or
manually.
Automatic Log In with the Driver Key
To log in to RoadLog automatically, insert your Driver Key
into the USB port. RoadLog displays the Preview
Availability screen. Data displayed includes:
• Driver: Name of the Driver logging in.
• Last status: Last duty status recorded for the Driver
and the date and time when the duty status was set.
• Driving time left: Remaining driving time allowed for
the Driver.
• Availability reset: Time of the day when the HOS
calculations will be reset.
Note: If it’s your first log in, or RoadLog detects there

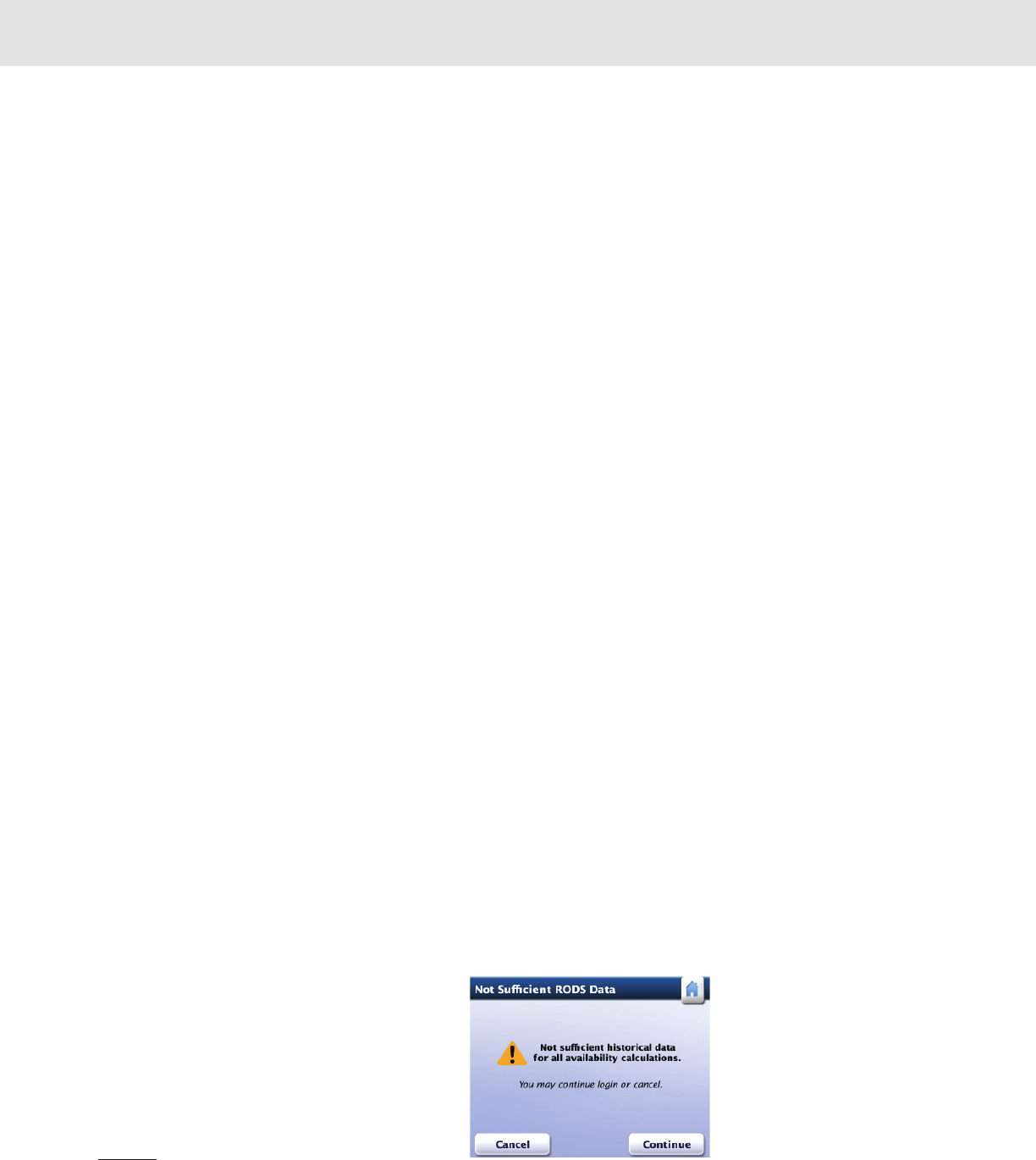

is not sufficient historical data for HOS availability
calculation, RoadLog will not be able to calculate
“Driving time left,” and it displays the Not Sufficient
RODS Data screen. It will take a 24 hour period from
the first Driver log in for the system to be able to
calculate “Driving time left” and “Daily Duty Availability.”
It will take 34 consecutive hours of “off duty” time to
show “Weekly duty availability.”
Tap Continue to continue. RoadLog displays the Initial
Status screen. Not Sufficient RODS Data
78
Daily Operations
Enter your Status
Tap the appropriate button for your current status to let the
system know if you’re coming on as a Driver, going On
Duty, going in the Sleeper Berth, or driving for Personal
Use.
Note: If you’re logging in as a team, one person must
select Driver and the other person(s) On Duty.
RoadLog will record HOS data for each person based
on your duty status selections.
Your next step will depend on whether you are the first Driver
to log in and whether there are Trailers and/or Shipping
Documents assigned to the vehicle. In either case, you’ll
need to perform all necessary DVIR procedures when
starting your trip.
If you are the first driver to log in as “Driving,” and current
resources are assigned in RoadLog, you must choose
whether to keep or discard the Trailers and/or Shipping
Documents that have been assigned as current resources.
After making your choices, you’ll perform a DVIR.
If Trailers and/or Shipping Documents are already confirmed
by a previous Driver, you’ll be asked to “Keep the current
resources,” to confirm that resources have not changed.
After confirming the resources, you’ll perform a DVIR.
Automatic status updates
Once you’ve logged in, RoadLog will update your status
automatically – there’s no need to select a status change
from the Driver Overview options menu.
When you travel over 2 miles, RoadLog will automatically put
you in “Driving” (D) status.
When the vehicle is stationary for five minutes, RoadLog will
automatically put you in “On Duty” status (ON).
Note: You can manually select “Sleeper Berth” (SB) or
“Personal Use” (PS) from the Driver Overview options
menu, whenever the vehicle is not traveling.

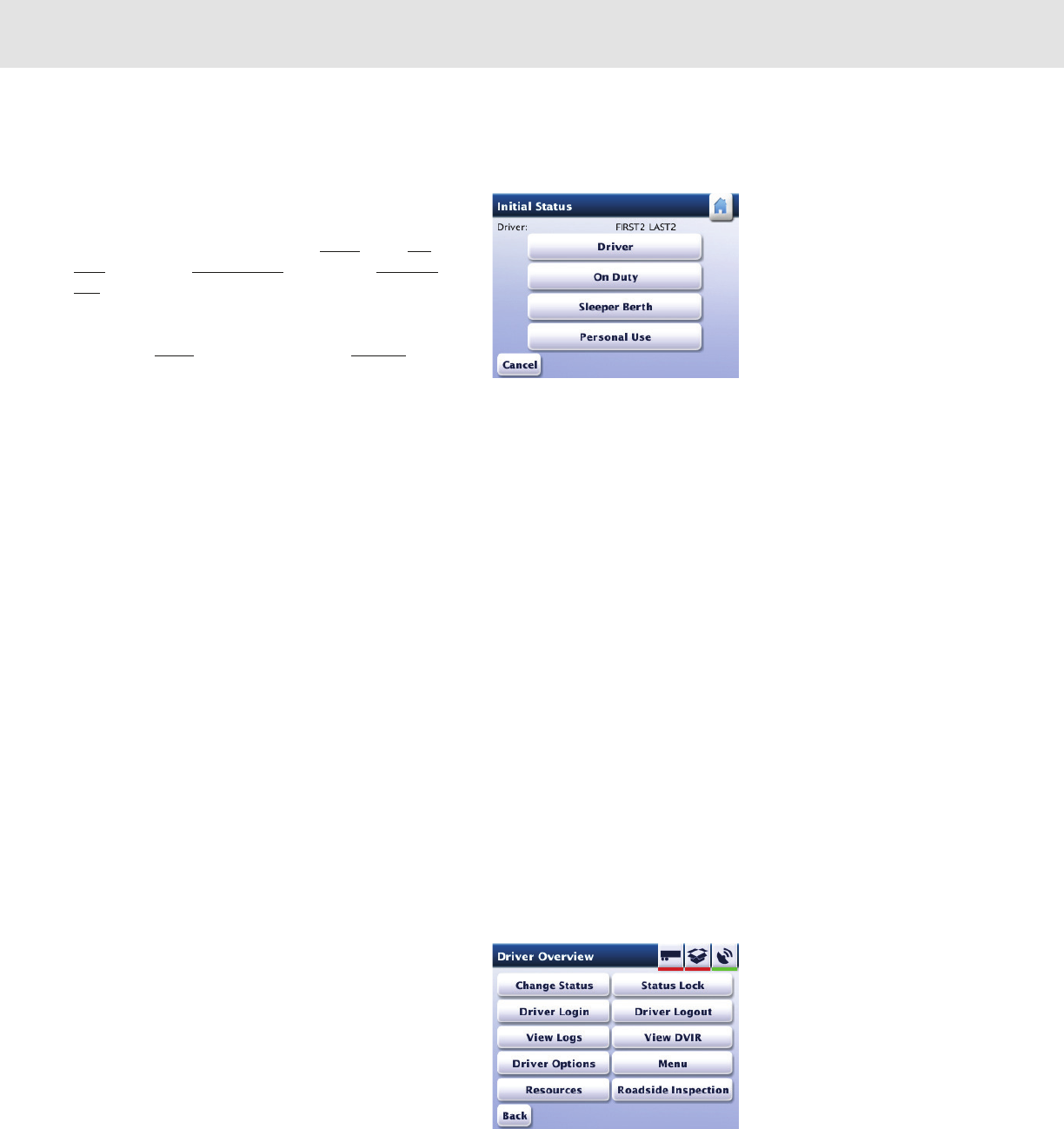

Initial Status
Driver Overview Options
79
Daily Operations
Vehicle motion screen
When vehicle motion is detected, the Vehicle Motion screen
is displayed regardless of whether or not a Driver is logged
in.
Managing Resources
If current resources are assigned in RoadLog, and you are
the first Driver to log in, RoadLog displays Keep Current
Resources screen that lists the trailers or Shipping
Documents as current resources.
If you want to keep current resources, tap Yes. Tap No if you
want to discard them.
If you are not the first Driver to Log In:
From the Driver Overview Options menu screen, tap
Resources. Confirm your Resources, including Assets
(tractor and trailers), Shipping Documents (Bills of Lading
or Manifest Numbers, Pro, etc. ) and Supporting
Documents (fuel receipts, meal receipts and vehicle wash
receipts, etc.), RoadLog displays Confirm DVIR Data
screen. Confirm your Data, then tap Next.
RoadLog will ask you to perform a DVIR inspection and
enter your findings.
If resources such as trailers or Shipping Documents do not
exist, you first need to add them.

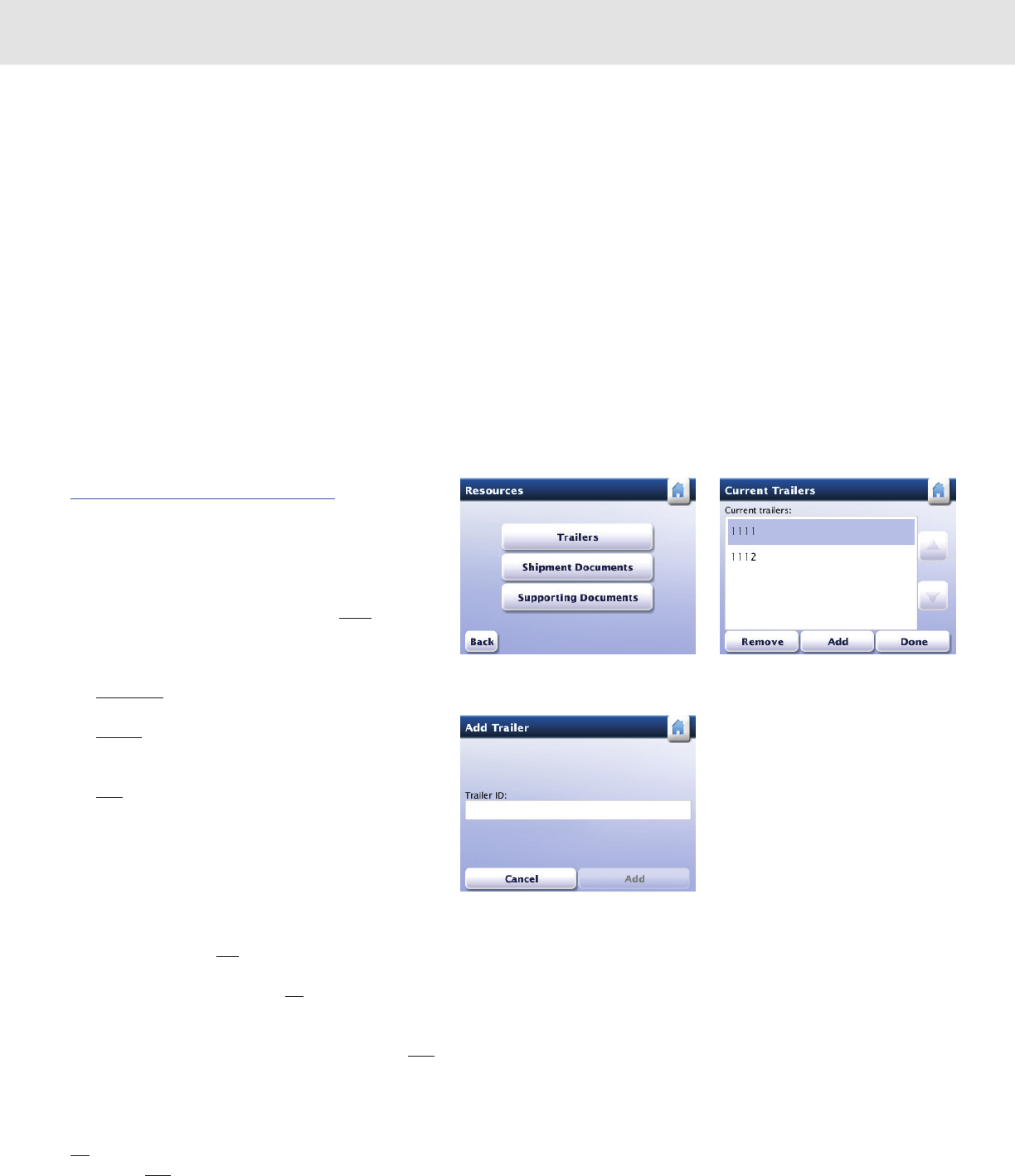

From the Driver Overview options menu screen, choose
Resources > Trailers > Add. In the Add Trailer screen, tap
the Trailer ID field to bring up the Keyboard. Type in your
Trailer information and tap Go. Tap Add to save Trailer info.
Follow the same procedure if no Shipment Documents exist.
From the Driver Overview options menu screen, choose
Resources > Shipping Documents > Add. In the Add
Shipping Document screen, tap the Shipping Document
Number field to bring up the Keyboard. Type in your
document information and tap Go. Tap Add to save
Shipping Document info.

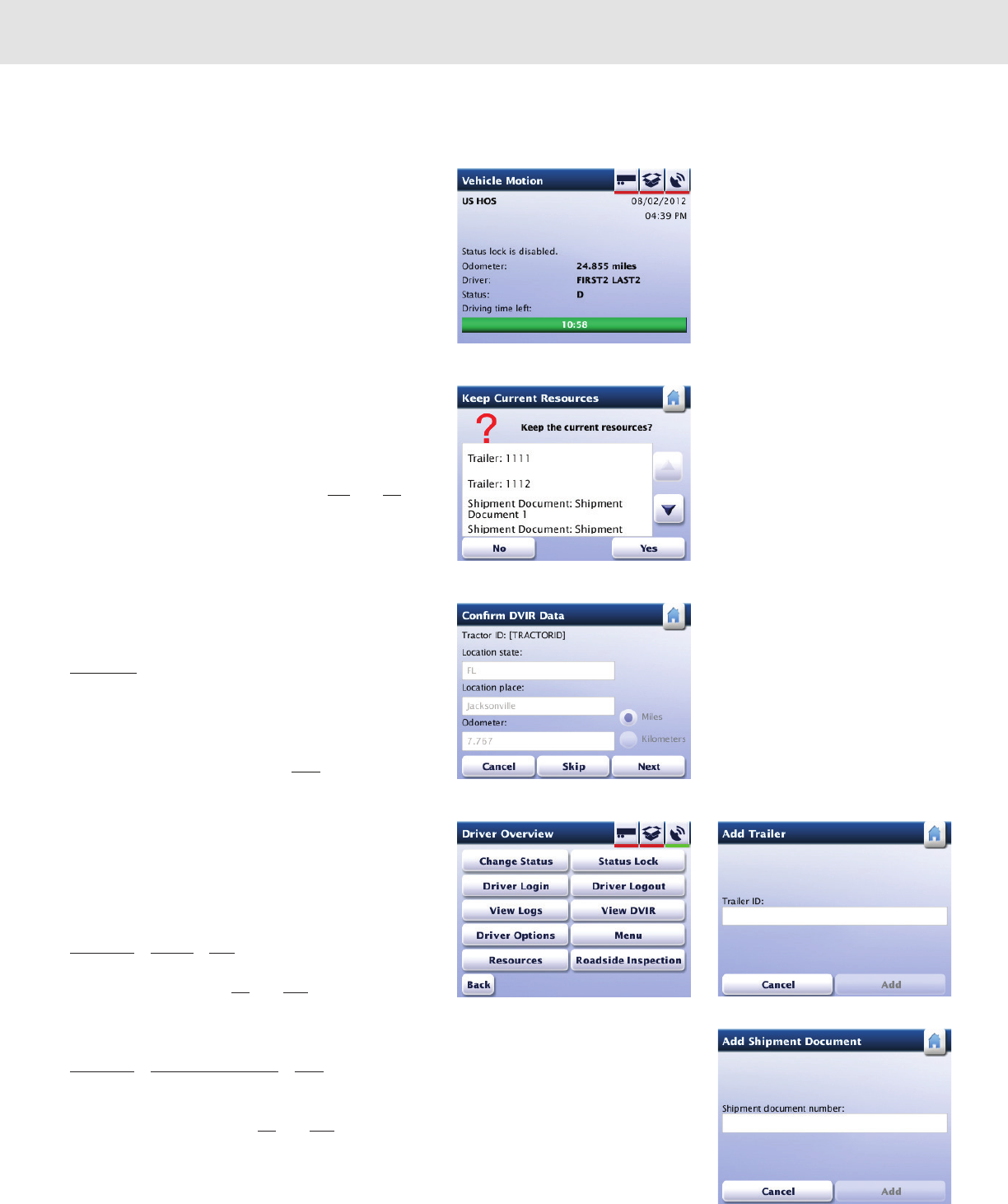

Vehicle Motion
Keep Current Resources
Confirm DVIR Data
Add Shipment Document
Add Trailer
Driver Overview options
80
Daily Operations
Manual Log In
If the Driver Key is not available, Drivers can log in manually.
Note: This is the EMERGENCY procedure in case the
Driver Key is lost or damaged.
To log in manually, Drivers must have already been entered
into the Fleet Software, and their identity must have already
been transferred from the Fleet Software to RoadLog via the
Fleet Key. See Company Data Transfer.
To log in manually from the Menu screen tap Driver Login.
RoadLog displays the Driver Login screen.
Tap the Driver ID field. RoadLog displays the Keyboard
screen.
Enter your Driver ID and tap Go (note Driver ID is CAP/
lowercase sensitive). RoadLog displays the Driver Login
screen.
Check your entry and tap Login. RoadLog displays the
Preview Availability screen. You can now follow the same
log in steps you would had you logged in with a Driver Key.
See: Automatic log in with the Driver Key.
Note: If you select Personal Use from the Initial
Status screen, and another Driver is already logged
under Personal Use, RoadLog displays the Force
Personal Use Driver Logout screen.
Tap Force Logout to continue log in under Personal Use.
The current Personal Use Driver will be logged out from
RoadLog.
Note: If five Drivers are currently logged in, and a new
Driver attempts to log in, RoadLog displays the
Maximum Logged In Drivers screen.
Select a Driver to force log out and tap Force Logout to
continue log in process. The selected Driver is now logged
out.
Preview Availability
Maximum Logged In Drivers
Driver Login
81
Daily Operations
Manual Location Entry
During log in, if RoadLog does not receive a sufficiently
strong GPS signal, it displays the Manual Location Entry
screen.

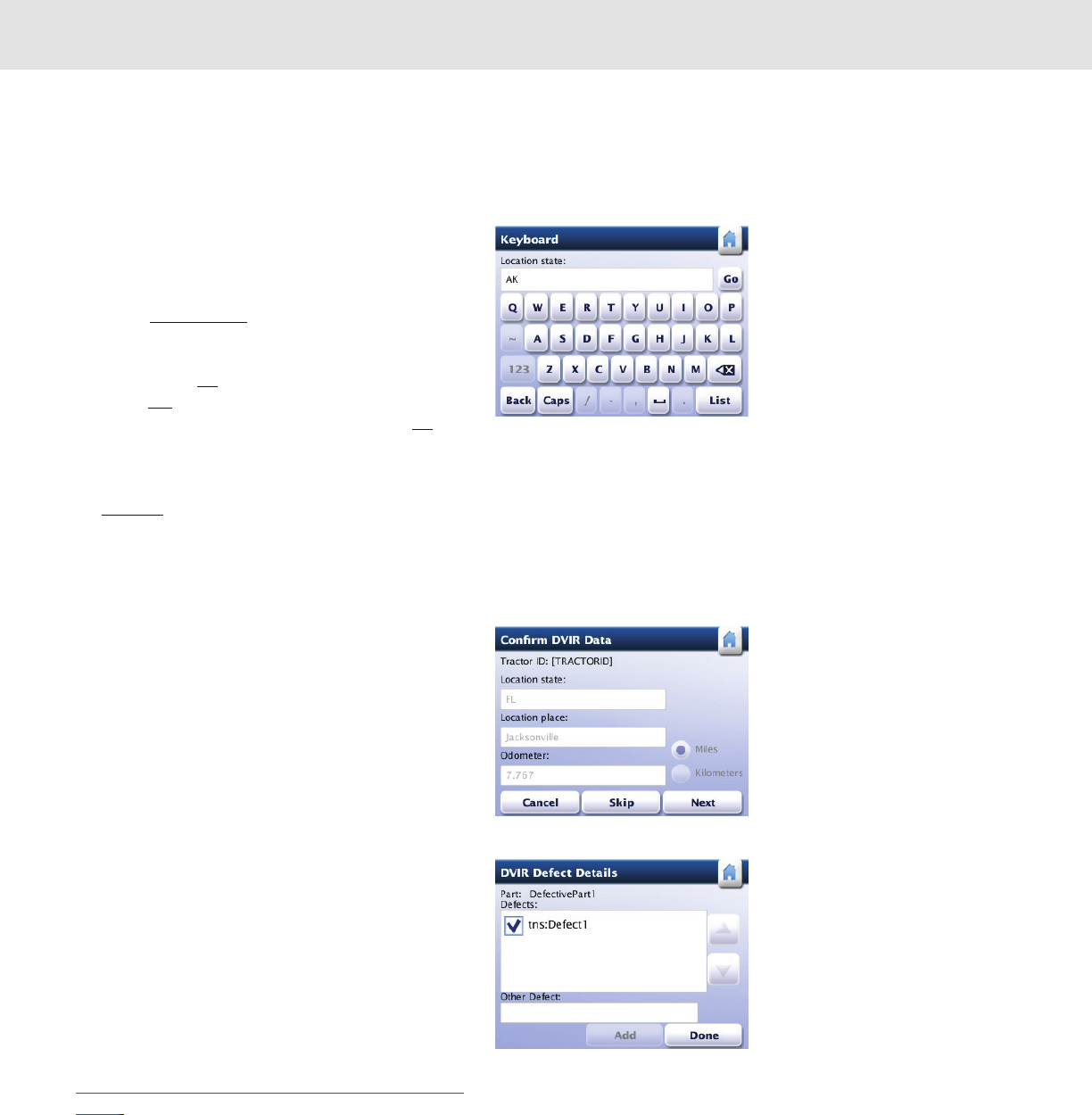

Tap on the Location state field to bring up the pop-up
keyboard. Tap the first letter(s) of your current state (the auto
complete feature suggests the first state that begins with the
typed letters). Tap Go if the suggested state is where you
are,or tap List to see other states matching the typed
letters. Pick your current state from the list and tap Go.
In Location place, enter the city or town closest to your
location, as you did your Location state. When complete,
tap Continue to continue the log in process.
Performing DVIRs at Log In and Log Out
At each log in or log out, RoadLog will prompt the Driver to
perform a DVIR. In the DVIR process, you will:
Confirm location and odometer reading.
Confirm defects and/or repairs to defects on the vehicle and
trailer(s).
Add any defects found during your inspection.
Confirm that there are no defects or need for repairs and
that the vehicle and trailer(s) are in good working order.
When logging in, you will be prompted to begin a DVIR after
confirming resources. When logging out, you will be
prompted to begin a DVIR after viewing your logs.
During roadside inspections, you will be able to print DVIR
reports directly from RoadLog’s built-in thermal printer, or
download and transfer DVIR records via USB.
For procedures on creating and printing DVIRs see Creating
DVIRs.
Confirm DVIR Data
DVIR Defect Details
Location entry
82
Daily Operations
Driver Overview

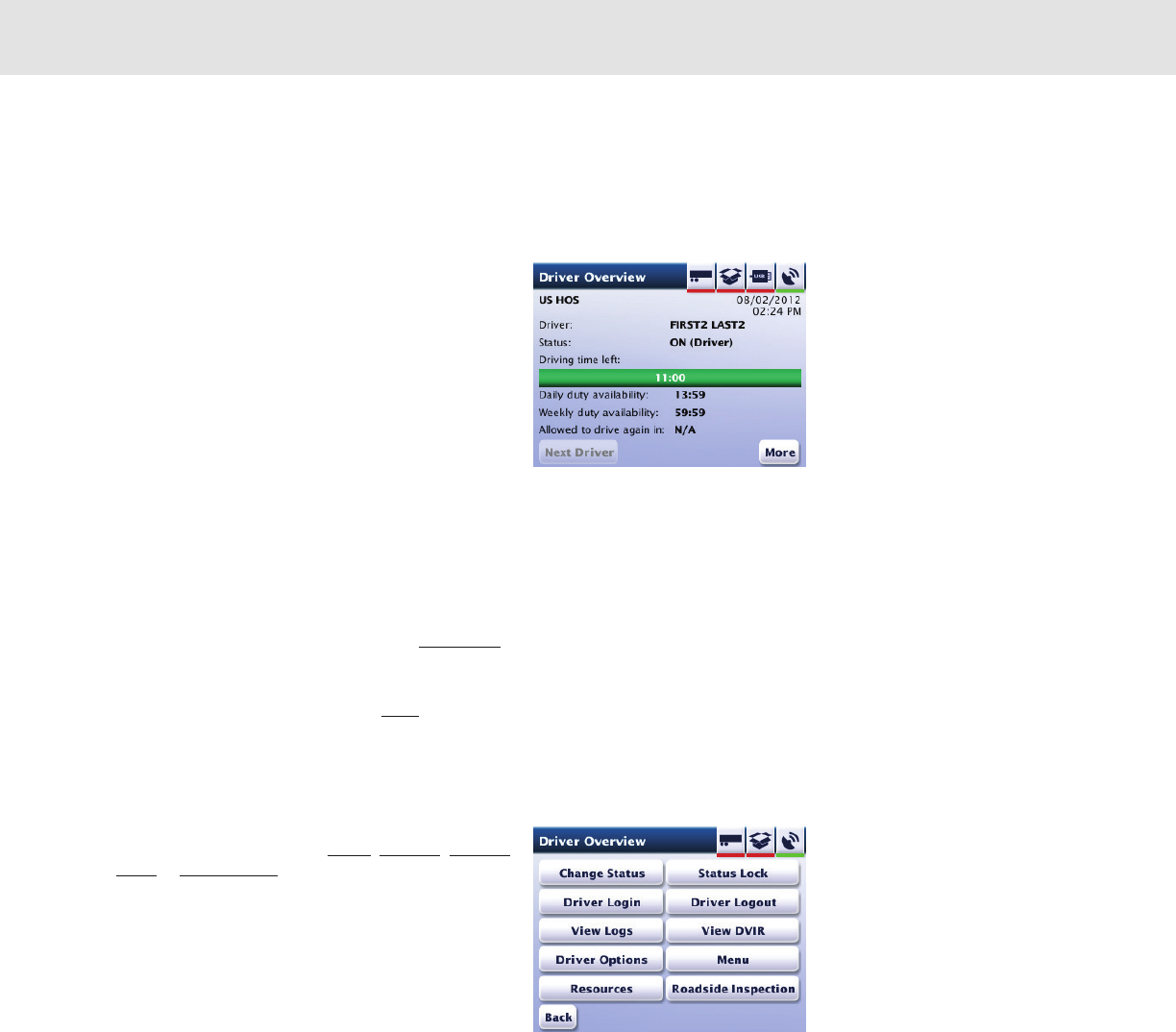

The Driver Overview screen lets Drivers check the
remaining time they’re allowed to spend in On Duty or Driver
status. Data displayed includes:
• Country used for HOS regulations.
• Driver: Name of the Driver.
• Status: Driver’s current duty status.
• Driving time left: Progress bar indicating the remaining
driving time allowed for this Driver. When the remaining
allowed driving time is less than 30 minutes, the
progress bar color will change to red.
• Daily duty availability: Available On Duty time remaining
for the current day.
• Weekly duty availability: Available On Duty time
remaining for the current week.
• Gain time in: Time the Driver must wait before driving
the vehicle.
If there are other Drivers logged in, you can tap Next Driver
to display the Driver Overview screen for other logged in
Drivers.
To view more Driver overview options, tap More. RoadLog
displays the Driver Overview Options screen.
The Driver Overview Options Screen:
Menu choices from this screen include:
• Change Status: Choose from Driver, On Duty, Sleeper
Berth or Personal Use.
• Driver Login: Allows additional Drivers to log in
manually. If the fleet manager has entered Drivers in the
RoadLog Fleet software and transferred the list into the
RoadLog, each Driver entered can log in without their
Driver Key by tapping the Driver Login button.
• View Logs: View, edit and print your log.
• Driver Options: Enter Exemptions and Pre-Trip and
Post-trip activities.
• Resources: View and edit records for documents,
trailers and assets.
• Status Lock: Allows you to disable the automatic switch
from “Driving” to “On Duty” whenever t he vehicle stops
(see details below).
• Driver Logout: Starts the log out process at the end of
the trip.
• View DVIR: View and edit DVIRs.
• Menu: Shows the top-level navigation choices seen
after company log in, including Driver Login, Driver
Overview and Settings.
• Roadside Inspection: Allows Driver to provide
authorized inspection personnel with HOS data, either
as a print out or as a download to USB drive.
Driver Overview
Driver Overview options
83
Daily Operations
Company Data Transfer
The Fleet Key is used not only to run the Fleet Software but
also to transfer company data to and from the RoadLog(s)
installed in your vehicle(s). With your Fleet Key you can:
• Download company data from RoadLog to the Fleet
Key.
• Update the company tractors and trailers files on the
Fleet Key with the tractors and trailers data from
RoadLog.
• Update the company assets file on the Fleet Key with
assets parts list data from RoadLog.
• Upload the company support data from the Fleet Key
to RoadLog.

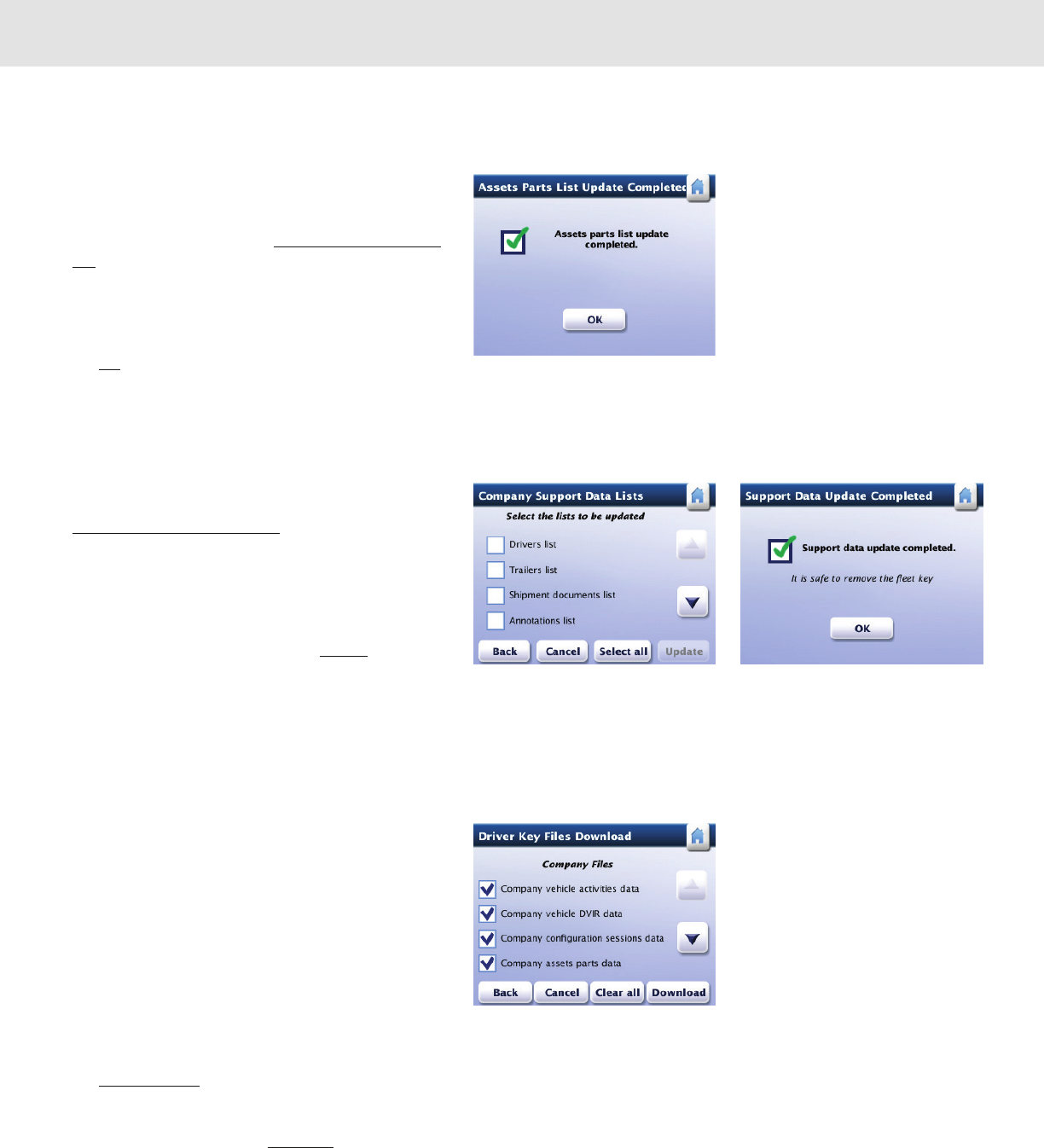

To perform these transfer functions, insert your Fleet Key
into RoadLog. The Fleet Key Options screen will be
displayed.
Tap Company Data Transfer. RoadLog displays the Fleet
Key Data Transfer screen.
Download Company Data
To download company data from RoadLog to the Fleet Key
from the Fleet Key Data Transfer screen, tap Download.
RoadLog displays the Fleet Key Files Download screen.
Use the up and down arrows to scroll through Fleet Key
Files Download screens.
From the Fleet Keys Files Download Company Files and
Fleet Keys Files Download Driver Files screens, select the
files to be downloaded and tap Download. RoadLog
displays the Transfer in Progress screen during data
transfer and the Data Download Completed screen when
data transfer is completed.
Update the Company Tractors File
To update the company tractors file on the Fleet Key with
the tractor data from RoadLog device, tap Update
Company Tractors File from the Fleet Key Data Transfer
screen. RoadLog displays the Transfer in Progress screen
during data transfer and the Tractors List Update
Completed screen when the update is completed.
Tap OK. RoadLog displays the Fleet Key Options screen.

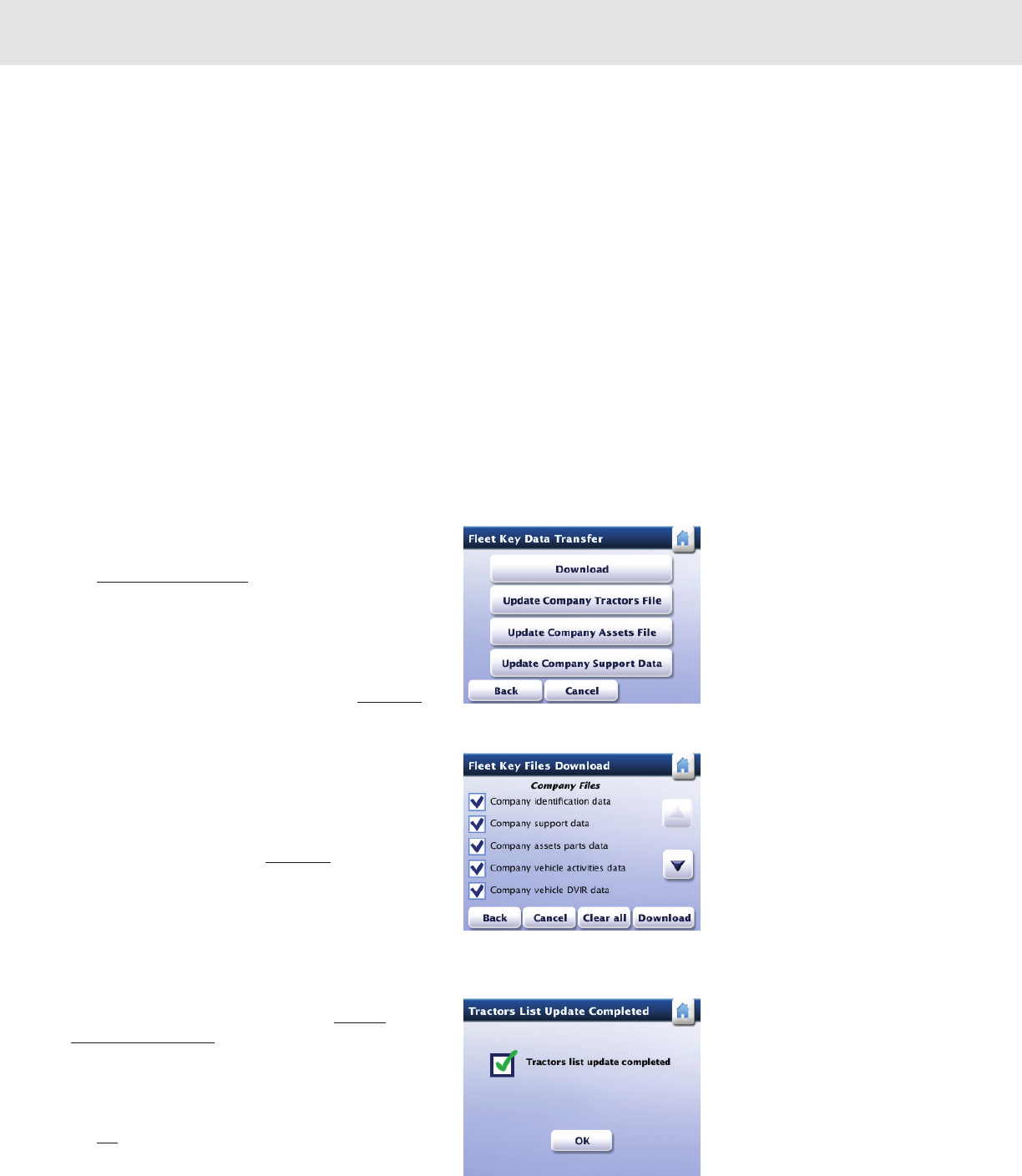

Fleet Key Data Transfer
Fleet Key Files Download
Tractors List Update Completed
84
Daily Operations
Update the Company Assets File
To update the company Assets file on the Fleet Key with the
Assets data from RoadLog, tap Update Company Assets
File from the Fleet Key Data Transfer screen. RoadLog
displays the Transfer in Progress screen during data
transfer and the Assets Parts List Update Completed
screen when the update is complete.
Tap OK. RoadLog displays the Fleet Key Options screen.
Upload the Company Support Data Lists
To upload the company support data lists from the Fleet Key
to RoadLog from the Fleet Key Data Transfer screen, tap
Update Company Support Data. RoadLog displays the
Company Support Data Lists screen.
Use the up and down arrows to scroll through the Company
Support Data Lists screens.
Select the lists to be uploaded and tap Update. When the
upload is completed, RoadLog displays the Support Data
Update Completed screen.
When all data transfers are complete, remove the Fleet Key
from USB port. RoadLog displays the Menu screen or
Driver Overview screen, depending on the log in status.
Data Download to a normal USB
Flash Drive
You can download data from RoadLog to a Driver Key, Fleet
Key or any regular USB flash drive that has been formatted
in the FAT32 file system.
To download data to a normal USB flash drive, insert it into
the USB port. RoadLog displays the USB Flash Drive
Options screen.
Tap Data Download to display the Download Files screen.
Select the files to be downloaded by tapping on the
corresponding check box. Tap Download to start the data
transfer. RoadLog displays Transfer in Progress screen
during data transfer and Data Download Completed
screen when the data transfer is complete.
Company Support Data Lists
Download FIles
Support Data Update Completed
Assests Parts List Update Completed
85
Daily Operations
Unplug the USB key from the RoadLog and tap OK.
RoadLog returns to the Settings screen.
Notes: If the inserted USB flash drive is not formatted
in FAT32, RoadLog will display the Unknown USB
Device screen.
If the inserted USB flash drive contains too much data,
RoadLog will display the USB Flash Drive Full screen.
If an error is detected during data transfer, RoadLog will
display the Data Transfer Failure screen.

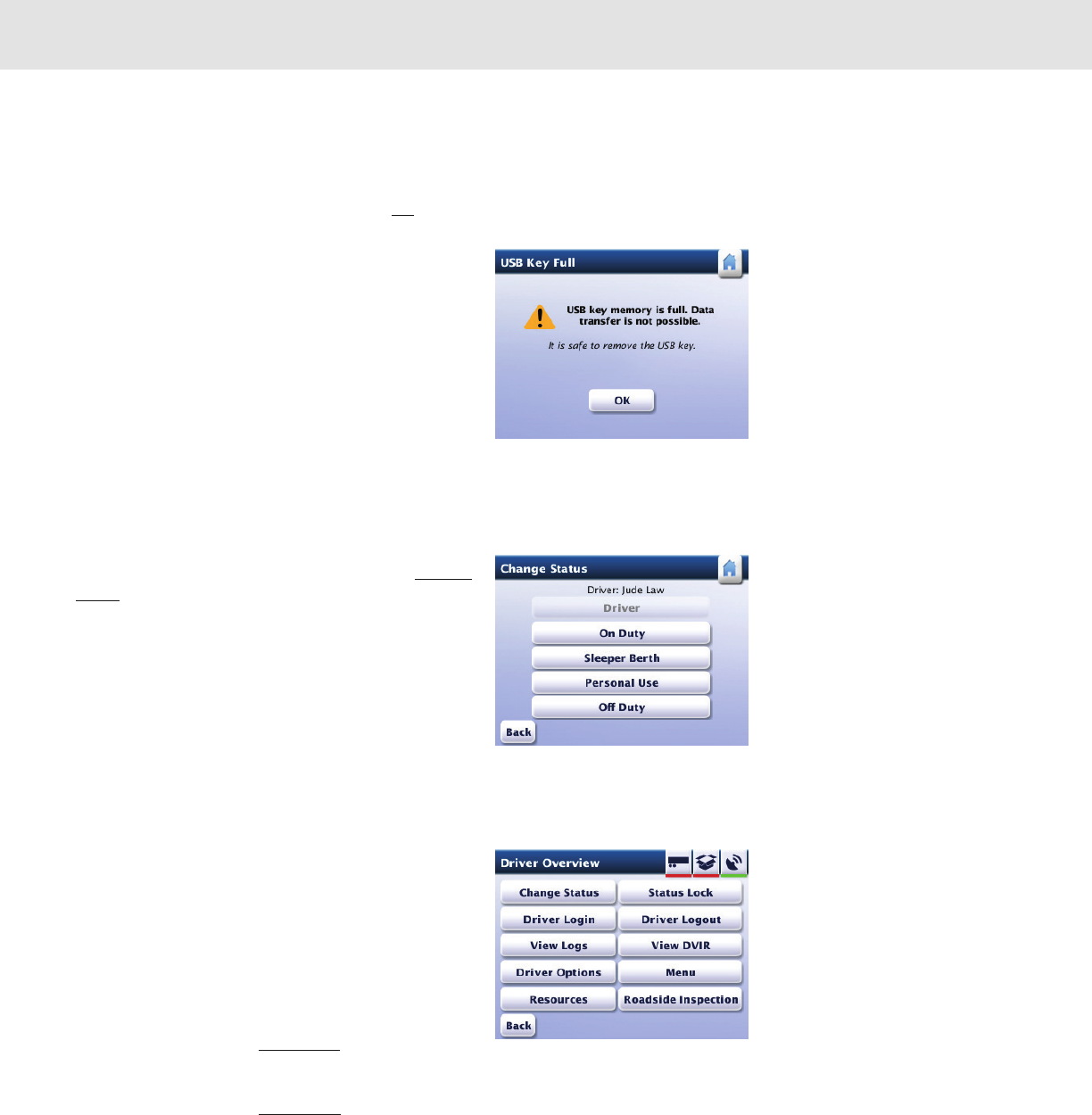

Change Status
To change the duty status of a logged in Driver, tap Change
Status from the Driver Overview options screen.
RoadLog displays the Change Status screen.
Tap on the button for the duty status selection. RoadLog
assigns the new HOS duty status and goes to the Driver
Overview screen.
Status Lock
RoadLog detects when the vehicle stops and automatically
changes the status of the logged in driver to “On Duty.”
However, in some situations, such as severe traffic jams, the
Driver may want to disable this feature by using the “Status
Lock” function. When Status Lock is on, RoadLog will keep
the current Driver status as “Driving,” even when the vehicle
has stopped and the ignition is off.
To enable Status Lock, Tap Status Lock from the Driver
Overview Options screen.
To disable Status Lock, tap Status Lock again.
Status Lock is automatically disabled when the Driver logs
out or RoadLog enters sleep mode.
Change Status
Driver Overview Options
USB Flash Drive Full
86
Daily Operations

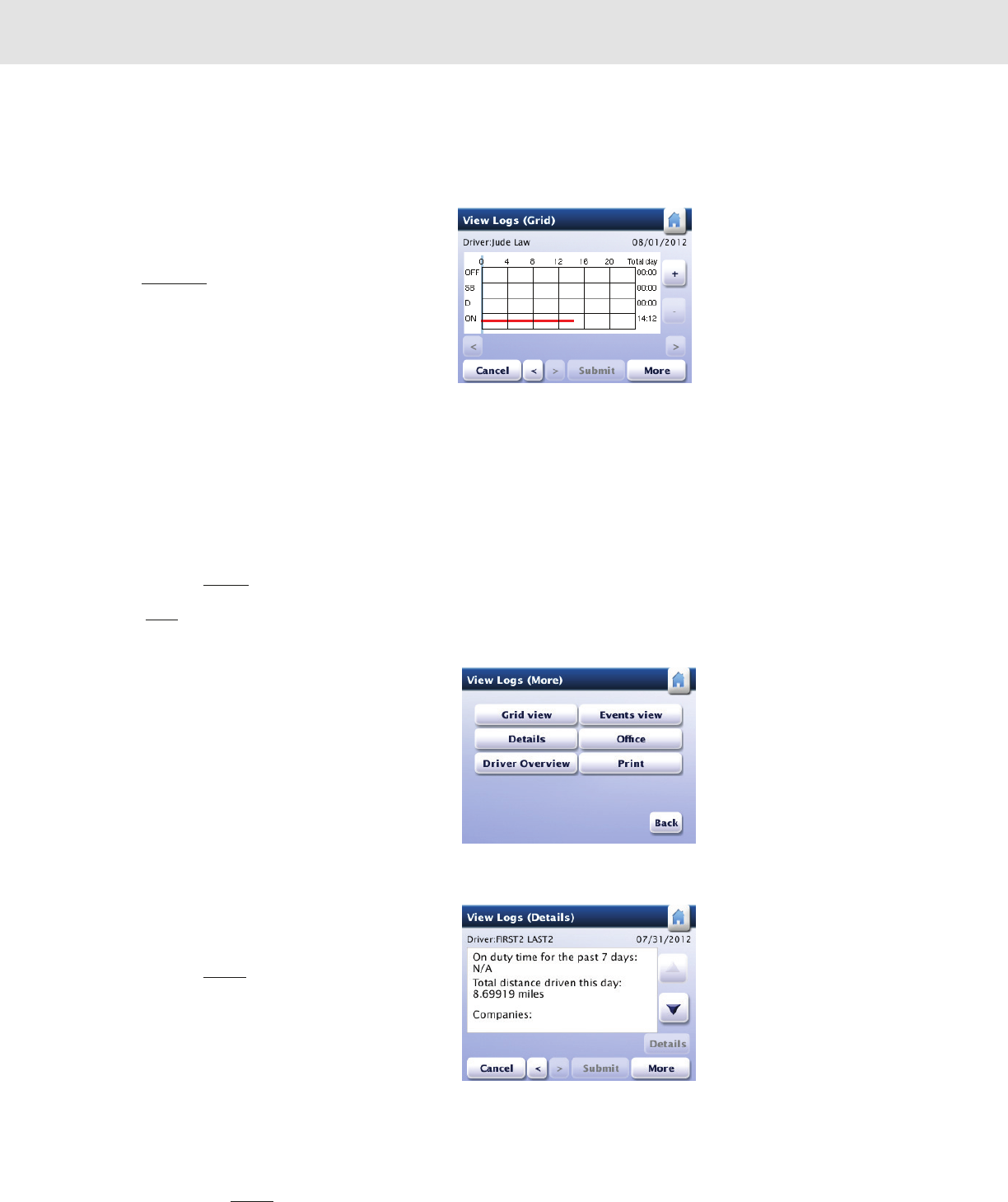

View Logs (Grid)
RoadLog allows the Driver to view recorded logs for the
current as well as each of the past 14 days.
To review your logs from the Driver Overview Options
screen, tap View Logs. RoadLog displays the View Logs
(Grid) screen.
Note: The View Logs (Grid) screen is displayed
automatically when the Driver Key is inserted at log
out.
Use the upper horizontal arrows to scroll through the
selected day. Use the lower horizontal arrows to scroll
through logs recorded for the current and past 14 days.
Use the + and - buttons to zoom in and out on the grid.
Check your logs: Use the arrow buttons at the bottom of the
screen to change the selected date (the current and
previous 14 days can be selected).
Check recorded logs. If they are correct and you want to
complete log out, tap Submit to finish the viewing session.
However, you can view additional log information before you
log out. Tap More for further viewing options. RoadLog
displays View Logs (More) screen.
View Logs (More)
The View Logs (More) screen provides access to other
screens where you can view Log Details, Log Events and
Details on the Company logged in. It also provides links to
the Driver Overview screen and the View Logs (Grid)
screen. You can also print Logs from the View Logs (More)
screen.
View Logs (Details)
RoadLog records and displays details for the Driver’s
workday.
To view the details from the View Logs (Details) screen,
highlight any item tap Details. RoadLog displays the View
Logs (Details) screen.
To review log details, use the up and down arrows to scroll
through the list of details. Use the left and right arrows to
scroll through recorded logs from the last seven days.
Details displayed include:
• Amount of On Duty time for the past 7 days.
• Total distance driven for the current day.
• Companies for which the Driver worked.
Note: to view Company details, select any one of the
Companies and tap Details. RoadLog displays the
Company Details screen.
View Logs (Grid)
View Logs (More)
View Logs (Details)
87
Daily Operations
• Names of Co-Drivers.
• Vehicles used by the Driver.
Note: to view vehicle details, select any one of the
vehicle identification numbers and tap Details.
RoadLog displays Vehicle Details screen.
• Trailers used by the Driver.
• Shipment Documents used by the Driver.

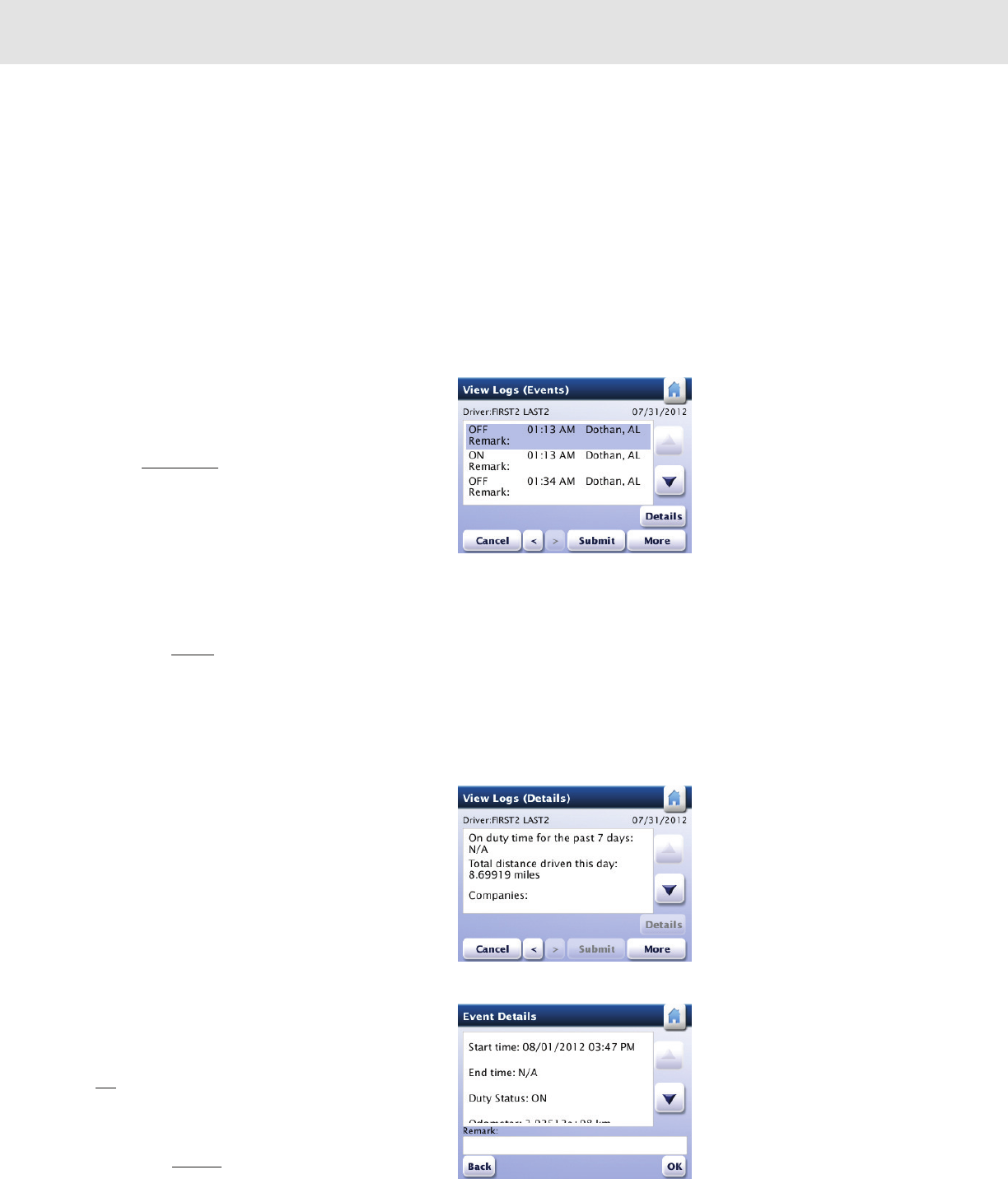

View Logs (Events)
RoadLog records a list of events, such as lunch, rest and
fueling for the logged in Driver. You can view events and add
annotations from the View Logs (Events) screen.
To see a list of recorded events from the View Logs (More)
screen, tap Events View. RoadLog displays the View Logs
(Events) screen.
From the View Logs (Events) screen check the duty status
records and events recorded during your log in session.
Use the up and down arrows to view the list of recorded
events for the selected day. Use the left and right arrows to
scroll through the current and past 14 days’ recorded
events.
Note: If you want to see details for a highlighted
event, tap Details to view the selected record’s details.
RoadLog displays the Event Details screen.
Event Details
To add a remark to a recorded event shown in the View
Logs (Events) screen, highlight the event. Then tap Details.
RoadLog displays the View Logs (Details) screen.
Tap on any detail to add a remark. Then tap Details.
RoadLog displays the Event Details screen. Use the up and
down arrows to scroll through the list of details for each
event. Select the detail you want to annotate by highlighting
and tapping it.
Then, tap in the remark field. RoadLog displays the popup
keyboard.
Type in the remark, or annotation, you want to add.
Tap OK on the Event Details screen to save your remark.
RoadLog returns to the View Logs (Events) screen.
When you have reviewed all events and completed all
annotations, tap Submit to return to the Driver Overview
screen.
View Logs (Events)
View Logs (Details)
Event Details
88
Daily Operations

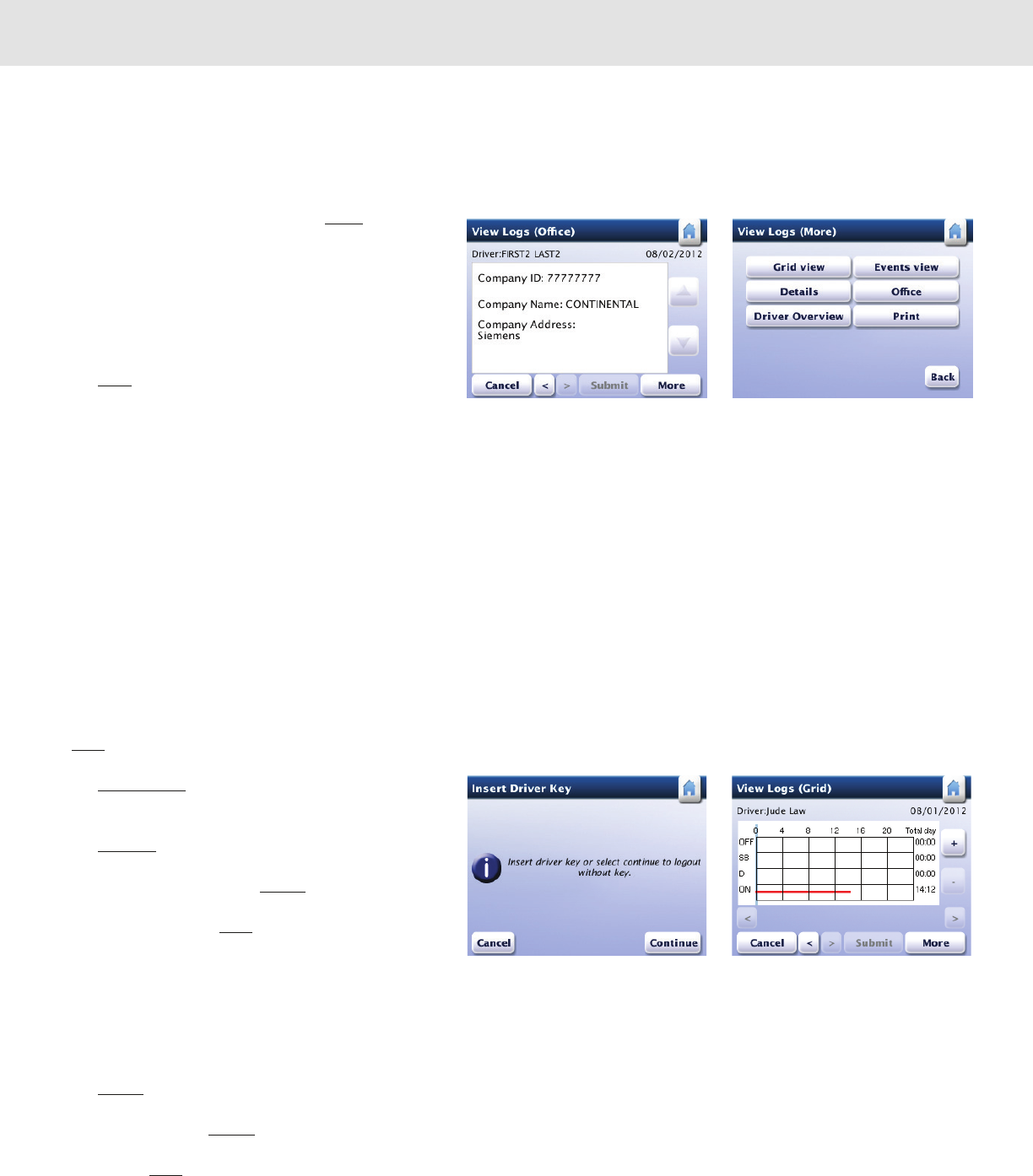

View Logs (Office)
From the View Logs (More) screen, tap Office. RoadLog
displays the View Logs (Office) screen showing details for
the currently logged in company:
• Company ID number
• Company Name
• Company Address
Tap More to return to the View Logs (More) screen, or tap
Submit to return to the Driver Overview screen.
Driver Log Out
At the end of the working day, Drivers must log out from
RoadLog. Drivers can log out automatically with their Driver
Keys, or they can log out manually on screen.
When logging out automatically, recorded data will be
automatically downloaded to the Driver Key. When logging
out manually, recorded data is stored in the RoadLog.
Manual Log Out:
To log out manually from the Driver Overview screen, tap
More.
Tap Driver Logout. RoadLog displays the Insert Driver Key
screen.
Tap Continue. RoadLog displays the View Logs (Grid)
screen. Check recorded logs. If they are correct and you
want to complete log out, tap Submit to finish the viewing
session. However, you can view additional log information
before you log out. Tap More for further viewing options.
Automatic Log Out with the Driver Key:
To log out automatically with the Driver Key, insert the Driver
Key into the USB port. RoadLog displays the Driver Key
Options screen.
Tap Logout. RoadLog displays the View Logs (Grid) screen.
Check recorded logs. If they are correct and you want to
complete log out, tap Submit to finish the viewing session.
However, you can view additional log information before you
log out. Tap More for further viewing options.
View Logs (Grid)Insert Driver Key
View Logs (Office) View Logs (More)
89
Daily Operations
Data Download at Driver Log Out
At Driver Log Out, RoadLog files are transferred
automatically to the Driver Key.
If you are the last logged in Driver, when you log out,
RoadLog displays the Confirm DVIR Data screen. If you are
not the last logged in Driver, RoadLog displays the Transfer
In Progress screen immediately after you tap Submit.
If you are the last logged in Driver, when you log out, you
must perform the DVIR post-trip inspection for current
assets assigned to the vehicle, confirming or editing defects.
You can print a DVIR report at this time and / or download
the data to the Driver Key. For the DVIR procedure see
Creating DVIRs.
Data Download without Log Out
Driver data can also be downloaded to the Driver Key
without logging out.
Insert the Driver Key. RoadLog displays the Driver Key
Options screen.
Tap Download Data. RoadLog displays the Driver Key Files
screen.
Use the Up ad Down arrows to scroll through the list of
available files. Tap the check boxes to select the files you
want to download.
When your selections are made, tap Download. Roadlog
displays the Confirm Review/Submit RODS screen. Tap
Yes to confirm your choices. RoadLog displays the View
Logs (Grid) screen.
Tap Submit to initiate file download. RoadLog displays the
Transfer in Progress screen while transferring the data and
the Data Download Completed screen when it is finished.
Tap OK. RoadLog returns to the Driver Overview screen.
After the download the Driver will remain logged in to
RoadLog.
Printing Logs
To print the current HOS Daily Log from the View Logs
(More) screen, tap Print. When completed, RoadLog
returns to the View Logs (Grid) screen.
Note: In addition to viewing logs as part of the log out, you
can also view logs anytime from the Driver Overview
Options screen. Tap View Logs. RoadLog displays View
Logs (Grid) screen.
Confirm Review/Submit RODS
Driver Key Options Driver Key Files
Confirm DVIR Data Transfer in Progress
90
Trailer management
7. Trailer management
Whenever a trailer is attached or detached from a vehicle,
the Driver must add or remove it from RoadLog’s database.
RoadLog allows you to assign up to three trailers per
vehicle.
When attaching a trailer, the Driver must perform a pre-trip
inspection and DVIR.
When removing a trailer, the Driver must perform a post-trip
inspection and create a DVIR.
For the DVIR procedure see Creating DVIRs.
Adding a Trailer
To add a trailer to RoadLog’s database, tap More from the
Driver Overview screen. RoadLog displays the Driver
Overview Options screen.
Tap Resources. RoadLog displays the Resources screen.
Tap Trailers. RoadLog displays the Current Trailers List
screen showing any previously attached trailers.
Tap Add button to add a new trailer. RoadLog displays the
Add Trailer screen. From the Add Trailer screen, tap the
Trailer ID field to bring up the Keyboard. Type the first
digit(s) of the trailer number you want to add.
If a list of trailers has been entered from the Fleet Software,
RoadLog suggests a trailer number matching the digits
typed. If the trailer number you want to add is different than
the suggested one, tap List to view other pre-stored trailer
numbers matching the typed characters. Pick the correct
trailer number from the list and tap Go.
If no list of trailers has been entered from Fleet /Software, or
if the trailer you wish to add is not in the stored list, tap Add
from the Current Trailers screen. RoadLog displays the
Keyboard screen.
Type in the Trailer ID for the trailer you want to add, then tap
Go. RoadLog displays the Add Trailer screen. If the ID is
correct, tap Add. RoadLog displays the Confirm DVIR
screen - each time you add a trailer, you must perform a
DVIR.
Resources Current Trailers
Add Trailer
