Continental Conair GH3100 Cordless Phone User Manual 3110ib eng

Continental Conair Limited Cordless Phone 3110ib eng

Contents

GH3110 Users Manual

2.4GHz Cordless
Telephone with Call Waiting
Caller ID
GH3110 OWNER’S MANUAL
Toll-free Help Line 1-800-366-0937
http://www/.swbfreedomphone.com
PP
SOUTHWESTERN BELL FREEDOM PHONE®
7475 NORTH GLEN HARBOR BLVD., GLENDALE, AZ 85307
STOP - DON'T TAKE ME BACK TO STORE.
LOOK - FOR THE TOLL-FREE "HELP" TELEPHONE NUMBER.
LISTEN - AS THE EXPERTS TALK YOU THROUGH THE PROBLEM.
For immediate answers to your questions regarding operation,
missing parts or installation, call:
Southwestern Bell Freedom Phone®
Retails Sales Help Line at
1-800-366-0937
Monday - Friday 8:30a.m. - 9:00p.m.EST
Saturday 8:30a.m. - 12:30p.m. EST
http://www.swbfreedomphone.com
SOUTHWESTERN BELL FREEDOM PHONE®
7475N. GLEN HARBOR BLVD., GLENDALE, AZ 85307
GH3110 Printed in China IB-5122A
PLEASE READ IMPORTANT SAFETY INSTRUCTIONS BEFORE
USE.
Congratulations! You have purchased a 2.4GHz Analog Cordless Tele-
phone with Type II Call Waiting Caller ID that has been manufactured
to the highest standards of SOUTHWESTERN BELL FREEDOM
PHONE® Retail Sales.
BEFORE INSTALLING AND OPERATING THIS TELEPHONE, IT
IS VERY IMPORTANT THAT YOU READ THIS OWNER'S
MANUAL.
IMPORTANT SAFETY INSTRUCTIONS
BEFORE USING YOUR TELEPHONE EQUIPMENT, BASIC
SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND
INJURY TO PERSONS, INCLUDING THE
FOLLOWING:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall telephone jack and power
outlet before cleaning. Do not use liquid or aerosol cleaners. Use
a damp cloth for cleaning.
4. Do not use this product near water, for example, near a bathtub,
wash basin, kitchen sink, laundry tub, swimming pool, or in a wet
basement.
5. Do not place this product on an unstable cart, stand or table. The
product may fall, causing serious damage.
6. Slots or openings in the cabinet, back and bottom are provided for
ventilation, to protect equipment from overheating. These
openings must not be blocked or covered. Do not place the
product on a bed, or other similar surface where the openings
could be blocked. Never place this product near or over a radiator
or heat register.
7. Operate this product using only the type of power source
indicated on the marking label. If you are not sure of the type of
power supply in your home, consult your dealer or local power
company.
8. Do not allow anything to rest on the power cord. Do not place this
product where it could be stepped on and damaged.
9. Do not overload wall outlets and extension cords, as this can
result in fire or electric shock.
NO
10. Never push objects of any kind into this product through cabinet
slots, as they may touch dangerous voltage points or short circuit
parts. This could result in fire or electric shock. Never spill liquid
of any kind on the product.
11.To reduce the risk of electric shock, do not disassemble this
product. Instead, when service or repair work is required, take it
to a qualified service technician. Opening or removing covers
may expose you to dangerous voltages or other risks. Incorrect
reassembly can cause electric shock when the appliance is
subsequently used.
12. Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power supply cord or plug is damaged or frayed.
b. If liquid has been spilled into the product.
c. If the product has been exposed to rain or water.
d. If the product has been dropped or the cabinet has been
damaged.
e. If the product exhibits a distinct change in performance.
If the product does not operate normally and proper operating
instructions have been followed, adjust only those controls
that are covered by the operating instructions. Improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the product to normal operation.
13. Avoid using a telephone (other than a cordless type) during an
electrical storm.
There may be a remote risk of electric shock from lightning.
14. Do not use the telephone to report a gas leak if you are in the
vicinity of the leak.
15. Danger of explosion if battery is incorrectly replaced. Replace
battery pack only with the same or equivalent type recommended
by the manufacturer. Dispose of used according to the
manufacturer instructions.
Safety Instructions for Batteries
Handset Battery Pack
CAUTION:
Use only a Southwestern Bell Freedom Phone approved battery pack in
the handset of your GH3110 Analog Cordless Telephone. To reduce the
risk of fire or injury, always do the following when replacing, discard-
ing or charging batteries.
a. When handling the batteries, be careful not to short circuit the
battery with conducting materials such as rings, bracelets, and
keys. The battery or conducting material may overheat and cause
burns.
b. Use only the following type and size batteries in the cordless
phone:
Self-contained 3-cell Nickel-Cadmium rechargeable battery type
AA 3.6V 600mAh.
c. Do not dispose of the battery pack in a fire. The cell may explode.
Check with local codes for possible special disposal instructions.
d. Do not attempt to open or mutilate the battery pack. The
chemicals are dangerous and may cause damage to the eyes or
skin, and may be toxic if swallowed.
e. Follow the charging instructions outlined in this manual.
Save These Instructions
Handset Battery Caution
CAUTION:
To reduce the risk of fire or injury to persons, read and follow these
instructions.
1. Use only the following type and size batteries in the cordless
phone: Self-contained 3-cell Nickel-Cadmium rechargeable
battery type AA 3.6V 600mAH.
PQ
2. Do not dispose of the battery (ies) in a fire. The cell may explode.
Check with local codes for possible special disposal instructions.
3. Do not open or mutilate the battery (ies). Released electrolyte is
corrosive and may cause damage to the eyes or skin. It may be
toxic if swallowed.
4. Handle batteries carefully in order to prevent short-circuiting the
battery with conducting material such as rings, bracelets, and
keys. The battery or conductor may overheat and cause burns.
5. Charge the battery (ies) provided with or identified for use with
this product only in accordance with the instructions and
limitations specified in this manual.
6. Do not mix old and new batteries in this product.
7. Do not mix batteries of different sizes or from different
manufacturers in this product.
8. Do not attempt to rejuvenate the battery (ies) provided with or
identified for use with this product by heating them. Sudden
release of the battery electrolyte may occur, causing burns or
irritation to the eyes or skin.
9. When inserting batteries into this product, the proper polarity or
direction must be observed. Reverse insertion of batteries can
cause charging, and that may result in leakage or explosions.
(Applies to product employing more than one separately
replaceable primary battery).
10. Remove the batteries from this product if the product will not be
used for a long period of time (several months or more), since
during this time the battery could leak into the product.
11.Discard "dead" batteries as soon as possible since "dead" batteries
are more likely to leak into a product.
12. Do not store this product, or the batteries provided with or
identified for use with this product, in high temperature areas.
Batteries that are stored in a freezer or refrigerator for the purpose
of extending shelf life should be protected from condensation
during storage and defrosting. Batteries should be stabilized at
room temperature, prior to use after cold storage.
RS
N
i
-
C
d
RBRC
RBRC
NOTE: The RBRC seal on the battery used in your
Southwestern Bell Freedom Phone production indi-
cates that we are participating in a program to col-
lect and recycle Nickel Cadmium batteries through-
out the United States. Please contact your local re-
cycling center.
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS .......................................................... 2
Handset Battery Pack ....................................................................................... 4
Handset Battery Caution ....................................................................................... 4
Handset Diagram ................................................................................................... 8
Base Diagram ........................................................................................................ 9
Traits of Cordless Telephones .............................................................................. 10
Installation ............................................................................................................ 11
Box Contents .................................................................................................. 11
Preliminary Preparation Telephone Line Installation ..................................... 11
Modular Outlet .......................................................................................... 12
Handset Battery Charging ......................................................................... 12
Setup.......................................................................................................... 13
Telephone Operation ....................................................................................... 15
Making a Call ............................................................................................ 15
Receiving a Call Through the Handset ..................................................... 15
Memory Features .................................................................................................. 15
To Program Frequently Called Numbers: ....................................................... 15
To Delete a Memory Location: ....................................................................... 17
To Dial Number Stored in Memory: ............................................................... 17
Redial ................................................................................................................... 18
Flash ................................................................................................................... 18
Receiver Volume Control ..................................................................................... 19
Page/Handset Locator ........................................................................................... 19
Low Battery Warning ........................................................................................... 19
Caller ID Operation .............................................................................................. 19
Receiving a Call .............................................................................................. 19
Reviewing Calls .............................................................................................. 20
To Store Caller ID Record: ............................................................................. 20
Caller ID Redial .............................................................................................. 21
Caller ID Erase ............................................................................................... 21
Belt Clip ............................................................................................................... 22
Optional Headset .................................................................................................. 22
Troubleshooting Guide ......................................................................................... 22
FCC Wants You To Know .................................................................................... 26
Product Care ......................................................................................................... 28
Additional Information ......................................................................................... 28
Service .................................................................................................................. 29
Limited Warranty .................................................................................................. 31

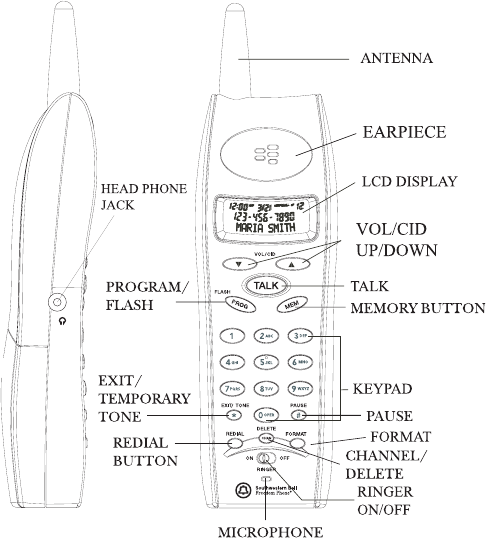

Handset Diagram
TU

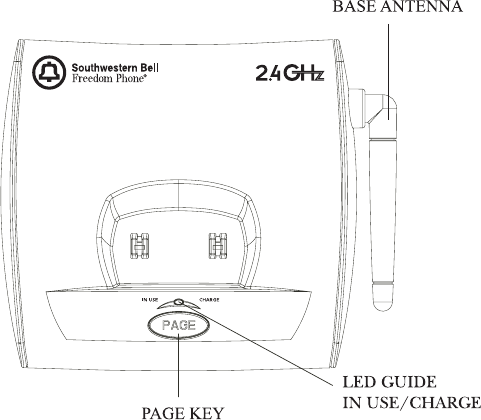

Base Diagram Traits of Cordless Telephones
A. Cordless telephones offer convenience and mobility during
telephone conversations. The use of cordless phones is dependent
upon the availability of AC power. Any disruption of electrical
power at your location will prevent the placing or receiving of
telephone calls. It is recommended that a cordless telephone
should not be installed as the only phone at your location.
B. The usable range of the cordless handset away from the base is
dependent upon many factors. The telephone base is like a radio
transmitter in that it transmits telephone line signals via radio
waves to the handset. Therefore, the location of the base is
important in order to maximize the usable range. For example,
installing the base on the second floor, in some locations, will
provide longer range than a ground floor installation. Pick a
location that gives you the clearest signal. The following can
adversely affect usable range:
*Aluminum siding
*Insulation with foil backing
*Any metal construction which could shield radio signals
Atmospheric conditions also play an important role in the perfor-
mance of your cordless telephone.
Interference can be caused by placing the base near:
*Fluorescent lights
*Appliances that generate electrical noise, including:
*Microwaves
*Televisions
*VCRs
*Baby monitors
* Computers
VNM
C. For maximum performance, always keep the battery pack fully
charged.
D. Plug your AC adaptor directly into an outlet, not an extension
cord.
E. Do not plug other appliances into the outlet or have the outlet
controlled by a wall switch.
F. If you want to use more than one cordless telephone in your
home, the telephones must operate on different channels. Press
the channel key to select a channel that provides the clearest
communication.
Installation
Box Contents
Before installing your phone, check the shipping carton to be sure
you have the following:
*Base Unit * Long Telephone Line Cord
*AC Adaptor * Owner's Manual
*Handset with Rechargeable Battery * Belt Clip
*Registration Card
Notes:
a. Keep the shipping carton and packaging, in case you need to ship
your phone.
b. If there is visible damage, do not use this equipment. Contact
your shipping agent or return the telephone to the place of
purchase.
Preliminary Preparation Telephone Line Installation
1. Never install telephone jack during a lightning storm.
2. Never install telephone jack in wet location unless the jack is
specifically designed for wet locations.
3. Never touch uninsulated telephone wires or terminals unless
the telephone line has been disconnected at the network
interface.
4. Use caution when installing or modifying telephone lines.
Modular Outlet
The GH3110 Cordless Telephone operates from a standard 110/120
volt modular outlet. The handset is powered by a rechargeable battery
pack. Batteries are charged automatically when the handset is placed
in the cradle of the base unit.
Installation
A. Plug one end of the long telephone line cord into the back of the
unit and connect the other end to a modular wall jack. Press until
locking lever clicks.
B. Connect the DC Adaptor into the back of the unit. Plug the other
end into a standard 110/120 volt AC outlet.
C. Place the handset into the base unit. The IN USE/ CHARGE LED
will light. The LCD display will show "NEW CALL 00" for 2
minutes and then return to standby mode.
NOTE: BATTERY PACK MUST BE CHARGED FOR 16 HOURS
BEFORE INITIAL OPERATION.
Handset Battery Charging
The battery pack in the handset must be fully charged for about 16
hours before using the telephone.
NN NO
Note:
a. When the battery gets low while the phone is in use, there will be
a low-battery beep from the handset. The handset will also
display "LOW BATTERY" on the second line of the LCD.
b. If the battery becomes low while you are on a call, terminate the
call quickly and put handset in the base to recharge the battery.
c. The battery will hold its charge for several days out of the cradle,
depending on use.
To Replace Batteries
1. Remove battery cover
2. Remove old battery
3. Install new battery
4. Close battery cover.
5. Place the handset on the base unit.
Note: Use only the battery type that is recommended for use with
this phone.
6. Charge 16 hours before first use.
Note: To maximize your battery's life, periodically drain the
battery fully and then recharge it. To do this, unplug the phone
line cord from your wall phone jack. Remove Handset from Base/
Charger unit and press the TALK button. Handset Batteries must
then be recharged for a full 16 hours.
Setup
To set Language:
1. After installing the FULLY CHARGED handset battery, the
handset display will light and will show "NEW CALL 00".
2. Press "PROG/FLASH" to enter the program menu.
3. You can choose to see your display in 1ENG (English), 2FRA
(French) or 3ESP (Spanish). Press VOL/CID “” or “” button
or 1, 2 or 3 on the keypad to choose the desired language.
4. Press the "PROG/FLASH" key to confirm the display language
and press “EXIT/*” to leave the program menu.
To set Ring Tone:
This telephone offers 3 standard ring tones for user to select.
1. Press "PROG/FLASH" 2 times to enter the program menu ringer
tone setting.
2. You can choose from ringer tones 1-3 by pressing VOL/CID ""
or "" button or 1, 2 or 3 on the keypad for changing the option.
3. Press "PROG/FLASH" to confirm the ringer melody and press
“EXIT/*” to leave the program menu.
To set Tone/Pulse
1. Press "PROG/FLASH" 3 times to enter the program menu.
2. Press VOL/CID "" or "" button or press 1 or 2 on the keypad
to select the TONE/PULSE item.
3. Press "PROG/FLASH" to confirm the setting and press EXIT to
leave the program menu.
To set Default
This telephone allows you to restore the phone setup options back to
factory default. The default setting will reset Menu Language back to
English, Ringer Tone back to 01, and Tone/Pulse back to Tone.
NP NQ
1. Press the "PROG/FLASH" button 4 times to enter the program
menu default setting mode.
2. Press VOL/CID"" or "" button to select to return to
DEFAULT setting or not.
3. Press "PROG/FLASH" to confirm the setting and press “EXIT/*”
to leave the program menu.
Telephone Operation
Making a Call
1. Lift the handset and press the "TALK" button to connect to the
telephone line.
2. After hearing a dial tone, dial the desired number. If you misdial,
simply press the "TALK" button. Wait for a couple of seconds,
and press the "TALK" button again for a new dial tone.
3. After the conversation has been completed, press the "TALK"
button once to disconnect the line, or return the handset to the
base. The IN USE/Charge LED, will now be lit.
Receiving a Call Through the Handset
Press the "TALK" button on the handset answer a call.
Memory Features
Your GH3110 is equipped with 10 memories for programming your
most frequently dialed telephone numbers. You can store up to 24
digits in each of the memory locations 1 through 10, by following the
steps outlined below.
To Program Frequently Called Numbers:
1. Press the "MEM" button on the handset, and the right corner
display will show "MEMO# - -" representing the memory
location that is currently displayed.
2. Press the VOL/CID "" or "" or a digit to select the memory
location where the telephone number is to be stored. You can
choose from MEM 1-10.
PK Press "MEM" to confirm the location.
Note: If you do not want to confirm the memory location, press
"EXIT" to return to standby mode.
If the selected memory location is not empty and you do not want
to replace the content, press "EXIT/*" to keep the previous
memory record and return to standby mode.
4. Edit the name (Up to 15 characters) by using the telephone
keypad buttons (1-9).
Note: Successively pressing the number 2 key quickly allows you
to select between letters A, B. or C. This also applies to letters on
dialing keys 3-9. To add a space in the name, press the 1 key. If
you enter any letters incorrectly, press the delete key to delete one
character at a time. To repeat the same letter, allow one second in
between key presses.
5. Press "MEM" to confirm the name.
6. Enter the telephone number you wish to store, using the handset
keypad.
Note: If you accidentally press a 25th digit, an error tone will
sound.
Note: To enter a pause in the dialing sequence, press the "#/Pause"
button. To delete a particular digit that has already been entered,
press the “DELETE/CHAN” button. The digit last entered will be
deleted. To delete all of the digits, press the “EXIT” button.
NR NS
7. Press the 'MEM" button to confirm the entered telephone number.
To Delete a Memory Location:
1. Press the "MEM" button on the handset, and the display will
show "MEMO# - -" representing the memory location that is
currently displayed.
2. Press VOL/CID "" or "" or a digit to find the memory you
want to delete.
3. Press the "DELETE" button on the handset.
4. The unit will ask you to delete the selected telephone number and
the LCD Display will show "DELETE ?"
5. Press the "DELETE" button again to delete. The LCD Display
will show "**DELETED**" and return to the standby mode.
Note: Press "EXIT" key on the handset to terminate the deletion
process and return to standby mode.
To Dial Number Stored in Memory:
WHEN THE TALK BUTTON IS OFF:
1. Press the "MEM" button on the handset, and the display will
show "MEMO# --" representing the memory location that is
currently displayed.
2. Press VOL/CID "" or "", or a digit to select the memory
location where the telephone number is to be redialed. You can
choose from 1-10.
3. Press the "TALK" button. The number will scroll across the
screen from left to right as it is dialed.
WHEN THE TALK BUTTON IS ON:
1. Press the "MEM" button on the handset.
2. Press the desired memory location (0 through 9) to dial out the
number.
Redial
Your GH3110 remembers the last number (up to 32 digits) dialed. This
is a convenient feature when trying to place a call to a phone number
that is not being answered or is continuously busy.
DO NOT PRESS THE TALK BUTTON.
1. Press the "REDIAL" button, and the display will show the last
telephone number dialed.
2. If you want to delete this displayed telephone number, press the
"DELETE" button once for each digit shown.
3. Press the "TALK" button. The number will scroll across the
screen from left to right as it is dialed.
Flash
You can use your cordless telephone with special services such as Call
Waiting or Three Way Conference (special subscription from your lo-
cal telephone company is required). During a telephone conversation,
you may hear a tone or click, which indicates that you are receiving
another call. To speak to the second caller and put the first call on Hold,
press the "Flash' button. Press 'Flash" again to return to the original
call. You may also press the "Flash" button to obtain a new dial tone.
NT NU
Receiver Volume Control
Your GH3110 allows you to adjust the handset volume to a more com-
fortable listening level. Press VOL/CID "" or "" keys on the hand-
set to increase or decrease volume, while handset is in the Talk On
mode. The volume status will show on the LCD.
Page/Handset Locator
You can send a page signal from the base to the handset.
Press the "PAGE" button on the BASE once, and the handset will beep
for 2 minutes.
Press the "TALK" button on the handset to stop the handset from beeping,
and return to TALK mode.
Low Battery Warning
*When the handset battery voltage level is low, the handset LCD
Display shows.
*"Low Battery" as follows:
*Return the handset on the BASE unit for charging.
Caller ID Operation
Receiving a Call
1. After first ring, the caller's name and telephone number will be
displayed on the handset.
2. The Caller ID information (of up to 40 callers) will be stored in
the handset display in the order received. If the received call
information is the same as any of the new calls, the unit will display
the "REPT" icon to indicate a repeat call. If the unit receives more
than 40 calls, the oldest Caller ID information will be erased.
Reviewing Calls
Reviewing New Call Records
1. When the handset is in standby mode, press the VOL/CID "" or
"" keys on the handset to display the information.
Note: You can review up to 40 new Caller ID calls from the
handset.
2. Continue pressing the VOL/CID "" or "" keys on the handset
to review all new call records in the order the calls were received.
When a name received exceeds 15 characters, the first 15
characters will be shown.
When a telephone number exceeds 15 characters, the last 15
characters will be shown.
To Store Caller ID Record:
1. When the handset display is in standby mode, press the VOL/CID
"" or "" key on the handset to select the Caller ID record
you want to store.
2. Press the “MEM” button on the handset.
3. The display will show “MEMO#” as follows:
4. Enter the desired memory location.
Note: If the selected memory location is not empty, “REPLACE
MEMO” will be displayed on the LCD. Press “MEM” button to
confirm the replacement. You will hear a confirmation beep. If
you do not want to confirm the replacement, press “EXIT” to
keep the previous record and return to standby mode.
NV OM
Call ID Redial
The GH3110 allows you to redial a phone number in the Caller ID
memory.
1. When the handset is in standby mode, press the VOL/CID "" or
"" keys to select the Caller ID record that you want to dial.
Note: You can review and redial up to 40 Caller ID calls from the
handset.
2. Press the “TALK” button on the handset. The number will scroll
across the screen from left to right as it is dialed.
Note: If you review the Caller ID call from the handset, you will
need to redial the call from the handset (by pressing the “TALK”
button).
- With current Telecom redialing situations, there are 2 redial
options: (1) 10 digits without a 1 prefix and (2) 10 digits with a 1
prefix.
10 digits without a 1: In some areas of the country, the area code
must be included, even when dialing a local call. In this situation,
simply press “TALK” button to dial out. You can press the
FORMAT key to add a “1” prefix and your long distance call will
be dialed out.
Caller ID Erase
To Erase a Caller Record:
1. When the handset is in standby mode, press the VOL/CID "" or
"" keys to select the Caller ID record you want to erase.
2. Press the “DELETE” button to erase the call record; the display
will show “DELETE CALL ID”.
3. Press the “DELETE” button again; the Caller ID record will be
deleted and the display will show the next call message.
Note: If the current displayed message is the last message to come
in, then the display will show “NEW CALL 00”.
To Erase all Caller ID Records:
1. When the current display shows the handset name or handset
number, press the VOL/CID "" or "" keys to review the
Caller ID record.
2. Press and hold “DELETE” button to erase all call records; the
display will show “DELETE ALL”.
3. Press “DELETE” button again; all the Caller ID records will be
deleted.
Belt Clip
You can hang the handset on your belt or pocket using the belt clip.
Optional Headset
Plugging an optional headset into the handset allows hands-free phone
conversation.
When a headset is connected to the handset, be sure to speak into the
headset microphone. If you want to return to normal conversation us-
ing the handset, then disconnect the headset.
For servicing or replacement, you can purchase a suitable headset
through our service center or your local retailer.
For more information, contact the place of purchase, call Southwestern
Bell Freedom Phone help line at 1-800-366-0937 or visit our website at
http://www.swbfreedomphone.com.
Troubleshooting Guide
If you have followed the instructions in this manual, and have
difficulty operating your Southwestern Bell Freedom Phone®
Cordless Telephone, locate the PROBLEM AND CORRECTIVE
ACTION columns to locate and remedy the problem.
ON OO
OP OQ
Troubleshooting Guide (Cont.)
PROBLEM
The unit will not
operate.
No dial tone.
Difficulty placing or
receiving calls.
POSSIBLE CAUSE
Improper installation.
The digital security code
has been lost due to a
power loss while the
handset was away from
the base.
The battery is not charged.
See the above mentioned
possible causes.
The handset is being used
too far away from base.
You may have lost the se-
curity code. The handset
can no longer communi-
cate with its base. The loss
of the code can occur if
the battery is drained and
needs recharging, the DC
adaptor is disconnected, a
power loss occurred, or
there is electrical interfer-
ence from other cordless
phones, baby monitors,
microwaves, etc. Even a
momentary power inter-
ruption could erase your
cordless phone’s security
code.
CORRECTIVE ACTION
Recheck all plug
connections. Also, check
the DC adaptor for proper
connection to wall outlet
and phone base.
Reset the digital security
code by returning the hand-
set to the base. A new code is
set.
Charge the battery for about
10-14 hours before initial use
or when the battery handset
beeps in talk mode.
See above corrective actions.
Move the handset closer to
the base
1. Return the handset to the
base unit for 5-10 seconds to
reset code. If that doesn’t
work, then.
2. Check to make sure the DC
adaptor is connected.
3. Unplug DC adaptor from
power source, disconnect
handset battery for 5 seconds,
then reconnect, place hand-
set back on base. Then replug
the DC adaptor.
Troubleshooting Guide (Cont.)
PROBLEM
Can’t make outgoing
calls.
Battery pack is not
recharging.
Noise or interference
is being heard during
your conversation.
During a conversa-
tion a loud static
noise is heard.
The handset only
works close to the
base.
The incoming call’s
signal is intermittent
or fades.
POSSIBLE CAUSE
Tone/Pulse setting is not
set correctly.
The digital security code
has been lost.
The base and handset bat-
tery contacts are not in
contact with each other.
Battery pack needs to be
replaced.
Current channel is not the
clearest choice.
The handset is being used
too far away from the
base.
The base antenna is not
fully upright.
The battery is not charged.
The handset is being used
too far away from the
base.
CORRECTIVE ACTION
Set the Tone/Pulse setting to
proper setting for your type
of service.
Reset the security code re-
turning the handset to the
base.
Make certain the battery con-
tacts in the handset and base
make contact when handset
rests in the base. The base IN
USE/CHARGE LED will be
lit.
Replace the battery pack at
least every year.
Press the channel button to
switch from one channel to
another. This will allow you
to choose the clearest of 40
channels.
Move the handset closer to
the base station.
Make sure the base antenna
is fully upright for the best
result.
Recharge the battery.
Move the handset closer to
the base.
OR OS
Troubleshooting Guide (Cont.)
PROBLEM
Your telephone
rings but the
GH3110 doesn’t
show any Caller
ID records.
You cannot redial
a call record.
You can’t receive
call waiting
messages.
POSSIBLE CAUSE
The telephone line is
not connected properly
to the unit.
Your local area code is
not programmed.
The number displayed
is incorrect.
This service is not
available.
CORRECTIVE ACTION
Connect the telephone
line into the back of the
unit. Check with your lo-
cal telephone company to
be sure Caller ID service
is being provided on your
telephone line. Also, if
you pick up the phone be-
fore the first complete
ring, the caller ID infor-
mation will not be com-
pletely received.
If the display does not in-
dicate 7 digits for local in-
coming calls, reprogram
the local area code.
Verify the number dis-
played during redial. Date
received were possibly
corrupted during the
transmission through the
telephone lines. Dial the
telephone number manu-
ally on your telephone.
You must subscribe to
Caller ID, Call Waiting, as
well as Call Waiting
Caller ID service from
your local phone
company. The phone
must be off-hook to hear
the call waiting Caller ID
alert signal.
FCC Wants You To Know
This equipment complies with Part 68 of the FCC rules and the require-
ments adopted by the ACTA. On the bottom of this equipment is a label
that contains, among other information, a product identifier in the for-
mat US:AAAEQ##TXXXX. If requested, this number must be pro-
vided to the telephone company. You must, upon request, provide this
information to your telephone company.
FCC compliant telephone cord and modular plug are provided with this
equipment. This equipment is designed to be connected to the telephone
network or premise wiring using a compatible modular jack which is
Part 68 compliant. See installation instructions for details.
The REN is used to determine the number of devices that may be con-
nected to a telephone line. Excessive RENs on a telephone line may
result in the devices not ringing in response to an incoming call. In
most but not all areas, the sum of RENs should not exceed five(5.0). To
be certain of the number of devices that may be concerned to a line, as
determined by the total RENs, contact the local telephone company.
[For products approved after July 23, 2001, the REN for this product is
part of the product identifier that has the format US:AAAEQ##TXXXX.
The digits represented by ## are the REN without a decimal point (e.g.,
03 is a REN of 0.3). For earlier products, the REN is separately shown
on the label.].
If your telephone equipment causes harm to the telephone network, the
telephone company may discontinue your service temporarily. If
possible, they will notify you in advance. But if advance notice isn't
practical, you will be notified as soon as possible. You will be informed
of your right to file a complaint with the FCC.
Your telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect the proper functioning of
your equipment. If they do, you will be notified in advance to give you
an opportunity to maintain uninterrupted telephone service. If you ex-
perience trouble with this telephone equipment, disconnect from the
network until the problem has been corrected or until you are sure that
the equipment is not malfunctioning.
OT OU
This equipment may not be used on coin service provided by the tele-
phone company.
Connection to party lines is subject to state tariffs.
This equipment is hearing aid compatible.
An applicable certification jacks Universal Service Order Codes (USOC)
for the equipment is provided (i.e., RJ11C) in the packaging with each
piece of approved terminal equipment.
Warning: Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user's authority
to operate the equipment.
NOTICE: If your home has specially wired alarm equipment connected
to the telephone line, ensure the installation of this [GH3110] does not
disable your alarm equipment. If you have questions about what will
disable alarm equipment, consult your telephone company or a quali-
fied installer.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harm-
ful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy not installed and used in
accordance with the instructions, may cause harmful interference to
radio communication. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be de-
termined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
*Reorient or relocate the receiving antenna.
*Increase the separation between the equipment and receiver.
*Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
* Consult the dealer or an experienced radio TV technician for help.
Caution:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interfer-
ence received, including interference that may cause undesired
operation.
Privacy of communications may not be ensured when using this
phone.
Product Care
A. Avoid putting cordless phones near heating appliances and
devices that generate electrical noise (motors, fluorescent lamps,
etc.)
B. Avoid rough treatment of the phone by placing the handset gently
into the base when hanging up. Avoid dropping the handset.
C. Clean your cordless telephone only with a soft cloth slightly
dampened with water or mild hand soap. Do not use any type of
solvent or abrasive cleaner. Before cleaning, always unplug the
phone from the wall outlet.
D. Retain the original packaging should you need to ship the phone
at a later date.
Additional Information
A. Connecting this telephone to a coin operated telephone or party
line is prohibited by law.
B. If it is determined that your telephone is malfunctioning, the FCC
requires that it be disconnected from the modular outlet until the
problem has been corrected.
For immediate answers to all your questions regarding the
operation of your Southwestern Bell Freedom Phone, call the
Customer Hotline, toll-free at (800)366-0937.
OV PM
Service
According to FCC regulations, this equipment, which has been certi-
fied and registered by the FCC, may only be repaired by authorized
persons. If repairs or adjustments are made by an unauthorized person,
the FCC certification may be voided. Should you encounter any
problems, please call the Southwestern Bell Freedom Phone® toll-free
Customer Help Line for assistance: 1-800-366-0937, Monday - Friday
8:30 am - 9:00 pm, and Saturday 8:30 am- 12:30 pm. You can also visit
our website at http://www.swbfreedomphone.com.
FOR IN-WARRANTY SERVICE:
Package your complete unit (including all adaptors, line cords, and other
accessories) and ship the unit postage prepaid* and insured (for your
protection) to:
SOUTHWESTERN BELL FREEDOM PHONE®
DEPT.: Warranty Repair 7475N. Glen Harbor Blvd., Glendale, AZ
85307.
Be sure to include your return address, proof of purchase, a daytime
phone number, $9.50 for postage and handling*, and a brief explana-
tion of your difficulties.
* NOTE: California residents need only provide proof of purchase
and should call 1-800-366-0937 for shipping instructions.
FOR OUT-OF-WARRANTY SERVICE:
You may call our toll-free Help Line for the price of a replacement
before returning your unit. Please follow all instructions for In-War-
ranty service (above) to return your unit, and mark the package: DEPT.:
Out-of-Warranty.
If you have called and know the cost of your replacement, please in-
clude this information with your unit for prompt service.
Questions?
STOP... DON'T TAKE ME BACK TO THE STORE.
LOOK... FOR THE TOLL-FREE "HELP" TELEPHONE
NUMBER.
LISTEN... AS THE EXPERTS TALK YOU THROUGH THE
PROBLEM.
For immediate answers to your questions regarding operation,
missing parts or installation, call the
SOUTHWESTERN BELL FREEDOM PHONE HELP®
LINE AT:
1-800-366-0937
http://www.swbfreedomphone.com
PN PO
Limited Warranty
This Southwestern Bell Freedom Phone® is warranted to the original
purchaser to be free from defects in materials and workmanship under
normal installation, use, and service for a period of one(1) year from
the date of purchase as shown on the purchaser's receipt.
The obligation of Southwestern Bell Freedom Phone Retail Sales un-
der this warranty shall be limited to repair or replacement (at our option)
during the warranty period of any part which proves defective in mate-
rial or workmanship under normal installation, use, and service, pro-
vided the product is returned to Southwestern Bell Freedom Phone Retail
Sales (address below) TRANSPORTATION CHARGES PREPAID
(California residents call 1-800-366-0937 for shipping instructions).
Products returned to us or to an Authorized Service Center must be
accompanied by a copy of the purchase receipt.
In the absence of such purchase receipt, the warranty period shall be
one (1) year from the date of manufacture. To obtain service under this
warranty, return the defective product to the service center nearest you,
together with your sales slip and $9.50 for postage and handling
(California residents need only provide proof of purchase). You may
also have other warranty rights which vary from state to state.
This warranty shall be invalid if the product is damaged as a result of
defacement, misuse, abuse, neglect, accident, destruction, or alteration
of the serial number, improper electrical voltages or currents, repair
alteration or maintenance by any person or party other than our own
service facility or an authorized Service Center, or any use in violation
of instructions furnished by us.
This warranty is also rendered invalid if this product is removed from
the country in which it was purchased, if it is used in a country in which
it is not registered for use, and/or if it is used in a country for which it
was not designed. Due to variations in telephone systems and commu-
nications laws, this product may be illegal for use in some countries.
Southwestern Bell Freedom Phone Retail Sales assumes no responsi-
bility for damages or penalties incurred resulting from the use of this
product in a manner or location other than that from which it is intended.
This one-year limited warranty is in lieu of all other expressed warranties,
obligations, or liabilities. ANY IMPLIED WARRANTIES,
OBLIGATIONS, OR LIABILITIES, INCLUDING BUT NOT LIM-
ITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIM-
ITED IN DURATION TO THE ONE-YEAR DURATION OF THIS
WRITTEN LIMITED WARRANTY. SOME STATES DO NOT AL-
LOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO
YOU.
IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCI-
DENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
THIS OR ANY OTHER WARRANTY, EXPRESSED OR IMPLIED,
WHATSOEVER.
Some states do not allow the exclusion or limitation of special, incidental,
or consequential damages, so the above limitation or exclusion may not
apply to you. This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.

Navigation menu
