Contrinex RFM30HF RFID Transponder Reader User Manual Users manual 3

Contrinex AG RFID Transponder Reader Users manual 3

Users manual 3

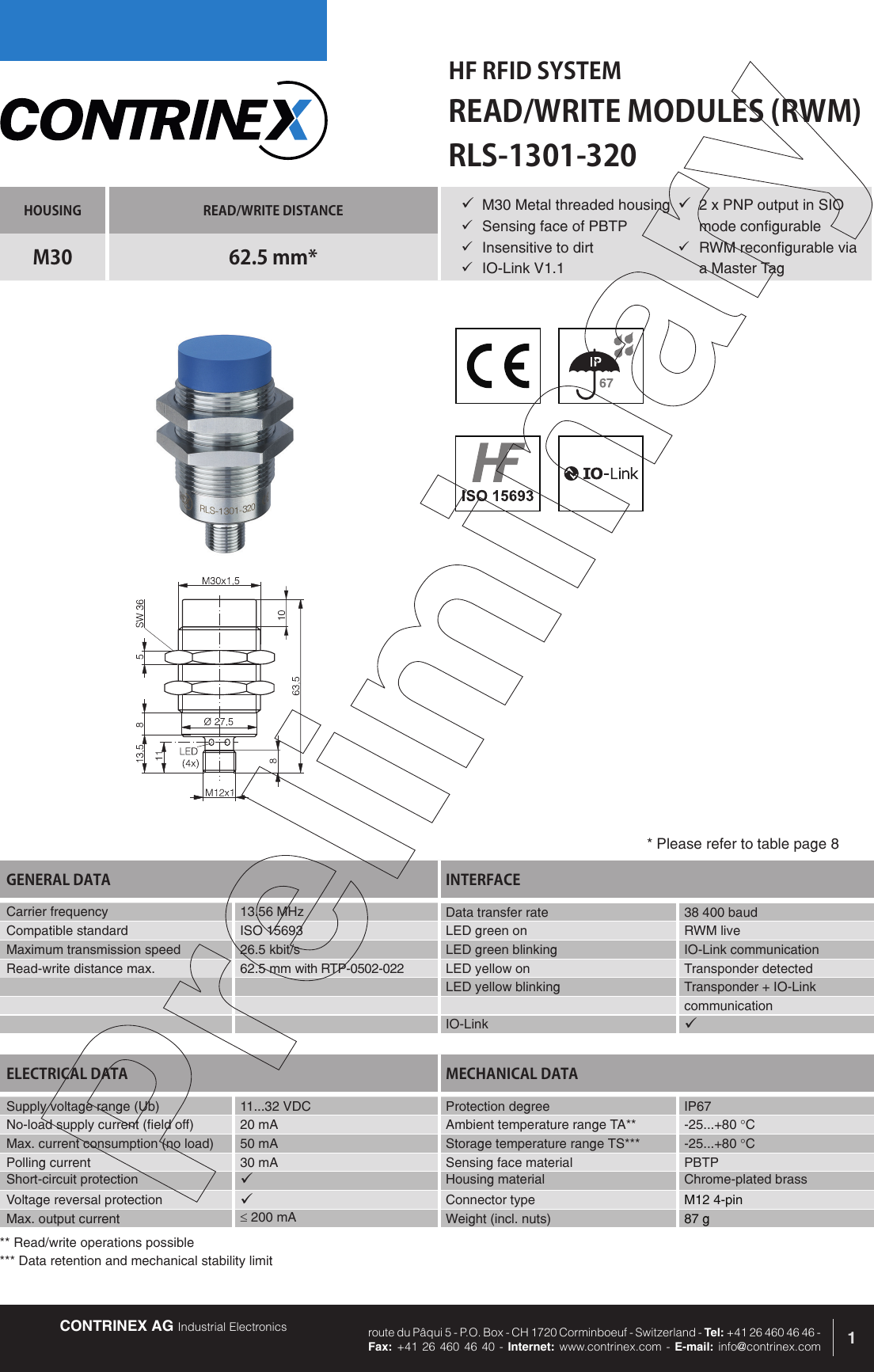

CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 - Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.comHF RFID SYSTEMREAD/WRITE MODULES (RWM)1HOUSING READ/WRITE DISTANCEM30 62.5 mm*GENERAL DATA INTERFACECarrier frequency 13.56 MHz Data transfer rate 38 400 baudCompatible standard ISO 15693 LED green on RWM liveMaximum transmission speed 26.5 kbit/s LED green blinking IO-Link communicationRead-write distance max. 62.5 mm with RTP-0502-022 LED yellow on Transponder detectedLED yellow blinking Transponder + IO-LinkcommunicationIO-Link üRLS-1301-320ü M30 Metal threaded housingü Sensing face of PBTPü Insensitive to dirtü IO-Link V1.1ELECTRICAL DATA MECHANICAL DATASupply voltage range (Ub) 11...32 VDC Protection degree IP67No-load supply current (field off) 20 mA Ambient temperature range TA** -25...+80 °CMax. current consumption (no load) 50 mA Storage temperature range TS*** -25...+80 °CPolling current 30 mA Sensing face material PBTPShort-circuit protection üHousing material Chrome-plated brassVoltage reversal protection üConnector type M12 4-pinMax. output current ≤ 200 mA Weight (incl. nuts) 87 g* Please refer to table page 8ü 2 x PNP output in SIO mode configurableü RWM reconfigurable via a Master Tag** Read/write operations possible*** Data retention and mechanical stability limit

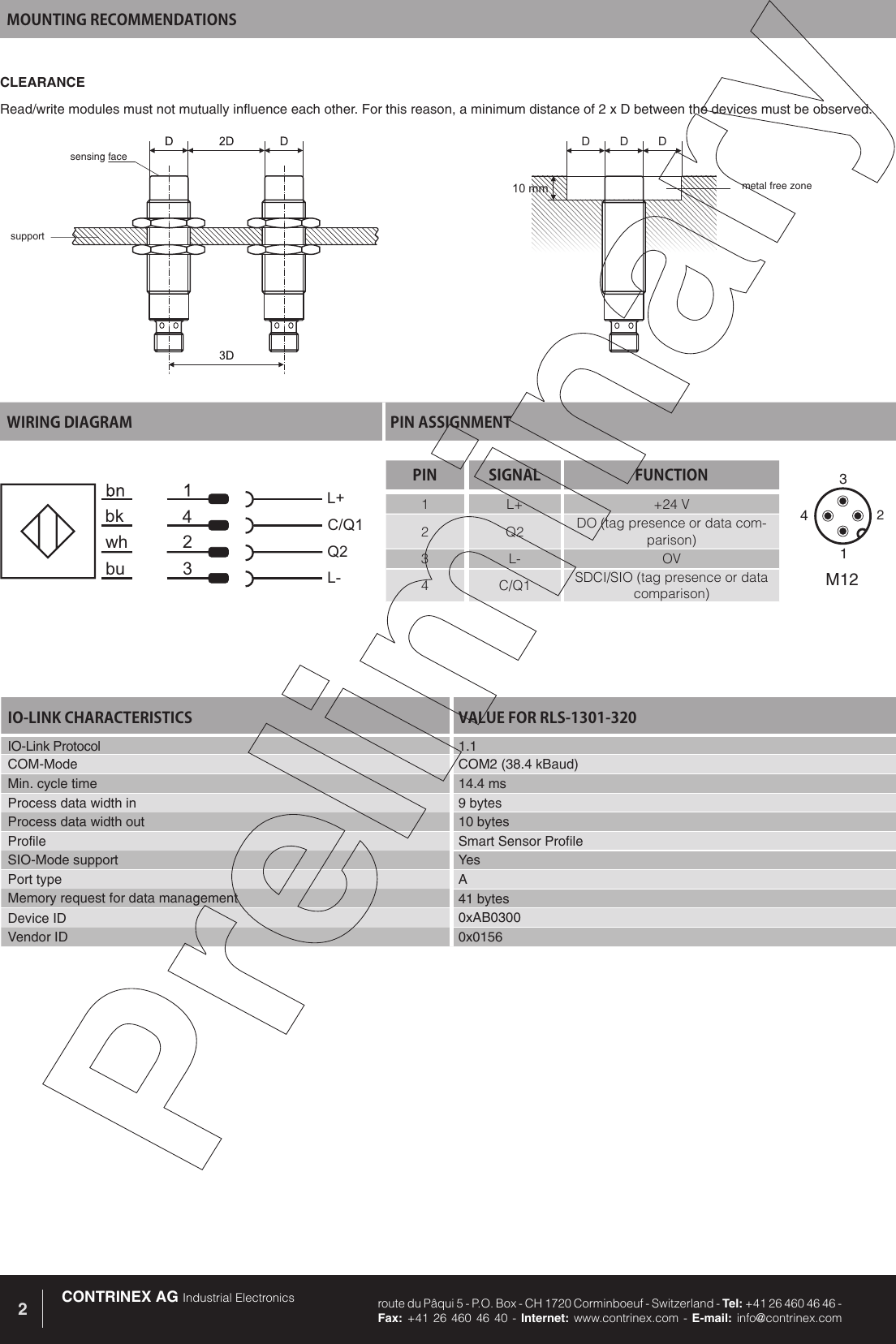

CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 - Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.com2MOUNTING RECOMMENDATIONSWIRING DIAGRAM PIN ASSIGNMENTPIN SIGNAL FUNCTION1 L+ +24 V2 Q2 DO (tag presence or data com-parison)3 L- OV4 C/Q1 SDCI/SIO (tag presence or data comparison)3142M12CLEARANCERead/write modules must not mutually influence each other. For this reason, a minimum distance of 2 x D between the devices must be observed.DDD10mmsensing facesupportmetal free zoneIO-LINK CHARACTERISTICS VALUE FOR RLS-1301-320IO-Link Protocol 1.1COM-Mode COM2 (38.4 kBaud)Min. cycle time 14.4 msProcess data width in 9 bytesProcess data width out 10 bytesProfile Smart Sensor ProfileSIO-Mode support YesPort type AMemory request for data management 41 bytesDevice ID 0xAB0300Vendor ID 0x0156bk 4C/Q1bu 3 L-L+wh 2 Q2

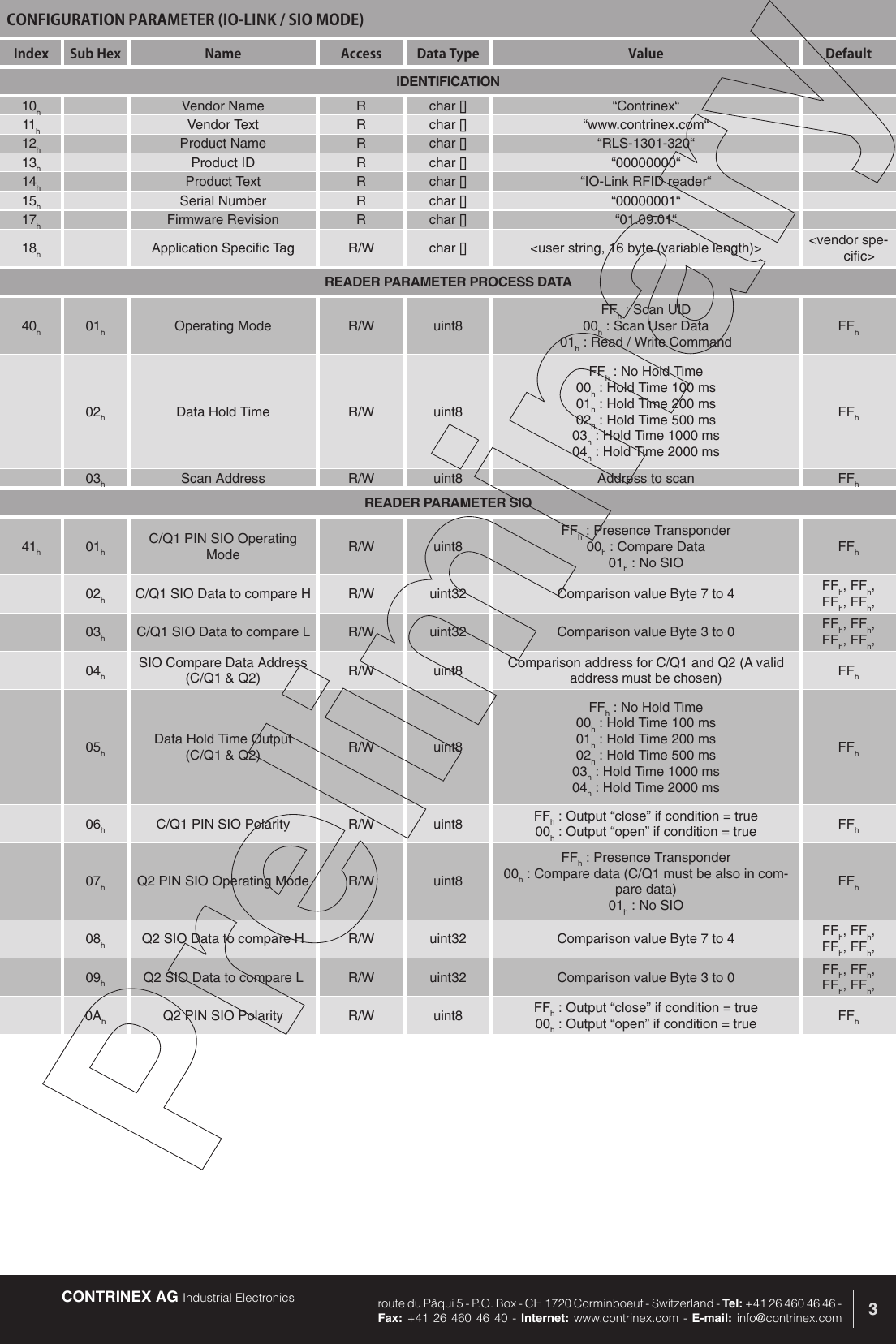

CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 - Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.com 3CONFIGURATION PARAMETER (IO-LINK / SIO MODE)Index Sub Hex Name Access Data Type Value DefaultIDENTIFICATION10hVendor Name R char [] “Contrinex“11hVendor Text R char [] “www.contrinex.com“12hProduct Name R char [] “RLS-1301-320“13hProduct ID R char [] “00000000“14hProduct Text R char [] “IO-Link RFID reader“15hSerial Number R char [] “00000001“17hFirmware Revision R char [] “01.09.01“18hApplication Specific Tag R/W char [] <user string, 16 byte (variable length)> <vendor spe-cific>READER PARAMETER PROCESS DATA40h01hOperating Mode R/W uint8FFh : Scan UID00h : Scan User Data01h : Read / Write CommandFFh02hData Hold Time R/W uint8FFh : No Hold Time00h : Hold Time 100 ms01h : Hold Time 200 ms02h : Hold Time 500 ms03h : Hold Time 1000 ms04h : Hold Time 2000 msFFh03hScan Address R/W uint8 Address to scan FFhREADER PARAMETER SIO41h01hC/Q1 PIN SIO Operating Mode R/W uint8FFh : Presence Transponder00h : Compare Data01h : No SIOFFh02hC/Q1 SIO Data to compare H R/W uint32 Comparison value Byte 7 to 4 FFh, FFh,FFh, FFh, 03hC/Q1 SIO Data to compare L R/W uint32 Comparison value Byte 3 to 0 FFh, FFh,FFh, FFh, 04hSIO Compare Data Address (C/Q1 & Q2) R/W uint8 Comparison address for C/Q1 and Q2 (A valid address must be chosen) FFh05hData Hold Time Output (C/Q1 & Q2) R/W uint8FFh : No Hold Time00h : Hold Time 100 ms01h : Hold Time 200 ms02h : Hold Time 500 ms03h : Hold Time 1000 ms04h : Hold Time 2000 msFFh06hC/Q1 PIN SIO Polarity R/W uint8 FFh : Output “close” if condition = true00h : Output “open” if condition = true FFh07hQ2 PIN SIO Operating Mode R/W uint8FFh : Presence Transponder00h : Compare data (C/Q1 must be also in com-pare data)01h : No SIOFFh08hQ2 SIO Data to compare H R/W uint32 Comparison value Byte 7 to 4 FFh, FFh,FFh, FFh,09hQ2 SIO Data to compare L R/W uint32 Comparison value Byte 3 to 0 FFh, FFh,FFh, FFh,0AhQ2 PIN SIO Polarity R/W uint8 FFh : Output “close” if condition = true00h : Output “open” if condition = true FFh

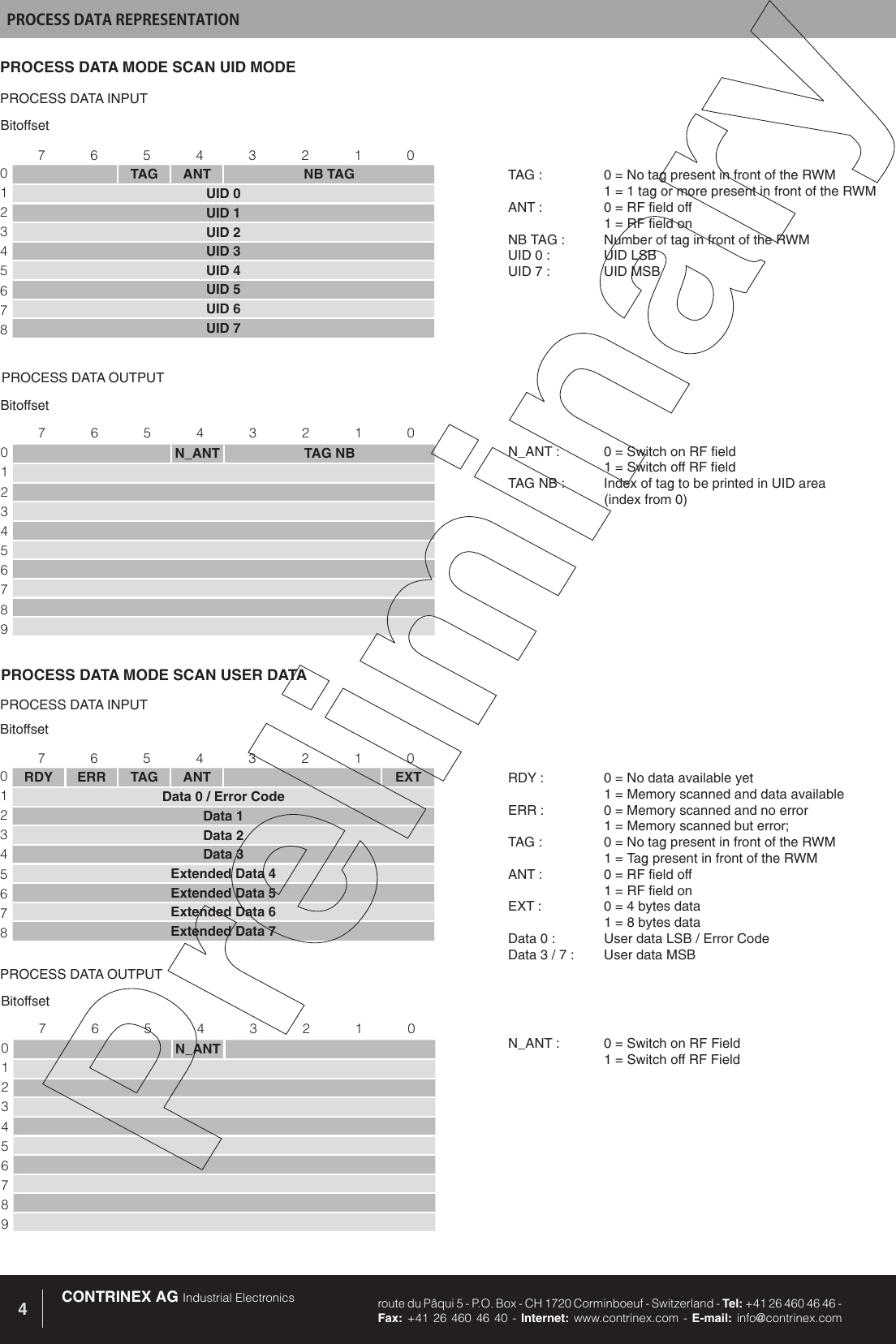

CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 - Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.com4PROCESS DATA OUTPUTN_ANT : 0 = Switch on RF field 1 = Switch off RF fieldTAG NB : Index of tag to be printed in UID area (index from 0)RDY : 0 = No data available yet 1 = Memory scanned and data availableERR : 0 = Memory scanned and no error 1 = Memory scanned but error; TAG : 0 = No tag present in front of the RWM 1 = Tag present in front of the RWMANT : 0 = RF field off 1 = RF field onEXT : 0 = 4 bytes data 1 = 8 bytes dataData 0 : User data LSB / Error CodeData 3 / 7 : User data MSBPROCESS DATA INPUTPROCESS DATA MODE SCAN USER DATAPROCESS DATA REPRESENTATIONPROCESS DATA INPUTTAG : 0 = No tag present in front of the RWM 1 = 1 tag or more present in front of the RWMANT : 0 = RF field off 1 = RF field onNB TAG : Number of tag in front of the RWMUID 0 : UID LSBUID 7 : UID MSBPROCESS DATA MODE SCAN UID MODEBitoffsetTAG ANT NB TAGUID 0UID 1UID 2UID 3UID 4UID 5UID 6UID 77 6 5 4 3 2 1 00 1 2 3 4 5 6 7 8BitoffsetN_ANT TAG NB7 6 5 4 3 2 1 00 1 2 3 4 5 6 7 8 9BitoffsetRDY ERR TAG ANT EXTData 0 / Error CodeData 1Data 2Data 3Extended Data 4Extended Data 5Extended Data 6Extended Data 77 6 5 4 3 2 1 00 1 2 3 4 5 6 7 8N_ANT : 0 = Switch on RF Field 1 = Switch off RF FieldPROCESS DATA OUTPUTBitoffsetN_ANT7 6 5 4 3 2 1 00 1 2 3 4 5 6 7 8 9

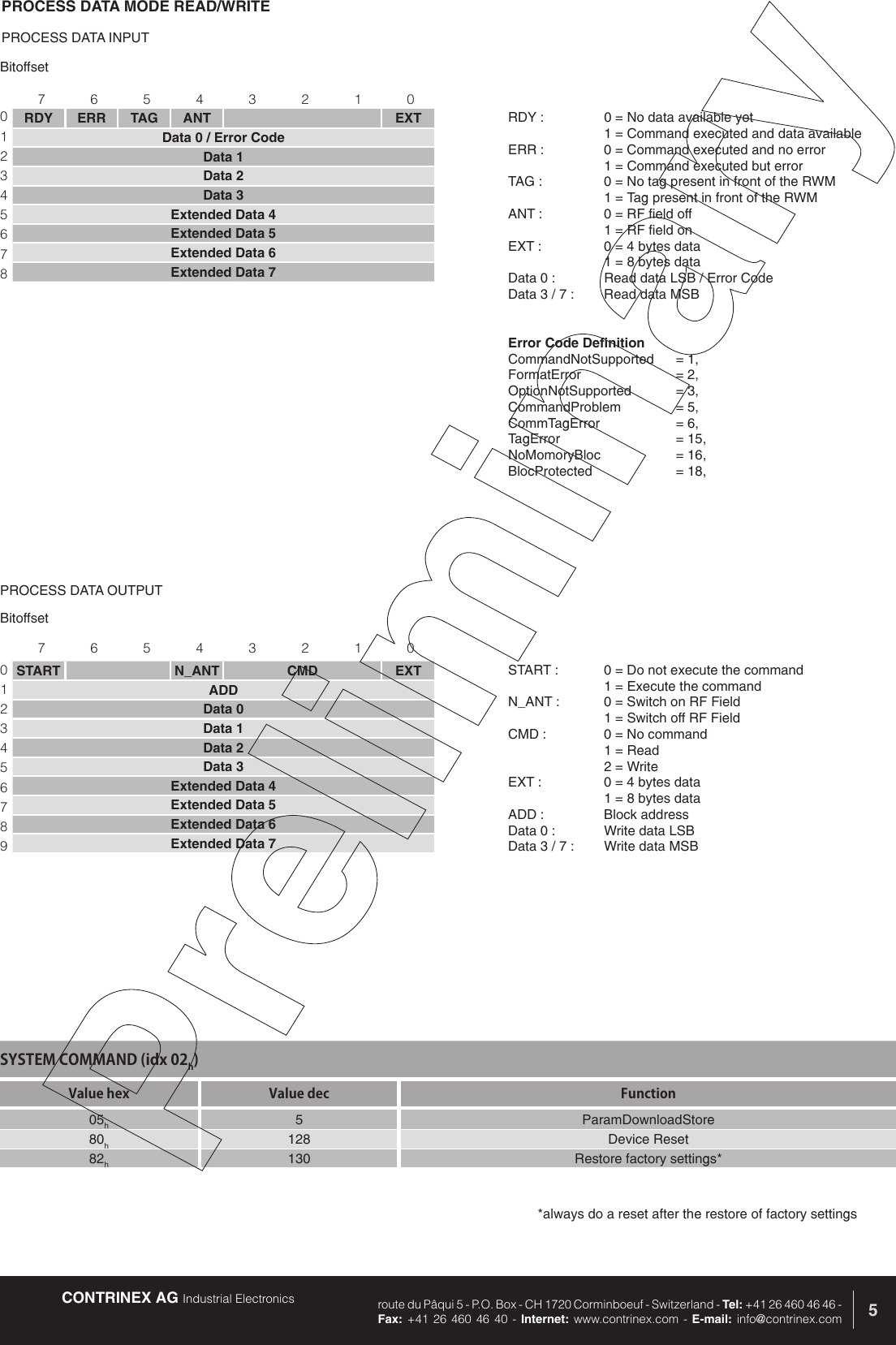

CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 - Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.com 5PROCESS DATA OUTPUTRDY : 0 = No data available yet 1 = Command executed and data availableERR : 0 = Command executed and no error 1 = Command executed but errorTAG : 0 = No tag present in front of the RWM 1 = Tag present in front of the RWMANT : 0 = RF field off 1 = RF field onEXT : 0 = 4 bytes data 1 = 8 bytes dataData 0 : Read data LSB / Error CodeData 3 / 7 : Read data MSBPROCESS DATA INPUTPROCESS DATA MODE READ/WRITESTART : 0 = Do not execute the command 1 = Execute the commandN_ANT : 0 = Switch on RF Field 1 = Switch off RF FieldCMD : 0 = No command 1 = Read 2 = Write EXT : 0 = 4 bytes data 1 = 8 bytes dataADD : Block addressData 0 : Write data LSBData 3 / 7 : Write data MSBError Code DefinitionCommandNotSupported = 1,FormatError = 2,OptionNotSupported = 3,CommandProblem = 5,CommTagError = 6,TagError = 15,NoMomoryBloc = 16,BlocProtected = 18,BitoffsetRDY ERR TAG ANT EXTData 0 / Error CodeData 1Data 2Data 3Extended Data 4Extended Data 5Extended Data 6Extended Data 77 6 5 4 3 2 1 00 1 2 3 4 5 6 7 8BitoffsetSTART N_ANT CMD EXTADDData 0Data 1Data 2Data 3Extended Data 4Extended Data 5Extended Data 6Extended Data 77 6 5 4 3 2 1 00 1 2 3 4 5 6 7 8 9*always do a reset after the restore of factory settingsSYSTEM COMMAND (idx 02h)Value hex Value dec Function05h5 ParamDownloadStore80h128 Device Reset82h130 Restore factory settings*
CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 - Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.com6MASTER TAG CONFIGURATIONFor the RLS-1301-320, the IO-Link mode or the SIO (standard I/O mode) can be configured via IO-Link or via a Master Tag. For the configuration via a Master Tag, a transponder (called Master Tag) will contain all the data used for the configuration. There is a simple procedure to configure the RWM. Once all the data are written in the Master Tag, you need to put it in front of the RWM sensing face, to switch off the RWM power supply and to switch on again. The RWM will detect that it’s a Master Tag and read all the data and configure the outputs accordingly.On the Contrinex RFID product finder page (https://www.contrinex.com/product-finder/rfid/) of any ContriNET RWM USB, it is possible to download a software to setup the Master Tag using a ContriNET RWM USB. This program is called “IO-Link Master Tag Programmer” and its it is included in the “Softwares” zip file.SIO MODE POSSIBILITIES If you use the RLS-1301-320 in an SIO mode, you will have two main possibilities:1. Presence Transponder: In this mode, the output will switch if a transponder is in the field of the RWM.2. Compare Data: In this mode, the output will switch if the data red in the defined block memory of the transponder matches with the data stocked in the RWM.MASTER TAGTo build a Master Tag it’s possible to use any ISO15693 chip with at least eight memory blocks with 32 bits each. Two screenshots of the “IO-Link Master Tag Programmer” are placed below to serve as an example of one possible Master Tag configurationRead/Write Module usedCompare data value (DEC) to switch output C/Q1Output switch condition selection for Q2 (Tag presence)Tag memory address value (DEC) where to perform the compare data operationWhen Tag Master data (SIO & IO-Link Mode) is successfully programmed in to the tag memory, the "Program Master TAG" button turns green , otherwise it turns redSelection box for the IO-Link operation mode (Scan UID, Scan User Data and Scan Read/Write Command)Scan address where to read the RFID data (only available when Scan User Data mode is selected)Timer value during which the switching state is maintained after the transponder left the RWM detection rangeOutput switch condition selection for C/Q1 (Compare data)

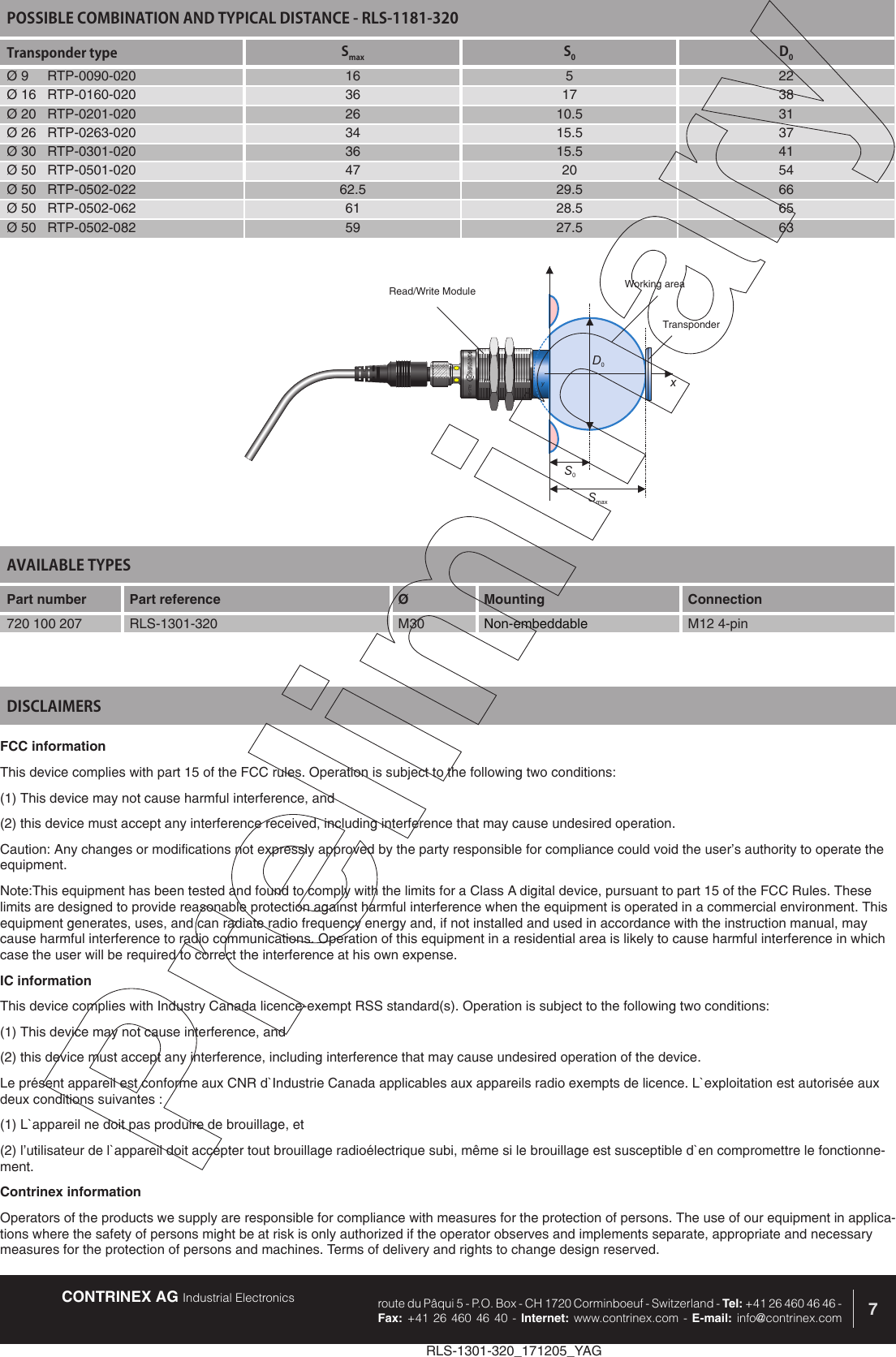

CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 - Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.com 7RLS-1301-320_171205_YAGAVAILABLE TYPES Part number Part reference Ø Mounting Connection720 100 207 RLS-1301-320 M30 Non-embeddable M12 4-pinFCC informationThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.Note:This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.IC informationThis device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d`Industrie Canada applicables aux appareils radio exempts de licence. L`exploitation est autorisée aux deux conditions suivantes : (1) L`appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l`appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d`en compromettre le fonctionne-ment.Contrinex informationOperators of the products we supply are responsible for compliance with measures for the protection of persons. The use of our equipment in applica-tions where the safety of persons might be at risk is only authorized if the operator observes and implements separate, appropriate and necessary measures for the protection of persons and machines. Terms of delivery and rights to change design reserved.DISCLAIMERSPOSSIBLE COMBINATION AND TYPICAL DISTANCE - RLS-1181-320Transponder type Smax S0D0Ø 9 RTP-0090-020 16 5 22Ø 16 RTP-0160-020 36 17 38Ø 20 RTP-0201-020 26 10.5 31Ø 26 RTP-0263-020 34 15.5 37Ø 30 RTP-0301-020 36 15.5 41Ø 50 RTP-0501-020 47 20 54Ø 50 RTP-0502-022 62.5 29.5 66Ø 50 RTP-0502-062 61 28.5 65Ø 50 RTP-0502-082 59 27.5 63RLLS--133011-0000D0S0xySmaxRead/Write Module Working areaTransponder
