Coulisse ABC06 Tubular Motor User Manual ABC 0607MC A R0 indd
Coulisse B.V. Tubular Motor ABC 0607MC A R0 indd
Coulisse >
User Manual
RCU-29-ABC RCU-30-ABC RCU-32-ABC RCU-31-ABC RCU-33-ABC
RCU-13 RCU-13-ABC RCU-14 RCU-14-ABC
RTU-42 RTU-50 RTU-65 RTU-80
1.3A 1.3B
1.3C 1.3E
1.3D
RCU-29-ABC
ph1
1.4A 1.4B
1.4D
1.4E 1.4F 1.4G
ph1
1.4C
RCU-30/31/32/33-ABC RCU-13/14
ph1

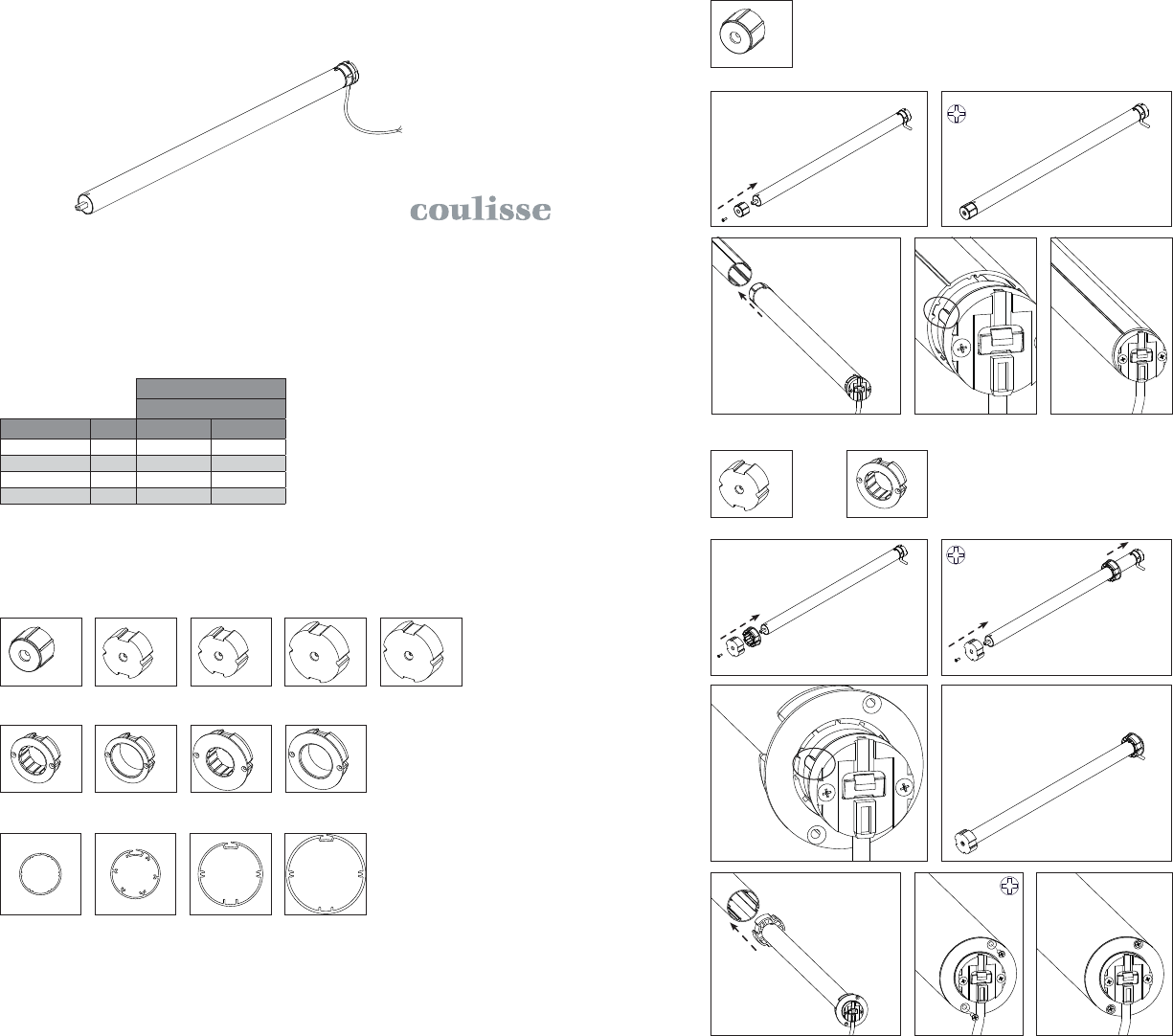

ABC-0607-A_R1_
Assembly Manual
AC Tubular motors
ABC-06, -07 - MC
Motor
ABC-06/ABC-07
System: Tube: Drive plug: Adapter:
Roller 42mm RTU-42 RCU-29-ABC no adapters
Roller 50mm RTU-50 RCU-29-ABC no adapters
Roller 65mm RTU-65 RCU-30-ABC RCU-13
Roller 80mm RTU-80 RCU-31-ABC RCU-14
1. Assembly
1.1 Compatibility and adapters
Drive plugs:
1.2 Component overview
1.3 Motor assembly Roller 42/50mm
Adapters:
Tubes:
GB1
1.4 Motor assembly Roller 65/80mm
indoor use only
L3
L2
ØD1
L1
!
Coulisse B.V., Vonderweg 48, 7468 DC Enter, The Netherlands
!

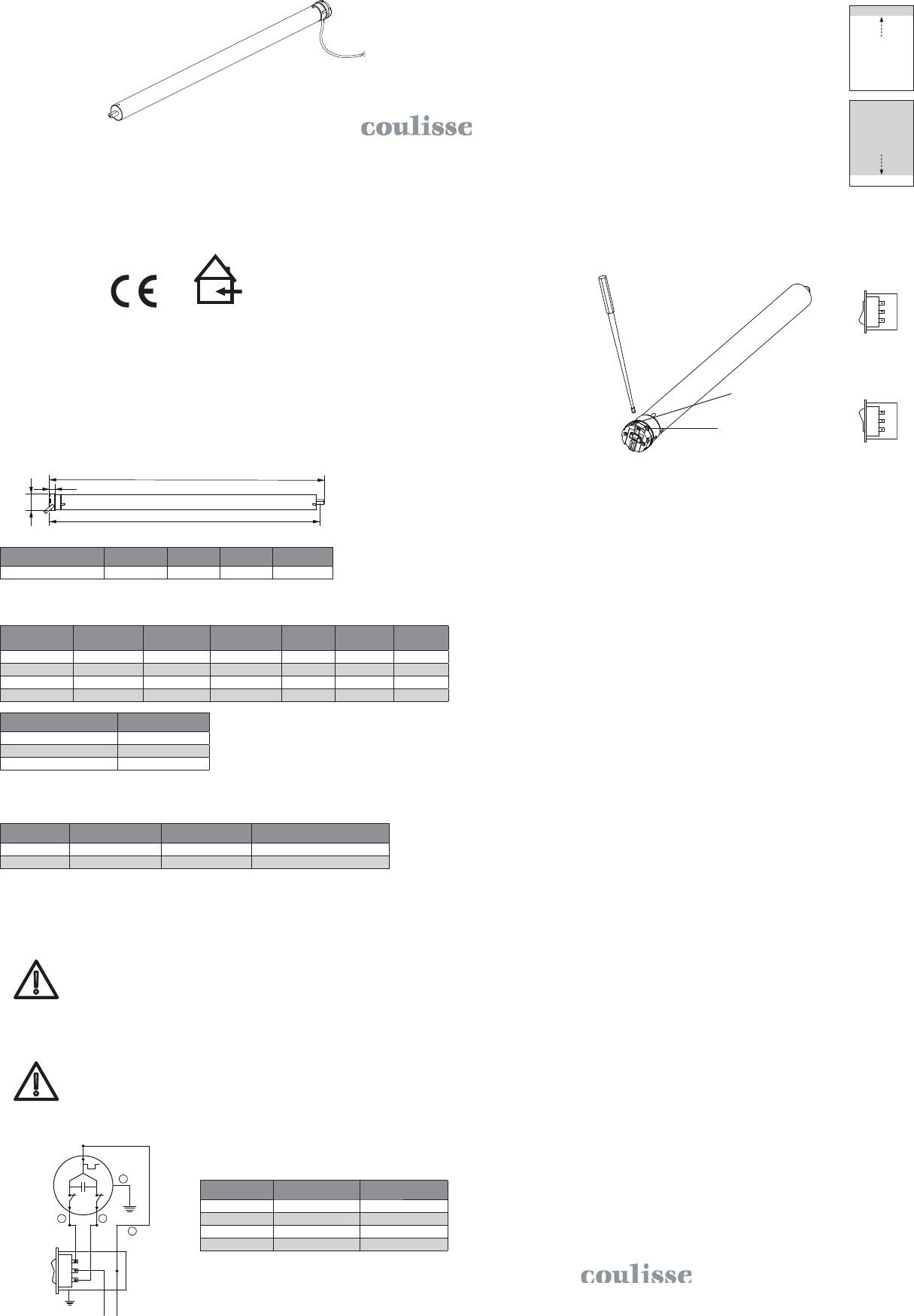

ABC-0607MC-U_R1_
User Manual
AC Tubular motors
ABC-06, -07 - MC(120)
WARNING: Important safety instructions. Follow all instructions,
since incorrect installation can lead to severe injury.
Do not make repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding
the limited warranty. No user-serviceable parts are inside.
WARNING:
1. General information
The ABC-06-MC(120), ABC-07-MC(120) are tubular motors to motorize Coulisse Absolute Roller.
The tubular motors are compatible with Coulisse tubes and makes it possible
to operate your blind motorised with minimum noise.
Type Power supply Rated power Torq - rpm Max.
revolutions
Weight
[gram]
IP
ABC-06-MC 230V AC 50Hz 0.53A - 121W 5Nm - 30 rpm 30 1750 44
ABC-07-MC 230V AC 50Hz 0.53A - 121W 10Nm - 15 rpm 30 1750 44
ABC-06-MC(120) 120V AC 60Hz 0.85A - 102W 6Nm - 33 rpm 30 1750 44
ABC-07-MC(120) 120V AC 60Hz 0.89A - 92W 10Nm - 21 rpm 30 1750 44
1.2 Performances
2. Connecting diagram
Do not make repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding
the limited warranty. No user-serviceable parts are inside.
WARNING:
- Do not let children play with the blind and/or remote control.
- Only use powersupplies or batteries that comply with the speci cations on the motor.
- In case of malfunction, unplug the device or remove the batteries and contact your dealer.
- Take care that the blind can move freely and is not blocked by objects.
- Take care that the powersupply cable is out of reach for children.
- Do not paint the device.
- Keep the device dry.
6. Service & Support
Follow these general rules when cleaning the outside of the device and its components:
- Make sure the device is unplugged.
- Use a damp, soft, lint-free cloth. Avoid getting moisture in openings.
- Don’t use aerosol sprays, solvents, alcohol, or abrasives.
Do not make repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding
the limited warranty. No user-serviceable parts are inside.
WARNING:
Online Resources
For the latest information and updated manuals go to www.coulisse.nl.
Obtaining Warranty Service
First follow the advice in this booklet and then go to your local dealer.
If the product appears to be damaged or does not function properly, go to your local dealer
for instructions on how to obtain warranty service.
4. Tips & Troubleshooting
Please check www.coulisse.nl for the latest tips and troubleshooting guide
Disclaimer:
© Copyright Coulisse
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, by any means,
electronic, mechanical, photocopying, recording, digital or otherwise without the written permission of the publisher.
Although this manual has been composed with the most care, Coulisse B.V. does not accept any responsibility for damage due
to mistakes and/or faults in this manual.
Coulisse B.V. reserves the right to revise the manual and to revise and/or changes its content at any time, without obligation to notify
any person or entity of such revisions or changes.
The most recent version replaces older versions of this manual. The most recent version is available at ww.coulisse.com or contact
your Coulisse contact person .
We invite you to send remarks and comments about this manual to Coulisse at manuals@coulisse.com.
5. Safety & Cleaning
Type Roller Venetian Other
namor-mm08 ,56 ,05 ,24)021(CM-60-CBA
ABC-07-MC(120) 42, 50, 65, 80mm 50mm tilt and lift roman
1.3 Compatibility
IMPORTANT:
When the mains cable is permanently connected, a readily accessible disconnect
device shall be incorporated external to the motor.
When there is a pluggable connecter installed on the mains cable, the socket-outlet
shall be installed near the motor and shall be easily accessible.
1.1 General dimensions
Mains cable 230V 120V
Neutral (1) Blue White
Direction 1 (2) Brown Red
Direction 2 (3) Black Black
Ground (4) Green/Yellow Green
General
Max. operating time 4 min.
Operating Temp. 5 - 60°C
rtm 2eriw htgneL
1. Do not wire two or more motors to one single pole switch or relay.
2. Do not control one motor from several locations without using a proper controller.
3. Do not connect the brown wire and the black wire at the same time
to the powersource, this may permanently damage the motor.
Attention:
T
M
MS 1 M S 2
C
1
23
4
3. Position adjustment
2. Lower position
Turn the switch downwards and turn the white or red screw
until the blind has reached the lower position (select the white
or red screw depending on the position of the motor in the blind;
you need to rst test this in order to make the selection).
The lower position is now set.
1. Upper position
Turn the switch upwards and turn the white or red screw until
the blind has reached the upper position (select the white or
red screw depending on the position of the motor in the blind;
you need to rst test this in order to make the selection).
The upper position is now set.
3. Changing positions:
By turning the red or the white screw to the right (+) or to the left
you can respectively enlarge the end position or make it smaller.
Switch
Lower position
Upper position
GB1
Type L1 L2 L3 Ø D1
ABC-06/07-MC(120) 475 17 460 40
Included adjuster
Red adjuster screw
White adjuster screw
