Owner's Manual

1 HP (Max, DeveUoped)

1410 and 2600 FoP.M.(No Load)

Leg Stand

12" BAN SAW

Mode! No.

137.224120

CAUTmON:

Before using this band saw,

read this manual and follow

all its Safety Rules and

Operating Instructions.

Safety instructions

installation

• Operation

o Maintenance

Parts List

Custemer Help Line

t =8ee=843.1¢82

Sears, Roebuck and Coo, Hoffman Estates, JL 60179 USA

Part No. 137224120002

SECTRON PAGE

Warranty ................................................................ 2

Product Specifications ..................................................... 2

Safety _nstructions ........................................................ 3

Accessories and Attachments .: ............................................. 6

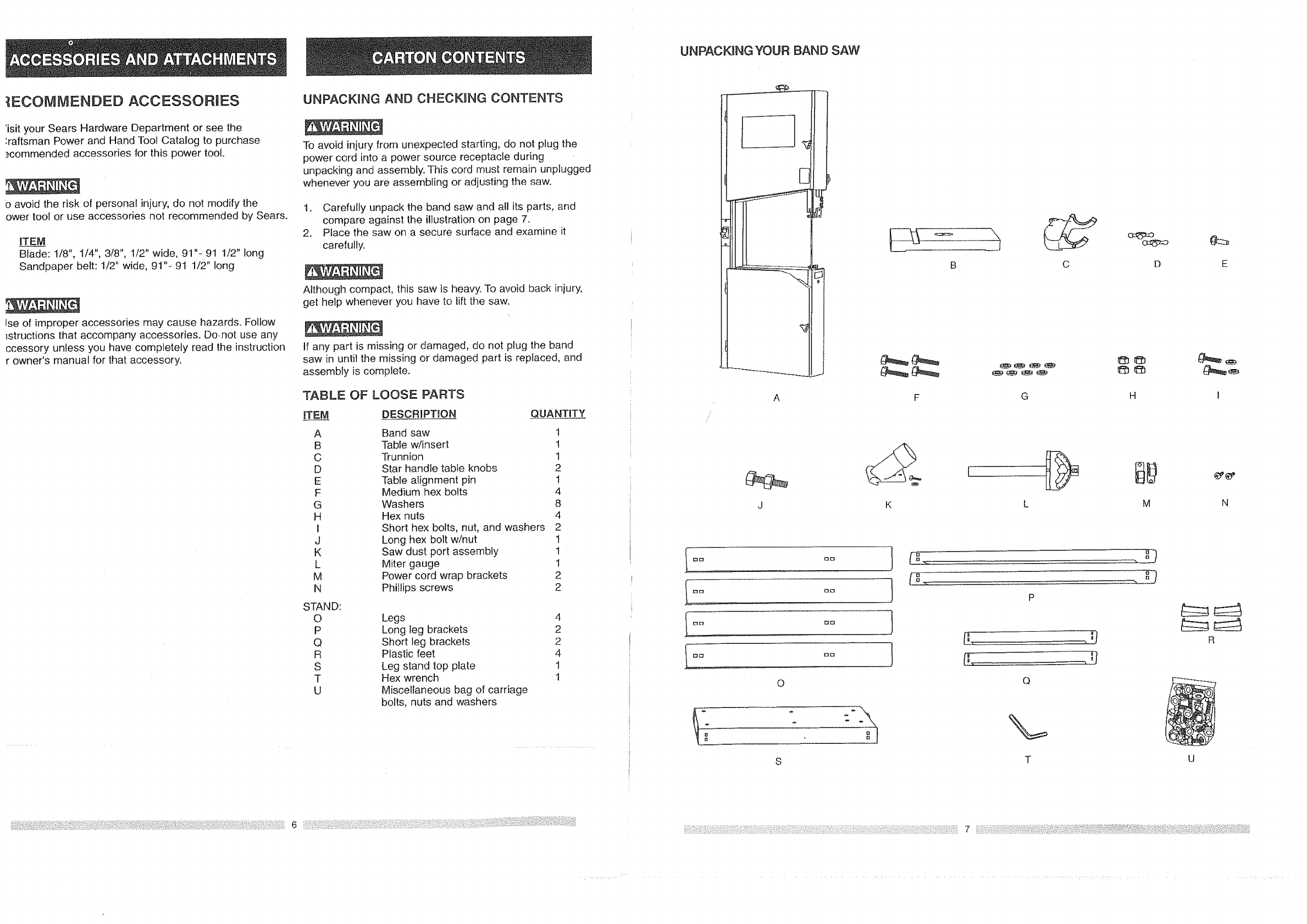

Carton Contents .......................................................... G

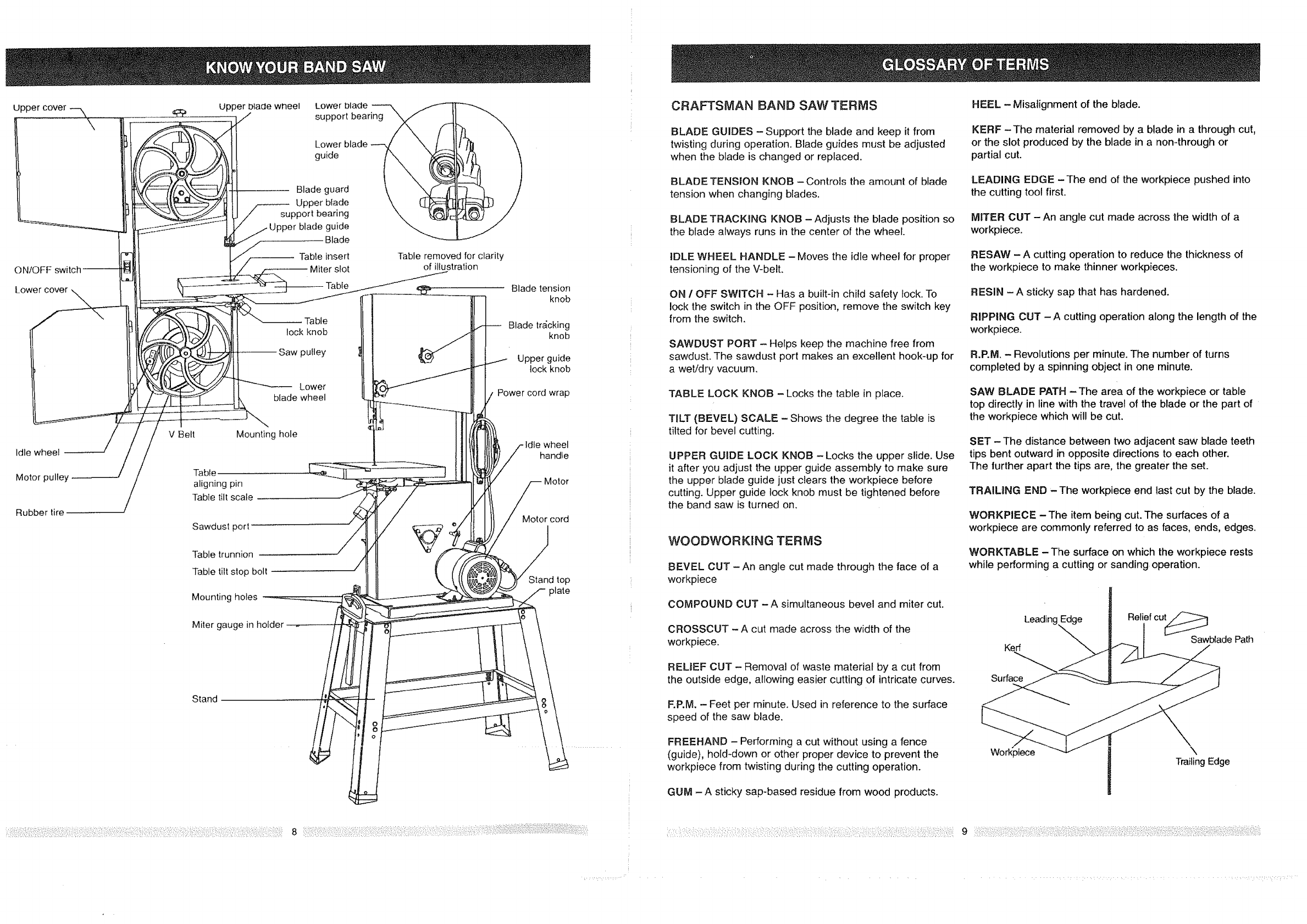

Know Your Band Saw ...................................................... 8

Glossary of Terms ........................................................ 9

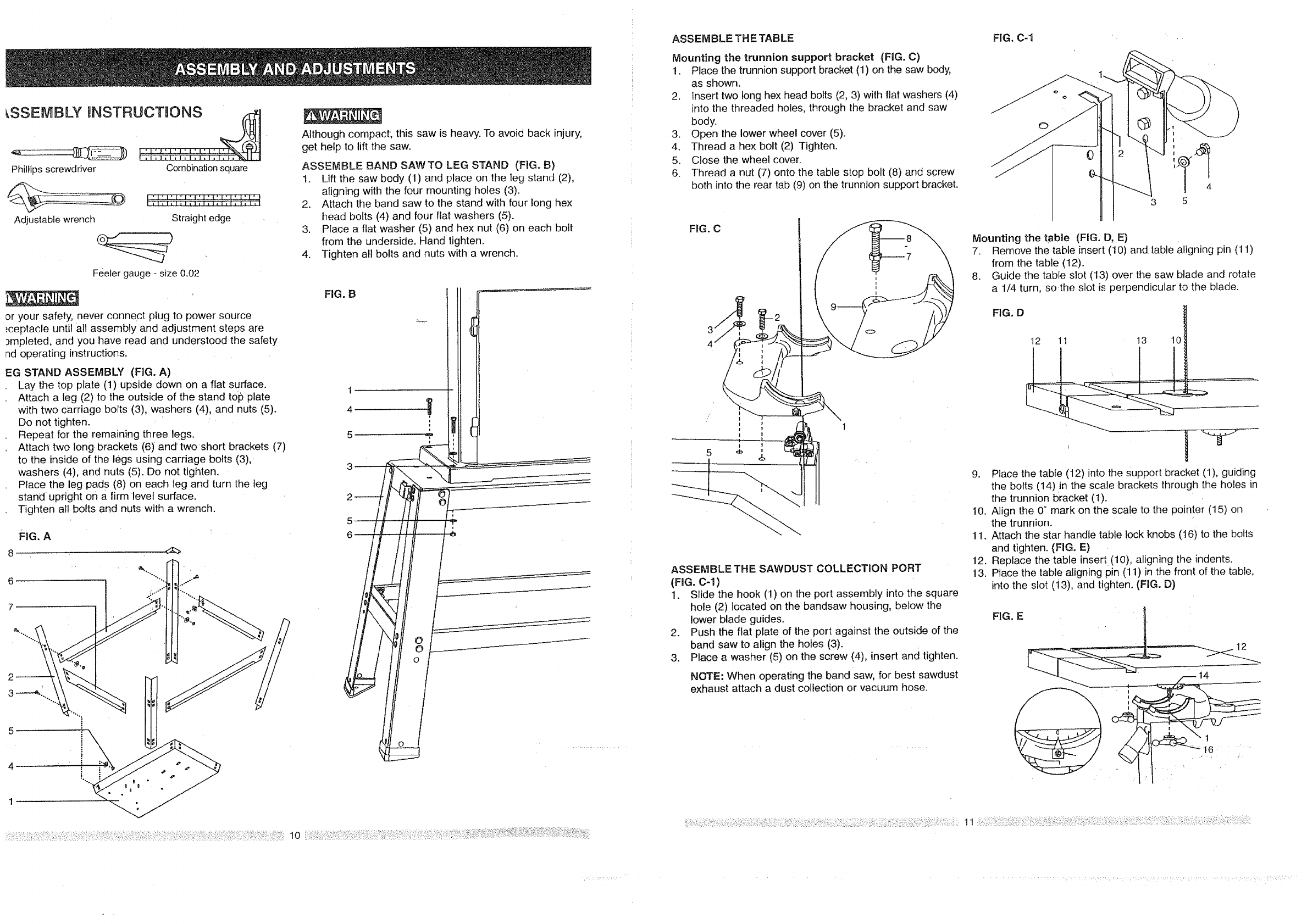

Assembly and Adjustments ................................................ 10

Operation .............................................................. 18

Maintenance ............................................................ 21

Troubaeshooting guide .................................................... 22

Parts .................................................................. 24

MOTOR

Power source ....... !20 V AC, 60 HZ, 7.5 AMPS

Horsepower ......... 1 HP (Max. Developed)

Speeds High ..... 2600 RP.M.

Low ...... 1410 RP.M.

Type .............. Induction

CUTTING CAPACITY

Throat ............. 12-1/2"

Height ............. 6"

BLADE CAPACITY

Width ........... ":.. !/8", 1/4", 3/8", 1/2"

Length ............. 91"

TABLE

Size ............... 14" x14"

Tilt ................ 0 - 10°Left, 0 - 45° Right

BLADE iNCLUDED ............

DUST COLLECTION ...........

MITER GAUGE ................

3/8" x 91"16 TPI

Yes

To avoid electrical hazards, fire hazards, or damage to

the tool, use proper circuit protection. Use a separate

electrical circuit for your tools.

"Yourband saw is wired at the factory for 120V operation,

Connect to a 120V, 15 AMP time delay fuse or circuit

breaker. To avoid shock or fire, replace power cord

immediately if it is worn, cut or damaged in any way.

Some dust created by power sanding sawing, grinding, drilling, and other construction activities contains chemicals

known [to the State of California] to cause cancer, birth defects or other reproductive harm. Some examples of these

chemicals are:

@ Lead from lead-based paints.

@ Crystalline silica from bricks and cement and other masonry products, and

@ Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to

these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks

that are specially designed to filter out microscopic particles.

i:!

=ii

GENERAL SAFETY INSTRUCT ONS

BEFORE USING THE BAND SAW

Safety is a combination of common sense, staying alert

and knowing how to use your band saw.

To avoid mistakes that could cause serious injury, do not

plug the band saw in until you have read and understood

the following:

1. READ and become familiar with this entire instruction

manual. LEARN the tool's applications, limitations, and

possible hazards.

2. KEEP GUARDS iN PLACE and in working order.

3. REMOVE ADJUSTING KEYS AND WRENCHES. Form

the habit of checking to see that keys and adjusting

wrenches are removed from the tool before turning ON.

4. KEEP WORK AREA CLEAN. Cluttered areas and

benches invite accidents.

DONq" USE IN A DANGEROUS ENVIRONMENT. Don't

use power tools in damp or wet locations, or expose

them to rain. Keep work area well lighted.

KEEP CHILDREN AWAY. All visitors should be kept at

a safe distance from the work area.

,MAKE WORKSHOP KID-PROOF with padlocks,

master switches, or by removing starter keys:

8. DON'T FORCE THE TOOL. It will do the job better and

safer at the rate for which it was designed.

9. USE THE RIGHT TOOL. Don't force the tool or the

attachment to do a job for which it was not designed.

t0. USE PROPER EXTENSION CORD. Make sure your

extension cord is in good condition. When using an

extension cord, be sure to use one heavy enough to

carry the current your product will draw. An undersized

cord will result in a drop in line voltage and loss of

power which wilt cause the tool to overheat. The table

on page 5 shows the correct size to use depending on

cord length and nameplate ampere rating. If in doubt,

use the next heavier gauge. The smaller the gauge

number, the heavier tSe cord.

11. WEAR PROPER APPAREL. DO NOT wear loose

clothing, gloves, neckties, rings, bracelets, or other

jewelry which may get caught in moving parts. Non-slip

footwear is recommended. Wear protective hair covering

to contain long hair.

!2.

13.

14.

15.

16.

17.

18.

t9.

ALWAYS WEAR EYE

WP.AR YO_ PROTECTION. Any band saw

can throw foreign objects into

the eyes which could cause

permanent eye damage.

ALWAYS wear Safety Goggles

(not glasses) that comply with

ANSI safety standard Z87.1. Everyday eyeglasses

have only impact-resistant lenses. They ARE NOT safety

glasses. Safety Goggles are available at Sears. NOTE:

Glasses or goggles not in compliance with ANSI Z87.1

could seriously hurt you when they break.

WEAR A FACE MASK OR DUST MASK. Sawing and

sanding operations produce dust.

SECURE WORK. Use clamps or a vise to hold work

when practical. It's safer than using your hand and it

frees both hands to operate tool.

D_SCONNECT TOOLS before servicing, and when

changing accessories, such as blades, bits, cutters,

and the like.

REDUCE THE R_SK OF UNINTENTIONAL STARTING.

Make sure the switch is in OFF position before plugging

in.

USE RECOMMENDED ACCESSORIES. Consult the

owner's manual for the recommended accessories. The

use of improper accessories may cause risk of injury

to persons.

NEVER STAND ON TOOL. Serious injury could occur

if the tool is tipped or if the cutting tool is unintentionally

contacted.

CHECK FOR DAMAGED PARTS. Before further use

of the tool, a guard or other part that is damaged

should be carefully checked to determine that it will

operate properiy and perform its intended function.

Check for alignment of moving #_rts, binding of moving

parts, breakage of parts, mounting, and any other

conditions that may affect its operation, A guard or

other part that is damaged should be properly repaired

or replaced.

SAVE THESE NSTRUCT ONS

_i_!_i;!i`_!_:i:_:_!;:_i_!_;_;:_!_;!_:_i:_!:!_:!_i!_ii:i;:_!_i!:i;_:_!_:_!_!:_:_i:::::_i:_:_:_!_:::_:::_:i_:i!_:ii_!_!:i:i_!:_:iJ_i!;!i__i:!_::il;_:iii_:_!i!i:iii:i';:::::_i_:i_,:i:::',!:i:_!:!i:i':!¸_::_!::ii_:::!;_i:_:¸i!!_::i;:i_i!;:!:i:::::;:¸!II:_;::¸_::!:i!,:!i¸i:!:::!:¸,i'i::!_!i¸:iii:i¸!I:I¸i::::;:i:!i_::i3 :!_,i::i¸::i::i¸I:,!!;I::::I:!_:¸!_::::_::ii::i¸:::;!:I!_:_;::¸:_I:::¸i:_:_i::::i::::::i:;!;;i_:;i:_!:'::::_!:::!i¸=_::i::!;;:?:i::_::::i:!ii;_:i:!i!:!:::_:i!::_:_i::::¸i:_:::_:::i:_::!_:;!::_i:_:i;:_:!!:!:!:!ii:_i!i:i:!i:i:i::::::i:!ii::_:i:::_:_:_:!i¸i:::'!:_::::i!:_i::i:ii¸_:!i:;_i_!_!ii:!:!i':_i!i:i,:i_:!i_!!:!i:ii_ii:;!_i_:i,!il

_0. NEVER LEAVETOOL RUNNING UNATTENDED.

TURN THE POWER OFF. Don't leave the tool until it

comes to a complete stop.

!1. DON'T OVERREACH. Keep proper footing and balance

at all times.

!2. MAINTAIN TOOLS WITH CARE. Keep tools sharp and

clean for best and safest performance. Follow

instructions for lubricating and changing accessories.

!3. DO NOT use power tools in the presence of flammable

liquids or gases.

'.4. DO NOT operate the tool if you are under the influence

of any drugs, alcohol or medication that could affect

your ability to use the tool properly.

;5. ALWAYS operate the band saw in a wellwentilated area

and provide for proper dust removal. Use dust collection

systems whenever possible. Dust generated from

certain materials can be hazardous to your health.

;PECIFgC SAFETY INSTRUCTBONS

TO AVOID INJURY from unexpected movement, make

sure the saw is on a firm, level surface, properly secured

to prevent rocking. Make sure there is adequate space

for operating. Bolt the saw to a support surface to

prevent slipping, walking, or sliding during operation.

TURN the saw OFF and unplug the saw before

moving it.

USE THE CORRECT size and style of blade.

USE blades recommended at 2600 FPM or greater.

MAKE SURE the blade teeth point down and towards

the table.

BLADE GUIDES, SUPPORT BEARINGS, AND

BLADE TENSION must be properly adjusted to avoid

accidental blade contact and to minimize blade

breakage. To maximize blade support, always adjust

the upper blade guide and blade guard so that it is

1/8 inch above the workpiece.

TABLE LOCK HANDLE should be tight.

USE EXTRA CAUTION with large, very small or

awkward workpieces.

USE EXTRA SUPPORTS to prevent workpieces from

sliding off the table top. Never use another person in

place of a table extension, or to provide additional

support for the workpiece.

0. WORKPIECES must be secured so they don't twist,

rock, or slip while being cut.

SAVE THESE

11.

12.

I3.

14.

15.

16.

PLAN intricate and small work carefully to avoid

pinching the blade. Avoid awkward operation and hand

positions to prevent accidental contact with the blade.

SMALL PIECES should be secured with jigs or

fixtures. Do not hand hold pieces that are so small your

fingers are under the blade guard.

SUPPORT round work properly (with a V-block or

clamped to the miter gauge) to prevent it from rolling

and the blade from biting.

CUT only one workpiece at a time. Make sure the table

is clear of everything except the workpiece and its

guides before you turn the saw on.

MAKE RELIEF CUTS when cutting long curves.

ALWAYS WATCH the saw run before each use. If there

is excessive vibration or unusual noise, stop immediately.

Turn the saw off. Unplug it immediately. Do not start

the saw again until the problem has been located and

corrected.

17.

18.

TO FREE any jammed material, turn the switch OFR

Remove the switch key and unplug the saw. Wait for all

moving parts to stop before removing jammed material.

DON'T LEAVE the work area until all moving parts are

stopped. To childproof the workshop, shut off the power

to master switches and remove the switch key from the

band saw. Store it in a safe place, away from children.

For your own safety, read the entire instruction manual

before operating the band saw.

t. Wear eye protection.

2. Do not wear gloves, necktie, or loose clothing.

3. Make sure the saw is on a firm level surface and

properly secured.

4. USE ONLY THE RECOMMENDED ACCESSORIES.

5. Use extra caution with very large, very small, or

awkward workpieces.

6. Keep hands away from the blade at all times to

prevent accidental injury.

Do not remove jammed cutoff pieces until blade has

stopped.

Maintain proper adjustment of blade tension, blade

guides, and thrust bearings.

Adjust upper guide to just clear workpiece.

Hold workpiece firmly against table.

10.

ELECTRICAL REQUHREMENTS

POWER SUPPLY AND MOTOR SPEC_FICATIONS

To avoid electrical hazards, fire hazards, or damage to the

NSTRUCTRONS

tool, use proper circuit protection. Use a separate electrical

circuit for your tools.Your saw is wired at the factory for

120V operation. Connect to a 120V, 15 Amp circuit and

use a I5 Amp time delay fuse or circuit breaker. To avoid

shock or fire, if power cord is worn or cut, or damaged-in

any way, have it replaced immediately.

INSTALLED BY A QUALIFIED ELECTRICIAN. The

Canadian Electrical Code prohibits the use of adapters.

CAUTION: In all cases, make certain the receptacle is

properly grounded, tf you are not sure have a qualified

electrician check the receptacle.

GROUNDING INSTRUCTIONS

This tool must be grounded while in use to protect the

operator from electrical shock.

IN THE EVENT OF A MALFUNCTION OR BREAKDOWN,

grounding provides a path of least resistance for electric

current and reduces the risk of electric shock. This tool is

equipped with an electric cord that has an equipment

grounding conductor and a grounding plug. The plug

MUST be plugged into a matching receptacle that is

properly installed and grounded in accordance with ALL

local codes and ordinances.

DO NOT MODIFY THE PLUG PROVIDED. If it will not fit

the receptacle, have the proper receptacle installed by a

qualified electrician.

IMPROPER CONNECTION of the equipment grounding

conductor can result in risk of electric shock. The

conductor with the green insulation (with or without yellow

stripes) is the equipment grounding conductor. If repair

or replacement of the electric cord or plug is necessary,

DO NO[ connect the equipment grounding conductor

to a five'terminal.

CHECK with a qualified electrician or service person if you

do not completely understand the grounding instructions, or

if you are not sure the tool is properly grounded,

USE ONLY 3-wire extension cords that have 3-prong

grounding plugs and 3-pole receptacles that accept

the tool's plug. Repair or replace damaged or worn

cord immediately.

Use a separate electrical circuit for your tools. This circuit

must not be less than #12 wire and should be protected

with a 15 Amp time lag fuse. Before connecting the motor

to the power line, make sure the switch is in the OFF

position and the electric current is rated the same as the

current stamped on the motor nameplate, Running at a

Lower voltage will damage the motor.

This tool is intended for use on a circuit that has a receptacle

like the one illustrated in FIGURE A. FIGURE A shows a

3-prong electrical plug and receptacle that has a grounding

conductor. If a properly grounded receptacle is not available,

an adapter (FIGURE B) can be used to temporarily connect

this plug to a 2-contact ungrounded receptacle.

The temporary adapter should be installed by a qualified

technician. The adapter (FIGURE B) has a rigid lug

extending from it that MUST be connected to a permanent

earth ground, such as a properly grounded receptacle box.

THE TEMPORARY ADAPTER SHOULD BE USED ONLY

UNTIL A PROPERLY GROUNDED OUTLET CAN BE

Fig. A3-Prong Plug

Properly Grounded

3-Prong Receplacte

Fig. B Grounding Lug

Make Sure This

is Connected to a

Known Ground

-Prong

eceptacle

This band saw is for indoor use only, Do not expose to rain

or use in damp locations

GUIDEUNES FOR EXTENSION CORDS

USE PROPER EXTENSION CORD. Make sure your

extension cord is in good condition. When using an

extension cord, be sure to use one heavy enough to carry

the current your product will draw. An undersized cord will

result in a drop in line voltage and in loss of power which will

cause the tool to overheat. The table below shows the

correct size to use depending on cord length and nameplate

ampere rating. If in doubt, use the next heavier gauge. The

smaf]er the gauge number, the heavier the cord.

Be sure your extension cord is properly wired and in

good condition. Always replace a damaged extension cord

or have it repaired by a qualified person before using it.

Protect your extension cords from sharp objects, excessiv

heat and damp or,wet areas.

(when using 120 volts only)

In feet

more than notmorethan 25' 50' 100' 150'

........... , ............................ i

0 6 18 16 16 t4

6 10 t8 16 14 12

10 t2 16 16 14 t2

12 16 14 !12 Not recomrnended

SAVE THESE INSTRUCTIONS

::{ECOMMENDED ACCESSORUES

'isit your Sears Hardware Department or see the

;raftsman Power and Hand Tool Catalog to purchase

_commended accessories for this power tool.

Oavoid the risk of personal infury, do not modify the

ower tool or use accessories not recommended by Sears.

ITEM

Blade: 1/8", 1/4", 3/8", 1/2" wide, 91"- 91 1/2" long

Sandpaper belt: 1/2" wide, 91"- 91 1/2" tong

Ise of improper accessories may cause hazards. Follow

]structions that accompany accessories. Do,not use any

ccessory unless you have completely read the instruction

r owner's manual for that accessory.

UNPACKING AND CHECKING CONTENTS

To avoid injury from unexpected starting, do not plug the

power cord into a power source receptacle during

unpacking and assembly. This cord must remain unplugged

whenever you are assembling or adjusting the saw.

1. Carefully unpack the band saw and aU its parts, and

compare against the illustration on page 7.

2. Place the saw on a secure surface and examine it

carefully.

Although compact, this saw is heavy. To avoid back injury,

get help whenever you have to lift the saw.

If any part is missing or damaged, do not plug the band

saw in until the missing or damaged part is replaced, and

assembly is complete.

TABLE OF LOOSE PARTS

_TEM DESCRIPTION QUANTITY

A Band saw 1

B Table w!insert t

C Trunnion 1

D Star handle table knobs 2

E Table alignment pin 1

F Medium hex bolts 4

G Washers 8

H Hex nuts 4

I Short hex bolts, nut, and washers 2

J Long hex bolt w/nut 1

K Saw dust port assembly 1

L Miter gauge 1

M Power cord wrap brackets 2

N Phillips screws 2

STAND:

O Legs 4

P Long leg brackets 2

Q Short leg brackets 2

R Plastic feet 4

S Leg stand top plate 1

T Hex wrench 1

U Miscellaneous bag of carriage

bolts, nuts and washers

UNPACKUNG YOUR BAND SAW

JKM N

i 0 O0

i O_ 0[3

I O0 O0

O0 O0

S T

upper cover

ON/OFF

Lower

Idle wheel

Motor pulley

Rubber tire

V Belt

Upper blade wheel Lower blade

support bearing

Lower

guide

Blade guard

Upper blade

support bearing

)er blade guide

Blade

Table insert

-- Miter slot

Table

lock knob

Saw pulley

Lower

blade wheel

Mounting hole

Table

aligning pin

Table tilt scale

Sawdust port

Table trunnion

Table tilt stop bolt

Mounting holes

Miter gauge in holder

Table removed for clarity

of illustration

Blade tension

knob

Blade tra_cking

knob

Upper guide

lock knob

Power cord wrap

Idle wheel

handle

Motor

Motor cord

Stand top

plate

Stand

CRAFTSMAN BAND SAW TERMS

BLADE GUIDES - Support the blade and keep it from

twisting during operation. Blade guides must be adjusted

when the blade is changed or replaced.

BLADE TENSION KNOB -Controls the amount of blade

tension when changing blades.

BLADE TRACKING KNOB -Adjusts the blade position so

the blade always runs in the center of the wheel.

IDLE WHEEL HANDLE - Moves the idle wheel for proper

tensioning of the V-belt.

ON 1OFF SWITCH - Has a built-in child safety lock. To

lock the switch in the OFF position, remove the switch key

from the switch.

SAWDUST PORT - Helps keep the machine free from

sawdust. The sawdust port makes an excellent hook-up for

a wet/dry vacuum.

TABLE LOCK KNOB - Locks the table in place.

TILT {BEVEL) SCALE - Shows the degree the table is

tilted for bevel cutting.

UPPER GUIDE LOCK KNOB - Locks the upper slide. Use

it after you adjust the upper guide assembly to make sure

the upper blade guide just clears the workpiece before

cutting. Upper guide lock knob must be tightened before

the band saw is turned on.

WOODWORKING TERMS

BEVEL CUT - An angle cut made through the face of a

workpiece

COMPOUND CUT - A simultaneous bevel and miter cut.

CROSSCUT - A cut made across the width of the

workpiece.

RELIEF CUT - Removal of waste material by a cut from

the outside edge, allowing easier cutting of intricate curves.

F.P.M. - Feet per minute. Used in reference to the surface

speed of the saw blade.

FREEHAND - Performing a cut without using a fence

(guide), hold-down or other proper device to prevent the

workpiece from twisting during the cutting operation.

GUM -A sticky sap-based residue from wood products.

HEEL - Misalignment of the blade.

KERF- The material removed by a blade in a through cut,

or the slot produced by the blade in a non-through or

partial cut.

LEADING EDGE -The end of the workpiece pushed into

the cutting tool first.

MITER CUT - An angle cut made across the width of a

workpiece.

RESAW -A cutting operation to reduce the thickness of

the workpiece to make thinner workpieces.

RESIN - A sticky sap that has hardened.

R_PPING CUT -A cutting operation along the length of the

workpiece.

R.P.M. - Revolutions per minute. The number of turns

completed by a spinning object in one minute.

SAW BLADE PATH -The area of the workpiece or table

top directly in line with the travel of the blade or the part of

the workpiece which will be cut.

SET -The distance between two adjacent saw blade teeth

tips bent outward in opposite directions to each other.

The further apart the tips are, the greater the set.

TRAILING END - The workpiece end last cut by the blade.

WORKPIECE -The item being cut. The surfaces of a

workpiece are commonly referred to as faces, ends, edges.

WORKTABLE -The surface on which the workpiece rests

while performing a cutting or sanding operation.

Leading,_ Relief cu_ Sawblade Path

Kerf

Surface

Workptece \

Trailing Edge

,SSEMBLY NSTRUCTIONS

Phillips screwdriver Combinationsquare

Adjustable wrench Straight edge

Feeler gauge - size 0.02

or your safety, never connect plug to power source

._ceptacle until all assembly and adjustment steps are

)mpleted, and you have read and understood the safety

nd operating instructions.

EG STAND ASSEMBLY (FIG. A)

Lay the top plate (1) upside down on a flat surface.

Attach a ieg (2) to the outside of the stand top plate

with two carriage bolts (3), washers (4), and nuts (5).

Do not tighten.

Repeat for the remaining three legs.

Attach two long brackets (6) and' two short brackets (7)

to the inside of the legs using carriage bolts (3),

washers (4), and nuts (5). Do not tighten,

Place the leg pad s (8) on each leg and turn the leg

stand' upright on a firm level surface.

Tighten all bolts and nuts with a wrench.

FIG. A

7 I

4i.

Although compact; this saw is heavy. To avoid back injury,

get help to lift the saw.

ASSEMBLE BAND SAW TO LEG STAND (F_G. B)

t. Lift the saw body (1) and place on the leg stand (2),

aligning with the four mounting holes (3).

2. Attach the band saw to the stand with four long hex

head bolts (4) and four flat washers (5).

3. Place a flat washer (5) and hex nut (6) on each bolt

from the underside. Hand tighten.

4. Tighten all bolts and nuts with a wrench.

FIG. B

ASSEMBLE THE TABLE

Mounting the trunnion support bracket (F_G. C)

1. Place the trunnion support bracket (1) on the saw body,

as shown,

2. Insert two tong hex head bolts (2, 3) with flat washers (4)

into the threaded holes, through the bracket and saw

body.

3. Open the lower wheel cover (5).

4. Thread a hex bolt (2) Tighten.

5, Close the wheel cover.

6. Thread a nut (7) onto the table stop bolt (8) and screw

both into the rear tab (9) on the trunnion support bracket.

FIG. 0-1

3 5

ASSEMBLE THE SAWDUST COLLECTION PORT

(FIG.0-I)

I. Slidethehook (I)on theportassembly intothesquare

hole(2)locatedon thebandsaw housing,belowthe

lowerbladeguides.

2. Push the flat plate of the port against the outside of the

band saw to align the holes (3).

3. P_ace a washer (5) on the screw (4), insert and tighten.

NOTE: When operating the band saw, for best sawdust

exhaust attach a dust collection or vacuum hose.

Mounting the table (FIG. D, E)

7. Remove the table insert (10) and table aligning pin (11)

from the table (12).

8. Guide the table slot (13) over the saw blade and rotate

a 1/4 turn, so4he slot is perpendicular to the blade.

FIG. D

12 1 13 10

10.

11.

12.

13,

Place the table (12) into the support bracket (1), guiding

the bolts (14)in the scale brackets through the holes in

the trunnion bracket (1).

Align the 0° mark on the scale to the pointer (15) on

the trunnion.

Attach the star handle table !ock knobs (16) to the bolts

and tighten. (FIG. E)

Replace the table insert (10), aligning the indents,

Place the table aligning pin (11) in the front of the table,

into the slot (i3), and tighten. (FIG. D)

FIG. E

ii_ii;i!i_i_i!ii_!!_!_!_i:;i_i_i'_i:__:';:!i:ili_iii:ii:i!_i_i_!ii_!;!i!i!!_i_i_!_;_!_!_i!!i_i!_i_i_;i_!;_i!ii_i:_i!_;_i_i,;:i::!i:i!_:ii_!;i,!_!,!;i;!:ii:i:_i:ii_::::i:ii!_i;_i:i_iiii';i_i:i!:i!i!:_i!_ii!i:!_i:iii_:i!iii:¸i::i!i:;_i_i_:i:!;!'i;ii,ii!_;,_;:ii:ii::i_::_i_ii::iii_!;:_!_:i:_!!iiii!:i:_11 _!i_!_;!•_:_:::_!!_;i_:_:_i_:_i_:!!:::_!i!_:_i_!;_;_!_;_i_!i_!_;_!_:_!:_!!:_:_!:_i_;i:_::i_::!_i:i_i!;;_:,_!!i:i;_i!i!_;:_!i_i,!_ii_i;i;_!:;!i::i;!i,!i_!:i!i:i_i!,i:!_!!::_i;:;_!:;_:_:i:!ii_:::i_:!i:ii;iiii_!::i_i::i;ii_'ili,i_il;:::i_;::,!i!i!:_ili:!iii:_il!:!_ii:_:_ii'i_:i:!;!;_ii;_ii_:i_:!_i

.... : ••: • iL ¸/_•Li ::•:: ...... • •••• :: •::: •::/ i:_: : ::: •

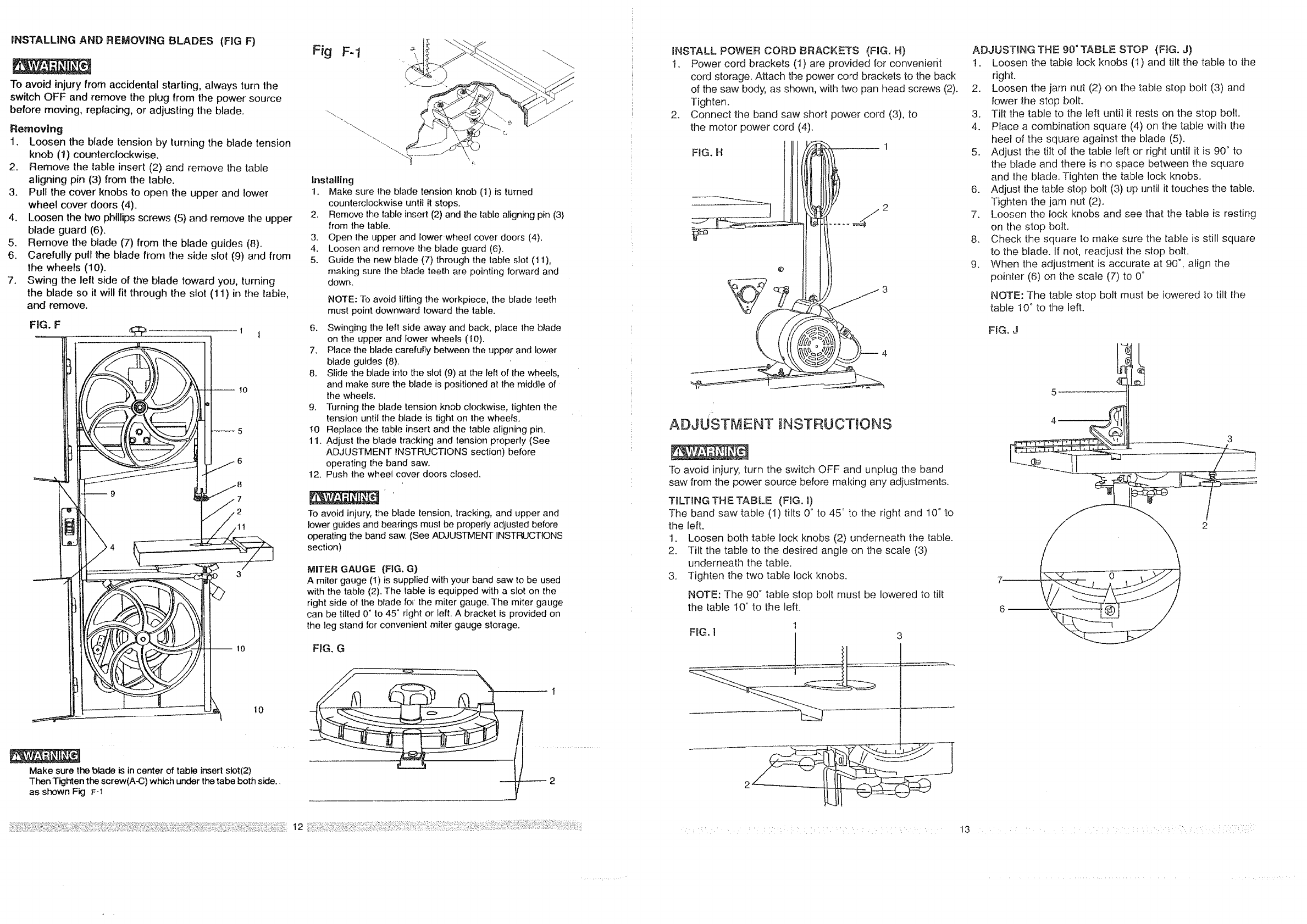

iNSTALLiNG AND REMOVING BLADES (FIG F)

To avoid injury from accidental starting, always turn the

switch OFF and remove the plug from the power source

before moving, replacing, or adjusting the blade.

Removing

1. Loosen the blade tension by turning the blade tension

knob (1) counterclockwise.

2. Remove the table insert (2) and remove the table

aligning pin (3) from the fable.

3. Pull the cover knobs to open the upper and lower

wheel cover doors (4).

4. Loosen the two phillips screws (5) and remove the upper

blade guard (6).

5. Remove the blade (7) from the blade guides (8).

6. Carefully pull the blade from the side slot (9) and from

the wheels (!0).

7. Swing the left side of the blade toward you, turning

the blade so it will fit through the slot (11) in the table,

and remove.

FiG. F--1

,tt

Make sure the blade is in center of table insert stot(2)

Then Tighten the screw(A-C) which under the tabe both side..

as shown Fig Fq

Fig F-1

Installing

1. Make sure the blade tension knob (1) is turned

counterclockwise untit it stops.

2. Remove the table insert (2) and the table aligning pin (3)

from the tabfe.

3. Open tile upper and lower wheel cover doors (4),

4. Loosen and remove the blade guard (6).

5. Guide the new blade (7) through the table slot (11),

making sure the blade teeth are pointing forward and

down.

NOTE: To avoid lifting the workpiece, the blade teeth

must point downward toward lhe table.

6. Swinging the left side away and back, place the blade

on the upper and lower wheels (10).

7. Place the blade carefully between the upper and lower

blade guides (8).

8. Slide the blade into the slot (9) at the left of the wheels,

and make sure the blade is positioned at the middle of

the wheels.

9. Turning the blade tension knob clockwise, tighten the

tension until the blade is tight on the wheels,

10 Replace the table insert and the table aligning pin.

11. Adjust the btade tracking and tension propedy (See

ADJUSTMENT iNSTRUCTIONS section) before

operating the band saw,

12. Push the wheel cover doors closed.

To avoid injury, the blade tension, tracking, and upper and

lowerguides and bearingsmust be properly adjustedbefore

operating the bandsaw.(See ADJUSTMENTINSTRUCTIONS

section)

MITER GAUGE (FIG. G)

A miter gauge (I) is supplied with your band saw to be used

with the table (2). The table is equipped with a slot on the

right side of the blade fo='the miter gauge. The miter gauge

can be tilted 0' to 45" right or left. A bracket is provided on

the leg stand for convenient miter gauge storage.

FiG, G

_NSTALL POWER CORD BRACKETS (FIG. H)

t. Power cord brackets (1) are provided for convenier_t

cord storage. Attach the power cord brackets to the back

of the saw body, as shown, with two pan head screws (2).

Tighten.

2. Connect the band saw short power cord (3), to

the motor power cord (4).

FiG. H

ADJUSTMENT iNSTRUCTIONS

To avoid injury, turn the switch OFF and unplug the band

saw from the power source before making any adjustments.

TiLTiNG THE TABLE {F2G. I)

The band saw table (1) tilts 0°to 45 ° to the right and 10° to

the left.

!. Loosen both table lock knobs (2) underneath the table.

2. Tilt the table to the desired angle on the scale (3)

underneath the table.

3, Tighten the two table lock knobs.

NOTE: The 90° table stop bolt must be lowered to tilt

the table I0 ° to the left.

F_G. ! 13

_ • _ : i¸ ¸ •:: •: • ,•• •::•• •••• • •

ADJUSTING THE 90' TABLE STOP (FIG. J)

1. Loosen the table aock knobs (t) and tilt the table to the

right.

2. Loosen the jam nut (2) on the table stop bolt (3) and

lower the stop bolt.

3. Tilt the table to the left until it rests on the stop bolt.

4. Place a combination square (4) on the table with the

heel of the square against the blade (5).

5. Adjust the tilt of the table left or right until it is 90 ° to

the blade and there is no space between the square

and the blade. Tighten the table lock knobs.

6. Adjust the table stop bolt (3) up until it touches the table.

Tighten the jam nut (2).

7. Loosen the lock knobs and see that the table is resting

on the stop bolt.

8. Check the square to make sure the table is still square

to the blade. If not, readjust the stop bolt.

9. When the adjustment is accurate at 90°, align the

pointer (6) on the scale (7) to 0°

NOTE: The table stop bolt must be lowered to tilt the

table 10 ° to the left,

FIGo J

13 • • •• • : • • i: •_: :: :/ /:+'-/!i ¸:I

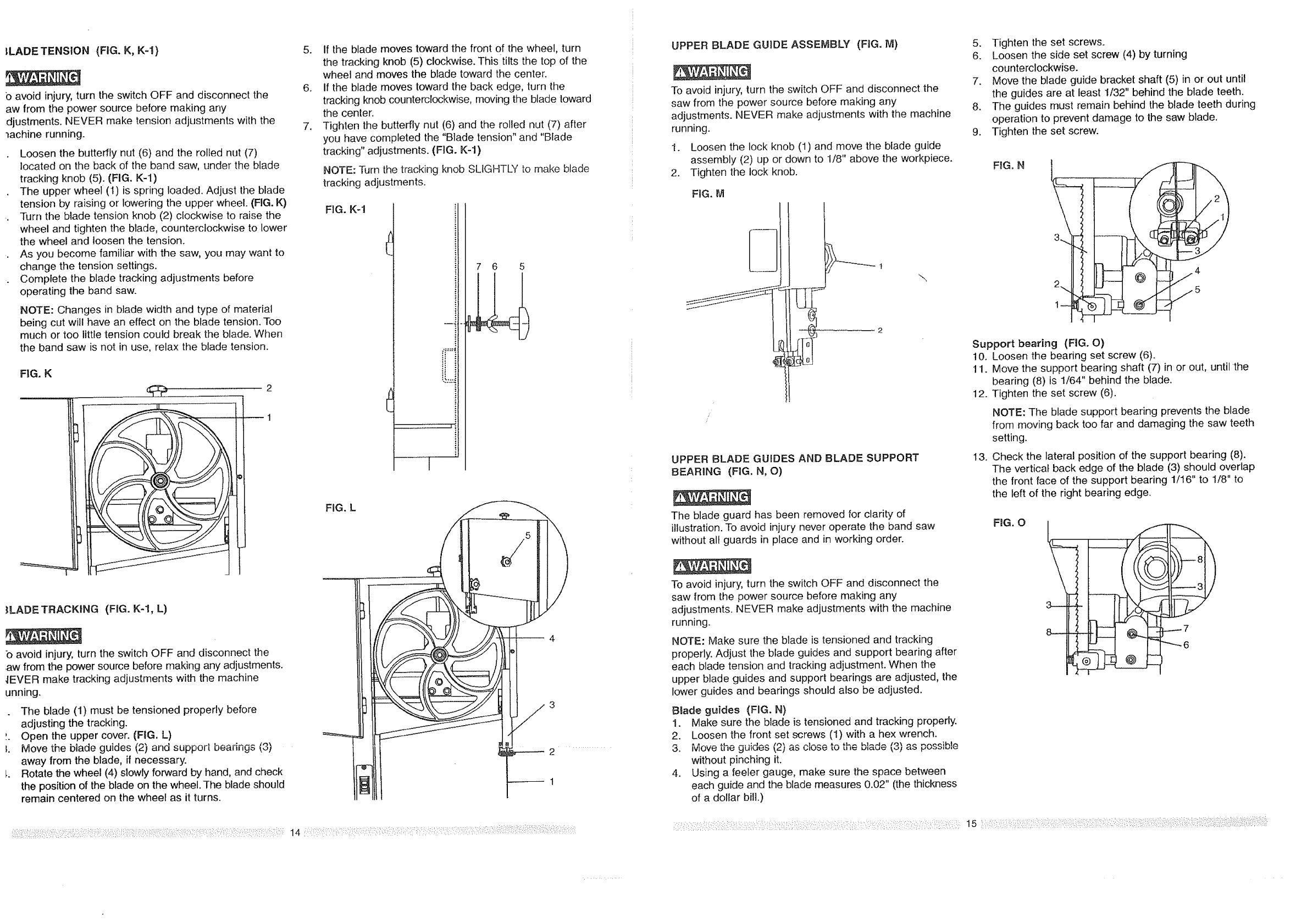

ILADETENSION (FIG. K, K-l)

b avoid injury, turn the switch OFF and disconnect the

aw from the power source before making any

djustments. NEVER make tension adjustments with the

lachine running.

Loosen the butterfly nut (6) and the rolled nut (7)

located on the back of the band saw, under the blade

tracking knob (5). (FIG. K-l)

The upper wheel (I) is spring loaded. Adjust the blade

tension by raising or lowering the upper wheel. {FIG. K)

Turn the blade tension knob (2) clockwise to raise the

wheel and tighten the blade, counterclockwise to lower

the wheel and loosen the tension.

As you become familiar with the saw, you may want to

change the tension settings.

Complete the blade tracking adjustments before

operating the band saw.

NOTE: Changes in blade width and type of material

being cut will have an effect on the blade tension. Too

much or too tittletension could break the blade. When

the band saw is not in use, relax the blade tension.

FIG. K

_',LADETFIACKING (FIG. K-l, L)

b avoid injury, turn the switch OFF and disconnect the

.aw from the power source before making any adjustments.

4EVER make tracking adjustments with the machine

unning.

The blade (1) must be tensioned properly before

adjusting the tracking.

Open the upper cover. (FIG. L)

Move the blade guides (2) and support bearings (3)

away from the blade, if necessary.

Rotate the wheel (4) slowly forward by hand, and check

the position of the blade on the wheel. The blade should

remain centered on the wheel as it turns.

5. If the blade moves toward the front of the wheel, turn

the tracking knob (5) clockwise. This tilts the top of the

wheel and moves the blade toward the center.

6. If the blade moves toward the back edge, turn the

tracking knob counterclockwise, moving the blade toward

the center.

7. Tighten the butterfly nut (6) and the rolled nut (7) after

you have completed the "Blade tension" and "Blade

tracking" adjustments. (FIG. K-l)

NOTE: Turn the tracking knob SLIGHTLY to make blade

tracking adjustments.

FIG. K-!

7 6 5

RG. L

UPPER BLADE GUIDE ASSEMBLY {F_G. M)

To avoid injury, turn the switch OFF and disconnect the

saw from the power source before making ar_y

adjustments. NEVER make adjustments with the machine

running.

1. Loosen the lock knob (1) and move the blade guide

assembly (2) up or down to 1/8" above the workpiece.

2. Tighten the lock knob.

UPPER BLADE GUIDES AND BLADE SUPPORT

BEARING (FIG. N, O)

The blade guard has been removed for clarity of

illustration. To avoid injury never operate the band saw

without all guards in place and in working order.

To avoid injury, turn the switch OFF and disconnect the

saw from the power source before making any

adjustments. NEVER make adjustments with the machine

running.

NOTE: Make sure the blade is tensioned and tracking

properly. Adjust the blade guides and support bearing after

each blade tension and tracking adjustment. When the

upper blade guides and support bearings are adjusted, the

lower guides and bearings should also be adjusted.

Blade guides (FIG. N)

1. Make sure the blade is tensioned and tracking properly.

2. Loosen the front set screws (1) with a hex wrench.

" "'_ (3) as

3. Move the guides (_; as close to the ,.,,,=de possible

without pinching it.

4. Using a feeler gauge, make sure the space between

each guide and the blade measures 0.02" (the thickness

of a dollar bill.)

5. Tighten the set screws.

6. Loosen the side set screw (4) by turning

counterclockwise.

7. Move the blade guide bracket shaft (5) in or out until

the guides are at least t/32" behind the blade teeth.

8. The guides must remain behind the blade teeth during

operation to prevent damage to the saw blade.

9. Tighten the set screw.

FmGoN

Support bearing (FIG. O)

10. Loosen the bearing set screw (6).

11. Move the support bearing shaft (7) in or out, until the

bearing (8) is 1/64" behind the blade.

12. Tighten the set screw (6).

NOTE: The blade support bearing prevents the blade

from moving back too far and damaging the saw teeth

setting.

13. Check the lateral position of the support bearing (8).

The vertical back edge of the blade (3) should overlap

the front face of the support bearing 1/16" to 1/8" to

the left of the right bearing edge.

FroG.O

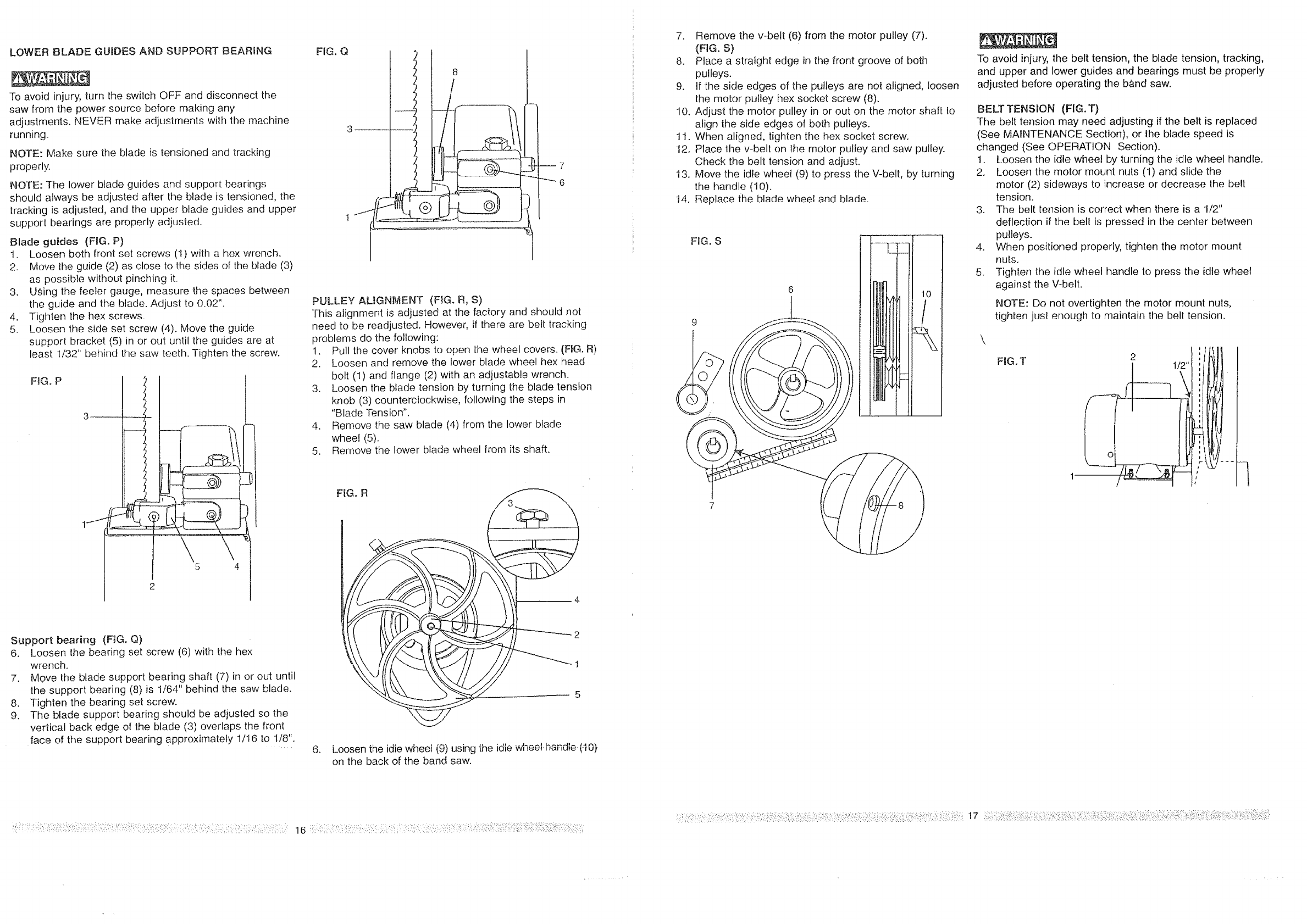

LOWER BLADE GUIDES AND SUPPORT BEARING

To avoid injury, turn the switch OFF and disconnect the

saw from the power source before making any

adjustments. NEVER make adjustments with the machine

running.

NOTE: Make sure the blade is tensioned and tracking

properly.

NOTE: The lower blade guides and support bearings

should always be adjusted after the blade is tensioned, the

tracking is adjusted, and the upper blade guides and upper

support bearings are properly adjusted.

Blade guides {FIG. P)

1. Loosen both front set screws (1) with a hex wrench.

2. Move the guide (2) as close to the sides of the blade (3)

as possible without pinching it.

3. U,Cing the feeler gauge, measure the spaces between

the guide and the blade. Adjust to 0.02".

4. Tighten the hex screws.

5. Loosen the side set screw (4). Move the guide

support bracket (5) in or out until the guides are at

least 1/32" behind the saw teeth. Tighten the screw.

FIG. P

3 .......

i j

FIG, Q

PULLEY ALIGNMENT {F}G. R, S)

This alignment is adjusted at the factory and should not

need to be readjusted. However, if there are belt tracking

problems do the following:

1. Pull the cover knobs to open the wheel covers. (F}G. R)

2. Loosen and remove the lower blade wheel hex head

bolt (1) and flange (2) with an adjustable wrench.

3. Loosen the blade tension by turning the blade tension

knob (3) counterclockwise, following the steps in

"Blade Tension".

4. Remove the saw blade (4) from the lower blade

wheel (5).

5. Remove the lower blade wheel from its shaft.

7. Remove the v-belt (6) from the motor pulley (7).

(FIG. S)

8. Place a straight edge in the front groove of both

pulleys.

9. tf the side edges of the pulleys are not aligned, loosen

the motor pulley hex socket screw (8).

10. Adjust the motor pulley in or out on the motor shaft to

align the side edges of both pufteys.

1t. When aligned, tighten the hex socket screw.

12. Place the v-belt on the motor pulley and saw pulley.

Check the belt tension and adjust.

t3, Move the idle wheel (9) to press the V-belt, by turning

the handle (10).

14. Replace the blade wheel and blade.

FIG. S

To avoid injury, the belt tension, the blade tension, tracking,

and upper and lower guides and bearings must be properly

adjusted before operating the ba_ndsaw.

BELT TENSION {FIG. T)

The belt tension may need adjusting if the belt is replaced

(See MAINTENANCE Section), or the blade speed is

changed (See OPERATION Section).

1. Loosen the idle wheel by turning the idle wheel handle.

2. Loosen the motor mount nuts (1) and slide the

motor (2) sideways to increase or decrease the belt

tension.

3. The belt tension is correct when there is a 1/2"

deflection if the belt is pressed in the center between

pulleys.

4. When positioned properly, tighten the motor mount

nuts.

5. Tighten the idle wheel handle to press the idle wheel

against the V-belt.

NOTE: Do not overtighten the motor mount nuts,

tighten just enough to maintain the belt tension.

F_G. T

t_) f rfd/I

Support bearing (FIG. Q)

6. Loosen the bearing set screw (6) with the hex

wrench.

7. Move the blade support bearing shaft (7) in or out until

the support bearing (8) is 1/64" behind the saw blade.

8. Tighten the bearing set screw.

9. The blade support bearing should be adjusted so the

vertical back edge of the blade (3) overlaps the front

face of the support bearing approximately 1/t6 to t/8".

6. Loosen the idie wheel (9) using the idle wheet handle (I0)

on the back of the band saw.

3AS!C SAW OPERATIONS

ON/OFF" SWITCH (FIG. U)

he keyed switch is intended to prevent unauthorized

_seof the band saw.

To turn the band saw ON insert the yellow key (1) into

the key slot (2) in the center of the switch.

'.. Push the key firmly into the slot, then push switch

to the ON position to start the band saw.

I. To turn the band saw OFF push the switch to the

down position.

Remove the yellow switch key, when the saw has come

to a complete stop, by gently pulling it outward.

_emove the switch key whenever the saw is not in use.

_lace it in a safe place and out of reach of children.

=IG. U

_ENERAL CUTTING

or your safety, read and understand all GENERAL and

}PECtFIC SAFETY INSTRUCTIONS on pages 3 - 5 before

lsing the band saw.

)perating band saws involves a certain amount of hazard.

3efore attempting regular work, use scrap lumber to check

he settings, and to get the feet of operating the band saw.

:lead instructions and plan your work before cutting a

vorkpiece.

)o not turn the power ON until after you have made all

tdjustments, checked that the guard is in place, and turned

he wheel by hand to make sure all parts work properly.

\lways keep the guide assembly close to your work, 1/8"

_bove the workpiece.

)o not force the workpiece against the blade. Light contact

}ermits easier cutting and prevents unwanted friction and

leating of the blade.

Sharp saw blades need little pressure for cutting. Steadily

move the workpiece against the blade without forcing it.

To avoid twisting the blade, do not turn sharp corners or saw

around corners.

A band saw is basically a "curve-cutting" saw. It is not capable

of doing intricate inside cutting as can be done with a scroll

saw.

tt is also used for straight line operations such as crosscutting,

ripping, mitering, beveling, compound cutting, and resawing.

To avoid blade breakage, fire or other damage or injury,

NEVER use this band saw to cut ferrous metals.

CUTTING CURVES

When cutting curves, carefully turn the workpiece so the

blade follows without twisting. If the curve is so sharp that

you repeatedly back up and cut new kerf, use a narrower

blade, or a blade with more set (teeth further apart). When

a blade has more set, the workpiece turns easier but the

cut is rougher.

When changing a cut, do not withdraw the workpiece from

the blade. The blade may get drawn off the wheels. To change

a cut, turn the workpiece and saw out through the scrap

material area.

When cutting long curves, make relief cuts as you go along.

CIRCLE CUTTING (FIG. V)

1. Adjust the guide assembly to 1/8" above the workpiece.

2. Use both hands while feeding the work into the blade.

Hold the workpiece firmly against the table. Use gentle

pressure. Do not force the work, ALLOW the blade to cut.

3. The smallest diameter circle that can be cut is

determined by the width of the blade. For example,

a 1/4" wide blade will cut a minimum diameter of

approximately 1-1/2".

FIG. V

Minimum

2-1,,'Z'D Circle Diameter

Blade Width

BLADE SELECTION (FIG.W)

CAUTION: Blade teeth are sharp. Use care whenhandling

a saw blade.

For longest wear and best cutting results, use the correct

blade thickness, width, and temper for the type of material

you will cut.

When sawing small curves and delicate work, use narrow

blades. Otherwise, use the widest blade possible, See FIG. V.

For cutting wood and similar materials with this bandsaw,

use blades 90" long in widths up to 1/2".

Do not cut ferrous metals with this band saw.

Common causes of blade breakage:

= Poor guide alignment and adjustment.

Forcing or twisting a wide blade around a short radius.

o Feeding too fast.

° Dull teeth or not enough set.

= Too much blade tension.

- Setting top guide assembly too high above the

workpiece.

o Lumpy or improperly fir_ished braze or weld on the blade.

Continuous running of blade when not cutting.

FIG. W

Operation

Cross Cutting

.....Mitering

Beveling .................

Compound Cutting

CirCle Cutiir_g_'''

Curve Cutting

Recommended Blade Width

(Inches)

1/4, 3/8, 1/2

1/4, 3/8, '_1'_2

1/4, 3/8, 1/2

See Fig. V on pg.' '_I'7

i/8, i/4

To avoid possible injury or damage, NEVER use this band

saw to cut ferrous metals.

CAUTION: When cutting nonferrous metals, metal shavings

can react with wood dust and start a fire. To avoid this:

1. Disconnect any dust collecting hose from the band

saw.

2. Remove all traces of wood dust from inside the saw.

3. Remove all metal shavings from inside the saw

before sawing wood again.

THE SANDPAPER BELT

NOTE: A sandpaper belt sands very rapidly. Practice with

some scraps of wood before you try to sand your

workpiece with the band saw.

NOTE:_;_ead the instruction manual carefully for "BLADE

GUIDES AND SUPPORT BEARINGS", "BLADE TENSION"

AND "BLADE TRACKING".

1. Open the wheel covers and loosen the blade tension.

2. Remove the blade, table insert, and blade guard.

3. Loosen the side set screws on the upper blade support

bearings and blade guides, and push them back as far

as they will go. Tighten the set screws.

4. Do the same on the lower blade support bearing and

blade guides.

5. Install the sanding belt and adjust the tension carefully.

6. Rotate the upper wheel by hand to check the sanding

belt tracking, and adjust if necessary.

7. Close the wheel covers.

NOTE: A new sanding belt wi!l stretch with use, check

the tension and tracking often.

BLADE SPEED SELECTION (FIG. X)

This band saw has two speed settings:

1. 2600 RRM. for normal operation.

2. 1410 RRM. for operation requiring more control.

FIG. X

SPEED APPLICATION BLADE TYPE

,,,................. .,, ,,,,,,

2600 ERM. 1. Basic wood cutting 1. Skip tooth type

2. Resawing 2. Hook tooth type

3. Regular tooth blades

i4i0 ERM.! l"i']ntricate wood cutt'i'ng

2. Veneers, tiles,

plastics

3. Nonferrous metals;

brass, copper,

aluminum

15 teeth per inch blades

HANGING SPEED SETTING (FBG. Y,Y-1)

avoid injury, turn the switch OFF and disconnect the saw

)m the power source before making any adjustments.

EVER make adjustments with the machine running.

Loosen the idle wheel (6) (FIG. Y-l) by turning the idle

wheel handle (7). (FIG. Y)

Loosen the four motor nuts and slide the motor to

loosen the V-belt tension.

Open the lower wheel cover and reposition the V-belt (3).

A. Changing the speed from 1410 to 2600 FPM:

Remove the belt (3) from the band saw pulley (4)

first, and reposition in the saw pulley groove (t).

Next, remove the belt from the motor pulley (5) and

reposition in the motor pulley groove (1).

S. Changing the speed from 2600 to 1410 FPM:

Remove the belt (3) from the motor pulley (5) first,

and reposition in the motor pulley groove (2).

Next, remove the belt from the saw pulley (4) and

reposition in the saw pulley groove (2).

Slide the motor on the motor mounts to reapply tension

to the Wbelt, and tighten the four nuts.

Turn the idle wheel handle (7) to press the idle wheel (6)

against the V-belt. Close the wheel cover.

)TE: After readjusting belt position and belt tension,

eck and readjust the settings for the blade tension and

cking, guides and bearings. (See ADJUSTMENT section.)

IG.Y

/-4

l MOTOR

--1

FiG. Y-I

GENERAL MAINTENANCE

For your own safety, turn switch OFF and remove the plug

from power source receptacle before maintaining, cleaning,

adjusting, or lubricating your band saw.

To avoid fire or toxic reaction, never use gasoline, naphtha,

acetone, lacquer thinner or similar highly volatile solvents

to clean the band saw.

To avoid eye injury from blowing debris, wear safety

goggles when blowing out sawdust.

BAND SAW

Sawdust will accumulate under the table and base. This

could cause difficulty in the movement of the table when

setting up a band saw cut, and also cause a fire hazard.

Frequently blow out or vacuum up the sawdust.

Keep your band saw clean. Remove the sawdust from the

inside. Vacuum or blow out frequently.

NOTE': Put a thin coat of paste wax on the table so that the

wood slides easily while cutting.

Do not allow filth to build up on the table, the guides, or the

support bearings. Clean them with Craftsman Gum and

Pitch Remover.

NOTE: Do not immerse the support bearings in the gum

and pitch remover.

BLADE WHEEL TIRES

Pitch and sawdust that build up on the tires should be

removed with a stiff brush or scraped off with a piece of wood.

NOTE: To avoid damaging the tires do not use a sharp

knife or any. kind of solvent.

When the tires become worn they should be replaced.

When replacing the tires, stretch them around the wheels

but do not glue them on.

MOTOR

Frequently blow or vacuum out any sawdust from the

motor. Follow lubrication instruction on the motor label.

To avoid electrocution, or fire, i_mediatety replace a worn,

cut or damaged power cord.

LUBRICATION

All of the bearings are packed with grease at the factory.

They require no further lubrication.

CAUTION: Never put lubricants on the blade while it is

spinning.

CHANGING BELTS

t. Pull the cover knobs to open the wheel covers.

2. Loosen the idle wheel by turning the idle wheel handle.

3. Loosen the motor mount nuts and slide the motor

sideways to loosen the belt tension.

4. Remove the belt from the motor pulley and saw pulley.

NOTE: The blade wheel may need to be removed for

easy access to the pulley belt (See ADJUSTMENT

Section).

5. Place the new belt on the motor pulley and saw pulley

according to the speed desired (See OPERATION

Section).

6. Slide the motor to the side to properly tension the belt,

and tighten the motor mount nuts. Do not overtighten.

NOTE: The belt is properly tensioned if there is 1/2"

flex when the belt is pressed in the center between

pulleys.

7. Turn the idle wheel handle to press the idle wheel

against the belt.

8. Push the cover doors closed before using the band

saw.

TROUBLESHOOTING GUIDE

CRAFTSrgAN 12" BAND SAW 137,224120

To avoid injury from an accidental start, turn the switch OFF and always remove the plug from the power source before

-naking any adjustments.

_,11electrical or mechanical repairs should be done only by qualified service technicians. Contact the nearest Sears

3ervice Center,

GENERAL

Problem

Blade does not run in the

center of the

upper wheel.

Band saw slows down

when cutting.

Blades braking.

Blade dulls too quickly.

Band saw vibrates.

Probabte Cause

1. Not tracking properly.

2. Defective blade.

1. Belt too loose.

2. Cutting too small a radius.

3. Dull blade.

4. Overloading motor.

Too much tension on

the blade,

Kink in the blade caused by

cutting too small a radius or

turning the material too fast

when cutting.

I. Blade guides set too close to

the teeth.

2. Cutting incorrect material.

1. Too much tension on

motor belt.

Remedy

1. Adjust tracking. See ASSEMBLY AND ADJUSTMENTS

section "BLADE TRACKING".

2. Replace blade.

1. Adjust belt tension. See ASSEMBLY AND

ADJUSTMENTS section "BLADE TENSION".

2. Stop feeding, back up the material slightly, until the

band saw speeds up.

3. Replace blade.

4. Slow down, you are trying to cut too fast. See

"MOTOR TROUBLESHOOTING GUIDE".

1. Adjust tension. See ASSEMBLY AND

ADJUSTMENTS section "BLADE TENSION"

2. Use correct cutting technique.

See OPERATION section "GENERAL CUTTING".

1, Adjust upper and lower blade guides.

2. See OPERATION section "BLADE SELECTION".

1. Adjust according to ASSEMBLY AND

ADJUSTMENTS section, "INSTALL THE BELT'.

22 ::: : :: ::: : :::

TROUBLESHOOTING GUnDE

CRAFTSMAN 12" BAND SAW 137.224120

MOTOR

Probmem

Noisy operation.

Probable Cause

1. Incorrect belt tension.

2. Loose motor pulley.

3. Loose pulley cover.

Motor will not start.

Motor will not start and fuse

or circuit breaker opens.

Motor fails to develop

full power.

Motor overheats.

Motor stalls or slows.

Frequent fuse or circuit

breaker failure.

1. Too many electrical

machines.

2. Incorrect fuse.

3. Wheels do not rotate.

4. Undersized extension cord.

5. Short circuit.

1. Low line voltage.

2. Faulty motor or capacitor.

Not plugged into power

outlet.

Switch and key not in ON 2.

position.

Motor cord cut or abraded. 3.

Plug on cord is faulty. 4.

Fuse on circuit breaks open. 5.

Faulty motor 6.

Overload on motor. 1.

Poor ventilation of motor. 2.

Provide better air circulation.

Capacitor failure. 3.

Motor overload. 1

Low line voltage. 2.

Loose wire connections. 3.

Faulty motor. 4.

1. Motor overload.

2. Overload of electrical circuit.

3. Incorrect fuse or circuit

breaker.

Remedy

t. Adjust tension, See ASSEMBLY AND

ADJUSTMENTS section "INSTALL THE BELT".

2. Readjust and tighten motor pulley set screw.

3. Readjust and tighten pulley cover mounting

screws.

1. Plug it into the power outlet.

Insert key and turn the switch ON.

Take to Sears Service Center for new cord.

Take to Sears Service Center for new plug.

Re-set; may be too many machines on line.

Take to Sears Service Center for repair

or replacement.

Turn off other machines and try again.

Try time delay fuse, or go to circuit with higher

rated fuse or circuit breaker.

Unplug and turn wheels by hand, move

obstruction.

Use correct size extension cord; see page 5.

Cord, plug, or motor need repair; take to Sears

Service Center for repair..

Check power line for proper voltage.

Take to Sears Service Center for evaluation.

Reduce load to motor, feed work slower into blade.

Unplug and clean out around motor; provide

better air circulation.

Take to Sears Service Center for repair.

. Reduce load to motor, feed work slower into blade.

Check power line for proper voltage.

Take to Sears Service Center for repair.

•Reduce load to motor, feed work slower into blade.

Too many electrical appliances on same circuit.

Have electrician upgrade service to outlet.

::: '::::: ::: :i 23 :: ::: :: :: : : ::: : ::::: :: :: :::::: : :::::::::::::::::::::

RAFTSMAN 12" BAND SAW I37.224120

hen servicing use only CRAFTSMAN replacement parts. Use of any other parts may create a HAZARD or cause

oduct damage.

ty attempt to repair or replace electrical parts on this band saw may create a HAZARD unless repair is done by a

lalified service technician. Repair service is available at your nearest Sears Service Center,

Order by PART NUMBER, not by key number

Key No.

PART NUMBER Description Size Qty

3AE00101 Main 0ody EBS-12"(C) t

3AE00201 Bearing Hetder EOS-I 2" 1

3AE00301 Shaft of lower wheel E8S-12"(C) 1

3AE00401 Bat_beanng 0202ZZ 2

3AEOOd01 C _ing S-15 1

3AEO0B01 S_'c_g Attachment EBS-t2"(C) 1

3AEO07Ol Spdng washer 1t#' 3

STD522510 He×,screw !/4"t 3

3AE009Ot Screw (HeadIess) 1f4"1t2" 2

3AE01O01 Screw {HeadJess) 1;4".5/8 _ 1

3AE0t201 Crossheadscrew 3/16"'3;8" 2

3AEO130I Key 5"5*54 1

3AE0t401 Pulley(2Slot) EOS-12"(C)¢180"¢163 t

3AE0150t V-belt LA-27 1

3A£01691 _owerwheet EBSd2"(C) 1

3AE01701 _eel prolector EBS-12"(PU) 2

3AE01801 F_a_washerfor1owerwheel EBS.12"(C) t

STD522500 Hexscrew 1f4"5t8" 1

20 3AE0200! Upperwheelshafthinge EBS-1Z 1

22 3AE02201 Springwasher 3tB" 1

23 3AE0230I Hex.Nut 3t8" 1

24 3AE02401 Bracket EOS-12' 1

25 3AE02501 Hingerod EBS-t2" 1

26 3AE0260t Squaretensionadjustingnut 5t10" 1

27 3AEQ2701 Spring EBS*12"(C) 1

28 3AEO2B01 Guidepostbracket EBS-12"(C) I

29 3AEO2901 Flatwasher 5116%18 3

30 3AE03001 SpringWasher 5V16" 3

32 3AE03201 Upperwheat EBS-12"(C) 1

33 3AE03301 Ring R-32 2

34 3AE03401 BaI_bearing 8002ZZ 2

35 3AE03501 Nut I/2" 2

36 3AE03BOl Ftatwasher 5115%23 1

37 3AE03701 Rollednut 5t10" I

38 3AE0380! Buftediynut 5;t6" 1

39 3AEO3901 StarknobWtl screw 5tlli'2 112" t

40 3AE04®1 Guidebar holder EBS-1Z(C) I

42 3AE04201 Steelptate EBS-12(C) 2

43 3AEO4301 Springwasher 1/4" 4

44 STD522503 Hexscrew 1/4°'3t8' 4

45 3AE0450t Bearingguidered EOS-12"(C) 2

45 3AE04601 Bal!bearing 026ZZ 2

47 3AE04701 Ytypebtock EBS-t2" 2

48 3AE04001 Steelpin 114"25L 4

49 3AE04901 Screw(Headless 1f41"1f2" 4

50 3AE0500l Screw Headless) 1f#"112" 1

52 3AE052{1t Sled bail 114" 1

53 3AE0530! Pointer WA.14"(C) 1

54 3AE05401 Screw(Headless 5116"5fi6" t

55 3AE05501 Springp n 6'20 1

56 3AE05601 Bladeguard EBS-tZ t

57 3AE05701 CrossscrewWiIwasher 114"3f8" 2

58 3AE05801 Fiatwasher If4" 15 4

59 3AEOdgOl Hexscrew 1/4"'318" 4

60 3AE0600I StarknobWfl screw 5116"5/0" 1

61 3AE0610t Tensionscrew EBS-12" 1

52 3AE06201 Lowersupportbracket EBS.12" !

63 3AE06301 Screw(HeadJess) 114"_1f4* 2

64 3AE06401 Fiatwasher 1f4"16 2

55 3AE0,8501 Hexscrew 114"518" 2

66 3AE_O1 MotorWtlpowercord 120V60HZ 1

07 3AE0670I Flatkey 5"5'32.5 !

68 3AE0680t Motorpulley ¢50¢'76(2 Slot) 1

69 3AE0690! Screw(Headless) M6'16 I

70 3AE07001 Flat washer 5116'18 4

7I ST054t031 Hexscrew 5118" 4

KayNo. PART NUMBER Description Size Qty

72 3AE07201 Idlewheel 1

73 3AE07301 Copperbeadng ¢12'¢t4'20L I

74 3AE0740t ShaftelidJewheel 1

75 3AE07501 C-dog S.12 2

75 3AE0760I Nylonwasher ¢12 2"¢,15'05 2

77 3AE07701 PIate EBS-12"(C) 1

78 3AE07801 Carnagescrew 51!8"3/4" 2

79 3AE07901 Flat washer 5116"'18 1

00 3AEOB0Ol Nylonnut 5t!6" 1

81 3AE00t01 Handle 51t5" 1

83 3AE08301 Crossheadscrew 3!16"3t8" 2

84 &AE08401 Powercord SJT18"3C'30m751

85 3AEOBd01 PowercordW/__ug SJTl_'3C'2.3m751

86 3AE08601 Strainreliefbushing 6N-4 2

87 3AE08701 Powercordslorage WA-t4"(C) 2

88 3AE0880t C_'essheadscrewWtl washer 3t16"'tt2" 2

89 3AEOBg01 Crossheadscrew 3/16"'3/8" 2

90 3AE0900t Eadhgroundlabel 2

9t 3AE09101 Teethwasher 5ram 2

93 3AE0930I Hexnut 3t16° 2

94 3AEO94Ol Swftchplate SOTO2m/m I

95 3AE09501 CrossheadscrewWtlwasher 31t6"318" 2

96 3AE0960t Switch 1

97 3AE09701 Bracketfor brush WA-14"(C) t

98 3AE09801 Brush EBS-12"(C) 1

g9 3AE09901 SeBtappedscrew 3t16"318" 2

t00 3AE10101 CrossheadscrewWtl washer 3,'16"'3t8" 1

101 3AE10101 Spdngplate 4

I03 SAE1030t Door•lower EBS-12" 1

104 3AE1040t Door.upper EBS-12" I

t05 3AE1050I Springcliper EBS-1Z(C) 2

108 3AE10_01 Flatwasher t/4"'I6 2

107 3AE1070! Star knob 1t4" 2

100 3AEt0801 Bracketfortn_.qr_ion EBS-12"(C) 1

109 3AE10901 Pointer My-2OO0P 1

110 8AEI1001 Springwasher 3s'18" 1

tll 3AE1110I Crossheadscrew 3t'10"3f0" 1

t12 3AEl120t Ratwaeher 5f16"18 2

1!3 3AEtt301 Hexscrew 5/16"'1 1f4" 2

114 STD541031 Hexnat 5;15" !

1t5 3AEt1501 Hexecrew 5t16"'3" 1

1t6 3AEl150t Blade g1"'3f8'_0.05 1

tt7 3AEt1701 Table VVA.14"(C) 1

1t8 3AE11801 Tronniondamp shoe WA-14 2

t19 3AEl1901 Hexscrew M10%0 2

120 3AE12001 Trunnion WA-I#' 2

121 3AE12101 Sca_e 45" 1

123 3AE12301 Hexscrew 1t4"518" 6

124 3AE1240t Spdngpin ¢3'10 I

125 3AE!250t Tablepin WA-I4" 1

120 3AEt260t Tableinsed WA-14" 1

I27 3AE12701 Star knob WA.14" 2

t28 3AE12801 Fixtureptatefor duslehute EBS-12"(C) 1

129 3AE12901 Springwasher 1t4" 3

130 3AE1300! Hexscrew 114"114" 3

13t 3AE13101 Dust_ule ¢21 If2" WA-14" 1

132 3AE1320I Flatwasher 5/16"t8

133 3AE1330t Hex screw 5fi6"'2"

134 STD541031 Nex nut 5t16"

135 3AE13501 Miter gauge assembly WA.14_(C)

138 3AE13601 Hex w_ench 3ram

137 3AE13701 Nameplate

130 3AE13801 Warning label

139 3AE!3901 Motor label

140 3AE14001 Flat washer 3/8"22"1T

141 3AE1410t Fiat washer 5116"'23

142 137224120001 Manual

CRAFTSMAN 12' BAND SAW .....

\ \

® ®

\• ®

\®

\\\®

®\

• 137.224120

// \ (_) ./

/ //

/_e=@-/ \ /

/'\

I \ +/

CRAFTSMAN 12" BAND SAW LEG STAND

CRAFTSMAN 12" BAND SAW LEG STAND 137.224120

When servicing use only CRAFTSMAN replacement parts. Use of any other parts may create a HAZARD or cause

product damage+

Any attempt to repair or replace electrical parts on this band saw may create a HAZARD unless repair is done by a

qualified service technician. Repair service is available at your nearest Sears Service Center.

Order by PART NUMBER, not by key number

Key No. PART NUMBER Description Size Qty

1 3AD30101 Stand Top Plate 1

2 3AD30201 Leg 4

3 3AD30301 Lower bracket (short) 2

4 3AD3040! Lower bracket (long) 2

5 3AD30501 Screw 32

............................................................................................................. +............................................................... +..................................

6 3AD30601 Washer 32

7 3AD30701 Nut 1/4x5/8 32

8 3AD31001 Pad 4

9 3AD31101 Miter gauge storage 1

10 3AD31201 Screw 2

................................................................................................................................... _,+-+ ........................................................................

Craftsman 137224120 User Manual BAND SAW Manuals And Guides L0810017

CRAFTSMAN Saw Band Manual L0810017 CRAFTSMAN Saw Band Owner's Manual, CRAFTSMAN Saw Band installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
