Part 1.0: General features and description
-Prevent Repetitive Strain Injury on your wrists and arms.
-Radio frequency : 27.045 MHz、27.195MHz, two channels with 256 IDs per channel, no more
problems with radio frequency interference .
-Battery type: 2 AA alkaline batteries for mouse
-Mouse resolution : 800cpi
-Sensor detects movement on all kinds of surface,a* including wood, plastics, pants, etc… ( Highly
reflective surfaces like mirror or deep dark color may not work properly).
-The ergonomically designed shaped provides easy control for both right hand and left hand
-Works under Windows 98/98SE/Me/2000/XP
-The left, right and scroll wheel buttonscan be programmed to perform a variety of functions to
speed up daily tasks.
Part 2.0: System Requirements
.IBM PC or compatible system
Part 3.0: Preface
The functionality and performance requirements related to the mouse are defined in this specification.
Part 4.0: Version
-USB (1.1version) and PS/2 interface
Part 5.0: Physical characteristics and configuration

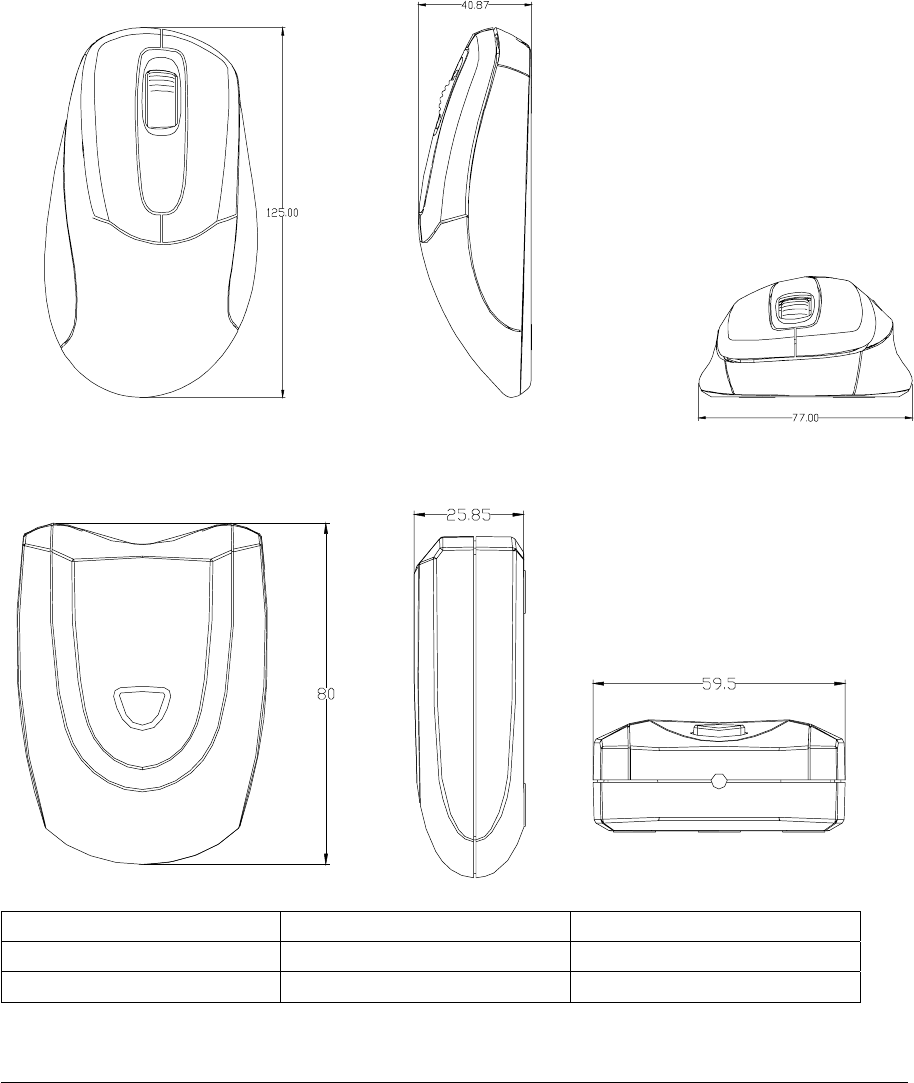

Item 5.1: Dimension
Mouse: 125mm(L) x 77mm(W) x 40.87mm(H)
Receiver: 80mm(L) x 59.5mm(W) x 25.85mm(H)
DR： Sam CHECK：APPD：
Mouse:
Receiver:
Item 5.2: Material
Mouse Body ABS
Beside face(3) Rubber paint
Wheel Rubber
Item 5.3: Finish: Texture
DR： Sam CHECK：APPD：
Item 5.4: Color: To be defined by ID
Item 5.5: Button
Mouse: 3 Buttons with scrolling wheel, 1 CONNECT button.
Item 5.6: Mechanical Performance
5.6.1 Operating force of mouse buttons: 70 ±15gf
5.6.2 Operating force of browser switches: 170 ± 25gf
5.6.3 Operating force of wheel scrolling: 20 ±10gf
5.6.4 Operating force of moving mouse:80 ±10gf
5.6.5 Mouse weight(include batteries): 130±5g
5.6.6 Receiver weight:71±5g
Part 6.0: Electrical specification
Item 6.1: Compatibility
The USB mode uses the low speed interface as defined in the USB specification. It is compliant to the
USB specification and HID class specification.
- The USB mode shall be compatible with IBM PC/PENTIUM and works with operating system such as
Windows 98/98SE /2000/ME/XP as well as the most software applications.
Item 6.2: Technicalities of Mouse
The mouse's optical sensor works for X and Y axis.The accurate sensor detectsmovement on
hundred of surfaces*, including wood, plastic and even the surface of your pants. The wheel button
uses a mechanical encode to work.
* Not including reflective surfaces such as mirrors or glass.
Item 6.3: Sensor Report Rate on Mouse
2300 times per second
Item 6.4: Sensor Light on mouse
Red LED
Item 6.5: Power Requirement (Receiver)
5V/ DC 50mA directly from computer's USB port
Item 6.6: Operating Angle
The mouse operating angle is 360 degrees.
Item 6.7: Operating Distance
The operation distance from mouse to the receiver is up to 1.8meters, under typical officeenvironment.
Item 6.8: To change Channel and ID
The ID and channel are changed by the CONNECT button.
Press the Connect button and the RF Receiver followedby the Connect button on the mouse. Repeat
thisstep when experiencing interference while using this product, changing the batteries or using this
product for the first time.
Make sure you press the Connect button on the mouse within 10 sec after you press the Connect
DR： Sam CHECK：APPD：
button on the RF Receiver.
Item 6.9: Battery
6.9.1 Battery Type
The mouse use two AA alkaline batteries.
6.9.2 Battery Consumption
Operating mode: ＜40mA @ 3.0V （white paper）
Sleep Mode 1: <4.0mA @ 3.0V (white paper) If the mouse is not used for approximately 3 seconds.
Sleep mode 2: <0.5mA @ 3.0V (white paper)when not in use for approximately 8 minutes.
6.9.3: Battery saving mode : longer battery life
6.9.4: LED Indicator Function.
6.9.51: Low Battery indication
If the blue LED on the receiver is flashing while working, this indicate that the battery is low in
voltage, you will need to change the batteries.
6.9.52: Indication of mouse function:
1)Receiver LEDdoesnotlight up when it is connected to the PC
2) LED will flash for about 10 seconds when connected.
3) LED will light up when the mouse is being used.
4) LED will not light up when there is no mouse movement or when the buttons are not clicked.
Item 6.10: Tracking Speed
The unit shall be capable of tracking between50mm/s and 350mm/s of hand movement on the matt
white paper without loss of data.
Item 6.11: Mouse Sensor Features
-Optical motion estimation technology
-Complete 2D motion sensor
-No mechanical moving parts
-Accurate motion estimation over a wide range of surfaces
-High speed motion detection up to 14 inches/sec
-High resolution up to 800cpi
Part 7.0: Reliability and environmental specification
Item 7.1: Button SwitchActivation
Condition: 3 cycles per second.
Testing method: a small DC motor fixed with cam automatically presses the button for three times per
second. The switch isconnected to a calculator. The number displayed on the
calculator shows the pressed cycle of the button.
Result: button tested have a liftcycle of more than 1,000,000.00.
Item 7.2 : Cable Bending Strength
Condition: Cable load at 100gram,
Testingmethod: bend 60 degrees in any direction from its centerlineat a speed of 30 cycles/min. 1000
cycles.
DR： Sam CHECK：APPD：
Result: No visible damage and no breakage in each wire.
Item 7.3: Drop Shock with Bare Unit
Condition: Drop the unit from a height of 76cm from the floor
Testing method: drop the unit on top, bottom and 4 side of the unit ( 1 time for each side).
Result:The unit function properly without any mechanical failure.
Item 7.4: Drop Shock in Gift box
Condition: Unit have been packed with gift box
Testing method: Drop the unit from a height of 91cm onto floor, from the angles of the 4 corners and the
6 sides of the box (1 time for each side)
Result: no content escape from packaging.
Item 7.5: Temperature / Humidity Test
7.4.1 Non-operating temperature/humidity cycle test
Storage at the following conditions:
1)65 degrees Celsius / 95% RH (24hrs)
2)65 degrees Celsius / 10% RH (24hrs)
3) –20 degrees Celsius (24hrs)
7.4.2 Operating temperature / humidity test
Performed dynamic burn-in at the following conditions:
1)45 degrees Celsius / 80%RH (8hrs)
2)45 degrees Celsius / 10%RH (8hrs)
3)0 degrees Celsius (8hrs)
Item 7.6: Heat Cycle Test for Shipment Pattern
Condition: N/A
Testing method: -40 degrees Celsius to 65 degrees Celsius under 0% to 90% relative humidity with total
time of 40 hours, and then left under room temperature for 2 hours.
Result:The unit work properly
Item 7.7: Vibration Test
Unit shall survive a vibration within a frequency range of 10 to 200Hz at 0.015 square of g/Hz and 200
to 500 Hz at –6dB/oct for X,Y,and Z axis and 0.5 hour per axis.
Part 8.0: Product Compliance

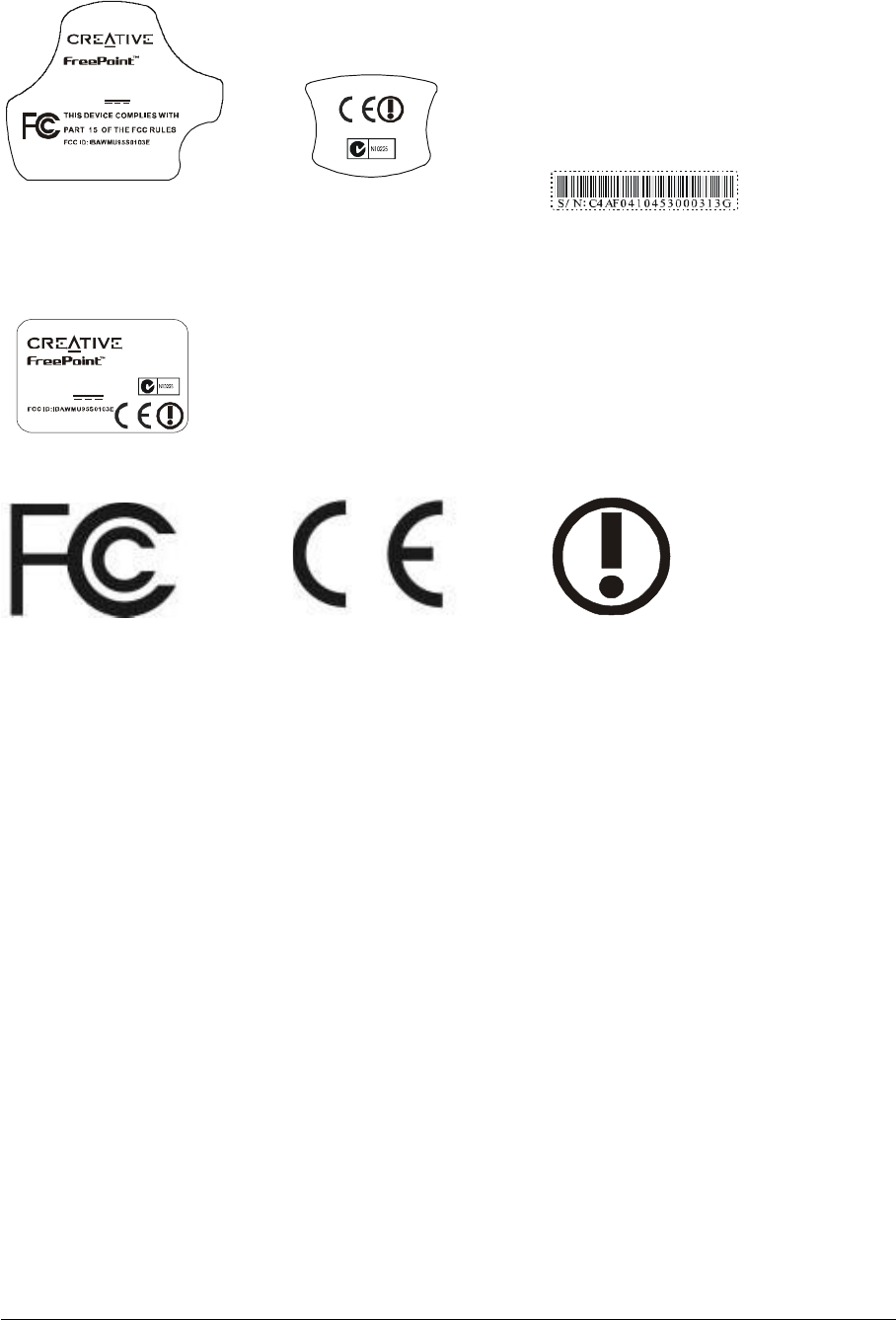

Item8.1:ActualComplianceLabel
Mouse :
DR： Sam CHECK：APPD：
Size:34X41.2mm
MADE INCHINA
Modl: WMU95Se
Rating: 3V 50mA
OpticalMouse
3500
Size:19.5X25mm Size:35.5X8mm
Receiver:
Size: 21.5x32.5mm
MADE IN CHINA
Modl: WMU95Se
Rating: 5V 50mA
Optical ouse Receiver
M
3500
