Section 3 - Configuration

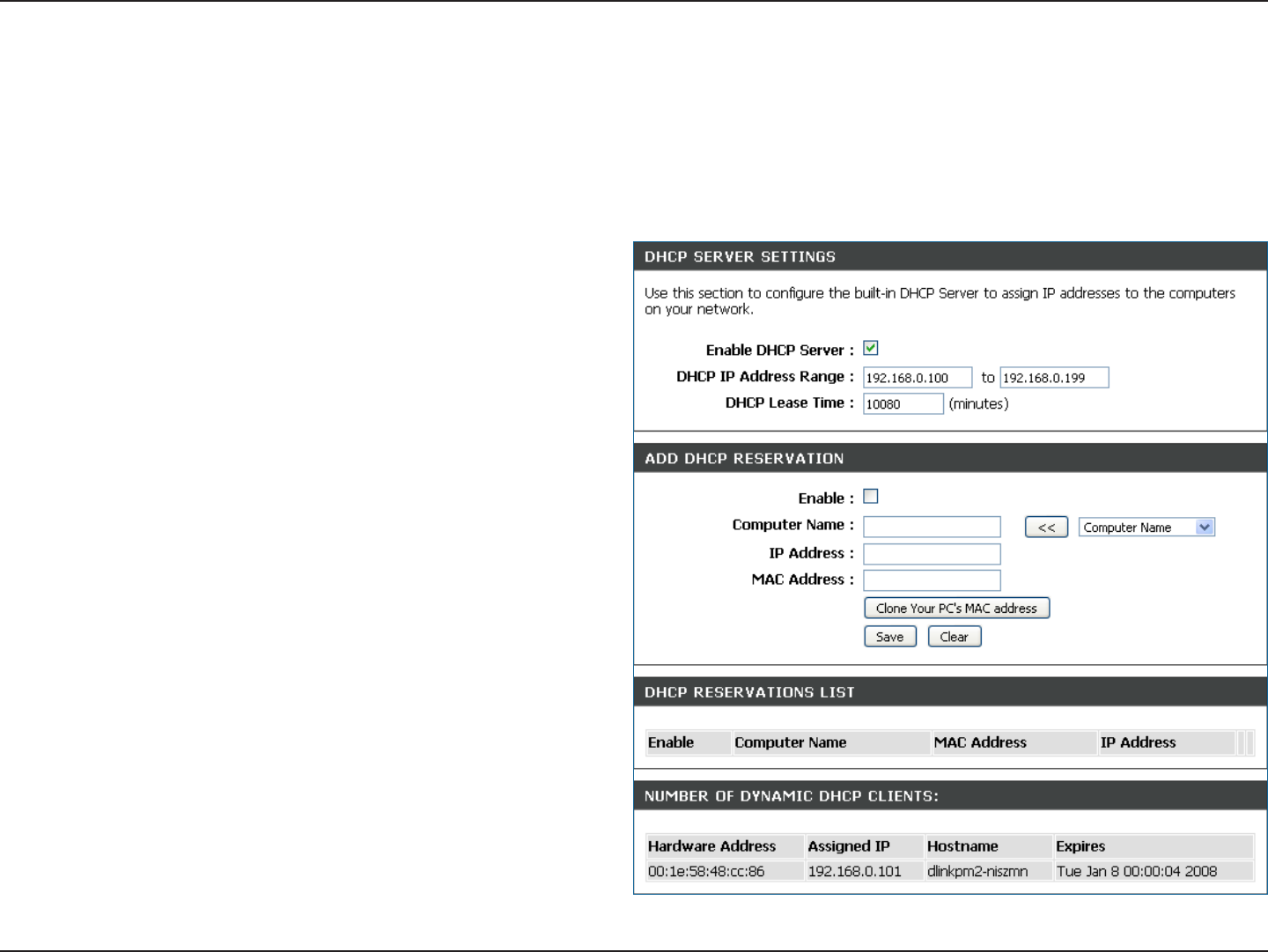

DHCP Reservation
If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation.
The router will assign the IP address only to that computer or device.
Note: This IP address must be within the DHCP IP Address Range.
Check this box to enable the reservation.
Enter the computer name or select from the drop-down
menu and click <<.
Enter the IP address you want to assign to the computer
or device. This IP Address must be within the DHCP
IP Address Range.
Enter the MAC address of the computer or device.
If you want to assign an IP address to the computer
you are currently on, click this button to populate the
fields.
Click Save to save your entry. You must click Save
Settings at the top to activate your reservations.
In this section you can see what LAN devices are
currently leasing IP addresses.
Enable:
Computer Name:
IP Address:
MAC Address:
Copy Your PC’s
MAC Address:
Save:
Number of
Dynamic DHCP
Clients:
81D-Link DAP-1350 User Manual
Section 3 - Configuration

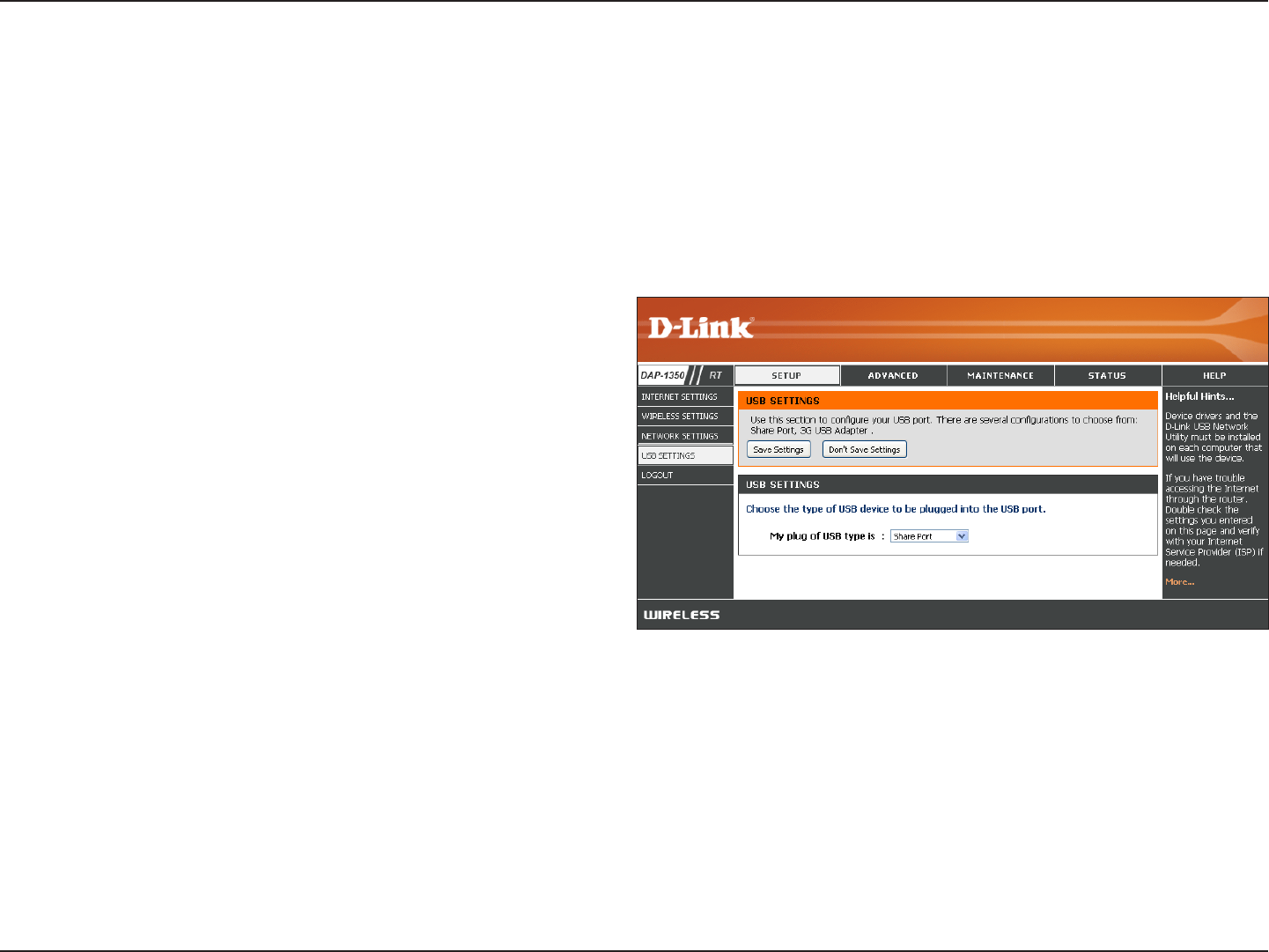

USB Settings
Use this section to configure your USB port. Share Port will be selected.
Note: If using the Network USB option, users will need to install the SharePort Utility into the computers to share the
USB device through the router.
Please set the Network USB Detection interval
time.
Network USB:
Note: Please see the SharePort Manual on the CD for
more information.
82D-Link DAP-1350 User Manual
Section 3 - Configuration

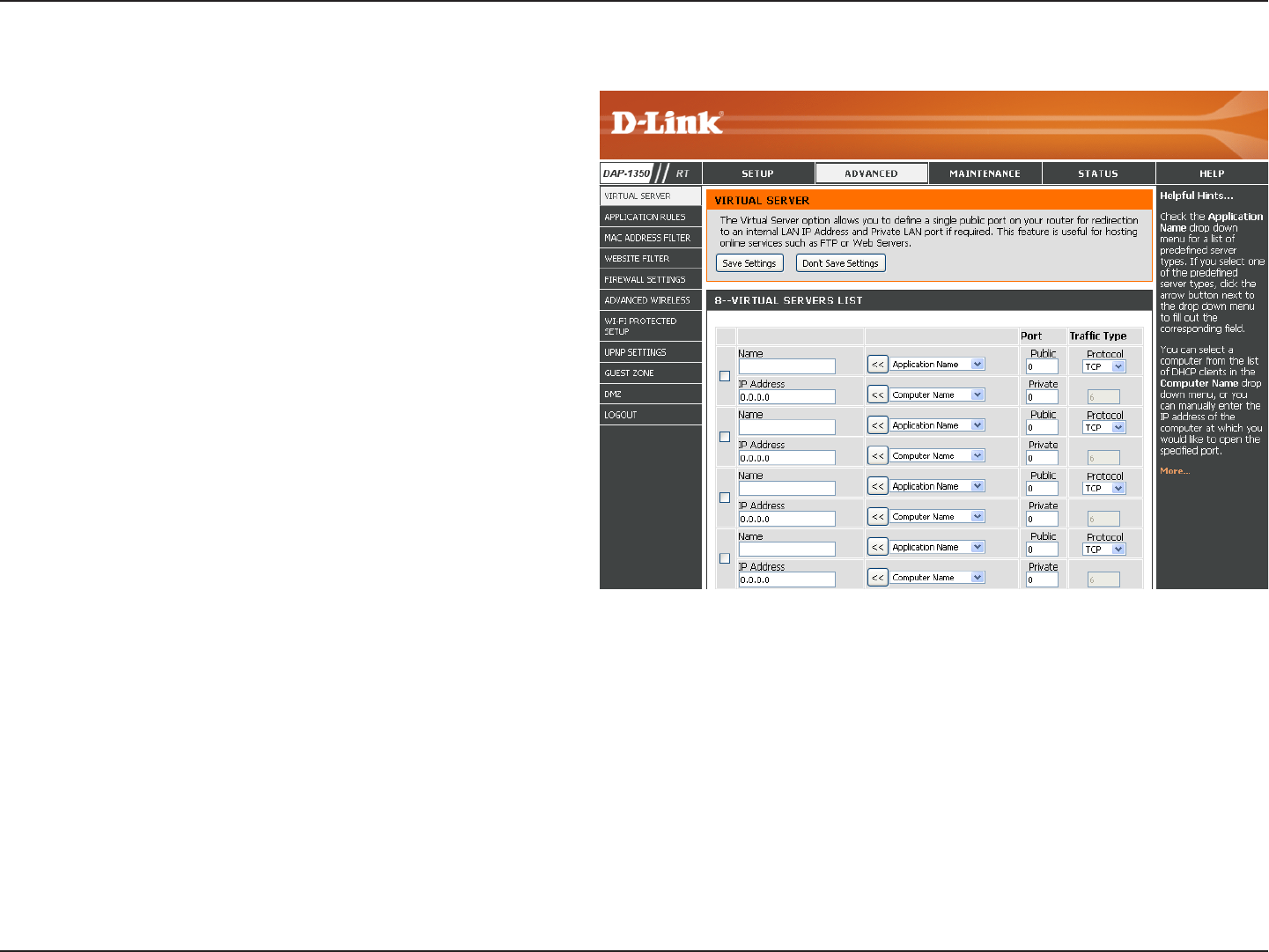

The DAP-1350 can be configured as a virtual server so that remote users accessing Web or FTP services via the public
IP address can be automatically redirected to local servers in the LAN (Local Area Network).
The DAP-1350 firewall feature filters out unrecognized packets to protect your LAN network so all computers networked
with the DAP-1350 are invisible to the outside world. If you wish, you can make some of the LAN computers accessible
from the Internet by enabling Virtual Server. Depending on the requested service, the DAP-1350 redirects the external
service request to the appropriate server within the LAN network.
The DAP-1350 is also capable of port-redirection meaning incoming traffic to a particular port may be redirected to a
different port on the server computer.
Each virtual service that is created will be listed at the bottom of the screen in the Virtual Servers List. There are
pre-defined virtual services already in the table. You may use them by enabling them and assigning the server IP to
use that particular virtual service.
For a list of ports for common applications, please visit http://www.dlink.com/support/faq/?prod_id=1191.
Virtual Server
83D-Link DAP-1350 User Manual
Section 3 - Configuration
This will allow you to open ports (port forwarding).
Enter a name for the rule or select an application
from the drop-down menu. Select an application
and click << to populate the fields.
Enter the IP address of the computer on your
local network that you want to allow the incoming
service to. If your computer is receiving an IP
address automatically from the router (DHCP),
you computer will be listed in the “Computer
Name” drop-down menu. Select your computer
and click <<.
Enter the port that you want to open next to Private
Port and Public Port. The private and public ports
are usually the same. The public port is the port
seen from the Internet side, and the private port
is the port being used by the application on the
computer within your local network.
Select TCP, UDP, or Both from the drop-down
menu.
Select Allow All (most common) or a created
Inbound filter. You may create your own inbound
filters in the Advanced > Inbound Filter page.
The schedule of time when the Virtual Server
Rule will be enabled. The schedule may be set to
Always, which will allow the particular service to
always be enabled. You can create your own times
in the Tools > Schedules section.
Name:
IP Address:
Private Port/
Public Port:
Protocol Type:
Inbound Filter:
Schedule:
84D-Link DAP-1350 User Manual
Section 3 - Configuration

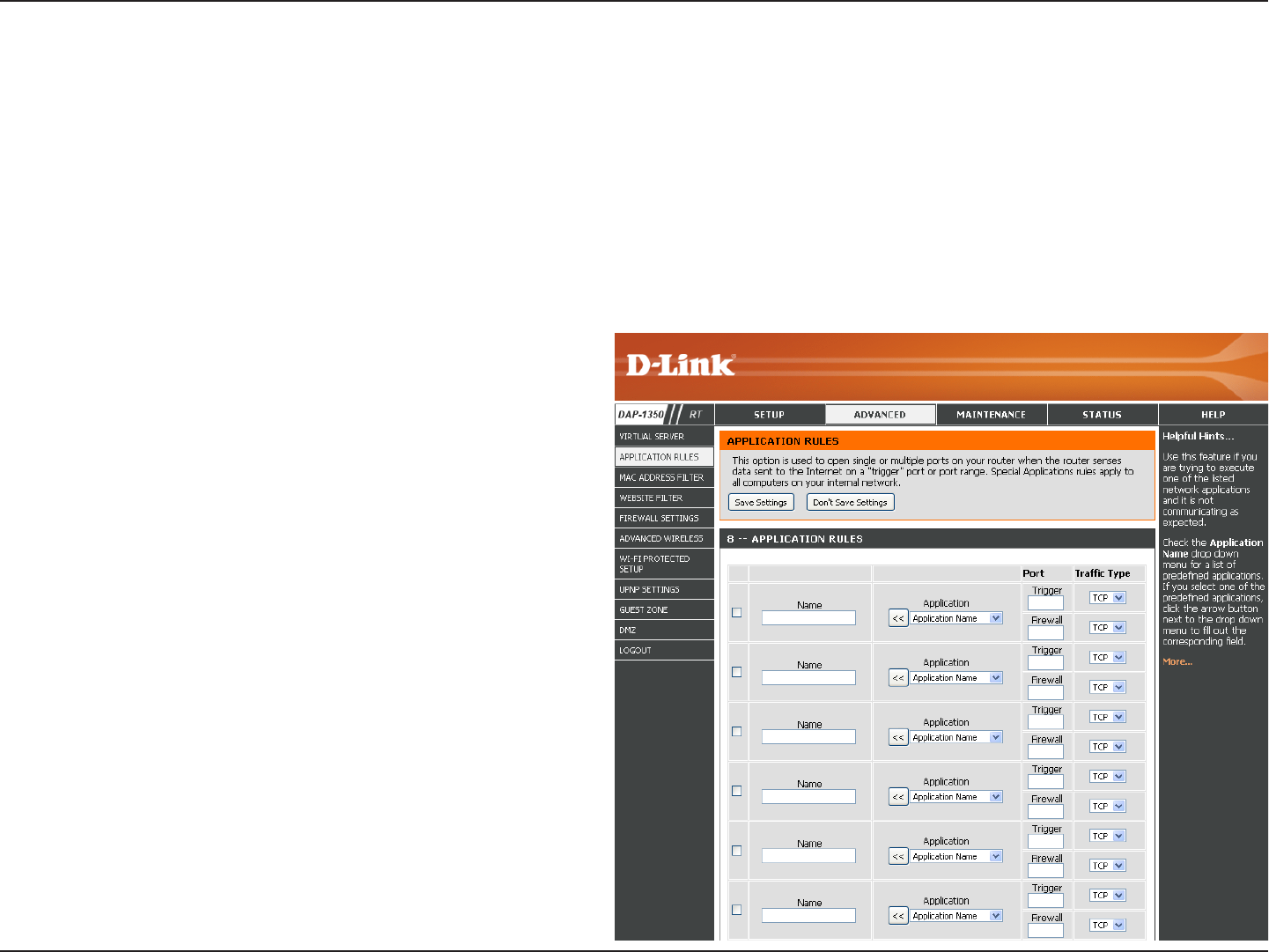

Application Rules
Enter a name for the rule. You may select a
pre-defined application from the drop-down
menu and click <<.
This is the port used to trigger the application. It
can be either a single port or a range of ports.
Select the protocol of the trigger port (TCP,
UDP, or Both).
This is the port number on the Internet side
that will be used to access the application. You
may define a single port or a range of ports.
You can use a comma to add multiple ports or
port ranges.
Select the protocol of the firewall port (TCP,
UDP, or Both).
Name:
Trigger:
Traffic Type:
Firewall:
Traffic Type:
Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and
others. These applications have difficulties working through NAT (Network Address Translation). Special Applications
makes some of these applications work with the DAP-1350. If you need to run applications that require multiple
connections, specify the port normally associated with an application in the “Trigger Port” field, select the protocol type
as TCP or UDP, then enter the firewall (public) ports associated with the trigger port to open them for inbound traffic.
The DAP-1350 provides some predefined applications in the table on the bottom of the web page. Select the application
you want to use and enable it.
85D-Link DAP-1350 User Manual
Section 3 - Configuration

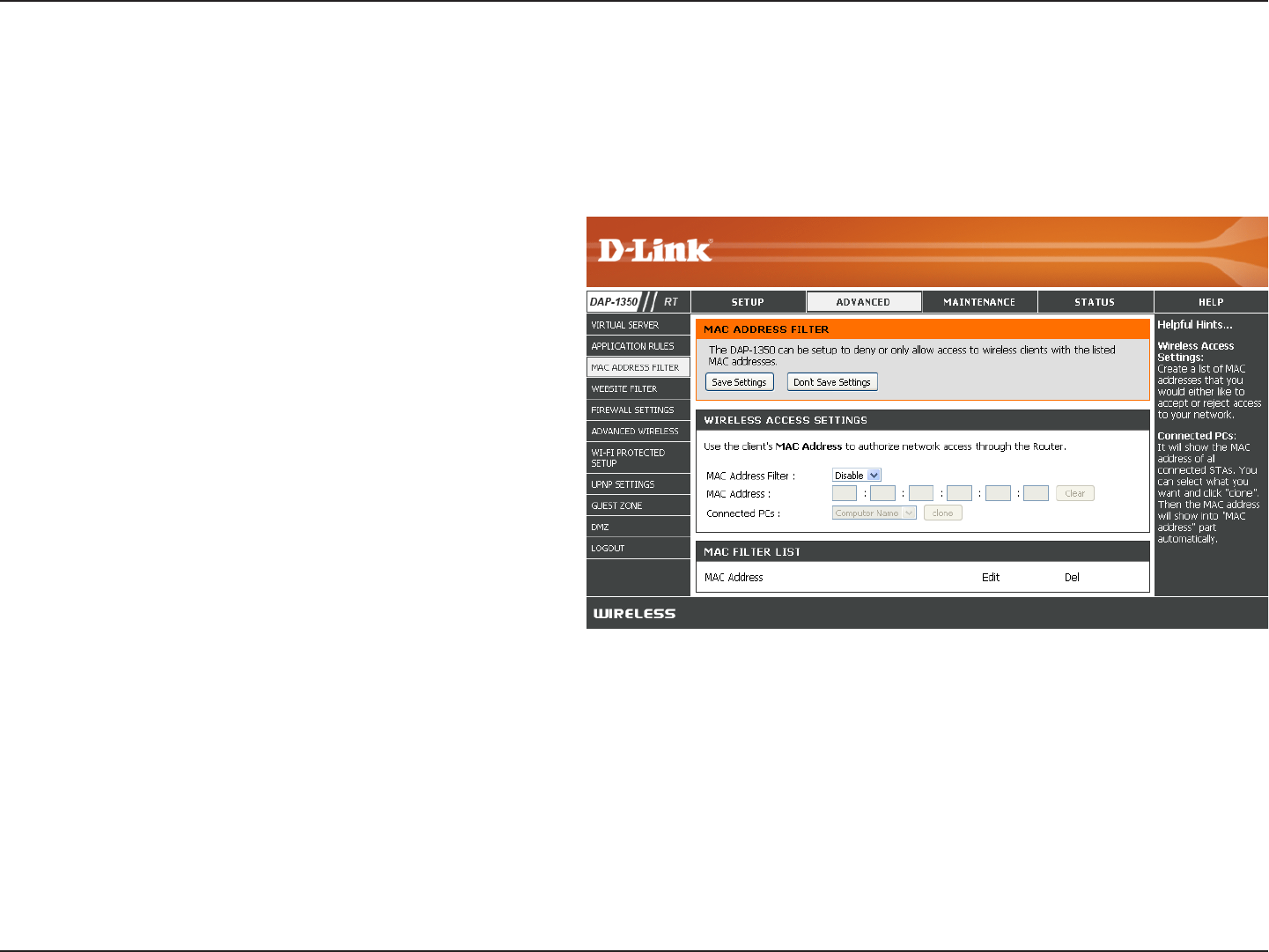

MAC Address Filter
Select Turn MAC Filtering Off, allow MAC
addresses listed below, or deny MAC addresses
listed below from the drop-down menu.
Enter the MAC address you would like to filter.
To find the MAC address on a computer, please
refer to the Networking Basics section in this
manual.
Select a DHCP client from the drop-down menu
and click << to copy that MAC Address.
Configure MAC
Filtering:
MAC Address:
DHCP Client:
Use MAC (Media Access Control) Filters to allow or deny LAN (Local Area Network) computers by their MAC addresses
from accessing the Network. You can either manually add a MAC address or select the MAC address from the list of
clients that are currently connected to the Broadband Router.
86D-Link DAP-1350 User Manual
Section 3 - Configuration

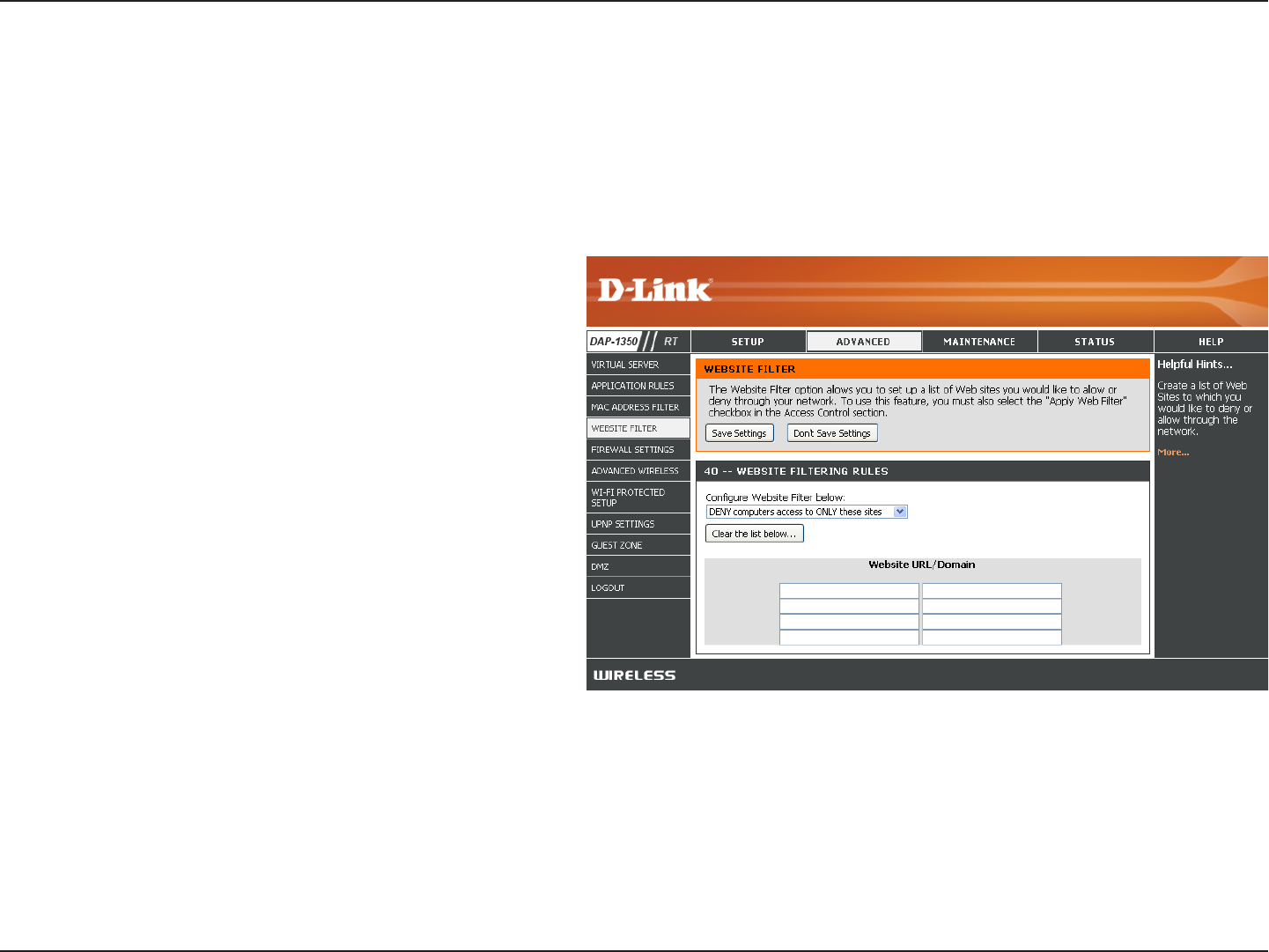

Enter the keywords or URLs that you want to
block (or allow). Any URL with the keyword in
it will be blocked.
Website URL/
Domain:
Website Filters are used to deny LAN computers from accessing specific web sites by the URL or domain. A URL is a
specially formatted text string that defines a location on the Internet. If any part of the URL contains the blocked word,
the site will not be accessible and the web page will not display. To use this feature, enter the text string to be blocked
and click Save Settings. The text to be blocked will appear in the list. To delete the text, click Clear the List Below.
Website Filters
87D-Link DAP-1350 User Manual
Section 3 - Configuration
SPI (Stateful Packet Inspection, also known as
dynamic packet filtering) helps to prevent cyber
attacks by tracking more state per session. It
validates that the traffic passing through the
session conforms to the protocol.
Select one of the following for TCP and UDP
ports:
Endpoint Independent - Any incoming traffic
sent to an open port will be forwarded to the
application that opened the port. The port will
close if idle for 5 minutes.
Address Restricted - Incoming traffic must match
the IP address of the outgoing connection.
Address + Port Restriction - Incoming traffic
must match the IP address and port of the
outgoing connection.
Enable SPI:
NAT Endpoint
Filtering:

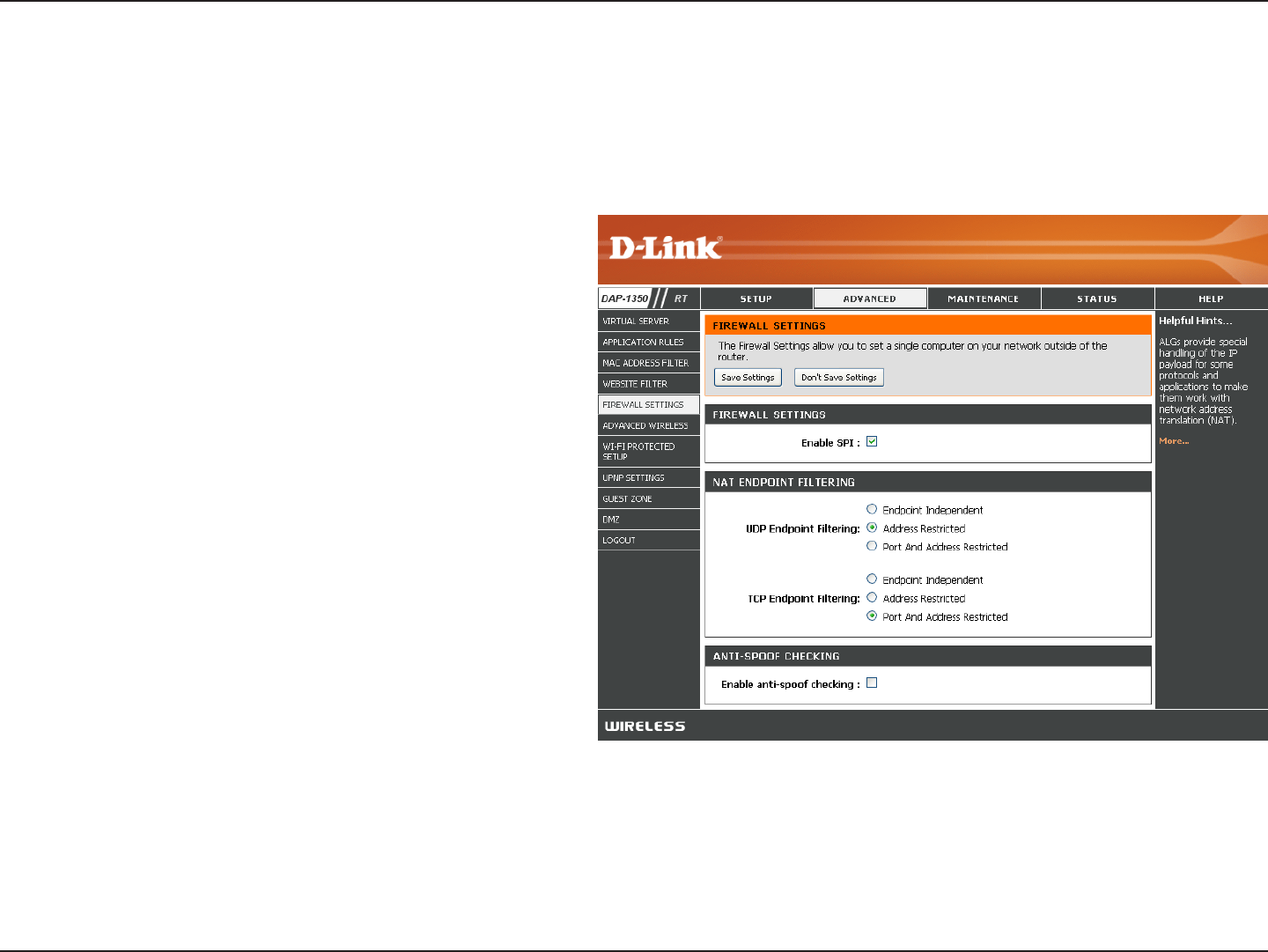

Firewall Settings
A firewall protects your network from the outside world. The D-Link DAP-1350 offers a firewall type functionality. The
SPI feature helps prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain
types of applications. If you choose to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone.
This option will expose the chosen computer completely to the outside world.
88D-Link DAP-1350 User Manual
Section 3 - Configuration

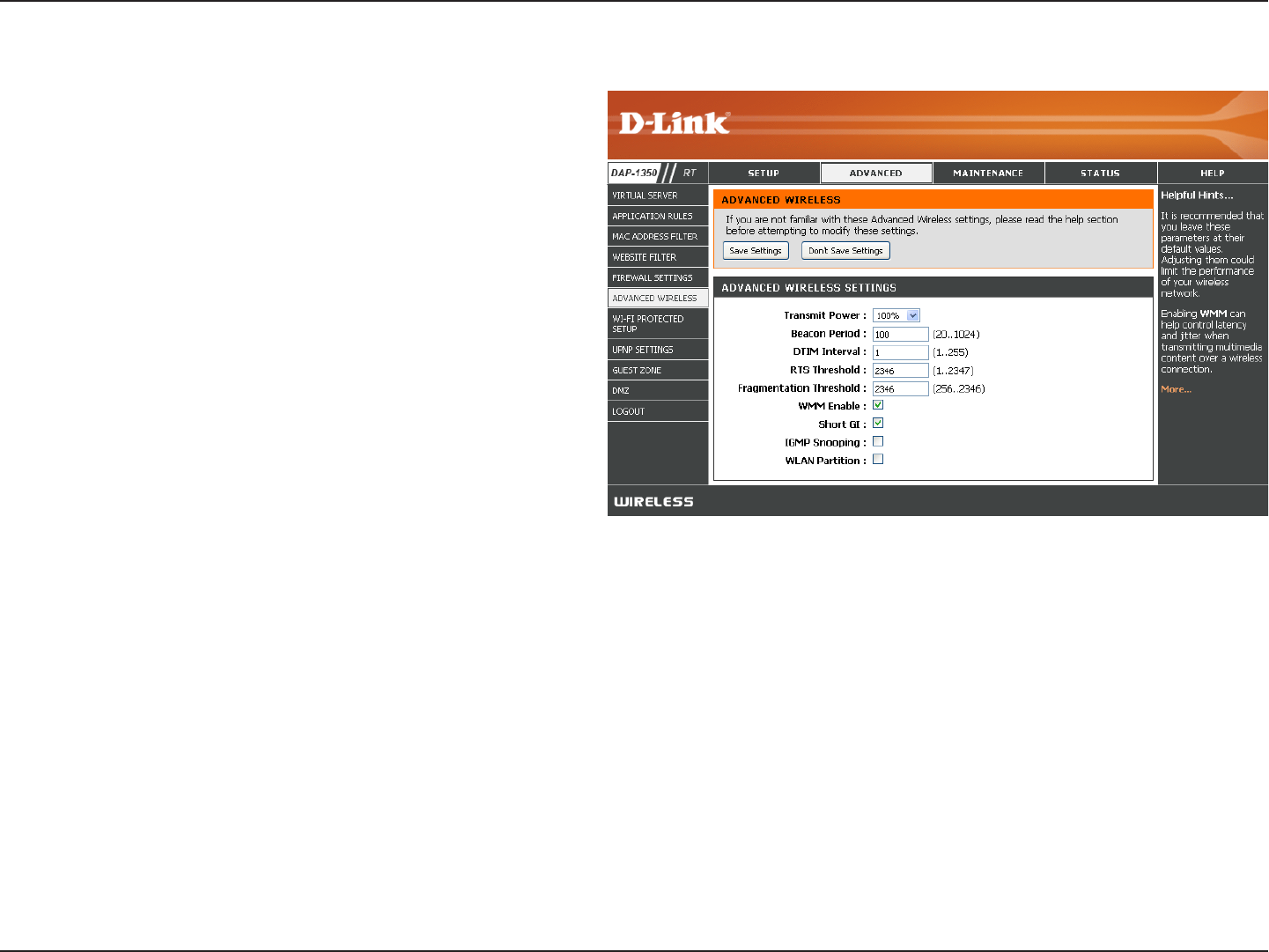

Set the transmit power of the antennas.
Note: Transmit power is regulated by international
standard. Users are forbidden to change its
maximum limit.
Beacons are packets sent by an Access Point to
synchronize a wireless network. Specify a value.
100 is the default setting and is recommended.
(Delivery Traffic Indication Message) 1 is the default
setting. A DTIM is a countdown informing clients
of the next window for listening to broadcast and
multicast messages.
This value should remain at its default setting of
2346. If inconsistent data flow is a problem, only a
minor modification should be made.
The fragmentation threshold, which is specified in bytes, determines whether packets will be fragmented. Packets exceeding
the 2346 byte setting will be fragmented before transmission. 2346 is the default setting.
WMM is QoS for your wireless network. This will improve the quality of video and voice applications for your wireless
clients.
Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may
create higher data loss.
Transmit Power:
Beacon Period:
DTIM Interval:
RTS Threshold:
Fragmentation
Threshold:
WMM Function:
Short GI:
Advanced Wireless Settings
89D-Link DAP-1350 User Manual
Section 3 - Configuration

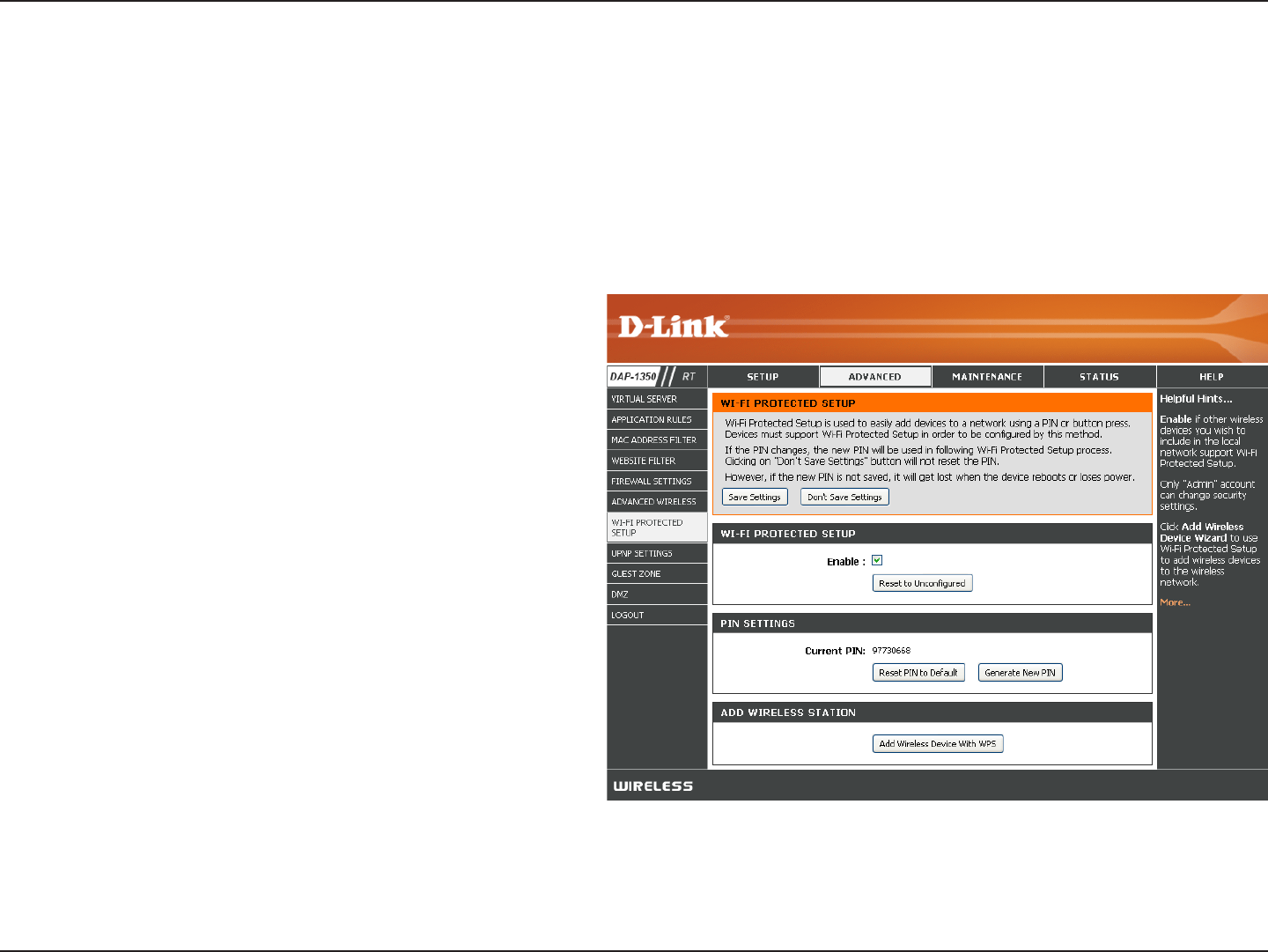

Enable the Wi-Fi Protected Setup feature.
Locking the wireless security settings prevents the
settings from being changed by the Wi-Fi Protected
Setup feature of the router. Devices can still be
added to the network using Wi-Fi Protected Setup.
However, the settings of the network will not change
once this option is checked.
A PIN is a unique number that can be used to add
the router to an existing network or to create a
new network. The default PIN may be printed on
the bottom of the router. For extra security, a new
PIN can be generated. You can restore the default
PIN at any time. Only the Administrator (“admin”
account) can change or reset the PIN.
Shows the current value of the router’s PIN.
Restore the default PIN of the router.
Create a random number that is a valid PIN. This becomes the router’s PIN. You can then copy this PIN to the user interface
of the registrar.
Enable:
Lock Wireless
Security
Settings:
PIN Settings:
Current PIN:
Reset PIN to
Default:
Generate New
PIN:
Wi-Fi Protected Setup
Wi-Fi Protected Setup (WPS) System is a simplified method for securing your wireless network during the “Initial setup”
as well as the “Add New Device” processes. The Wi-Fi Alliance (WFA) has certified it across different products as well
as manufactures. The process is just as easy, as depressing a button for the Push-Button Method or correctly entering
the 8-digit code for the Pin-Code Method. The time reduction in setup and ease of use are quite beneficial, while the
highest wireless Security setting of WPA2 is automatically used.
90D-Link DAP-1350 User Manual
Section 3 - Configuration
This Wizard helps you add wireless devices to the wireless network.
The wizard will either display the wireless network settings to guide you through manual configuration, prompt you to enter
the PIN for the device, or ask you to press the configuration button on the device. If the device supports Wi-Fi Protected Setup
and has a configuration button, you can add it to the network by pressing the configuration button on the device and then
the on the router within 60 seconds. The status LED on the router will flash three times if the device has been successfully
added to the network.
There are several ways to add a wireless device to your network. A “registrar” controls access to the wireless network. A
registrar only allows devices onto the wireless network if you have entered the PIN, or pressed a special Wi-Fi Protected Setup
button on the device. The router acts as a registrar for the network, although other devices may act as a registrar as well.
Start the wizard.
Add Wireless
Station:
Add Wireless
Device Wizard:
91D-Link DAP-1350 User Manual
Section 3 - Configuration

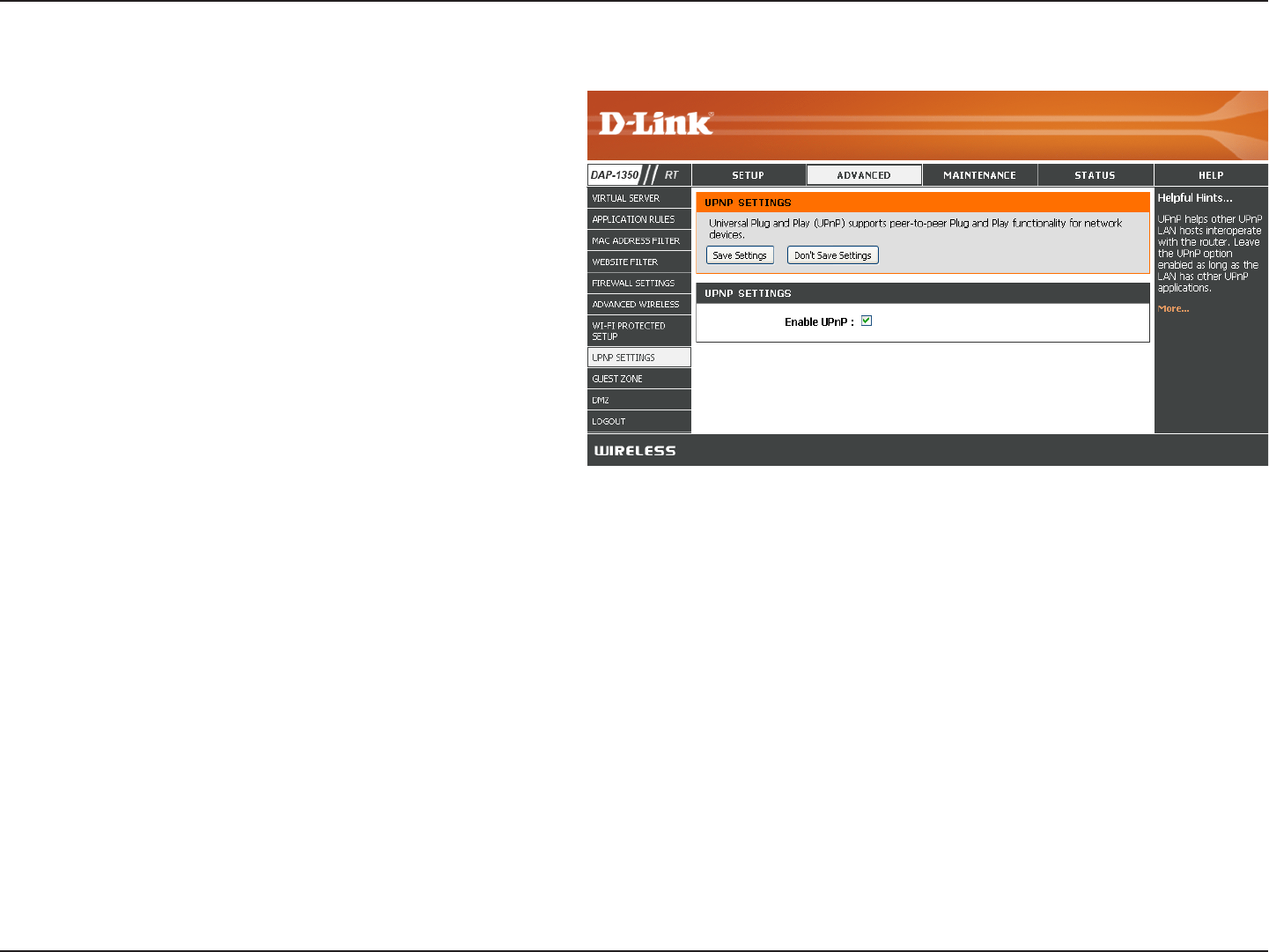

To use the Universal Plug and Play (UPnP™)
feature click on Enabled. UPNP provides
compatibility with networking equipment,
software and peripherals.
UPnP Settings:
UPnP Settings
92D-Link DAP-1350 User Manual
Section 3 - Configuration

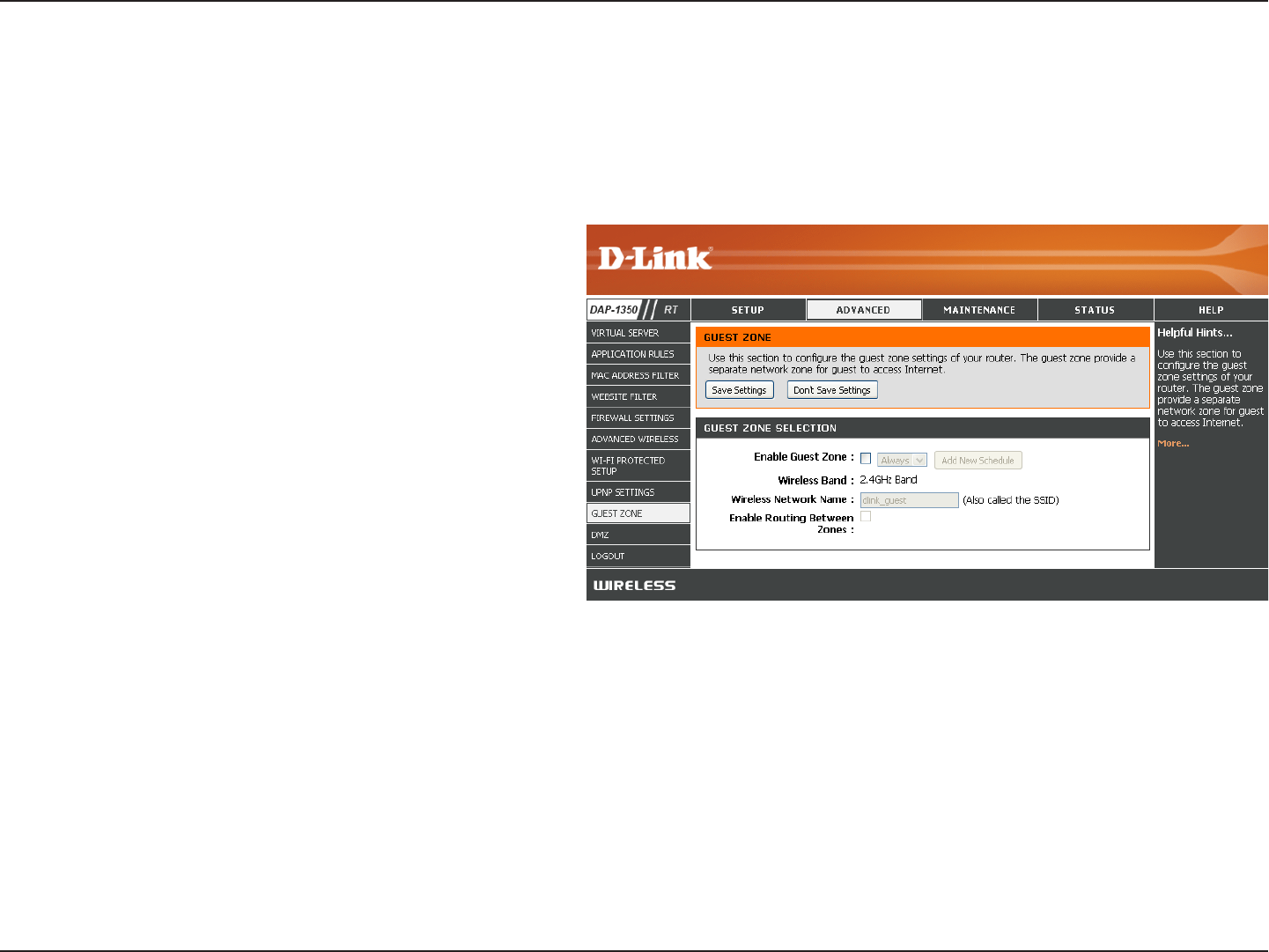

Guest Zone
Check to enable the Guest Zone feature.
The schedule of time when the Guest Zone will
be active. The schedule may be set to Always,
which will allow the particular service to always
be enabled. You can create your own times in
the Tools > Schedules section.
Enter a wireless network name (SSID) that is
different from your main wireless network.
Check to allow network connectivity between
the different zones created.
Select the type of security or encryption you
would like to enable for the guest zone.
Enable Guest Zone:
Schedule:
Wireless Network
Name:
Enable Routing
Between Zones:
Security Mode:
The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet.
These zones will be separate from your main wireless network.
93D-Link DAP-1350 User Manual
Section 3 - Configuration

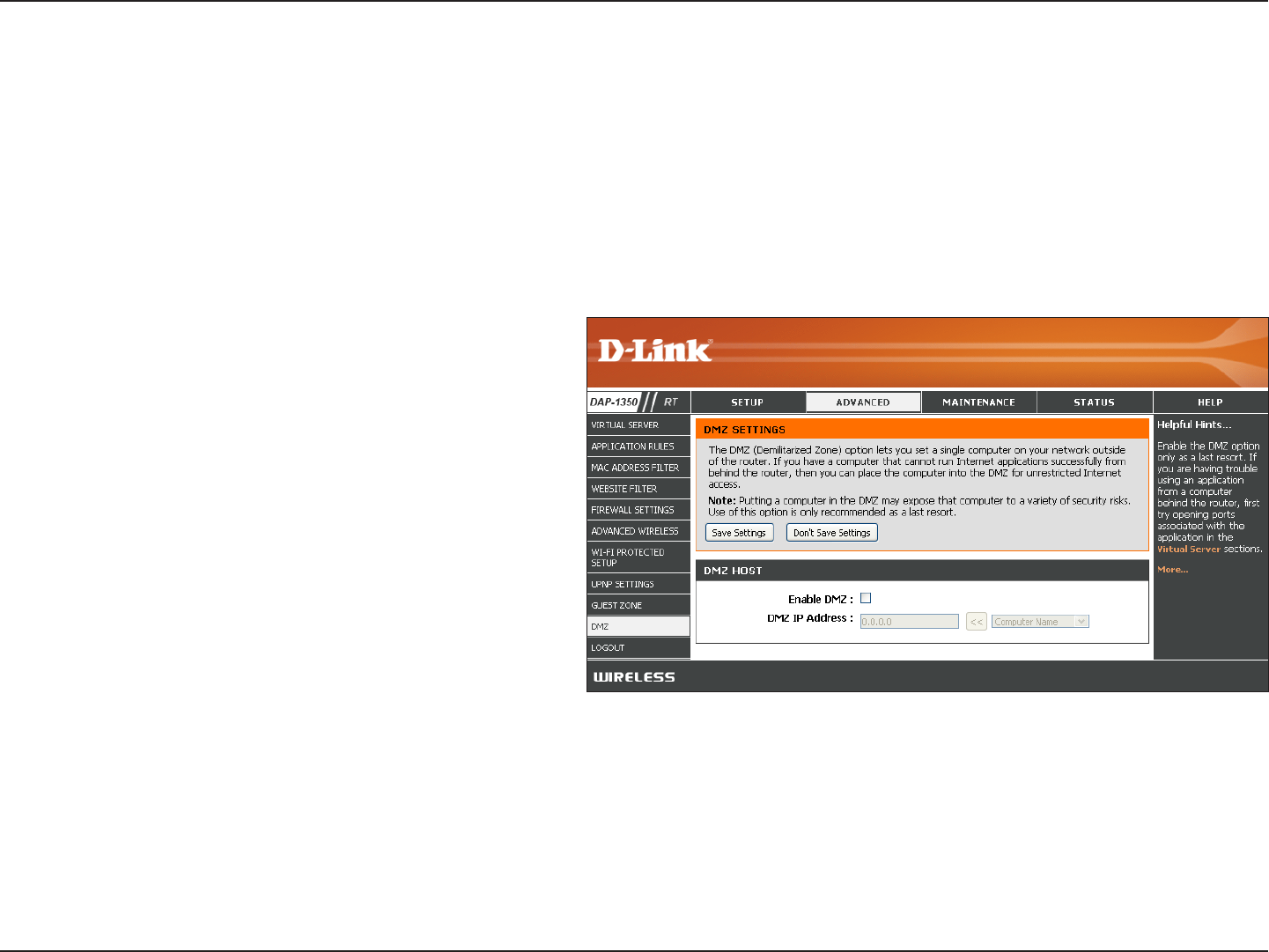

DMZ
Check this box to enable DMZ.
Enter the IP address of the computer you
would like to open all ports to. You can select a
computer from the Computer Name drop-down
menu and click << to enter the computer name
into the DMZ Host IP Address field.
Enable DMZ:
DMZ Host IP
Address:
This feature allows you to set up a DMZ (Demilitarized Zone) host. If you have a client PC that cannot run Internet
applications properly from behind the DAP-1350, then you can set the client up for unrestricted Internet access. The
DMZ allows a computer to be exposed to the Internet. This feature is useful for gaming purposes. Enter the IP address
of the computer that will be the DMZ host. Adding a client to the DMZ may expose your local network to a variety of
security risks, so only use this option as a last resort.
94D-Link DAP-1350 User Manual
Section 3 - Configuration
Enter a new password for the Administrator Login Name.
The administrator can make changes to the settings.
Enter the new password for the User login. If you login
as the User, you can only see the settings, but cannot
change them.
Enter a name for the DAP-1350 router.
Enables a challenge-response test to require users to type
letters or numbers from a distorted image displayed on the
screen to prevent online hackers and unauthorized users
from gaining access to your router’s network settings.
Check to enable HTTPS to connect to the router
securely.
Remote management allows the DAP-1350 to be
configured from the Internet by a web browser. A
username and password is still required to access the
Web-Management interface. In general, only a member of
your network can browse the built-in web pages to perform
Administrator tasks. This feature enables you to perform
Administrator tasks from the remote (Internet) host.
The port number used to access the DAP-1350.
Admin Password:
User Password:
Gateway Name:
Enable Graphical
Authentication:
Enable HTTPS
Server:
Remote
Management:
Remote Admin
Port:
Administrator Settings

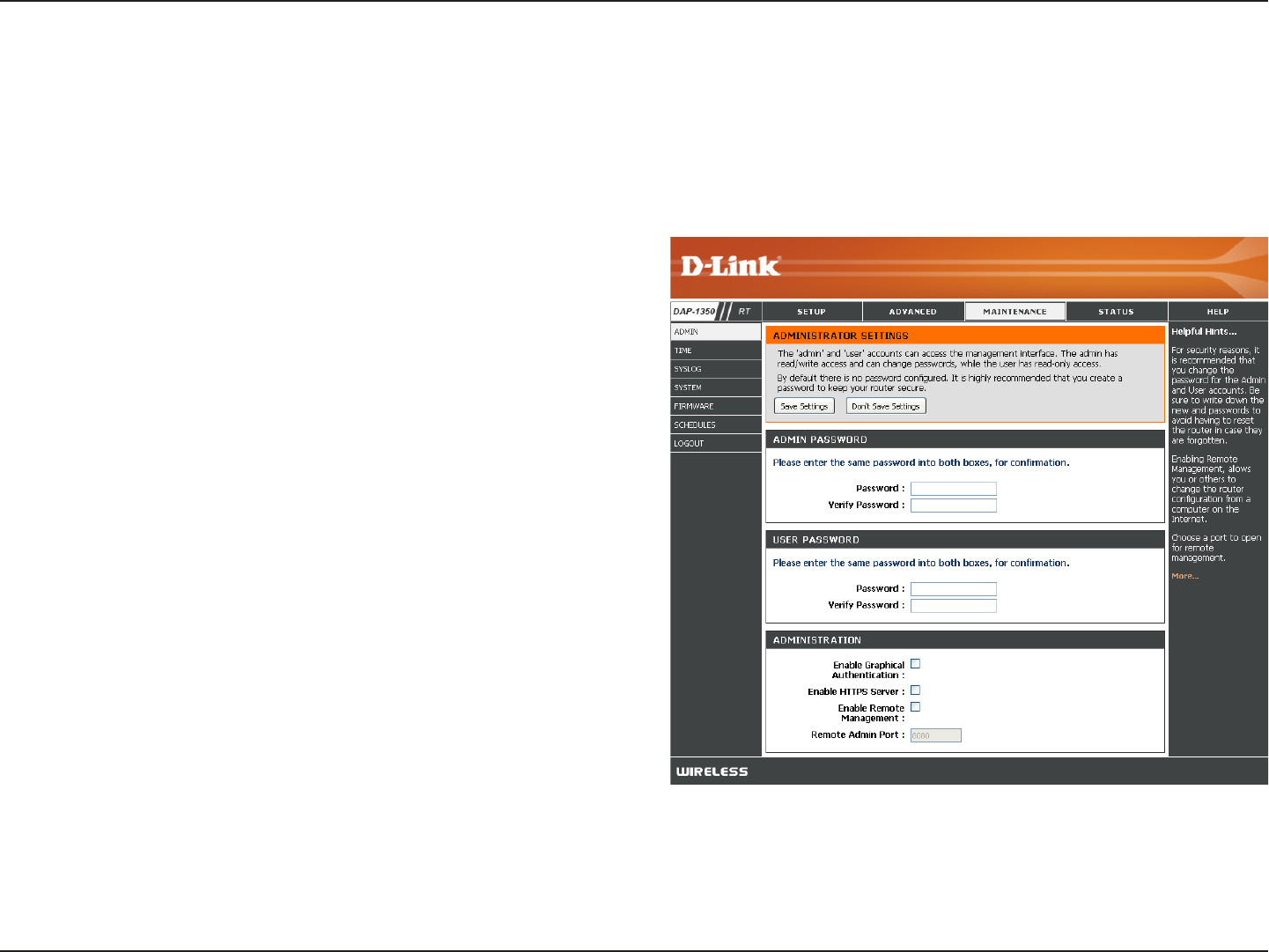

This page will allow you to change the Administrator and User passwords. You can also enable Remote Management.
There are two accounts that can access the management interface through the web browser. The accounts are admin
and user. Admin has read/write access while user has read-only access. User can only view the settings but cannot
make any changes. Only the admin account has the ability to change both admin and user account passwords.
95D-Link DAP-1350 User Manual
Section 3 - Configuration
Time Settings
Select the Time Zone from the drop-down
menu.
To select Daylight Saving time manually, select
enabled or disabled, and enter a start date and
an end date for daylight saving time.
NTP is short for Network Time Protocol. NTP
synchronizes computer clock times in a network
of computers. Check this box to use a NTP
server. This will only connect to a server on the
Internet, not a local server.
Enter the NTP server or select one from the
drop-down menu.
To manually input the time, enter the values
in these fields for the Year, Month, Day, Hour,
Minute, and Second and then click Set Time.
You can also click Copy Your Computer’s Time
Settings.
Time Zone:
Daylight Saving:
Enable NTP
Server:
NTP Server Used:
Manual:

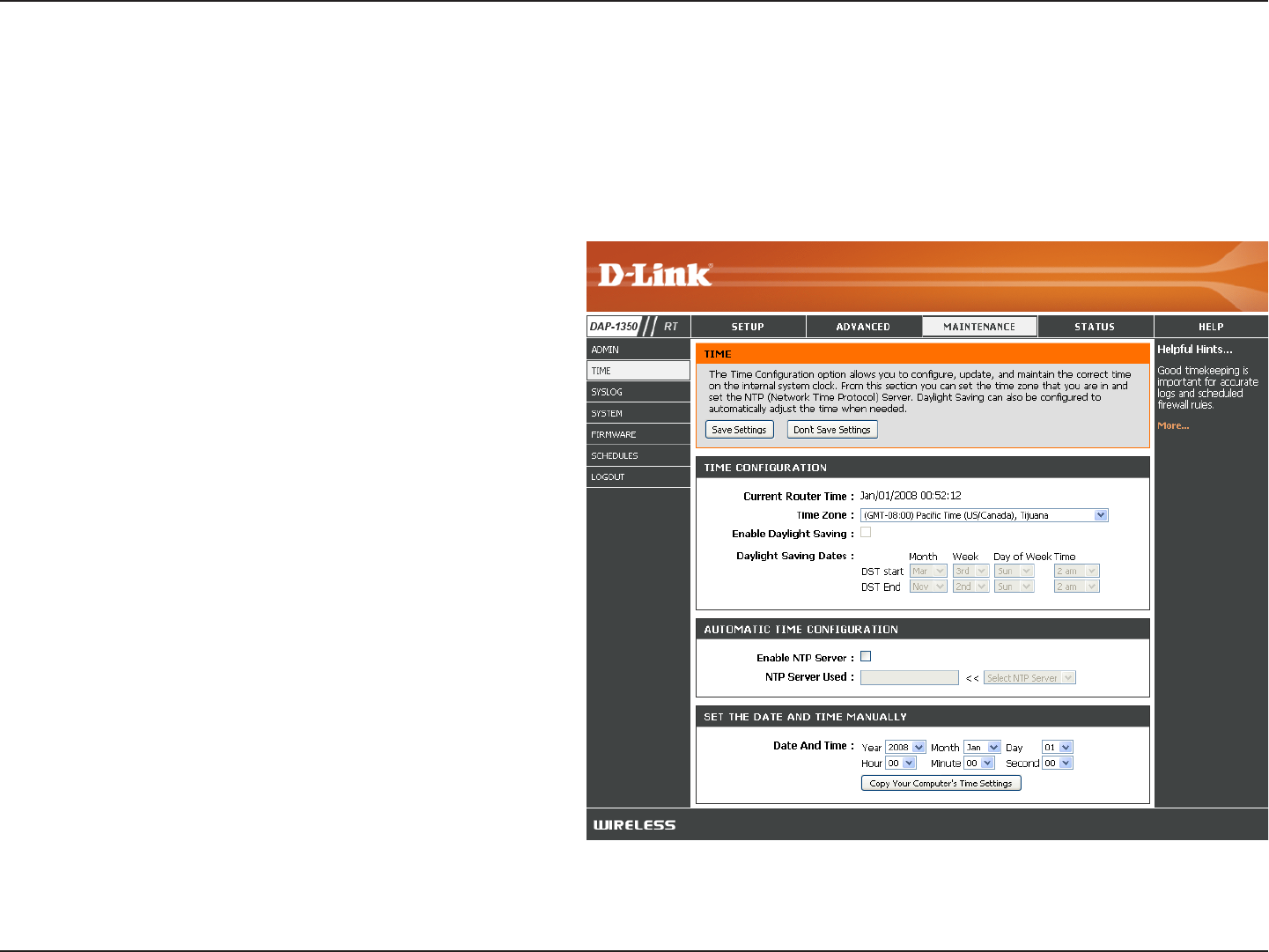

The Time Configuration option allows you to configure, update, and maintain the correct time on the internal system
clock. From this section you can set the time zone that you are in and set the Time Server. Daylight Saving can also
be configured to automatically adjust the time when needed.
96D-Link DAP-1350 User Manual
Section 3 - Configuration

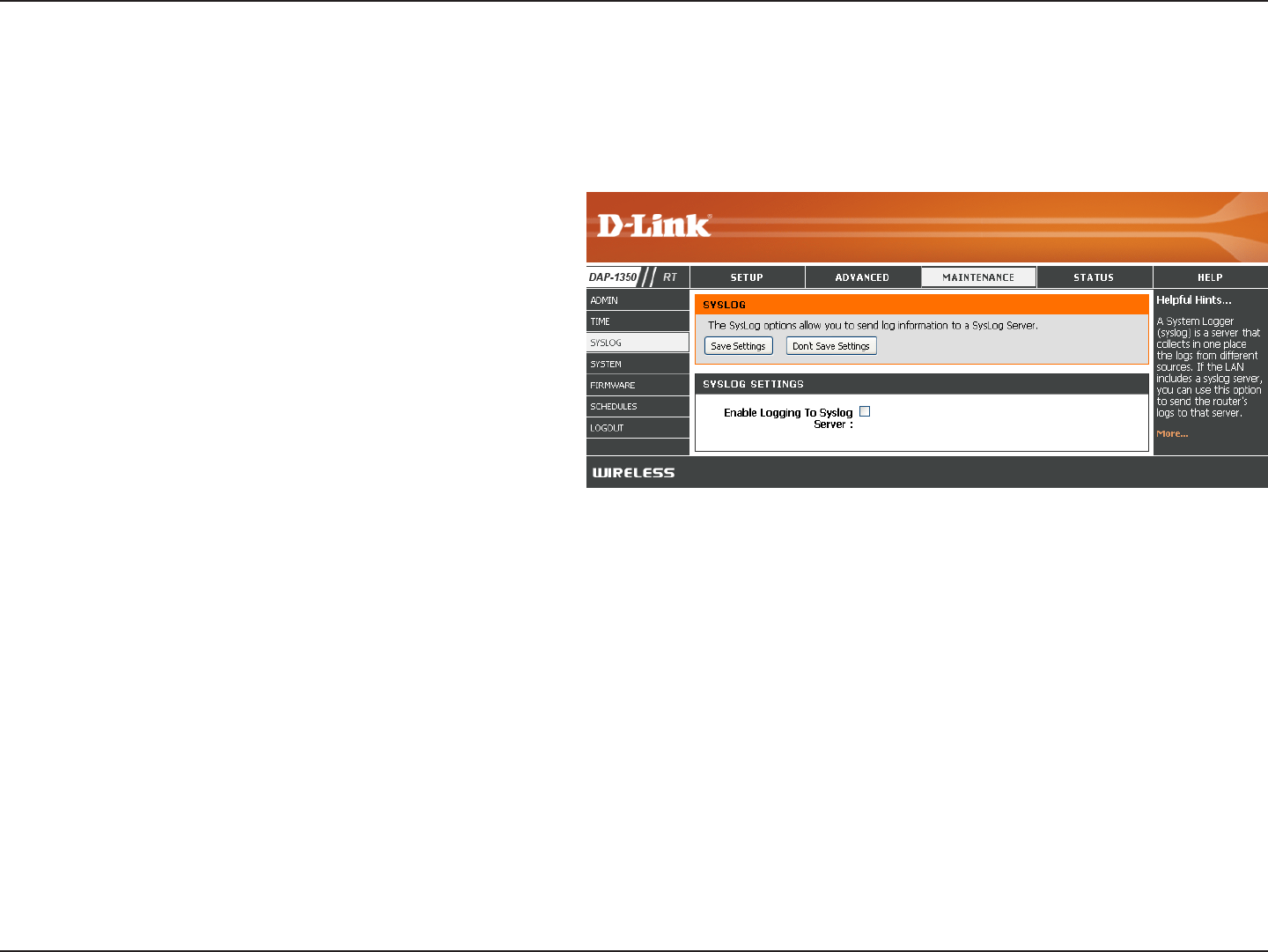

SysLog
The Broadband Router keeps a running log of events and activities occurring on the Router. You may send these logs
to a SysLog server on your network.
Enable Logging to
SysLog Server:
SysLog Server IP
Address:
Check this box to send the router logs to a
SysLog Server.
The address of the SysLog server that will be
used to send the logs. You may also select
your computer from the drop-down menu (only
if receiving an IP address from the router via
DHCP).
97D-Link DAP-1350 User Manual
Section 3 - Configuration

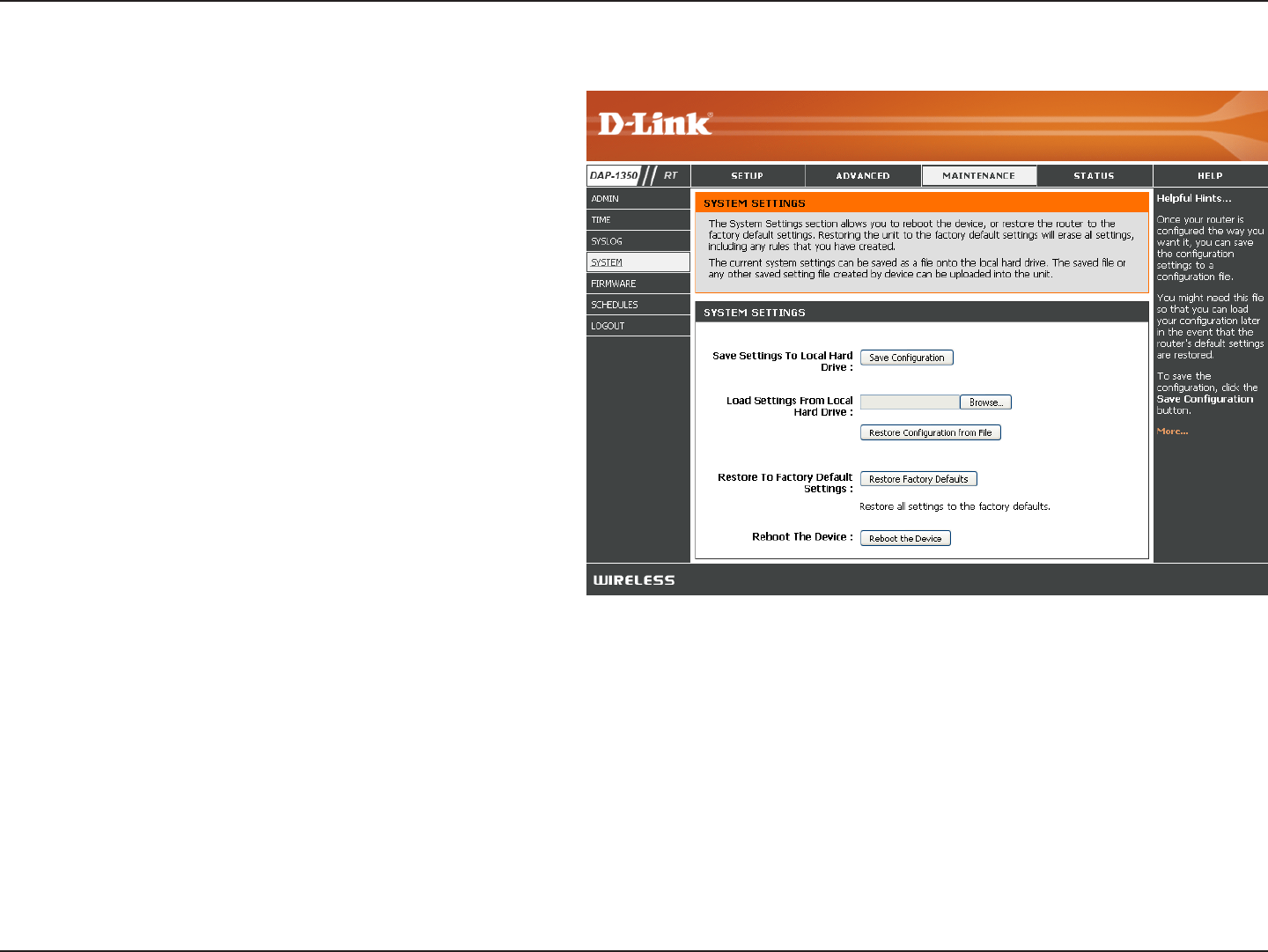

Use this option to save the current router
configuration settings to a file on the hard disk
of the computer you are using. First, click the
Save button. You will then see a file dialog,
where you can select a location and file name
for the settings.
Use this option to load previously saved
router configuration settings. First, use the
Browse control to find a previously save file of
configuration settings. Then, click the Restore
Configuration from File button to transfer
those settings to the router.
This option will restore all configuration settings
back to the settings that were in effect at the
time the router was shipped from the factory.
Any settings that have not been saved will be
lost, including any rules that you have created. If
you want to save the current router configuration
settings, use the Save button above.
Click to reboot the router.
Save Settings to
Local Hard Drive:
Load Settings
from Local Hard
Drive:
Restore to Factory
Default Settings:
Reboot Device:
System Settings
98D-Link DAP-1350 User Manual
Section 3 - Configuration
Click on Check Online Now for Latest Firmware
Version to find out if there is an updated firmware;
if so, download the new firmware to your hard
drive.
After you have downloaded the new firmware,
click Browse to locate the firmware update on
your hard drive. Click Upload to complete the
firmware upgrade.
Check Automatically Check Online for Latest
Firmware Version to have the router check
automatically to see if there is a new firmware
upgrade.
Check Email Notification of Newer Firmware
Version to have the router send an e-mail when
there is a new firmware available.
Firmware
Upgrade:
Browse:
Notifications
Options:

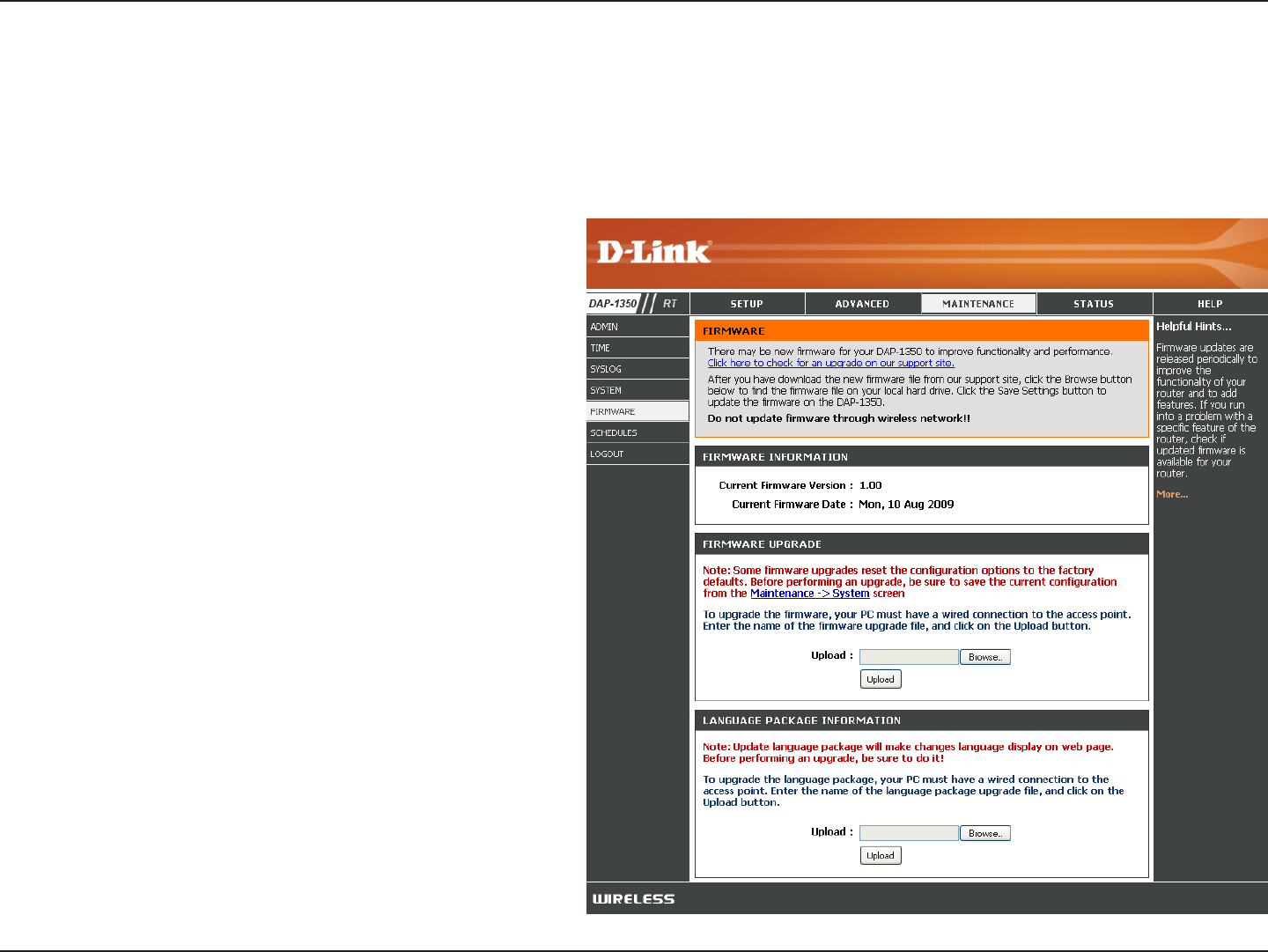

Firmware Update
You can upgrade the firmware of the Router here. Make sure the firmware you want to use is on the local hard drive of
the computer. Click on Browse to locate the firmware file to be used for the update. Please check the D-Link support
site for firmware updates at http://www.dlink.com/support. You can download firmware upgrades to your hard drive
from the D-Link support site.
99D-Link DAP-1350 User Manual
Section 3 - Configuration

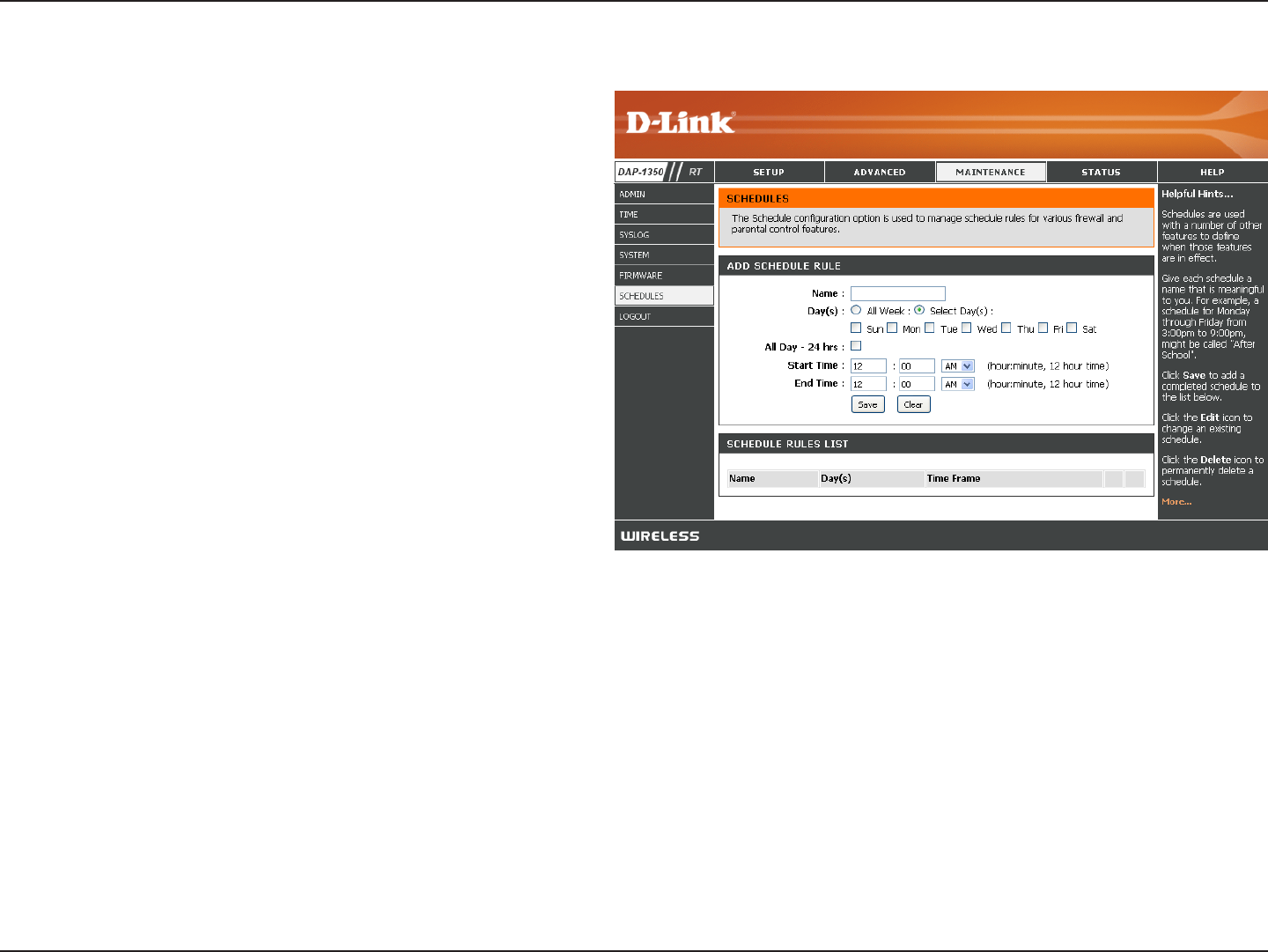

Enter a name for your new schedule.
Select a day, a range of days, or All Week to
include every day.
Check All Day - 24hrs or enter a start and end
time for your schedule.
Click Save to save your schedule. You must click
Save Settings at the top for your schedules to go
into effect.
The list of schedules will be listed here. Click the
Edit icon to make changes or click the Delete
icon to remove the schedule.
Name:
Days:
Time:
Save:
Schedule Rules
List:
Schedules
100D-Link DAP-1350 User Manual
Section 3 - Configuration

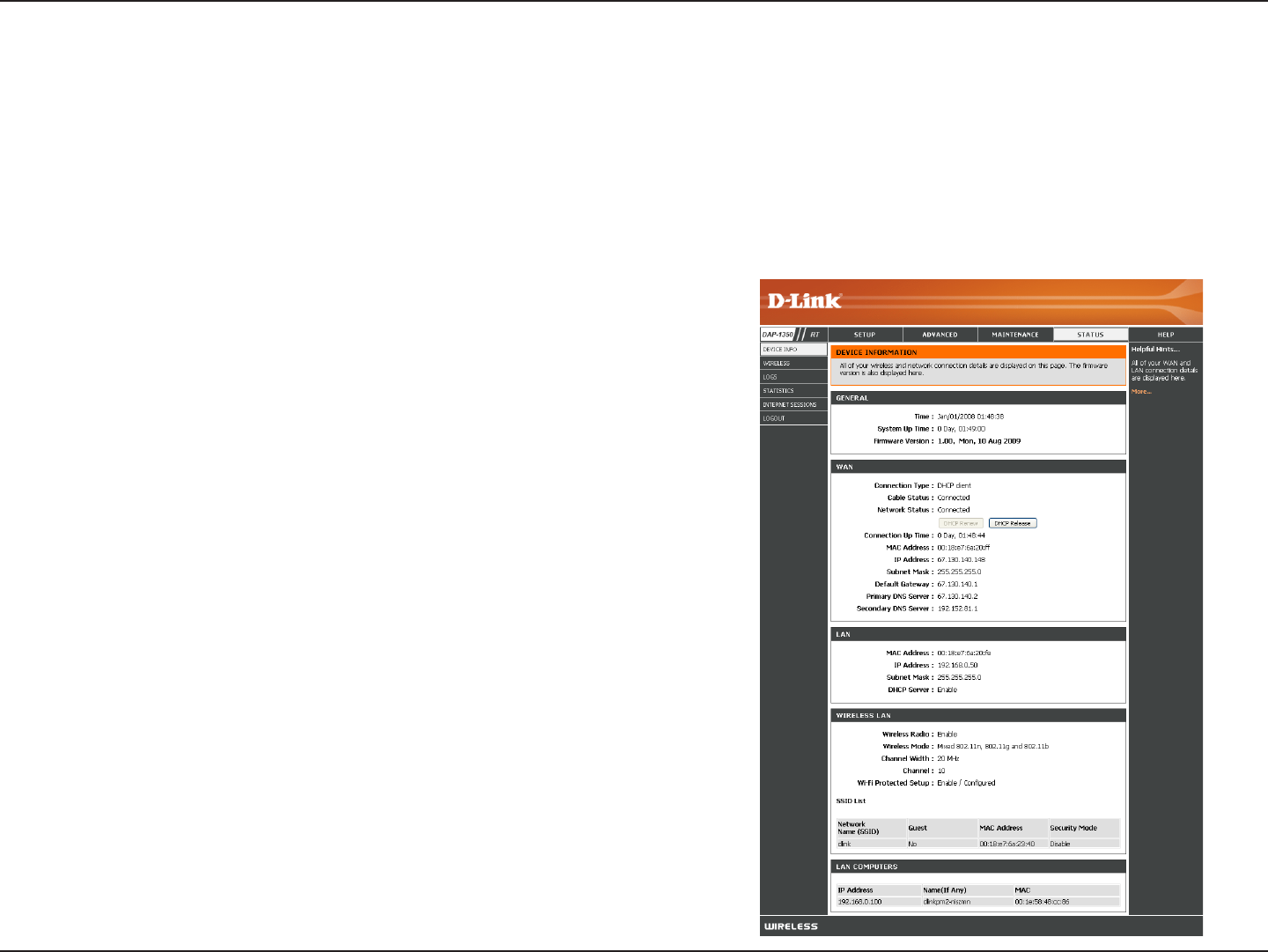

This page displays the current information for the DAP-1350. It will display the LAN, WAN (Internet), and Wireless information.
If your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use Release
to disconnect from your ISP and use Renew to connect to your ISP.
If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use Disconnect to drop
the PPPoE connection and use Connect to establish the PPPoE connection.
Displays the router’s time and firmware version.
Displays the MAC address and the public IP settings for the
router.
Displays the MAC address and the private (local) IP settings
for the router.
Displays the wireless MAC address and your wireless settings
such as SSID and Channel.
Displays computers and devices that are connected to the router
via Ethernet and that are receiving an IP address assigned by
the router (DHCP).
General:
WAN:
LAN:
Wireless LAN:
LAN Computers:
Device Information
101D-Link DAP-1350 User Manual
Section 3 - Configuration

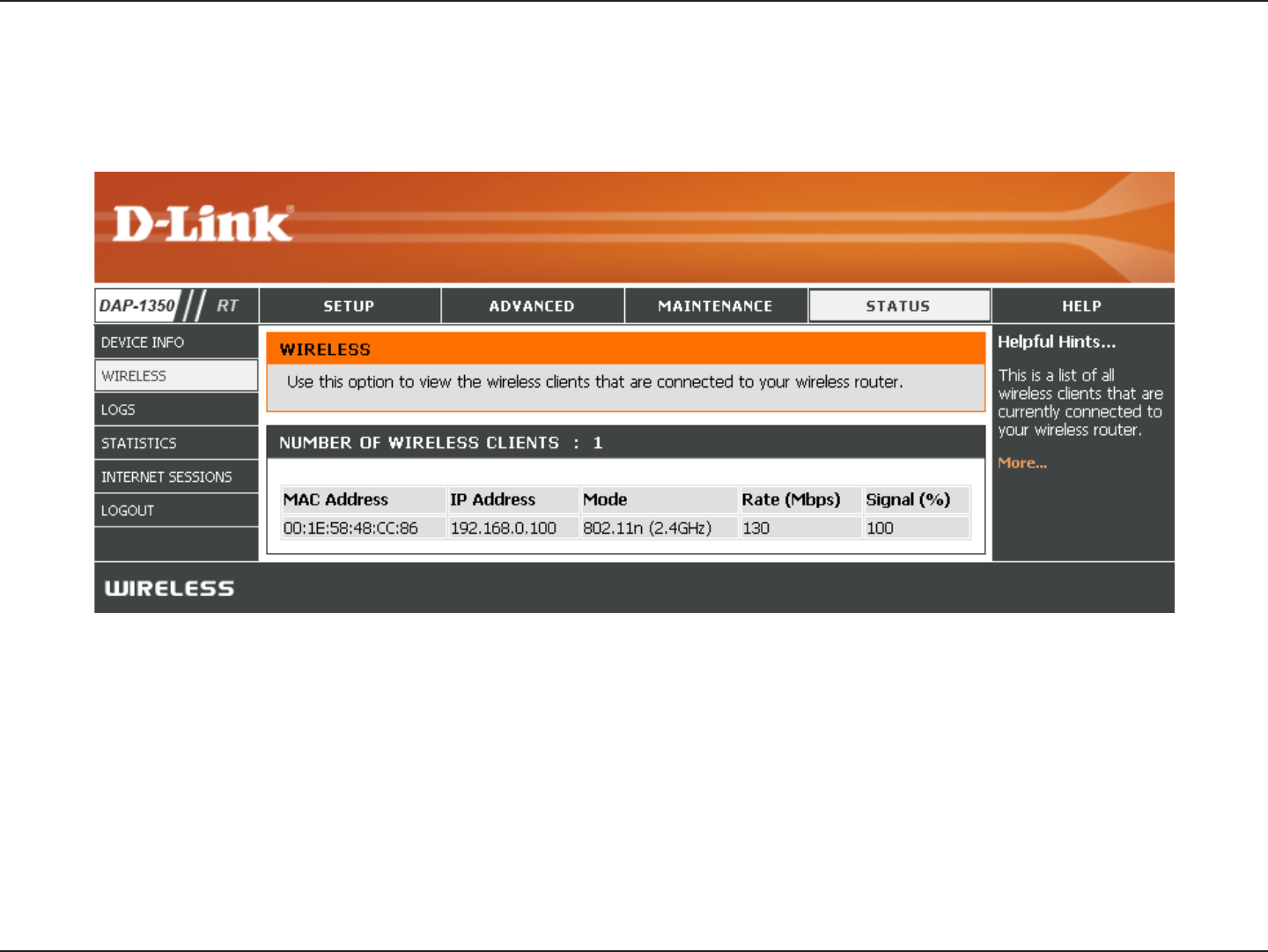

The wireless client table displays a list of current connected wireless clients. This table also displays the connection
rate and MAC address of the connected wireless clients.
Wireless
102D-Link DAP-1350 User Manual
Section 3 - Configuration
Logs
Log Options:
Add:
Refresh:
Clear:
Save Log:
You can select the types of messages that you
want to display from the log. system activity,
debug Information, attacks, dropped packets,
and notice messages can be selected.
Will filter the log results so that only the selected
options appear.
Updates the log details on the screen so it
displays any recent activity.
Clears all of the log contents.
This option will save the router to a log file on
your computer.

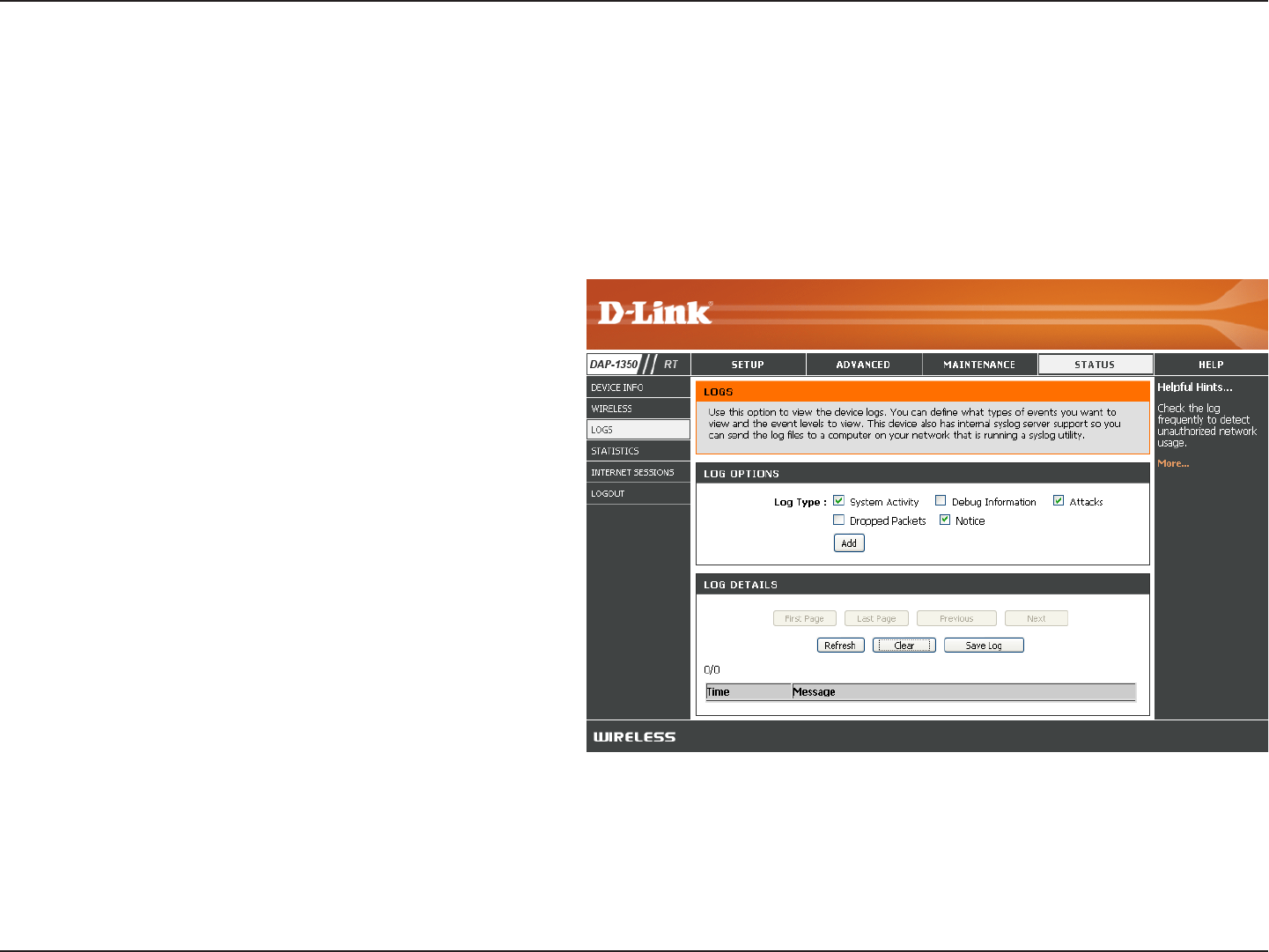

The router automatically logs (records) events of possible interest in it’s internal memory. If there isn’t enough internal
memory for all events, logs of older events are deleted but logs of the latest events are retained. The Logs option allows
you to view the router logs. You can define what types of events you want to view and the level of the events to view.
This router also has external Syslog Server support so you can send the log files to a computer on your network that
is running a Syslog utility.
103D-Link DAP-1350 User Manual
Section 3 - Configuration
Statistics

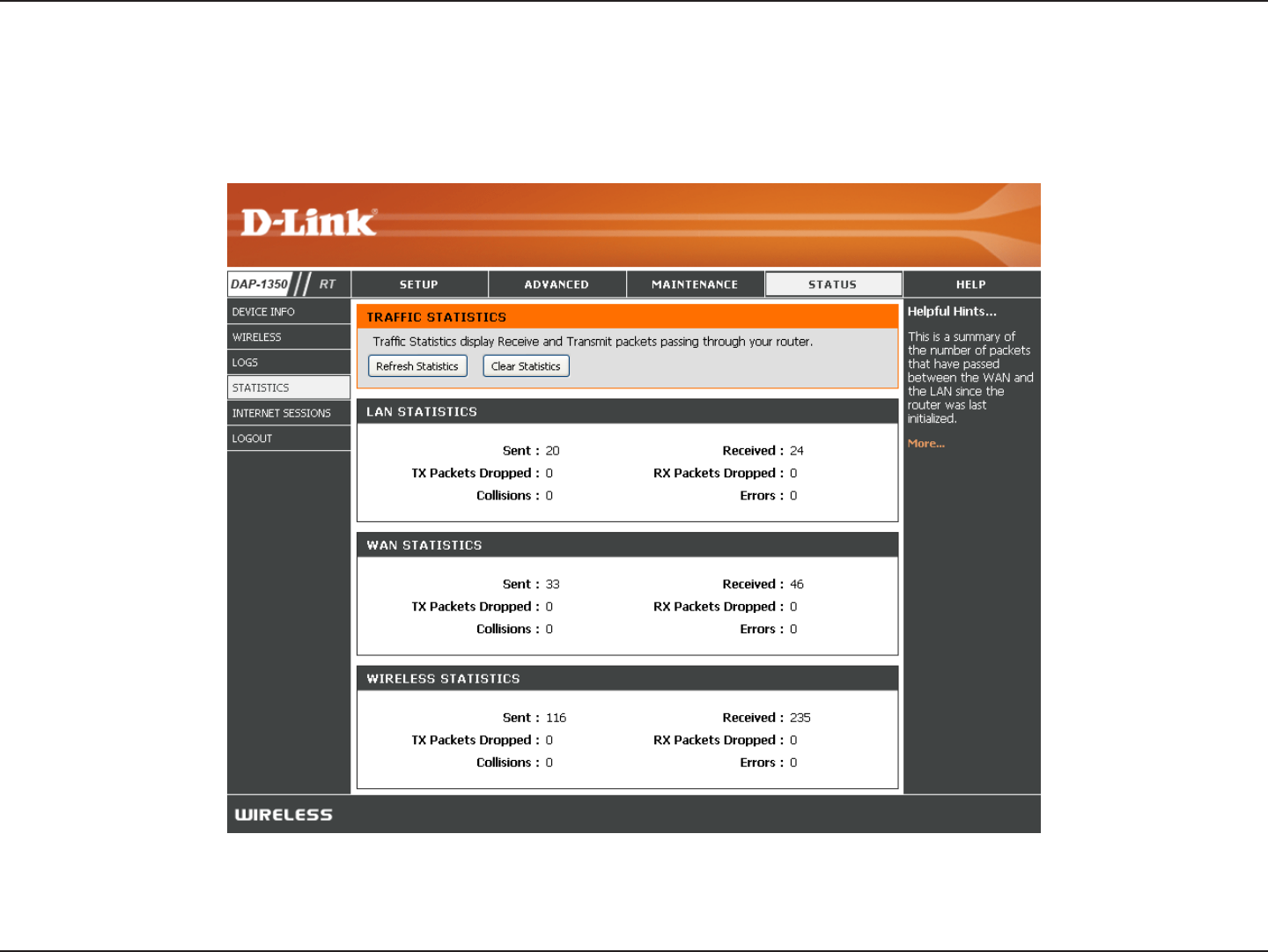

The screen below displays the Traffic Statistics. Here you can view the amount of packets that pass through the DAP-1350
on the Internet, wireless, and the LAN ports. The traffic counter will reset if the device is rebooted.
104D-Link DAP-1350 User Manual
Section 3 - Configuration
Internet Sessions

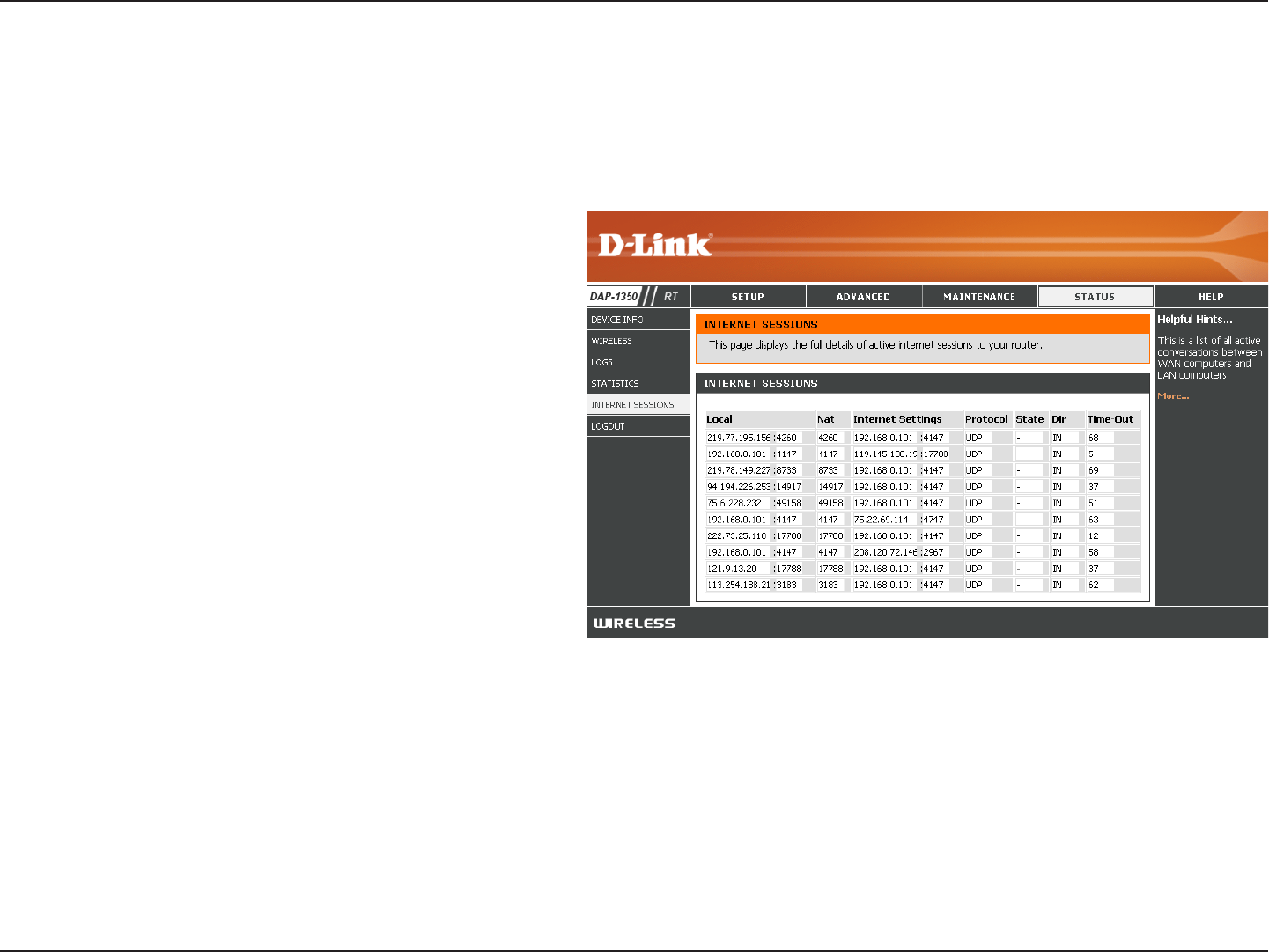

The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is a
conversation between a program or application on a LAN-side computer and a program or application on a WAN-side
computer.
Local:
NAT:
Internet:
Protocol:
State:
The IP address and, where appropriate, port
number of the local application.
The port number of the LAN-side application as
viewed by the WAN-side application.
The IP address and, where appropriate, port
number of the application on the Internet.
The communications protocol used for the
conversation.
State for sessions that use the TCP protocol:
NO: None -- This entry is used as a placeholder
for a future connection that may occur.
SS: SYN Sent -- One of the systems is attempting
to start a connection.
EST: Established -- the connection is passing data.
FW: FIN Wait -- The client system has requested that the connection be stopped.
CW: Close Wait -- The server system has requested that the connection be stopped.
TW: Time Wait -- Waiting for a short time while a connection that was in FIN Wait is fully closed.
LA: Last ACK -- Waiting for a short time while a connection that was in Close Wait is fully closed.
CL: Closed -- The connection is no longer active but the session is being tracked in case there are any retransmitted packets
still pending.
105D-Link DAP-1350 User Manual
Section 3 - Configuration
Dir:
Priority:
Time Out:
The direction of initiation of the conversation:
Out - Initiated from LAN to WAN.
In - Initiated from WAN to LAN.
The preference given to outbound packets of this conversation by the QoS Engine logic. Smaller numbers represent higher
priority.
The number of seconds of idle time until the router considers the session terminated. The initial value of Time Out depends
on the type and state of the connection.
300 seconds - UDP connections.
240 seconds - Reset or closed TCP connections. The connection does not close instantly so that lingering packets
can pass or the connection can be re-established.
7800 seconds - Established or closing TCP connections.

Navigation menu
