D Link DI774VB1 Tri-Mode Dualband Wireless Router User Manual di764 manual 104

D Link Corporation Tri-Mode Dualband Wireless Router di764 manual 104

UserManual.wiki >

D Link >

DI774VB1 User Manual >

Users Manual 3 HTML Version

Users Manual 3

Technical Specifications

Standards:

!IEEE 802.11g

!IEEE 802.11b

!IEEE 802.11a

!IEEE 802.3 and IEEE 802.3u

VPN Pass Through/Multi-Sessions:

!PPTP

!L2TP

!IPSec

Advanced Firewall Features:

!Supports NAT with VPN pass-through, for added security

!MAC Filtering

!IP Filtering

!URL Filtering

!Domain Blocking

!Scheduling

Device Management:

!Web-based -Internet Explorer v6 or later; Netscape Navigator

v6 or later; or other Java-enabled browsers

!DHCP Server and Client

Wireless Data Rates with Automatic Fallback:

!54Mbps

!48Mbps

!36Mbps

!24Mbps

!18Mbps

!12Mbps

!11Mbps

!9Mbps

!6Mbps

!5.5Mbps

!2Mbps

!1Mbps

Security:

!64-, 128-, 152-WEP

!WPA -Wi-Fi Protected Access (64-, 128, 152-WEP with TKIP,

MIC, IV Expansion, Shared Key Authentication)

!Supports Advanced Encryption Standard (AES)

Technical Specifications (continued)

Media Access Control:

!CSMA/CA with ACK

Wireless Frequency Range:

!2.400GHz to 2.500GHz

!5.150GHz to 5.850GHz

Wireless Operating Range:

!Indoors: Up to 328 feet (100 meters)

Modulation Technology:

!Orthogonal Frequency Division Multiplexing (OFDM)

!Complementary Code Keying (CCK)

!Direct Sequence Spread Spectrum (DSSS)

Receiver Sensitivity:

!54Mbps OFDM, 10% PER,-73dBm

!48Mbps OFDM, 10% PER,-76dBm

!36Mbps OFDM, 10% PER,-82dBm

!24Mbps OFDM, 10% PER,-85dBm

!18Mbps OFDM, 10% PER,-88dBm

!12Mbps OFDM, 10% PER,-89dBm

!11Mbps CCK, 8% PER,-91dBm

!9Mbps OFDM, 10% PER,-90dBm

!6Mbps OFDM, 10% PER,-91dBm

!5.5Mbps CCK, 8% PER,-92dBm

!2Mbps QPSK, 8% PER,-93dBm

!1Mbps BPSK, 8% PER,-94dBm

Wireless Transmit Power:

!15dBm ± 2dB

Technical Specifications (continued)

External Antenna Type:

!Single Non-Detachable Antenna

Operating Temperature:

!32°F to 131°F (0°C to 55°C)

Humidity:

!95% maximum (non-condensing)

Safety and Emissions:

!FCC

!UL

LEDs:

!Power

!Status

!WAN

!WLAN (Wireless Connection) - 802.11a, 802.11g

!Local Network (Ports 1-4)

Power Input:

!Ext. Power Supply DC 5V, 3.0A

!100-240V~50-60Hz

Dimensions:

!L = 7.56 inches (192mm)

!W = 4.65 inches (118mm)

!H = 1.22 inches (31mm)

Weight:

!10.8 oz. (0.3kg)

Warranty:

!3 years

Frequently Asked Questions

When entering the IP Address of the DI-774 (192.168.0.1), you are not connecting to

the Internet or have to be connected to the Internet. The device has the utility built-in

to a ROM chip in the device itself. Your computer must be on the same IP subnet to

connect to the web-based utility.

To resolve difficulties accessing a web utility, please follow the steps below.

Step 1

Verify physical connectivity by checking for solid link lights on the device. If

you do not get a solid link light, try using a different cable or connect to a different

port on the device if possible. If the computer is turned off, the link light may not be

on.

The following connections require a Crossover Cable:

Computer to Computer

Computer to Uplink Port

Computer to Access Point

Computer to Print Server

Computer/XBOX/PS2 to DWL-810

Computer/XBOX/PS2 to DWL-900AP+

Uplink Port to Uplink Port (hub/switch)

Normal Port to Normal Port (hub/switch)

The following connections require a Straight-through Cable:

Computer to Residential Gateway/Router

Computer to Normal Port (hub/switch)

Access Point to Normal Port (hub/switch)

Print Server to Normal Port (hub/switch)

Uplink Port to Normal Port (hub/switch)

Rule of Thumb:

”If there is a link light, the cable is right.”

What type of cable should I be using?

Why can´t I access the web based configuration?

Frequently Asked Questions (continued)

What type of cable should I be using? (continued)

What´s the difference between a crossover cable and a straight-through

cable?

The wiring in crossover and straight-through cables are different. The two types

of cable have different purposes for different

LAN configurations. EIA/TIA 568A/568B

define the wiring standards and allow for

two different wiring color codes as

illustrated in the following diagram.

*The wires with colored backgrounds may

have white stripes and may be denoted

that way in diagrams found elsewhere.

How to tell straight-through cable from

a crossover cable:

The main way to tell the difference

between the two cable types is to compare

the wiring order on the ends of the cable. If

the wiring is the same on both sides, it is

straight-through cable. If one side has opposite wiring, it is a crossover cable.

All you need to remember to properly configure the cables is the pinout order of

the two cable ends and the following rules:

A straight-through cable has identical ends

A crossover cable has different ends

It makes no functional difference which standard you follow for straight-through

cable ends, as long as both ends are the same. You can start a crossover cable

with either standard as long as the other end is the other standard. It makes no

functional difference which end is which. The order in which you pin the cable is

important. Using a pattern other than what is specified in the above diagram

could cause connection problems.

When to use a crossover cable and when to use a straight-through cable:

Computer to Computer – Crossover

Computer to an normal port on a Hub/Switch – Straight-through

Computer to an uplink port on a Hub/Switch - Crossover

Hub/Switch uplink port to another Hub/Switch uplink port – Crossover

Hub/Switch uplink port to another Hub/Switch normal port - Straight-through

Why can´t I access the web based configuration? (continued)

Step 3 Configure you internet settings.

Step 2 Disable any internet security software running on the computer. Software

firewalls like Zone Alarm, Black Ice, Sygate, Norton Personal Firewall, etc. might

block access to the configuration pages. Check the help files included with your

firewall software for more information on disabling or configuring it.

Frequently Asked Questions (continued)

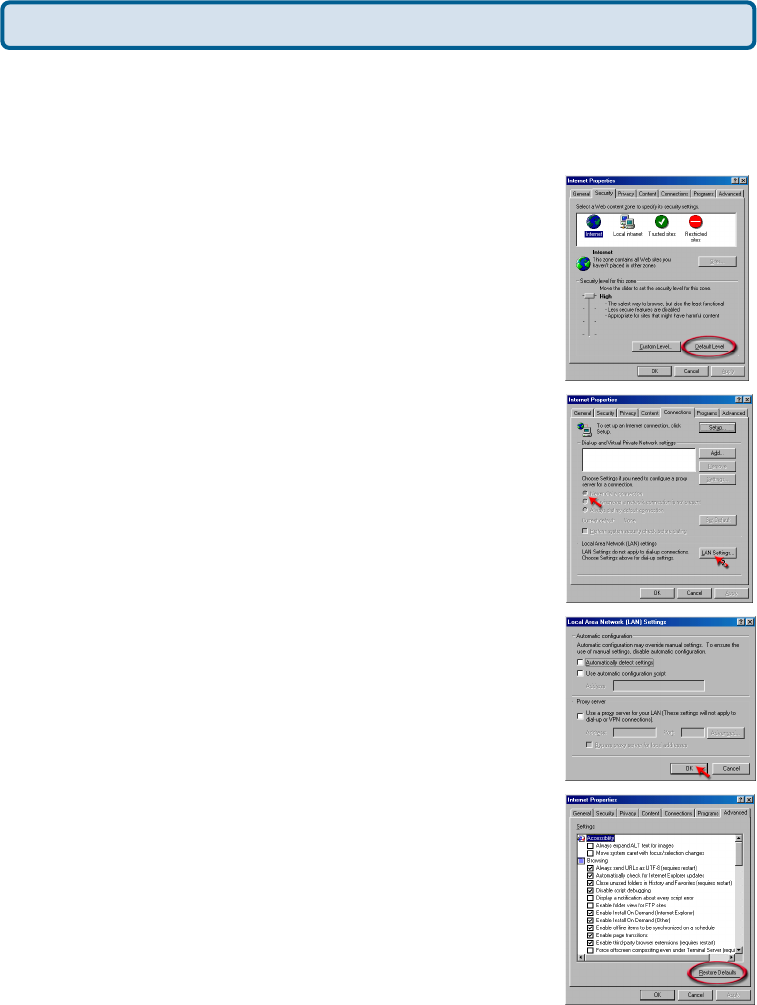

Click to the Connection tab and set the dial-

up option to Never Dial a Connection. Click

the LAN Settings button

Nothing should be checked. Click OK

Go to the Advanced tab and click the

button to restore these settings to their

defaults

Click OK. Go to the desktop and close any open

windows

Go to Start>Settings>Control Panel. Double click

the Internet Options Icon. From the Security tab,

click the button to restore the settings to their

defaults.

Why can´t I access the web based configuration? (continued)

Frequently Asked Questions (continued)

Step 4 Check your IP Address. Your computer must have an IP Address in the same

range as the device you are attempting to configure. Most D-Link devices use the

192.168.0.X range.

How can I find my IP Address in Windows 95, 98, or

ME?

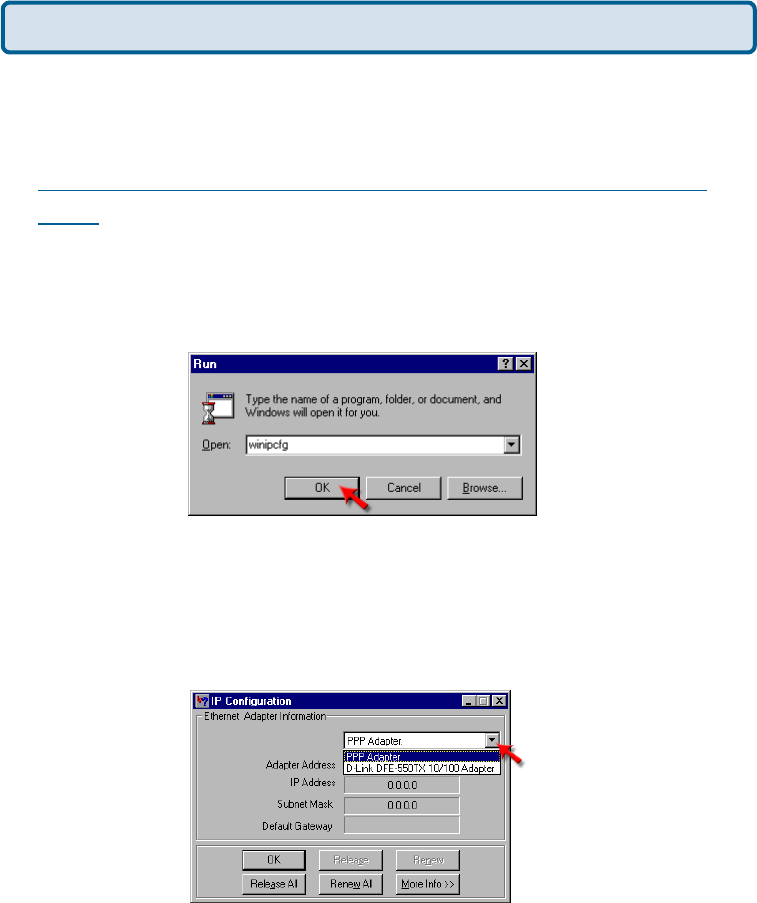

Step 1 Click on Start, then click on Run.

Step 2 The Run Dialogue Box will appear. Type winipcfg in the window as shown

then click OK.

Step 3 The IP Configuration window will appear, displaying your Ethernet

Adapter Information.

! Select your adapter from the drop down menu.

! If you do not see your adapter in the drop down menu, your adapter is

not properly installed.

Step 4 After selecting your adapter, it will display your IP Address, subnet

mask, and default gateway.

Step 5 Click OK to close the IP Configuration window

Why can´t I access the web based configuration? (continued)

Frequently Asked Questions (continued)

Step 4 (continued) Check your IP Address. Your computer must have an IP Address

in the same range of the device you are attempting to configure. Most D-Link devices

use the 192.168.0.X range.

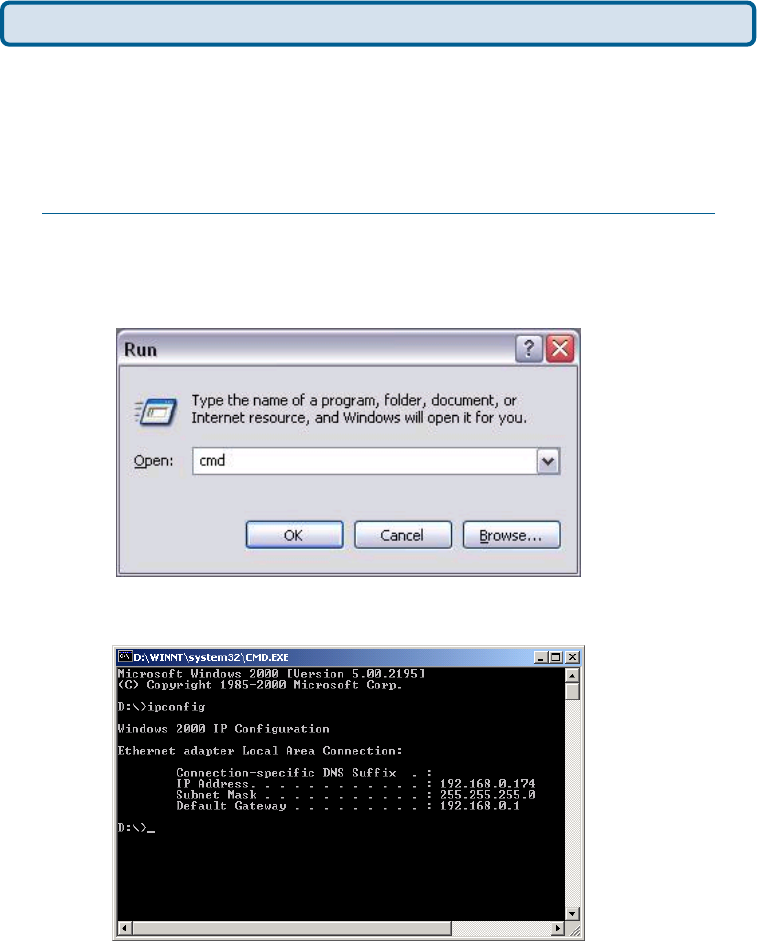

How can I find my IP Address in Windows 2000/XP?

Step 1 Click on Start and select Run.

Step 2 Type cmd then click OK.

Step 3 From the Command Prompt, enter ipconfig. It will return your IP

Address, subnet mask, and default gateway

Step 4 Type exit to close the command prompt.

Why can´t I access the web based configuration? (continued)

Frequently Asked Questions (continued)

Step 4 (continued) Check your IP Address. Your computer must have an IP Address

in the same range of the device you are attempting to configure. Most D-Link devices

use the 192.168.0.X range.

Why can´t I access the web based configuration? (continued)

How can I assign a Static IP Address in Windows XP?

Step 1

Click on Start > Control Panel > Network and Internet Connections >

Network connections.

Step 2 See Step 2 for Windows 2000 and continue from there.

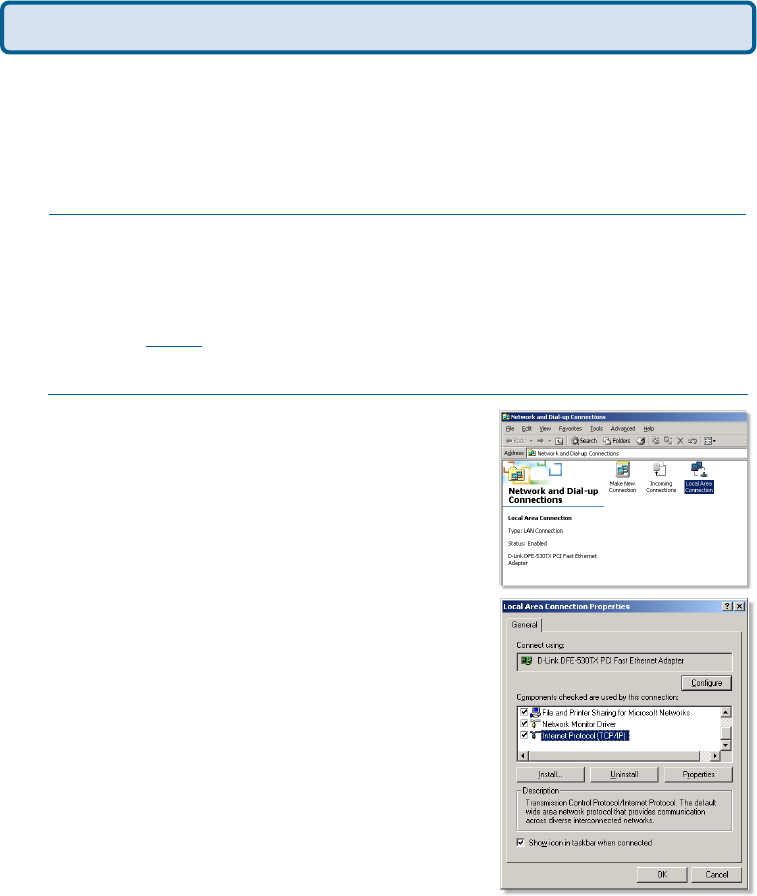

How can I assign a Static IP Address in Windows 2000?

Step 1 Right-click on My Network

Places and select Properties.

Step 2 Right-click on the Local

Area Connection which represents

your network card and select

Properties.

Highlight Internet Protocol (TCP/

IP) and click Properties.

Frequently Asked Questions (continued)

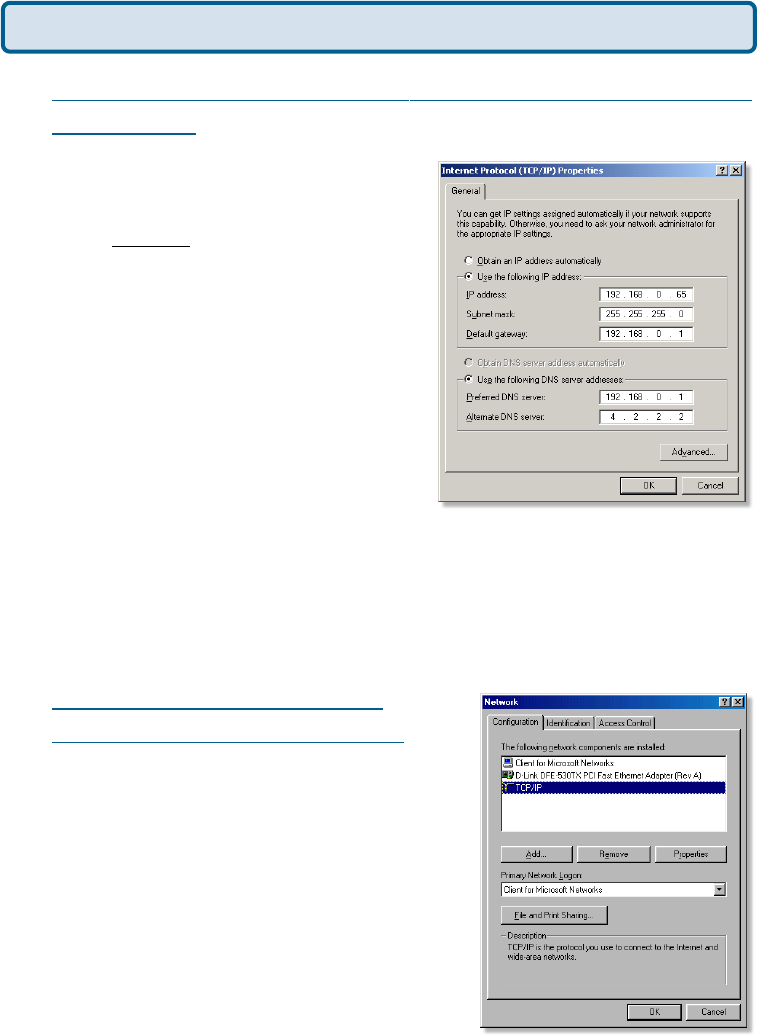

How can I assign a Static IP Address in Windows 2000?

(continued)

Click Use the following IP Address and

enter an IP Address that is on the same

subnet as the LAN IP Address on your

router. Example: If the router´s LAN IP

Address is 192.168.0.1, make your IP

Address 192.168.0.X where X = 2-99.

Make sure that the number you choose is

not in use on the network.

Set the Default Gateway to be the

same as the LAN IP Address of your

router (192.168.0.1).

Set the Primary DNS to be the same as

the LAN IP Address of your router

(192.168.0.1).

The Secondary DNS is not needed or enter a DNS server from your ISP.

Click OK twice. You may be asked if you want to reboot your computer. Click

Yes.

How can I assign a Static IP

Address in Windows 98/Me?

Step 1 From the desktop, right-click on the

Network Neigborhood icon (Win ME - My

Network Places) and select Properties

Highlight TCP/IP and click the Properties

button. If you have more than 1 adapter,

then there will be a TCP/IP “Binding” for

each adapter. Highlight TCP/IP > (your

network adapter) and then click

Properties.

Why can´t I access the web based configuration? (continued)

Frequently Asked Questions (continued)

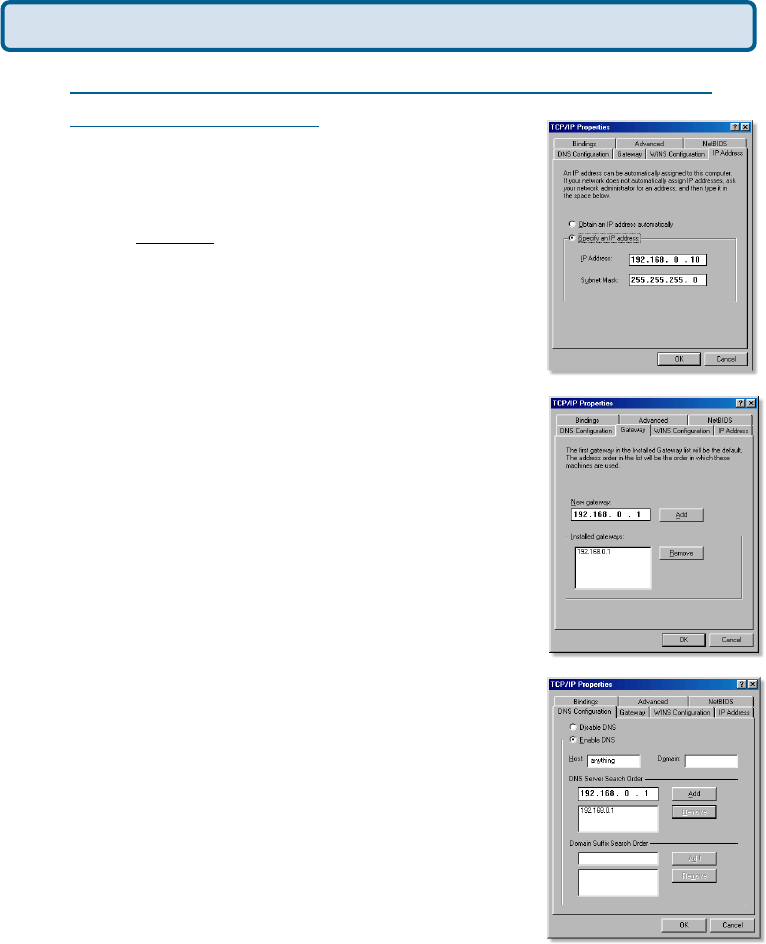

How can I assign a Static IP Address in Windows

98/Me? (continued)

Step 2 Click Specify an IP Address.

Step 3 Click on the Gateway tab.

Enter the LAN IP Address of your router

here (192.168.0.1).

Click Add when finished.

Step 4 Click on the DNS Configuration tab.

Enter in an IP Address that is on the same

subnet as the LAN IP Address on your router.

Example: If the router´s LAN IP Address is

192.168.0.1, make your IP Address

192.168.0.X where X is between 2-99. Make

sure that the number you choose is not in

use on the network.

Step 5 Click OK twice.

Click Enable DNS. Type in a Host (can be

any word). Under DNS server search order,

enter the LAN IP Address of your router

(192.168.0.1). Click Add.

When prompted to reboot your computer,

click Yes.

After you reboot, the computer will now have

a static, private IP Address.

Why can´t I access the web based configuration? (continued)

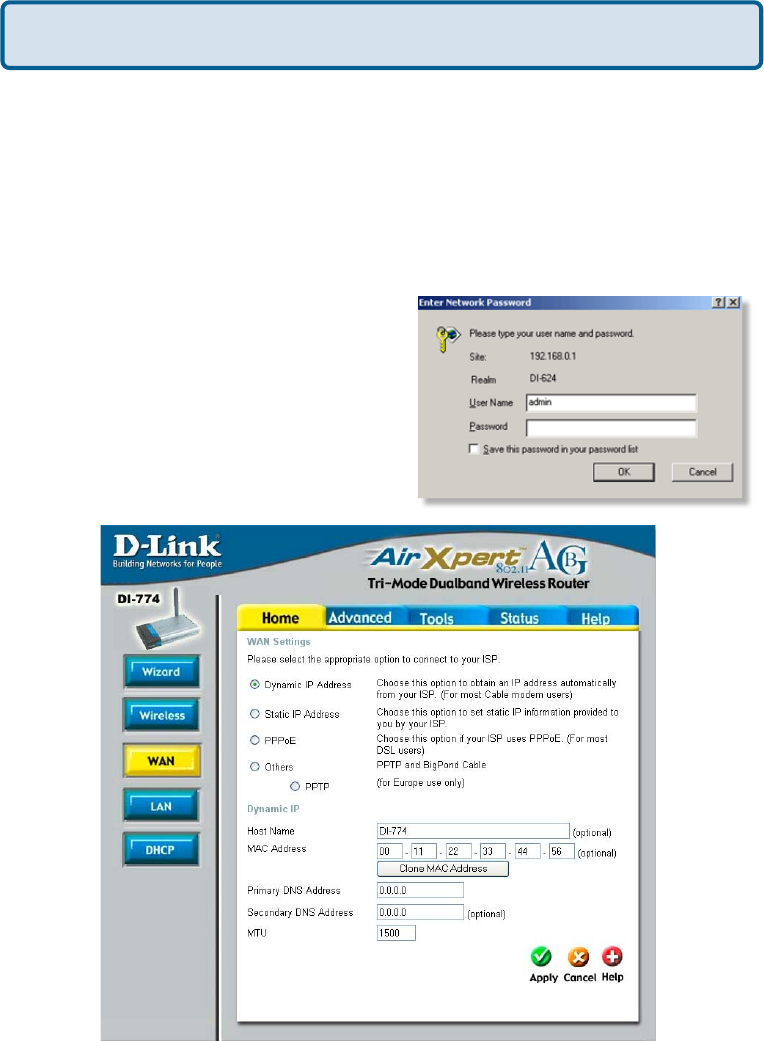

Step 5 Access the web management. Open your web

browser and enter the IP Address of your D-Link device in

the address bar. This should open the login page for the web

management. Follow instructions to login and complete the configuration.

Frequently Asked Questions (continued)

How can I setup my router to work with a Cable modem connection?

Dynamic Cable connection

(IE ATnT-BI, Cox, Adelphia, Rogers, Roadrunner, Charter, and Comcast).

Note: Please configure the router with the computer that was last connected directly

to the cable modem.

Step 1 Log into the web based configuration by typing in the IP Address of the router

(default:192.168.0.1) in your web browser. The username is admin (all lowercase) and

the password is blank (nothing).

Step 2 Click the Home tab and click the

WAN button. Dynamic IP Address is the

default value, however, if Dynamic IP Address

is not selected as the WAN type, select

Dynamic IP Address by clicking on the radio

button. Click Clone Mac Address. Click on

Apply and then Continue to save the

changes.

Frequently Asked Questions (continued)

How can I setup my router to work with a Cable modem connection?

(continued)

Step 3 Power cycle the cable modem and router:

Turn the cable modem off (first) . Turn the router off Leave them off for 2 minutes.**

Turn the cable modem on (first). Wait until you get a solid cable light on the cable

modem. Turn the router on. Wait 30 seconds.

** If you have a Motorola (Surf Board) modem, leave off for at least 5 minutes.

Step 4 Follow step 1 again and log back into the web configuration. Click the Status

tab and click the Device Info button. If you do not already have a public IP Address

under the WAN heading, click on the DHCP Renew and Continue buttons.

Static Cable Connection

Step 1 Log into the web based configuration by

typing in the IP Address of the router

(default:192.168.0.1) in your web browser. The

username is admin (all lowercase) and the password

is blank (nothing).

Step 2 Click the Home tab and click the WAN

button. Select Static IP Address and enter your static

settings obtained from the ISP in

the fields provided.

If you do not know your settings,

you must contact your ISP.

Step 3 Click on Apply and then

click Continue to save the

changes.

Step 4 Click the Status tab and

click the Device Info button. Your

IP Address information will be

displayed under the WAN heading.

Frequently Asked Questions (continued)

How can I setup my router to work with Earthlink DSL or any PPPoE

connection?

Make sure you disable or uninstall any PPPoE software such as WinPoet or Enternet

300 from your computer or you will not be able to connect to the Internet.

Step 1 Upgrade Firmware if needed.

(Please visit the D-Link tech support website at: http://support.dlink.com for the latest

firmware upgrade information.)

Step 2 Take a paperclip and perform a hard reset. With the unit on, use a paperclip

and hold down the reset button on the back of the unit for 10 seconds. Release it and

the router will recycle, the lights will blink, and then stabilize.

Step 3 After the router stabilizes, open your browser and enter 192.168.0.1 into the

address window and hit the Enter key. When the password dialog box appears, enter

the username admin and leave the password blank. Click OK.

If the password dialog box does not come up repeat Step 2.

Note: Do not run Wizard.

Step 4 Click on the WAN tab on left-hand side of the screen. Select PPPoE.

Step 5 Select Dynamic PPPoE (unless your ISP supplied you with a static IP

Address).

Step 6 In the username field enter ELN/username@earthlink.net and your

password, where username is your own username.

For SBC Global users, enter username@sbcglobal.net.

For Ameritech users, enter username@ameritech.net.

For BellSouth users, enter username@bellsouth.net.

For Mindspring users, enter username@mindspring.com.

For most other ISPs, enter username.

Step 7 Maximum Idle Time should be set to zero. Set MTU to 1492, unless

specified by your ISP, and set Autoreconnect to Enabled.

Note: If you experience problems accessing certain websites and/or email issues,

please set the MTU to a lower number such as 1472, 1452, etc. Contact your ISP for

more information and the proper MTU setting for your connection.

Step 8 Click Apply. When prompted, click Continue. Once the screen refreshes,

unplug the power to the D-Link router.

Step 9 Turn off your DSL modem for 2-3 minutes. Turn back on. Once the modem

has established a link to your ISP, plug the power back into the D-Link router. Wait

about 30 seconds and log back into the router.

Step 10 Click on the Status tab in the web configuration where you can view the

device info. Under WAN, click Connect. Click Continue when prompted. You should

now see that the device info will show an IP Address, verifying that the device has

connected to a server and has been assigned an IP Address.

How can I setup my router to work with Earthlink DSL or any PPPoE

connection? (continued)

Frequently Asked Questions (continued)

Can I use my D-Link Broadband Router to share my Internet

connection provided by AOL DSL Plus?

In most cases yes. AOL DSL+ may use PPPoE for authentication bypassing the

client software. If this is the case, then our routers will work with this service. Please

contact AOL if you are not sure.

To set up your router:

Step 1 Log into the web-based configuration (192.168.0.1) and configure the WAN

side to use PPPoE.

Step 2 Enter your screen name followed by @aol.com for the user name. Enter your

AOL password in the password box.

Step 3 You will have to set the MTU to 1400. AOL DSL does not allow for anything

higher than 1400.

Step 4 Apply settings.

Step 5 Recycle the power to the modem for 1 minute and then recycle power to the

router. Allow 1 to 2 minutes to connect.

If you connect to the Internet with a different internet service provider and want to use

the AOL software, you can do that without configuring the router’s firewall settings.

You need to configure the AOL software to connect using TCP/IP.

Go to http://www.aol.com for more specific configuration information of their software.

Frequently Asked Questions (continued)

How do I open ports on my router?

To allow traffic from the internet to enter your local network, you will need to open up

ports or the router will block the request.

Step 1 Open your web browser

and enter the IP Address of

your D-Link router

(192.168.0.1). Enter username

(admin) and your password

(blank by default).

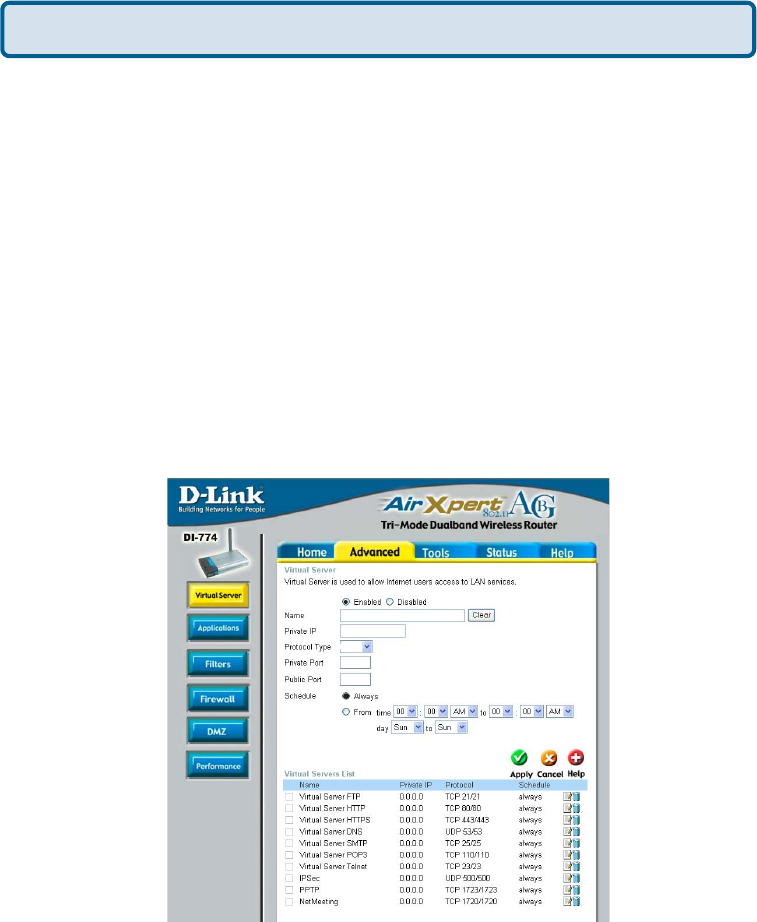

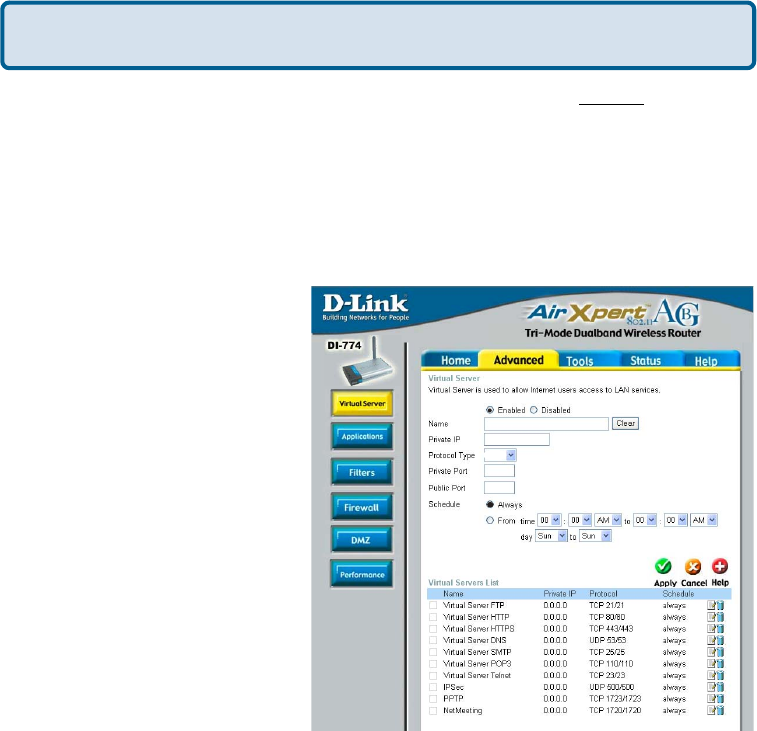

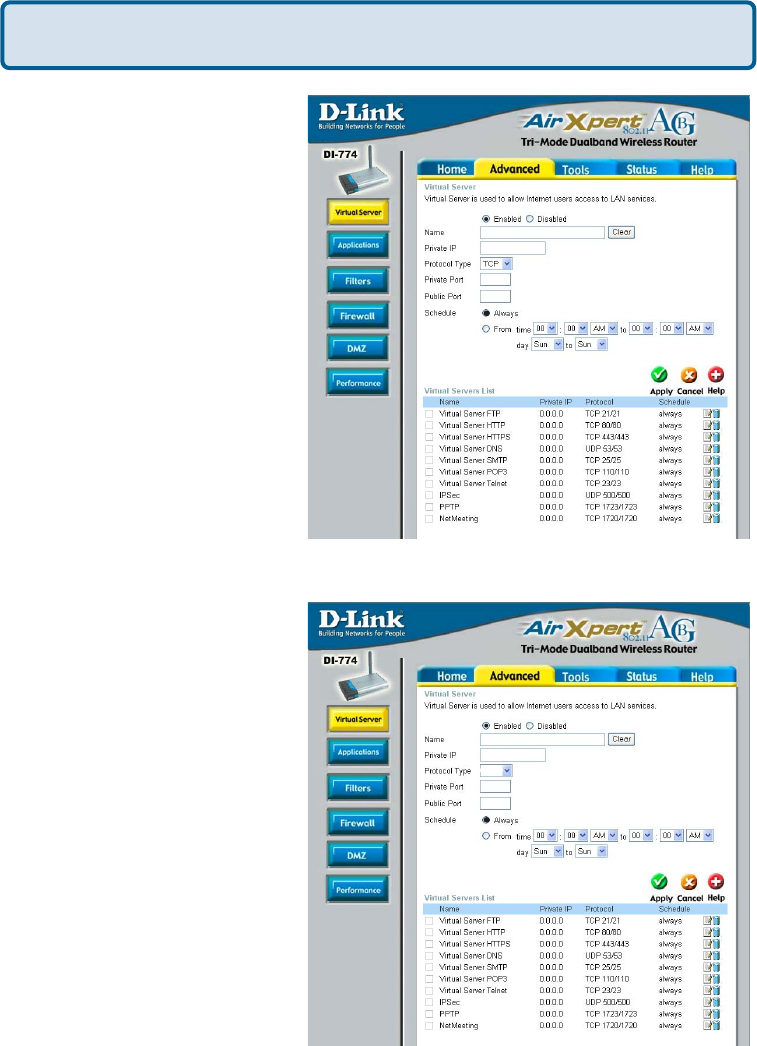

Step 2 Click on Advanced on

top and then click Virtual

Server on the left side.

Step 3 Check Enabled to

activate entry.

Step 4 Enter a name for your virtual server entry.

Step 5 Next to Private IP, enter the IP Address of the computer on your local

network that you want to allow the incoming service to.

Step 6 Choose Protocol Type - either TCP, UDP, or both. If you are not sure, select

both.

Step 7 Enter the port information next to Private Port and Public Port. The private

and public ports are usually the same. The public port is the port seen from the WAN

side, and the private port is the port being used by the application on the computer

within your local network.

Step 8 Enter the Schedule information.

Step 9 Click Apply and then click Continue.

Note: Make sure DMZ host is disabled. If DMZ is enabled, it will disable all Virtual

Server entries.

Because our routers use NAT (Network Address Translation), you can only open a

specific port to one computer at a time. For example: If you have 2 web servers on

your network, you cannot open port 80 to both computers. You will need to configure

1 of the web servers to use port 81. Now you can open port 80 to the first computer

and then open port 81 to the other computer.

Frequently Asked Questions (continued)

What is DMZ?

Demilitarized Zone:

In computer networks, a DMZ (demilitarized zone) is a computer host or small

network inserted as a neutral zone between a company´s private network and the

outside public network. It prevents outside users from getting direct access to a

server that has company data. (The term comes from the geographic buffer zone that

was set up between North Korea and South Korea following the UN police action in

the early 1950s.) A DMZ is an optional and more secure approach to a firewall and

effectively acts as a proxy server as well.

In a typical DMZ configuration for a small company, a separate computer (or host in

network terms) receives requests from users within the private network for access to

Web sites or other companies accessible on the public network. The DMZ host then

initiates sessions for these requests on the public network. However, the DMZ host is

not able to initiate a session back into the private network. It can only forward packets

that have already been requested.

Users of the public network outside the company can access only the DMZ host. The

DMZ may typically also have the company´s Web pages so these could be served to

the outside world. However, the DMZ provides access to no other company data. In

the event that an outside user penetrated the DMZ hosts security, the Web pages

might be corrupted but no other company information would be exposed. D-Link, a

leading maker of routers, is one company that sells products designed for setting up

a DMZ

How do I configure the DMZ Host?

The DMZ feature allows you to forward all incoming ports to one computer on the local

network. The DMZ, or Demilitarized Zone, will allow the specified computer to be

exposed to the Internet. DMZ is useful when a certain application or game does not

work through the firewall. The computer that is configured for DMZ will be completely

vulnerable on the Internet, so it is suggested that you try opening ports from the

Virtual Server or Firewall settings before using DMZ.

Step 1 Find the IP address of the computer you want to use as the DMZ host.

To find out how to locate the IP Address of the computer in Windows XP/2000/ME/9x

or Macintosh operating systems please refer to Step 4 of the first question in this

section (Frequently Asked Questions).

Frequently Asked Questions (continued)

Step 2 Log into the web based

configuration of the router by typing in the IP

Address of the router (default:192.168.0.1) in

your web browser. The username is admin

(all lowercase) and the password is blank

(nothing)

How do I configure the DMZ Host? (continued)

Step 3 Click the Advanced tab and then

click on the DMZ button. Select Enable and

type in the IP Address you found in step 1.

Step 4 Click Apply

and then Continue

to save the changes.

Note: When DMZ is

enabled, Virtual

Server settings will

still be effective.

Remember, you

cannot forward the

same port to multiple

IP Addresses, so the

Virtual Server

settings will take

priority over DMZ

settings.

DI-624

admin

Frequently Asked Questions (continued)

How do I open a range of ports on my router using Firewall rules?

Step 1 Access the router’s web configuration by entering the router’s IP Address in

your web browser. The default IP Address is 192.168.0.1. Login using your password.

The default username is “admin” and the password is blank.

If you are having difficulty accessing web management, please see the first question

in this section.

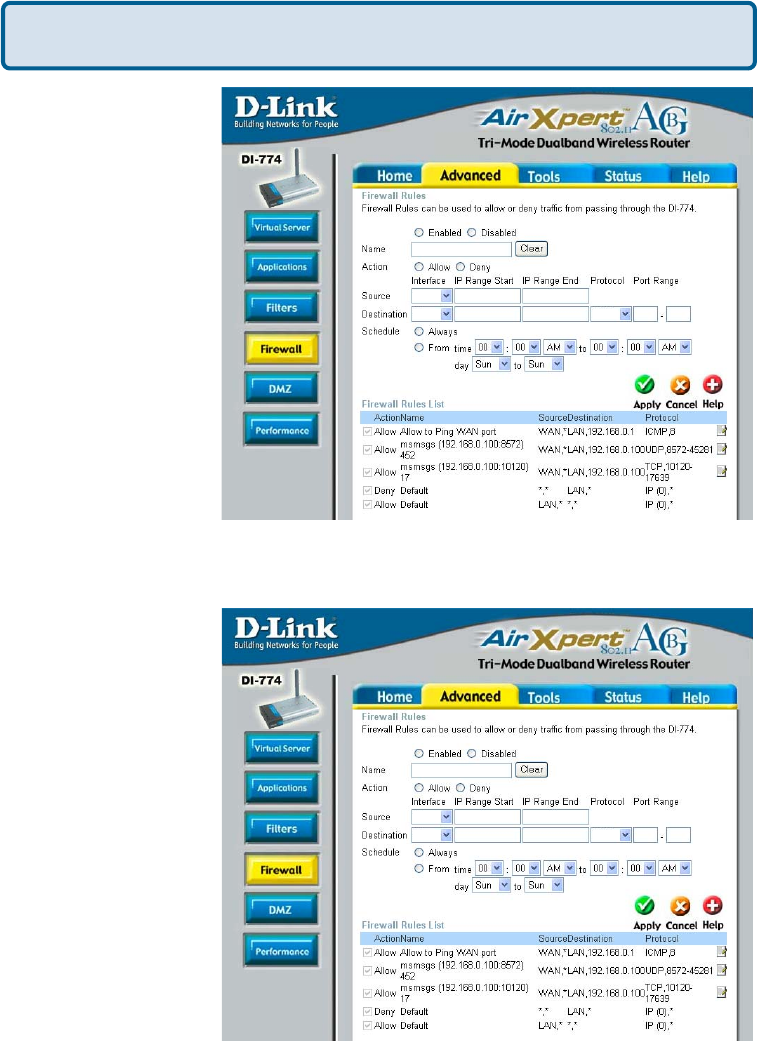

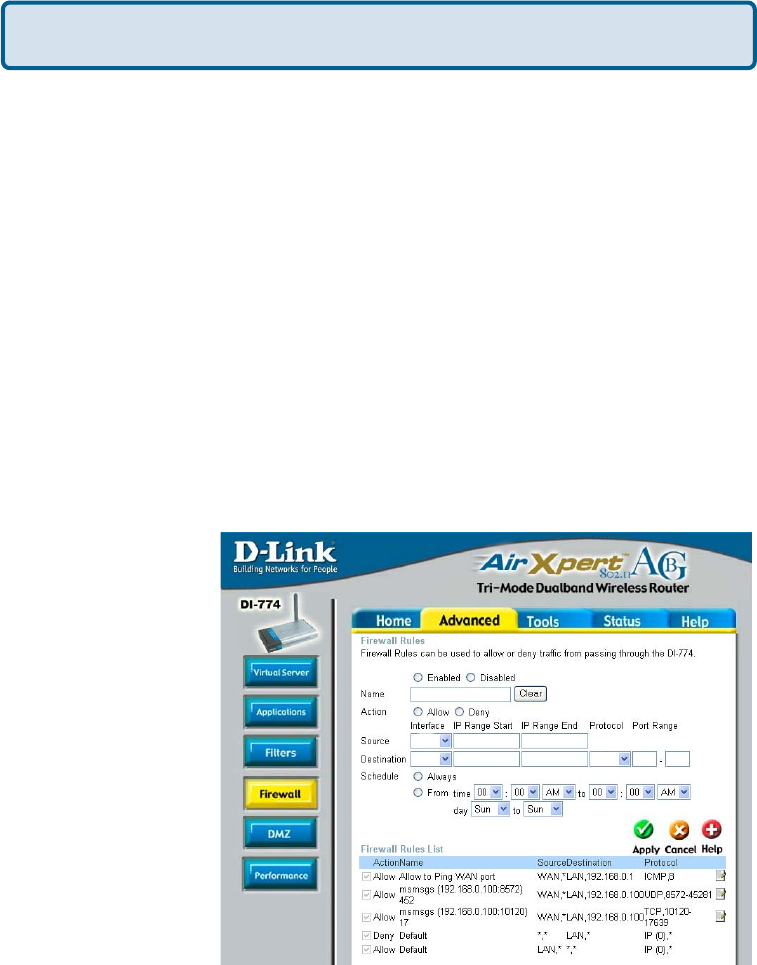

Step 2 From the web management Home page, click the Advanced tab then click

the Firewall button.

Step 3 Click on

Enabled and type in

a name for the new

rule.

Step 4 Choose WAN

as the Source and

enter a range of IP

Addresses out on the

internet that you

would like this rule

applied to. If you

would like this rule to

allow all internet

users to be able to

access these ports,

then put an Asterisk

in the first box and

leave the second box

empty.

Step 5 Select LAN as the Destination and enter the IP Address of the computer on

your local network that you want to allow the incoming service to. This will not work

with a range of IP Addresses.

Step 6 Enter the port or range of ports that are required to be open for the incoming

service.

Step 7 Click Apply and then click Continue.

Because our routers use NAT (Network Address Translation), you can only open a

specific port to one computer at a time. For example: If you have 2 web servers on

your network, you cannot open port 80 to both computers. You will need to configure

1 of the web servers to use port 81. Now you can open port 80 to the first computer

and then open port 81 to the other computer.

Note: Make sure DMZ host is disabled.

Frequently Asked Questions (continued)

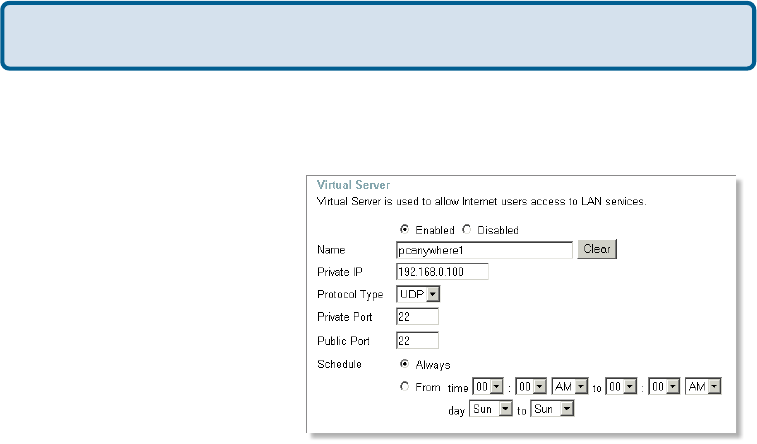

What are virtual servers?

A Virtual Server is defined as a service port, and all requests to this port will be

redirected to the computer specified by the server IP. For example, if you have an FTP

Server (port 21) at 192.168.0.5, a Web server (port 80) at 192.168.0.6, and a VPN

server at 192.168.0.7, then you need to specify the following virtual server mapping

table:

Server Port Server IP Enable

21 192.168.0.5 X

80 192.168.0.6 X

1723 192.168.0.7 X

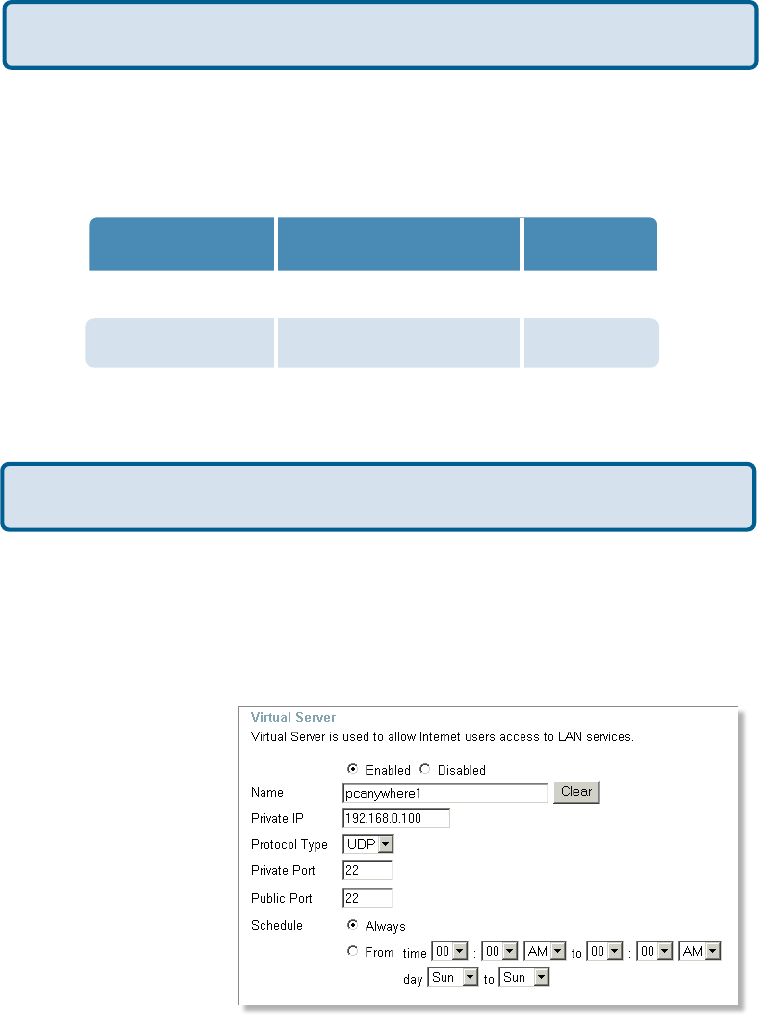

How do I use PC Anywhere with my router?

You will need to open 3 ports in the Virtual Server section of your D-Link router.

Step 1 Open your web browser and enter the IP Address of the router (192.168.0.1).

Step 2 Click on Advanced at the top and then click Virtual Server on the left side.

Step 3 Enter the

information as seen

below. The Private IP is

the IP Address of the

computer on your local

network that you want to

connect to.

Step 4 The first entry

will read as shown here:

Step 5 Click Apply

and then click Continue.

How do I use PC Anywhere with my router? (continued)

Frequently Asked Questions (continued)

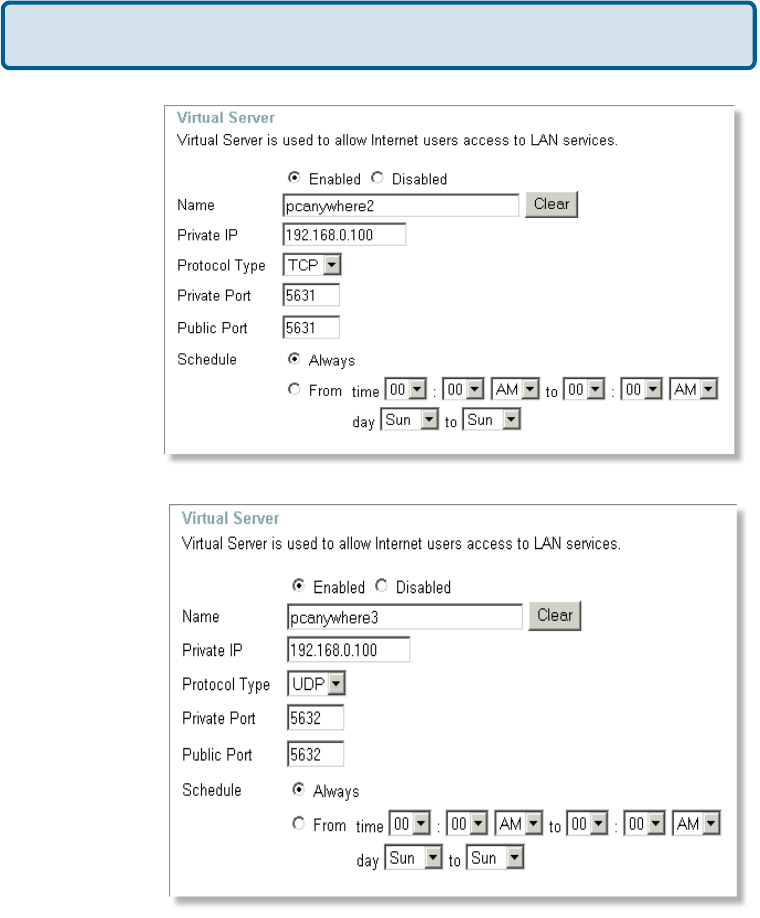

Step 6 Create

a second entry

as shown here:

Step 7 Click

Apply and then

click Continue.

Step 8 Create

a third and final

entry as shown

here:

Step 9 Click Apply and then click Continue.

Step 10 Run PCAnywhere from the remote site and use the WAN IP Address of the

router, not your computer´s IP Address.

How can I use eDonkey behind my D-Link router?

Frequently Asked Questions (continued)

You must open ports on your router to allow incoming traffic while using eDonkey.

eDonkey uses three ports (4 if using CLI):

4661 (TCP) To connect with a server

4662 (TCP) To connect with other clients

4665 (UDP) To communicate with servers other than the one you are connected to.

4663 (TCP) *Used with the command line (CLI) client when it is configured to allow

remote connections. This is the case when using a Graphical Interface (such as the

Java Interface) with the client.

Step 1 Open your web browser and enter the IP Address of your router

(192.168.0.1). Enter username (admin) and your password (leave blank).

Step 2 Click on Advanced and then click Firewall.

Step 3 Create a new firewall rule:

Click Enabled.

Enter a name

(edonkey).

Click Allow.

Next to Source,

select WAN under

interface. In the first

box, enter an *. Leave

the second box

empty.

Next to Destination,

select LAN under

interface. Enter the IP

Address of the

computer you are

running eDonkey

from. Leave the

second box empty.

Under Protocol,

select *. In the port

range boxes, enter

4661 in the first box

and then 4665 in the

second box. Click

Always or set a schedule.

Step 4 Click Apply and then Continue.

edonkey

WAN

LAN

192.168.0.100 *4661 4665

Frequently Asked Questions (continued)

To allow you to play SOCOM and hear audio, you must download the latest firmware

for the router (if needed), enable Game Mode, and open port 6869 to the IP Address of

your Playstation.

Step 1 Upgrade firmware (follow link above).

Step 2 Open your web browser and enter the IP Address of the router (192.168.0.1).

Enter username (admin) and your password (blank by default).

Step 3 Click on the Advanced tab and then click on Virtual Server on the left side.

Step 4 You will now create a new Virtual Server entry. Click Enabled and enter a

name (socom). Enter the IP Address of your Playstation for Private IP.

Step 5 For Protocol Type select Both. Enter 6869 for both the Private Port and

Public Port. Click Always. Click Apply to save changes and then Continue

Step 6 Click on the Tools tab and then Misc on the left side.

Step 7 Make sure Gaming Mode is Enabled. If not, click Enabled. Click Apply

and then Continue.

How do I set up my router for SOCOM on my Playstation 2?

socom

Both

6869

192.168.0.100

Frequently Asked Questions (continued)

How can I use Gamespy behind my D-Link router?

Step 1 Open your web browser

and enter the IP Address of the

router (192.168.0.1). Enter

admin for the username and

your password (blank by

default).

Step 2 Click on the Advanced

tab and then click Virtual Server

on the left side.

Step 3 You will create 2

entries.

Step 4 Click Enabled and enter

Settings:

Click Apply and then continue

Step 5 Enter 2nd entry:

Click Enabled

NAME - Gamespy1

PRIVATE IP - The IP

Address of your computer

that you are running

Gamespy from.

PROTOCOL TYPE - Both

PRIVATE PORT - 3783

PUBLIC PORT - 3783

SCHEDULE - Always.

NAME - Gamespy2

PRIVATE IP - The IP

Address of your computer

that youare running

Gamespy from.

PROTOCOL TYPE - Both

PRIVATE PORT - 6500

PUBLIC PORT - 6500

SCHEDULE - Always.

gamespy1

3783

192.168.0.100

3783!

gamespy2

Both

6500

192.168.0.100

Click Apply and then continue.

Frequently Asked Questions (continued)

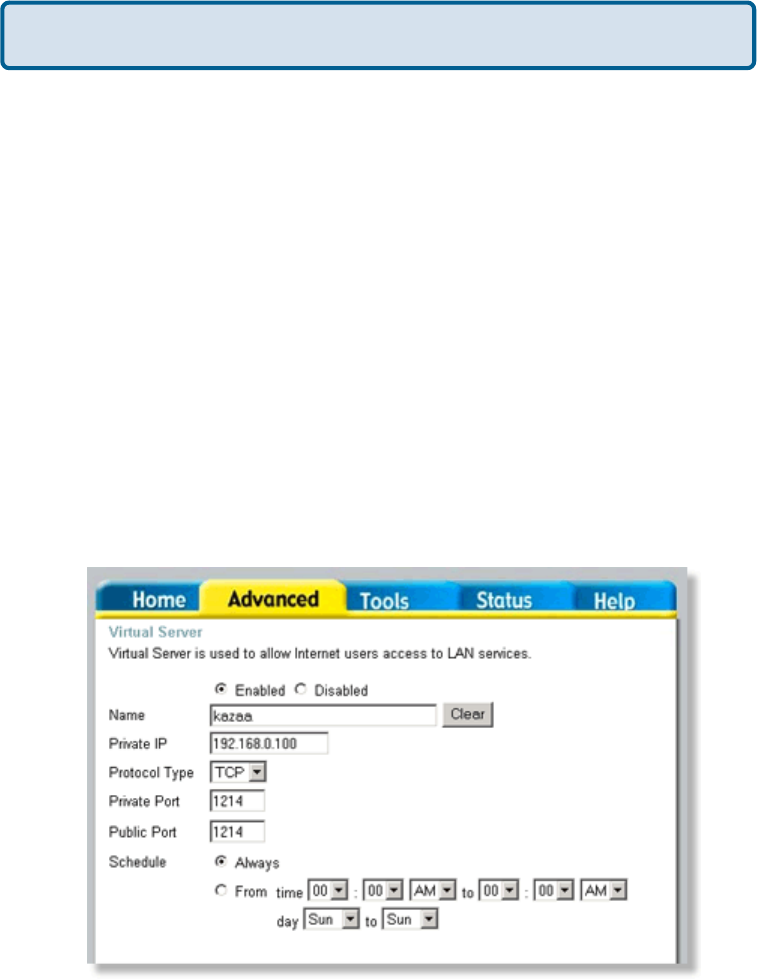

How do I configure my router for KaZaA and Grokster?

The following is for KaZaA, Grokster, and others using the FastTrack P2P file sharing

system.

In most cases, you do not have to configure anything on the router or on the Kazaa

software. If you are having problems, please follow steps below:

Step 1 Enter the IP Address of your router in a web browser (192.168.0.1).

Step 2 Enter your username (admin) and your password (blank by default).

Step 3 Click on Advanced and then click Virtual Server.

Step 4 Click Enabled and then enter a Name (kazaa for example).

Step 5 Enter the IP Address of the computer you are running KaZaA from in the

Private IP box. Select TCP for the Protocol Type.

Step 6 Enter 1214 in the Private and Public Port boxes. Click Always under

schedule or set a time range. Click Apply.

Make sure that you did not enable proxy/firewall in the KaZaA software.

Frequently Asked Questions (continued)

How do I configure my router to play Warcraft 3?

You must open ports on your router to allow incoming traffic while hosting a game in

Warcraft 3. To play a game, you do not have to configure your router.

Warcraft 3 (Battlenet) uses port 6112.

For the DI-604, DI-614+. DI-624, DI-754, DI-764, or DI-774:

Step 1 Open your web browser

and enter the IP Address of your

router (192.168.0.1). Enter

username (admin) and your

password (leave blank).

Step 2 Click on Advanced

and then click Virtual Server.

Step 3 Create a new entry:

Click Enabled. Enter a name

(warcraft3). Private IP - Enter

the IP Address of the computer

you want to host the game.

Select Both for Protocol Type

Enter 6112 for both Private Port

and Public Port Click Always or

set a schedule.

Step 4 Click Apply and then

Continue.

Note: If you want multiple computers from you LAN to play in the same game that

you are hosting, then repeat the steps above and enter the IP Addresses of the other

computers. You will need to change ports. Computer #2 can use port 6113, computer

#3 can use 6114, and so on.

You will need to change the port information within the Warcraft 3 software for

computers #2 and up.

Configure the Game Port information on each computer:

Start Warcraft 3 on each computer, click Options > Gameplay. Scroll down and you

should see Game Port. Enter the port number as you entered in the above steps.

warcraft3

Both

6112

192.168.0.100

Frequently Asked Questions (continued)

How do I use NetMeeting with my D-Link router?

Unlike most TCP/IP applications, NetMeeting uses DYNAMIC PORTS instead of

STATIC PORTS. That means that each NetMeeting connection is somewhat different

than the last. For instance, the HTTP web site application uses port 80. NetMeeting

can use any of over 60,000 different ports.

All broadband routers using (only) standard NAT and all internet sharing programs like

Microsoft ICS that use (only) standard NAT will NOT work with NetMeeting or other

h.323 software packages.

The solution is to put the router in DMZ.

Note: A few hardware manufacturers have taken it on themselves to actually provide

H.323 compatibility. This is not an easy task since the router must search each

incoming packet for signs that it might be a netmeeting packet. This is a whole lot

more work than a router normally does and may actually be a weak point in the

firewall. D-Link is not one of the manufacturers.

To read more on this visit http://www.HomenetHelp.com

How do I set up my router to use iChat? -for Macintosh users-

You must open ports on your router to allow incoming traffic while using iChat.

iChat uses the following ports: 5060 (UDP) 5190 (TCP) File Sharing 16384-16403

(UDP) To video conference with other clients

Step 1 Open your web browser and enter the IP Address of your router

(192.168.0.1). Enter username (admin) and your password (leave blank).

Step 2 Click on Advanced and then click Firewall.

Frequently Asked Questions (continued)

Step 3 Create a new

firewall rule:

Step 4 Click Apply

and then Continue.

Step 5

Repeat steps 3 and 4

enter ichat2 and open

ports 16384-16403

(UDP).

Click Enabled.

Enter a name

(ichat1).

Click Allow.

Next to Source,

select WAN under

interface.

In the first box,

enter an *.

Leave the second

box empty.

Next to Destination,

select LAN under

interface.

Enter the IP

Address of the

computer you are

running iChat from.

ichat1

WAN

LAN 192.168.0.100 UDP 5060

How do I set up my router to use iChat? -for Macintosh users-

(continued)

Leave the second box empty. Under Protocol, select UDP. In the port range boxes,

enter 5060 in the first box and leave the second box empty.

Click Always or set a

schedule.

ichat2

WAN

LAN 192.168.0.100 UDP 16384

.16403

Frequently Asked Questions (continued)

If using Mac OS X Firewall, you may need to temporarily turn off the firewall in

the Sharing preference pane on both computers.

To use the Mac OS X Firewall, you must open the same ports as in the router:

Step 1 Choose Apple menu > System Preferences.

Step 2 Choose View > Sharing.

Step 3 Click the Firewall tab.

Step 4 Click New.

Step 5 Choose Other from the Port Name pop-up menu.

Step 6 In the Port Number, Range or Series field, type in: 5060, 16384-16403.

Step 7 In the Description field type in: iChat AV

Step 8 Click OK.

For File Sharing:

Step 1 Click on Advanced and

then Virtual Server.

Step 2 Check Enabled to

activate entry.

Step 3 Enter a name for your

virtual server entry (ichat3).

Step 4 Next to Private IP, enter

the IP Address of the computer

on your local network that you

want to allow the incoming

service to.

Step 5 Select TCP for Protocol

Type.

Step 6 Enter 5190 next to

Private Port and Public Port.

Step 7 Click Always or

configure a schedule.

Step 8 Click Apply and then Continue.

How do I set up my router to use iChat? -for Macintosh users-

(continued)

ichat3

5190

192.168.0.100

Frequently Asked Questions (continued)

How do I send or receive a file via iChat when the Mac OSX firewall

is active? -for Macintosh users- Mac OS X 10.2 and later

“iChat cannot send or receive a file when the Mac OS X firewall is active in its default

state. If you have opened the AIM port, you may be able to receive a file but not send

them.

In its default state, the Mac OS X firewall blocks file transfers using iChat or America

Online AIM software. If either the sender or receiver has turned on the Mac OS X firewall,

the transfer may be blocked.

The simplest workaround is to temporarily turn off the firewall in the Sharing preference

pane on both computers. This is required for the sender. However, the receiver may keep

the firewall on if the AIM port is open. To open the AIM port:

If you do not want to turn off the firewall at the sending computer, a different file sharing

service may be used instead of iChat. The types of file sharing available in Mac OS X are

outlined in technical document 106461, "Mac OS X: File Sharing" in the AppleCare Knowl-

edge base online.

Note: If you use a file sharing service when the firewall is turned on, be sure to click the

Firewall tab and select the service you have chosen in the "Allow" list. If you do not do

this, the firewall will also block the file sharing service. “

The following information is from the online Macintosh AppleCare knowledge base:

Step 1 Choose Apple menu > System Preferences.

Step 2 Choose View > Sharing.

Step 3 Click the Firewall tab.

Step 4 Click New.

Step 5 Choose AOL IM from the Port Name pop-up menu. The number 5190

should already be filled in for you.

Step 6 Click OK.

What is NAT?

NAT stands for Network Address Translator. It is proposed and described in RFC-

1631 and is used for solving the IP Address depletion problem. Basically, each NAT

box has a table consisting of pairs of local IP Addresses and globally unique

addresses, by which the box can “translate” the local IP Addresses to global address

and vice versa. Simply put, it is a method of connecting multiple computers to the

Internet (or any other IP network) using one IP Address.

D-Link´s broadband routers support NAT. With proper configuration, multiple users can

access the Internet using a single account via the NAT device.

For more information on RFC-1631: The IP Network Address Translator (NAT), visit

http://www.faqs.org/rfcs/rfc1631.html

Frequently Asked Questions (continued)

You can find software updates and user documentation on the D-Link website.

D-Link provides free technical support for customers within the United States and

within Canada for the duration of the warranty period on this product.

U.S. and Canadian customers can contact D-Link technical support through our web

site, or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877) 453-5465

24 hours a day, seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com

email:support@dlink.com

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800) 361-5265

Monday to Friday 8:30am to 9:00pm EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

email:support@dlink.ca

When contacting technical support, please provide the following information:

• Serial number of the unit

• Model number or product name

• Software type and version number

Technical Support

Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited

warranty for its product only to the person or entity that originally purchased the product from:

•D-Link or its authorized reseller or distributor and

•Products purchased and delivered within the fifty states of the United States, the District of

Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, addresses with an

APO or FPO.

Limited Warranty: D-Link warrants that the hardware portion of the D-Link products described

below will be free from material defects in workmanship and materials from the date of original retail

purchase of the product, for the period set forth below applicable to the product type (“Warranty

Period”), except as otherwise stated herein.

3-Year Limited Warranty for the Product(s) is defined as follows:

•Hardware (excluding power supplies and fans) Three (3) Years

•Power Supplies and Fans One (1) Year

•Spare parts and spare kits Ninety (90) days

D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period

at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will

be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be

new or have an identical make, model or part. D-Link may in its sole discretion replace the defective

Hardware (or any part thereof) with any reconditioned product that D-Link reasonably determines is

substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or

replacement Hardware will be warranted for the remainder of the original Warranty Period from the date

of original retail purchase. If a material defect is incapable of correction, or if D-Link determines in its sole

discretion that it is not practical to repair or replace the defective Hardware, the price paid by the original

purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective

Hardware. All Hardware (or part thereof) that is replaced by D-Link, or for which the purchase price is

refunded, shall become the property of D-Link upon replacement or refund.

Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”)

will substantially conform to D-Link’s then current functional specifications for the Software, as set forth

in the applicable documentation, from the date of original retail purchase of the Software for a period of

ninety (90) days (“Warranty Period”), provided that the Software is properly installed on approved

hardware and operated as contemplated in its documentation. D-Link further warrants that, during the

Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical

defects. D-Link’s sole obligation shall be to replace the non-conforming Software (or defective media)

with software that substantially conforms to D-Link’s functional specifications for the Software or to

refund at D-Link’s sole discretion. Except as otherwise agreed by D-Link in writing, the replacement

Software is provided only to the original licensee, and is subject to the terms and conditions of the

license granted by D-Link for the Software. Software will be warranted for the remainder of the original

Warranty Period from the date or original retail purchase. If a material non-conformance is incapable of

correction, or if D-Link determines in its sole discretion that it is not practical to replace the non-

conforming Software, the price paid by the original licensee for the non-conforming Software will be

refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is first returned

to D-Link. The license granted respecting any Software for which a refund is given automatically

terminates.

Non-Applicability of Warranty: The Limited Warranty provided hereunder for hardware and software

of D-Link’s products will not be applied to and does not cover any refurbished product and any product

purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers,

or the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case,

the product is being sold “As-Is” without any warranty whatsoever including, without limitation, the

Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.

Submitting A Claim: The customer shall return the product to the original purchase point based on its

return policy. In case the return policy period has expired and the product is within warranty, the

customer shall submit a claim to D-Link as outlined below:

Warranty and Registration

(USA only)

•The customer must submit with the product as part of the claim a written description of the

Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm

the same.

•The original product owner must obtain a Return Material Authorization (“RMA”) number from

the Authorized D-Link Service Office and, if requested, provide written proof of purchase of

the product (such as a copy of the dated purchase invoice for the product) before the

warranty service is provided.

•After an RMA number is issued, the defective product must be packaged securely in the

original or other suitable shipping package to ensure that it will not be damaged in transit, and

the RMA number must be prominently marked on the outside of the package. Do not include any

manuals or accessories in the shipping package. D-Link will only replace the defective portion

of the Product and will not ship back any accessories.

•The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery

(“COD”) is allowed. Products sent COD will either be rejected by D-Link or become the

property of D-Link. Products shall be fully insured by the customer. D-Link will not be held

responsible for any packages that are lost in transit to D-Link. The repaired or replaced

packages will be shipped to the customer via UPS Ground or any common carrier selected by

D-Link, with shipping charges prepaid. Expedited shipping is available if shipping charges are

prepaid by the customer and upon request.

•Return Merchandise Ship-To Address

USA: 53 Discovery Drive, Irvine, CA 92618

Canada: 2180 Winston Park Drive, Oakville, ON, L6H 5W1 (Visit http://www.dlink.ca for detailed

warranty information within Canada)

D-Link may reject or return any product that is not packaged and shipped in strict compliance with the

foregoing requirements, or for which an RMA number is not visible from the outside of the package. The

product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product

that is not packaged and shipped in accordance with the foregoing requirements, or that is determined

by D-Link not to be defective or non-conforming.

What Is Not Covered: This limited warranty provided by D-Link does not cover: Products, if in D-Link’s

judgment, have been subjected to abuse, accident, alteration, modification, tampering, negligence, misuse,

faulty installation, lack of reasonable care, repair or service in any way that is not contemplated in the

documentation for the product, or if the model or serial number has been altered, tampered with, defaced

or removed; Initial installation, installation and removal of the product for repair, and shipping costs;

Operational adjustments covered in the operating manual for the product, and normal maintenance;

Damage that occurs in shipment, due to act of God, failures due to power surge, and cosmetic damage;

Any hardware, software, firmware or other products or services provided by anyone other than D-

Link; Products that have been purchased from inventory clearance or liquidation sales or other sales in

which D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the

product. Repair by anyone other than D-Link or an Authorized D-Link Service Office will void this

Warranty.

Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE

PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER INCLUDING,

WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE

AND NON-INFRINGEMENT. IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY

WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO

NINETY (90) DAYS. EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED

HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS

WITH THE PURCHASER OF THE PRODUCT.

Governing Law: This Limited Warranty shall be governed by the laws of the State of California. Some

states do not allow exclusion or limitation of incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This limited

warranty provides specific legal rights and the product owner may also have other rights which vary

from state to state.

Trademarks: D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered

trademarks are the property of their respective manufacturers or owners.

be reproduced in any form or by any means or used to make any derivative such as translation,

transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as

stipulated by the United States Copyright Act of 1976. Contents are subject to change without prior

CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communication. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/TV technician for help.

For detailed warranty outside the United States, please contact corresponding local

D-Link office.

(07/18/2003)

FCC Caution:

(1) The devices are restricted to indoor operations within the 5.15 to 5.25GHz range. (2) For this

device to operate in the 5.15 to 5.25GHz range, the devices must use integral antennas.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. The antenna(s) used for this equipment must be installed to provide a separation

distance of at least eight inches (20 cm) from all persons.

This equipment must not be operated in conjunction with any other antenna.

LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT

COVERED BY THE WARRANTY. THE FOREGOING EXPRESS WRITTEN WARRANTIES AND REMEDIES

ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED OR

STATUTORY.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized

modifications to this equipment; Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

D Link DI774VB1 Tri-Mode Dualband Wireless Router User Manual di764 manual 104

D Link Corporation Tri-Mode Dualband Wireless Router di764 manual 104

Contents

Users Manual 3

Navigation menu

Namespaces

Views

Navigation
