Using the Configuration Menu (continued)

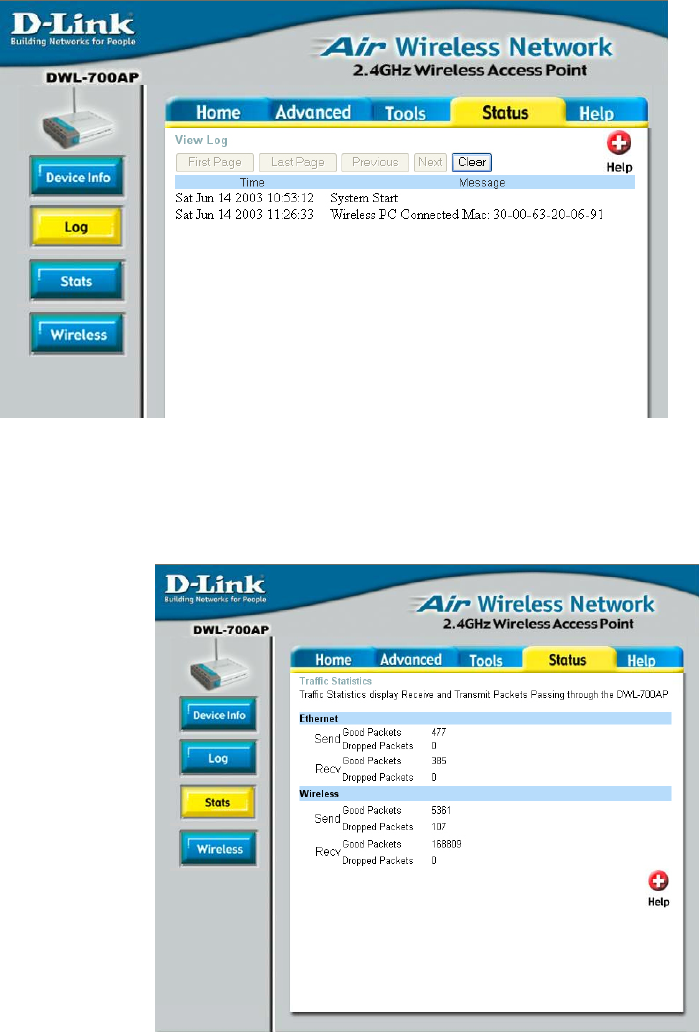

Fig. 5.12

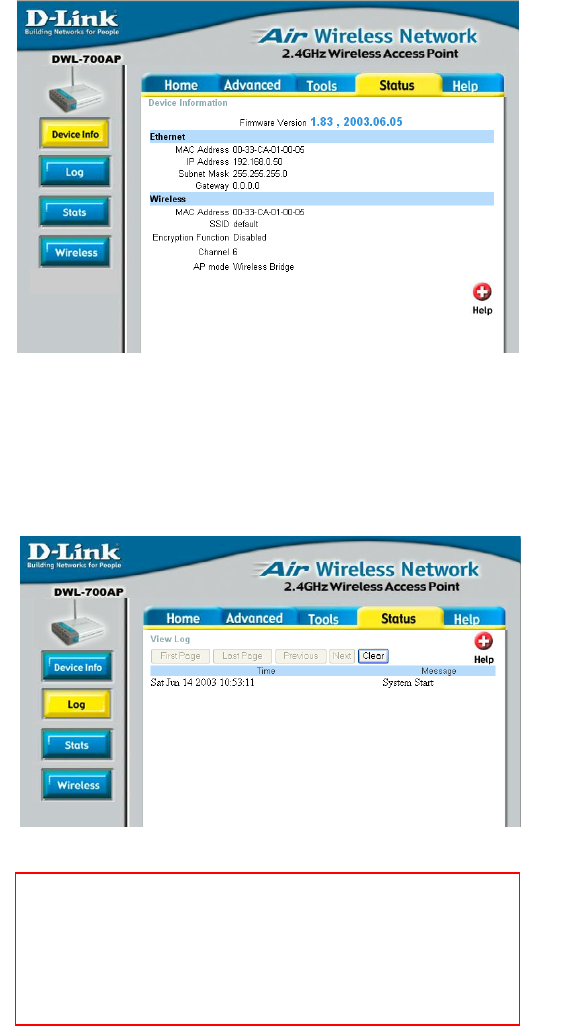

Fig. 5.13
The DWL-700AP
keeps a running log of
events and activities
occurring on the
Access Point. If the
device is rebooted,
the logs are
automatically cleared.
You may save the log
files under Log
Settings.
To enable or disable
logging for the Access
Point, click on Log
Settings. To monitor
the wireless stations,
select Enable and the
log file will be sent to
the associated
computer.
Status > Device Info
Status > Log
This page displays the
current information for
the DWL-700AP. It
will display the
Ethernet and
Wireless information.
Ethernet:
MAC Address
IP Address
Subnet Mask
Gateway
DHCP Server
Wireless:
MAC Address
SSID
Encryption
Channel
AP mode
First Page - displays the first page of the Log
Last Page - displays the last page of the Log
Previous - moves back one log page
Next - moves forward one log page
Clear - clears the log completely
Log Settings – Brings up the page to configure the logs
23
Using the Configuration Menu (continued)
Syslog Server: Using third party syslog software, the Syslog Server function
will download the DWL-700AP’s log automatically to an IP address
specified sever.
Status > Stats
Fig. 5.14
Displays the
network traffic
statistics for both
received and
transmitted
communications
through the
Ethernet port and
wireless
connections
associated with
the Access Point.
24
Using the Configuration Menu (continued)
Status > Wireless

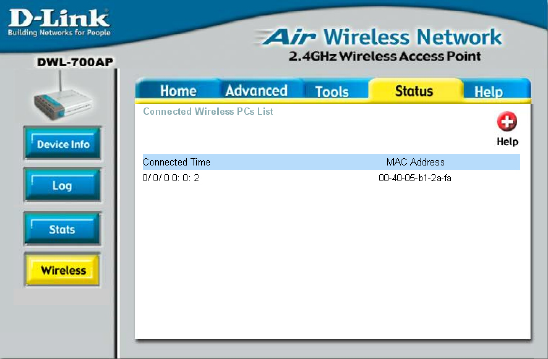

Fig. 5.15
Displays the list of
computers that
are connected to
the DWL-700AP
wirelessly.
