User Manual Part 6

Using the Configuration Menu (continued)
Fig. 5.12
Fig. 5.13

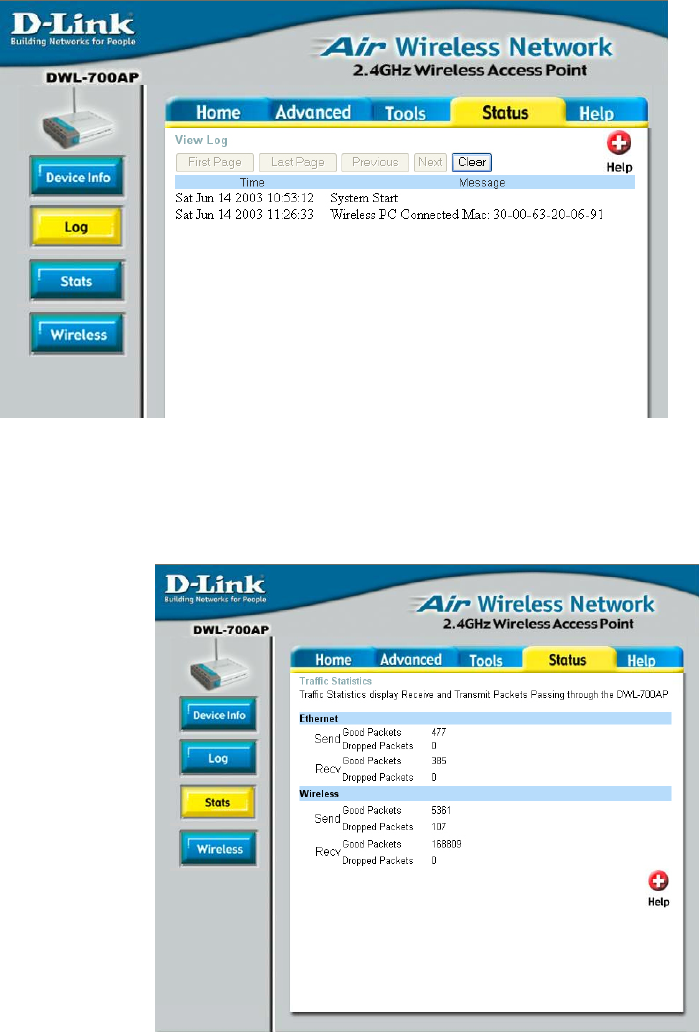

The DWL-700AP
keeps a running log of
events and activities
occurring on the
Access Point. If the
device is rebooted,
the logs are
automatically cleared.
You may save the log
files under Log
Settings.
To enable or disable
logging for the Access
Point, click on Log
Settings. To monitor
the wireless stations,
select Enable and the
log file will be sent to
the associated
computer.
Status > Device Info
Status > Log
This page displays the
current information for
the DWL-700AP. It
will display the
Ethernet and
Wireless information.
Ethernet:
MAC Address
IP Address
Subnet Mask
Gateway
DHCP Server
Wireless:
MAC Address
SSID
Encryption
Channel
AP mode
First Page - displays the first page of the Log
Last Page - displays the last page of the Log
Previous - moves back one log page
Next - moves forward one log page
Clear - clears the log completely
Log Settings – Brings up the page to configure the logs
23
