61D-Link DWR-755 User Manual
Section 3 - Conguration

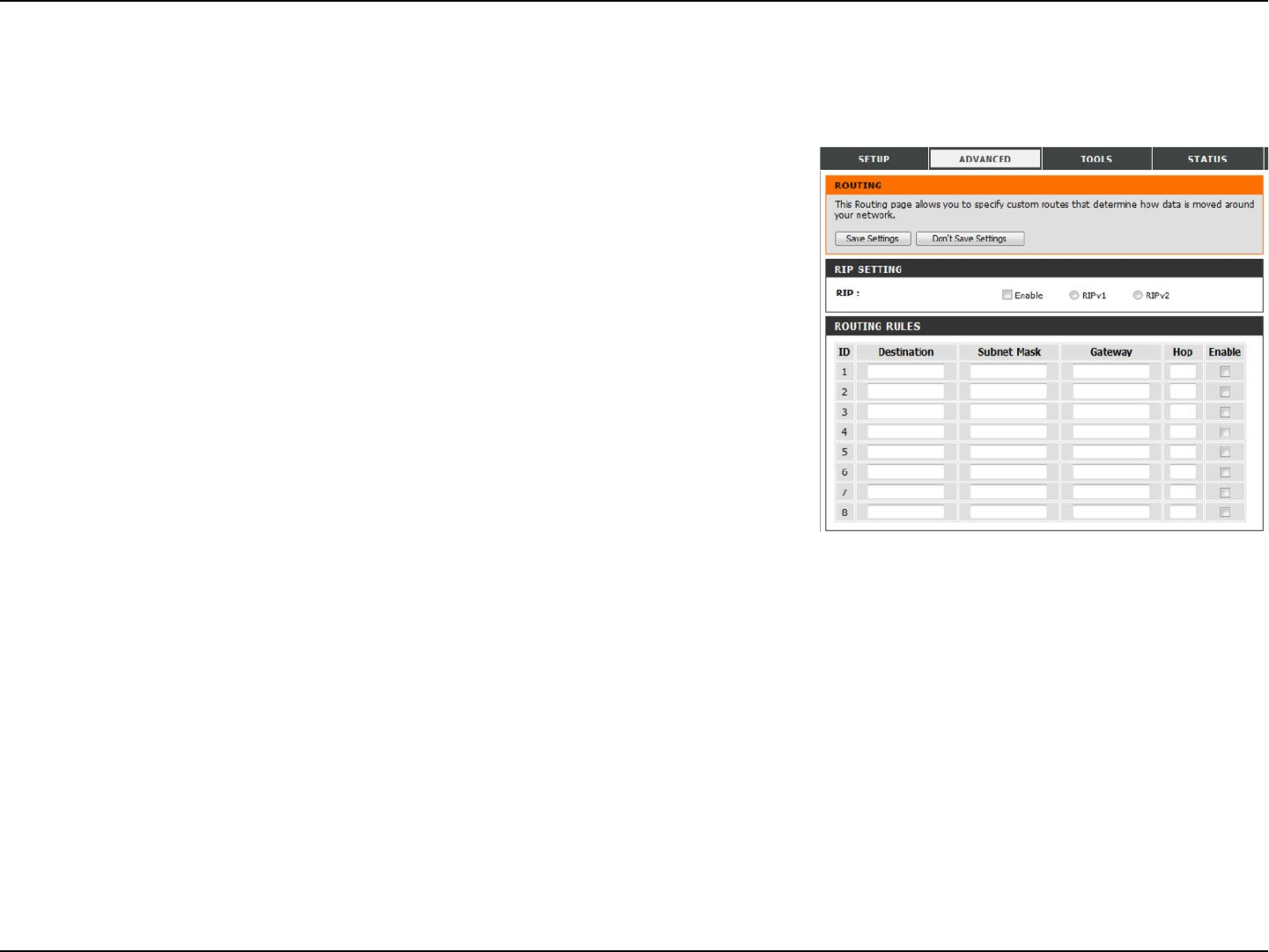

RIP SETTING
Check the box to enable routing, then select which routing
protocol to use:
• RIPv1: Protocol in which the IP address is routed
through the internet.
• RIPv2: Enhanced version of RIPv1 with added
features such as authentication, routing domain,
next hop forwarding, and subnet-mask exchange.
Routing
RIP:
The routing page allows you to specify custom routes that determine how data is moved around your network. After modifying any settings, click
Save Settings to save your changes.
ROUTING RULES
This identies the rule.
Enter in the IP of the specied network that you want to access
using the static route.
Enter in the subnet mask to be used for the specied network.
Enter in the gateway IP address for the specied network.
Enter in the amount of hops it will take to reach the specied
network.
Note: In a transmission path, each link is terminated at a
network device such as a router or gateway. The number of
hops equals the number of routers or gateways that data must
pass through before reaching the destination.
Select this box to enable the rule.
ID:
Destination:
Subnet Mask:
Gateway:
Hop:
Enable:
![](/img.php?id=2230131&img=bg2.png)
62D-Link DWR-755 User Manual
Section 3 - Conguration
Specify a value for the beacon interval. Beacons are packets
sent by an access point to synchronize a wireless network. 100
is the default setting and is recommended.
Set the transmit power of the antennas.
This value should remain at its default setting of 2347. If
inconsistent data ow is a problem, only a minor modication
should be made.
The fragmentation threshold, which is specied in bytes,
determines whether packets will be fragmented. Packets
exceeding the 2346 byte setting will be fragmented before
transmission. 2346 is the default setting.
Set the interval for DTIM. A Delivery Trac Indication Message
(DTIM) is a countdown informing clients of the next window
for listening to broadcast and multicast messages. The default
interval is 3.
WMM (Wi-Fi Multimedia) is a QoS (Quality of Service) system
for your wireless network. Enable this option to improve
the quality of video and voice applications for your wireless
clients.
Select the basic transfer rates based on the speed of
wireless adapters on your wireless network. It is strongly
recommended to keep this setting to Auto.
Beacon Interval:
Transmit Power:
RTS Threshold:
Fragmentation:
DTIM Interval:
WMM Capable:
TX Rates:

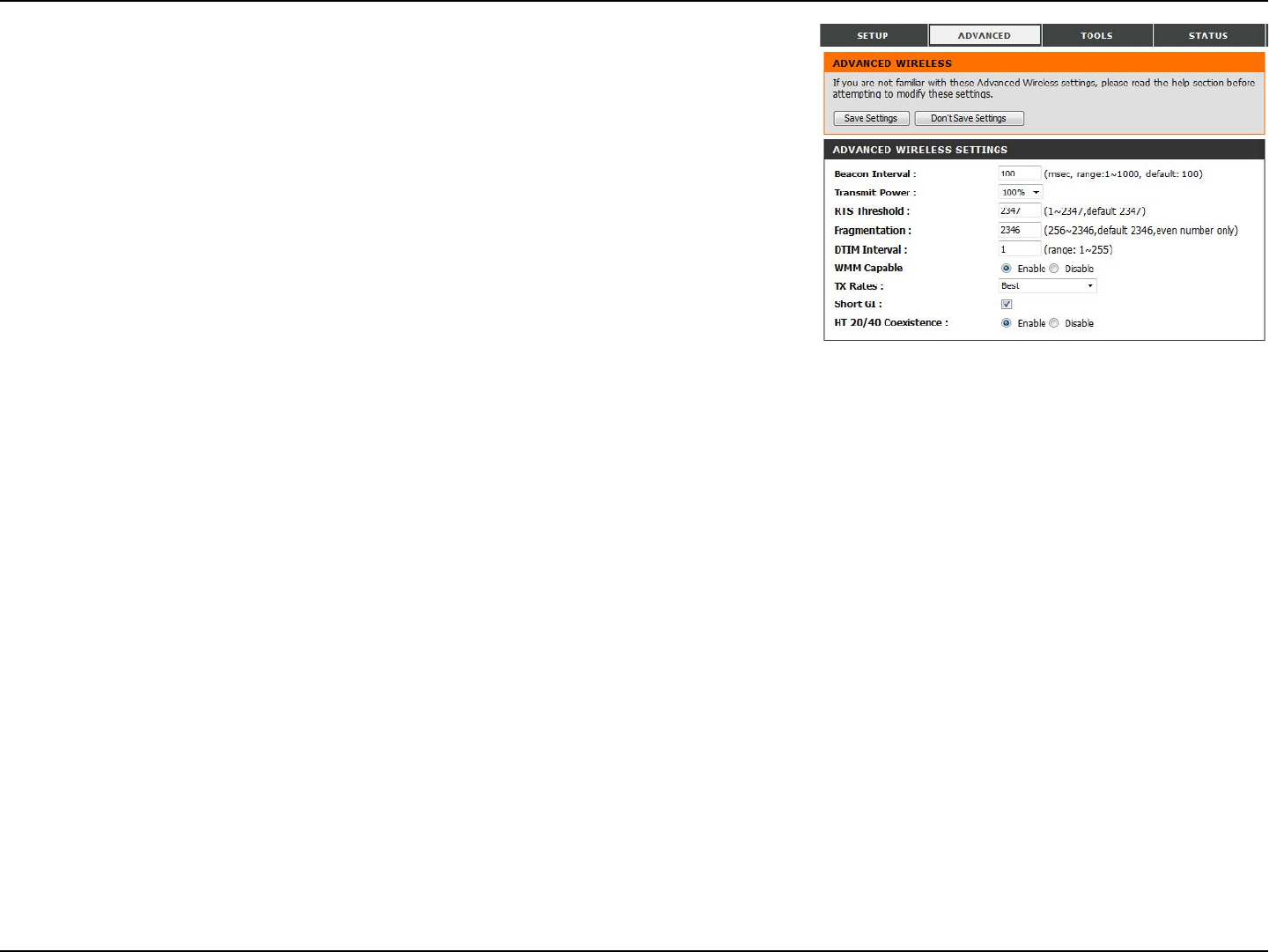

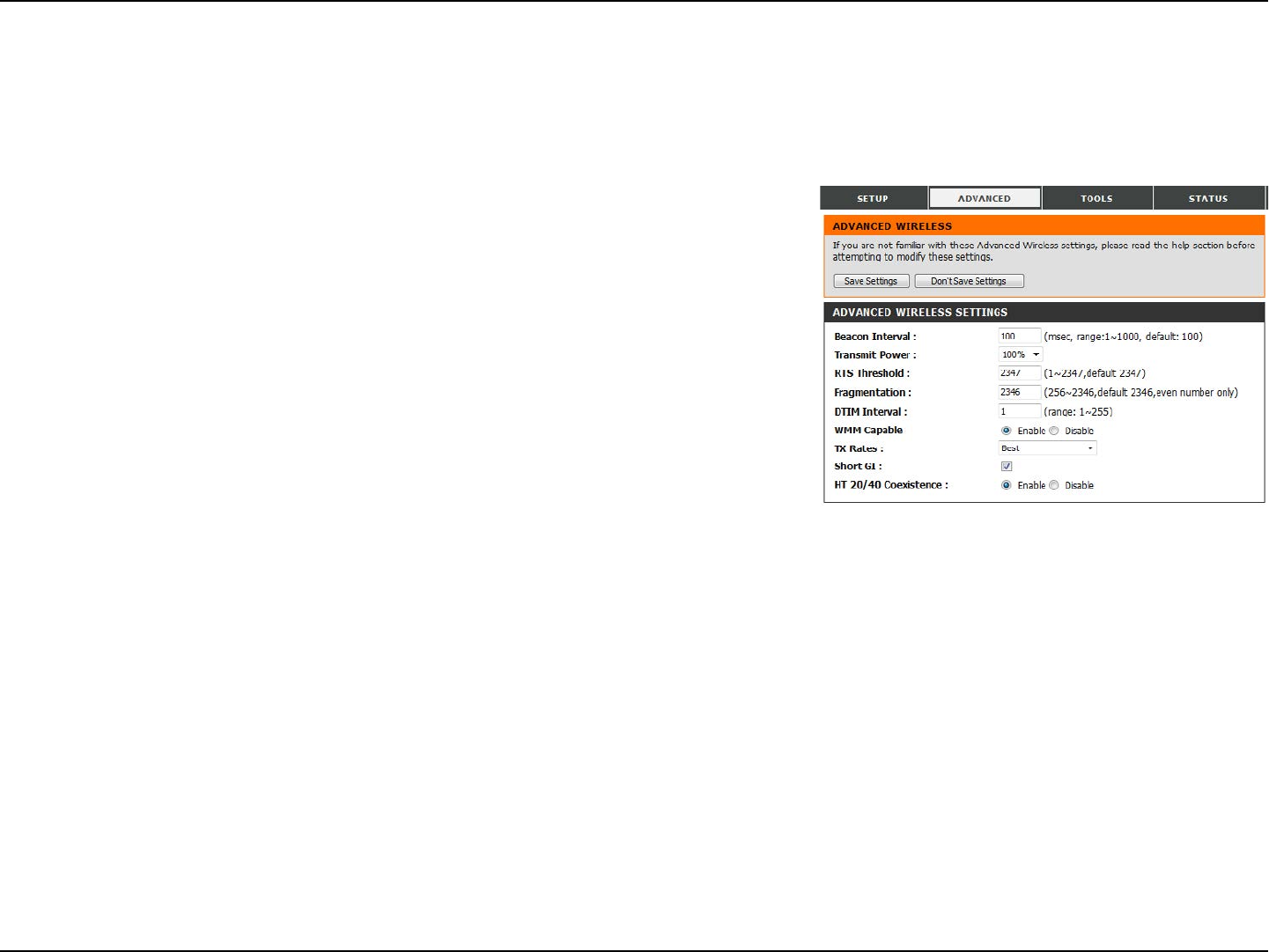

Advanced Wireless
Advanced wireless contains settings which can negatively aect the performance of your router if congured improperly. Do not change these
settings unless you are already familiar with them or have been instructed to make the change by one of our support personnel. After modifying
any settings, click Save Settings to save your changes.
![](/img.php?id=2230131&img=bg3.png)
63D-Link DWR-755 User Manual
Section 3 - Conguration
Check this box to reduce the guard interval to 400 ns. This can
increase the throughput rate provided that the delay spread
of the connection is also low. However, it can also increase
error rate in some installations, due to increased sensitivity to
radio-frequency reections. Select the option that works best
for your installation.
Enable this option to reduce interference from other
wireless networks in your area. If the channel width
is operating at 40 MHz and there is another wireless
network’s channel over-lapping and causing interference,
the router will automatically change to 20 MHz.
Short GI:
HT 20/40 Coexistence:
![](/img.php?id=2230131&img=bg4.png)
64D-Link DWR-755 User Manual
Section 3 - Conguration
Check the box to enable the Universal Plug and Play (UPnP™)
feature. UPnP provides compatibility with various networking
equipment, software, and peripherals.
Select the box to allow the WAN port to be “pinged.” Blocking
WAN pings may provide some extra security from hackers.

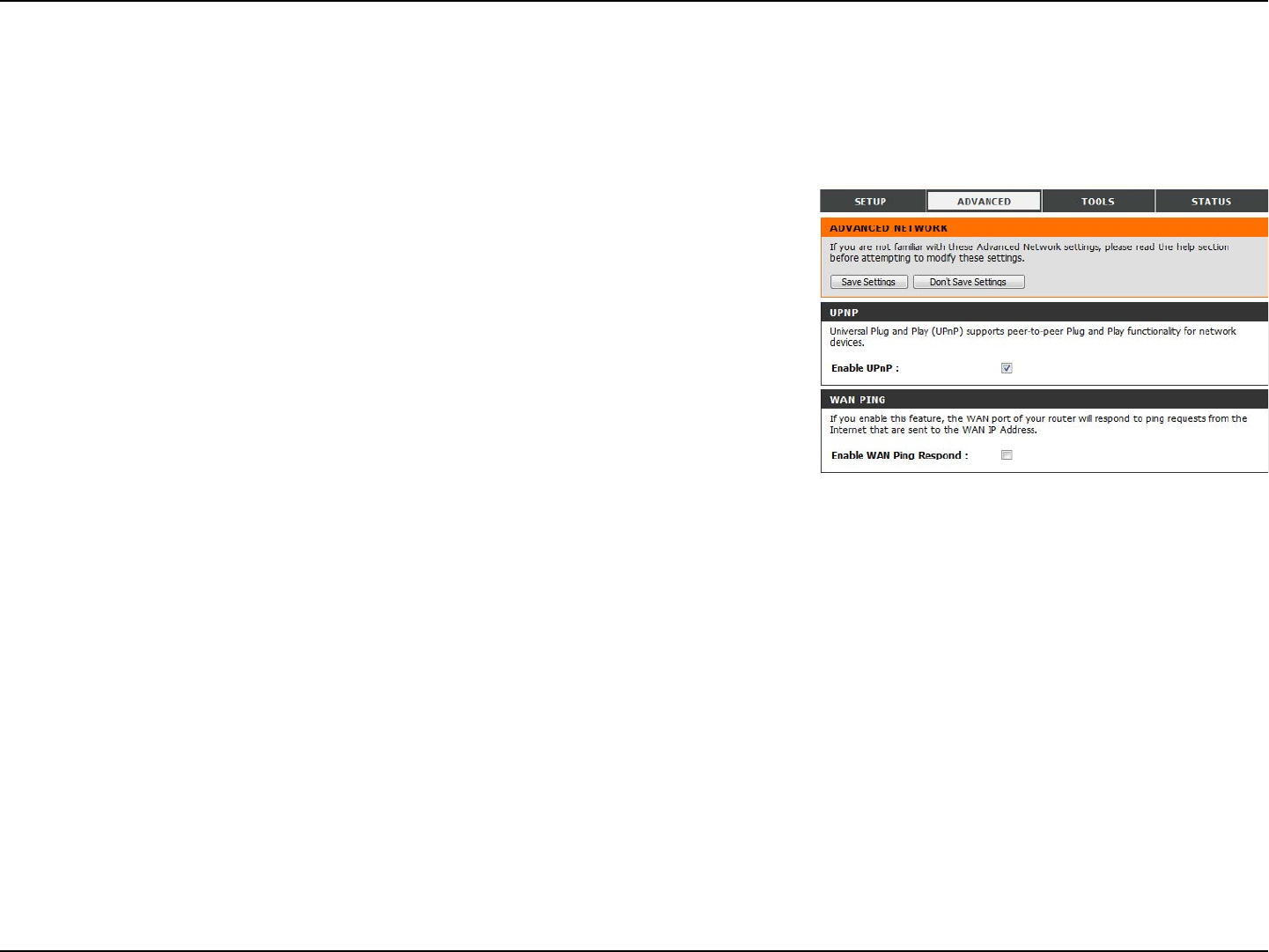

Advanced Network
Advanced network contains settings which can change the way the router handles certain types of trac. We recommend that you do not change
any of these settings unless you are already familiar with them or have been instructed to make the change by one of our support personnel. After
modifying any settings, click Save Settings to save your changes.
Enable UPnP:
Enable WAN Ping
Respond:
![](/img.php?id=2230131&img=bg5.png)
65D-Link DWR-755 User Manual
Section 3 - Conguration

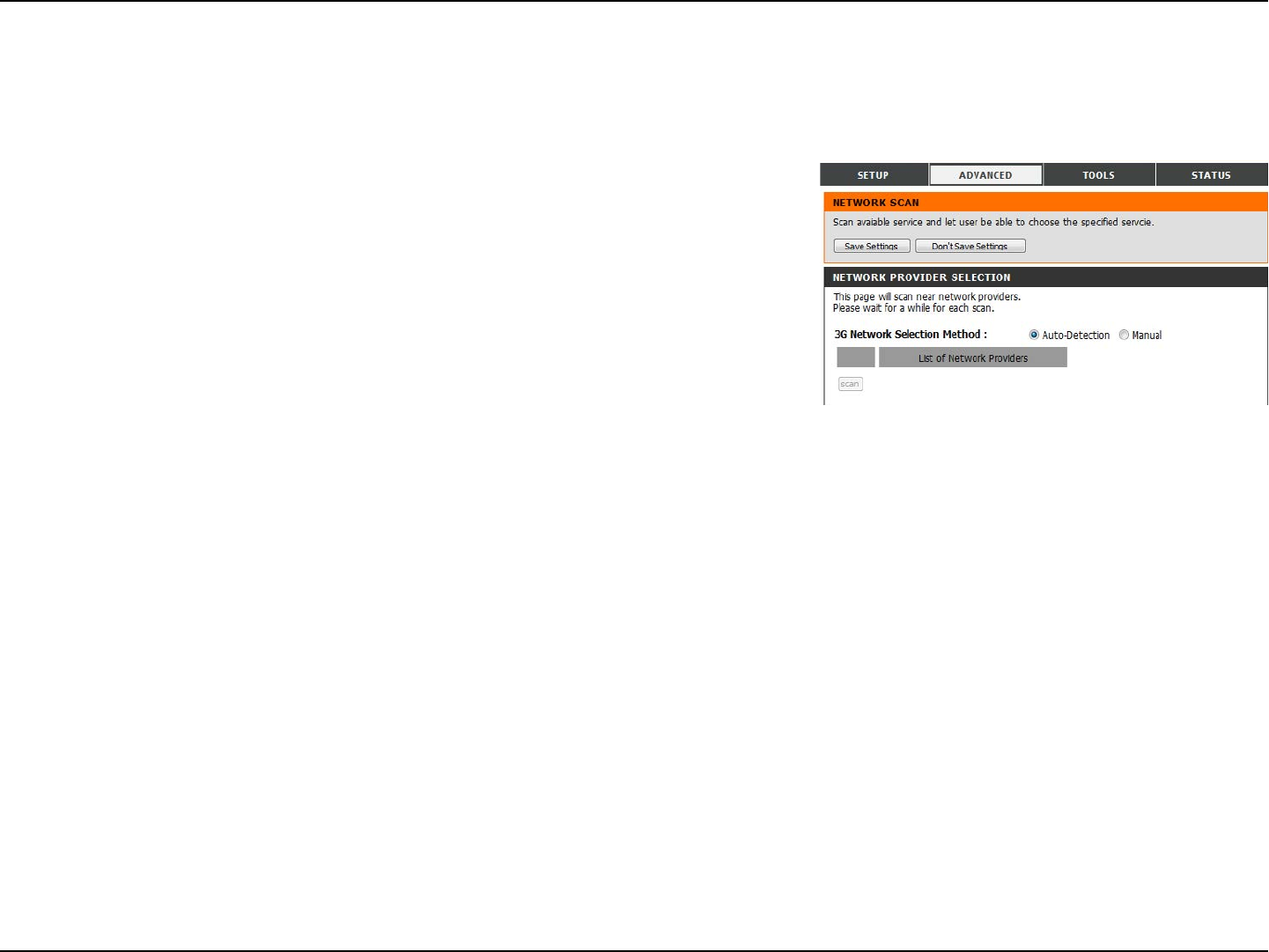

Leave this setting on Auto to allow the DWR-755 to
automatically select a cellular network to connect to. If you
need to select a network manually, select Manual, click the
Scan button, then select an available network to connect to.
Note: You will only be able to scan for networks if the
DWR-755 is not currently connected to a 3G network.
Network Scan
This page lets you set whether to allow the DWR-755 to automatically select a 3G network based on the inserted SIM card, and allows you to manually
scan for networks and select one to connect to. After modifying any settings, click Save Settings to save your changes.
3G Network Selection
Method:
![](/img.php?id=2230131&img=bg6.png)
66D-Link DWR-755 User Manual
Section 3 - Conguration

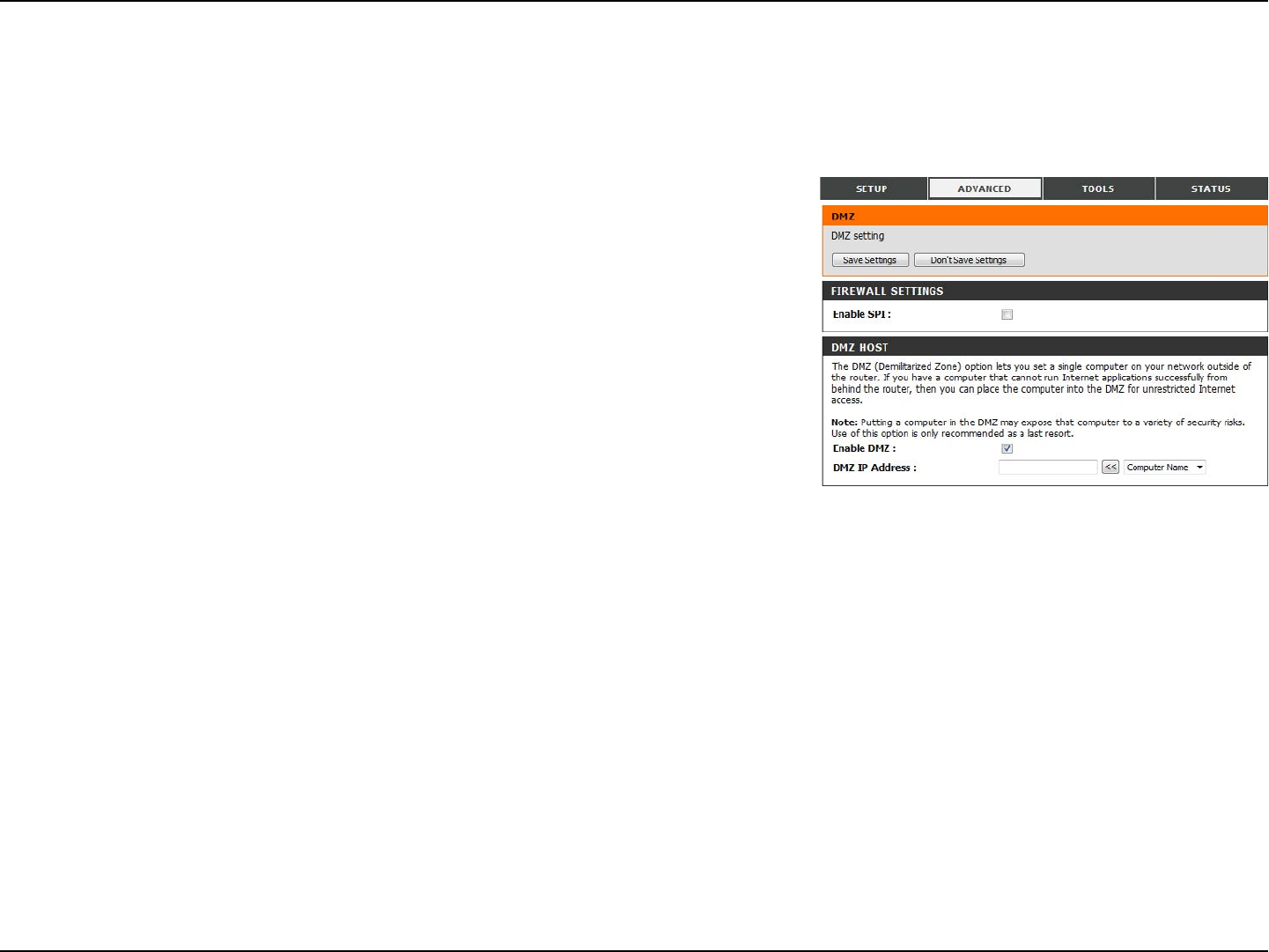

DMZ
The DMZ (Demilitarized Zone) option lets you set a single computer on your network outside of the router. If you have a computer that cannot
run Internet applications successfully from behind the router, then you can place the computer into the DMZ for unrestricted Internet access.
Check this box to enable SPI.
Check this box to enable a DMZ area that allows a specific
computer unrestricted access. This option is not recommended
and should be used with caution.
Specify an IP address for the DMZ zone and select the computer
to associate it with.
Enable SPI:
Enable DMZ:
DMZ IP Address:
![](/img.php?id=2230131&img=bg7.png)
67D-Link DWR-755 User Manual
Section 3 - Conguration

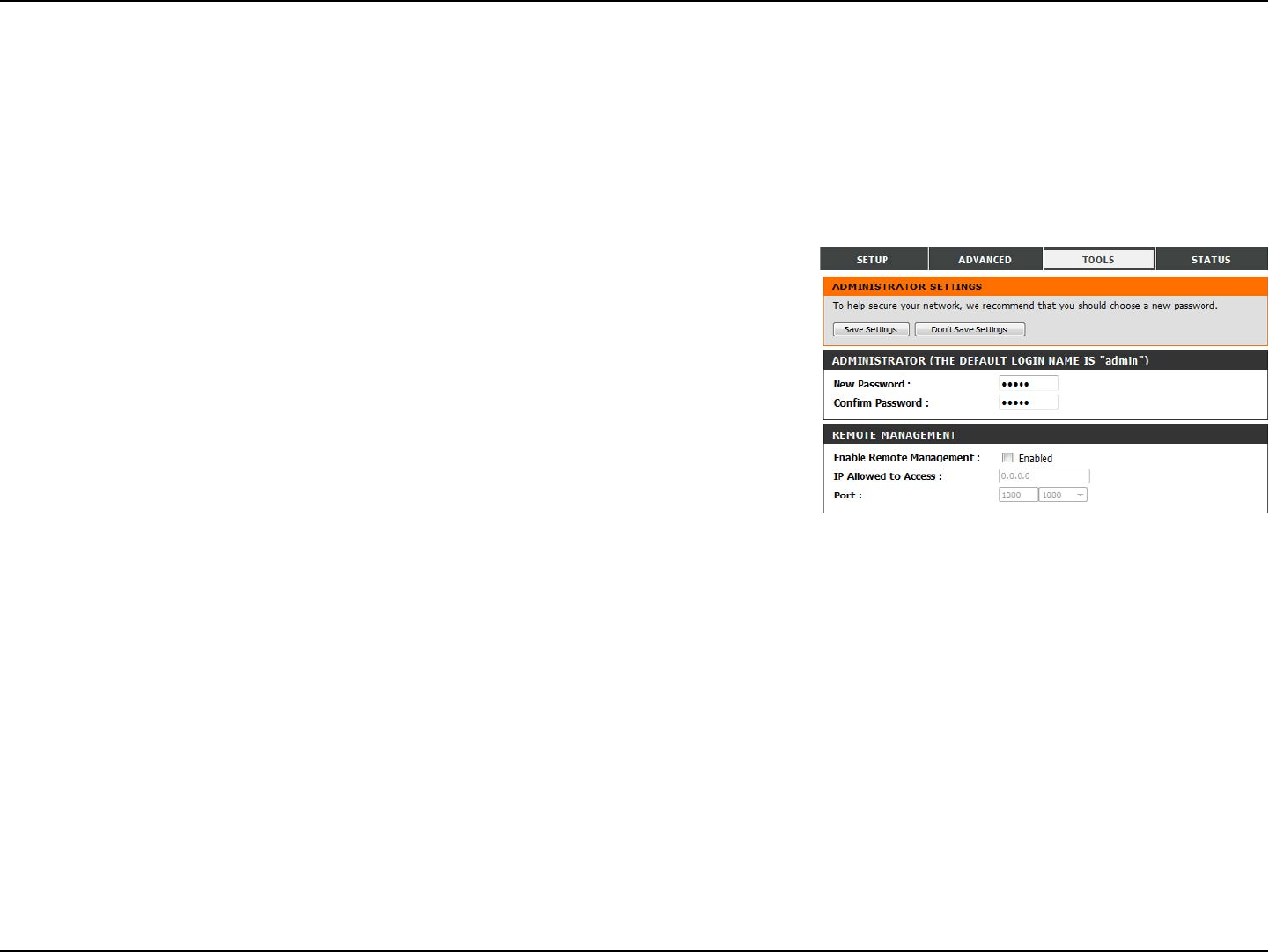

ADMINISTRATOR
Enter and conrm the password that the admin account will
use to access the router’s management interface.
REMOTE MANAGEMENT
Tick this check box to enable remote management. Remote
management allows the DWR-755 to be congured over the
Internet through a web browser. A username and password
will still be required to access the web-management interface.
Enter the Internet IP address of the PC that has access to the
broadband router. If you enter an asterisk (*) in this eld, then
anyone will be able to access the router. Adding an asterisk
(*) into this eld could present a security risk and is not
recommended.
This is the port number used to access the router. 8080 is the
port usually used for the web-management interface.
Admin
The Admin page allows you to change the Administrator password and enable Remote Management. The admin has read/write access while users
only have read-only access. Only the admin has the ability to change both admin and user account passwords. After modifying any settings, click
Save Settings to save your changes.
New/Conrm Password:
Enable Remote
Management:
IP Allowed to Access:
Port:
Tools
![](/img.php?id=2230131&img=bg8.png)
68D-Link DWR-755 User Manual
Section 3 - Conguration

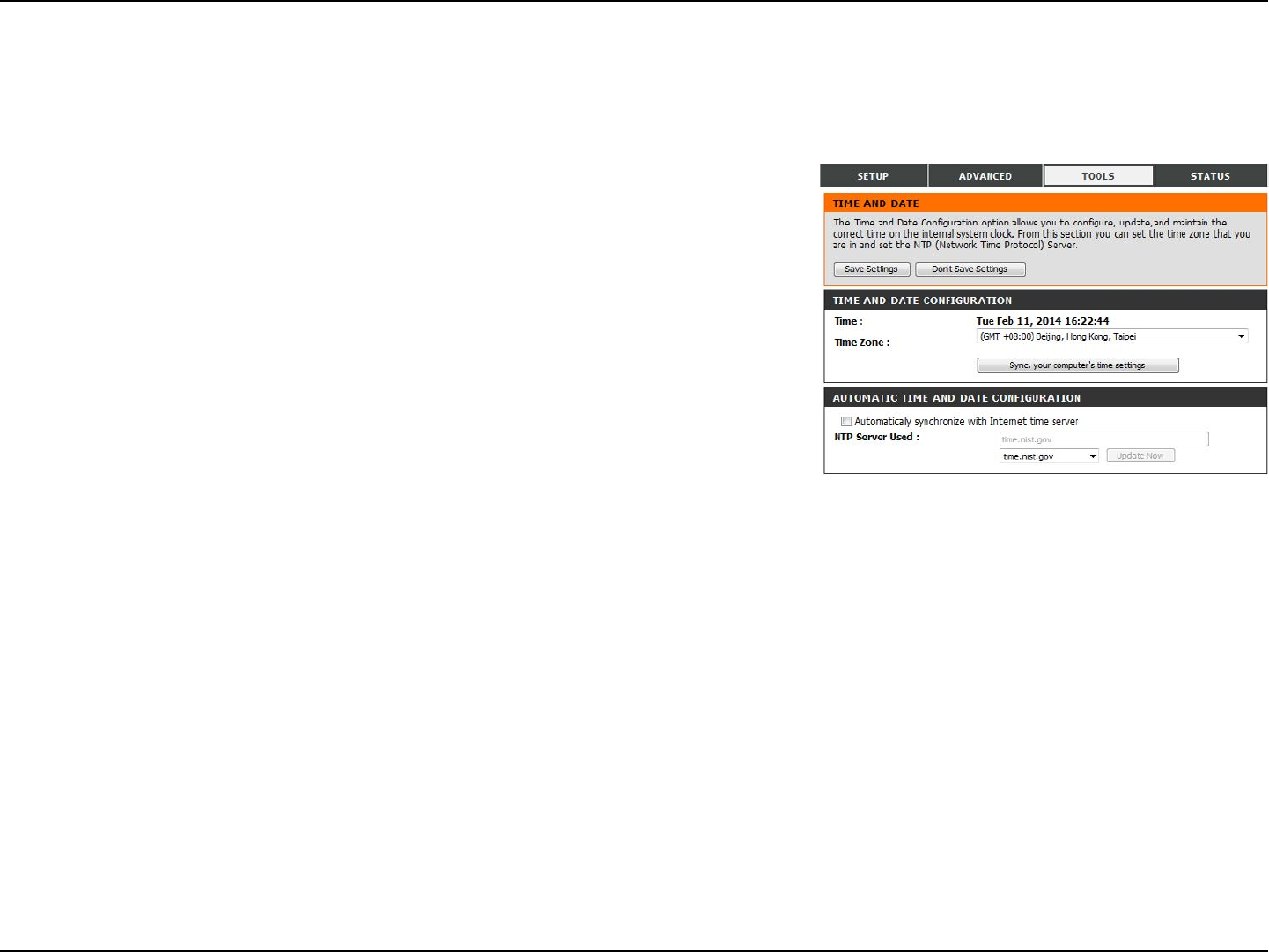

Time
TIME AND DATE CONFIGURATION
Select the appropriate Time Zone from the drop-down box.
Click Sync your computer’s time settings to sync the router
to your computer’s clock.
AUTOMATIC TIME AND DATE CONFIGURATION
Check the Automatically synchronize with Internet time
server box to allow the router to use an NTP server to update
the router’s internal clock.
Enter an NTP server to use for time synchronization, or use the
drop-down box to select one. Click the Update Now button to
synchronize the time with the NTP server.
This section will help you set the time zone that you are in and an NTP (Network Time Protocol) server to use. Daylight Saving can also be congured
to adjust the time when needed. After modifying any settings, click Save Settings to save your changes.
Time Zone:
NTP Server Used:
![](/img.php?id=2230131&img=bg9.png)
69D-Link DWR-755 User Manual
Section 3 - Conguration

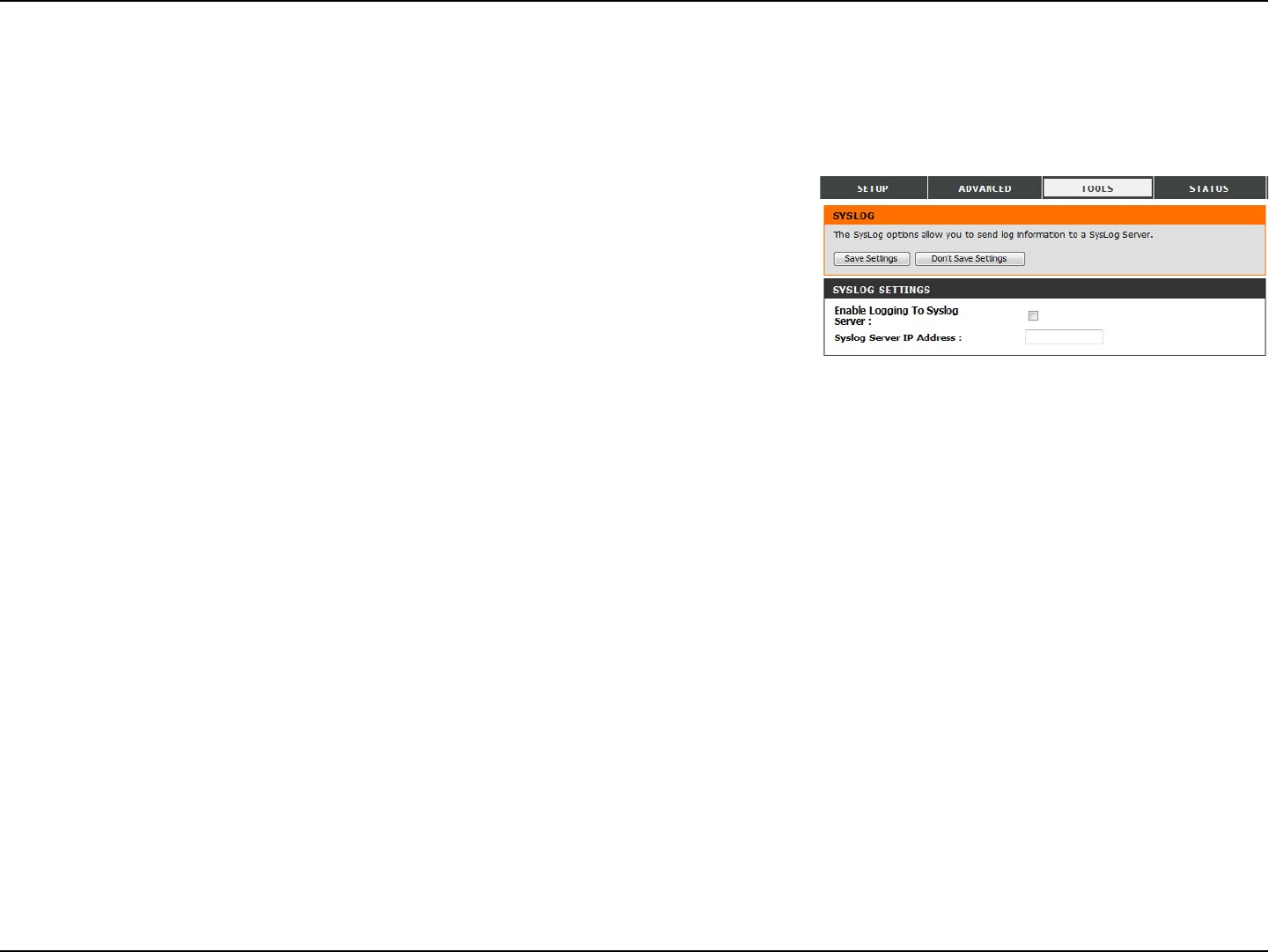

Syslog
Check the box to send the router logs to a Syslog server.
Enter the IP address of the Syslog server that the router will
send the logs to.
The DWR-755 keeps a running log of events and activities occurring on the router. You may send these logs to a Syslog server on your network.
After modifying any settings, click Save Settings to save your changes.
Enable Logging to
Syslog Server:
Syslog Server IP
Address:
![](/img.php?id=2230131&img=bga.png)
70D-Link DWR-755 User Manual
Section 3 - Conguration

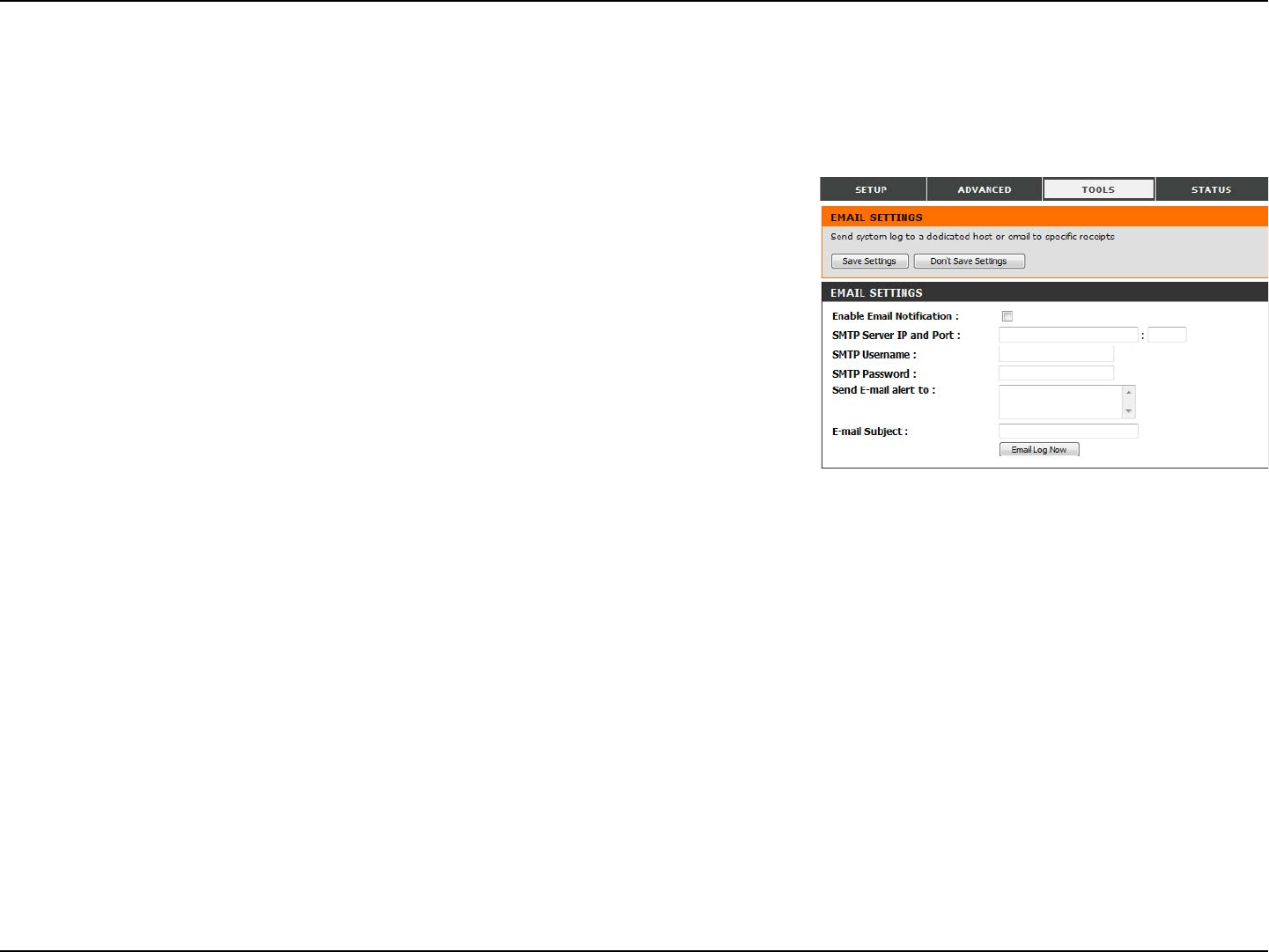

Email Settings
When this option is enabled, router activity logs will be
emailed to the specied email address.
Enter the SMTP server IP address the router will use to send
emails. Enter the complete IP address followed by a colon(:)
and the port number. (e.g. 123.123.123.1:25).
Enter the username for the SMTP account.
Enter the password for the SMTP account.
Enter the email address where you would like the router to
send emails to.
Enter a subject for the email.
Click this button to send the current logs to the specied email
address.
Enable Email
Notication:
SMTP Sever IP and Port:
SMTP Username:
SMTP Password:
Send Email Alert to:
Email Subject:
Email Log Now:
Email settings allow you to send the system log les, router alert messages, and rmware update notications to an email address. After modifying
any settings, click Save Settings to save your changes.
![](/img.php?id=2230131&img=bgb.png)
71D-Link DWR-755 User Manual
Section 3 - Conguration

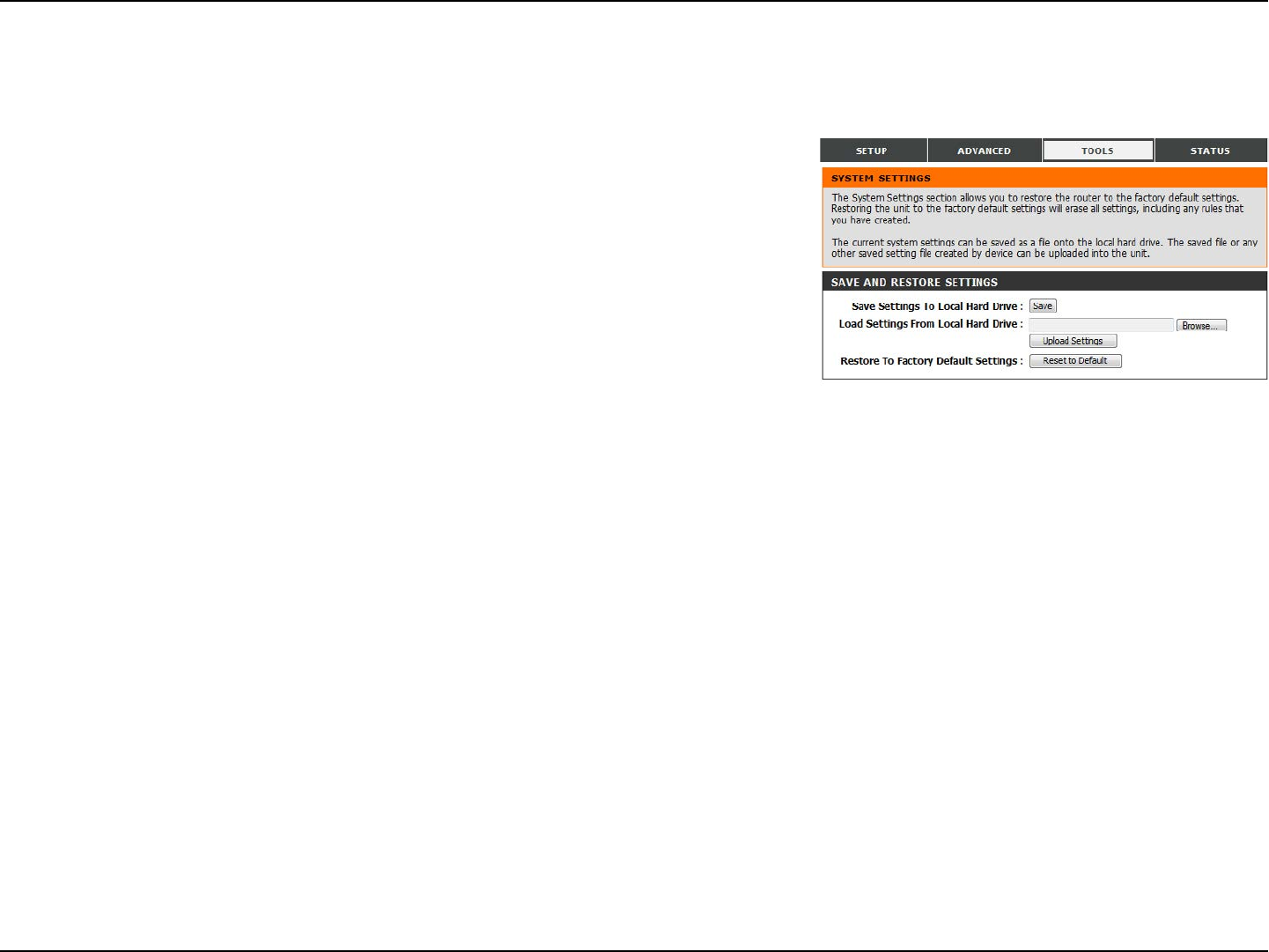

System
Use this option to save your current router conguration
settings to a le. Click Save to open a le dialog, and then
select a location and le name for the settings.
Use this option to load previously saved router conguration
settings. Click Browse... and select the saved le and then
click the Upload Settings button to upload the settings to the
router.
This option will restore all settings back to their defaults. Any
settings that have not been backed up will be lost, including
any rules that you have created.
Save Settings To Local
Hard Drive
Load Settings From
Local Hard Drive:
Restore To Factory
Default Settings:
Here, you can save the current system settings to a local hard drive. After modifying any settings, click Save Settings to save your changes.
![](/img.php?id=2230131&img=bgc.png)
72D-Link DWR-755 User Manual
Section 3 - Conguration

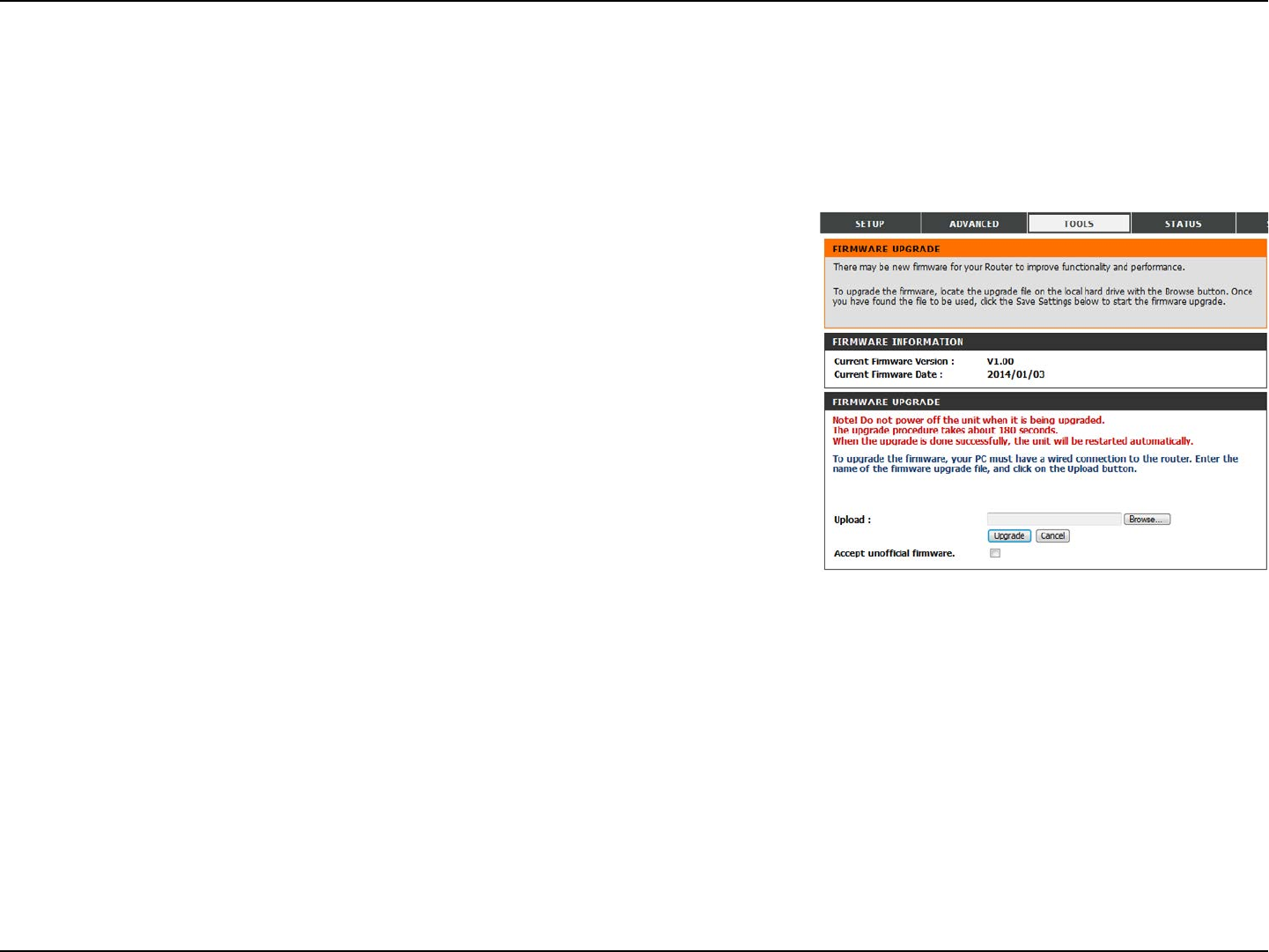

Firmware
Displays your current rmware’s version.
Displays your current rmware’s release date.
After you have downloaded a new rmware, click Browse to
locate the rmware on your computer, then click Upload to
start the rmware upgrade.
Warning: You must use a wired connection to upload the
firmware file; do not use a wireless connection.
During the upgrade process, do not power o your
computer or router, and do not refresh the browser
window until the upgrade is complete.
If the rmware you want to install is not an ocial D-Link
release, you will need to check this box.
Warning: Unocial rmware is not supported, and may cause
damage to your device. Use of unocial rmware is
at your own risk.
Here, you can upgrade the firmware of your router. Make sure the firmware you want to use is on the local hard drive of the
computer and then click Browse to upload the file. You can check for and download firmware updates at the D-Link support site at
http://support.dlink.com. After modifying any settings, click Save Settings to save your changes.
Current Firmware
Version:
Current Firmware Date:
Upload:
Accept Unocial
Firmware:
![](/img.php?id=2230131&img=bgd.png)
73D-Link DWR-755 User Manual
Section 3 - Conguration

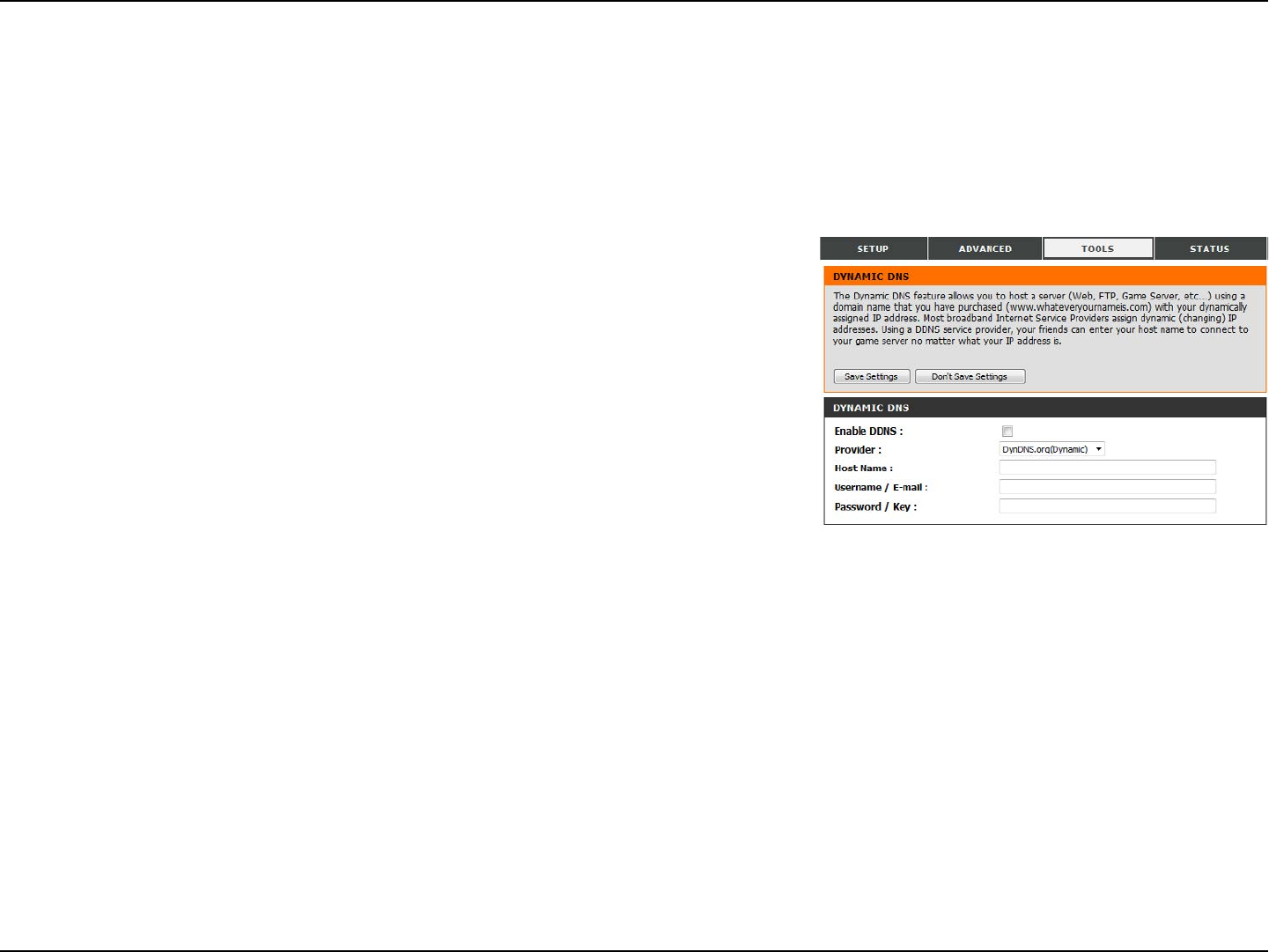

Dynamic DNS
Tick this checkbox to enable the DDNS feature.
Select a DDNS service provider to use.
Enter the host name that you registered with your DDNS
service provider.
Enter the username for your DDNS account.
Enter the password for your DDNS account.
The DDNS feature allows you to host a server (Web, FTP, or Game Server) using a domain name that you have purchased (such as
www.exampledomain.com) with your dynamically assigned IP address. You can use one of the listed DDNS service, or you can sign up for D-Link’s
free DDNS service at www.dlinkddns.com. After modifying any settings, click Save Settings to save your changes.
Enable DDNS:
Provider:
Host Name:
Username / E-mail:
Password / Key:
![](/img.php?id=2230131&img=bge.png)
74D-Link DWR-755 User Manual
Section 3 - Conguration

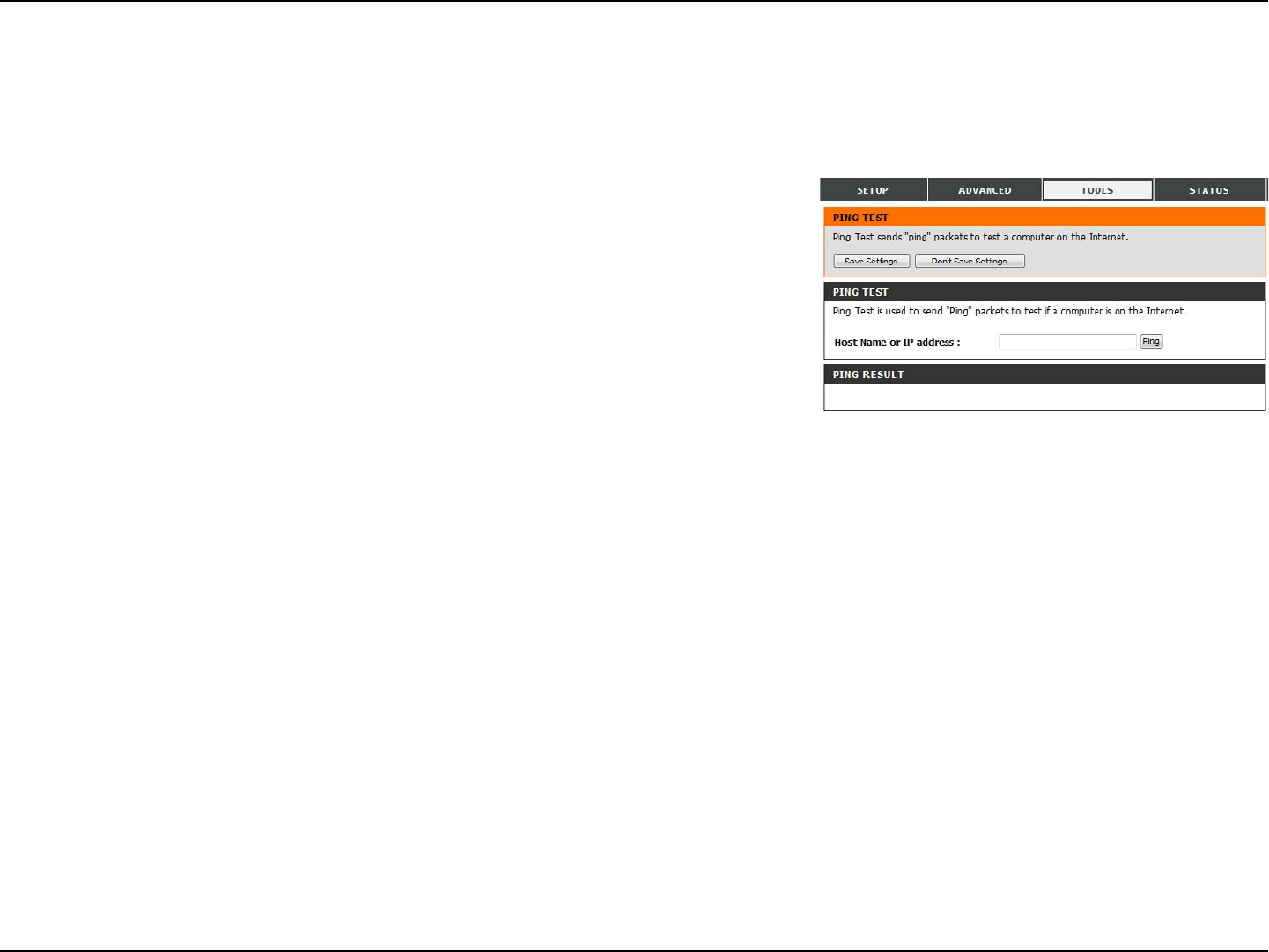

System Check
Enter a host name or the IP address that you want to ping and
click the Ping button. The results of the ping attempt will be
displayed in the PING RESULT section below.
This useful diagnostic utility can be used to check if a computer is connected to the network. It sends ping packets and listens for responses from
the specic host. After modifying any settings, click Save Settings to save your changes.
Host Name or IP
Address:
![](/img.php?id=2230131&img=bgf.png)
75D-Link DWR-755 User Manual
Section 3 - Conguration

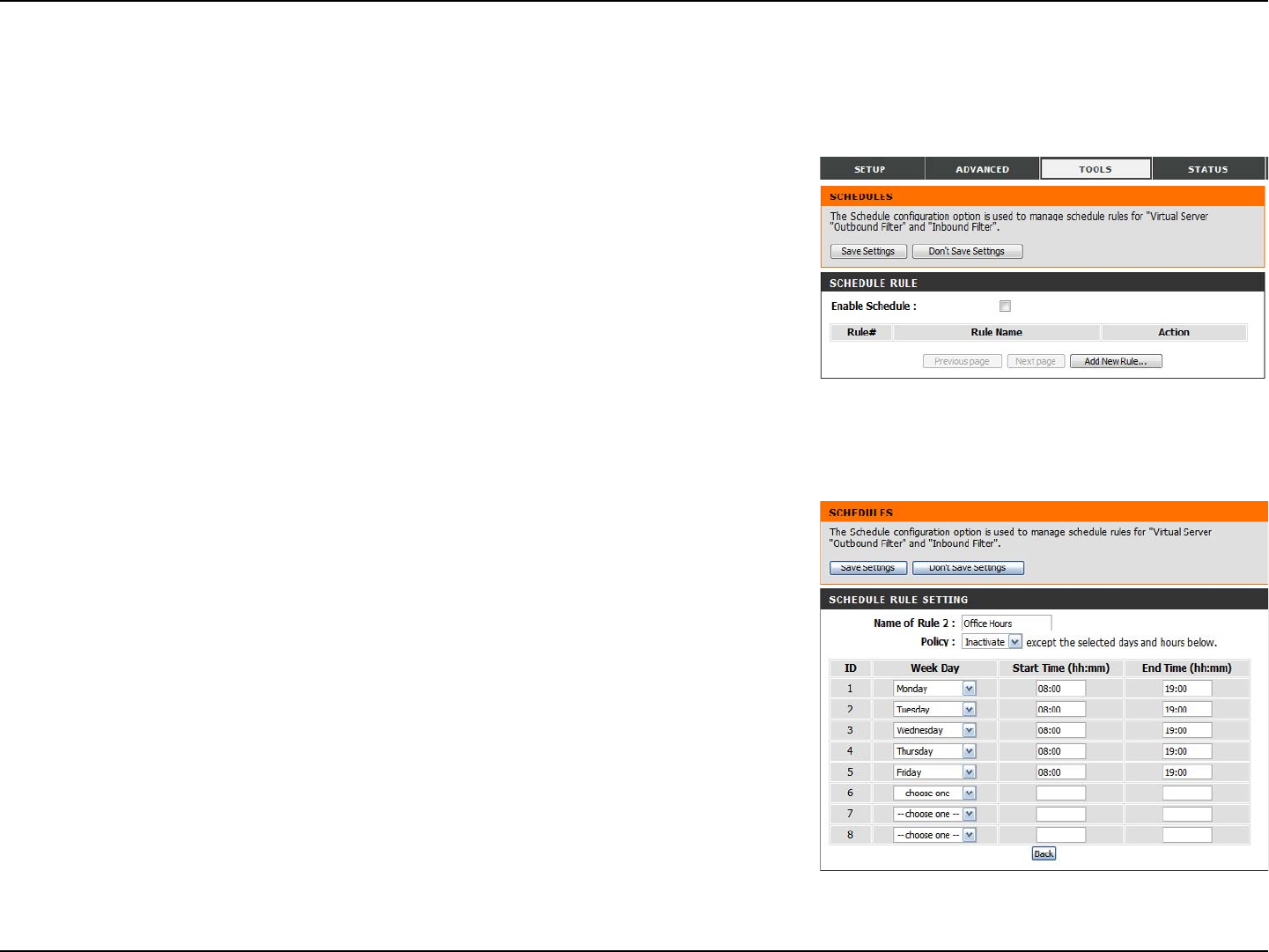

Schedules
Check this box to enable schedules.
Click this icon to edit the selected rule. (see below)
Click this icon to delete the selected rule.
Click this button to go to the previous page of rules.
Click this button to go to the next page of rules.
Click this button to specify the start time, end time, and name
of the rule.
Click this button to create a new rule. (see below)
This section allows you to manage schedule rules for various rewall and parental control features. After modifying any settings, click Save Settings
to save your changes.
Enable Schedule:
Edit:
Delete:
Previous Page:
Next Page:
Add New Rule..:
Enter a name for your new schedule.
Select Activate or Inactivate to decide whether features that
use the schedule should be active or inactive except during
the times specied.
Select a day of the week for the start time and end time.
Enter the time at which you would like the schedule to
become active.
Select the time at which you would like the schedule to
become inactive.
Name of Rule #:
Policy:
Week Day:
Start Time (hh:mm):
End Time (hh:mm):
![](/img.php?id=2230131&img=bg10.png)
76D-Link DWR-755 User Manual
Section 3 - Conguration
PIN Control
This feature allows you to set up a pin code in order to activate/deactivate or modify an existing pin code. After querying your SIM card for an
existing PIN, you can Enable, Disable, or Modify the pin code. Click Save Settings to save any changes made.
![](/img.php?id=2230131&img=bg11.png)
77D-Link DWR-755 User Manual
Section 3 - Conguration
General:
WAN:
3G Card:
LAN:
Wireless LAN:
LAN Computers:

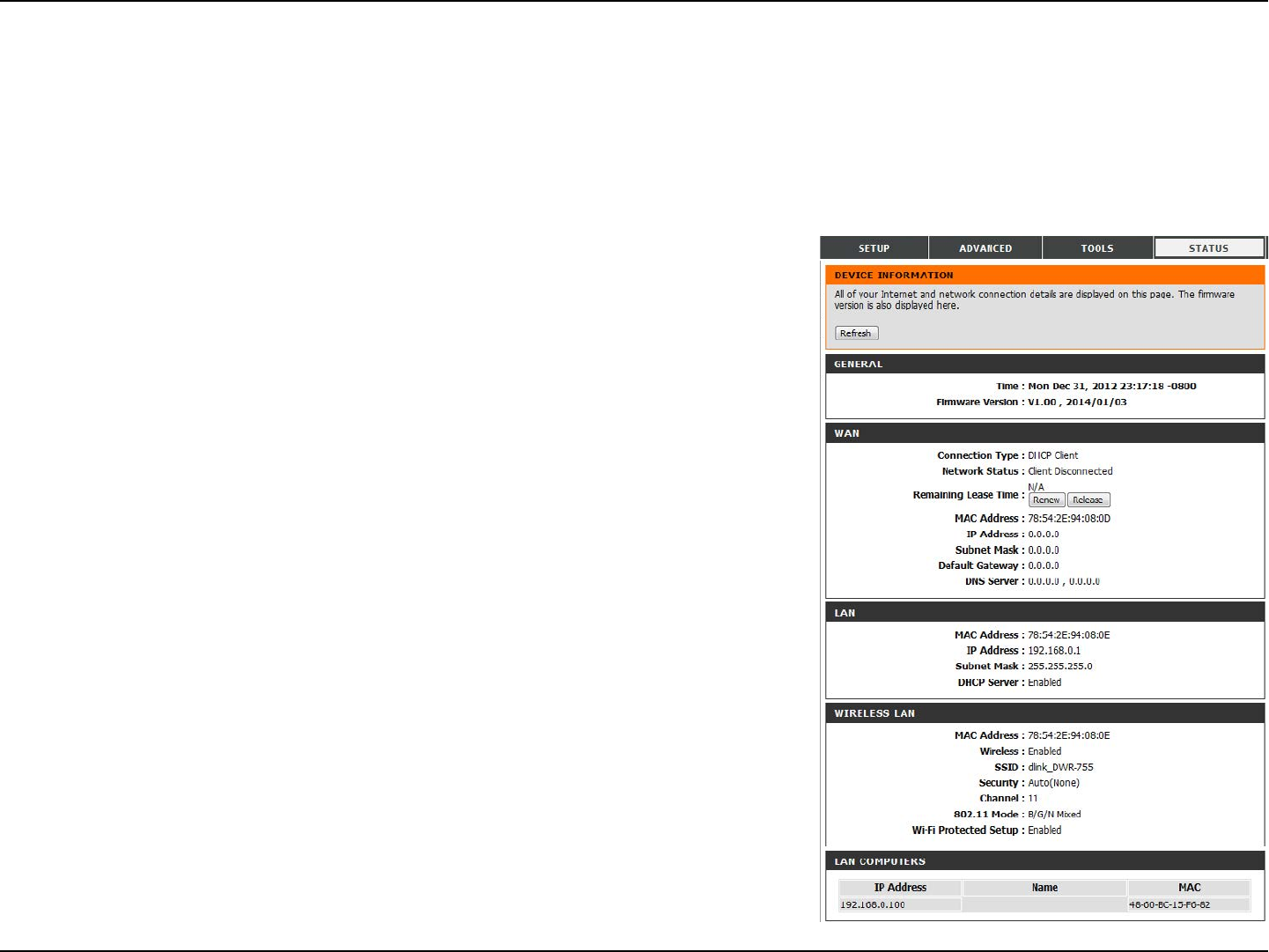

Device Info
All of your Internet and network connection details are displayed on this page. The rmware version is also displayed here. If your Internet connection
is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use Release to disconnect from your ISP and use
Renew to connect to your ISP.
Displays the current time and rmware version.
Displays the WAN connection details of the router.
Displays the 3G connection details of the router.
Displays the LAN connection details of the router.
Displays the wireless LAN connection details of the router
Displays the list of clients connected to the router.
Status
![](/img.php?id=2230131&img=bg12.png)
78D-Link DWR-755 User Manual
Section 3 - Conguration

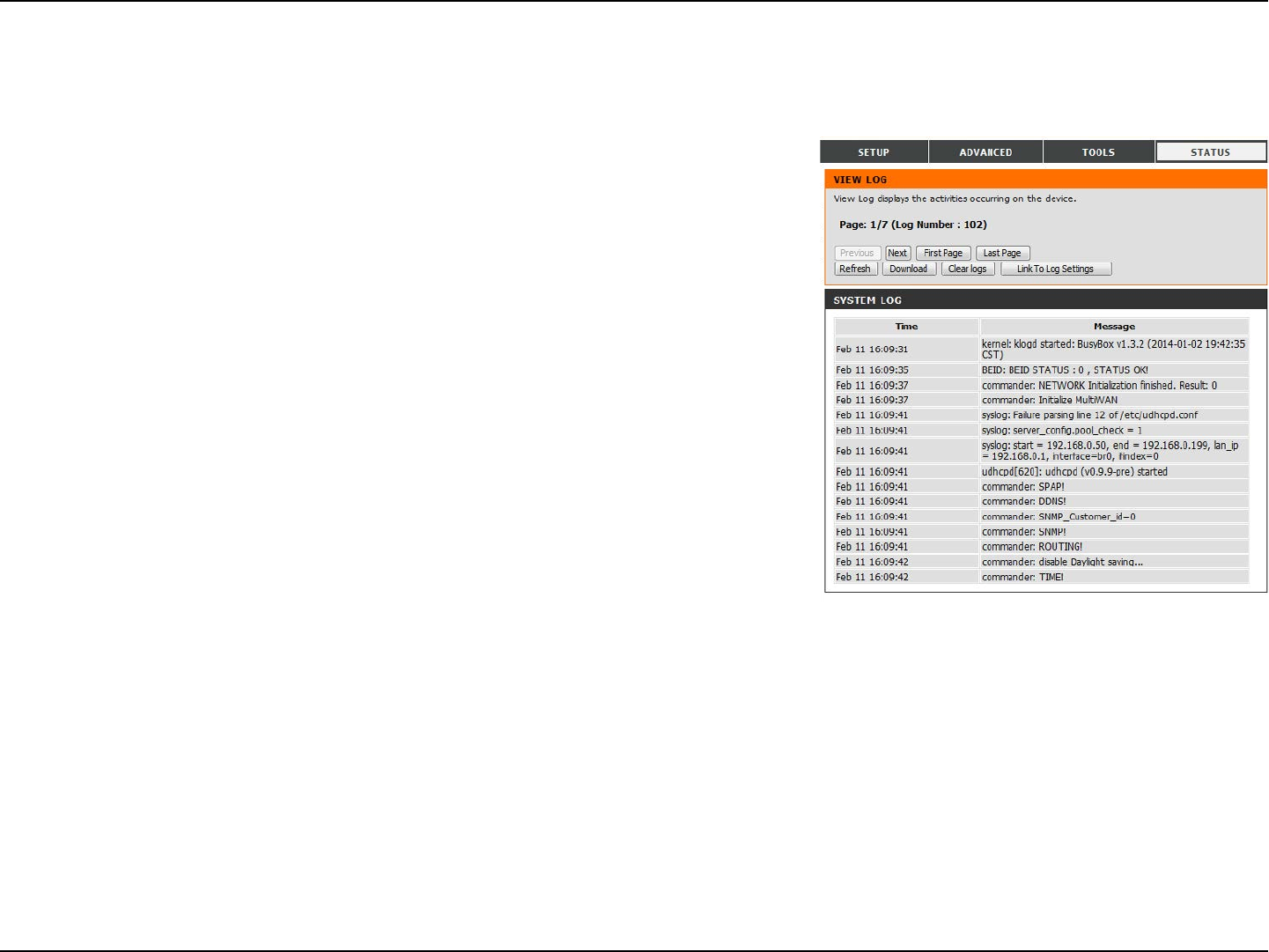

Log
Here, you can view and download the system log.
Previous:
Next:
First Page:
Last Page:
Refresh:
Download:
Clear Logs:
Link To Log Settings:
Click this button to go to the previous page of the log.
Click this button to go to the next page of the log.
Click this button to skip to the rst page of the log.
Click this button to skip to the last page of the log.
Click this button to refresh the system log.
Click this button to download the current system log to your
computer.
Click this button to clear the system log.
Click this button for a link that goes to the Log Settings page.
![](/img.php?id=2230131&img=bg13.png)
79D-Link DWR-755 User Manual
Section 3 - Conguration

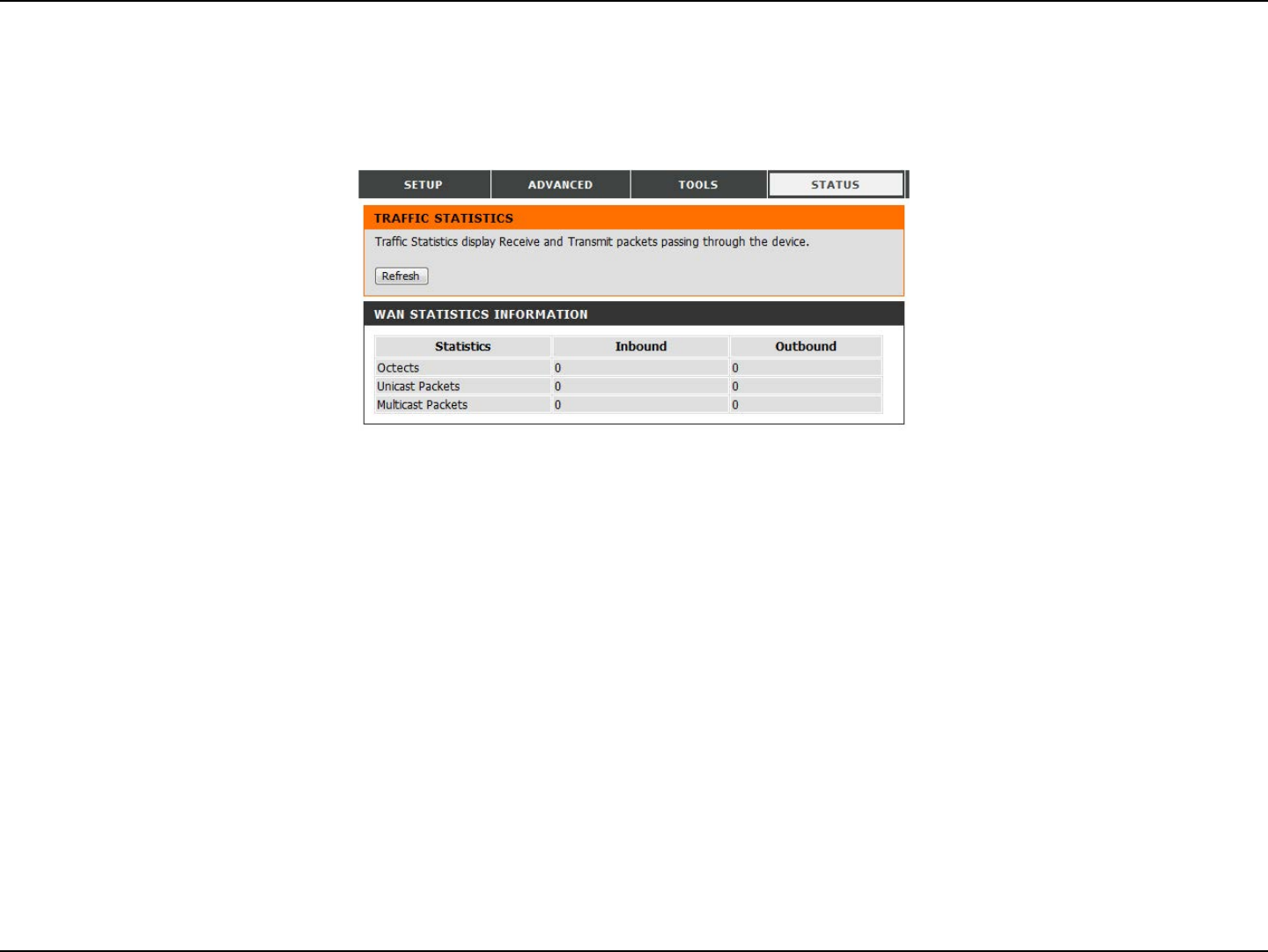

Statistics
Here you can view the packets transmitted and received by your router for both the WAN and LAN ports. The trac counter will reset if the device is
rebooted. Click the Refresh button to refresh the WAN statistics.
![](/img.php?id=2230131&img=bg14.png)
80D-Link DWR-755 User Manual
Section 3 - Conguration

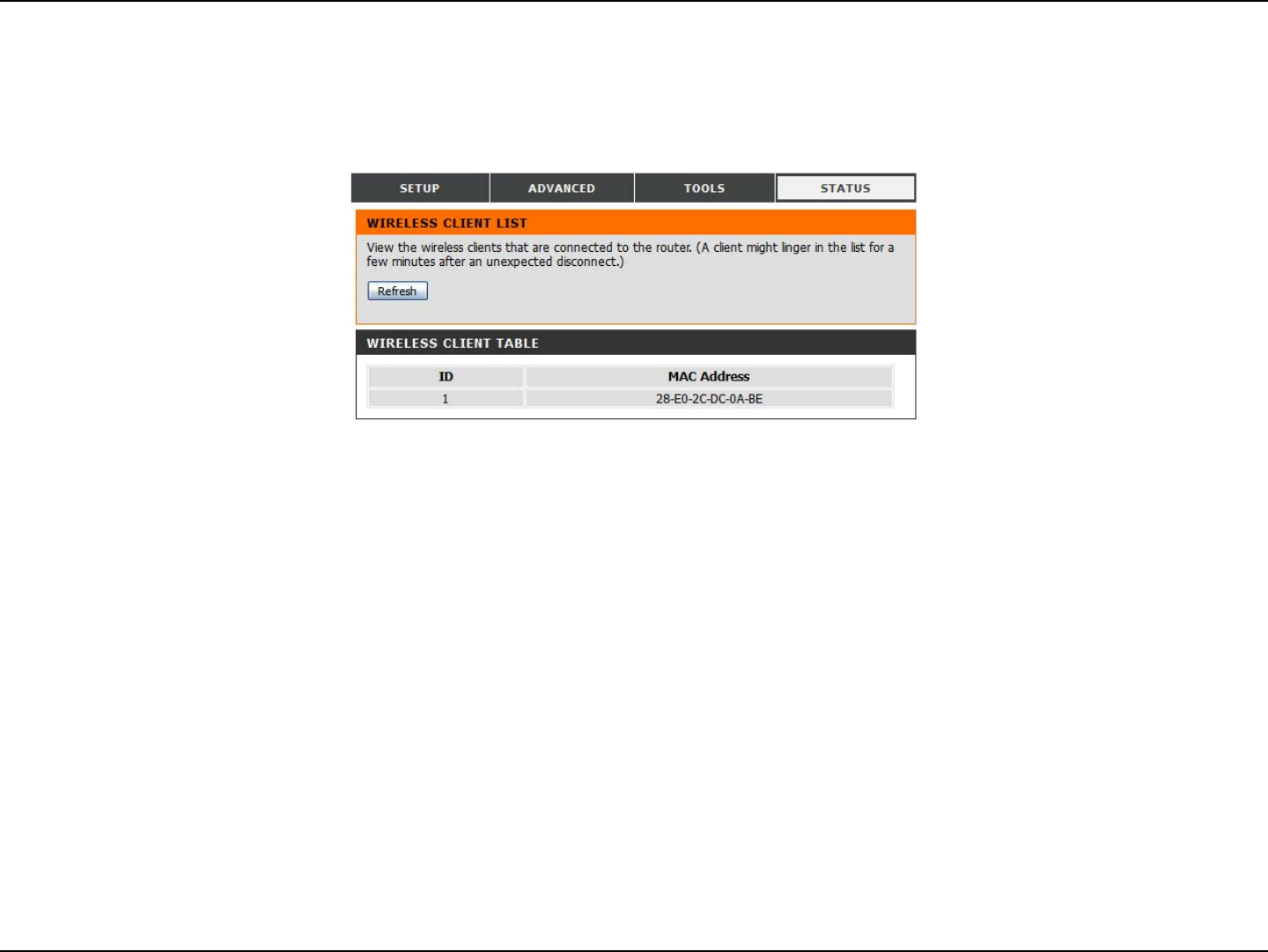

Wireless
This table displays a list of wireless clients that are connected to your wireless router. Click Refresh to refresh the list.
![](/img.php?id=2230131&img=bg15.png)
81D-Link DWR-755 User Manual
Section 3 - Conguration

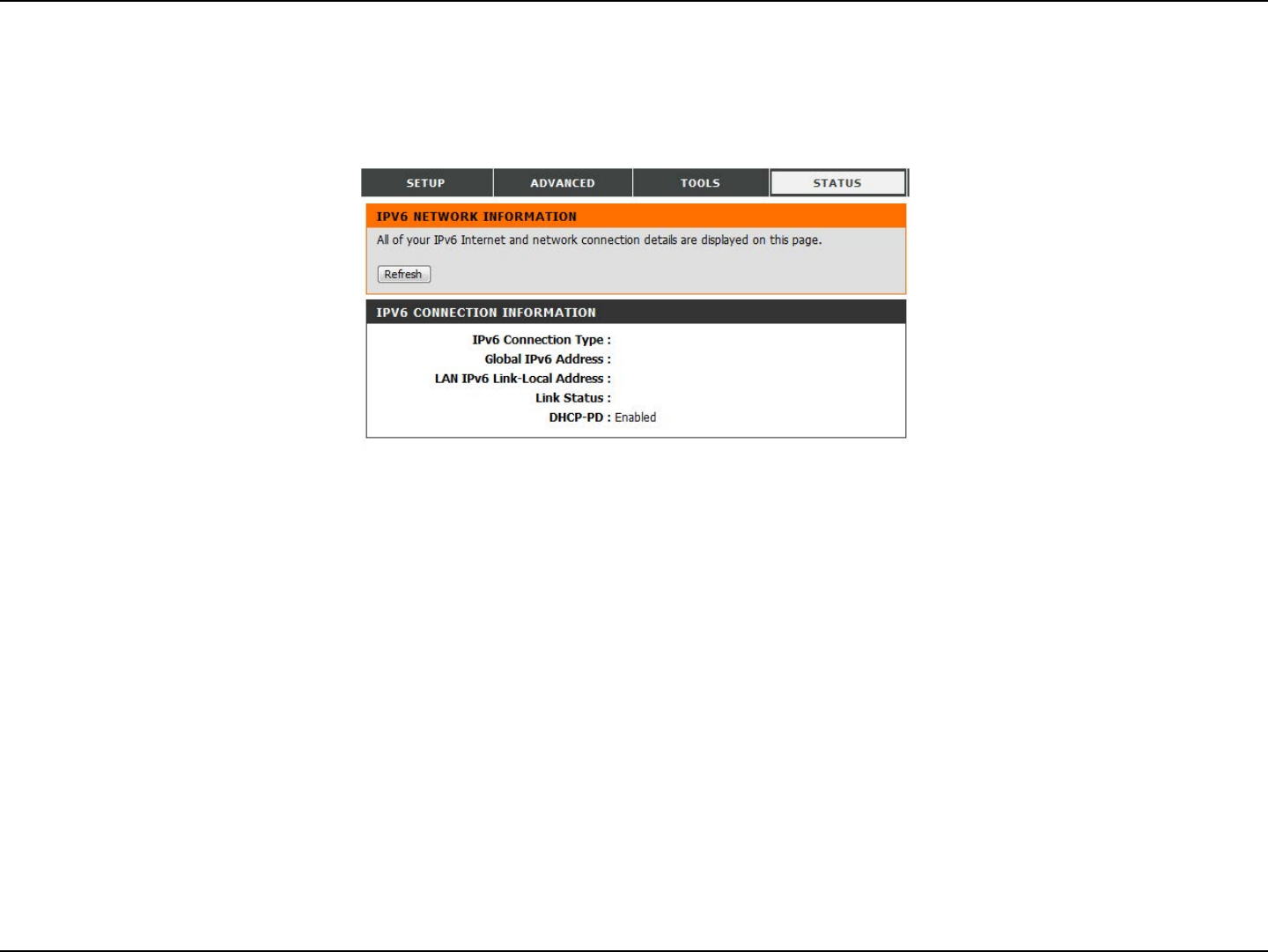

IPv6 Status
This page displays the IPv6 network connection details.
![](/img.php?id=2230131&img=bg16.png)
82D-Link DWR-755 User Manual
Section 3 - Conguration

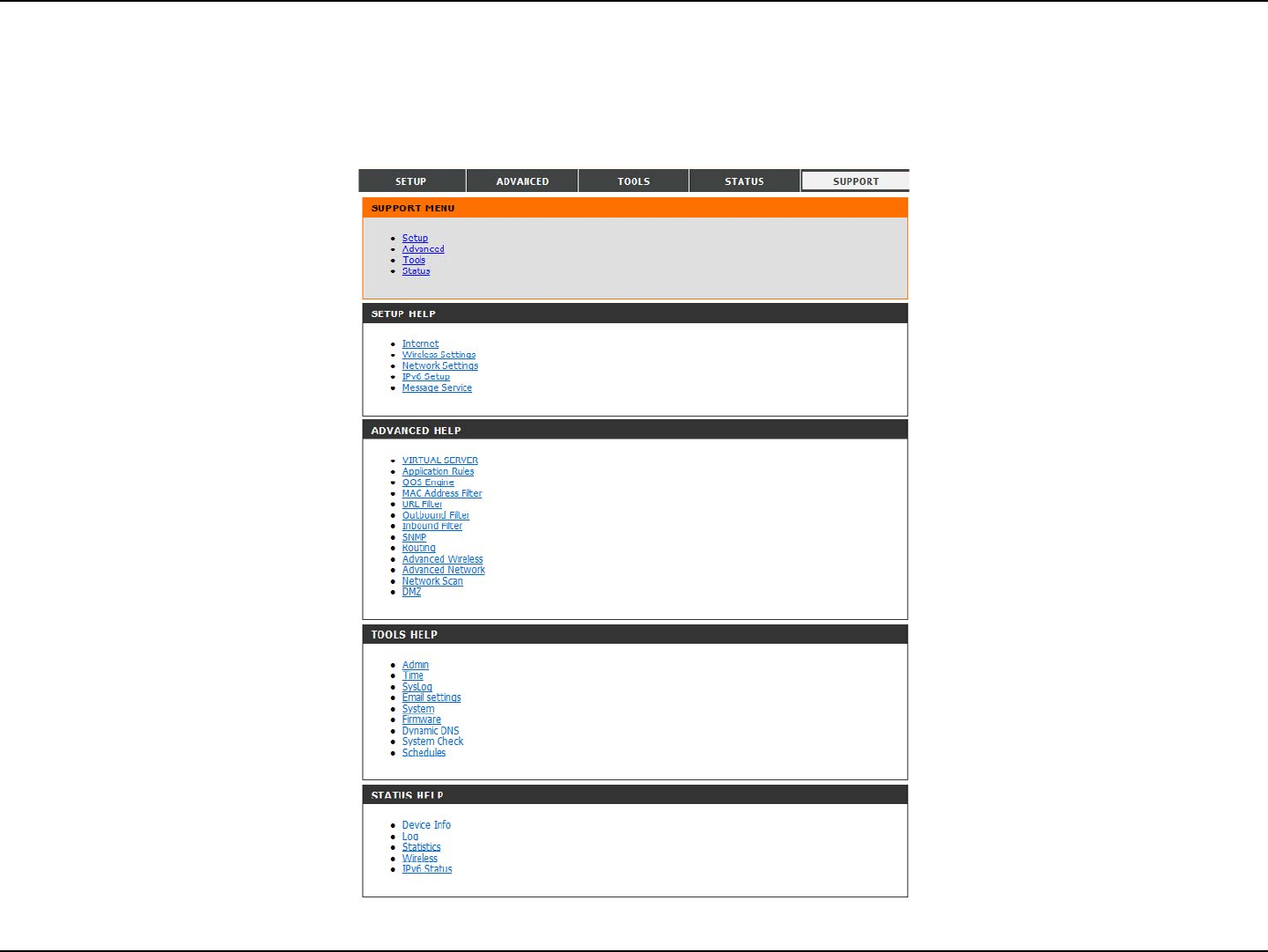

Support
This screen gives you more information about the various parts of the conguration interface. Click on a link to learn more about that topic.
![](/img.php?id=2230131&img=bg17.png)
83D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network

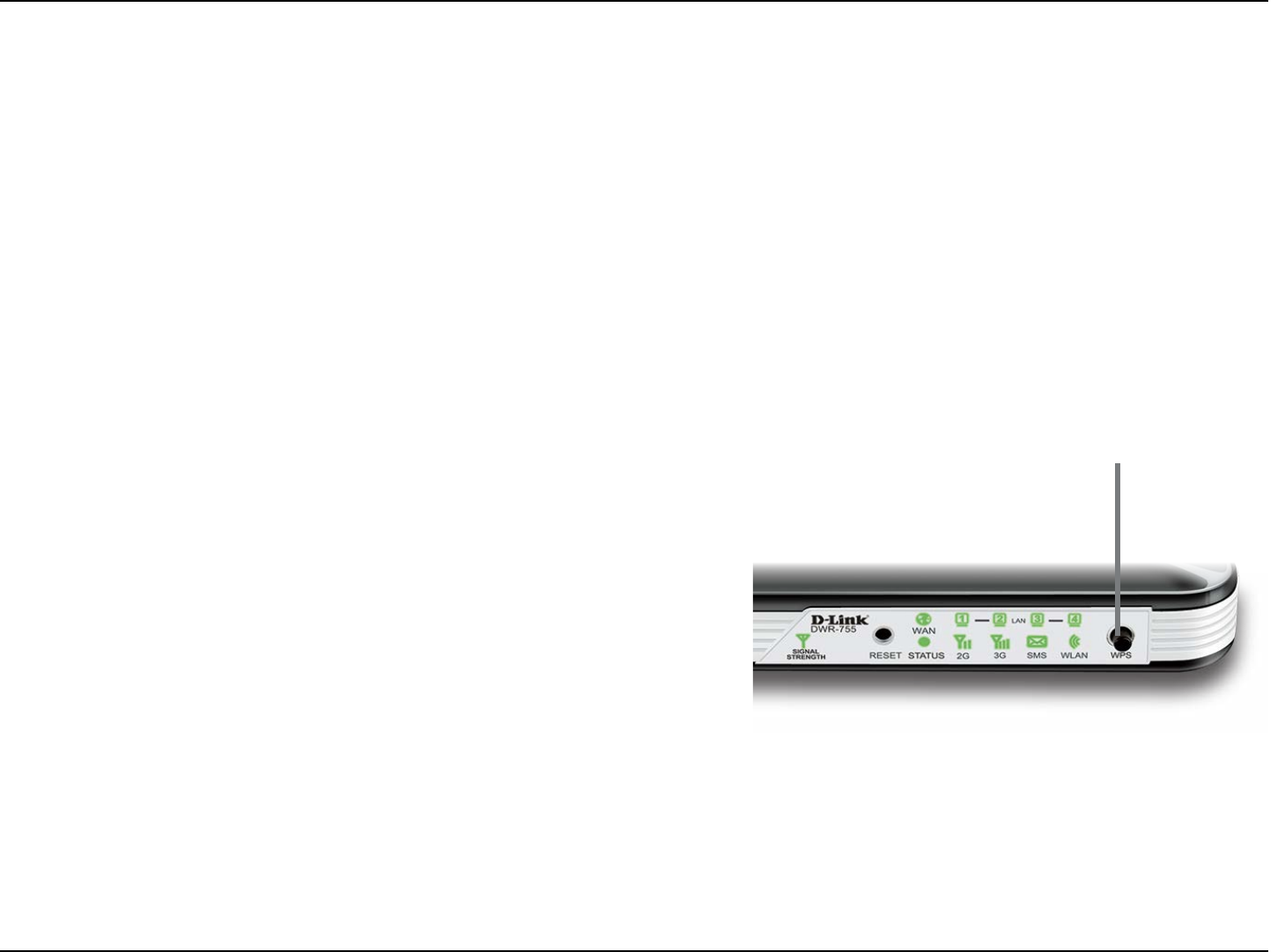

Step 2 - Within 2 minutes, press the WPS button on your wireless client
(or launch the software utility and start the WPS process).
Step 1 - Press the WPS button on the router for about 1 second.
The Power/Status LED will start to blink.
Step 3 - Allow up to 2 minutes to congure. Once the Power/Status
LED stops blinking, you will be connected and your wireless
connection will be secure with WPA2.
To connect your wireless devices to the router using WPS:
Connecting a Wireless Client
WPS Button
The easiest and most secure way to connect your wireless devices to the router is WPS (Wi-Fi Protected Setup). Most wireless
devices such as wireless adapters, media players, Blu-ray DVD players, wireless printers and cameras will have a WPS button
(or a software utility with WPS) that you can press to connect to the router. Please refer to your user manual for the wireless
device you want to connect to make sure you understand how to enable WPS. To connect a client, follow the steps below:
WPS Button
![](/img.php?id=2230131&img=bg18.png)
84D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network

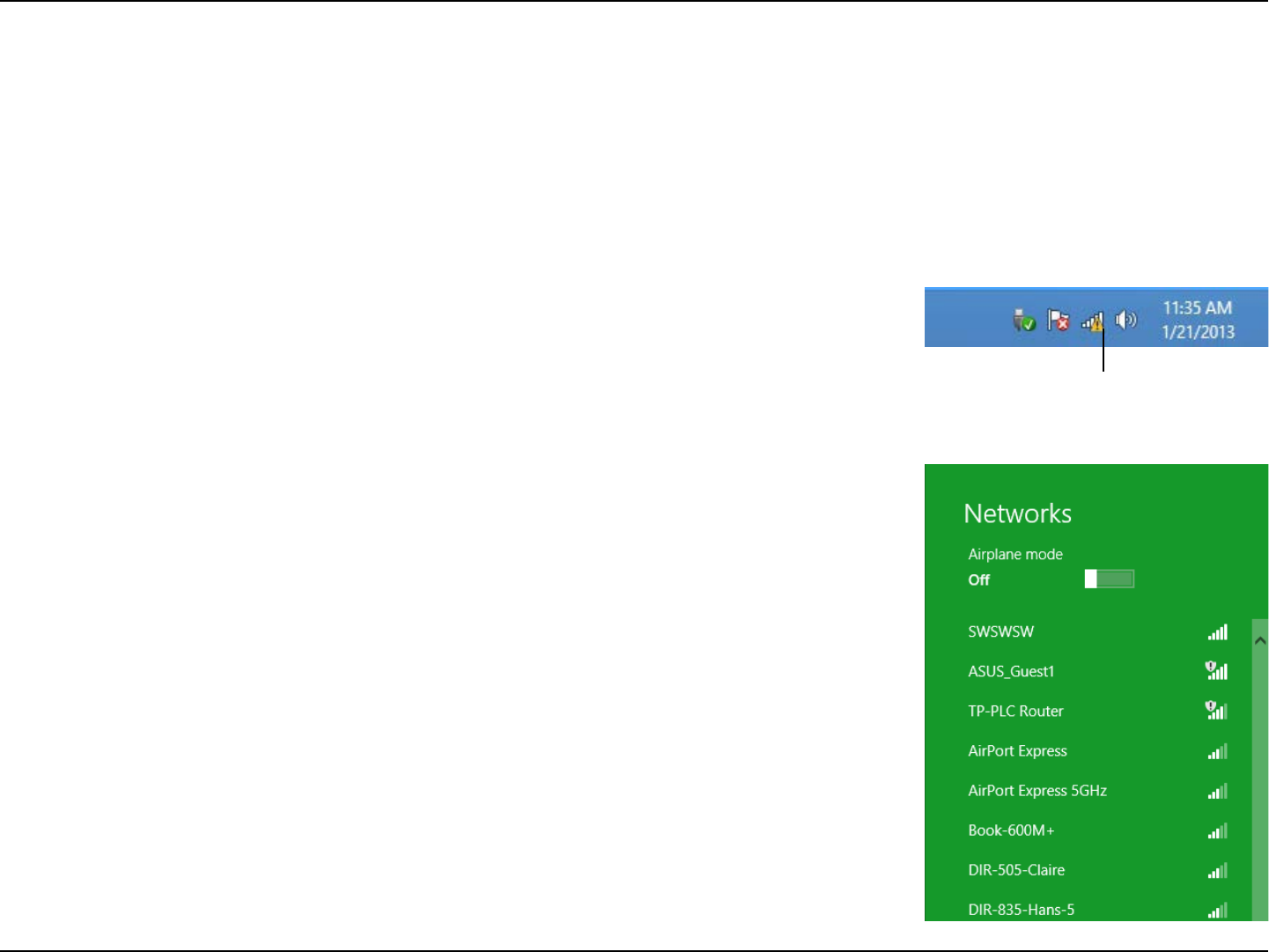

Windows® 8
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being used.
To join an existing network, locate the wireless network icon in the taskbar, next to
the time display.
Wireless Icon
Clicking on this icon will display a list of wireless networks which are within connecting
proximity of your computer. Select the desired network by clicking on the network
name.
![](/img.php?id=2230131&img=bg19.png)
85D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network

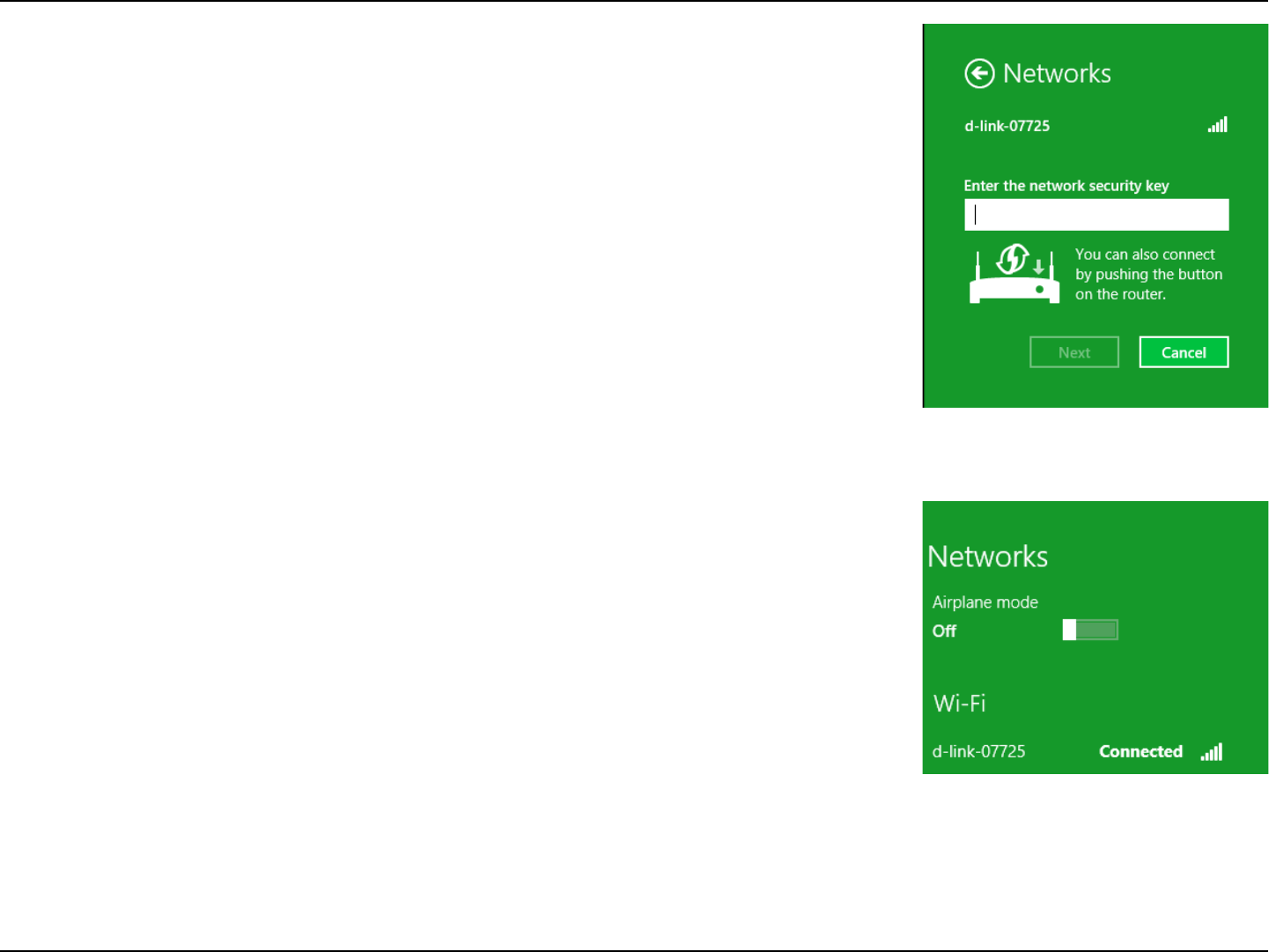

You will then be prompted to enter the network security key (Wi-Fi password) for
the wireless network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you can also
press the WPS button on your router at this point to enable the WPS function.
When you have established a successful connection to a wireless network, the word
Connected will appear next to the name of the network to which you are connected.
![](/img.php?id=2230131&img=bg1a.png)
86D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network
Windows® 7
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.

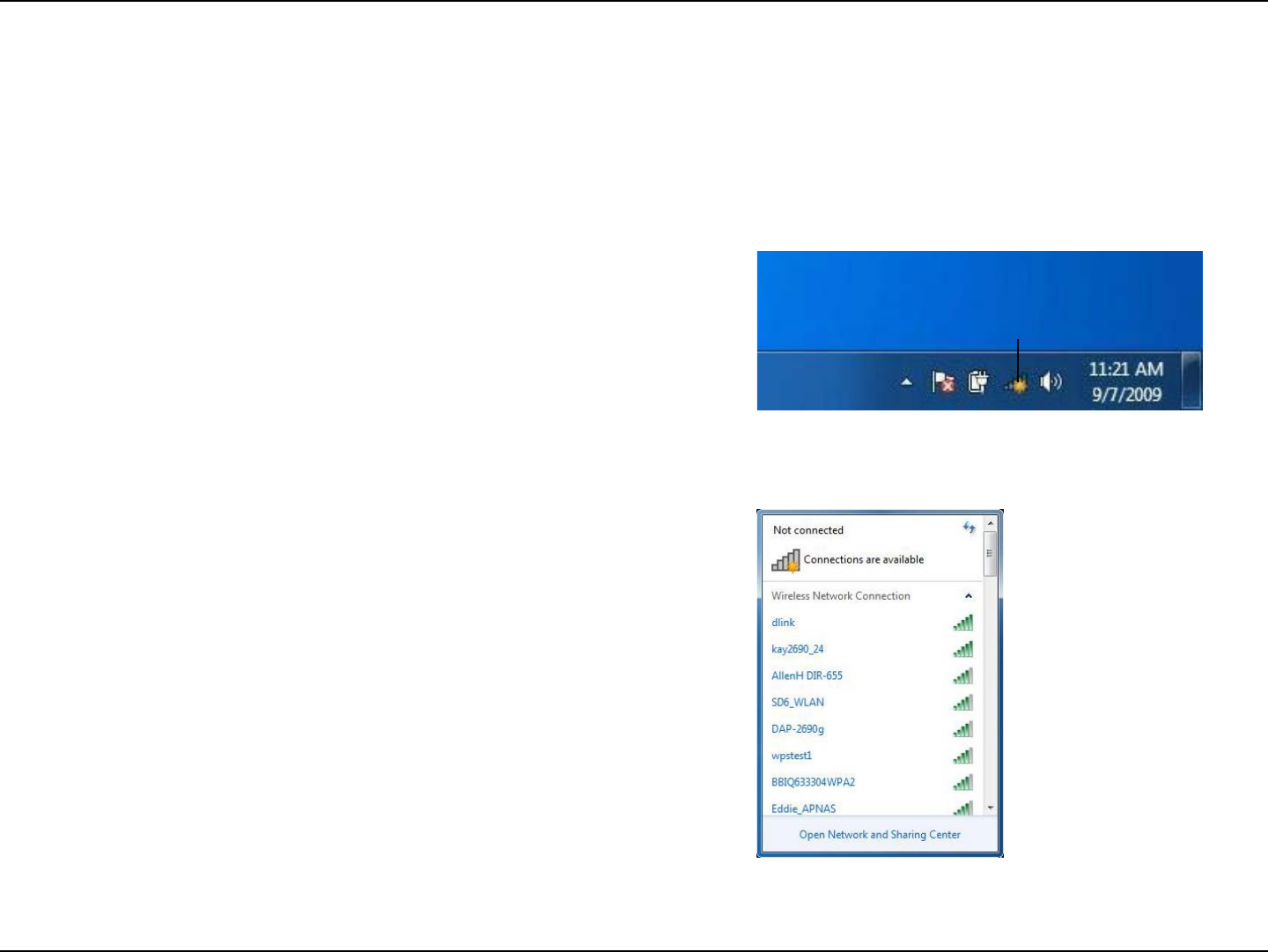

1. Click on the wireless icon in your system tray (lower-right corner).
2. The utility will display any available wireless networks in your area.
Wireless Icon
WPA/WPA2
![](/img.php?id=2230131&img=bg1b.png)
87D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network

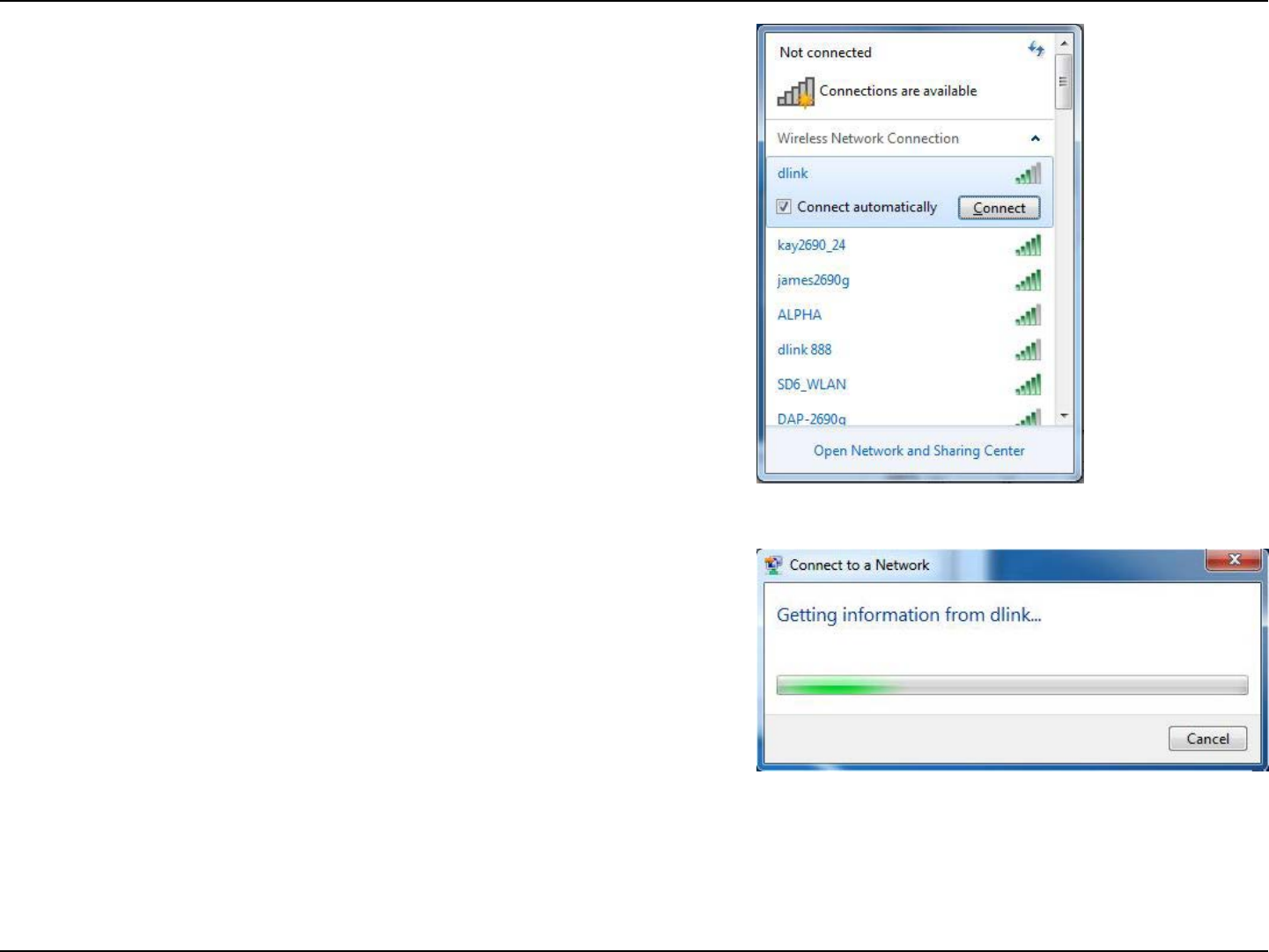

3. Highlight the wireless network (SSID) you would like to connect to
and click the Connect button.
If you get a good signal but cannot access the Internet, check your
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
4. The following window appears while your computer tries to
connect to the router.
![](/img.php?id=2230131&img=bg1c.png)
88D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network
5. Enter the same security key or passphrase that is on your router and
click Connect. You can also connect by pushing the WPS button on
the router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.
![](/img.php?id=2230131&img=bg1d.png)
89D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network
WPS
The WPS feature of the DWR-755 can be congured using Windows® 7. Carry out the following steps to use Windows® 7 to
congure the WPS feature:

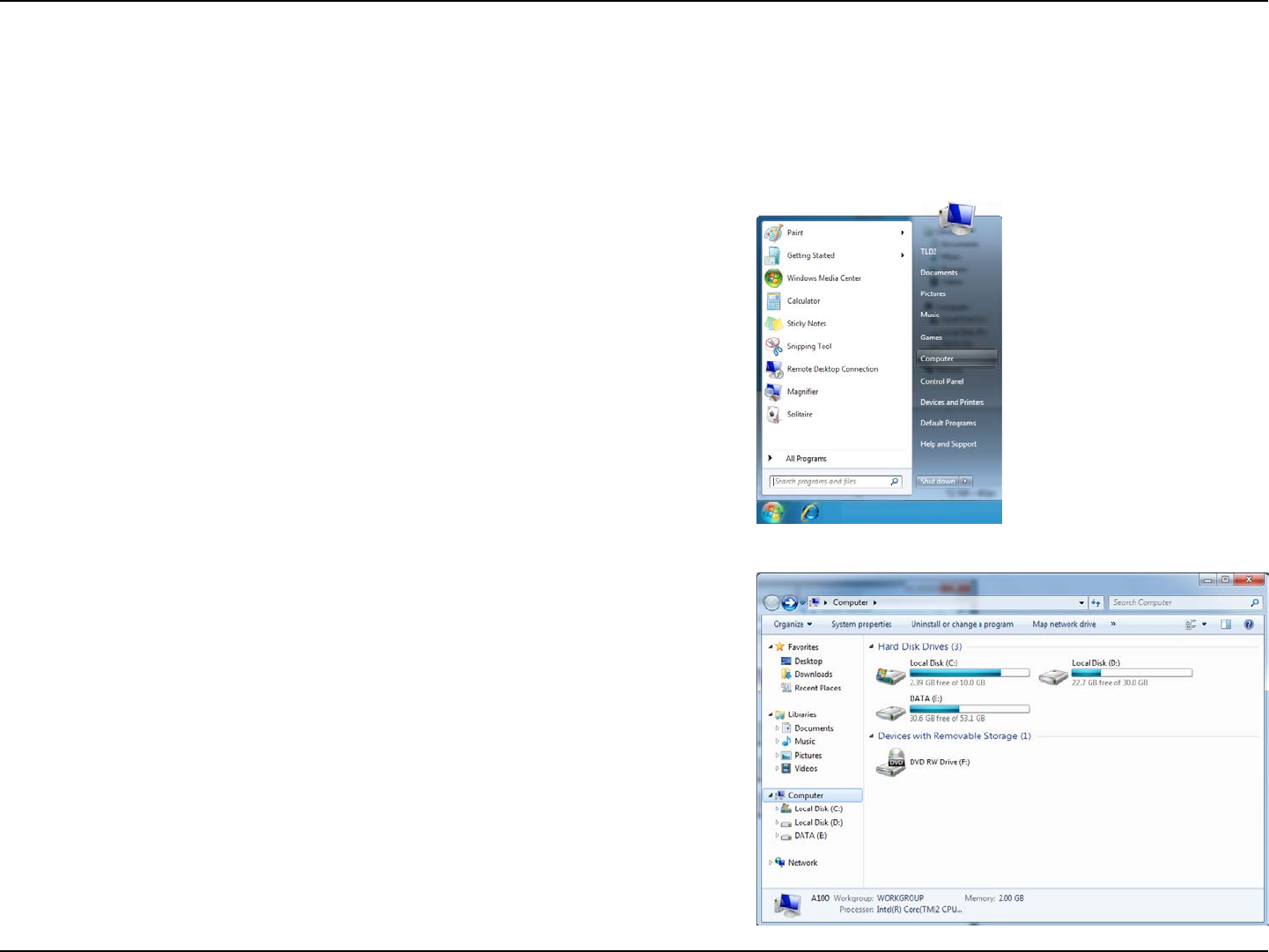

1. Click the Start button and select Computer from the Start menu.
2. Click Network on the left side.
![](/img.php?id=2230131&img=bg1e.png)
90D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network

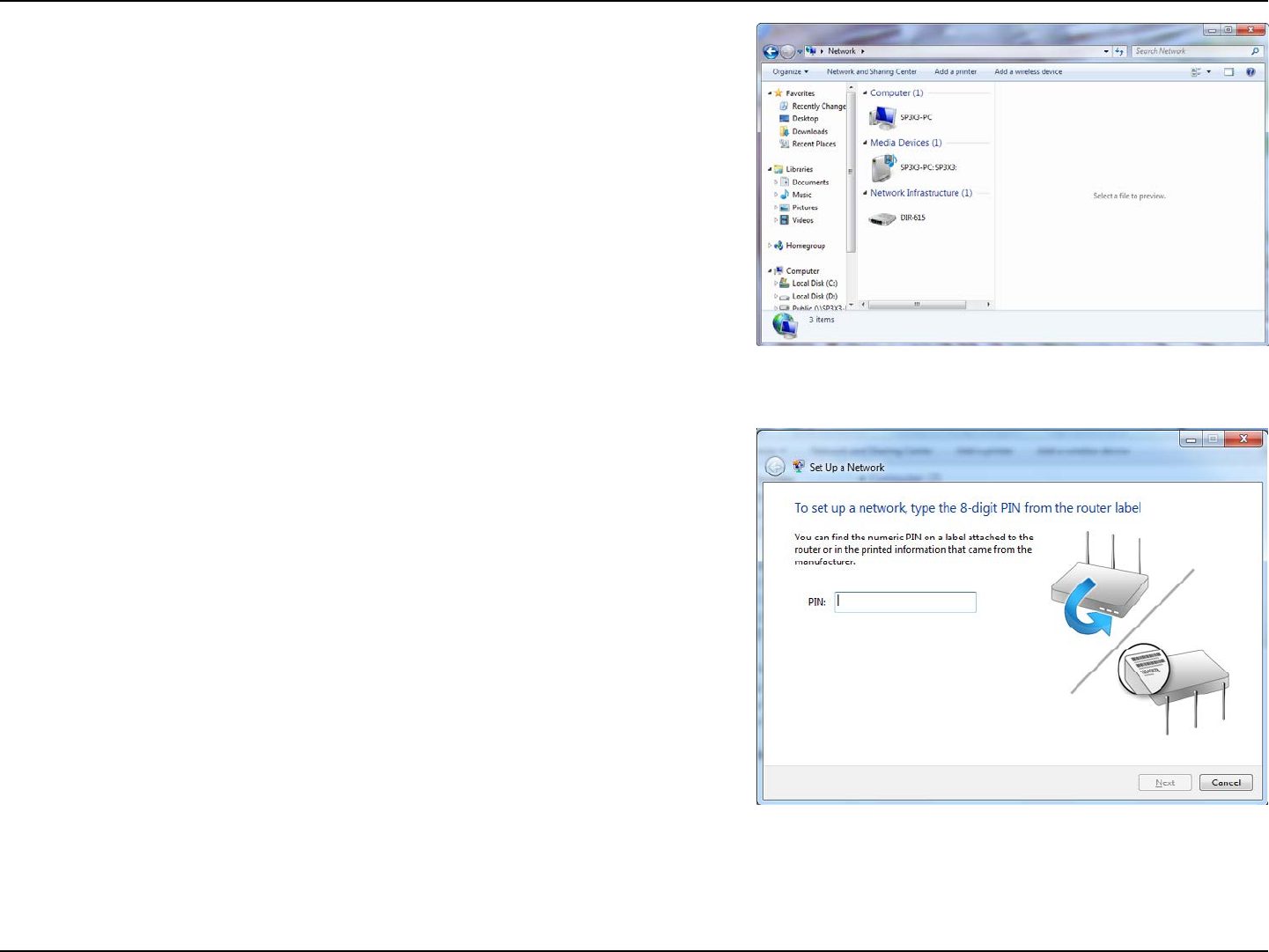

3. Double-click your D-Link router.
4. Input the WPS PIN number (displayed in the WPS window on the
router’s LCD screen or in the Setup > Wireless Setup menu in the
router’s Web UI) and click Next.
![](/img.php?id=2230131&img=bg1f.png)
91D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network

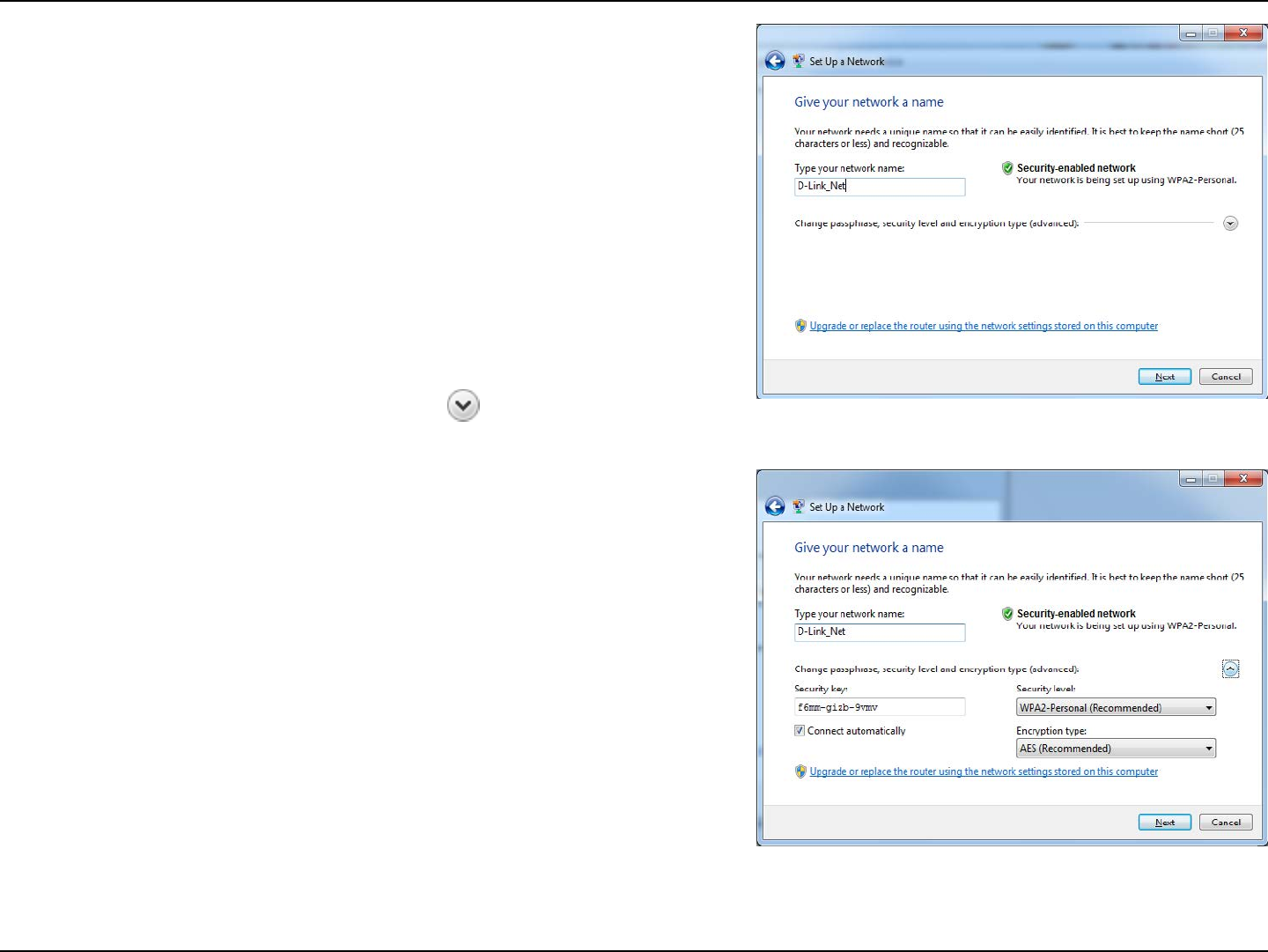

5. Type a name to identify the network.
6. To congure advanced settings, click the icon.
Click Next to continue.
![](/img.php?id=2230131&img=bg20.png)
92D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network

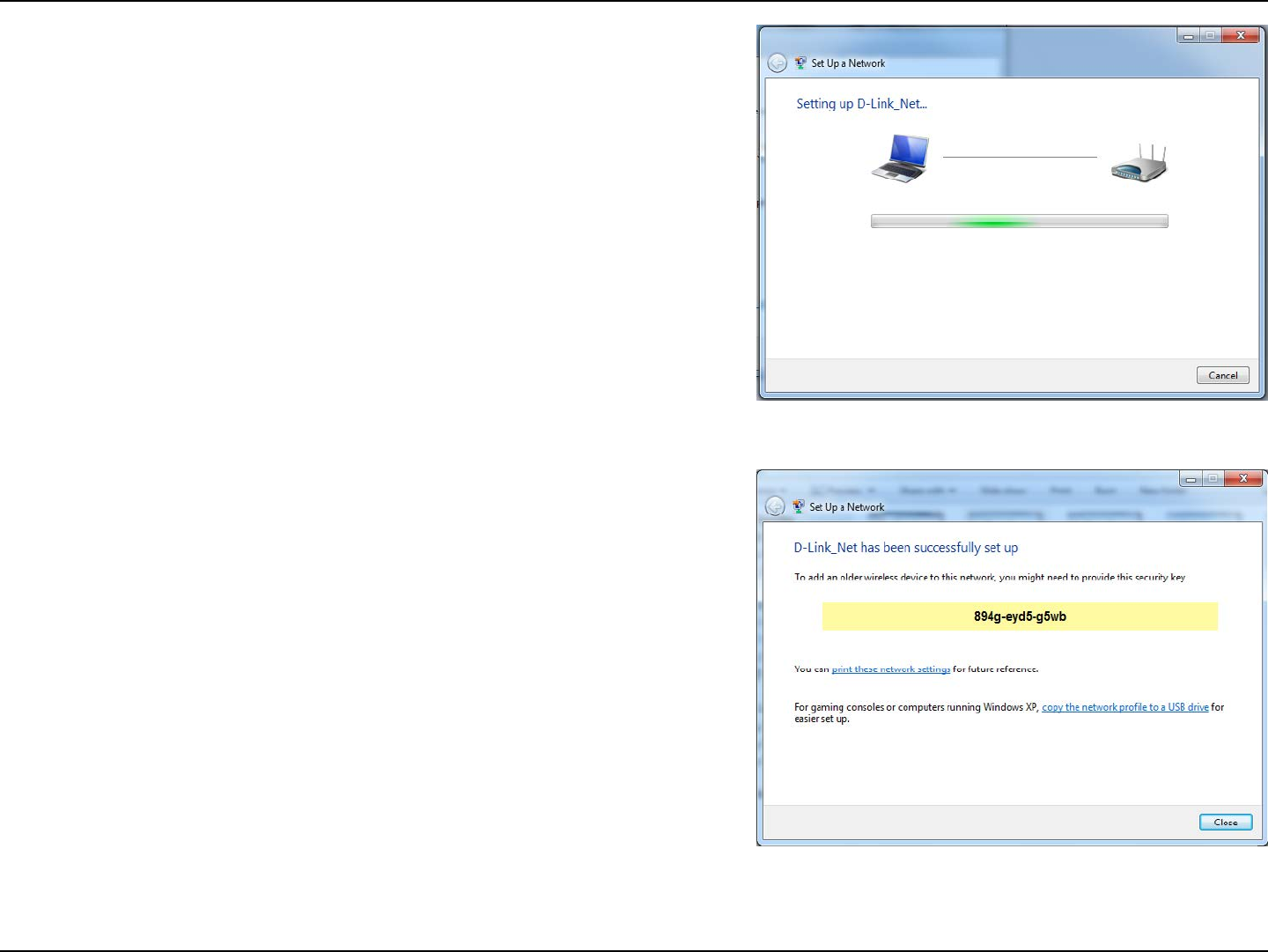

7. The following window appears while the router is being congured.
Wait for the conguration to complete.
8. The following window informs you that WPS on the router has
been setup successfully.
Make a note of the security key as you may need to provide this
security key if adding an older wireless device to the network in
the future.
9. Click Close to complete WPS setup.
![](/img.php?id=2230131&img=bg21.png)
93D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network
Windows Vista®
Windows Vista® users may use the built-in wireless utility. If you are using another company’s utility or Windows® 2000, please
refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site
survey” option similar to the Windows Vista® utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select Connect to a network.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check you TCP/
IP settings for your wireless adapter. Refer to the Networking Basics
section in this manual for more information.
![](/img.php?id=2230131&img=bg22.png)
94D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
2. Highlight the wireless network (SSID) you would like to connect
to and click Connect.
1. Open the Windows Vista® Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower right corner of
screen). Select Connect to a network.
![](/img.php?id=2230131&img=bg23.png)
95D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network

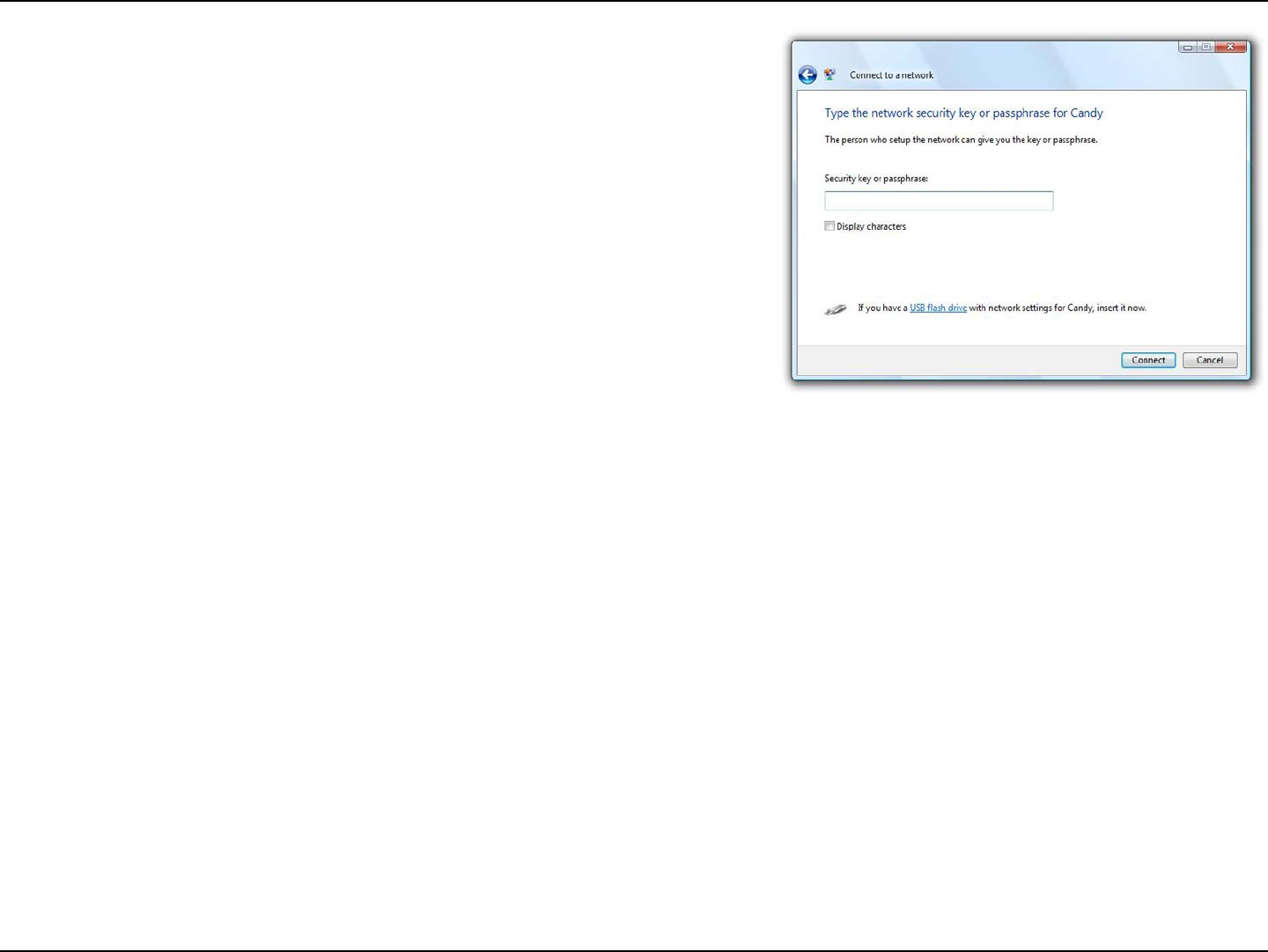

3. Enter the same security key or passphrase that is on your router and
click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.
![](/img.php?id=2230131&img=bg24.png)
96D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network

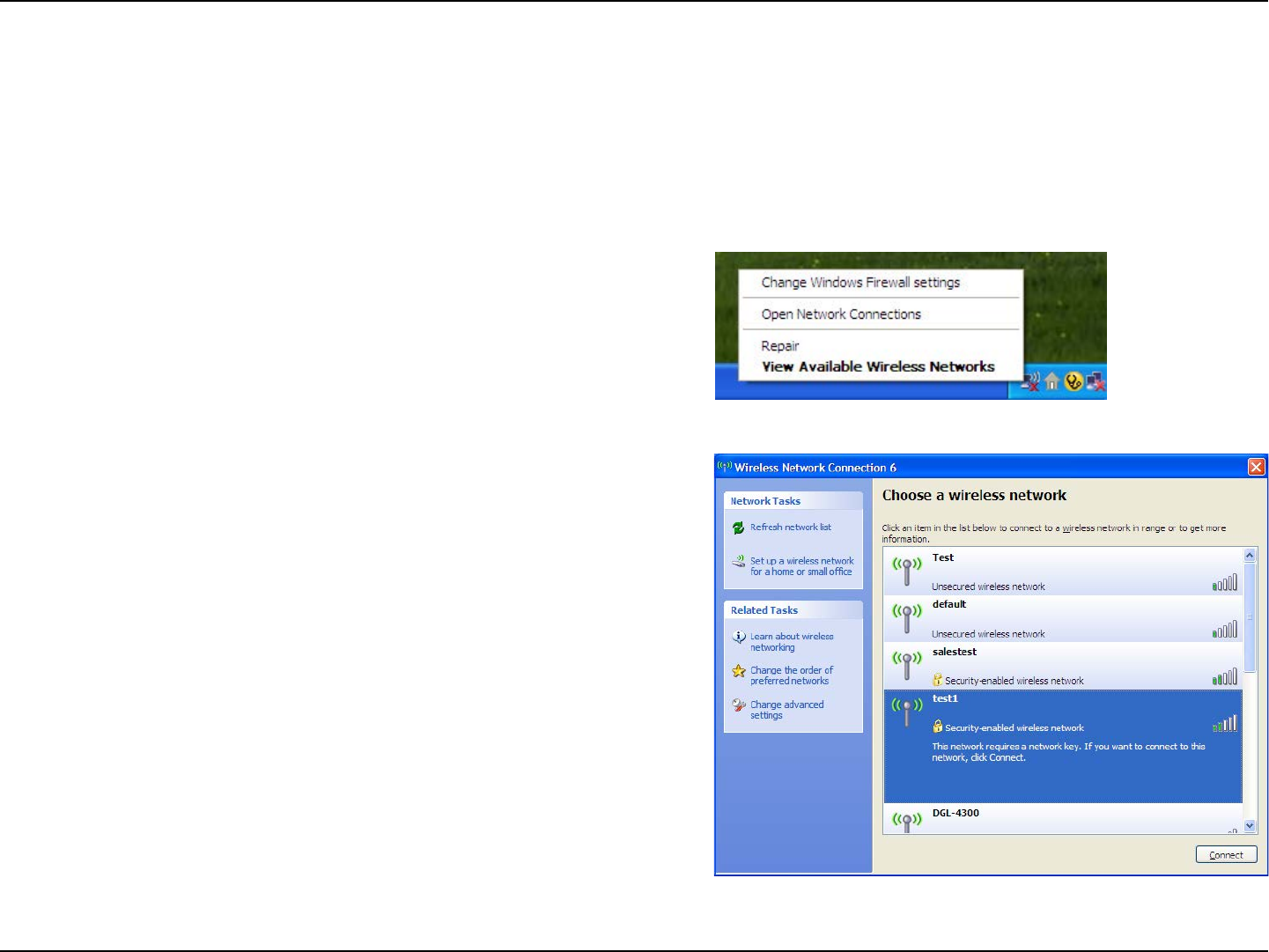

Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service
Pack 2 users. If you are using another company’s utility, please refer to the user manual of your wireless adapter for help with
connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.

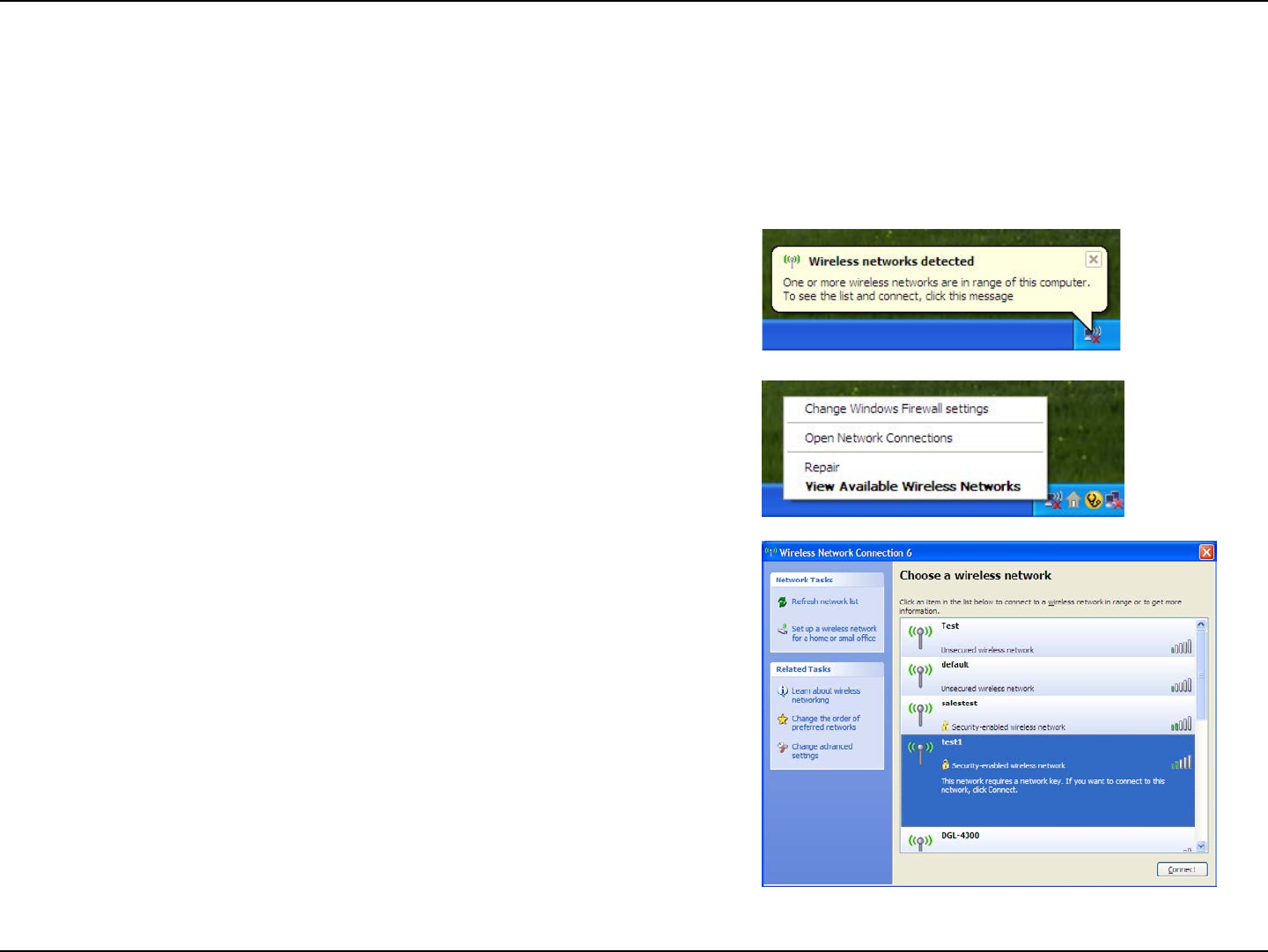

Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select View Available Wireless Networks.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check you TCP/
IP settings for your wireless adapter. Refer to the Networking Basics
section in this manual for more information.
![](/img.php?id=2230131&img=bg25.png)
97D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network
It is recommended to enable WPA on your wireless router or access point before conguring your wireless adapter. If you are
joining an existing network, you will need to know the WPA key being used.
2. Highlight the wireless network (SSID) you would like to connect
to and click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower-right corner
of screen). Select View Available Wireless Networks.
WPA/WPA2
![](/img.php?id=2230131&img=bg26.png)
98D-Link DWR-755 User Manual
Section 4 - Connecting to a Wireless Network

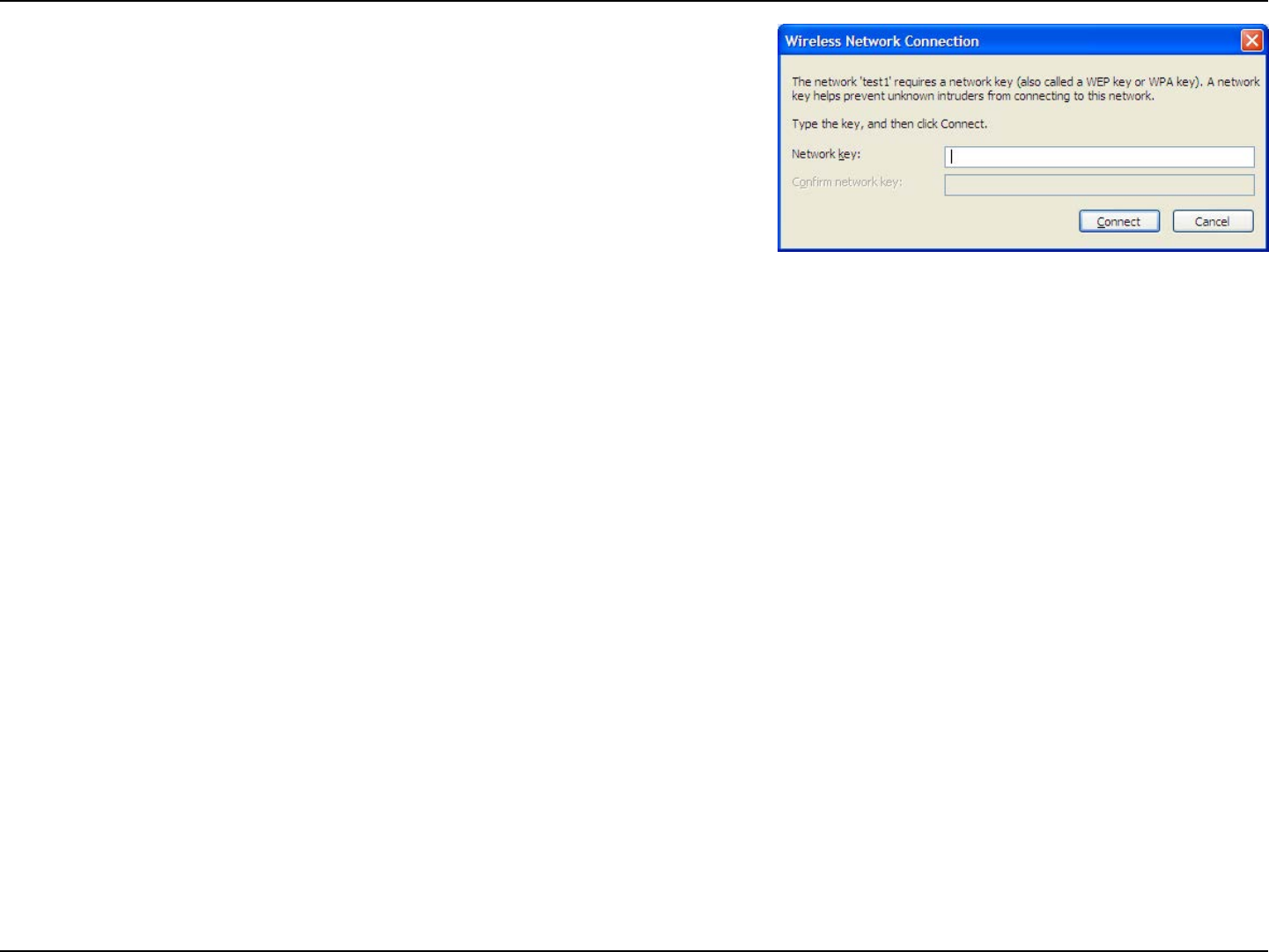

3. The Wireless Network Connection box will appear. Enter the WPA-PSK
passphrase and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the WPA-PSK settings are correct. The
WPA-PSK passphrase must be exactly the same as on the wireless router.
![](/img.php?id=2230131&img=bg27.png)
99D-Link DWR-755 User Manual
Section 5 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DWR-755. Read the
following descriptions if you are having problems. The examples below are illustrated in Windows® XP. If you have a dierent
operating system, the screenshots on your computer will look similar to the following examples.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website nor do you
have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must
be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
- Microsoft Internet Explorer® 6.0 and higher
- Mozilla Firefox 3.0 and higher
- Google™ Chrome 2.0 and higher
- Apple Safari 3.0 and higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a
dierent cable or connect to a dierent port on the device if possible. If the computer is turned o, the link light may not be
on.
• Disable any Internet security software running on the computer. Software rewalls such as Zone Alarm, Black Ice, Sygate,
Norton Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the help les included
with your rewall software for more information on disabling or conguring it.
![](/img.php?id=2230131&img=bg28.png)
100D-Link DWR-755 User Manual
Section 5 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click
the button to restore the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button.
Make sure nothing is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This
should open the login page for your web management.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30
seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. Unfortunately this process will change all your settings back to the
factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip
to hold the button down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30
seconds to access the router. The default IP address is 192.168.0.1. When logging in, the username is admin and leave the
password box empty.
![](/img.php?id=2230131&img=bg29.png)
101D-Link DWR-755 User Manual
Section 5 - Troubleshooting
3. Why can’t I connect to certain sites or send and receive emails when connecting through my router?
If you are having a problem sending or receiving email, or connecting to secure sites such as eBay, banking sites, and Hotmail,
we suggest lowering the MTU in increments of ten (Ex. 1492, 1482, 1472, etc).
To nd the proper MTU Size, you’ll have to do a special ping of the destination you’re trying to go to. A destination could be
another computer, or a URL.
• Click on Start and then click Run.
• Windows® 95, 98, and Me users type in command (Windows® NT, 2000, XP, Vista®, and 7 users type in cmd) and
press Enter (or click OK).

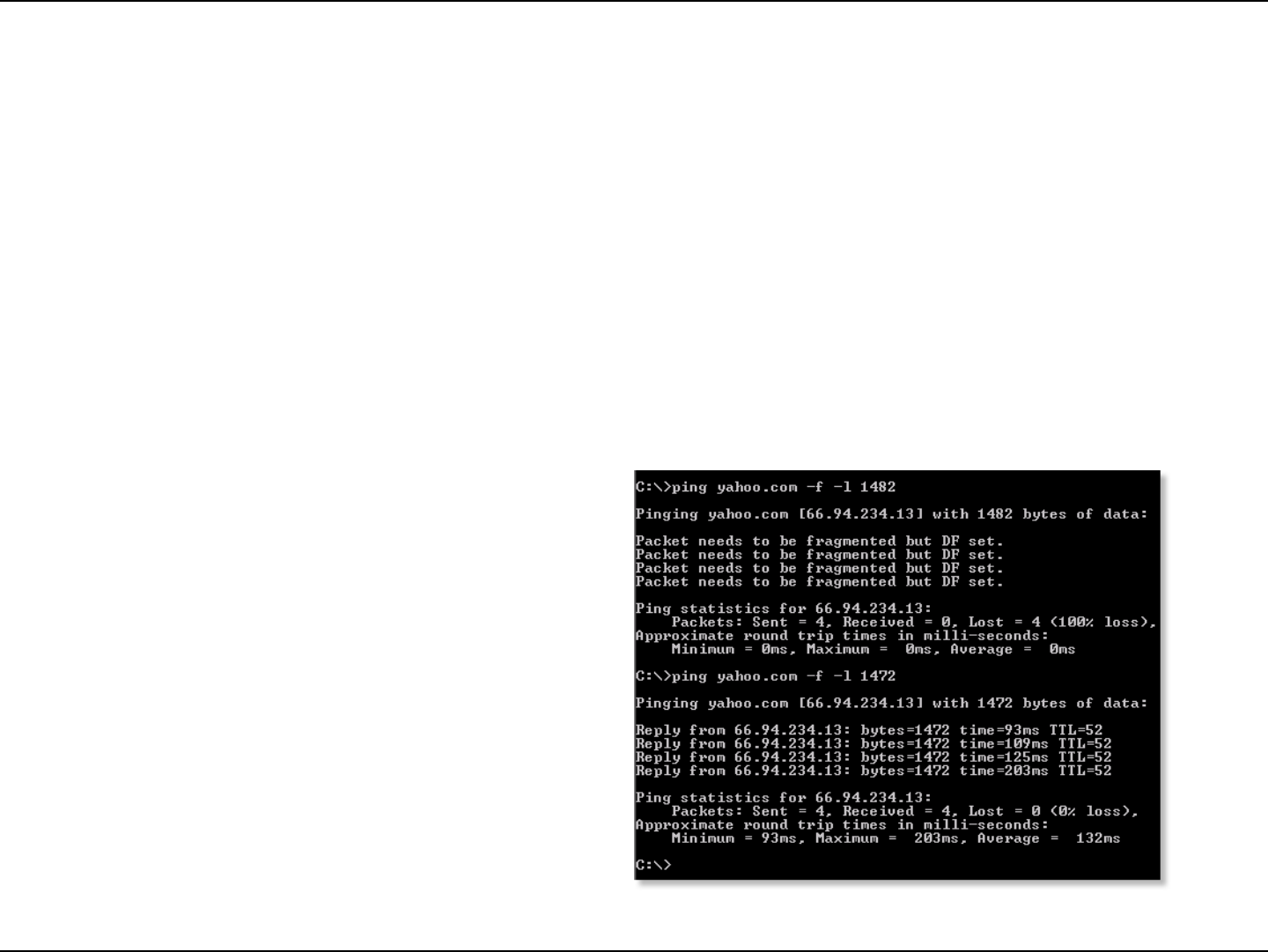

• Once the window opens, you’ll need to do a special ping. Use the following syntax:
ping [url] [-f] [-l] [MTU value]
Example: ping yahoo.com -f -l 1472
![](/img.php?id=2230131&img=bg2a.png)
102D-Link DWR-755 User Manual
Section 5 - Troubleshooting
You should start at 1472 and work your way down by 10 each time. Once you get a reply, go up by 2 until you get a fragmented
packet. Take that value and add 28 to the value to account for the various TCP/IP headers. For example, lets say that 1452 was the
proper value, the actual MTU size would be 1480, which is the optimum for the network we’re working with (1452+28=1480).
Once you nd your MTU, you can now congure your router with the proper MTU size.
To change the MTU rate on your router follow the steps below:
• Open your browser, enter the IP address of your router (192.168.0.1) and click OK.
• Enter your username (admin) and password (blank by default). Click OK to enter the web conguration page
for the device.
• Click on Setup and then click Manual Congure.
![](/img.php?id=2230131&img=bg2b.png)
103D-Link DWR-755 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless
connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link
wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able
to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of
wires. Wireless LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops
and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more eciently.
Increased mobility and the absence of cabling and other xed infrastructure have proven to be benecial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop
systems support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to
use servers, printers or an Internet connection supplied through the wired LAN. A Wireless router is a device used to provide
this link.
Wireless Basics
![](/img.php?id=2230131&img=bg2c.png)
104D-Link DWR-755 User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio
frequency to connect wirelessly, so you have the freedom to connect computers anywhere in your home or oce network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link
delivers the performance you need at a price you can aord. D-Link has all the products you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But
wireless technology has restrictions as to how you can access the network. You must be within the wireless network range area
to be able to connect your computer. There are two dierent types of wireless networks Wireless Local Area Network (WLAN),
and Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has
a small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point
as seen in the picture, the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles
to serve places like manufacturing plants, industrial locations, college and high school campuses, airports, golf courses, and
many other outdoor venues.
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to
30 feet away.
![](/img.php?id=2230131&img=bg2d.png)
105D-Link DWR-755 User Manual
Appendix A - Wireless Basics
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as
much power which makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other
devices that operate on batteries.
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oce, business,
D-Link has a wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the web, check email, instant message, etc.
• Gets rid of the cables around the house
• Simple and easy to use
Small Oce and Home Oce
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
![](/img.php?id=2230131&img=bg2e.png)
106D-Link DWR-755 User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or oce. People like the freedom of mobility and it’s becoming
so popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public
places is usually called “hotspots”.
Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations
like: airports, hotels, coee shops, libraries, restaurants, and convention centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start.
That’s why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or Access Point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to
place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have
a two-story home, you may need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access
point. This would signicantly reduce any interference that the appliances might cause since they operate on same frequency.
Security
Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on
the WPA or WEP security feature on the router. Refer to product manual for detail information on how to set it up.
![](/img.php?id=2230131&img=bg2f.png)
107D-Link DWR-755 User Manual
Appendix A - Wireless Basics
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network
adapters on each computer, such as two or more DWR-755 wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the
wireless router or access point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc
mode to communicate.
Wireless Modes
![](/img.php?id=2230131&img=bg30.png)
108D-Link DWR-755 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP
server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK. (Windows® 7/Vista® users type cmd in the Start Search box.)
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the
default gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation,
security settings, and the settings on your router.
Some rewall software programs may block a DHCP
request on newly installed adapters.
![](/img.php?id=2230131&img=bg31.png)
109D-Link DWR-755 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® 7 - Click on Start > Control Panel > Network and Internet > Network and Sharing Center.
Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network
Connections.
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet as your network or the LAN IP address
on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X
where X is a number between 2 and 99. Make sure that the number you choose is not
in use on the network. Set the Default Gateway the same as the LAN IP address of your
router (I.E. 192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The
Secondary DNS is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
![](/img.php?id=2230131&img=bg32.png)
110D-Link DWR-755 User Manual
Appendix C - Technical Specications
Technical Specications
GSM Band (GSM/GPRS/EDGE)
• 850 / 900 / 1800 / 1900 MHz
• Power Class 4 (850 / 900 MHz)
• Power Class 1 (1800 / 1900 MHz)
UMTS/HSDPA/HSUPA/HSPA+ Band 1
• 850 / 1900 / 2100 MHz or 900 / 2100 MHz
• Power Class 3
Data Rates 2
• 1/2/5.5/11 Mbps in 802.11b mode
• 6/9/12/18/24/36/48/54 Mbps in 802.11g mode
• Up to 300 Mbps in 802.11n mode
Standards
• 802.11b
• 802.11g
• 802.11n
Wireless Security
• 64/128-bit WEP (Wired Equivalent Privacy)
• WPA & WPA2 (Wi-Fi Protected Access)
Firewall
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
VPN
• L2TP/PPTP/IPSEC VPN Passthrough
• 5 Dedicated IPSec tunnels
Antenna
• 1 External antenna
Ports
• 4 x LAN (RJ-45)
• 1 x WAN (RJ-45)
USIM Slot
• Standard 6-pin SIM card interface
LED Status Indicators
• Status
• WPS
• WAN
• LAN
• WLAN
• 2G
• 3G
• SMS
• Signal
Dimensions (L x W x H)
• 190 x 119 x 22 mm (7.48 x 4.69 x 0.87 inches)
![](/img.php?id=2230131&img=bg33.png)
111D-Link DWR-755 User Manual
Appendix C - Technical Specications
Operating Temperature
• 0 to 40 ˚C (32 to 104 ˚F)
Storage Temperature
• -10 to 70 °C (14 to 158 °F)
Operating Humidity
• 10% to 90% (Non-condensing)
Storage Humidity
• 0 to 95% non-condensing
Certications
• CE
• FCC
• RoHS
• Wi-Fi Certied
1 Supported frequency band is dependent upon regional hardware version.
2 Maximum wireless signal rate derived from IEEE Standard specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors
will adversely aect wireless signal range.
![](/img.php?id=2230131&img=bg34.png)
112D-Link DWR-755 User Manual
Appendix D - Safety Statements
Safety Statements
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the Instructions , may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
‐Reorient or relocate the receiving antenna.
‐Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
‐Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
1. This device complies with Part 15 of the FCC rules/Industry Canada RSS 210 standard . Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
3. Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate
the equipment.
IMPORTANT NOTE : (For Mobile Device Conguration)
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
![](/img.php?id=2230131&img=bg35.png)
113D-Link DWR-755 User Manual
Appendix D - Safety Statements
operated with minimum distance 20 cm between the radiator & your body.
IMPORTANT NOTE : (For Portable Device Conguration)
Federal Communication Commission (FCC) Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure limits in
ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods
and procedures specied in OET Bulletin 65 Supplement C.
This Class [*] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [*] est conforme à la norme NMB-003 du Canada.
Industry Canada Caution:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) il ne doit pas produire de brouillage et
(2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fomctionnement du dispositif.
IC IMPORTANT NOTE : (For Mobile Device Conguration)
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
between the radiator & your body.
IC IMPORTANT NOTE : (For Portable Device Conguration)
IC Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure limits in
IC RSS-102 and had been tested in accordance with the measurement methods and procedures specied in IEEE 1528.
![](/img.php?id=2230131&img=bg36.png)
114D-Link DWR-755 User Manual
Appendix D - Safety Statements
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
En vertu de la réglementation de l’industrie du Canada, cet émetteur de radio ne peuvent fonctionner en utilisant une antenne d’un type
et maximum (ou moins) Gain approuvé pour l’émetteur par Industrie Canada. Pour réduire risque d’interférence aux autres utilisateurs,
le type d’antenne et son gain doivent être choisis de sorte que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui
est nécessaire pour la réussite de communication.
附錄(7) 低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應改善至無干擾時方得繼續使用。前項合法通信,指依
電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
