DONGGUAN SMART HERO ELECTRONIC CO WLDB2324TX WIRELESS DOOR CHIME PUSH BUTTON User Manual
DONGGUAN SMART HERO ELECTRONIC PRODUCTS CO LTD WIRELESS DOOR CHIME PUSH BUTTON
User manual
HOMEDEPOT.COM
Please contact 1-855-556-1852 for further assistance.
Use and Care
Guide

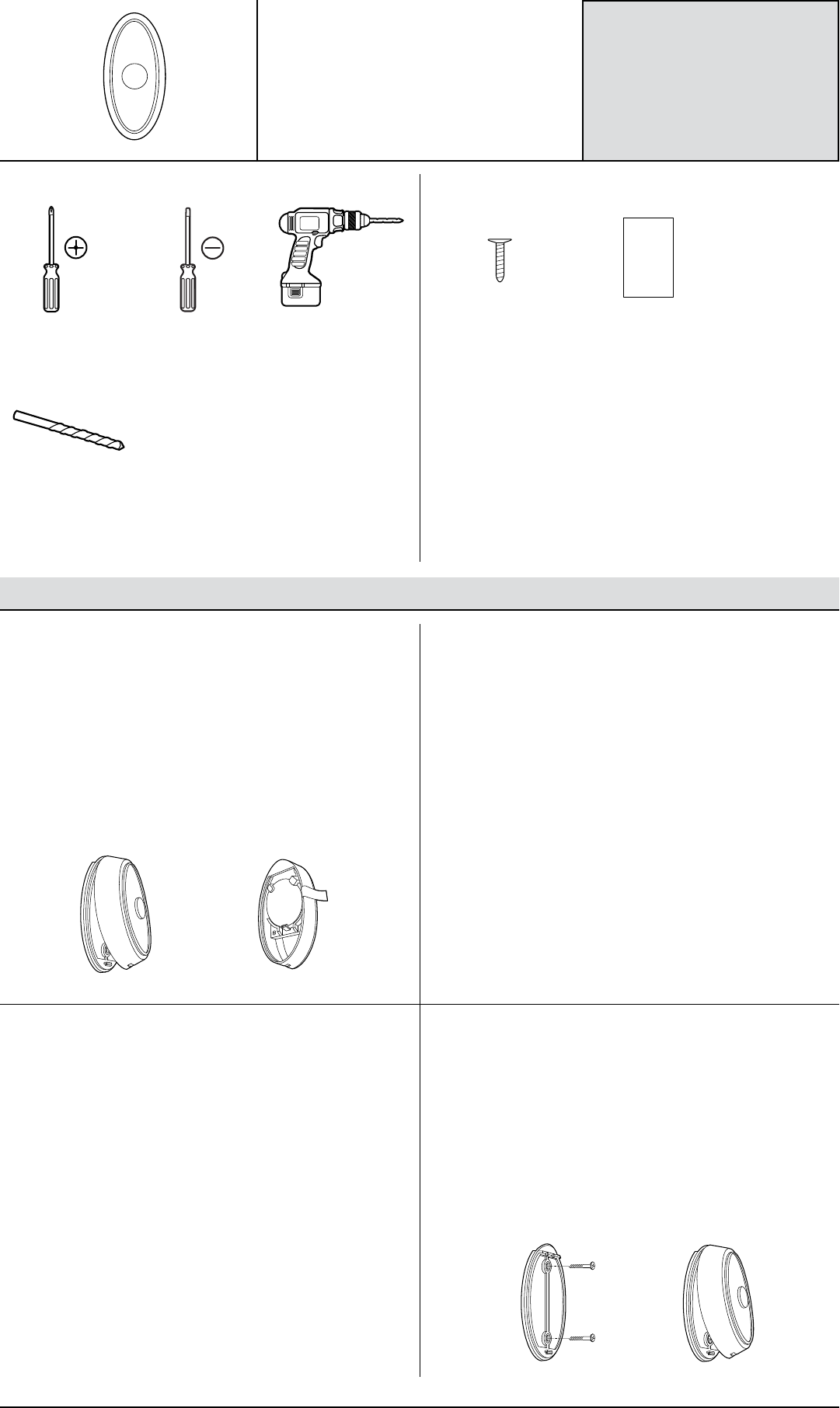

Installation
1ACTIVATING THE PUSH BUTTON BATTERY
□Remove the front cover of the push button by inserting a at
head screwdriver in the slot on the bottom of the button and
pulling up slightly.
□Remove the plastic tab from the battery compartment to
allow connection to the terminal.
□Snap the front cover onto the base by rst hooking the tops
together, then snapping the base on.
□Repeat for second button if applicable.
2POWERING THE CHIME
□Install the chime batteries or plug in the chime, following the
instructions included in the chime.
3SYNCING THE CHIME AND PUSH BUTTON
□Follow the instructions included in the chime.
4MOUNTING THE PUSH BUTTON
□Remove the front cover from the base by following step 1.
□Mount the push button base to a clean wall or door jamb
with included screws or mounting tape. If mounting with
screws, predrill a pilot hole through the push button base in
the desired location using a 5/64 in. drill bit.
□Snap the push button cover onto the base by rst hooking
the tops together, then snapping the base on.
216595Inst.ai
TOOLS REQUIRED
Phillips screwdriver Flat Head Screwdriver Drill
HARDWARE INCLUDED
#4x3/4
#6x3/4
#4x1 White Zinc #6x1 Self Tapping
ScrewHardware.ai
(2) #4 x 3/4 in. Screws (1) Adhesive Sticker
216595Inst.ai
5/64 in. Drill Bit
216595Inst.ai
#4x3/4
#6x3/4
#4x1 White Zinc #6x1 Self Tapping
ScrewHardware.ai
HOMEDEPOT.COM
Please contact 1-855-556-1852 for further assistance.
Safety Information
WARNING: Keep batteries out of reach of
children.
Specications
216593
Doorbell Type Wireless
Number of Push Buttons 1
Included Hardware (2) #4 x ¾ in. Screws and (1) 18x31mm Adhesive Sticker
Finished Product Dimensions 2.518 in. Height x 1.268 in. Width x .79 in. Depth
Power Source CR2032 Battery (included)
Finish Color Black
Lighted Button Yes
216594
Doorbell Type Wireless
Number of Push Buttons 1
Included Hardware (2) #4 x ¾ in. Screws and (1) 18x31mm Adhesive Sticker
Finished Product Dimensions 2.518 in. Height x 1.268 in. Width x .79 in. Depth
Power Source CR2032 Battery (included)
Finish Color Brass
Lighted Button Yes
216595
Doorbell Type Wireless
Number of Push Buttons 1
Included Hardware (2) #4 x ¾ in. Screws and (1) 18x31mm Adhesive Sticker
Finished Product Dimensions 2.518 in. Height x 1.268 in. Width x .79 in. Depth
Power Source CR2032 Battery (included)
Finish Color White
Lighted Button Yes
Troubleshooting
Problem Possible Cause Solution
Chime does not sound when push button is pressed. Push button battery has not been
activated.
Conrm the activation tab has been removed and
the battery is seated properly in the button.
The chime and push button are out
of transmission range.
Move the chime closer to the push button
location. Ensure there are no metallic objects or
concrete walls hindering the signal.
Push button battery needs to be
replaced.
Replace the push button battery with a CR2032
Lithium Coin battery.
Chime is sounding without the push button being pushed. An outside signal is interfering with
the signal between the chime and
push button.
Resync the chime and push button following the
steps in the instructions.
Warranty
WHAT IS COVERED
The Warrantor is pleased to extend this Warranty to you, the original consumer/end user (“Consumer”) of the doorbell products and listed by model
number below (“Doorbell Product”). This Warranty is valid for any Doorbell Product used in standard residential applications, and may not be assigned or
transferred by you.
For a period of one (1) year from the date of purchase, Warrantor, at its sole option, will repair, replace or refund the purchase price for any Doorbell Product
used in a standard residential application that malfunctions due to factory defective parts or defective workmanship in the manufacture or assembly of the
Doorbell Product.
WHAT IS NOT COVERED
Warrantor shall have no further liability or obligation except as expressly stated herein.
This Warranty does not apply to any Doorbell Product that has been abused, misused, modied, subjected to abnormal use conditions, stored improperly
prior to installation, or otherwise used in any way not intended by Warrantor.
HOMEDEPOT.COM
Please contact 1-855-556-1852 for further assistance.
This Warranty is limited to repair, replacement or refund as set forth above and any additional reimbursement is expressly excluded from this Warranty,
including but not limited to reimbursement for inconvenience, installation costs, loss of use, return shipping charges, and batteries or other expendable
items.
If a claim is made under this Warranty on a product that is no longer available, Warrantor reserves the right to provide a similar product of comparable
quality and value.
To make a claim under this Warranty, the Consumer must, within ninety (90) days of actual or constructive knowledge of damage covered by this Warranty,
return the product to your local The Home Depot store, or call Customer Service at 1-855-556-1852.
Warrantor does not make any implied warranty of merchantability or tness of the product for a particular purpose. There are no other warranties that
extend beyond the description on the face hereof.
This Warranty gives you specic legal rights and you may have additional rights under applicable law.
Contact the Customer Service Team at 1-855-556-1852 or visit www.HomeDepot.com.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to
operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée
aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
