SPECIFICATION
Radio Controlled Programmable Room Thermostat
Receiver Module for TP75-RF (Independently Surface Mounted)
Supply Voltage 24 Vac
Construction BS EN 60730-2-9
Maximum Ambient Temperature 114°f (45°C)
Switch Type RX1 - 1 x SPDT, type 1B
RX2 - 1 x SPDT, 1 x SPST, type 1B
RX3 - 1 x SPDT, 2 x SPST, type 1B
Switch Rating 3 (1) A, (Total current)
IP Rating IP 40
Max. Range 30 metres
Operating Frequency 433.92 MHz
FCC Identifier PO7 TP75RF
1. 2. 3. 4.
30 VDS (typical)
TP75-RF, WP75-RF, RX-1, RX-2, RX-3 Instructions
TP75-RF/WP75-RF RX-1, RX-2, RX-3
Wiring Details
COM ON OFF
ABC234
Electronics
ON
COM
OFF
24v
Com
3A
COM ON OFF
ABC234
Electronics
3A
ZONE 1 ON
ZONE 2 ON
COM
ZONE 1 OFF
ZONE 2 ON
ZONE 1 ON
ZONE 3 ON
Electronics
3A
COM
ZONE 1 OFF
RX1 RX2 RX3
24v
Live
24v
Com
24v
Live 24v
Com
24v
Live
ABC23456
FCC Notice: This device complies with Pt 15 of the FCC
rules. Operation is subject to the following conditions:
1) This device may not cause harmful interference
2) This device must accept any interference received
including that which may cause undesired operation.
2
5 Min. (max)

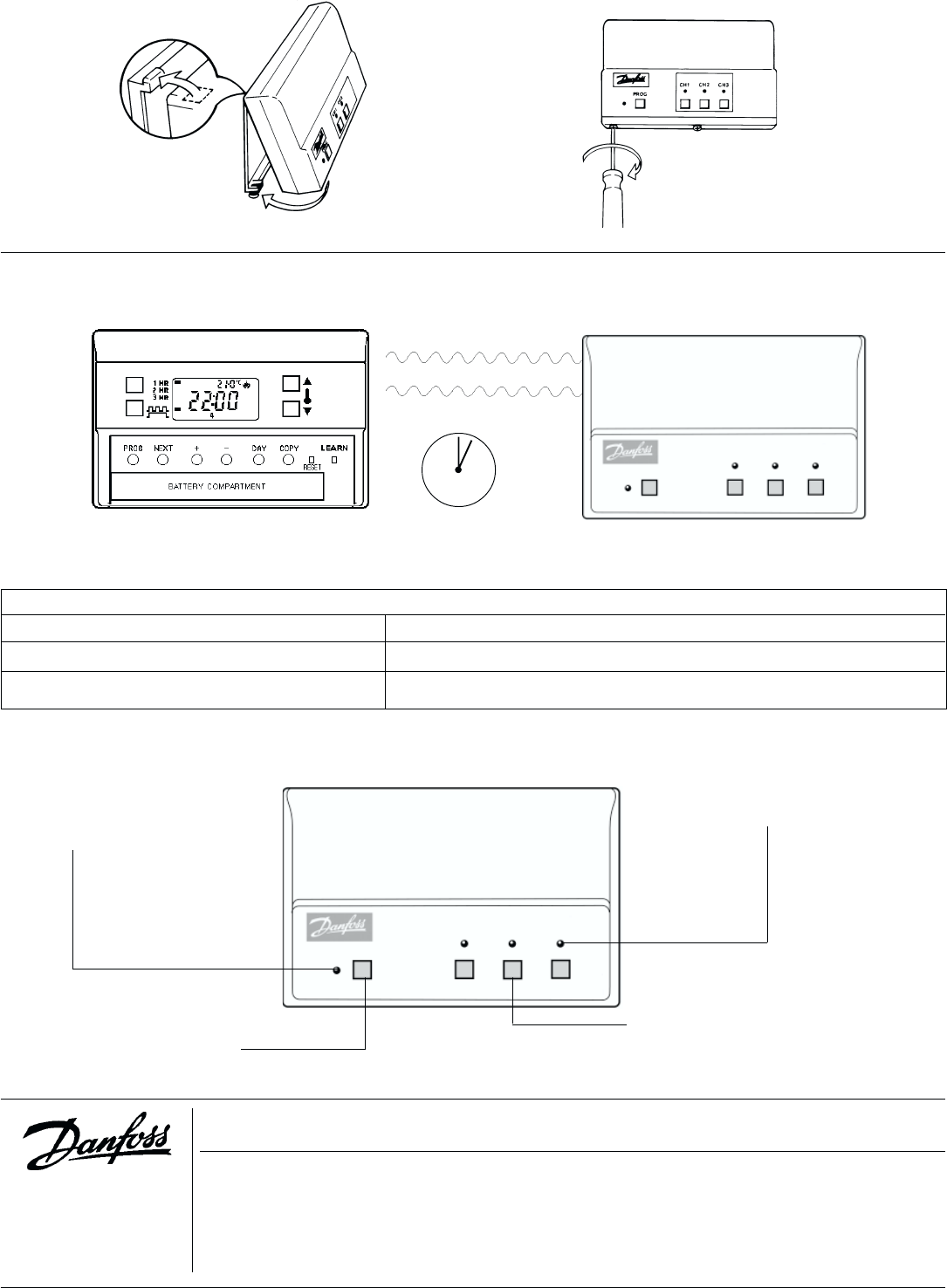

Commissioning Instructions
Step 1 TP75-RF Press and hold the "LEARN" button for 3 seconds
Step 2 RX1 Press and hold buttons PROG and CH1 for 3 seconds
Step 3 RX2 / RX3 For RX2 or RX3 repeat steps 1 and 2 for each thermostat and channel
433.92 MHz
Battery Compartment Flap lowered
TP75-RF/WP75-RF RX-1, RX-2, RX-3
Use only during programming
Receiver status LED,
lit when receiveing
Emergency ON button, press if communication
fails, turns on heat, returns to AUTO when
communication is re-established
Zone status LEDs, lit when ON
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material, and reserves the right to alter its products without
notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications
already agreed.
Part No: 34049 Iss 02 06/01
