GRYPHON™ M SERIES
1
USING GRYPHON™ M SERIES READERS
The Gryphon™ M series reader, paired with an OM-Gryphon™ cradle, builds a
Cordless Reading System for the collection, decoding and transmission of
barcoded data.
Gryphon™ M readers automatically scan barcodes at a distance. Simply aim
and pull the trigger. Code scanning is performed along the center of the light bar
emitted from the reading window. This bar must cover the entire code.

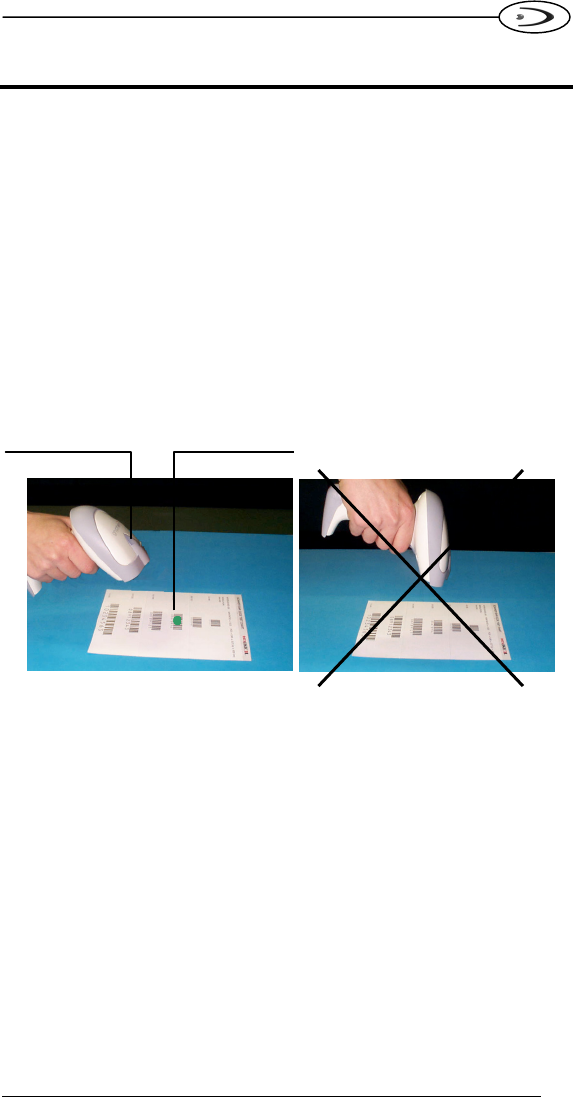

READING ANGLE
Successful scanning is obtained by tilting the reader with respect to the barcode
to avoid direct reflections which impair the reading performance, see the figure
below.
Successful reading is obtained by an audible tone plus a good-read green spot.
OK Not Advised
To start using your Gryphon™ M reading system you must:
1. Connect an OM-Gryphon™ cradle to the Host. For installation and
connection information see the OM-Gryphon™ Quick Reference Manual.
2. Charge the Gryphon™ M battery using an OM-Gryphon™ / C-Gryphon™
charger as described in this Quick Reference manual. A full charge takes
3.5 hours with NiMh battery models.
3. Configure the reader as described in this Quick Reference manual.
4. Configure the OM-Gryphon™ cradle. See OM-Gryphon™ Configuration in
the “OM-Gryphon™ Quick Reference”.
Good read spot
Good read LED
![](/img.php?id=613088&img=bg6.png)
DATALOGIC
2
CHARGING THE BATTERIES
By placing the reader onto the OM-Gryphon™ cradle or C-Gryphon™ battery
charger it is possible to charge the Gryphon™ M batteries. Make sure the
charging LED goes on.
The LEDs positioned on the cradle signal the charge status, as described in the
following table:
LED STATUS
Power on /
Data
Yellow On = OM-Gryphon™ is powered.
Yellow Blinking = OM-Gryphon™ receives data and
commands from the Host or the reader.
Charging Red On = the battery charge is in progress.
Red Blinking = the battery reconditioning is in progress.
Charge
completed Green On = the battery is completely charged.
Charging +
Charge
completed
Red and Green Blinking together = the reader is not
correctly placed onto the reader.
D
I
S
C
H
A
R
G
E
After many recharging cycles NiMh and NiCd batteries may tend to lose their
operating autonomy. This condition can be overcome by positioning the
Gryphon™ M onto the OM-Gryphon™ / C- Gryphon™ charger and pressing the
“battery reconditioning” button.

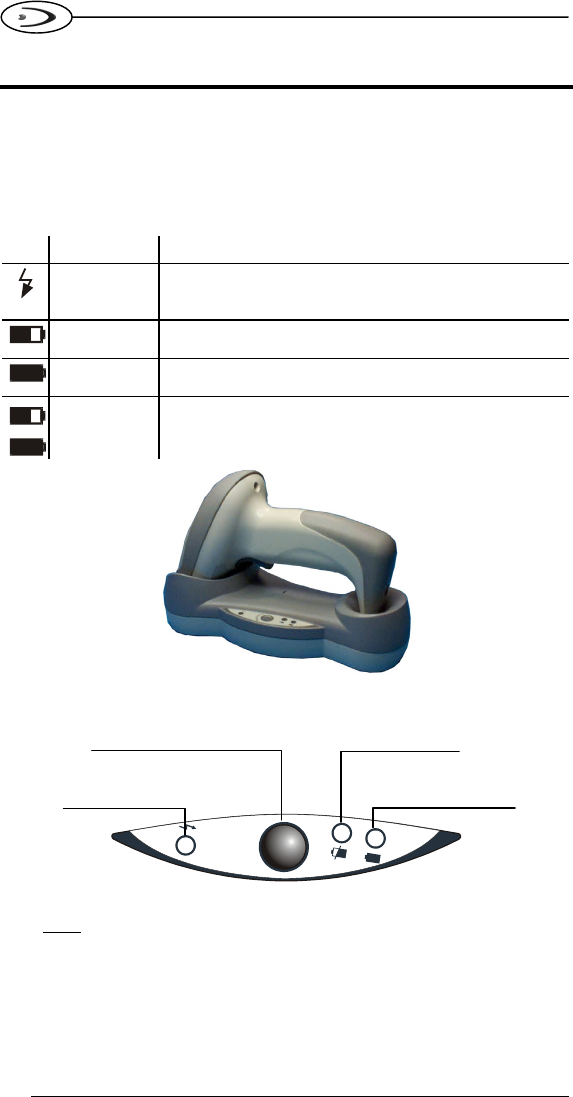

Power on / Data
(yellow LED)
Reconditioning battery
button
Charging
(red LED)
Charge completed
(green LED)
![](/img.php?id=613088&img=bg7.png)
GRYPHON™ M SERIES
3
When the above procedure is no longer effective, the batteries must be

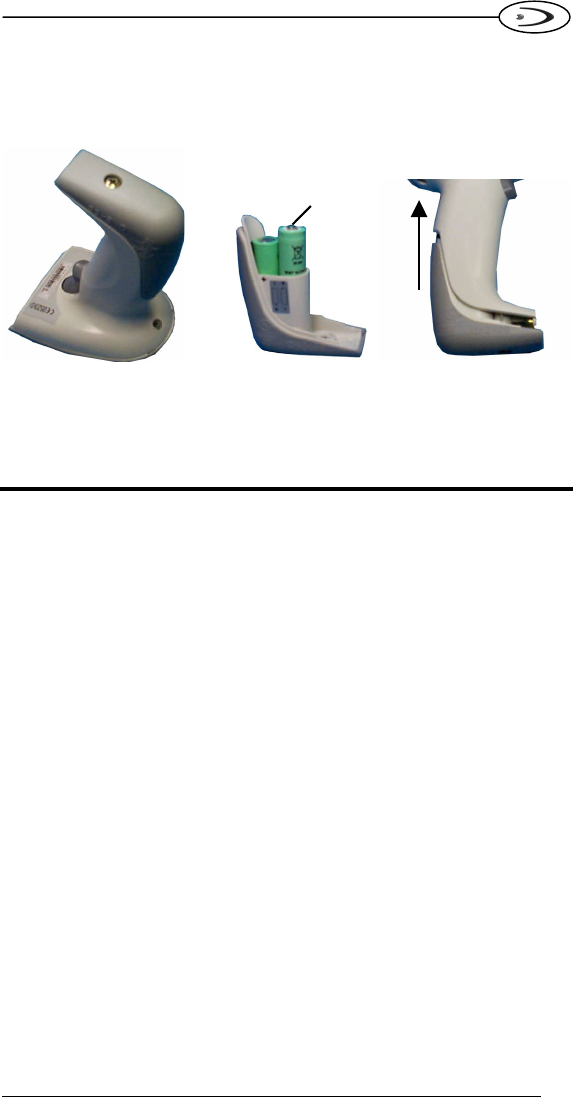

changed. To change the batteries of your reader, unscrew the battery cover
screw, replace the old batteries with new ones, then insert the cover in the
handle and screw it back into place. (See the following figures).
CAUTION
Dispose of the batteries as required by the relevant laws in force.
GRYPHON™ M CONFIGURATION
When the OM-Gryphon™ cradle is connected and powered, configure the
Gryphon™ M by reading the following codes in the given sequence and follow the
instructions.
Note: for the numeric code selection of step 3, use the table at the end of this
Quick Reference.
Restore Gryphon™ M default
1. Ì$+$*oÎ
Enter configuration
2. Ì$+;Î
Set Radio Address
3.
ÌRF8Î
+
four digits for the Gryphon™ M Address
(from 0000 to 1999).
All readers used in the same area must have different addresses.
+
![](/img.php?id=613088&img=bg8.png)
DATALOGIC
4
Exit and Save configuration
4. Ì$-?Î
5. Read the Bind code to pair the Gryphon™ M to the OM-Gryphon™
cradle.
The reader is dedicated to the cradle. Any previously bound reader will
be excluded.
To connect several readers to the same cradle see the following section
"Using Multiple Readers with Same Cradle".
Bind
Ì$+RN0$-IÎ
The green LED on the Gryphon™ M will blink: the reader is ready to be
positioned onto the cradle.
6. Firmly position the reader onto the cradle within 10 seconds, a beep will
be emitted, signaling that the OM-Gryphon™ cradle has been paired to
the Gryphon™ M, and the green LED on the reader will go off.
YOUR READER IS NOW CONFIGURED TO READ BARCODES USING THE
DEFAULT VALUES.
7. Configure the OM-Gryphon™ cradle, refer to the “OM-Gryphon™ Quick
Reference”.

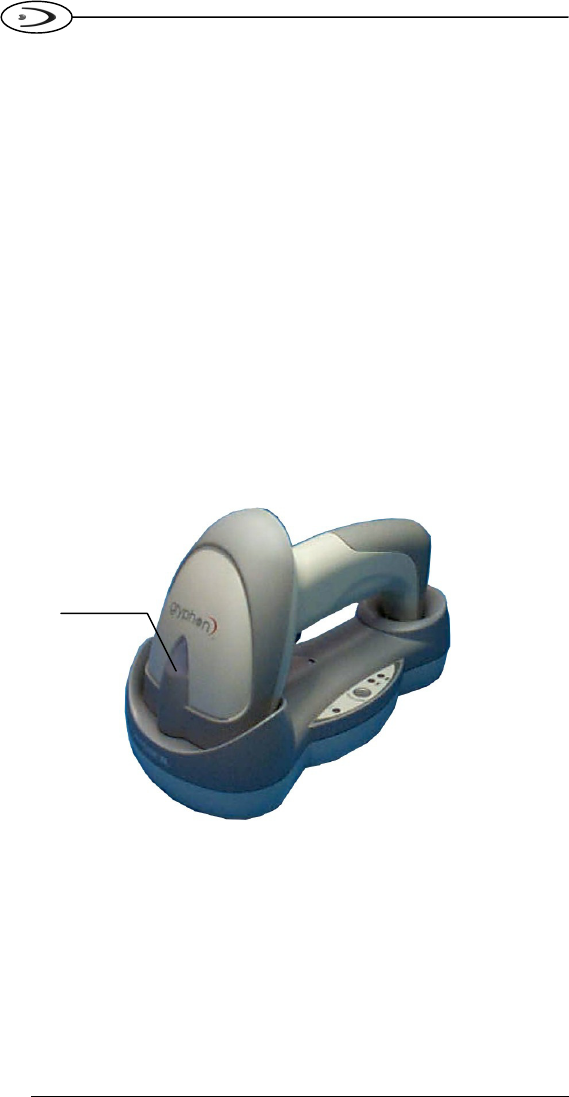

Green LED
![](/img.php?id=613088&img=bg9.png)
GRYPHON™ M SERIES
5
USING MULTIPLE READERS WITH SAME
CRADLE
If you want to use several readers associated with the same cradle, you must
first Bind the cradle with one of the readers (see previously described
configuration procedure).
Successive readers can be associated with the same cradle by following the
configuration procedure substituting the Bind command with Join.
5. Join
Ì$+RN1$-NÎ
The green LED on the Gryphon™ M will blink: the reader is ready to be
positioned onto the cradle. Complete step 6.
CAUTION
If the cradle is not Bound to a reader, its address assumes
a random value which can cause conflicts and malfunctions
to other cradles within its range.
![](/img.php?id=613088&img=bga.png)
DATALOGIC
6
GRYPHON™ M DEFAULT CONFIGURATION
DATA FORMAT
code identifier disabled (enabled for POS terminals), field adjustment
disabled, code length tx not transmitted, character replacement disabled.
POWER SAVE
scan rate 270 scans/s.
READING PARAMETERS
operating mode hand-held, hardware trigger, trigger active level, no timeout,
Flash On = 1 sec, Flash Off = 0.6 sec, one read per cycle, safety time 0.5
sec, beeper intensity high, tone 2, beeper type monotone, beeper length
short, good read spot duration medium
DECODING PARAMETERS
ink spread enabled, overflow control enabled, interdigit control enabled,
Puzzle Solver™ disabled, decoding safety = one read
CODE SELECTION
Enabled codes
• Code PDF417 (only Gryphon™ M200)
• EAN 8/EAN 13 / UPC A/UPC E without ADD ON
check digit transmitted, no conversions
• Interleaved 2/5
check digit control and transmission, variable length code; 4-99
characters
• Standard Code 39
no check digit control, variable length code; 1-99 characters
• Code 128
variable length code; 1-99 characters
Disabled codes for M100 only:
EAN 128, ISBT128, Code 93, Codabar, pharmaceutical codes, MSI,
Plessey, Telepen, Delta IBM, Code 11, Code 16K, Code 49,
RSS Codes
Disabled codes for M200 only:
EAN 128, ISBT128, Code 93, Codabar, pharmaceutical codes,
RSS Codes
ADVANCED FORMATTING PARAMETERS
concatenation disabled, no advanced formats defined
RADIO PARAMETERS
radio protocol timeout = 2 seconds, power-off timeout = 4 hours, single store
disabled, beeper control for radio response = normal
![](/img.php?id=613088&img=bgb.png)
GRYPHON™ M SERIES
7
TECHNICAL FEATURES
Electrical Features
Battery Type 2 AA NiMh* batteries
1.2 V – 1400 mAh
Time of recharge NiMh 3.5 hours
Operating autonomy
(typ. continuous reading) 25,000 reads - NiMh
Indicators LED, Good Read Spot, Beeper
Max scan rate 270 scans/sec
Optical Features
Sensor CCD solid state (3648 pixels)
Illuminator LED array
Wavelength 630 ~ 670 nm
Max. LED Output Power 0.33 mW

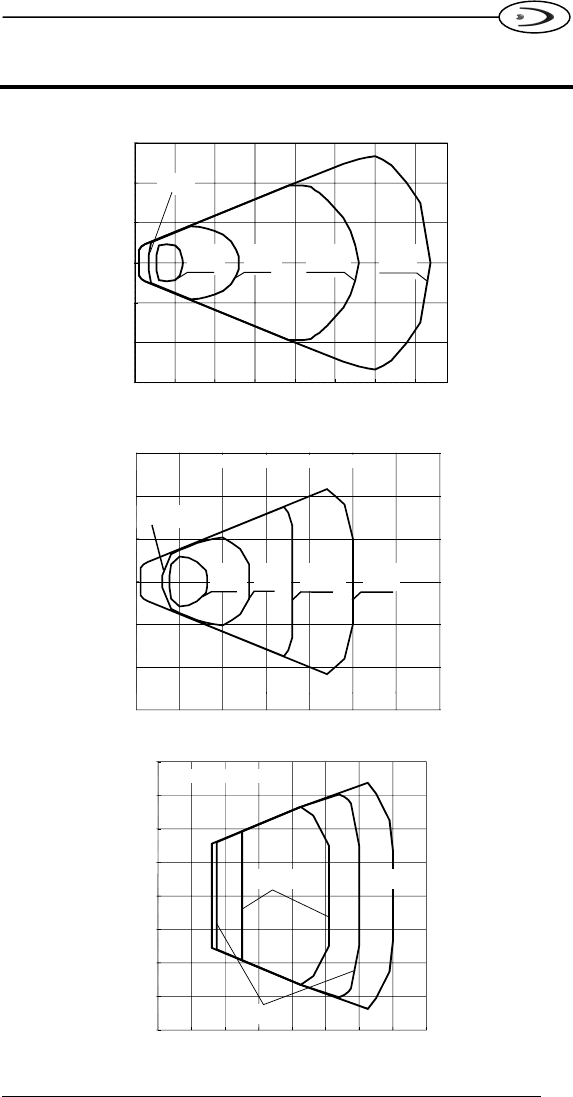

Reading field see reading diagram (p.48)
Max. resolution 0.076 mm, 3 mils
PCS minimum 15% (Datalogic Test Chart)
Radio Features European Models USA Models
Working frequency 433.92 Mhz 910 MHz
Bit rate 19200 baud 36800 baud
Range (in open air) 30 m. 15 m.
System Configuration OM-GRYPHON™ STARGATE™
Maximum number of devices per
base stations 16 255
Max. number of devices in the
same reading area 2000
Environmental Features
Working Temperature 0°to + 40 °C / 32° to 104 °F
Storage Temperature
(without battery) -20°to + 70 °C / - 4° to 158 °F
Humidity 90% non condensing
Drop resistance IEC 68-2-32 Test ED
Protection class IP30
Mechanical Features
Weight (with batteries) about 280 g. / 9.87 oz
Dimensions 179 x 81 x 98 mm / 7.04 x 3.18 x 3.85 in
Material ABS and Polycarbonate molded with
rubber
* It is possible to employ also NiCd or non-chargeable Alkaline AA batteries.
![](/img.php?id=613088&img=bgc.png)
DATALOGIC
8
WARRANTY
Datalogic warranties this product against defects in workmanship and materials,
for a period of 24 months from the date of shipment, provided that the product is
operated under normal and proper conditions.
Datalogic has the faculty to repair or replace the product, these provisions do
not prolong the original warranty term. The warranty does not apply to any
product that has been subject to misuse, accidental damage, unauthorized
repair or tampering.
SERVICES AND SUPPORT
Datalogic provides several services as well as technical support through its
website. Log on to www.datalogic.com and click on the links indicated for
further information including:
• PRODUCTS
Search through the links to arrive at your product page where you can
download specific Manuals and Software & Utilities including:
- DL Sm@rtSet™ a Windows-based utility program which allows device
configuration using a PC. It provides RS232 interface configuration as
well as configuration barcode printing.
• SERVICES & SUPPORT
- Datalogic Services - Warranty Extensions and Maintenance
Agreements
- Authorised Repair Centres
• CONTACT US
E-mail form and listing of Datalogic Subsidiaries
PATENTS
This product is licensed by one or more of the following U.S. patents:
4,894,523; 5,021,642; and 6,158,661
This product is covered by one or more of the following patents:
U.S. patents 5,992,740; 6,305,606 B1; 6,631,846 B2; 6,517,003 B2; and
6,712,271 B2
European patents 851,378 B1; 895,175 B1; 962,880 B1; 997,760 B1; and
1,128,315 B1
Additional patents pending.
![](/img.php?id=613088&img=bgd.png)
GRYPHON™ M SERIES
9
COMPLIANCE
This device must be opened by qualified personnel only.
The batteries must be removed before opening the device.
LED CLASS
Contains FCC ID: OMJ0015
This device complies with PART 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference,and
(2) this device must accept any
interference received, including
interference which may cause
undesired operation.
CLASS 1 LED PRODUCT
SEE PACKAGE FOR PATENT LISTING
Gryphon™ M100/M200 USA
CLASS 1 LED PRODUCT
SEE PACKAGE FOR PATENT LISTING
Gryphon™ M100/M200 EU
Class 1 LED product.
FCC COMPLIANCE
Modifications or changes to this equipment without the expressed written
approval of Datalogic could void the authority to use the equipment.
This device complies with PART 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference which may cause undesired operation.
This device contains FCC ID OMJ0015.
EN60825-1:(2001)
EN60825-1:(2001)
![](/img.php?id=613088&img=bge.png)
DATALOGIC
10
RADIO COMPLIANCE
Contact the competent authority responsible for the management of radio
frequency devices of your country to verify the eventual necessity of a user
license.
Refer to the web site http://europa.eu.int/comm/enterprise/rtte/spectr.htm for
further information.
WEEE COMPLIANCE
![](/img.php?id=613088&img=bgf.png)
GRYPHON™ M SERIES
11
READING DIAGRAMS
GRYPHON™ M100 (STANDARD)
0 5 10 15 20 25 30 35
-15
-10
-5
0
5
10
15
M100 (STD) - Reading Zones (10° skew angle)
(cm)
CODE 39
0.13 mm
(5 mils)
EAN13 M=1
0.33 mm
(13 mils)
CODE 39
0.50 mm
(20 mils)
CODE 39
0.076 mm
(3 mils)
0.13 mm
(5 mils)
GRYPHON™ M200 (PDF)
0 5 10 15 20 25 30 35
-10
-5
0
5
10
M200 (PDF) - Reading Zones (10° skew angle)
(cm)
CODE39
0.076 mm
(3 mils)
CODE39
0.13 mm
(5 mils)
EAN13 M=1
0.33 mm
(13 mils)
CODE39
0.50 mm
(20 mils)
0.13 mm
(5 mils)
0246810 12 14 16
-8
-6
-4
-2
0
2
4
6
8
(cm)
M200 (PDF) - PDF417 codes, Reading Zones (10° skew angle)
PDF417 Aspect Ratio 3:1
0.25 mm
(10mils)
0.17 mm
(6.6mils)
0.38 mm
(15mils)
![](/img.php?id=613088&img=bg10.png)
DATALOGIC
12
NUMERIC TABLE
Ì01Î
0
Ì12Î
1
Ì23Î
2
Ì34Î
3
Ì45Î
4
Ì56Î
5
Ì67Î
6
Ì78Î
7
Ì89Î
8
Ì9:Î
9
![](/img.php?id=613088&img=bg11.png)
05
DATALOGIC S.p.A.,
Via Candini, 2
40012 - Lippo di Calderara
Bologna - Italy
dichiara che
declares that the
déclare que le
bescheinigt, daß das Gerät
declare que el
GRYPHON M100, Cordless Bar Code Reader
GRYPHON M200, Cordless Bar Code Reader
e tutti i suoi modelli
and all its models
et tous ses modèles
und seine modelle
y todos sus modelos
sono conformi alla Direttiva del Consiglio Europeo sottoelencata:
are in conformity with the requirements of the European Council Directive listed below:
sont conformes aux spécifications de la Directive de l'Union Européenne ci-dessous:
der nachstehenden angeführten Direktive des Europäischen Rats entsprechen:
cumple con los requisitos de la Directiva del Consejo Europeo, según la lista siguiente:
1999/5/EEC R&TTE
Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti:
This declaration is based upon compliance of the products to the following standards:
Cette déclaration repose sur la conformité des produits aux normes suivantes:
Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht:
Esta declaración se basa en el cumplimiento de los productos con las siguientes normas:
ETSI EN 301 489-3 v.1.4.1, AUGUST 2002: ELECTROMAGNETIC COMPATIBILITY AND R
A
DIO SPECTRUM
MATTERS (ERM); ELECTROMAGNETIC COMPATIBILITY (EMC)
STANDARD FOR RADIO EQUIPMENT AND SERVICES; PART 3:
SPECIFIC CONDITIONS FOR SHORT-RANGE DEVICES (SRD)
OPERATING ON FREQUENCIES BETWEEN 9 KHZ AND 40 GHZ
ETSI EN 300 220 v.1.1.1, SEPTEMBER 2004:ELECTROMAGNETIC COMPATIBILITY AND R
A
DIO SPECTRUM
MATTERS (ERM); SHORT RANGE DEVICES (SRD); R
A
DIO
EQUIPMENT TO BE USED IN THE 25 MHZ TO 1000 MHZ
FREQUENCY RANGE WITH POWER LEVELS RANGING UP TO 500
MW; PART 3: HARMONIZED EN COVERING ESSENTIAL
REQUIREMENTS UNDER ARTICLE 3.2 OF THE R&TTE DIRECTIVE
EN 60950-1, December 2001: INFORMATION TECHNOLOGY EQUIPMENT – SAFETY –
PART 1: GENERAL REQUIREMENTS
Lippo di Calderara, September 8th, 2005
Ruggero Cacioppo
Quality Assurance Laboratory Manager
