Kyman-NET™

USER'S MANUAL

DATALOGIC S.p.A.

Via Candini 2

40012 - Lippo di Calderara di Reno

Bologna - Italy

Kyman-NET™ - User's Manual

Ed.: 06/2006

Datalogic reserves the right to make modifications and improvements without prior notification.

Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or

consequential damages resulting from the use of this material.

Product names mentioned herein are for identification purposes only and may be trademarks and or

registered trademarks of their respective companies.

iii

CONTENTS

DATALOGIC END USER LICENSE AGREEMENT..................................... v

REFERENCES ........................................................................................... vii

Conventions.................................................................................................vii

Reference Documentation ...........................................................................vii

Services and Support...................................................................................vii

SAFETY REGULATIONS.......................................................................... viii

General Safety Rules.................................................................................. viii

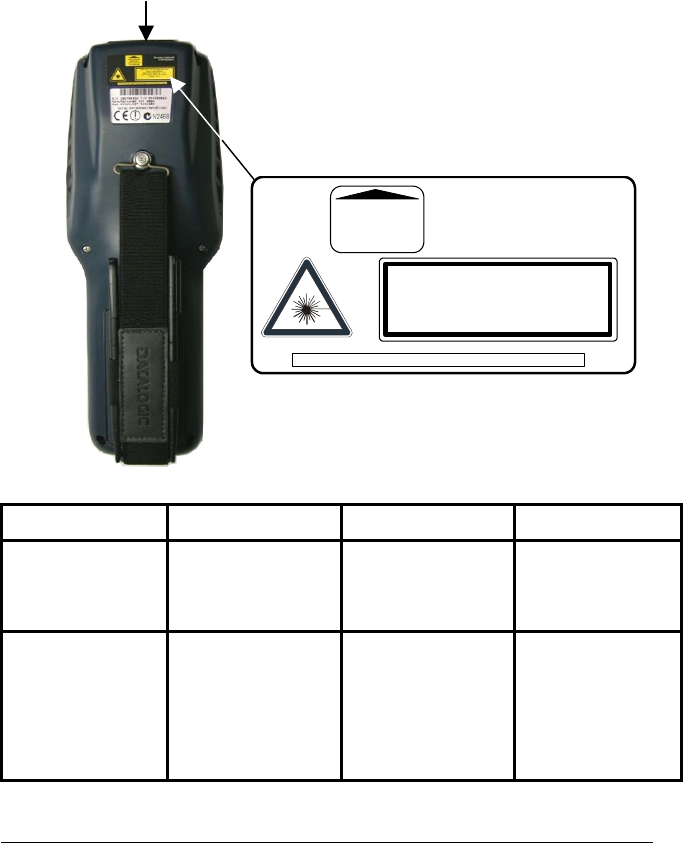

Laser Safety..................................................................................................ix

Radio Compliance....................................................................................... xiii

Information for the User .............................................................................. xiii

FCC COmpliance........................................................................................xiv

WEEE Compliance .....................................................................................xiv

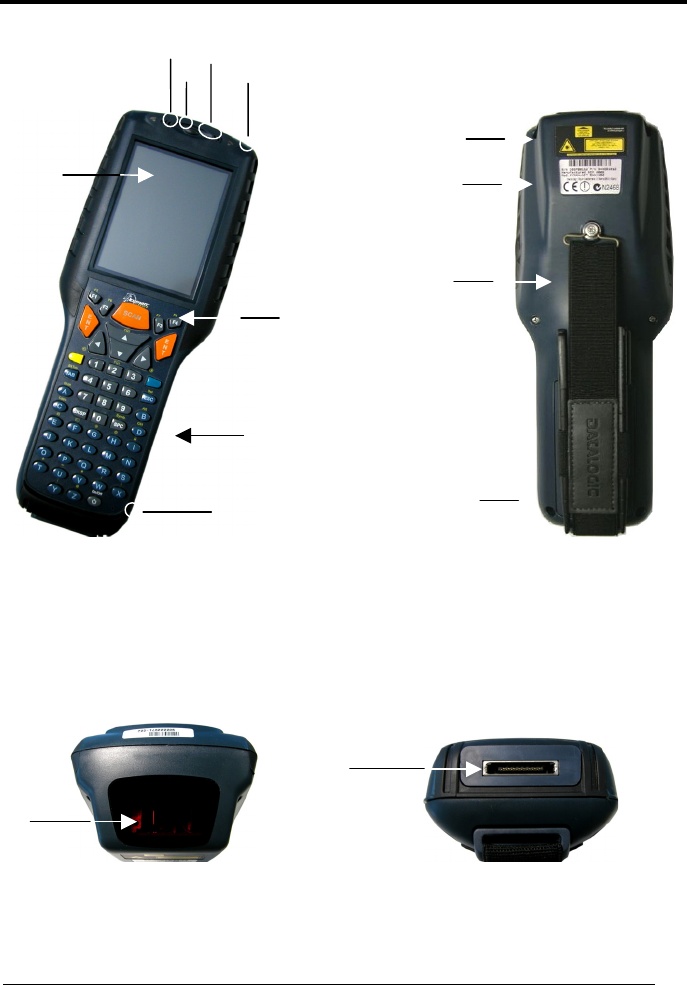

GENERAL VIEW ........................................................................................ xv

1 INTRODUCTION .......................................................................................... 1

1.1 Kyman-NET™ Description............................................................................ 1

1.2 Available Models........................................................................................... 2

1.3 Package Contents......................................................................................... 2

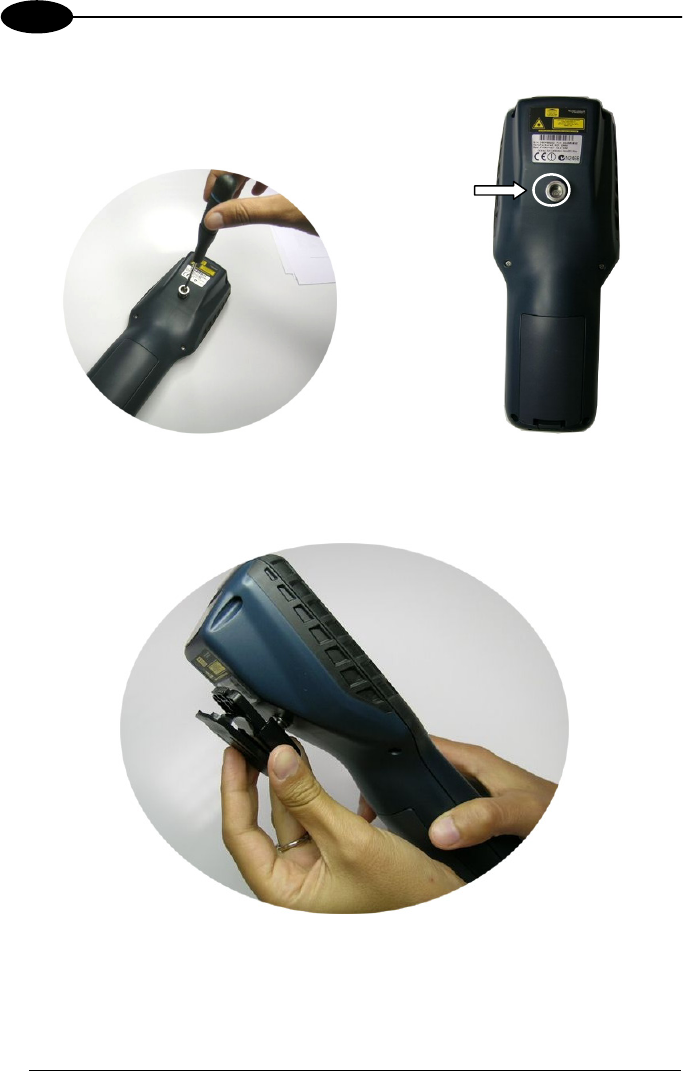

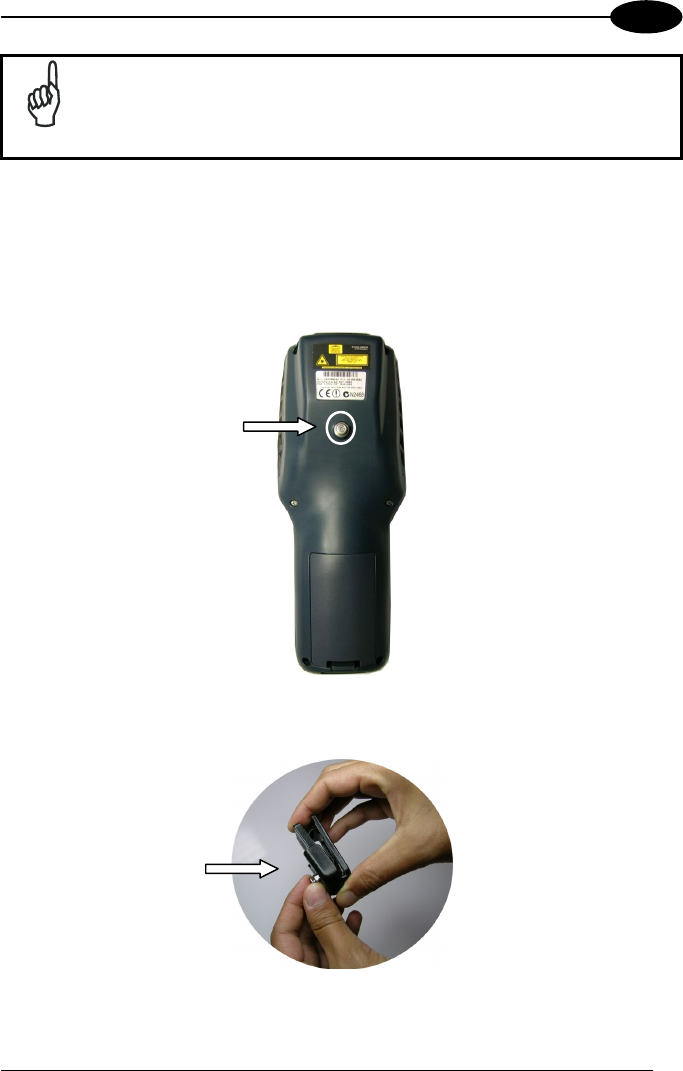

1.3.1 Using the Belt Clip ........................................................................................ 3

1.4 Accessories................................................................................................... 5

2 CONNECTIONS ........................................................................................... 6

2.1 Connection to the Host Computer................................................................. 6

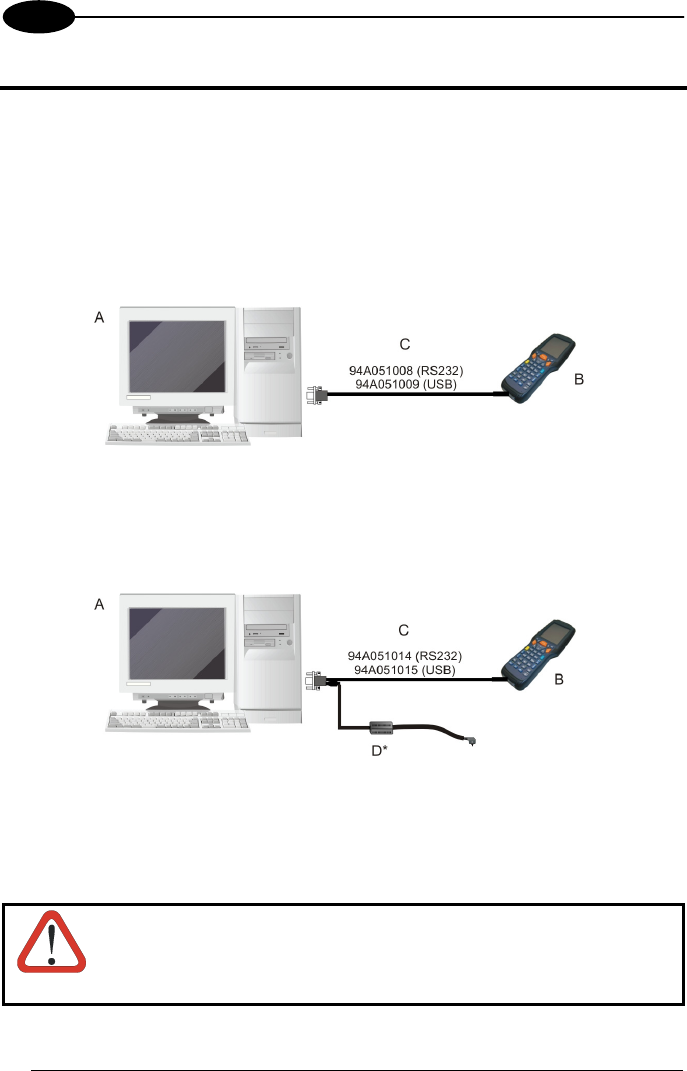

2.1.1 RS232/USB Direct Connection ..................................................................... 6

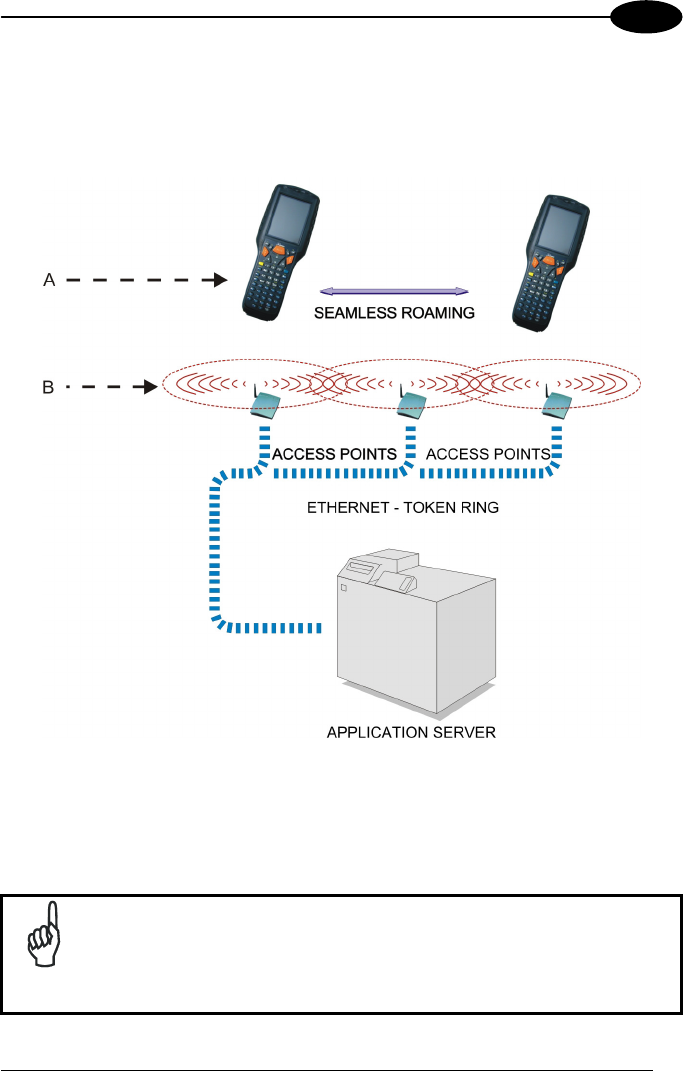

2.1.2 WLAN Connection ........................................................................................ 7

2.1.3 WPAN Connections ...................................................................................... 8

2.1.4 WWAN Connections ..................................................................................... 9

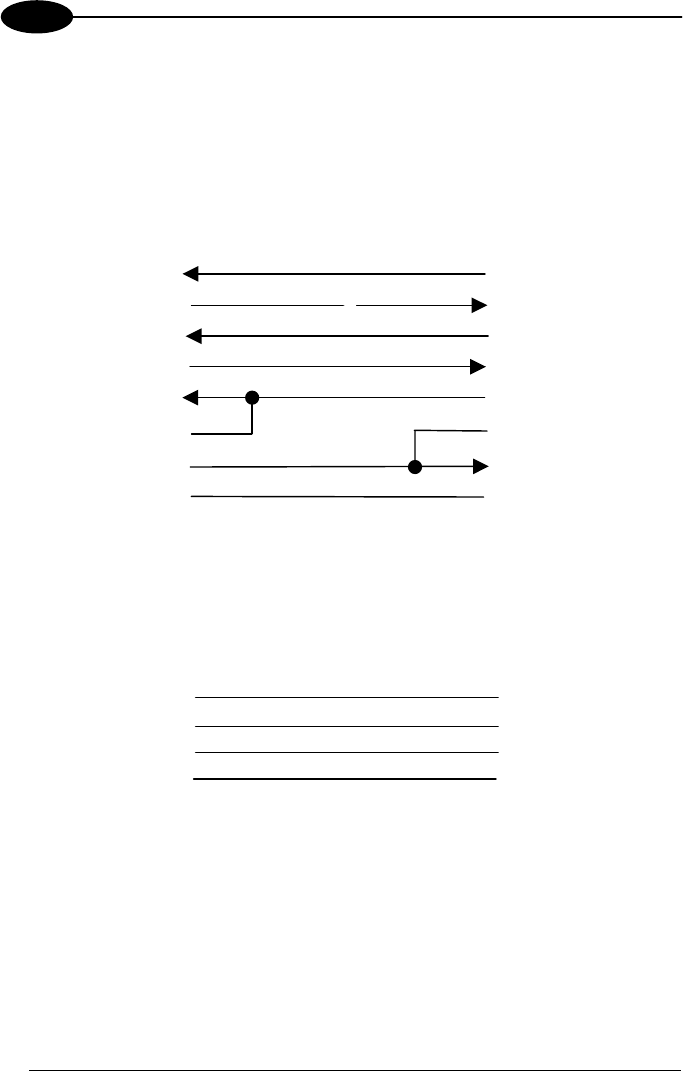

2.2 Connection Cables...................................................................................... 12

3 USE AND FUNCTIONING.......................................................................... 14

3.1 Startup ........................................................................................................ 14

3.2 Using the Stylus.......................................................................................... 15

3.3 Data Capture............................................................................................... 16

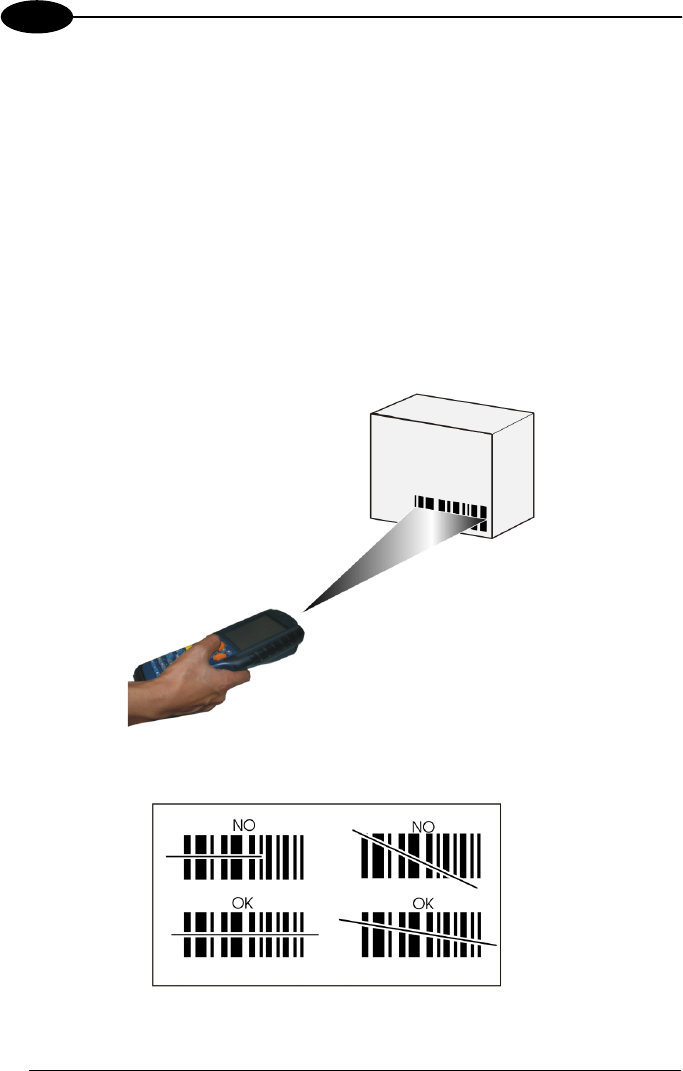

3.3.1 Laser Data Capture..................................................................................... 16

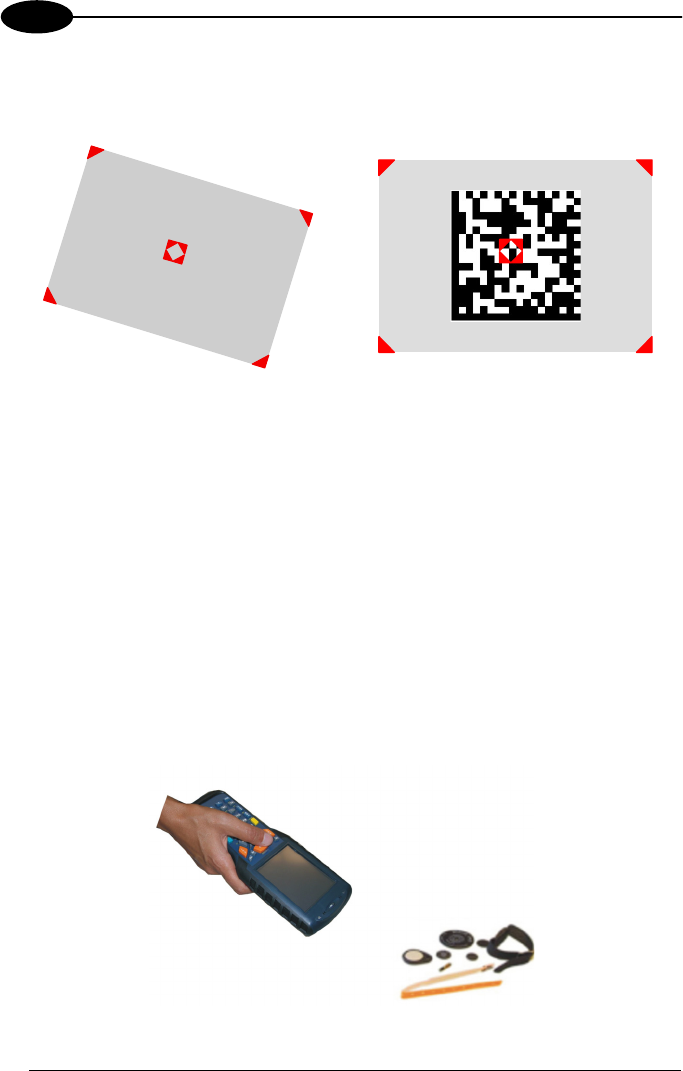

3.3.2 Imager Data Capture .................................................................................. 17

3.3.3 RFID Data Capture ..................................................................................... 18

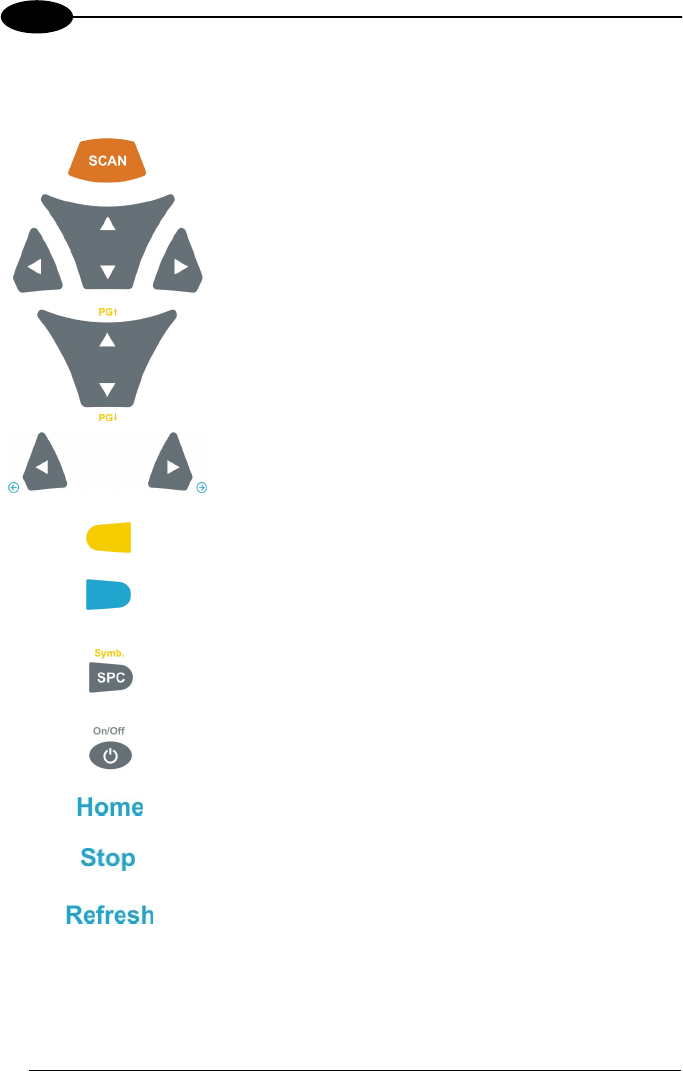

3.4 Description of the Keys ............................................................................... 19

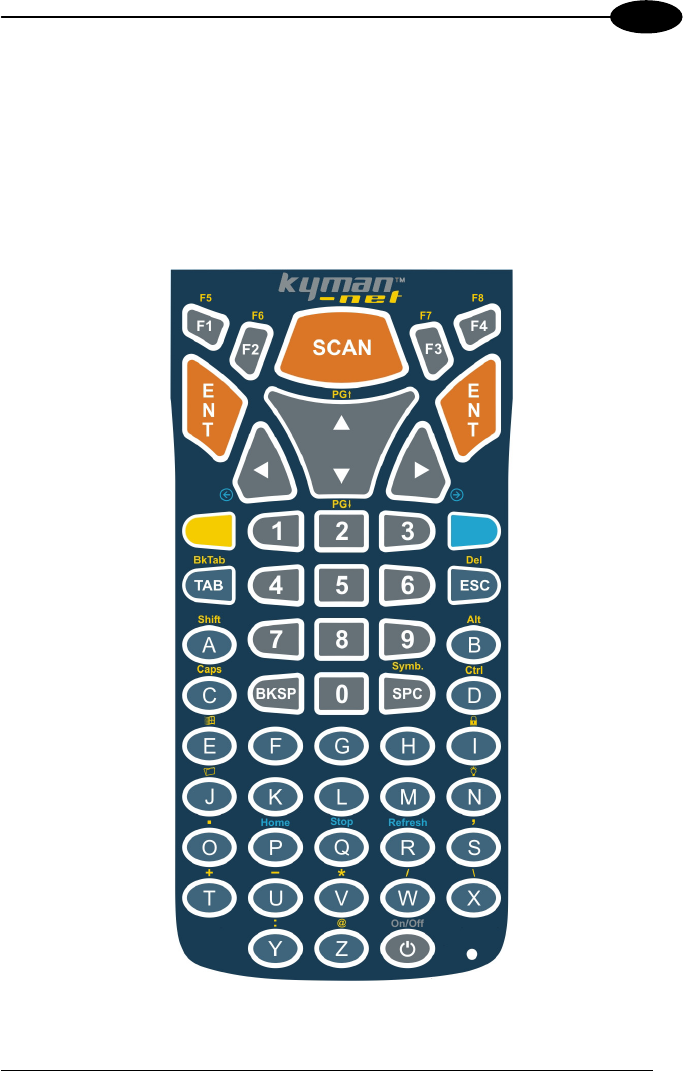

3.4.1 Alphanumeric Keyboard (53-key Model)..................................................... 19

3.4.2 Numeric Keyboard (36-key Model) ............................................................. 22

3.5 Status Indicators ......................................................................................... 25

3.5.1 LED Status.................................................................................................. 25

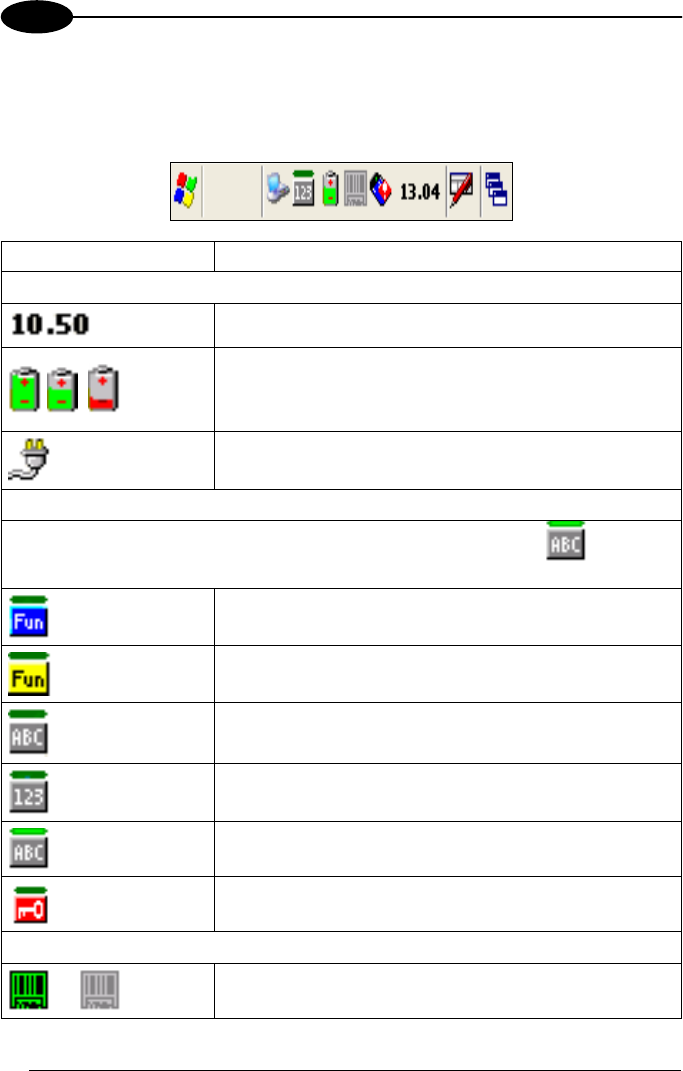

3.5.2 Status Bar ................................................................................................... 26

3.6 Data Capture Configuration ........................................................................ 27

3.6.1 Configure .................................................................................................... 27

3.6.2 Capture ....................................................................................................... 31

3.7 Control Panel .............................................................................................. 32

3.7.1 Buttons........................................................................................................ 33

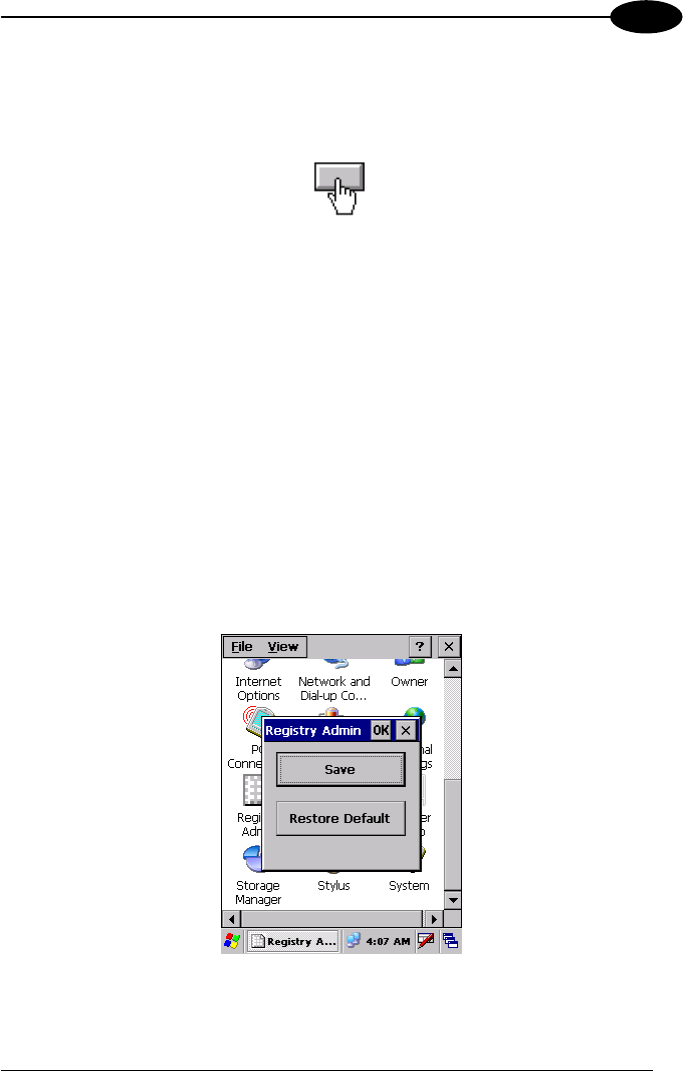

3.7.2 Registry....................................................................................................... 33

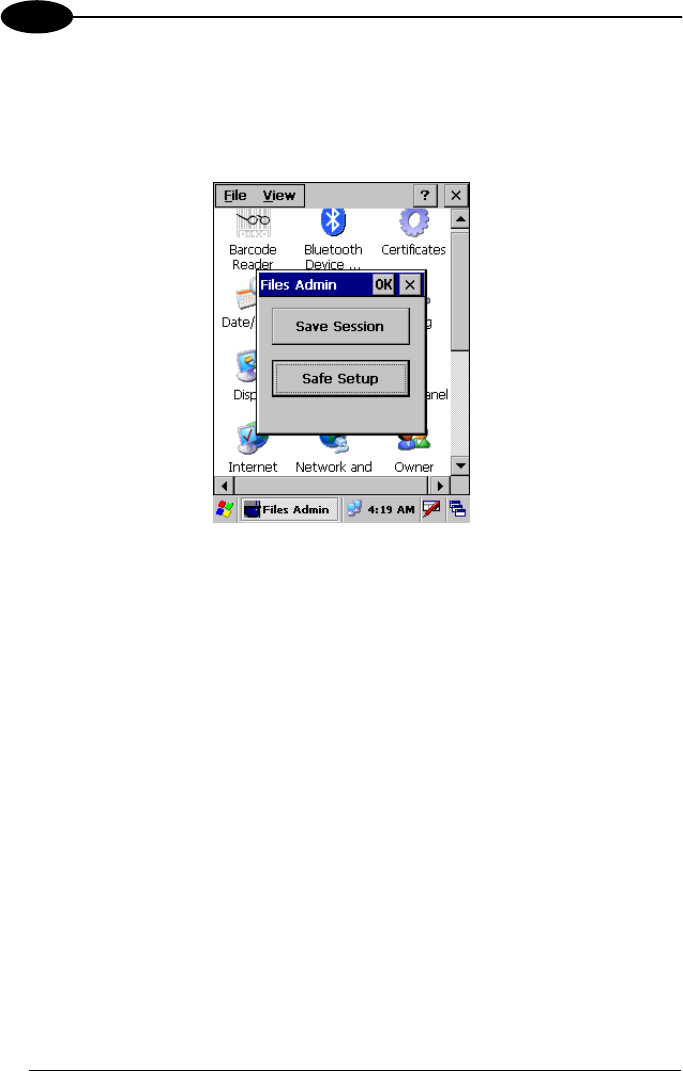

3.7.3 Files Admin ................................................................................................. 34

3.7.4 Wireless Communications........................................................................... 36

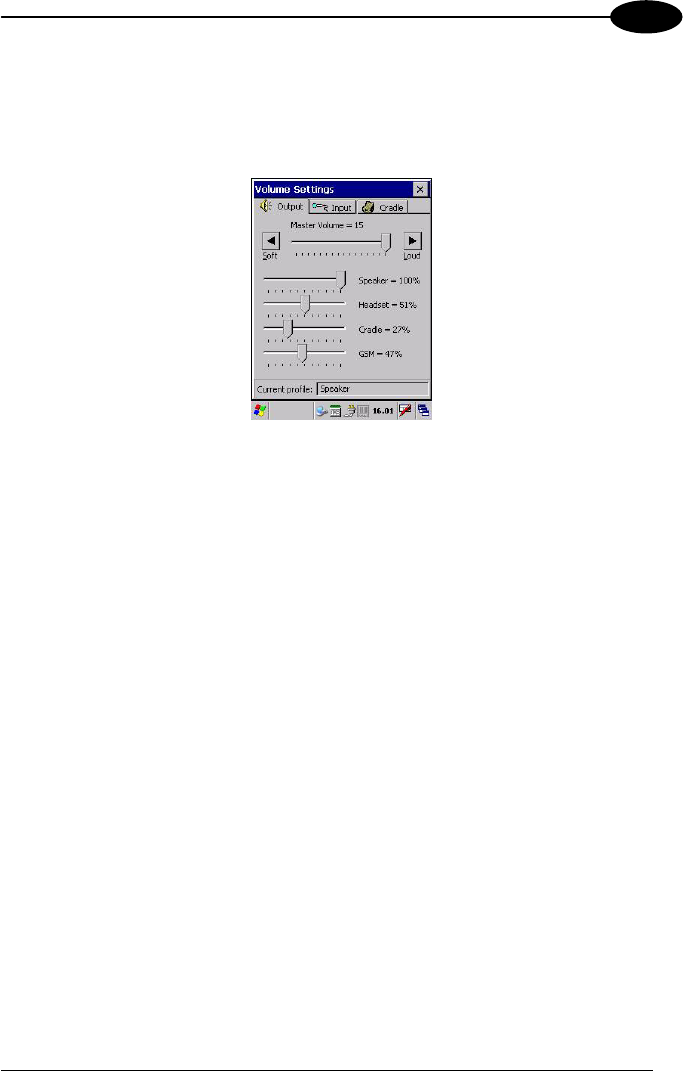

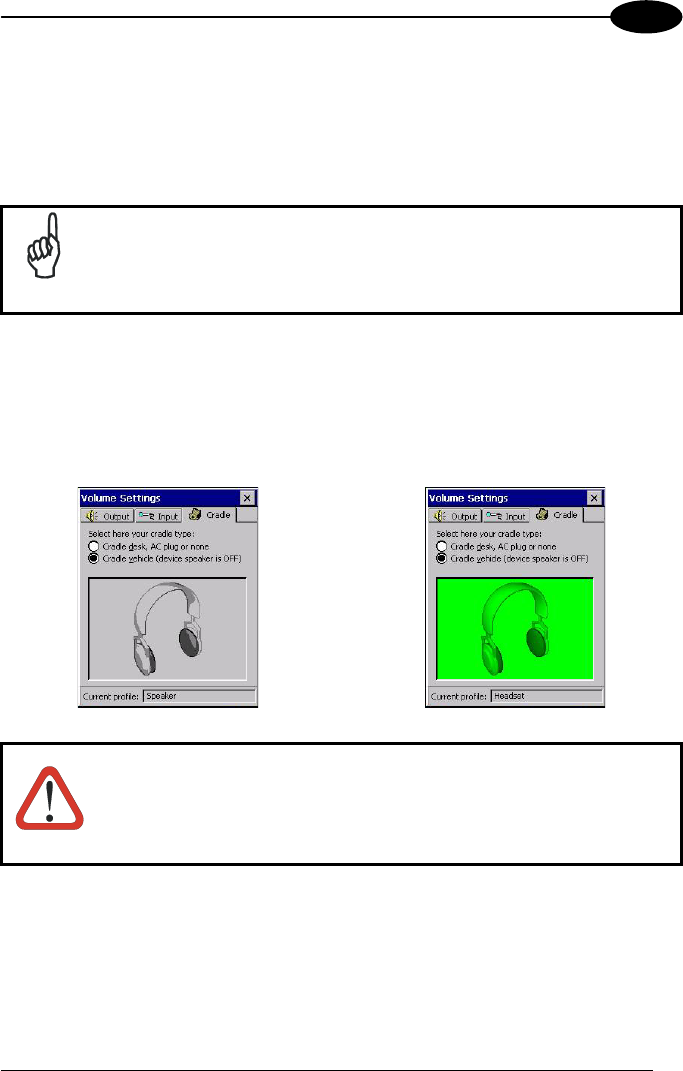

3.7.5 Volume Settings.......................................................................................... 37

3.8 Windows Connections ................................................................................ 40

3.8.1 Microsoft® ActiveSync® ............................................................................. 40

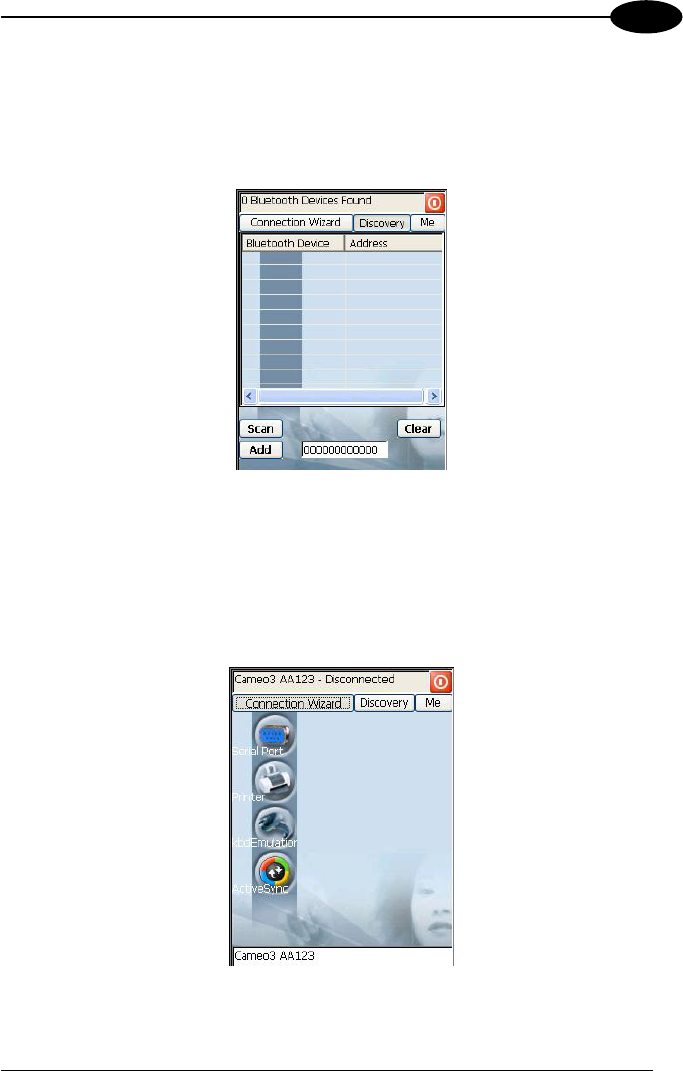

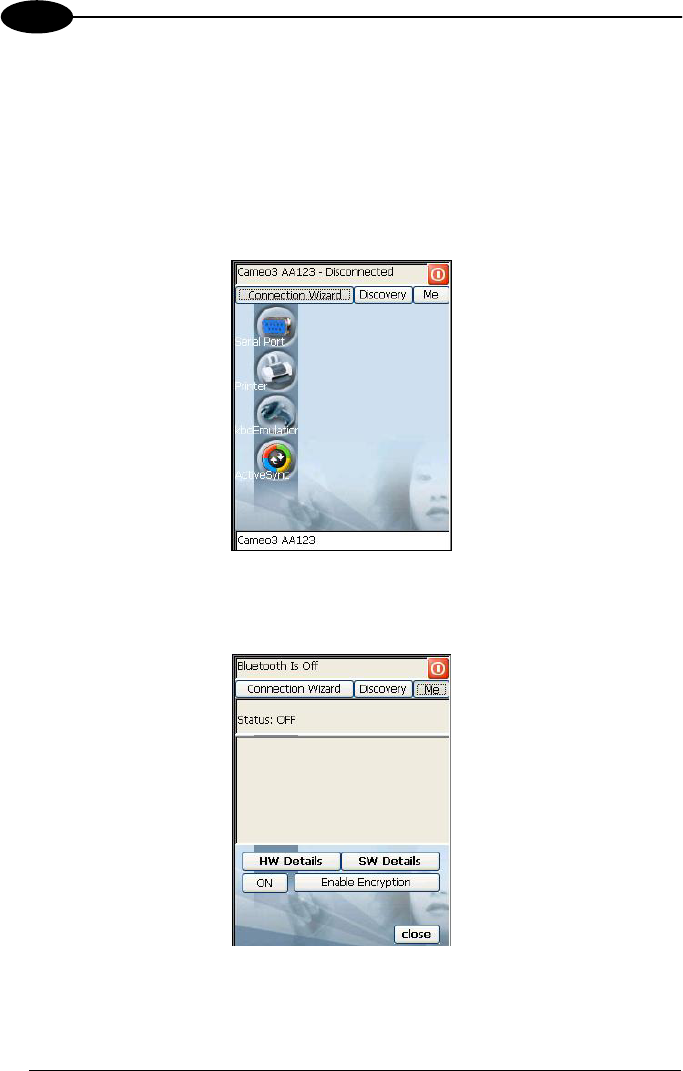

3.8.2 Bluetooth® Manager Device Setup............................................................. 42

3.9 Backup Directory File Management ............................................................ 45

4 MAINTENANCE ......................................................................................... 46

4.1 Charging the Battery Pack .......................................................................... 46

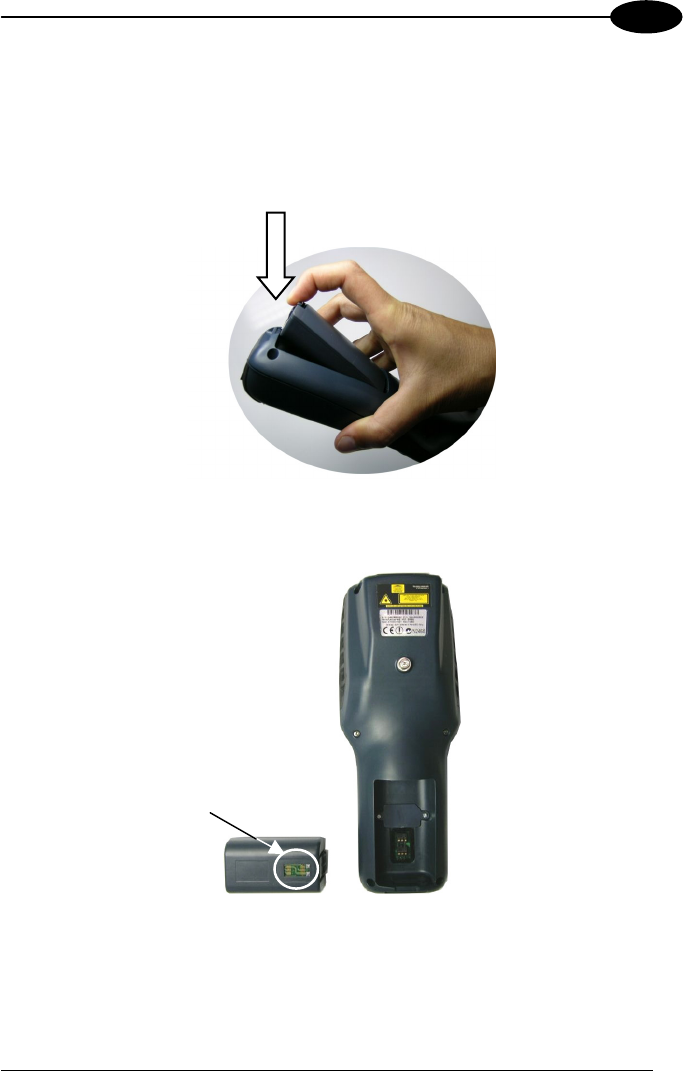

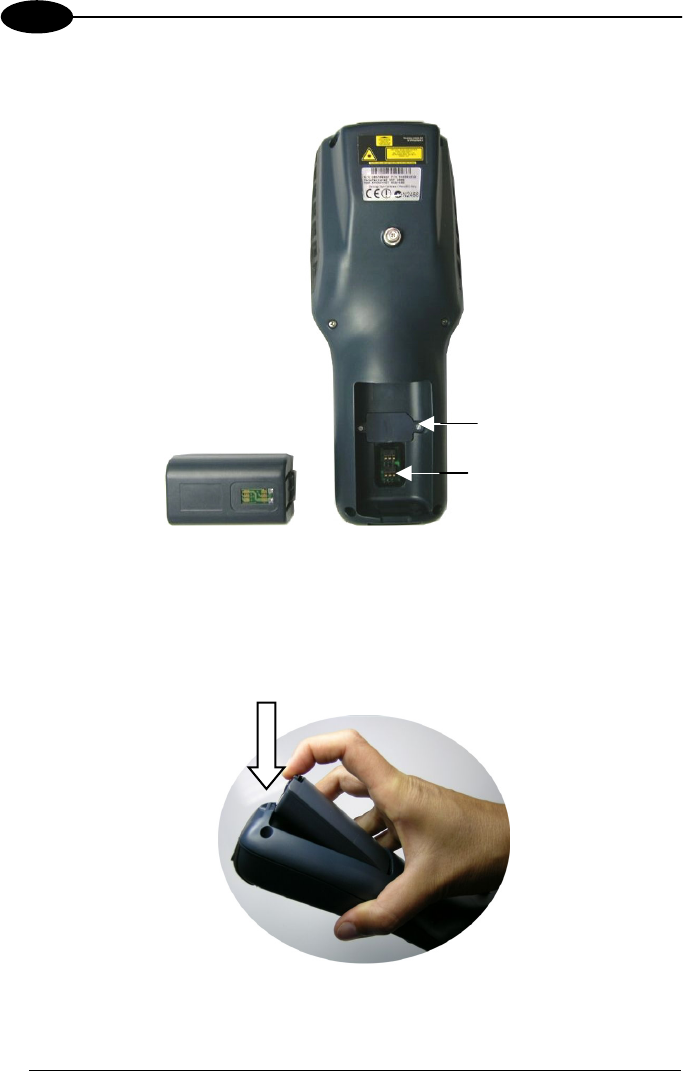

4.2 Replacing the Battery Pack......................................................................... 47

4.3 Compact Flash and Secure Storage Cards................................................. 49

4.4 Cleaning the Mobile Computer.................................................................... 49

5 TECHNICAL FEATURES........................................................................... 50

5.1 Technical Data ............................................................................................ 50

5.2 Reading Diagrams ...................................................................................... 54

6 TEST CODES............................................................................................. 56

GLOSSARY................................................................................................ 59

INDEX......................................................................................................... 61

DATALOGIC END USER LICENSE AGREEMENT

BY DOWNLOADING OR INSTALLING THE SOFTWARE, OR BY USING DATALOGIC EQUIPMENT THAT

INCLUDES THIS SOFTWARE, YOU ARE CONSENTING TO BE BOUND BY THIS AGREEMENT. IF YOU

DO NOT AGREE TO ALL OF THE TERMS OF THIS AGREEMENT, THEN DO NOT DOWNLOAD, INSTALL,

USE THE SOFTWARE NOR DATALOGIC EQUIPMENT.

The following terms and conditions govern your use of the Software except to the extent that a particular program (a) is the

subject of a separate written agreement with Datalogic or (b) includes a separate “click-on” license agreement as part of the

installation and/or download process. Should a conflict arise between the provisions of the foregoing documents, the order of

precedence shall be (1) the written agreement, (2) the click-on agreement, and (3) this agreement (“Agreement”).

1. License. Subject to the terms and conditions of and except as otherwise provided in this Agreement, Datalogic S.p.A.

(“Datalogic”) and its suppliers grant to Customer (“Customer”) a nonexclusive and nontransferable license to use the specific

program modules, feature set(s) or feature(s) in object code form only as well as associated media, printed materials and

“online” or electronic documentation (the “Software”) for which Customer has paid, if required, the license fees. The Software is

licensed not sold. The license shall be subject to each of the following limitations:

• Unless otherwise expressly provided in the documentation, Customer shall use the Software solely as embedded in, for

execution on, or (where the applicable documentation permits installation on non-Datalogic equipment) for

communication with Datalogic equipment owned or leased by Customer;

• Customer’s use of the Software shall be limited to use on a single hardware chassis, on a single central processing unit,

as applicable, or use on such greater number of chassis or central processing units as Customer may have paid

Datalogic the required license fee; and

• Customer’s use of the Software shall also be limited, as applicable and set forth in Customer’s purchase order or in

Datalogic’s product catalog, user documentation, or web site, to a maximum number of (a) seats (i.e. users with access

to the installed Software), (b) concurrent users, sessions, ports, and/or issued and outstanding IP addresses, and/or (c)

central processing unit cycles or instructions per second. Customer’s use of the Software shall also be limited by any

other restrictions set forth in Customer’s purchase order or in Datalogic’s product catalog, user documentation or web site

for the Software.

2. General Limitations. Except as otherwise expressly provided under this Agreement, Customer shall have no right, and

Customer specifically agrees not to (i) transfer, assign or sublicense its license rights to any other person, or use the Software

on unauthorized or secondhand Datalogic equipment, and any such attempted transfer, assignment or sublicense shall be void;

(ii) correct errors to or otherwise modify or adapt the Software or create derivative works based upon the Software, or to permit

third parties to do the same; or (iii) decompile, decrypt, reverse engineer, disassemble or otherwise reduce the Software to

human-readable form to gain access to trade secrets or confidential information in the Software. To the extent required by law,

at Customer's request, Datalogic shall provide Customer with the interface information needed to achieve interoperability

between the Software and another independently created program, upon payment of Datalogic's applicable fee. Customer shall

observe strict obligations of confidentiality with respect to such information.

3. Upgrades and Additional Copies. For purposes of this Agreement, “Software” shall include (and the terms and conditions of

this Agreement shall apply to) any upgrades, updates, bug fixes or modified versions (collectively, “Upgrades”) or backup copies

of the Software licensed or provided to Customer by Datalogic or an authorized distributor for which Customer has paid the

applicable license fees. Notwithstanding any other provision of this Agreement: (1) customer has no license or right to use any

such additional copies or upgrades unless customer, at the time of acquiring such copy or upgrade, already holds a valid license

to the original Software and has paid the applicable fee for the upgrade, if required; (2) use of upgrades is limited to Datalogic

equipment for which customer is the original end user, purchaser or lessee or who otherwise holds a valid license to use the

Software which is being upgraded; and (3) use of additional copies is limited to backup purposes only.

4. Proprietary Notices. Customer agrees to maintain and reproduce all copyright and other proprietary notices on all copies, in

any form, of the Software in the same form and manner that such copyright and other proprietary notices are included on the

Software. Except as expressly authorized in this Agreement, Customer shall not make any copies or duplicates or any Software

without the prior written permission of Datalogic. Customer may make such backup copies of the Software as may be necessary

for Customer’s lawful use, provided Customer affixes to such copies all copyright, confidentiality, and proprietary notices that

appear on the original.

5. Protection of Information. Customer agrees that aspects of the Software and associated documentation, including the

specific design and structure of individual programs, constitute trade secrets and/or copyrighted material of Datalogic. Customer

shall not disclose, provide, or otherwise make available such trade secrets or copyrighted material in any form to any third party

without the prior written consent of Datalogic. Customer shall implement reasonable security measures to protect such trade

secrets and copyrighted material. Software and documentation shall remain solely property of Datalogic.

6. Limited Warranty. If Customer obtained the Software directly from Datalogic, then Datalogic warrants that during the

Warranty Period (as defined below): (i) the media on which the Software is furnished will be free of defects in materials and

workmanship under normal use; and (ii) the Software will substantially conform to its published specifications. The “Warranty

Period” means a period beginning on the date of Customer’s receipt of the Software and ending on the later of (a) ninety (90)

days from the date of initial shipment of the Software by Datalogic, or (b) the end of the minimum period required by the law of

the applicable jurisdiction. The limited warranties extend only to Customer as the original licensee. Customer's sole and

exclusive remedy and the entire liability of Datalogic and its suppliers under these limited warranties will be, at Datalogic’s sole

option, repair or replacement of the Software if reported (or, upon request, returned) to Datalogic. Except as expressly granted

in this Agreement, the Software is provided AS IS and with all faults. Datalogic does not warrant that the Software is error free

or that Customer will be able to operate the Software without problems or interruptions. In addition, due to the continual

development of new techniques for intruding upon and attacking networks, Datalogic does not warrant that the Software or any

equipment, system or network on which the Software is used will be free of vulnerability to intrusion or attack. This warranty

does not apply if the Software (a) is licensed for beta, evaluation, testing or demonstration purposes for which Datalogic does

not receive a license fee, (b) has been altered, except by Datalogic, (c) has not been installed, operated, repaired, or maintained

in accordance with instructions supplied by Datalogic, (d) has been subjected to abnormal physical or electrical stress, misuse,

negligence, or accident, or (e) is used in ultra hazardous activities. If Customer obtained the Software from a Datalogic reseller,

the terms of any warranty shall be as provided by such distributor, and Datalogic provides Customer no warranty with respect to

such Software. The Software may contain support for programs written in Java. Java technology is not fault tolerant and is not

designed, manufactured, or intended for use or resale as online control equipment in hazardous environments requiring fail-safe

performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct

life support machines, or weapons systems, in which the failure of Java technology could lead directly to death, personal injury,

or severe physical or environmental damage. Microsoft Inc. has contractually obligated Datalogic to make this disclaimer.

7. Disclaimer of Warranties. Except as specified in this warranty, all expressed or implied conditions, representations, and

warranties including, without limitation, any implied warranty or condition of merchantability, fitness for a particular purpose, non-

infringement, satisfactory quality or arising from a course of dealing, usage, or trade practice, are hereby excluded to the extent

allowed by applicable law. To the extent that an implied warranty cannot be excluded, such warranty is limited in duration to the

warranty period.

8. Disclaimer of Liabilities. In no event will Datalogic or its suppliers be liable for any lost revenue, profit, or data, or for

special, indirect, consequential, incidental, or punitive damages however caused and arising out of the use of or inability to use

the Software even if Datalogic has been advised of the possibility of such damages. In no event shall Datalogic or its suppliers'

liability to customer, whether in contract, tort (including negligence), or otherwise, exceed the price paid by customer. The

foregoing limitations shall apply even if the above-stated warranty fails of its essential purpose.

9. Term and Termination. This Agreement is effective until terminated. Customer may terminate this Agreement at any time by

destroying all copies of Software including any documentation. Customer’s license rights under this Agreement will terminate

immediately without notice from Datalogic if Customer fails to comply with any provision of this Agreement. Upon termination,

Customer must destroy all copies of Software in its possession or control.

10. Customer Records. Customer grants to Datalogic and its independent accountants the right to examine Customer’s books,

records and accounts during Customer’s normal business hours to verify compliance with this Agreement. In the event such

audit discloses non-compliance with this Agreement, Customer shall promptly pay to Datalogic the appropriate license fees.

11. General Provisions. This Agreement shall be governed by and construed in accordance with the laws of Italy. All disputes

arising out of or in connection with this Agreement will be subject to the exclusive jurisdiction of the competent Court of the

place where Datalogic has its registered office. If any portion hereof is found to be void or unenforceable, the remaining

provisions of this Agreement shall remain in full force and effect. Except as expressly provided herein, this Agreement

constitutes the entire agreement between the parties with respect to the license of the Software and supercedes any conflicting

or additional terms contained in the purchase order.

vii

REFERENCES

CONVENTIONS

This manual uses the following conventions:

“User” refers to anyone using a Kyman-NET™ mobile computer.

“Mobile computer” and "Kyman-NET™" refer to Kyman-NET™ mobile computer.

“You” refers to the System Administrator or Technical Support person using this

manual to install, configure, operate, maintain or troubleshoot a Kyman-NET™

mobile computer.

REFERENCE DOCUMENTATION

For further information regarding Kyman-NET™ refer to the SDK Help on-Line.

SERVICES AND SUPPORT

Datalogic provides several services as well as technical support through its website.

Log on to www.datalogic.com and click on the links indicated for further information

including:

- PRODUCTS

Search through the links to arrive at your product page where you can download

specific Manuals and Software & Utilities

- SERVICES & SUPPORT

- Datalogic Services Warranty Extensions and Maintenance Agreements

- Authorised Repair Centres

- CONTACT US

E-mail form and listing of Datalogic Subsidiaries

viii

SAFETY REGULATIONS

NOTE

Read this manual carefully before performing any type of connection

to the Kyman-NET™ mobile computer.

The user is responsible for any damages caused by incorrect use of

the equipment or by inobservance of the indication supplied in this

manual.

GENERAL SAFETY RULES

− Use only the components supplied by the manufacturer for the specific

Kyman-NET™ being used.

− Do not attempt to disassemble the Kyman-NET™ mobile computer, as it does

not contain parts that can be repaired by the user. Any tampering will invalidate

the warranty.

− When replacing the battery pack or at the end of the operative life of the

Kyman-NET™ mobile computer, disposal must be performed in compliance with

the laws in force.

− Do not submerge the Kyman-NET™ in liquid products.

− For GSM models, when using the device for telephone calls, it is advised to use

a headset.

− Avoid significant and rapid temperature variations, which can produce

condensation inside the Kyman-NET™ and reduce its performance.

LASER SAFETY

The laser light is visible to the human eye and is emitted from the window indicated in

the figure.

This information applies to both laser models and the Kyman-NET™ Imager Aiming

System.

I D F E

La luce laser è visibile

all'occhio umano e

viene emessa dalla

finestra indicata nella

figura.

Die Laserstrahlung ist für

das menschliche Auge

sichtbar und wird am

Strahlaustrittsfenster

ausgesendet (siehe Bild).

Le rayon laser est visible

à l'oeil nu et il est émis

par la fenêtre désignée

sur l'illustration dans la

figure.

La luz láser es visible al

ojo humano y es emitida

por la ventana indicada

en la figura.

LUCE LASER

NON FISSARE IL FASCIO

APPARECCHIO LASER DI

CLASSE 2

MINIMA POTENZA DI

USCITA:

LUNGHEZZA D'ONDA

EMESSA:

CONFORME A EN 60825-1

(2001)

LASERSTRAHLUNG

NICHT IN DER STRAHL

BLINKEN

PRODUKT DER

LASERKLASSE 2

MAXIMALE

AUSGANGLEISTUNG:

WELLENLÄNGE:

ENTSPR. EN 60825-1

(2001)

RAYON LASER

EVITER DE REGARDER

LE RAYON

APPAREIL LASER DE

CLASSE 2

PUISSANCE DE SORTIE:

LONGUER D'ONDE EMISE:

CONFORME A EN 60825-1

(2001)

RAYO LÁSER

NO MIRAR FIJO EL RAYO

APARATO LÁSER DE

CLASE 2

MÁXIMA POTENCIA DE

SALIDA:

LONGITUD DE ONDA

EMITIDA:

CONFORME A EN 60825-1

(2001)

LASER LIGHT - DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

MAX. OUTPUT RADIATION 1.4 mW

EMITTED WAVELENGTH 630~680 nm

EN60825-1:2001

This product complies with

21 CFR Subchapter J

AVOID EXPOSURE

LASER LIGHT

IS EMITTED FROM

THIS APERTURE

CAUTION-CLASS 2 LASER LIGHT WHEN OPEN - DO NOT STARE INTO BEAM

Laser out

ut windo

ENGLISH

The following information is provided to comply with the rules imposed by

international authorities and refers to the correct use of your mobile computer.

STANDARD LASER SAFETY REGULATIONS

This product conforms to the applicable requirements of both CDRH 21 CFR 1040

and EN 60825-1 at the date of manufacture.

For installation, use and maintenance, it is not necessary to open the device.

CAUTION

Use of controls or adjustments or performance of procedures other

than those specified herein may result in exposure to hazardous

visible laser light.

The product utilizes a low-power laser diode. Although staring directly at the laser

beam momentarily causes no known biological damage, avoid staring at the beam as

one would with any very strong light source, such as the sun. Avoid that the laser

beam hits the eye of an observer, even through reflective surfaces such as mirrors,

etc.

ITALIANO

Le seguenti informazioni vengono fornite dietro direttive delle autorità internazionali e

si riferiscono all’uso corretto del terminale.

NORMATIVE STANDARD PER LA SICUREZZA LASER

Questo prodotto risulta conforme alle normative vigenti sulla sicurezza laser alla data

di produzione: CDRH 21 CFR 1040 e EN 60825-1.

Non si rende mai necessario aprire l’apparecchio per motivi di installazione, utilizzo o

manutenzione.

ATTENZIONE

L'utilizzo di procedure o regolazioni differenti da quelle descritte

nella documentazione può provocare un'esposizione pericolosa

a luce laser visibile.

Il prodotto utilizza un diodo laser a bassa potenza. Sebbene non siano noti danni

riportati dall’occhio umano in seguito ad una esposizione di breve durata, evitare di

fissare il raggio laser così come si eviterebbe qualsiasi altra sorgente di luminosità

intensa, ad esempio il sole. Evitare inoltre di dirigere il raggio laser negli occhi di un

osservatore, anche attraverso superfici riflettenti come gli specchi.

DEUTSCH

Die folgenden Informationen stimmen mit den Sicherheitshinweisen überein, die von

internationalen Behörden auferlegt wurden, und sie beziehen sich auf den korrekten

Gebrauch vom Terminal.

NORM FÜR DIE LASERSICHERHEIT

Dies Produkt entspricht am Tag der Herstellung den gültigen EN 60825-1 und CDRH

21 CFR 1040 Normen für die Lasersicherheit.

Es ist nicht notwendig, das Gerät wegen Betrieb oder Installations-, und Wartungs-

arbeiten zu öffnen.

ACHTUNG

Jegliche Änderungen am Gerät sowie Vorgehensweisen, die nicht

in dieser Betriebsanleitung beschrieben werden, können ein

gefährliches Laserlicht verursachen.

Der Produkt benutzt eine Laserdiode. Obwohl zur Zeit keine Augenschäden von

kurzen Einstrahlungen bekannt sind, sollten Sie es vermeiden für längere Zeit in den

Laserstrahl zu schauen, genauso wenig wie in starke Lichtquellen (z.B. die Sonne).

Vermeiden Sie es, den Laserstrahl weder gegen die Augen eines Beobachters, noch

gegen reflektierende Oberflächen zu richten.

FRANÇAIS

Les informations suivantes sont fournies selon les règles fixées par les autorités

internationales et se refèrent à une correcte utilisation du terminal.

NORMES DE SECURITE LASER

Ce produit est conforme aux normes de sécurité laser en vigueur à sa date de

fabrication: CDRH 21 CFR 1040 et EN 60825-1.

Il n’est pas nécessaire d’ouvrir l’appareil pour l’installation, l’utilisation ou l’entretien.

ATTENTION

L'utilisation de procédures ou réglages différents de ceux donnés

ici peut entrainer une dangereuse exposition à lumière laser

visible.

Le produit utilise une diode laser. Aucun dommage aux yeux humains n’a été

constaté à la suite d’une exposition au rayon laser. Eviter de regarder fixement le

rayon, comme toute autre source lumineuse intense telle que le soleil. Eviter aussi

de diriger le rayon vers les yeux d’un observateur, même à travers des surfaces

réfléchissantes (miroirs, par exemple).

xii

ESPAÑOL

Las informaciones siguientes son presentadas en conformidad con las disposiciones

de las autoridades internacionales y se refieren al uso correcto del terminal.

NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER

Este aparato resulta conforme a las normativas vigentes de seguridad láser a la

fecha de producción: CDRH 21 CFR 1040 y EN 60825-1.

No es necesario abrir el aparato para la instalación, la utilización o la manutención.

ATENCIÓN

La utilización de procedimientos o regulaciones diferentes de

aquellas describidas en la documentción puede causar una

exposición peligrosa a la luz láser visible.

El aparato utiliza un diodo láser a baja potencia. No son notorios daños a los ojos

humanos a consecuencia de una exposición de corta duración. Eviten de mirar fijo el

rayo láser así como evitarían cualquiera otra fuente de luminosidad intensa, por

ejemplo el sol. Además, eviten de dirigir el rayo láser hacia los ojos de un

observador, también a través de superficies reflectantes como los espejos.

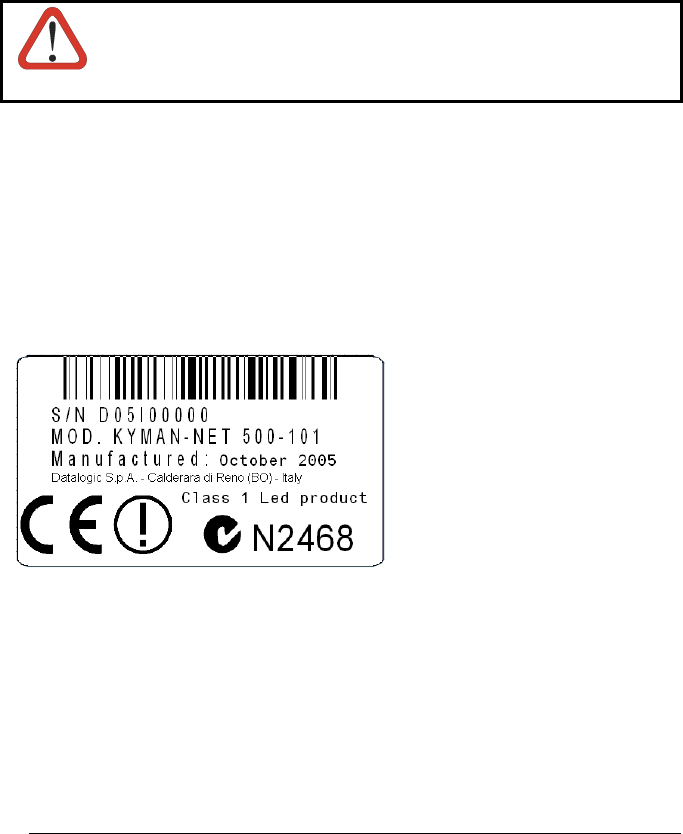

LED Illuminator

The use of an illuminator in the Kyman-NET™ Imager is a Class 1 LED product:

ILLUMINATORE LED CLASSE 1

AUSLEUCHTER LED KLASSE 1

ILLUMINATEUR A LED DE CLASSE 1

ILUMINADOR LED DE CLASE 1

xiii

RADIO COMPLIANCE

In radio systems configured with mobile computers and access points, the

frequencies to be used must be allowed by the spectrum authorities of the specific

country in which the installation takes place. Be absolutely sure that the system

frequencies are correctly set to be compliant with the spectrum requirements of the

country.

The Radio modules used in this product automatically adapt to the frequencies set by

the system and do not require any parameter settings.

The following shows the correspondence between the Kyman-NET™ models and the

Radio modules:

 Kyman-NET™ 5XX-XXX 802.11b (Wi-Fi) radio card

 Kyman-NET™ X1X-XXX GSM/GPRS Tri-band (900, 1800, 1900 MHz) module

 Kyman-NET™ 51X-XXX 802.11b (Wi-Fi) radio card + GSM/GPRS Tri-band

(900, 1800, 1900 MHz) module

INFORMATION FOR THE USER

ENGLISH

Contact the competent authority responsible for the management of radio frequency

devices of your country to verify the eventual necessity of a user license. Refer to the

web site http://europa.eu.int/comm/enterprise/rtte/spectr.htm for further information.

ITALIANO

Prendi contatto con l'autorità competente per la gestione degli apparati a radio

frequenza del tuo paese, per verificarne l'eventuale necessità della licenza d'uso.

Inoltre puoi trovare ulteriori informazioni al sito:

http://europa.eu.int/comm/enterprise/rtte/spectr.htm.

FRANÇAIS

Contactez l'autorité compétente en la gestion des appareils à radio fréquence de

votre pays pour vérifier la nécessité du permis d'usage. Pour tout renseignement

vous pouvez vous adresser au site web:

http://europa.eu.int/comm/enterprise/rtte/spectr.htm.

DEUTSCH

Um die Notwendigkeit der Verwendungslizenz zu prüfen, wenden Sie sich an die

Behörde, die auf der Radiofrequenzgerätsführung Ihres Lands bewandert ist. Weitere

Informationen sind verfügbar auf dem Web Site:

http://europa.eu.int/comm/enterprise/rtte/spectr.htm.

xiv

ESPAÑOL

Contacta con la autoridad competente para la gestión de los dispositivos de radio

frecuencia de tu país, para verificar si es necesario la licencia de uso. Además se

puede encontrar mas información en el sitio web:

http://europa.eu.int/comm/enterprise/rtte/spectr.htm.

FCC COMPLIANCE

This device must be opened by qualified personnel only.

Modifications or changes to this equipment without the expressed written approval of

Datalogic could void the authority to use the equipment.

This device complies with PART 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference which may

cause undesired operation.

All Wi-Fi models contain FCC ID H9PLA4137.

ALL GSM/GPRS models contain FCC ID QIPMC55.

WEEE COMPLIANCE

GENERAL VIEW

A) Backlit display

B) User programmable LED

C) Speaker

D) Good read LED

E) Charging status and battery low

warning LED

F) Scan key

G) Keyboard

H) Microphone

I) Laser safety label

J) Product label

K) Adjustable elastic strap with stylus

holders

L) Battery pack

M) Data capture/Laser Output window N) Communication/Charger/Headset

connector

B D

C E

xvi

INTRODUCTION

1 INTRODUCTION

1.1 KYMAN-NET™ DESCRIPTION

The Datalogic Kyman-NET™ rugged mobile computer is one of the key elements of

Datalogic’s mobile@work™ product family for logistic solutions.

Kyman-NET™, thanks to the lightest weight of its category combined with one of the

best ergonomics ever seen on the market, reduces the operators fatigue with no

compromises in terms of reliability and robustness. Its sturdy outer casing with

overmold protection has been designed to resist harsh environments, multiple drops,

strong shocks, repetitive tumbles as well as sub-zero temperatures.

Datalogic’s Kyman-NET™ key features include fully integrated automatic data

capture (1D bar code, 1D bar code & RFID HF-ISO tags, 1D & 2D bar codes &

images), allowing codes to be read from near contact to several meters distance and

simultaneous wireless communication capabilities (Bluetooth®, Wi-Fi, GSM/GPRS).

Kyman-NET™ system architecture is based on the “de-facto standard” combination

of Intel X-Scale series processors coupled with the Windows CE operating system

and it is ready to satisfy the most demanding customer needs (i.e. allowing to expand

its memory thanks to a Secure Digital standard slot).

Kyman-NET™ provides 2 intuitive keyboard layouts, numeric/alphanumeric with

backlight, able to fulfill 100% traditional text based applications (i.e. terminal

emulation, through the DL-TCL-NET™ software client) as well as the most modern

Web-based solutions (i.e. exploiting the Microsoft Internet Explorer through the DL

Locked Web Browser™ application).

Kyman-NET™ provides mobile professionals with the most relevant features needed

to operate in demanding environments: reliability, ruggedness, drop resistance, long

lasting batteries, flexible communication and efficient data capture.

KYMAN-NET™

1.2 AVAILABLE MODELS

The brand new Kyman-NET™ is available in different models depending on the

options it is equipped with. All options are listed below:

• data capture options: laser, imager, RfId, laser + RfId, laser extra-long range

• communication options: Wi-Fi 802.11b, GSM/GPRS, Bluetooth®

• data entry options: alphanumeric keyboard, numeric keyboard

For further details about the Kyman-NET™ models refer to the web site:

http://www.datalogic.com.

1.3 PACKAGE CONTENTS

The Kyman-NET™ package contains:

− 1 Kyman-NET™ mobile computer

− 1 CD-ROM Datalogic-NET SDK (Windows CE.NET SDK for Datalogic mobile

computers)

− 2 styluses

− 1 user’s manual

− 1 rechargeable battery pack

− 1 adjustable elastic strap with stylus holder

− 1 belt clip

− 1 belt clip pivot

Any other packages will contain the accessories necessary for the Kyman-NET™

connection to the host computer and to the network: the cradle, power supply, and

one or more connection cables.

Remove all the components from their packaging; check their integrity and congruity

with the packing documents.

CAUTION

Keep the original packaging for use when sending products to the

technical assistance center. Damage caused by improper

packaging is not covered under the warranty.

INTRODUCTION

NOTE

Rechargeable battery packs are not initially charged. Therefore the

first operation to perform is to charge them. See paragraph 4.1.

1.3.1 Using the Belt Clip

To use the belt clip, proceed as follows:

1. Remove the elastic strap and unscrew the strap pivot.

2. Release the belt clip pivot by pressing the belt clip unlock button.

KYMAN-NET™

3. Screw the belt clip pivot on the terminal by using the fixing screw.

4. Insert the terminal in the belt clip by sliding the belt clip pivot into the belt clip

until it clicks into place.

5. To release the terminal, press the belt clip unlock button.

INTRODUCTION

1.4 ACCESSORIES

 Cradles

94A151101 Kyman-NET™ Single Cradle Desk (includes slot for spare battery

pack recharge; RS232 and USB communications)

94A151107 Kyman-NET™ Vehicle Cradle

 Charger

94A151102 Kyman-NET™ Multi-Battery Pack Charger (4 slots)

 Batteries

94ACC1302 Kyman-NET™ Standard Battery Pack (Li-Ion battery pack 2200

mAh@7.4 V)

 Power Supply

94ACC4595 FPS18 Power Supply without cord for Kyman-NET™ Single Cradle

Desk, for Kyman-NET™ Multi-Battery Charger and for WIN-NET Serial/USB

PWR Cables

94ACC1150 Power cord EU 3-pin

 Cables

94A051008 WIN-NET SERIAL CABLE (HRS 3500-16P-CV) cable for RS232

direct connection between the mobile computer and the PC

94A051009 WIN-NET USB CABLE (HRS 3500-16P-CV) cable for USB direct

connection between the mobile computer and the PC

94A051014 WIN-NET SERIAL PWR CABLE (HRS 3500-16P-CV) cable for

RS232 and power connections

94A051015 WIN-NET USB PWR CABLE (HRS 3500-16P-CV) cable for USB

and power connections

94A051012 WIN-NET VEHICLE PWR CAB (HRS 3500-16P-CV) cable for

car/truck cigarette lighter power adapter

 Various

94ACC1304 Kyman-NET™ Belt Holster

94ACC1303 Kyman-NET™ Functional Case

94ACC1301 Stylus Pen (20 pcs)

94ACC1300 JET™ & Kyman-NET™ Backstrap Kit (1+1 pcs)

KYMAN-NET™

2 CONNECTIONS

2.1 CONNECTION TO THE HOST COMPUTER

2.1.1 RS232/USB Direct Connection

You can use a cable to connect the Kyman-NET™ to a host computer to transfer

data.

Key:

A Host computer C RS232 cable or USB cable

B Kyman-NET™

Key:

A Host computer C RS232 cable or USB cable

B Kyman-NET™ D Power Supply*

* Recommended Power Supply: FPS18 AC/DC Power Supply (94ACC4595).

CAUTION

USB communication may not be completely guaranteed while

batteries are simultaneously in charge. Avoid the power supply

connection when the USB link is active.

CONNECTIONS

2.1.2 WLAN Connection

Kyman-NET™ Wi-Fi models can communicate with the host using the on-board radio

frequency module and an Access Point connected to the host computer.

Key:

A) Kyman-NET™

B) Access point

NOTE

In order to avoid wasting power, the Wi-Fi module is off by default. If

you need to have the Wi-Fi module working, the module must be

powered on using the Wireless Communications applet (see par.

3.7.4). To start configuring your WLAN connection, tap the Wi-Fi icon

at the bottom of the screen.

KYMAN-NET™

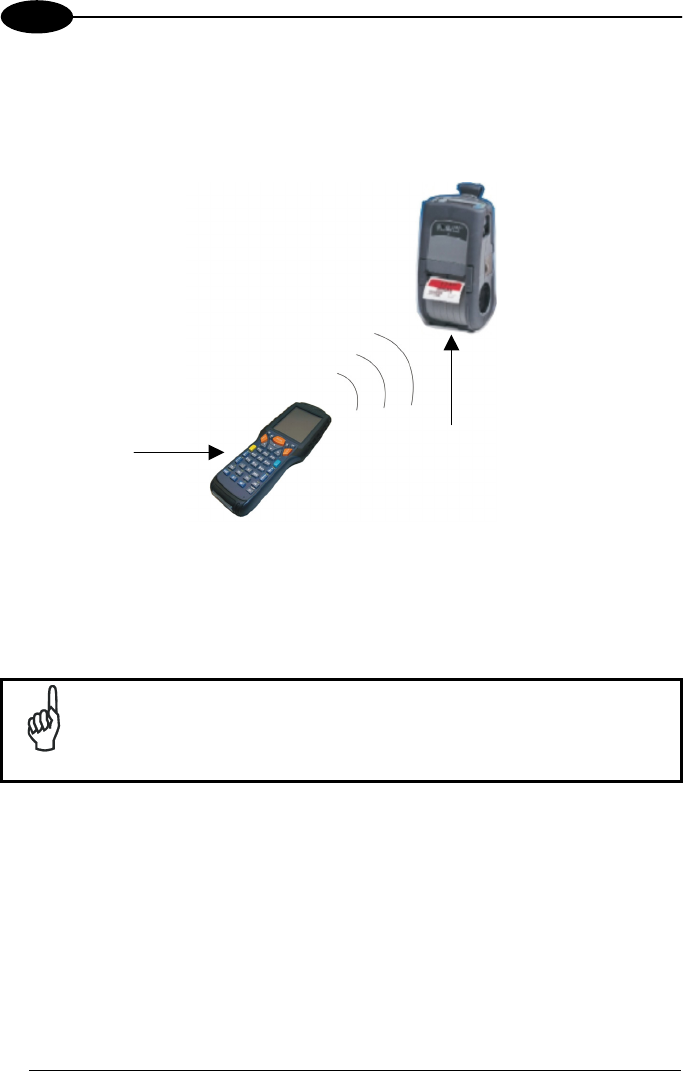

2.1.3 WPAN Connections

Kyman-NET™ mobile computers can communicate with a Bluetooth® device, such as

a printer, within a range of 10 m, using the on-board Bluetooth® module.

Key:

A) Kyman-NET™

B) Bluetooth® printer

NOTE

In order to avoid wasting power, the Bluetooth® module is off by

default. If you need to have Bluetooth® working, the module must be

powered on using the Wireless Communications applet (see par.

3.7.4), and perform the Discovery procedure (see par. 3.8.2).

CONNECTIONS

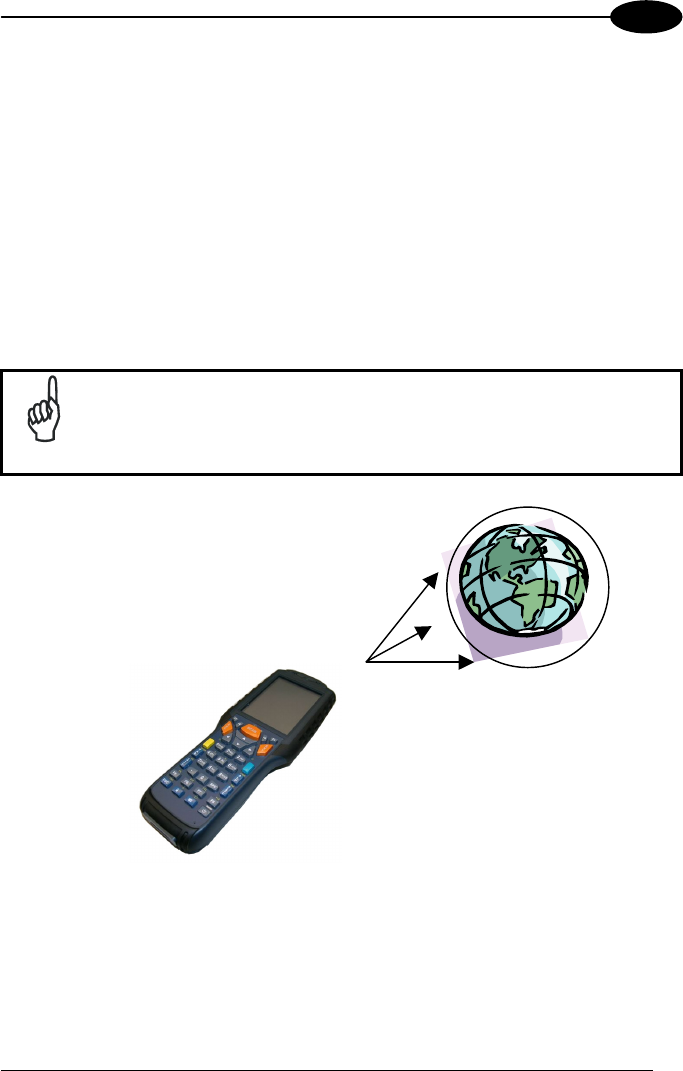

2.1.4 WWAN Connections

Kyman-NET™ GSM/GPRS models enhance your connectivity solutions giving you

an opening to an international wireless infrastructure that is the standard in Europe

and Asia.

GSM (Global System for Mobile communications), is a digital mobile phone system

based on TDMA; it utilizes the 900, 1800 and 1900 MHz bands.

GPRS supports IP (Internet Protocol) and allows accessing Internet and Intranet

services, such as sending and receiving e-mail or Web browsing.

In order to use a WWAN Connection you have to install a SIM Card (see instructions

on the following page).

NOTE

In order to avoid wasting power, the GSM/GPRS module is off by

default. If you need to have GSM/GPRS working, the module must

be powered on using the Wireless Communications applet (see par.

3.7.4.)

KYMAN-NET™

Installing the SIM Card

To correctly insert the SIM Card, proceed as follows:

1- Turn off the Kyman-NET™ mobile computer.

2- Pull the battery latch down as indicated in the figure below and remove the

battery pack.

SIM Protection Cover

Battery Contacts

CONNECTIONS

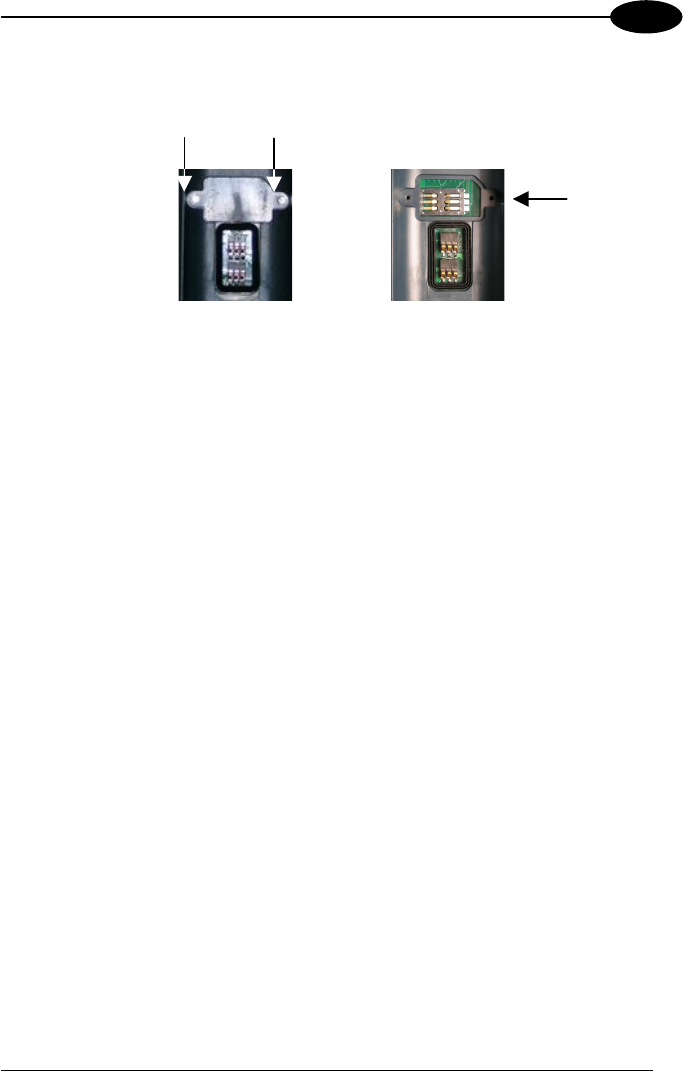

3- Open the Sim Card slot by unscrewing the two protection cover screws (A, B).

4- Position the SIM Card with its contacts downwards, place the protection cover

on the slot and close it with the two fixing screws.

Removing the SIM Card

To remove the SIM card, follow the steps above to access the SIM area, and remove

it from its slot.

SIM Card

Slot

A B

KYMAN-NET™

2.2 CONNECTION CABLES

The following cables are listed with their order number.

 RS232 Direct Connection:

94A051008 WIN-NET SERIAL CABLE (HRS 3500-16P-CV)

6 2

RTS

DSR

DTR

GND

9 4

Kyman-NET™ side

16-

CTS

HOST/PC side

9-pin (female)

 USB Direct Connection:

94A051009 WIN-NET USB CABLE (HRS 3500-16P-CV)

Kyman-NET™ side

16-pin HOST/PC side

9-pin (female)

D- 3

D+

V+

GND

CONNECTIONS

 RS232 Direct Connection:

94A051014 WIN-NET SERIAL PWR CABLE (HRS 3500-16P-CV)

6 2

CTS

Kyman-NET™ side

16-pin HOST/PC side

9-pin (female)

RTS CD

DSR DSR

DTR CTS

GND

VALIM

GND

GND POWER

CONNECTOR

 USB Direct Connection:

94A051015 WIN-NET USB PWR CABLE (HRS 3500-16P-CV)

HOUSING

D(+) 2

D(-)

V+

SHIELD

HOUSING

POWER

GND

VALIM

 Power Supply Polarity:

GND

VEXT

KYMAN-NET™

3 USE AND FUNCTIONING

The use of the Kyman-NET™ depends on the application software loaded. However

there are several parameters that can be set and utilities that can be used to perform

some basic functions such as data capture, communications, file management, etc.

3.1 STARTUP

The Kyman-NET™ turns on when the battery pack or the external supply is inserted.

After the battery pack is installed, use the [ON/OFF] key to turn the mobile computer

on and off.

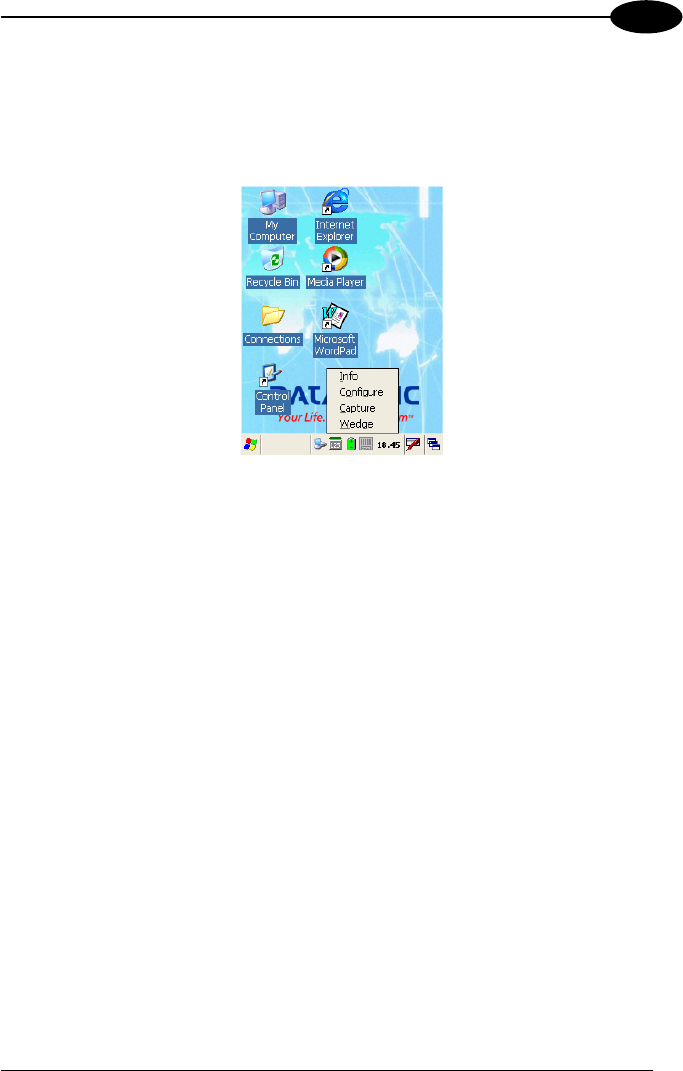

As soon as the mobile computer is on, the Windows CE .NET desktop configuration

will appear on the screen. Wait a few seconds before starting any activity so that the

mobile computer completes its startup procedure.

Use the stylus as suggested in paragraph 3.2 to select icons and options.

USE AND FUNCTIONING

The mobile computer goes into power-off (low power with display and keyboard

backlight off), when it is no longer used for more than a programmable timeout, which

is defined in the POWER applet of the Control Panel. In this mode it can be

awakened (resuming operation) by the [ON/OFF] key.

NOTE

The mobile computer can also be awakened or turned off by the

application program.

3.2 USING THE STYLUS

The stylus selects items and enters information. The stylus functions like a mouse.

Tap: Touch the screen once with the stylus to open items and select

options.

Drag: Hold the stylus on the screen and drag across the screen to

select text and images. Drag in a list to select multiple items.

Tap-and-hold:

Tap and hold the stylus on an item to see a list of actions

available for that item. On the pop-up menu that appears, tap the

action you want to perform.

The stylus is factory aligned; however, it is possible to align the cursor on the screen

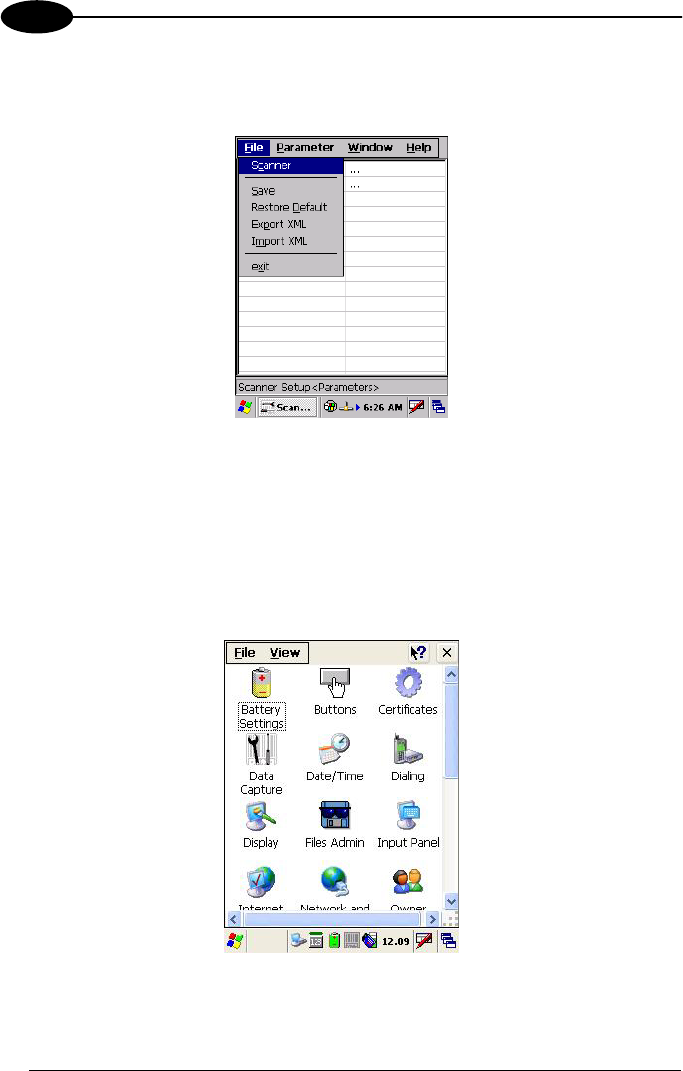

with the tip of the stylus. Enter the STYLUS applet of the Control Panel and tap the

center of each target that appears on the screen with the tip of the stylus.

KYMAN-NET™

3.3 DATA CAPTURE

To configure and enable data capture parameters refer to par. 3.6.

3.3.1 Laser Data Capture

To scan barcodes, point the Kyman-NET™ laser model onto the code from a

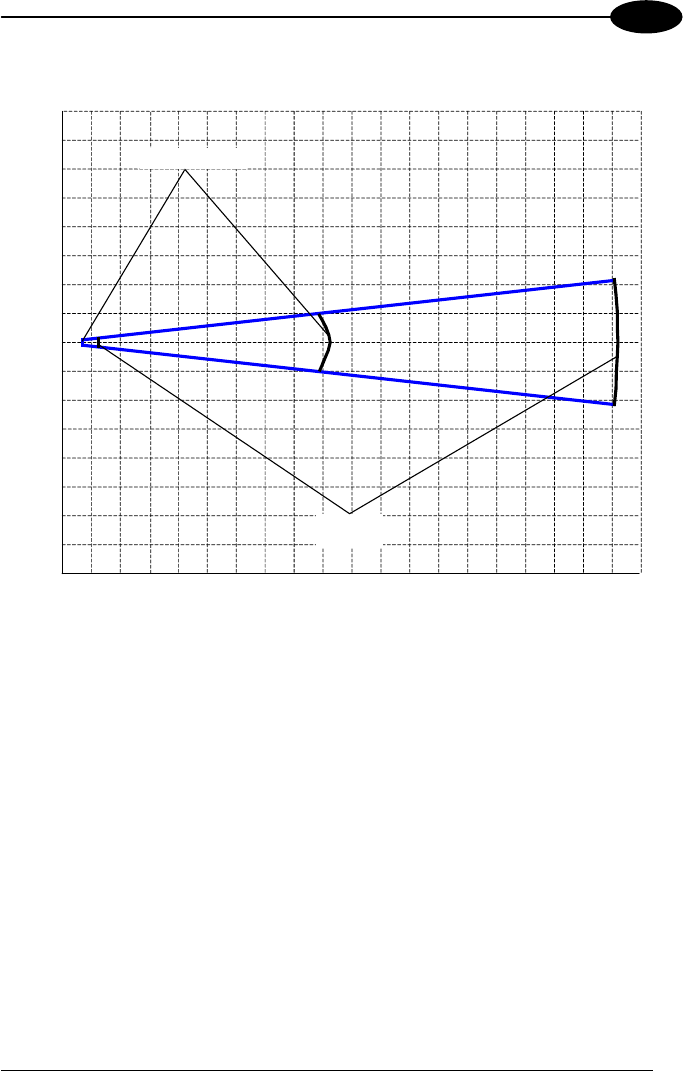

distance within the reading range while pressing the SCAN key. See the reading

diagrams in par. 5.2 for the reading range of your model.

The lighted band emitted by the laser must completely intercept the barcode as

shown in the figure below. If enabled, the emission of an acoustic signal will indicate

that the scan has taken place correctly.

USE AND FUNCTIONING

3.3.2 Imager Data Capture

To read a 1D or 2D code, simply point the Kyman-NET™ Imager model onto the

code from a distance within the reading range (See par. 5.1, section Kyman-NET™

Imager Optical Features) and press the SCAN key.

The Kyman-NET™ Imager uses an intelligent aiming system pattern similar to those

on cameras, which indicates the field of view which should be positioned over the

code:

Aiming System

If the aiming system pattern is centered over the entire symbology as shown in the

following figure, either wait for the timeout or release the Scan key to capture the

image.

KYMAN-NET™

A red beam illuminates the code, which is captured and decoded. You will get a good

read.

Linear barcode 2D Matrix symbol

ÌBX3ÉÎ

Relative Size and Location of Aiming System Pattern

The field of view changes its size as you move the reader closer or farther away from

the code. The field of view indicated by the aiming system pattern will be smaller

when the Kyman-NET™ Imager is closer to the code and larger when it is farther

from the code.

Symbologies with smaller bars or elements (mil size) should be read closer to the

unit. Symbologies with larger bars or elements (mil size) should be read farther from

the unit. (See par. 5.1 for further details).

3.3.3 RFID Data Capture

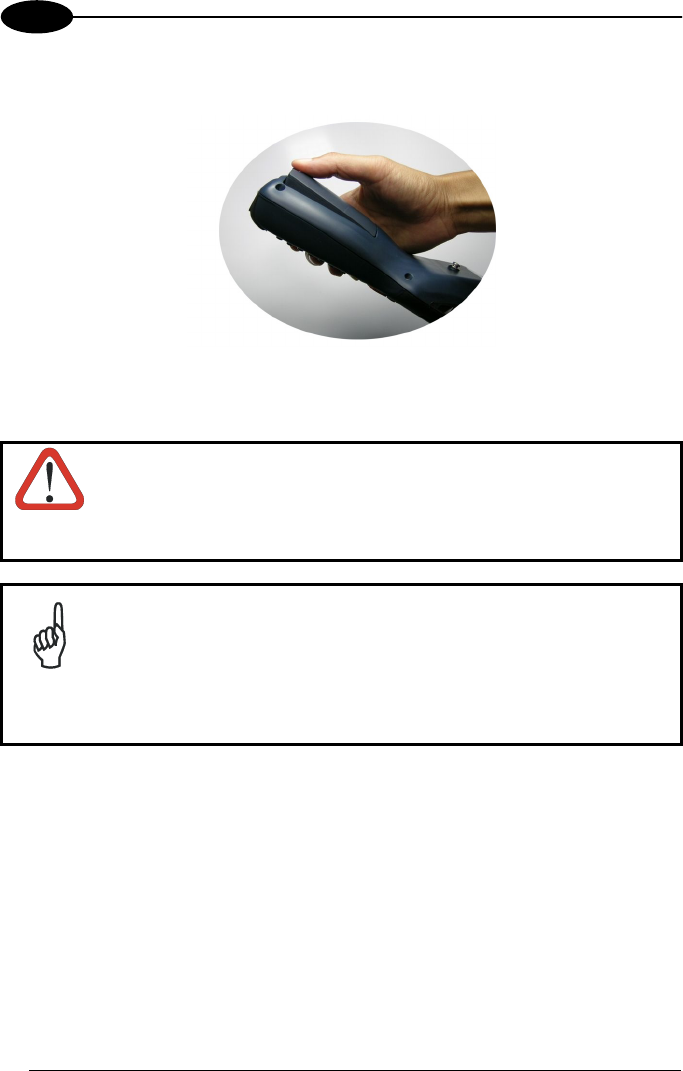

To read or write a tag, place the Kyman-NET™ so that the RFID emission window is

in front of and almost in contact with the tag, then press the SCAN key or the

application defined key.

USE AND FUNCTIONING

3.4 DESCRIPTION OF THE KEYS

The Kyman-NET™ provides two different keyboards, an alphanumeric keyboard and

a numeric keyboard, having a total of respectively 53 and 36 keys.

3.4.1 Alphanumeric Keyboard (53-key Model)

The following image shows the Alhanumeric keyboard.

KYMAN-NET™

Main Keys Function

KEY FUNCTION

It starts data capture.

They let you move forwards, backwards, upwards or

downwards within text fields, scroll through a Menu list or

browse among folder files.

After a yellow modifier key press, they let you scroll the

pages up and down.

After a blue modifier key press, the blue arrows allow

moving forwards or backwards within the Internet

Explorer browser pages.

Yellow modifier: when pressed before a standard key, it

enables the function printed in yellow above the key.

Blue modifier: when pressed before a standard key, it

enables the function printed in blue above the key.

After a yellow modifier key press, subsequent key

presses allow the selection of seldom used characters.

The selected character is entered after a short timeout

or if a different key is pressed.

It powers the Kyman-NET ON or OFF.

After a blue modifier key press, it allows returning to the

Home page.

After a blue modifier key press, it allows ending a page

downloading.

After a blue modifier key press, it performs a page

refresh.

USE AND FUNCTIONING

Special Function Icons

ICON FUNCTION

After a yellow modifier key press, it opens the Start menu.

After a yellow modifier key press, it opens the file manager.

After a yellow modifier key press, it switches ON/OFF the keyboard

backlight.

After a yellow modifier key press, it locks and unlocks the keyboard.

Hardware and Software Reset

By pressing these keys simultaneously, a

system hardware reset is performed.

By pressing these keys simultaneously, a

system software reset is performed.

CAUTION

Before performing a hardware or software reset, it is recommended

to:

- execute a system backup to keep persistent your more

important files and applications. See par. 3.9;

- save the registry to non-volatile memory to guarantee the

persistence of the Windows configuration. See par. 3.7.2.

KYMAN-NET™

3.4.2 Numeric Keyboard (36-key Model)

Main Keys Function

KEY FUNCTION

It starts data capture.

They let you move forwards, backwards, upwards or

downwards within text fields, scroll through a Menu list or

browse among folder files.

USE AND FUNCTIONING

After a yellow modifier key press, they let you scroll the

pages up and down.

After a blue modifier key press, the blue arrows allow

moving forwards or backwards within the Internet

Explorer browser pages.

Yellow modifier: when pressed before a standard key, it

enables the function printed in yellow above the key.

Blue modifier: when pressed before a standard key, it

enables the function printed in blue above the key.

When pressed, it toggles the alphanumeric/numeric

modes.

It locks and unlocks the keyboard.

It opens the Start menu.

It powers the Kyman-NET™ ON or OFF.

After a blue modifier key press, it allows returning to the

Home page.

After a blue modifier key press, it allows ending a page

downloading.

After a blue modifier key press, it performs a page

refresh.

NOTE

Once the Alpha mode has been entered, press the Alpha key again

to exit this mode.

KYMAN-NET™

Keys from 1 to 9 share the following behavior scheme:

A. Function of the key when directly pressed

B. Function of the key when in Alpha mode.

When in Alpha mode press the key until the desired letter is shown.

The letter is entered if you wait for a short timeout or if you press a different

key.

Special Function Icons

ICON FUNCTION

It opens the file manager.

It switches ON/OFF the keyboard backlight.

Hardware and Software Reset

By pressing these keys simultaneously, a system

hardware reset is performed.

By pressing these keys simultaneously, a system

software reset is performed.

CAUTION

Before performing a hardware or software reset, it is recommended

to:

- execute a system backup to keep persistent your more

important files and applications. See par. 3.9;

- save the registry to non-volatile memory to guarantee the

persistence of the Windows configuration. See par. 3.7.2.

USE AND FUNCTIONING

3.5 STATUS INDICATORS

3.5.1 LED Status

The Kyman-NET™ provides three different LEDs signaling the mobile computer

status.

LED STATUS

General Purpose

(left-side)

Green/Red This LED is available to the application

program.

Charging Status and

Battery Low Warning

Green constant It is constant once the charging process

has been completed.

(right side) Red blinking When the mobile computer is powered

by the battery (not by the cradle nor by

the cable), this LED blinks red to signal

that the battery is running down.

Red constant It is constant while charging.

Orange blinking It blinks when a charging error has

occurred, for example when a mobile

computer without battery is connected

to the external power or inserted into a

powered cradle.

Good Read

(middle)

Green It is constant for a configurable time to

signal that a successful read has

occurred.

KYMAN-NET™

3.5.2 Status Bar

The Status Bar provides information about the time, the battery level, the keyboard

function, and the decoding status.

ICONS DESCRIPTION

Time and Battery Icons

It displays the time.

They are representative of five different icons indicating

the battery level. The icon is partially green when the

power left is >20% and partially red colored when the

power left is <20%.

It indicates that the battery is charging.

Keyboard Status Icons

The green segment over any of the following icons icon is lit when the

Capslock is active.

It indicates that the blue FUNC key has been pressed

and is going to affect the next key press.

It indicates that the yellow FUNC key has been pressed

and is going to affect the next key press.

It indicates that the keyboard is in ALPHA mode.

It indicates that the keyboard is in Normal mode.

It indicates that the keyboard is in ALPHA mode and that

the Capslock is active.

It indicates that the keyboard is locked.

Decoding Status Icons

It indicates that the decoder is active (green), not active

(grey).

USE AND FUNCTIONING

3.6 DATA CAPTURE CONFIGURATION

From the Taskbar, tap the "Data Capture" icon to open a drop–down menu. Data

Capture can also be accessed from the Control Panel.

By selecting the Info item from this drop-down menu you can access information

about the Scanner and the Software; the Configure item opens the configuration

applet (Data Capture Configuration Window), while Capture accesses the data

capture applet (Data Capture Window), which enables code reading.

The last menu item (Wedge) enables Wedge Emulation.

3.6.1 Configure

The Configuration applet contains the barcode scanning configuration parameters in

a directory tree structure. The available barcode parameters are divided into two

groups: Reader Parameters and Scan Parameters.

The Reader Parameters depend on the type of scanner module installed on the

mobile computer and allow barcode configuration (i.e. enable/disable Code 39, check

digit control, etc.).

The Scan Parameters are common to all scanner modules and allow control of the

scanning device (i.e. beeper control, LED control, laser timeout, etc.).

Each Data Capture screen window corresponds to a branch of the tree, and the

name of the current branch is displayed at the bottom of each screen window.

KYMAN-NET™

Data Capture Configuration Window

The screen format shows two columns where the left column indicates branches or

parameters. Branches have three dots in the right column (...). You can navigate

through the tree structure using the stylus or keyboard arrows directly on the item

field or from the menu.

Parameters have their corresponding current values in the right column. You can edit

parameter values using the stylus or keyboard arrows directly on the item field or

from the menu. To change a value for example, select the line of the value to be

changed, choose Edit from the Parameter Menu then choose a new value from the

values listed in the box (see following figures).

Selecting Data Capture Setup Parameters

Alternatively using the stylus, you can tap once directly on the value on the right

column; continue tapping until the desired value is reached.

To activate a new configuration select the File ->Save Menu to send the new

configuration to the barcode decoding software and save the new configuration. This

will save the configuration to non-volatile memory preventing loss at the next system

reset.

USE AND FUNCTIONING

Reader Parameters

The barcode reading parameters and values are dependent upon the type of scanner

module mounted in your mobile computer. For a detailed list of parameters and of

their configuration procedures, please refer to the SDK Help file on the CD.

Scan Parameters

The Scan Parameters are common to all scanner modules and allow control of the

scanning device. The Scan parameters are described as follows:

ScanTimeout: the maximum time, in milliseconds, during which the scanner remains

on without decoding any barcode.

BeepType: if set to dual tone, the good read beep is a sequence of high and low

pitch sounds. If set to monotone, the beep is a single pitch sound.

BeepDuration: the time interval, in milliseconds, during which the beeper will sound

when the scanner reads a code. To disable the beeper, set this value to 0.

BeepFrequency: determines the frequency in Hertz of the beeper.

GoodReadSound: is the filename of a .wav file played when the scanner reads a

code.

LedDuration: the length of the good-read led pulse, in milliseconds.

LedPulses: the number of times the good-read led pulse is emitted when the

scanner reads a code.

LedKeypad: determines the keyboard backlight after each good read.

ContinuousMode: disables the effect of the ScanTimeout parameter.

KeyboardEmulation: if enabled all scanned data are transformed into keyboard

events and can therefore be displayed and saved to a file as if input from the PDA

keyboard. If set to “Yes (Clipboard)”, it copies the scanned data to the system

clipboard.

SoftTrigger: when enabled, the laser can be turned on/off by the application

software.

ScanAlwaysOn: enables the scanner for barcode reading independently from the

application software. If set to “Disabled after read”, it disables the reading after a

reading attempt. In case the scan button is accidentally pressed, this selection

prevents the driver from decoding new data while the application is still elaborating

previous data.

NotPrintableChar: if set to “Remove”, all not printable characters included in the

scanned data are deleted and the final barcode will include only printable characters.

KYMAN-NET™

Default Settings

The following tables contain the default values for the major barcode setup

parameters, according to the type of scan engine mounted on the mobile computer.

For a complete list of parameters and of their configuration procedures, please refer

to the SDK Help file on the CD.

SCAN PARAMETERS

Laser Models

(XXX-1XX,

XXX-4XX)

Imager Models

(XXX-7XX)

Laser Extra Long

Range Models

(XXX-6XX)

ScanTimeout 5000 Not available 5000

BeepType Dual tone Dual tone Dual tone

BeepDuration 20 20 20

BeepFrequency 2000 2000 2000

GoodReadSound Beep.wav Beep.wav Beep.wav

LedDuration 200 mS 200 mS 200 mS

LedPulses 1 1 1

LedKeypad Disabled Disabled Disabled

ContinuousMode Disabled Disabled Disabled

KeyboardEmulation Disabled Disabled Disabled

SoftTrigger Enabled Enabled Enabled

ScanAlwaysOn Disabled Disabled Disabled

NotPrintableChar Leave Leave Leave

BARCODE SYMBOLOGY

SPECIFIC READER

PARAMETERS

Laser Models

(XXX-1XX,

XXX-4XX)

Imager

Models

(XXX-7XX)

Laser Extra Long

Range Models

(XXX-6XX)

UPC A Enabled Enabled

UPC E Enabled Enabled

EAN 8 Enabled Enabled

EAN 13 Enabled

Enabled

UPC E1 Disabled

EAN Bookland Disabled

UPC/EAN/JAN Enabled

Code 39 Enabled Enabled Enabled

Code 39 Full ASCII Disabled Disabled Disabled

Code 32 Disabled Disabled

Code 39 Trioptic Disabled

2/5: Interleaved Enabled Enabled Enabled

2/5: Industrial Disabled Disabled

2/5: Matrix Disabled

Code 128 Enabled Enabled Enabled

EAN 128 Enabled Disabled Enabled

ISBT 128 Disabled

Codabar Enabled Enabled Disabled

RSS Disabled

USE AND FUNCTIONING

* In the Imager models these codes may only be enabled or disabled as a group by

the UPC/EAN/JAN family selection (see a few lines below in the same table).

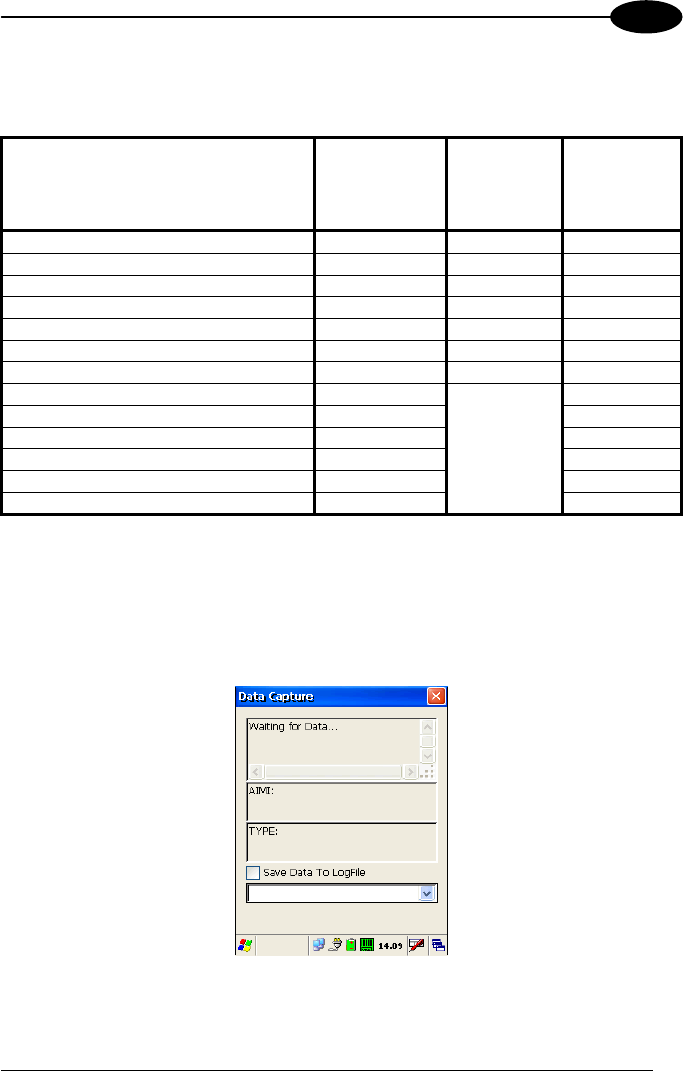

BARCODE SYMBOLOGY

SPECIFIC READER PARAMETERS

Laser Models

(XXX-1XX,

XXX-4XX)

Imager

Models

(XXX-7XX)

Laser Extra

Long Range

Models

(XXX-6XX)

MSI Enabled Disabled

Plessey Disabled

Code 93 Disabled Enabled Disabled

Code 11 Disabled

PDF - 417 Enabled

Data Matrix Enabled

QR Enabled

POSTNET

PLANET

Japan Post

Australia Post

KIX Code

Royal Mail Code (RM4SCC)

Disabled*

* These codes may be enabled individually but are disabled as a group.

3.6.2 Capture

The Data Capture applet (Capture) enables code reading.

Data Capture Window

KYMAN-NET™

Data Capture can also be enabled through the Configuration applet by selecting File

->Scanner from the main menu, or by enabling the parameter Scan Always On in the

Scan Parameters branch.

Enabling the Data Capture

3.7 CONTROL PANEL

From the Desktop, double tap on the "Control Panel" icon to open the Windows CE

.NET control panel main window. The Control Panel can also be launched from Start

->Settings ->Control Panel.

APPLET programs are displayed as icons; one icon corresponds to each APPLET.

Control Panel

USE AND FUNCTIONING

3.7.1 Buttons

The BUTTONS Applet allows assigning desired applications to be launched by the

Act button or one of the function keys (F1, F2, F3, F4).

3.7.2 Registry

The REGISTRY ADMIN applet provides management of Windows CE .NET registry.

Select the REGISTRY ADMIN applet by double tapping the Registry Admin icon.

The Registry Administration Main window appears. Two functions are available:

- Save Registry allows permanently saving the Windows configuration (example:

custom configuration of screen desktop background color, or network adapter

configuration) to non-volatile memory (SAVE button).

- Restore Default Registry allows restoring the initial factory default configuration

(Restore Default button). After restoring the factory default configuration, you

must perform a software reset.

Saving the registry to non-volatile memory guarantees the persistence of the

Windows configuration in case of battery pack replacement.

Registry Administration Window

KYMAN-NET™

3.7.3 Files Admin

The FILES ADMIN applet enables control of the permanence of files in the System

Folder. Two functions are available on the Files Admin Main window by means of two

buttons:

Files Admin Main Window

Save Session: with this button all files will be permanently saved in the \Windows

directory in non-volatile memory. This function guarantees the steady maintenance of

every file produced during the current working session - even of sub-directories and

relevant files - with the exception of the files belonging to the FLASH image.

These current working session files will be backed-up in the \Backup\Windows

directory.

At the next hardware reset, the files previously saved in the \Backup\Windows

directory will be restored to the Windows directory (see par. 3.9).

Safe Setup: with this button, the installation of software programs will be saved to

non-volatile memory (Backup directory). Before doing this, it will be checked that the

Backup directory has enough space to save the files. If the directory space is not

enough, an error message will be shown and the program will exit the Safe Setup

function.

Two activating procedures are available for Safe Setup:

- Select an installation file (for example, a .CAB cabinet file) from the Safe Setup

mask.

USE AND FUNCTIONING

Safe Setup First Mask

Then select \Windows or a relevant sub-directory in the path box. Then, Safe

Setup will recognize the new files and directories present in the \Windows

directory, and will copy them to the \Backup\Windows directory. At the next

hardware reset, these files will be restored (see par. 3.9).

- Simply skip the first mask either by closing it or by pressing the ESC key. When

it closes, a new mask will pop up: it will enable any type of installation (even

remote ones like ActiveSync® installations). Make sure the installation directory

is \Windows or one of its sub-directories. After installation, tap OK: Safe Setup

will save the new files in the \Backup\Windows directory.

Safe Setup Second Mask

KYMAN-NET™

3.7.4 Wireless Communications

The WIRELESS COMMUNICATIONS applet provides management of the Wi-Fi

Card and of the Bluetooth® and GSM/GPRS modules.

Select the WIRELESS COMMUNICATIONS applet by double tapping the Wireless

Communications icon. The following window will appear:

Wireless Communications Window

NOTE

In order to avoid wasting power, all modules are off by default.

USE AND FUNCTIONING

3.7.5 Volume Settings

The Volume Settings applet allows managing the audio features and appears as

follows:

Volume Settings Window

The window is divided into three tabs:

- Output tab: allows setting the volume for each audio profile;

- Input tab: allows setting the microphone recording volume;

- Cradle tab: allows selecting the cradle type and managing the vehicle cradle

headset functioning.

The Status bar always displays the current audio profile, which is activated

automatically (by the device) or manually (by the user). Available profiles are:

- Speaker: it is the typical profile reproducing audio through the mobile computer

speaker;

- Cradle: it is automatically activated as soon as the mobile computer is inserted

into the vehicle cradle. Audio is reproduced by the vehicle cradle loudspeaker.

- Headset: it is automatically activated as soon as a headset is directly connected

to the mobile computer. In case the device is inserted into the vehicle cradle and the

headset is connected to the cradle, this profile must be manually activated through

the dedicated button (refer to “Cradle Tab” paragraph). When this profile is active,

the speaker does not work;

- GSM: it is automatically activated each time a phone-call is started. It is not

available when using the cradle loudspeaker (in this case

Current Profile = Cradle).

KYMAN-NET™

Output Tab

It allows setting the volume for each audio profile:

The “Master Volume” slider allows setting

the volume used by all audio profiles. In

addition, it is possible to attenuate the

volume for each single profile through the

dedicated slider.

Input Tab

It allows setting the microphone recording volume:

The “Record Gain” slider allows setting

the recording volume, while the “Enable

Preamplifier” check box enables/disables

the preamplifier (this option is not

selectable when Current Profile = Cradle

or GSM).

Cradle Tab

It allows selecting the cradle type and managing the vehicle cradle headset

functioning:

USE AND FUNCTIONING

Two radio buttons allow selecting the type of cradle to be used.

Check the “Cradle desk, AC plug or none” radio button, if using a cradle different

from the vehicle cradle or an AC adapter plug.

If using a vehicle cradle, check the related radio button.

NOTE

By inserting the mobile computer into the cradle when the “Cradle

vehicle” radio button is checked, the mobile computer speaker is

deactivated and audio will be reproduced through the vehicle cradle

speaker or headset.

By selecting the “Cradle Vehicle” check box, a further button will appear allowing to

enable the headset profile when using the vehicle cradle. If pressed, the button

displays the headset icon in gray until the device is inserted into the vehicle cradle.

Once inserted, the headset icon turns to green and the device activates the headset

profile (refer to the following figures). Actually, the headset is ready to reproduce

audio as soon as it is connected to the cradle jack:

WARNING

Do not use the vehicle cradle headset if the headset button is

disabled, since it may cause hearing damage.

KYMAN-NET™

3.8 WINDOWS CONNECTIONS

From the Desktop, double tap on the "Connections" folder to open the following

window:

Windows Connections

3.8.1 Microsoft® ActiveSync®

Microsoft® ActiveSync® gives you the possibility to connect your desktop computer to

your Kyman-NET™ and synchronize the information on them. Synchronization

compares the data on the Kyman-NET™ with that on the desktop computer and

updates both computers with the most recent information.

With ActiveSync®, it is possible to:

- Back up and restore Kyman-NET™ data.

- Copy files between Kyman-NET™ and desktop computer.

- Synchronize files by selecting a synchronization mode.

It is possible to constantly synchronize while connected to a desktop computer or,

alternatively, synchronization can be performed only when the synchronize command

is chosen. You can select which information types are synchronized and control how

much data is synchronized.

NOTE

By default, ActiveSync® does not automatically synchronize all types

of information. Use ActiveSync® options to turn synchronization on

and off for specific information types.

USE AND FUNCTIONING

For example:

Synchronize Microsoft Word and Microsoft Excel files between the Kyman-NET™

and the desktop computer. The files will automatically be converted to the correct

format.

You can establish a connection by Serial cable, by USB cable or by network.

Moreover, if you have a Kyman-NET™ Single Cradle Desk you can connect your

Kyman-NET™ putting it into the cradle and using a standard A-B USB cable or a

standard Serial null modem cable.

NOTE

Visit the following Microsoft Web site for the latest in updates, technical

information, and samples:

http://www.microsoft.com/windowsmobile/resources/downloads

ActiveSync® Remote

After a Partnership between mobile computer and desktop computer is established, it

is also possible to establish a remote connection via Wireless LAN: disconnect the

actual connection via ActiveSync® by double tapping the ActiveSync® connection

icon on the taskbar and press Disconnect, then go to the

\Windows\Desktop\Connection folder and double tap the ActiveSync® remote icon. In

the dialog box that will appear it will be possible to choose a method to connect to the

desktop computer. Choose Network Connection and press the Connect button:

NOTE

To set up your network connection you have to correctly set up your

wireless connection. These settings depend on the wireless card that

you have installed on your Kyman-NET™ and on your wireless

network settings. For more information about these settings contact

your network administrator.

KYMAN-NET™

3.8.2 Bluetooth® Manager Device Setup

In order to enable a Bluetooth® device for communication with the Kyman-NET™ you

must perform the discovery procedure and enable the device as follows:

1. Place the Bluetooth® device within the range of the Kyman-NET™ (10 meters).

2. From the “Connections” folder double tap on the “Bluetooth” applet to open the

Bluetooth® Manager Device window:

3. Tap on the “Me” button to enter the related window; then, tap on the “ON” button

to activate the Bluetooth® module. The module activation may be also performed

by using the WIRELESS COMMUNICATION applet as described in par. 3.7.4.

By tapping on the “HW Details” and “SW Details” buttons, information about the

mobile computer Bluetooth® hardware and software will be displayed, while the

USE AND FUNCTIONING

“Enable Encryption” button starts encryption of the Bluetooth® communication

data. If tapping on the “Close” button the Bluetooth® Manager Device window will

be closed.

4. Tap on the “Discovery” button to enter the related window; then, tap on the

“Scan” button to run the Discovery procedure:

Once the Discovery procedure has been completed, select the desired

Bluetooth® device from the list. It is also possible to digit (12 hexadecimal digits)

the Bluetooth® address of the desired device by tapping on the “Add” button. The

“Clear” button deletes all discovered devices from the list.

5. Once the desired Bluetooth® device has been selected, tap on the “Connection

Wizard” button to enter the related window where selecting the connection type

to be used for communication with the Bluetooth® device:

The “Serial Port” button starts communication through the Bluetooth® serial port

COM 5 (typically used for connection with GPS devices).

KYMAN-NET™

The “Printer” button starts communication with a printer through the Bluetooth®

serial port COM 5.

The “Kbd Emulation” button allows connection with a barcode reader using the

keyboard emulation.

The “ActiveSync” button starts communication with a PC equipped with a

Bluetooth® antenna and the related ActiveSync.

6. Hide the Bluetooth® Manager Device window by tapping on the icon

available on each window or close it through the “Close” button available in the

“Me” window (see step 3 of this procedure).

USE AND FUNCTIONING

3.9 BACKUP DIRECTORY FILE MANAGEMENT

All of the Windows CE .NET system files reside in RAM (volatile memory) except for

the Backup directory, which resides in FLASH (non-volatile memory). Therefore the

contents of the Backup directory are persistent even if the mobile computer is re-

booted or the battery pack is changed.

You can save your more important files that you don't want to lose due to mobile

computer re-boot, in the Backup directory or create a sub-directory within Backup.

Even though the Windows Directory resides in RAM, it often contains files or sub-

directories created by the user or by installation programs that you don't want to lose

at re-boot. To keep these files persistent it is necessary to copy them to the directory

\Backup\Windows. This directory doesn't exist originally (only Backup exists), and

therefore it must be created. At the next hardware reset, before activating the shell,

Windows CE .NET will copy the contents including all sub-directories of

\Backup\Windows to \Windows.

Likewise, to maintain files that must be run at Windows CE .NET startup, (i.e. .exe,

.lnk, .vb, .htm, etc.), it is necessary to copy them to the directory \Backup\Startup.

This directory does not exist originally (only Backup exists), and therefore it must be

created. The application programs will be run after any type of re-boot (both software

and hardware reset).

As an alternative to the Safe Setup function, it is possible to copy the .cab files to the

directory \Backup\Cabfiles (the Cabfiles sub-directory doesn't exists originally and

must therefore be created) and perform a mobile computer cold boot to have the

application installed. Once these files are copied to the directory \Backup\Cabfiles,

the application will be run after each re-boot.

From the second cold boot on, a message may be displayed such as "<application

name> is already installed. Re-install?". This message blocks the boot process.

Press the [Enter] key to continue the system initialization.

KYMAN-NET™

4 MAINTENANCE

NOTE

Rechargeable battery packs are not initially charged. Therefore the

first operation to perform is to charge them. See below.

4.1 CHARGING THE BATTERY PACK

The battery pack autonomy varies according to factors, such as the frequency of

barcode scanning, RF usage, etc.

When the battery pack is low, the LED positioned at the right side of the display

blinks orange.

It is possible to recharge the battery pack by using the FPS-18 AC/DC external

power supply directly connected to the Kyman-NET™, see par. 2.1.1.

Alternatively, it is also possible to recharge the battery pack by using the

Kyman-NET™ Single Cradle Desk or the Kyman-NET™ Vehicle Cradle.

During the charging process the LED positioned at the right side of the display is red

constant. Once the charging process has been completed this LED is green constant

(see par. 3.5).

If the battery pack is removed from the mobile computer, it can be recharged by

inserting it into the Kyman-NET™ Multi-Battery Pack Charger.

CAUTION

If the battery pack is new or has not been recharged for a long time,

it is necessary to perform two or three charging and discharging

cycles (complete use) before it can reach its maximum charge

capability.

The maximum time required to recharge a completely run-down

battery pack is about 3 hours if the mobile computer is idling.

MAINTENANCE

4.2 REPLACING THE BATTERY PACK

To correctly replace the battery pack, proceed as follows.

1. Turn off the Kyman-NET™.

2. Pull the battery latch down as indicated in the figure below.

3. Remove the battery pack.

Battery Contacts

KYMAN-NET™

4. To correctly insert the new battery pack, first insert the bottom and then the

upper part of the battery pack into the slot as indicated in the following figure:

5. Press it back until the battery latch is automatically closed.

WARNING

Do not incinerate, disassemble, short terminals or expose to

high temperature. Risk of fire, explosion. Use specified charger

only. Risk of explosion if the battery is replaced by an

incorrect type. Dispose of the batteries as required by the

relevant laws in force.

NOTE

In order to guarantee an adequate operating autonomy, when

replacing the battery pack the mobile computer checks the battery

energy level. If the battery is not sufficiently charged, Kyman-NET™

does not turn on (when pressing the ON button).

In this case, either substitute the battery pack with a charged one

(sufficiently charged) or insert Kyman-NET™ into a powered cradle

or plug it into the direct power supply.

MAINTENANCE

4.3 COMPACT FLASH AND SECURE STORAGE CARDS

The Kyman-NET™ supports both Compact Flash and Mini Secure Digital storage

cards.

The Mini Secure Digital storage card slot accepts Mini storage cards only, while the

CompactFlash card slot accepts either a storage card or the 802.11b radio card.

To install a Compact Flash or a Mini Secure Digital storage card, it is recommended

to contact a Datalogic representative for technical assistance since to access both

cards slots it is necessary to open the mobile computer by removing its screws and

causes warranty loss.

CAUTION

Opening the Kyman-NET™ may damage internal components.

4.4 CLEANING THE MOBILE COMPUTER

Periodically clean the Kyman-NET™ with a slightly dampened cloth.

Do not use alcohol, corrosive products or solvents.

KYMAN-NET™

5 TECHNICAL FEATURES

5.1 TECHNICAL DATA

Kyman-NET™ Common Features

Electrical Features

Power

DC supply 14 V ± 5%

Battery pack 2 cell Li-Ion 2200 mAh@ 7.4 V (nominal)

Internal backup battery Rechargeable Li-Ion 30 mAh

Communication Features Windows CE.NET COM Port

Serial interface RS232

USB 1.1

COM1

COM6

Wireless Features

WLAN IEEE 802.11b DSSS

WPAN Bluetooth® IEEE 802.15

WWAN GSM/GPRS Tri-band (900, 1800, 1900 MHz)

Radio with accessible SIM card interface

Environmental Features

Working temperature* -20° to + 50 °C / -4° to +122 °F

Storage temperature -20° to +70 °C / -4° to +158 °F

Humidity 90% non condensing for temperatures<40°C

Protection IP64

ESD protection 4 KV contact discharge, 8 KV air discharge

Drop resistance 1.5 m / 5 ft

Hardware Features

FLASH 64 MB

RAM 64 MB

Microprocessor Intel XScale PXA 255 400 MHz

Audio Speaker, Microphone, Buzzer

LED Two-color Programmable LED

Charging Status (two-color LED)

Good Read LED

Display 64K Color TFT LCD with 320 x 240 pixel resolution,

with LED backlight and touch screen

Keyboard 53 or 36 Plastic Top Backlit Keys

Mechanical Features

Dimensions (LxWxH) 24 x 9.2 x 5.5 cm / 9.4 x 3.6 x 2.2 in

Weight (depending on model) 540 - 570 g / 19.0 - 20.1 oz (incl. battery)

* Batteries must be charged at a temperature ranging from 0° to +45 °C (+32° to +113 °F).

TECHNICAL FEATURES

Programming Features

Operating system Windows CE .NET 4.2

Laser Models (XXX-1XX)

Decoded barcodes 1D UPC A, UPC E, EAN 8, EAN 13, Code 39, Code 39

Full ASCII, Code 32, Interleaved 2 of 5, Industrial 2 of

5, Matrix 2 of 5, Code 128, EAN 128, Codabar, MSI,

Plessey, Code 93, Code 11

Imager Models (XXX-7XX)

Decoded barcodes 1D UPC A, UPC E, EAN 8, EAN 13, UPC/EAN/JAN,

Interleaved 2 of 5, Code 39, Code 39 Full ASCII,

Codabar, Code 128, EAN 128, Code 93, RSS

Decoded barcodes 2D PDF417, DataMatrix, QR, MacroPDF

Postal codes POSTNET, PLANET, Japan Post, Australia Post, KIX

Code, Royal Mail Code (RM4SCC)

Laser Extra Long Range Models (XXX-6XX)

Decoded barcodes 1D UPC A, UPC E, UPC E1, EAN 8, EAN 13, Code 128,

EAN 128, Code 39, Code 39 Full ASCII, Code 32,

Code 93, Interleaved 2 of 5, discrete 2 of 5, Codabar,

MSI, RSS

RFID Models (XXX-X2X)

Philips Mifare Classic 1k (block mode only), Philips

Mifare Classic 4k (block mode only), Philips Mifare

Ultralight (block mode only), Philips I-Code Sli

ISO15693, Texas Tag-It ISO15693, Infineon

ISO15693

Laser Miniature+RFID Models (XXX-42X)

UPC A, UPC E, EAN 8, EAN 13, Code 39, Code 39

Full ASCII, Code 32, Interleaved 2 of 5, Industrial 2 of

5, Matrix 2 of 5, Code 128, EAN 128, Codabar, MSI,

Plessey, Code 93, Code 11

Philips Mifare Classic 1k (block mode only), Philips

Mifare Classic 4k (block mode only), Philips Mifare

Ultralight (block mode only), Philips I-Code Sli

ISO15693, Texas Tag-It ISO15693, Infineon

ISO15693

KYMAN-NET™

Kyman-NET™ Laser Optical Features

Laser Optical Features

Kyman-NET™

XXX-1XX Models

Kyman-NET™

XXX-4XX Models

Kyman-NET™

XXX-6XX Models

Maximum resolution 0.13 mm / 5 mils 0.13 mm / 5 mils 0.2 mm / 7.5 mils

Skew angle ± 55° ± 65° ± 60°

Pitch angle ± 65° ± 55 ± 65°

Scan rate - horizontal 35 ± 5 scan/sec 50 ± 6 scan/sec 40 ± 6 scan/sec

Depth of field See reading diagrams on the next page

Light source laser

scanner

VLD, wavelength 630~680 nm

Safety class Class II EN 60825-1/CDHR

Kyman-NET™ Imager Optical Features (XXX-7XX models)

Imager Optical Features

Max. resolution

1D Codes 0.10 mm / 4 mils

2D Codes 0.17 mm / 6.6 mils

Skew angle ± 40 °

Pitch angle ± 35°

Depth of field*

1D (linear): X-dimension

mm (mils)

Symbol size

cm (in)

DOF

cm (in)

Code39 0.13 (5) 1.2 (0.47) 8.0 to 15.0 (3.15 to 5.90)

0.50 (20) 3.2 (1.26) 8.0 to 33.0 (3.15 to 12.99)

EAN13 0.33 (13) 3.1 (1.22) 7.5 to 24.5 (2.95 to 9.65)

2D: X-dimension

mm (mils)

Symbol size

cm (in)

DOF

cm (in)

POSTNET 0.5 (20) 4.0 x 0.4 (1.57 x 0.16) 11.5 to 30.0 (4.53 to 11.81)

PDF417 0.13 (5) 1.1 x 0.9 (0.43 x 0.35) 8.5 to 15.5 (3.35 to 6.10)

0.17 (6.6) 1.4 x 1.2 (0.55 x 0.47) 7.0 to 19.0 (2.76 to 7.48)

0.25 (10) 2.2 x 1.8 (0.86 x 0.71) 4.5 to 24.0 (1.77 to 9.45)

QR 0.25 (10) 0.7 x 0.7 (0.28 x 0.28) 7.0 to 15.5 (2.76 to 6.10)

0.38 (15) 1.1 x 1.1 (0.43 x 0.43) 4.5 to 21.0 (1.77 to 8.27)

TECHNICAL FEATURES

Imager Optical Features

DataMatrix 0.19 (7.5) 0.8 x 0.8 (0.31 x0.31) 9.0 to 13.0 (3.54 to 5.12)

0.25 (10) 0.8 x 0.8 (0.31 x 0.31) 7.5 to 16.5 (2.95 to 6.50)

0.38 (15) 1.0 x 1.0 (0.39 x 0.39) 6.0 to 22.0 (2.36 to 8.66)

Sensor 640 x 480 pixel element, 2D CMOS array

Illuminator LED array

Wavelength 630~670 nm

LED Safety

class

Class 1 to EN 60825-1

Aiming System Visible Laser Diode

Wavelength 650 nm

Laser Safety

class

Class 2 EN 60825-1; Class II CDHR

*Reading distances are measured from the nose of the reader.

KYMAN-NET™

5.2 READING DIAGRAMS

Kyman-NET™ HP Laser (XXX-1XX models)

Reading Zones (10° skew angle)

100 200 400

200

100

200

300 500 600 700 800 mm

300

1.00 mm

(40 mils)

0.13 mm

(5 mils)

0.19 mm

(7.5 mils)

0.25 mm

(10 mils)

EAN

0.33 mm

(13 mils)

0.38 mm

(15 mils)

0.50 mm

(20 mils)

Kyman-NET™ RFID +Laser (XXX-4XX models)

100 200 400

200

100

200

300 500 600 mm

Reading Zones (10° skew angle)

300

0.13 mm

(5 mils)

0.19 mm

(7.5 mils)0.25 mm

(10 mils)

0.38 mm

(15 mils)

0.50 mm

(20 mils)

1.00 mm

(40 mils)

on Code 39

TECHNICAL FEATURES

Kyman-NET™ XLR (XXX-6XX models)

20 60 100 300 340

120

220 260

0.50 mm (20 mils)

1 mm

(40 mils)

380 cm

Reading Zones (10° skew angle)

140 180

KYMAN-NET™

6 TEST CODES

High Density Codes

0.25 mm (10 mils)

Code 39

!17162H!

17162

2/5 Interleaved

Ë"8NduÌ

0123456784

Code 128

ÌtestwÎ

test

80%

EAN 13 x(0B2DE5*KKKKLM(

80%

EAN 8 (6450*TRMN(

TEST CODES

Medium Density Codes

0.38 mm (15 mils)

Code 39

!17162H!

17162

Interleaved 2/5

Ë"8

NduÌ

0123456784

Code 128

ÌtestwÎ

test

100%

EAN 13 x(0B2DE5*KKKKLM(

100%

EAN 8 (6450*TRMN(

KYMAN-NET™

Low Density Codes

0.50 mm (20 mils)

Code 39

!17162H!

17162

Interleaved 2/5

Ë"8NduÌ

0123456784

Code 128

ÌtestwÎ

test

120%

EAN 13 x(0B2DE5*KKKKLM(

120%

EAN 8 (6450*TRMN(

GLOSSARY

Access Point

A device that provides transparent access between Ethernet wired networks and

IEEE 802.11 interoperable radio-equipped mobile units. Hand-held mobile

computers, PDAs or other devices equipped with radio cards, communicate with

wired networks using Access Points (AP). The mobile unit (mobile computer) may

roam among the APs in the same subnet while maintaining a continuous, seamless

connection to the wired network.

Barcode

A pattern of variable-width bars and spaces which represents numeric or

alphanumeric data in binary form. The general format of a barcode symbol consists

of a leading margin, start character, data or message character, check character (if

any), stop character, and trailing margin. Within this framework, each recognizable

symbology uses its own unique format.

Baud Rate

A measure for data transmission speed.

Bit

Binary digit. One bit is the basic unit of binary information. Generally, eight

consecutive bits compose one byte of data. The pattern of 0 and 1 values within the

byte determines its meaning.

Bluetooth®

A standard radio technology using a proprietary protocol. The onboard Bluetooth

module in the mobile computer is compatible with the 1.1 protocol.

Byte

On an addressable boundary, eight adjacent binary digits (0 and 1) combined in a

pattern to represent a specific character or numeric value. Bits are numbered from

the right, 0 through 7, with bit 0 the low-order bit. One byte in memory can be used to

store one ASCII character.

Decode

To recognize a bar code symbology (e.g., Codabar, Code 128, Code 3 of 9,

UPC/EAN, etc.) and analyze the content of the bar code scanned.

EEPROM

Electrically Erasable Programmable Read-Only Memory. An on-board non-volatile

memory chip.

Flash Disk

Non-volatile memory for storing application and configuration files.

GPRS

General Packet Radio Service. GPRS is a wireless packet-based communication

service based on GSM. Its data transfer is rated between 56 Kbps to 114 Kbps. It

makes very efficient use of available radio spectrum, and users pay only for the

volume of data sent and received.

GSM

Global System for Mobile communication. It is a standard for digital cellular

communications, currently used in the 900 MHz and 1800 MHz bands.

Host

A computer that serves other mobile computers in a network, providing services such

as network control, database access, special programs, supervisory programs, or

programming languages.

Liquid Crystal Display (LCD)

A display that uses liquid crystal sealed between two glass plates. The crystals are

excited by precise electrical charges, causing them to reflect light outside according

to their bias. They use little electricity and react relatively quickly. They require

external light to reflect their information to the user.

Light Emitting Diode (LED)

A low power electronic light source commonly used as an indicator light. It uses less

power than an incandescent light bulb but more than a Liquid Crystal Display (LCD).

RAM

Random Access Memory. Data in RAM can be accessed in random order, and

quickly written and read.

Radio Frequency

RFID (Radio frequency identification)

A technology that incorporates the use of electromagnetic or electrostatic coupling in

the radio frequency (RF) portion of the electromagnetic spectrum to uniquely identify

an object, animal, or person. RFID is coming into increasing use in industry as an

alternative to the barcode identification.

RTC

Real Time Clock.

INDEX

Accessories; 5

Alphanumeric Keyboard; 19

Available Models; 2

Backup Directory File Management;

Bluetooth® Manager Device Setup;

Buttons; 33

Charging the Batteries; 46

Cleaning the Mobile Computer; 49

Connection Cables; 12

RS232 Direct Connection; 12

RS232 Power Connection; 13

USB Direct Connection; 12

USB Power Connection; 13

Connections; 6

RS232/USB Direct Connection; 6

WLAN Connection; 7

WPAN Connections; 8

WWAN Connections; 9

Control Panel; 32

Conventions; vii

Data Capture; 16

Imager Data Capture; 17

Laser Data Capture; 16

RFID Data Capture; 18

Data Capture Configuration; 27

Default Settings; 30

Description of the Keys; 19

End User License Agreement; v

Files Admin; 34

General View; xv

Glossary; 59

Kyman-NET™ Description; 1

Maintenance; 46

Microsoft® ActiveSync®; 40

Numeric Keyboard; 22

Package Contents; 2

Reader Parameters; 29

Reading Diagrams; 54

Reference Documentation; vii

References; vii

Registry; 33

Replacing the Batteries; 47

Safe Setup; 34

Safety Regulations; viii

Laser Safety; ix

Radio Compliance; xiii

Save Session; 34

Scan Parameters; 29

Services and Support; vii

SIM Card; 10

Startup; 14

Status Indicators; 25

Technical Features; 50

Test Codes; 56

Using the Stylus; 15

Vocal Communication; 37

Volume Settings; 37

Wireless Communication; 36

DATALOGIC S.p.A.,

Via Candini, 2

40012 - Lippo di Calderara

Bologna - Italy

dichiara che

declares that the

déclare que le

bescheinigt, daß das Gerät

declare que el

Kyman-NET XXX-XXX

e tutti i suoi modelli

and all its models

et tous ses modèles

und seine Modelle

y todos sus modelos

sono conformi alla Direttiva del Consiglio Europeo sottoelencata:

are in conformity with the requirements of the European Council Directive listed below:

sont conformes aux spécifications de la Directive de l'Union Européenne ci-dessous:

der nachstehenden angeführten Direktive des Europäischen Rats entsprechen:

cumple con los requisitos de la Directiva del Consejo Europeo, según la lista siguiente:

1999/5/EEC R&TTE

Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti:

This declaration is based upon compliance of the products to the following standards:

Cette déclaration repose sur la conformité des produits aux normes suivantes:

Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht:

Esta declaración se basa en el cumplimiento de los productos con las siguientes normas:

ETSI EN 301 489-17 v1.2.1, August 2002: ELECTROMAGNETIC COMPATIBILITY AND RADIO SPECTRUM MATTERS (ERM);

ELECTROMAGNETIC COMPATIBILTY (EMC) STANDARD FOR RADIO EQUIPMENT

AND SERVICES; PART 17: SPECIFIC CONDITIONS FOR 2,4 GHZ WIDEBAND

TRANSMISSION SYSTEMS AND 5 GHZ HIGH PERFORMANCE RLAN EQUIPMENT

ETSI EN 300 328 v1.6.1, November 2004: ELECTROMAGNETIC COMPATIBILITY AND RADIO SPECTRUM MATTERS (ERM);

WIDEBAND TRANSMISSION SYSTEMS; DATA TRANSMISSION EQUIPMENT

OPERATING IN THE 2,4 GHZ ISM BAND AND USING WIDE BAND MODULATION

TECHNIQUES; HARMONIZED EN COVERING ESSENTIAL REQUIREMENTS UNDER

ARTICLE 3.2 OF THE R&TTE DIRECTIVE

EN 60950-1, December 2001: INFORMATION TECHNOLOGY EQUIPMENT – SAFETY –

PART 1: GENERAL REQUIREMENTS

Lippo di Calderara, 08/09/2005

Ruggero Cacioppo

Quality Assurance Laboratory Manager
